This document details a technical lifting operation at Laem Chabang Port, Thailand, involving the loading of six train carriages to be transported to BTS headquarters in Bangkok. The process utilized reach stackers and hydraulic trailers, with careful securing of the carriages for safe transit. The operation is part of the logistics for the Bangkok Mass Transit System, also known as the BTS or Skytrain.

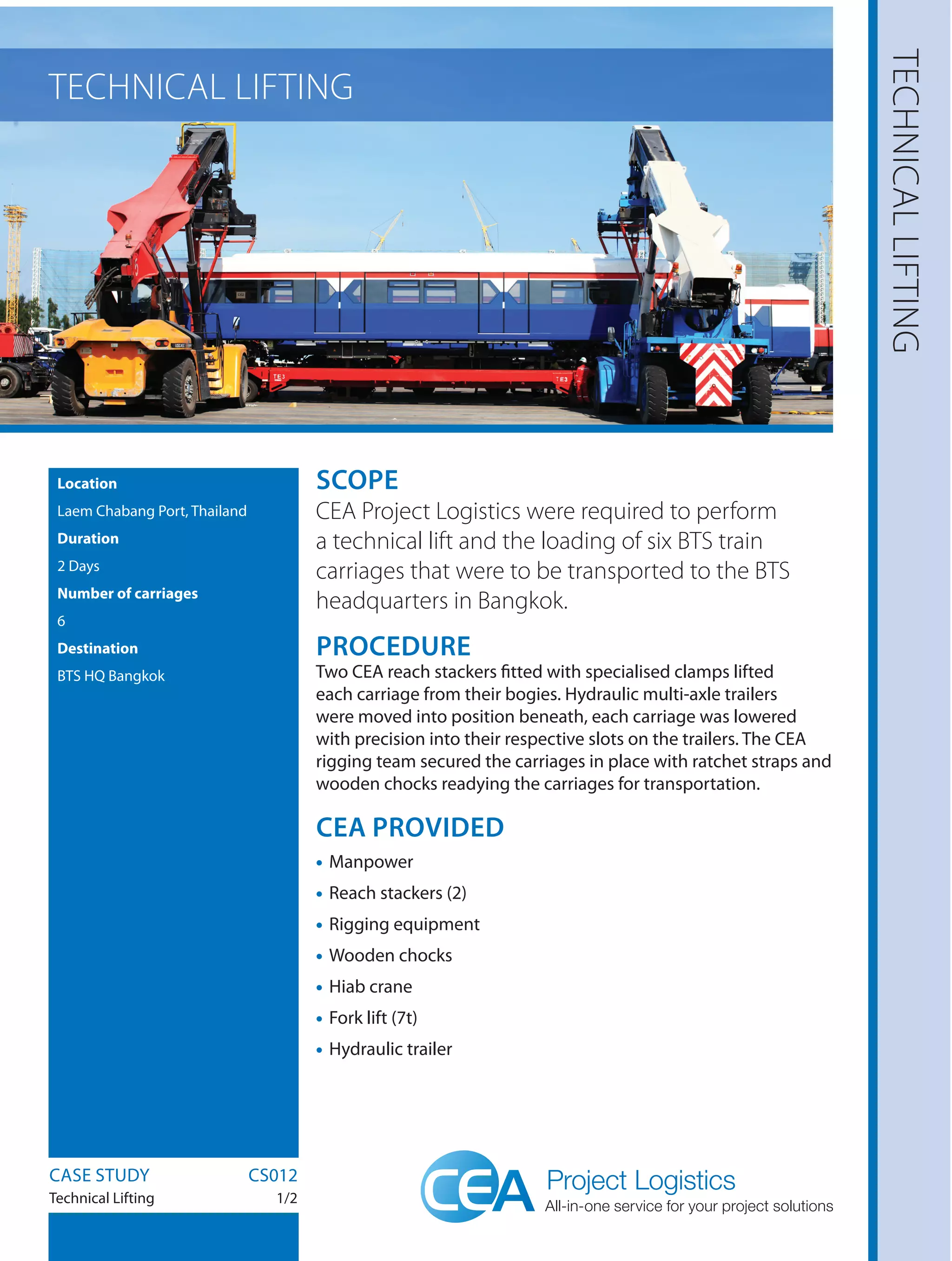

1. TECHNICALLIFTING
Location
Laem Chabang Port, Thailand
Duration
2 Days
Number of carriages
6
Destination
BTS HQ Bangkok
SCOPE
CEA Project Logistics were required to perform
a technical lift and the loading of six BTS train
carriages that were to be transported to the BTS
headquarters in Bangkok.
PROCEDURE
Two CEA reach stackers fitted with specialised clamps lifted
each carriage from their bogies. Hydraulic multi-axle trailers
were moved into position beneath, each carriage was lowered
with precision into their respective slots on the trailers. The CEA
rigging team secured the carriages in place with ratchet straps and
wooden chocks readying the carriages for transportation.
CEA PROVIDED
• Manpower
• Reach stackers (2)
• Rigging equipment
• Wooden chocks
• Hiab crane
• Fork lift (7t)
• Hydraulic trailer
CASE STUDY CS012
Technical Lifting 1/2
TECHNICAL LIFTING

2. CEA PROJECT LOGISTICS
41/13 M1 AO-UDOM ROAD
TUNGSUNGKHLA
SRI RACHA
CHONBURI 20230
THAILAND
+66 38 354 019
www.ceaprojects.com
TECHNICALLIFTING
CASE STUDY CS012
Technical Lifting 2/2
CARRIAGES ON THEIR BOGIES
ALL PARTS OF THE LIFT CLOSELY MONITORED
CARRIAGE LIFTED FROM ITS BOGIE
SPECIALISED LIFTING CLAMPS ATTACHEDCARRIAGE BEING MOVED INTO POSITION
CARRIAGES SECURED WITH RATCHET STRAPSSPECIALLY ADAPTED TRAILERS USED
READY FOR TRANSPORTATION TO BANGKOKFINAL CHECKS BEING MADE
BTS CARRRIAGE IN SERVICE IN BANGKOK
The Bangkok Mass Transit System, commonly known
as the BTS or the Skytrain, is an elevated rapid transit
system in Bangkok, Thailand.
PRECISION LIFTING POINTS
