Technical Data Sheet

This document provides specifications for multiple models of 3-phase diesel generators from DAEJINGENERATORSYSTEMS. For each model (DJG-020 through DJG-130), it lists the generator's weight, dimensions, power ratings at 60Hz and 50Hz, engine details including the manufacturer and model, and general specifications. It also provides contact information for the manufacturer's head office and factory.

Embed presentation

Downloaded 25 times
DAEJINGENERATORSYSTEMS Model : DJG-020 3-Phase Diesel Open type Generator Set Weight, kg (lb.) Dry Length, mm (in.) Width, mm (in.) Height, mm (in.) 940 (2,072) 1,700 (66.93) 730 (28.74) 1,050 (41.33) 1,650 (3,637) 1,900 (74.80) 850 (33.46) 1,300 (51.18) Stand by: kW kVA PS Prime: kW kVA PS 60Hz 20 25 28 17 23 25 50Hz 17 21 23 14 18 21 Generator Weights and Dimensions Possession Certificate L W H Sound proof type Generator Set Weight, kg (lb.) Dry Length, mm (in.) Width, mm (in.) Height, mm (in.) L W H Application Data Engine Engine Specifications Manufacturer Model No. Aspiration Number of cylinders Bore x stroke, mm Compression ratio Firing order Fuel injection pump Air Cleaner Fuel filter Lubrication oil filter Alternator Starting motor Fuel consumption(lit/hr, Prime) 60 Hz 50 Hz HYUNDAI D4BB Natural aspiration 4 - In line 91.1mm x 100mm 22:1 1-3-4-2 Bosch VE type Cyclone filter paper type Paper element type Paper element (cartridge) type 12V - 65A 12V - 2.2kW 3.2 General specification Temperature : - 15oC ~ 40oC Critical altitude : below 1,500meters above the sea Relative humidity : 85% Diesel engine set mounted on steel base frame Control panel is loaded Radiator is equipped KS A/ISO 9001 KS A/ISO 14001 Innovation business (KOREA) Registration Number 046 EMS KAB Communaut' Europeen ὤ㍔䜵㐔䝉㩅㋀ὤ㛹 Generator Ratings Range KSA/ISO9001 KSA/ISO14001 Registration Number 046 EMS KAB Communaut' Europeen Head Office #141, DoRim-Dong, YoungDungPo-Gu, Seoul-City, Korea Tel. +82 2 833 4646 Fax. +82 2 848 3254 Factory #512-4, MunHyung-Ri, OPo-Up, KwangJu-City, KyungKi-Do, Korea Tel. +82 31 767 0043 Fax. +82 31 767 0887

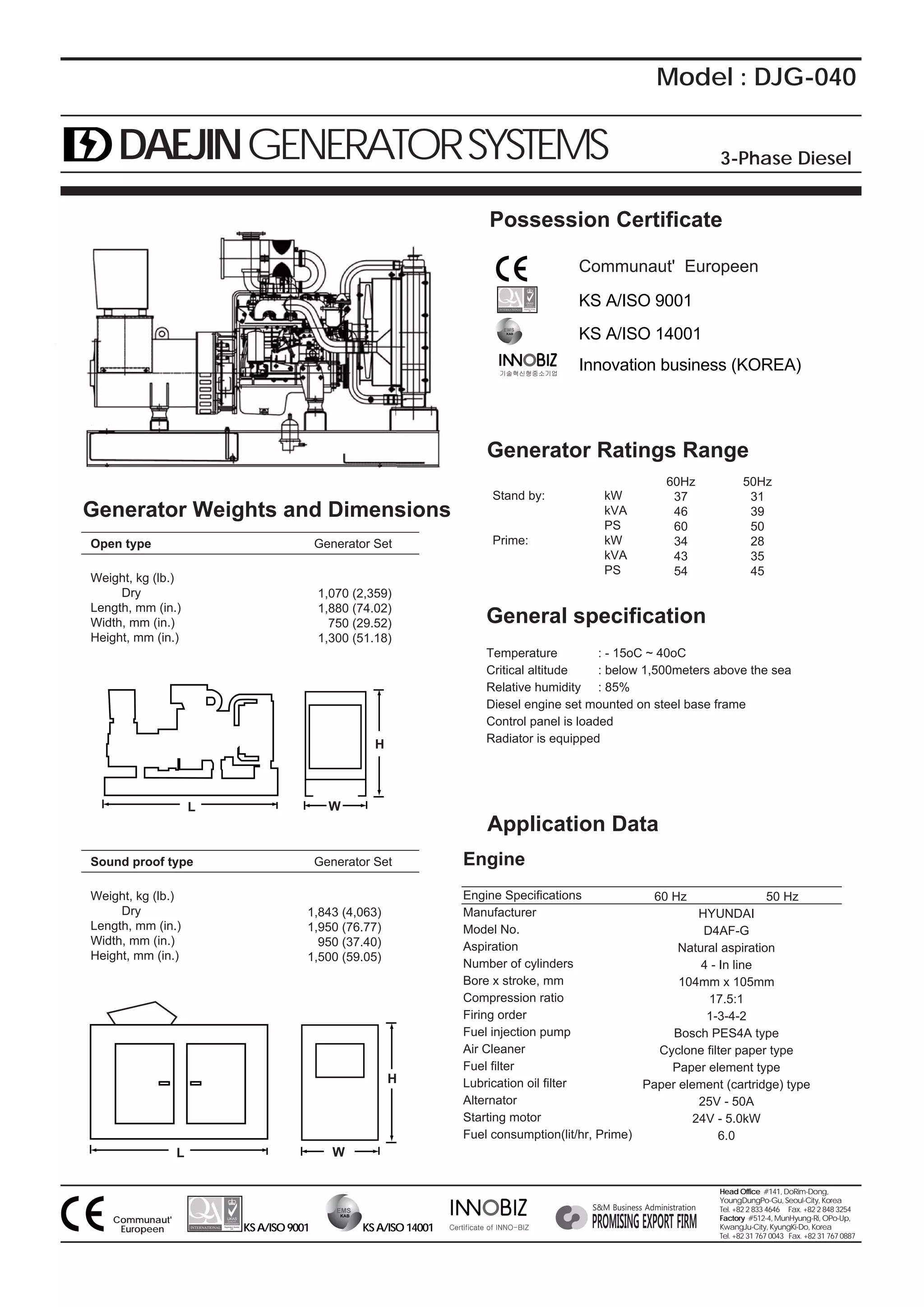

DAEJINGENERATORSYSTEMS Model : DJG-040 3-Phase Diesel Open type Generator Set Weight, kg (lb.) Dry Length, mm (in.) Width, mm (in.) Height, mm (in.) 1,070 (2,359) 1,880 (74.02) 750 (29.52) 1,300 (51.18) 1,843 (4,063) 1,950 (76.77) 950 (37.40) 1,500 (59.05) Stand by: kW kVA PS Prime: kW kVA PS 60Hz 37 46 60 34 43 54 50Hz 31 39 50 28 35 45 Generator Weights and Dimensions Possession Certificate L W H Sound proof type Generator Set Weight, kg (lb.) Dry Length, mm (in.) Width, mm (in.) Height, mm (in.) L W H Application Data Engine Engine Specifications Manufacturer Model No. Aspiration Number of cylinders Bore x stroke, mm Compression ratio Firing order Fuel injection pump Air Cleaner Fuel filter Lubrication oil filter Alternator Starting motor Fuel consumption(lit/hr, Prime) 60 Hz 50 Hz HYUNDAI D4AF-G Natural aspiration 4 - In line 104mm x 105mm 17.5:1 1-3-4-2 Bosch PES4A type Cyclone filter paper type Paper element type Paper element (cartridge) type 25V - 50A 24V - 5.0kW 6.0 General specification Temperature : - 15oC ~ 40oC Critical altitude : below 1,500meters above the sea Relative humidity : 85% Diesel engine set mounted on steel base frame Control panel is loaded Radiator is equipped KS A/ISO 9001 KS A/ISO 14001 Innovation business (KOREA) Registration Number 046 EMS KAB Communaut' Europeen ὤ㍔䜵㐔䝉㩅㋀ὤ㛹 Generator Ratings Range KSA/ISO9001 KSA/ISO14001 Registration Number 046 EMS KAB Communaut' Europeen Head Office #141, DoRim-Dong, YoungDungPo-Gu, Seoul-City, Korea Tel. +82 2 833 4646 Fax. +82 2 848 3254 Factory #512-4, MunHyung-Ri, OPo-Up, KwangJu-City, KyungKi-Do, Korea Tel. +82 31 767 0043 Fax. +82 31 767 0887
DAEJINGENERATORSYSTEMS Model : DJG-050 3-Phase Diesel L W Open type Generator Set Weight, kg (lb.) Dry Length, mm (in.) Width, mm (in.) Height, mm (in.) 1,130 (2,491) 1,880 (74.02) 750 (29.52) 1,300 (51.18) 2,270 (5,004) 1,950 (76.77) 950 (37.40) 1,500 (59.05) Stand by: kW kVA PS Prime: kW kVA PS 60Hz 50 63 82 36 45 74 50Hz 45 56 60 33 41 54 Generator Weights and Dimensions Possession Certificate L W H Sound proof type Generator Set Weight, kg (lb.) Dry Length, mm (in.) Width, mm (in.) Height, mm (in.) H Application Data Engine Engine Specifications Manufacturer Model No. Aspiration Number of cylinders Bore x stroke, mm Compression ratio Firing order Fuel injection pump Air Cleaner Fuel filter Lubrication oil filter Alternator Starting motor Fuel consumption(lit/hr, Prime) 60 Hz 50 Hz HYUNDAI D4AK-G Turbo charger 4 - In line 104mm x 105mm 17.5:1 1-3-4-2 Bosch PES4A type Cyclone filter paper type Paper element type Paper element (cartridge) type 25V - 50A 24V - 5.0kW 7.8 General specification Temperature : - 15oC ~ 40oC Critical altitude : below 1,500meters above the sea Relative humidity : 85% Diesel engine set mounted on steel base frame Control panel is loaded Radiator is equipped KS A/ISO 9001 KS A/ISO 14001 Innovation business (KOREA) Registration Number 046 EMS KAB Communaut' Europeen ὤ㍔䜵㐔䝉㩅㋀ὤ㛹 Generator Ratings Range KSA/ISO9001 KSA/ISO14001 Registration Number 046 EMS KAB Communaut' Europeen Head Office #141, DoRim-Dong, YoungDungPo-Gu, Seoul-City, Korea Tel. +82 2 833 4646 Fax. +82 2 848 3254 Factory #512-4, MunHyung-Ri, OPo-Up, KwangJu-City, KyungKi-Do, Korea Tel. +82 31 767 0043 Fax. +82 31 767 0887

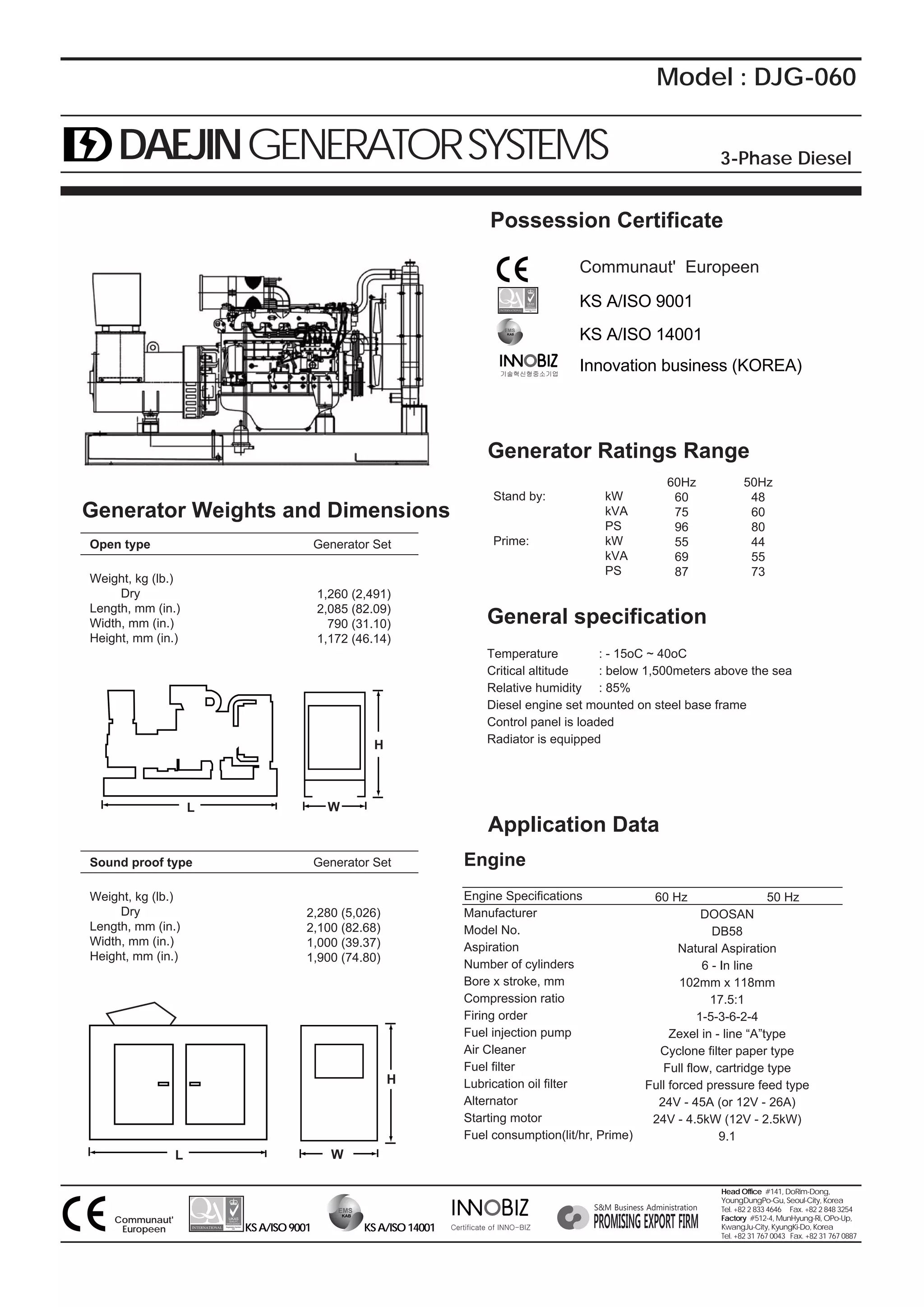

DAEJINGENERATORSYSTEMS Model : DJG-060 3-Phase Diesel L W Open type Generator Set Weight, kg (lb.) Dry Length, mm (in.) Width, mm (in.) Height, mm (in.) 1,260 (2,491) 2,085 (82.09) 790 (31.10) 1,172 (46.14) 2,280 (5,026) 2,100 (82.68) 1,000 (39.37) 1,900 (74.80) Stand by: kW kVA PS Prime: kW kVA PS 60Hz 60 75 96 55 69 87 50Hz 48 60 80 44 55 73 Generator Weights and Dimensions Possession Certificate L W H Sound proof type Generator Set Weight, kg (lb.) Dry Length, mm (in.) Width, mm (in.) Height, mm (in.) H Application Data Engine Engine Specifications Manufacturer Model No. Aspiration Number of cylinders Bore x stroke, mm Compression ratio Firing order Fuel injection pump Air Cleaner Fuel filter Lubrication oil filter Alternator Starting motor Fuel consumption(lit/hr, Prime) 60 Hz 50 Hz DOOSAN DB58 Natural Aspiration 6 - In line 102mm x 118mm 17.5:1 1-5-3-6-2-4 Zexel in - line “A”type Cyclone filter paper type Full flow, cartridge type Full forced pressure feed type 24V - 45A (or 12V - 26A) 24V - 4.5kW (12V - 2.5kW) 9.1 General specification Temperature : - 15oC ~ 40oC Critical altitude : below 1,500meters above the sea Relative humidity : 85% Diesel engine set mounted on steel base frame Control panel is loaded Radiator is equipped KS A/ISO 9001 KS A/ISO 14001 Innovation business (KOREA) Registration Number 046 EMS KAB Communaut' Europeen ὤ㍔䜵㐔䝉㩅㋀ὤ㛹 Generator Ratings Range KSA/ISO9001 KSA/ISO14001 Registration Number 046 EMS KAB Communaut' Europeen Head Office #141, DoRim-Dong, YoungDungPo-Gu, Seoul-City, Korea Tel. +82 2 833 4646 Fax. +82 2 848 3254 Factory #512-4, MunHyung-Ri, OPo-Up, KwangJu-City, KyungKi-Do, Korea Tel. +82 31 767 0043 Fax. +82 31 767 0887

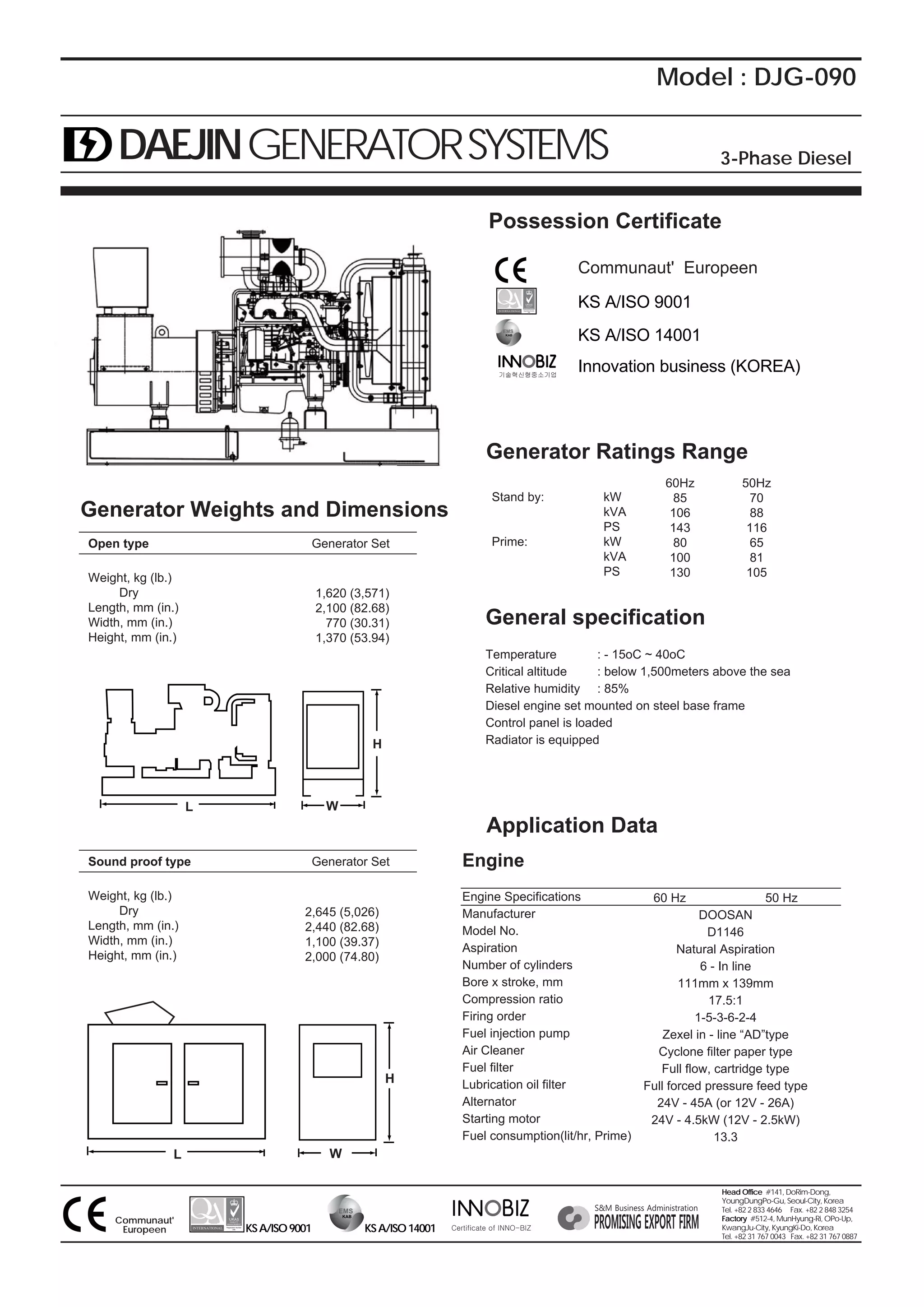

DAEJINGENERATORSYSTEMS Model : DJG-090 3-Phase Diesel L W Open type Generator Set Weight, kg (lb.) Dry Length, mm (in.) Width, mm (in.) Height, mm (in.) 1,620 (3,571) 2,100 (82.68) 770 (30.31) 1,370 (53.94) 2,645 (5,026) 2,440 (82.68) 1,100 (39.37) 2,000 (74.80) Stand by: kW kVA PS Prime: kW kVA PS 60Hz 85 106 143 80 100 130 50Hz 70 88 116 65 81 105 Generator Weights and Dimensions Possession Certificate L W H Sound proof type Generator Set Weight, kg (lb.) Dry Length, mm (in.) Width, mm (in.) Height, mm (in.) H Application Data Engine Engine Specifications Manufacturer Model No. Aspiration Number of cylinders Bore x stroke, mm Compression ratio Firing order Fuel injection pump Air Cleaner Fuel filter Lubrication oil filter Alternator Starting motor Fuel consumption(lit/hr, Prime) 60 Hz 50 Hz DOOSAN D1146 Natural Aspiration 6 - In line 111mm x 139mm 17.5:1 1-5-3-6-2-4 Zexel in - line “AD”type Cyclone filter paper type Full flow, cartridge type Full forced pressure feed type 24V - 45A (or 12V - 26A) 24V - 4.5kW (12V - 2.5kW) 13.3 General specification Temperature : - 15oC ~ 40oC Critical altitude : below 1,500meters above the sea Relative humidity : 85% Diesel engine set mounted on steel base frame Control panel is loaded Radiator is equipped KS A/ISO 9001 KS A/ISO 14001 Innovation business (KOREA) Registration Number 046 EMS KAB Communaut' Europeen ὤ㍔䜵㐔䝉㩅㋀ὤ㛹 Generator Ratings Range KSA/ISO9001 KSA/ISO14001 Registration Number 046 EMS KAB Communaut' Europeen Head Office #141, DoRim-Dong, YoungDungPo-Gu, Seoul-City, Korea Tel. +82 2 833 4646 Fax. +82 2 848 3254 Factory #512-4, MunHyung-Ri, OPo-Up, KwangJu-City, KyungKi-Do, Korea Tel. +82 31 767 0043 Fax. +82 31 767 0887

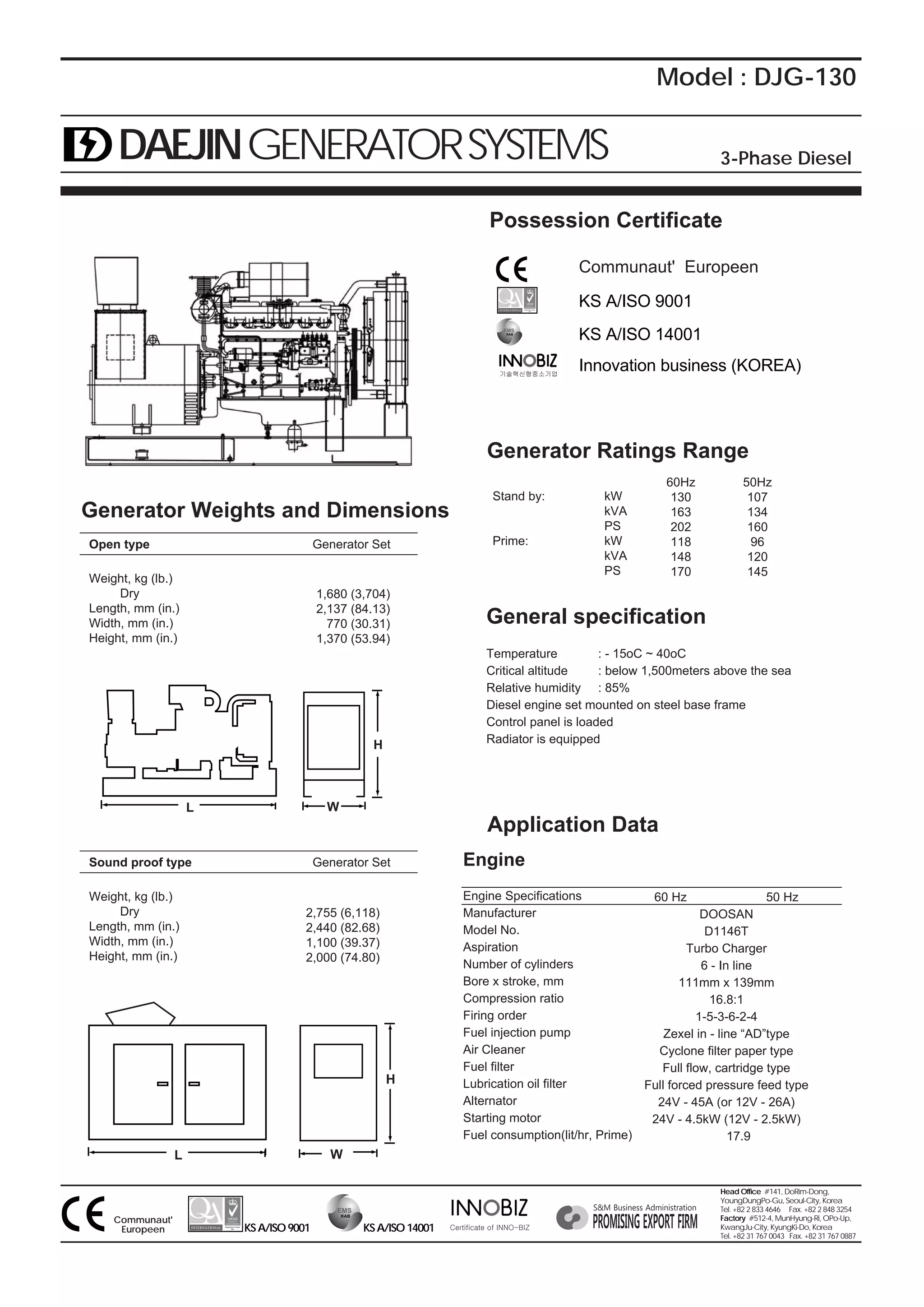

DAEJINGENERATORSYSTEMS Model : DJG-130 3-Phase Diesel L W Open type Generator Set Weight, kg (lb.) Dry Length, mm (in.) Width, mm (in.) Height, mm (in.) 1,680 (3,704) 2,137 (84.13) 770 (30.31) 1,370 (53.94) 2,755 (6,118) 2,440 (82.68) 1,100 (39.37) 2,000 (74.80) Stand by: kW kVA PS Prime: kW kVA PS 60Hz 130 163 202 118 148 170 50Hz 107 134 160 96 120 145 Generator Weights and Dimensions Possession Certificate L W H Sound proof type Generator Set Weight, kg (lb.) Dry Length, mm (in.) Width, mm (in.) Height, mm (in.) H Application Data Engine Engine Specifications Manufacturer Model No. Aspiration Number of cylinders Bore x stroke, mm Compression ratio Firing order Fuel injection pump Air Cleaner Fuel filter Lubrication oil filter Alternator Starting motor Fuel consumption(lit/hr, Prime) 60 Hz 50 Hz DOOSAN D1146T Turbo Charger 6 - In line 111mm x 139mm 16.8:1 1-5-3-6-2-4 Zexel in - line “AD”type Cyclone filter paper type Full flow, cartridge type Full forced pressure feed type 24V - 45A (or 12V - 26A) 24V - 4.5kW (12V - 2.5kW) 17.9 General specification Temperature : - 15oC ~ 40oC Critical altitude : below 1,500meters above the sea Relative humidity : 85% Diesel engine set mounted on steel base frame Control panel is loaded Radiator is equipped KS A/ISO 9001 KS A/ISO 14001 Innovation business (KOREA) Registration Number 046 EMS KAB Communaut' Europeen ὤ㍔䜵㐔䝉㩅㋀ὤ㛹 Generator Ratings Range KSA/ISO9001 KSA/ISO14001 Registration Number 046 EMS KAB Communaut' Europeen Head Office #141, DoRim-Dong, YoungDungPo-Gu, Seoul-City, Korea Tel. +82 2 833 4646 Fax. +82 2 848 3254 Factory #512-4, MunHyung-Ri, OPo-Up, KwangJu-City, KyungKi-Do, Korea Tel. +82 31 767 0043 Fax. +82 31 767 0887

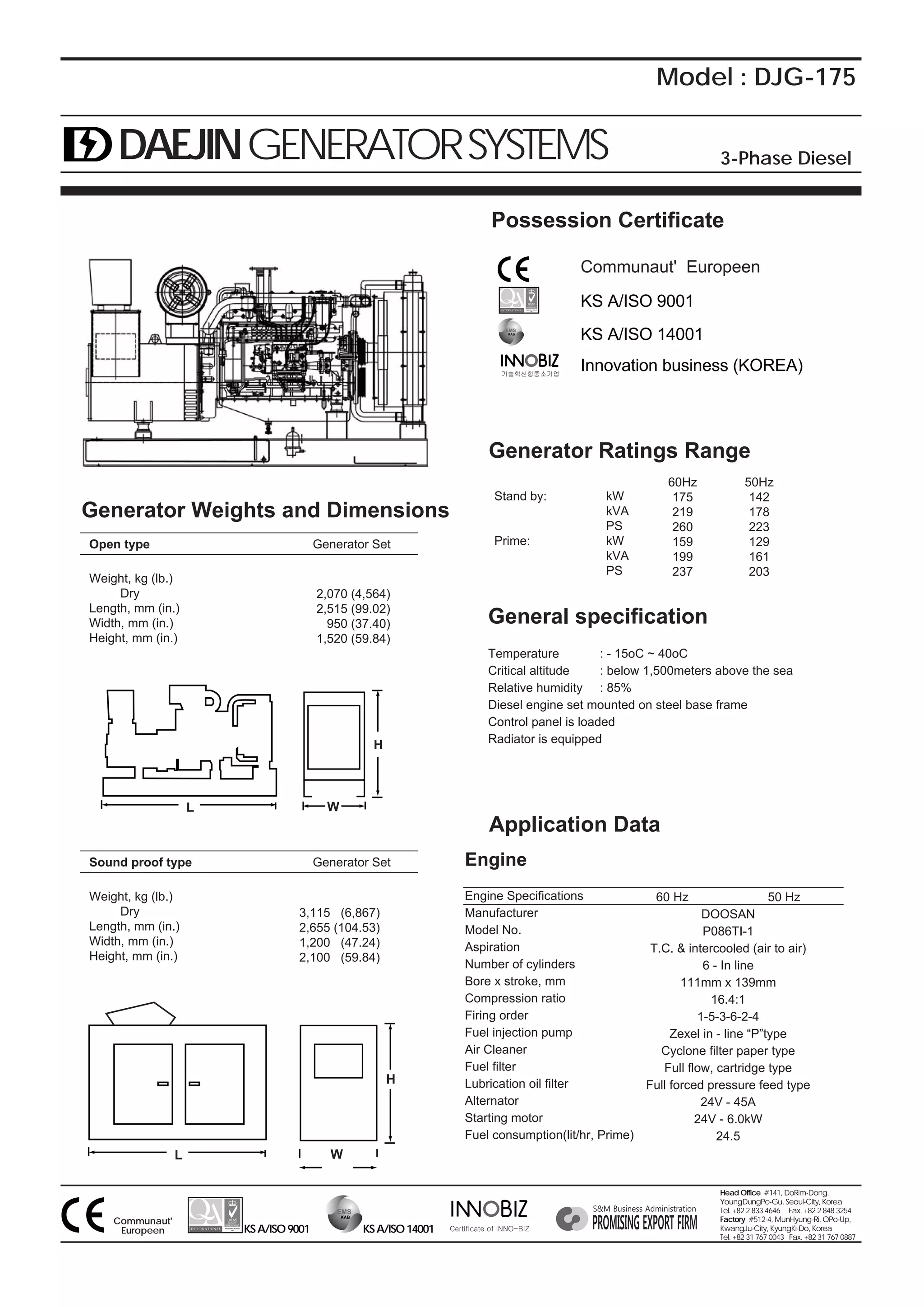

DAEJINGENERATORSYSTEMS Model : DJG-175 3-Phase Diesel L W Open type Generator Set Weight, kg (lb.) Dry Length, mm (in.) Width, mm (in.) Height, mm (in.) 2,070 (4,564) 2,515 (99.02) 950 (37.40) 1,520 (59.84) 3,115 (6,867) 2,655 (104.53) 1,200 (47.24) 2,100 (59.84) Stand by: kW kVA PS Prime: kW kVA PS 60Hz 175 219 260 159 199 237 50Hz 142 178 223 129 161 203 Generator Weights and Dimensions Possession Certificate L W H Sound proof type Generator Set Weight, kg (lb.) Dry Length, mm (in.) Width, mm (in.) Height, mm (in.) H Application Data Engine Engine Specifications Manufacturer Model No. Aspiration Number of cylinders Bore x stroke, mm Compression ratio Firing order Fuel injection pump Air Cleaner Fuel filter Lubrication oil filter Alternator Starting motor Fuel consumption(lit/hr, Prime) 60 Hz 50 Hz DOOSAN P086TI-1 T.C. & intercooled (air to air) 6 - In line 111mm x 139mm 16.4:1 1-5-3-6-2-4 Zexel in - line “P”type Cyclone filter paper type Full flow, cartridge type Full forced pressure feed type 24V - 45A 24V - 6.0kW 24.5 General specification Temperature : - 15oC ~ 40oC Critical altitude : below 1,500meters above the sea Relative humidity : 85% Diesel engine set mounted on steel base frame Control panel is loaded Radiator is equipped KS A/ISO 9001 KS A/ISO 14001 Innovation business (KOREA) Registration Number 046 EMS KAB Communaut' Europeen ὤ㍔䜵㐔䝉㩅㋀ὤ㛹 Generator Ratings Range KSA/ISO9001 KSA/ISO14001 Registration Number 046 EMS KAB Communaut' Europeen Head Office #141, DoRim-Dong, YoungDungPo-Gu, Seoul-City, Korea Tel. +82 2 833 4646 Fax. +82 2 848 3254 Factory #512-4, MunHyung-Ri, OPo-Up, KwangJu-City, KyungKi-Do, Korea Tel. +82 31 767 0043 Fax. +82 31 767 0887
DAEJINGENERATORSYSTEMS Model : DJG-200 3-Phase Diesel L W Open type Generator Set Weight, kg (lb.) Dry Length, mm (in.) Width, mm (in.) Height, mm (in.) 2,090 (4,608) 2,595 (102.17) 950 (37.40) 1,520 (59.84) 3,170 (6,989) 2,655 (104.53) 1,200 (47.24) 2,100 (59.84) Stand by: kW kVA PS Prime: kW kVA PS 60Hz 200 250 303 182 228 279 50Hz 176 220 270 160 200 240 Generator Weights and Dimensions Possession Certificate L W H Sound proof type Generator Set Weight, kg (lb.) Dry Length, mm (in.) Width, mm (in.) Height, mm (in.) H Application Data Engine Engine Specifications Manufacturer Model No. Aspiration Number of cylinders Bore x stroke, mm Compression ratio Firing order Fuel injection pump Air Cleaner Fuel filter Lubrication oil filter Alternator Starting motor Fuel consumption(lit/hr, Prime) 60 Hz 50 Hz DOOSAN P086TI T.C. & intercooled (air to air) 6 - In line 111mm x 139mm 16.4:1 1-5-3-6-2-4 Zexel in - line “P”type Cyclone filter paper type Full flow, cartridge type Full forced pressure feed type 24V - 45A 24V - 6.0kW 28.4 General specification Temperature : - 15oC ~ 40oC Critical altitude : below 1,500meters above the sea Relative humidity : 85% Diesel engine set mounted on steel base frame Control panel is loaded Radiator is equipped KS A/ISO 9001 KS A/ISO 14001 Innovation business (KOREA) Registration Number 046 EMS KAB Communaut' Europeen ὤ㍔䜵㐔䝉㩅㋀ὤ㛹 Generator Ratings Range KSA/ISO9001 KSA/ISO14001 Registration Number 046 EMS KAB Communaut' Europeen Head Office #141, DoRim-Dong, YoungDungPo-Gu, Seoul-City, Korea Tel. +82 2 833 4646 Fax. +82 2 848 3254 Factory #512-4, MunHyung-Ri, OPo-Up, KwangJu-City, KyungKi-Do, Korea Tel. +82 31 767 0043 Fax. +82 31 767 0887

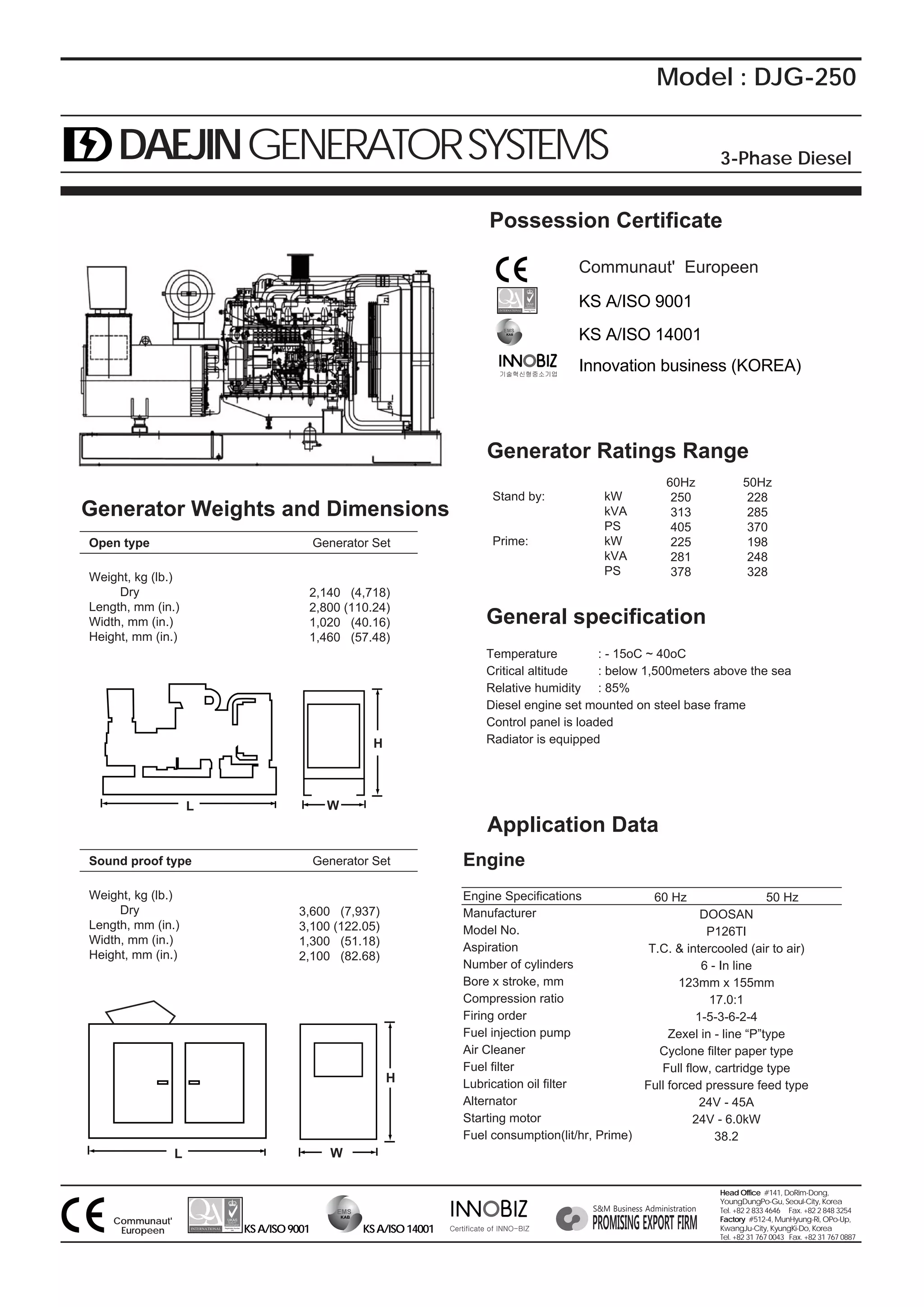

DAEJINGENERATORSYSTEMS Model : DJG-250 3-Phase Diesel L W Open type Generator Set Weight, kg (lb.) Dry Length, mm (in.) Width, mm (in.) Height, mm (in.) 2,140 (4,718) 2,800 (110.24) 1,020 (40.16) 1,460 (57.48) 3,600 (7,937) 3,100 (122.05) 1,300 (51.18) 2,100 (82.68) Stand by: kW kVA PS Prime: kW kVA PS 60Hz 250 313 405 225 281 378 50Hz 228 285 370 198 248 328 Generator Weights and Dimensions Possession Certificate L W H Sound proof type Generator Set Weight, kg (lb.) Dry Length, mm (in.) Width, mm (in.) Height, mm (in.) H Application Data Engine Engine Specifications Manufacturer Model No. Aspiration Number of cylinders Bore x stroke, mm Compression ratio Firing order Fuel injection pump Air Cleaner Fuel filter Lubrication oil filter Alternator Starting motor Fuel consumption(lit/hr, Prime) 60 Hz 50 Hz DOOSAN P126TI T.C. & intercooled (air to air) 6 - In line 123mm x 155mm 17.0:1 1-5-3-6-2-4 Zexel in - line “P”type Cyclone filter paper type Full flow, cartridge type Full forced pressure feed type 24V - 45A 24V - 6.0kW 38.2 General specification Temperature : - 15oC ~ 40oC Critical altitude : below 1,500meters above the sea Relative humidity : 85% Diesel engine set mounted on steel base frame Control panel is loaded Radiator is equipped KS A/ISO 9001 KS A/ISO 14001 Innovation business (KOREA) Registration Number 046 EMS KAB Communaut' Europeen ὤ㍔䜵㐔䝉㩅㋀ὤ㛹 Generator Ratings Range KSA/ISO9001 KSA/ISO14001 Registration Number 046 EMS KAB Communaut' Europeen Head Office #141, DoRim-Dong, YoungDungPo-Gu, Seoul-City, Korea Tel. +82 2 833 4646 Fax. +82 2 848 3254 Factory #512-4, MunHyung-Ri, OPo-Up, KwangJu-City, KyungKi-Do, Korea Tel. +82 31 767 0043 Fax. +82 31 767 0887

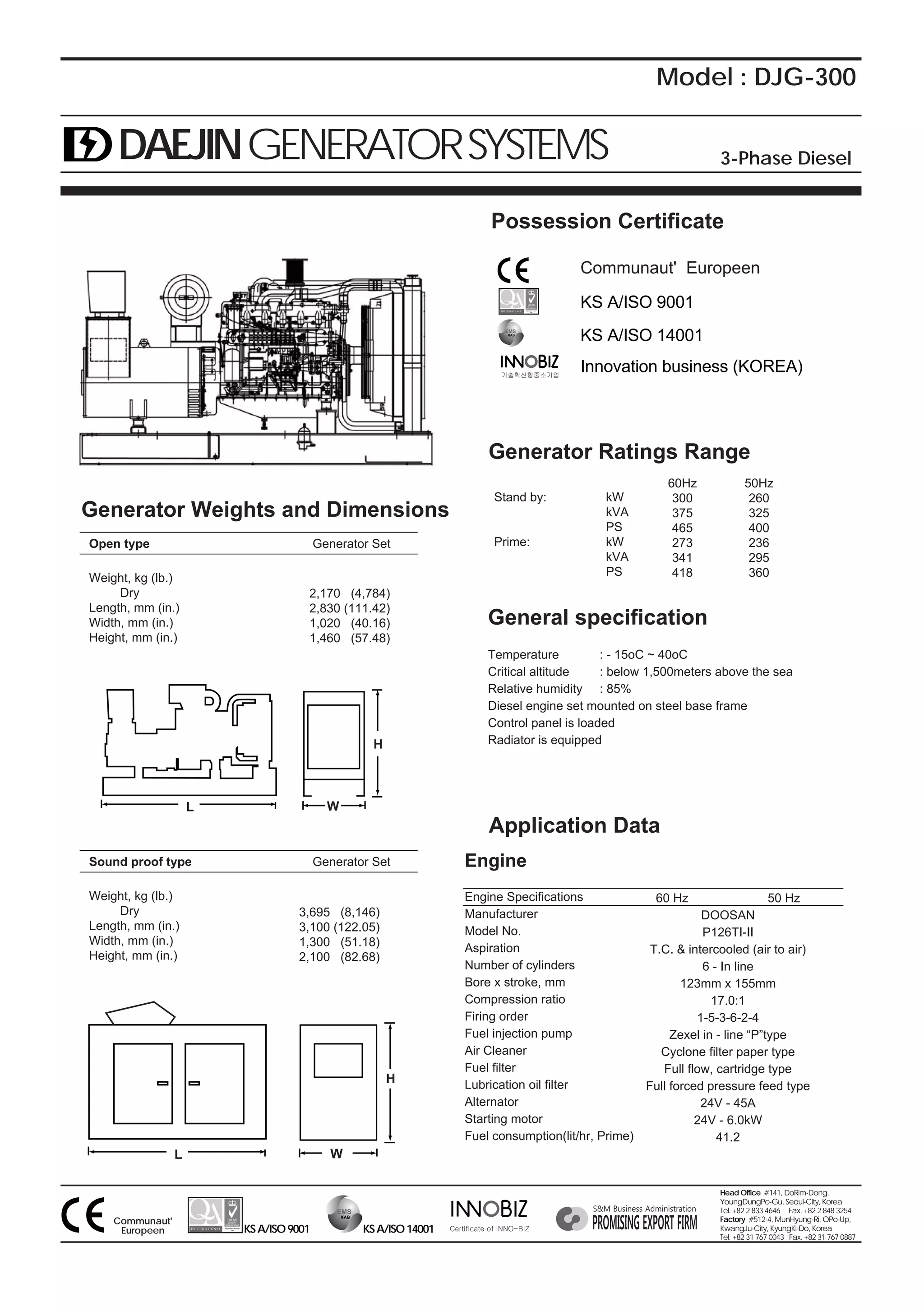

DAEJINGENERATORSYSTEMS Model : DJG-300 3-Phase Diesel L W Open type Generator Set Weight, kg (lb.) Dry Length, mm (in.) Width, mm (in.) Height, mm (in.) 2,170 (4,784) 2,830 (111.42) 1,020 (40.16) 1,460 (57.48) 3,695 (8,146) 3,100 (122.05) 1,300 (51.18) 2,100 (82.68) Stand by: kW kVA PS Prime: kW kVA PS 60Hz 300 375 465 273 341 418 50Hz 260 325 400 236 295 360 Generator Weights and Dimensions Possession Certificate L W H Sound proof type Generator Set Weight, kg (lb.) Dry Length, mm (in.) Width, mm (in.) Height, mm (in.) H Application Data Engine Engine Specifications Manufacturer Model No. Aspiration Number of cylinders Bore x stroke, mm Compression ratio Firing order Fuel injection pump Air Cleaner Fuel filter Lubrication oil filter Alternator Starting motor Fuel consumption(lit/hr, Prime) 60 Hz 50 Hz DOOSAN P126TI-II T.C. & intercooled (air to air) 6 - In line 123mm x 155mm 17.0:1 1-5-3-6-2-4 Zexel in - line “P”type Cyclone filter paper type Full flow, cartridge type Full forced pressure feed type 24V - 45A 24V - 6.0kW 41.2 General specification Temperature : - 15oC ~ 40oC Critical altitude : below 1,500meters above the sea Relative humidity : 85% Diesel engine set mounted on steel base frame Control panel is loaded Radiator is equipped KS A/ISO 9001 KS A/ISO 14001 Innovation business (KOREA) Registration Number 046 EMS KAB Communaut' Europeen ὤ㍔䜵㐔䝉㩅㋀ὤ㛹 Generator Ratings Range KSA/ISO9001 KSA/ISO14001 Registration Number 046 EMS KAB Communaut' Europeen Head Office #141, DoRim-Dong, YoungDungPo-Gu, Seoul-City, Korea Tel. +82 2 833 4646 Fax. +82 2 848 3254 Factory #512-4, MunHyung-Ri, OPo-Up, KwangJu-City, KyungKi-Do, Korea Tel. +82 31 767 0043 Fax. +82 31 767 0887
DAEJINGENERATORSYSTEMS Model : DJG-320 3-Phase Diesel L W Open type Generator Set Weight, kg (lb.) Dry Length, mm (in.) Width, mm (in.) Height, mm (in.) 2,515 (5,545) 2,830 (111.42) 1,390 (54.72) 1,740 (68.50) 4,215 (9,290) 3,200 (125.98) 1,500 (59.06) 2,500 (98.43) Stand by: kW kVA PS Prime: kW kVA PS 60Hz 320 400 510 290 363 470 50Hz 282 353 437 256 320 399 Generator Weights and Dimensions Possession Certificate L W H Sound proof type Generator Set Weight, kg (lb.) Dry Length, mm (in.) Width, mm (in.) Height, mm (in.) H Application Data Engine Engine Specifications Manufacturer Model No. Aspiration Number of cylinders Bore x stroke, mm Compression ratio Firing order Fuel injection pump Air Cleaner Fuel filter Lubrication oil filter Alternator Starting motor Fuel consumption(lit/hr, Prime) 60 Hz 50 Hz DOOSAN P158LE-2 T.C. & intercooled (air to air) 8 - In line 128mm x 142mm 15.0:1 1-5-7-2-6-3-4-8 Zexel in - line “P”type Cyclone filter paper type Full flow, cartridge type Full forced pressure feed type 24V - 45A 24V - 7.0kW 45.8 General specification Temperature : - 15oC ~ 40oC Critical altitude : below 1,500meters above the sea Relative humidity : 85% Diesel engine set mounted on steel base frame Control panel is loaded Radiator is equipped KS A/ISO 9001 KS A/ISO 14001 Innovation business (KOREA) Registration Number 046 EMS KAB Communaut' Europeen ὤ㍔䜵㐔䝉㩅㋀ὤ㛹 Generator Ratings Range KSA/ISO9001 KSA/ISO14001 Registration Number 046 EMS KAB Communaut' Europeen Head Office #141, DoRim-Dong, YoungDungPo-Gu, Seoul-City, Korea Tel. +82 2 833 4646 Fax. +82 2 848 3254 Factory #512-4, MunHyung-Ri, OPo-Up, KwangJu-City, KyungKi-Do, Korea Tel. +82 31 767 0043 Fax. +82 31 767 0887
DAEJINGENERATORSYSTEMS Model : DJG-360 3-Phase Diesel L W Open type Generator Set Weight, kg (lb.) Dry Length, mm (in.) Width, mm (in.) Height, mm (in.) 2,730 (6,019) 2,850 (112.20) 1,390 (54.72) 1,740 (68.50) 4,430 (9,766) 3,200 (125.98) 1,500 (59.06) 2,500 (98.43) Stand by: kW kVA PS Prime: kW kVA PS 60Hz 360 450 546 327 409 498 50Hz 320 400 492 288 360 444 Generator Weights and Dimensions Possession Certificate L W H Sound proof type Generator Set Weight, kg (lb.) Dry Length, mm (in.) Width, mm (in.) Height, mm (in.) H Application Data Engine Engine Specifications Manufacturer Model No. Aspiration Number of cylinders Bore x stroke, mm Compression ratio Firing order Fuel injection pump Air Cleaner Fuel filter Lubrication oil filter Alternator Starting motor Fuel consumption(lit/hr, Prime) 60 Hz 50 Hz DOOSAN P158LE-1 T.C. & intercooled (air to air) 8 - In line 128mm x 142mm 15.0:1 1-5-7-2-6-3-4-8 Zexel in - line “P”type Cyclone filter paper type Full flow, cartridge type Full forced pressure feed type 24V - 45A 24V - 7.0kW 51.5 General specification Temperature : - 15oC ~ 40oC Critical altitude : below 1,500meters above the sea Relative humidity : 85% Diesel engine set mounted on steel base frame Control panel is loaded Radiator is equipped KS A/ISO 9001 KS A/ISO 14001 Innovation business (KOREA) Registration Number 046 EMS KAB Communaut' Europeen ὤ㍔䜵㐔䝉㩅㋀ὤ㛹 Generator Ratings Range KSA/ISO9001 KSA/ISO14001 Registration Number 046 EMS KAB Communaut' Europeen Head Office #141, DoRim-Dong, YoungDungPo-Gu, Seoul-City, Korea Tel. +82 2 833 4646 Fax. +82 2 848 3254 Factory #512-4, MunHyung-Ri, OPo-Up, KwangJu-City, KyungKi-Do, Korea Tel. +82 31 767 0043 Fax. +82 31 767 0887

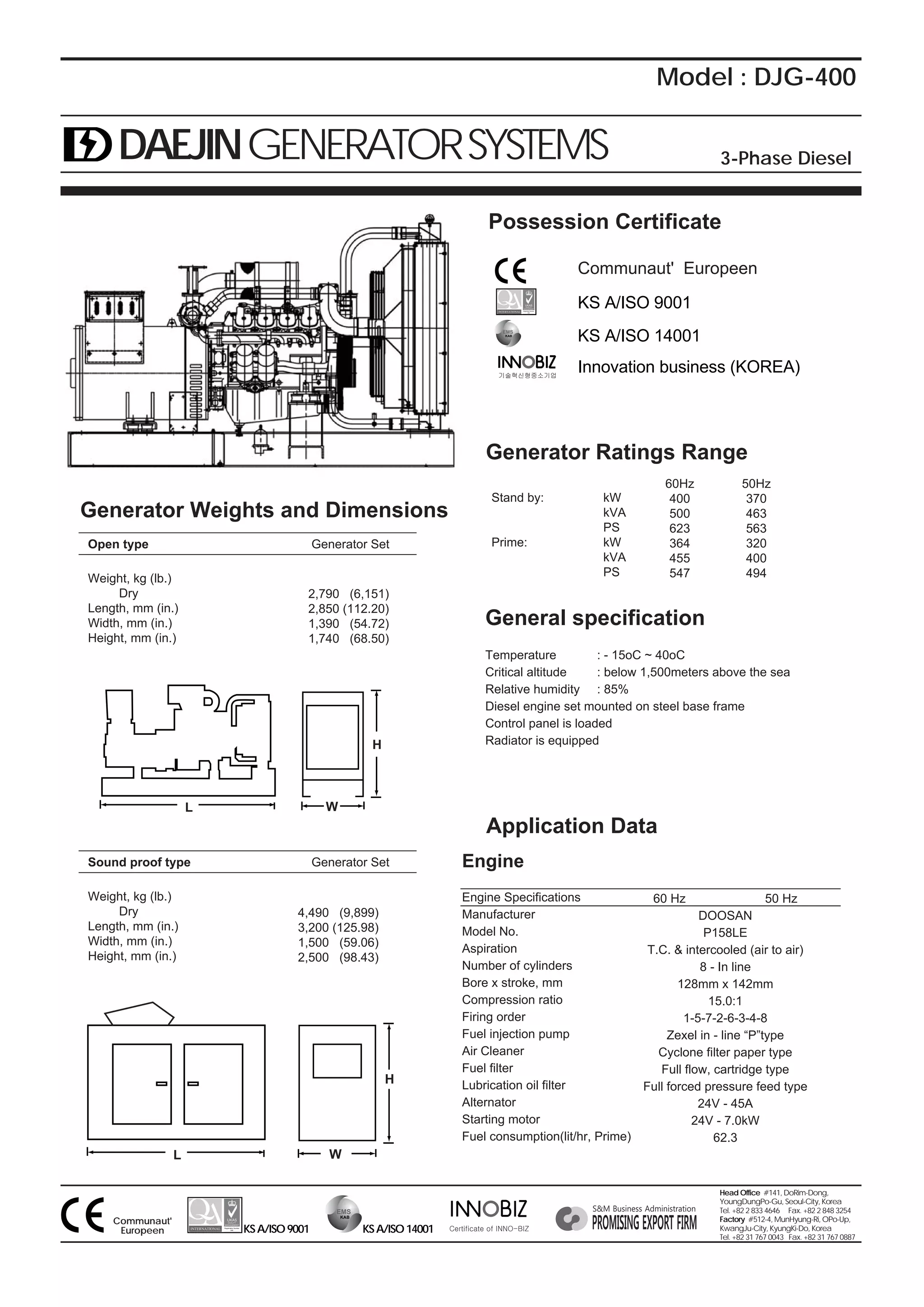

DAEJINGENERATORSYSTEMS Model : DJG-400 3-Phase Diesel L W Open type Generator Set Weight, kg (lb.) Dry Length, mm (in.) Width, mm (in.) Height, mm (in.) 2,790 (6,151) 2,850 (112.20) 1,390 (54.72) 1,740 (68.50) 4,490 (9,899) 3,200 (125.98) 1,500 (59.06) 2,500 (98.43) Stand by: kW kVA PS Prime: kW kVA PS 60Hz 400 500 623 364 455 547 50Hz 370 463 563 320 400 494 Generator Weights and Dimensions Possession Certificate L W H Sound proof type Generator Set Weight, kg (lb.) Dry Length, mm (in.) Width, mm (in.) Height, mm (in.) H Application Data Engine Engine Specifications Manufacturer Model No. Aspiration Number of cylinders Bore x stroke, mm Compression ratio Firing order Fuel injection pump Air Cleaner Fuel filter Lubrication oil filter Alternator Starting motor Fuel consumption(lit/hr, Prime) 60 Hz 50 Hz DOOSAN P158LE T.C. & intercooled (air to air) 8 - In line 128mm x 142mm 15.0:1 1-5-7-2-6-3-4-8 Zexel in - line “P”type Cyclone filter paper type Full flow, cartridge type Full forced pressure feed type 24V - 45A 24V - 7.0kW 62.3 General specification Temperature : - 15oC ~ 40oC Critical altitude : below 1,500meters above the sea Relative humidity : 85% Diesel engine set mounted on steel base frame Control panel is loaded Radiator is equipped KS A/ISO 9001 KS A/ISO 14001 Innovation business (KOREA) Registration Number 046 EMS KAB Communaut' Europeen ὤ㍔䜵㐔䝉㩅㋀ὤ㛹 Generator Ratings Range KSA/ISO9001 KSA/ISO14001 Registration Number 046 EMS KAB Communaut' Europeen Head Office #141, DoRim-Dong, YoungDungPo-Gu, Seoul-City, Korea Tel. +82 2 833 4646 Fax. +82 2 848 3254 Factory #512-4, MunHyung-Ri, OPo-Up, KwangJu-City, KyungKi-Do, Korea Tel. +82 31 767 0043 Fax. +82 31 767 0887
DAEJINGENERATORSYSTEMS KSA/ISO9001 KSA/ISO14001 Registration Number 046 EMS KAB ὤ㍔䜵㐔䝉㩅㋀ὤ㛹 Communaut' Europeen Model : DJG-450 3-Phase Diesel Head Office #141, DoRim-Dong, YoungDungPo-Gu, Seoul-City, Korea Tel. +82 2 833 4646 Fax. +82 2 848 3254 Factory #512-4, MunHyung-Ri, OPo-Up, KwangJu-City, KyungKi-Do, Korea Tel. +82 31 767 0043 Fax. +82 31 767 0887 L W Open type Generator Set Weight, kg (lb.) Dry Length, mm (in.) Width, mm (in.) Height, mm (in.) 2,810 (6,195) 3,060 (120.47) 1,350 (53.15) 1,740 (68.50) 5,135 (11,321) 3,800 (149.61) 1,500 (59.06) 2,500 (98.43) Stand by: kW kVA PS Prime: kW kVA PS 60Hz 450 563 690 405 506 625 50Hz 360 450 601 324 405 548 Generator Weights and Dimensions Possession Certificate L W H Sound proof type Generator Set Weight, kg (lb.) Dry Length, mm (in.) Width, mm (in.) Height, mm (in.) H Application Data Engine Engine Specifications Manufacturer Model No. Aspiration Number of cylinders Bore x stroke, mm Compression ratio Firing order Fuel injection pump Air Cleaner Fuel filter Lubrication oil filter Alternator Starting motor Fuel consumption(lit/hr, Prime) 60 Hz 50 Hz DOOSAN P158LE-III T.C. & intercooled (air to air) 8 - In line 128mm x 142mm 14.6:1 1-5-7-2-6-3-4-8 Zexel in - line “P”type Cyclone filter paper type Full flow, cartridge type Full forced pressure feed type 24V - 45A 24V - 7.0kW 144.6 General specification Temperature : - 15oC ~ 40oC Critical altitude : below 1,500meters above the sea Relative humidity : 85% Diesel engine set mounted on steel base frame Control panel is loaded Radiator is equipped KS A/ISO 9001 KS A/ISO 14001 Innovation business (KOREA) Registration Number 046 EMS KAB Communaut' Europeen ὤ㍔䜵㐔䝉㩅㋀ὤ㛹 Generator Ratings Range
DAEJINGENERATORSYSTEMS Model : DJG-500 3-Phase Diesel L W Open type Generator Set Weight, kg (lb.) Dry Length, mm (in.) Width, mm (in.) Height, mm (in.) 3,235 (7,132) 3,120 (122.83) 1,350 (53.15) 1,740 (68.50) 5,255 (11,585) 3,800 (149.61) 1,500 (59.06) 2,500 (98.43) Stand by: kW kVA PS Prime: kW kVA PS 60Hz 500 625 734 455 569 676 50Hz 455 569 674 400 500 602 Generator Weights and Dimensions Possession Certificate L W H Sound proof type Generator Set Weight, kg (lb.) Dry Length, mm (in.) Width, mm (in.) Height, mm (in.) H Application Data Engine Engine Specifications Manufacturer Model No. Aspiration Number of cylinders Bore x stroke, mm Compression ratio Firing order Fuel injection pump Air Cleaner Fuel filter Lubrication oil filter Alternator Starting motor Fuel consumption(lit/hr, Prime) 60 Hz 50 Hz DOOSAN P158LE T.C. & intercooled (air to air) 10 - In line 128mm x 142mm 15.0:1 1-6-5-10-2-7-3-8-4-9 Zexel in - line “P”type Cyclone filter paper type Full flow, cartridge type Full forced pressure feed type 24V - 45A 24V - 7.0kW 76.1 General specification Temperature : - 15oC ~ 40oC Critical altitude : below 1,500meters above the sea Relative humidity : 85% Diesel engine set mounted on steel base frame Control panel is loaded Radiator is equipped KS A/ISO 9001 KS A/ISO 14001 Innovation business (KOREA) Registration Number 046 EMS KAB Communaut' Europeen ὤ㍔䜵㐔䝉㩅㋀ὤ㛹 Generator Ratings Range KSA/ISO9001 KSA/ISO14001 Registration Number 046 EMS KAB Communaut' Europeen Head Office #141, DoRim-Dong, YoungDungPo-Gu, Seoul-City, Korea Tel. +82 2 833 4646 Fax. +82 2 848 3254 Factory #512-4, MunHyung-Ri, OPo-Up, KwangJu-City, KyungKi-Do, Korea Tel. +82 31 767 0043 Fax. +82 31 767 0887
DAEJINGENERATORSYSTEMS Model : DJG-550 3-Phase Diesel L W Open type Generator Set Weight, kg (lb.) Dry Length, mm (in.) Width, mm (in.) Height, mm (in.) 4,015 (8,851) 3,370 (132.68) 1,390 (54.72) 1,740 (68.50) 6,315 (13,922) 3,800 (149.61) 1,500 (59.06) 2,500 (98.43) Stand by: kW kVA PS Prime: kW kVA PS 60Hz 550 688 827 495 619 761 50Hz 492 615 752 442 553 696 Generator Weights and Dimensions Possession Certificate L W H Sound proof type Generator Set Weight, kg (lb.) Dry Length, mm (in.) Width, mm (in.) Height, mm (in.) H Application Data Engine Engine Specifications Manufacturer Model No. Aspiration Number of cylinders Bore x stroke, mm Compression ratio Firing order Fuel injection pump Air Cleaner Fuel filter Lubrication oil filter Alternator Starting motor Fuel consumption(lit/hr, Prime) 60 Hz 50 Hz DOOSAN P180LE-II T.C. & intercooled (air to air) 10 - In line 128mm x 142mm 14.6:1 1-6-5-10-2-7-3-8-4-9 Zexel in - line “P”type Cyclone filter paper type Full flow, cartridge type Full forced pressure feed type 24V - 45A 24V - 7.0kW 86.7 General specification Temperature : - 15oC ~ 40oC Critical altitude : below 1,500meters above the sea Relative humidity : 85% Diesel engine set mounted on steel base frame Control panel is loaded Radiator is equipped KS A/ISO 9001 KS A/ISO 14001 Innovation business (KOREA) Registration Number 046 EMS KAB Communaut' Europeen ὤ㍔䜵㐔䝉㩅㋀ὤ㛹 Generator Ratings Range KSA/ISO9001 KSA/ISO14001 Registration Number 046 EMS KAB Communaut' Europeen Head Office #141, DoRim-Dong, YoungDungPo-Gu, Seoul-City, Korea Tel. +82 2 833 4646 Fax. +82 2 848 3254 Factory #512-4, MunHyung-Ri, OPo-Up, KwangJu-City, KyungKi-Do, Korea Tel. +82 31 767 0043 Fax. +82 31 767 0887

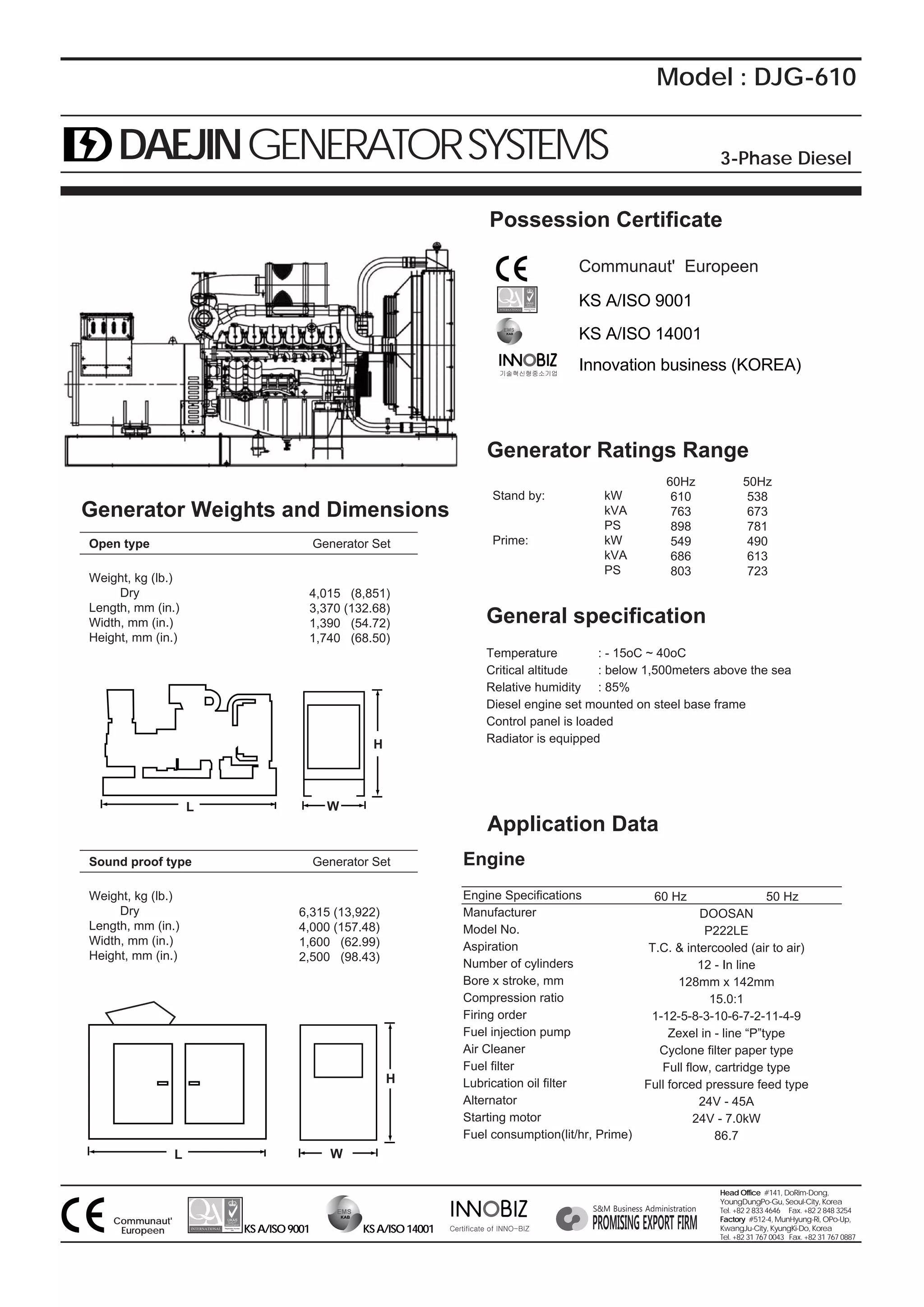

DAEJINGENERATORSYSTEMS Model : DJG-610 3-Phase Diesel L W Open type Generator Set Weight, kg (lb.) Dry Length, mm (in.) Width, mm (in.) Height, mm (in.) 4,015 (8,851) 3,370 (132.68) 1,390 (54.72) 1,740 (68.50) 6,315 (13,922) 4,000 (157.48) 1,600 (62.99) 2,500 (98.43) Stand by: kW kVA PS Prime: kW kVA PS 60Hz 610 763 898 549 686 803 50Hz 538 673 781 490 613 723 Generator Weights and Dimensions Possession Certificate L W H Sound proof type Generator Set Weight, kg (lb.) Dry Length, mm (in.) Width, mm (in.) Height, mm (in.) H Application Data Engine Engine Specifications Manufacturer Model No. Aspiration Number of cylinders Bore x stroke, mm Compression ratio Firing order Fuel injection pump Air Cleaner Fuel filter Lubrication oil filter Alternator Starting motor Fuel consumption(lit/hr, Prime) 60 Hz 50 Hz DOOSAN P222LE T.C. & intercooled (air to air) 12 - In line 128mm x 142mm 15.0:1 1-12-5-8-3-10-6-7-2-11-4-9 Zexel in - line “P”type Cyclone filter paper type Full flow, cartridge type Full forced pressure feed type 24V - 45A 24V - 7.0kW 86.7 General specification Temperature : - 15oC ~ 40oC Critical altitude : below 1,500meters above the sea Relative humidity : 85% Diesel engine set mounted on steel base frame Control panel is loaded Radiator is equipped KS A/ISO 9001 KS A/ISO 14001 Innovation business (KOREA) Registration Number 046 EMS KAB Communaut' Europeen ὤ㍔䜵㐔䝉㩅㋀ὤ㛹 Generator Ratings Range KSA/ISO9001 KSA/ISO14001 Registration Number 046 EMS KAB Communaut' Europeen Head Office #141, DoRim-Dong, YoungDungPo-Gu, Seoul-City, Korea Tel. +82 2 833 4646 Fax. +82 2 848 3254 Factory #512-4, MunHyung-Ri, OPo-Up, KwangJu-City, KyungKi-Do, Korea Tel. +82 31 767 0043 Fax. +82 31 767 0887
DAEJINGENERATORSYSTEMS Model : DJG-660 3-Phase Diesel L W Open type Generator Set Weight, kg (lb.) Dry Length, mm (in.) Width, mm (in.) Height, mm (in.) 4,090 (9,017) 3,370 (132.68) 1,390 (54.72) 1,740 (68.50) 6,500 (14,330) 4,000 (157.48) 1,600 (62.99) 2,500 (98.43) Stand by: kW kVA PS Prime: kW kVA PS 60Hz 660 825 1000 600 750 906 50Hz 560 700 883 500 625 803 Generator Weights and Dimensions Possession Certificate L W H Sound proof type Generator Set Weight, kg (lb.) Dry Length, mm (in.) Width, mm (in.) Height, mm (in.) H Application Data Engine Engine Specifications Manufacturer Model No. Aspiration Number of cylinders Bore x stroke, mm Compression ratio Firing order Fuel injection pump Air Cleaner Fuel filter Lubrication oil filter Alternator Starting motor Fuel consumption(lit/hr,Prime) 60 Hz 50 Hz DOOSAN P222LE-II T.C. & intercooled (air to air) 12 - In line 128mm x 142mm 14.0:1 1-12-5-8-3-10-6-7-2-11-4-9 Zexel in - line “P”type Cyclone filter paper type Full flow, cartridge type Full forced pressure feed type 24V - 45A 24V - 7.0kW 98.8 General specification Temperature : - 15oC ~ 40oC Critical altitude : below 1,500meters above the sea Relative humidity : 85% Diesel engine set mounted on steel base frame Control panel is loaded Radiator is equipped KS A/ISO 9001 KS A/ISO 14001 Innovation business (KOREA) Registration Number 046 EMS KAB Communaut' Europeen ὤ㍔䜵㐔䝉㩅㋀ὤ㛹 Generator Ratings Range KSA/ISO9001 KSA/ISO14001 Registration Number 046 EMS KAB Communaut' Europeen Head Office #141, DoRim-Dong, YoungDungPo-Gu, Seoul-City, Korea Tel. +82 2 833 4646 Fax. +82 2 848 3254 Factory #512-4, MunHyung-Ri, OPo-Up, KwangJu-City, KyungKi-Do, Korea Tel. +82 31 767 0043 Fax. +82 31 767 0887

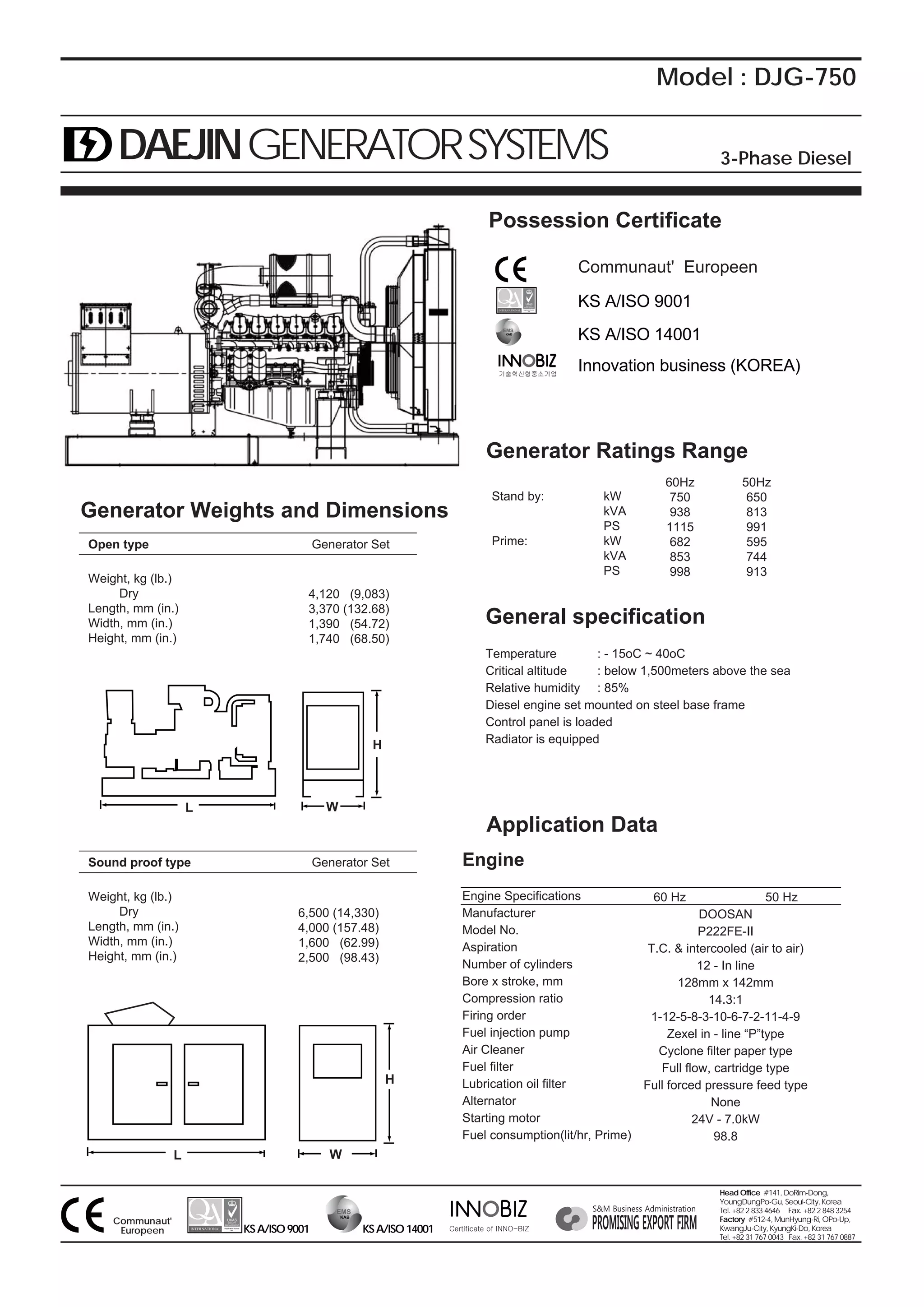

DAEJINGENERATORSYSTEMS Model : DJG-750 3-Phase Diesel L W Open type Generator Set Weight, kg (lb.) Dry Length, mm (in.) Width, mm (in.) Height, mm (in.) 4,120 (9,083) 3,370 (132.68) 1,390 (54.72) 1,740 (68.50) 6,500 (14,330) 4,000 (157.48) 1,600 (62.99) 2,500 (98.43) Stand by: kW kVA PS Prime: kW kVA PS 60Hz 750 938 1115 682 853 998 50Hz 650 813 991 595 744 913 Generator Weights and Dimensions Possession Certificate L W H Sound proof type Generator Set Weight, kg (lb.) Dry Length, mm (in.) Width, mm (in.) Height, mm (in.) H Application Data Engine Engine Specifications Manufacturer Model No. Aspiration Number of cylinders Bore x stroke, mm Compression ratio Firing order Fuel injection pump Air Cleaner Fuel filter Lubrication oil filter Alternator Starting motor Fuel consumption(lit/hr, Prime) 60 Hz 50 Hz DOOSAN P222FE-II T.C. & intercooled (air to air) 12 - In line 128mm x 142mm 14.3:1 1-12-5-8-3-10-6-7-2-11-4-9 Zexel in - line “P”type Cyclone filter paper type Full flow, cartridge type Full forced pressure feed type None 24V - 7.0kW 98.8 General specification Temperature : - 15oC ~ 40oC Critical altitude : below 1,500meters above the sea Relative humidity : 85% Diesel engine set mounted on steel base frame Control panel is loaded Radiator is equipped KS A/ISO 9001 KS A/ISO 14001 Innovation business (KOREA) Registration Number 046 EMS KAB Communaut' Europeen ὤ㍔䜵㐔䝉㩅㋀ὤ㛹 Generator Ratings Range KSA/ISO9001 KSA/ISO14001 Registration Number 046 EMS KAB Communaut' Europeen Head Office #141, DoRim-Dong, YoungDungPo-Gu, Seoul-City, Korea Tel. +82 2 833 4646 Fax. +82 2 848 3254 Factory #512-4, MunHyung-Ri, OPo-Up, KwangJu-City, KyungKi-Do, Korea Tel. +82 31 767 0043 Fax. +82 31 767 0887
