1. Technical Chart
for
Veterinary Radiography
Presented by
1801172 1801176
1801177 1801178

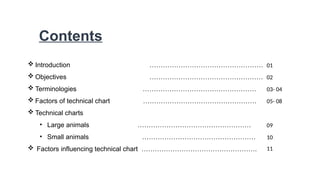

2.  Introduction ……………………………………………
 Objectives ……………………………………………
 Terminologies ……………………………………………
 Factors of technical chart ……………………………………………
 Technical charts
• Large animals ……………………………………………
• Small animals ……………………………………………
 Factors influencing technical chart …………………………………………….
Contents
01
02
03- 04
05- 08
09
10
11

3. Introduction
 An X-ray is a penetrating form of high-energy electromagnetic
radiation.
 X-rays can be used to examine most areas of the body.
 They're mainly used to look at the bones and joints, although
they're sometimes used to detect problems affecting soft tissue.
 The reduction of energy is caused by absorption which is the
main principle of traditional X-ray imaging.
1

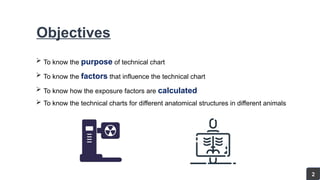

4. Objectives
2
 To know the purpose of technical chart
 To know the factors that influence the technical chart
 To know how the exposure factors are calculated
 To know the technical charts for different anatomical structures in different animals

5. Terminologies
 kVp: It stands for kilovoltage peak. This is the highest voltage (measured in
thousands of volts) that will be produced by the x-ray machine during an exposure.
 mAs: Milliampere-seconds, is a measure of radiation produced (milliamperage)
over a set amount of time (seconds) via an x-ray tube.
3

6. Terminologies
 FFD: Focal-film distance (FFD) is the distance between the center of the anode of
the x-ray tube (the focal spot) and the film (top of cassette). Also known as, Source-
image distance (SID). The greater the SID, the less magnification/distortion will be
apparent in the image.
4

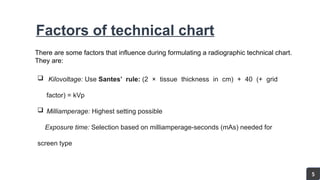

7. Factors of technical chart
There are some factors that influence during formulating a radiographic technical chart.
They are:
 Kilovoltage: Use Santes’ rule: (2 × tissue thickness in cm) + 40 (+ grid
factor) = kVp
 Milliamperage: Highest setting possible
Exposure time: Selection based on milliamperage-seconds (mAs) needed for
screen type
5

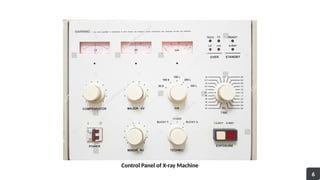

8. Control Panel of X-ray Machine
6

9. 7

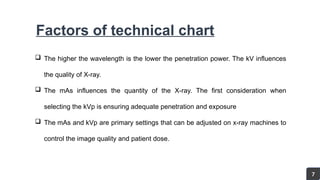

Factors of technical chart
 The higher the wavelength is the lower the penetration power. The kV influences
the quality of X-ray.
 The mAs influences the quantity of the X-ray. The first consideration when
selecting the kVp is ensuring adequate penetration and exposure
 The mAs and kVp are primary settings that can be adjusted on x-ray machines to
control the image quality and patient dose.

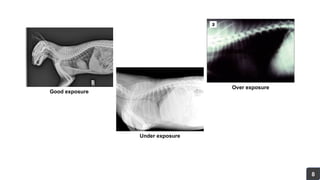

10. Good exposure
Under exposure
Over exposure
8

11. Technical Chart
of X-ray
in
Large Animals
9

12. Organs kV mAs
Thorax/Abdomen
Small Dog/Cat 60 2
Medium Dog 70 4-6
Large dog 80 6-8
Extremity
Small Dog/Cat 50 2
Medium Dog 55 4
Large dog 60 6-8
Skull
Small Dog/Cat 50 3
Medium Dog 60 5
Large dog 70 6
Technical Chart
of X-ray
in
Small Animals
10

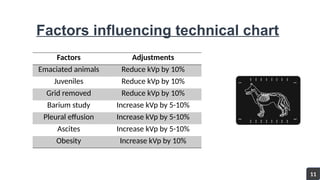

13. Factors Adjustments
Emaciated animals Reduce kVp by 10%
Juveniles Reduce kVp by 10%
Grid removed Reduce kVp by 10%
Barium study Increase kVp by 5-10%
Pleural effusion Increase kVp by 5-10%
Ascites Increase kVp by 5-10%
Obesity Increase kVp by 10%
Factors influencing technical chart
11

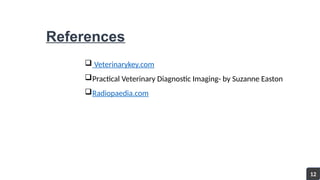

14. References
 Veterinarykey.com
Practical Veterinary Diagnostic Imaging- by Suzanne Easton
Radiopaedia.com
12

15. Question?
Any
13
