This document discusses moving a Magento e-commerce platform to the AWS cloud to improve scalability, availability, and cost efficiency. It provides an overview of traditional Magento infrastructure and proposes an alternative infrastructure design on AWS using services like EC2, ELB, RDS, S3, CloudFront, Route53, and Elasticache. It highlights key considerations for each technology and steps to automate the infrastructure and deployment process.

1. AWS
Speed & Scaling with Magento
Florian Aschenbrenner

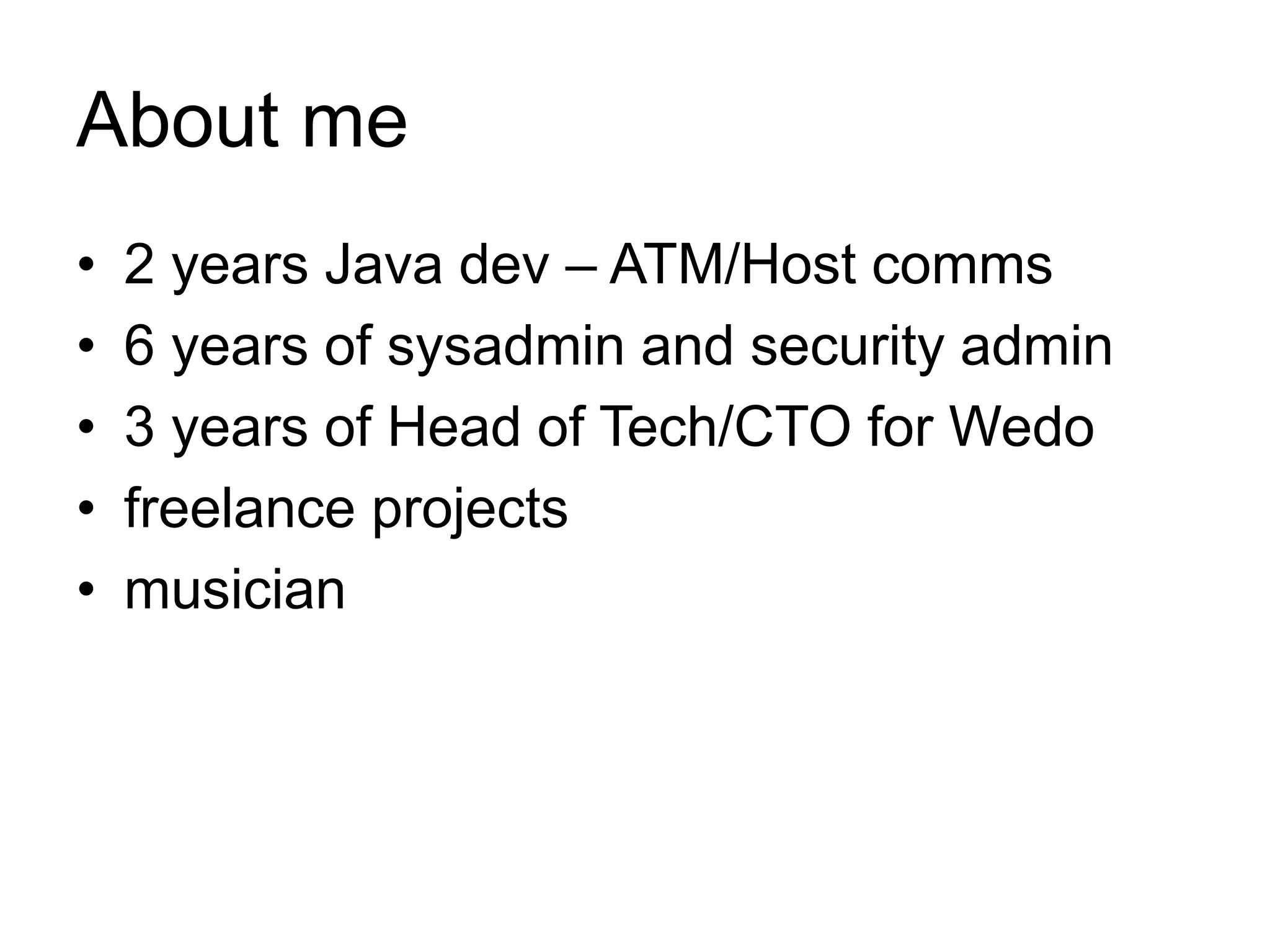

2. About me
• 2 years Java dev – ATM/Host comms
• 6 years of sysadmin and security admin
• 3 years of Head of Tech/CTO for Wedo
• freelance projects
• musician

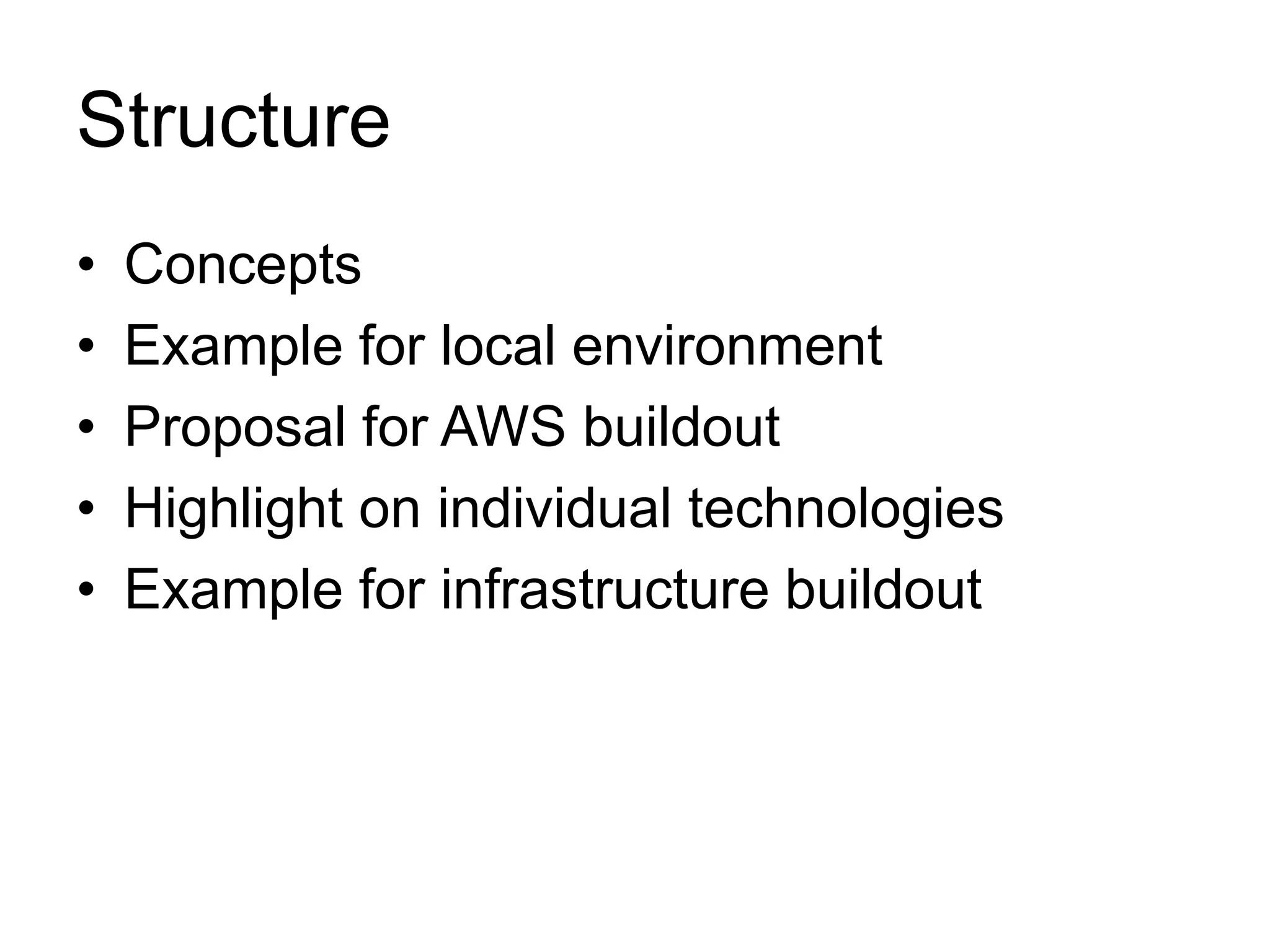

3. Structure
• Concepts
• Example for local environment
• Proposal for AWS buildout
• Highlight on individual technologies
• Example for infrastructure buildout

4. Let‘s go
to the cloud (1)

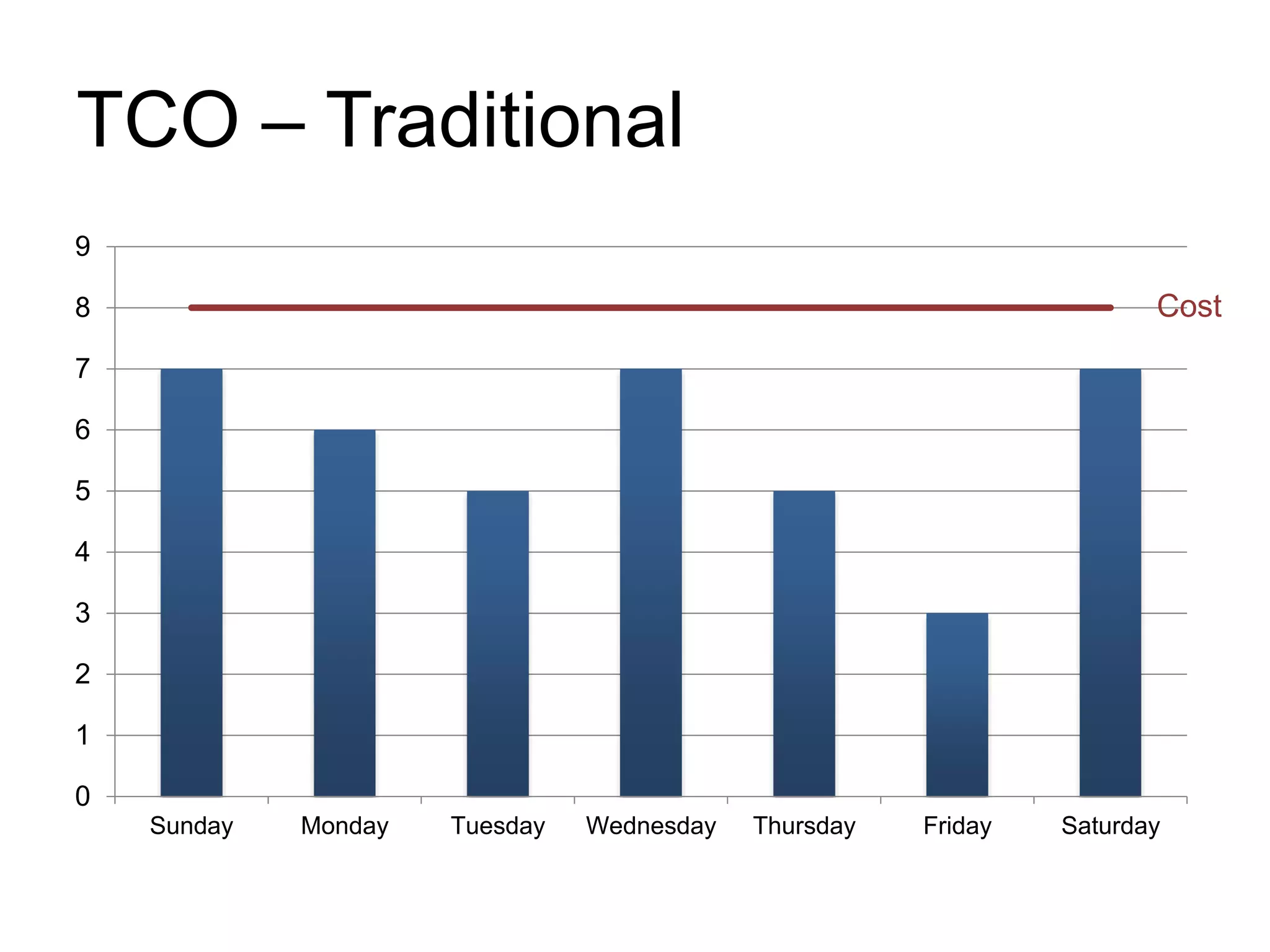

6. TCO – Traditional
9
8
7
6
5
4
3
2
1
0
Cost
Sunday Monday Tuesday Wednesday Thursday Friday Saturday

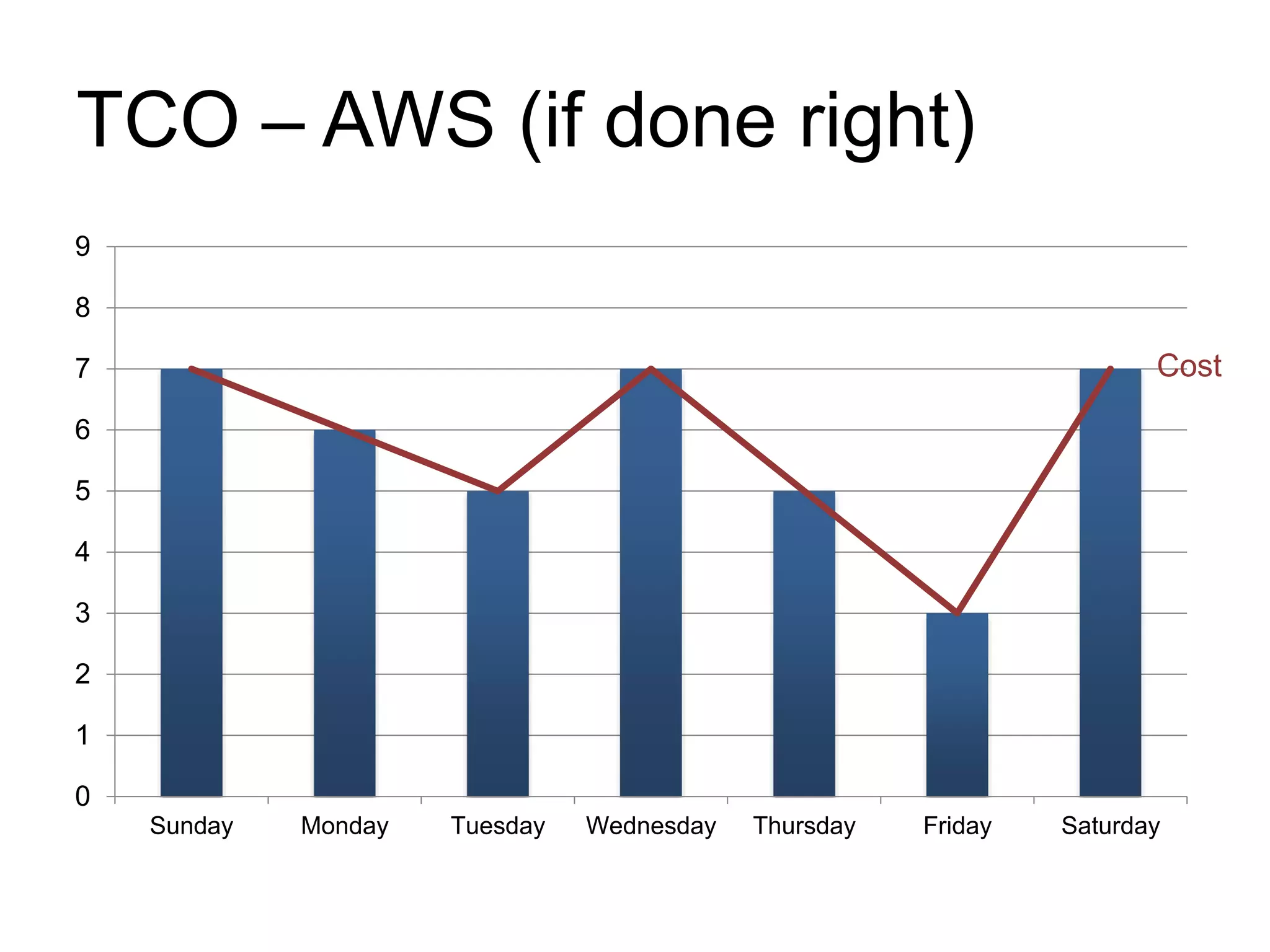

7. TCO – AWS (if done right)
9
8
7
6
5
4
3
2
1
0
Cost
Sunday Monday Tuesday Wednesday Thursday Friday Saturday

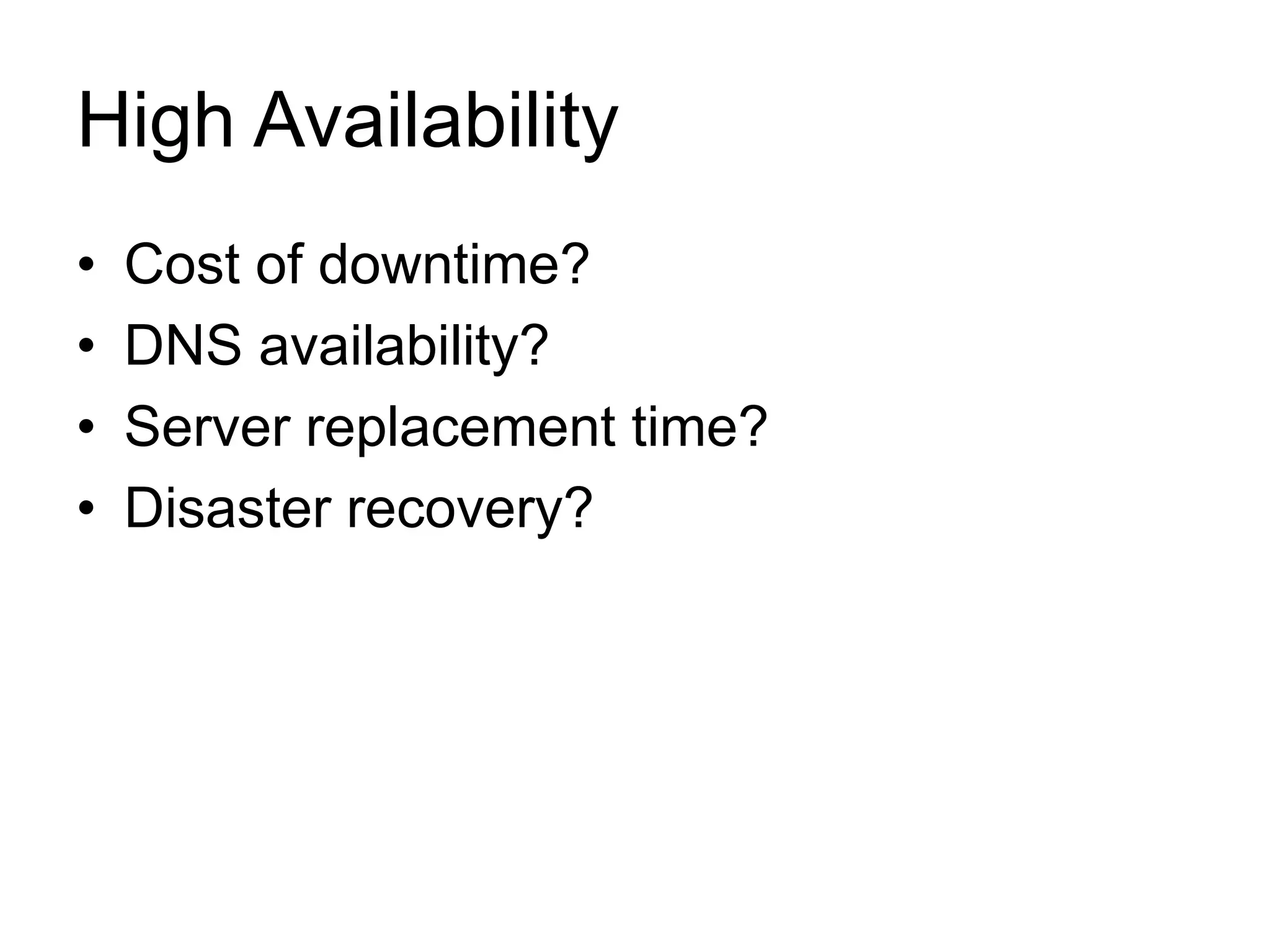

8. High Availability
• Cost of downtime?
• DNS availability?
• Server replacement time?
• Disaster recovery?

9. Scalability / Automation
• Adding additional hardware?
• Identical systems?
• More hardware than needed?
• Dev machines = live environment?
• 2x the load? 3x? 4x?

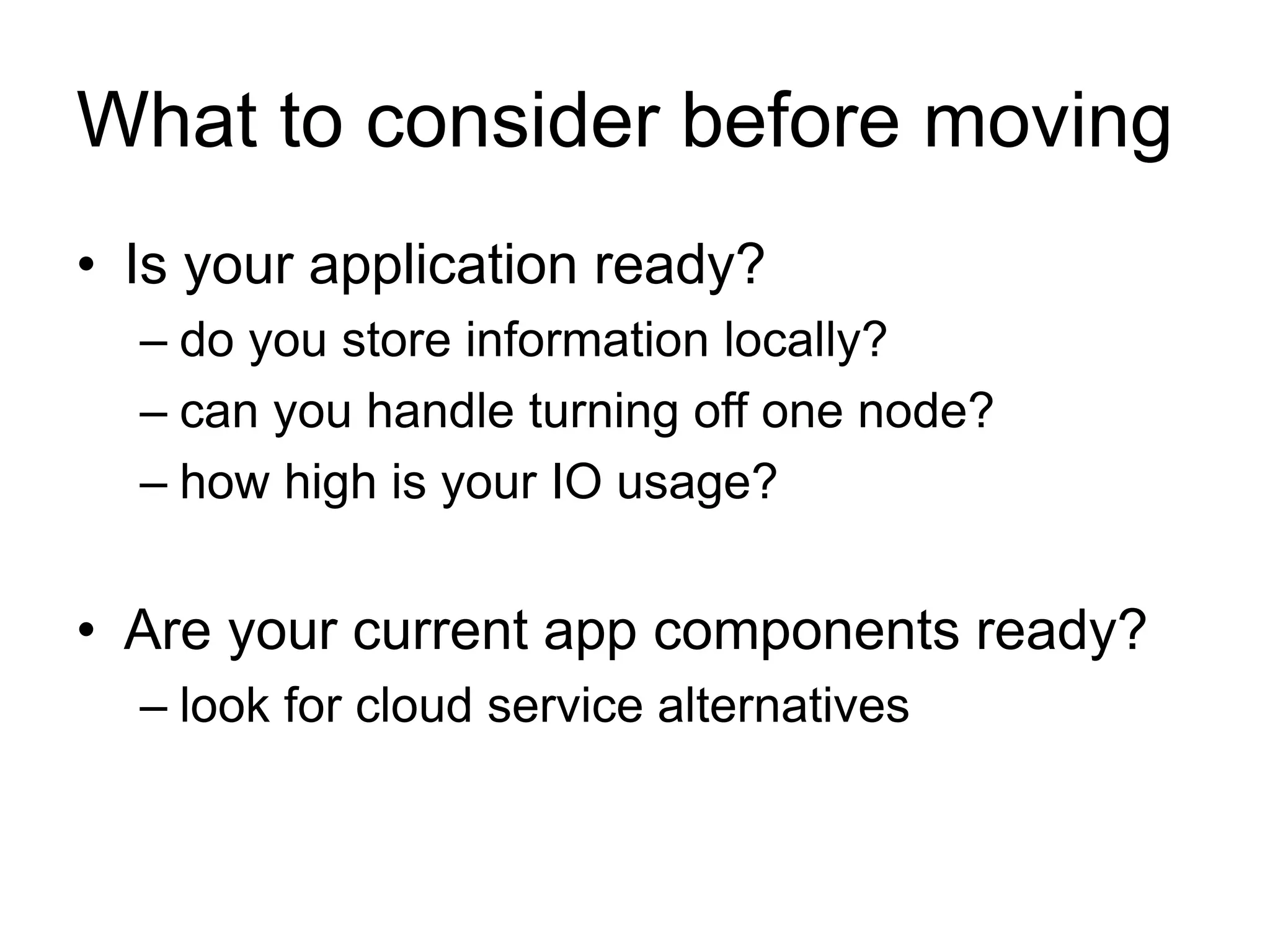

11. What to consider before moving
• Is your application ready?
– do you store information locally?
– can you handle turning off one node?
– how high is your IO usage?
• Are your current app components ready?
– look for cloud service alternatives

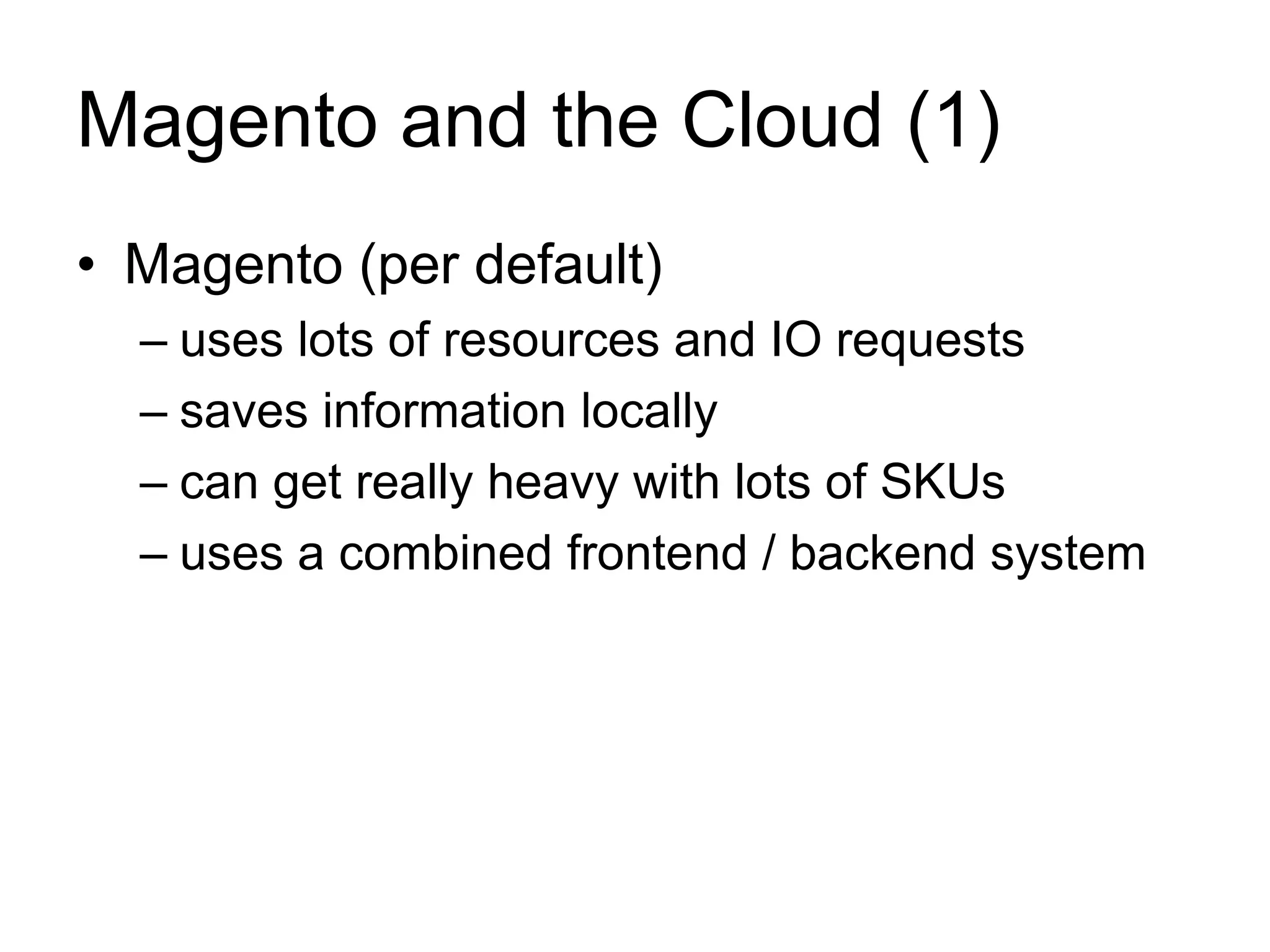

12. Magento and the Cloud (1)
• Magento (per default)
– uses lots of resources and IO requests
– saves information locally
– can get really heavy with lots of SKUs
– uses a combined frontend / backend system

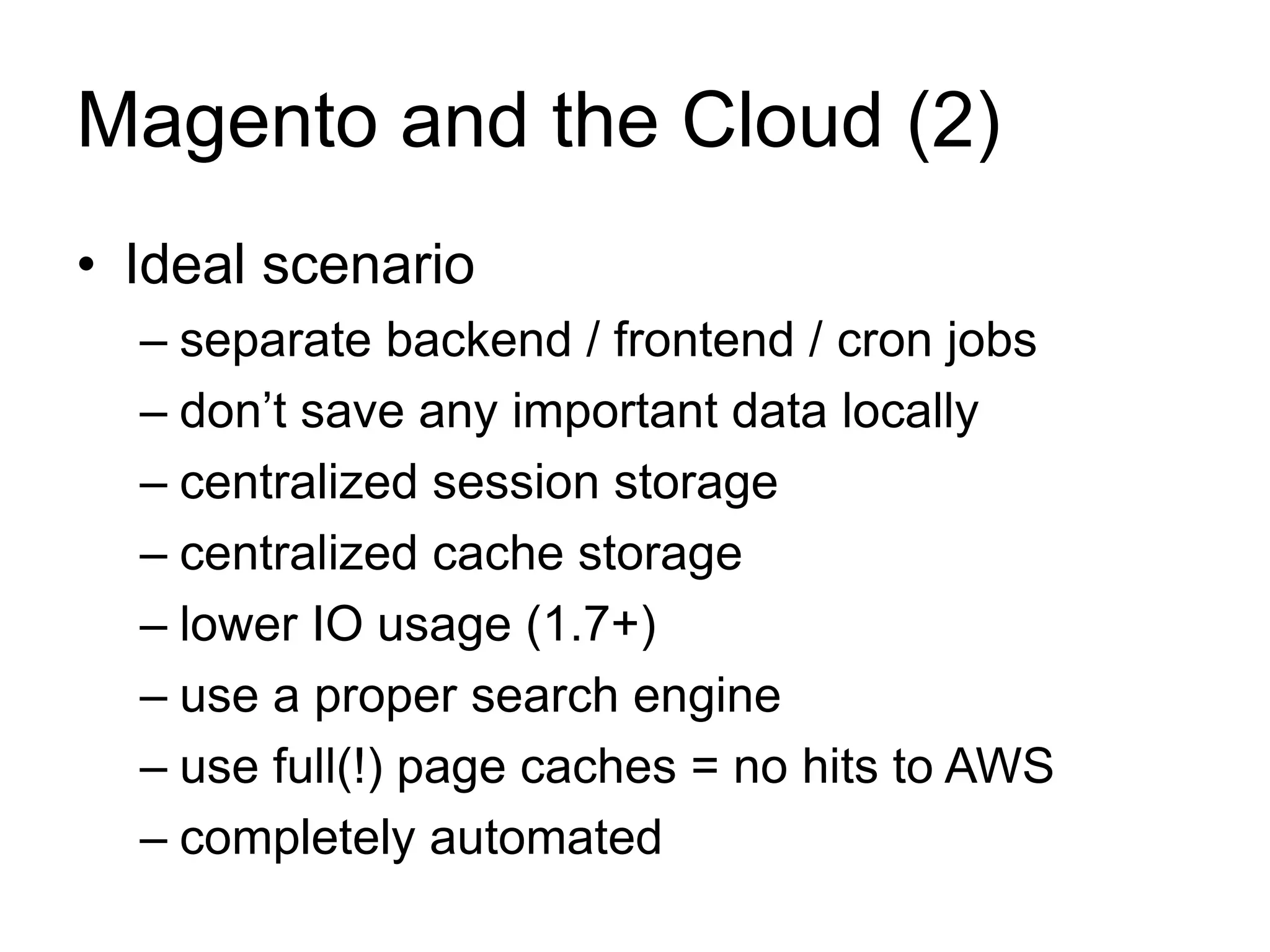

13. Magento and the Cloud (2)
• Ideal scenario
– separate backend / frontend / cron jobs
– don’t save any important data locally
– centralized session storage
– centralized cache storage
– lower IO usage (1.7+)
– use a proper search engine
– use full(!) page caches = no hits to AWS
– completely automated

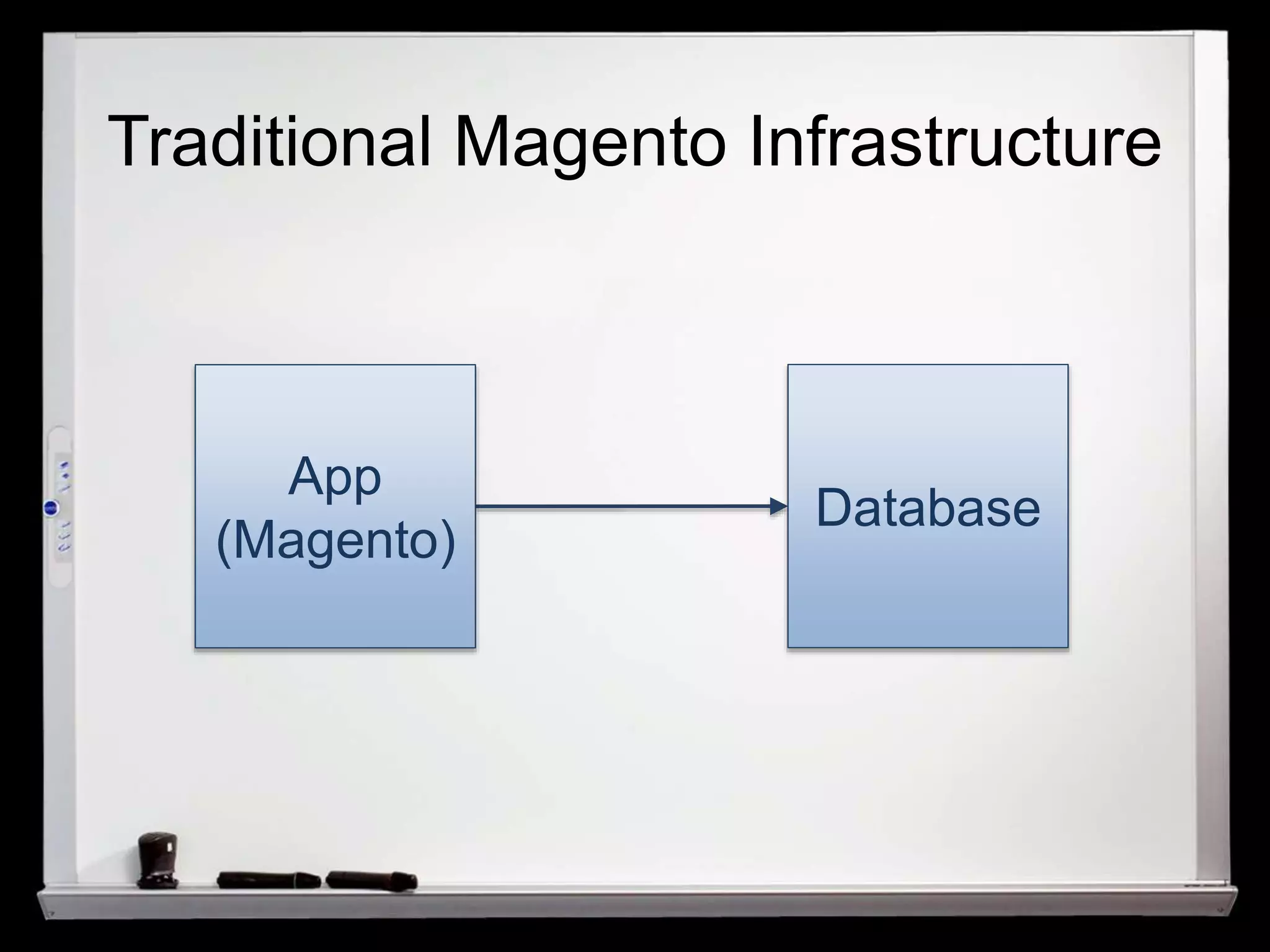

14. Traditional Magento Infrastructure
App
(Magento)
Database

15. Traditional Magento Infrastructure
Load
Balancer
App
App
Database

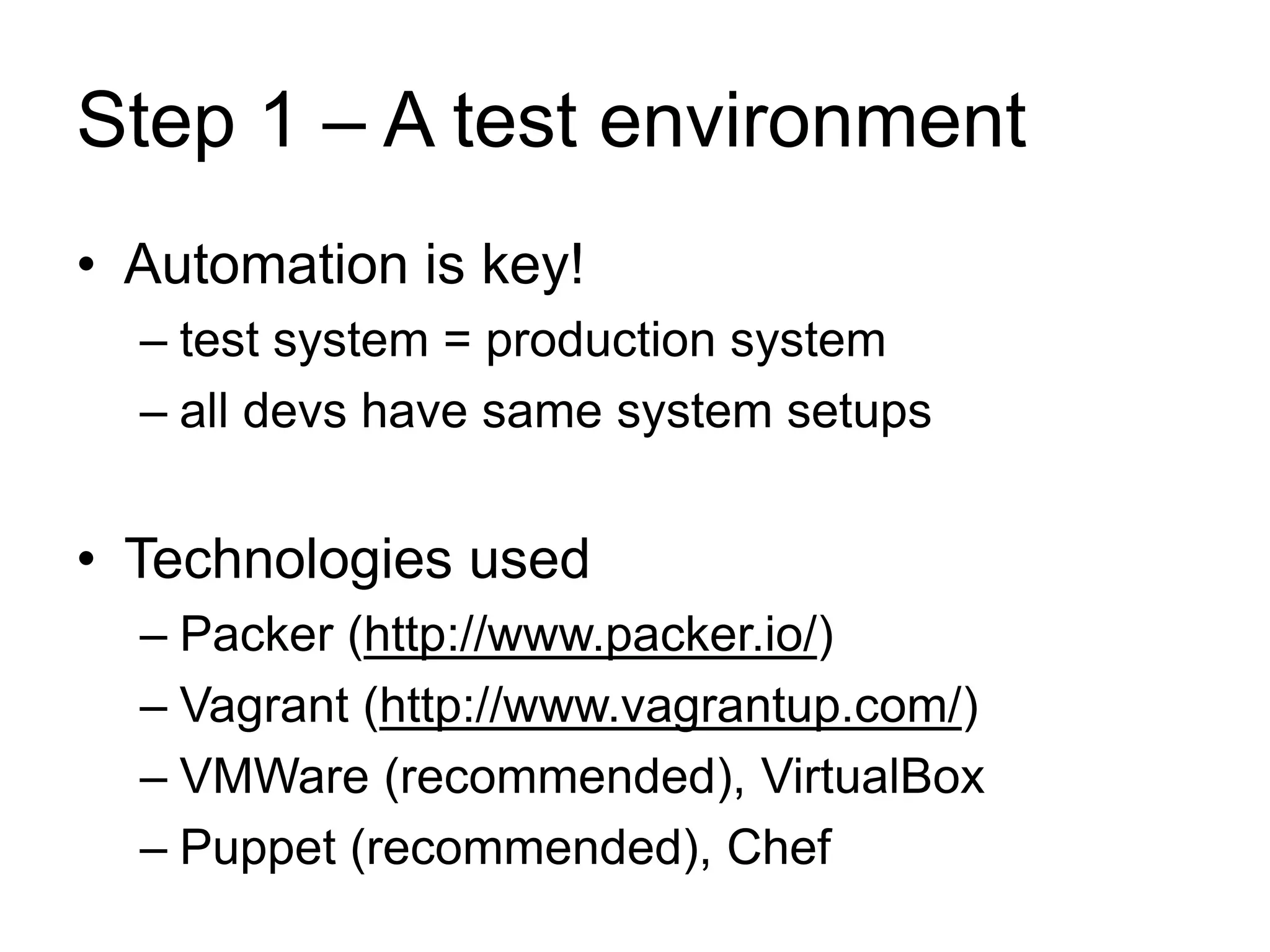

16. Step 1 – A test environment
• Automation is key!
– test system = production system
– all devs have same system setups
• Technologies used
– Packer (http://www.packer.io/)
– Vagrant (http://www.vagrantup.com/)
– VMWare (recommended), VirtualBox
– Puppet (recommended), Chef

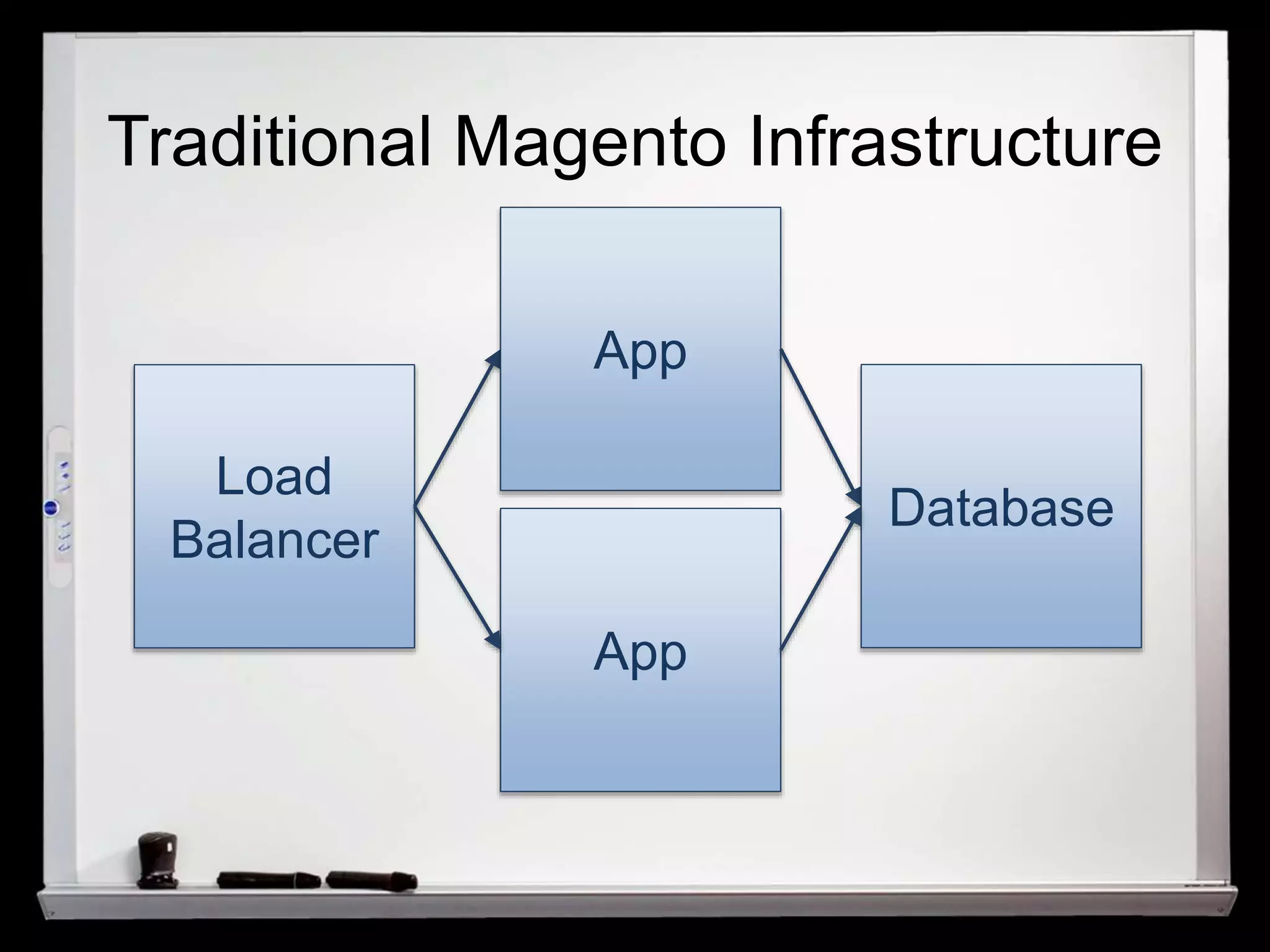

17. Traditional Magento Infrastructure
Load
Balancer
App
App
Database

18. Proposed Infrastructure
Route
53
Fastly
BE
ELB
FE
ELB
BE
Array
FE
Array
Job
Array
RDS
Additional
Services
ELBs EC2s

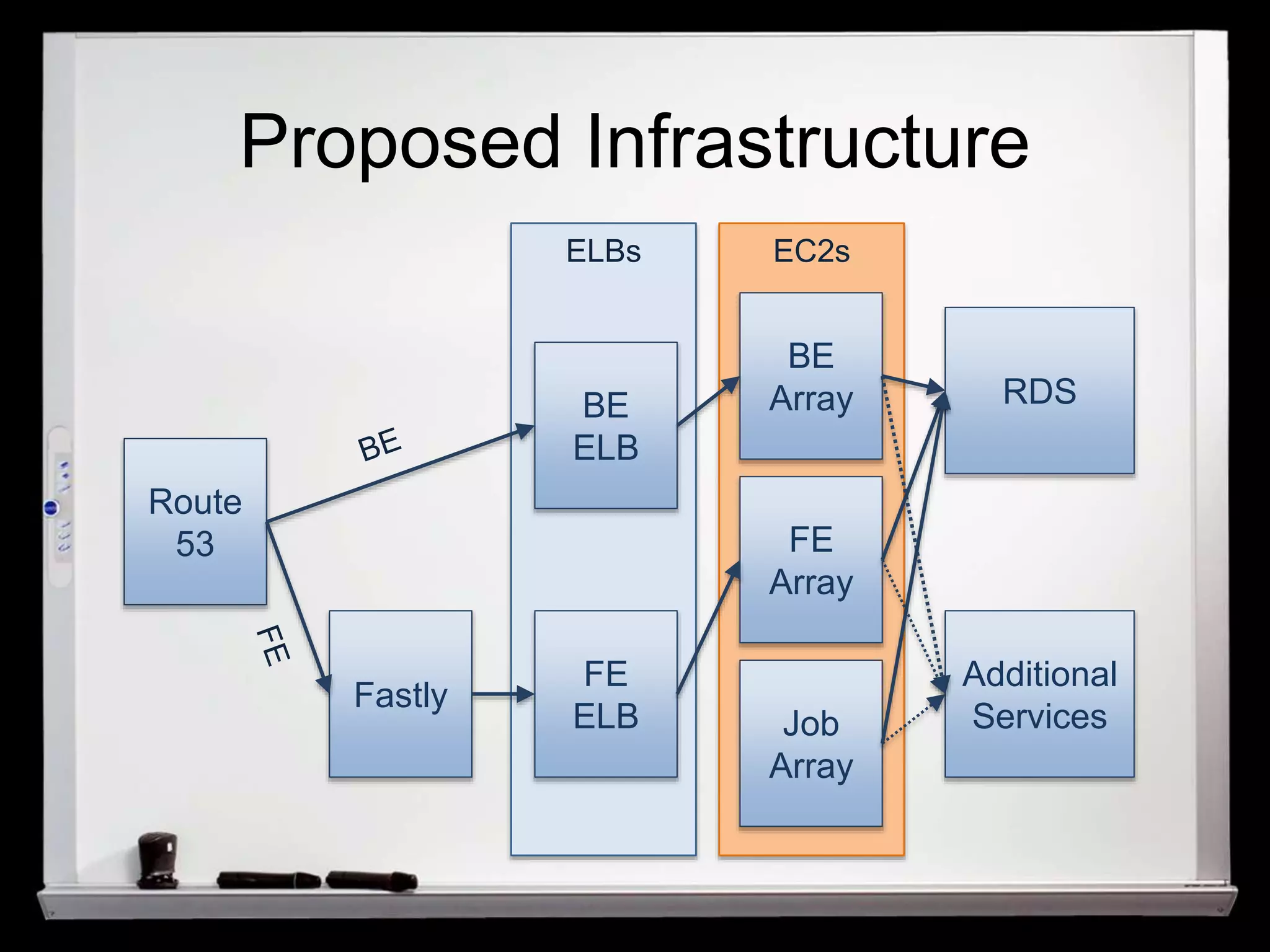

19. Proposed Infrastructure
Route
53
Fastly
BE
ELB
FE
ELB
BE
Array
FE
Array
Job
Array
RDS
Additional
Services
ELBs EC2s

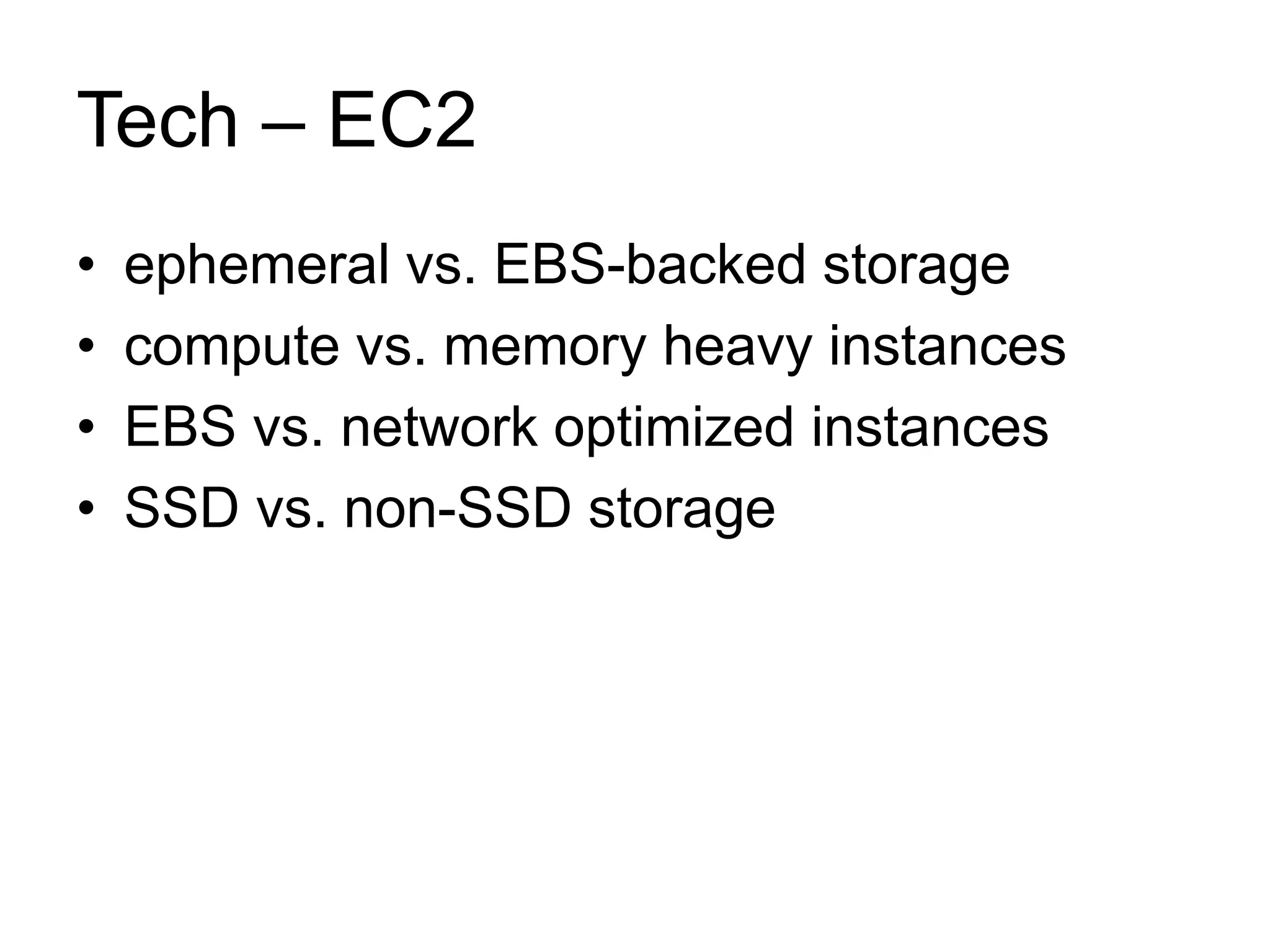

20. Tech – EC2
• ephemeral vs. EBS-backed storage
• compute vs. memory heavy instances
• EBS vs. network optimized instances
• SSD vs. non-SSD storage

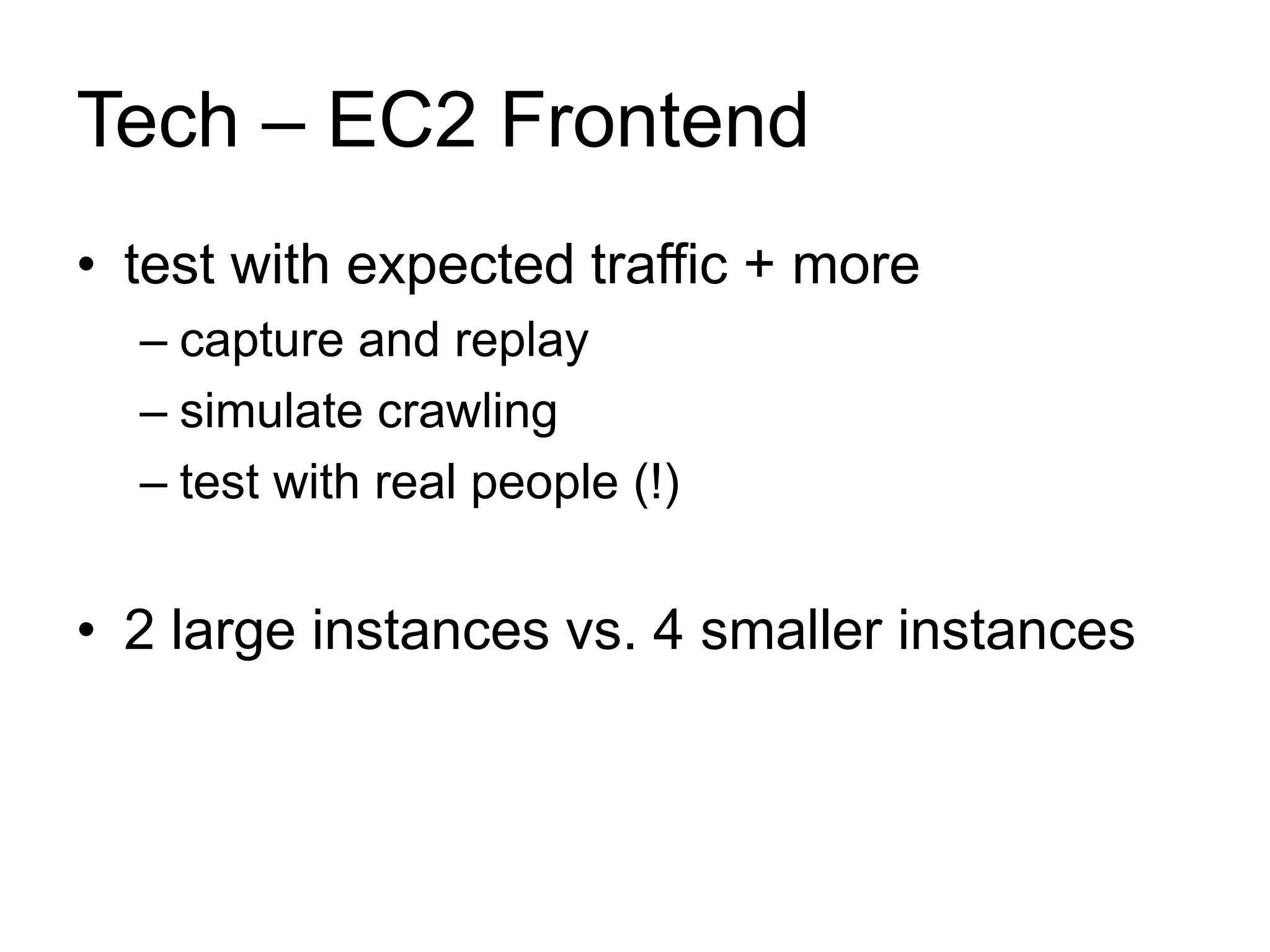

21. Tech – EC2 Frontend
• test with expected traffic + more
– capture and replay
– simulate crawling
– test with real people (!)
• 2 large instances vs. 4 smaller instances

22. Tech – EC2 Backend / EC2 Job
• split out to not take away processing
power for customers
• Backend roles
– admin work
– API connections
• Job roles
– periodical jobs
– usually 1 instance

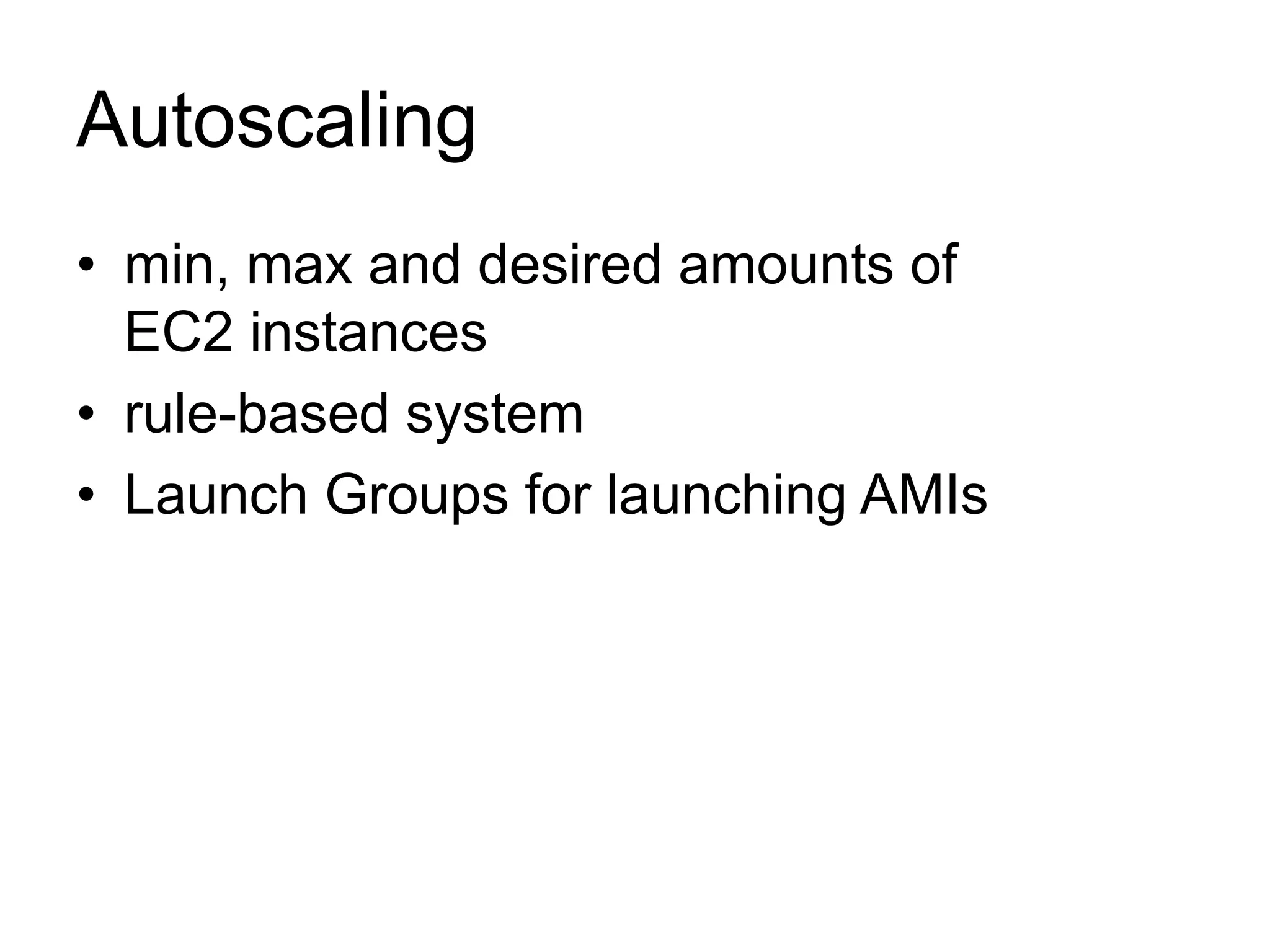

23. Autoscaling
• min, max and desired amounts of
EC2 instances
• rule-based system
• Launch Groups for launching AMIs

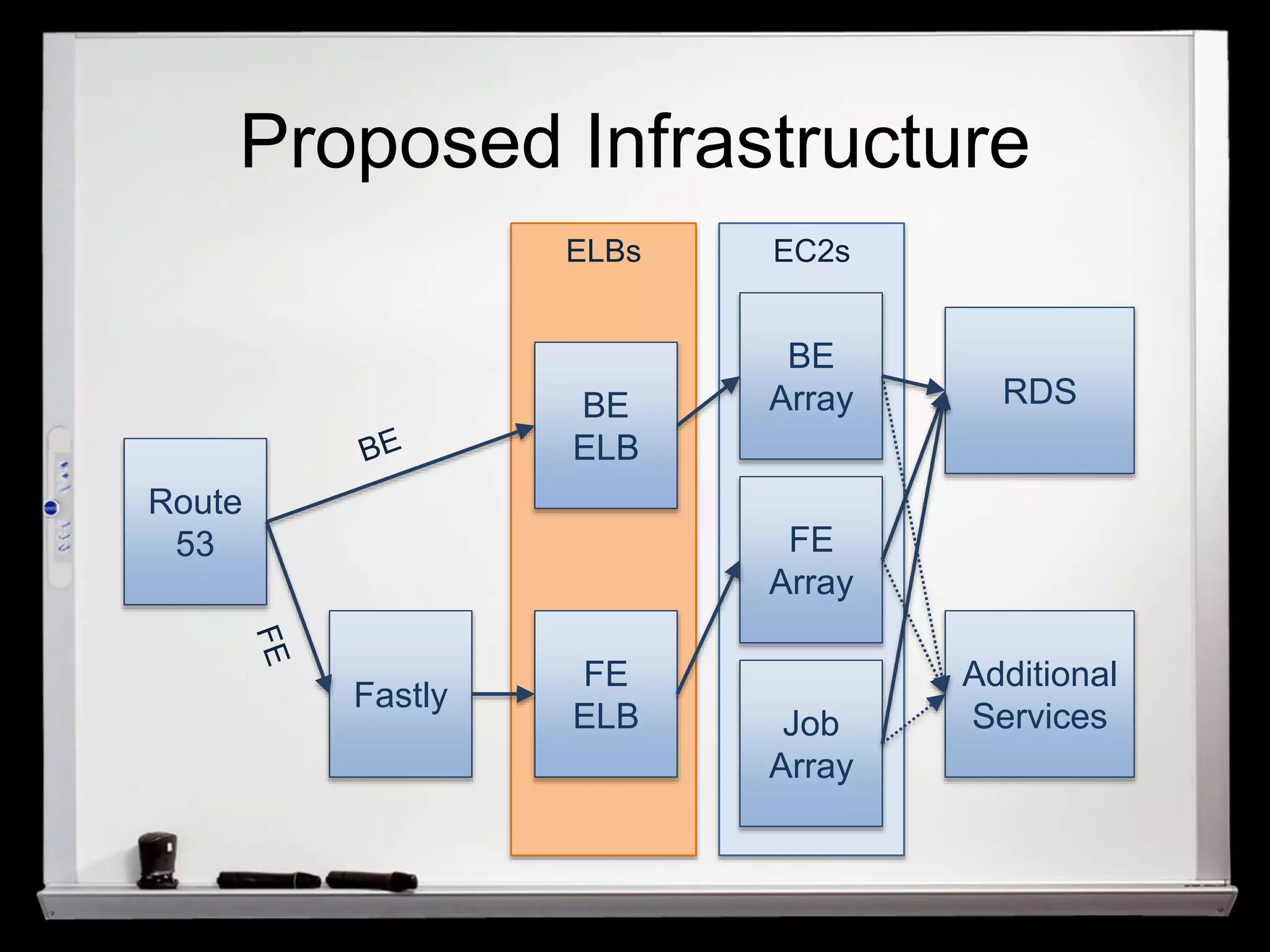

24. Proposed Infrastructure
Route
53
Fastly
BE
ELB
FE
ELB
BE
Array
FE
Array
Job
Array
RDS
Additional
Services
ELBs EC2s

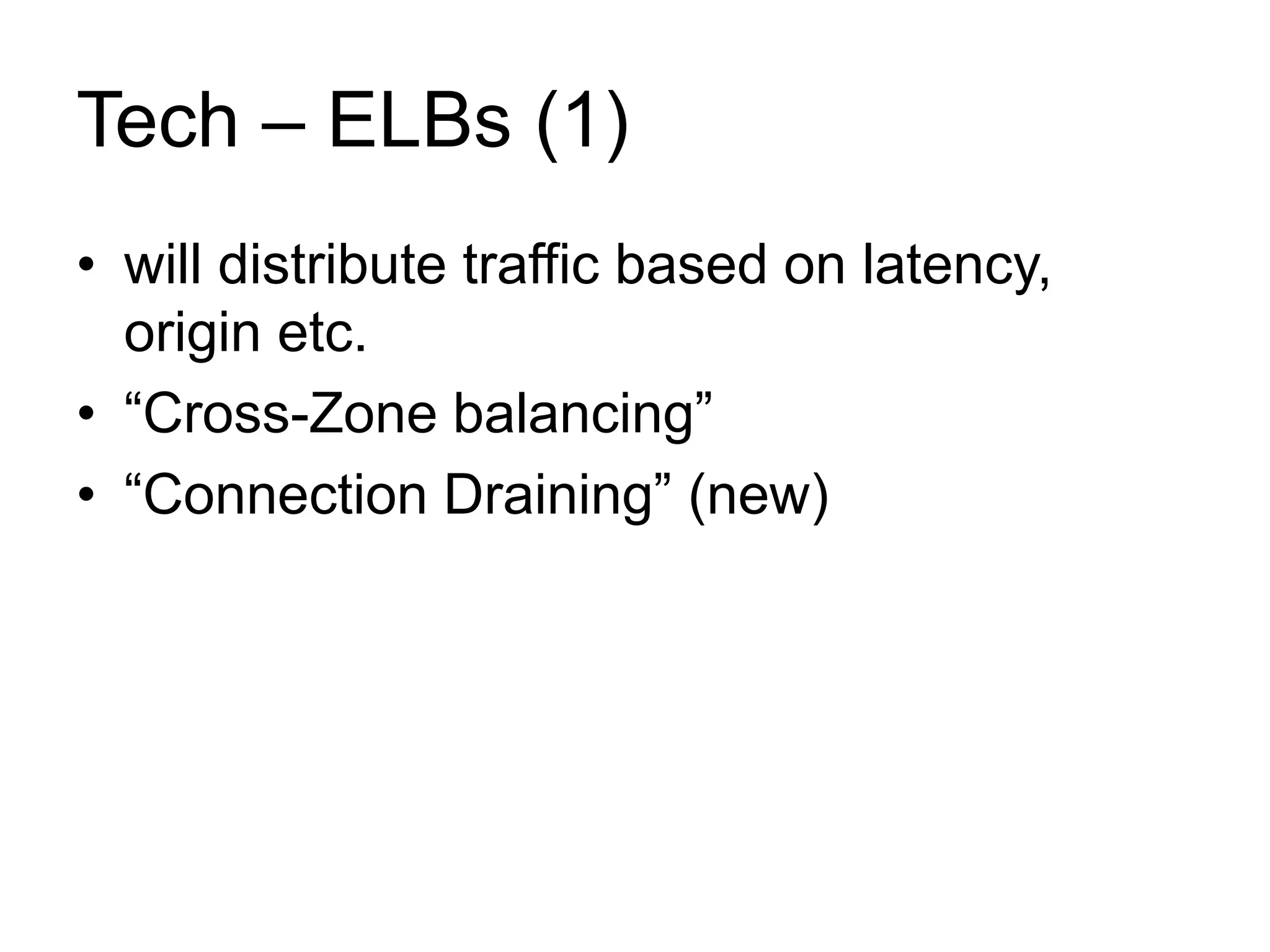

25. Tech – ELBs (1)
• will distribute traffic based on latency,
origin etc.
• “Cross-Zone balancing”
• “Connection Draining” (new)

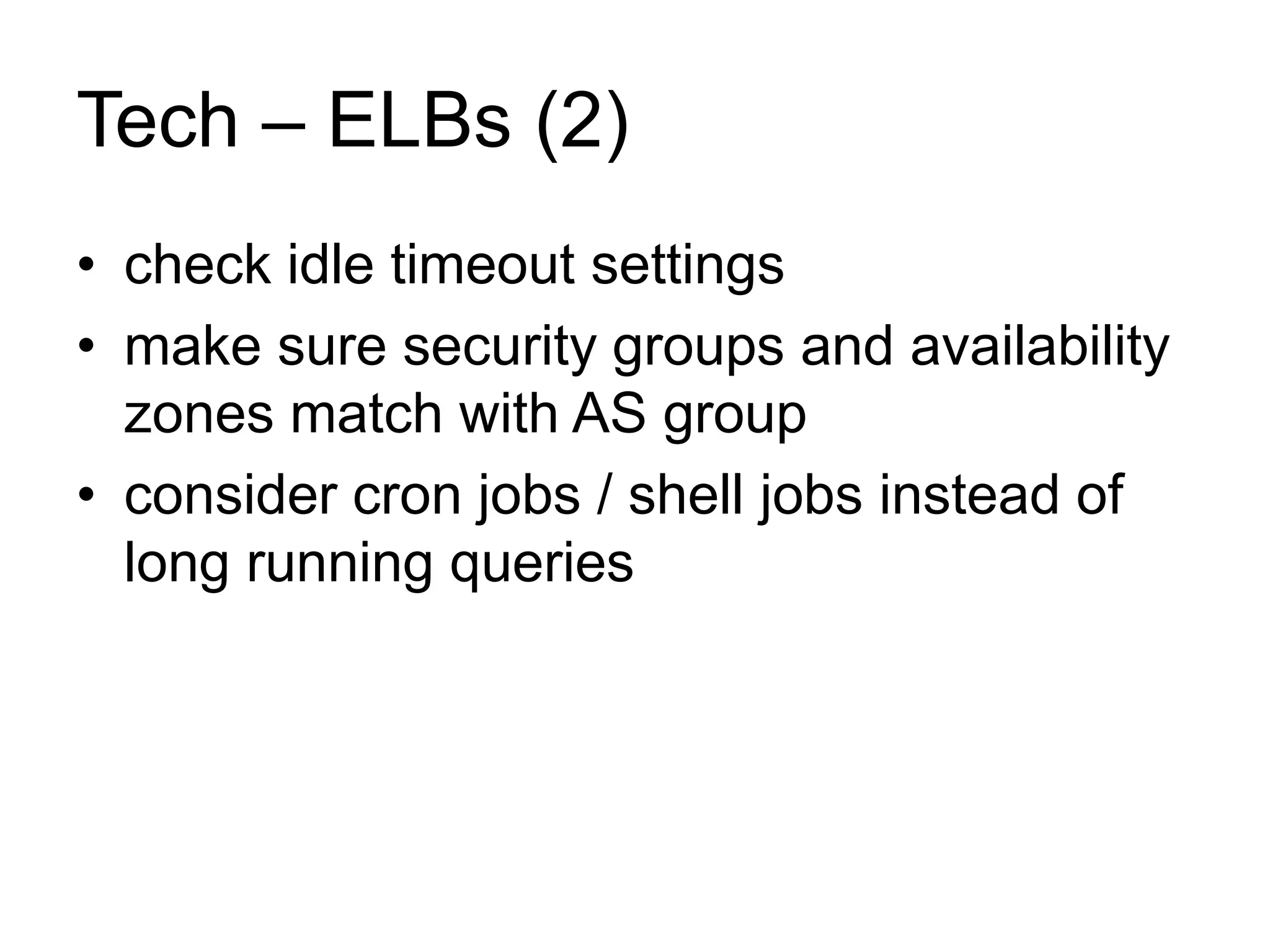

26. Tech – ELBs (2)
• check idle timeout settings
• make sure security groups and availability
zones match with AS group
• consider cron jobs / shell jobs instead of
long running queries

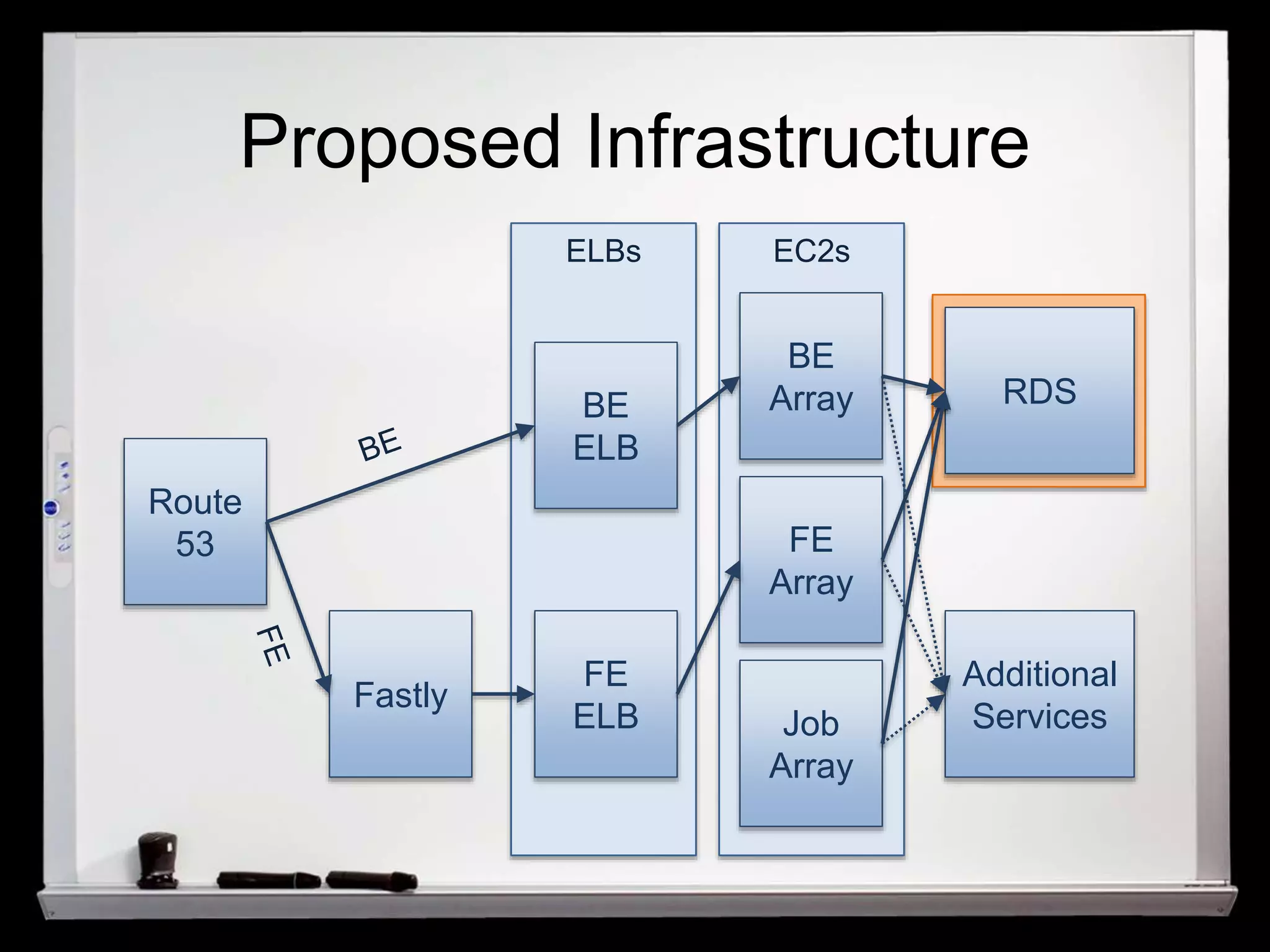

27. Proposed Infrastructure
Route
53
Fastly
BE
ELB
FE
ELB
BE
Array
FE
Array
Job
Array
RDS
Additional
Services
ELBs EC2s

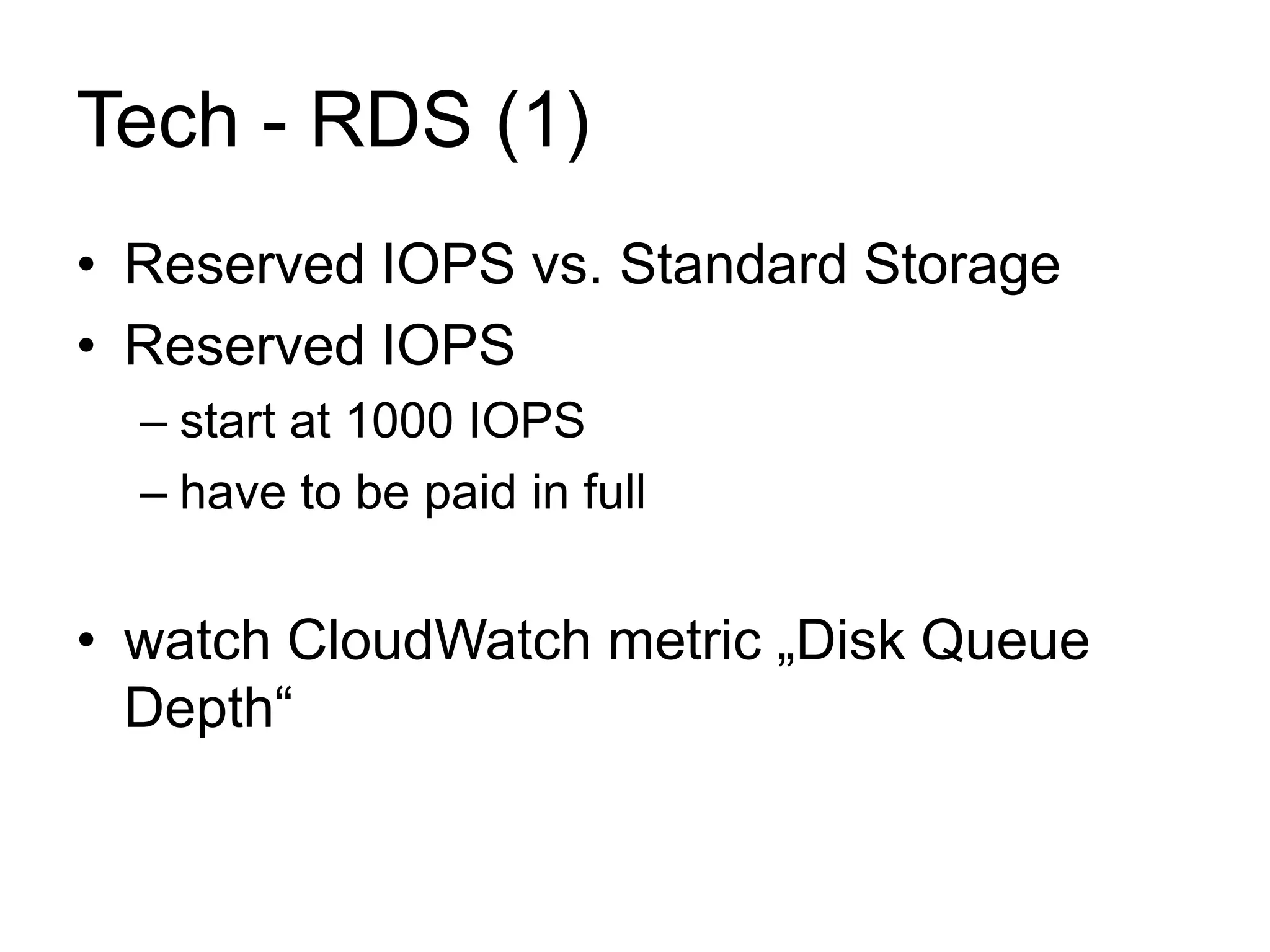

28. Tech - RDS (1)
• Reserved IOPS vs. Standard Storage
• Reserved IOPS
– start at 1000 IOPS
– have to be paid in full
• watch CloudWatch metric „Disk Queue
Depth“

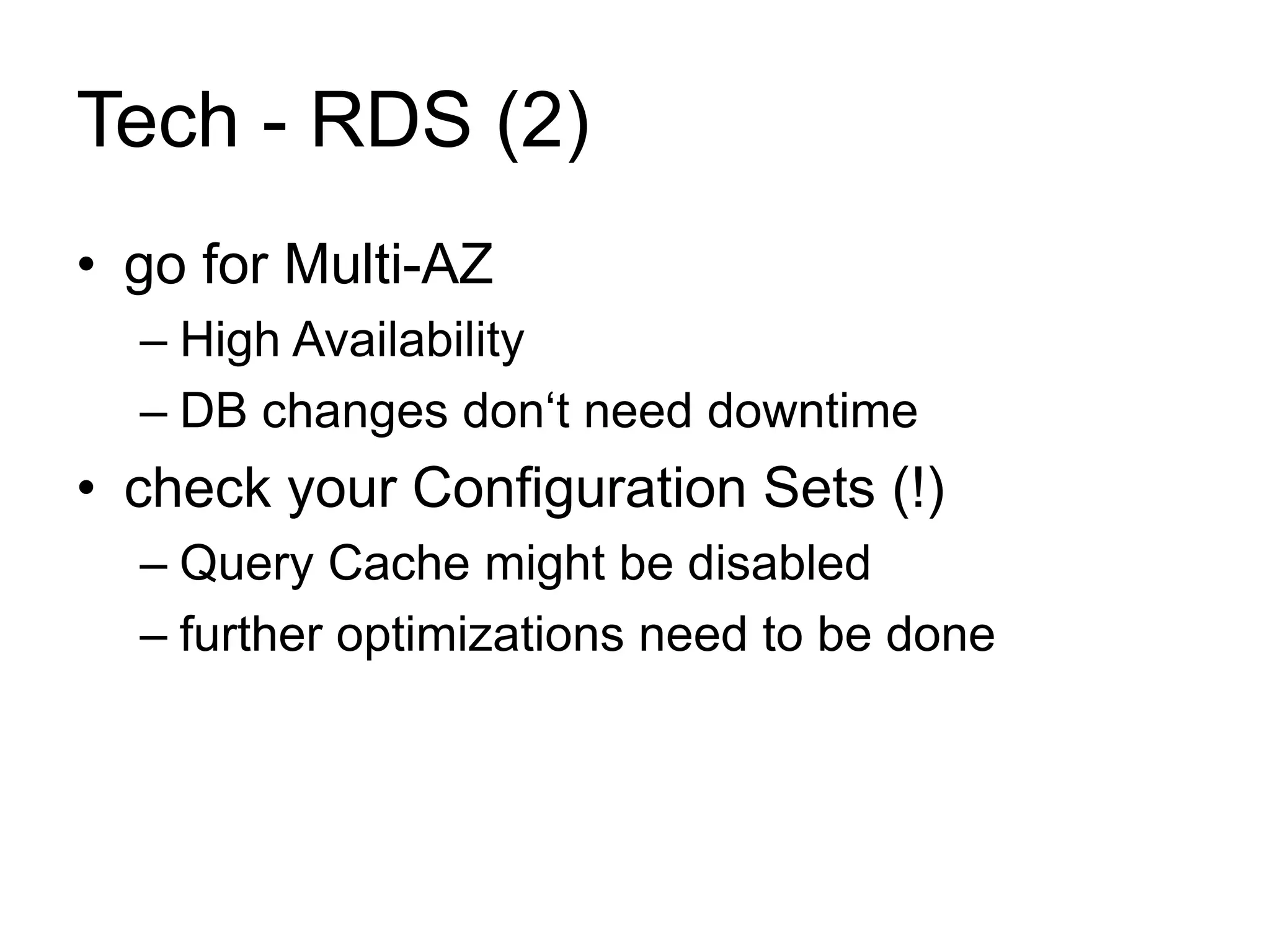

29. Tech - RDS (2)
• go for Multi-AZ
– High Availability
– DB changes don‘t need downtime
• check your Configuration Sets (!)
– Query Cache might be disabled
– further optimizations need to be done

31. Proposed Infrastructure
Route
53
Fastly
BE
ELB
FE
ELB
BE
Array
FE
Array
Job
Array
RDS
Additional
Services
ELBs EC2s

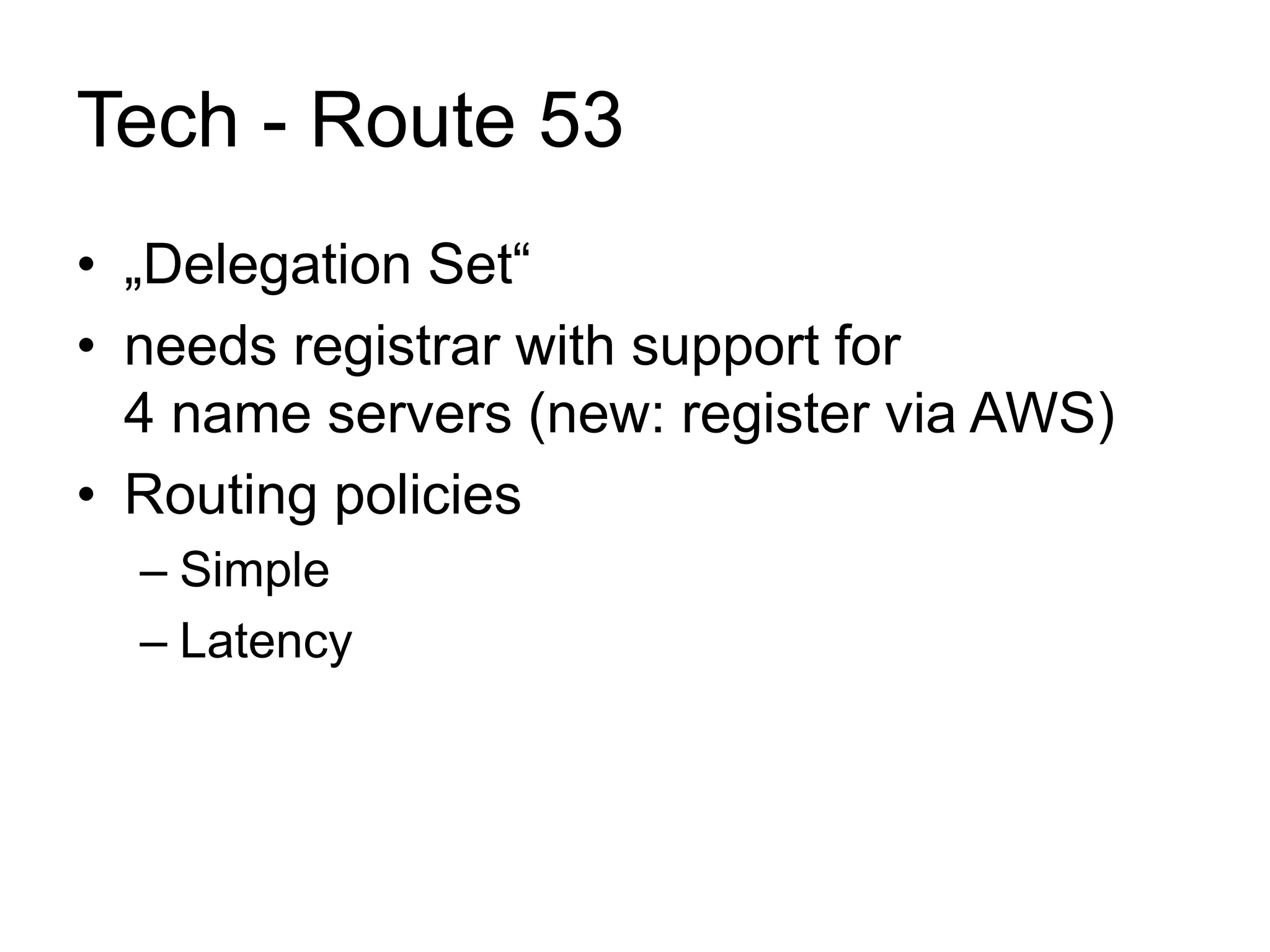

32. Tech - Route 53
• „Delegation Set“
• needs registrar with support for
4 name servers (new: register via AWS)
• Routing policies
– Simple
– Latency

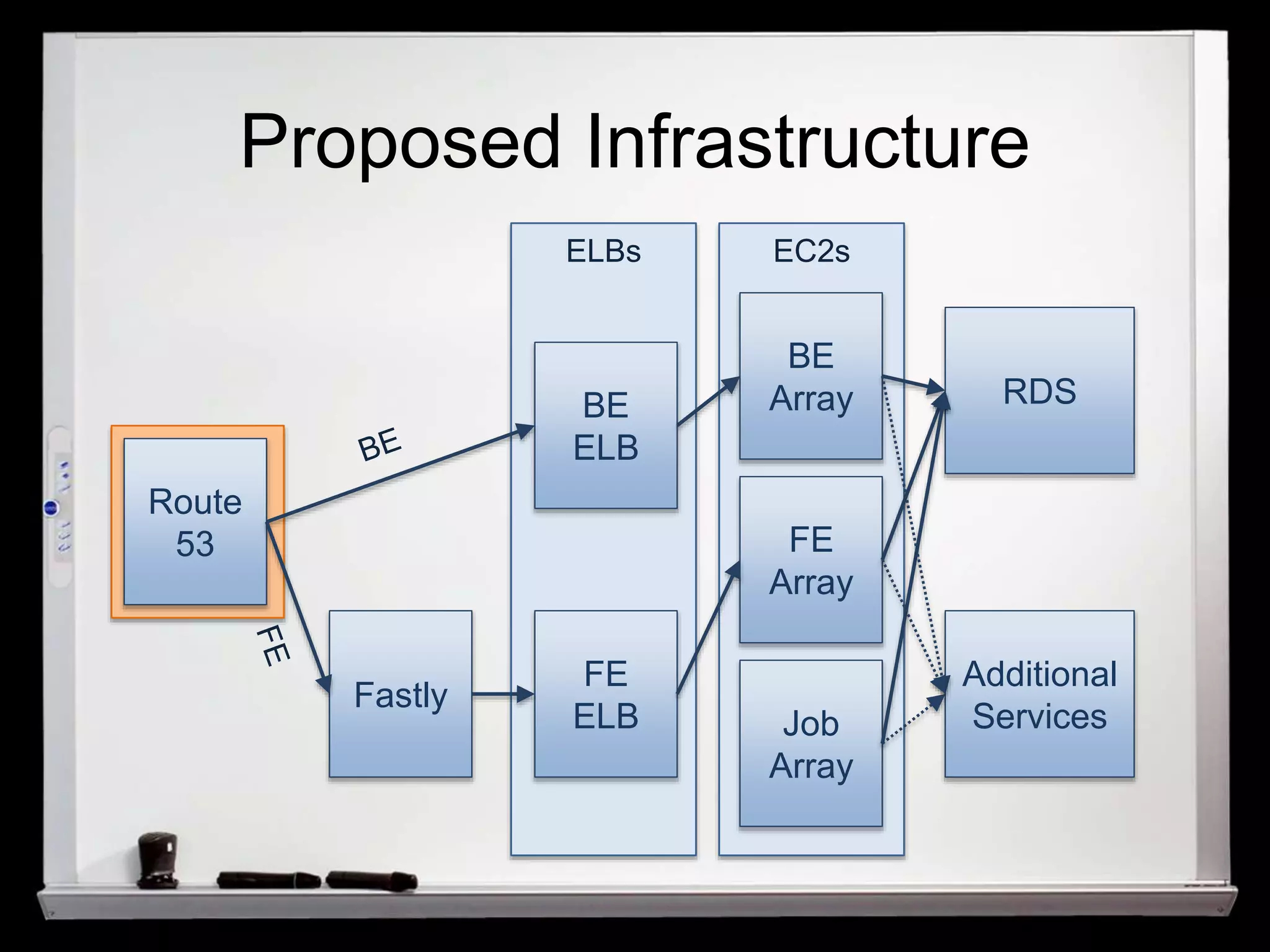

34. Proposed Infrastructure
Route
53
Fastly
BE
ELB
FE
ELB
BE
Array
FE
Array
Job
Array
RDS
Additional
Services
ELBs EC2s

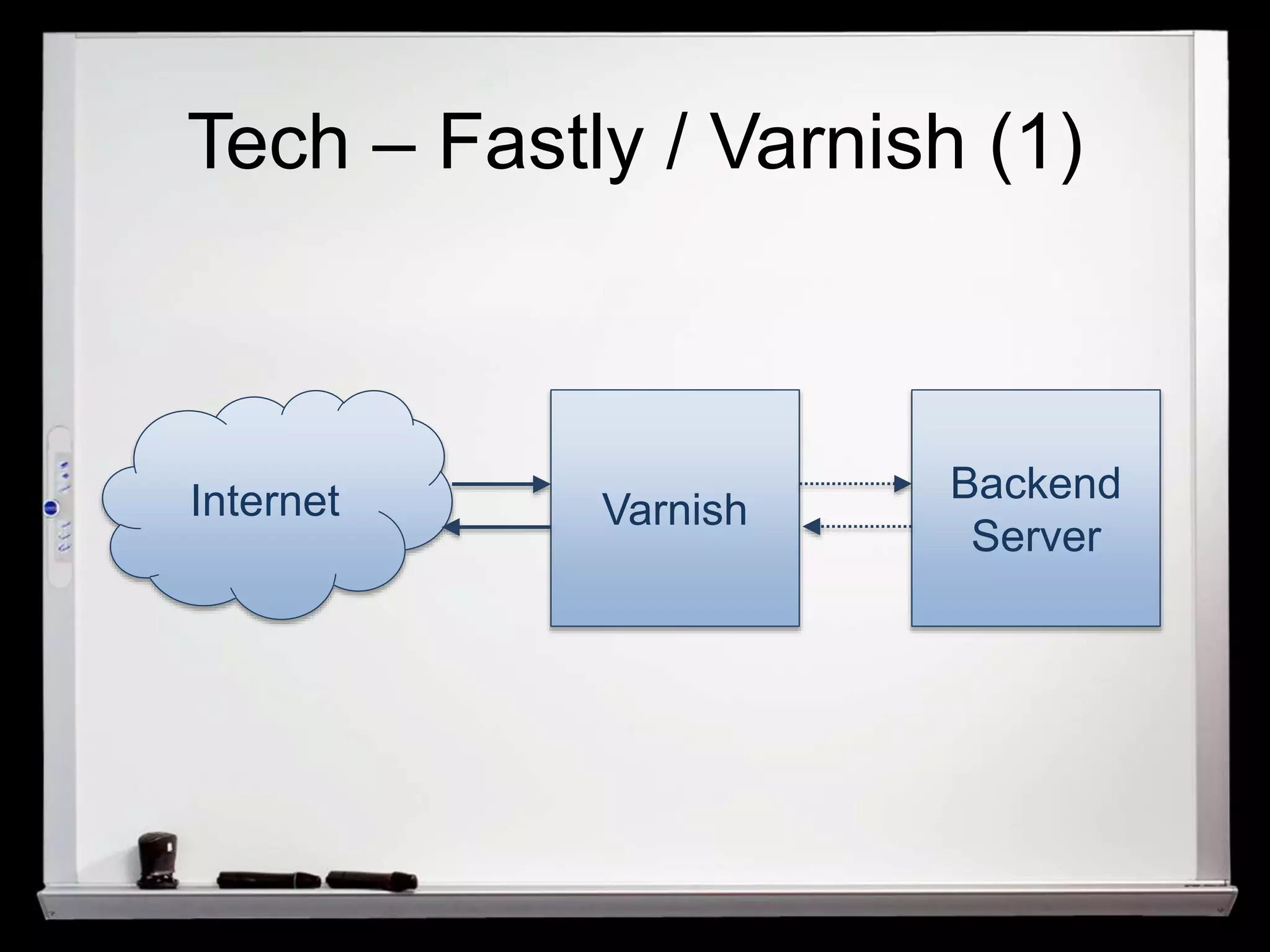

35. Tech – Fastly / Varnish (1)
Internet Varnish Backend
Server

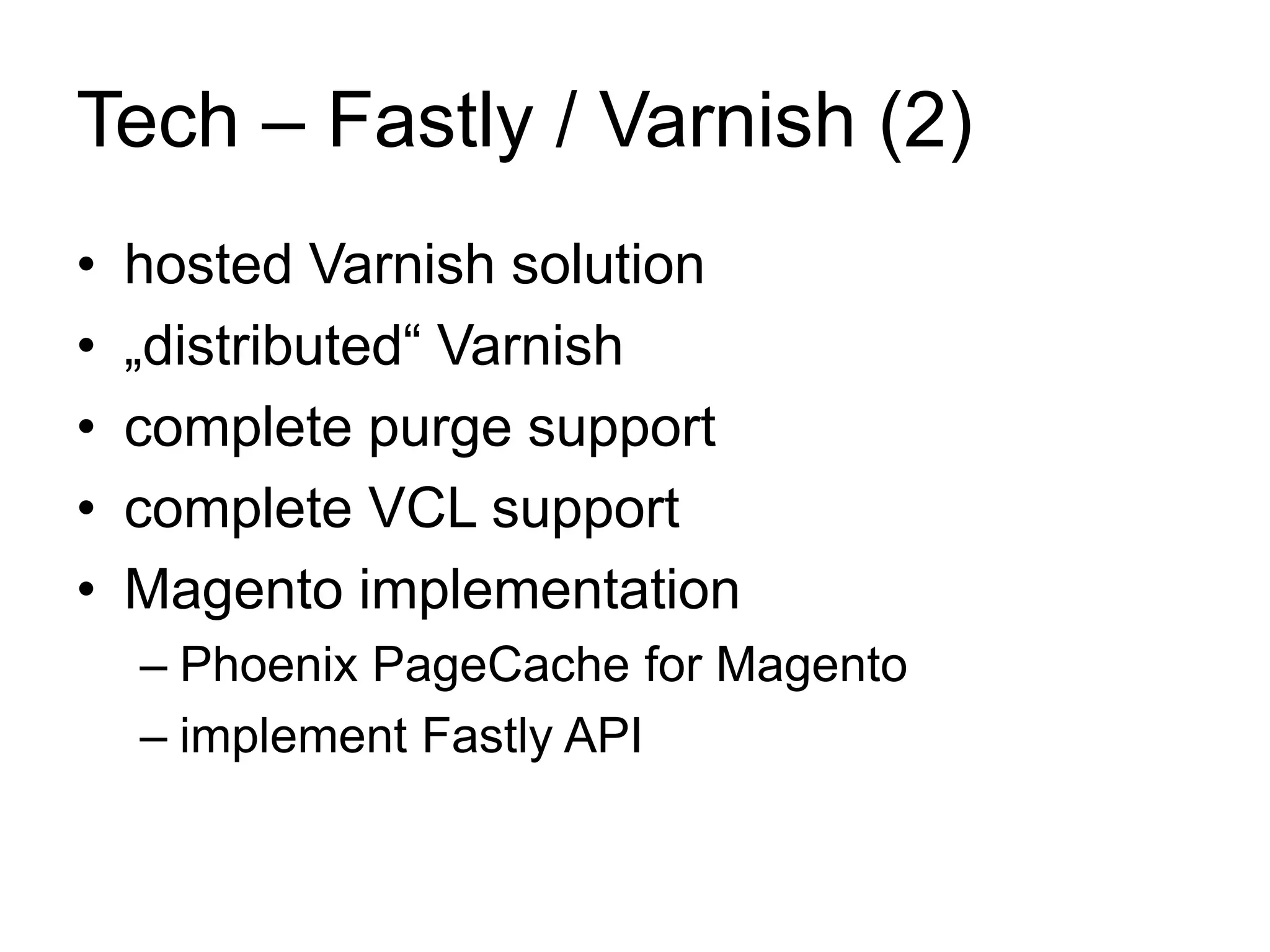

36. Tech – Fastly / Varnish (2)
• hosted Varnish solution
• „distributed“ Varnish
• complete purge support
• complete VCL support
• Magento implementation
– Phoenix PageCache for Magento
– implement Fastly API

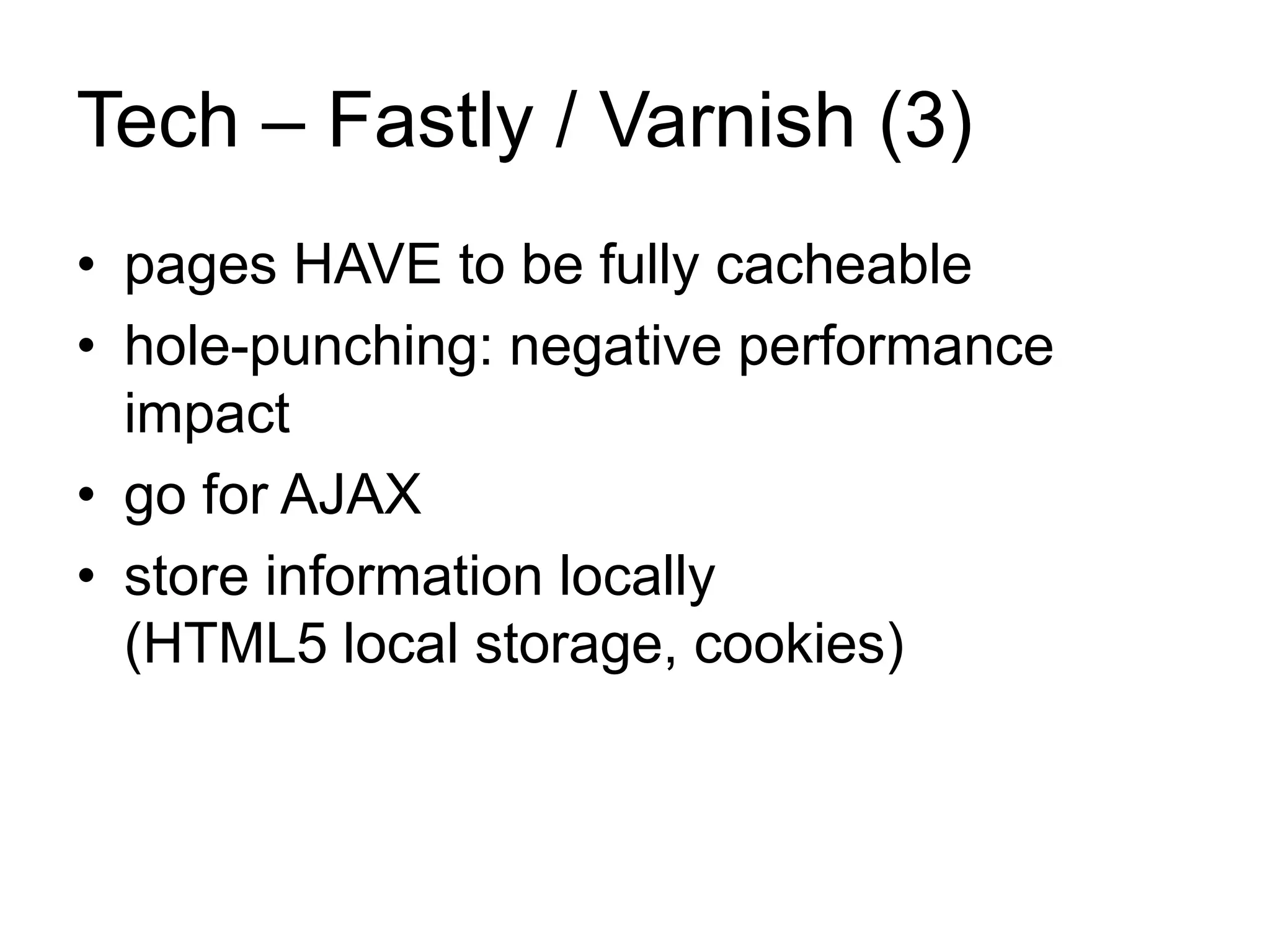

37. Tech – Fastly / Varnish (3)
• pages HAVE to be fully cacheable
• hole-punching: negative performance
impact
• go for AJAX
• store information locally
(HTML5 local storage, cookies)

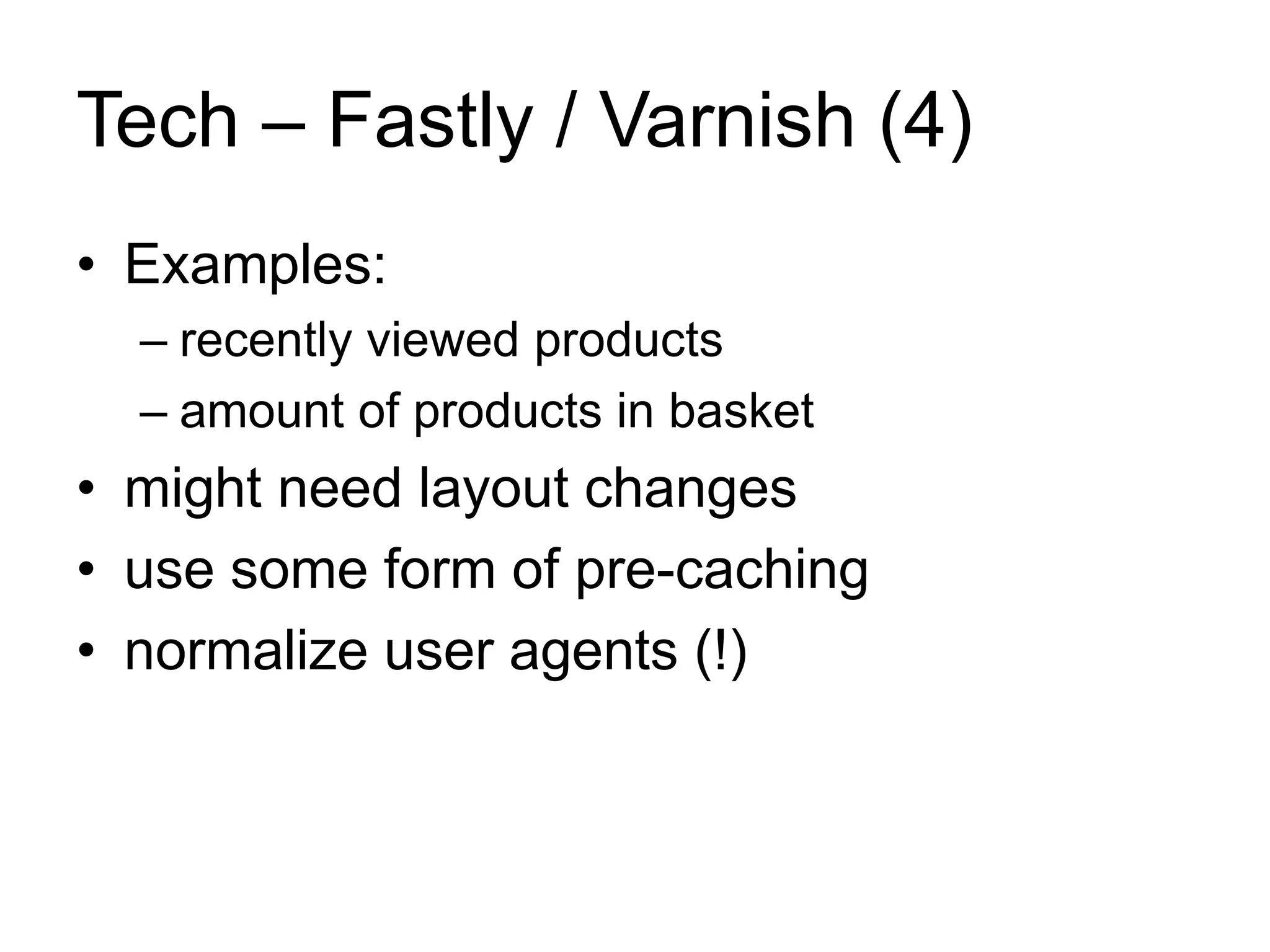

38. Tech – Fastly / Varnish (4)
• Examples:
– recently viewed products
– amount of products in basket
• might need layout changes
• use some form of pre-caching
• normalize user agents (!)

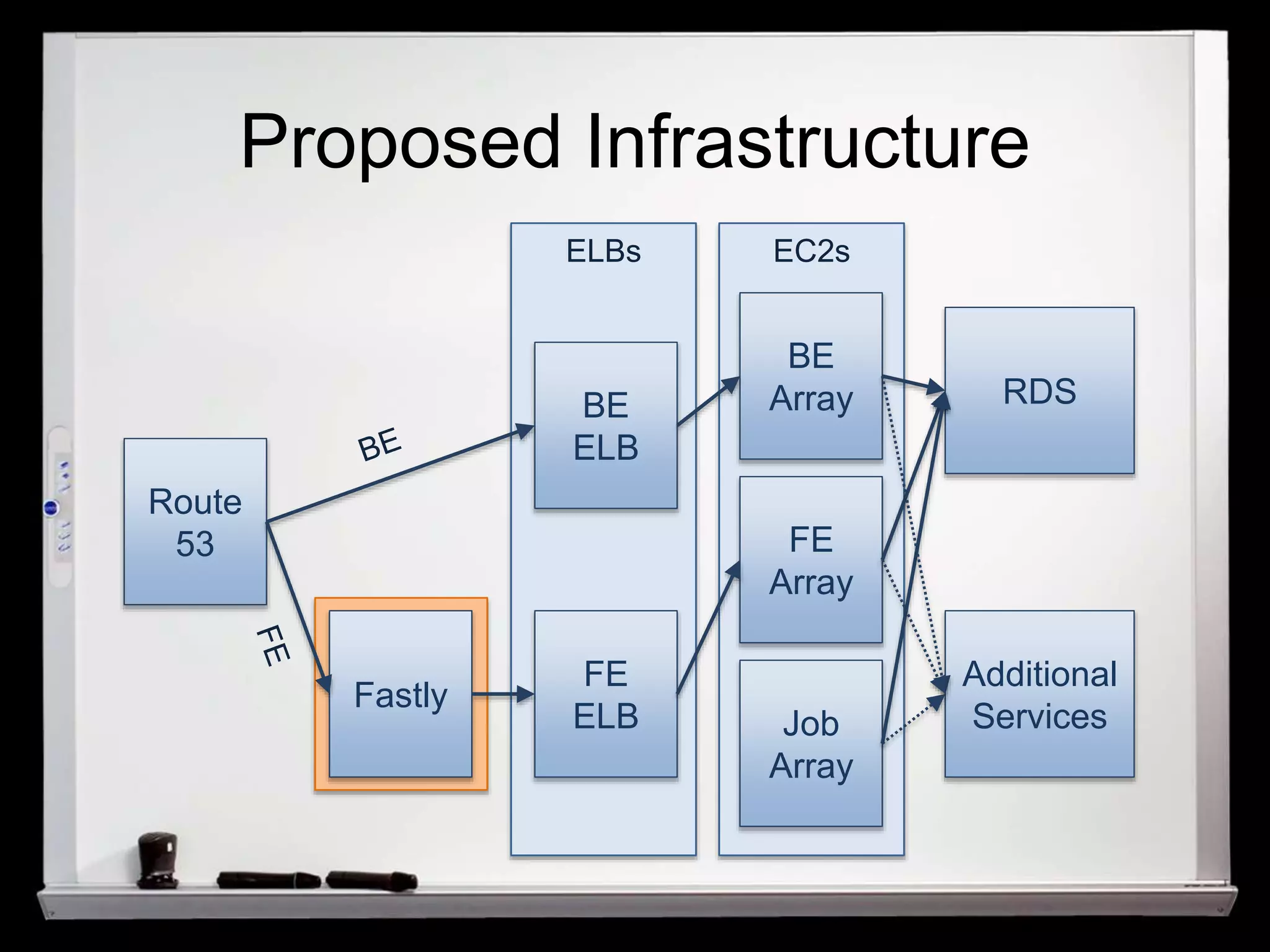

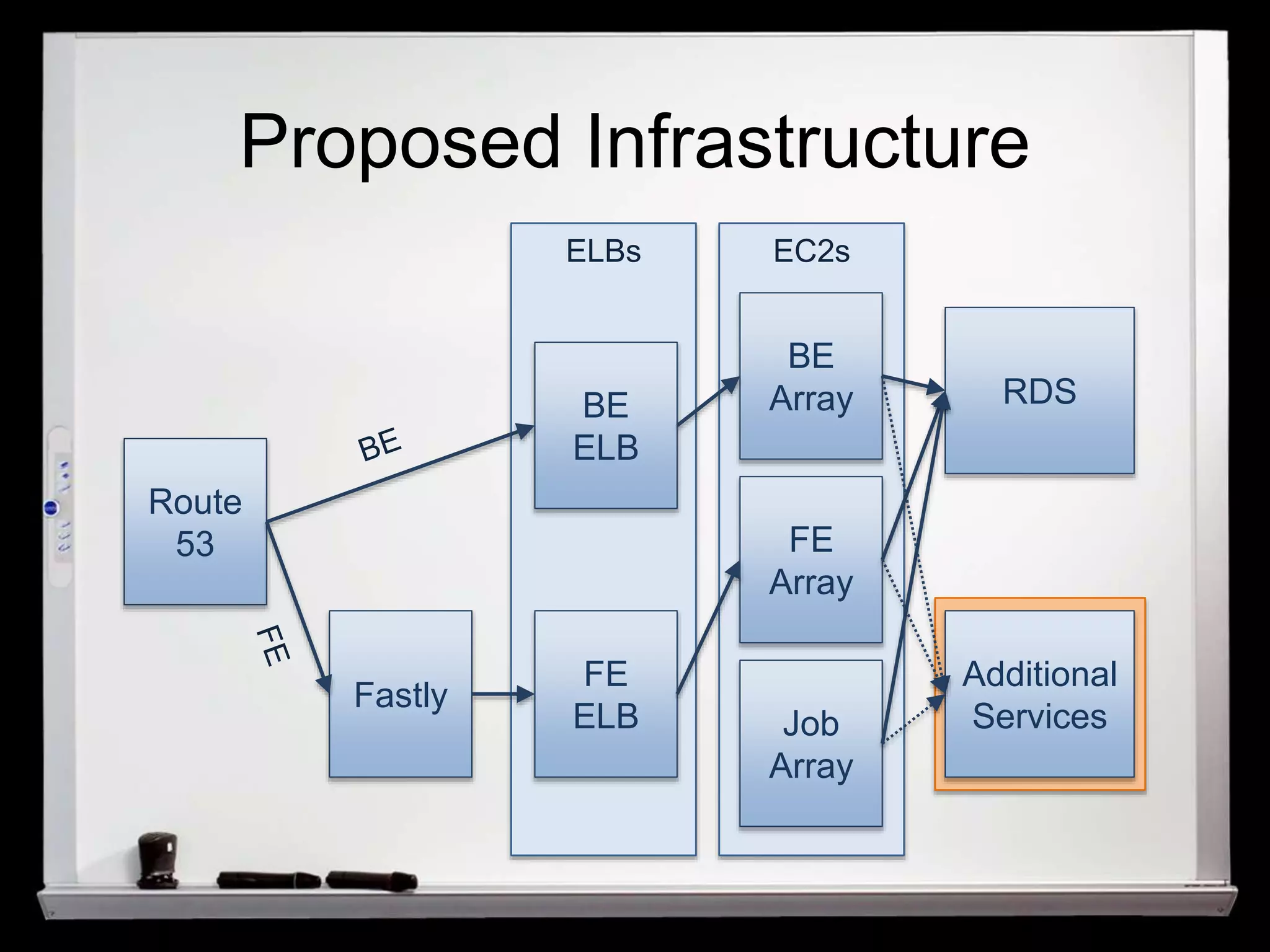

39. Proposed Infrastructure
Route
53
Fastly
BE
ELB
FE
ELB
BE
Array
FE
Array
Job
Array
RDS
Additional
Services
ELBs EC2s

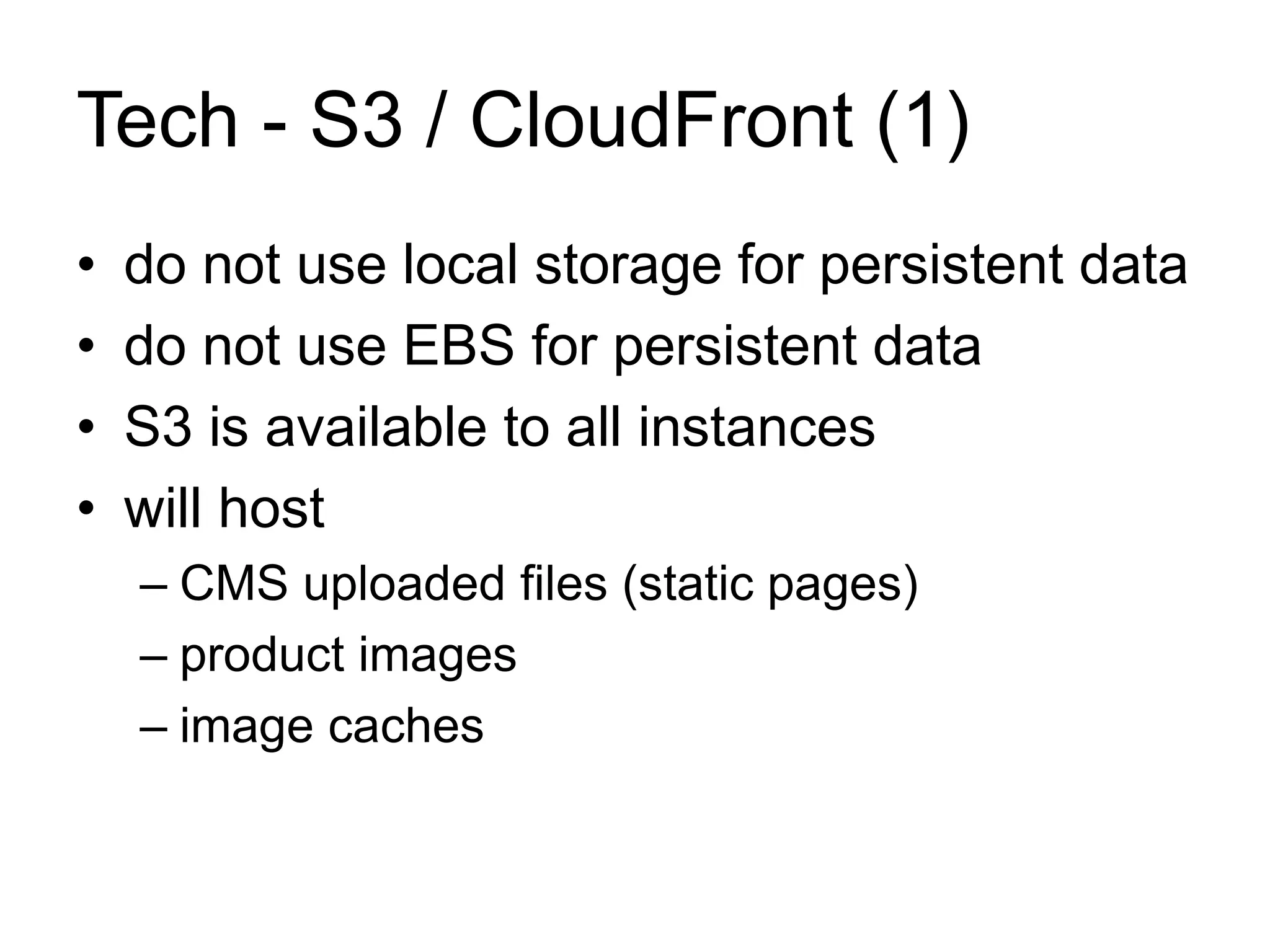

40. Tech - S3 / CloudFront (1)
• do not use local storage for persistent data
• do not use EBS for persistent data
• S3 is available to all instances
• will host
– CMS uploaded files (static pages)
– product images
– image caches

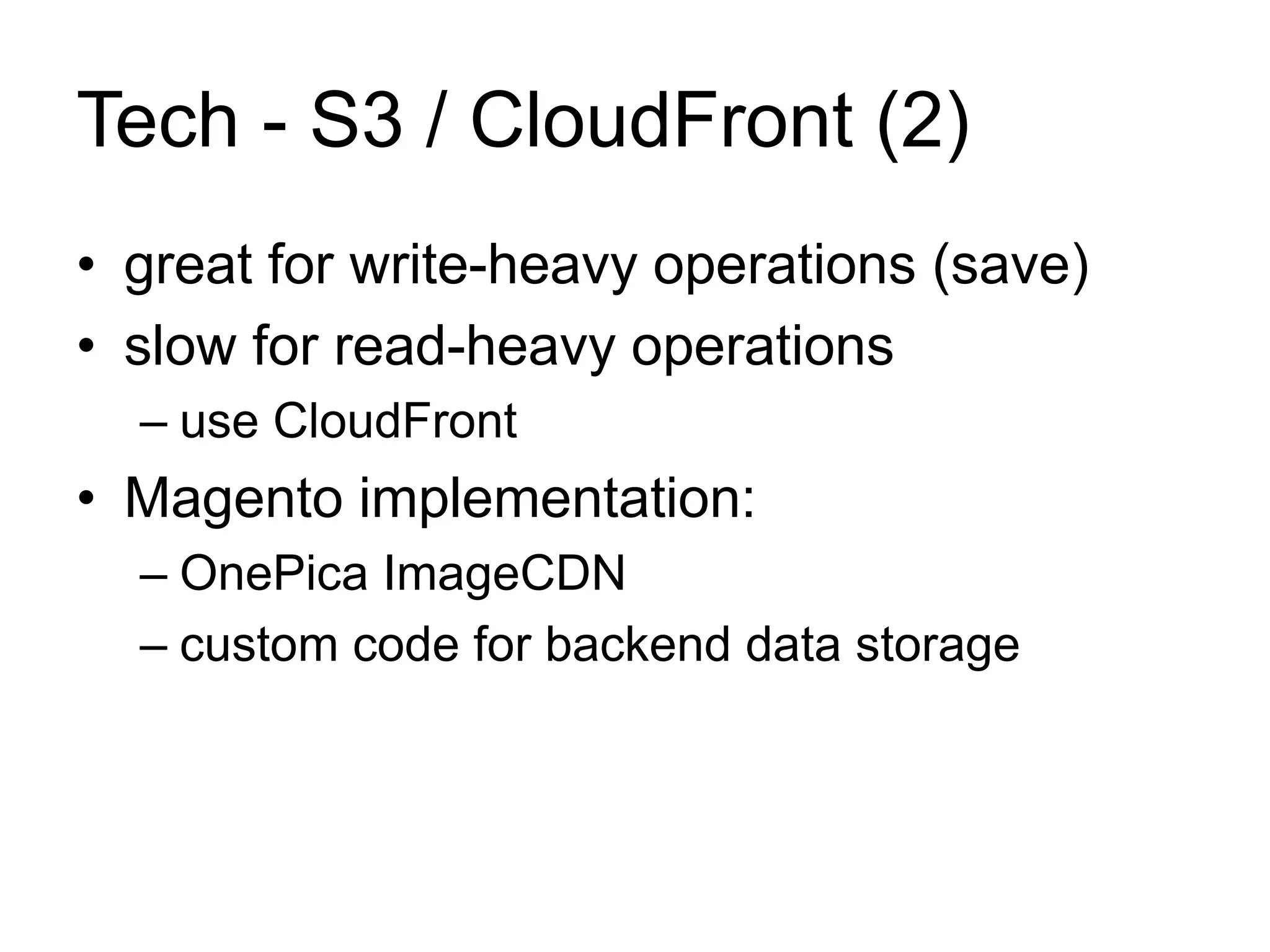

41. Tech - S3 / CloudFront (2)
• great for write-heavy operations (save)
• slow for read-heavy operations
– use CloudFront
• Magento implementation:
– OnePica ImageCDN
– custom code for backend data storage

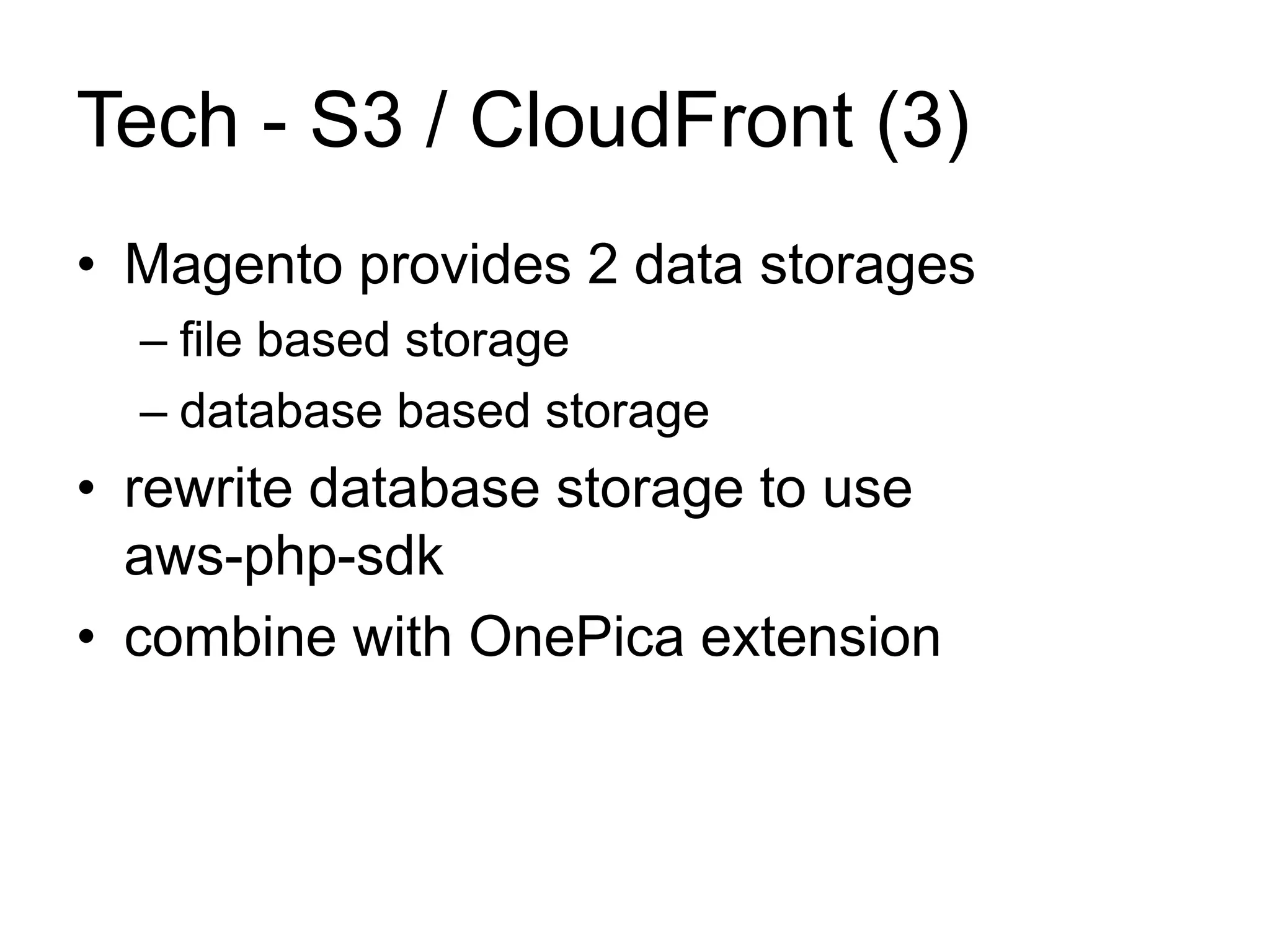

42. Tech - S3 / CloudFront (3)
• Magento provides 2 data storages
– file based storage
– database based storage
• rewrite database storage to use
aws-php-sdk
• combine with OnePica extension

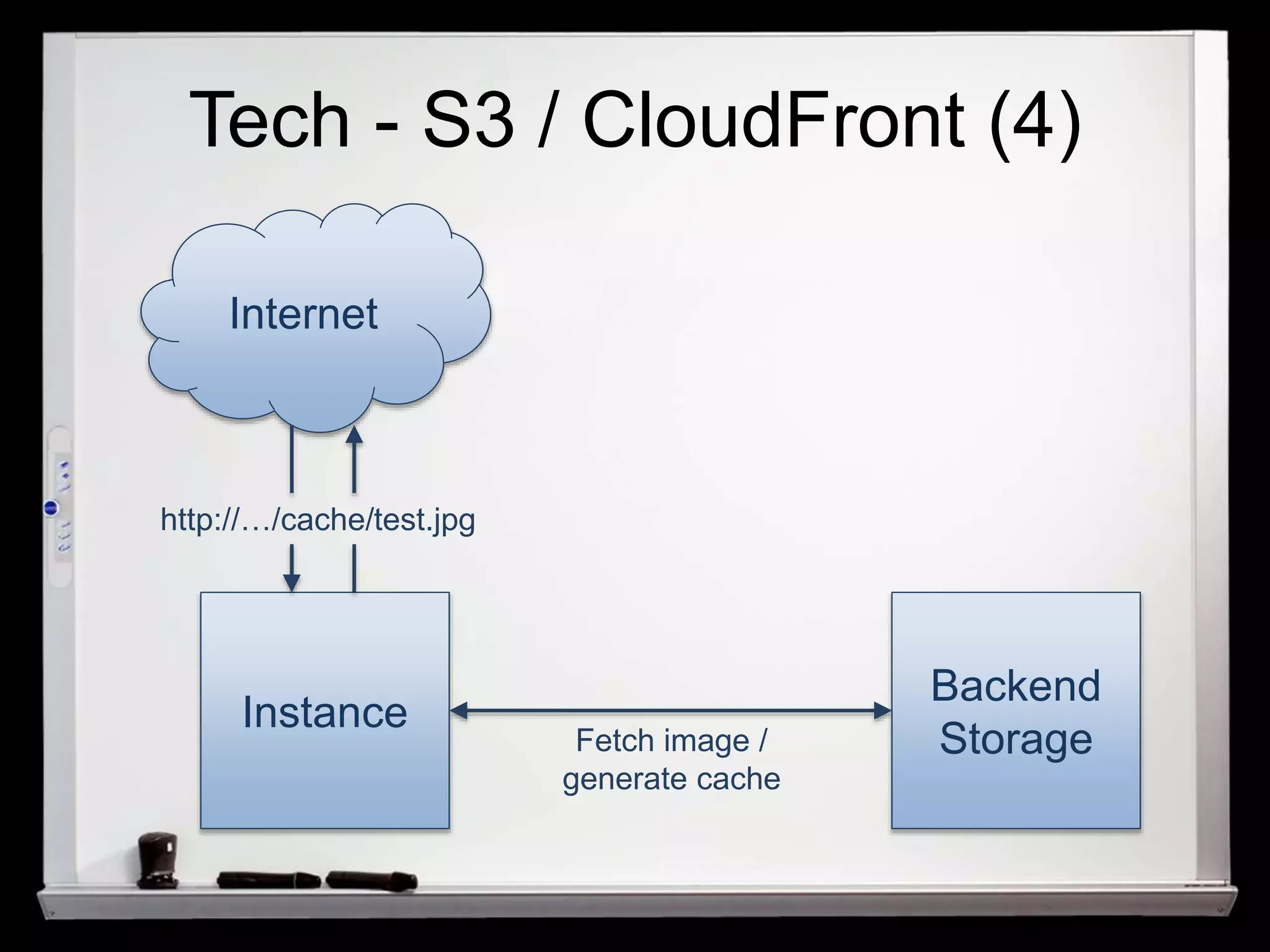

43. Tech - S3 / CloudFront (4)
Internet
Instance
Backend
Fetch image / Storage
generate cache
http://…/cache/test.jpg

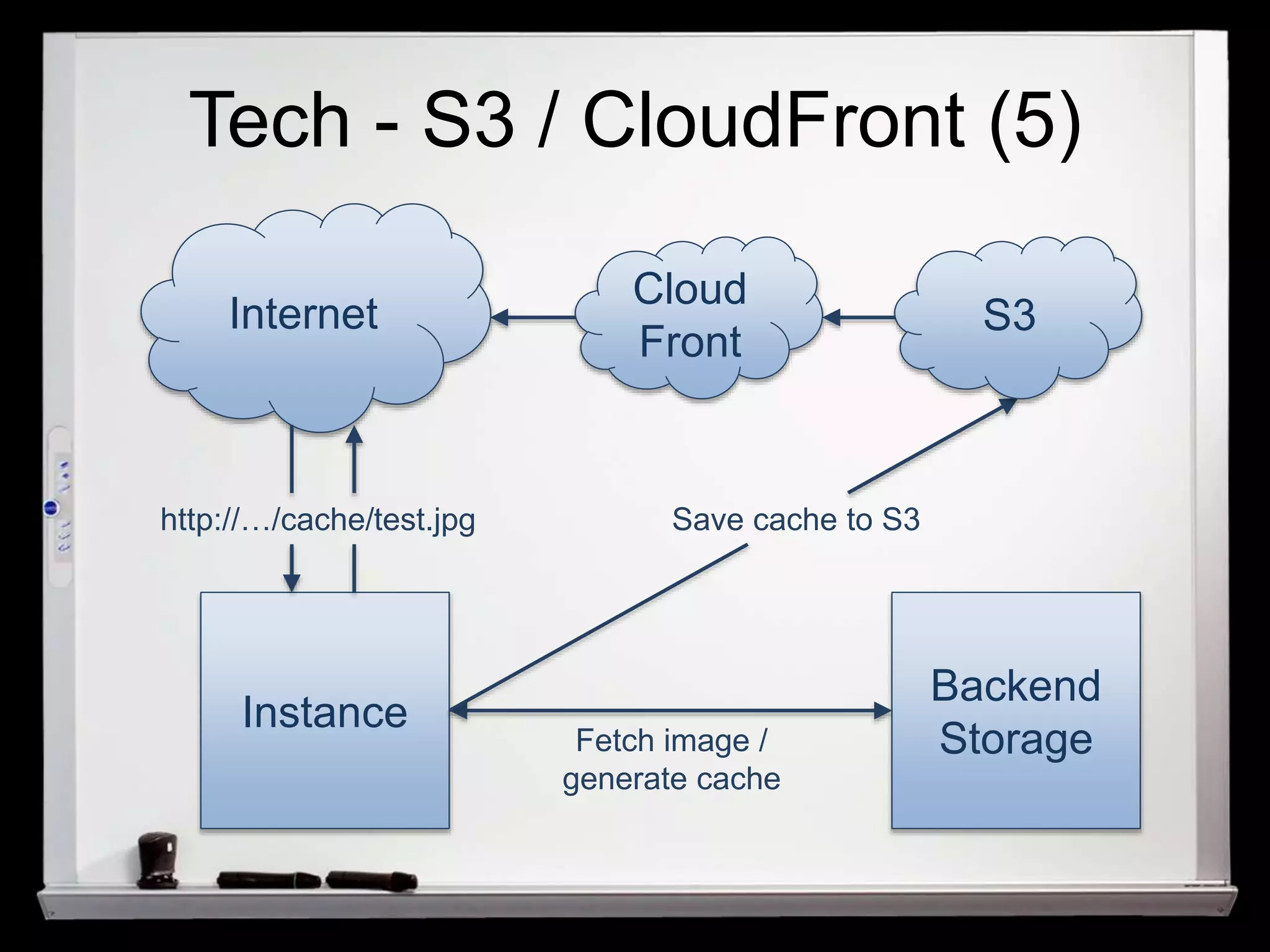

44. Tech - S3 / CloudFront (5)
Cloud
Front
S3
Save cache to S3
Internet
Instance
Backend
Fetch image / Storage
generate cache
http://…/cache/test.jpg

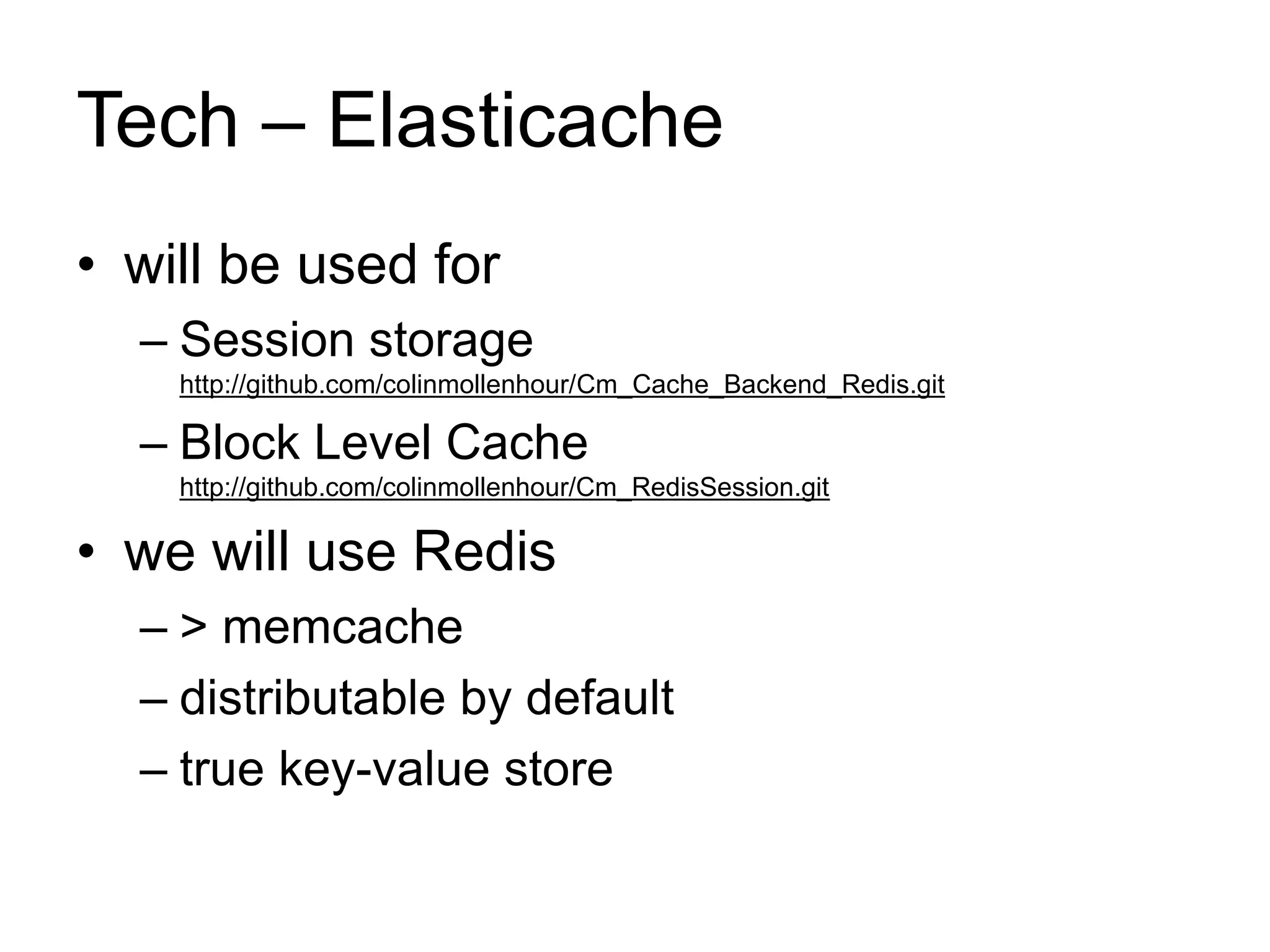

45. Tech – Elasticache
• will be used for
– Session storage
http://github.com/colinmollenhour/Cm_Cache_Backend_Redis.git
– Block Level Cache
http://github.com/colinmollenhour/Cm_RedisSession.git
• we will use Redis
– > memcache
– distributable by default
– true key-value store

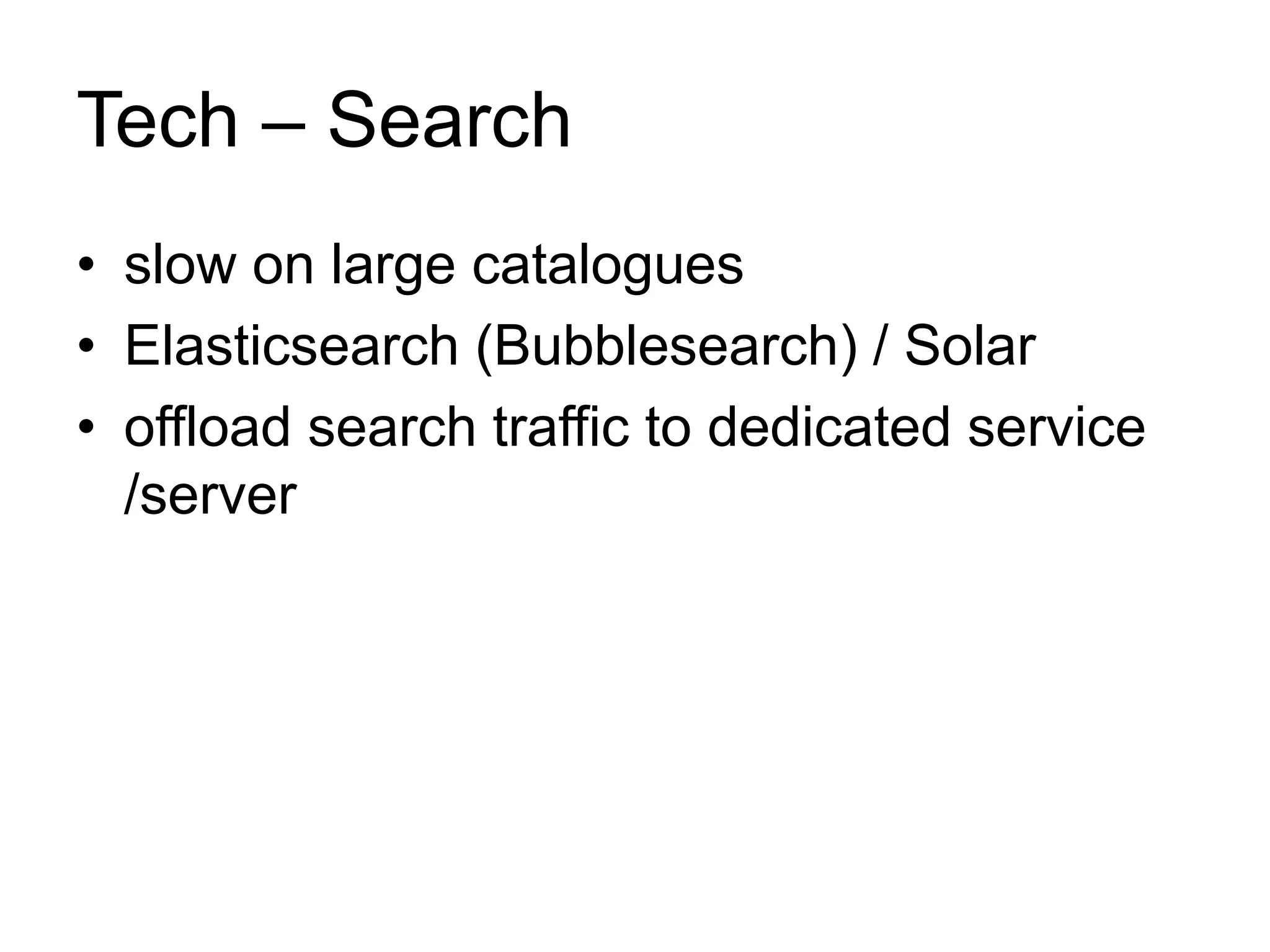

46. Tech – Search
• slow on large catalogues
• Elasticsearch (Bubblesearch) / Solar
• offload search traffic to dedicated service
/server

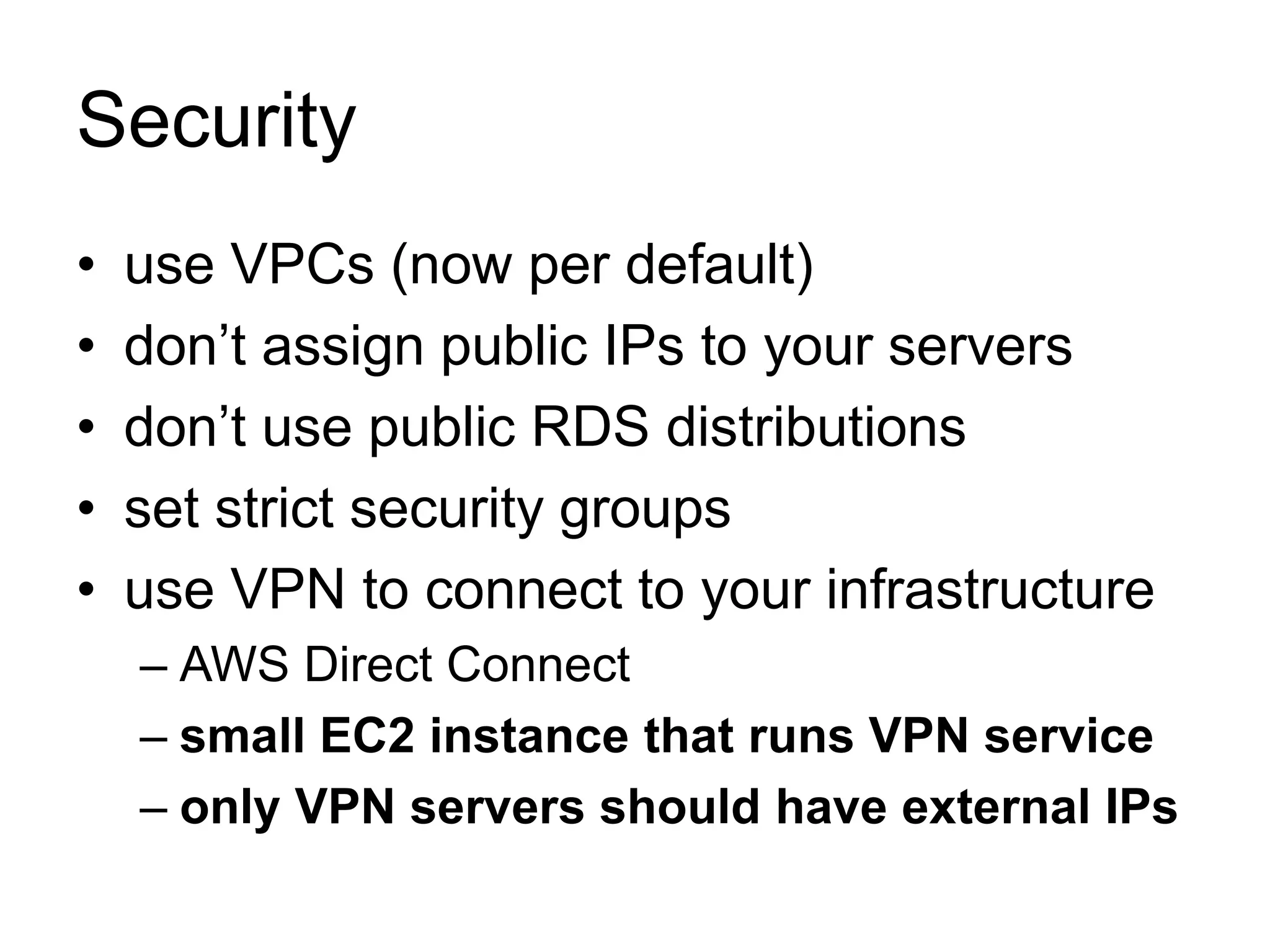

48. Security
• use VPCs (now per default)
• don’t assign public IPs to your servers
• don’t use public RDS distributions
• set strict security groups
• use VPN to connect to your infrastructure
– AWS Direct Connect
– small EC2 instance that runs VPN service
– only VPN servers should have external IPs

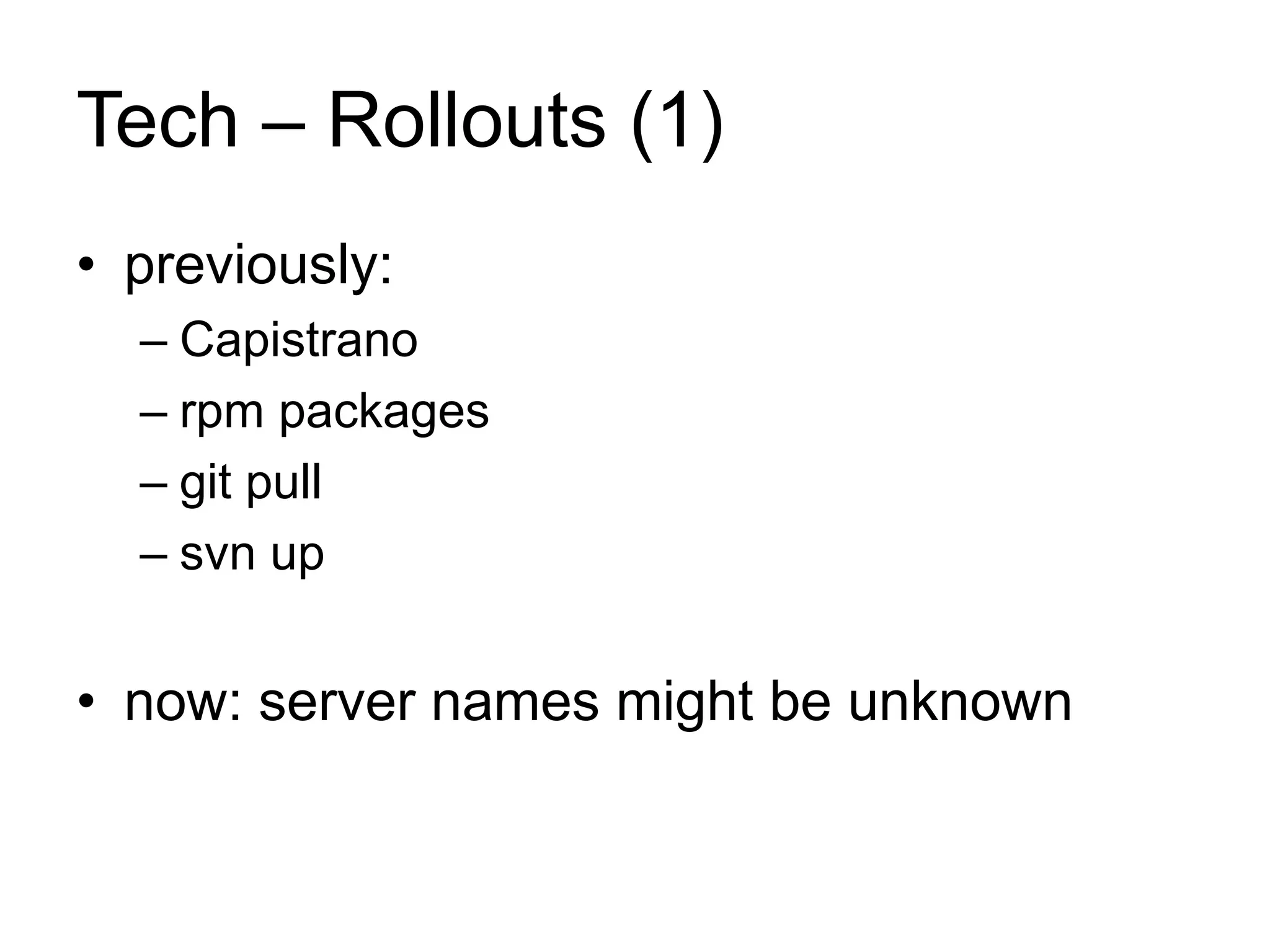

49. Tech – Rollouts (1)
• previously:
– Capistrano
– rpm packages
– git pull
– svn up
• now: server names might be unknown

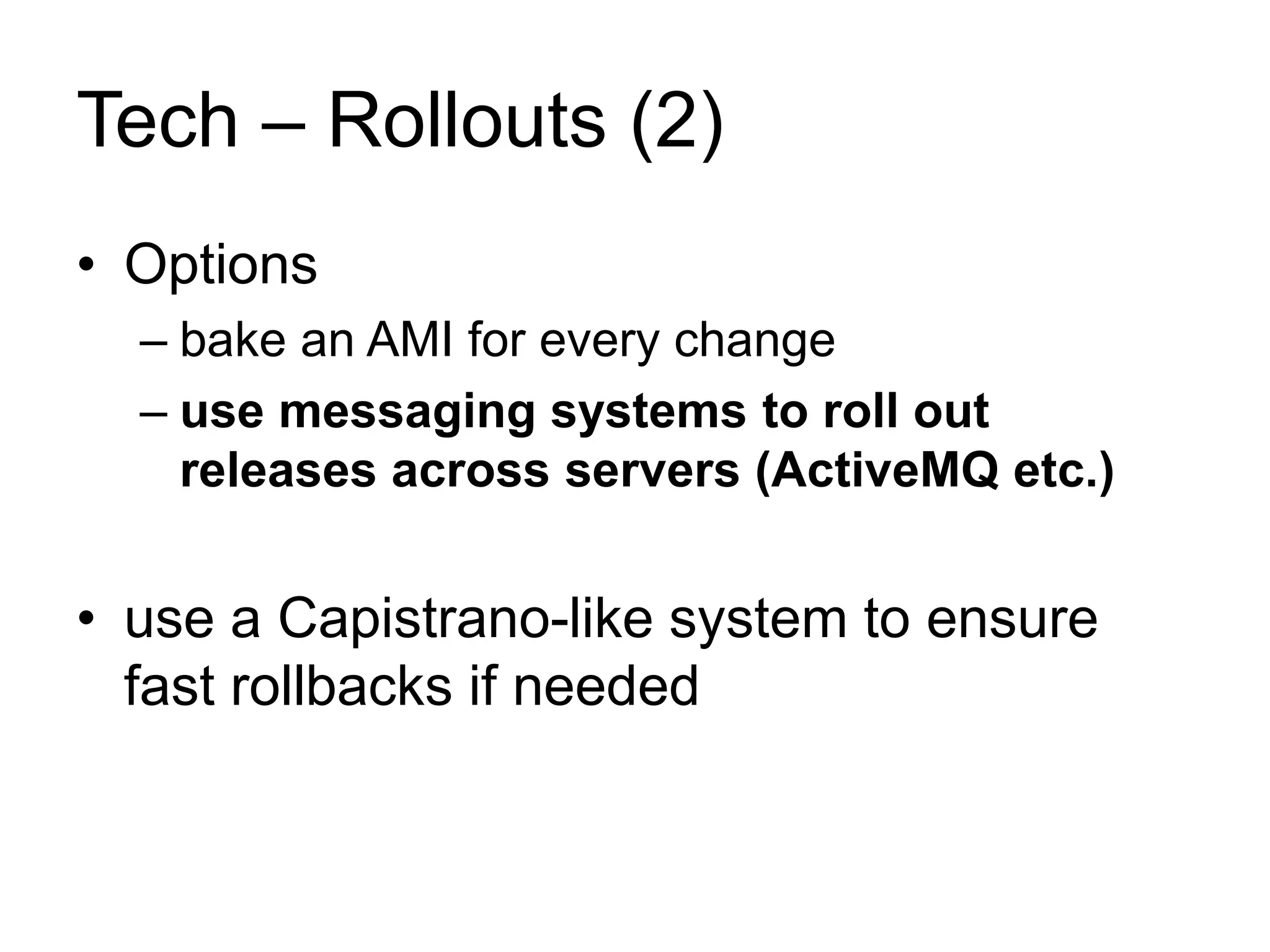

50. Tech – Rollouts (2)
• Options
– bake an AMI for every change
– use messaging systems to roll out
releases across servers (ActiveMQ etc.)
• use a Capistrano-like system to ensure
fast rollbacks if needed

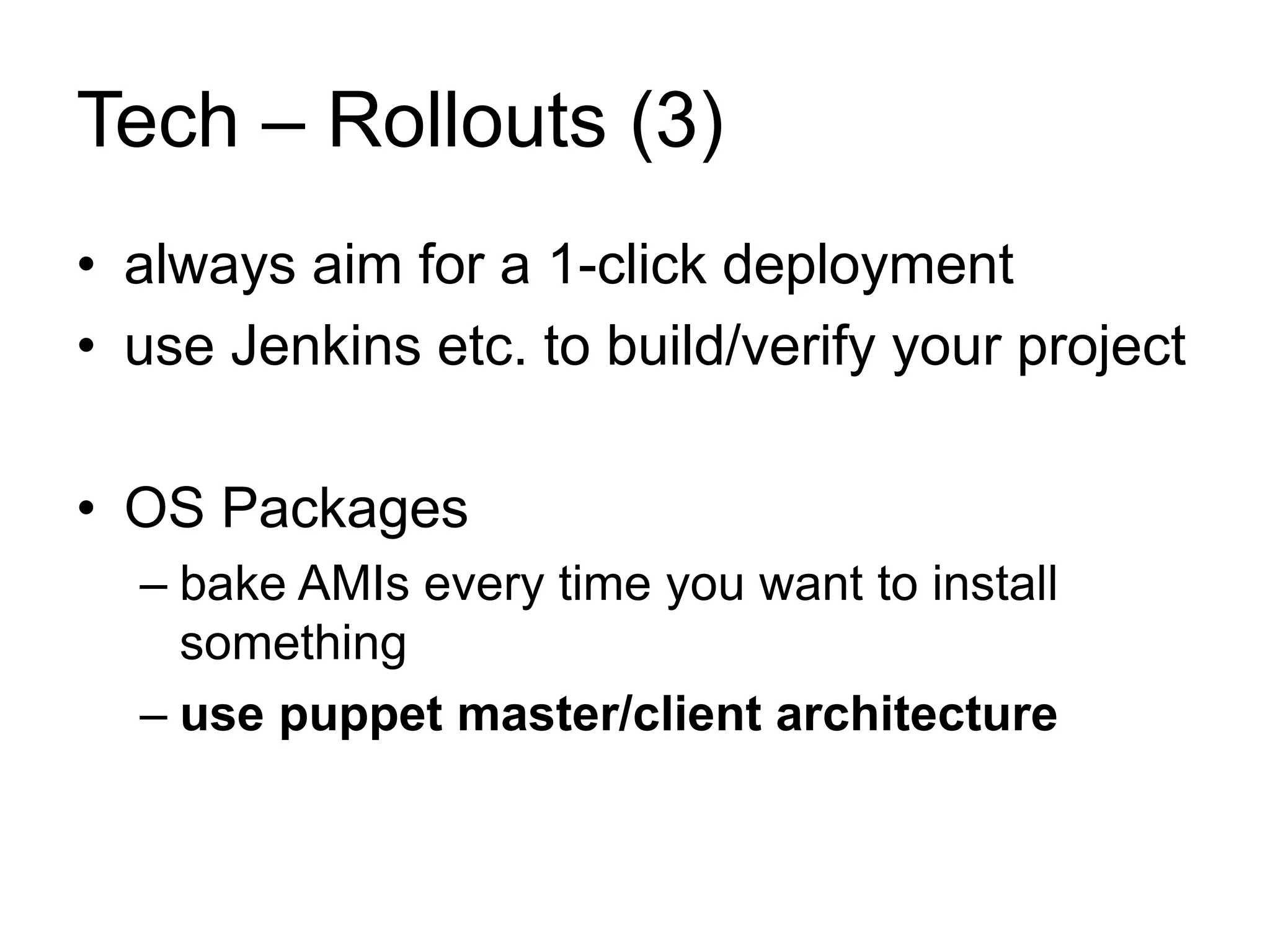

51. Tech – Rollouts (3)
• always aim for a 1-click deployment
• use Jenkins etc. to build/verify your project
• OS Packages
– bake AMIs every time you want to install
something
– use puppet master/client architecture

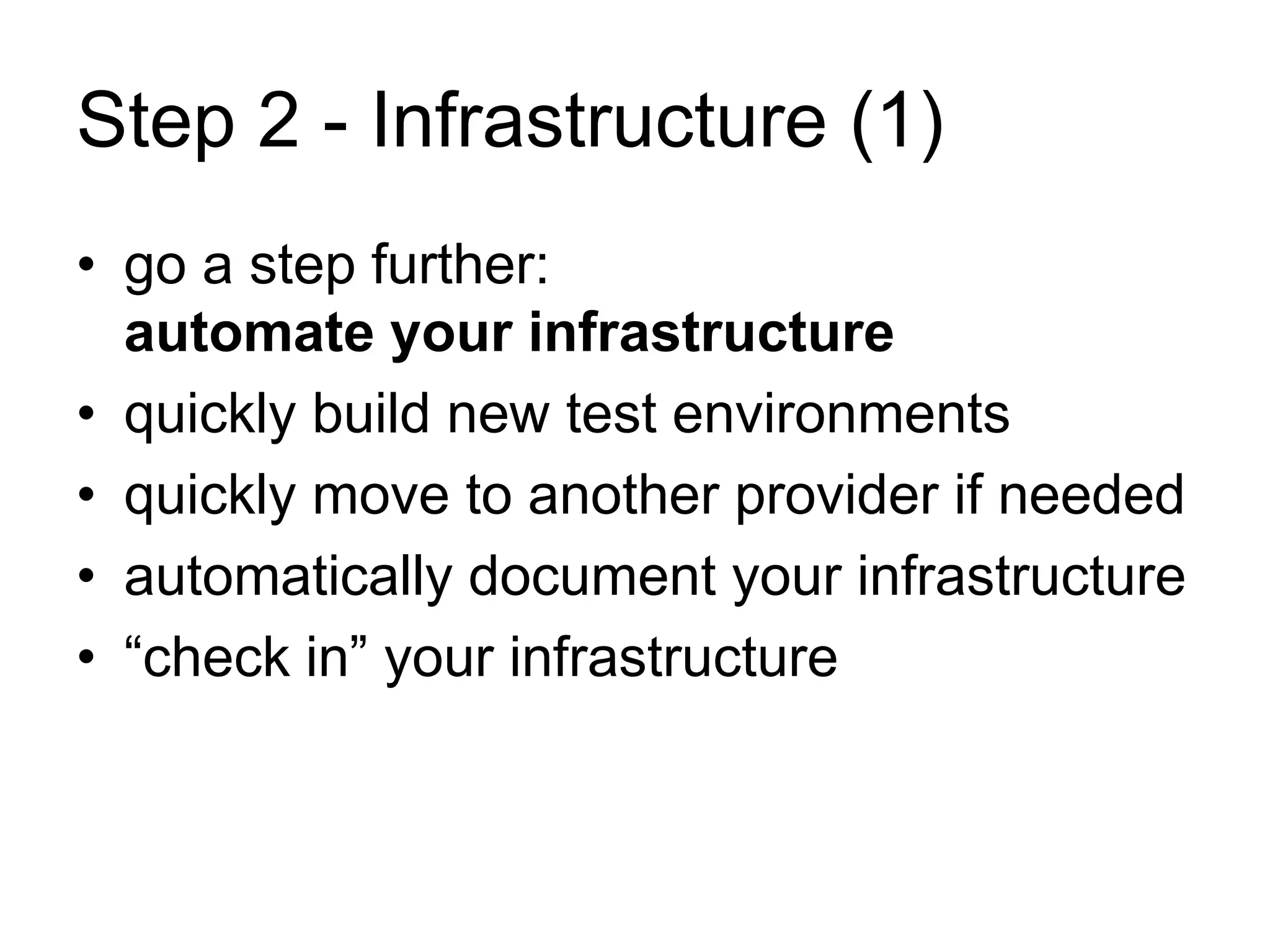

52. Step 2 - Infrastructure (1)
• go a step further:
automate your infrastructure
• quickly build new test environments
• quickly move to another provider if needed
• automatically document your infrastructure
• “check in” your infrastructure

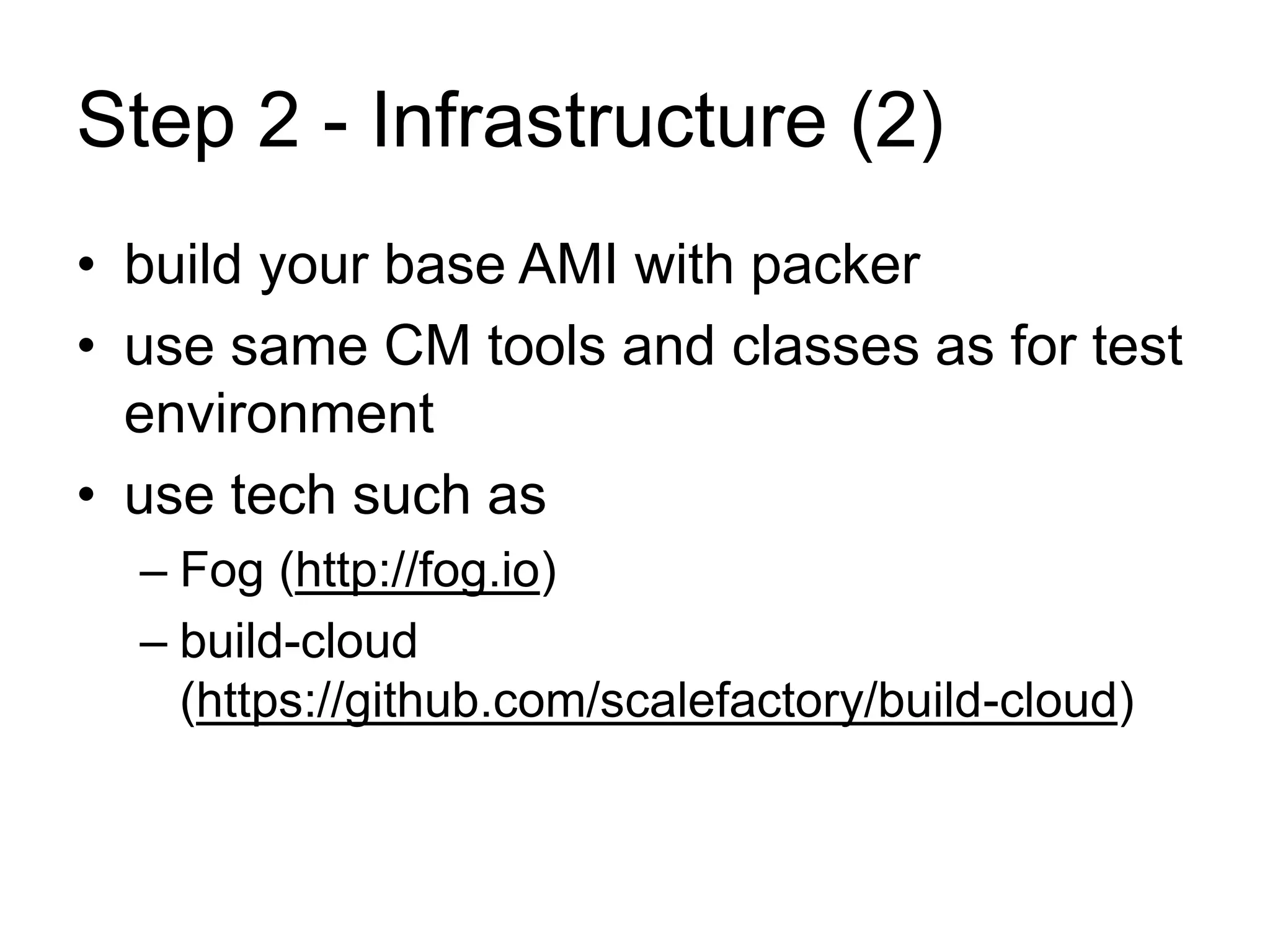

53. Step 2 - Infrastructure (2)
• build your base AMI with packer
• use same CM tools and classes as for test
environment
• use tech such as
– Fog (http://fog.io)
– build-cloud
(https://github.com/scalefactory/build-cloud)

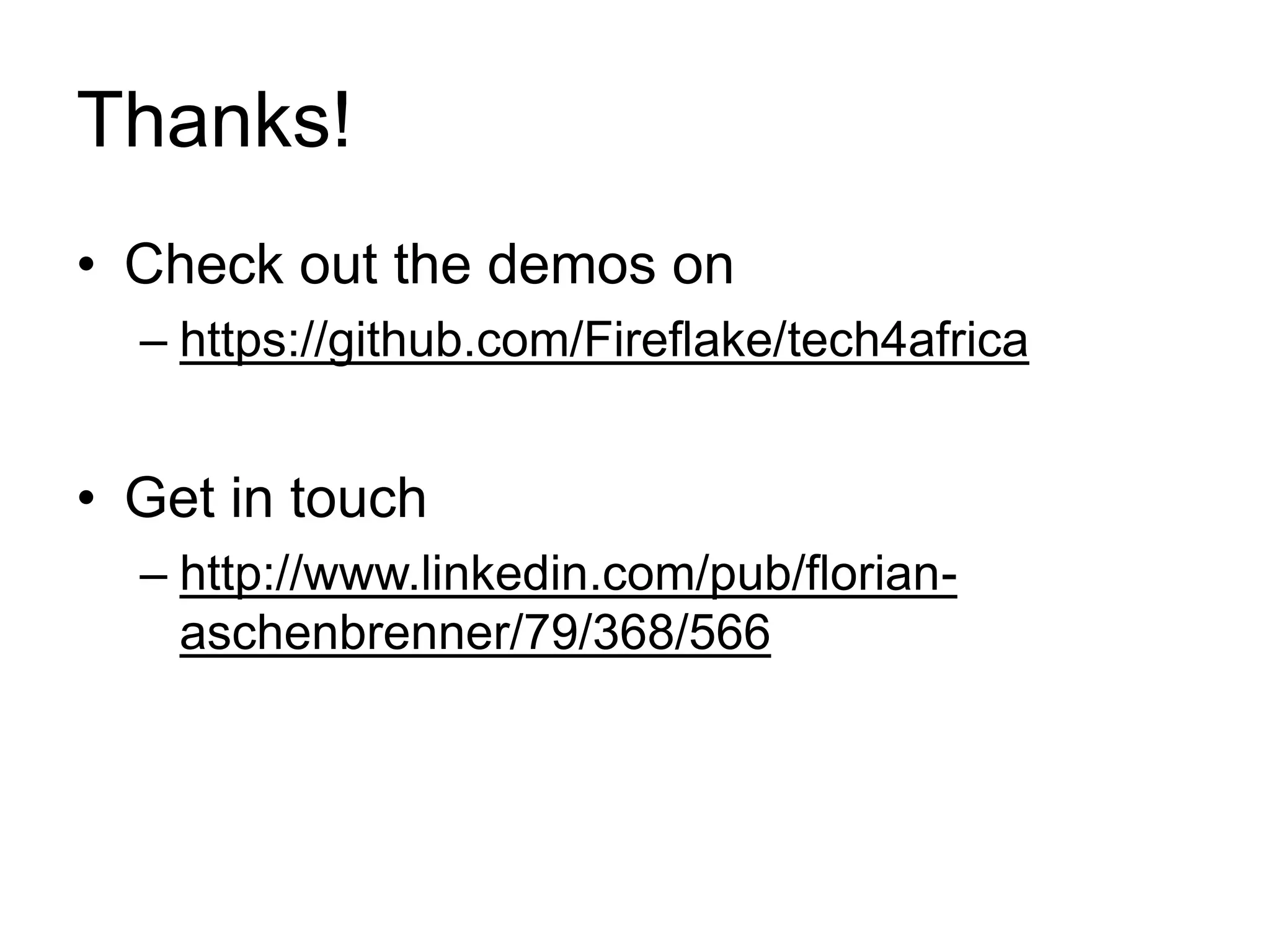

54. Thanks!
• Check out the demos on
– https://github.com/Fireflake/tech4africa
• Get in touch
– http://www.linkedin.com/pub/florian-aschenbrenner/
79/368/566
