By David Durant, Greater London Authority

1. Tea camp #5
Automated software
testing
David Durant
Greater London Authority
@cholten99

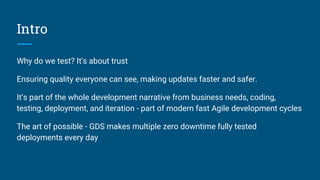

2. Intro
Why do we test? It's about trust
Ensuring quality everyone can see, making updates faster and safer.
It’s part of the whole development narrative from business needs, coding,
testing, deployment, and iteration - part of modern fast Agile development cycles
The art of possible - GDS makes multiple zero downtime fully tested
deployments every day

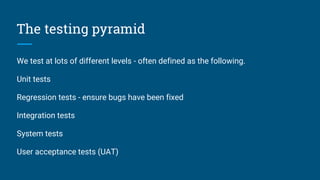

3. The testing pyramid
We test at lots of different levels - often defined as the following.
Unit tests
Regression tests - ensure bugs have been fixed
Integration tests
System tests
User acceptance tests (UAT)

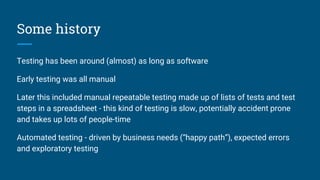

4. Some history
Testing has been around (almost) as long as software
Early testing was all manual
Later this included manual repeatable testing made up of lists of tests and test
steps in a spreadsheet - this kind of testing is slow, potentially accident prone
and takes up lots of people-time
Automated testing - driven by business needs (“happy path”), expected errors
and exploratory testing

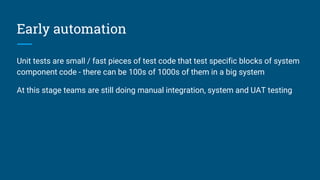

5. Early automation
Unit tests are small / fast pieces of test code that test specific blocks of system
component code - there can be 100s of 1000s of them in a big system
At this stage teams are still doing manual integration, system and UAT testing

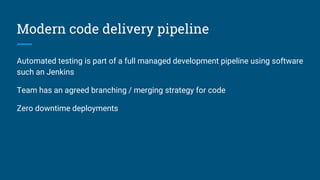

6. Modern code delivery pipeline
Automated testing is part of a full managed development pipeline using software
such an Jenkins
Team has an agreed branching / merging strategy for code
Zero downtime deployments

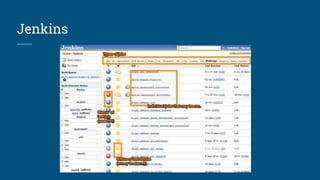

7. Jenkins

8. Testing stages
Start by developer running tests on their own machine before committing code
to integration branch
Test machine - VM or Docker clone of production
Staging - at most one update behind production
Production - could be a cluster

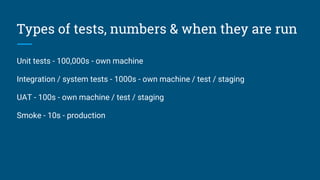

9. Types of tests, numbers & when they are run
Unit tests - 100,000s - own machine
Integration / system tests - 1000s - own machine / test / staging
UAT - 100s - own machine / test / staging
Smoke - 10s - production

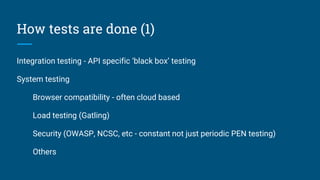

10. How tests are done (1)
Integration testing - API specific ‘black box’ testing
System testing
Browser compatibility - often cloud based
Load testing (Gatling)
Security (OWASP, NCSC, etc - constant not just periodic PEN testing)
Others

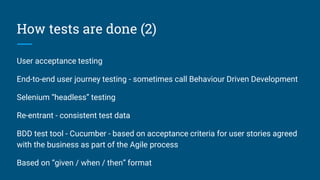

11. How tests are done (2)
User acceptance testing
End-to-end user journey testing - sometimes call Behaviour Driven Development
Selenium “headless” testing
Re-entrant - consistent test data
BDD test tool - Cucumber - based on acceptance criteria for user stories agreed
with the business as part of the Agile process
Based on “given / when / then” format

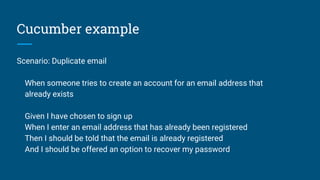

12. Cucumber example
Scenario: Duplicate email
When someone tries to create an account for an email address that
already exists
Given I have chosen to sign up
When I enter an email address that has already been registered
Then I should be told that the email is already registered
And I should be offered an option to recover my password

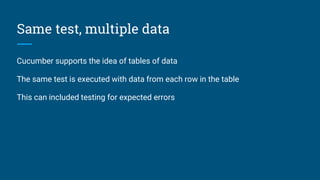

13. Same test, multiple data
Cucumber supports the idea of tables of data
The same test is executed with data from each row in the table
This can included testing for expected errors

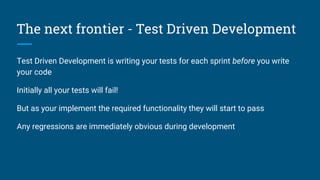

14. The next frontier - Test Driven Development
Test Driven Development is writing your tests for each sprint before you write
your code
Initially all your tests will fail!
But as your implement the required functionality they will start to pass
Any regressions are immediately obvious during development

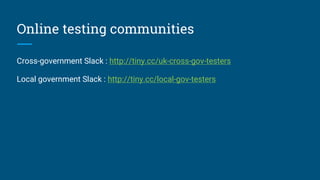

15. Online testing communities
Cross-government Slack : http://tiny.cc/uk-cross-gov-testers
Local government Slack : http://tiny.cc/local-gov-testers

16. Any questions?
London Digital Peer Group Slack : http://tiny.cc/london-digital-peer-group
David Durant
Senior Business Analyst
Greater London Authority
