- 1. TcpScancyr for Tunnels TunnelCross-Sections Generation from Scanned Points
- 2. Tunnels Cross-Section Generationfrom 3D Scanner TcpScancyr for Tunnels 1. Project Data 2. Template Definition 3. Points Management 4. Filtering Tools 5. Cross-Sections 6. Reports 7. Tools INDEX
- 3. Tunnels Cross-Section Generationfrom 3D Scanner TcpScancyr for Tunnels Project Data

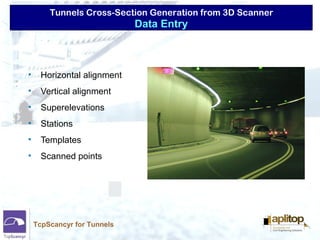

- 4. Tunnels Cross-Section Generationfrom 3D Scanner TcpScancyr for Tunnels • Horizontal alignment • Vertical alignment • Superelevations • Stations • Templates • Scanned points Data Entry

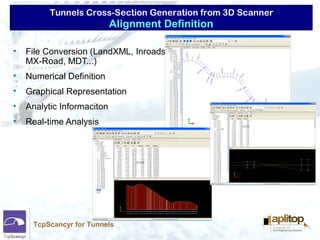

- 5. Tunnels Cross-Section Generationfrom 3D Scanner TcpScancyr for Tunnels • File Conversion (LandXML, Inroads, MX-Road, MDT...) • Numerical Definition • Graphical Representation • Analytic Informaciton • Real-time Analysis Alignment Definition
- 6. Tunnels Cross-Section Generationfrom 3D Scanner TcpScancyr for Tunnels Template Definition

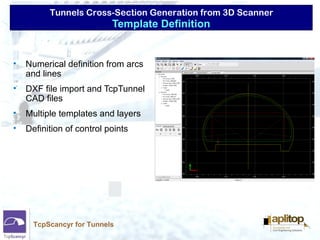

- 7. Tunnels Cross-Section Generationfrom 3D Scanner TcpScancyr for Tunnels • Numerical definition from arcs and lines • DXF file import and TcpTunnel CAD files • Multiple templates and layers • Definition of control points Template Definition

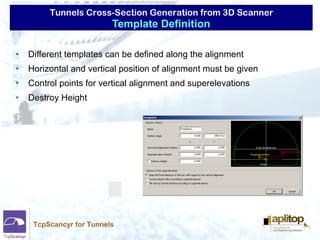

- 8. Tunnels Cross-Section Generationfrom 3D Scanner TcpScancyr for Tunnels • Different templates can be defined along the alignment • Horizontal and vertical position of alignment must be given • Control points for vertical alignment and superelevations • Destroy Height Template Definition
- 9. Tunnels Cross-Section Generationfrom 3D Scanner TcpScancyr for Tunnels Points Management

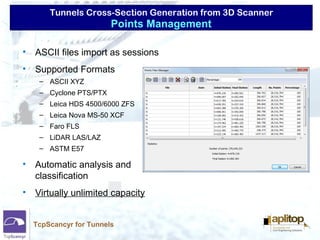

- 10. Tunnels Cross-Section Generationfrom 3D Scanner TcpScancyr for Tunnels • ASCII files import as sessions • Supported Formats – ASCII XYZ – Cyclone PTS/PTX – Leica HDS 4500/6000 ZFS – Leica Nova MS-50 XCF – Faro FLS – LiDAR LAS/LAZ – ASTM E57 • Automatic analysis and classification • Virtually unlimited capacity Points Management

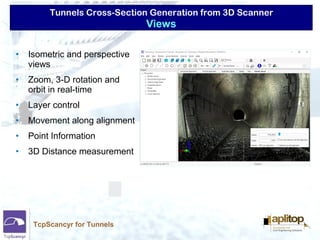

- 11. Tunnels Cross-Section Generationfrom 3D Scanner TcpScancyr for Tunnels • Isometric and perspective views • Zoom, 3-D rotation and orbit in real-time • Layer control • Movement along alignment • Point Information • 3D Distance measurement Views

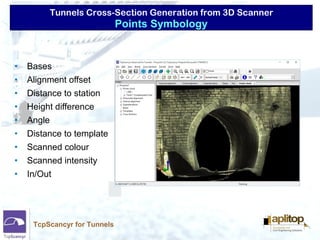

- 12. Tunnels Cross-Section Generationfrom 3D Scanner TcpScancyr for Tunnels • Bases • Alignment offset • Distance to station • Height difference • Angle • Distance to template • Scanned colour • Scanned intensity • In/Out Points Symbology

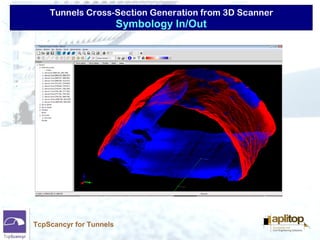

- 13. Tunnels Cross-Section Generationfrom 3D Scanner TcpScancyr for Tunnels Symbology In/Out

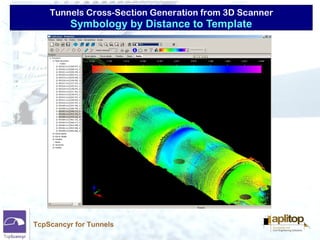

- 14. Tunnels Cross-Section Generationfrom 3D Scanner TcpScancyr for Tunnels Symbology by Distance to Template

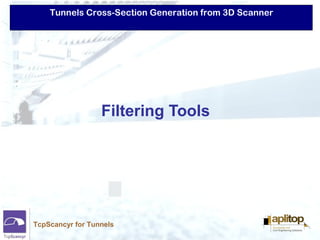

- 15. Tunnels Cross-Section Generationfrom 3D Scanner TcpScancyr for Tunnels Filtering Tools

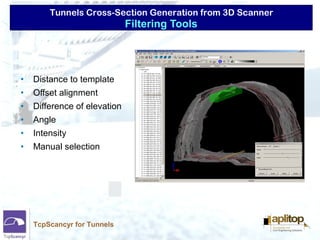

- 16. Tunnels Cross-Section Generationfrom 3D Scanner TcpScancyr for Tunnels • Distance to template • Offset alignment • Difference of elevation • Angle • Intensity • Manual selection Filtering Tools

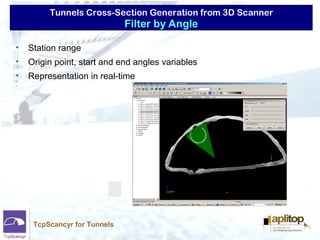

- 17. Tunnels Cross-Section Generationfrom 3D Scanner TcpScancyr for Tunnels • Station range • Origin point, start and end angles variables • Representation in real-time Filter by Angle

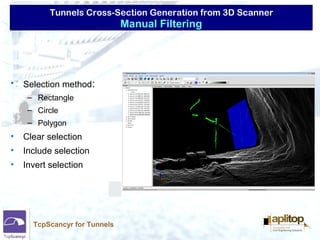

- 18. Tunnels Cross-Section Generationfrom 3D Scanner TcpScancyr for Tunnels • Selection method: – Rectangle – Circle – Polygon • Clear selection • Include selection • Invert selection Manual Filtering

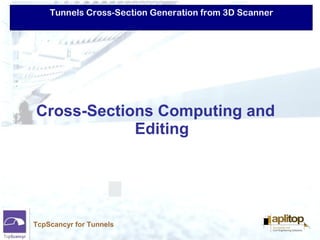

- 19. Tunnels Cross-Section Generationfrom 3D Scanner TcpScancyr for Tunnels Cross-Sections Computing and Editing

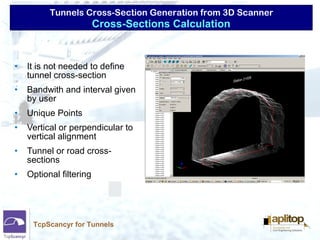

- 20. Tunnels Cross-Section Generationfrom 3D Scanner TcpScancyr for Tunnels • It is not needed to define tunnel cross-section • Bandwith and interval given by user • Unique Points • Vertical or perpendicular to vertical alignment • Tunnel or road cross- sections • Optional filtering Cross-Sections Calculation

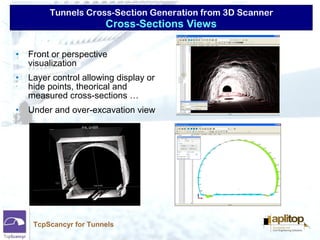

- 21. Tunnels Cross-Section Generationfrom 3D Scanner TcpScancyr for Tunnels • Front or perspective visualization • Layer control allowing display or hide points, theorical and measured cross-sections … • Under and over-excavation view Cross-Sections Views

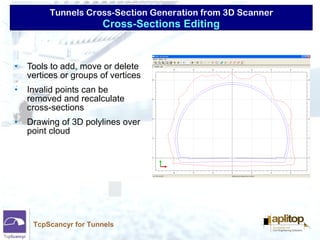

- 22. Tunnels Cross-Section Generationfrom 3D Scanner TcpScancyr for Tunnels • Tools to add, move or delete vertices or groups of vertices • Invalid points can be removed and recalculate cross-sections • Drawing of 3D polylines over point cloud Cross-Sections Editing

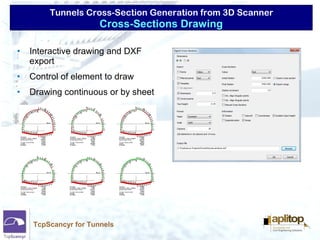

- 23. Tunnels Cross-Section Generationfrom 3D Scanner TcpScancyr for Tunnels • Interactive drawing and DXF export • Control of element to draw • Drawing continuous or by sheet Cross-Sections Drawing

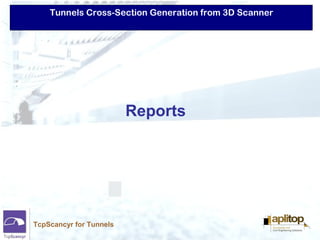

- 24. Tunnels Cross-Section Generationfrom 3D Scanner TcpScancyr for Tunnels Reports

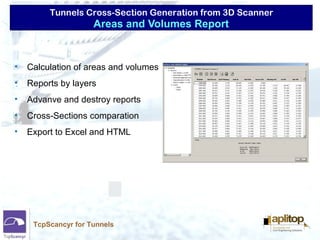

- 25. Tunnels Cross-Section Generationfrom 3D Scanner TcpScancyr for Tunnels • Calculation of areas and volumes • Reports by layers • Advanve and destroy reports • Cross-Sections comparation • Export to Excel and HTML Areas and Volumes Report

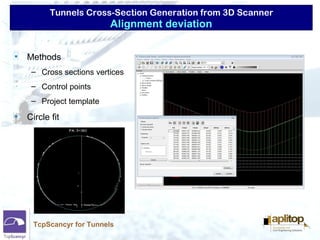

- 26. Tunnels Cross-Section Generationfrom 3D Scanner TcpScancyr for Tunnels • Methods – Cross sections vertices – Control points – Project template • Circle fit Alignment deviation

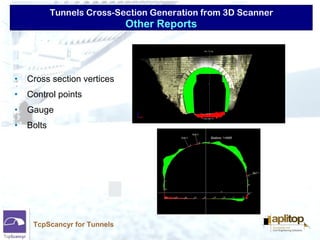

- 27. Tunnels Cross-Section Generationfrom 3D Scanner TcpScancyr for Tunnels • Cross section vertices • Control points • Gauge • Bolts Other Reports
- 28. Tunnels Cross-Section Generationfrom 3D Scanner TcpScancyr for Tunnels Tools
- 29. Tunnels Cross-Section Generationfrom 3D Scanner TcpScancyr for Tunnels Inspection Map

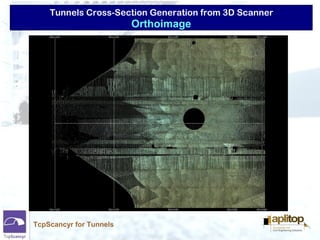

- 30. Tunnels Cross-Section Generationfrom 3D Scanner TcpScancyr for Tunnels Orthoimage

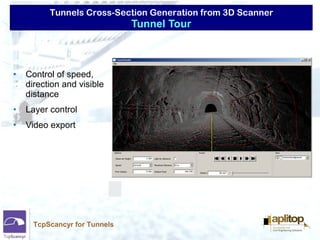

- 31. Tunnels Cross-Section Generationfrom 3D Scanner TcpScancyr for Tunnels • Control of speed, direction and visible distance • Layer control • Video export Tunnel Tour
- 32. TcpScancyr for Tunnels TunnelCross-Sections Generation from Scanned Points www.aplitop.com
