Uploaded byJoshua Harlow
Taskflow
This document introduces TaskFlow, an OpenStack library for managing task execution. It describes TaskFlow as a lightweight framework that makes task execution reliable, consistent and resumable through the use of tasks, flows, engines and persistence. Key concepts are explained such as tasks, flows, engines, persistence and jobs. Current capabilities are outlined along with examples and planned integration points. The document encourages involvement in TaskFlow's development.
![Coded Agents – with UiPath SDK + LangGraph [Virtual Hands-on Workshop]](https://cdn.slidesharecdn.com/ss_thumbnails/codedagentsdeck-251215155422-5497c599-thumbnail.jpg?width=640&height=640&fit=bounds)
Taskflow
- 1.

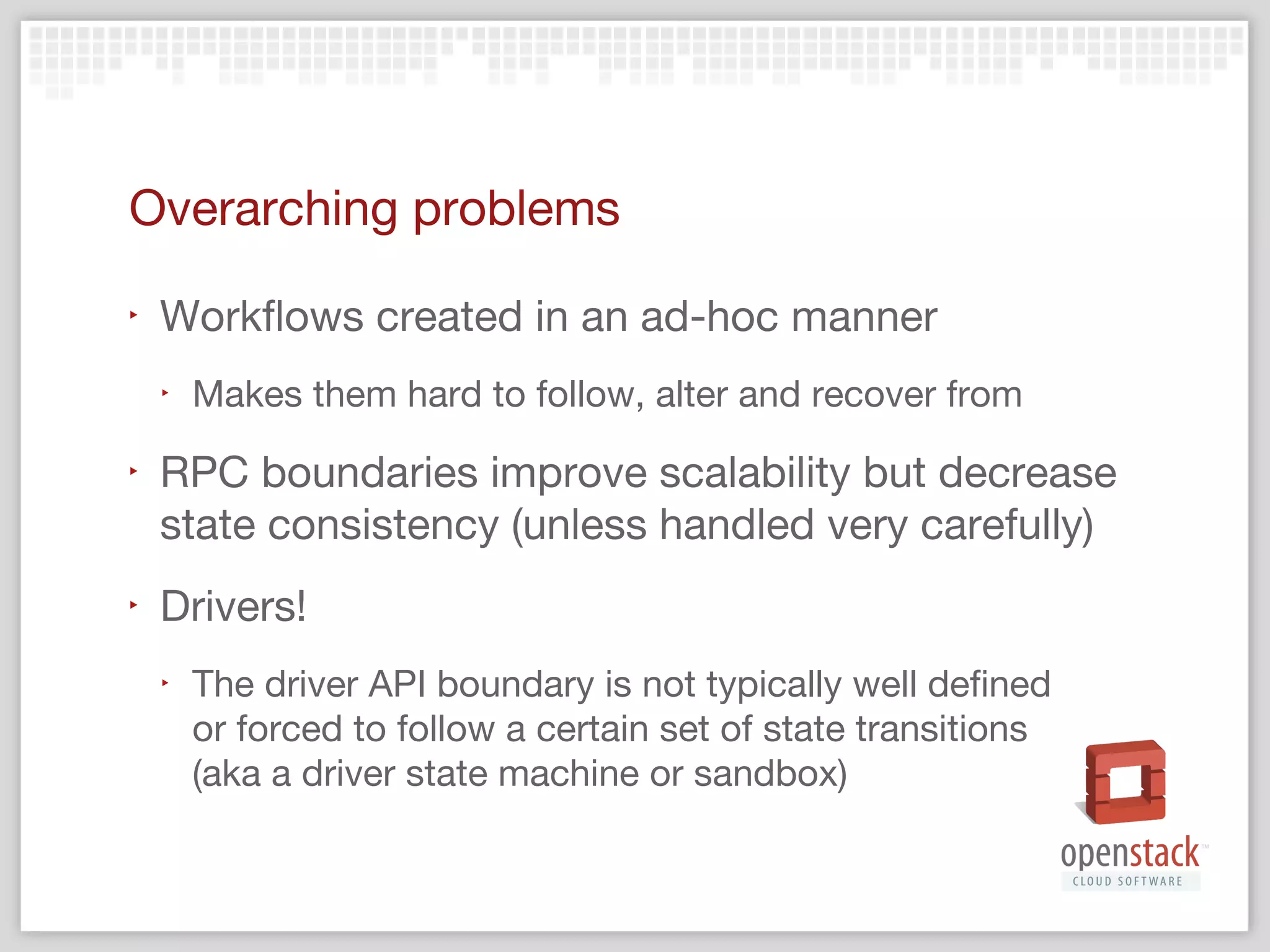

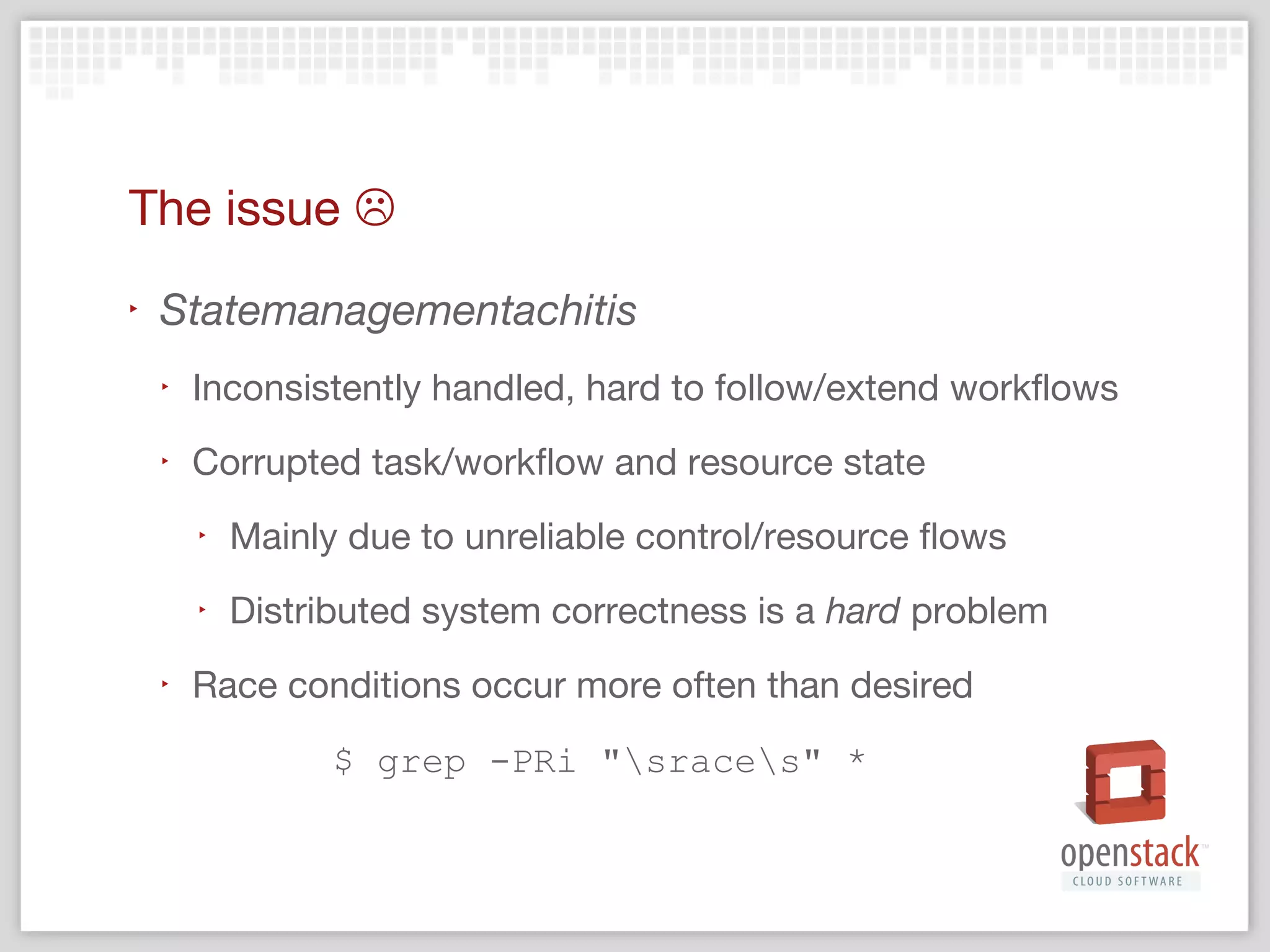

- 2. The problem statement ‣ Statemanagementachitis ‣ Workflowstoday without state management in place makes workflows hard to follow, alter and recover ‣ Unreliable workflow and resource state ‣ Distributed system correctness is a hard problem ‣ RPC boundaries are a constant balance of improving scalability but decreasing consistency ‣ Race conditions occur more often than desired

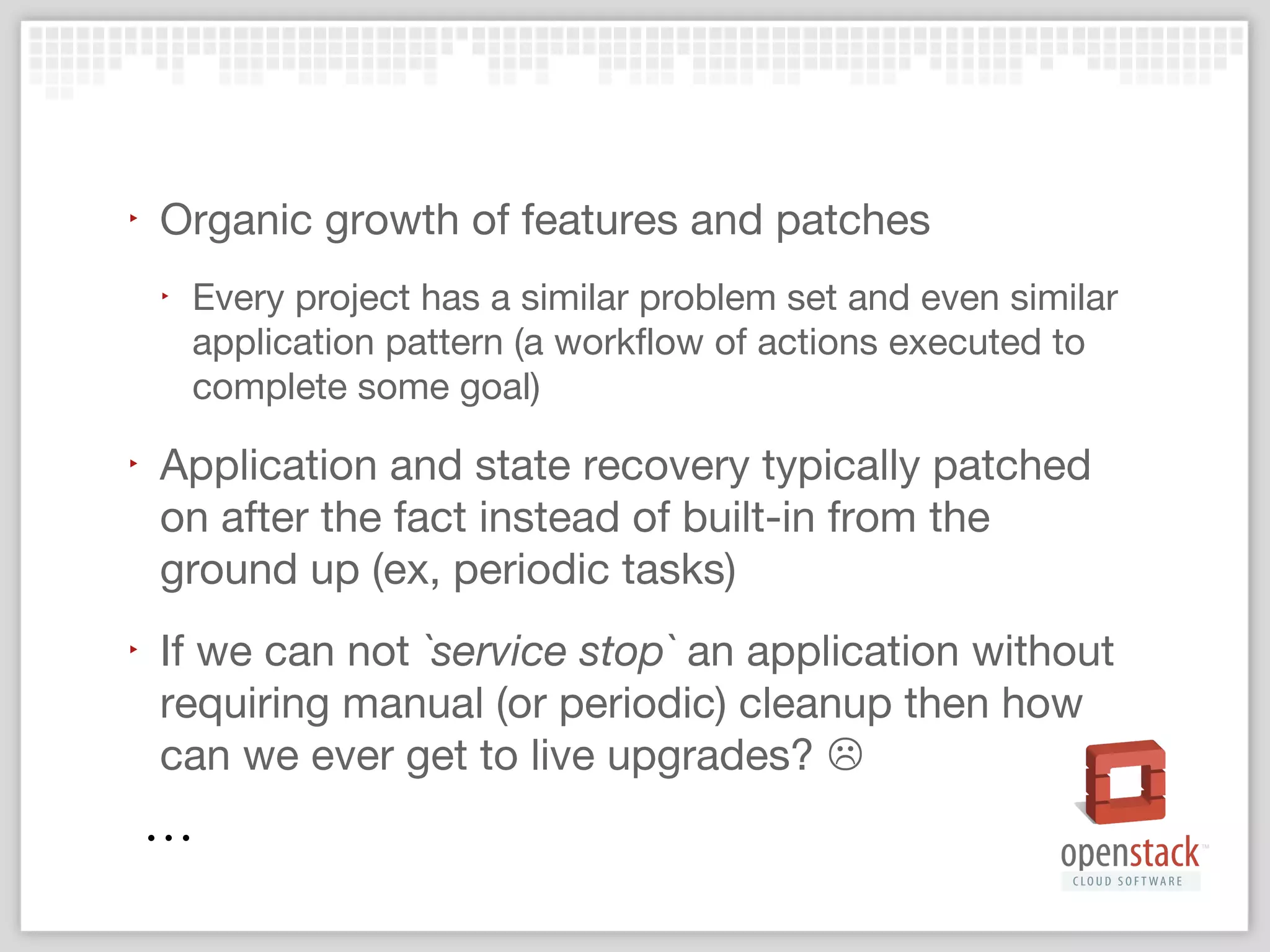

- 3. Continued… ‣ Manager DriverAPI boundary ‣ Organic growth of features and patches ‣ Application and state recovery typically patched on after the fact instead of built-in from the ground up (ex, periodic tasks) ‣ Capabilities to `service stop` an application cleanly without manual (or periodic) clean up is crucial for features like live upgrades

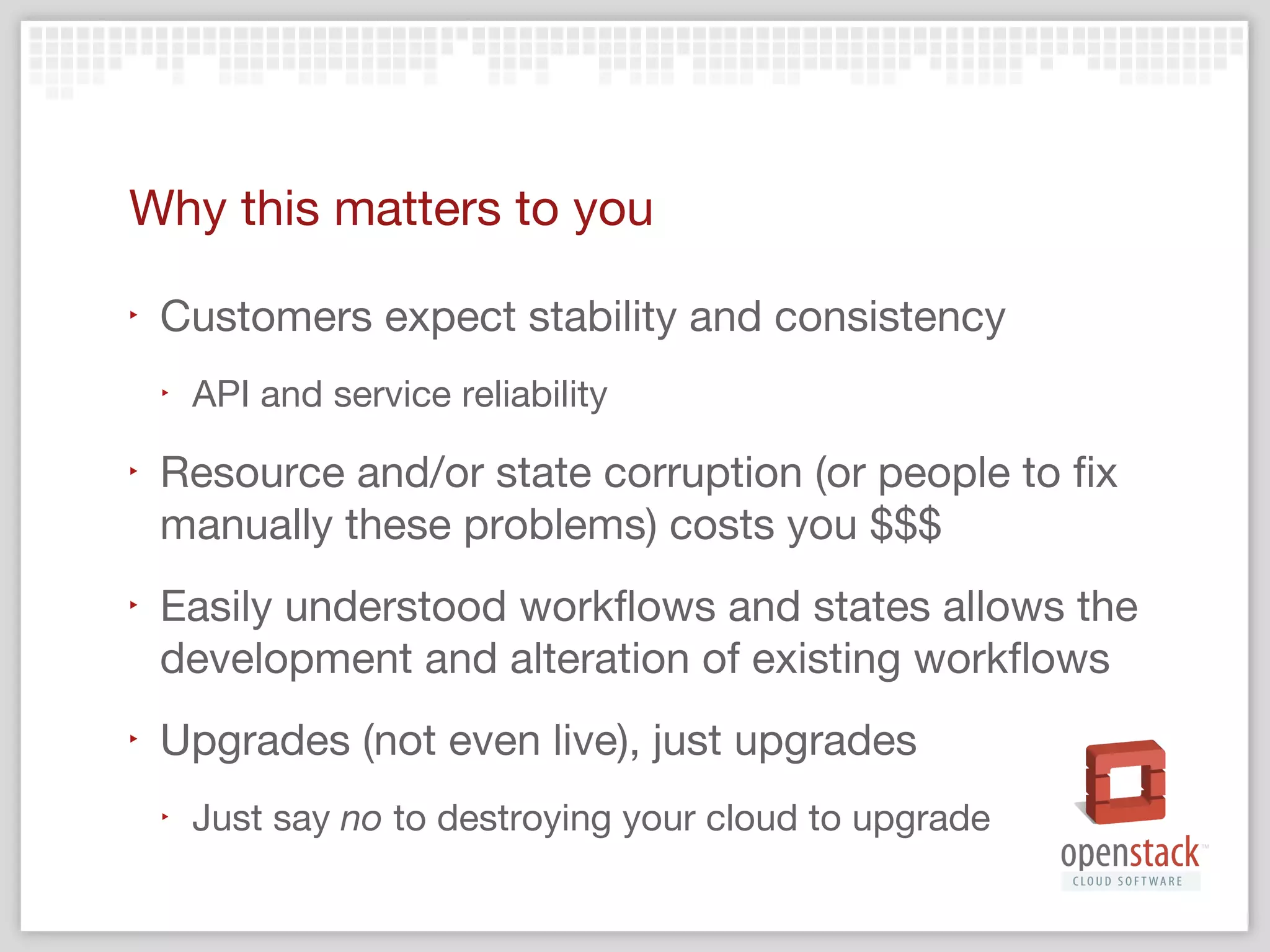

- 4. Why this matters??? ‣ Customersexpect stability and consistency ‣ API and service reliability ‣ Resource and/or state corruption (or people to fix manually these problems) costs $$$ ‣ Easily understood workflows and states allows the development and alteration of existing workflows ‣ Upgrades (not even live), just upgrades ‣ Just say no to destroying the cloud to upgrade

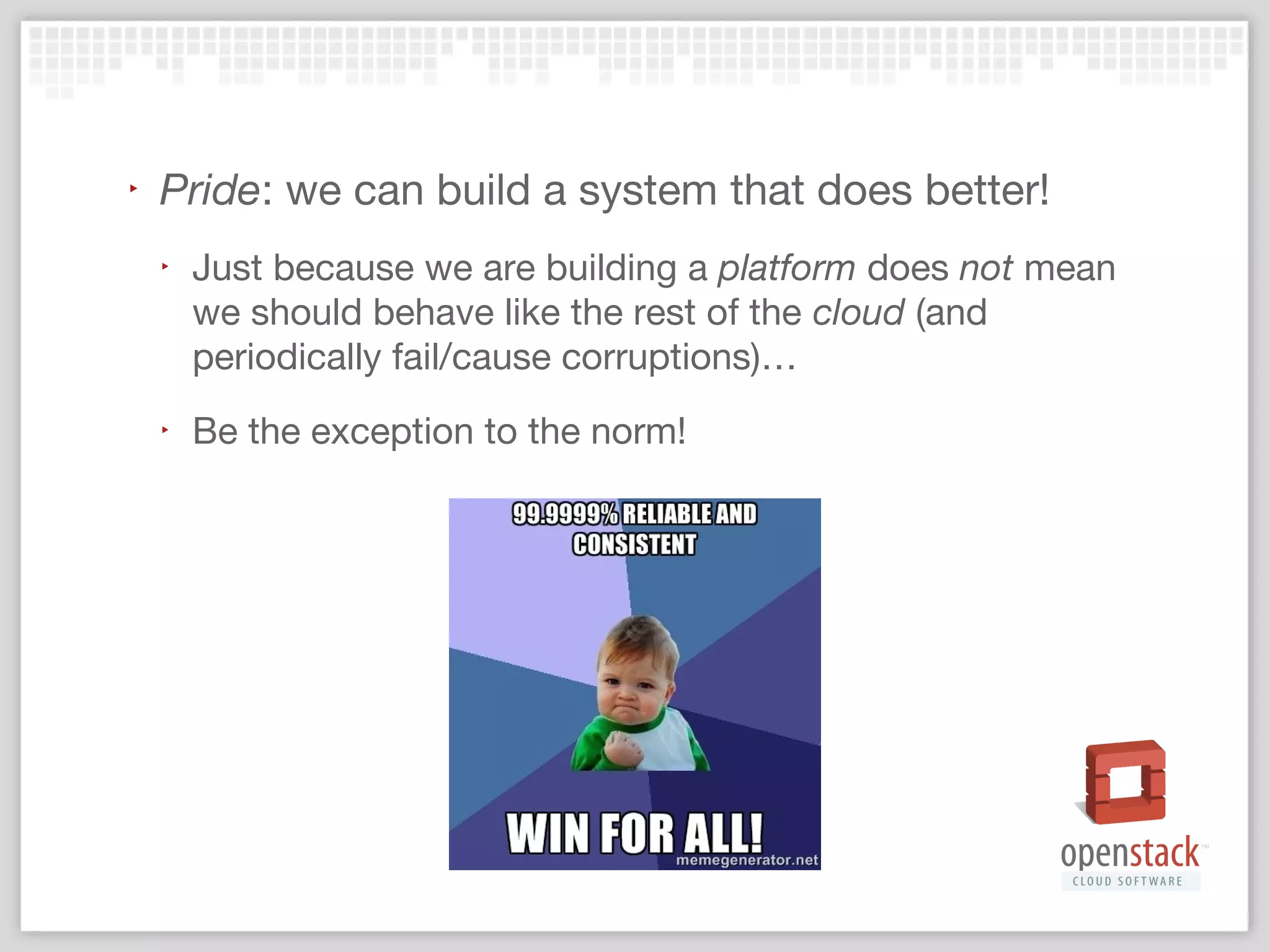

- 5. ‣ Pride: we canbuild a system that does ‣ We all want openstack cloud software to be very reliable and if and when it does fail it should not cause unrecoverable corruption ‣ Be the exception to the norm!

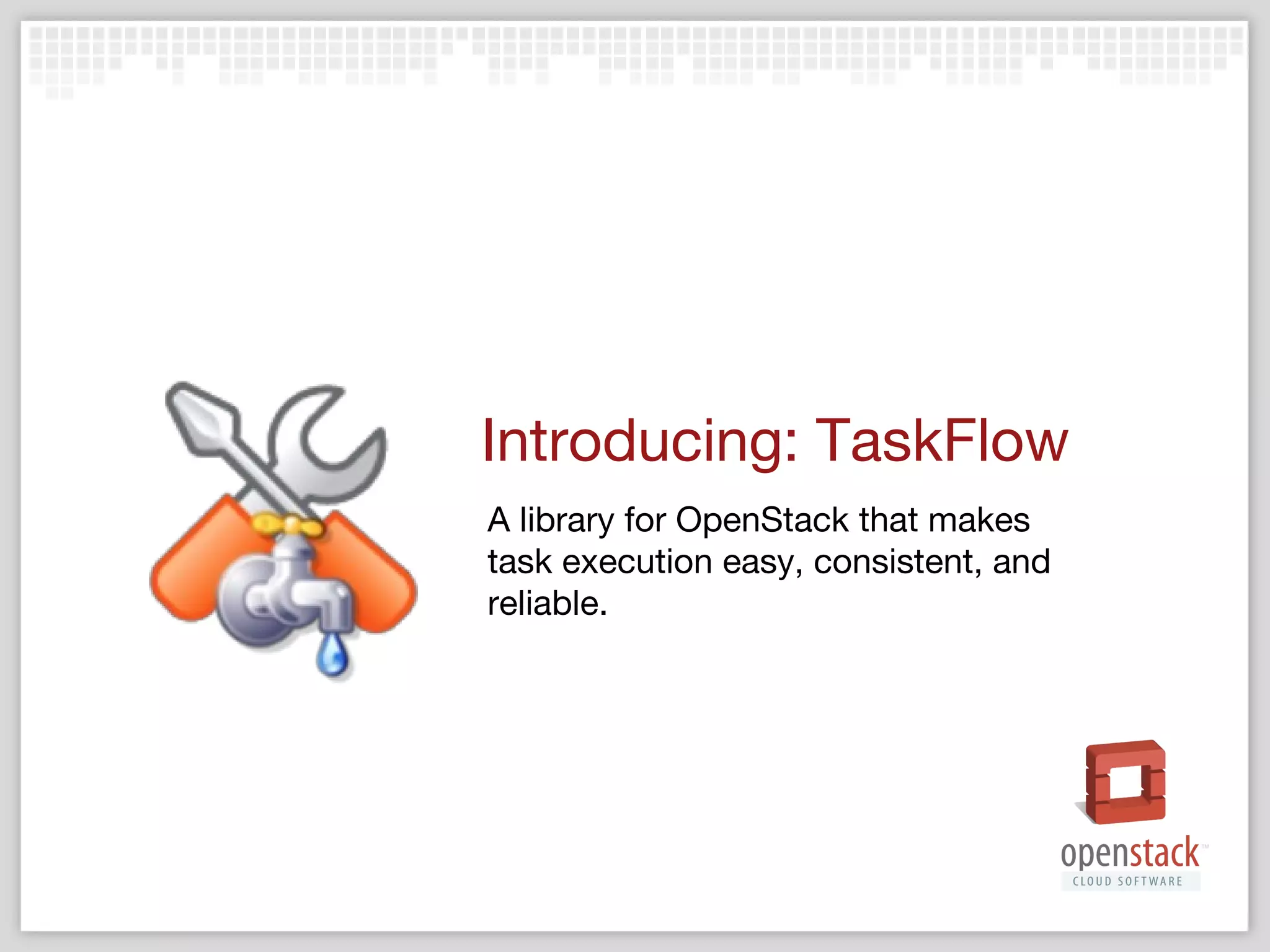

- 7. Introducing: TaskFlow A libraryfor OpenStack that makes task execution easy, consistent, and reliable.

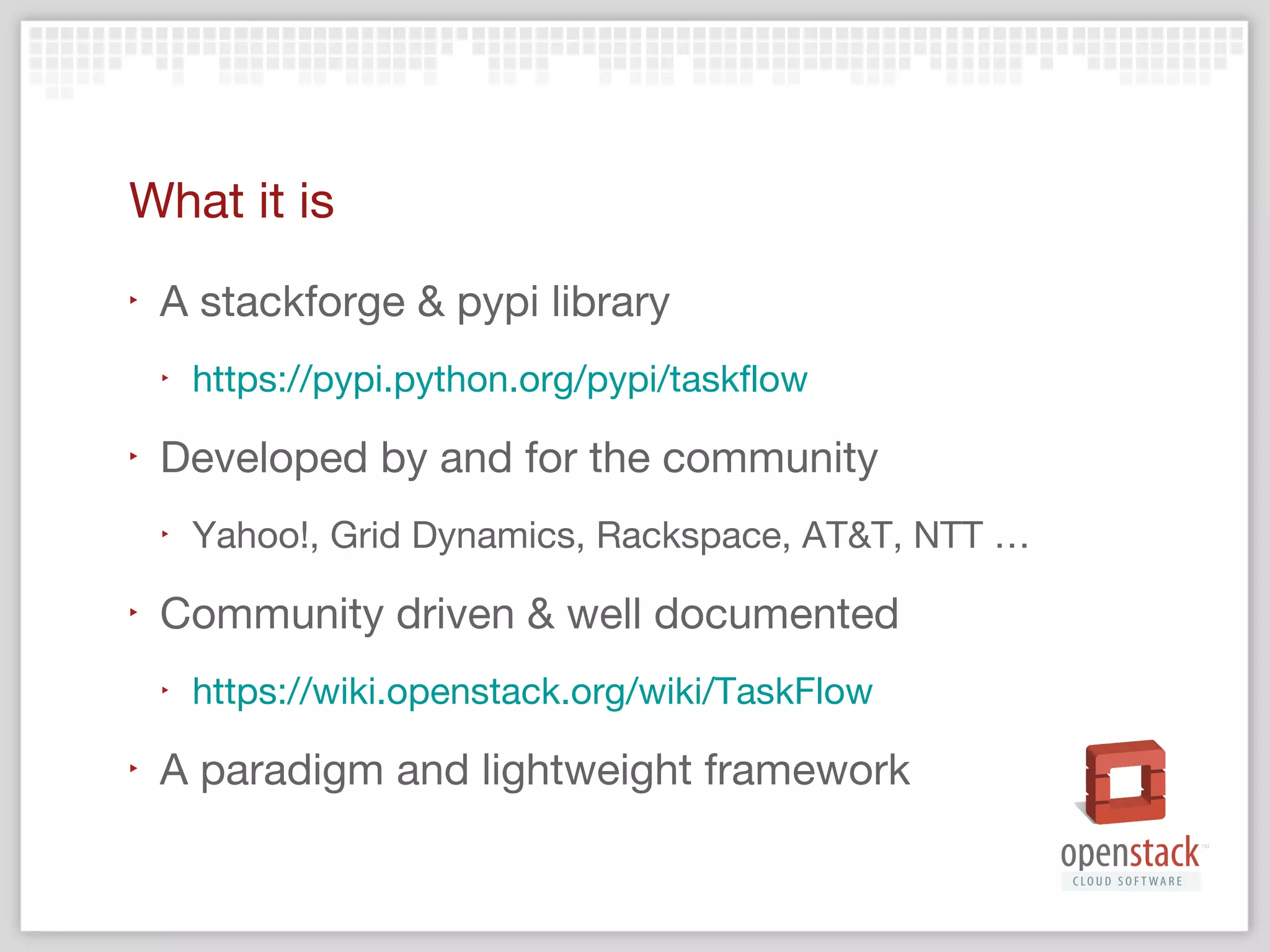

- 8. What it is ‣ Astackforge & pypi library ‣ ‣ Developed by and for the community ‣ ‣ Yahoo!, Grid Dynamics, Rackspace, AT&T, NTT … Community driven & well documented ‣ ‣ https://pypi.python.org/pypi/taskflow https://wiki.openstack.org/wiki/TaskFlow A paradigm and lightweight framework

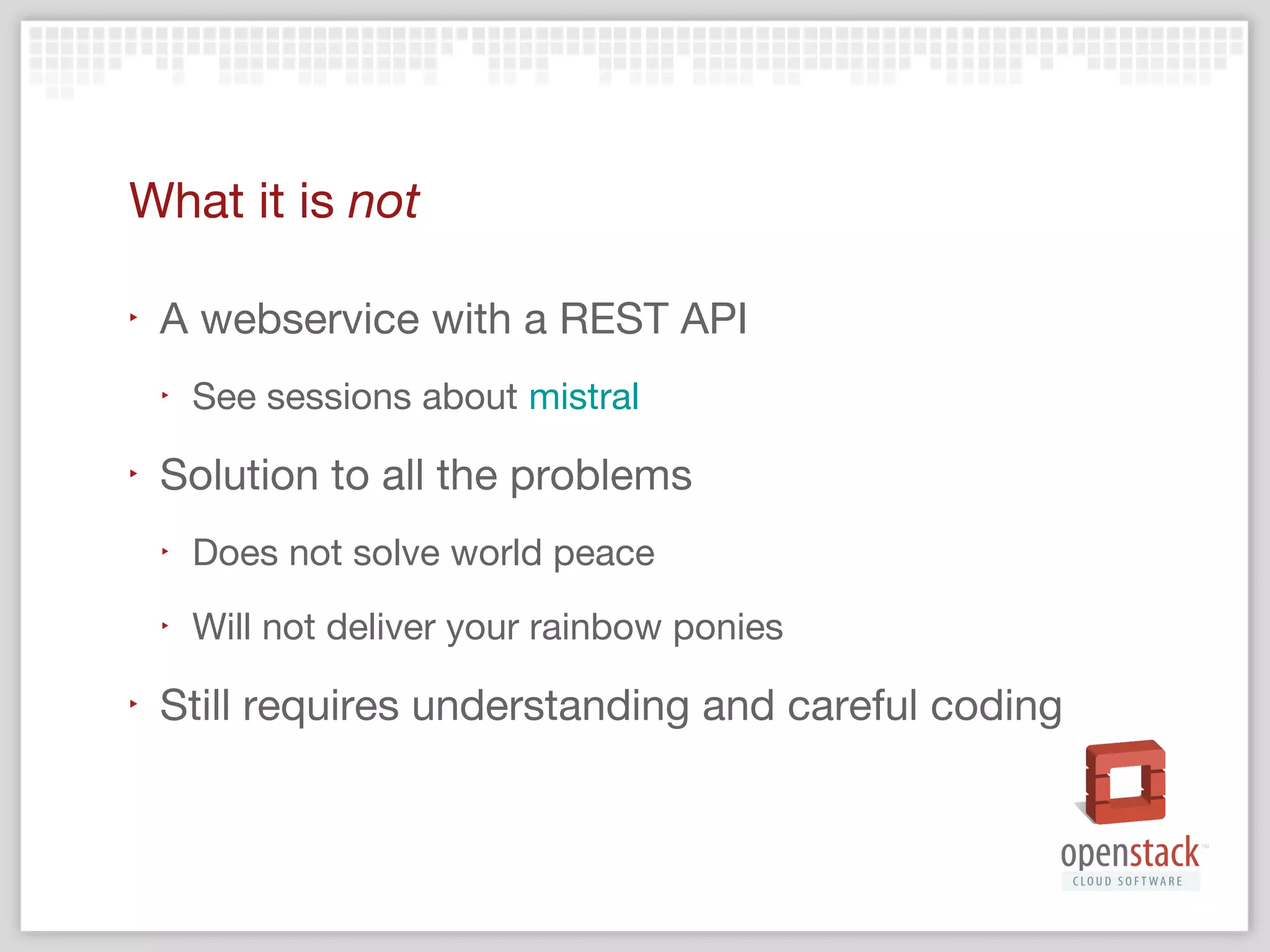

- 9. What it isnot ‣ A webservice with a REST API ‣ ‣ See sessions about mistral Solution to all the problems ‣ ‣ ‣ Does not solve world peace Will not deliver your rainbow ponies Still requires understanding and careful coding

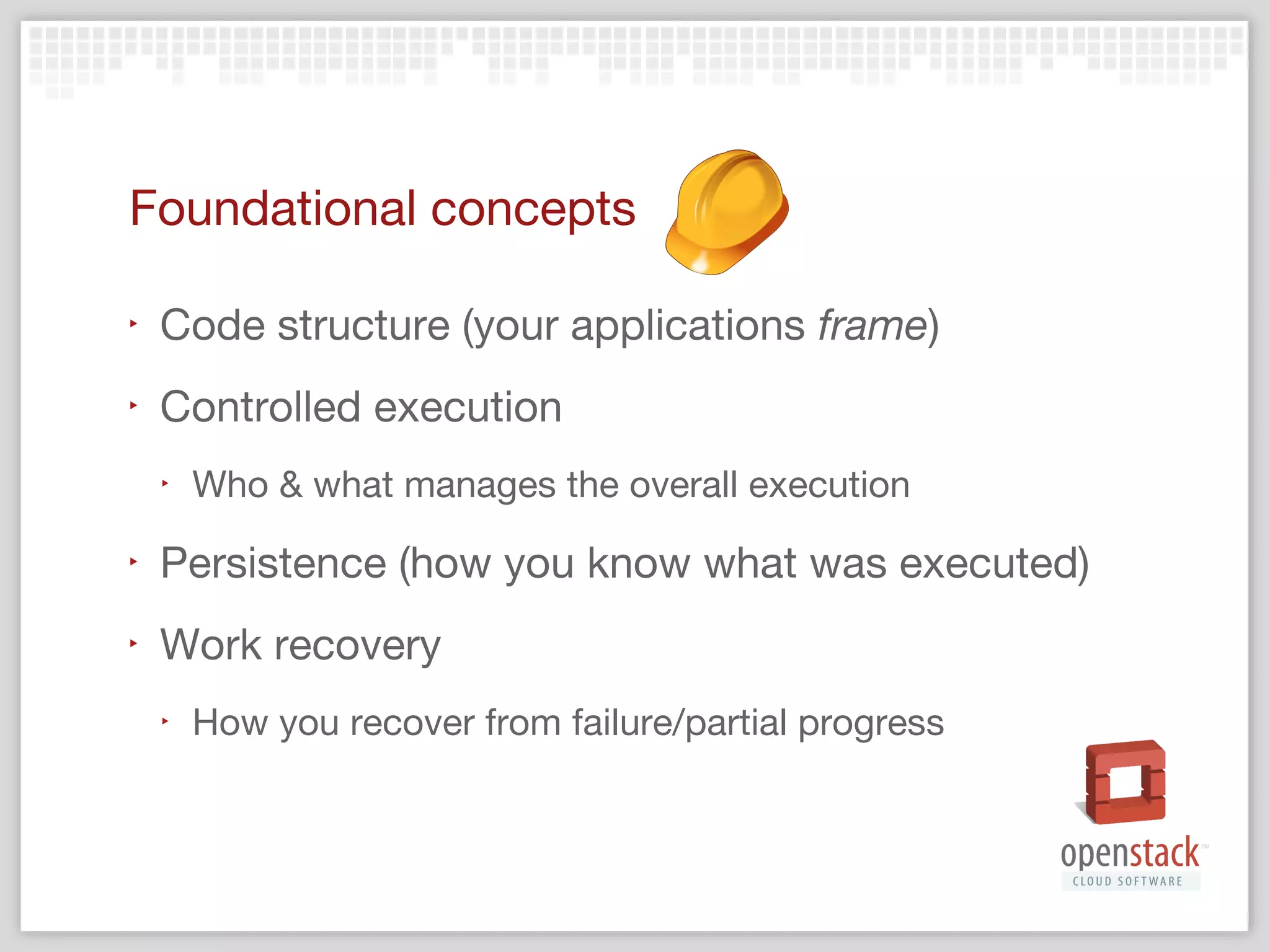

- 10. Foundational concepts ‣ Code structure(your applications frame) ‣ Controlled execution ‣ Who & what manages the overall execution ‣ Persistence (how you know what was executed) ‣ Work recovery ‣ How you recover from failure/partial progress

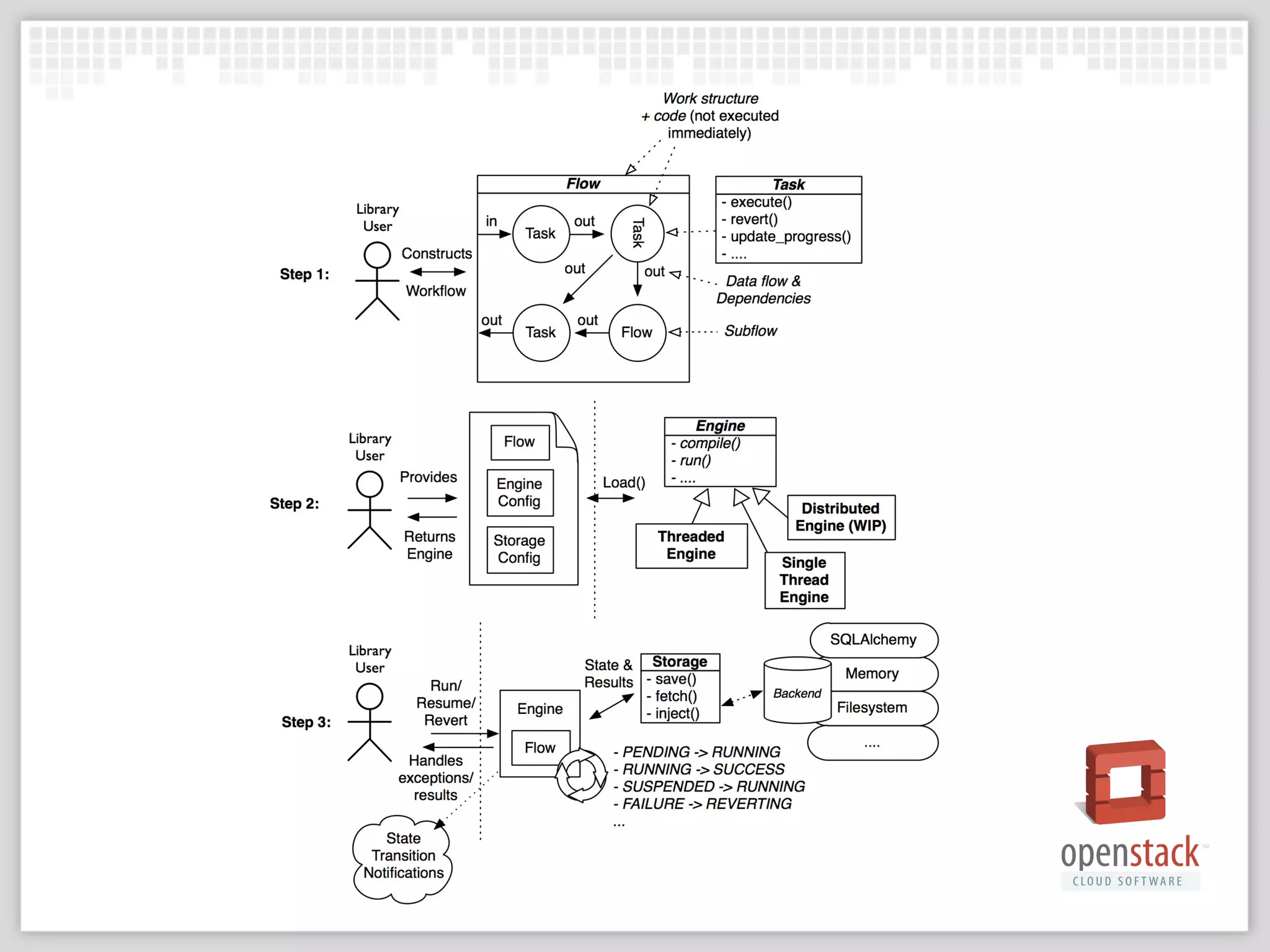

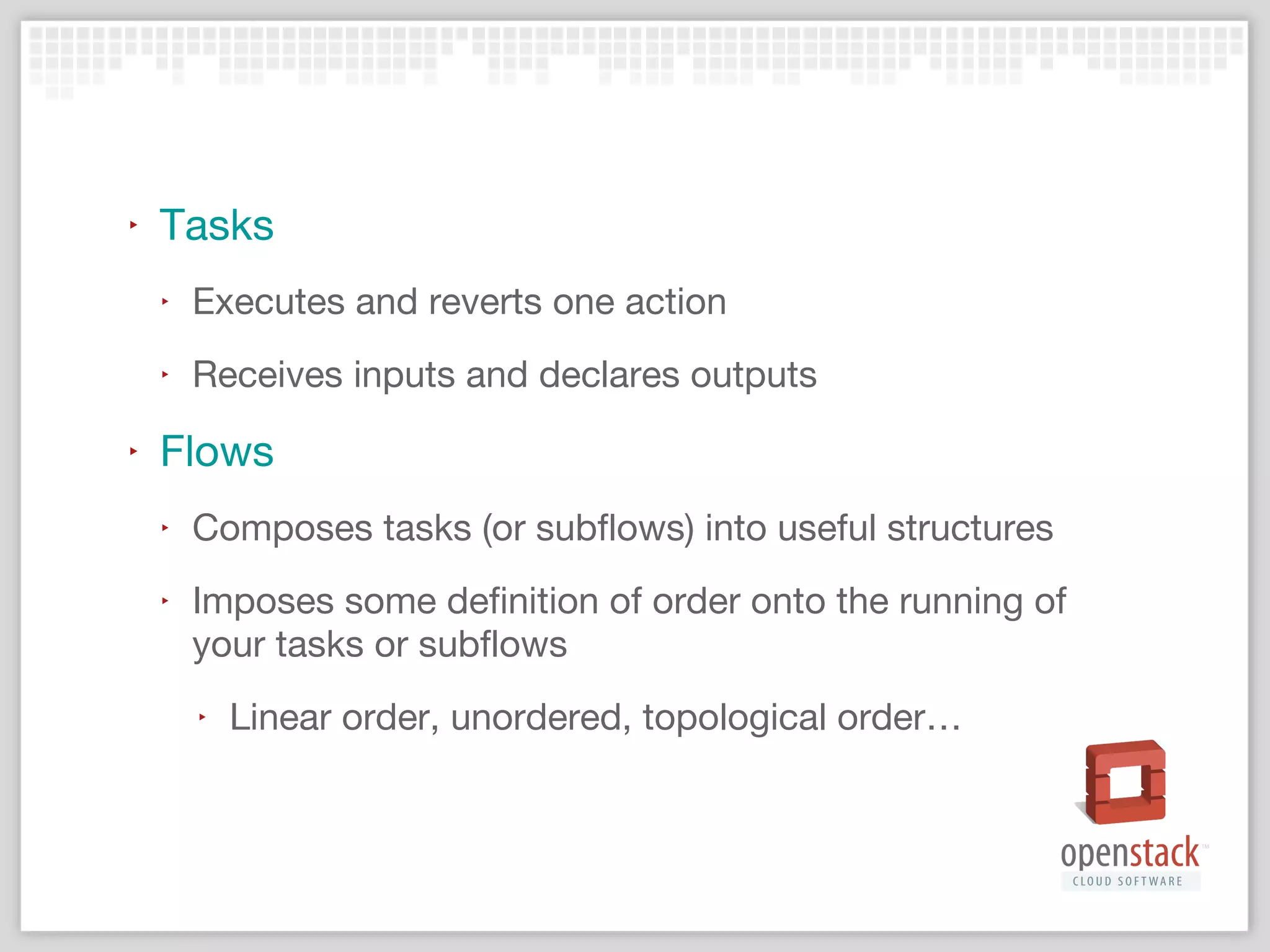

- 12. ‣ Tasks ‣ ‣ ‣ Executes and revertsone action Receives inputs and declares outputs Flows ‣ Composes tasks (or subflows) into useful structures ‣ Imposes some definition of order onto the running of your tasks or subflows ‣ Linear order, unordered, topological order…

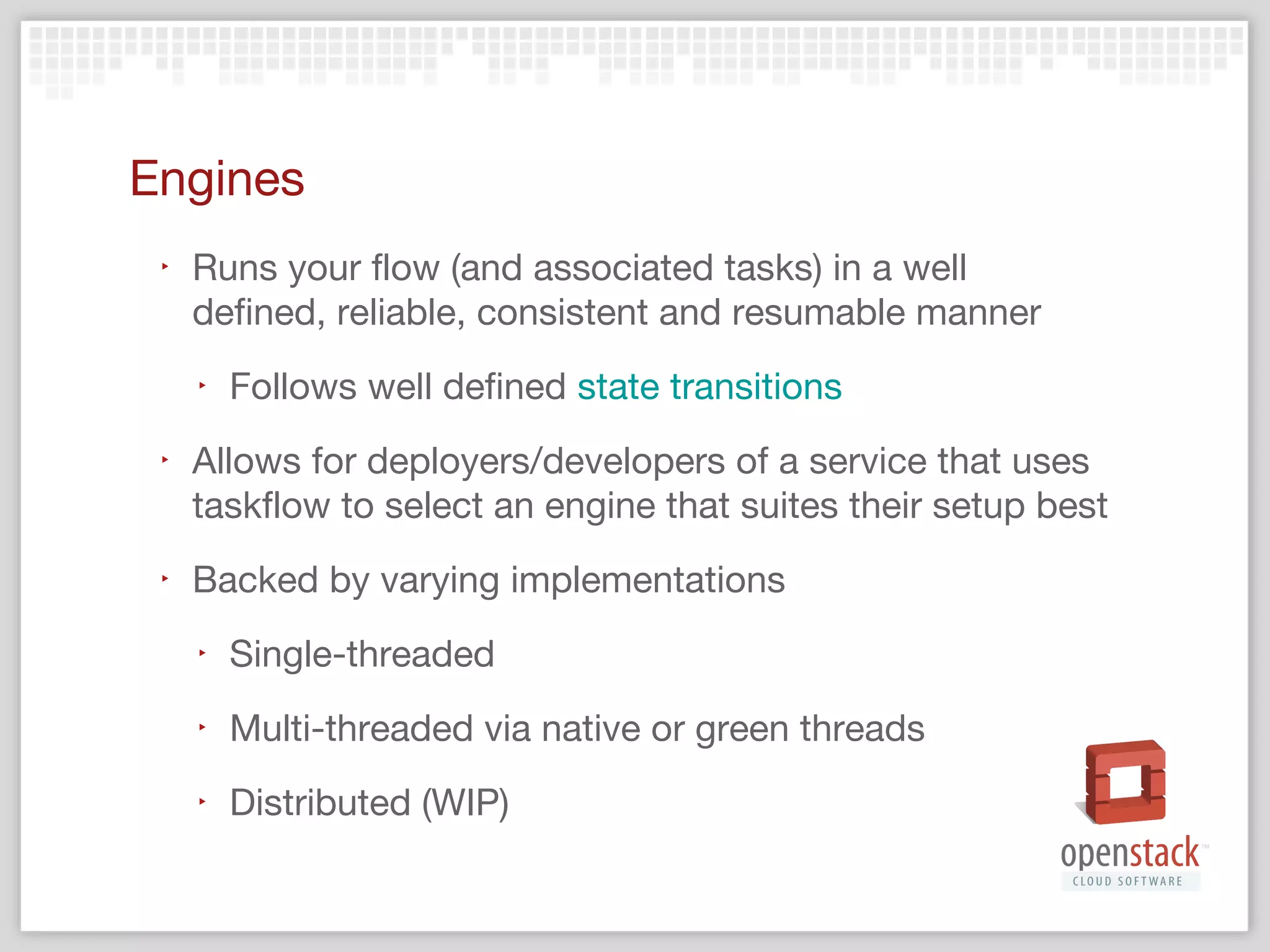

- 13. Engines ‣ Runs your flow(and associated tasks) in a well defined, reliable, consistent and resumable manner ‣ Follows well defined state transitions ‣ Allows for deployers/developers of a service that uses taskflow to select an engine that suites their setup best ‣ Backed by varying implementations ‣ Single-threaded ‣ Multi-threaded via native or green threads ‣ Distributed (WIP)

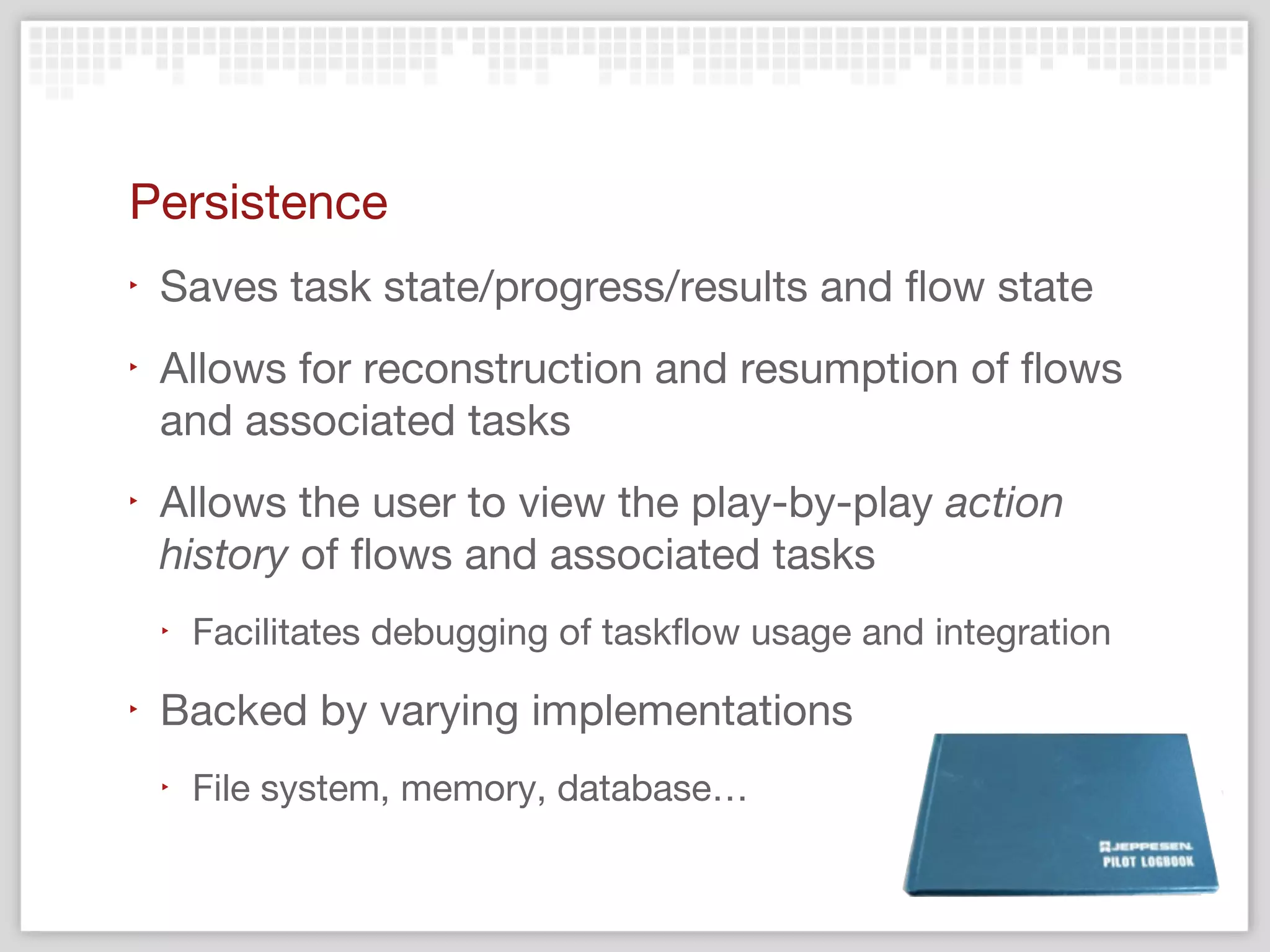

- 14. Persistence ‣ Saves task state/progress/resultsand flow state ‣ Allows for reconstruction and resumption of flows and associated tasks ‣ Allows the user to view the play-by-play action history of flows and associated tasks ‣ ‣ Facilitates debugging of taskflow usage and integration Backed by varying implementations ‣ File system, memory, database…

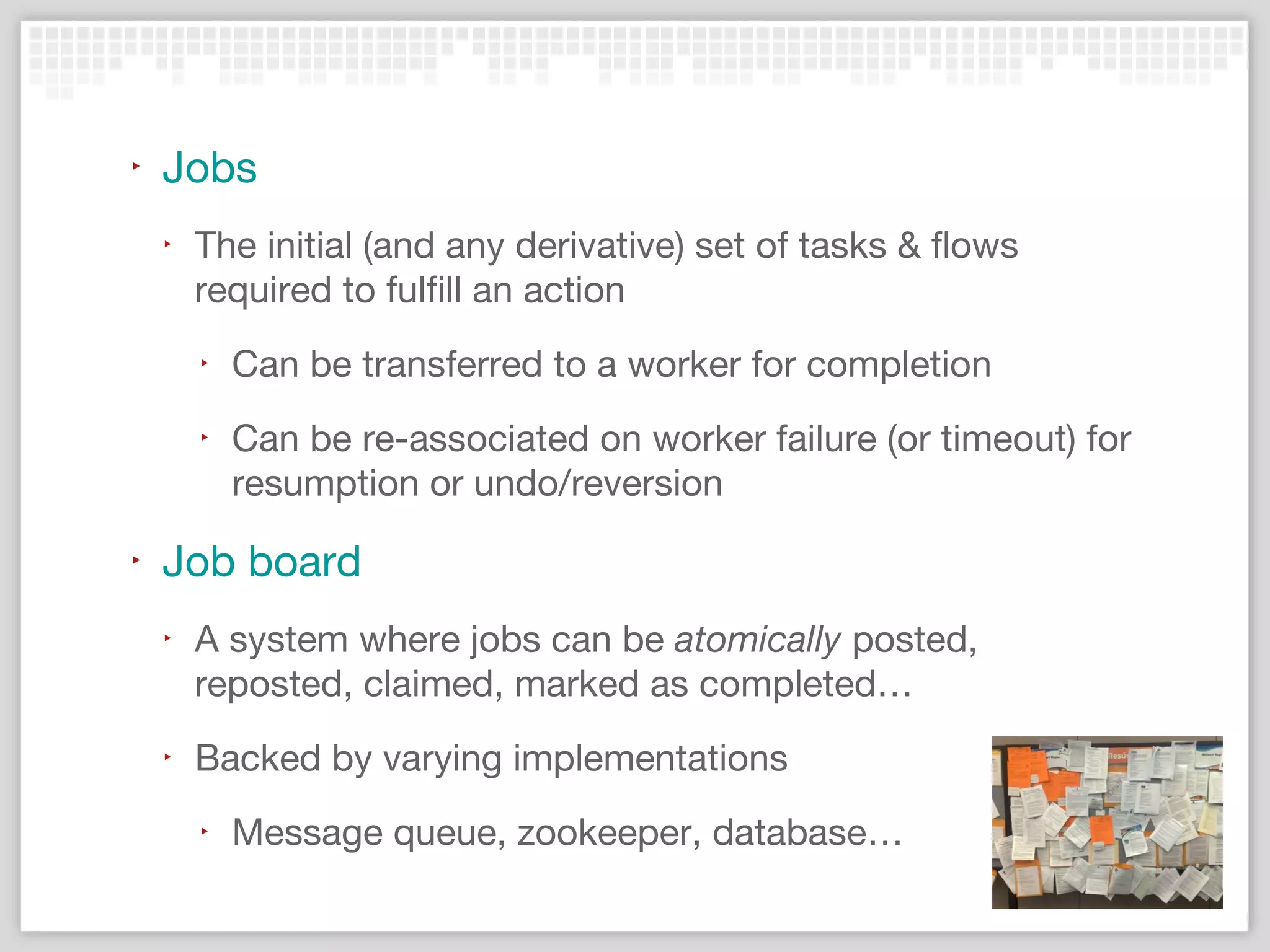

- 15. ‣ Jobs ‣ The initial (andany derivative) set of tasks & flows required to fulfill an action ‣ ‣ ‣ Can be transferred to a worker for completion Can be re-associated on worker failure (or timeout) for resumption or undo/reversion Job board ‣ A system where jobs can be atomically posted, reposted, claimed, marked as completed… ‣ Backed by varying implementations ‣ Message queue, zookeeper, database…

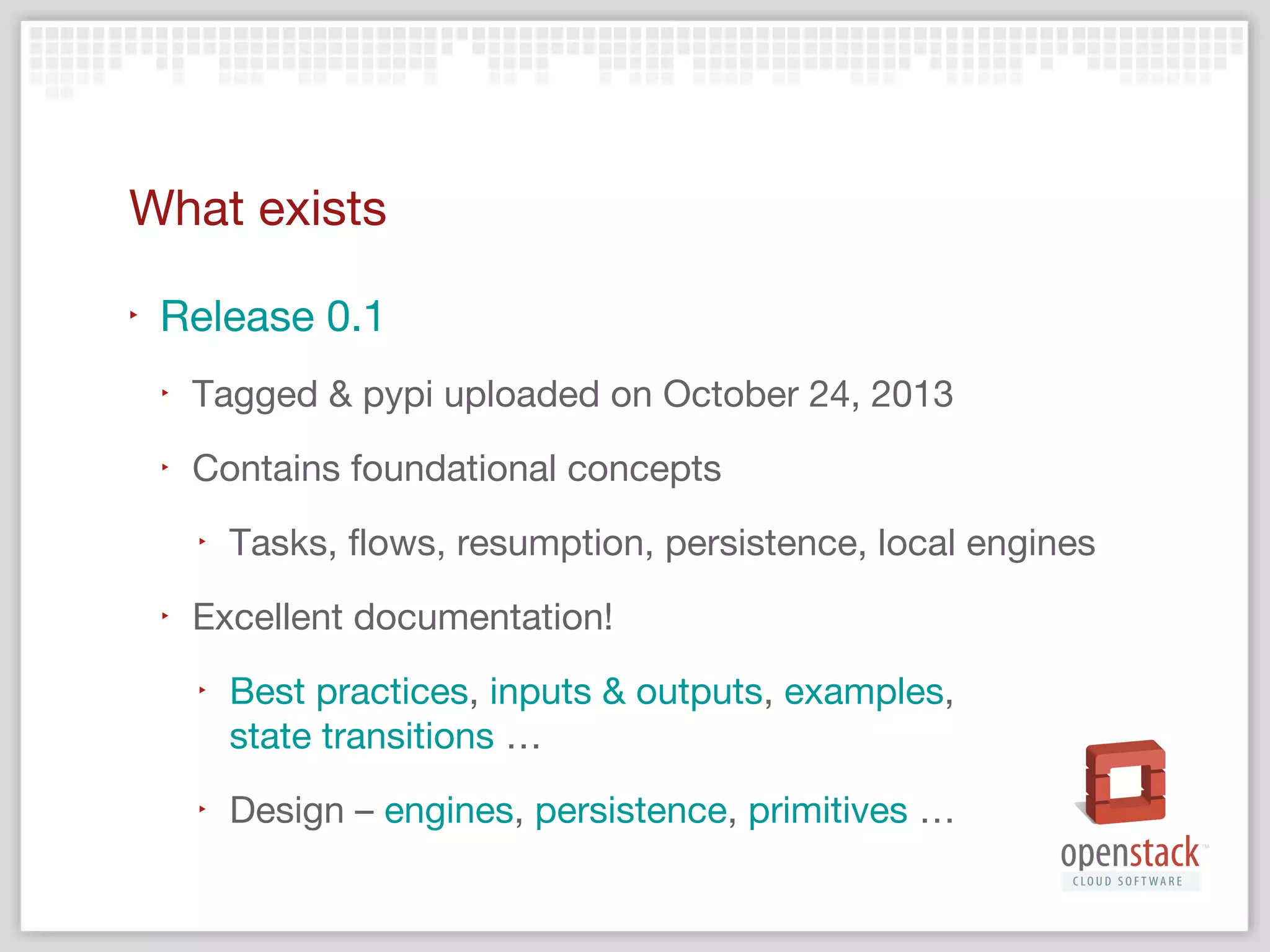

- 16. What exists ‣ Release 0.1 ‣ Tagged& pypi uploaded on October 24, 2013 ‣ Contains foundational concepts ‣ ‣ Tasks, flows, resumption, persistence, local engines Excellent documentation! ‣ Best practices, inputs & outputs, examples, state transitions … ‣ Design – engines, persistence, primitives …

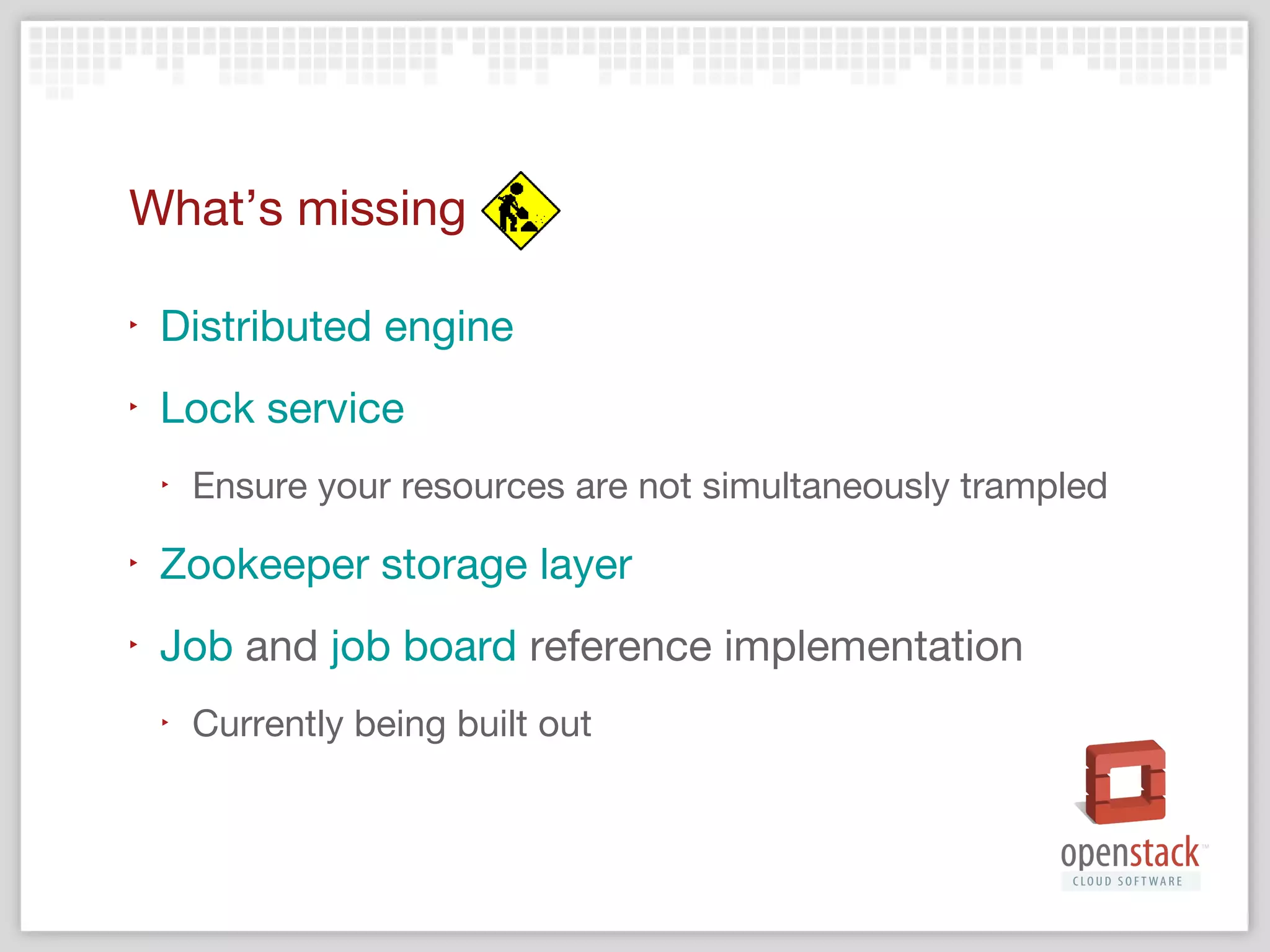

- 17. What’s missing ‣ Distributed engine ‣ Lockservice ‣ Ensure your resources are not simultaneously trampled ‣ Zookeeper storage layer ‣ Job and job board reference implementation ‣ Currently being built out

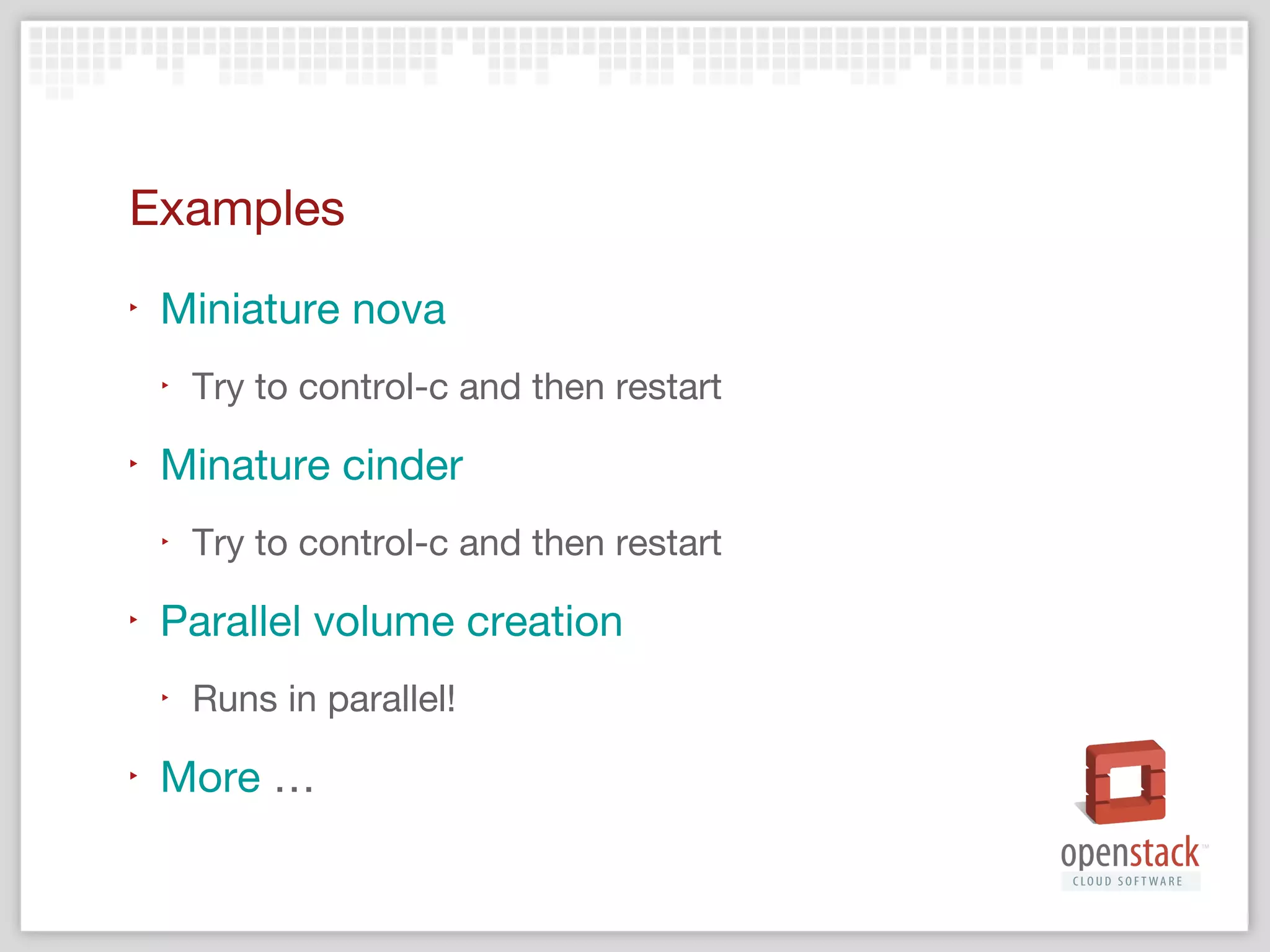

- 18. Examples ‣ Miniature nova ‣ ‣ Minature cinder ‣ ‣ Tryto control-c and then restart Parallel volume creation ‣ ‣ Try to control-c and then restart Runs in parallel! More …

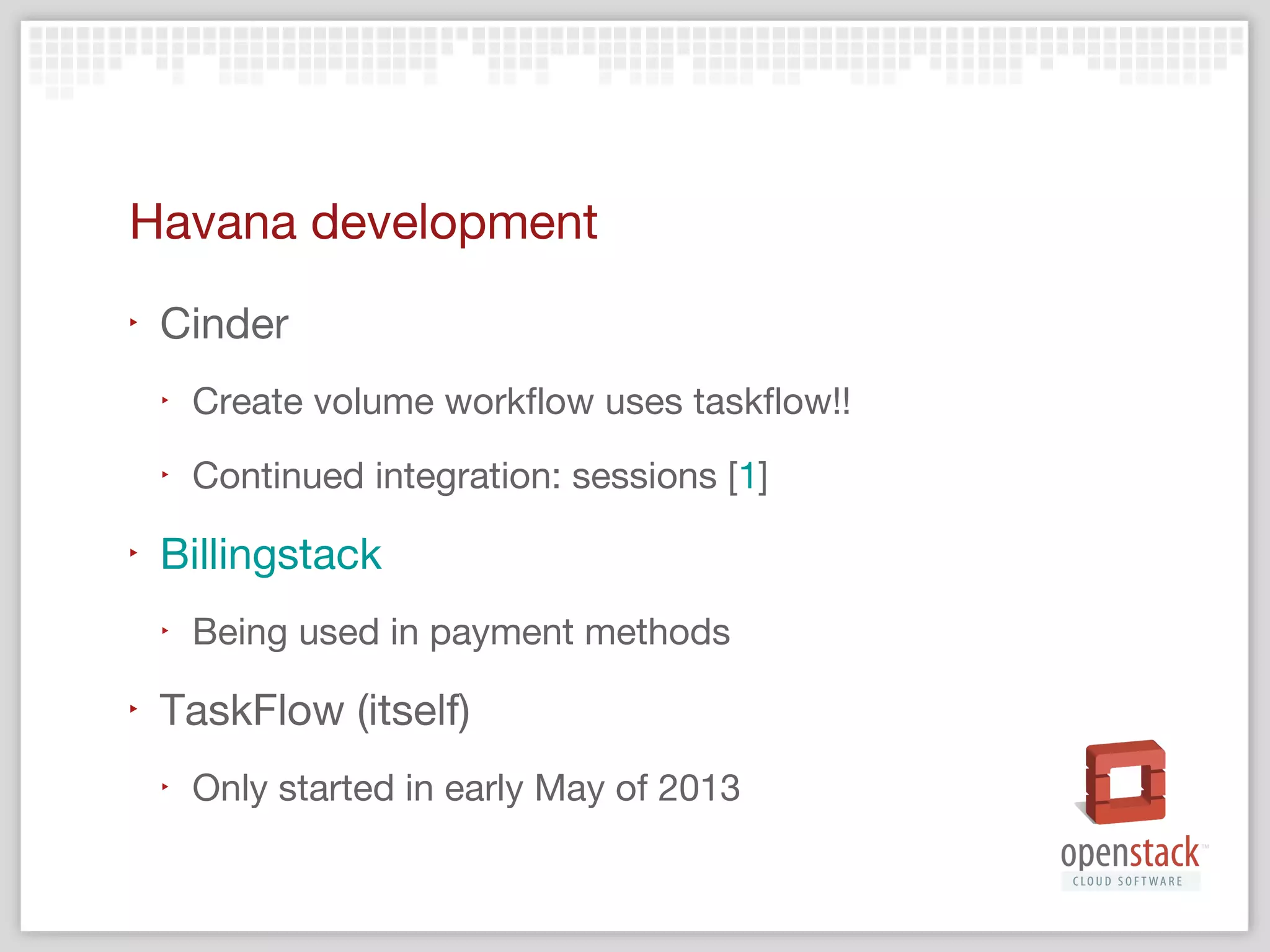

- 19. Havana development ‣ Cinder ‣ ‣ ‣ Create volumeworkflow uses taskflow!! Continued integration: sessions [1] Billingstack ‣ ‣ Being used in payment methods TaskFlow (itself) ‣ Only started in early May of 2013

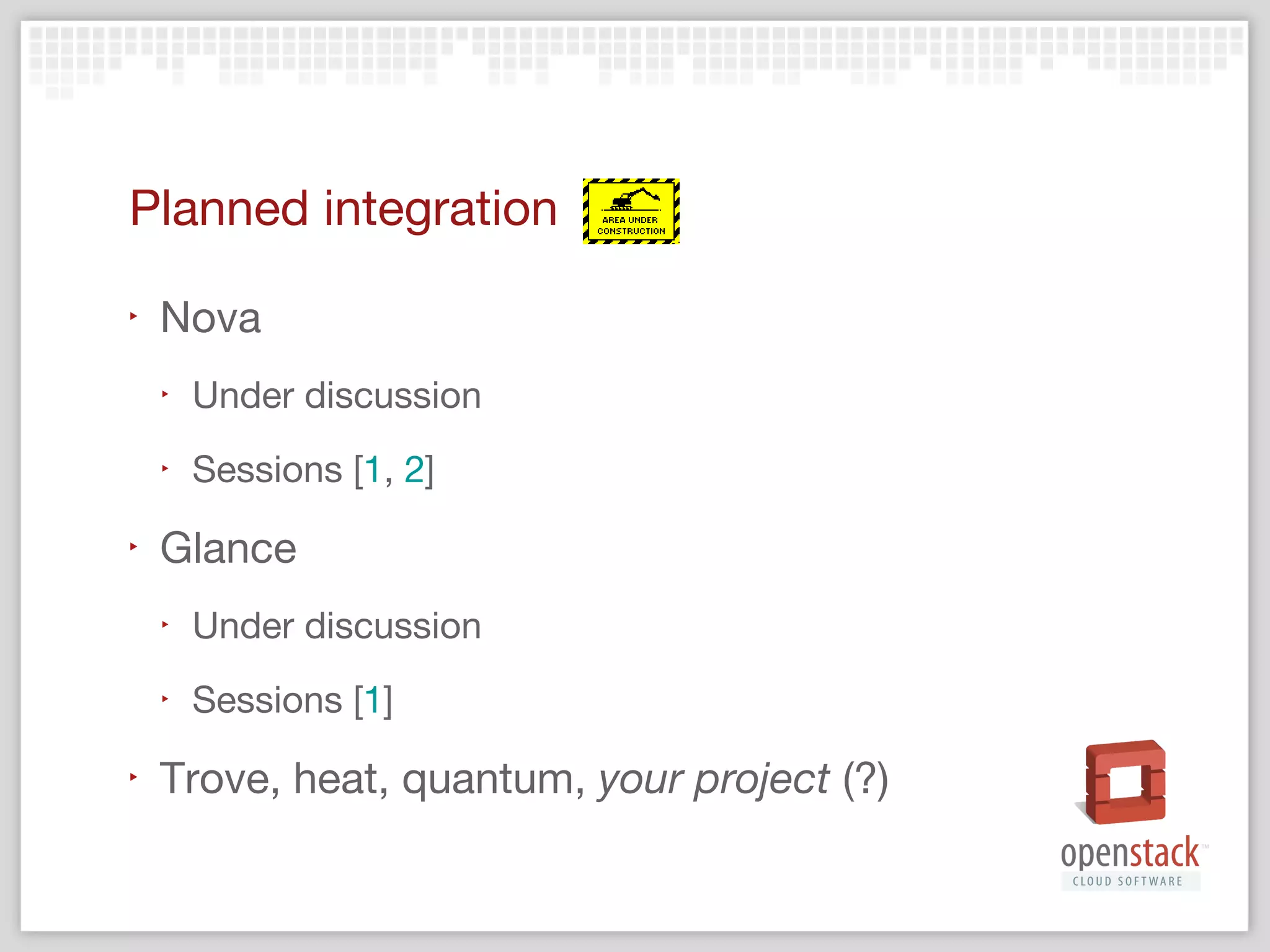

- 20. Planned integration ‣ Nova ‣ ‣ ‣ Under discussion Sessions[1, 2] Glance ‣ ‣ ‣ Under discussion Sessions [1] Trove, heat, quantum, rally, your project (?)

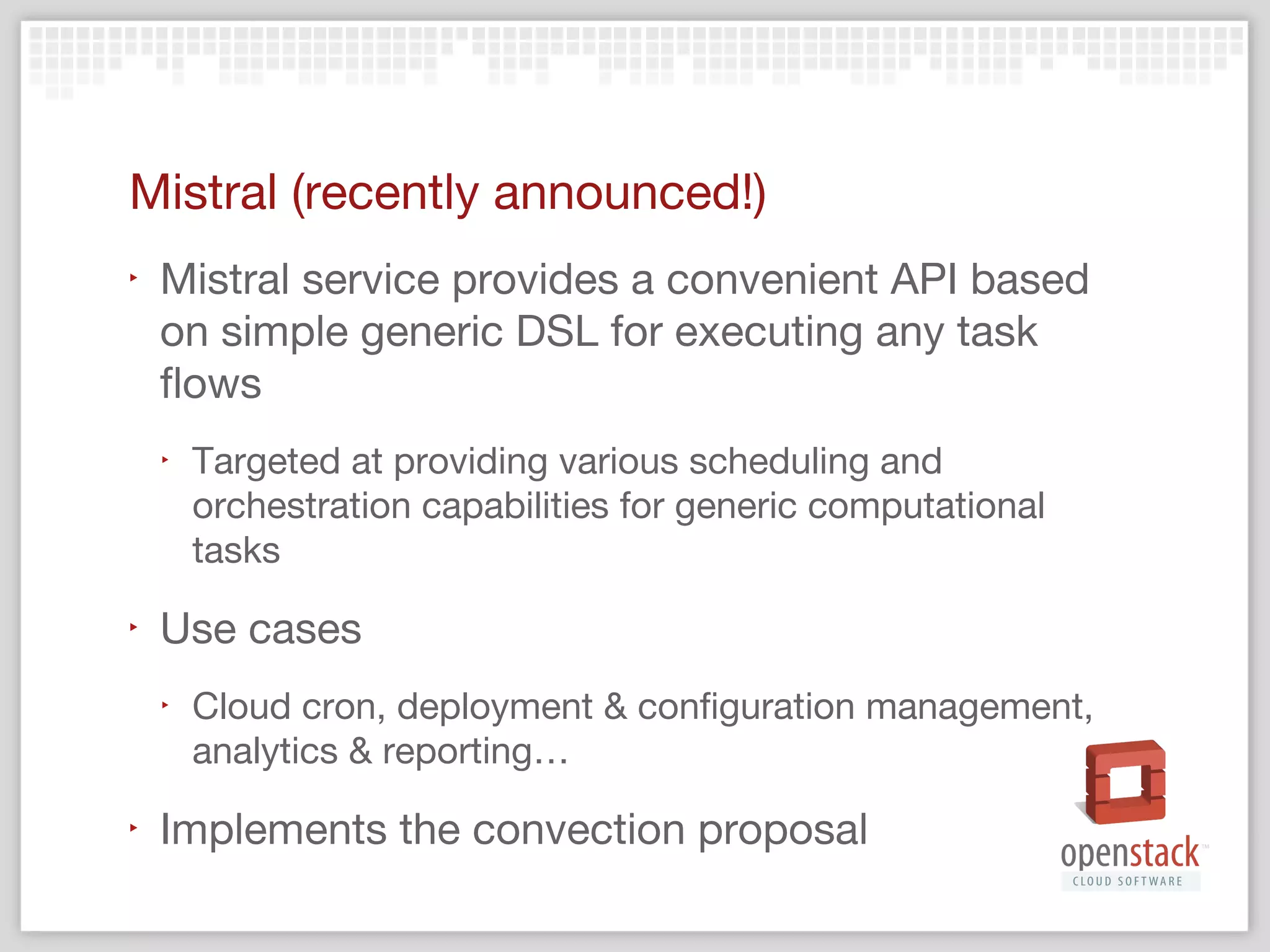

- 21. Mistral (recently announced!) ‣ Mistralservice provides a convenient API based on simple generic DSL for executing any task flows ‣ ‣ Use cases ‣ ‣ Targeted at providing various scheduling and orchestration capabilities for generic computational tasks Cloud cron, deployment & configuration management, analytics & reporting… Implements the convection proposal

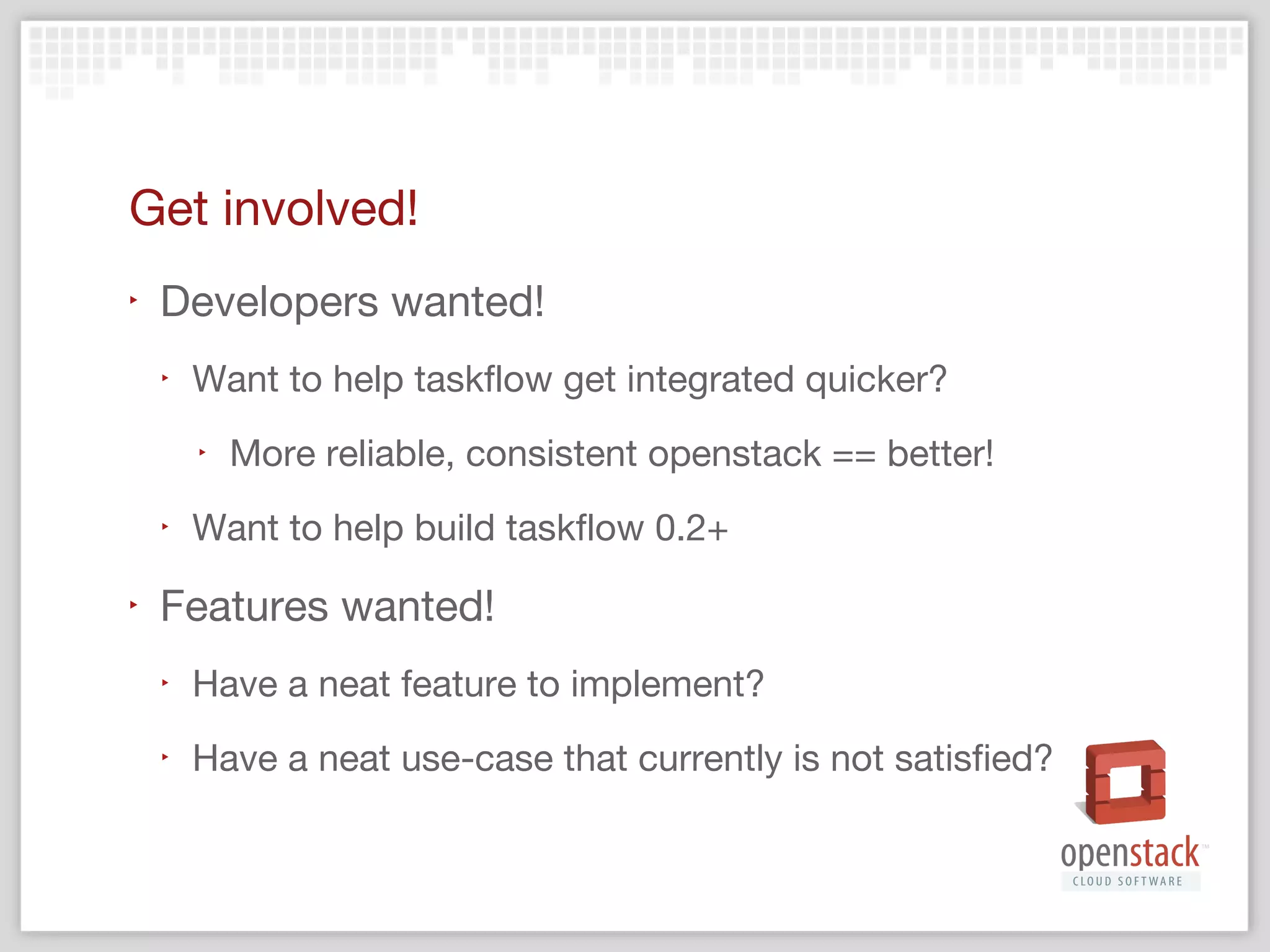

- 22. Get involved! ‣ Developers wanted! ‣ Wantto help taskflow get integrated quicker? ‣ ‣ ‣ More reliable, consistent openstack == better! Want to help build taskflow 0.2+ Features wanted! ‣ Have a neat feature to implement? ‣ Have a neat use-case that currently is not satisfied?

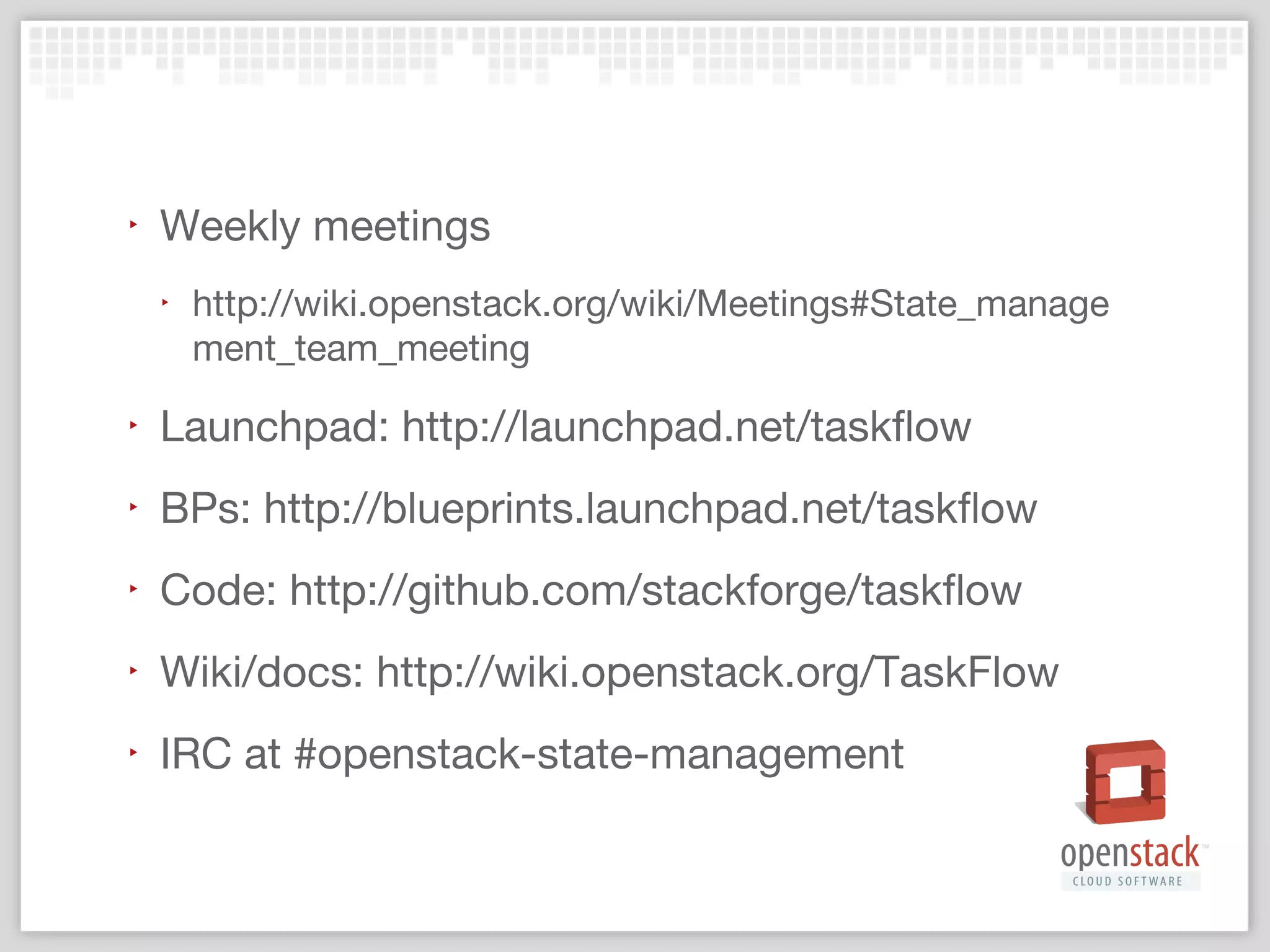

- 23. ‣ Weekly meetings ‣ http://wiki.openstack.org/wiki/Meetings#State_manage ment_team_meeting ‣ Launchpad: http://launchpad.net/taskflow ‣ BPs:http://blueprints.launchpad.net/taskflow ‣ Code: http://github.com/stackforge/taskflow ‣ Wiki/docs: http://wiki.openstack.org/TaskFlow ‣ IRC at #openstack-state-management
