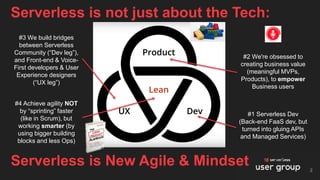

Serverless is New Agile & Mindset
#1 Serverless Dev
(Back-end FaaS dev, but
turned into gluing APIs
and Managed Services)
#2 We're obsessed to
creating business value
(meaningful MVPs,
Products), to empower
Business users
#3 We build bridges
between Serverless
Community (“Dev leg”),
and Front-end & Voice-
First developers & User
Experience designers
(“UX leg”)
#4 Achieve agility NOT
by “sprinting” faster
(like in Scrum), but
working smarter (by
using bigger building
blocks and less Ops)

What is the Serverless Mindset?
3

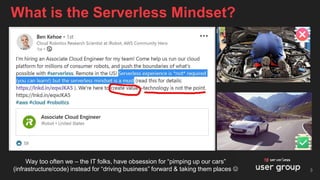

Way too often we – the IT folks, have obsession for “pimping up our cars”
(infrastructure/code) instead for “driving business” forward & taking them places ☺

Upcoming #ServerlessTO Online Meetups
4
1. Google Cloud Next ’20 Recap + Cloud Run where Serverless
meets Containers – Kelsey Hightower ** OCT 5 @ 6pm EST **
2. Your Presentation ☺
Serverless ≠ AWS, so practitioners from other clouds are welcome!

Knowledge Sponsor
1. Production-Ready Serverless
GOOD LUCK!
2. Serverless Architectures on AWS,
2nd Edition
Fill the survey to win ☺

Deliver Business Value Faster
with AWS Step Functions
Yan Cui – AWS Serverless Hero,
Consultant, Author, Trainer, Developer
Advocate at @Lumigo
6

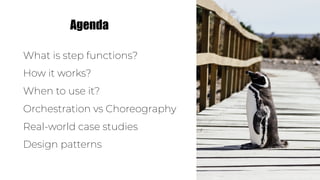

The Feature Presentation

What is step functions?
How it works?
When to use it?
Orchestration vs Choreography
Real-world case studies
Design patterns
Agenda

@theburningmonk theburningmonk.com

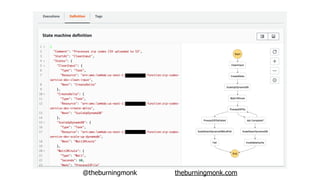

Step Functions

orchestration service that allows you to
model workﬂows as state machines

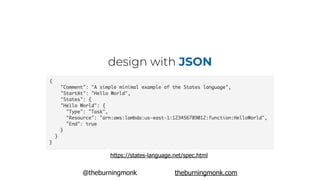

design with JSON
https://states-language.net/spec.html

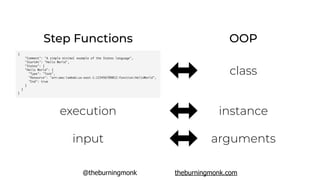

Step Functions OOP
class
instanceexecution
input arguments

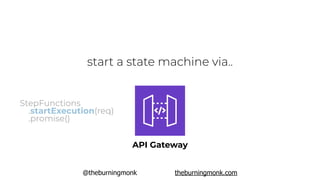

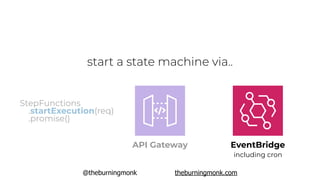

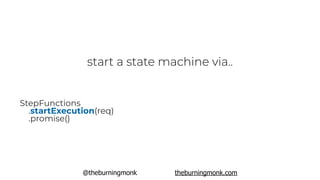

start a state machine via..
StepFunctions
.startExecution(req)
.promise()

API Gateway
StepFunctions
.promise()

EventBridge
including cron
StepFunctions
.promise()
API Gateway

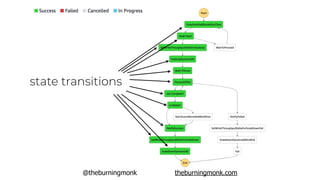

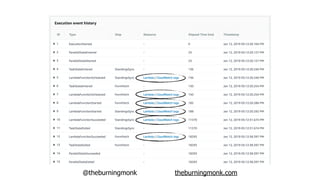

state transitions

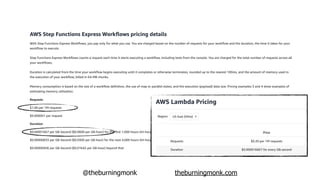

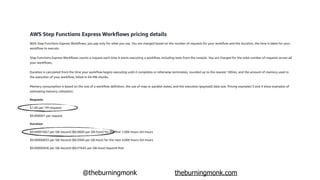

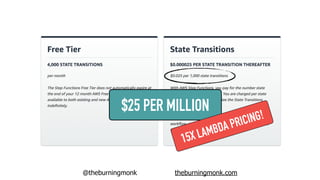

$25 PER MILLION

$25 PER MILLION
15X LAMBDA PRICING!

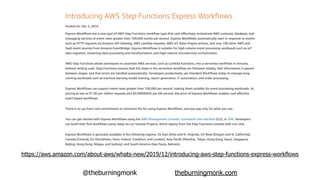

https://aws.amazon.com/about-aws/whats-new/2019/12/introducing-aws-step-functions-express-workflows

Yan Cui
http://theburningmonk.com
@theburningmonk
AWS user for 10 years

Yan Cui
@theburningmonk
Developer Advocate @

Yan Cui
@theburningmonk
Independent Consultant
advisetraining development

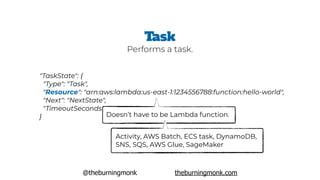

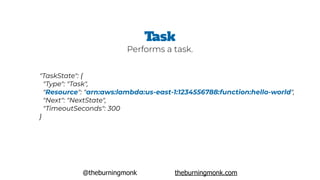

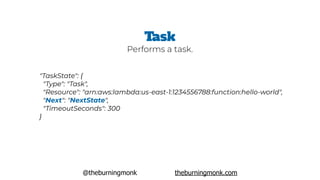

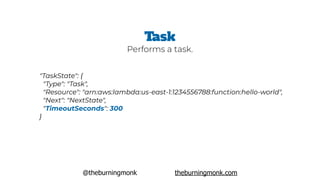

"TaskState": {
"Type": "Task",
"Resource": "arn:aws:lambda:us-east-1:1234556788:function:hello-world",
"Next": "NextState",
"TimeoutSeconds": 300
}
Task
Performs a task.

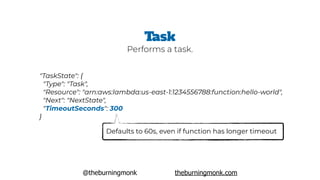

"TaskState": {
"Type": "Task",
}
Task

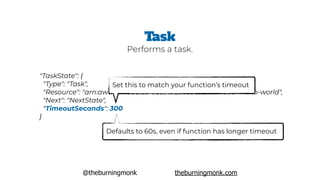

Defaults to 60s, even if function has longer timeout
Performs a task.

"TaskState": {
"Type": "Task",
}
Task
Defaults to 60s, even if function has longer timeout
Set this to match your function’s timeout
Performs a task.

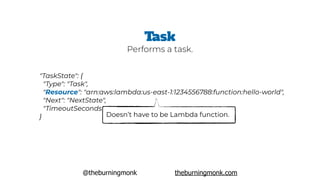

"TaskState": {
"Type": "Task",
}
Task
Doesn’t have to be Lambda function.
Performs a task.

"TaskState": {
"Type": "Task",
}
Task
Doesn’t have to be Lambda function.
Performs a task.
Activity, AWS Batch, ECS task, DynamoDB,
SNS, SQS, AWS Glue, SageMaker

{ “x”: 42, “y”: 13 }
$ =>
{
“x”: 42,
“y”: 13
}

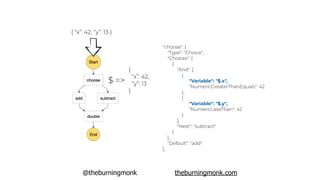

"choose": {
"Type": "Choice",
"Choices": [
{
"And": [
{
"Variable": "$.x",
"NumericGreaterThanEquals": 42
},
{
"Variable": "$.y",
"NumericLessThan": 42
}
],
"Next": "subtract"
}
],
"Default": "add"
},

{ “x”: 42, “y”: 13 }
$ =>
{
“x”: 42,
“y”: 13
}

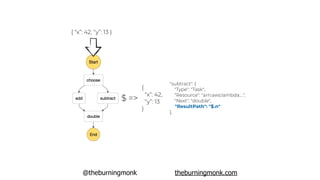

"subtract": {
"Type": "Task",
“Resource": "arn:aws:lambda:…",
"Next": "double",
"ResultPath": "$.n"
},

{ “x”: 42, “y”: 13 }
$ =>
{
“x”: 42,
“y”: 13
}

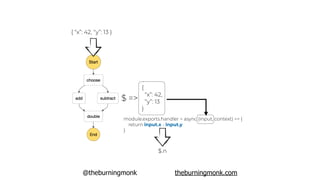

module.exports.handler = async (input, context) => {
return input.x - input.y
}
$.n

{ “x”: 42, “y”: 13 }
$ =>
{
“x”: 42,
“y”: 13,
“n”: 29
}

{ “x”: 42, “y”: 13 }
$ =>
{
“x”: 42,
“y”: 13,
“n”: 29
}

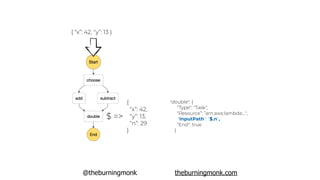

"double": {
“Type": "Task",
“Resource”: ”arn:aws:lambda:...",
“InputPath": "$.n",
“End": true
}

{ “x”: 42, “y”: 13 }
$ =>
{
“x”: 42,
“y”: 13,
“n”: 29
}
module.exports.handler = async (input, context) => {
return input * 2;
}
$.n
$

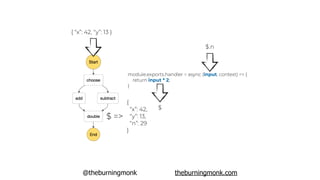

{ “x”: 42, “y”: 13 }

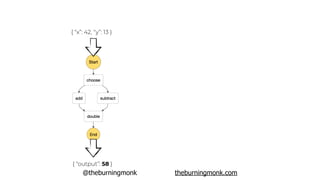

$ => 58

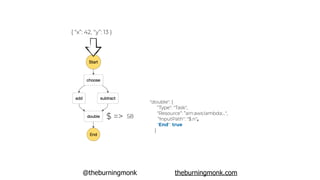

"double": {
“Type": "Task",
“Resource”: ”arn:aws:lambda:...",
“InputPath": "$.n",
“End": true
}

{ “x”: 42, “y”: 13 }
{ “output”: 58 }

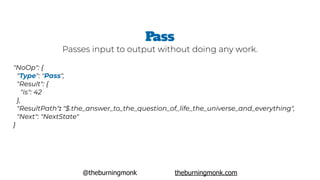

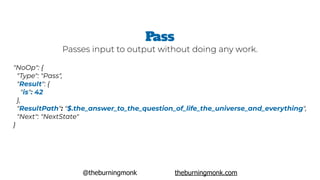

"NoOp": {
"Type": "Pass",
"Result": {
"is": 42
},
"ResultPath": "$.the_answer_to_the_question_of_life_the_universe_and_everything",
"Next": "NextState"
}

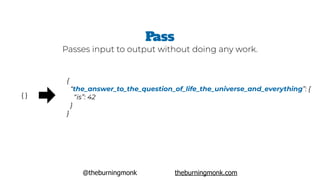

Pass
Passes input to output without doing any work.

Pass
Passes input to output without doing any work.
{ }
{
“the_answer_to_the_question_of_life_the_universe_and_everything”: {
“is”: 42
}
}

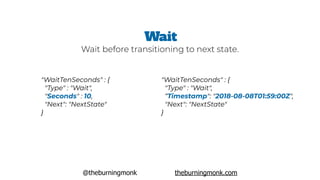

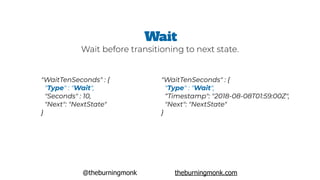

"WaitTenSeconds" : {
"Type" : "Wait",
"Seconds" : 10,
"Next": "NextState"
}
Wait
Wait before transitioning to next state.
"Type" : "Wait",
“Timestamp": "2018-08-08T01:59:00Z",
"Next": "NextState"
}

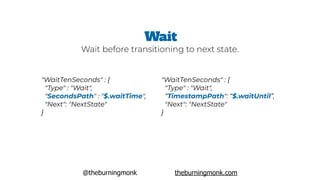

"Type" : "Wait",
"SecondsPath" : "$.waitTime",
"Next": "NextState"
}
Wait
Wait before transitioning to next state.
"Type" : "Wait",
“TimestampPath": “$.waitUntil”,
"Next": "NextState"
}

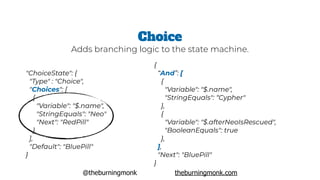

"ChoiceState": {
"Type" : "Choice",
"Choices": [
   {
      "Variable": "$.name",
     "StringEquals": "Neo"
     "Next": "RedPill"
   }
],
"Default": "BluePill"
}

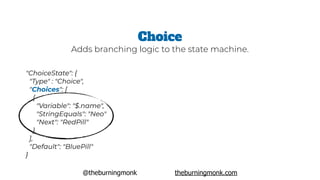

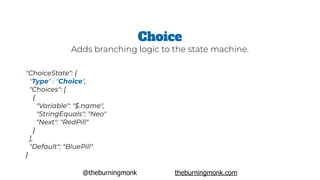

Choice
Adds branching logic to the state machine.

"ChoiceState": {
"Type" : "Choice",
"Choices": [
   {
     "StringEquals": "Neo"
     "Next": "RedPill"
   }
],
"Default": "BluePill"
}
Choice
Adds branching logic to the state machine.
{
“And”: [
{
      "StringEquals": “Cypher"
    },
{
      "Variable": "$.afterNeoIsRescued",
      "BooleanEquals": true
    },
],
  "Next": "BluePill"
}

"FunWithMath": {
"Type": "Parallel",
"Branches": [
   {
     "StartAt": "Add",
     "States": {
       "Add": {
         "Type": "Task",
         "Resource": "arn:aws:lambda:us-east-1:1234556788:function:add",
         "End": true
       }
     }
   },
   …
],
"Next": "NextState"
}

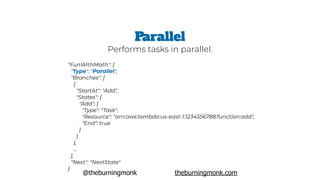

Parallel
Performs tasks in parallel.

"FunWithMath": {
"Type": "Map",
"Iterator": [
   {
     "StartAt": "DoSomething",
     "States": {
       "Add": {
         "Type": "Task",
         "Resource": “arn:aws:lambda:us-east-1:1234556788:function:doSomething",
         "End": true
       }
     }
   },
   …
],
"Next": "NextState"
}

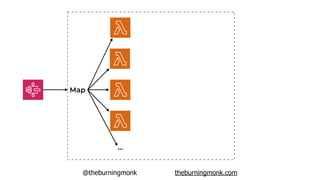

Map
Dynamic parallelism!

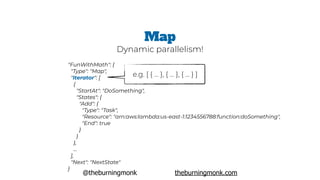

"FunWithMath": {
"Type": "Map",
"Iterator": [
   {
     "StartAt": "DoSomething",
     "States": {
       "Add": {
         "Type": "Task",
         "Resource": "arn:aws:lambda:us-east-1:1234556788:function:doSomething",
         "End": true
       }
     }
   },
   …
],
"Next": "NextState"
}
Map
Dynamic parallelism!
e.g. [ { … }, { … }, { … } ]

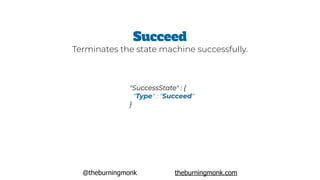

"SuccessState" : {
"Type" : "Succeed"
}
Succeed
Terminates the state machine successfully.

"FailState" : {
"Type" : “Fail",
"Error" : "TypeA",
"Cause" : "Kaiju Attack",
}
Fail
Terminates the state machine and mark it as failure.

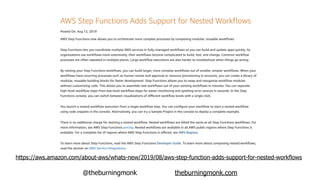

https://aws.amazon.com/about-aws/whats-new/2019/08/aws-step-function-adds-support-for-nested-workflows

another moving part to manage

what’s the return-on-investment?

Pros Cons
$$$

Pros Cons

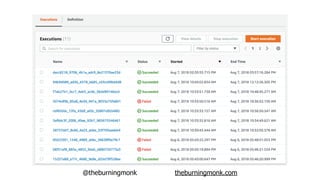

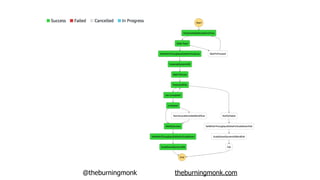

visual
$$$

Great for collaboration with team
members who are not engineers

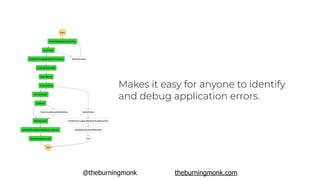

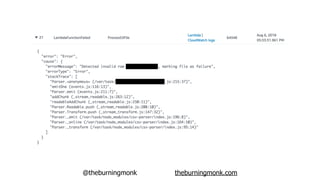

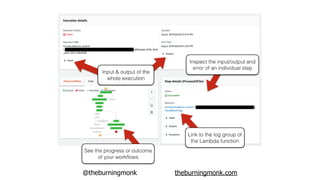

Makes it easy for anyone to identify
and debug application errors.

Pros Cons
visual
$$$
error handling

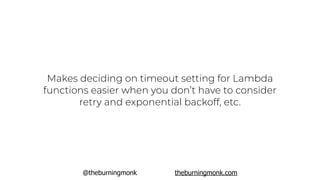

Makes deciding on timeout setting for Lambda
functions easier when you don’t have to consider
retry and exponential backoff, etc.

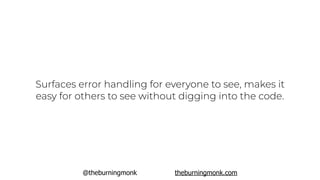

Surfaces error handling for everyone to see, makes it
easy for others to see without digging into the code.

Pros Cons
visual
$$$
error handling

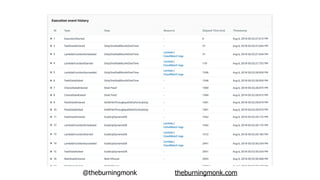

audit

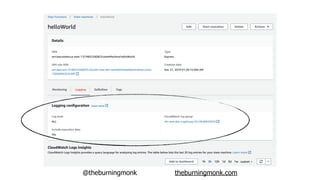

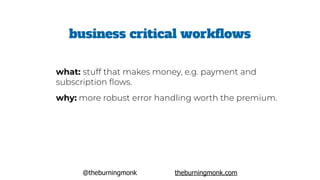

business critical workflows
what: stuff that makes money, e.g. payment and
subscription ﬂows.
why: more robust error handling worth the premium.

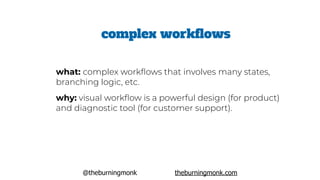

complex workflows
what: complex workﬂows that involves many states,
branching logic, etc.
why: visual workﬂow is a powerful design (for product)
and diagnostic tool (for customer support).

long running workflows
what: workﬂows that cannot complete in 15 minutes
(Lambda limit).
why: AWS discourages recursive Lambda functions,
Step Functions gives you explicit branching checks,
and can timeout at workﬂow level.

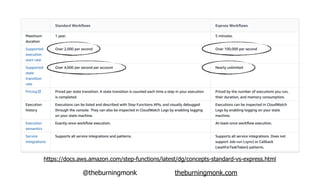

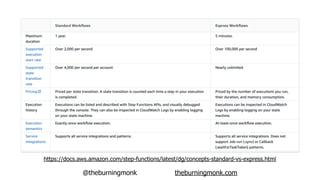

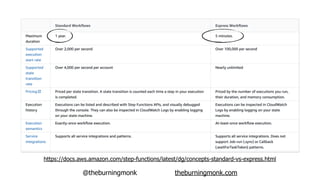

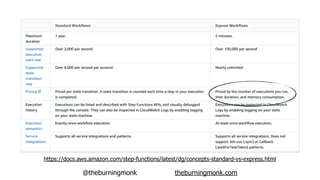

https://docs.aws.amazon.com/step-functions/latest/dg/concepts-standard-vs-express.html

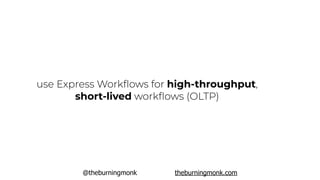

use Express Workﬂows for high-throughput,
short-lived workﬂows (OLTP)

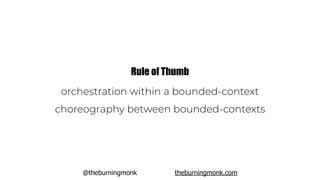

Orchestration Choreography

orchestration within a bounded-context
choreography between bounded-contexts
Rule of Thumb

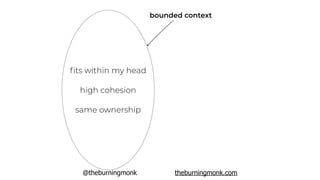

bounded context
ﬁts within my head
high cohesion
same ownership

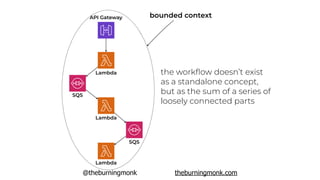

bounded context
the workﬂow doesn’t exist
as a standalone concept,
but as the sum of a series of
loosely connected parts
Lambda
Lambda
Lambda
SQS
SQS
API Gateway

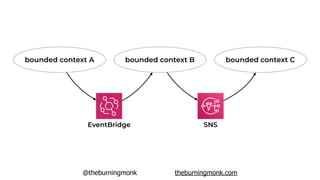

bounded context A bounded context B bounded context C
EventBridge SNS

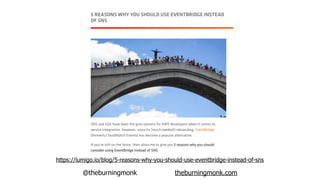

https://lumigo.io/blog/5-reasons-why-you-should-use-eventbridge-instead-of-sns

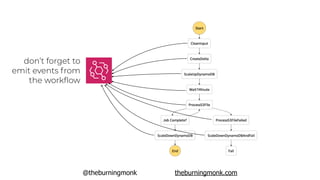

don’t forget to
emit events from
the workﬂow

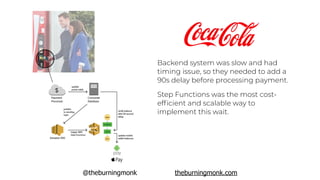

Backend system was slow and had
timing issue, so they needed to add a
90s delay before processing payment.
Step Functions was the most cost-
efﬁcient and scalable way to
implement this wait.

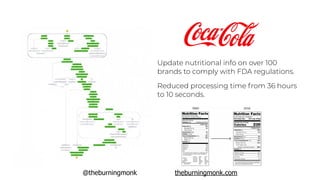

Update nutritional info on over 100
brands to comply with FDA regulations.
Reduced processing time from 36 hours
to 10 seconds.

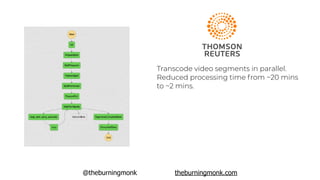

Transcode video segments in parallel.
Reduced processing time from ~20 mins
to ~2 mins.

Manages their food delivery experience.

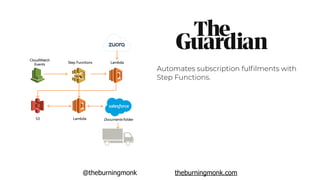

Automates subscription fulﬁlments with
Step Functions.

Automates subscription billing system
with Step Functions.

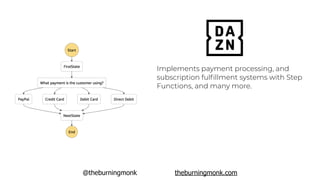

Implements payment processing, and
subscription fulﬁllment systems with Step
Functions, and many more.

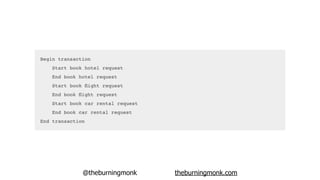

sagas

managing failures in a distributed transaction

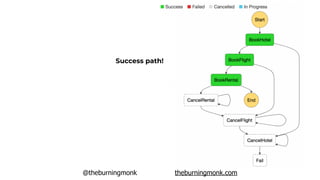

Success path!

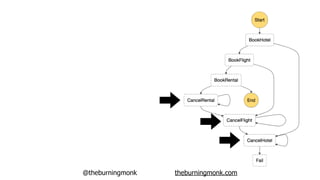

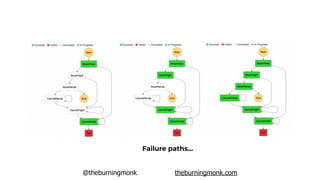

Failure paths…

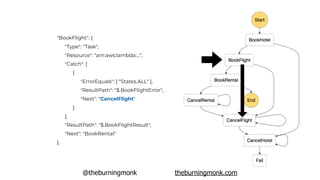

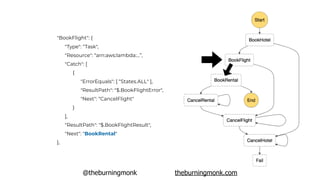

"BookFlight": {
"Type": “Task",
"Resource": “arn:aws:lambda:…”,
"Catch": [
{
"ErrorEquals": [ “States.ALL" ],
"ResultPath": "$.BookFlightError",
"Next": “CancelFlight"
}
],
"ResultPath": "$.BookFlightResult",
"Next": "BookRental"
},

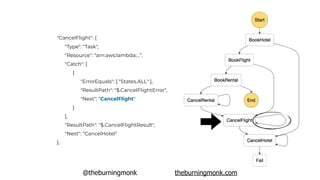

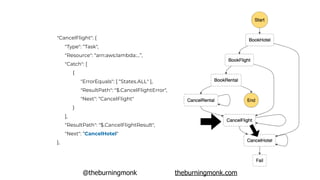

"CancelFlight": {
"Type": “Task",
"Resource": “arn:aws:lambda:…”,
"Catch": [
{
"ErrorEquals": [ “States.ALL" ],
"ResultPath": "$.CancelFlightError",
"Next": “CancelFlight"
}
],
"ResultPath": "$.CancelFlightResult",
"Next": “CancelHotel"
},

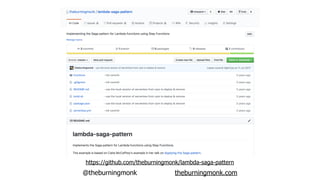

https://github.com/theburningmonk/lambda-saga-pattern

callbacks

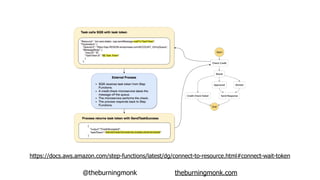

https://docs.aws.amazon.com/step-functions/latest/dg/connect-to-resource.html#connect-wait-token

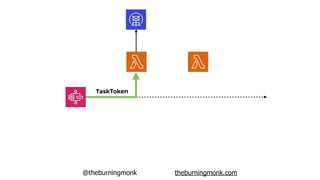

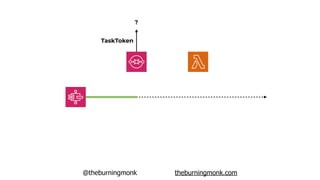

TaskToken

TaskToken
?

?

sendTaskSuccess(TaskToken)
?

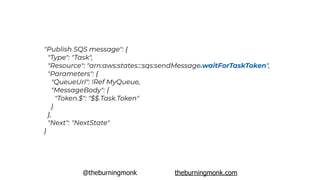

"Publish SQS message": {
"Type": "Task",
"Resource": "arn:aws:states:::sqs:sendMessage.waitForTaskToken",
"Parameters": {
"QueueUrl": !Ref MyQueue,
"MessageBody": {
"Token.$": "$$.Task.Token"
}
},
"Next": "NextState"
}

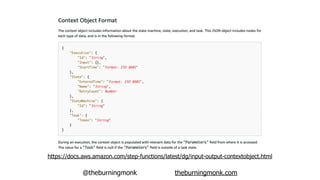

https://docs.aws.amazon.com/step-functions/latest/dg/input-output-contextobject.html

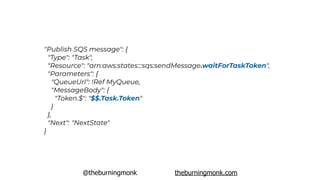

"Publish SQS message": {
"Type": "Task",
"Resource": "arn:aws:states:::sqs:sendMessage.waitForTaskToken",
"Parameters": {
"QueueUrl": !Ref MyQueue,
"MessageBody": {
"Token.$": "$$.Task.Token",
"ExecutionId.$": "$$.Execution.Id",
"StateMachineId.$": "$$.StateMachine.Id"
}
},
"Next": "NextState"
}

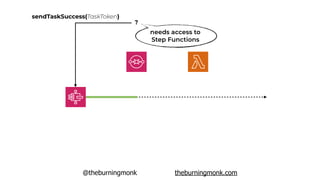

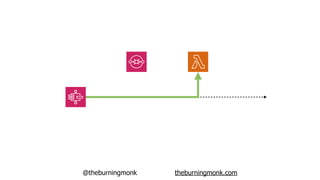

sendTaskSuccess(TaskToken)
?
needs access to
Step Functions

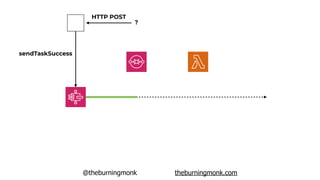

HTTP POST
?
sendTaskSuccess

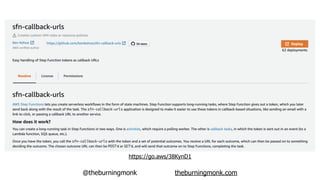

https://go.aws/38KynD1

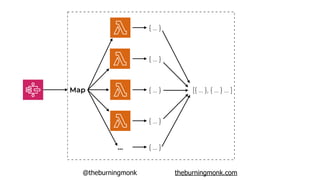

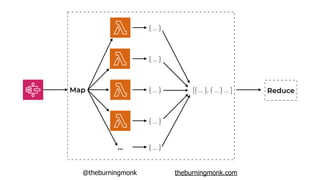

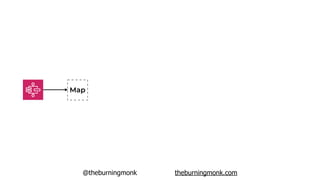

map-reduce

Map

Map
…

Map
…
{ … }
{ … }
{ … }
{ … }
{ … }

Map
…
{ … }
{ … }
{ … }
{ … }
{ … }
[{ … }, { … } … ]

Map
…
{ … }
{ … }
{ … }
{ … }
{ … }
[{ … }, { … } … ] Reduce

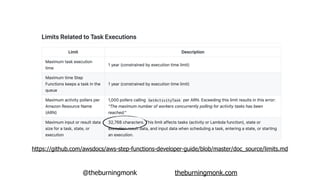

https://github.com/awsdocs/aws-step-functions-developer-guide/blob/master/doc_source/limits.md

https://github.com/awsdocs/aws-step-functions-developer-guide/blob/master/doc_source/limits.md

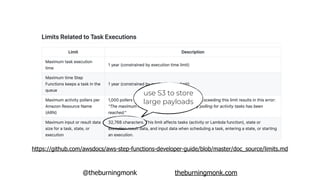

use S3 to store
large payloads

theburningmonk.com/hire-me
AdviseTraining Delivery
“Fundamentally, Yan has improved our team by increasing our
ability to derive value from AWS and Lambda in particular.”
Nick Blair
Tech Lead

theburningmonk.com/courses
HALF PRICE during Sept

@theburningmonk
theburningmonk.com
github.com/theburningmonk

Join www.ServerlessToronto.org
Home of “Less IT Mess”

Deliver Business Value Faster with AWS Step Functions

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to Deliver Business Value Faster with AWS Step Functions

Similar to Deliver Business Value Faster with AWS Step Functions (20)

More from Daniel Zivkovic

More from Daniel Zivkovic (20)

Recently uploaded

Recently uploaded (20)

Deliver Business Value Faster with AWS Step Functions
