Geeeez, after demanding you unit test, system test, black box test, white box test, test-test-test everything, your manager is now demanding you load test your brand spanking new Oracle web application. How on earth can you do this? This technical presentation will explain the concepts behind preparing for load testing, the Http protocol's request/response model, and live demonstrations using Oracle's Http Analyzer and Apache's JMeter to stress test your Oracle web application. The presentation is suitable for anybody, be it DBAs or developers, who are concerned about the performance of any web based application, possibly an Apex or JDeveloper or 3rd party web application. Knowledge of Apex or JDeveloper is not mandatory for this presentation and they will not be covered in any depth.

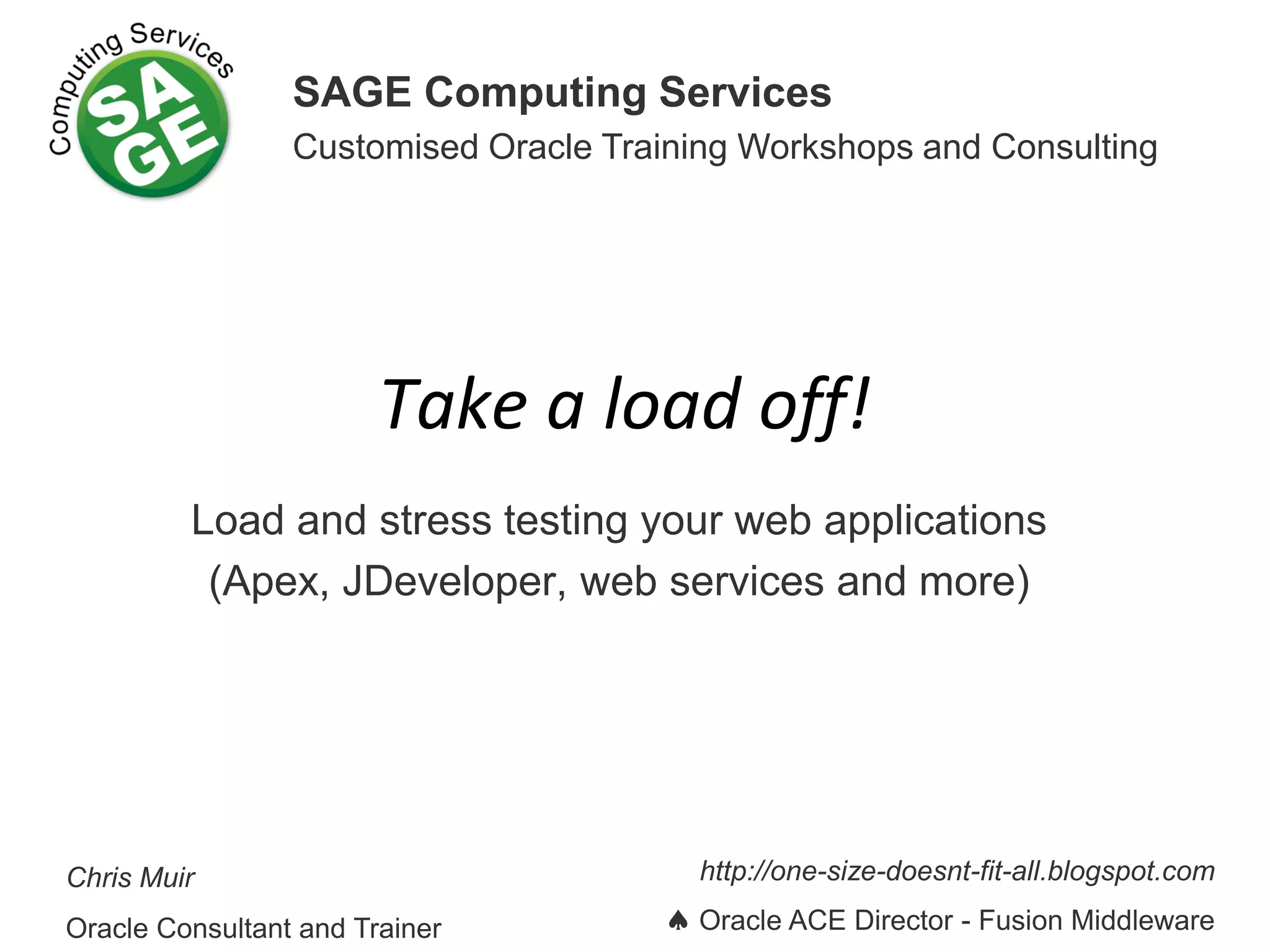

1. Take a load off!
Load and stress testing your web applications
(Apex, JDeveloper, web services and more)
SAGE Computing Services
Customised Oracle Training Workshops and Consulting
Chris Muir
Oracle Consultant and Trainer
http://one-size-doesnt-fit-all.blogspot.com
 Oracle ACE Director - Fusion Middleware

2. “Oh oh,….. those requirements….”
Is our website
slow to use?How many users
can we support?
Is the system useable
by our regional offices
via dialup?
Are we sure our
web application
doesn’t crash
under load?
How much
bandwidth does
our website
use?
Can we support X
users without
system
degradation?
Does our system
respond in a
timely manner?

3. Image CC DiscoWeasel @ Flickr.com

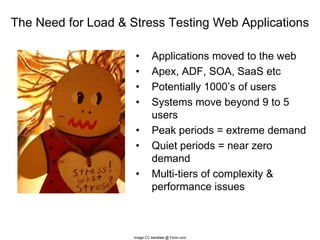

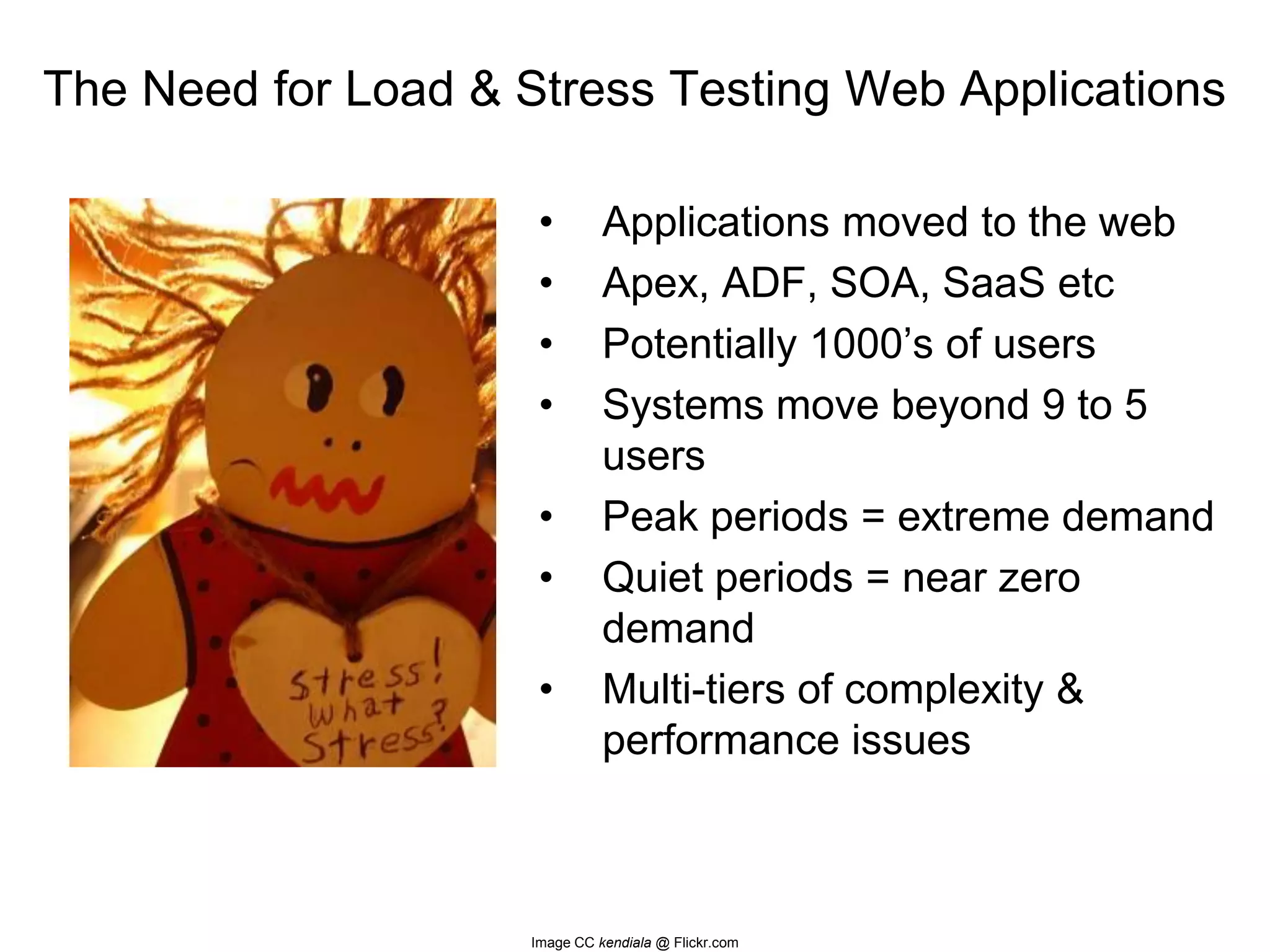

4. • Applications moved to the web
• Apex, ADF, SOA, SaaS etc
• Potentially 1000’s of users
• Systems move beyond 9 to 5
users
• Peak periods = extreme demand
• Quiet periods = near zero
demand
• Multi-tiers of complexity &
performance issues
Image CC kendiala @ Flickr.com
The Need for Load & Stress Testing Web Applications

5. • Apache’s JMeter
• Eviware’s SoapUI
Image CC programwitch @ Flickr.com

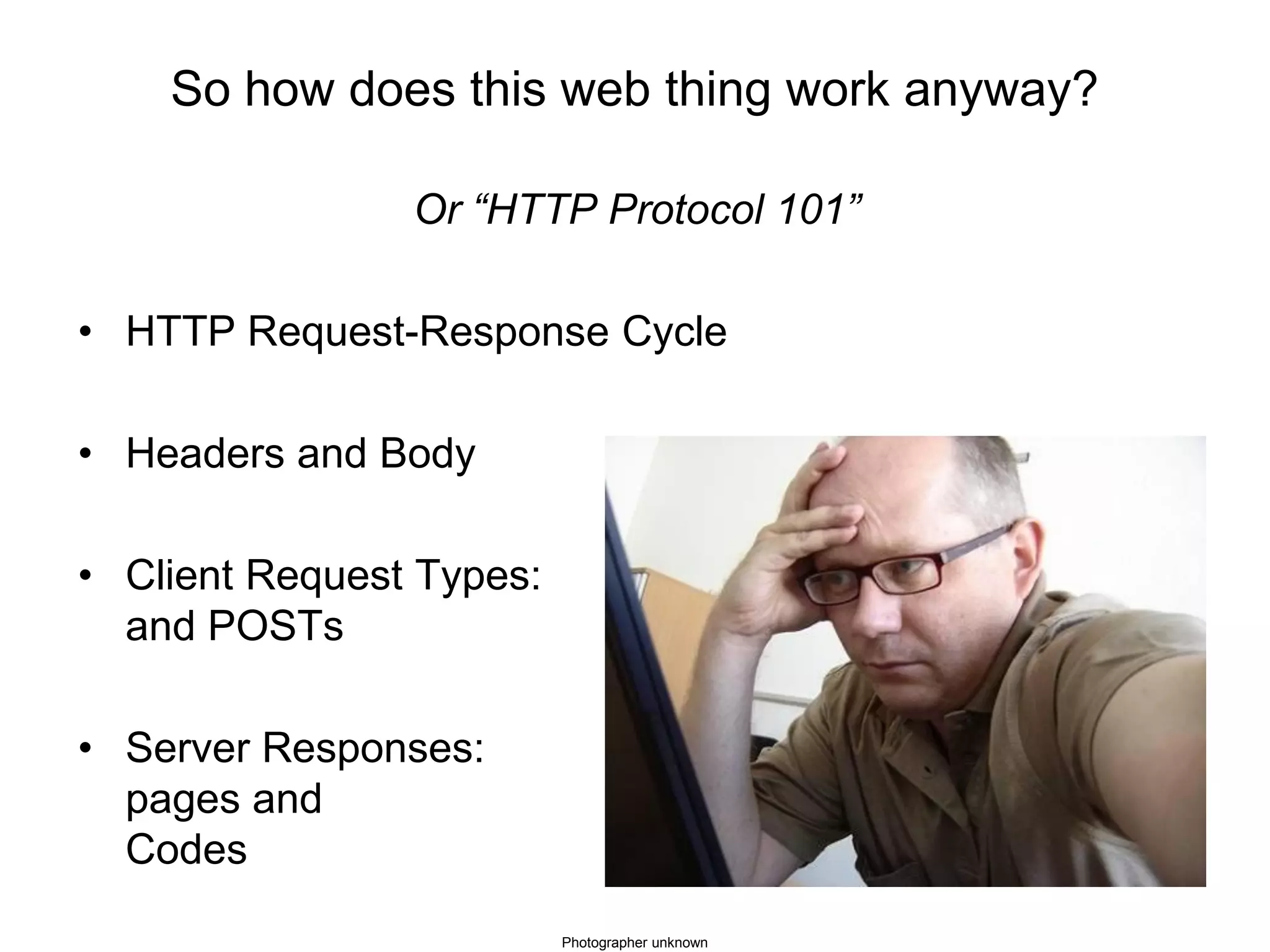

6. So how does this web thing work anyway?
Or “HTTP Protocol 101”
• HTTP Request-Response Cycle
• Headers and Body
• Client Request Types: GETs
and POSTs
• Server Responses: Web
pages and HTTP Error
Codes
Photographer unknown

7. Apache’s JMeter
• http://jakarta.apache.org/jmeter/
• Load, stress and regression testing utility
• Supports HTTP/HTTPS,
JMS, JDBC, FTP, LDAP
and Web Services
• Simulates 1 or more users
of your system
• Free
Image CC stan @ Flickr.com

8. Apache’s JMeter Demonstration
Photographer unknown

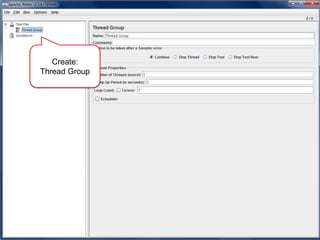

10. Create:
Thread Group

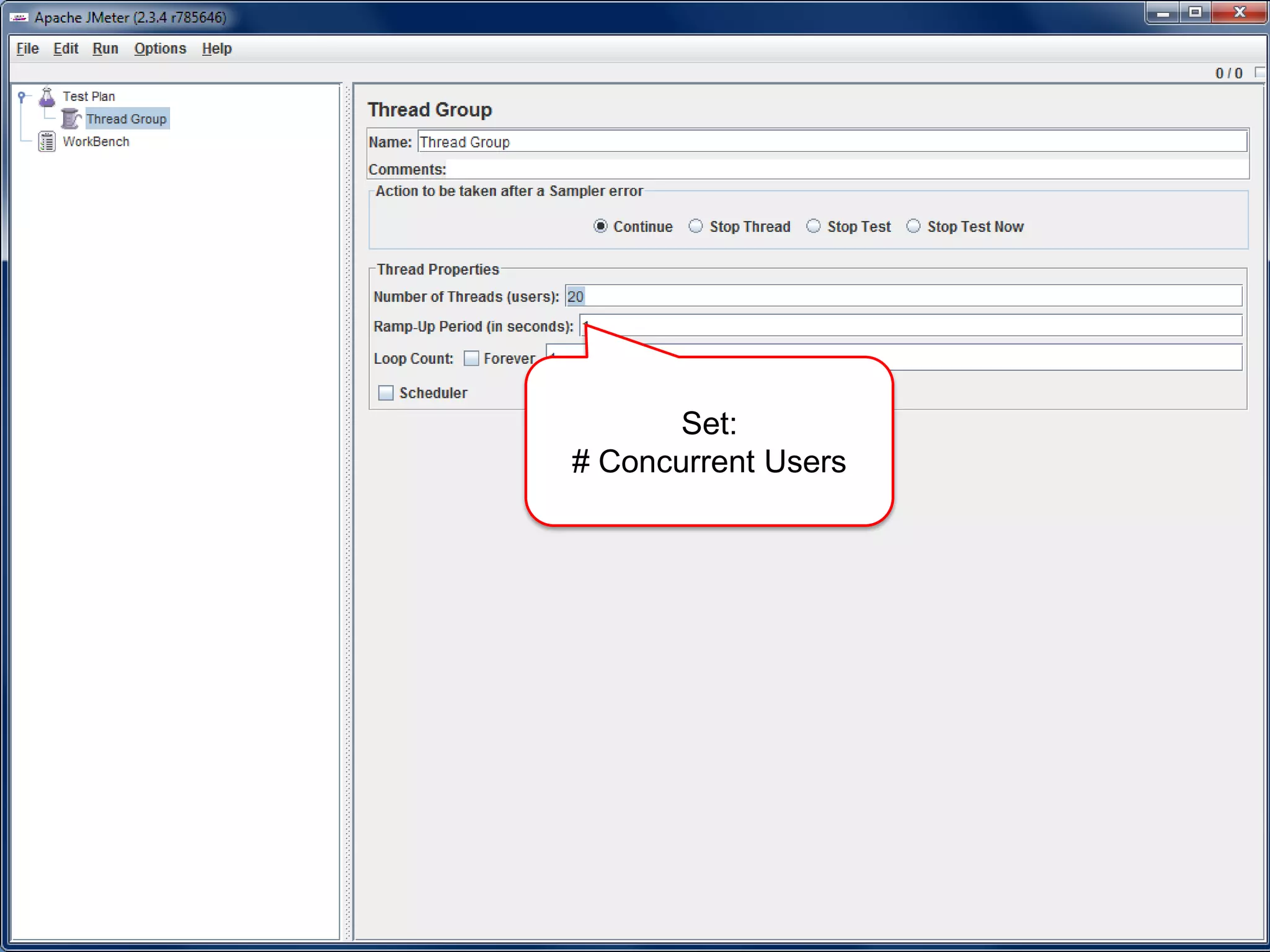

11. Set:
# Concurrent Users

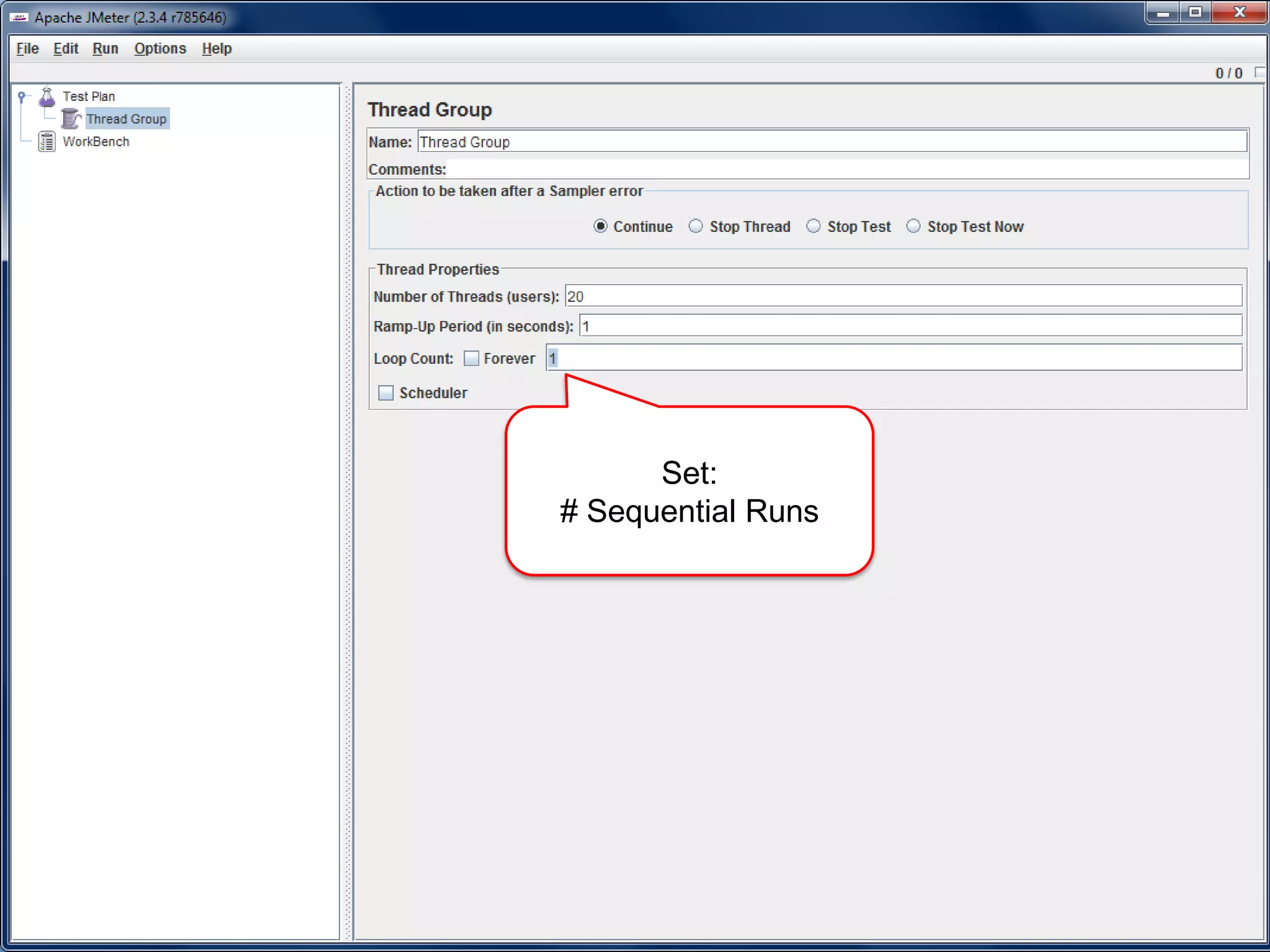

12. Set:
# Sequential Runs

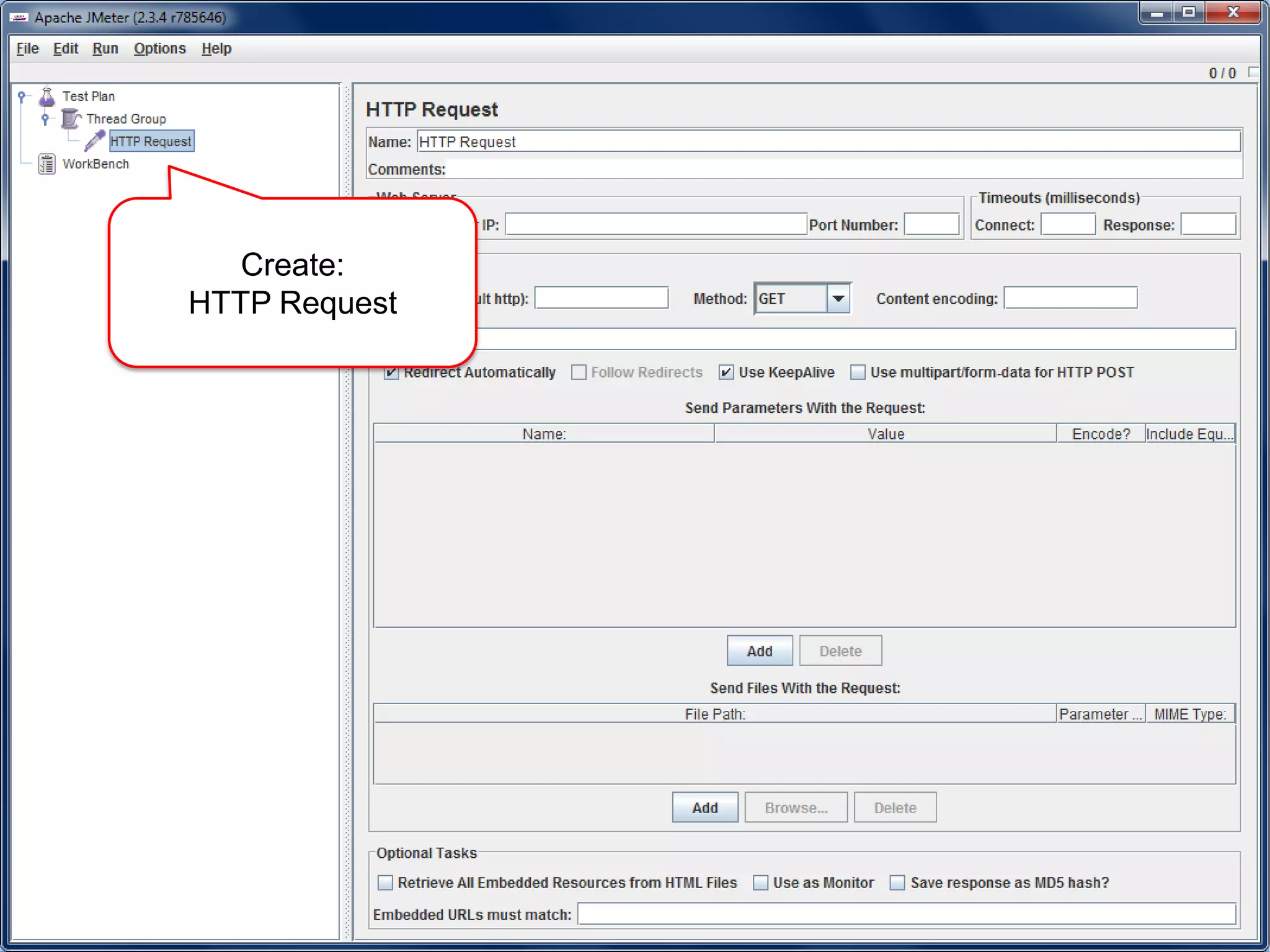

13. Create:
HTTP Request

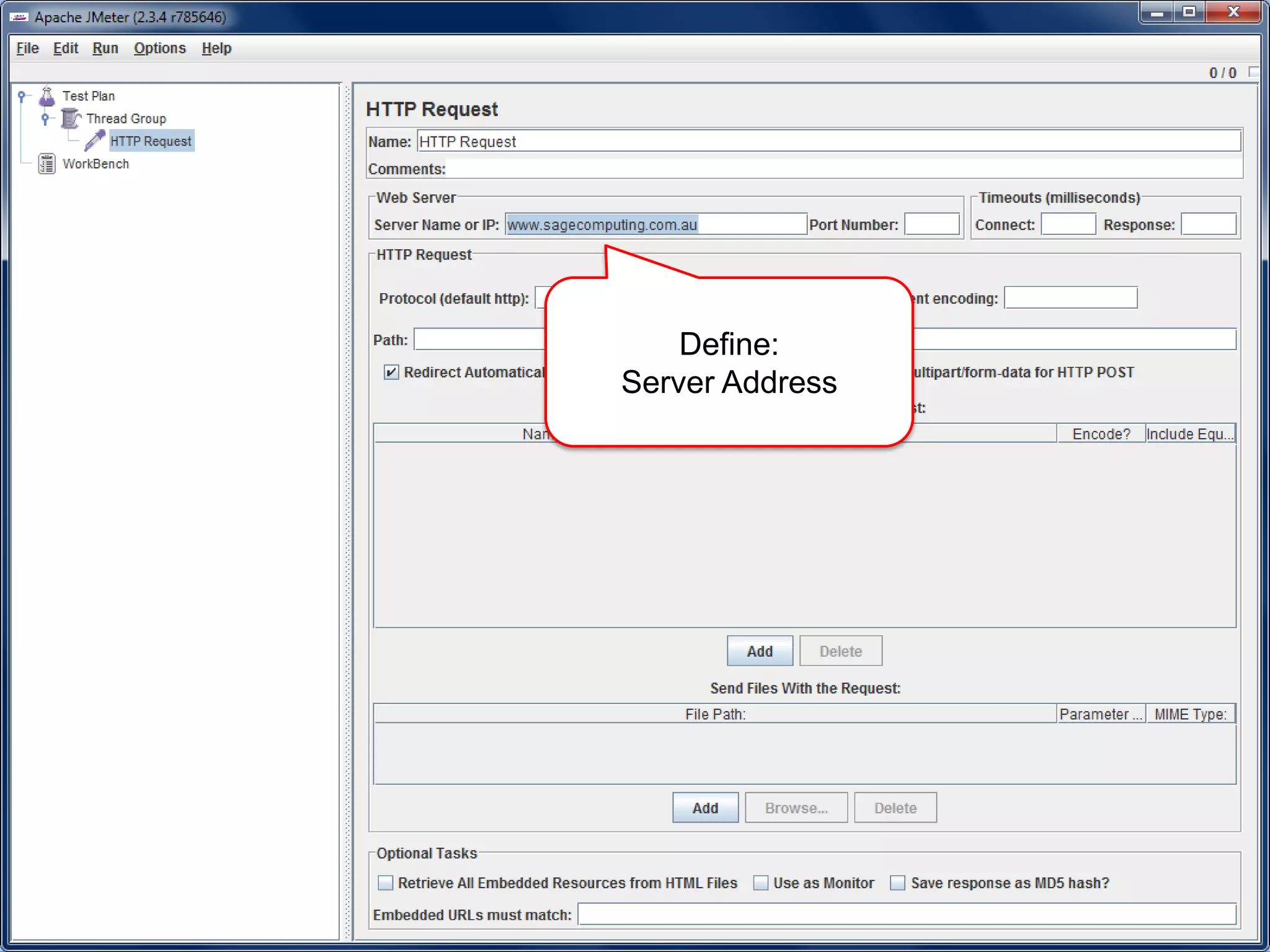

14. Define:
Server Address

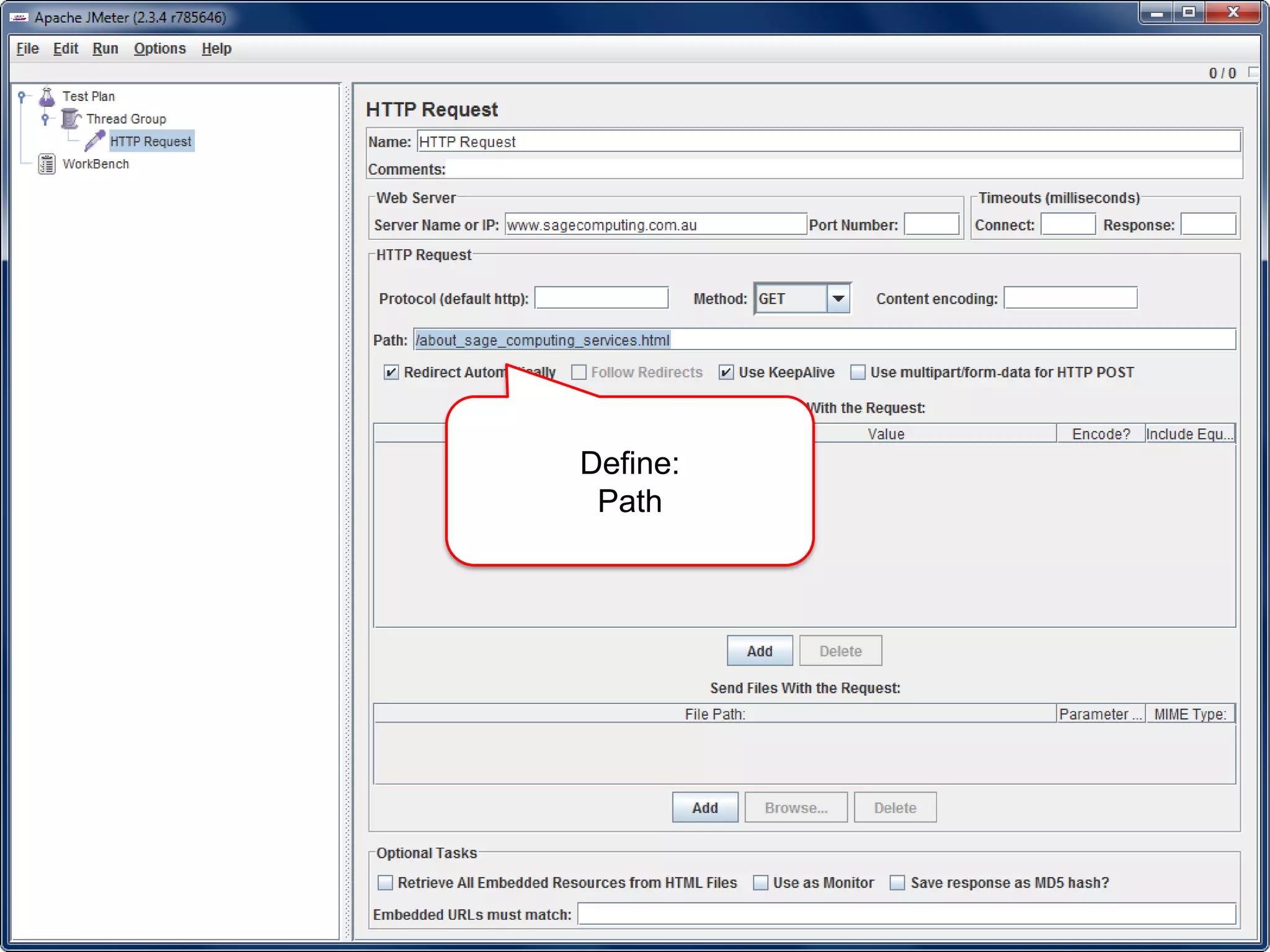

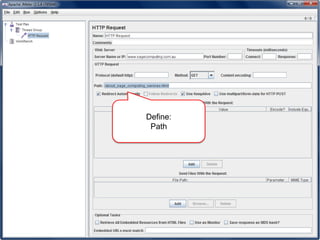

15. Define:
Path

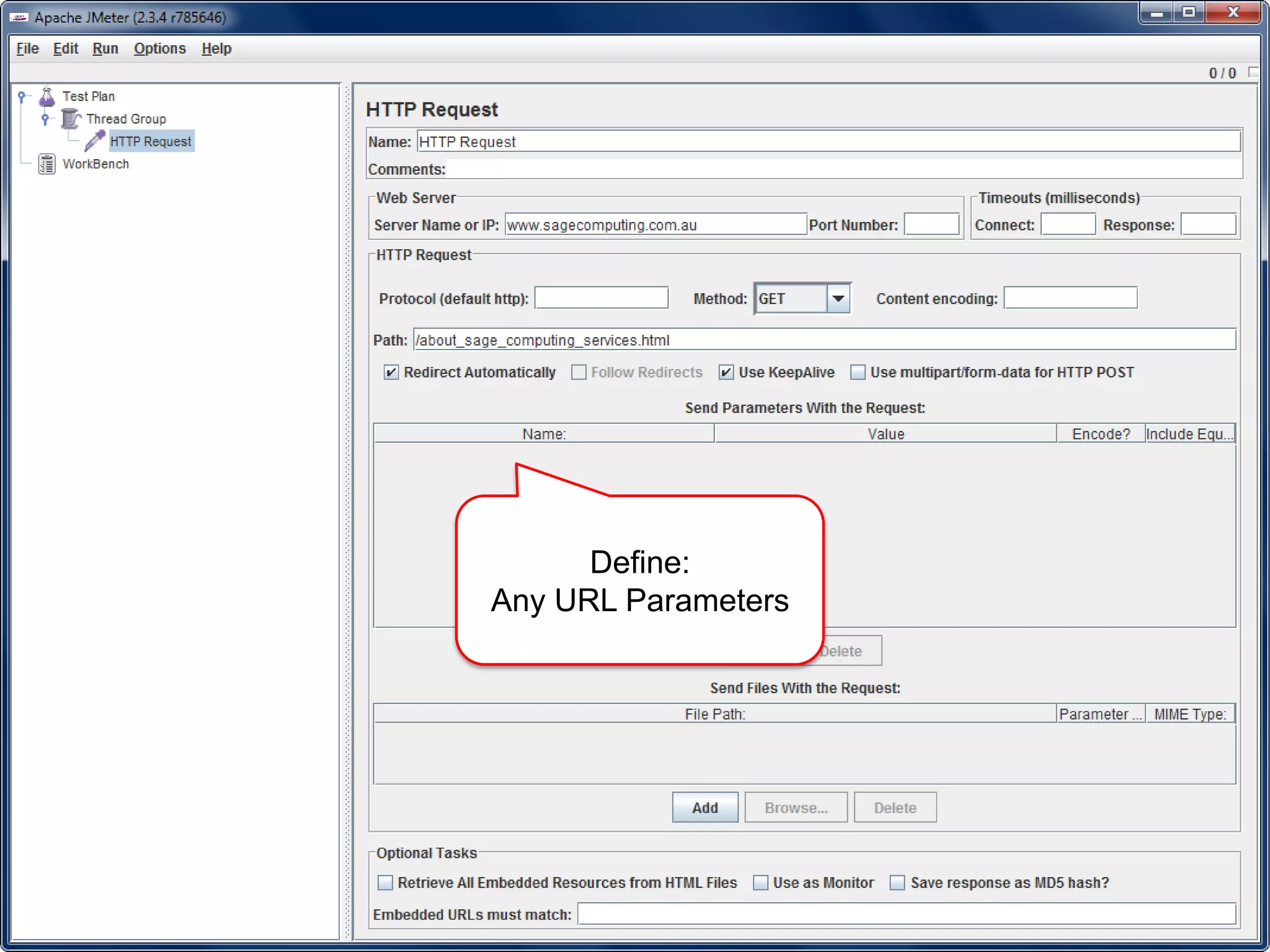

16. Define:
Any URL Parameters

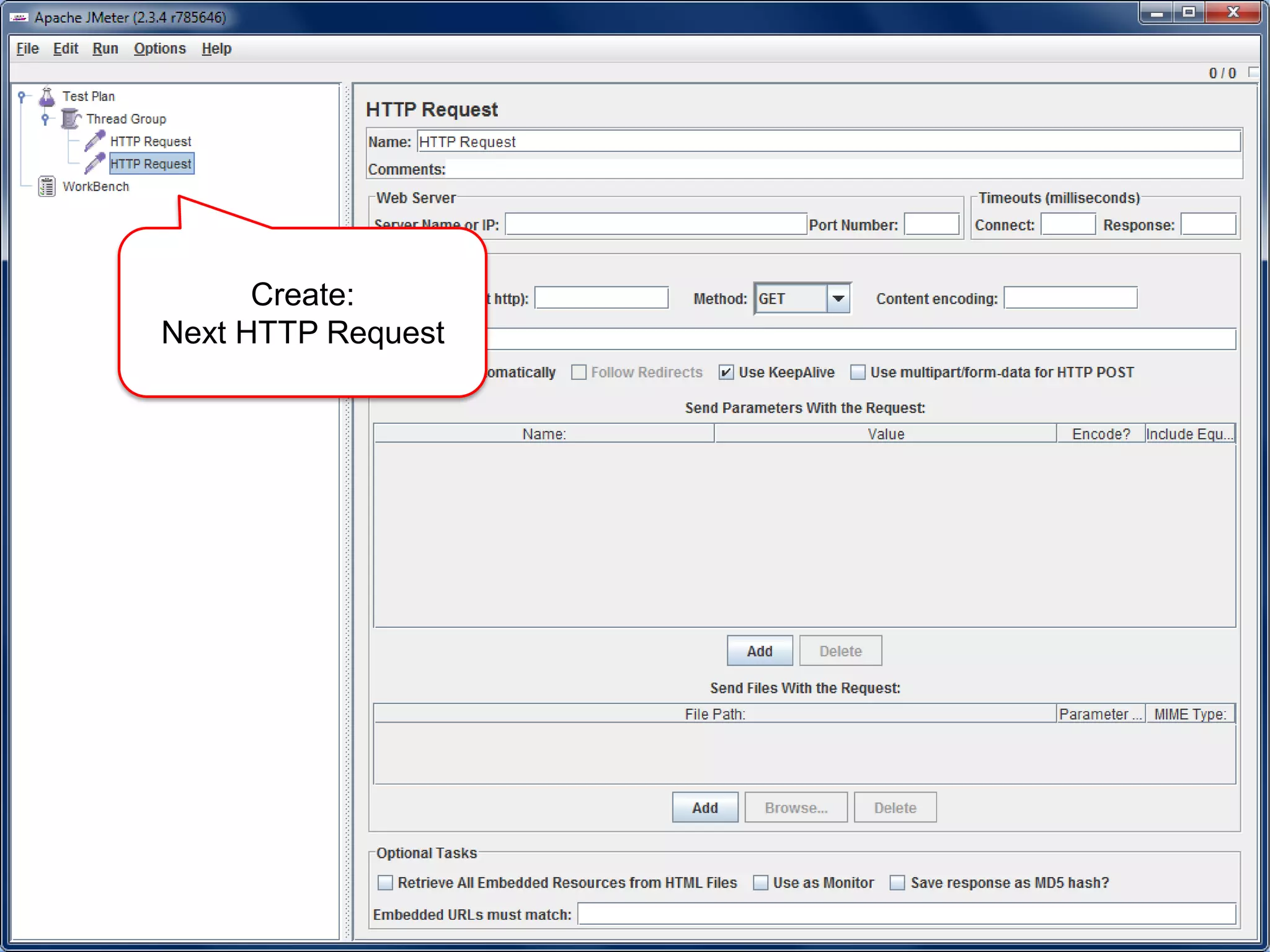

17. Create:
Next HTTP Request

18. Image Miguel CD @ Flickr.com

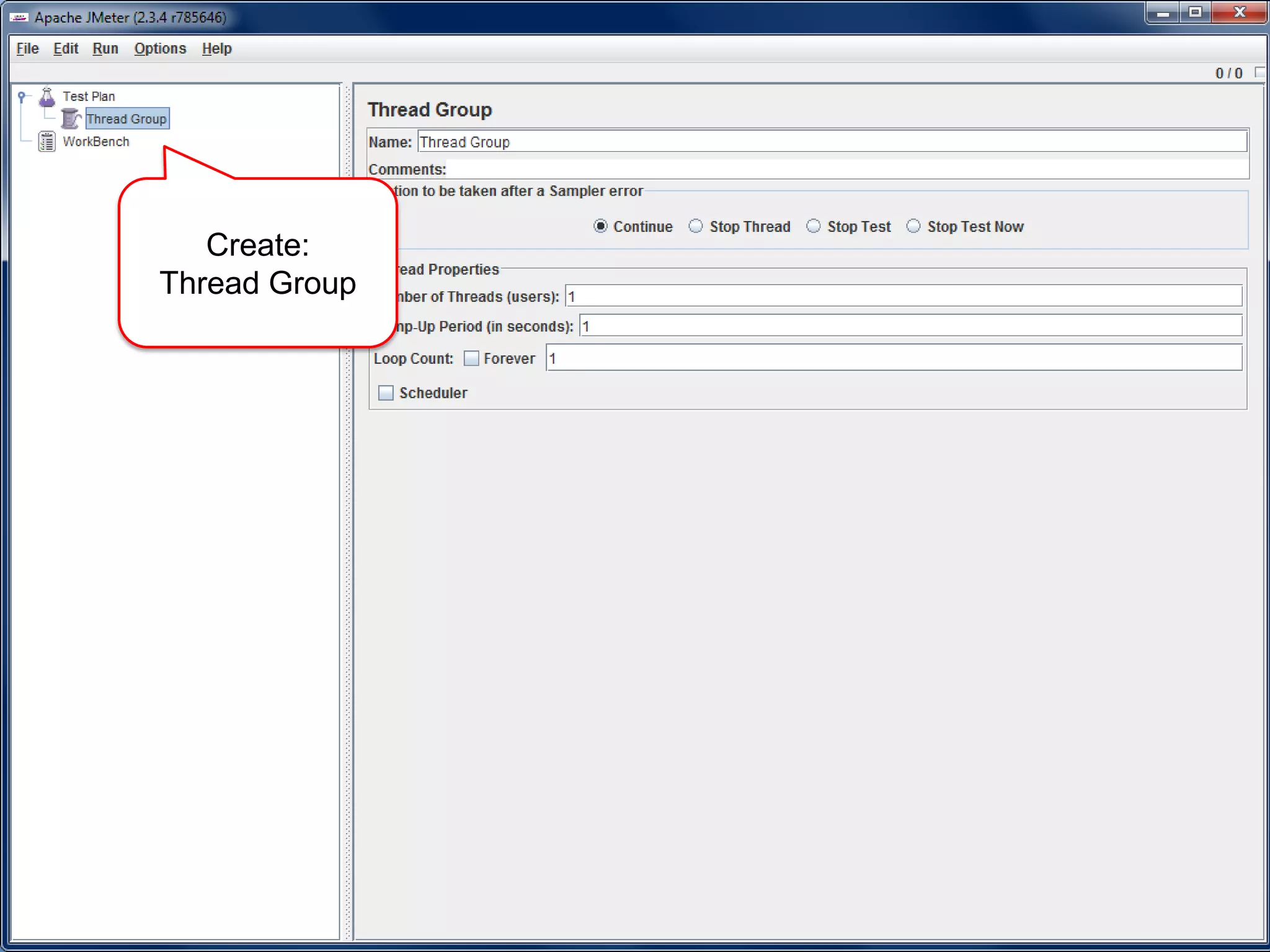

19. Create:
Thread Group

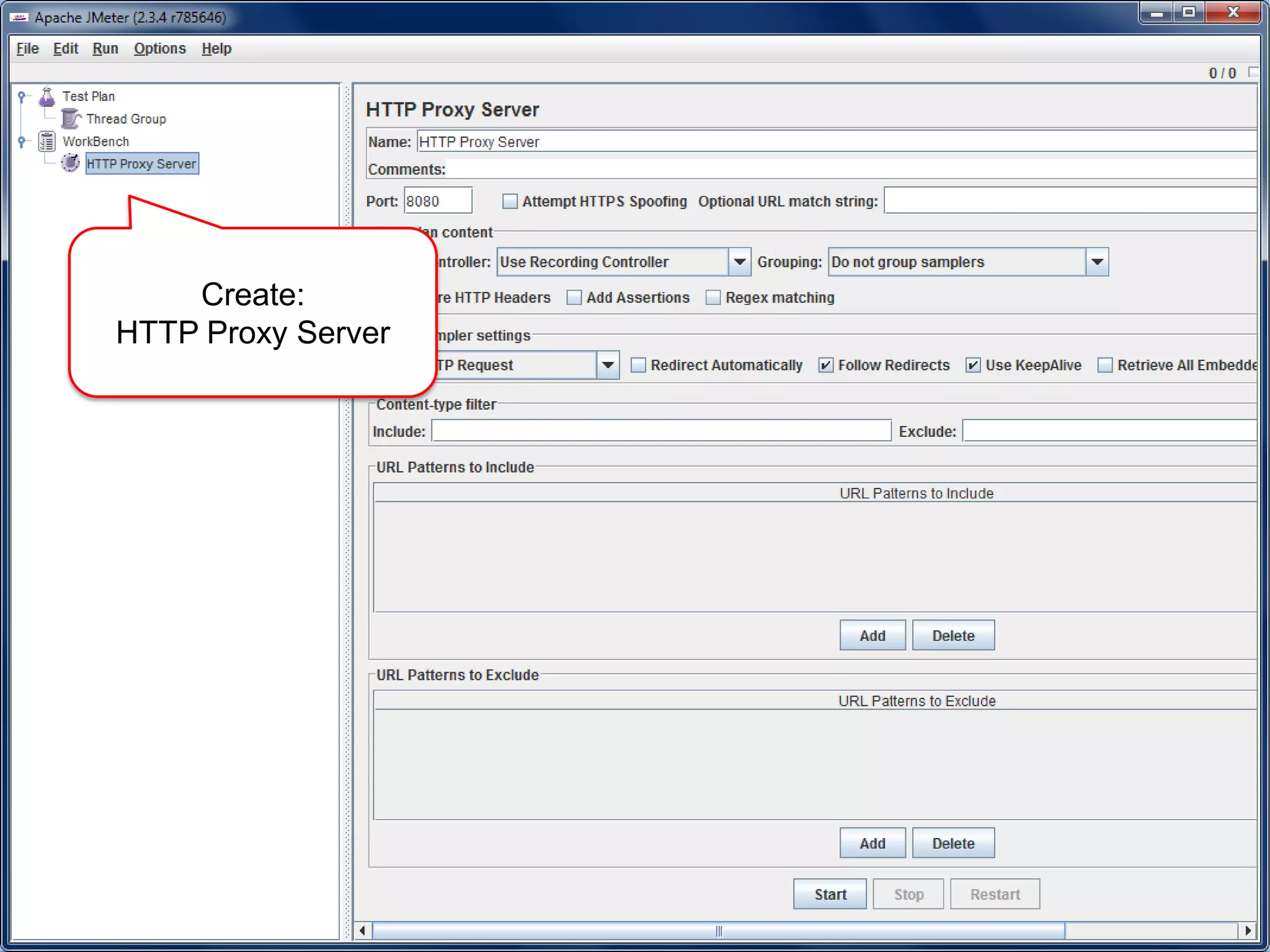

20. Create:
HTTP Proxy Server

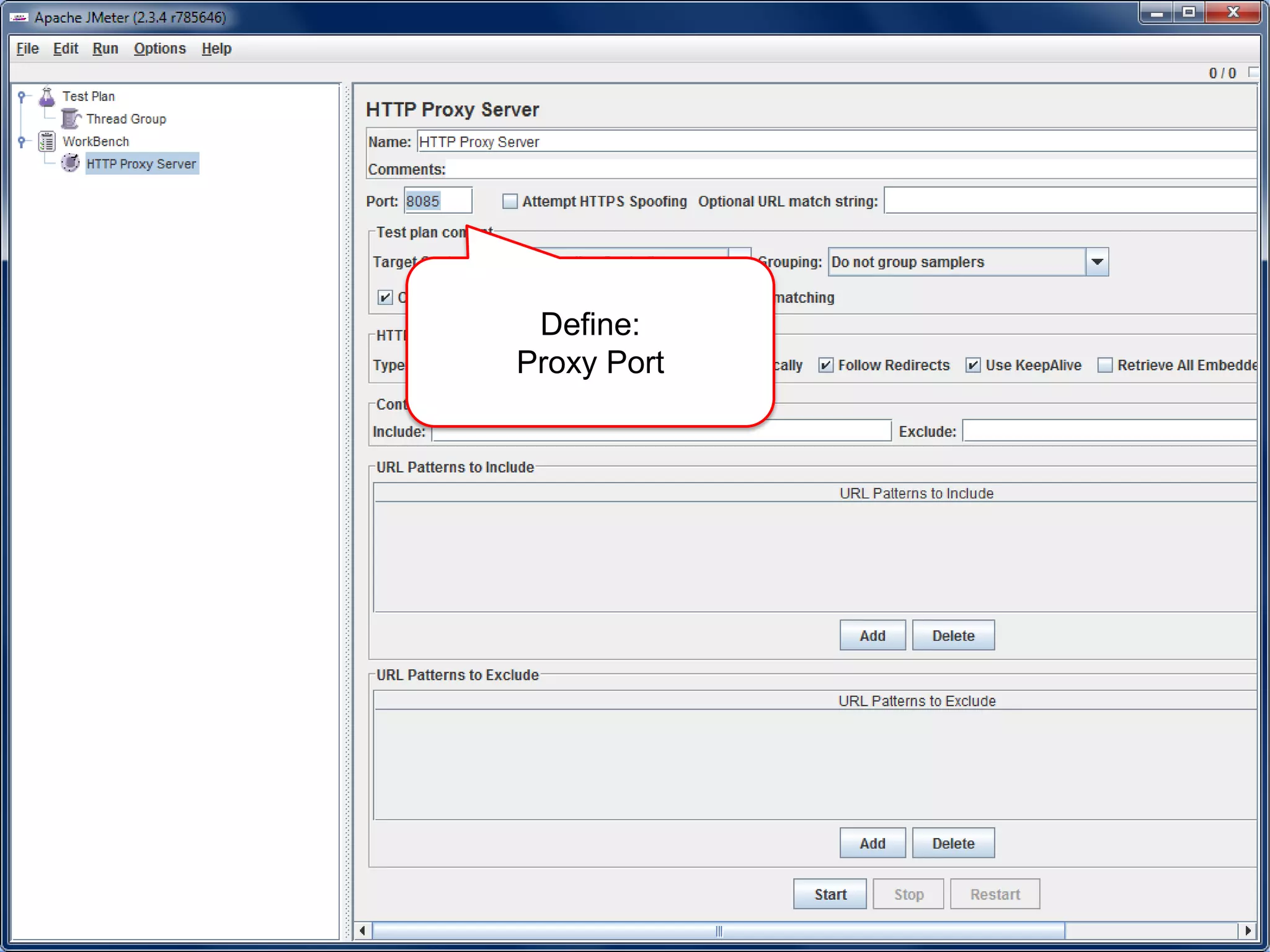

21. Define:
Proxy Port

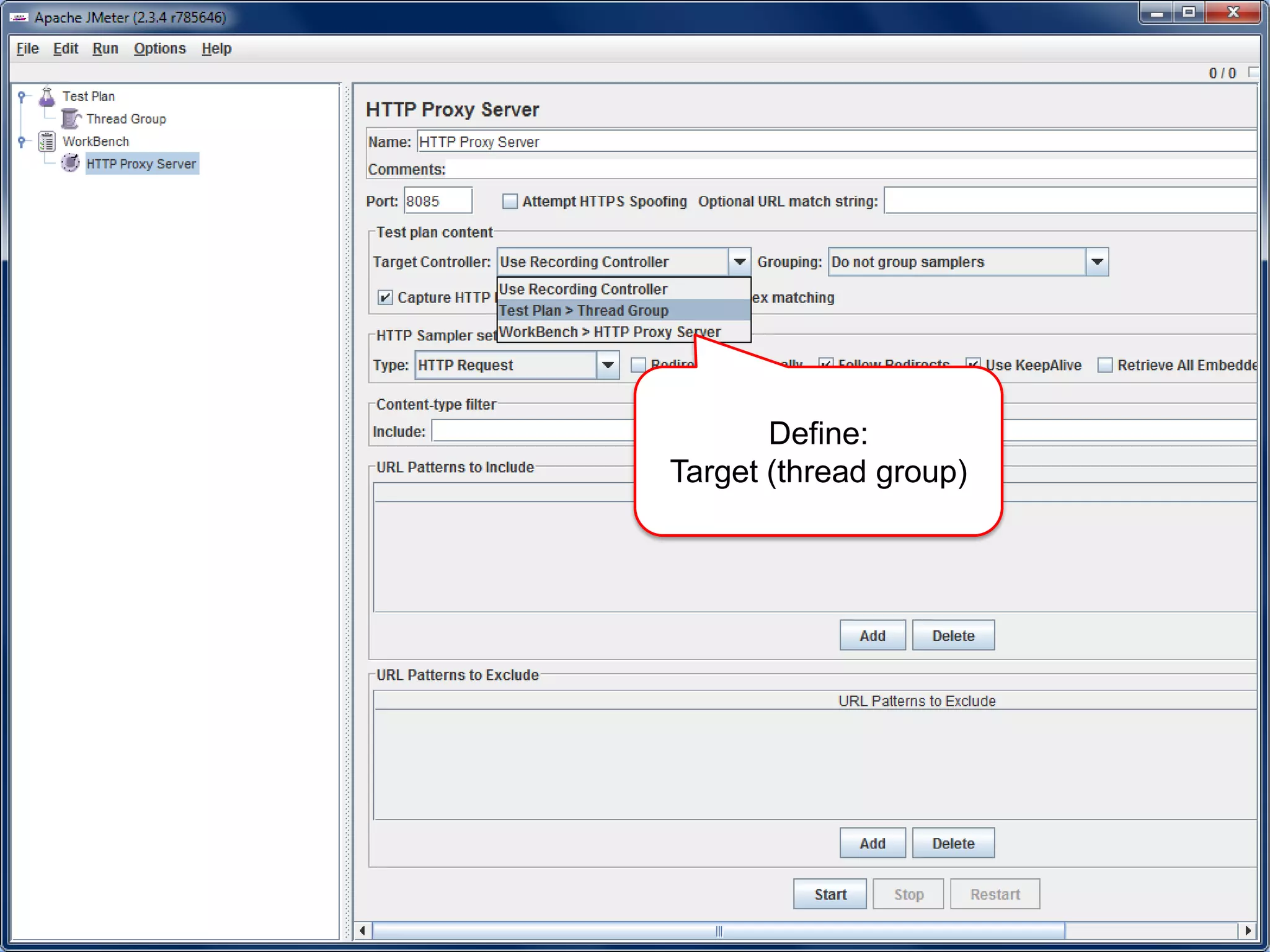

22. Define:
Target (thread group)

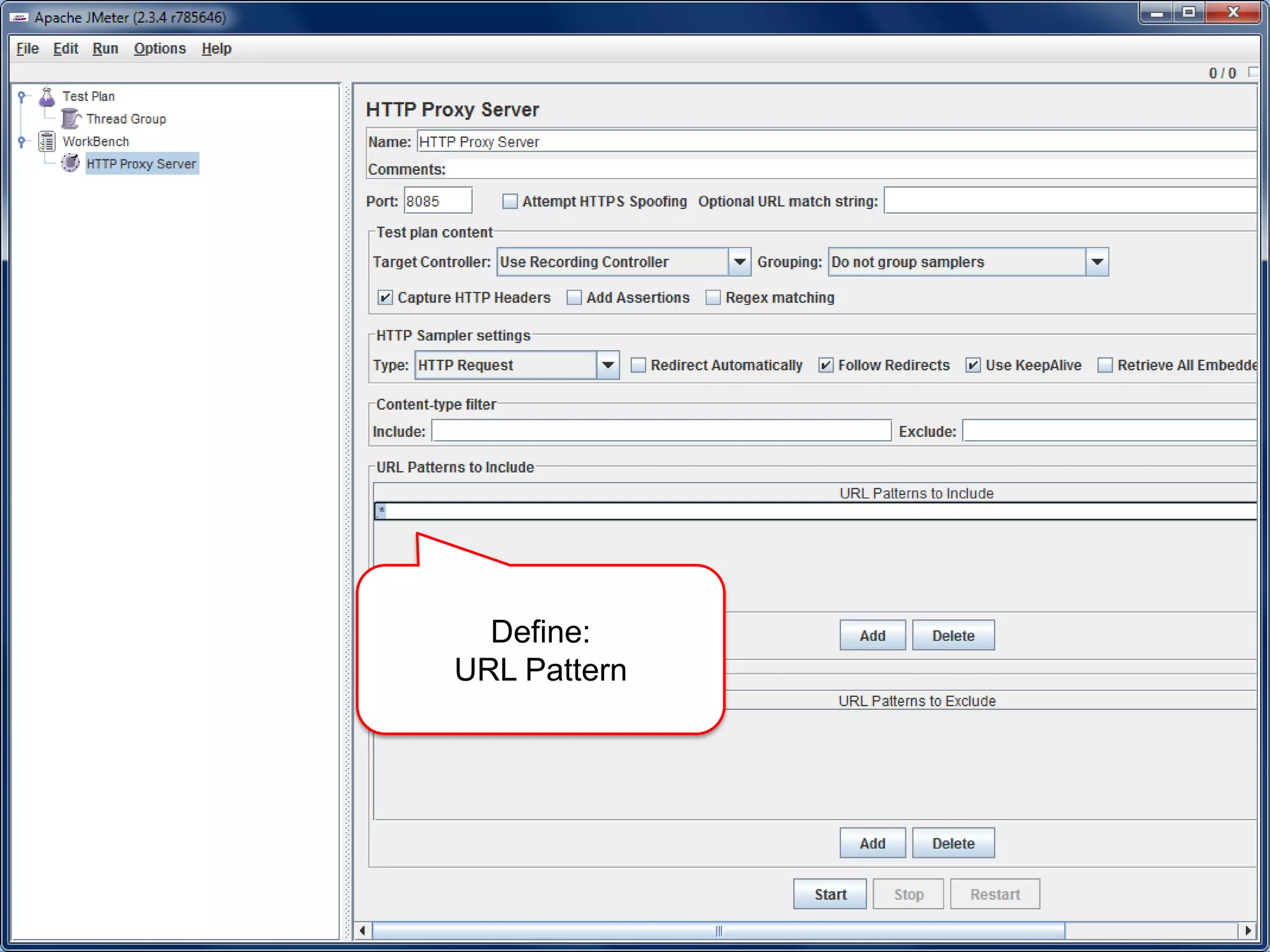

23. Define:
URL Pattern

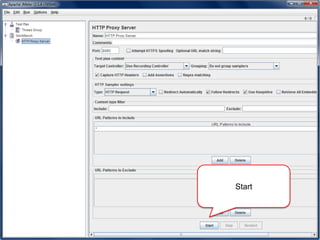

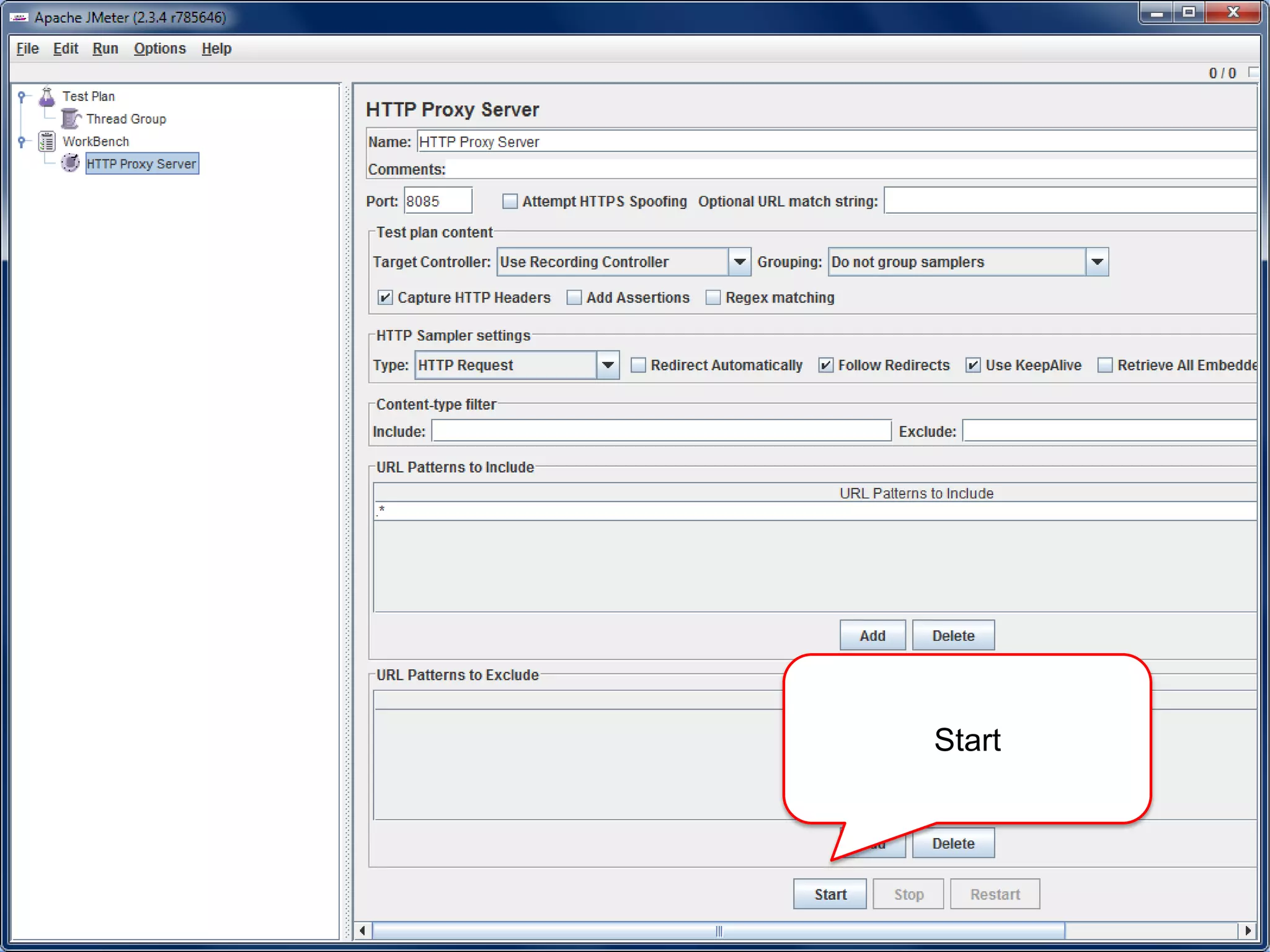

24. Start

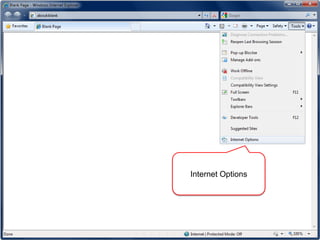

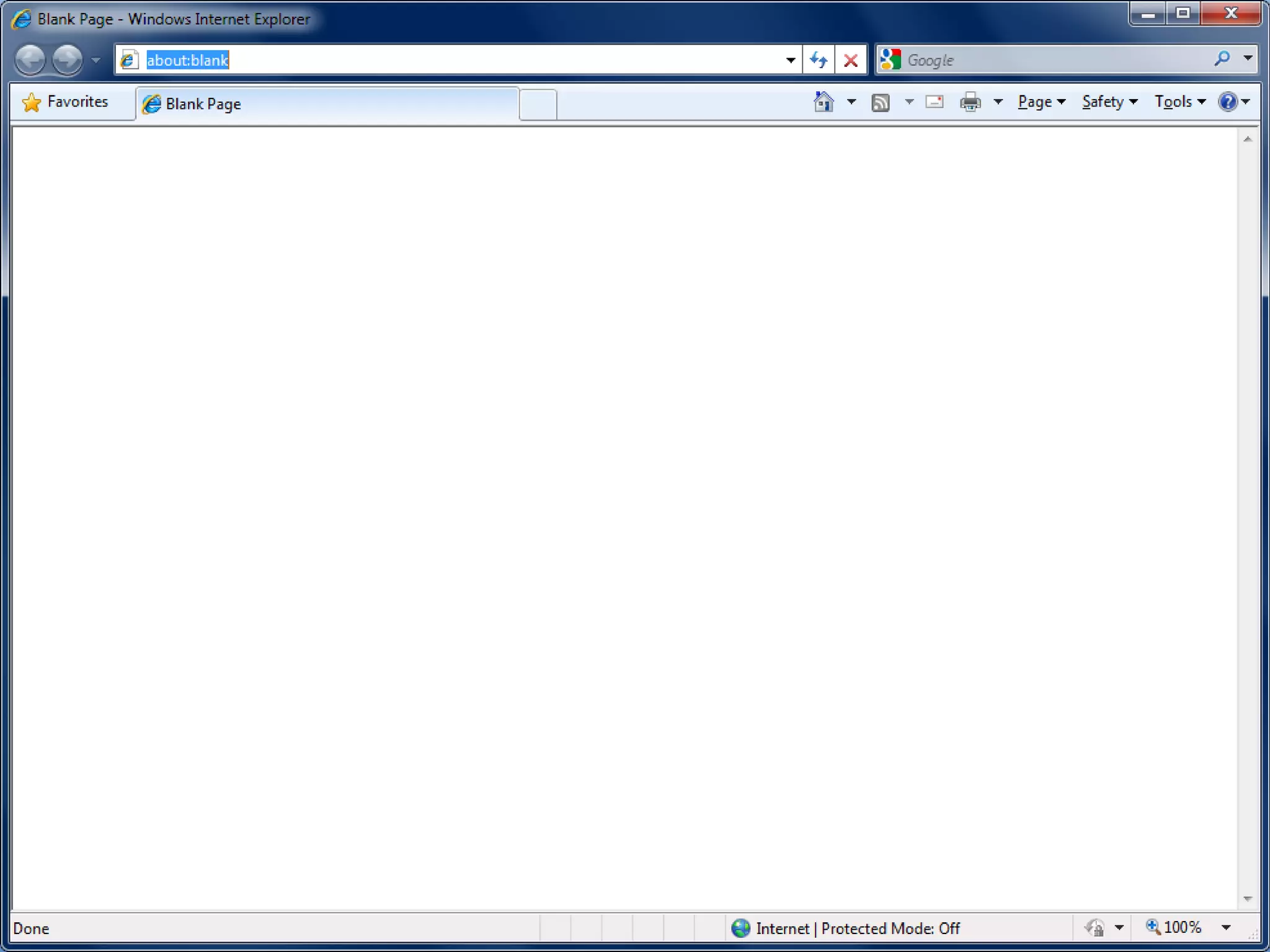

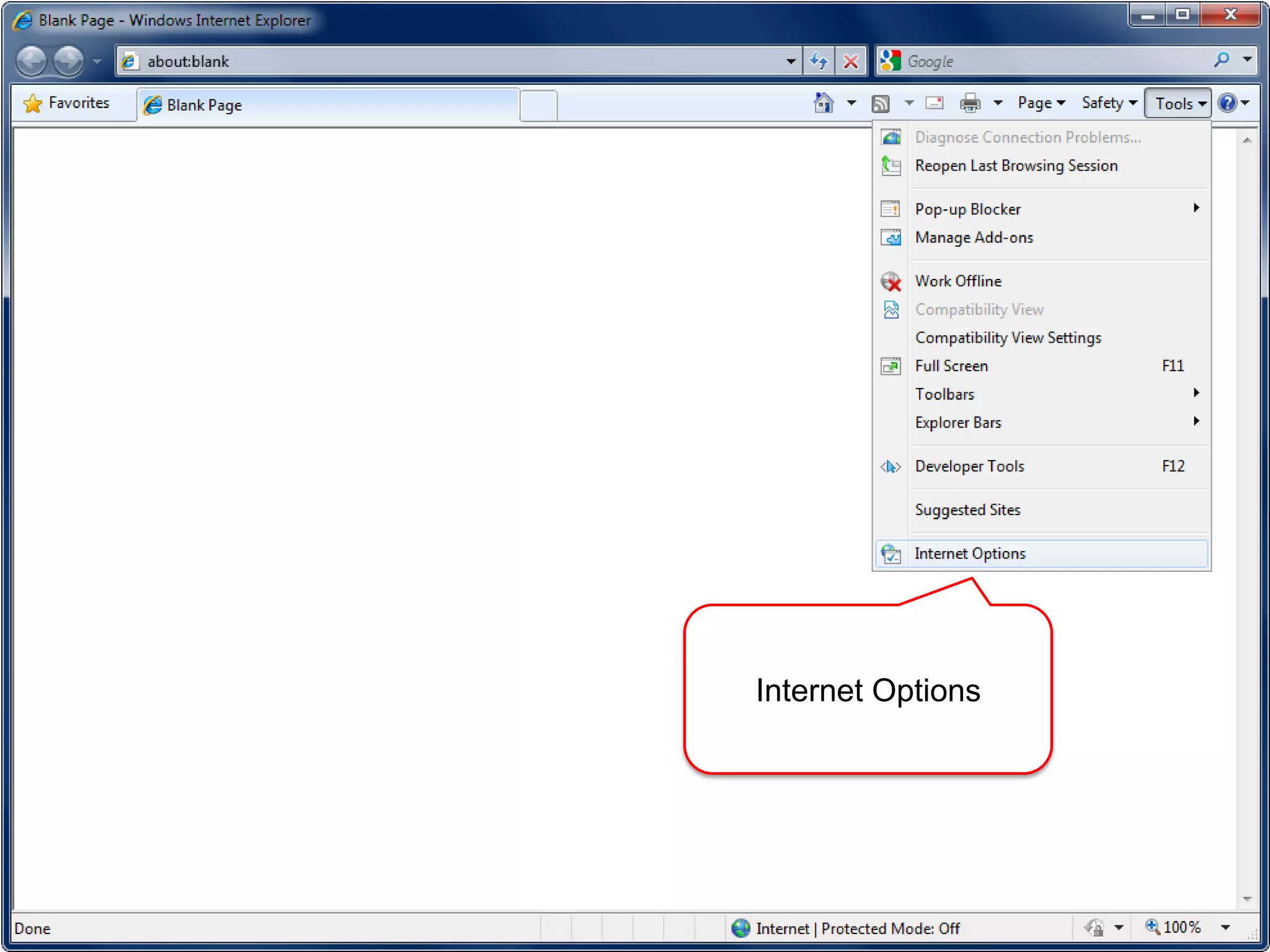

26. Internet Options

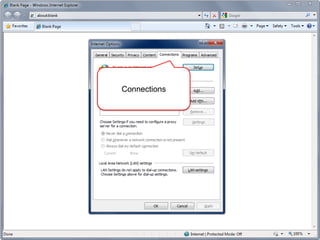

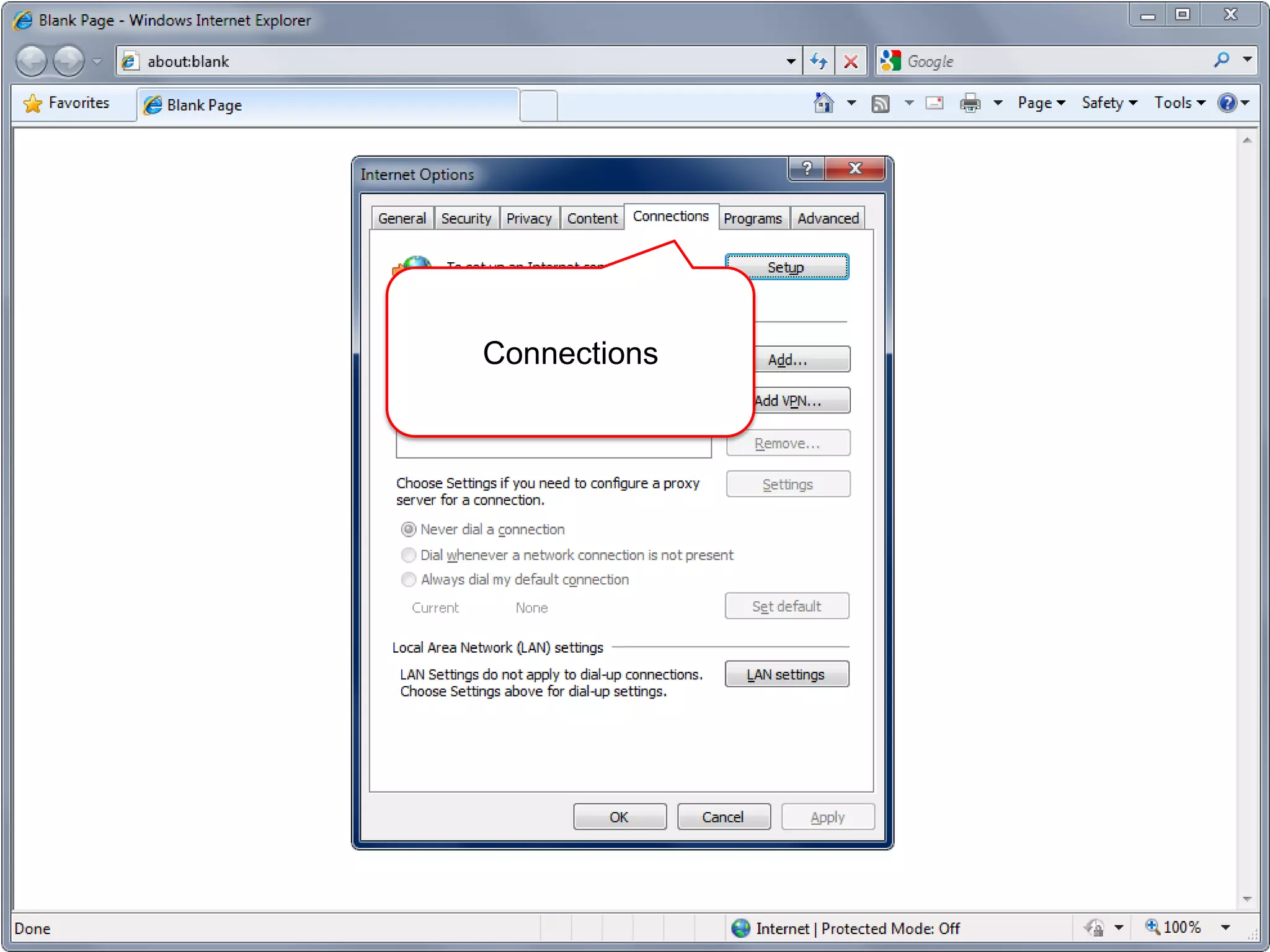

27. Connections

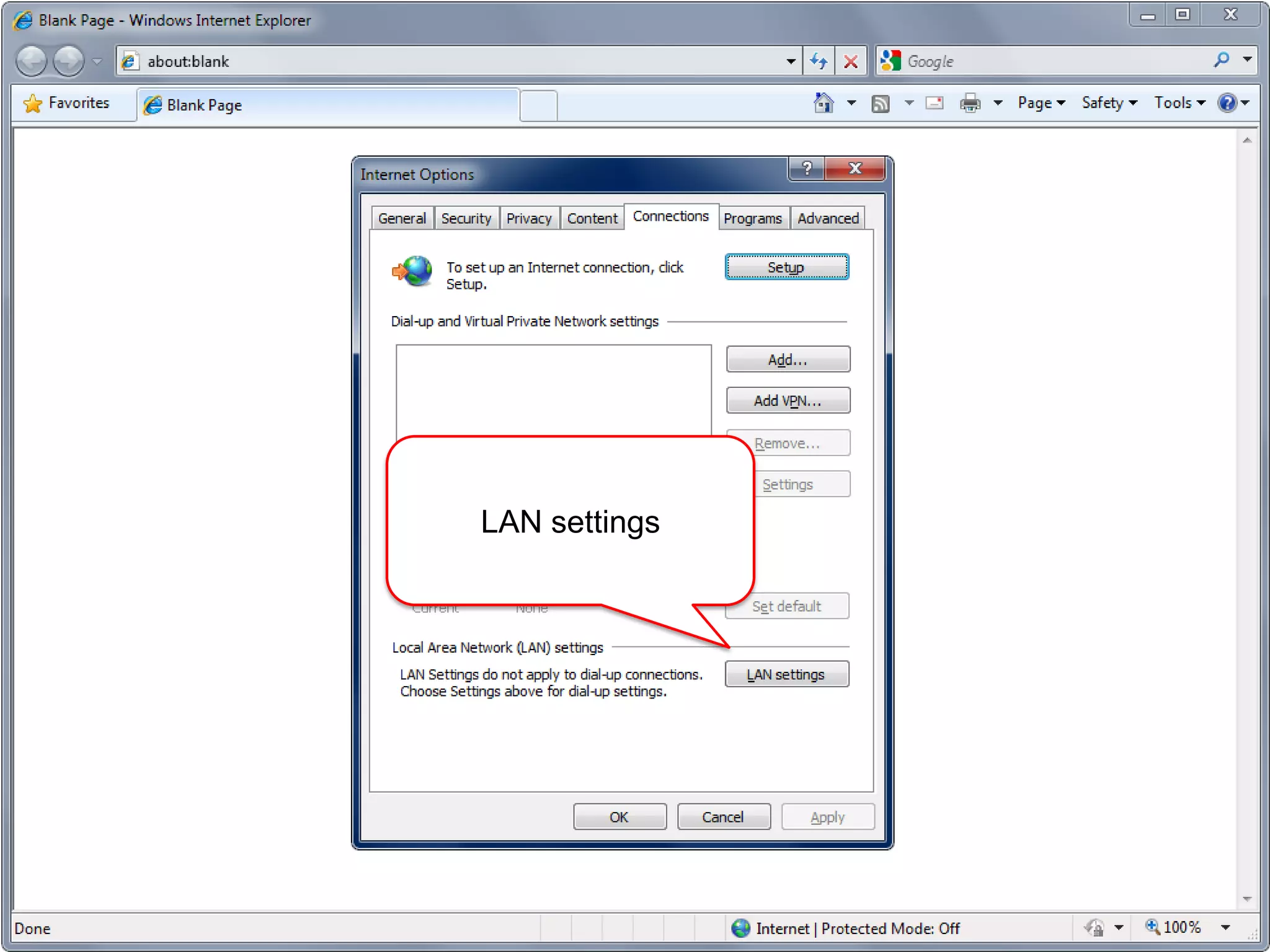

28. LAN settings

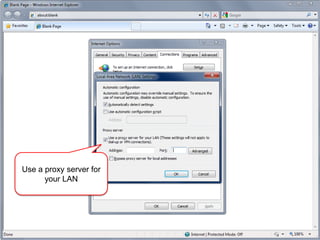

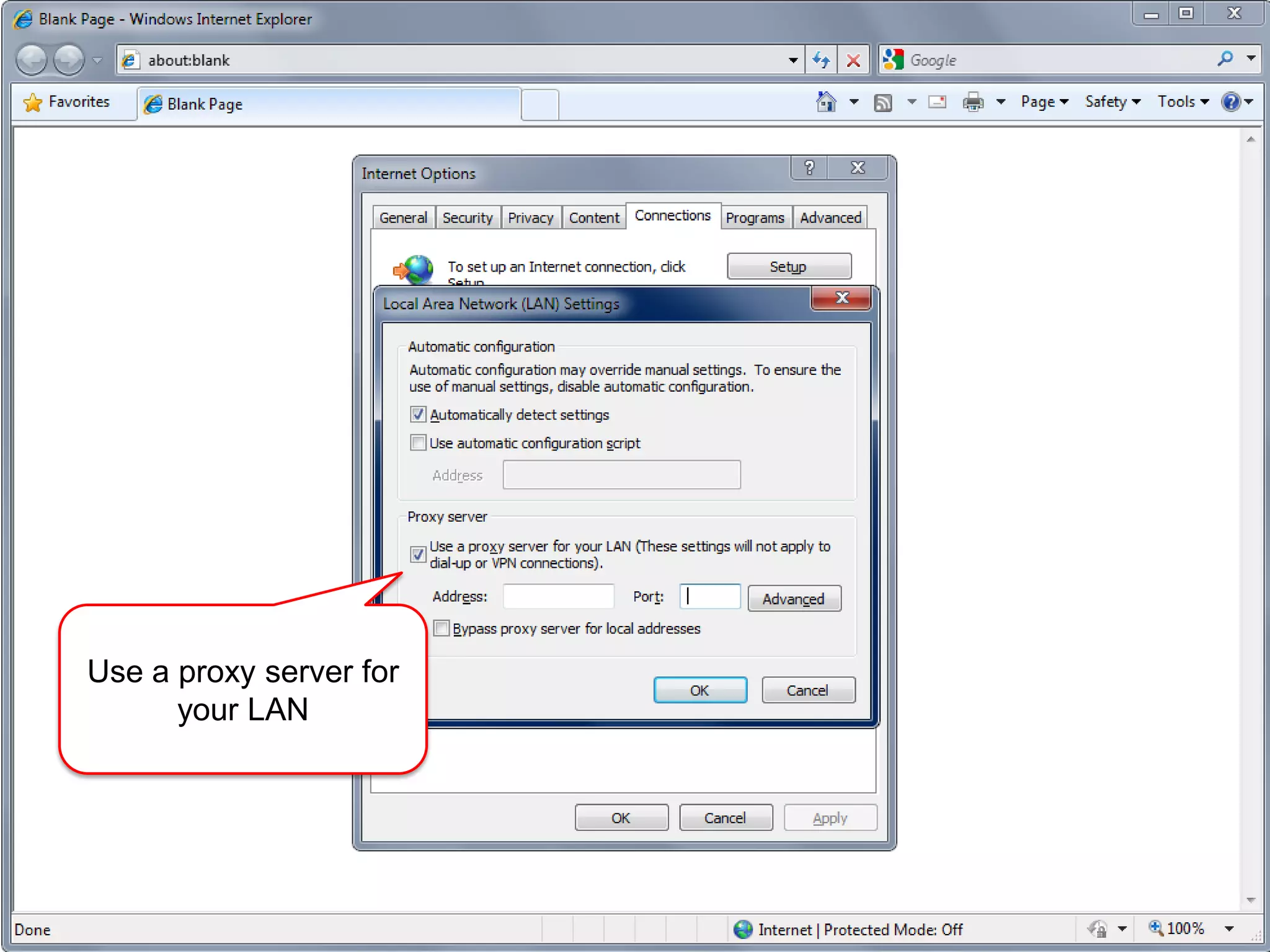

29. Use a proxy server for
your LAN

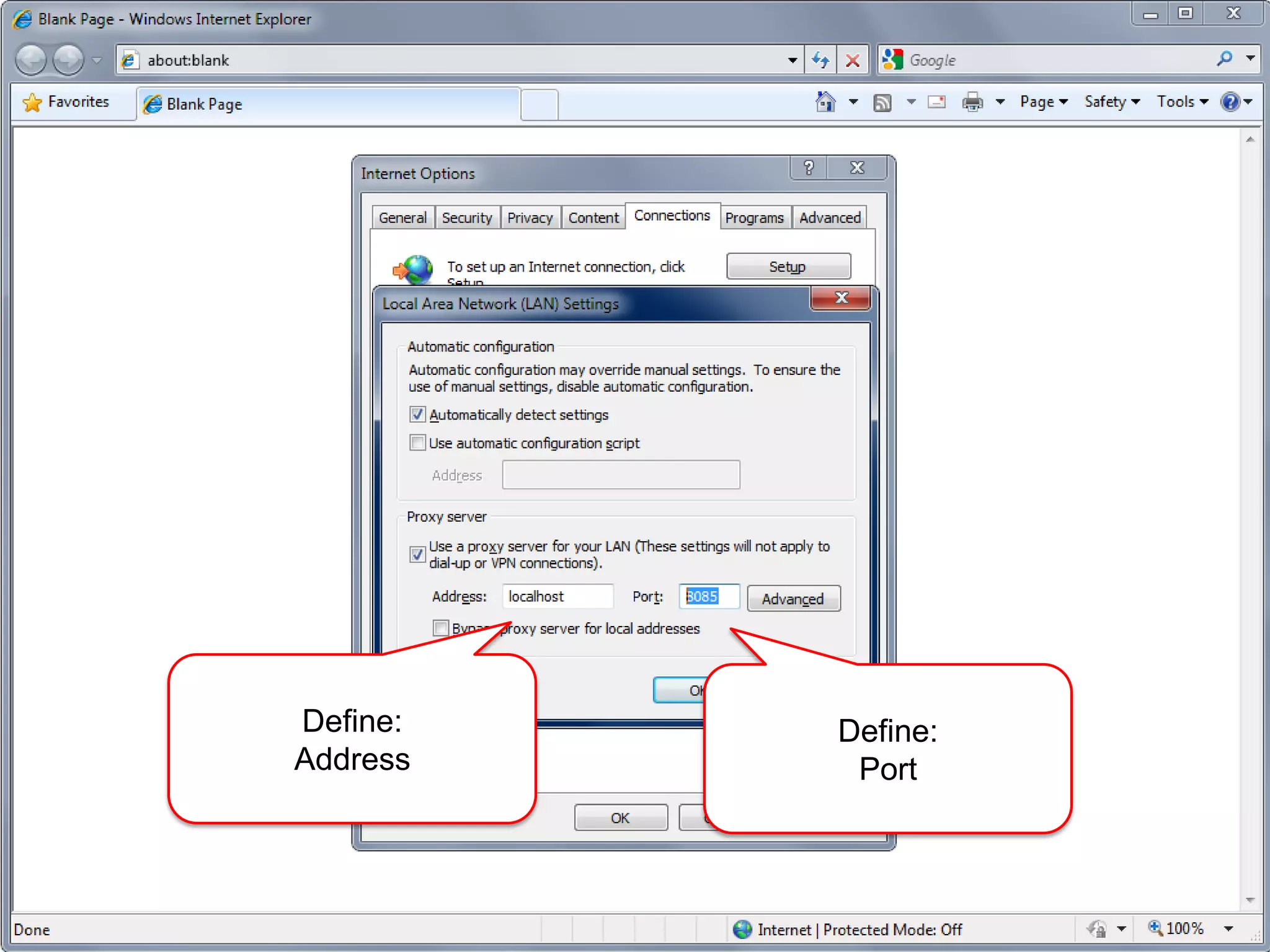

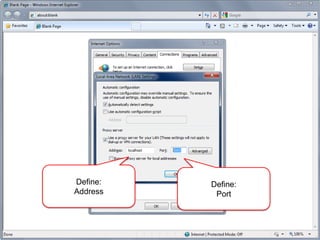

30. Define:
Address
Define:
Port

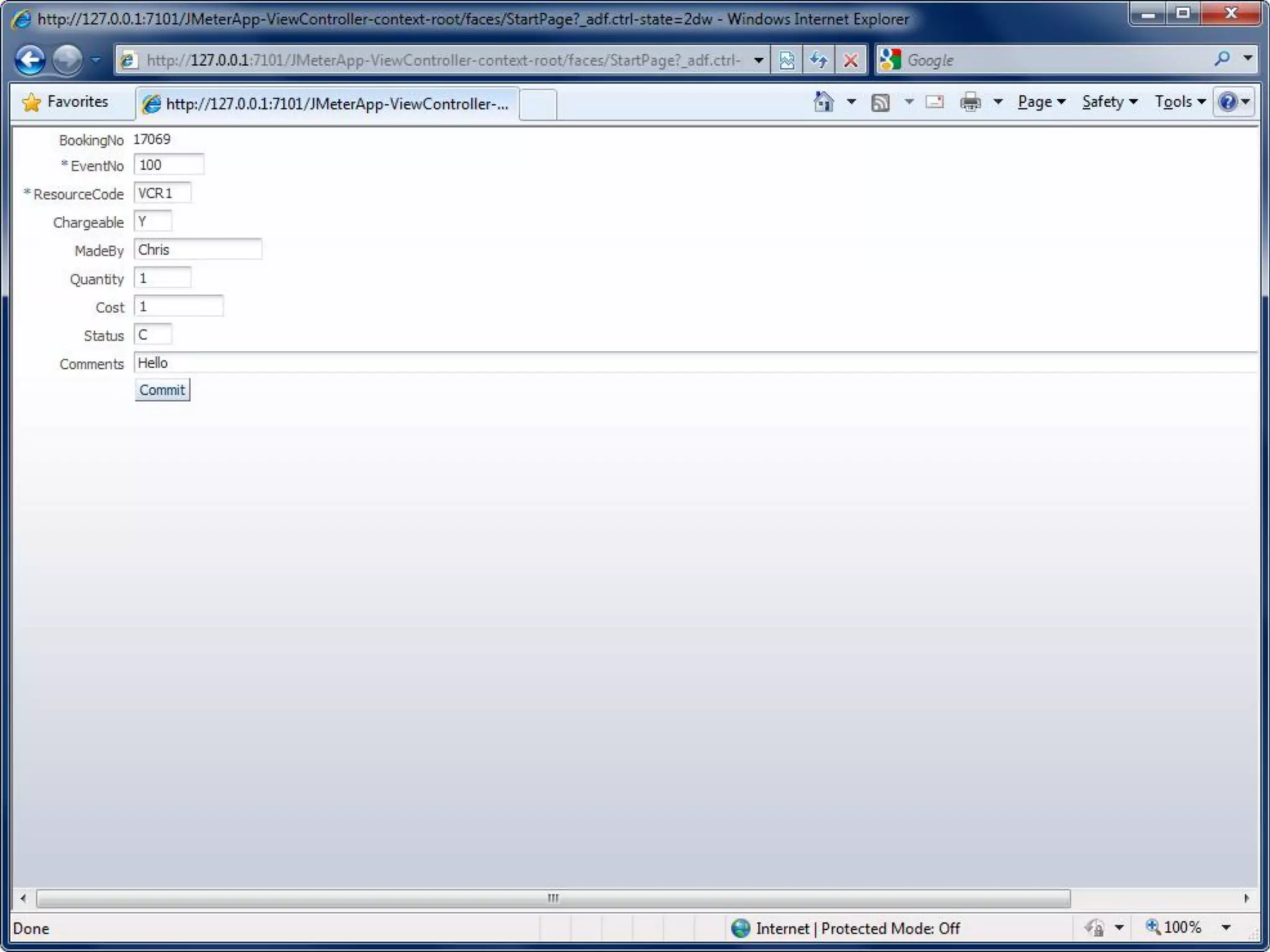

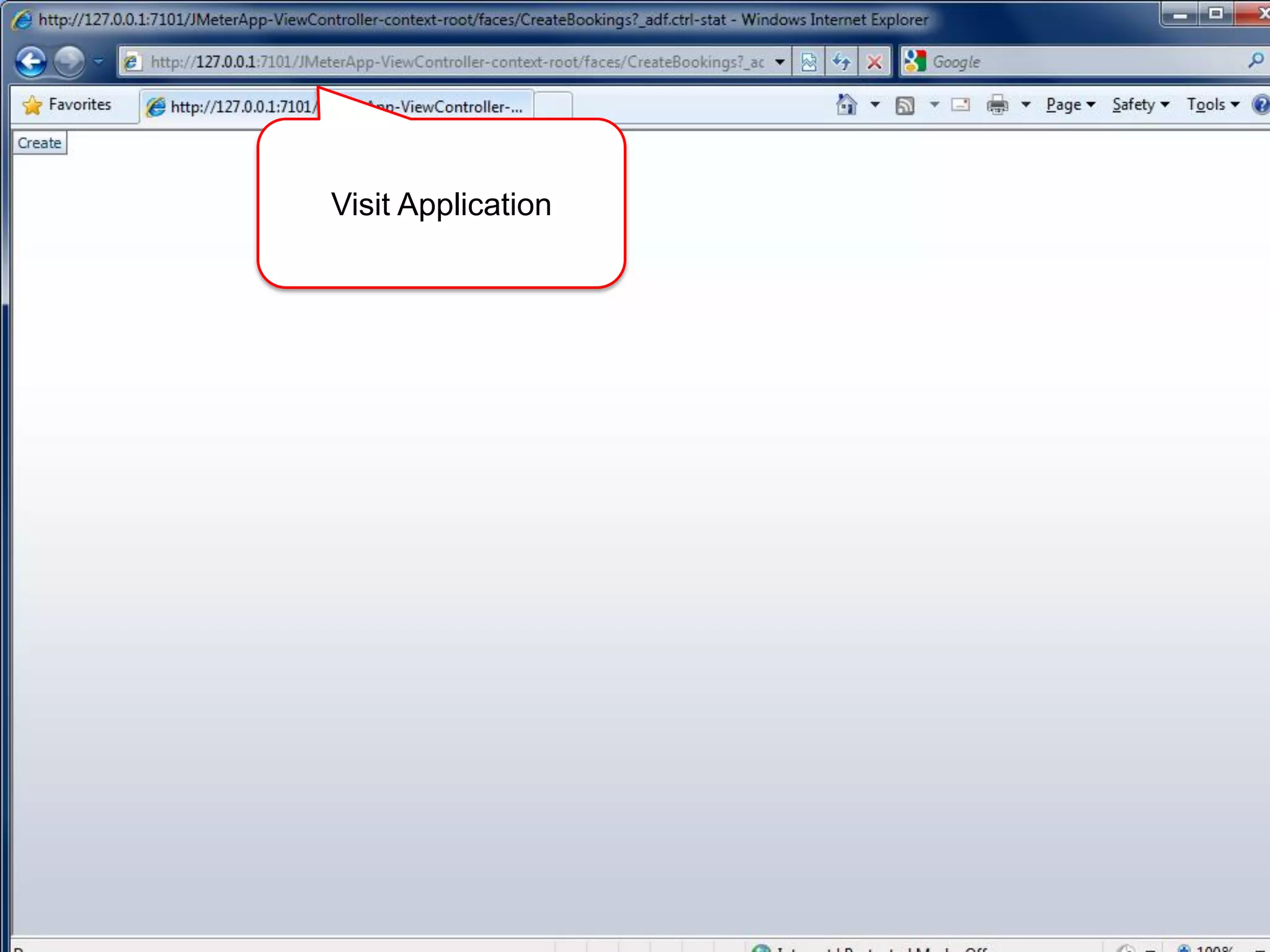

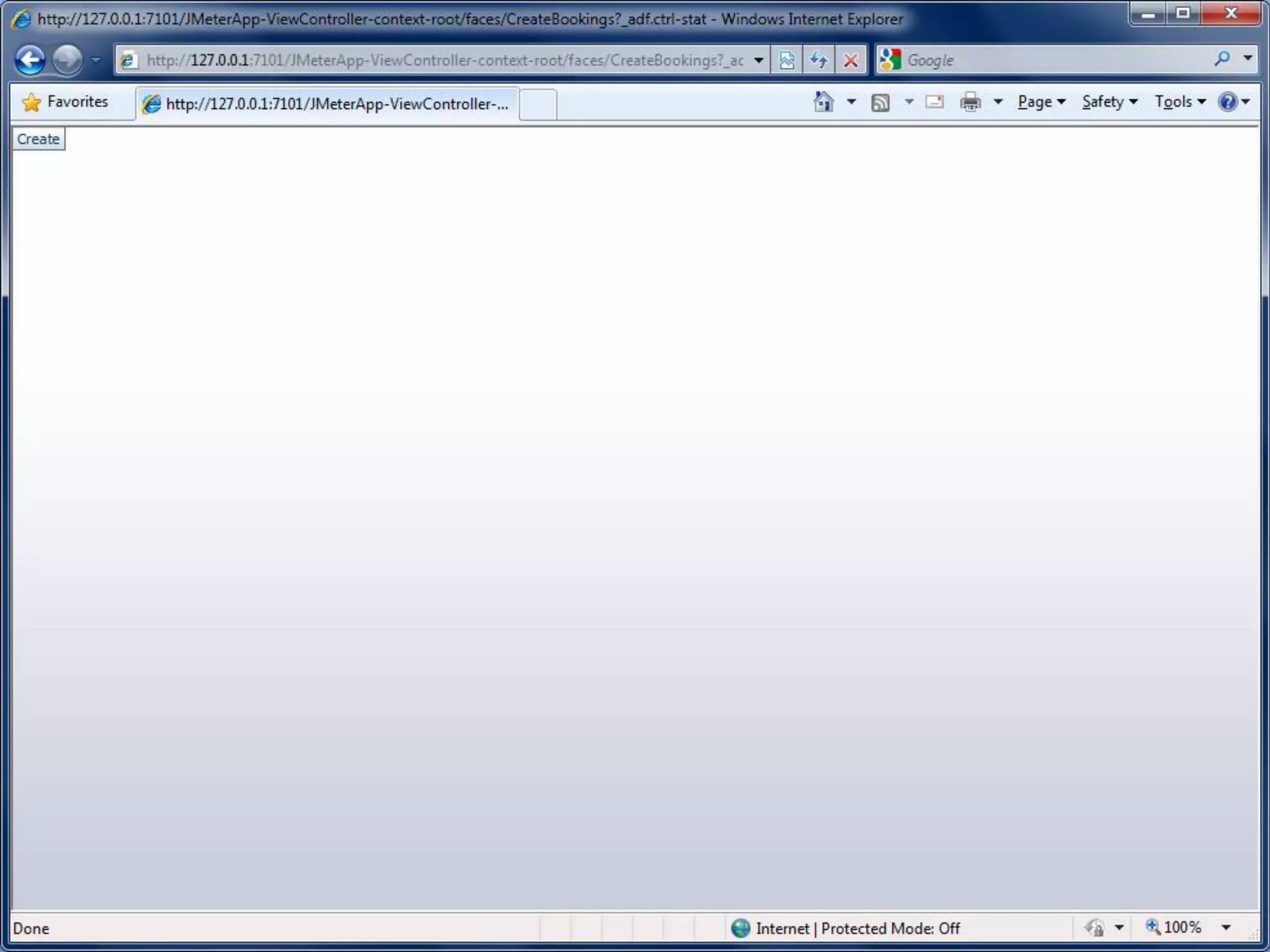

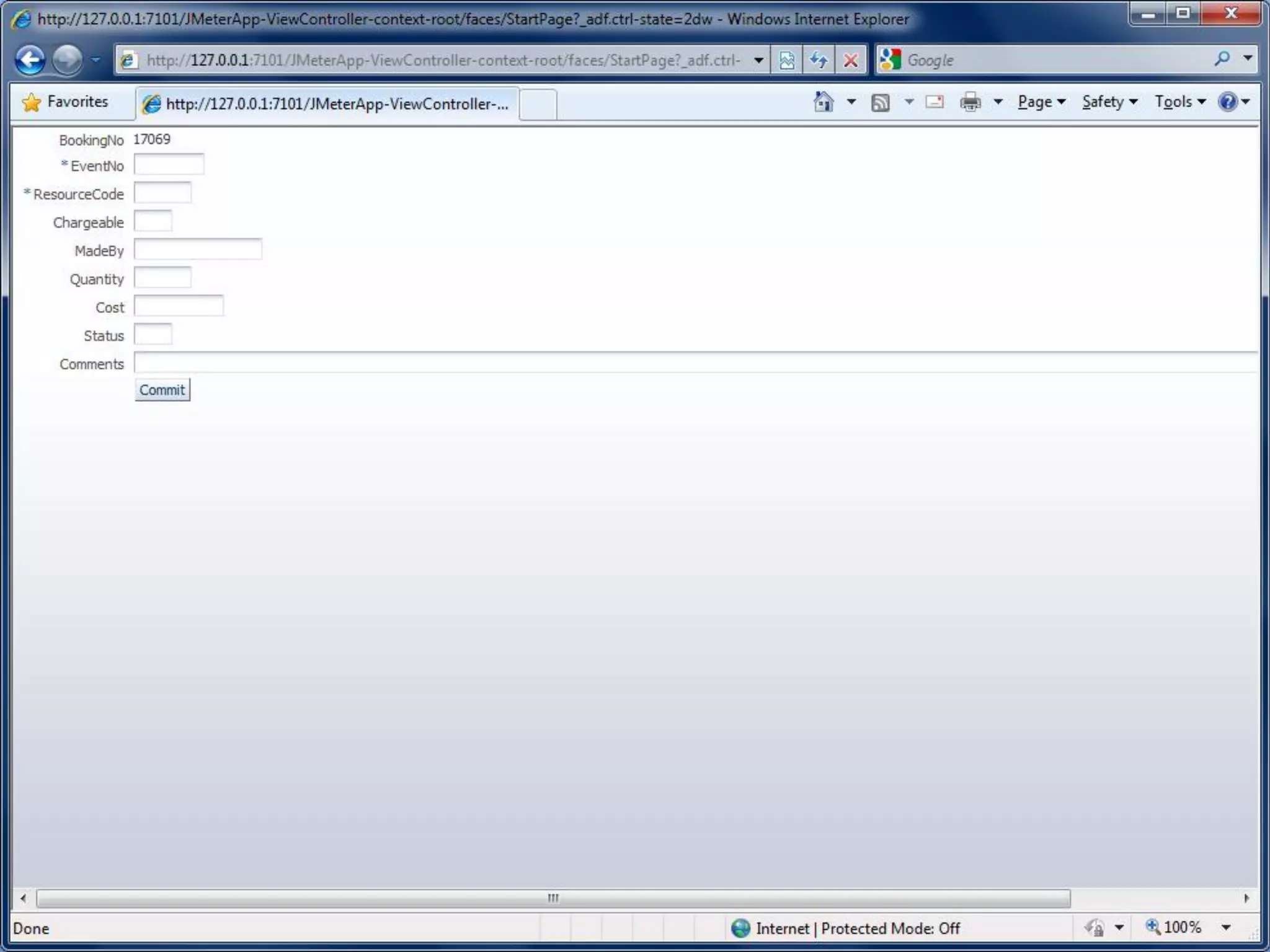

31. Visit Application

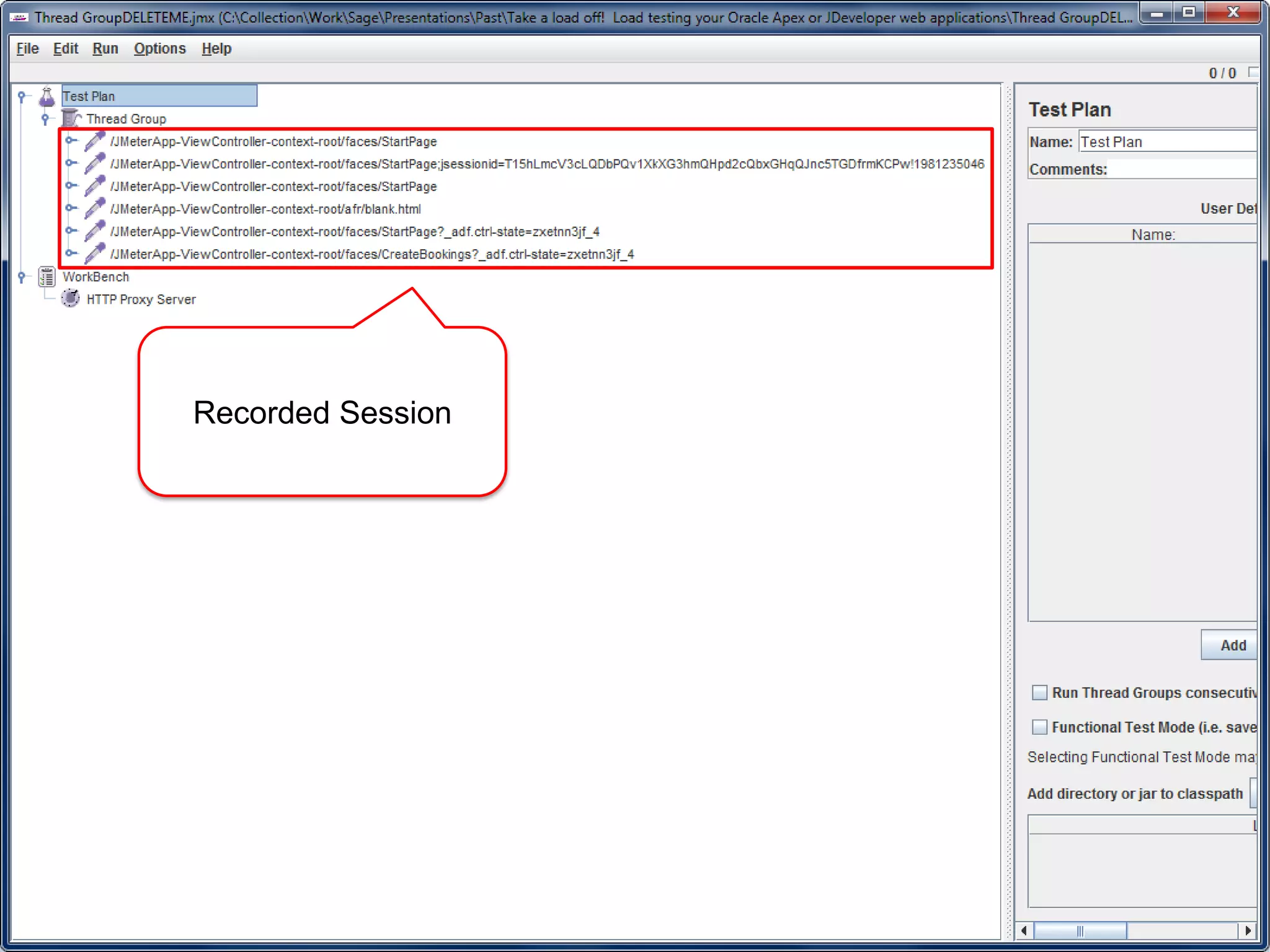

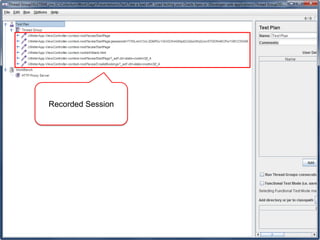

36. Recorded Session

37. Image (C) Google Inc.

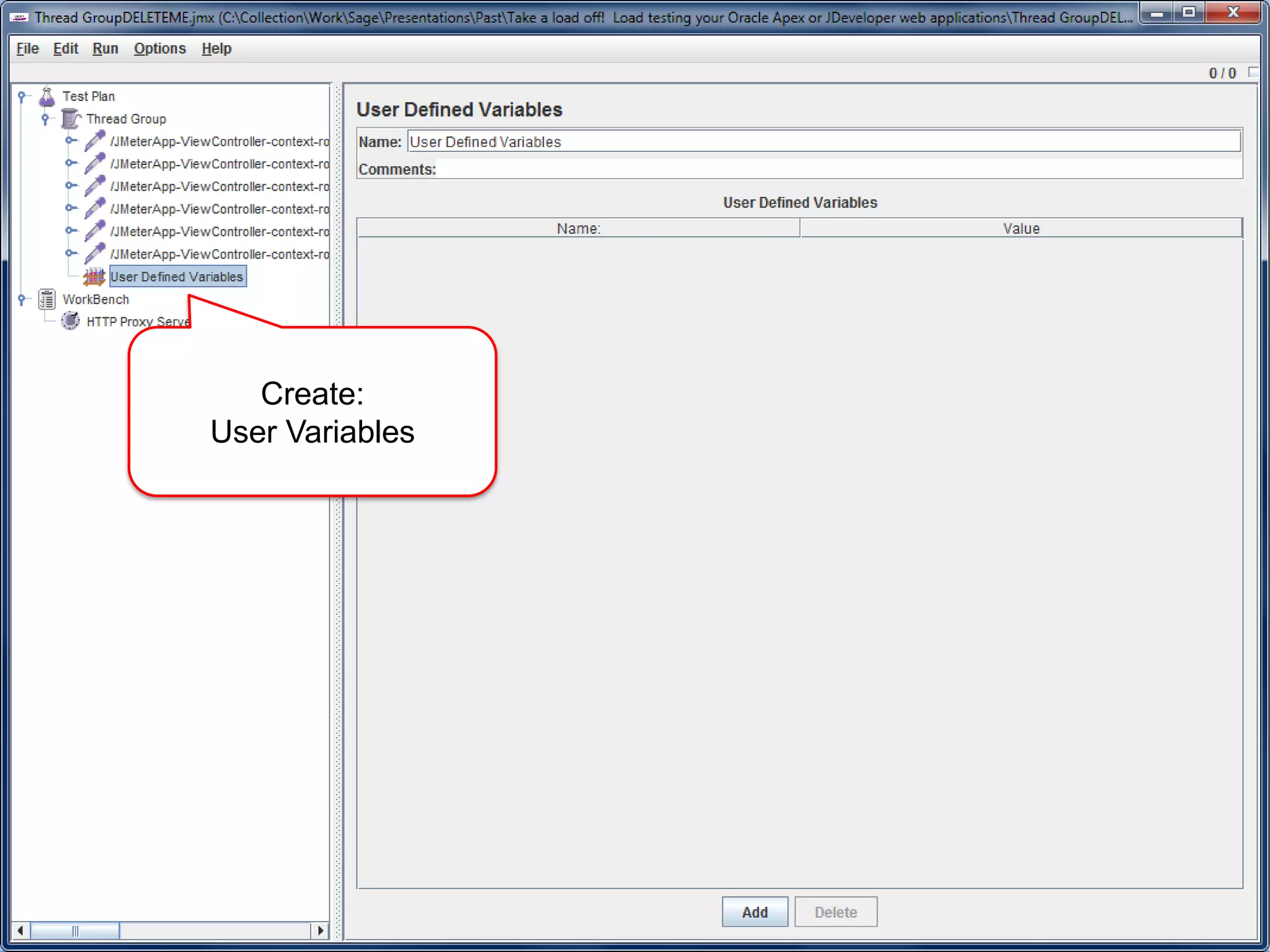

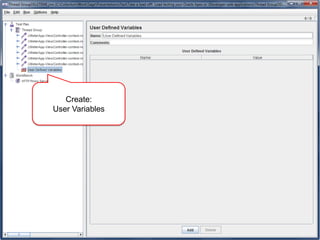

38. Create:
User Variables

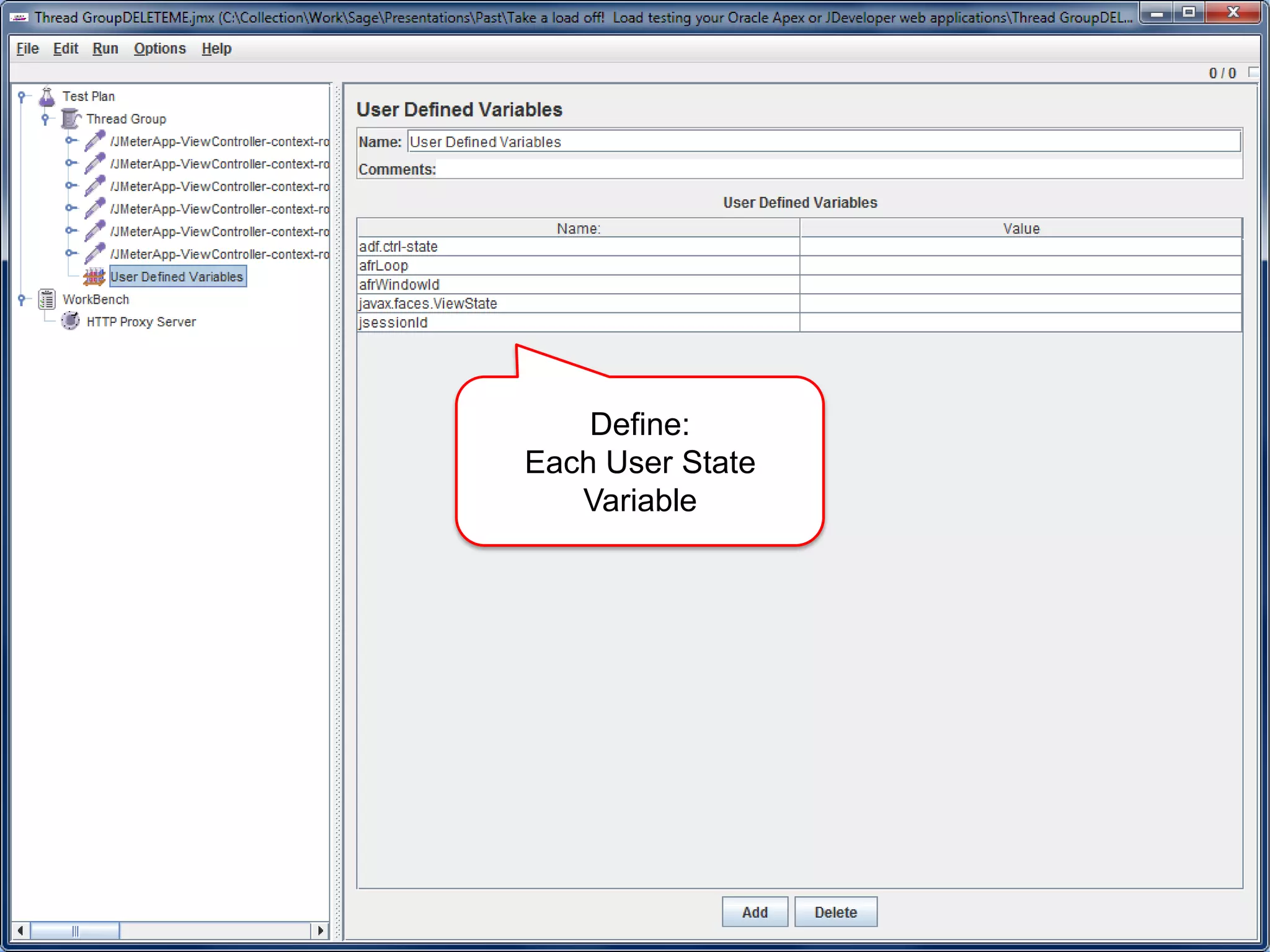

39. Define:
Each User State
Variable

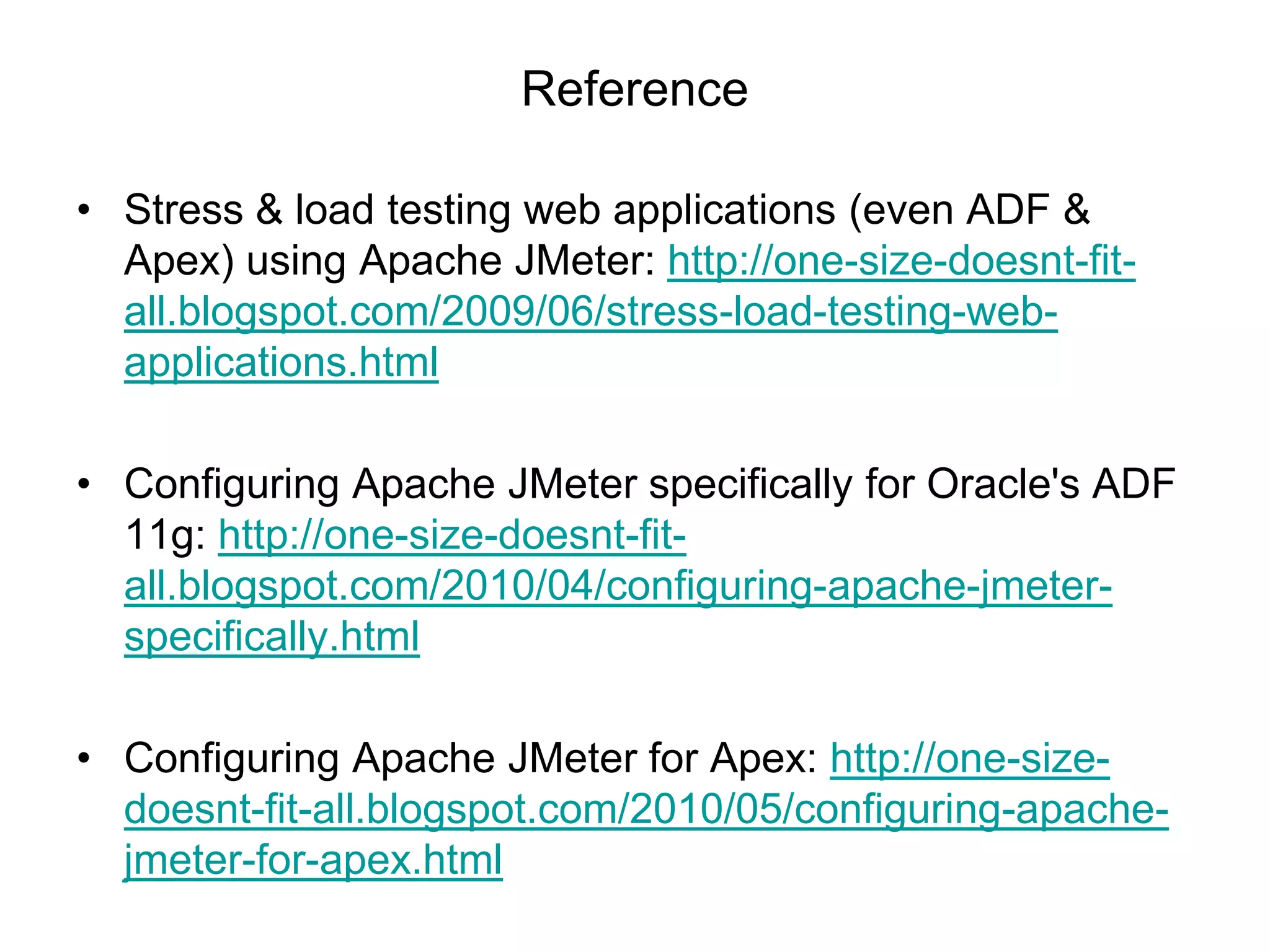

40. Reference
• Stress & load testing web applications (even ADF &
Apex) using Apache JMeter: http://one-size-doesnt-fit-
all.blogspot.com/2009/06/stress-load-testing-web-
applications.html
• Configuring Apache JMeter specifically for Oracle's ADF
11g: http://one-size-doesnt-fit-
all.blogspot.com/2010/04/configuring-apache-jmeter-
specifically.html
• Configuring Apache JMeter for Apex: http://one-size-
doesnt-fit-all.blogspot.com/2010/05/configuring-apache-
jmeter-for-apex.html

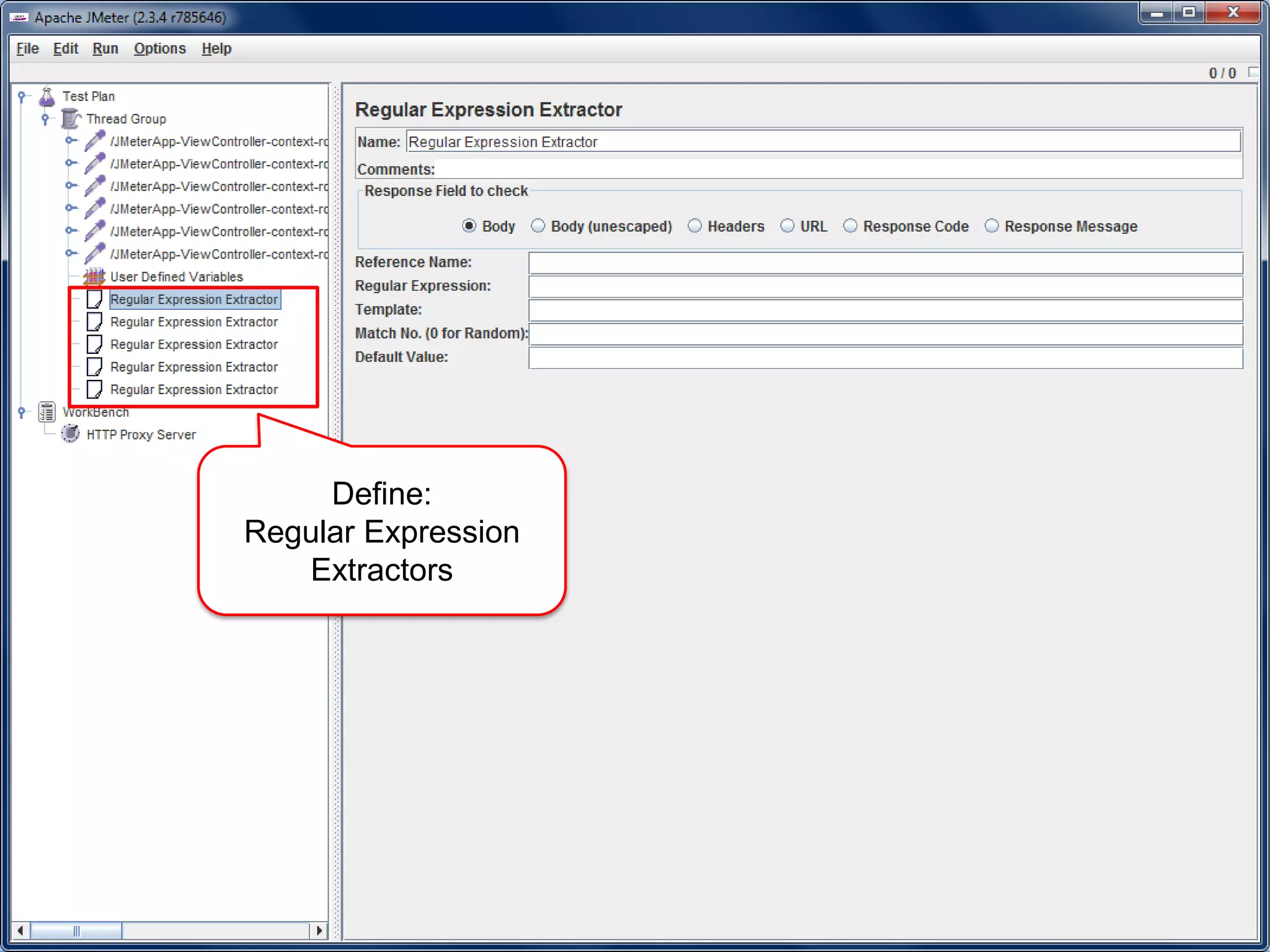

41. Define:
Regular Expression
Extractors

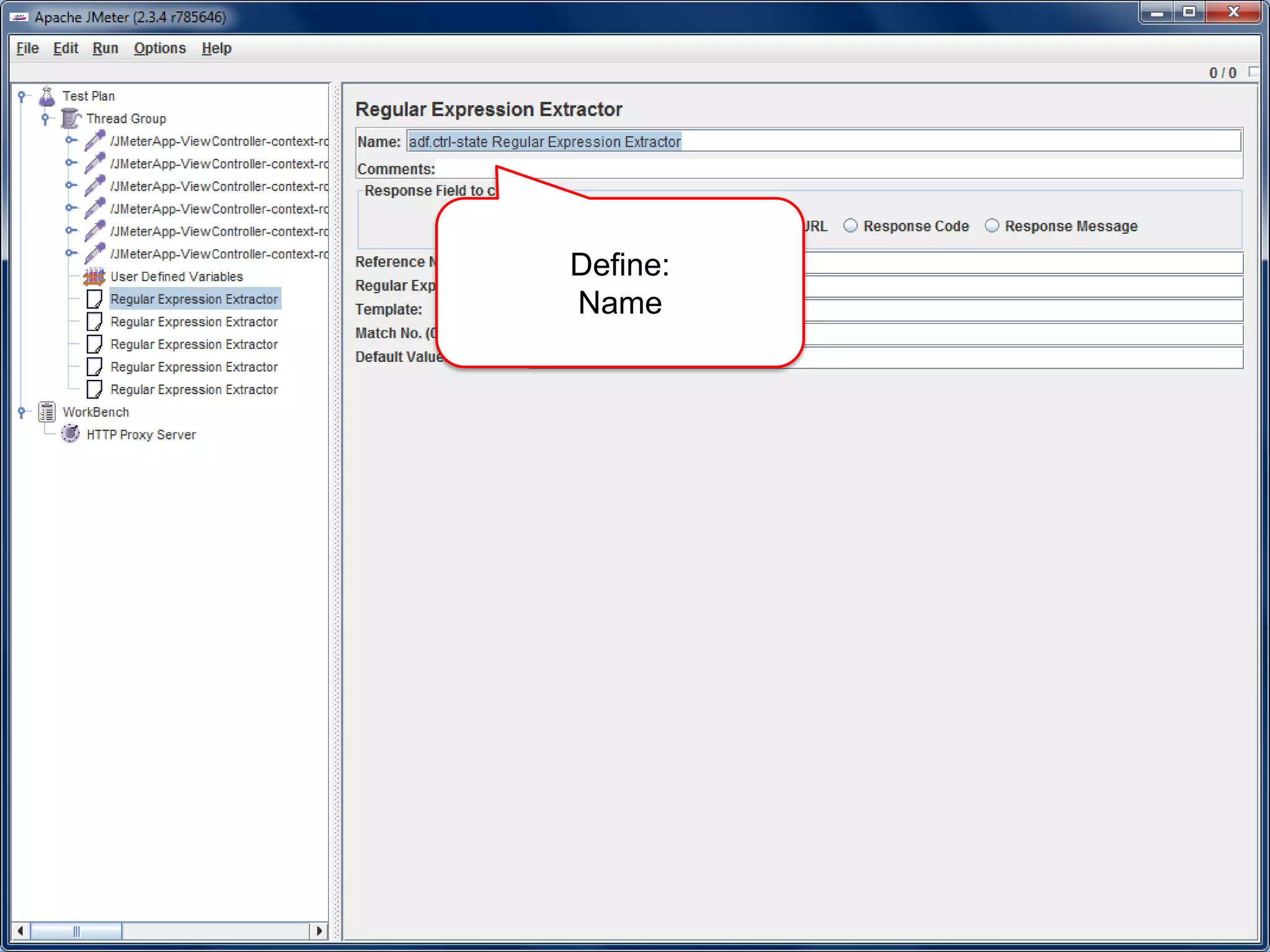

42. Define:
Name

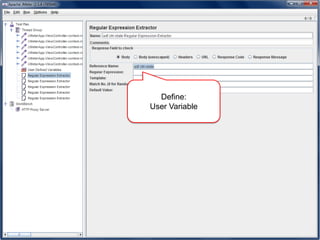

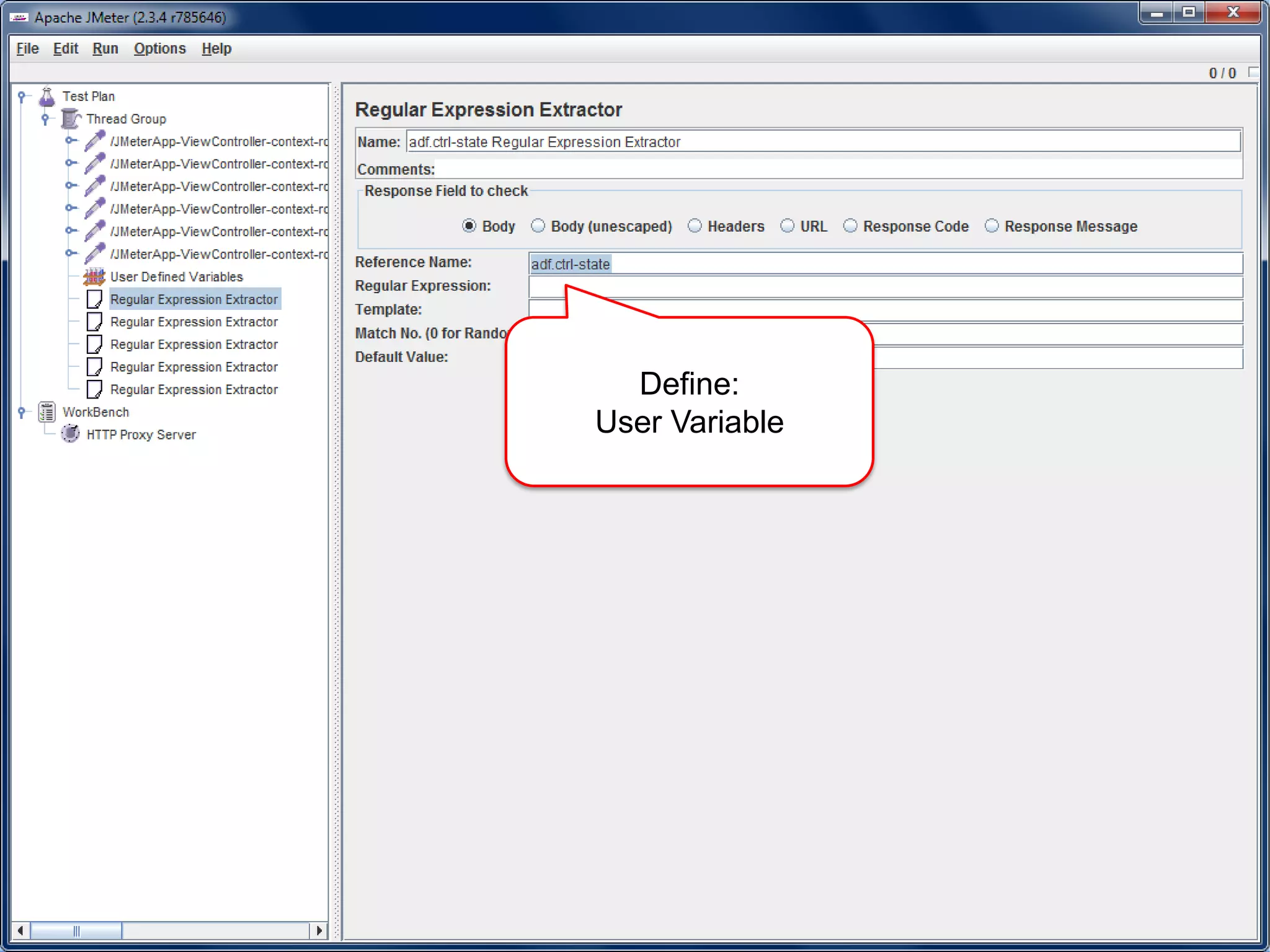

43. Define:
User Variable

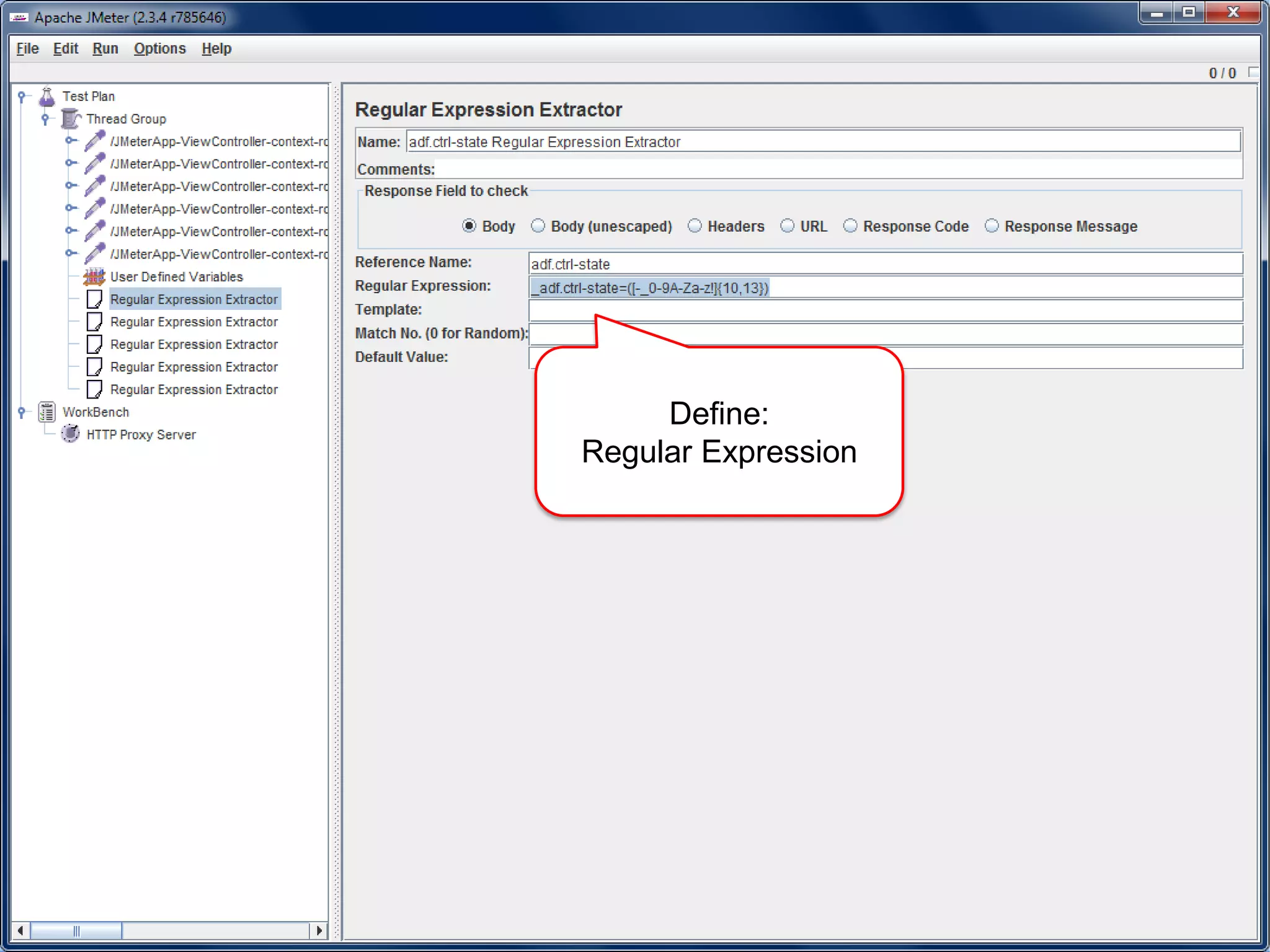

44. Define:
Regular Expression

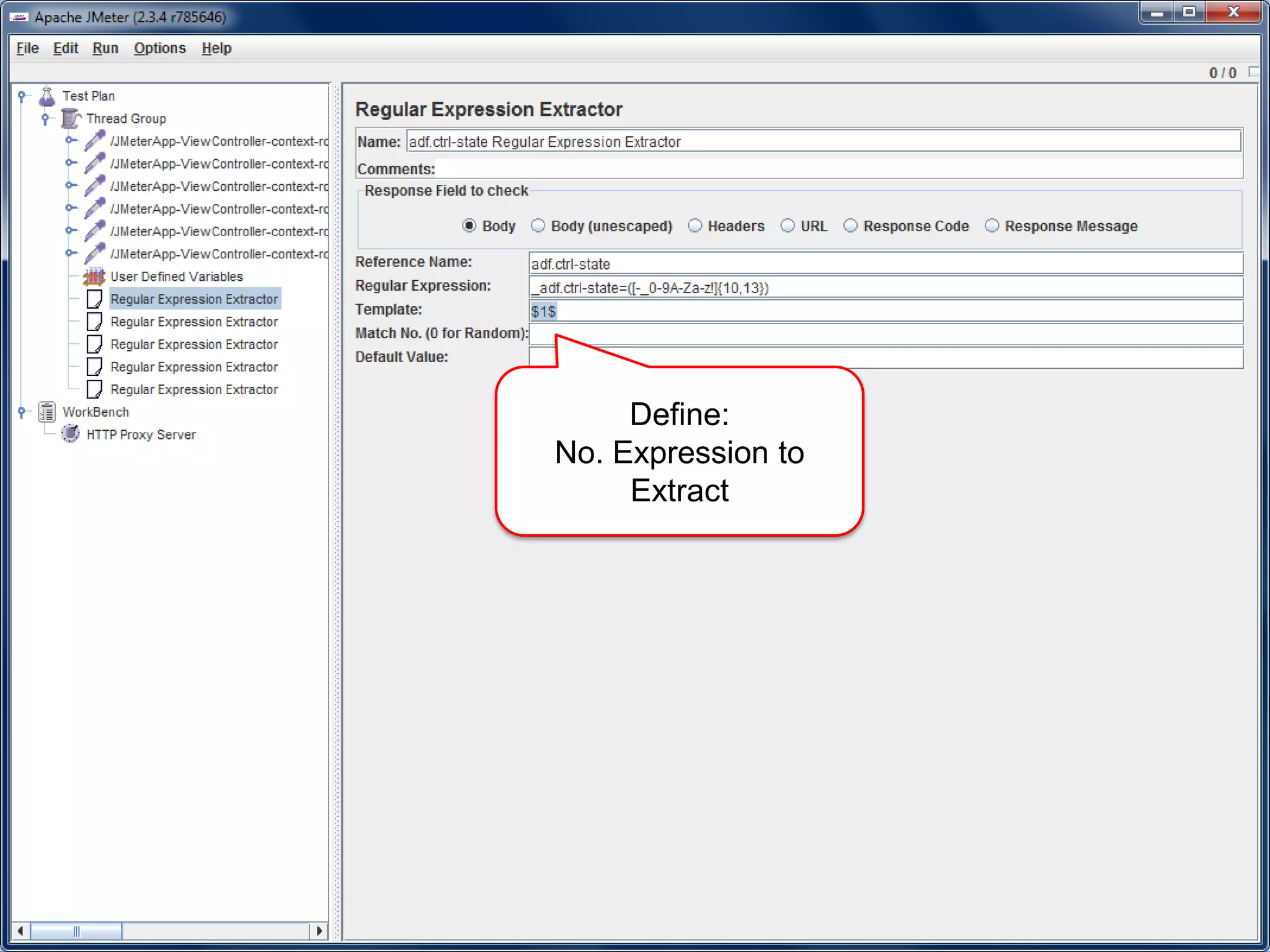

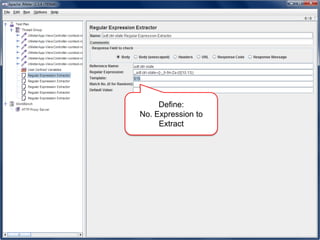

45. Define:
No. Expression to
Extract

46. Define:
Occurrence to Extract

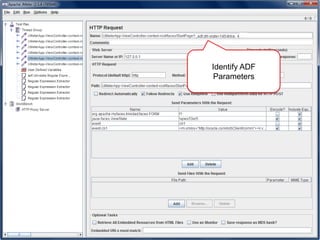

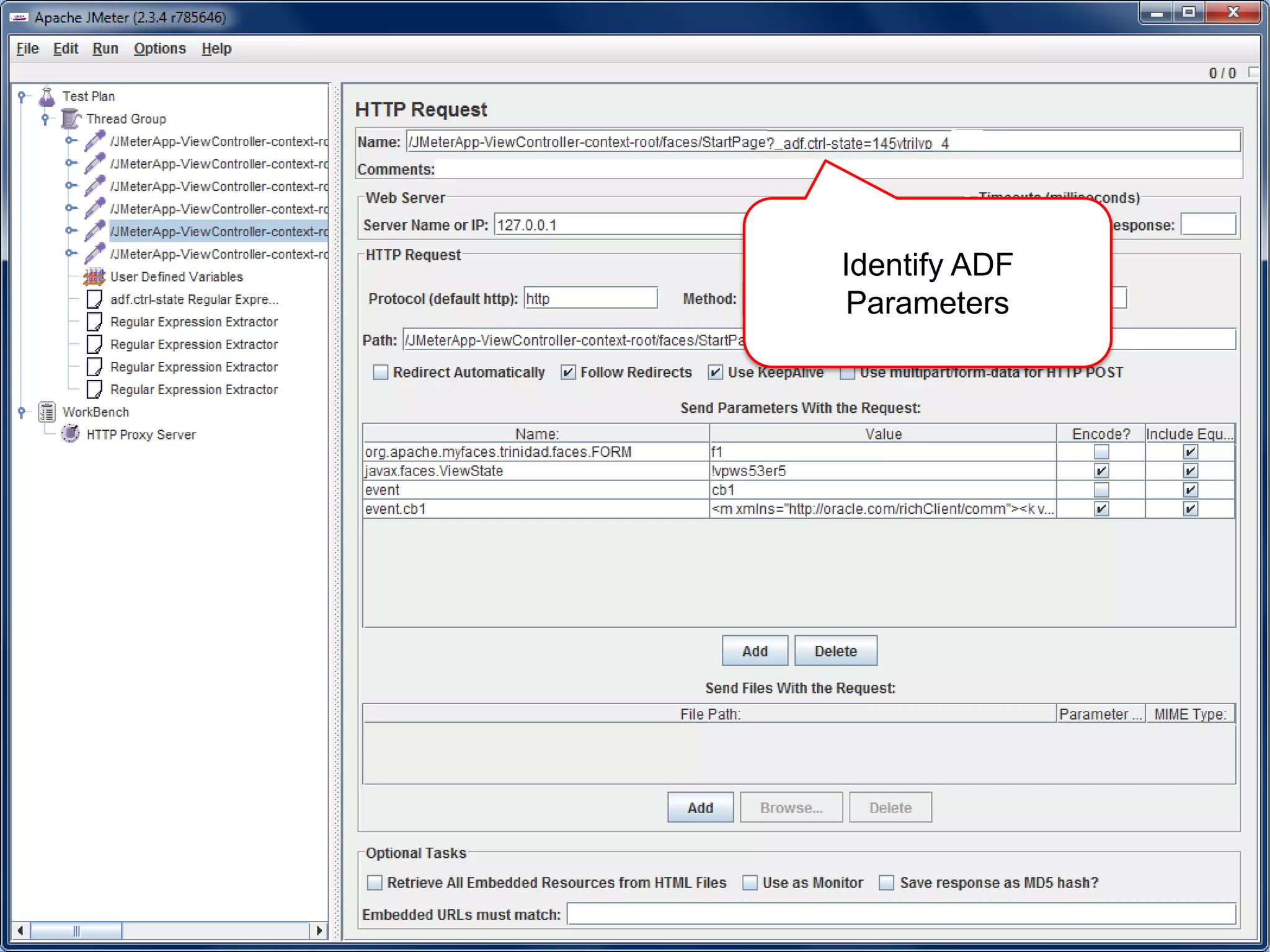

47. Identify ADF
Parameters

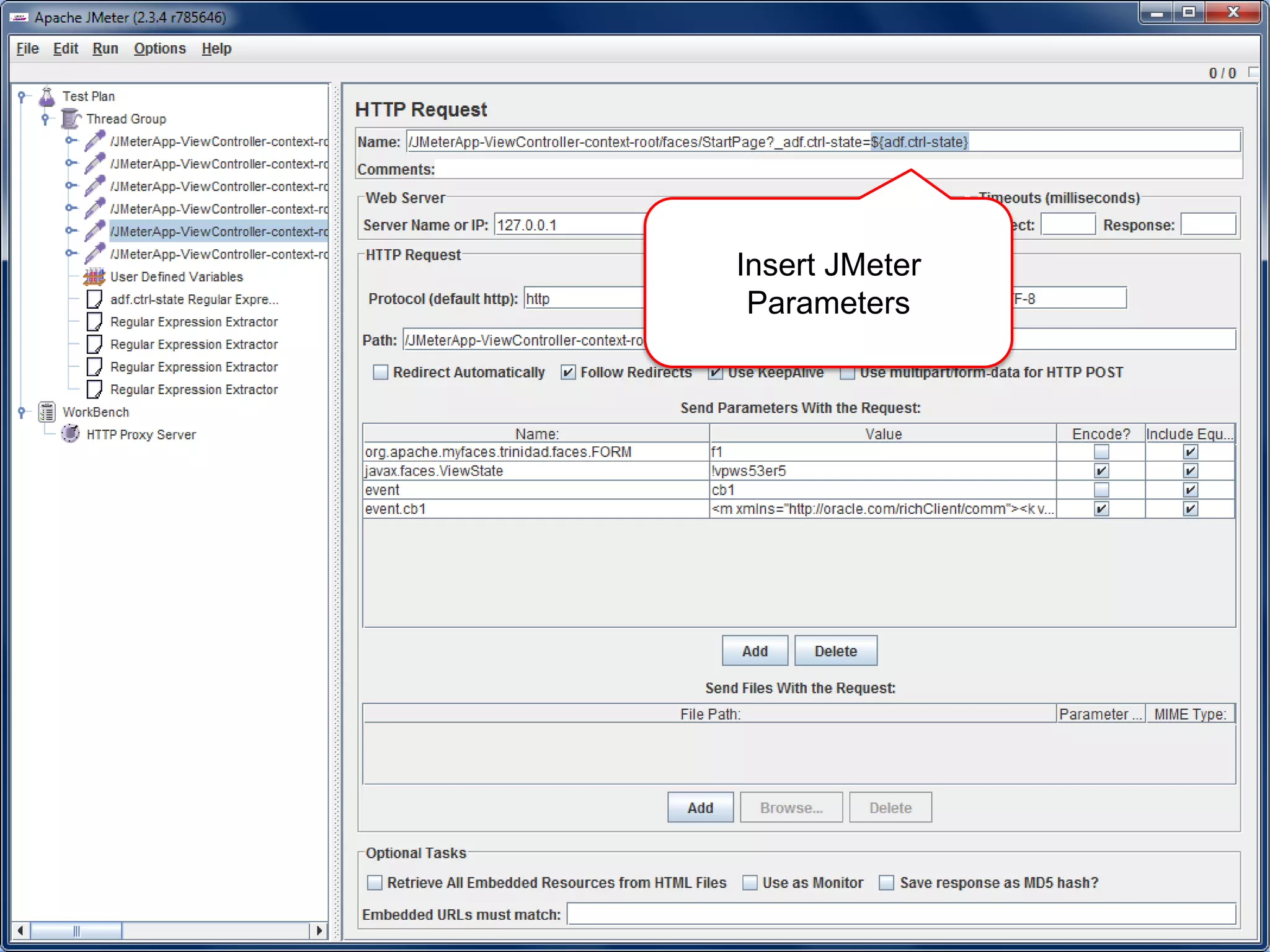

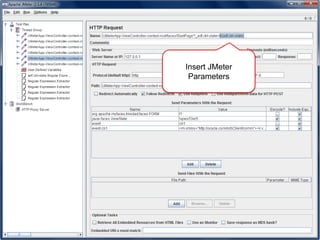

48. Insert JMeter
Parameters

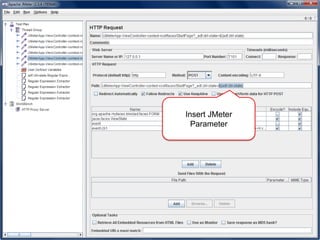

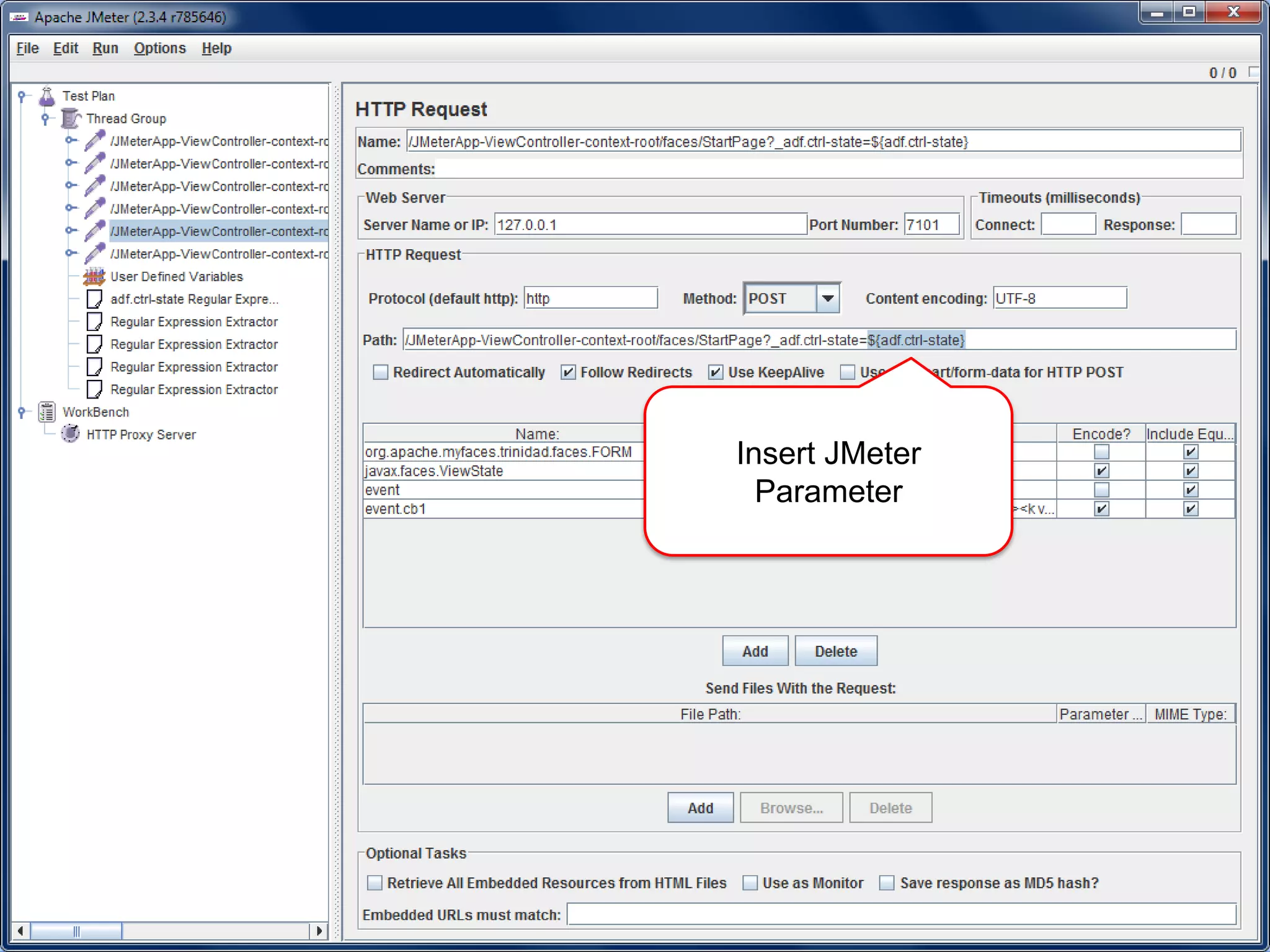

49. Insert JMeter
Parameter

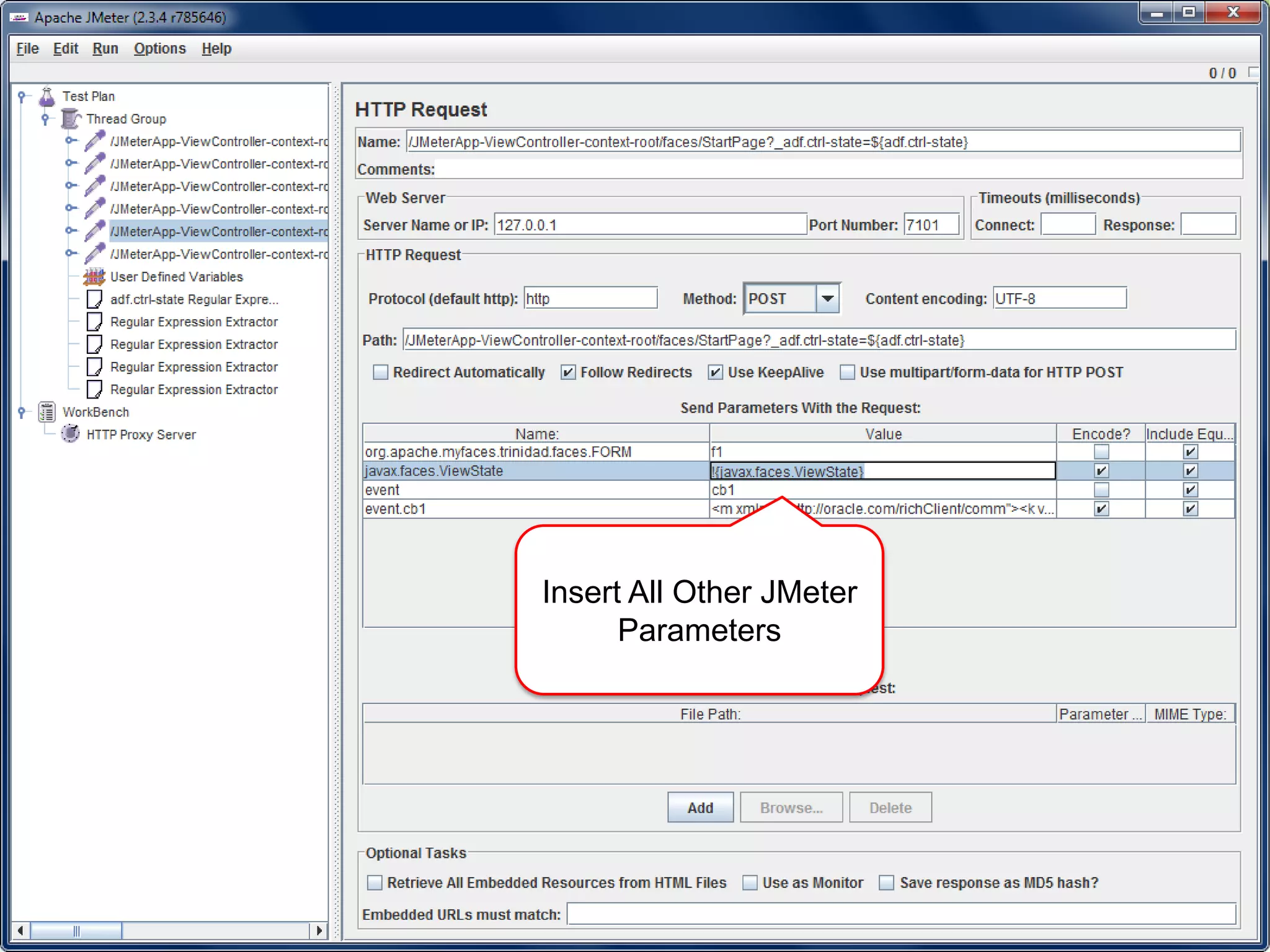

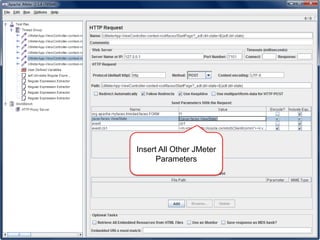

50. Insert All Other JMeter
Parameters

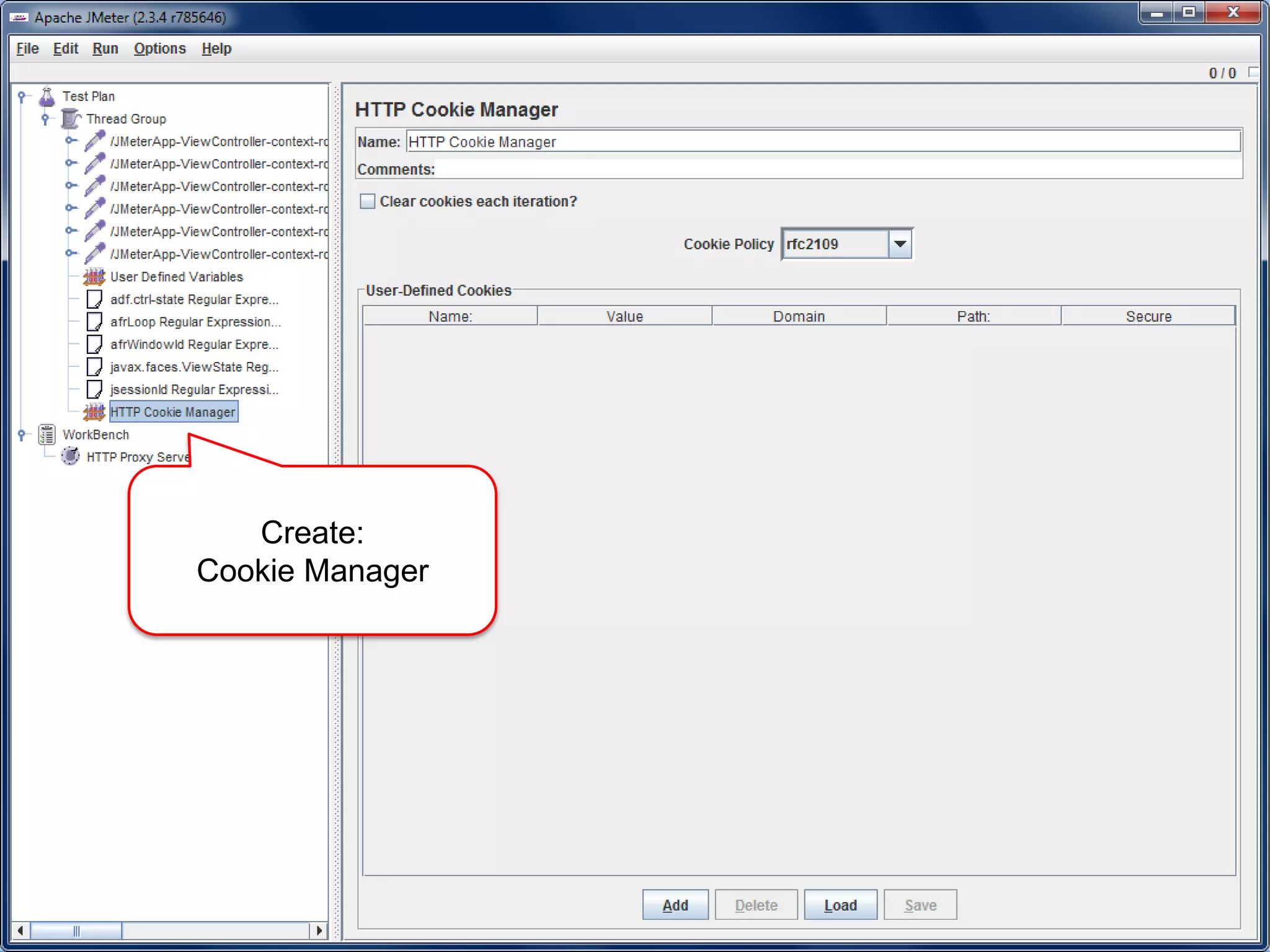

51. Create:
Cookie Manager

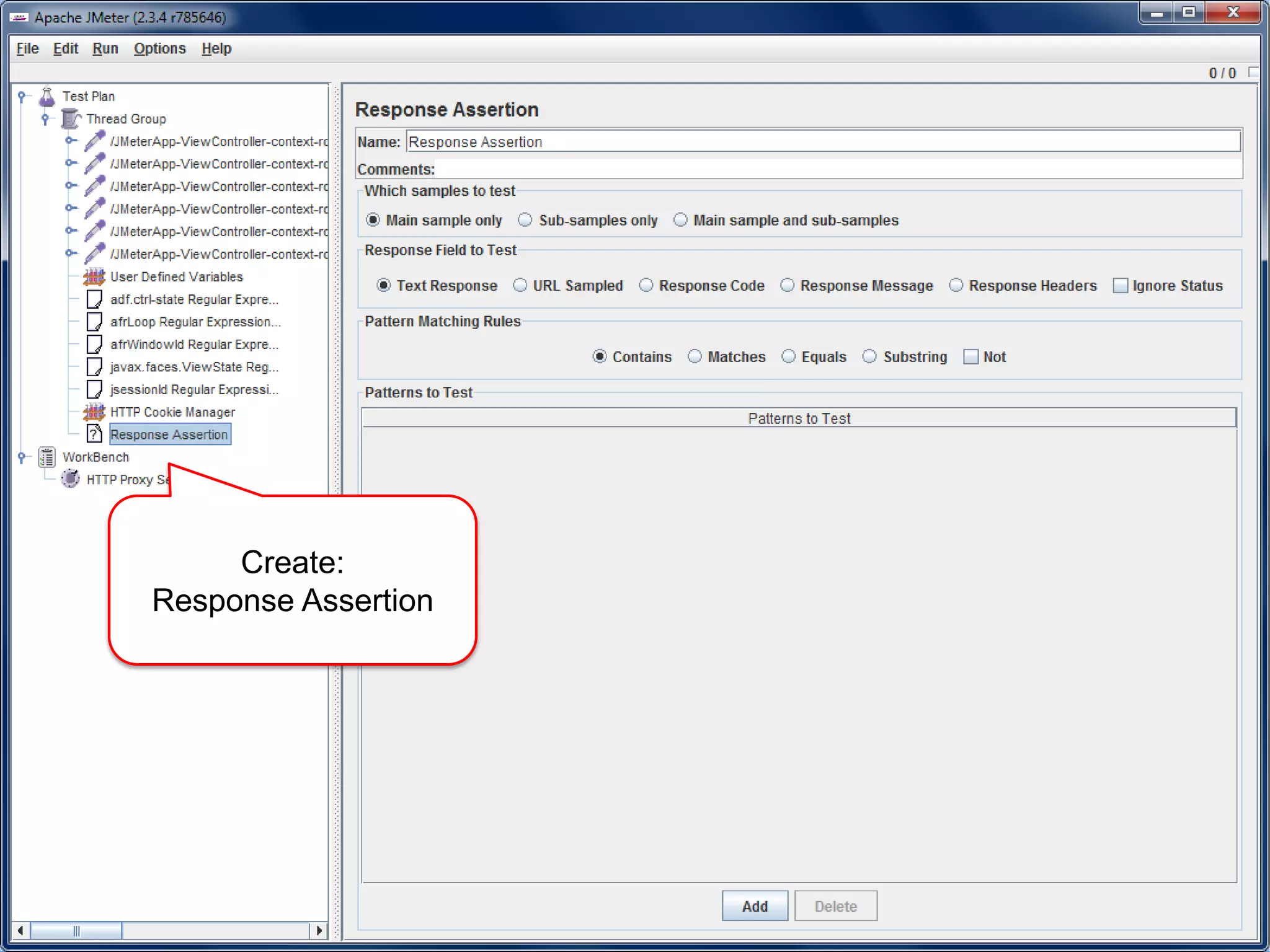

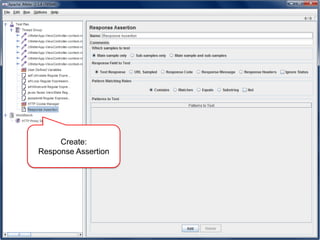

52. Create:
Response Assertion

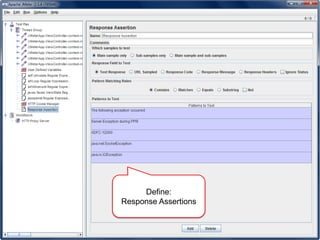

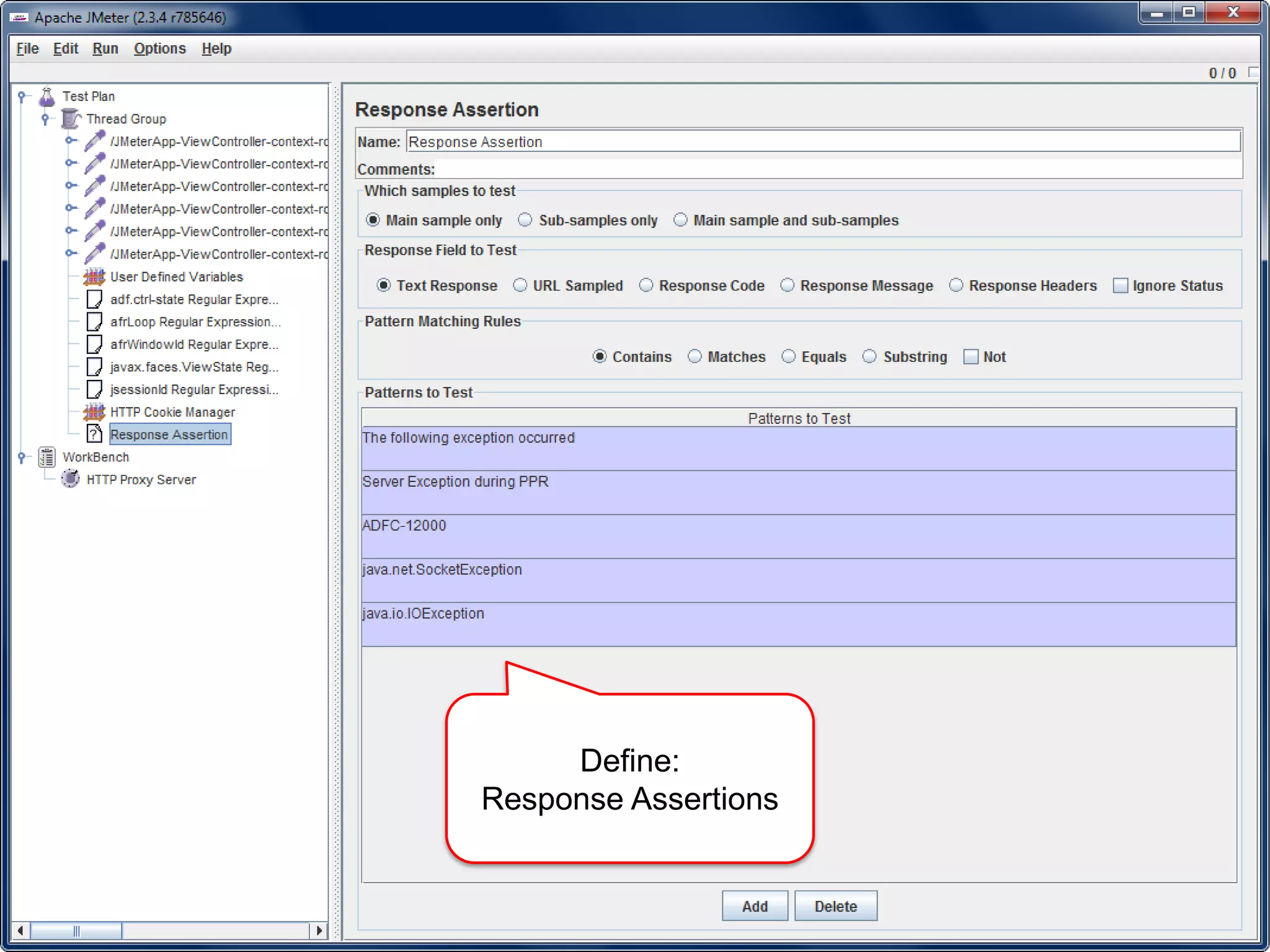

53. Define:
Response Assertions

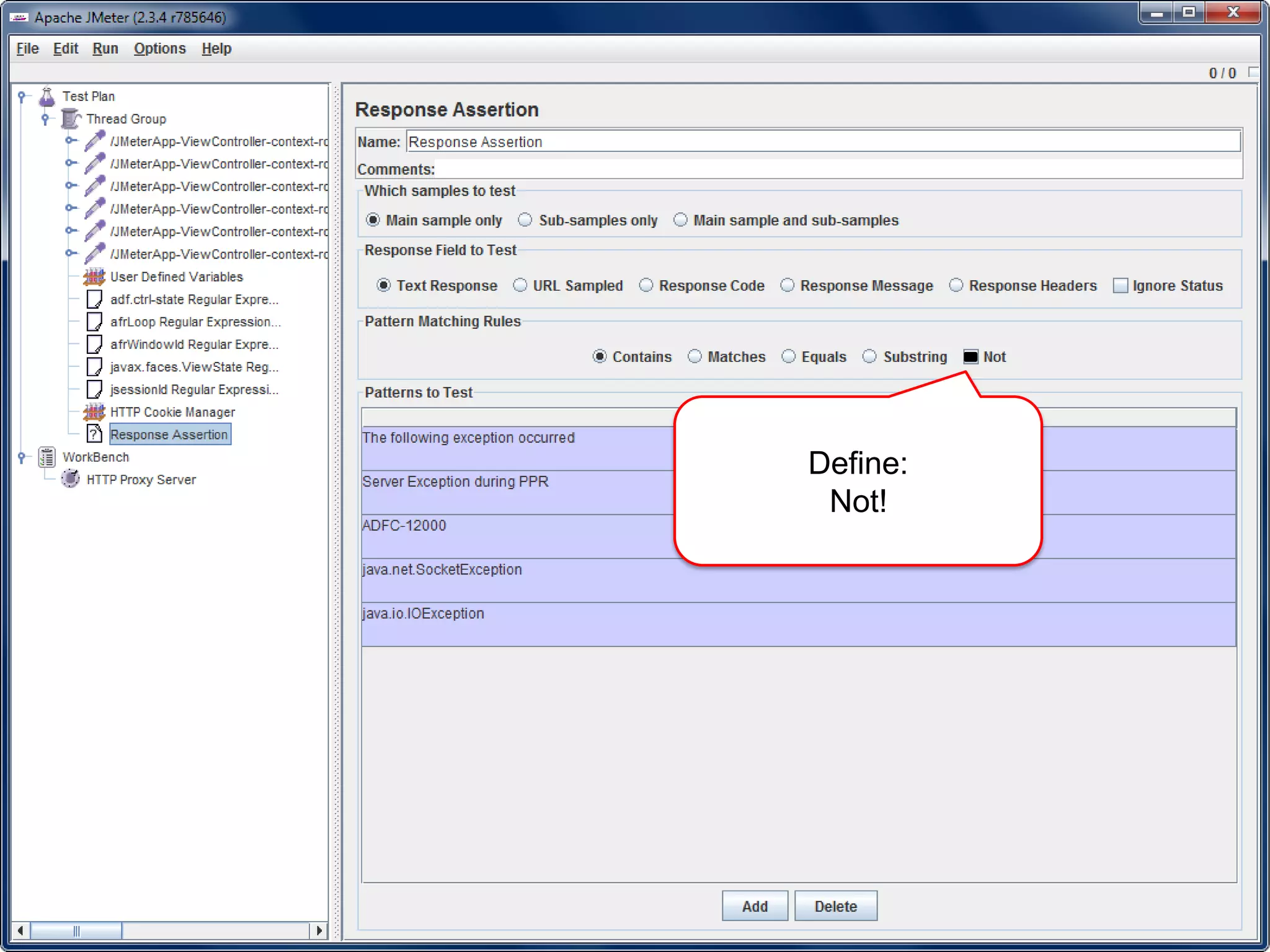

54. Define:
Not!

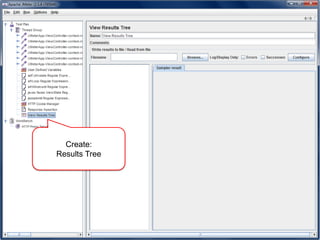

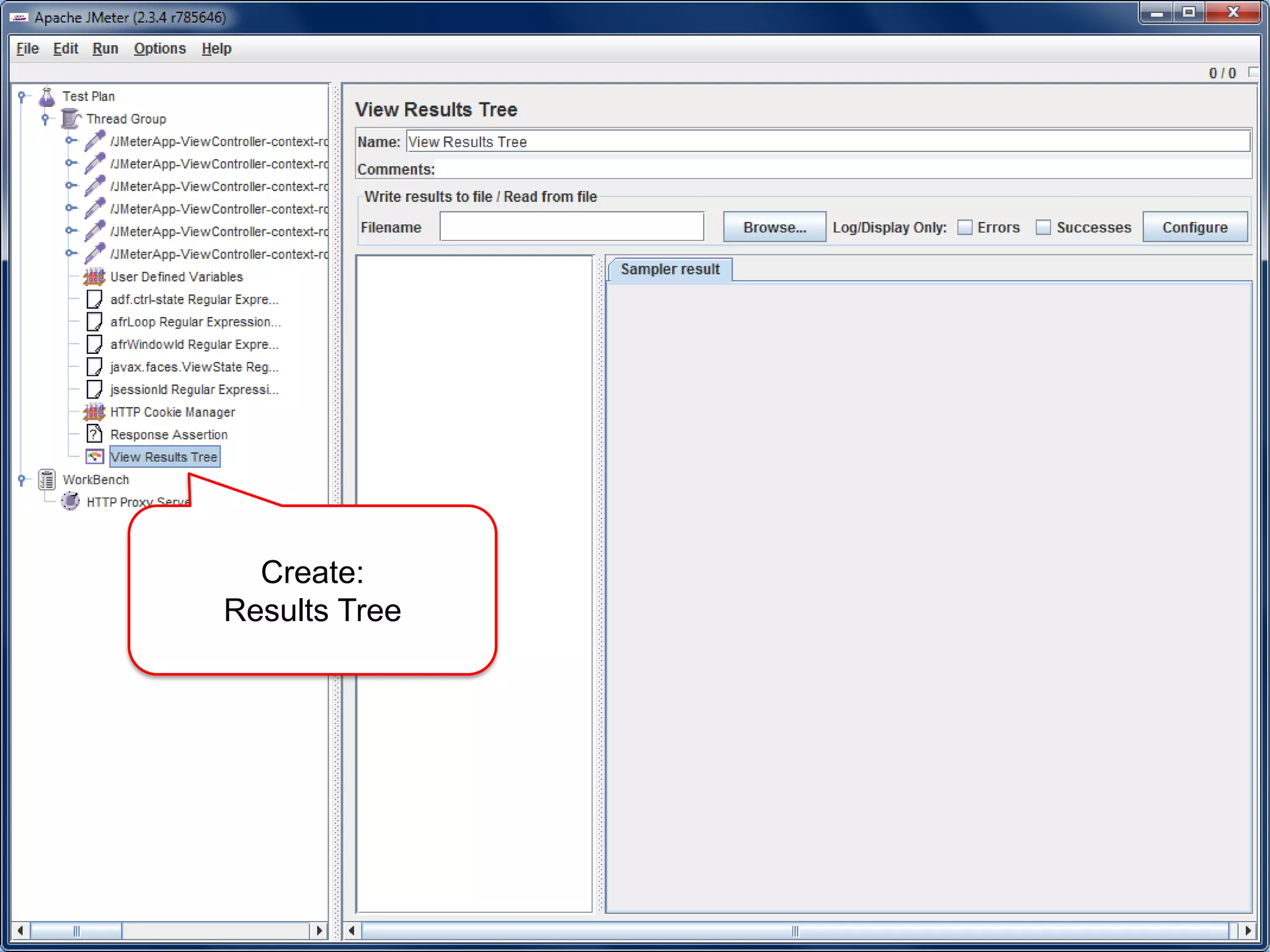

55. Create:
Results Tree

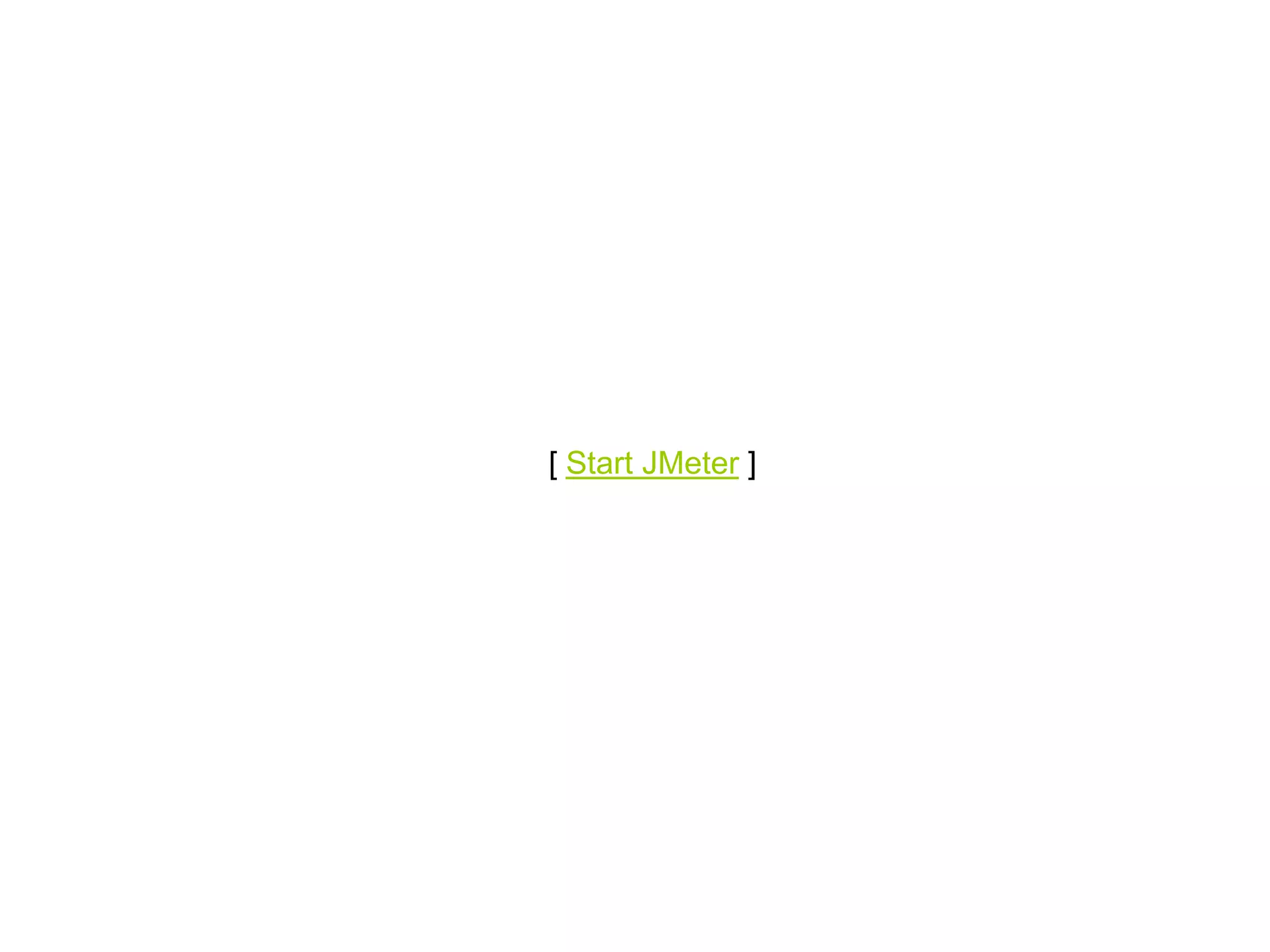

56. [ Start JMeter ]

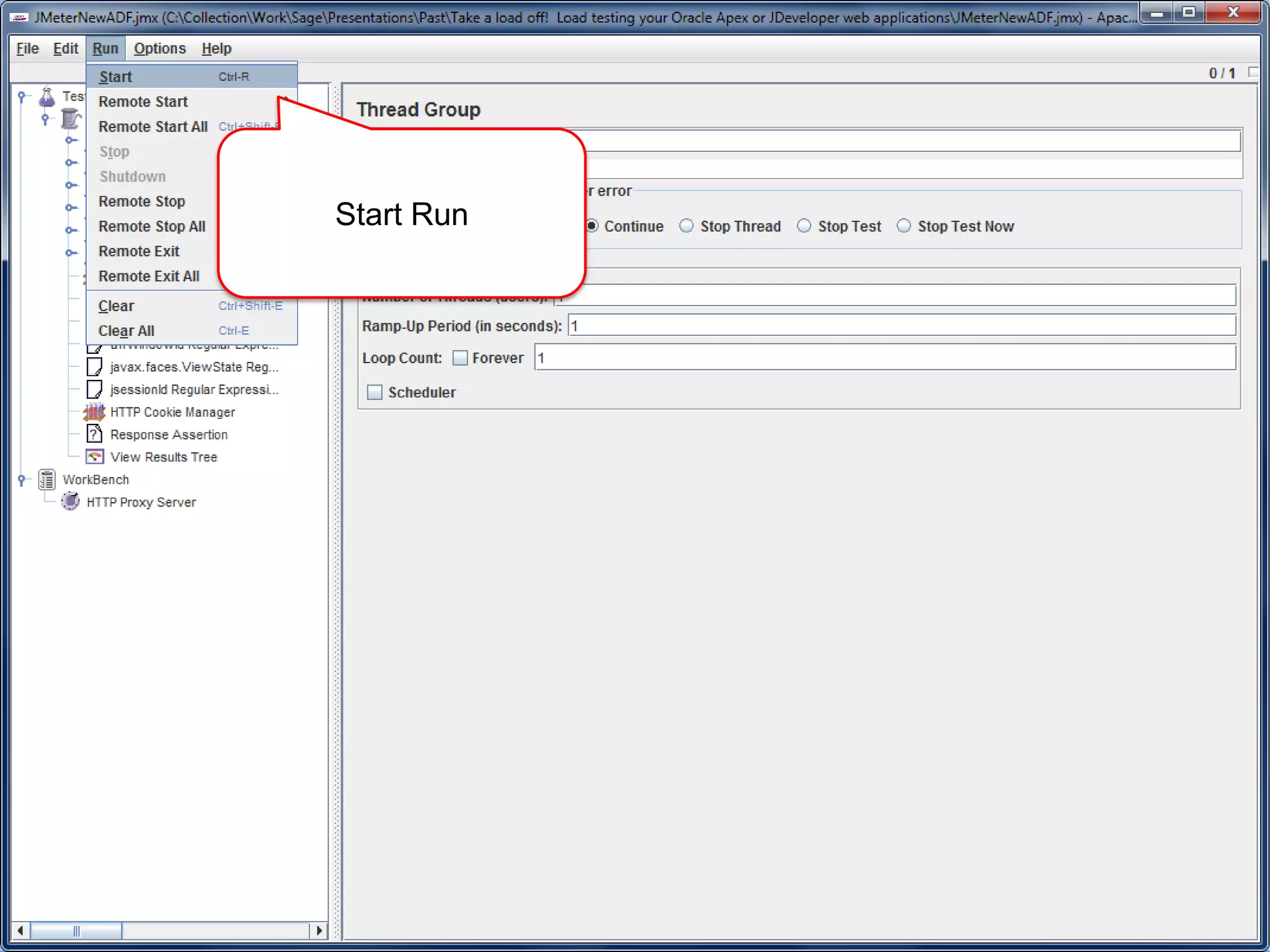

57. Start Run

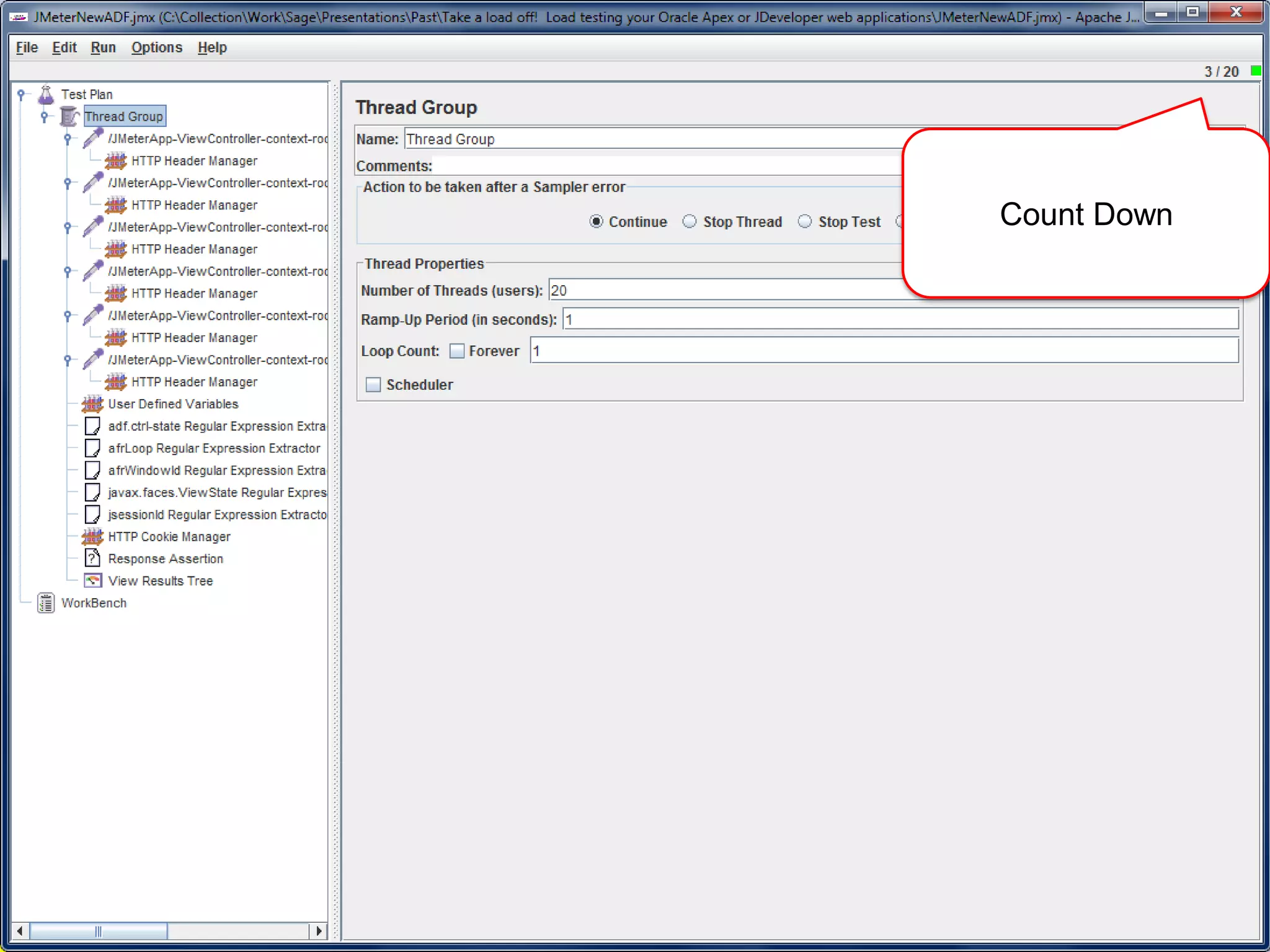

58. Count Down

59. Results

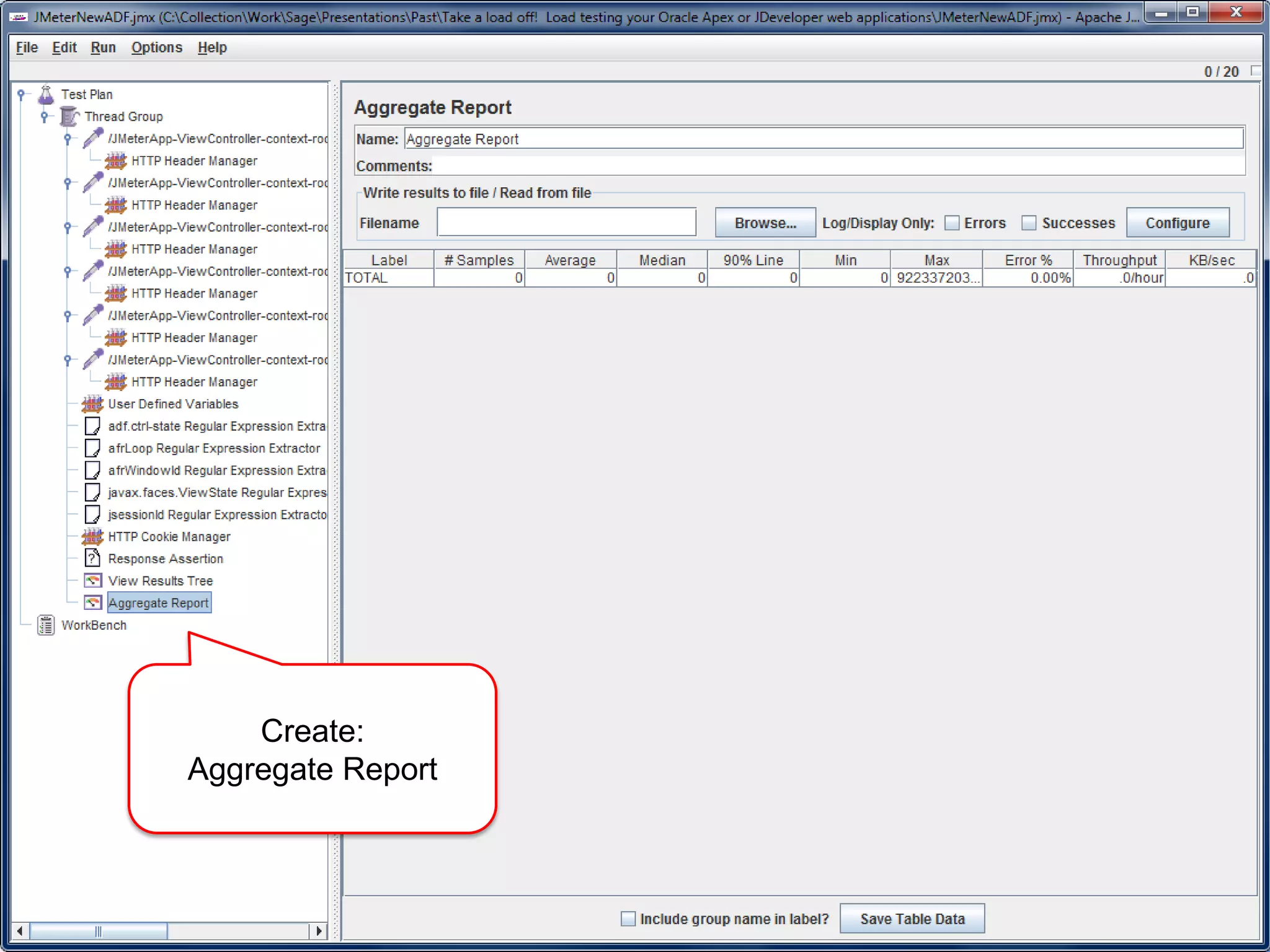

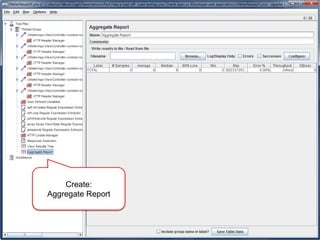

60. Create:
Aggregate Report

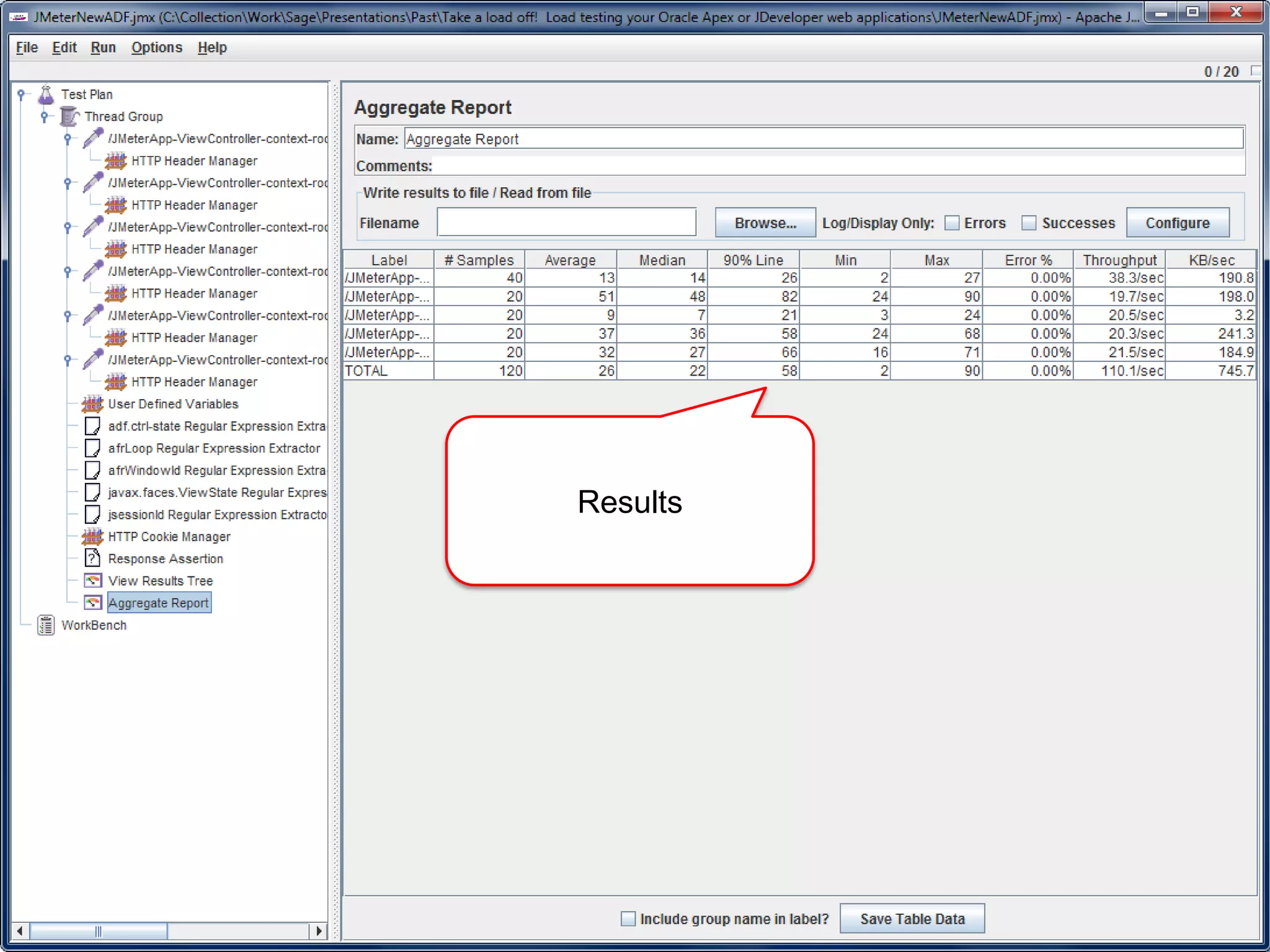

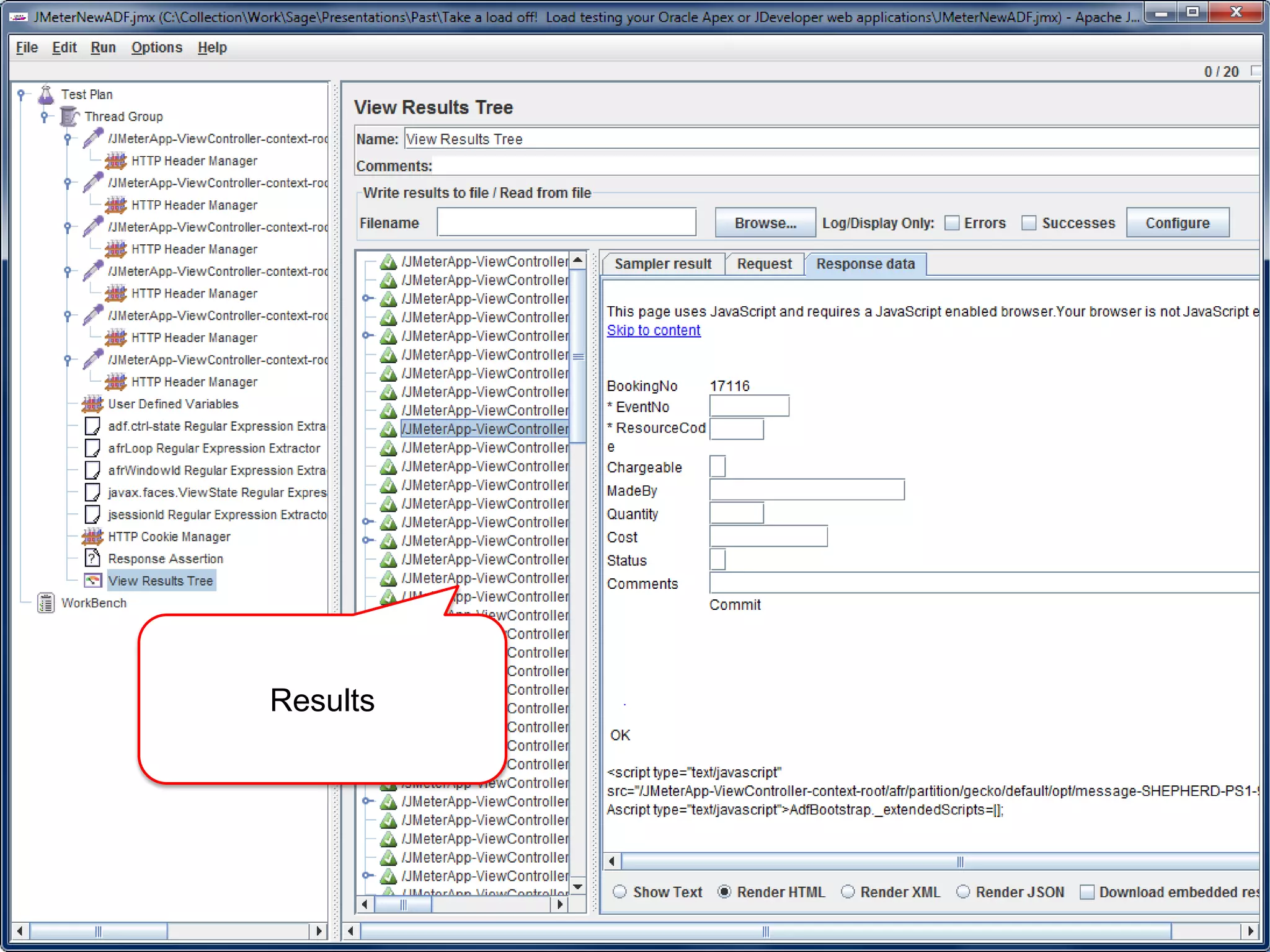

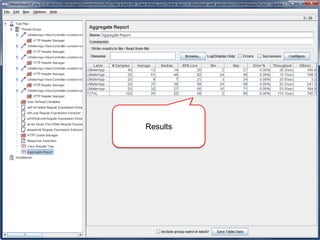

61. Results

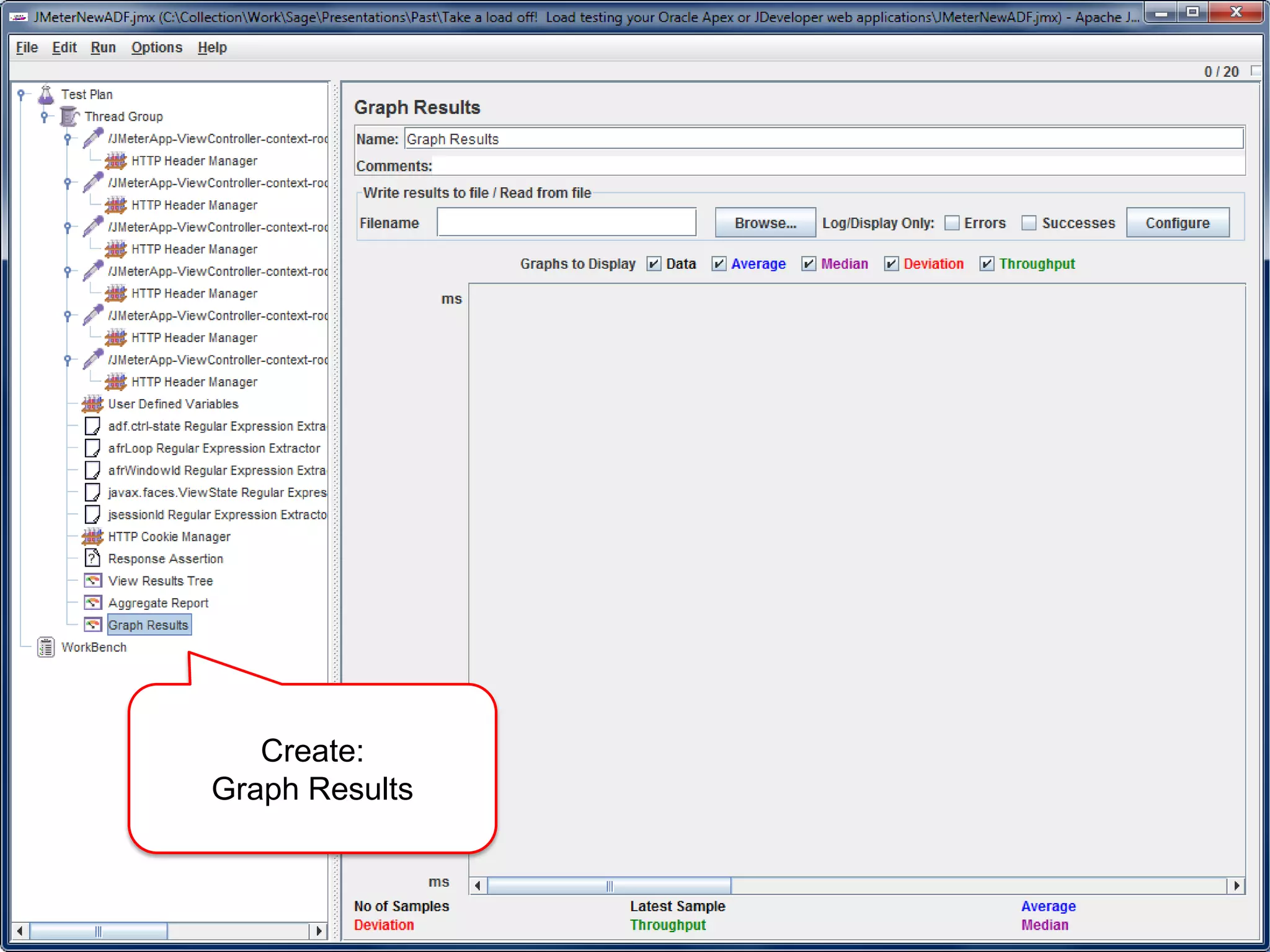

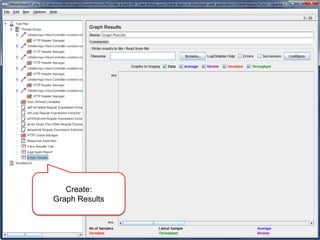

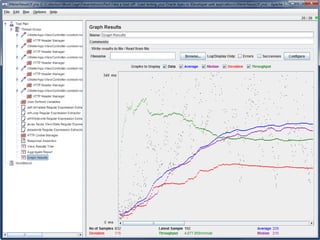

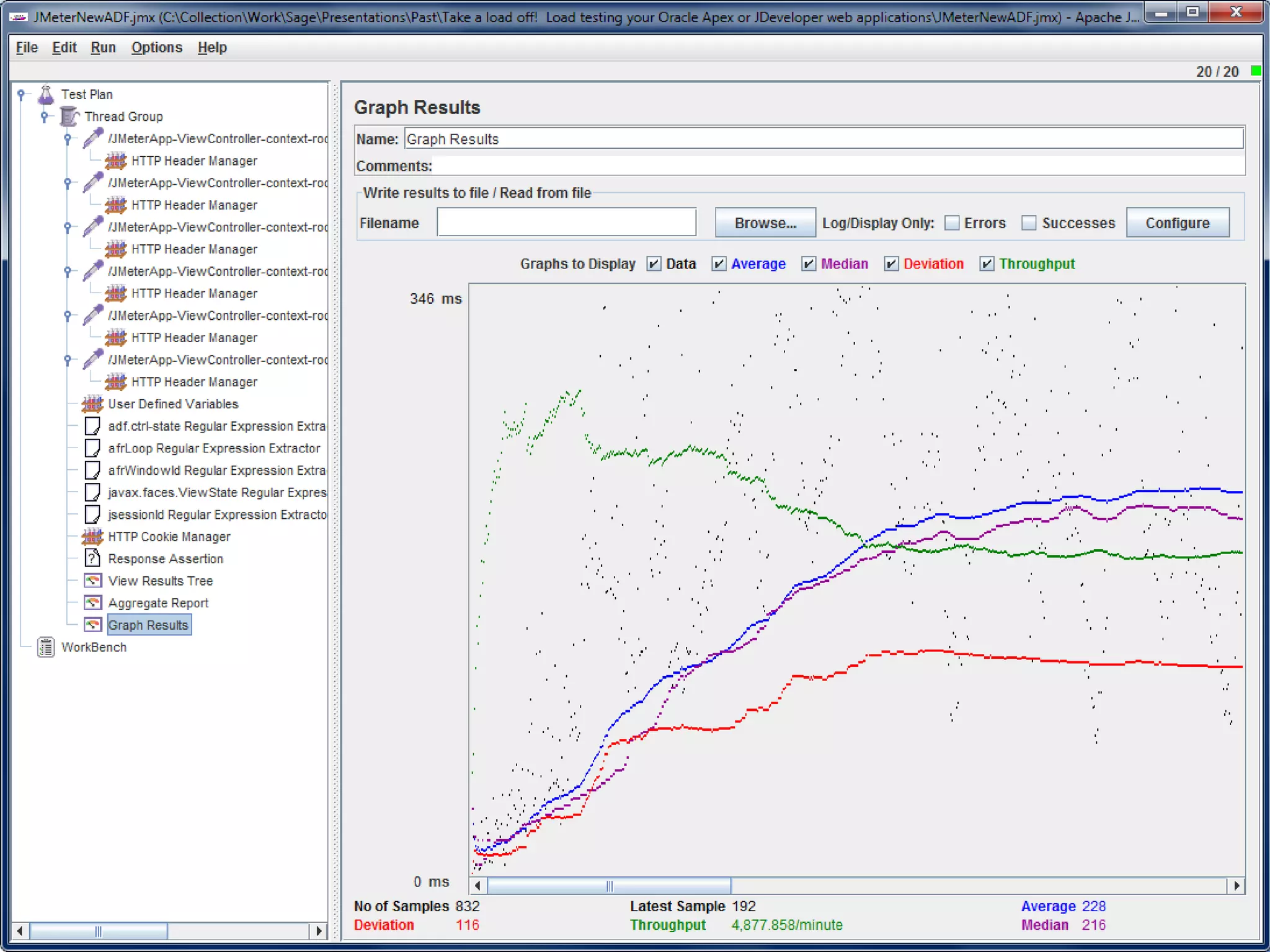

62. Create:
Graph Results

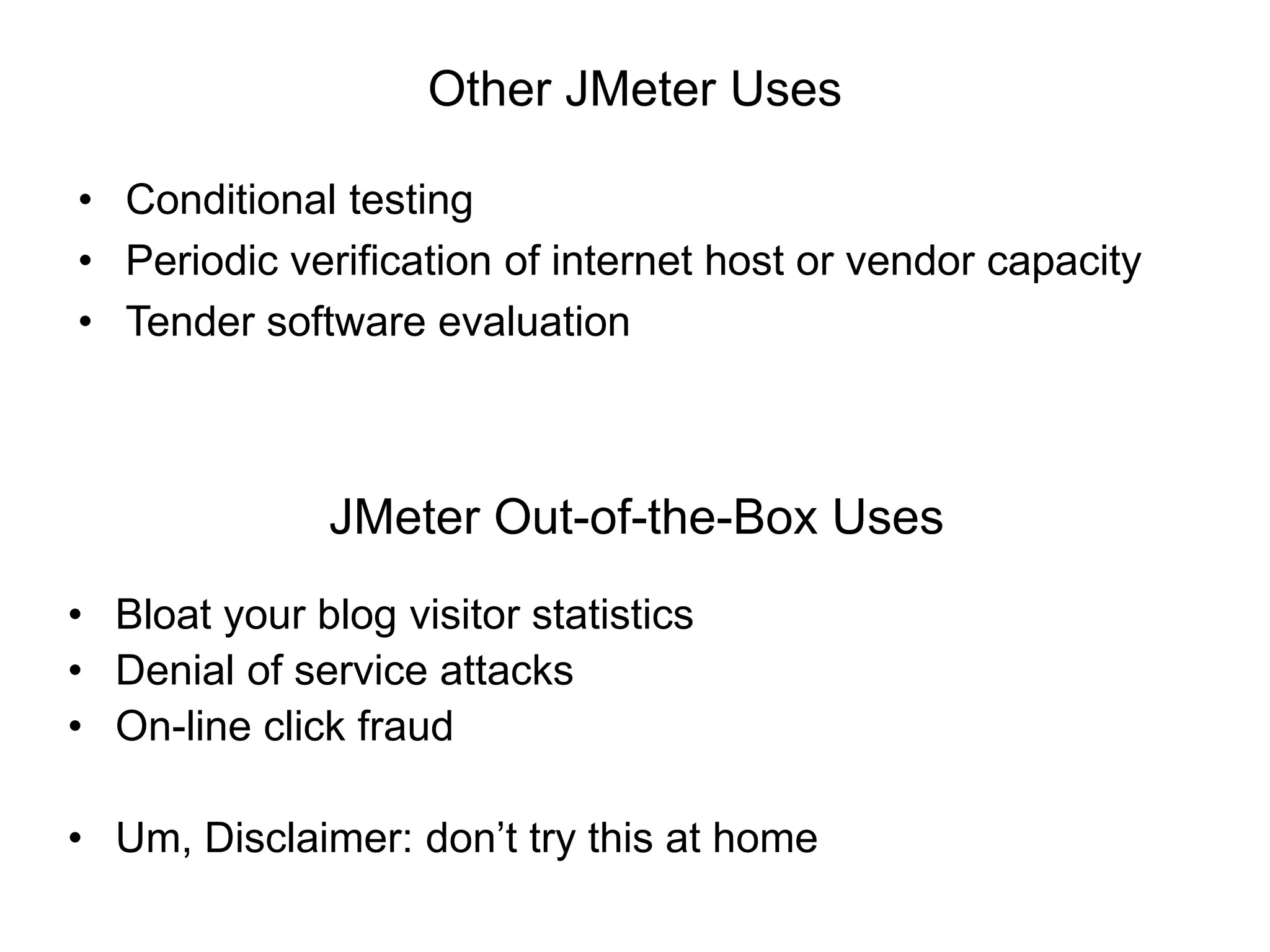

64. Other JMeter Uses
• Bloat your blog visitor statistics
• Denial of service attacks
• On-line click fraud
• Um, Disclaimer: don’t try this at home
JMeter Out-of-the-Box Uses
• Conditional testing
• Periodic verification of internet host or vendor capacity
• Tender software evaluation

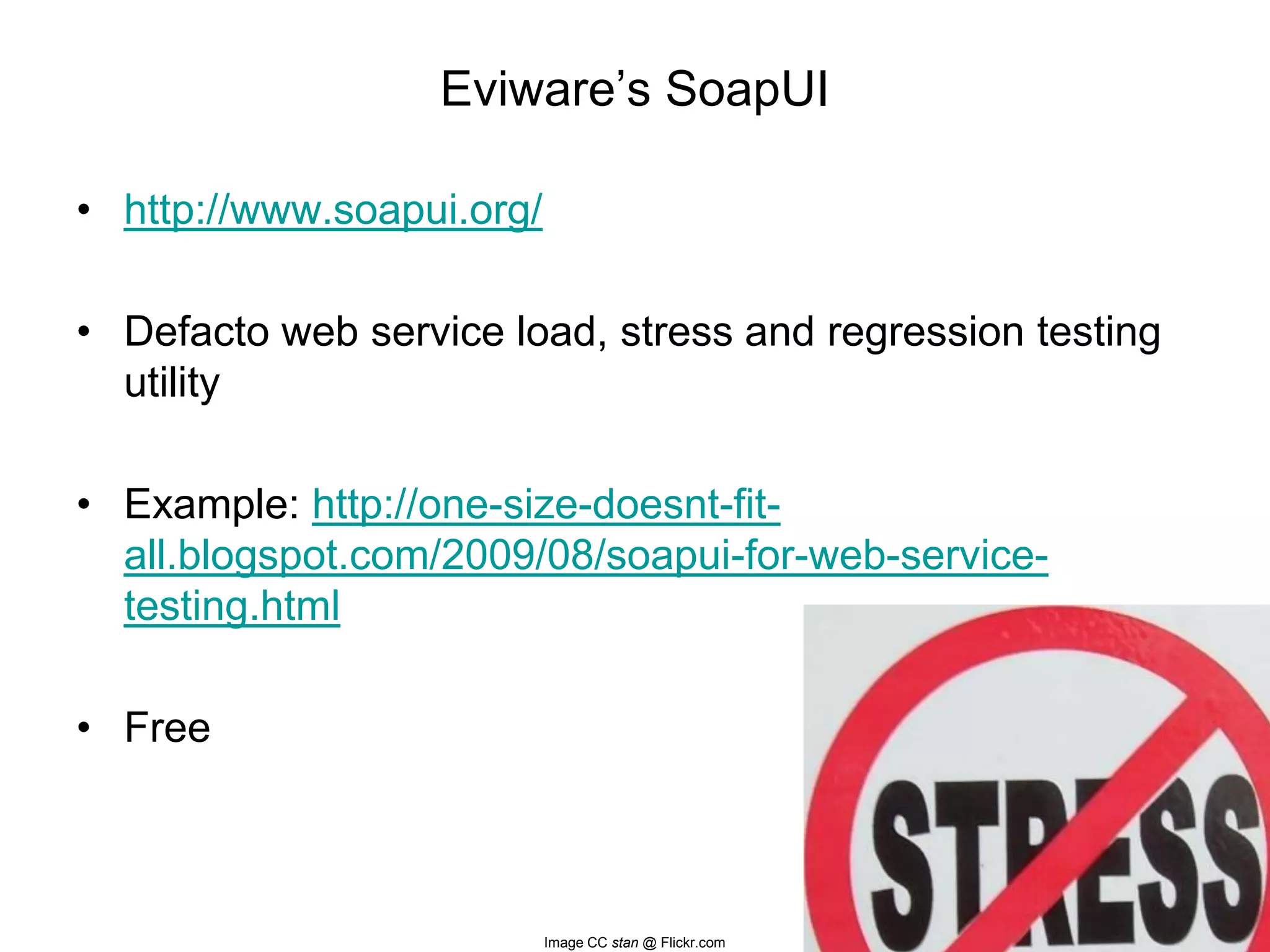

65. Eviware’s SoapUI
• http://www.soapui.org/
• Defacto web service load, stress and regression testing
utility
• Example: http://one-size-doesnt-fit-
all.blogspot.com/2009/08/soapui-for-web-service-
testing.html
• Free
Image CC stan @ Flickr.com

66. Eviware’s SoapUI Demonstration
Image isabisa @ Flickr.com

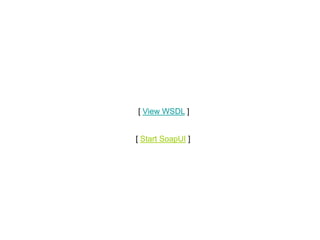

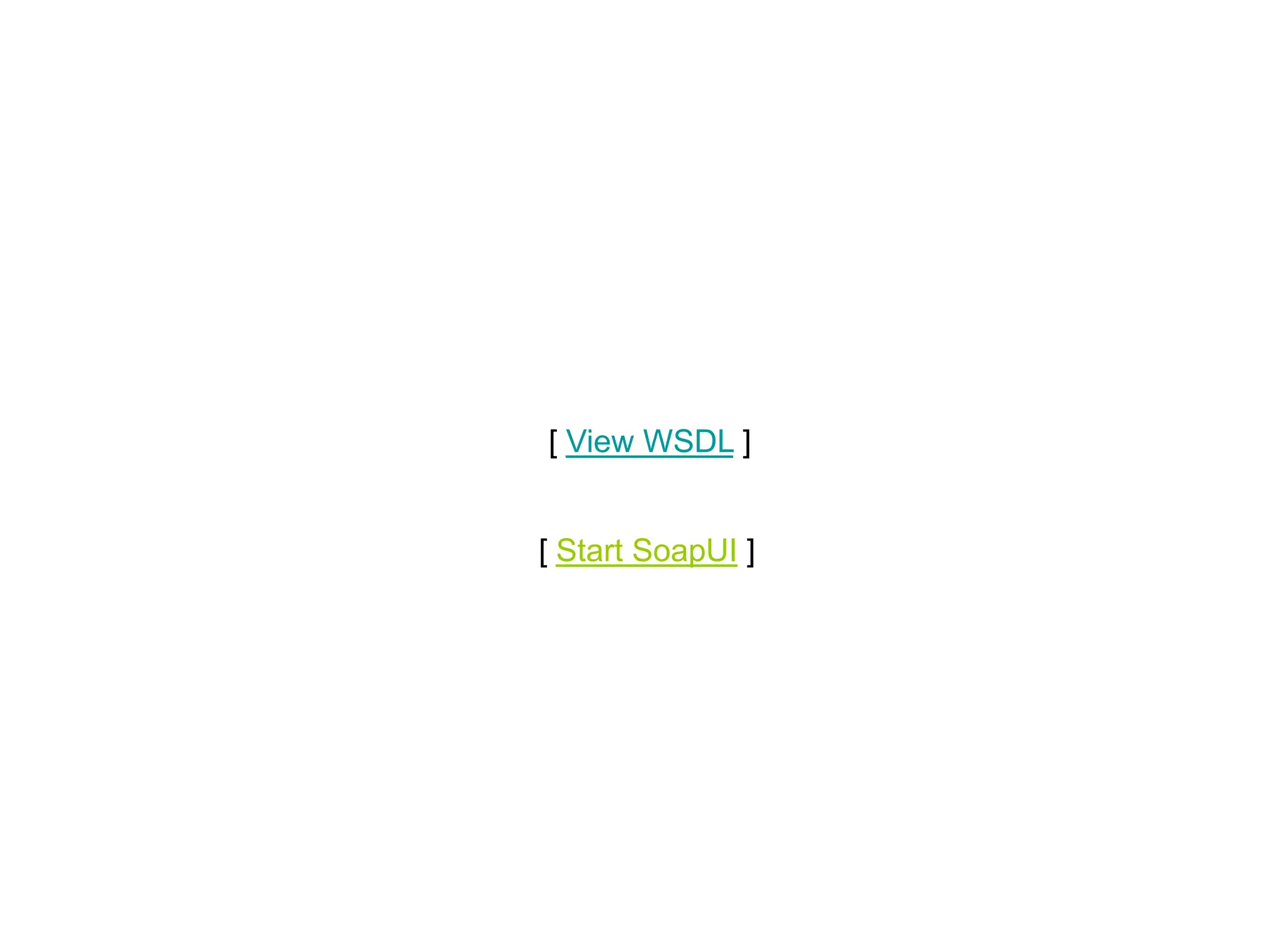

67. [ View WSDL ]
[ Start SoapUI ]

68. Image CC thornypup @ Flickr.com
