1. PRODUCED BY AN AUTODESK EDUCATIONAL PRODUCT
POUND PUPPY CONSTRUCTION
78 PAYE ROAD
SANDY CREEK, NEW YORK
315-254-6230
THIS DRAWING MAY NOT BE REPRODUCED
WITHOUT THE EXPRESSED WRITTEN
CONSENT OF POUND PUPPY CONSTRUCTION.
PRODUCED BY AN AUTODESK EDUCATIONAL PRODUCT
PRODUCED BY AN AUTODESK EDUCATIONAL PRODUCT
12 12
6 6
TOP OF BEAM TOP OF BEAM
ELEV. = 110' 0" ELEV. = 110' 0"
drawn by; TABITHA NAVARRO
FINISHED FLOOR FINISHED FLOOR checked by;
ELEV. = 100' 6" ELEV. = 100' 6" drawing no.
A-3
FINISHED GRADE FINISHED GRADE
ELEV. = 100' 0" ELEV. = 100' 0"

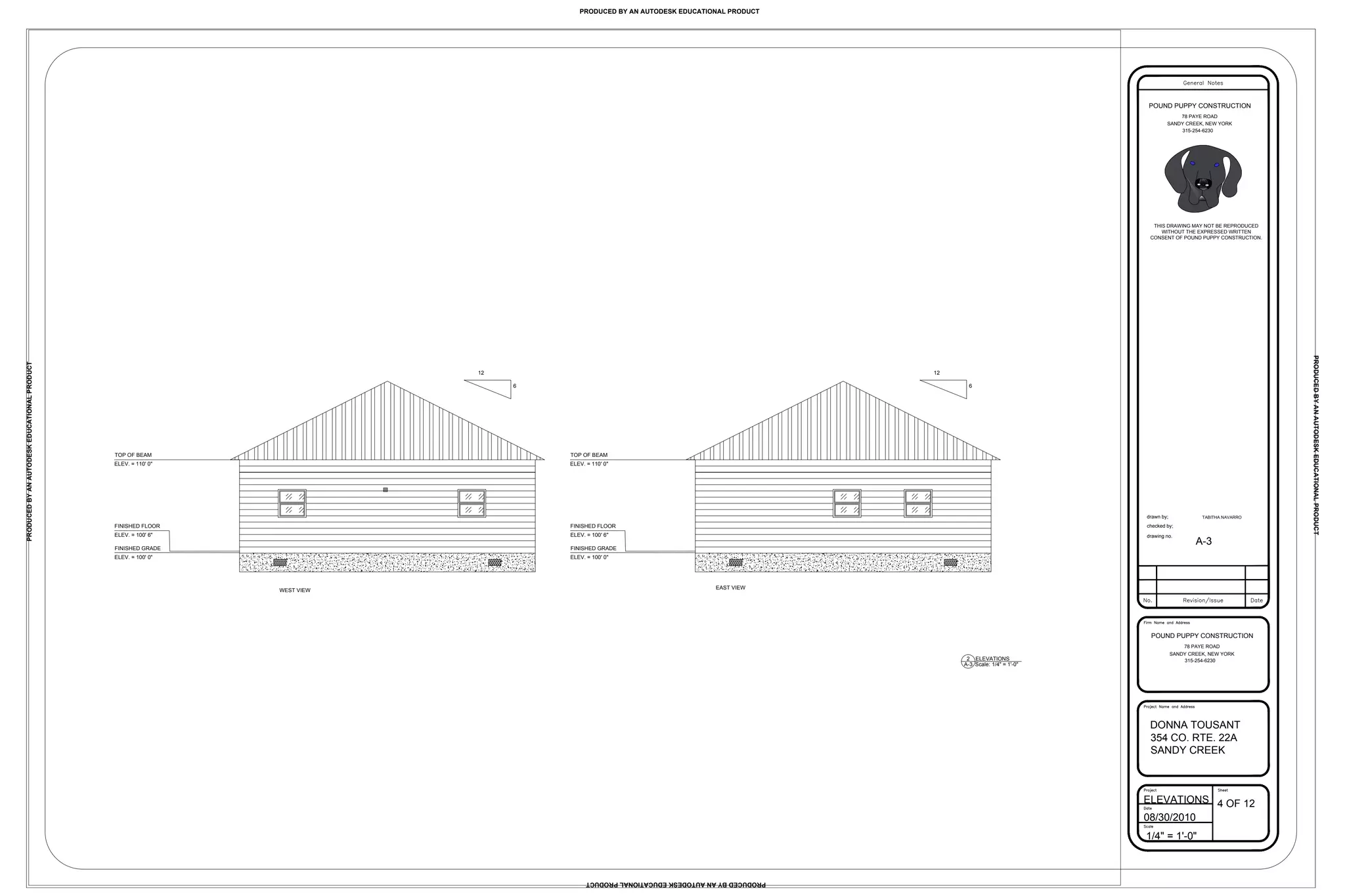

WEST VIEW EAST VIEW
POUND PUPPY CONSTRUCTION
78 PAYE ROAD
SANDY CREEK, NEW YORK
2 ELEVATIONS 315-254-6230
A-3 Scale: 1/4" = 1'-0"
DONNA TOUSANT
354 CO. RTE. 22A
SANDY CREEK
ELEVATIONS 4 OF 12
08/30/2010
1/4" = 1'-0"
PRODUCED BY AN AUTODESK EDUCATIONAL PRODUCT
