Verification
Presentation to
SystemVerilog Basic
Committee
Peter Flake
Nov 15, 2002

© 2002 Synopsys, Inc. (2) CONFIDENTIAL

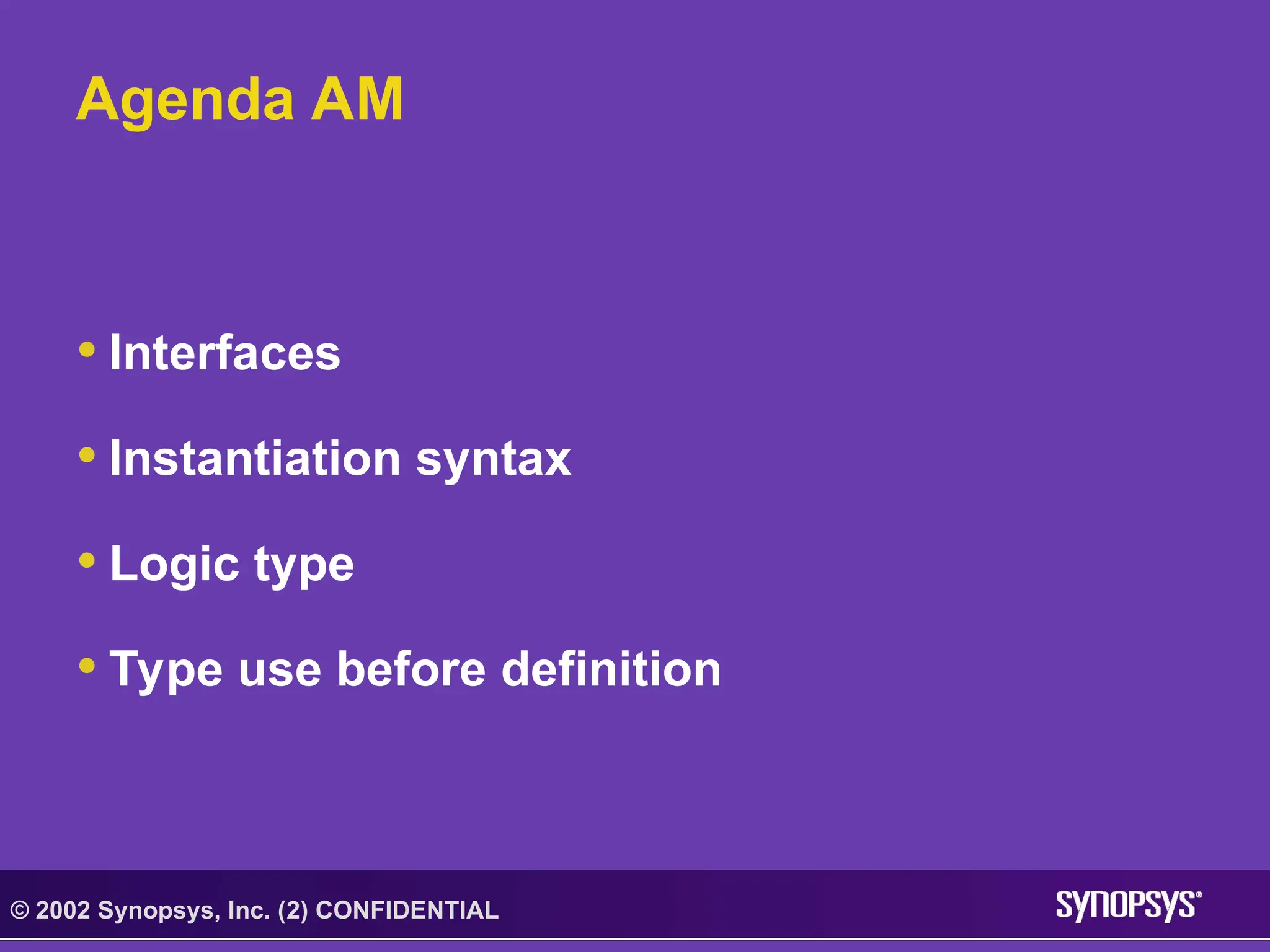

Agenda AM
• Interfaces
• Instantiation syntax
• Logic type
• Type use before definition

Interfaces
• Fundamental idea
 Modules encapsulate behavior
 Interfaces encapsulate communication
• Structural communication
 Named bundles of wires
• Procedural communication
 Prototype tasks and functions

Structural Communication
• Wires in interface default to inout
• Need to specify direction for documentation,
linting, synthesis QOR
• So introduce modports
 refer to names in enclosing interface

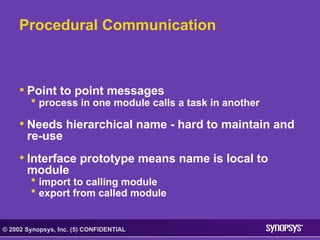

Procedural Communication
• Point to point messages
 process in one module calls a task in another
• Needs hierarchical name - hard to maintain and
re-use
• Interface prototype means name is local to
module
 import to calling module
 export from called module

Broadcast Messages
• One module sends a message and does not know
how many receive it
• forkjoin task
• Allows address to be coded in receiver module -
correct encapsulation
• Allows registration of receivers e.g. count
• No slower than fork join and task call

Slippery Slope
• How about being able to translate task calls
to values on wires?
• Put in tasks and continuous assignment
 No new scheduling semantics
• How about being able to translate signals to
task calls, and check bus activity?
• Put in always blocks

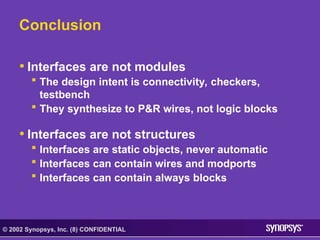

Conclusion
• Interfaces are not modules
 The design intent is connectivity, checkers,
testbench
 They synthesize to P&R wires, not logic blocks
• Interfaces are not structures
 Interfaces are static objects, never automatic
 Interfaces can contain wires and modports
 Interfaces can contain always blocks

Instantiation Syntax
• Parentheses required
moduleType instance ( );
interfaceType instance ( );

Logic Type
• Two basic communication mechanisms
 Resolved drivers - Verilog wire or VHDL signal
 Shared variable - last write wins
• Verilog reg is a mixture (legacy)
 Shared variable inside module
 Gets converted to a wire through a port
• Reals and 2 state variables (e.g. bit) must be shared
• Useful to have a 4 valued data type that behaves like
a shared variable through ports
• Must not be driven with strengths

Type Use Before Definition
• typedef foo;
• Minor convenience in SV 3.0 allows less
attention to file order
• Type checking must be at elaboration time
anyway
 parameters, generate
• Essential with classes in Testbench donation

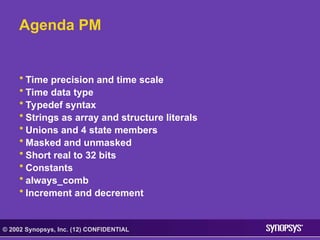

Agenda PM
• Time precision and time scale
• Time data type
• Typedef syntax
• Strings as array and structure literals
• Unions and 4 state members
• Masked and unmasked
• Short real to 32 bits
• Constants
• always_comb
• Increment and decrement

Time Precision and Time Scale
• For $root, use timeunit & timeprecision as
first thing in source.
• `timescale does not affect $root
• timeunit & timeprecision override `timescale
in their module or interface definition
• `timescale applies to any subsequent module
or interface

Time Data Type
• Time variable is a logic [63:0] for backward compatibility
• Time literal is 3.4ns
• Time literals can be considered as floating point numbers scaled to
the current time unit
• When passed as a parameter the floating point number may have to
be re-scaled
• When used in an expression the number is rounded to the current
time precision
• Only operators that are valid for reals can be used with time literals

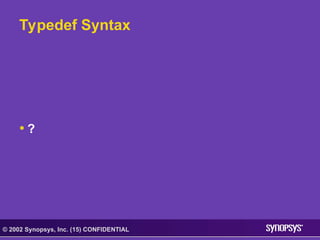

Typedef Syntax
• ?

Strings as Array and Structure Literals
• A structure member or an array element
should behave like a scalar of the same type
• A shortreal can be set to a real literal
shortreal a = 4.5
• An array can be set to a string

Unions and 4 State Members
• If a union contains a 2 state member and a 4
state member, the union is 4 state
• If the 2 state member is written and then the 4
state member is read, there is no Z or X
• Like assigment var4state = var2state

Masked and Unmasked
• Masked and unmasked are the terms in the
Superlog manual and in the Co-Design
donation
• They were changed to 4 state and 2 state by
the Accellera committee
• Some changes were missed

Short Real to 32 Bits
• Real and short real should be cast to integer
or 32 bits with rounding
• To get same bit pattern use union (like C)

Constants
• A parameter or localparam can only be set to
an expression of literals, parameters or local
parameters, or a constant function of these
• A const in a static scope can also be set to an
expression containing a hierarchical name
• A const in an automatic scope can also be set
to an expression containing arguments

always_comb
• Used to model combinational logic
 indicates design intent
 execution at time 0 is guaranteed unlike @*
• Cannot drive from anywhere else - no resolution
• Functions can be used to partition the combinational logic &
so add to sensitivity
 useful with large case statement
• No timing or event controls should be allowed

always_comb continued
• Sensitivity list should be like @* with
functions inlined
• Static function locals should be treated like
static variables in modules

Increment and Decrement
• Consider
int i = 1;
$display( "%d %d %d %d %d %d",
i++, i++, ++i, --i, i--, i-- );
• Current implementation gives 1 2 4 3 3 2
• Alternative is to limit to only one per variable
per statement like C
