1. Synchronous Kafka
Neil Buesing
Kafka Summit 2020
@nbuesing
Synchronous Commands over Apache Kafka

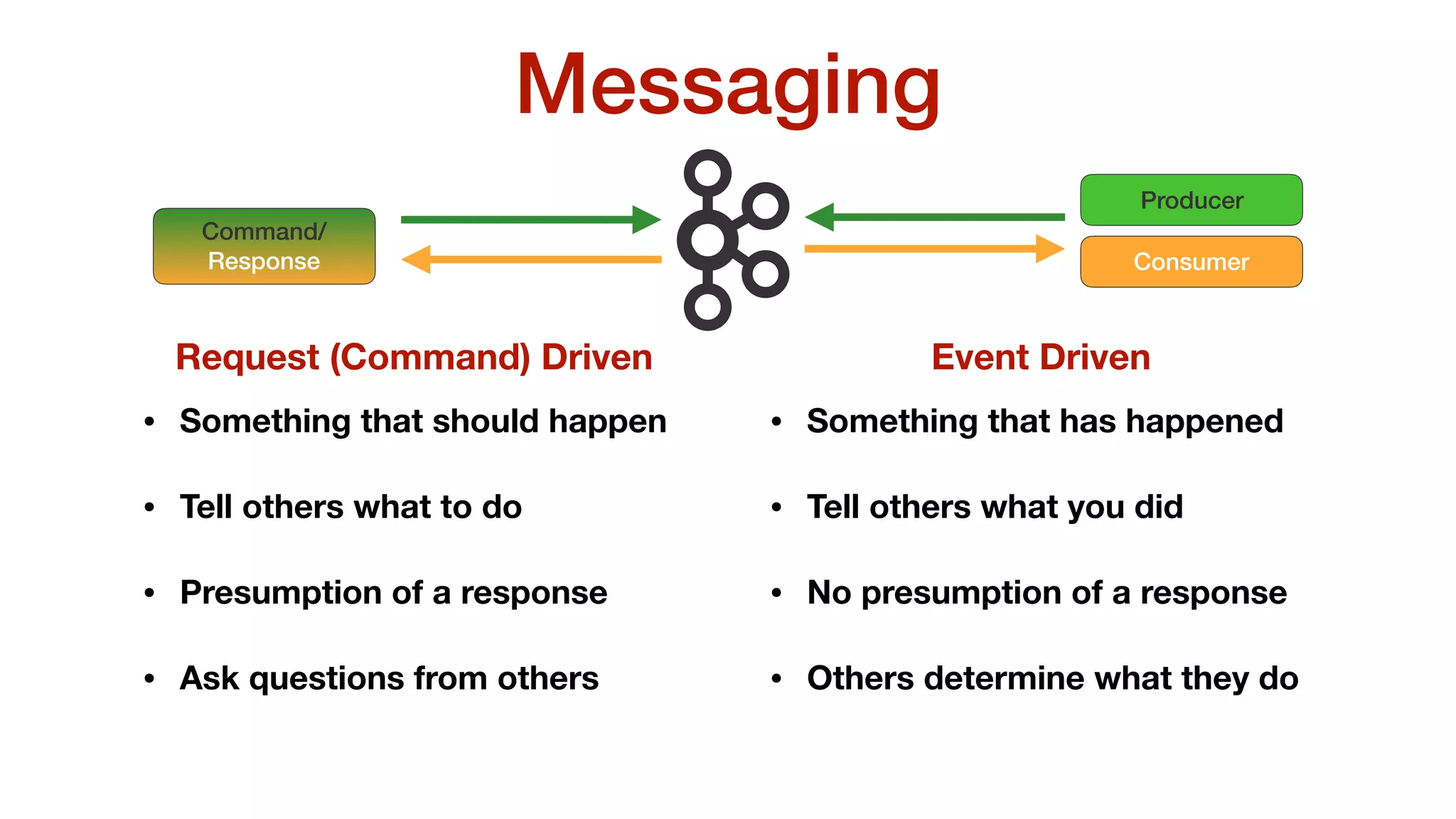

2. Producer
Messaging
Consumer
Command/
Response
• Something that should happen
• Tell others what to do
• Presumption of a response
• Ask questions from others
Request (Command) Driven
• Something that has happened
• Tell others what you did
• No presumption of a response
• Others determine what they do
Event Driven

3. Quizzer
Web
Application
Single Page
Application
Load
Balancer
Application Design
Quizzer
quiz-start
quiz-next
quiz-result
quiz-submit
Builder
questions
difficulty
quiz
quiz-status

4. API Database
Quizzer - Streams Application
Submit
Next
Result
Quiz
Users
Aggregate
(KTable)
Questions
Difficulty
Global KTable
KTable
KTable
Start
Status

5. Quizzer - Streams Application
• https://events.confluent.io/meetups
• "Building a Web Application with Kafka as your
Database", March 24th, 2020
• "Interactive Kafka Streams", May 21st, 2020

6. Load
Balancer
Web
Application
Web Application Design
Http Status
Request (Command) Driven Event Driven

7. Web
Application
Web Application Design
202
Accepted
200
OK
Event Driven Design
This is not always possible

8. Web
Application
Web Application Design
200 OK
201 CREATE
Blocking / Command Driven Design
When redesign is not an option
• Websockets
• Server Sent Events

9. Web
Application
Web Application Design
202
Accepted
CQRS / Command Driven Design
200
OK

10. Web
Application
Web Application Design
202
Accepted
200
OK
CQRS / Command Driven Design

11. Command Driven Design
the legacy app / blocking

12. The Legacy App
Web
Application
200
OK
200
OK
• How do you block in the web
application?
• How do you ensure the correct
web application instance that
publishes to Kafka is able to
consume the response topic.
Legacy Application, expects 200/OK Response
Blocking

13. Blocking
waiting for the response

14. Blocking Options
• Techniques to block for a response message in a
JVM Application.
• Countdown Latch
• Deferred Result (Spring MVC)

15. Blocking - Countdown Latch
• Algorithm
• Publish to Kafka
• Block on Latch
• Release Latch (Consumer from Kafka in separate thread)

16. Blocking - Countdown Latch
Object waitForResponse(String requestId) {
CountDownLatch l = new CountDownLatch(1);
CountDownLatch racer = latchByRequestId.putIfAbsent(requestId, l);
if (racer != null) l = racer;
//block
boolean success = l.await(timeoutMs, TimeUnit.MILLISECONDS);
if (success) {
//remove response from shared map
return responseByRequestId.remove(requestId);
} else {
throw new CorrelationException("Timeout: " + requestId);
}
}

17. Blocking - Countdown Latch
void addResponse(String id, Object response) {
CountDownLatch l = new CountDownLatch(1);
CountDownLatch r = latchByRequestId.putIfAbsent(id, l);
if (r != null) l = r; //usually
//make response available for blocking thread
responseByRequestId.put(id, response);
l.countDown(); //unblock
}

18. Blocking - Countdown Latch
• Pros
• Standard Java code Java code (since 1.5)
• Can be used anywhere
• Cons
• Blocks request thread
• Limits incoming requests (Servlet Container)
• Increases resource consumption

19. Blocking - Deferred Result
• Offloads to secondary thread
• Less coding
• Specific to Spring MVC
• CompletableFuture interface supported
• Other Web frameworks have this too

20. Blocking - Deferred Result
Cache<String, DeferredResult> cache =
CacheBuilder.newBuilder().maximumSize(1000).build();
DeferredResult waitForResponse(String requestId) {
DeferredResult deferredResult = new DeferredResult(5000L);
cache.put(requestId, deferredResult);
return deferredResult; //no actual waiting here, spring does that.
}

21. Blocking - Deferred Result
void addResponse(String requestId, JsonNode resp) {
DeferredResult result = cache.getIfPresent(requestId);
if (result != null) {
ResponseEntity<JsonNode> content = new ResponseEntity<>(resp, OK);
result.setResult(content); //unblocks response
cache.invalidate(requestId);
}
}

22. Consuming
consume from same instance

23. Solutions
• Single Topic & consumer.assign()
• Topics for each Web Application
• Single Topic & consumer.subscribe()

24. Consuming Response Topic
Web
Application
quiz-next-0
quiz-submit
200
OK
quiz-next-1
quiz-next-2
quiz-next-3
Single Topic
consumer.assign()

25. Consuming - 1 Topic & Assignment
• every Web Application assigns themselves to all partitions
• request-id in Kafka Header
• response topic must have header (automatic in Kafka Streams)
• key free for other uses, doesn't have to be the request-id
• all web applications get all messages
• discard messages where request-id doesn't exist
• don't deserialize key/value before checking header

26. Consuming - 1 Topic & Assignment
• Pros
• Can spin up additional web-applications w/out creating
topics
• Not limited to the number of partitions
• Correlation ID (request Id) does not have
to be key.
• No pause with a consumer group rebalancing.

27. Consuming - 1 Topic & Assignment
• Cons
• Every Web Application has to consume ever message
• Have to check and deserialize request-id header

28. quiz-next-2quiz-next-2quiz-next-2
quiz-next-1quiz-next-1quiz-next-1
quiz-next-a-1quiz-next-a-1quiz-next-a-1
Consuming Response Topic
Web
Application
quiz-next-a-0
quiz-submit
200
OK
quiz-next-b-0
quiz-next-c-0
Multiple Topics
Topics for each
Web Application

29. Consuming - Topic / Web App
• Every web application gets its own topic
• additional header, resp-topic.
• Streaming application responds to the topic defined in
the header
• TopicNameExtractor (access to headers)
.to((k, v, context) ->
bytesToString(context.headers().lastHeader("resp-topic").value()));

30. Consuming - Topic / Web App
• Pros
• Only consume messages you produced
• No pause from a consumer group rebalancing
• no additional burden or assumption on
use of key.

31. Consuming - Topic / Web App
• Cons
• More work on streaming application to respond to the
proper topic.
• Must create a topic for every web application
instance
• Responses spanned across multiple topics

32. Consuming Response Topic
Web
Application
quiz-next-0
quiz-submit
200
OK
quiz-next-1
quiz-next-2
quiz-next-3
Single Topic
consumer.subscribe()

33. Consuming - 1 Topic & Subscribe
• consumer.subscribe("response-topic", rebalListener)
• considerations
• is the topic key based on data from the
incoming request?
• how sophisticated is your Load Balancer?

34. Consuming - 1 Topic & Subscribe
• Topic Key is known value (quiz_id vs request_id)
• route to all, "Not Me"
• Topic Key is not a known value (request_id)
• round-robin route to web-service and check
hash before using generated key.
• Have LB generate request-id and hash
performed before routing (LB needs more info)

35. Load Balancer - NGINX
server {
location / {
js_content content;
}
location /rh1 {
rewrite /rh1/(.*) /$1 break;
}
location /rh2 {
rewrite /rh2/(.*) /$1 break;
}
}
}
function content(r) {
function done(res) {
if (303 !== res.status) { // "Not Me" Check
for (var h in res.headersOut) {
r.headersOut[h] = res.headersOut[h];
}
r.return(res.status, res.responseBody);
}
}
r.subrequest('/rh1' + r.uri, {
args: r.variables.args,
body: r.requestBody,
method: 'POST'},
done);
r.subrequest('/rh2' + r.uri, {
args: r.variables.args,
body: r.requestBody,
method: 'POST'},
done);
}

36. Consuming - 1 Topic & Subscribe
• Pros
• Leverages most common Consumer Group Pattern
• No burden on streaming applications
• KIP-429
Kafka Consumer Incremental Rebalance Protocol
• Only a single consumer processes the message

37. Consuming - 1 Topic & Subscribe
• Cons
• More coordination depending on topic key
• Responses paused during a rebalancing
• Partitions moving consumers on rebalance
• Key and Partitioning concerns
minimized when using with CQRS.

38. Command Driven Design
the interactive application

39. • No need to block in Web
application.
• No need to route request back
to specific instance
• Requires Fully Accessible State
Web
Application
Command Query Responsibility Segregation
200
OK
202
Accepted
Querying

40. • No need to block in Web
application.
• Route request back to same
instance
• State / Web Application State
Web
Application
Command Query Responsibility Segregation
202
Accepted
200
OK
Querying

41. Blocking Querying
getting for the response

42. Leveraging Http Redirects
• 303 See Other
• Client will redirect and convert to GET
• Unfortunately, browsers handle location, so AJAX
solutions require additional work.
• CORs and allowed headers
• Build your own rules requires specific API contract

43. Consuming
consume from state store

44. State Stores
• Global State Store
• Doesn't matter which Web Service handles the query
• examples
• microservice (web service doesn't need to know)
• ksqlDB (while it might Shard the data, it is queries as a single
unit)
• any key=value datastore (Cassandra, Mongo, MemCache)

45. State Stores
• Embedded Shard State Store
• Need to route/reroute query to the correct Web Service
• Leverage Load Balancer
• Inter web-service communication (as in Kafka Streams Metadata
API)
• Kafka Streams Examples / Microservices / OrderService.java /
fetchFromOtherHost
https://github.com/confluentinc/kafka-streams-examples/blob/master/src/main/java/io/confluent/examples/streams/microservices/OrdersService.java

46. Kafka Streams State Stores
• 1 Topic & subscribe() streams consumer within Web Service
• KIPS
• KIP-429 (Kafka 2.4)
Kafka Consumer Incremental Rebalance Protocol
• Allow consumer.poll() to return data in the middle of rebalance (https://issues.apache.org/jira/
browse/KAFKA-8421) (Kafka 2.5)
• KIP-535 (Kafka 2.5)
Allow state stores to serve stale reads during rebalance
• KIP-562 (Kafka 2.5)
Allow fetching a key from a single partition rather than iterating over all the stores on an instance
• KIP-441 (Expected, Kafka 2.6)
Smooth Scaling Out for Kafka Streams

47. Kafka Streams State Stores
• Things to consider
• Minimize duration of data being stored
• Isolate (minimize) topologies, reduce
session.timeout.ms
• stand by replicas

48. ksqldb State Store
• leverage client for table queries
• Table must be created by KSQL operation
• latest_by_offset() function works well for this
• want state-stores to be self cleaning
• leverage windowing
• ksql state store queries handles all windowed stores

49. ksqldb State Store
create stream QUIZ_NEXT with (KAFKA_TOPIC='quiz_next', VALUE_FORMAT='avro');
create table KSQL_QUIZ_NEXT as
select request_id,
latest_by_offset(quiz_id) as quiz_id,
latest_by_offset(user_id) as user_id,
latest_by_offset(question_id) as question_id,
latest_by_offset(statement) as statement,
latest_by_offset(a) as a,
latest_by_offset(b) as b,
latest_by_offset(c) as c,
latest_by_offset(d) as d,
latest_by_offset(difficulty) as difficulty
from QUIZ_NEXT
window tumbling (size 30 seconds)
group by request_id;

50. ksqldb State Store
create stream QUIZ_RESULT with (KAFKA_TOPIC='quiz_result', VALUE_FORMAT='avro');
create table KSQL_QUIZ_RESULT as
select request_id,
latest_by_offset(quiz_id) as quiz_id,
latest_by_offset(user_id) as user_id,
latest_by_offset(user_name) as user_name,
latest_by_offset(questions) as questions,
latest_by_offset(correct) as correct
from QUIZ_RESULT
window tumbling (size 30 seconds)
group by request_id;

51. BatchedQueryResult result =
client.executeQuery(
"SELECT * FROM KSQL_QUIZ_NEXT where " +
"REQUEST_ID='" + requestId + "';");
List<Row> list = result.get();
int last = list.size() - 1;
map.put("quiz_id", list.get(last).getString("QUIZ_ID"));
...
ksqldb Queries

52. Final Thoughts
• if using consumer groups, design with rebalancing in mind.
• Explore options with your Load Balancer.
• CQRS w/ Kafka Streams as your State Store
• 2.5+
• Minimize Topology Complexity
• Minimize changelog data by leveraging windowing or proper
tombstoning.

53. Resources
• Book Event Driven Systems
• https://www.confluent.io/wp-content/uploads/
confluent-designing-event-driven-systems.pdf
• Source Code
• http://github.com/nbuesing/quizzer

54. Thanks
Kafka Summit
Confluent
Object Partners, Inc.

55. Questions
@nbuesing
https://buesing.dev/post/ks2020
nbuesing http://www.objectpartners.com
