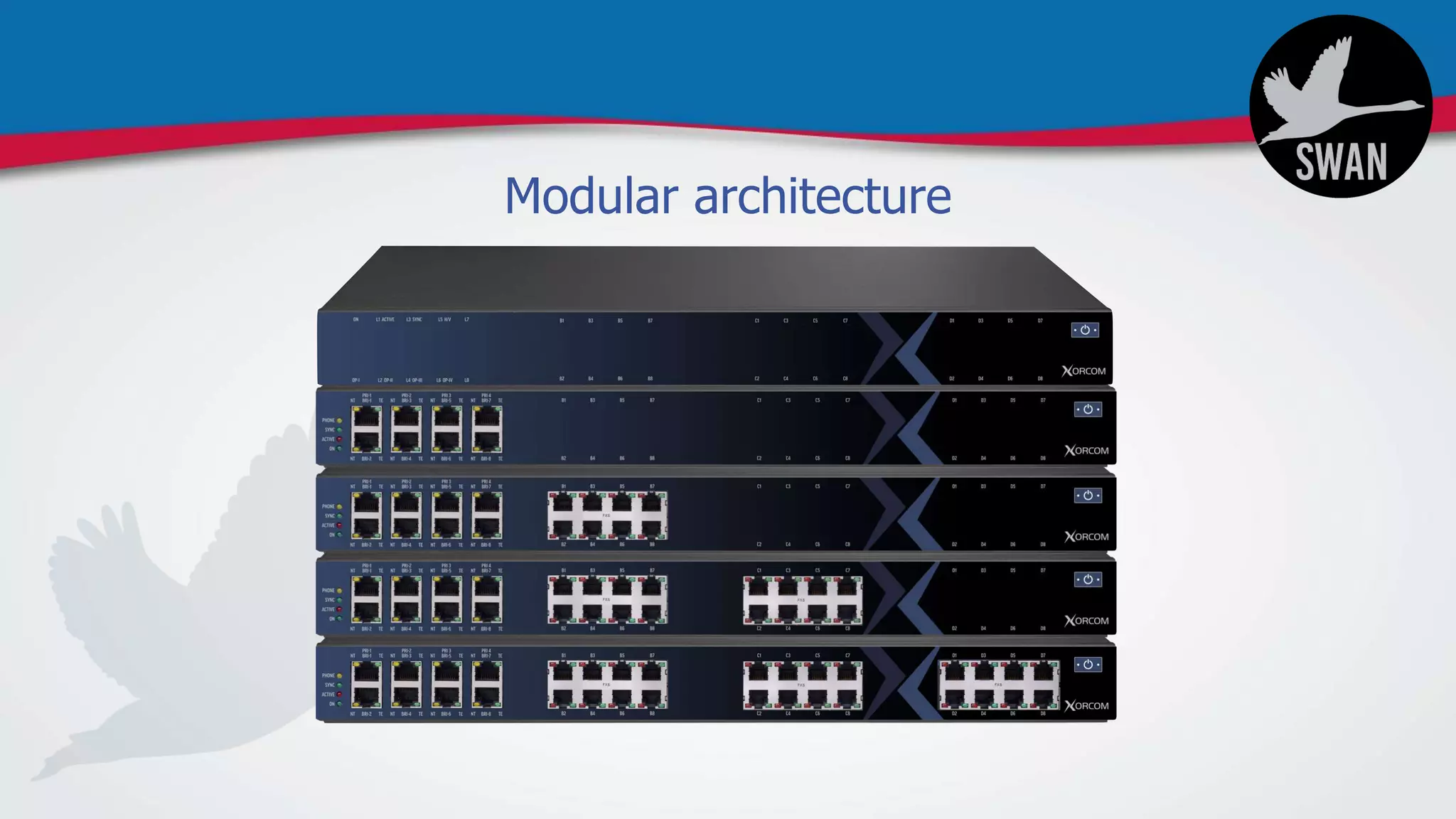

Music - "RIVER MEDITATION" by Jason Shaw. Swan - new powerful and compact IP-PBX by Xorcom. 1U size, SSD storage, passive cooling. Modular IP-PBX - up to 4 telephony cards. The Swan IP PBX series showcases Xorcom’s CompletePBX distribution, offering support for FXS, FXO extensions, and trunks. Swan can be outfitted with as many as 32 analog ports, and up to 2 E1/T1 PRI, T1 CAS, or E1 R2 ports, all contained within a compact, 19″ 1U chassis. Additionally, it facilitates the integration of Astribank telephony interfaces and IP gateways. Supports 100-500 extensions (license-based), up to 200 concurrent calls. Technical specifications: Features: Unlimited voicemail boxes, hunt groups, call center groups, and auto attendants (IVRs) Basic built-in call center with call recording, barge, and whisper Hot-desking Sophisticated Classes of Service for enhanced security Emergency notification module Endpoint manager User-friendly Web interface Interface in different languages CDR (Call Details Record) TDM/SIP/IAX trunks Remote extensions Voicemail Voicemail to email Web access to voicemail Fax support Fax to email IVR menu system Ring groups Call queues Conference rooms Follow me Time-based routing Advanced dialing rules Music-on-hold Paging and intercom Admin status screen Package manager (for easy updates) Network settings tool Hardware: Processor – Quad core Cortex-A72 (ARM v8) 64-bit SoC, 1.5GHz Storage – 250 GB SSD/ 500 GB SSD RAM – 2 GB USB – 2 X USB 2.0, 1 x USB C Video – 2 x Micro-HDMI Audio in / out Software: Management Interface – Xorcom CompletePBX (ARM edition) Linux version – Debian 12 Intrusion protection software, firewall protection, password strength indicator, class-of-service, dialing rules, modern Linux tools Telephony: Maximum number of concurrent calls – 200 (g.711 SIP) 60 (PRI / BRI / FXO / FXS using Astribank) Maximum number of E1/T1 ports – 2 (E1/T1/PRI/R2/CAS ports) Users (extensions):100-500 (license-based) Maximum number of built-in analog ports (FXS / FXO) – 32 Maximum telephony modules supported – 4 Supported Xorcom telephony modules (up to 4 telephony cards): 8 ports FXS, 8 ports FXO, up to 2 ports PRI/R2/CAS, 2,4,6,8 BRI Network: 2 x 10 /100/ 1000 Mb/s Maintenance and Support: Monitor and keyboard support Software updates (under a service agreement) Power: Power supply – 12 VDC,5A Voltage Switching, auto adjust 100/240 Volts, 50/60 Hz Power consumption – 10 – 50 Watts depending on configuration Built-in grounding connection – Yes

1. Introducing

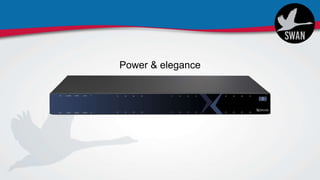

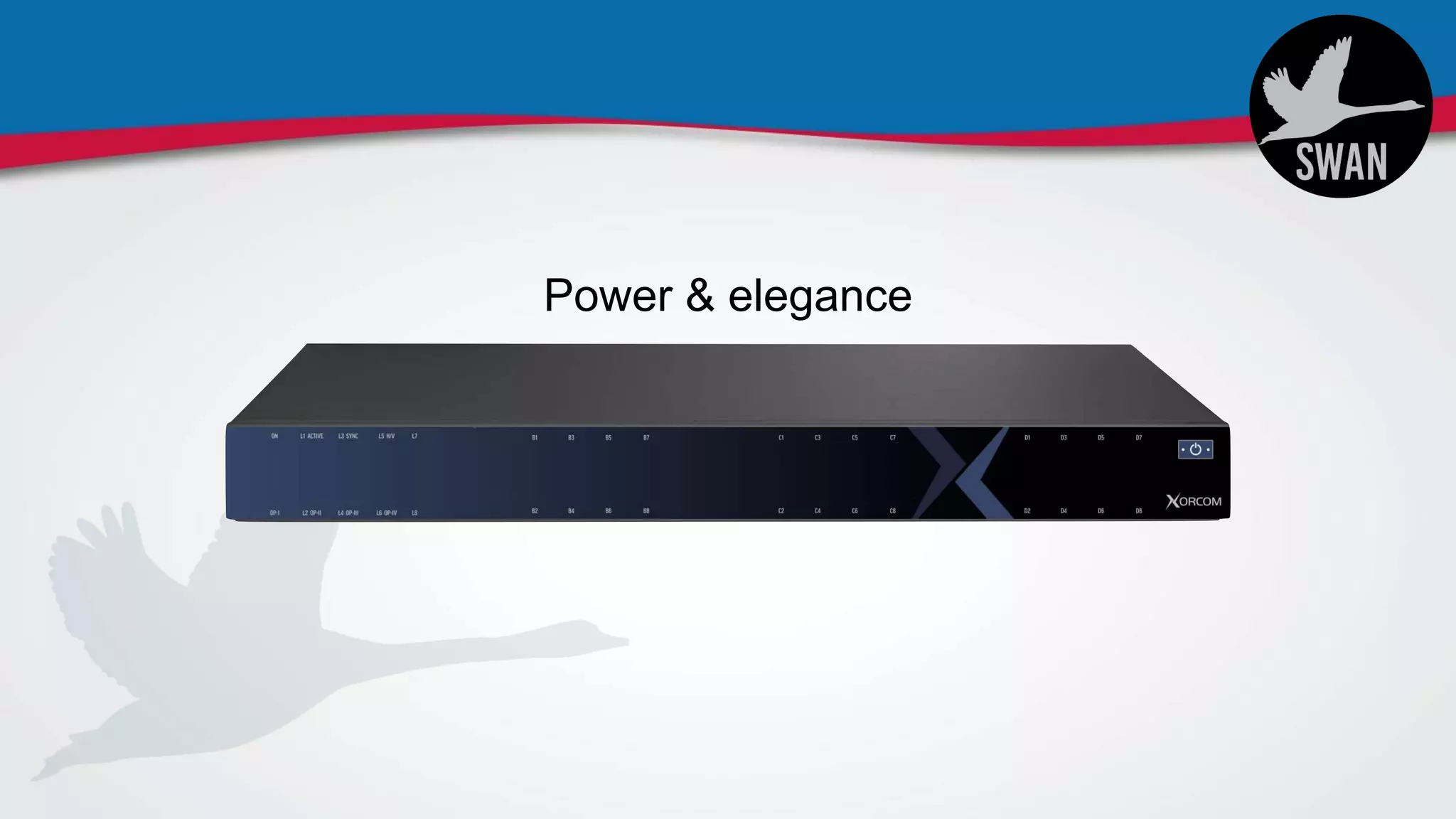

Power & elegance

3. Power & elegance

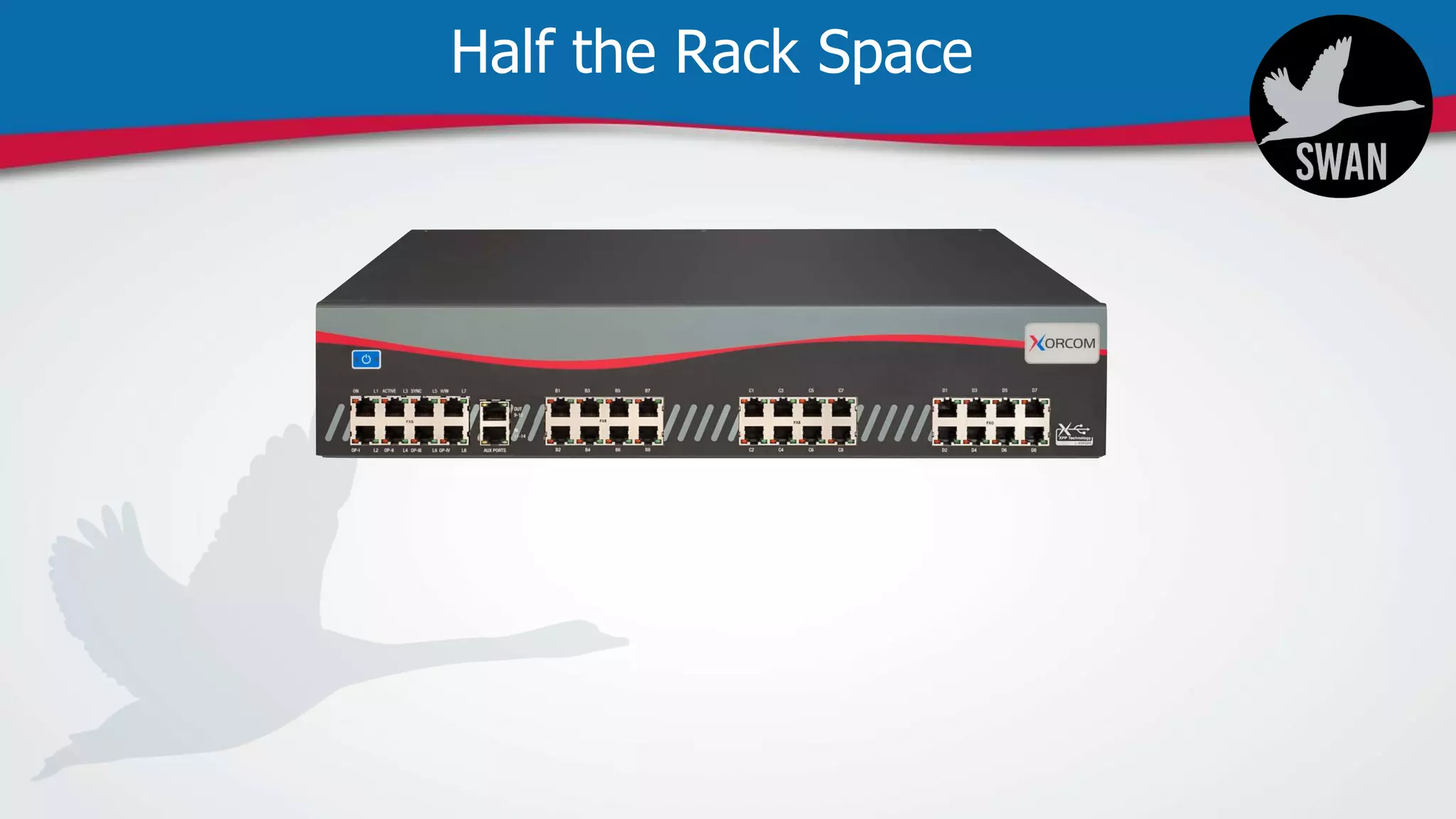

4. Half the Rack Space

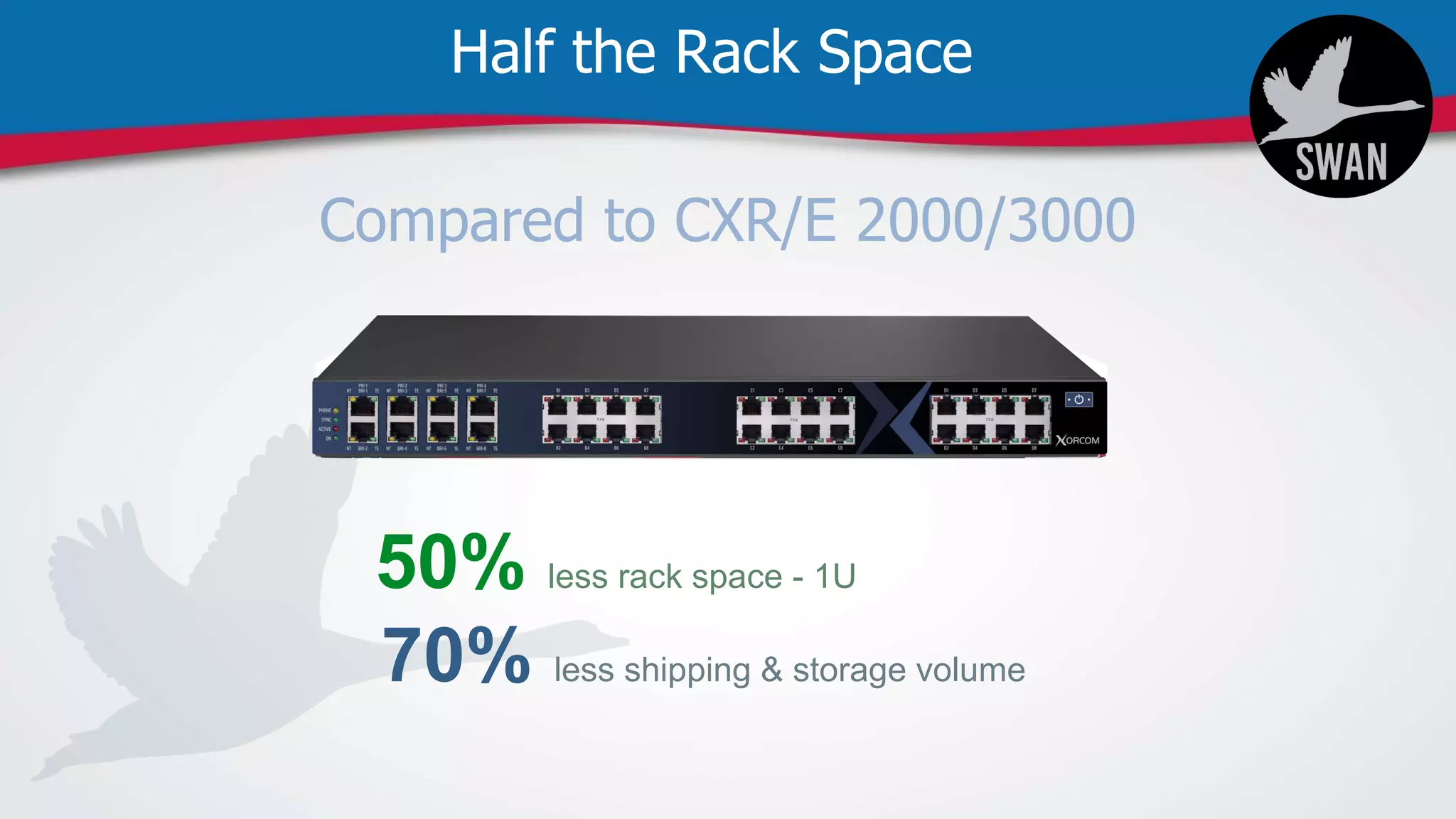

5. Half the Rack Space
50% less rack space - 1U
70% less shipping & storage volume

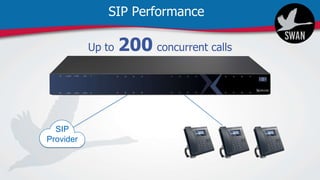

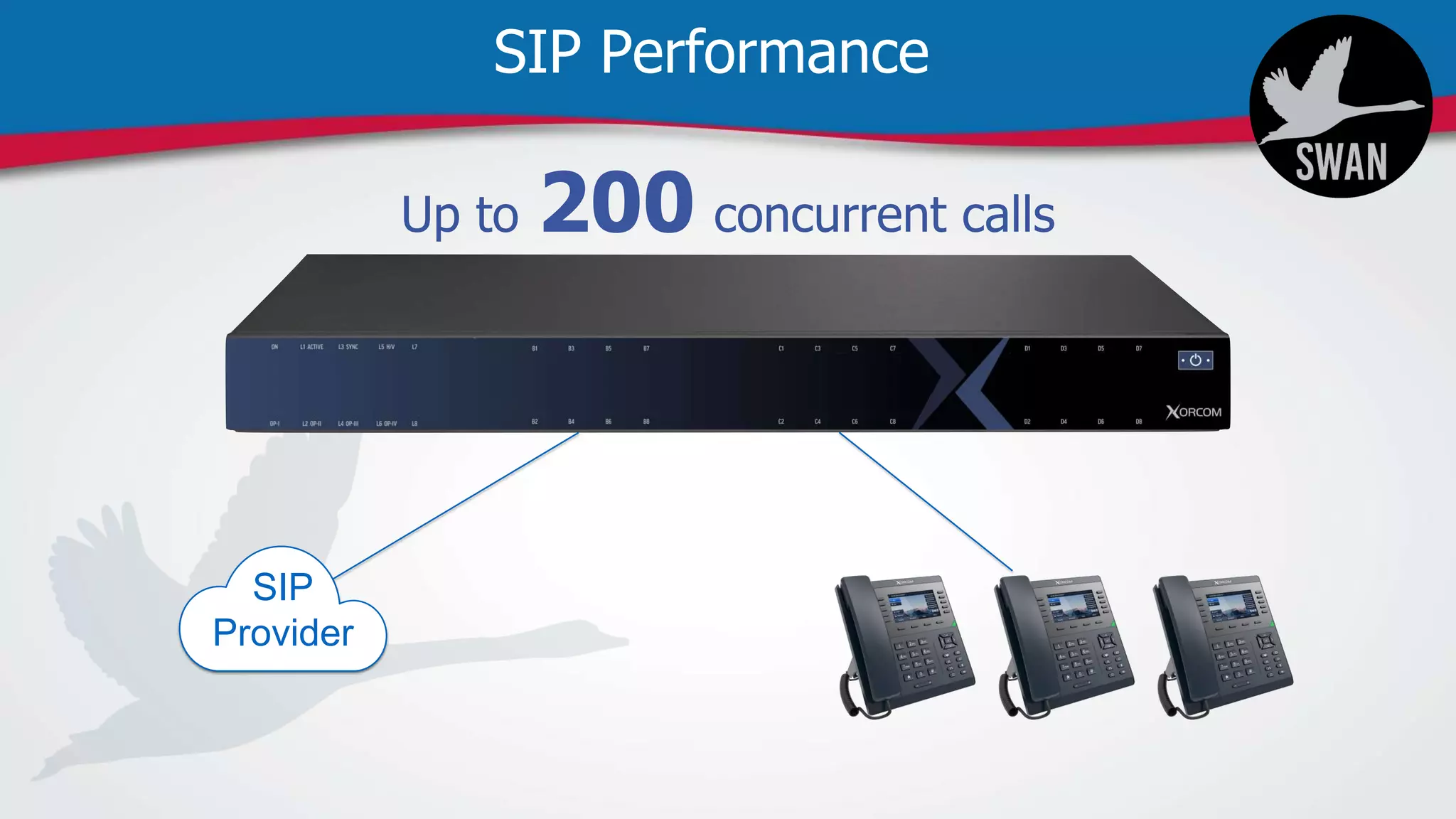

6. SIP Performance
SIP
Provider

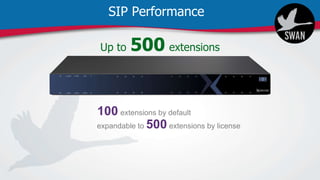

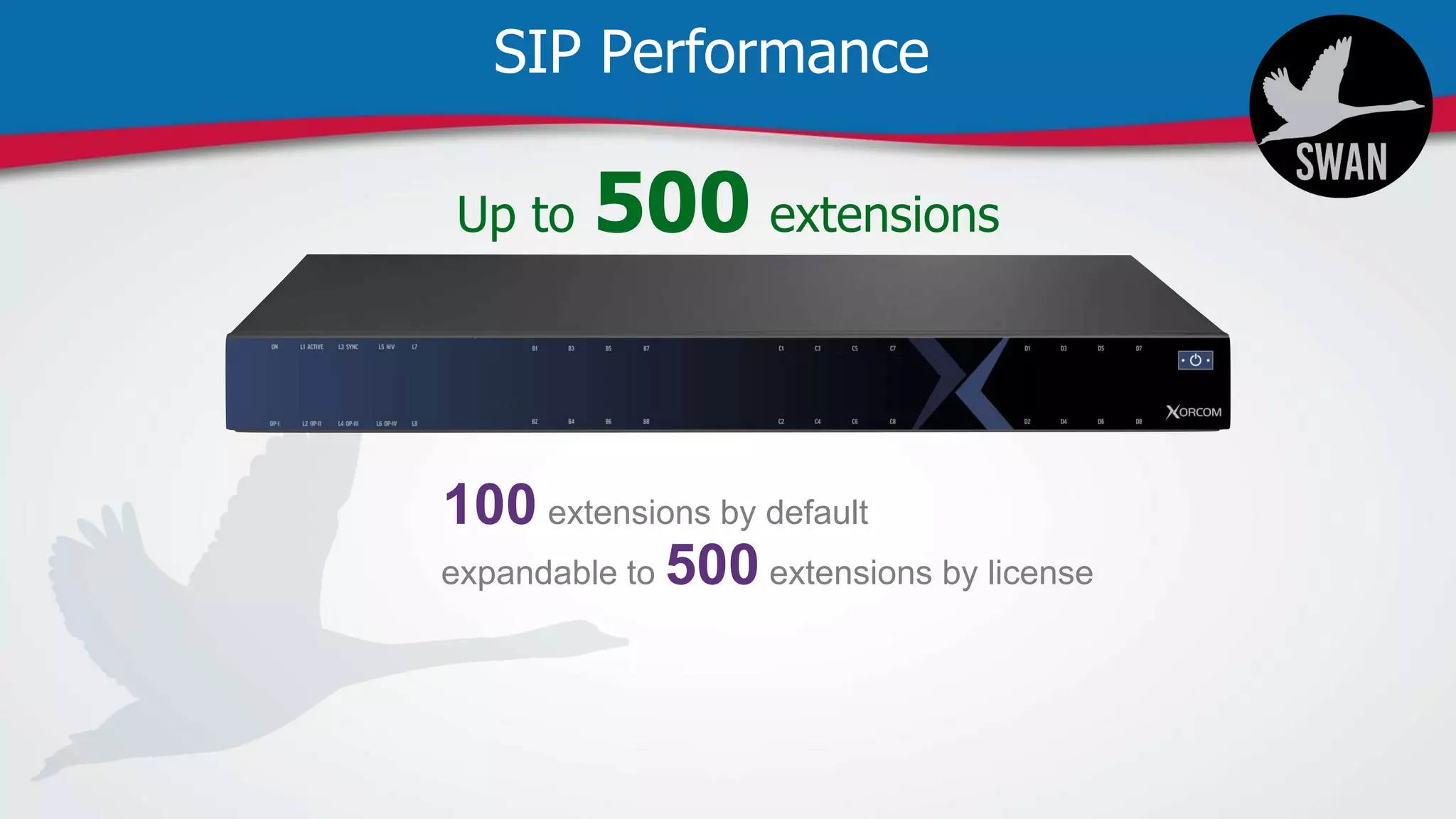

7. SIP Performance
Up to 500 extensions
100 extensions by default
expandable to 500 extensions by license

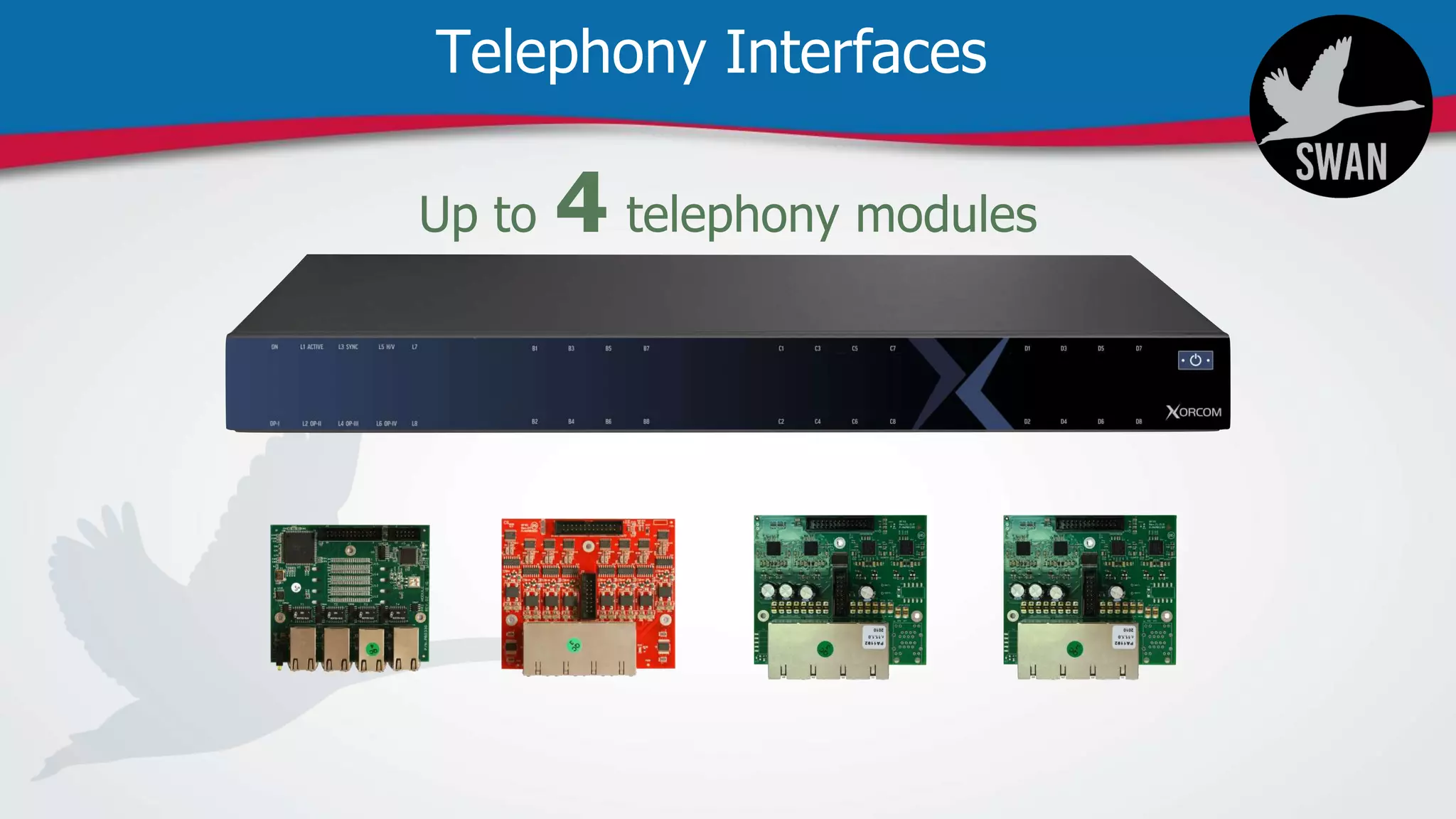

9. Telephony Interfaces

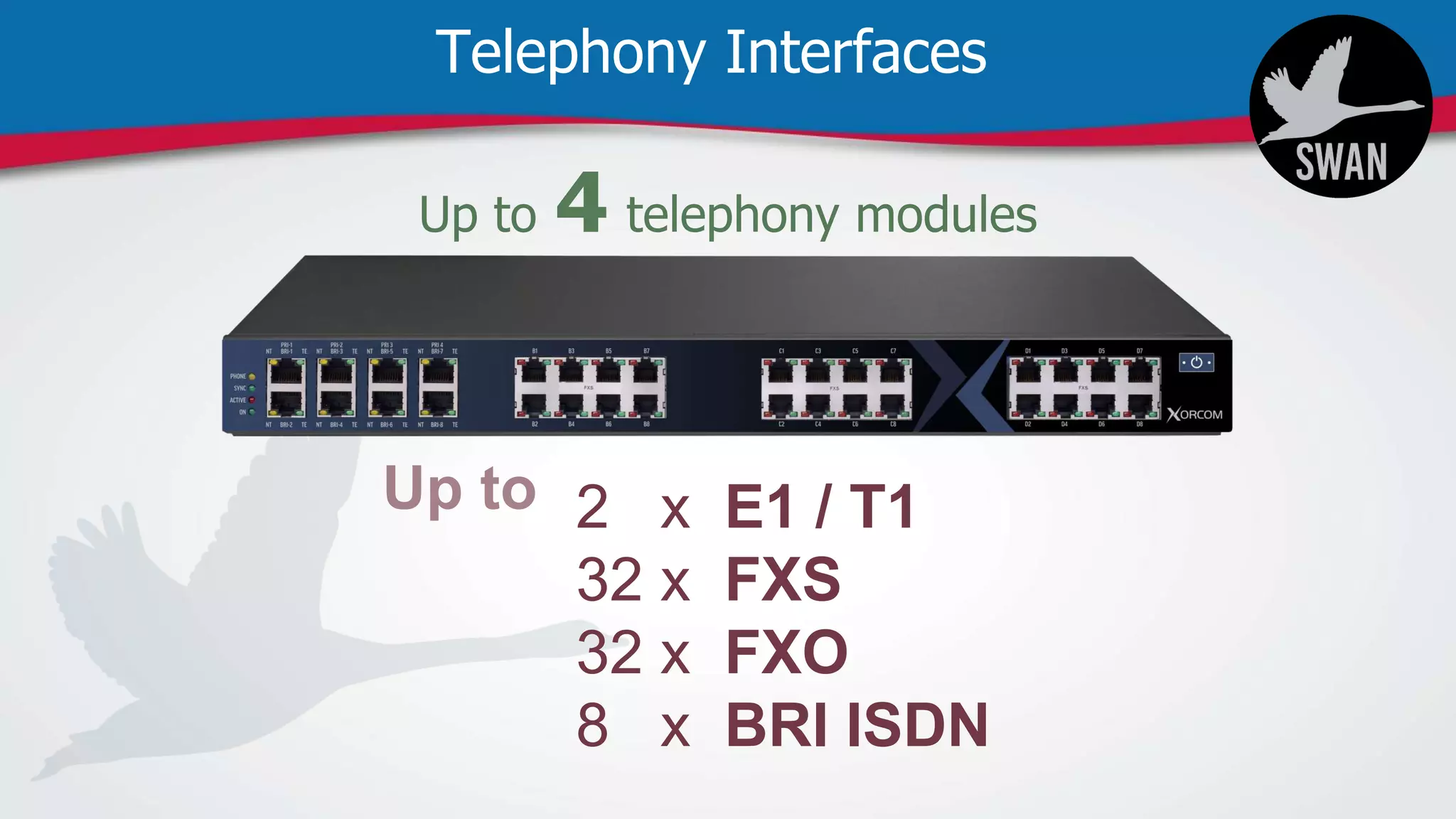

10. Telephony Interfaces
2 x E1 / T1
32 x FXS
32 x FXO
8 x BRI ISDN

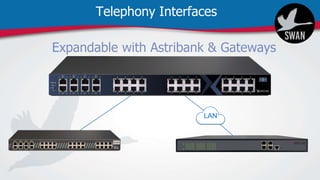

11. Telephony Interfaces
LAN

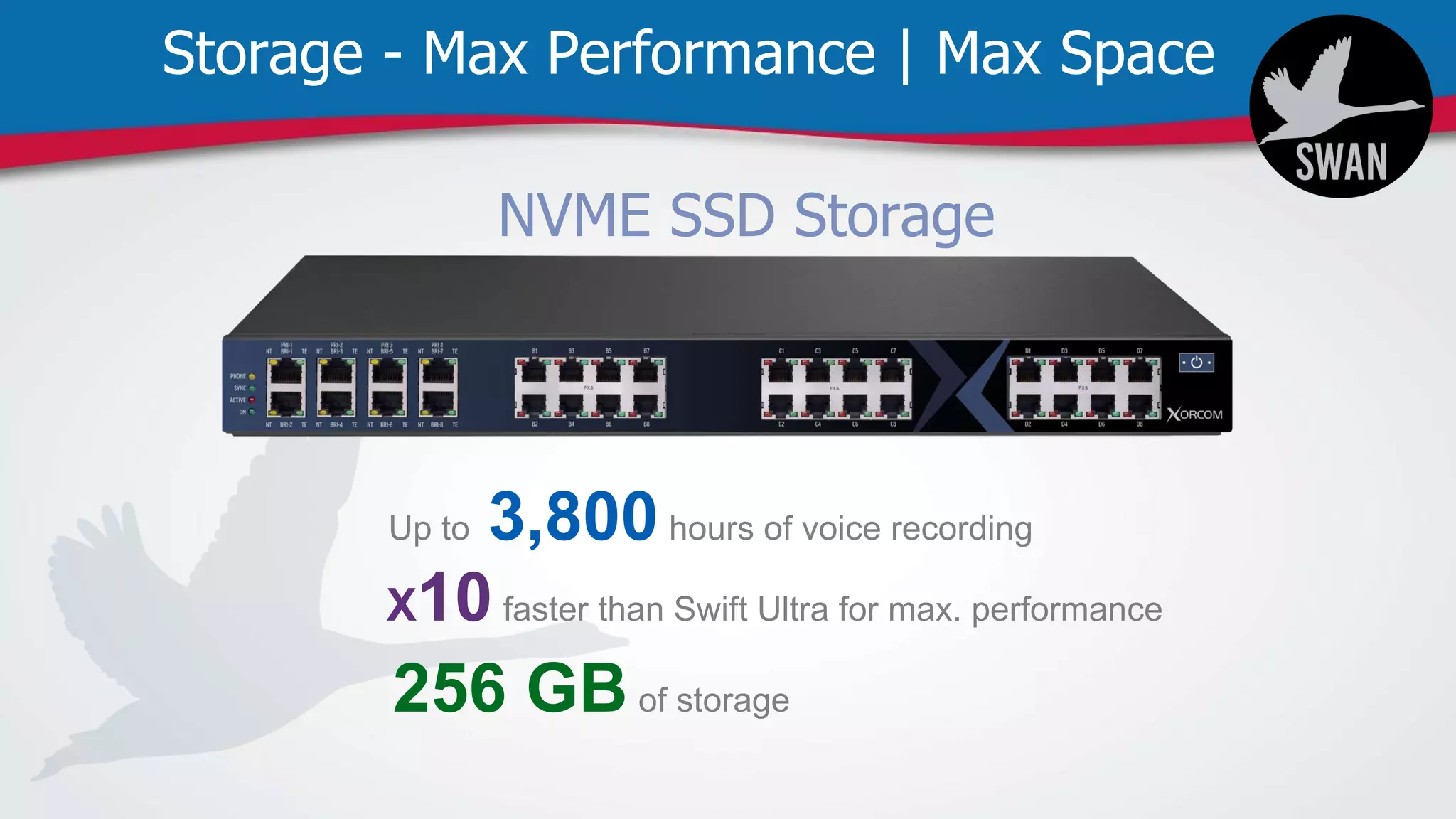

12. Storage - Max Performance | Max Space
Up to 3,800 hours of voice recording
X10 faster than Swift Ultra for max. performance
256 GB of storage

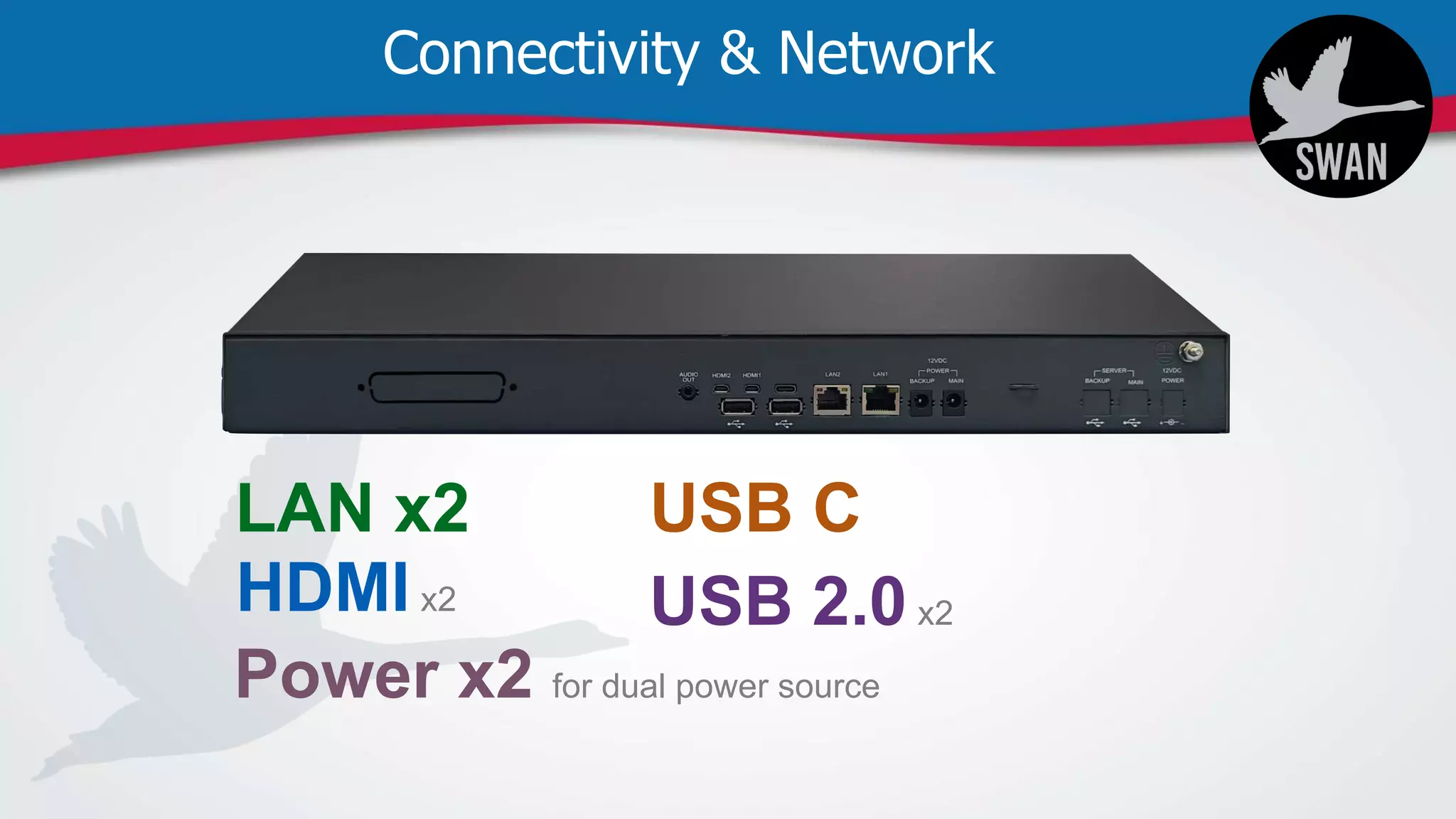

13. Connectivity & Network
HDMI x2 USB 2.0 x2
LAN x2
Power x2 for dual power source
USB C

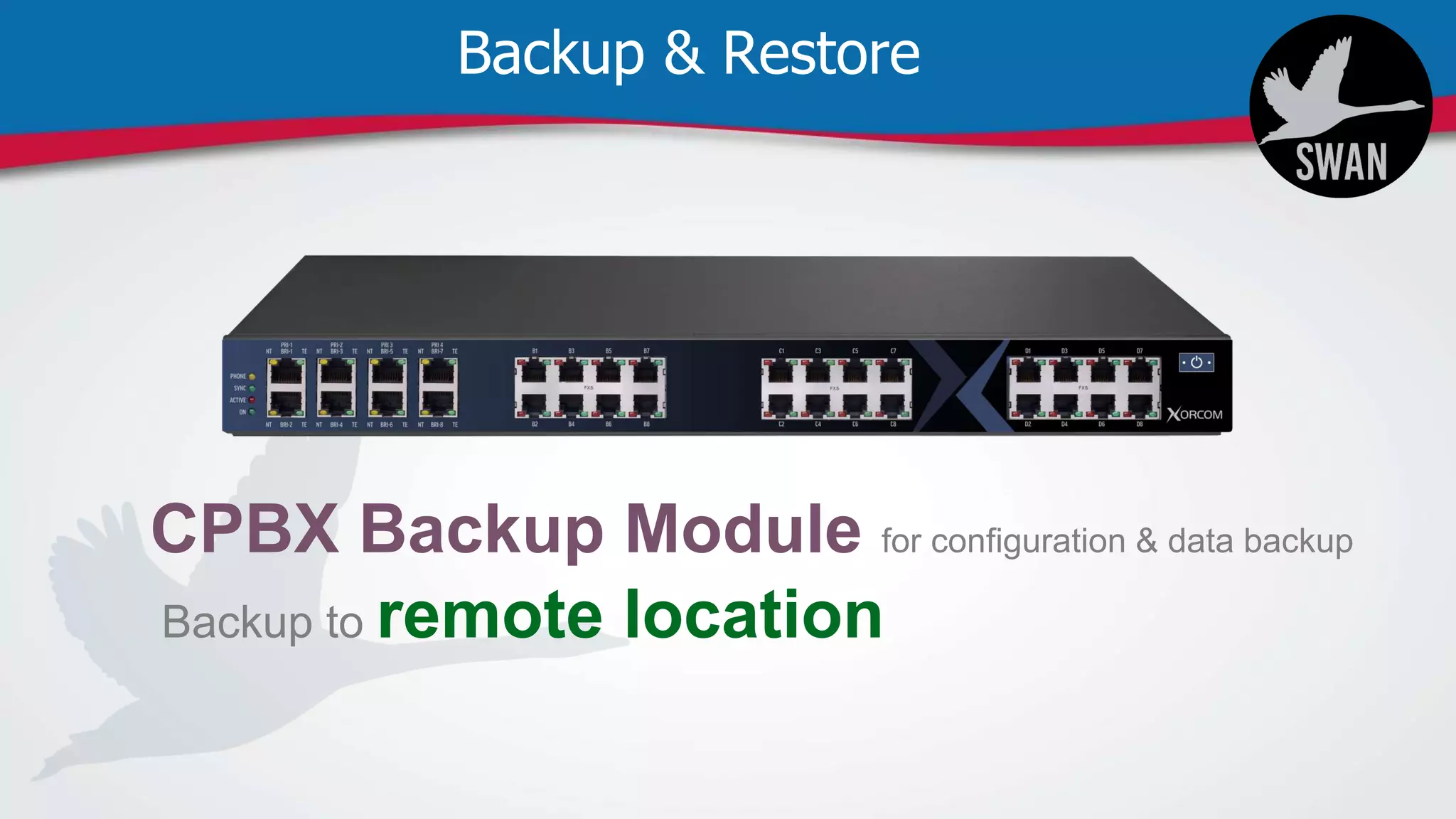

14. Backup & Restore
CPBX Backup Module for configuration & data backup
Backup to remote location

15. Security
Firewall
Intrusion prevention for SIP, Web, SSH
Call encryption
Strong password policy
Admin permission management
Class-of-service
SSO - OpenID Connect / RADIUS authentication
Audit log

16. Go Green
Energy efficient
10W typical power consumption

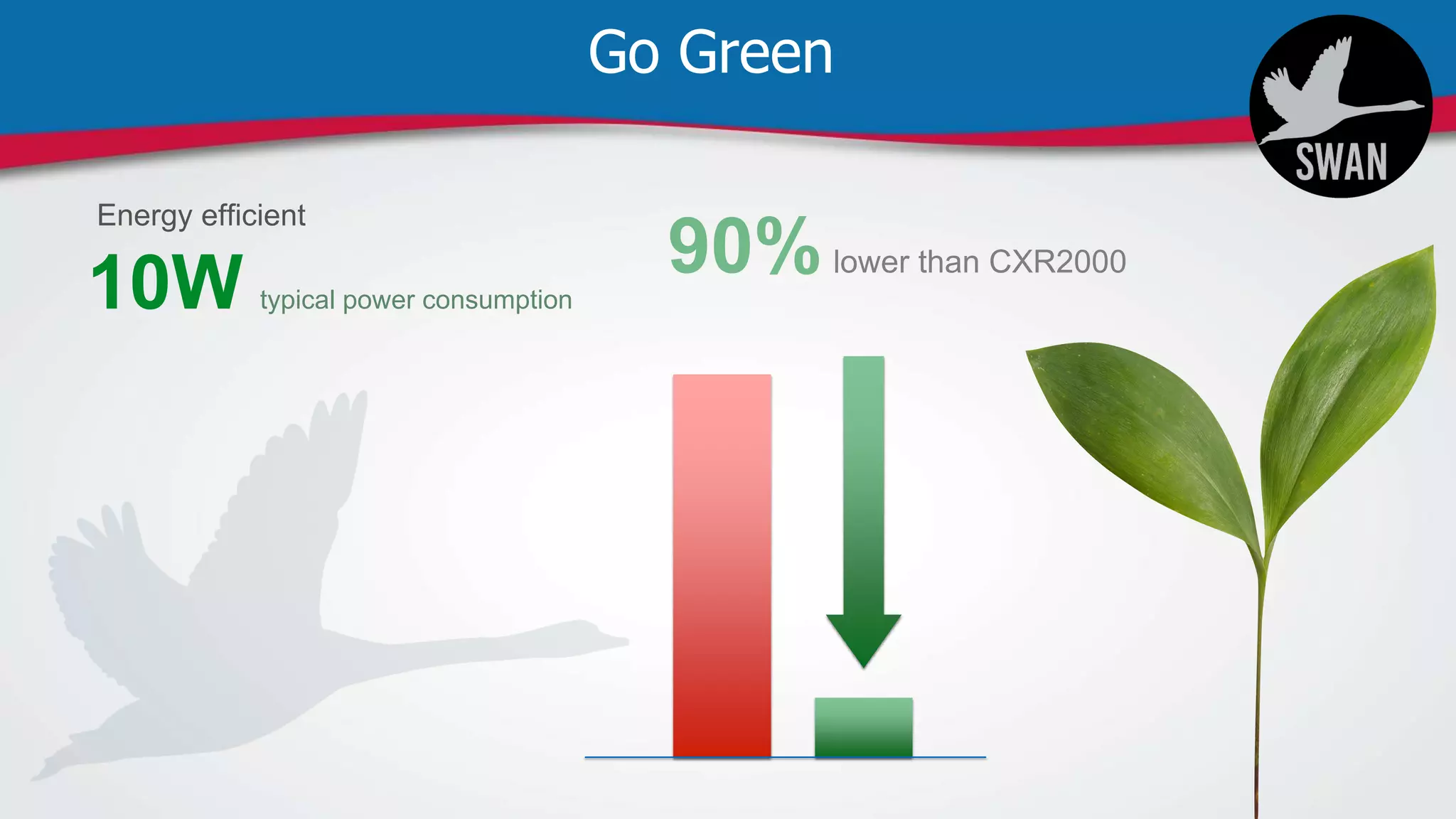

17. Go Green
lower than CXR2000
Energy efficient
10W typical power consumption

18. No Moving Parts
Passive Cooling
Max reliability

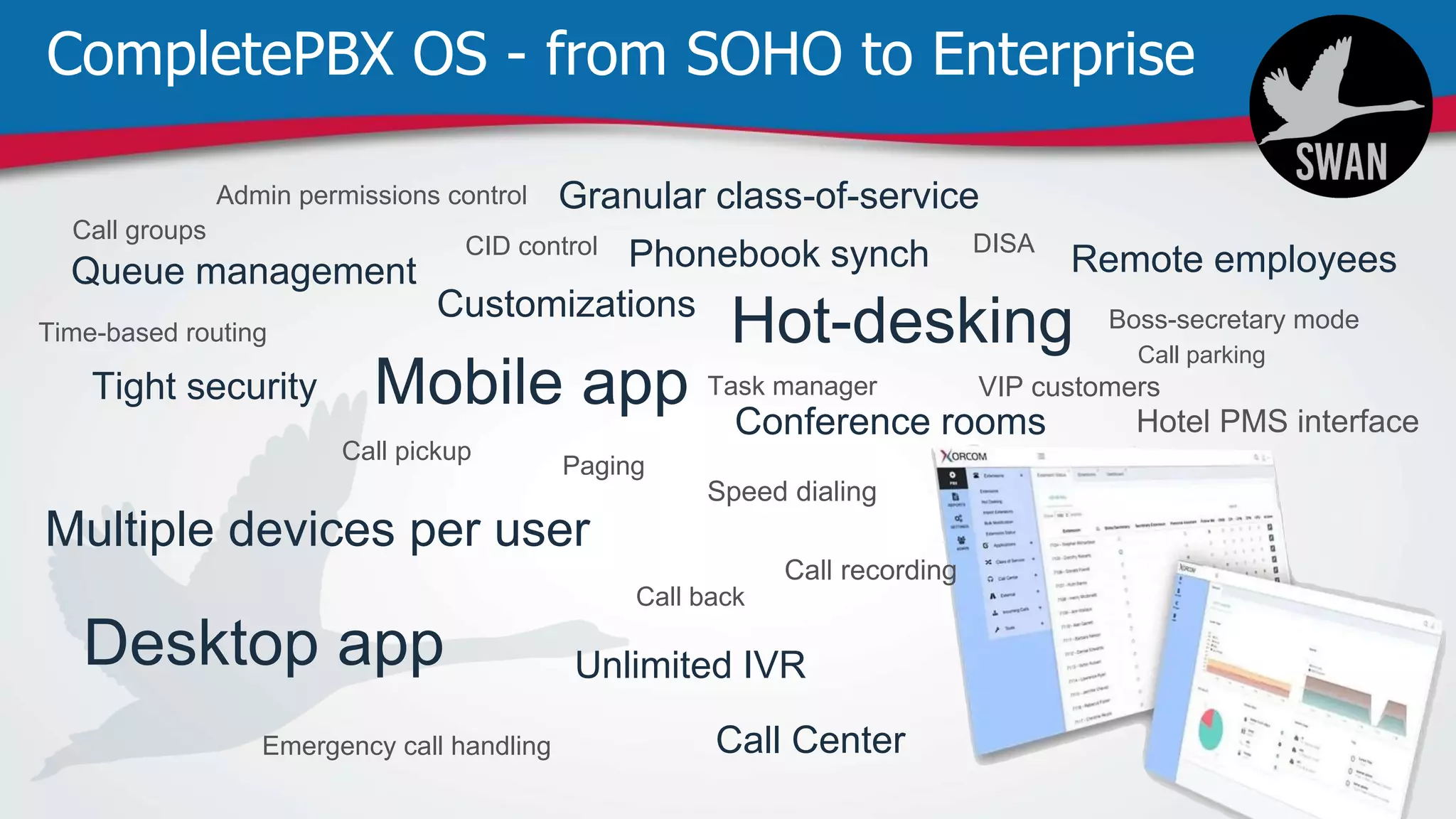

19. Emergency call handling
CompletePBX OS - from SOHO to Enterprise
Call groups
Queue management
Multiple devices per user
Mobile app
Time-based routing
Tight security
CID control Phonebook synch
Task manager
Unlimited IVR
Desktop app
Hot-desking
Customizations
Call parking
Paging
Admin permissions control Granular class-of-service
Call back
DISA
Conference rooms
Boss-secretary mode
Call pickup
Speed dialing
VIP customers
Remote employees
Call Center
Hotel PMS interface
Call recording

22. Power & elegance

23. For more details visit
www.xorcom.com
