1. Swagger
Make your API accessible
Victor Trakhtenberg
victortr75@gmail.com @victortr75

2. Personal
My name is Victor
Almost 15 years of software development
Chief Architect @

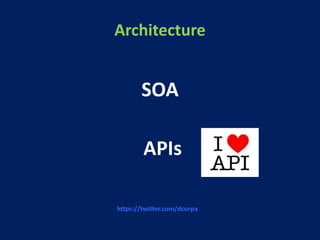

3. Architecture
SOA
APIs
https://twitter.com/dcorpa

4. Architecture
APIs are for humans
Documentation
http://www.infoq.com/resource/presentations/API-Humans/en/slides/sl23.jpg

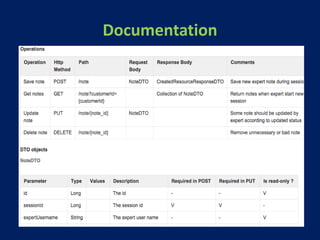

5. Documentation

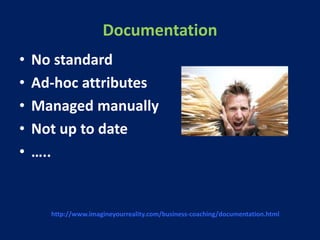

6. Documentation
• No standard
• Ad-hoc attributes
• Managed manually
• Not up to date
• …..
http://www.imagineyourreality.com/business-coaching/documentation.html

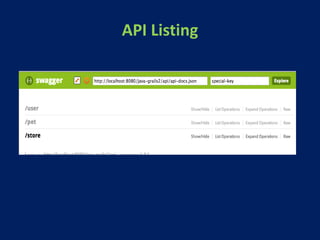

7. API Listing

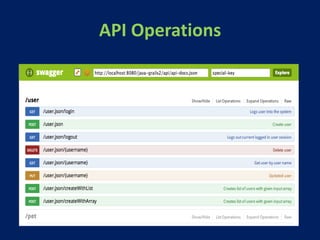

8. API Operations

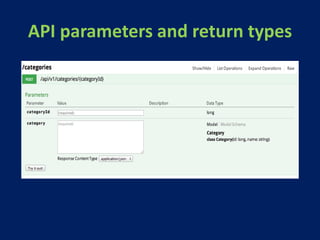

9. API parameters and return types

10. Swagger is…
• producing
• consuming
• visualizing
RESTful APIs
A framework
for
• describing
• documenting
RESTful APIs
A specification
for
Technology Methodology

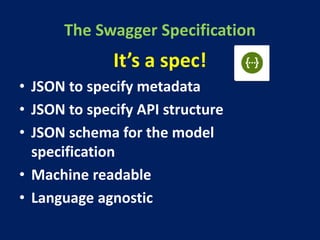

11. The Swagger Specification
It’s a spec!
• JSON to specify metadata
• JSON to specify API structure
• JSON schema for the model
specification
• Machine readable
• Language agnostic

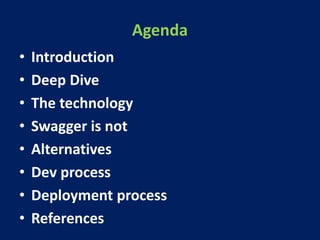

12. Agenda
• Introduction
• Deep Dive
• The technology
• Swagger is not
• Alternatives
• Dev process
• Deployment process
• References

13. Deep Dive

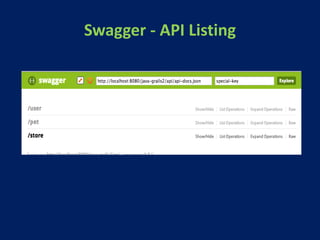

14. Swagger - API Listing

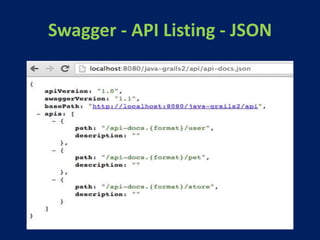

15. Swagger - API Listing - JSON

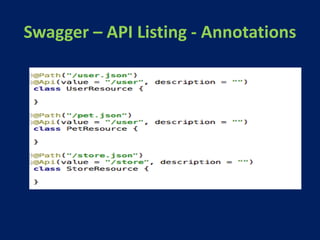

16. Swagger – API Listing - Annotations

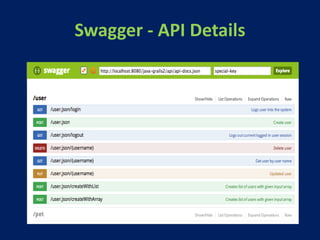

17. Swagger - API Details

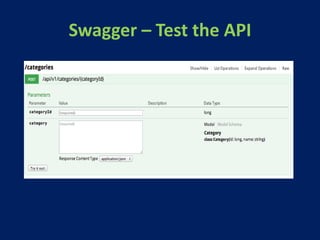

18. Swagger – Test the API

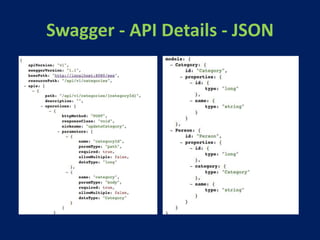

19. Swagger - API Details - JSON

20. Swagger – API Details - Annotations

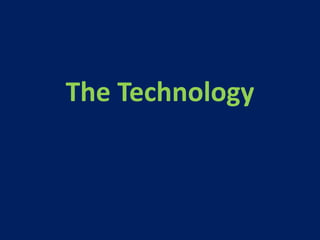

21. The Technology

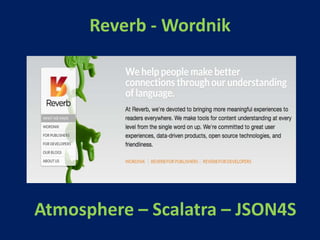

22. Reverb - Wordnik
Atmosphere – Scalatra – JSON4S

23. The Technology – Scala based
• swagger-core
• swagger-codegen
• swagger-ui

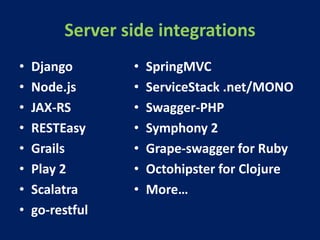

24. Server side integrations
• Django
• Node.js
• JAX-RS
• RESTEasy
• Grails
• Play 2
• Scalatra
• go-restful
• SpringMVC
• ServiceStack .net/MONO
• Swagger-PHP
• Symphony 2
• Grape-swagger for Ruby
• Octohipster for Clojure
• More…

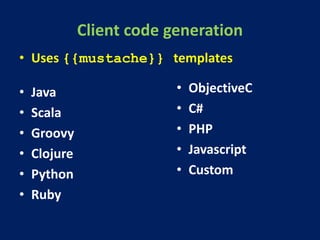

25. Client code generation
• Java
• Scala
• Groovy
• Clojure
• Python
• Ruby
• ObjectiveC
• C#
• PHP
• Javascript
• Custom
• Uses {{mustache}} templates

26. Swagger is not

27. • Does not support multiple API versions
• Does not tell how to write the API
–Delete an object by HTTP DELETE or via
HTTP GET with query param
• Is not trying to solve all problems for all
APIs

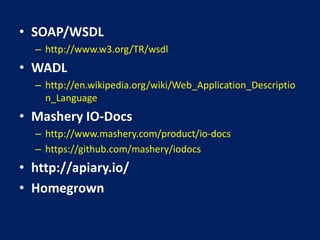

28. Alternatives

29. • SOAP/WSDL
– http://www.w3.org/TR/wsdl
• WADL
– http://en.wikipedia.org/wiki/Web_Application_Descriptio
n_Language
• Mashery IO-Docs
– http://www.mashery.com/product/io-docs
– https://github.com/mashery/iodocs
• http://apiary.io/
• Homegrown

30. Dev Process

31. API development approaches
API specification first
–Write the JSON spec
–Generate the API stubs
–Implement the APIs
–Publish

32. API development approaches
API implementation first
–Implement the API
–Put the annotations in place

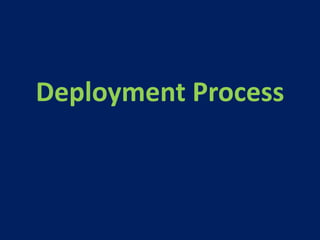

33. Deployment Process

34. Dev/Test environment
Annotate the APIs
Make swagger UI accessible from
the application itself

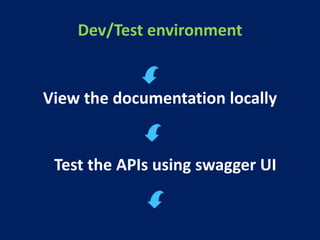

35. Dev/Test environment
View the documentation locally
Test the APIs using swagger UI

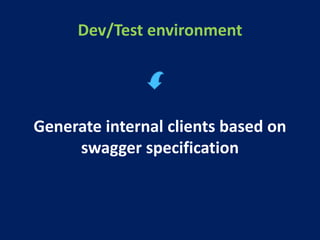

36. Dev/Test environment
Generate internal clients based on
swagger specification

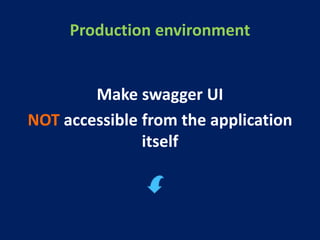

37. Production environment
Make swagger UI
NOT accessible from the application
itself

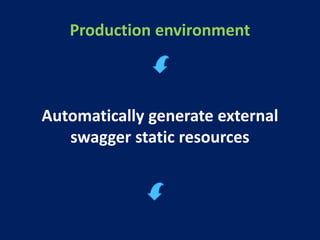

38. Production environment
Automatically generate external
swagger static resources

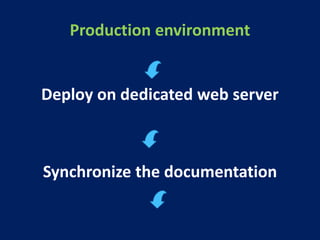

39. Production environment
Deploy on dedicated web server
Synchronize the documentation

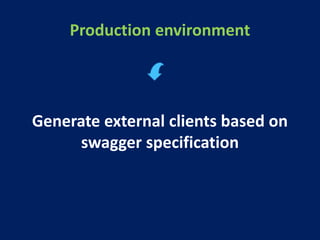

40. Production environment
Generate external clients based on
swagger specification

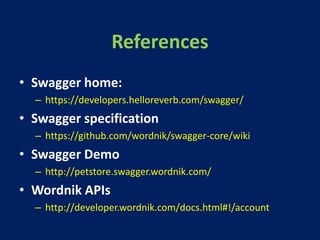

41. References
• Swagger home:
– https://developers.helloreverb.com/swagger/
• Swagger specification
– https://github.com/wordnik/swagger-core/wiki
• Swagger Demo
– http://petstore.swagger.wordnik.com/
• Wordnik APIs
– http://developer.wordnik.com/docs.html#!/account

42. Make your API accessible
Use Swagger!
