Building a REST API Microservice for the DevNet API Scavenger Hunt
The document outlines the development of a REST API microservice for a scavenger hunt at a Cisco sales conference, highlighting the requirements and technologies used, such as Swagger and Docker. It describes the project workflow, infrastructure architecture, and key libraries employed in the implementation. Key takeaways include the benefits of using Swagger for rapid API development and the simplicity of container-based deployment workflows.
More Related Content
Similar to Building a REST API Microservice for the DevNet API Scavenger Hunt
Building a REST API Microservice for the DevNet API Scavenger Hunt
- 1. How I builta REST microservice DevNet API Scavenger Hunt Ashley Roach – Cisco DevNet Principal Engineer & Evangelist @aroach

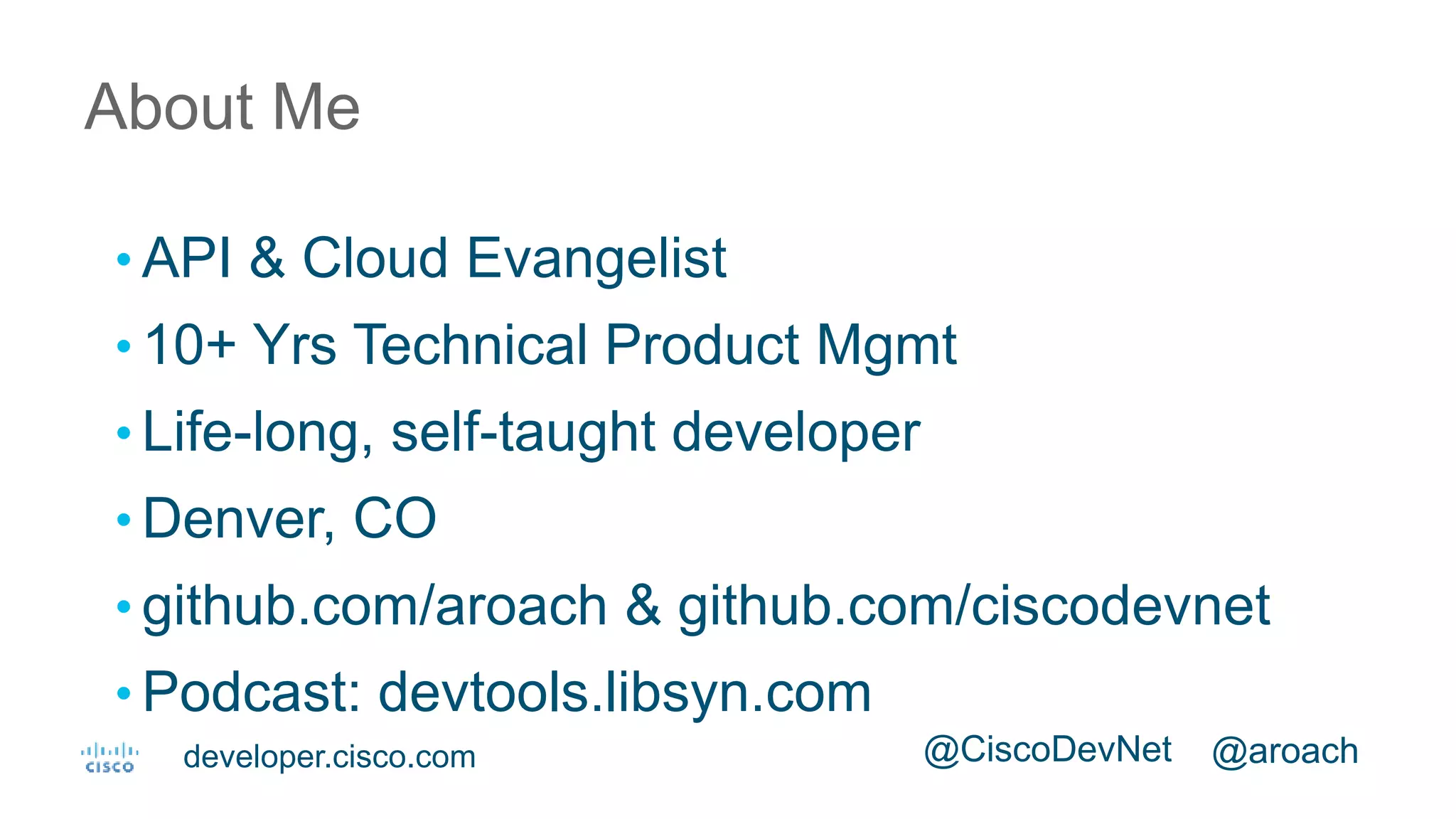

- 2. @aroach@CiscoDevNetdeveloper.cisco.com About Me • API& Cloud Evangelist • 10+ Yrs Technical Product Mgmt • Life-long, self-taught developer • Denver, CO • github.com/aroach & github.com/ciscodevnet • Podcast: devtools.libsyn.com
- 3. DevNet Vision Help developersbuild solutions and grow their careers. Learn Code Inspire Monetize
- 4. @aroach@CiscoDevNetdeveloper.cisco.com • §1: Whyand What • §2: Show the code
- 5.
- 6.
- 7. @aroach@CiscoDevNetdeveloper.cisco.com What Did WeDo? • Created background “mini-hacks” activity at sales conference • Needed a way for them to submit answers • Why not make them do it via an API?!
- 8. @aroach@CiscoDevNetdeveloper.cisco.com How we ranit • Three challenges per day (Jive site) • Answers were provided at the beginning of the next day • Support via a Cisco Spark room • Submissions were analyzed after the event • Small monetary rewards to top 3 finishers
- 9.
- 10. @aroach@CiscoDevNetdeveloper.cisco.com Solution evaluation washardest part • Wrote a CLI • Created manually, but could have used swagger-code- gen • Wrote test cases • Manual validation in the end
- 11.
- 12. @aroach@CiscoDevNetdeveloper.cisco.com Project Requirements • Buildan API quickly (~a couple days) • Data Persistence • User and API Authorization • Only an API (No UI for user) • Package in a “cloud native” way
- 13.
- 14. @aroach@CiscoDevNetdeveloper.cisco.com Technologies involved andevaluated • I know MEAN stack (Mongo, Express, Angular, Node) • I wanted to try out building using a REST modeling tool • Swagger-node • Osprey (RAML-based): seemed less feature rich • Containerized to be deployed on ciscoshipped.io • GitHub • Postman • MongoHub (Mongo client) • mLab (Hosted mongo)
- 15. @aroach@CiscoDevNetdeveloper.cisco.com OpenAPI Spec (fkaSwagger) • Open specification for describing REST APIs • A top-down approach where you would use the Swagger Editor to create your Swagger definition and then use the integrated Swagger Codegen tools to generate server implementation. • A bottom-up approach where you have an existing REST API for which you want to create a Swagger definition.
- 16. @aroach@CiscoDevNetdeveloper.cisco.com Dockerfile FROM node:5.11.1 # Createapp directory RUN mkdir -p /usr/src/app # Establish where your CMD will execute WORKDIR /usr/src/app # Bundle app source into the container COPY ./node_modules /usr/src/app/node_modules COPY ./api /usr/src/app/api COPY ./config /usr/src/app/config COPY ./app.js /usr/src/app/ # Expose the port for the app EXPOSE 10010 # Execute "node app.js" CMD ["node", "app.js"]
- 17. @aroach@CiscoDevNetdeveloper.cisco.com Docker run --link •Legacy container links within the Docker default bridge. • This is a bridge network named bridge created automatically when you install Docker. • Superceeded by Docker Networks feature
- 18. @aroach@CiscoDevNetdeveloper.cisco.com Makefile run: docker run --rm--name $(NAME)-$(INSTANCE) $(LINK) $(PORTS) $(VOLUMES) $(ENV) $(NS)/$(REPO):$(VERSION) $ make run $ docker run --rm --name devnet-challenge-api-default --link mymongo:mongo -p 8080:10010 --env-file=.env ciscodevnet/devnet-challenge-api:v1
- 19. @aroach@CiscoDevNetdeveloper.cisco.com Node Libraries Used •Swagger-node • Express: Node HTTP server • Bcrypt: Password hashing in DB • Mongoose: Node mongo library • Jsonwebtoken: JWT library • Password-generator: generate random passwords • Marked: Convert Markdown to HTML for docs
- 20. @aroach@CiscoDevNetdeveloper.cisco.com Swagger-node • Runtime environmentthat includes Swagger Editor • swagger project <command> • Start • Edit • node app.js for proper deployments
- 21.
- 22. @aroach@CiscoDevNetdeveloper.cisco.com My swagger-node workflow IDEA Swagger Edit Add/Edit Model& Controller Swagger test Make build & run Verify git add / commit / push shipped deploy Verify
- 23. @aroach@CiscoDevNetdeveloper.cisco.com . ├── Dockerfile ├── README.md ├──api │ ├── controllers │ │ ├── README.md │ │ ├── authenticate.controller.js │ │ ├── challenge.controller.js │ │ ├── challenge.model.js │ │ ├── health.controller.js │ │ ├── user.controller.js │ │ └── user.model.js │ ├── helpers │ │ ├── README.md │ │ └── mongoose │ │ ├── common-fields.js │ │ └── search.js │ ├── mocks │ │ └── README.md │ └── swagger │ └── swagger.yaml Correspond to swagger properties: // swagger.yaml • x-swagger-router-controller • operationId Anatomy of project
- 24. @aroach@CiscoDevNetdeveloper.cisco.com # swagger.yaml paths: /users: x-swagger-router-controller:user.controller post: description: Create a user account operationId: createUser produces: - application/json parameters: - name: user in: body description: Your requested username required: true schema: $ref: "#/definitions/NewUser" responses: "201": description: "created user" schema: $ref: "#/definitions/NewUserResponse" "400": description: Bad request (duplicate user) schema: $ref: "#/definitions/ErrorResponse" default: description: "unexpected error" schema: $ref: "#/definitions/ErrorResponse" // user.controller.js exports.createUser = function(req, res) { }
- 25. @aroach@CiscoDevNetdeveloper.cisco.com ├── app.js ├── config │├── README.md │ ├── default.yaml │ └── seeds │ └── basic.js ├── env_make ├── Makefile ├── package.json ├── static │ ├── css │ │ └── main.css │ └── howto.md └── test └── api ├── controllers │ ├── README.md │ ├── authenticate.js │ └── health.js └── helpers └── README.md // app.js var express = require('express'); app.use(express.static('static'));
- 26.
- 27. @aroach@CiscoDevNetdeveloper.cisco.com • Swagger-node providesfast REST API creation • Prototyping, mocking • Spec-first development was an adjustment • Container-based workflows made deployment super simple Takeaways
- 28. @aroach@CiscoDevNetdeveloper.cisco.com Helpful Links • https://communities.cisco.com/people/asroach/blog/2016/09/19/building-the-devnet-api- scavenger-hunt •https://communities.cisco.com/people/asroach/blog/2016/08/11/creating-a-cisco-spark- membership-via-google-forms • https://github.com/swagger-api/swagger-node • https://github.com/CiscoDevNet/rest-api-swagger • https://scotch.io/tutorials/authenticate-a-node-js-api-with-json-web-tokens • http://blog.mongodb.org/post/32866457221/password-authentication-with-mongoose-part-1 • http://www.itnotes.de/docker/development/tools/2014/08/31/speed-up-your-docker-workflow- with-a-makefile/ • http://sahatyalkabov.com/how-to-implement-password-reset-in-nodejs/ • https://marcqualie.com/2015/07/docker-dotenv
- 29.
