1. Lecture11
Sustainable Urban Movements
(New Urbanism- Green Urbanism)
Urban Design - ARCH 342
Dr. Samaa Badawi

2. Lecture 11
Visual Dimension
Presentation outline
Urban Design - ARCH 342Dr. Samaa Badawi Dr. Ahmed M. Refaat
1. Concept of
Sustainability
2. Sustainability
Dimensions
3. Definition
4. Sustainable Urban
Movements
* New Urbanism
• Principles
* Green Urbanism
• Principles
1. Concept of Sustainability
2. Sustainability Dimensions
3. Definition
4. Sustainable Urban Movements
* New Urbanism
• Principles
* Green Urbanism
• Principles

3. Lecture 11
Visual Dimension
Concept of Sustainability
Urban Design - ARCH 342
1. Concept of
Sustainability
2. Sustainability
Dimensions
3. Definition
4. Sustainable Urban
Movements
* New Urbanism
• Principles
* Green Urbanism
• Principles
“Treat the Earth well . It
was not given to you by
your parents . It was
loaned to you by your
children”
Kenyan Proverb

4. Lecture 11
Visual Dimension
Concept of Sustainability
Urban Design - ARCH 342
1. Concept of
Sustainability
2. Sustainability
Dimensions
3. Definition
4. Sustainable Urban
Movements
* New Urbanism
• Principles
* Green Urbanism
• Principles

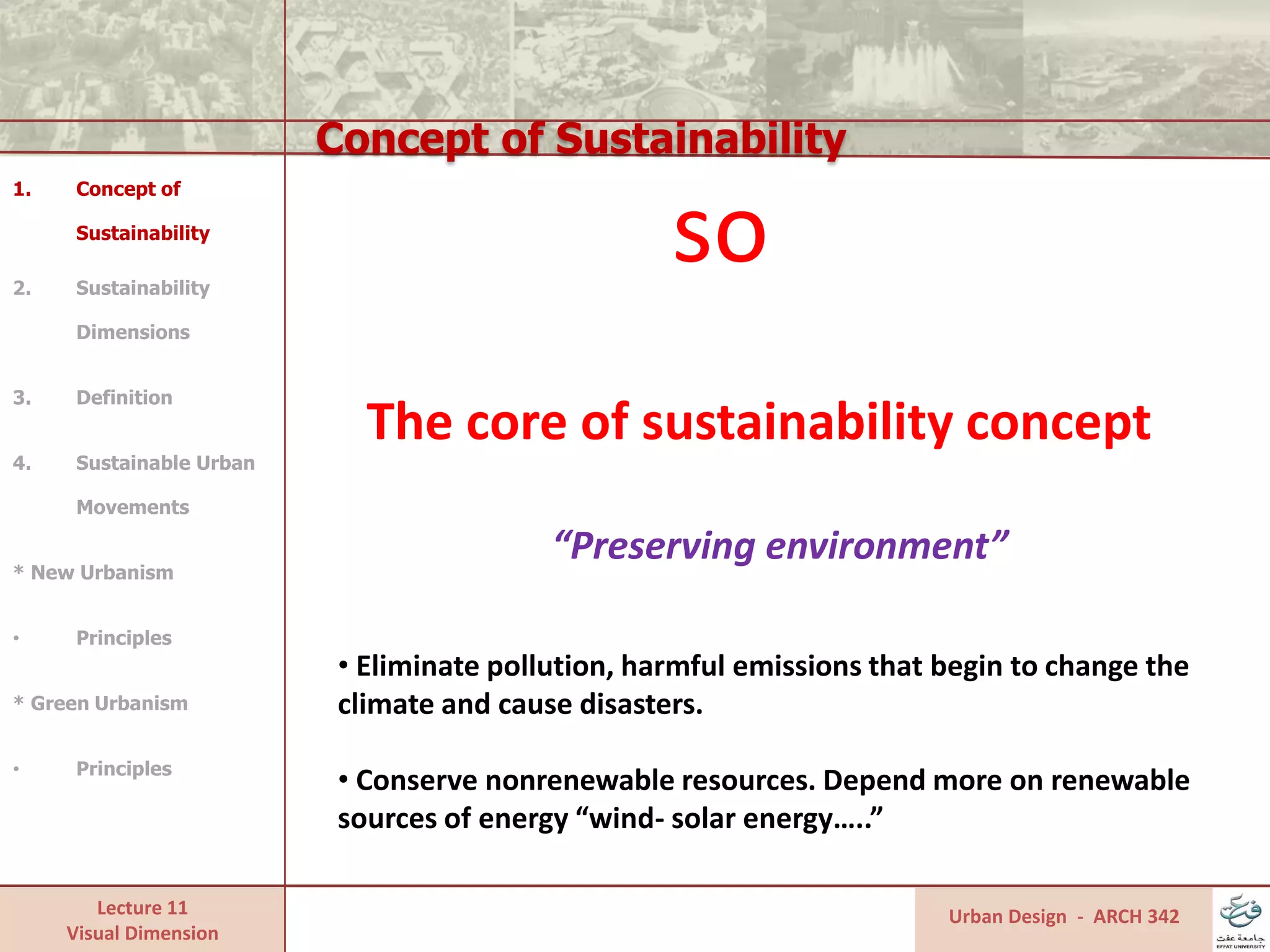

“Preserving environment”
• Eliminate pollution, harmful emissions that begin to change the
climate and cause disasters.
• Conserve nonrenewable resources. Depend more on renewable
sources of energy “wind- solar energy…..”
so
The core of sustainability concept

5. Lecture 11
Visual Dimension
Dimensions of Sustainability
Urban Design - ARCH 342
1. Concept of
Sustainability
2. Sustainability
Dimensions
3. Definition
4. Sustainable Urban
Movements
* New Urbanism
• Principles
* Green Urbanism
• Principles

6. Lecture 11
Visual Dimension
Definition of Sustainability
Urban Design - ARCH 342
1. Concept of
Sustainability
2. Sustainability
Dimensions
3. Definition
4. Sustainable Urban
Movements
* New Urbanism
• Principles
* Green Urbanism
• Principles
• There are many definitions of sustainable development
• The most famous one is:
"Development that meets the needs of the present
generation without compromising the ability of
future generations to meet their own needs."
• Which appeared in 1987 in the Brundtland commission

7. Lecture 11
Visual Dimension
Sustainable Urban Movements:
Urban Design - ARCH 342
1. Concept of
Sustainability
2. Sustainability
Dimensions
3. Definition
4. Sustainable Urban
Movements
* New Urbanism
• Principles
* Green Urbanism
• Principles
Sustainable urban movements
New urbanism Green urbanism
Transit oriented
development
Smart Growth
Urban village
Traditional
neighborhood
development

8. Lecture 11
Visual Dimension
1. New Urbanism
Urban Design - ARCH 342
1. Concept of
Sustainability
2. Sustainability
Dimensions
3. Definition
4. Sustainable Urban
Movements
* New Urbanism
• Principles
* Green Urbanism
• Principles

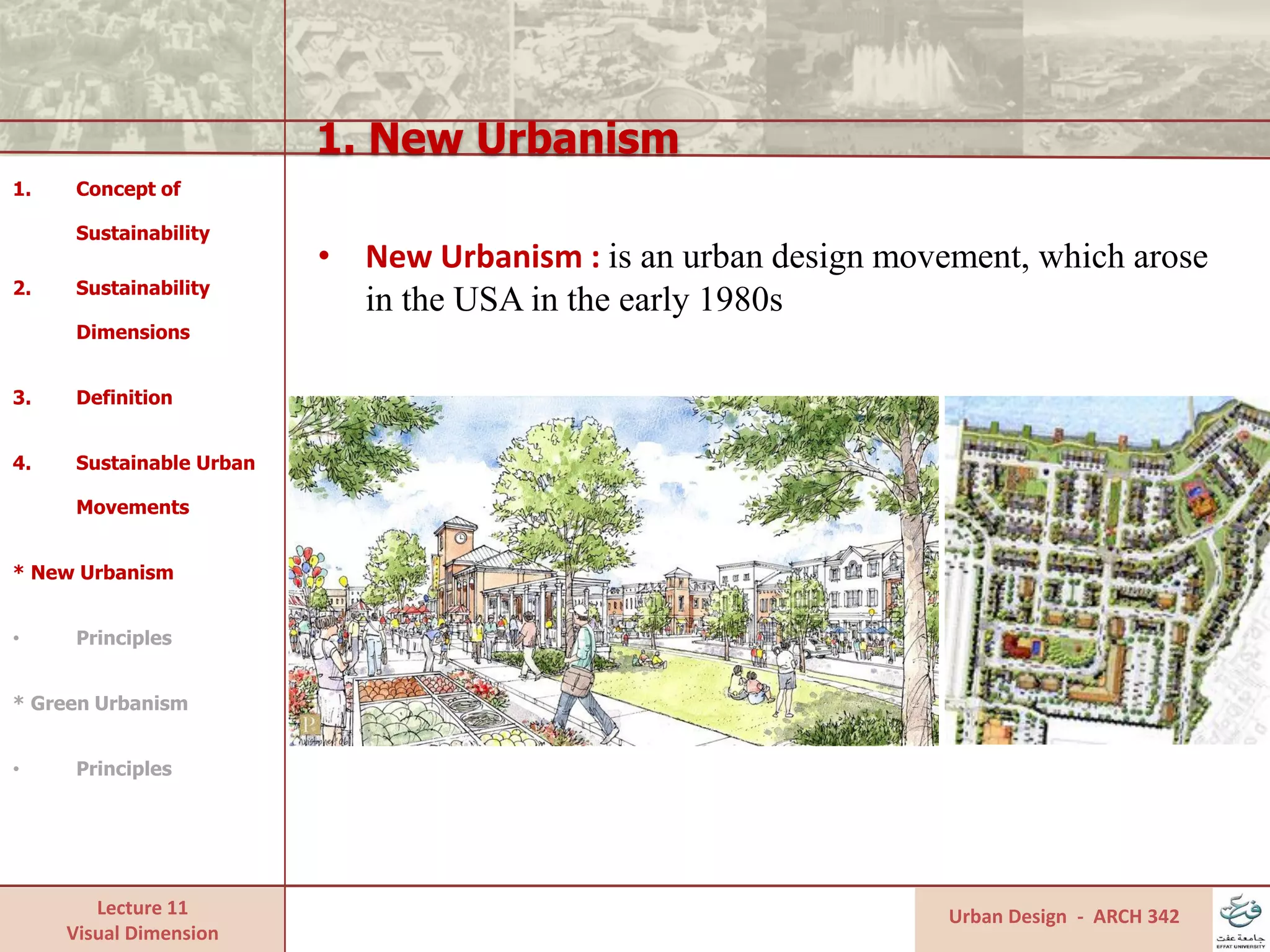

• New Urbanism : is an urban design movement, which arose
in the USA in the early 1980s

9. Lecture 11
Visual Dimension
* Principles of New Urbanism:
Urban Design - ARCH 342Dr. Samaa Badawi Dr. Ahmed M. Refaat
1. Concept of
Sustainability
2. Sustainability
Dimensions
3. Definition
4. Sustainable Urban
Movements
* New Urbanism
• Principles
* Green Urbanism
• Principles
1.Encourage Walkability: New Urbanism deals with streets as main
open spaces where people can do several activities beside moving.
The walls of those streets are the buildings so new urbanism
concerns a lot with the good design of them also.
How can we encourage walkability???

10. Lecture 11
Visual Dimension
1. Encourage walkability:
Urban Design - ARCH 342
1. Concept of
Sustainability
2. Sustainability
Dimensions
3. Definition
4. Sustainable Urban
Movements
* New Urbanism
• Principles
* Green Urbanism
• Principles
To encourage people to walk, streets should be safe – attractive
Safety of Pedestrian : narrow streets – calm traffic – on street
parking lanes- curbside bulb out- pedestrian crosswalks

11. Lecture 11
Visual Dimension
1. Encourage walkability:
Urban Design - ARCH 342
1. Concept of
Sustainability
2. Sustainability
Dimensions
3. Definition
4. Sustainable Urban
Movements
* New Urbanism
• Principles
* Green Urbanism
• Principles
Hard and Soft scape
Elements
Attractive uses
Shaded
sidewalks
Transparent facades

12. Lecture 11
Visual Dimension
* Principles of New Urbanism:
Urban Design - ARCH 342
1. Concept of
Sustainability
2. Sustainability
Dimensions
3. Definition
4. Sustainable Urban
Movements
* New Urbanism
• Principles
* Green Urbanism
• Principles
2. Provide High Quality of architecture and urban design:
Emphasis beauty and aesthetics in architectural and urban elements to
create a sense of place.
Preserve
Architectural
style
Good form and
articulation
Architecture Details
Treatment of building
corners
Treatment of Blanked
walls
Well
organization of
signs

13. Design public open spaces as civic art

14. Lecture 11
Visual Dimension
* Principles of New Urbanism:
Urban Design - ARCH 342
1. Concept of
Sustainability
2. Sustainability
Dimensions
3. Definition
4. Sustainable Urban
Movements
* New Urbanism
• Principles
* Green Urbanism
• Principles
3. Encourage Mixed use: there are variety of shops and offices of
sufficiently varied types to supply the daily and weekly needs of a
household

15. Lecture 11
Visual Dimension
* Principles of New Urbanism:
Urban Design - ARCH 342Dr. Samaa Badawi Dr. Ahmed M. Refaat
1. Concept of
Sustainability
2. Sustainability
Dimensions
3. Definition
4. Sustainable Urban
Movements
* New Urbanism
• Principles
* Green Urbanism
• Principles
4.Encourage the usage of public transportations and bikes: as an
alternative to private cars

17. Lecture 11
Visual Dimension
* Principles of New Urbanism:
Urban Design - ARCH 342
1. Concept of
Sustainability
2. Sustainability
Dimensions
3. Definition
4. Sustainable Urban
Movements
* New Urbanism
• Principles
* Green Urbanism
• Principles
single houses rowhouses apartments
5. Provide a variety of dwelling types: provides a range of types, sizes
and prices in closer proximity such as single houses, rowhouses and
apartments
so that younger and older people, singles and families, the poor and the
wealthy may find places to live.

18. Lecture 11
Visual Dimension
* Principles of New Urbanism:
Urban Design - ARCH 342
1. Concept of
Sustainability
2. Sustainability
Dimensions
3. Definition
4. Sustainable Urban
Movements
* New Urbanism
• Principles
* Green Urbanism
• Principles
6. Conservation and reuse of historic buildings :
the reuse of historic buildings in contemporary uses which
serves community needs and creates distinctive identity.

19. 7. Quality of Life:
taken together these principles add up to a high quality of life, and create places
that enrich, uplift, and inspire the human spirit.
PRINCIPLES OF NEW URBANISM:

20. Lecture 11
Visual Dimension
2. Green Urbanism:
Urban Design - ARCH 342
1. Concept of
Sustainability
2. Sustainability
Dimensions
3. Definition
4. Sustainable Urban
Movements
* New Urbanism
• Principles
* Green Urbanism

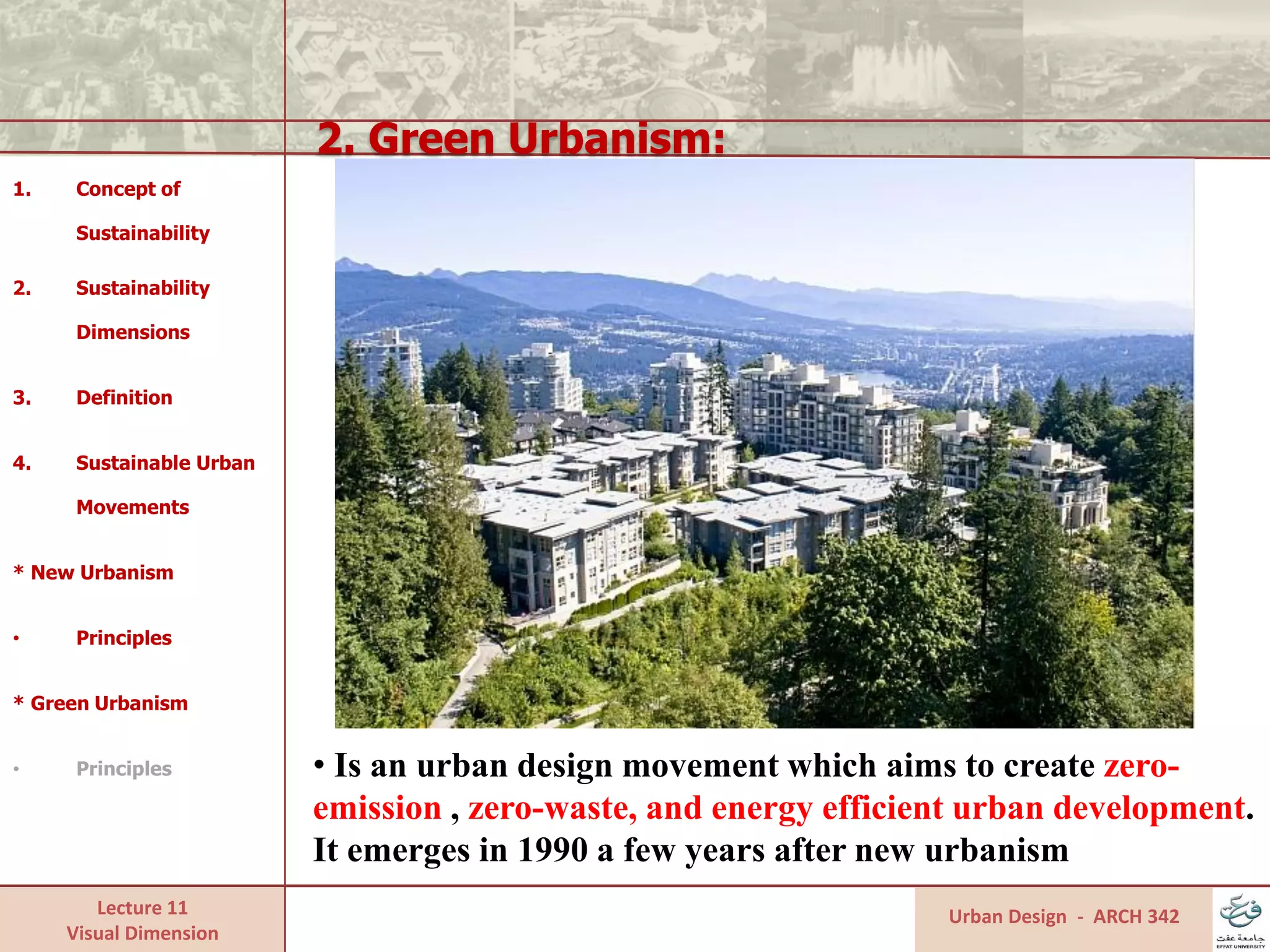

• Principles • Is an urban design movement which aims to create zero-
emission , zero-waste, and energy efficient urban development.
It emerges in 1990 a few years after new urbanism

21. Lecture 11
Visual Dimension
* Principles of Green Urbanism:
Urban Design - ARCH 342
1. Concept of
Sustainability
2. Sustainability
Dimensions
3. Definition
4. Sustainable Urban
Movements
* New Urbanism
• Principles
* Green Urbanism
• Principles
1. Promoting Green streets strategies :
Which aims to save and purify rain water, reduce air heat and pollution
by using plants and landscaping elements

22. Elements of green
street
Trees and plants
Rain gardens
Porous pavements

23. Lecture 11
Visual Dimension
* Rain Gardens:
Urban Design - ARCH 342
1. Concept of
Sustainability
2. Sustainability
Dimensions
3. Definition
4. Sustainable Urban
Movements
* New Urbanism
• Principles
* Green Urbanism
• Principles

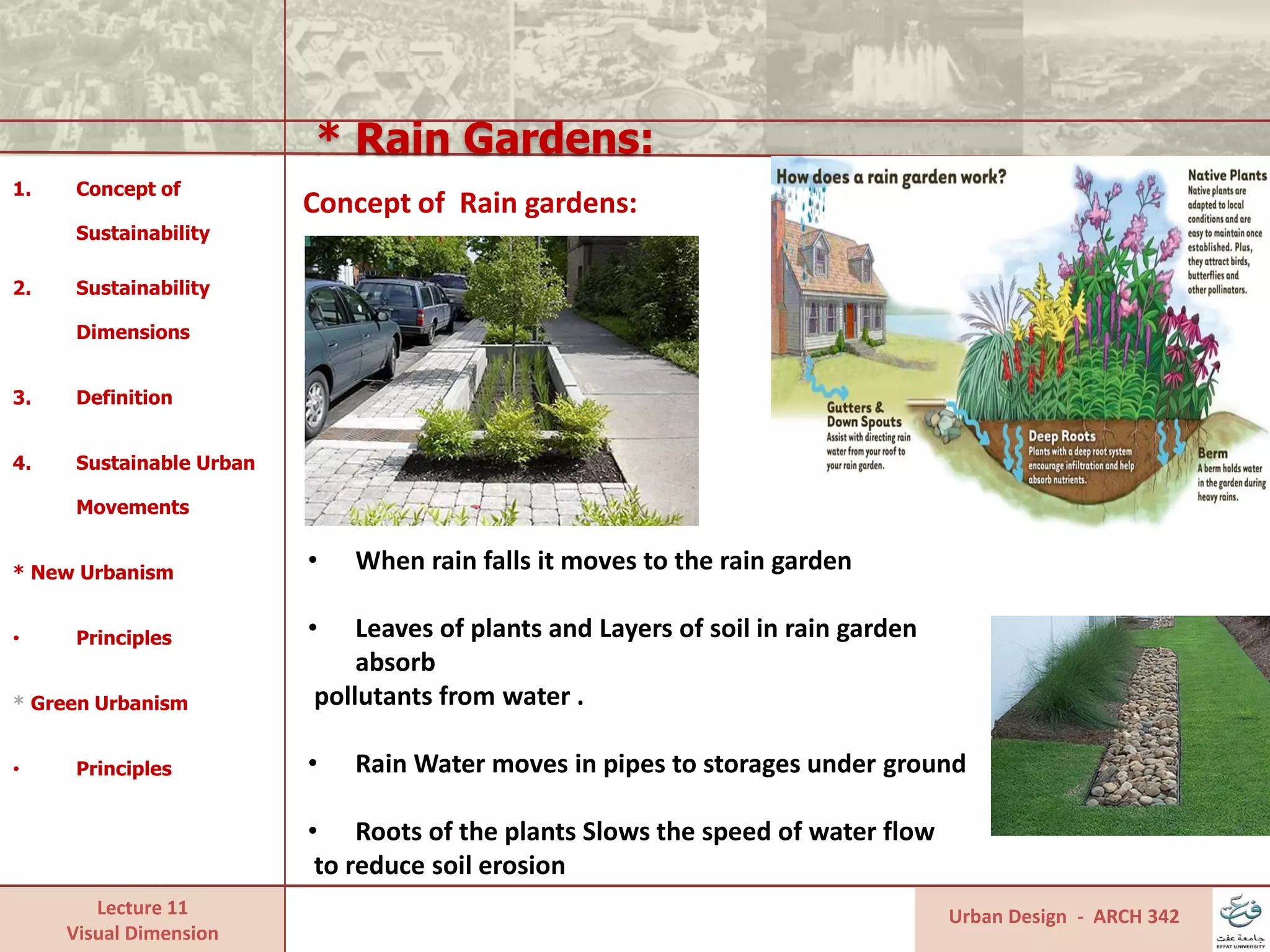

Concept of Rain gardens:
• When rain falls it moves to the rain garden
• Leaves of plants and Layers of soil in rain garden
absorb
pollutants from water .
• Rain Water moves in pipes to storages under ground
• Roots of the plants Slows the speed of water flow
to reduce soil erosion

24. • Rain Garden Cross Section:

25. Lecture 11
Visual Dimension
* Porous Pavement:
Urban Design - ARCH 342
1. Concept of
Sustainability
2. Sustainability
Dimensions
3. Definition
4. Sustainable Urban
Movements
* New Urbanism
• Principles
* Green Urbanism
• Principles

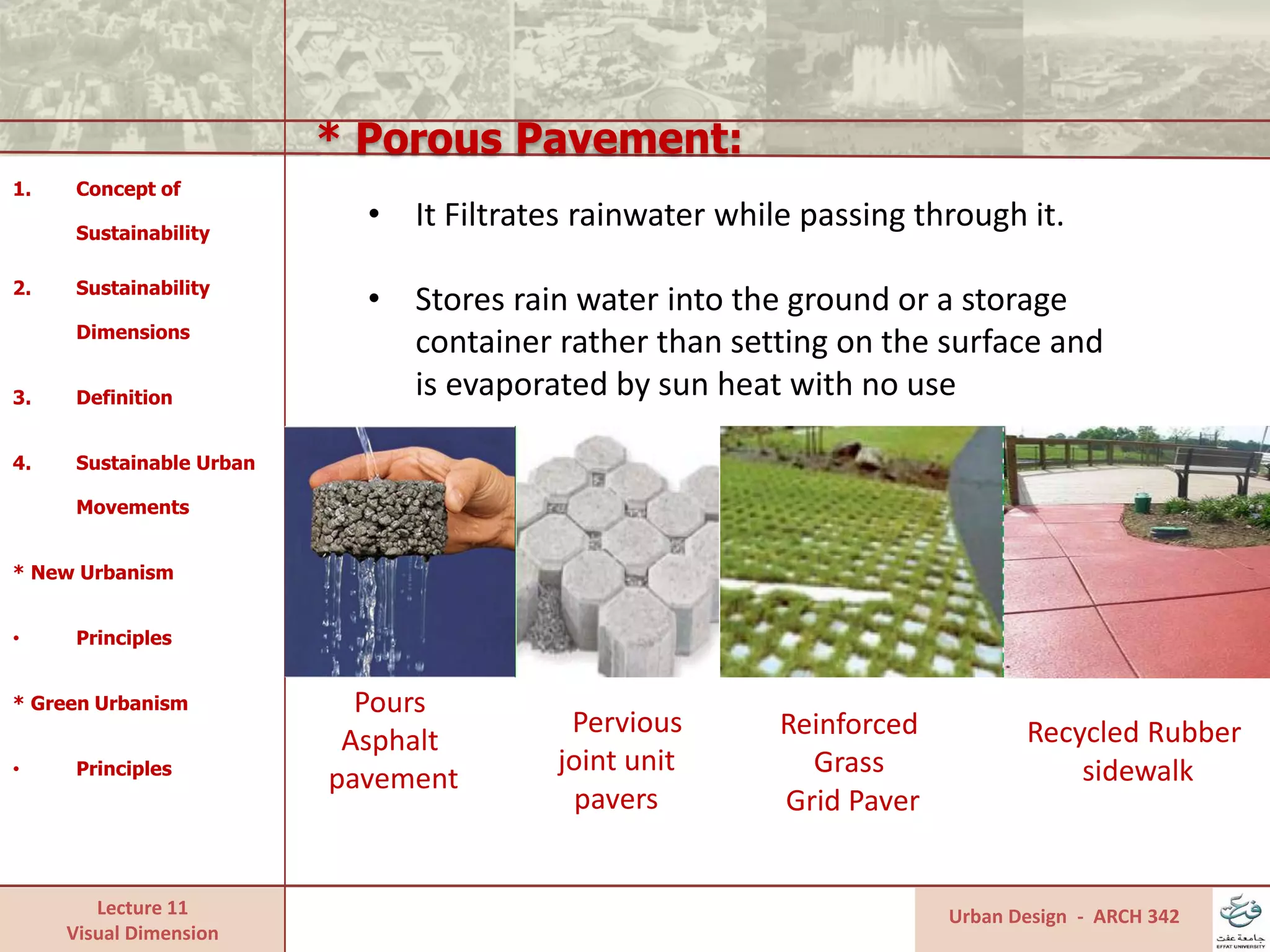

• It Filtrates rainwater while passing through it.
• Stores rain water into the ground or a storage
container rather than setting on the surface and
is evaporated by sun heat with no use
Pours
Asphalt
pavement
Pervious
joint unit
pavers
Reinforced
Grass
Grid Paver
Recycled Rubber
sidewalk

26. Lecture 11
Visual Dimension
* Porous Pavement:
Urban Design - ARCH 342
1. Concept of
Sustainability
2. Sustainability
Dimensions
3. Definition
4. Sustainable Urban
Movements
* New Urbanism
• Principles
* Green Urbanism
• Principles
• Pours Asphalt pavement:
An Experiment shows the
situation of two parts of
the road the first one is
made of porous asphalt
the second one is made of
impermeable pavement
Porous pavement
conserves & filtrates
water
Porous pavement
Impermeable
pavement

27. Lecture 11
Visual Dimension
* Principles of Green Urbanism:
Urban Design - ARCH 342
1. Concept of
Sustainability
2. Sustainability
Dimensions
3. Definition
4. Sustainable Urban
Movements
* New Urbanism
• Principles
* Green Urbanism
• Principles
Solar cells in facadesUrban wind turbines Solar cells in roofs
2. Depending upon Renewable energy:
• By embedding energy generators into urban and architectural
components .

28. Lecture 11
Visual Dimension
* Principles of Green Urbanism:
Urban Design - ARCH 342
1. Concept of
Sustainability
2. Sustainability
Dimensions
3. Definition
4. Sustainable Urban
Movements
* New Urbanism
• Principles
* Green Urbanism
• Principles
3. Increase the amount of landscape and Gardens:
integrates landscapes, urban gardens and green roofs to maximize
biodiversity

29. Lecture 11
Visual Dimension
* Principles of Green Urbanism:
Urban Design - ARCH 342
1. Concept of
Sustainability
2. Sustainability
Dimensions
3. Definition
4. Sustainable Urban
Movements
* New Urbanism
• Principles
* Green Urbanism
• Principles
4. Sustainable waste management to create zero – waste city :
• Sustainable waste management means to turn waste into a
resource .
• Reducing, recycling, reusing and composting waste to produce
energy on the scale of whole community
• Providing small waste transformer units in buildings and urban
spaces.

30. Lecture 11
Visual Dimension
* Principles of Green Urbanism:
Urban Design - ARCH 342
1. Concept of
Sustainability
2. Sustainability
Dimensions
3. Definition
4. Sustainable Urban
Movements
* New Urbanism
• Principles
* Green Urbanism
• Principles

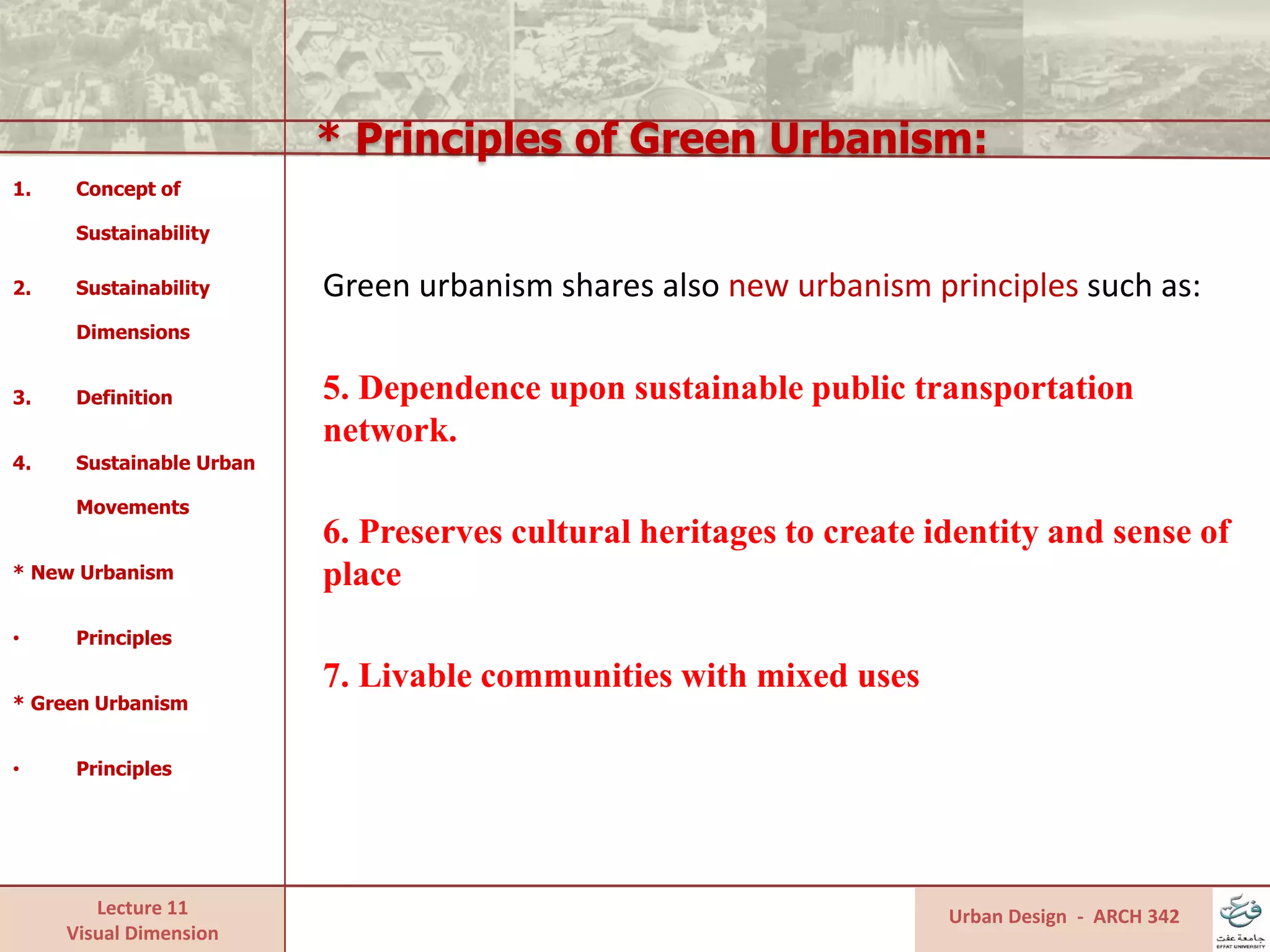

Green urbanism shares also new urbanism principles such as:
5. Dependence upon sustainable public transportation
network.
6. Preserves cultural heritages to create identity and sense of
place
7. Livable communities with mixed uses

31. Lecture 11
Visual Dimension
Urban Design - ARCH 342
1. Concept of
Sustainability
2. Sustainability
Dimensions
3. Definition
4. Sustainable Urban
Movements
* New Urbanism
• Principles
* Green Urbanism
• Principles
Thanks 
