1. Security Alarm System
Presented ByVraj Electronic Security System Pvt. Ltd...

2. What is Security Alarm System
• Microcontroller based total wire free an electronic GSM Security Alarm System ,It
will help you to protect your premises from the unwanted entries. It will alert you
by the loud audio siren and it will make telephone calls to the owner on his/her
mobile phone with detailed voice message. Its auto dialler works with fixed land
line or GSM (SIM)network., two models available 1)Suraksha Chakra (GSM ) 2) Pro
master (Land Line ).

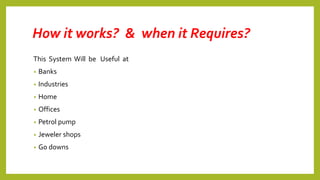

3. How it works? & when it Requires?
This System Will be Useful at
• Banks
• Industries
• Home
• Offices
• Petrol pump
• Jeweler shops
• Go downs

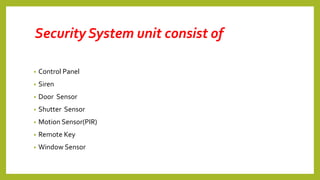

4. Security System unit consist of
• Control Panel
• Siren
• Door Sensor
• Shutter Sensor
• Motion Sensor(PIR)
• Remote Key
• Window Sensor

5. Control Panel
• System Having Emergency Key
Switch
• Password Protection Programming
• LCD display with LED Display

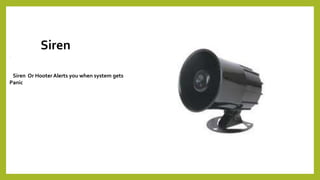

6. Siren
.
Siren Or HooterAlerts you when system gets
Panic

7. Door Sensor
• Wireless Magnetic Sensor Unit
• 100 Meter Operating Range
• When Magnetic Contacts Break it
will Alerts to System
• .12V DC Operating

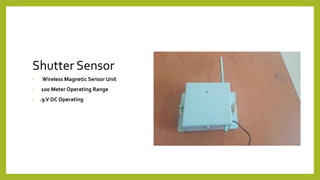

8. Shutter Sensor
• . Wireless Magnetic Sensor Unit
• 100 Meter Operating Range
• .9V DC Operating

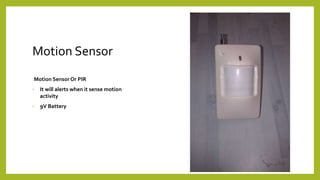

9. Motion Sensor
.Motion SensorOr PIR
• It will alerts when it sense motion
activity
• 9V Battery

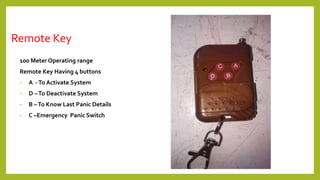

10. Remote Key
100 Meter Operating range
Remote Key Having 4 buttons
• A -To Activate System
• D –To Deactivate System
• B –To Know Last Panic Details
• C –Emergency Panic Switch

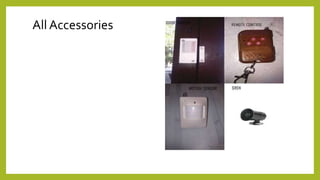

11. All Accessories

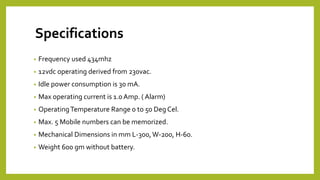

12. Specifications
• Frequency used 434mhz
• 12vdc operating derived from 230vac.
• Idle power consumption is 30 mA.
• Max operating current is 1.0 Amp. ( Alarm)
• OperatingTemperature Range 0 to 50 Deg Cel.
• Max. 5 Mobile numbers can be memorized.
• Mechanical Dimensions in mm L-300,W-200, H-60.
• Weight 600 gm without battery.

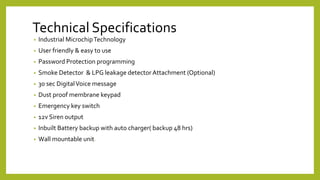

13. Technical Specifications
• Industrial MicrochipTechnology
• User friendly & easy to use
• Password Protection programming
• Smoke Detector & LPG leakage detector Attachment (Optional)
• 30 sec DigitalVoice message
• Dust proof membrane keypad
• Emergency key switch
• 12v Siren output
• Inbuilt Battery backup with auto charger( backup 48 hrs)
• Wall mountable unit.

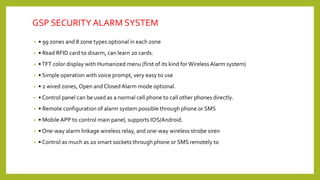

14. GSP SECURITY ALARM SYSTEM
• • 99 zones and 8 zone types optional in each zone
• • Read RFID card to disarm, can learn 20 cards.
• •TFT color display with Humanized menu (first of its kind forWireless Alarm system)
• • Simple operation with voice prompt, very easy to use
• • 2 wired zones, Open and Closed Alarm mode optional.
• • Control panel can be used as a normal cell phone to call other phones directly.
• • Remote configuration of alarm system possible through phone or SMS
• • Mobile APP to control main panel, supports IOS/Android.
• • One‐way alarm linkage wireless relay, and one‐way wireless strobe siren
• • Control as much as 20 smart sockets through phone or SMS remotely to

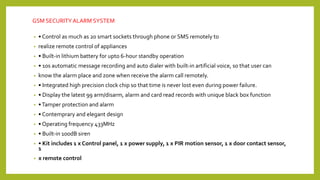

15. GSM SECURITYALARM SYSTEM
• • Control as much as 20 smart sockets through phone or SMS remotely to
• realize remote control of appliances
• • Built‐in lithium battery for upto 6‐hour standby operation
• • 10s automatic message recording and auto dialer with built‐in artificial voice, so that user can
• know the alarm place and zone when receive the alarm call remotely.
• • Integrated high precision clock chip so that time is never lost even during power failure.
• • Display the latest 99 arm/disarm, alarm and card read records with unique black box function
• •Tamper protection and alarm
• • Contemprary and elegant design
• • Operating frequency 433MHz
• • Built‐in 100dB siren
• • Kit includes 1 x Control panel, 1 x power supply, 1 x PIR motion sensor, 1 x door contact sensor,
1
• x remote control

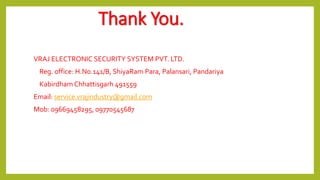

16. Thank You.
VRAJ ELECTRONIC SECURITY SYSTEM PVT. LTD.
Reg. office: H.No.141/B, ShiyaRam Para, Palansari, Pandariya
Kabirdham Chhattisgarh 491559
Email: service.vrajindustry@gmail.com
Mob: 09669458295, 09770545687
