Sun Web Server 7 is a high-performance, scalable web server with built-in clustering, security, and management features. It has set performance records and powers many large sites including MLB.com. The document discusses Sun Web Server 7's architecture, performance optimizations, security enhancements, clustering capabilities, and integration within the Sun GlassFish application server portfolio.

1. Sun Web Server 7: A Jewel in Sun GlassFish Portfolio Murthy Chintalapati (CVR) Senior Engineering Manager Sun Microsystems Inc. April 10th, 2009.

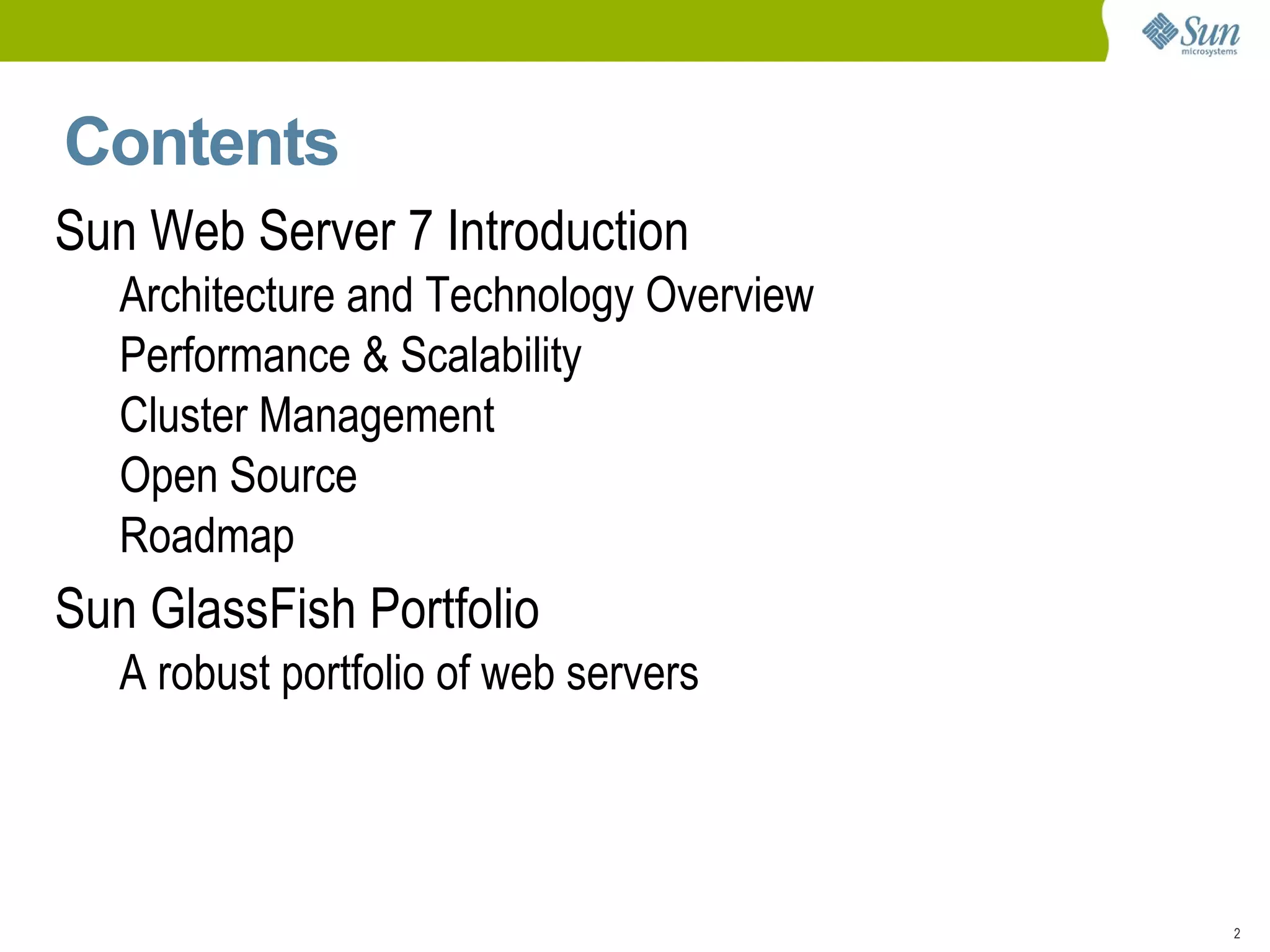

2. Contents Sun Web Server 7 Introduction Architecture and Technology Overview

3. Performance & Scalability

4. Cluster Management

5. Open Source

6. Roadmap Sun GlassFish Portfolio A robust portfolio of web servers

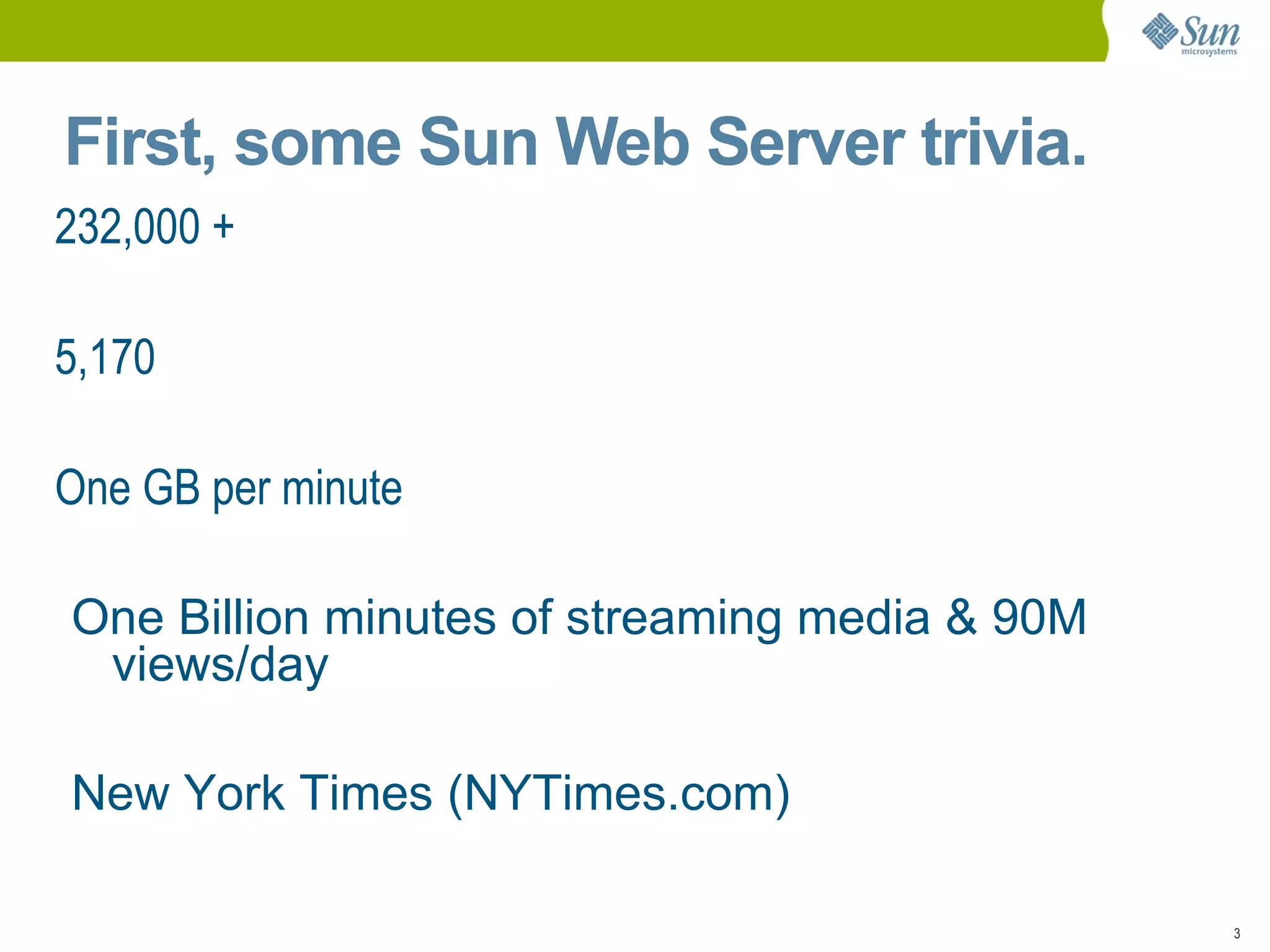

7. First, some Sun Web Server trivia. 232,000 +

8. 5,170

9. One GB per minute

10. One Billion minutes of streaming media & 90M views/day

11. New York Times (NYTimes.com)

12. First, some Sun Web Server trivia. 232,000 + Simultaneous HTTP connections (on Sun Fire T5220) 5,170 Secure E-commerce (JSP) requests per sec (w/ think time)! One GB per minute Web Server's access log per minute! One Billion minutes of streaming media & 90M views/day MLB.com's over 2,430 full length games to over one billion visitors w/ record breaking 90million views a day New York Times (NYTimes.com) Reportedly served (at least in part) by Sun Web Server.

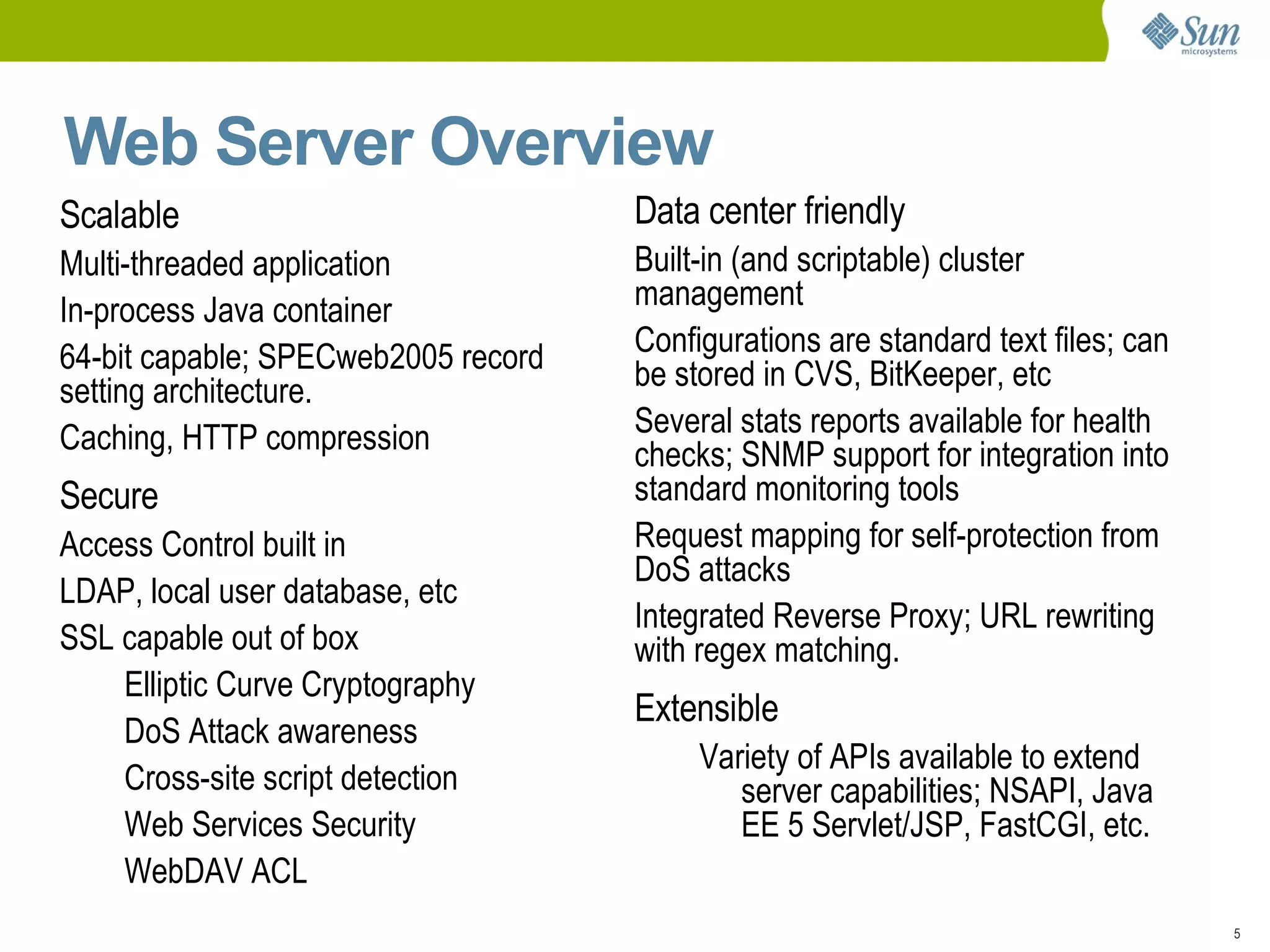

13. Web Server Overview Scalable Multi-threaded application

14. In-process Java container

15. 64-bit capable; SPECweb2005 record setting architecture.

16. Caching, HTTP compression Secure Access Control built in

17. LDAP, local user database, etc

18. SSL capable out of box

19. Elliptic Curve Cryptography

20. DoS Attack awareness

21. Cross-site script detection

22. Web Services Security

23. WebDAV ACL Data center friendly Built-in (and scriptable) cluster management

24. Configurations are standard text files; can be stored in CVS, BitKeeper, etc

25. Several stats reports available for health checks; SNMP support for integration into standard monitoring tools

26. Request mapping for self-protection from DoS attacks

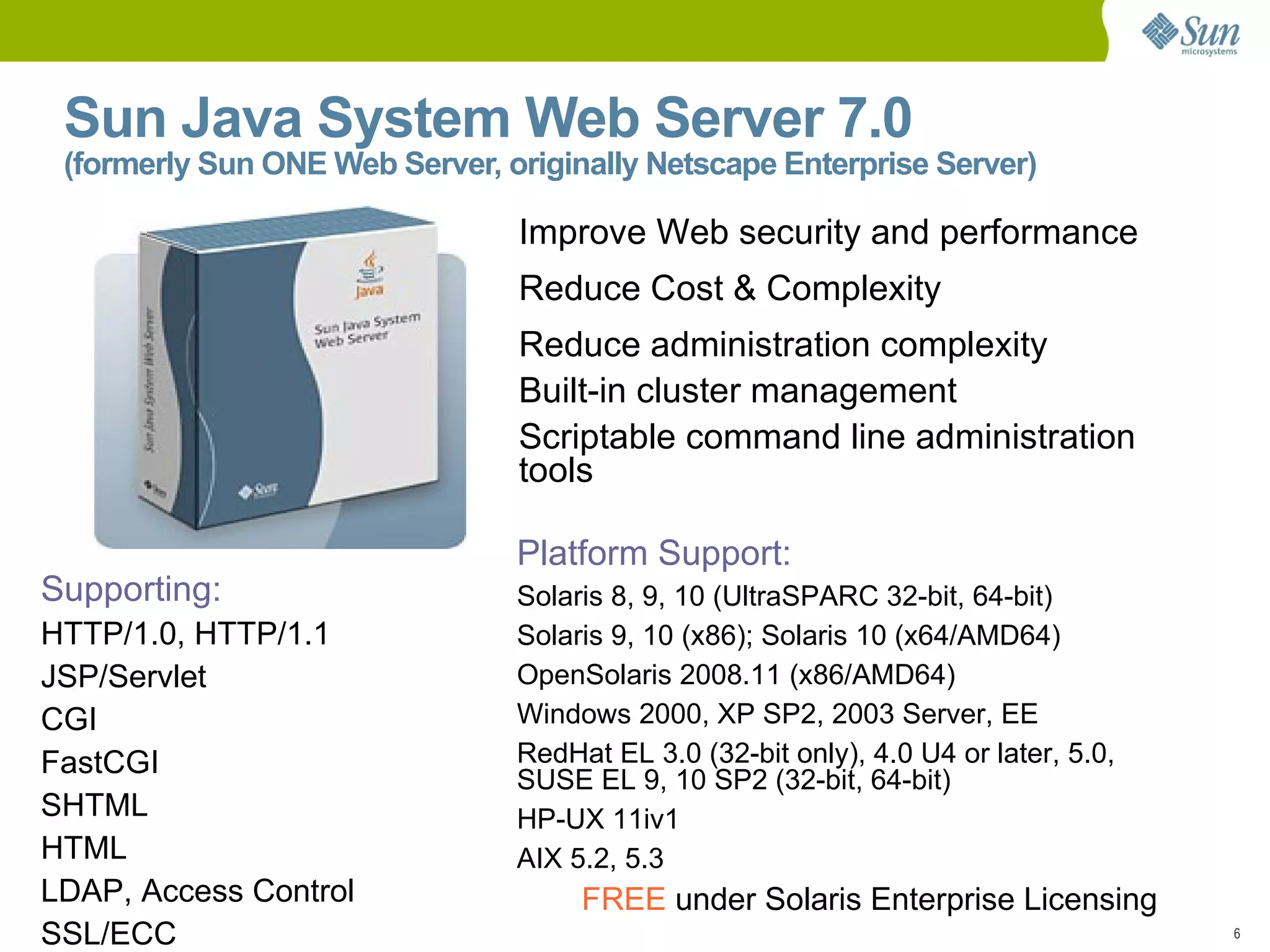

27. Integrated Reverse Proxy; URL rewriting with regex matching. Extensible Variety of APIs available to extend server capabilities; NSAPI, Java EE 5 Servlet/JSP, FastCGI, etc.

28. Sun Java System Web Server 7.0 (formerly Sun ONE Web Server, originally Netscape Enterprise Server) Supporting: HTTP/1.0, HTTP/1.1

29. JSP/Servlet

30. CGI

31. FastCGI

32. SHTML

33. HTML

34. LDAP, Access Control

35. SSL/ECC Improve Web security and performance

36. Reduce Cost & Complexity

37. Reduce administration complexity Built-in cluster management

38. Scriptable command line administration tools Platform Support: Solaris 8, 9, 10 (UltraSPARC 32-bit, 64-bit)

39. Solaris 9, 10 (x86); Solaris 10 (x64/AMD64)

40. OpenSolaris 2008.11 (x86/AMD64)

41. Windows 2000, XP SP2, 2003 Server, EE

42. RedHat EL 3.0 (32-bit only), 4.0 U4 or later, 5.0, SUSE EL 9, 10 SP2 (32-bit, 64-bit)

43. HP-UX 11iv1

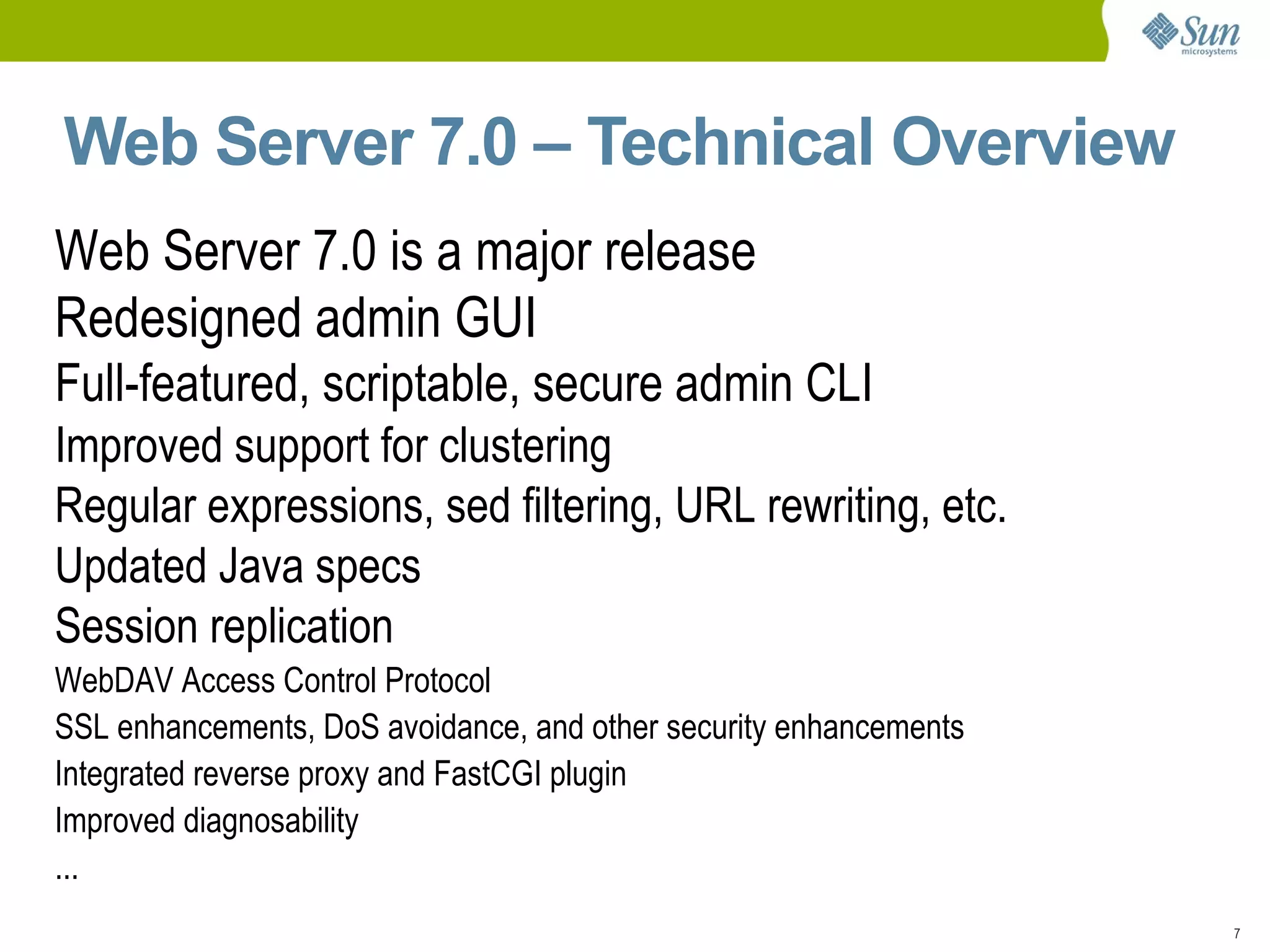

44. AIX 5.2, 5.3 FREE under Solaris Enterprise Licensing

45. Web Server 7.0 – Technical Overview Web Server 7.0 is a major release Redesigned admin GUI

46. Full-featured, scriptable, secure admin CLI

47. Improved support for clustering

48. Regular expressions, sed filtering, URL rewriting, etc.

49. Updated Java specs

50. Session replication

51. WebDAV Access Control Protocol

52. SSL enhancements, DoS avoidance, and other security enhancements

53. Integrated reverse proxy and FastCGI plugin

54. Improved diagnosability

55. ...

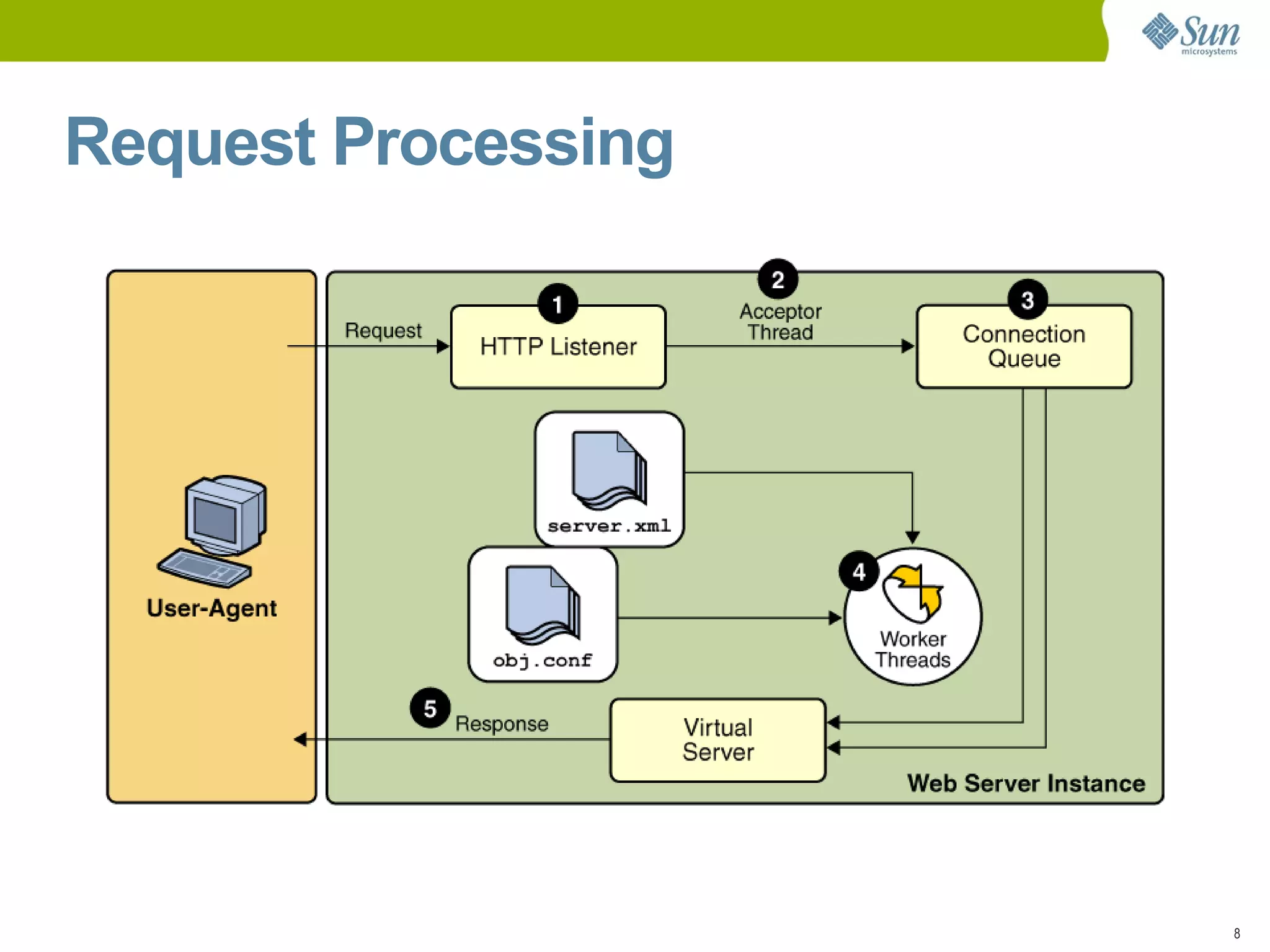

56. Request Processing

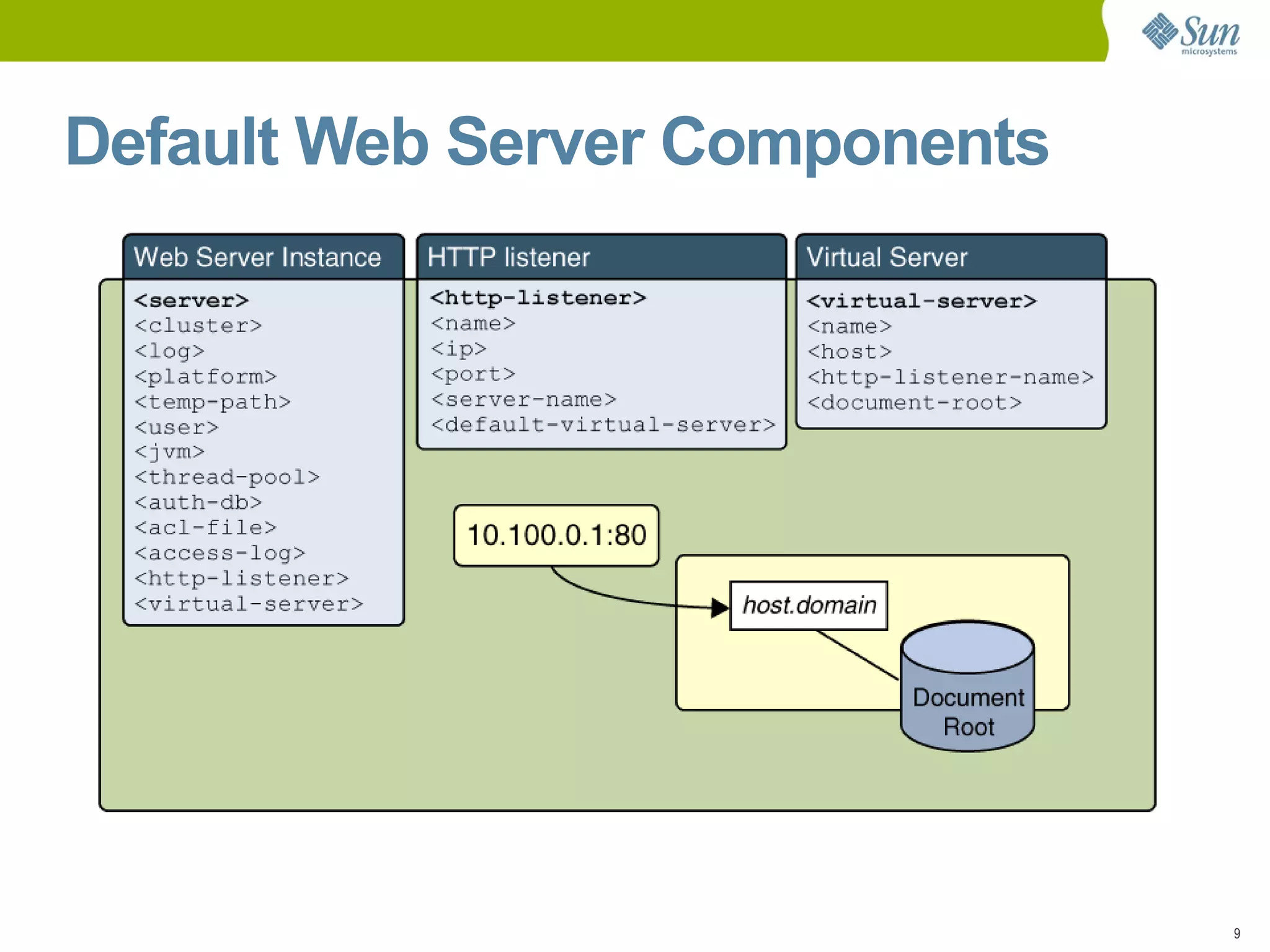

57. Default Web Server Components

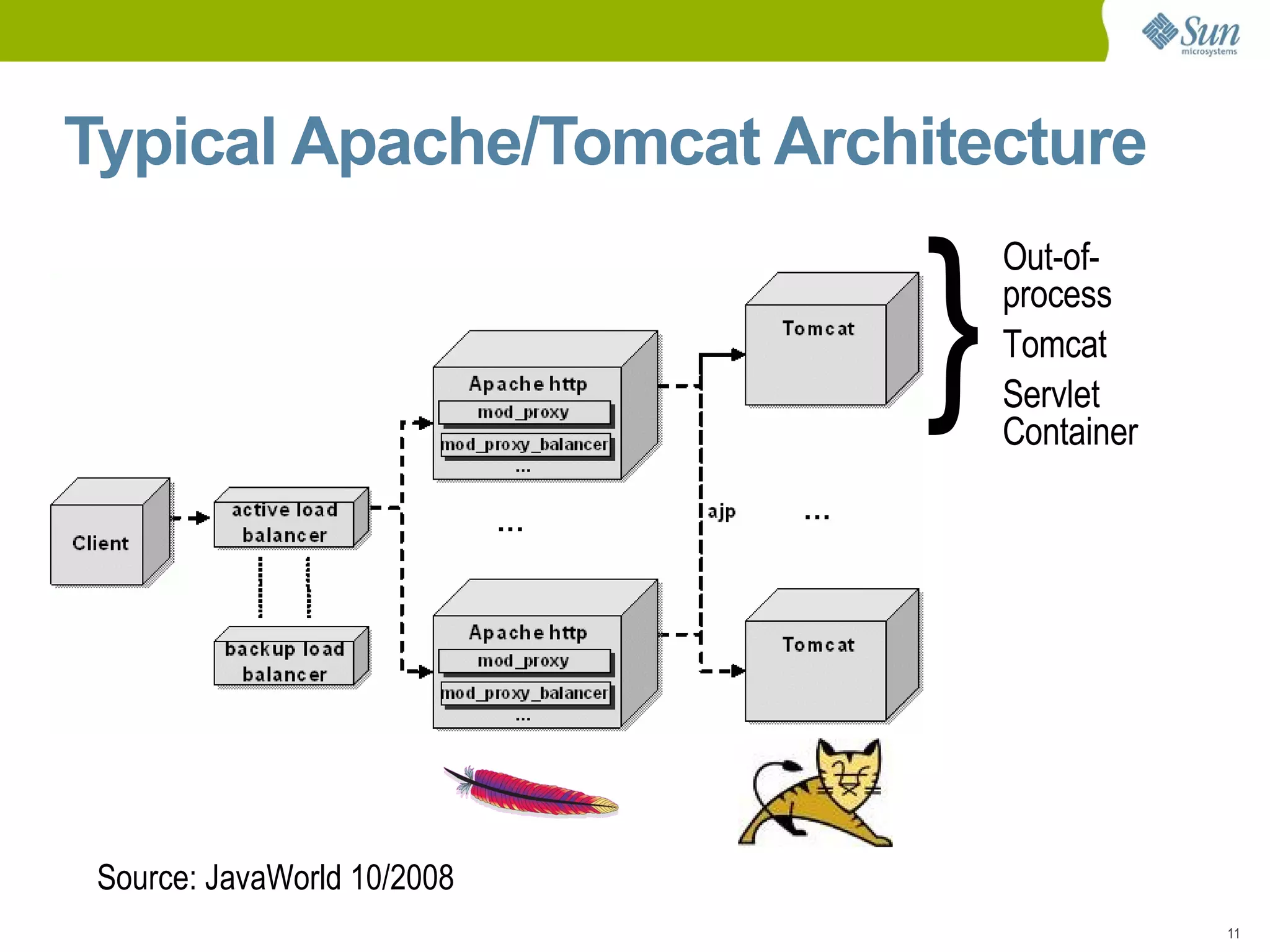

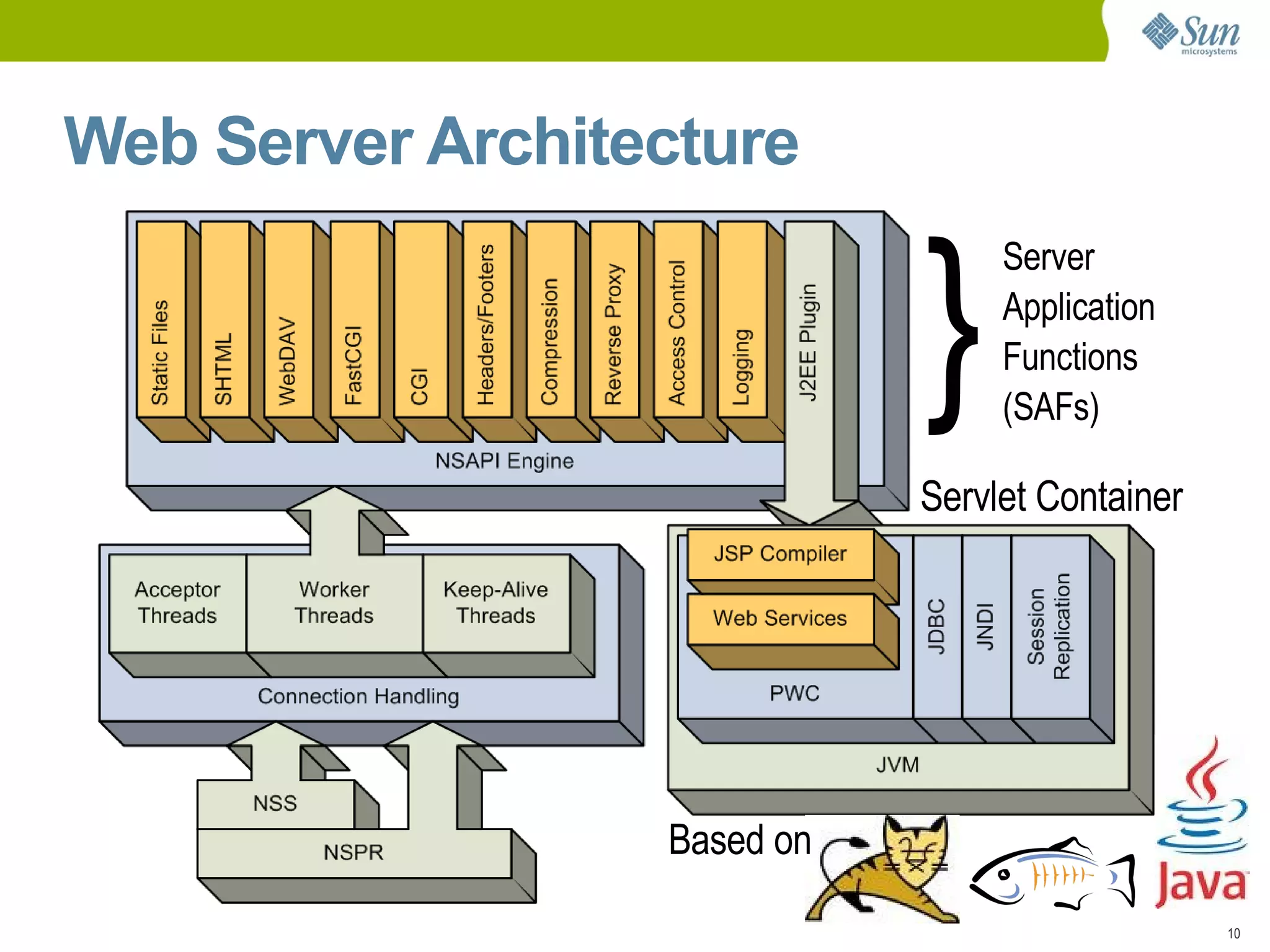

58. Web Server Architecture Server Application Functions (SAFs) } Servlet Container Based on

59. Typical Apache/Tomcat Architecture Out-of-process Tomcat Servlet Container } Source: JavaWorld 10/2008

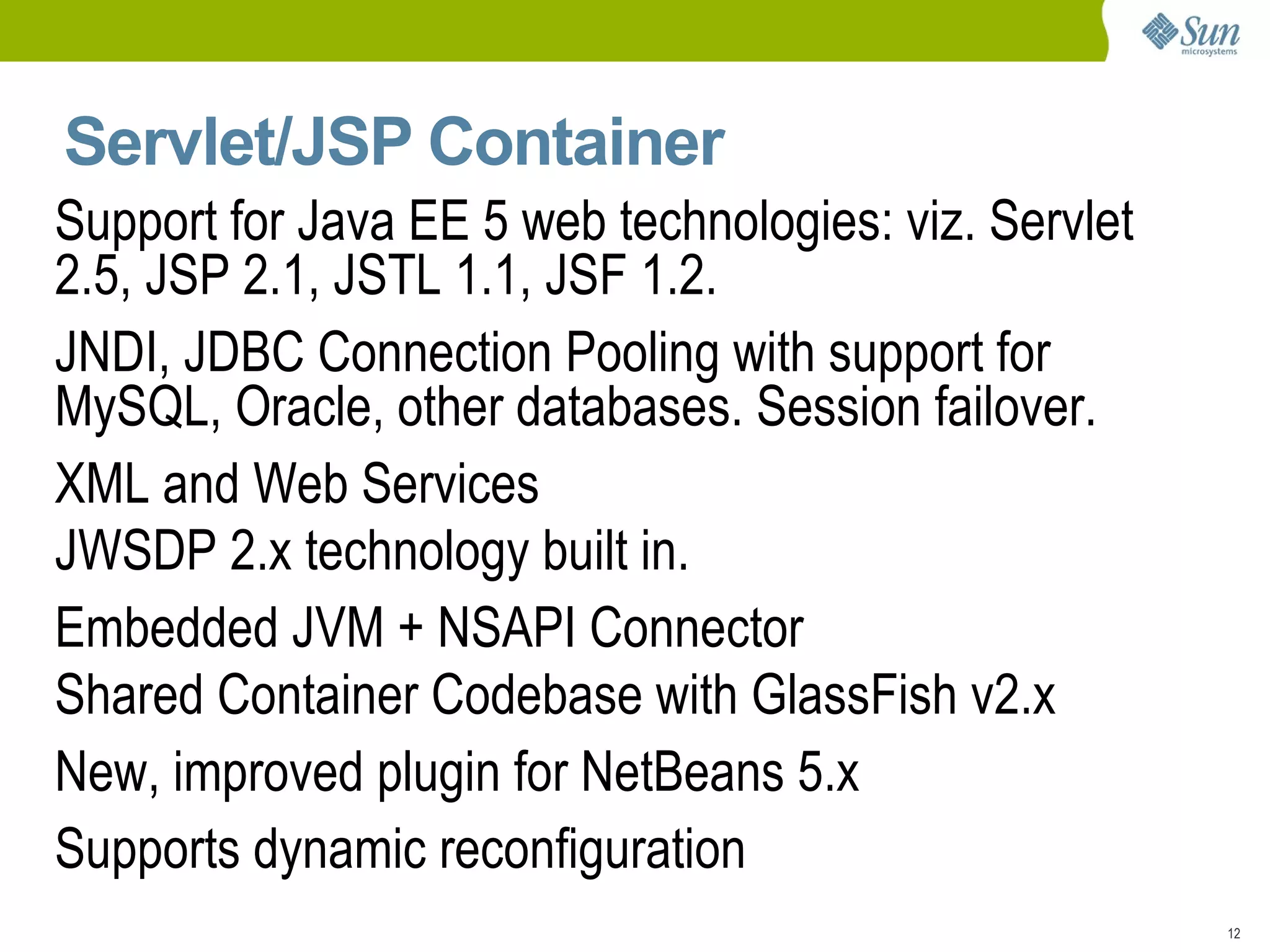

60. Servlet/JSP Container Support for Java EE 5 web technologies: viz. Servlet 2.5, JSP 2.1, JSTL 1.1, JSF 1.2.

61. JNDI, JDBC Connection Pooling with support for MySQL, Oracle, other databases. Session failover.

62. XML and Web Services JWSDP 2.x technology built in. Embedded JVM + NSAPI Connector Shared Container Codebase with GlassFish v2.x New, improved plugin for NetBeans 5.x

63. Supports dynamic reconfiguration

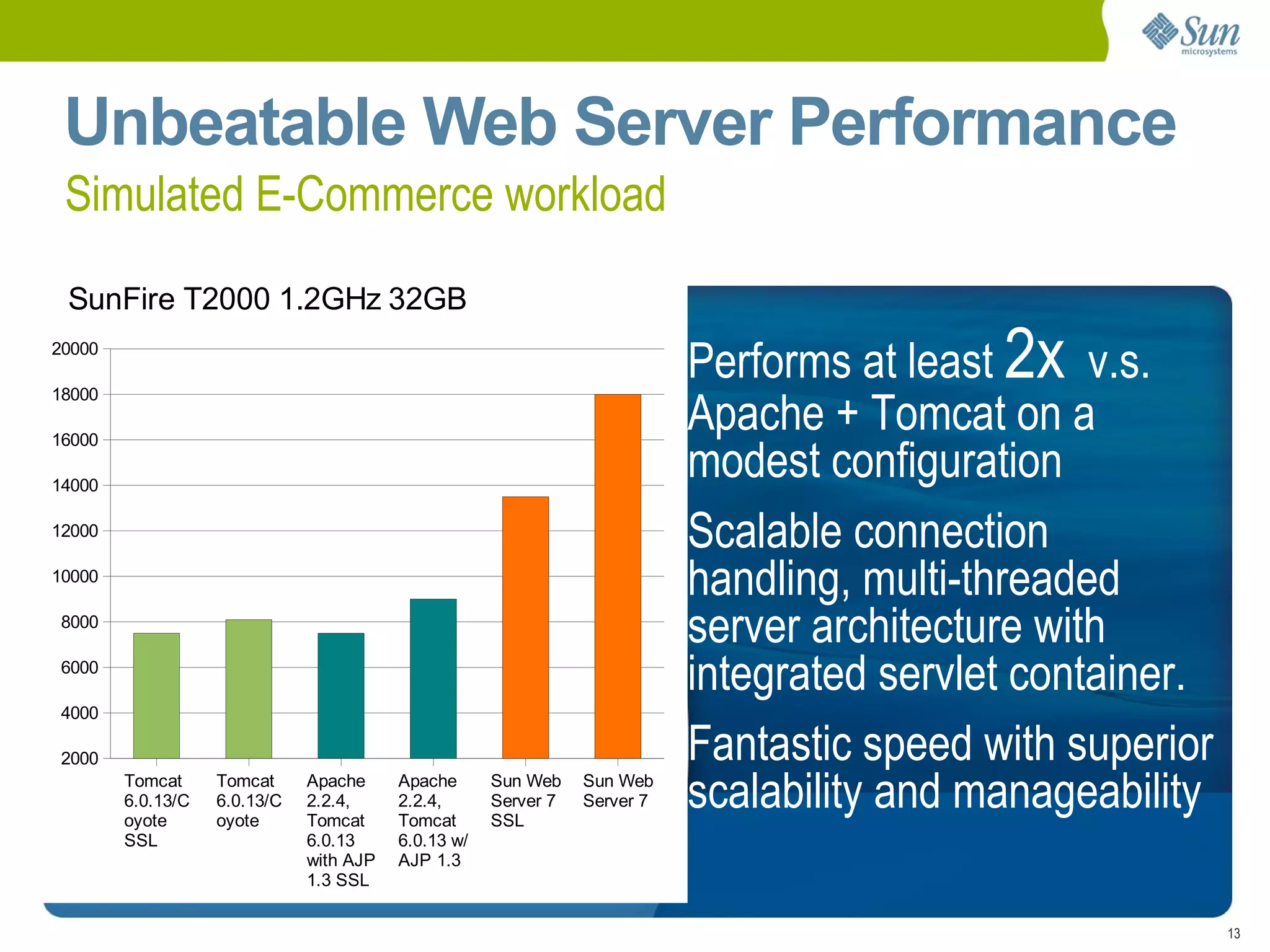

64. Unbeatable Web Server Performance Simulated E-Commerce workload Fantastic Speed with Superior Security Web Stack simplifies support for small and large deployments Page load times (seconds) Performs at least 2x v.s. Apache + Tomcat on a modest configuration

65. Scalable connection handling, multi-threaded server architecture with integrated servlet container.

66. Fantastic speed with superior scalability and manageability

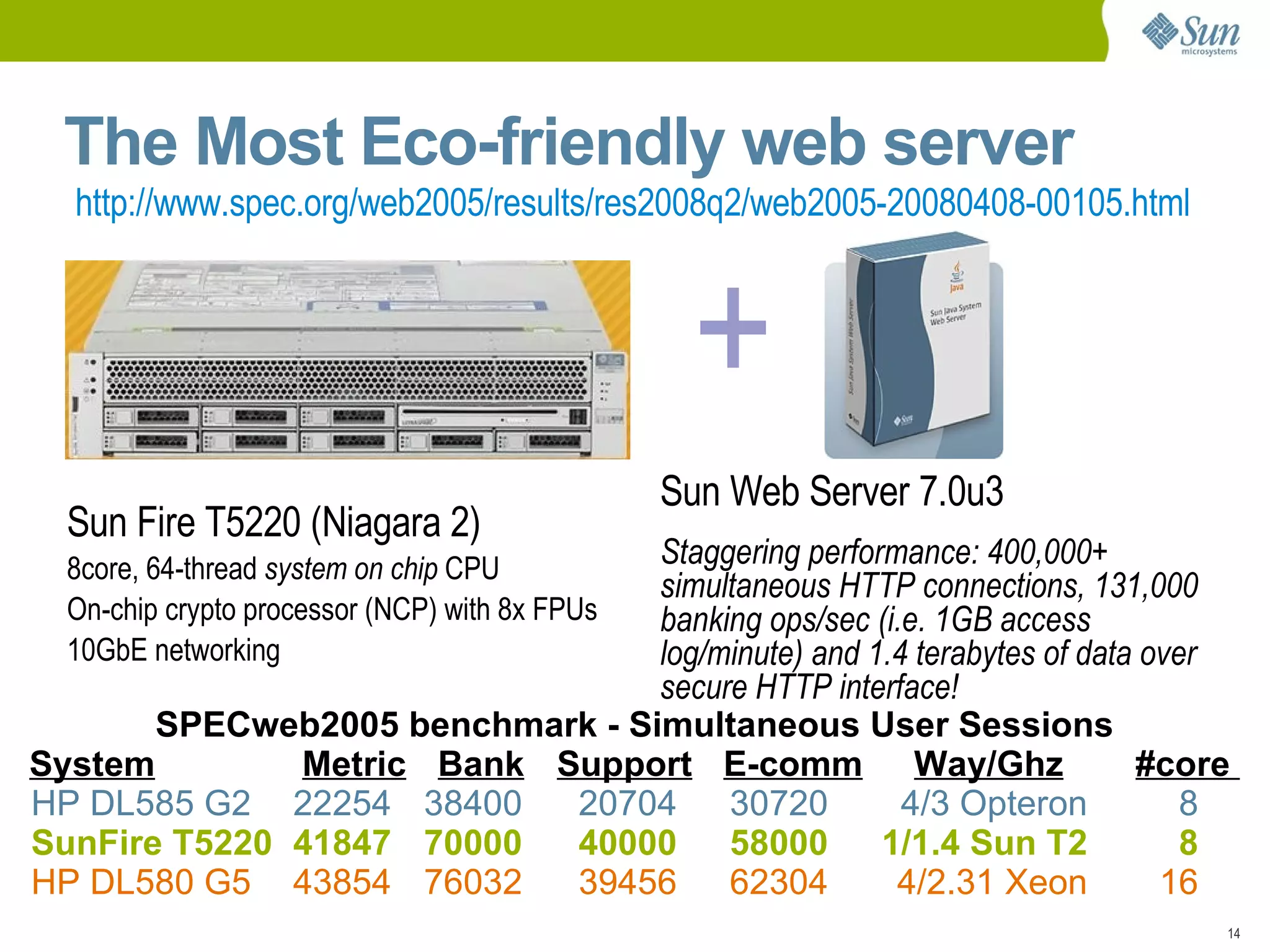

67. Sun Fire T5220 (Niagara 2) 8core, 64-thread system on chip CPU

68. On-chip crypto processor (NCP) with 8x FPUs

69. 10GbE networking The Most Eco-friendly web server SPECweb2005 benchmark - Simultaneous User Sessions System Metric Bank Support E-comm Way/Ghz #core HP DL585 G2 22254 38400 20704 30720 4/3 Opteron 8 SunFire T5220 41847 70000 40000 58000 1/1.4 Sun T2 8 HP DL580 G5 43854 76032 39456 62304 4/2.31 Xeon 16 + Sun Web Server 7.0u3 Staggering performance: 400,000+ simultaneous HTTP connections, 131,000 banking ops/sec (i.e. 1GB access log/minute) and 1.4 terabytes of data over secure HTTP interface! http://www.spec.org/web2005/results/res2008q2/web2005-20080408-00105.html

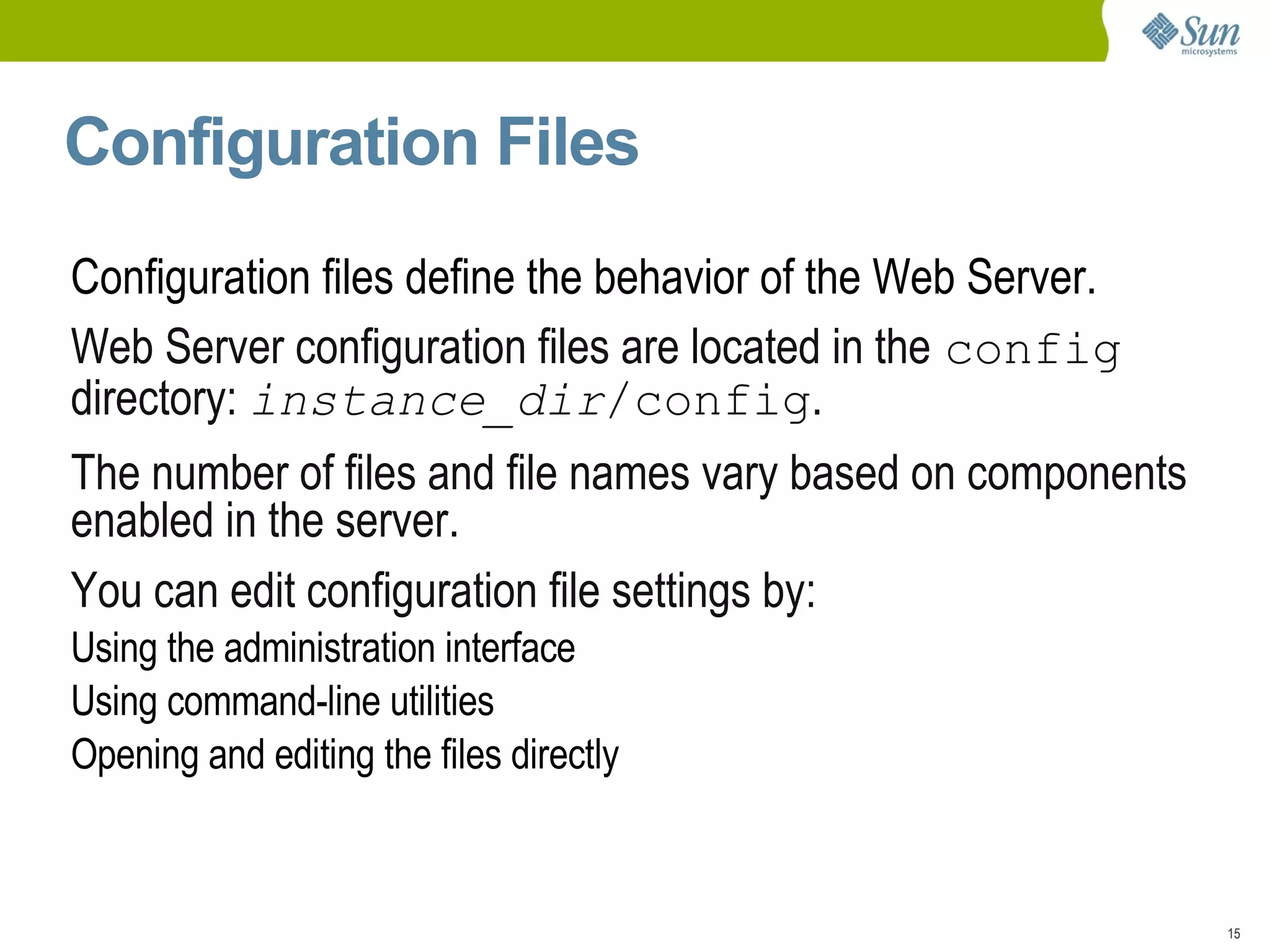

70. Configuration Files Configuration files define the behavior of the Web Server. Web Server configuration files are located in the config directory: instance_dir /config .

71. The number of files and file names vary based on components enabled in the server.

72. You can edit configuration file settings by: Using the administration interface

73. Using command-line utilities

74. Opening and editing the files directly

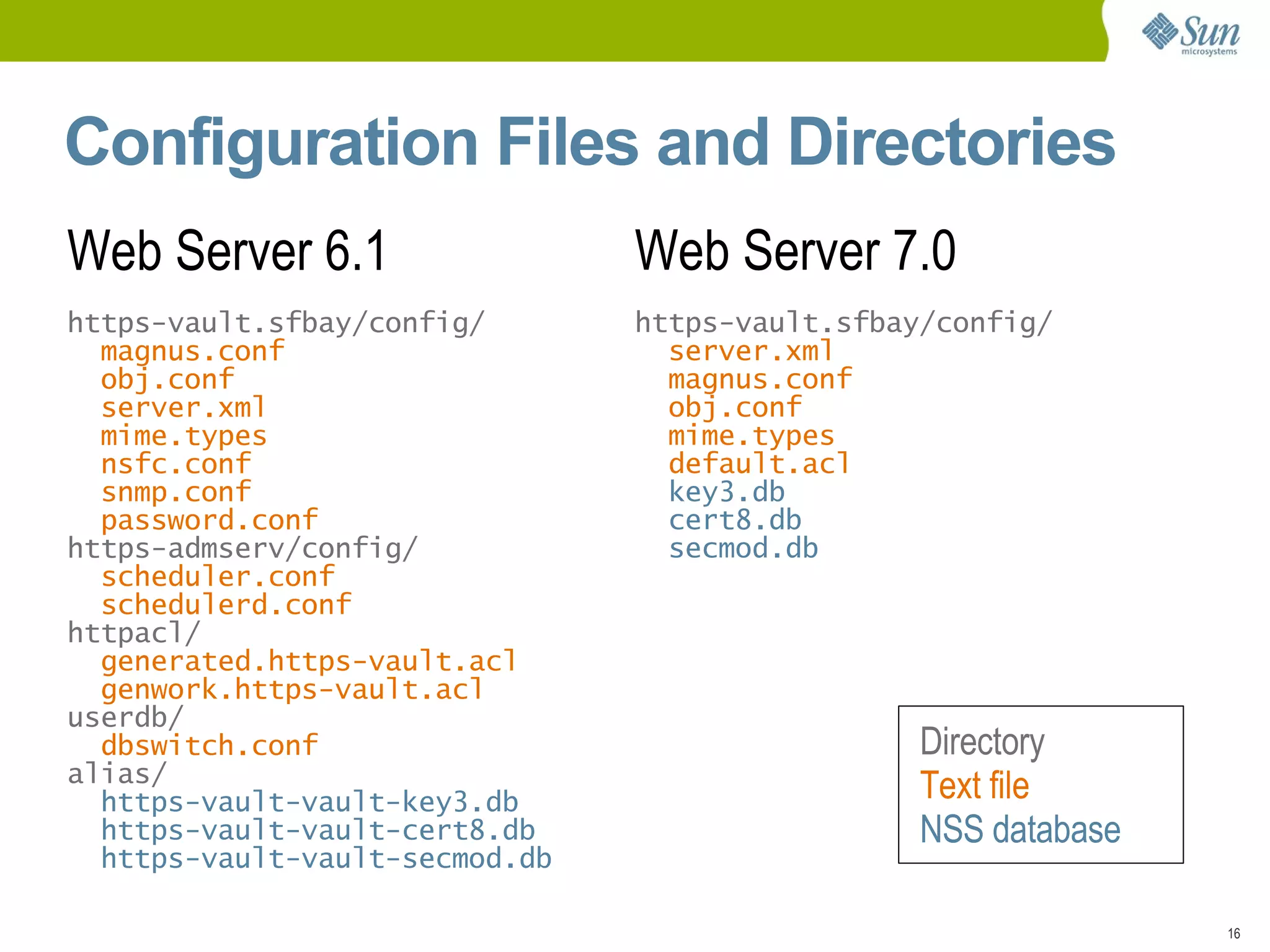

75. Web Server 6.1 https-vault.sfbay/config/ magnus.conf obj.conf server.xml mime.types nsfc.conf snmp.conf password.conf https-admserv/config/ scheduler.conf schedulerd.conf httpacl/ generated.https-vault.acl genwork.https-vault.acl userdb/ dbswitch.conf alias/ https-vault-vault-key3.db https-vault-vault-cert8.db https-vault-vault-secmod.db Configuration Files and Directories Web Server 7.0 https-vault.sfbay/config/ server.xml magnus.conf obj.conf mime.types default.acl key3.db cert8.db secmod.db Directory Text file NSS database

76. Changes to server.xml Validation The server.xml file is now validated against an XML schema rather than a data type definition (DTD).

77. Provides a common repository: Validation rules

78. Default values Benefits of validating against an XML schema include the following: Relaxes element order rules (where appropriate)

79. Validates references to other elements

80. Enforces type checks

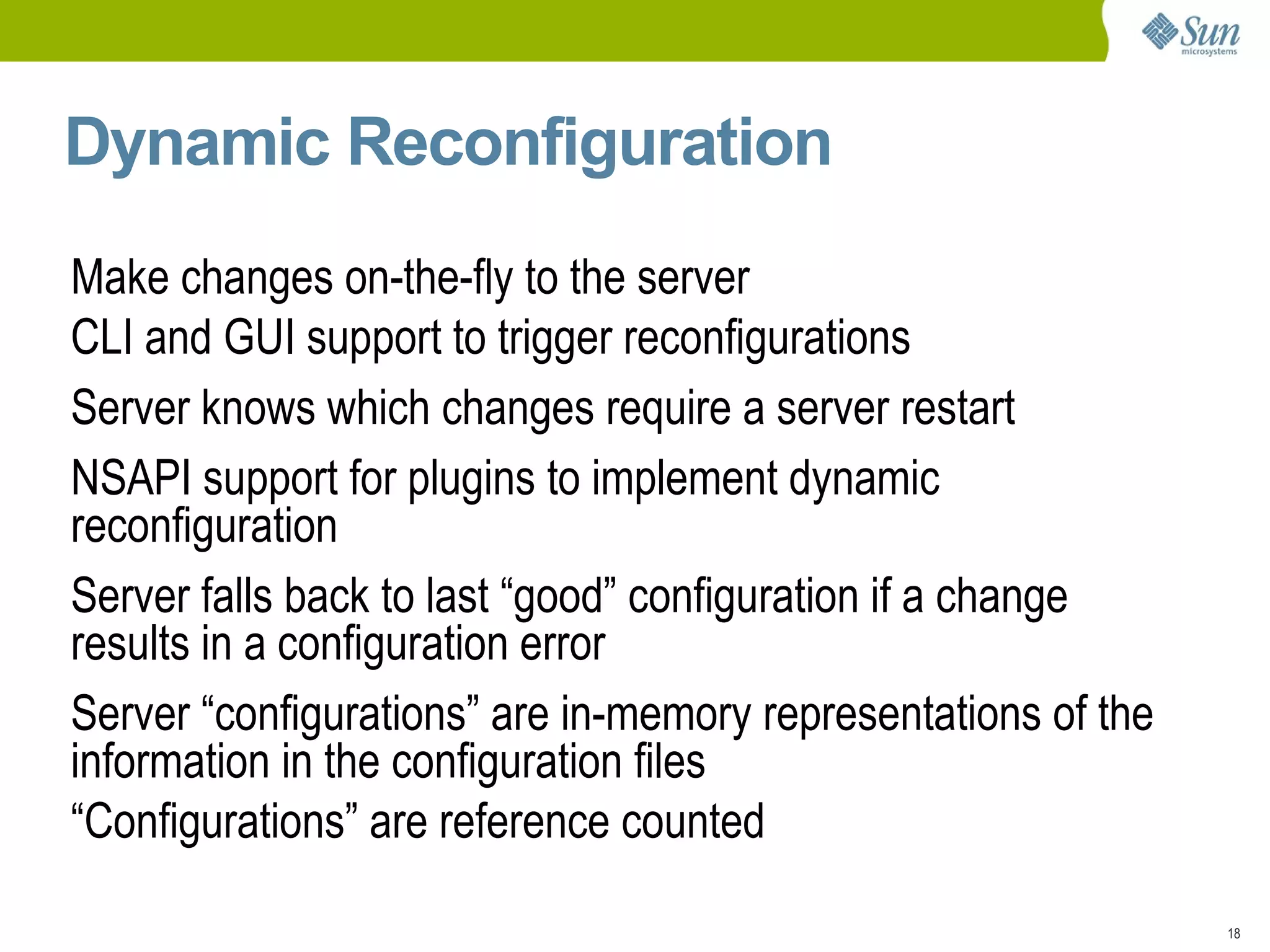

81. Dynamic Reconfiguration Make changes on-the-fly to the server CLI and GUI support to trigger reconfigurations Server knows which changes require a server restart

82. NSAPI support for plugins to implement dynamic reconfiguration

83. Server falls back to last “good” configuration if a change results in a configuration error

84. Server “configurations” are in-memory representations of the information in the configuration files “ Configurations” are reference counted

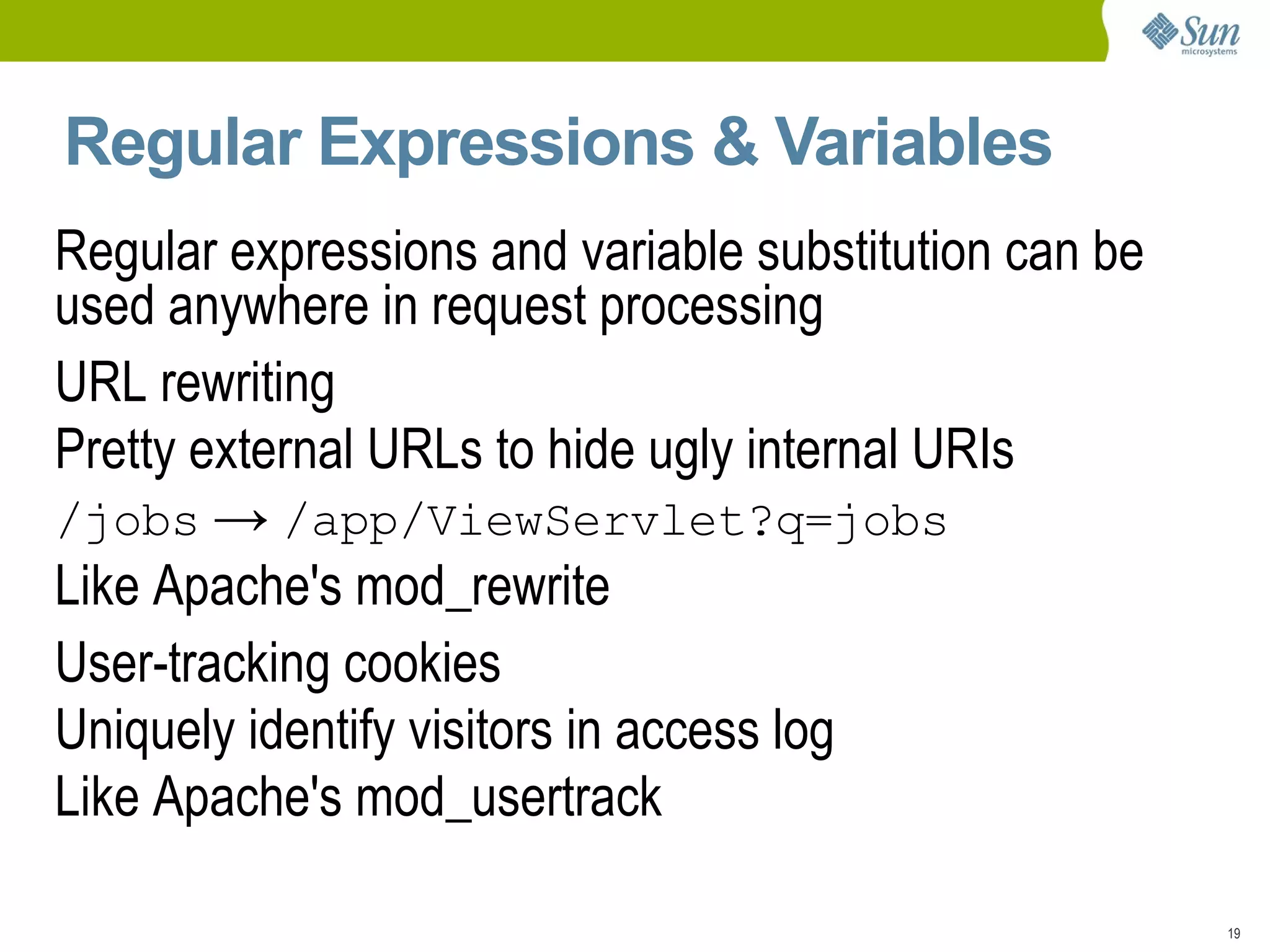

85. Regular Expressions & Variables Regular expressions and variable substitution can be used anywhere in request processing

86. URL rewriting Pretty external URLs to hide ugly internal URIs

87. /jobs -> /app/ViewServlet?q=jobs

88. Like Apache's mod_rewrite User-tracking cookies Uniquely identify visitors in access log

89. Like Apache's mod_usertrack

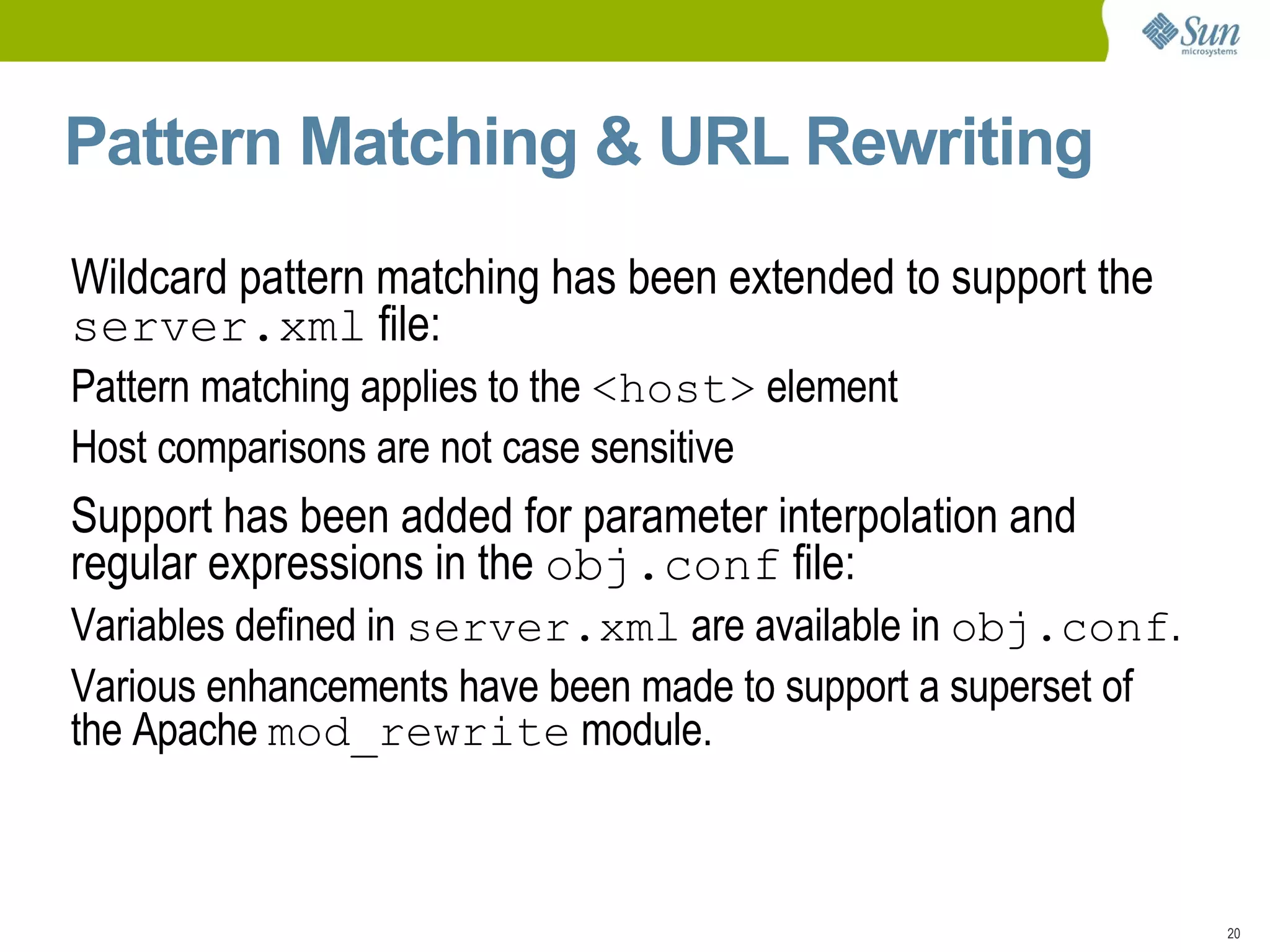

90. Pattern Matching & URL Rewriting Wildcard pattern matching has been extended to support the server.xml file: Pattern matching applies to the <host> element

91. Host comparisons are not case sensitive Support has been added for parameter interpolation and regular expressions in the obj.conf file: Variables defined in server.xml are available in obj.conf .

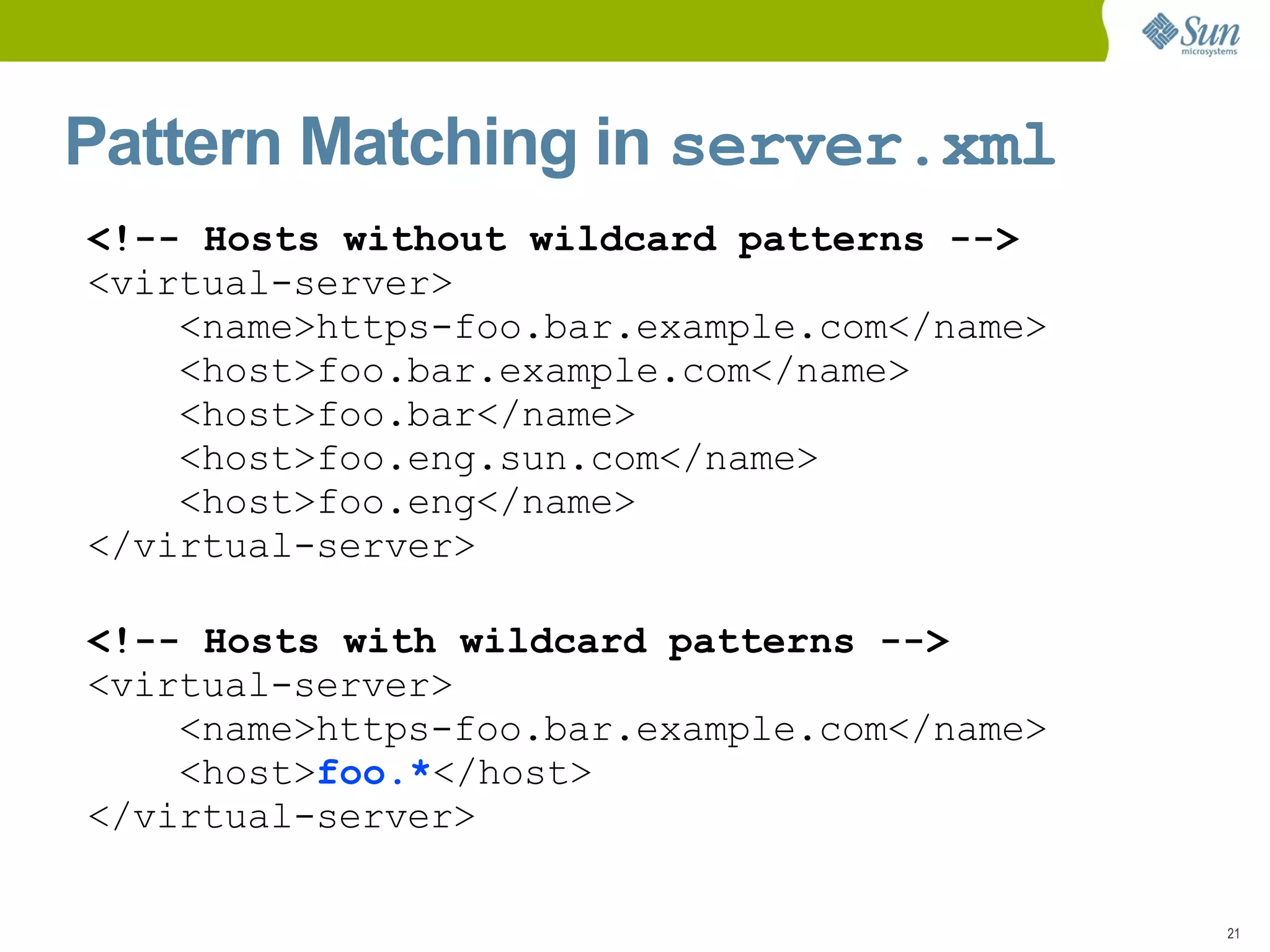

92. Various enhancements have been made to support a superset of the Apache mod_rewrite module.

93. Pattern Matching in server.xml <!-- Hosts without wildcard patterns --> <virtual-server> <name>https-foo.bar.example.com</name> <host>foo. bar .example.com</name> <host> foo . bar </name> <host> foo .eng.sun.com</name> <host> foo .eng</name> </virtual-server> <!-- Hosts with wildcard patterns --> <virtual-server> <name>https-foo.bar.example.com</name> <host> foo.* </host> </virtual-server>

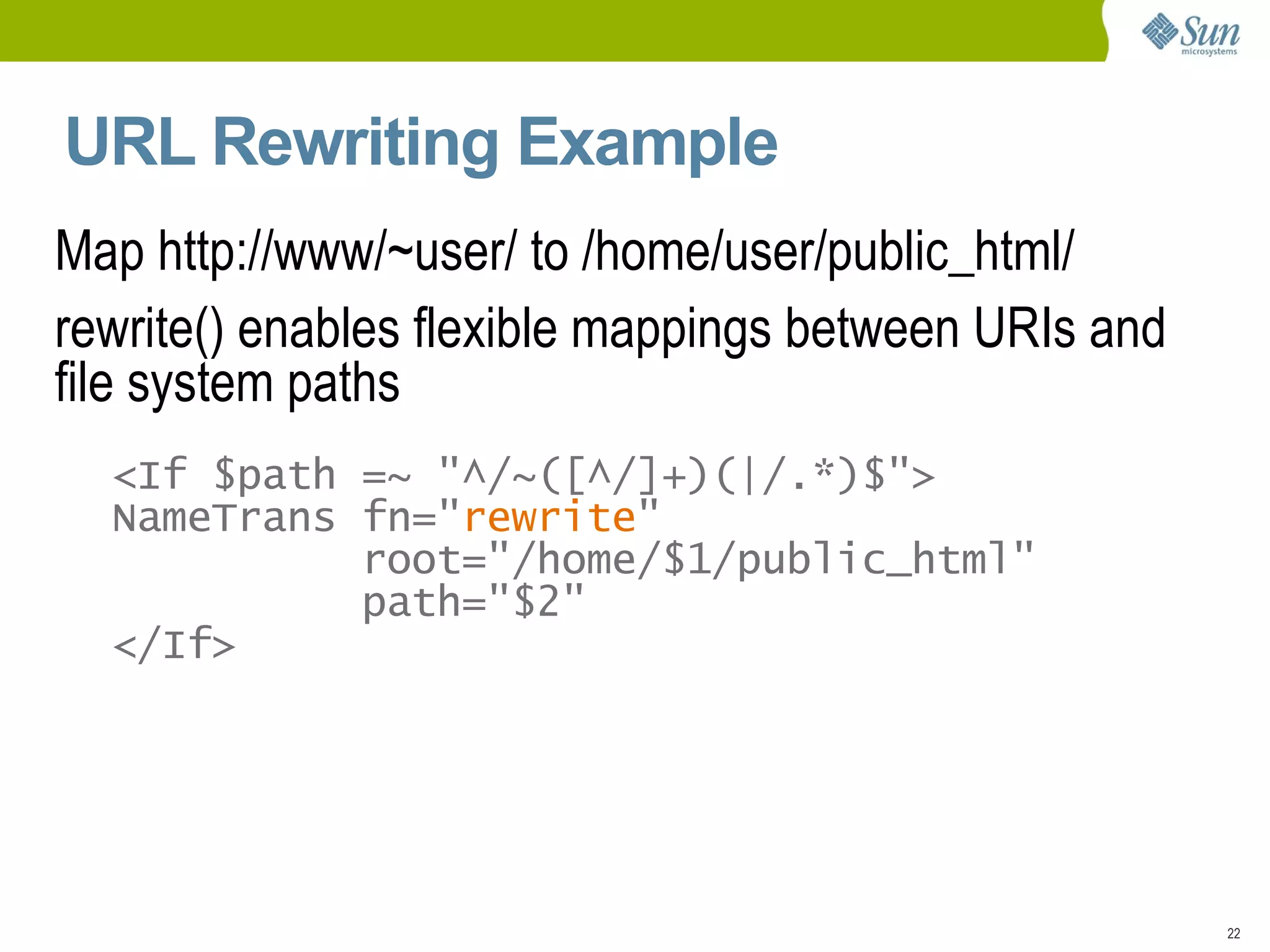

94. URL Rewriting Example Map http://www/~user/ to /home/user/public_html/

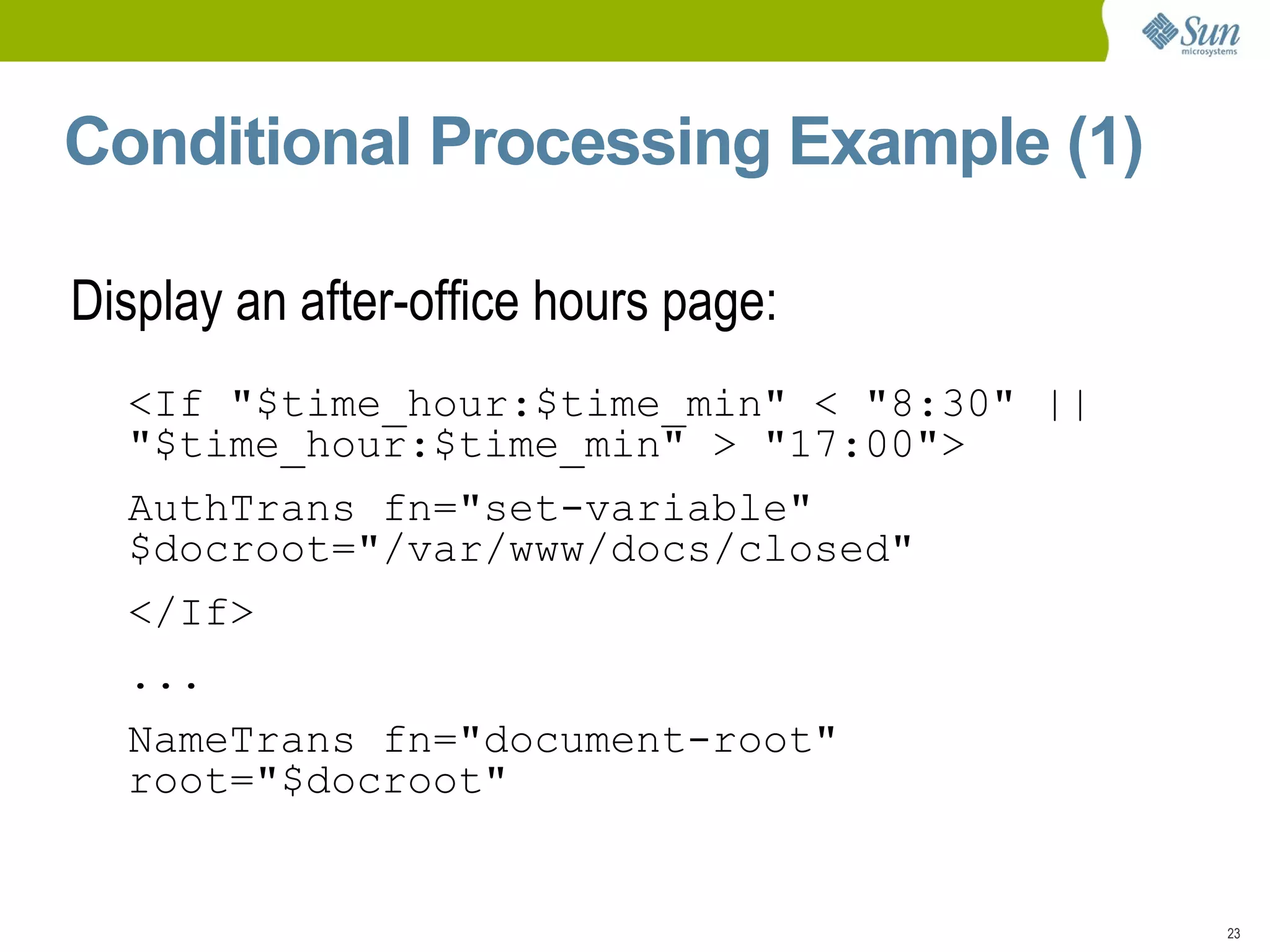

95. rewrite() enables flexible mappings between URIs and file system paths <If $path =~ &quot;^/~([^/]+)(|/.*)$&quot;> NameTrans fn=&quot; rewrite &quot; root=&quot;/home/$1/public_html&quot; path=&quot;$2&quot; </If>

96. Conditional Processing Example (1) Display an after-office hours page: <If &quot;$time_hour:$time_min&quot; < &quot;8:30&quot; || &quot;$time_hour:$time_min&quot; > &quot;17:00&quot;> AuthTrans fn=&quot;set-variable&quot; $docroot=&quot;/var/www/docs/closed&quot; </If> ... NameTrans fn=&quot;document-root&quot; root=&quot;$docroot&quot;

97. Web Server vs. mod_rewrite Apache HTTP Server module

98. Conditional URI redirection/rewriting

99. Specialized solution Only for URL redirection and path rewriting

100. Runs during Apache “URL-to-filename” and “Fixup” hooks (analogous to NSAPI NameTrans and ObjectType) Syntax different from other Apache directives What Is Apache mod_rewrite?

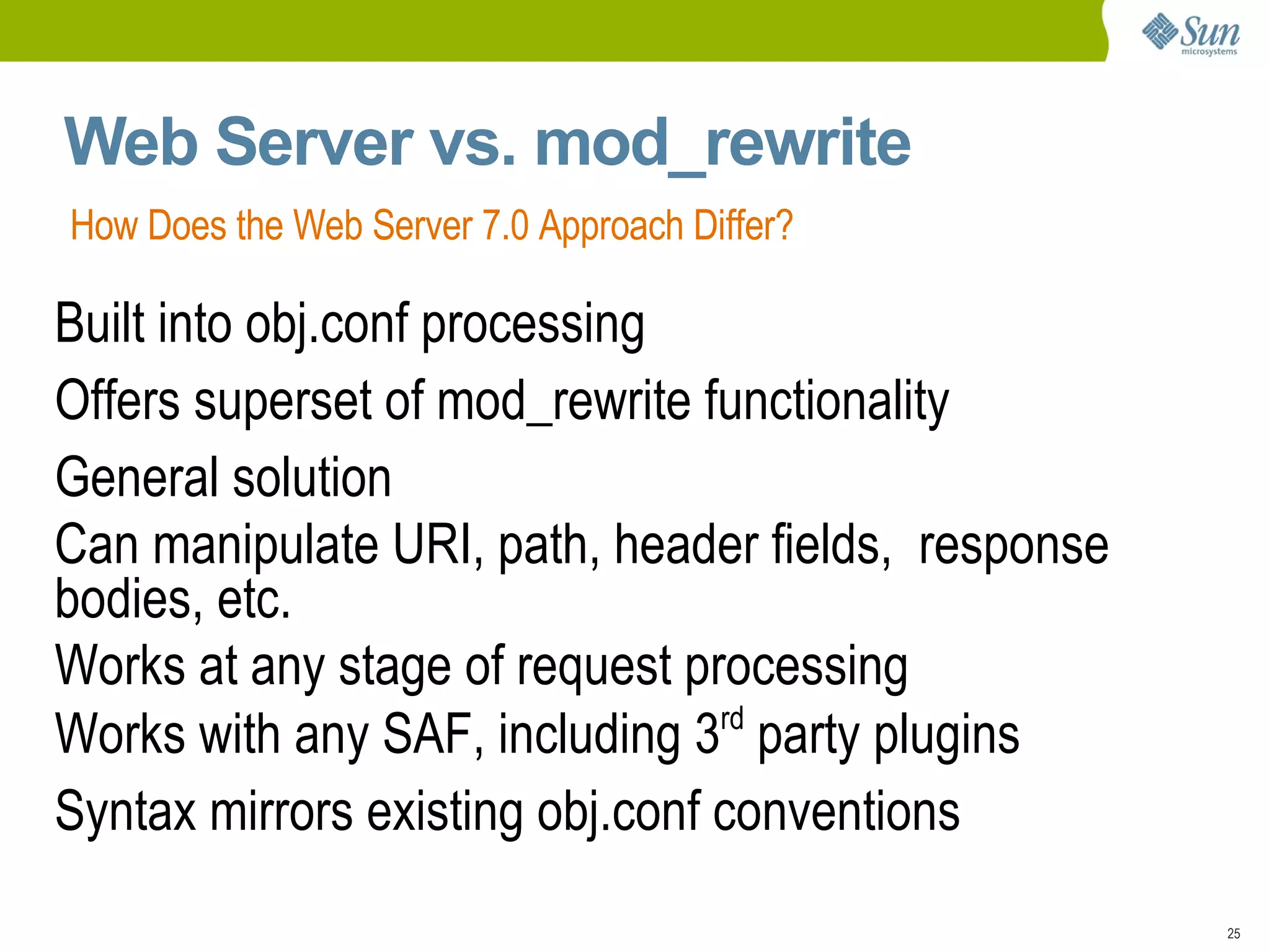

101. Web Server vs. mod_rewrite Built into obj.conf processing

102. Offers superset of mod_rewrite functionality

103. General solution Can manipulate URI, path, header fields, response bodies, etc.

104. Works at any stage of request processing

105. Works with any SAF, including 3 rd party plugins Syntax mirrors existing obj.conf conventions How Does the Web Server 7.0 Approach Differ?

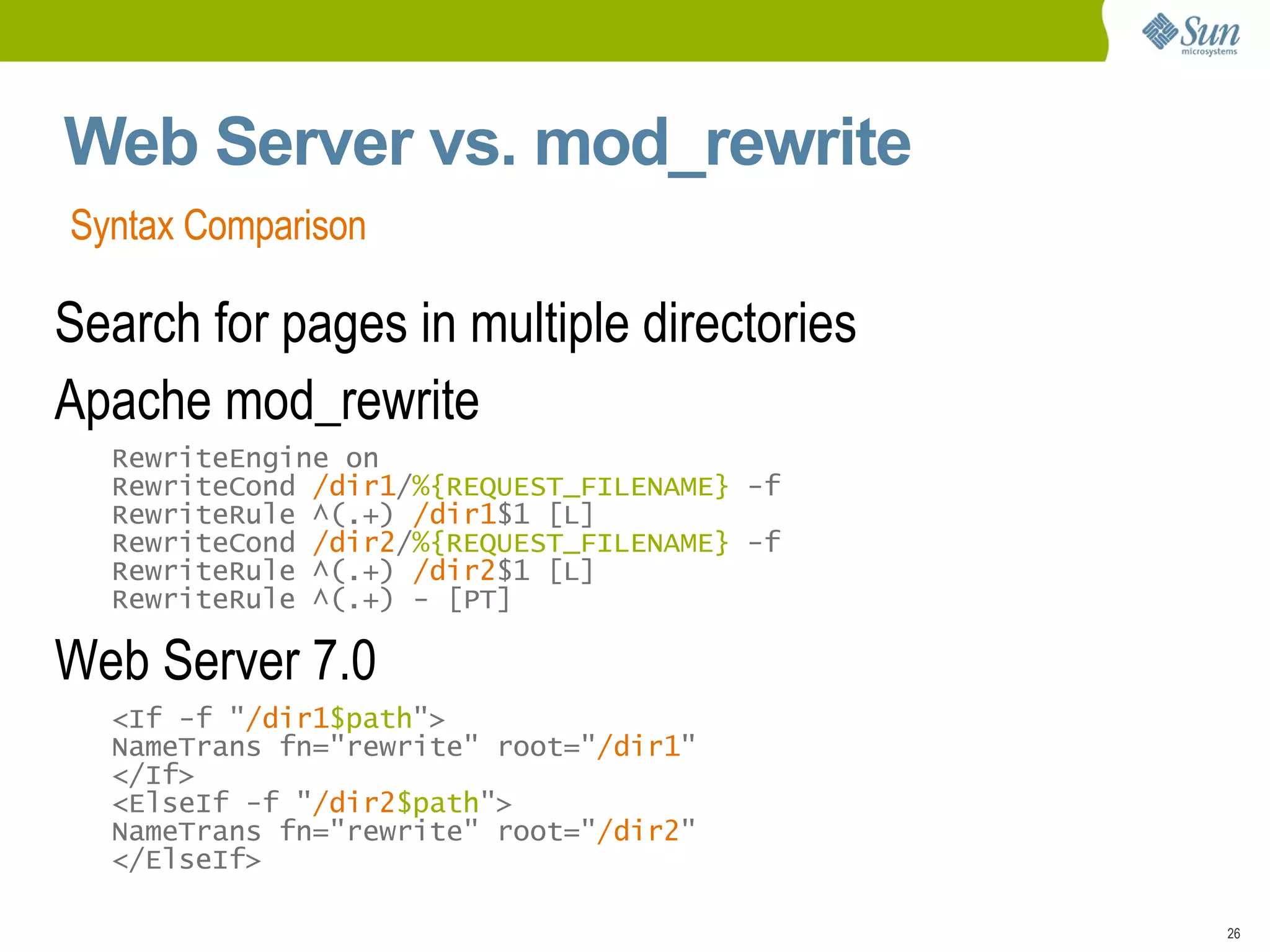

106. Web Server vs. mod_rewrite Search for pages in multiple directories

107. Apache mod_rewrite RewriteEngine on RewriteCond /dir1 / %{REQUEST_FILENAME} -f RewriteRule ^(.+) /dir1 $1 [L] RewriteCond /dir2 / %{REQUEST_FILENAME} -f RewriteRule ^(.+) /dir2 $1 [L] RewriteRule ^(.+) - [PT] Web Server 7.0 <If -f &quot; /dir1 $path &quot;> NameTrans fn=&quot;rewrite&quot; root=&quot; /dir1 &quot; </If> <ElseIf -f &quot; /dir2 $path &quot;> NameTrans fn=&quot;rewrite&quot; root=&quot; /dir2 &quot; </ElseIf> Syntax Comparison

108. URL Redirection Allows you to redirect document requests from one URL to another

109. Is useful when content has moved or is located: On a different server

110. In a different directory Is implemented with the redirect SAF

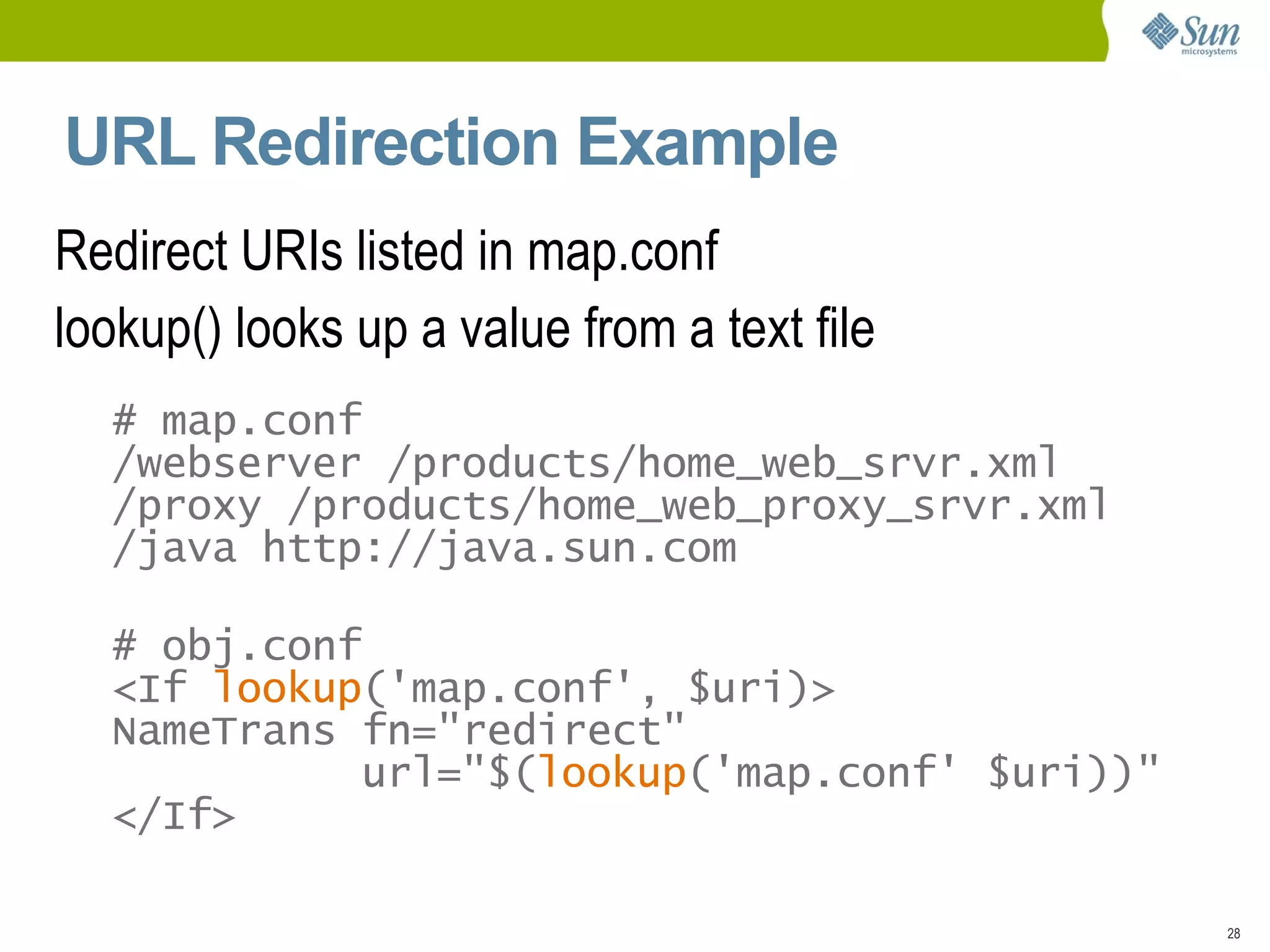

111. Can be combined with the <If/ElseIf/Else> container for dynamic redirection

112. URL Redirection Example Redirect URIs listed in map.conf

113. lookup() looks up a value from a text file # map.conf /webserver /products/home_web_srvr.xml /proxy /products/home_web_proxy_srvr.xml /java http://java.sun.com # obj.conf <If lookup ('map.conf', $uri)> NameTrans fn=&quot;redirect&quot; url=&quot;$( lookup ('map.conf' $uri))&quot; </If>

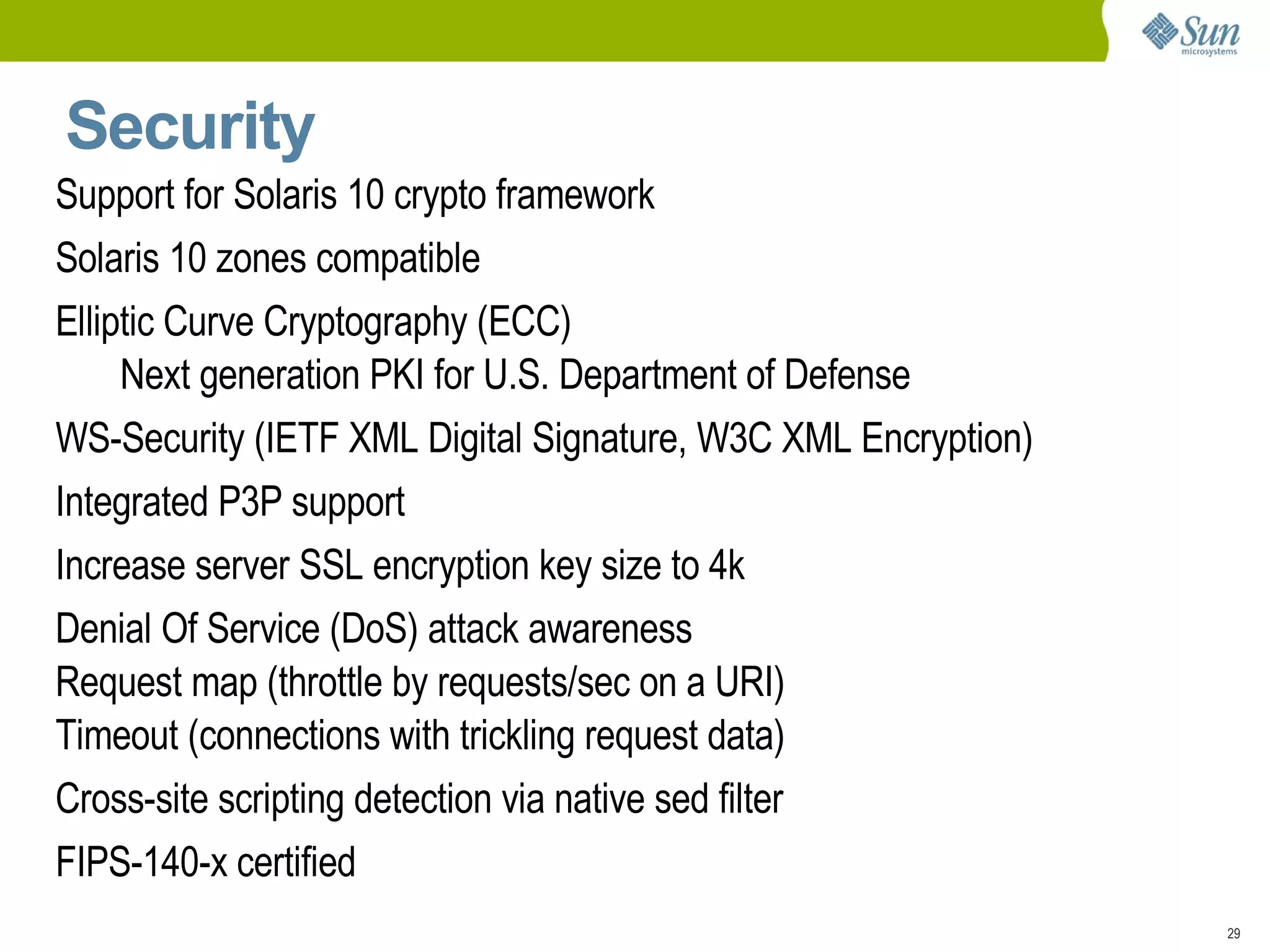

114. Security Support for Solaris 10 crypto framework

115. Solaris 10 zones compatible

116. Elliptic Curve Cryptography (ECC) Next generation PKI for U.S. Department of Defense WS-Security (IETF XML Digital Signature, W3C XML Encryption)

117. Integrated P3P support

118. Increase server SSL encryption key size to 4k

119. Denial Of Service (DoS) attack awareness Request map (throttle by requests/sec on a URI)

120. Timeout (connections with trickling request data) Cross-site scripting detection via native sed filter

121. FIPS-140-x certified

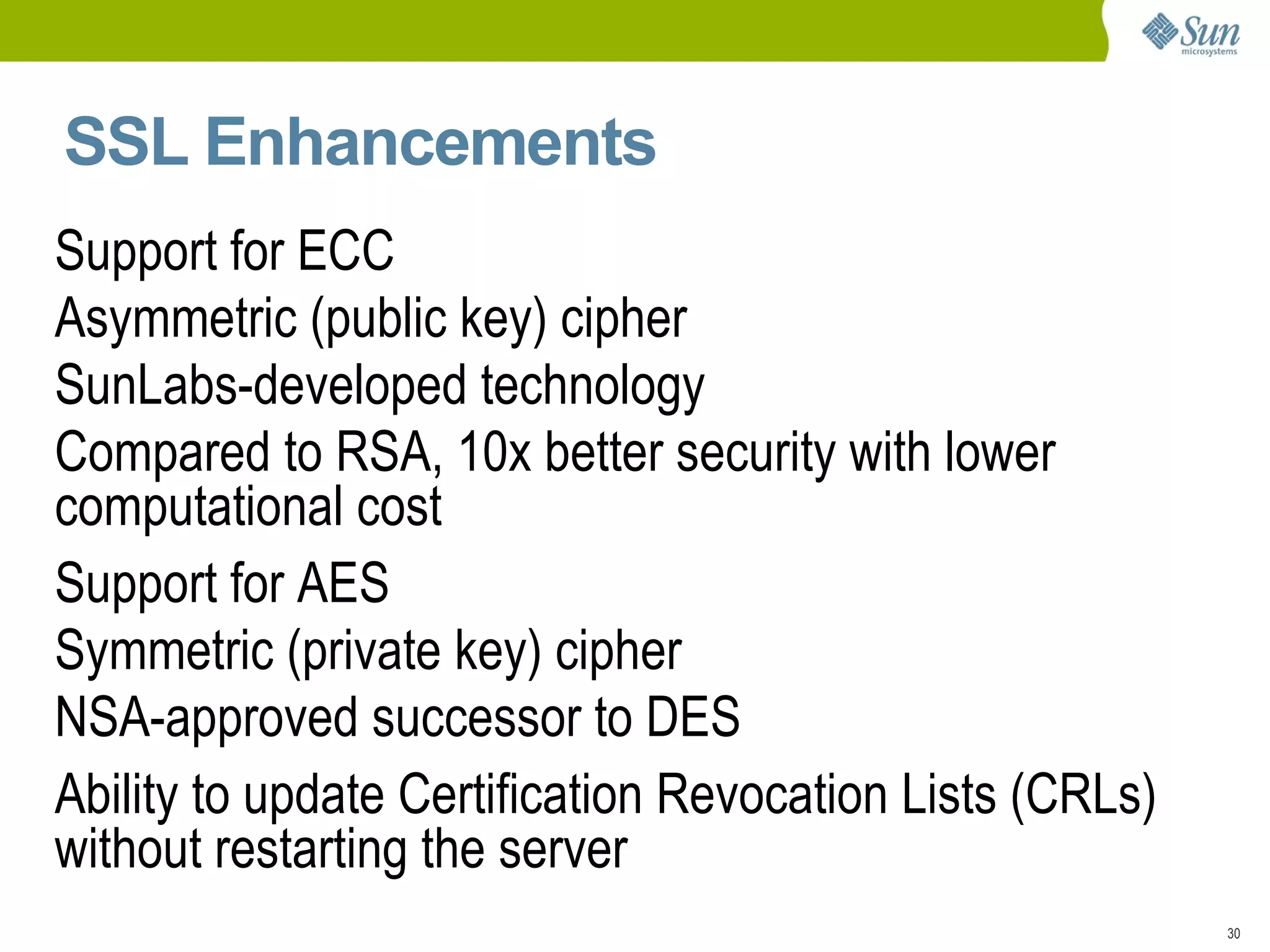

122. SSL Enhancements Support for ECC Asymmetric (public key) cipher

123. SunLabs-developed technology

124. Compared to RSA, 10x better security with lower computational cost Support for AES Symmetric (private key) cipher

125. NSA-approved successor to DES Ability to update Certification Revocation Lists (CRLs) without restarting the server

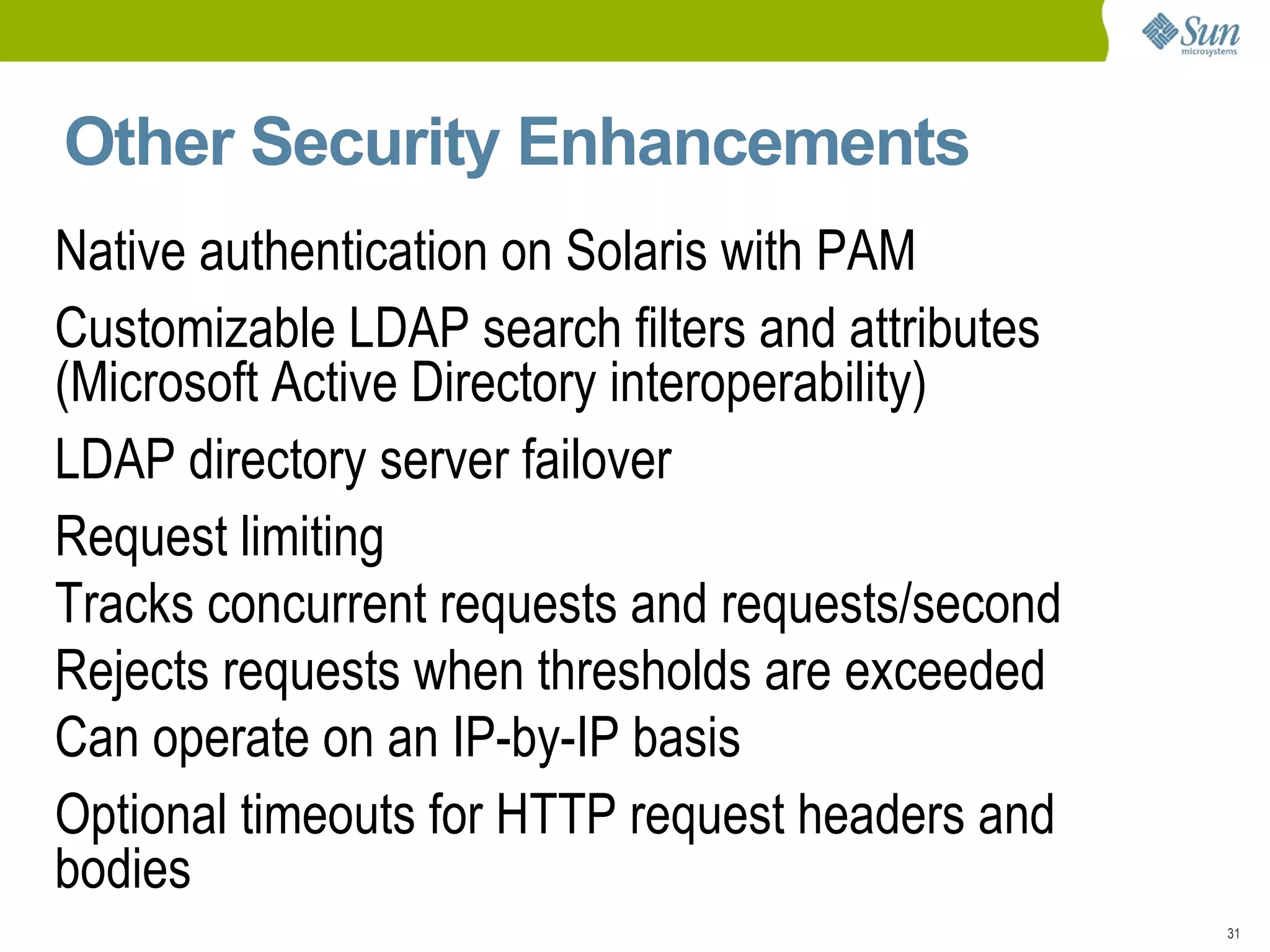

126. Other Security Enhancements Native authentication on Solaris with PAM

127. Customizable LDAP search filters and attributes (Microsoft Active Directory interoperability)

128. LDAP directory server failover

129. Request limiting Tracks concurrent requests and requests/second

130. Rejects requests when thresholds are exceeded

131. Can operate on an IP-by-IP basis Optional timeouts for HTTP request headers and bodies

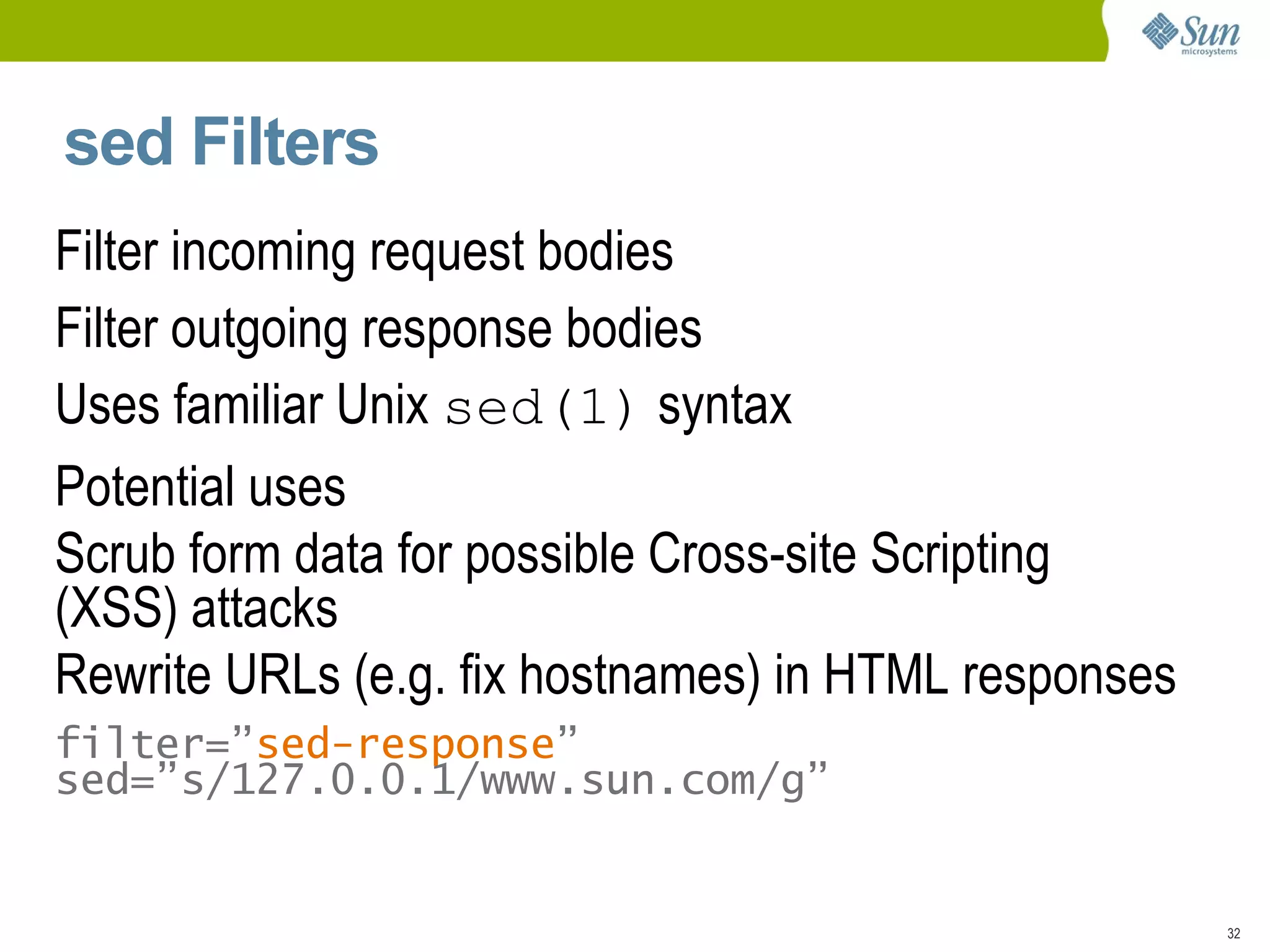

132. sed Filters Filter incoming request bodies

133. Filter outgoing response bodies

134. Uses familiar Unix sed(1) syntax

135. Potential uses Scrub form data for possible Cross-site Scripting (XSS) attacks

136. Rewrite URLs (e.g. fix hostnames) in HTML responses filter=” sed-response ” sed=”s/127.0.0.1/www.sun.com/g”

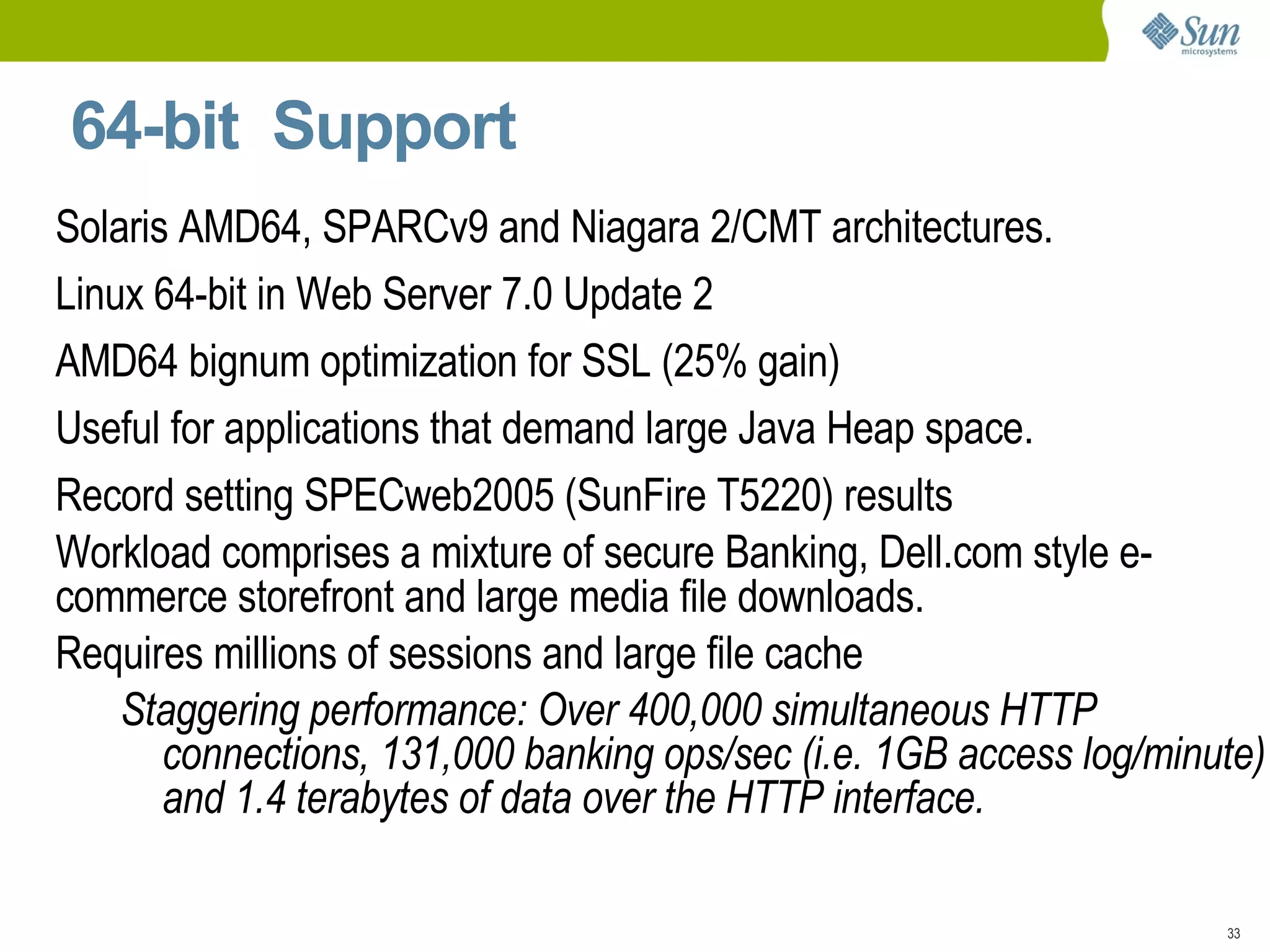

137. 64-bit Support Solaris AMD64, SPARCv9 and Niagara 2/CMT architectures.

138. Linux 64-bit in Web Server 7.0 Update 2

139. AMD64 bignum optimization for SSL (25% gain)

140. Useful for applications that demand large Java Heap space.

141. Record setting SPECweb2005 (SunFire T5220) results Workload comprises a mixture of secure Banking, Dell.com style e-commerce storefront and large media file downloads.

142. Requires millions of sessions and large file cache

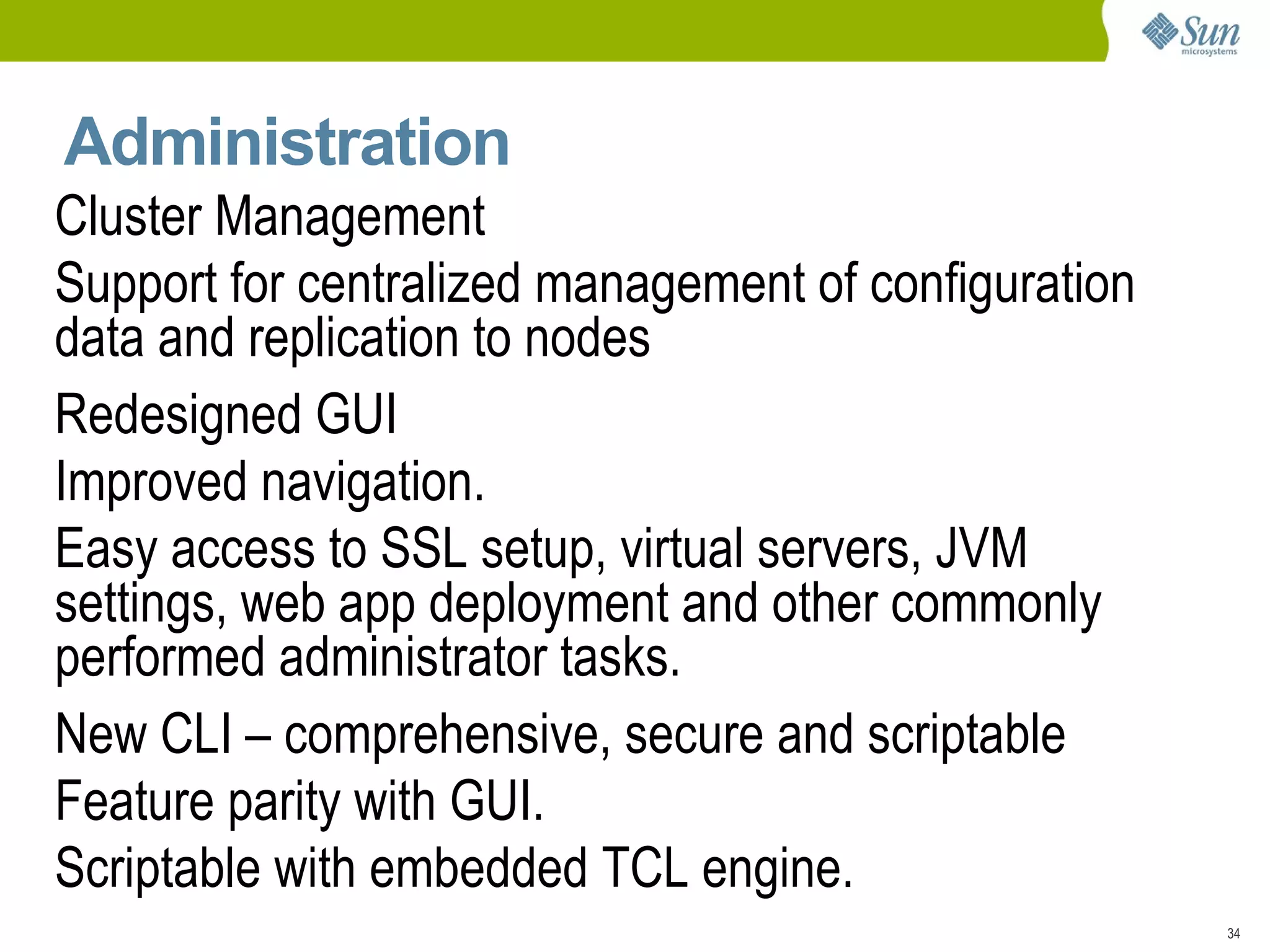

143. Staggering performance: Over 400,000 simultaneous HTTP connections, 131,000 banking ops/sec (i.e. 1GB access log/minute) and 1.4 terabytes of data over the HTTP interface.

144. Administration Cluster Management Support for centralized management of configuration data and replication to nodes Redesigned GUI Improved navigation.

145. Easy access to SSL setup, virtual servers, JVM settings, web app deployment and other commonly performed administrator tasks. New CLI – comprehensive, secure and scriptable Feature parity with GUI.

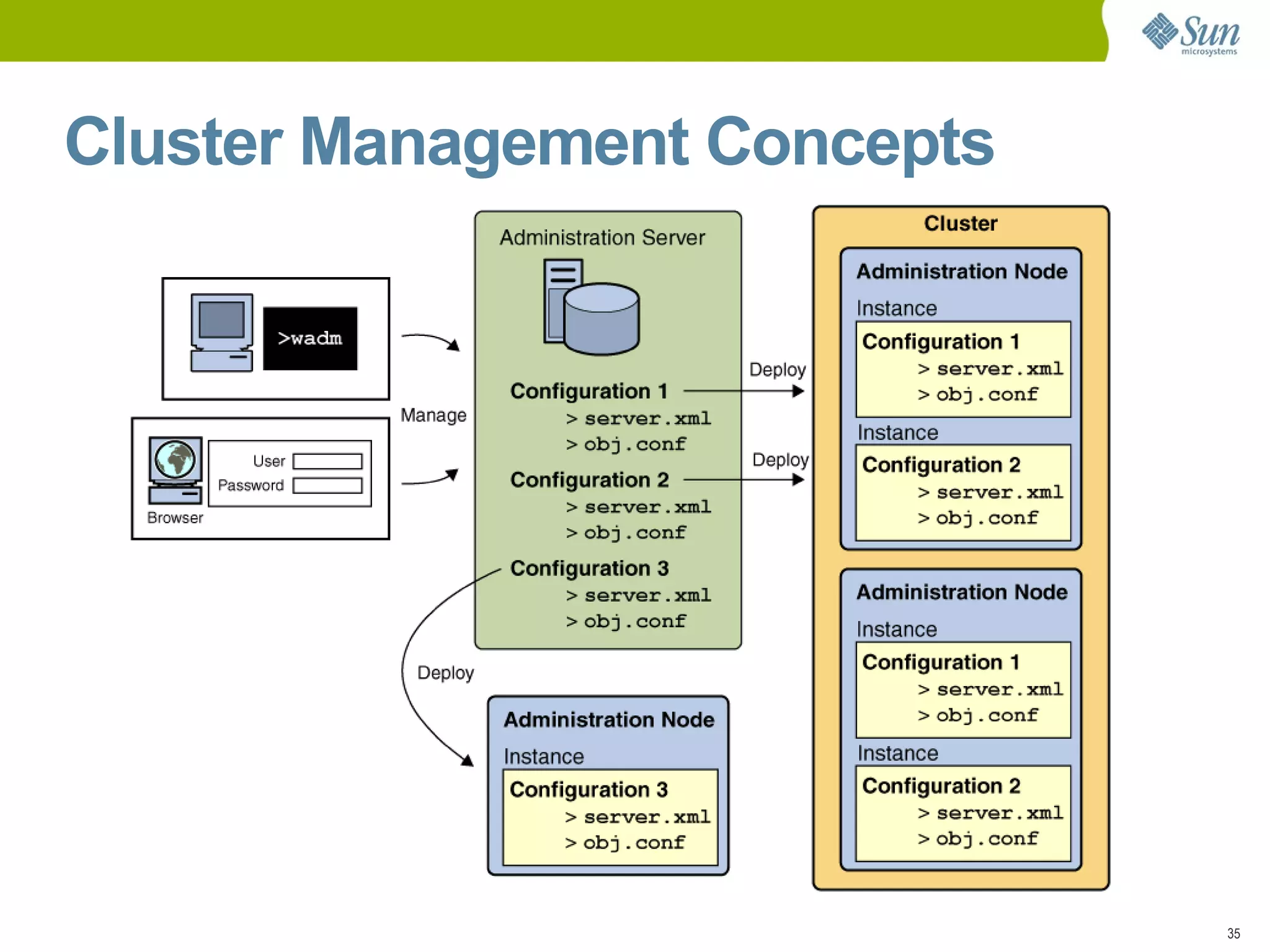

146. Scriptable with embedded TCL engine.

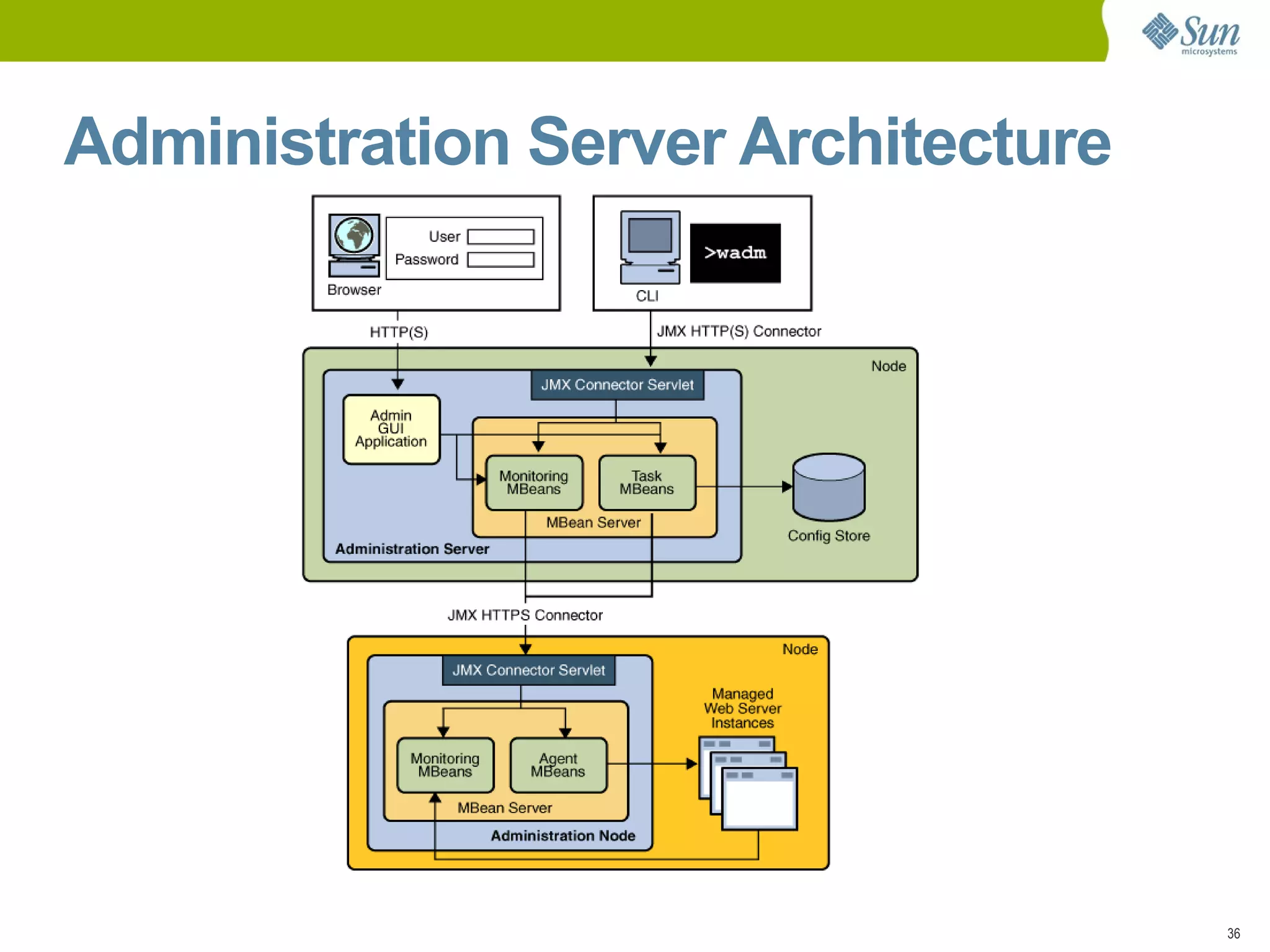

147. Cluster Management Concepts

148. Administration Server Architecture

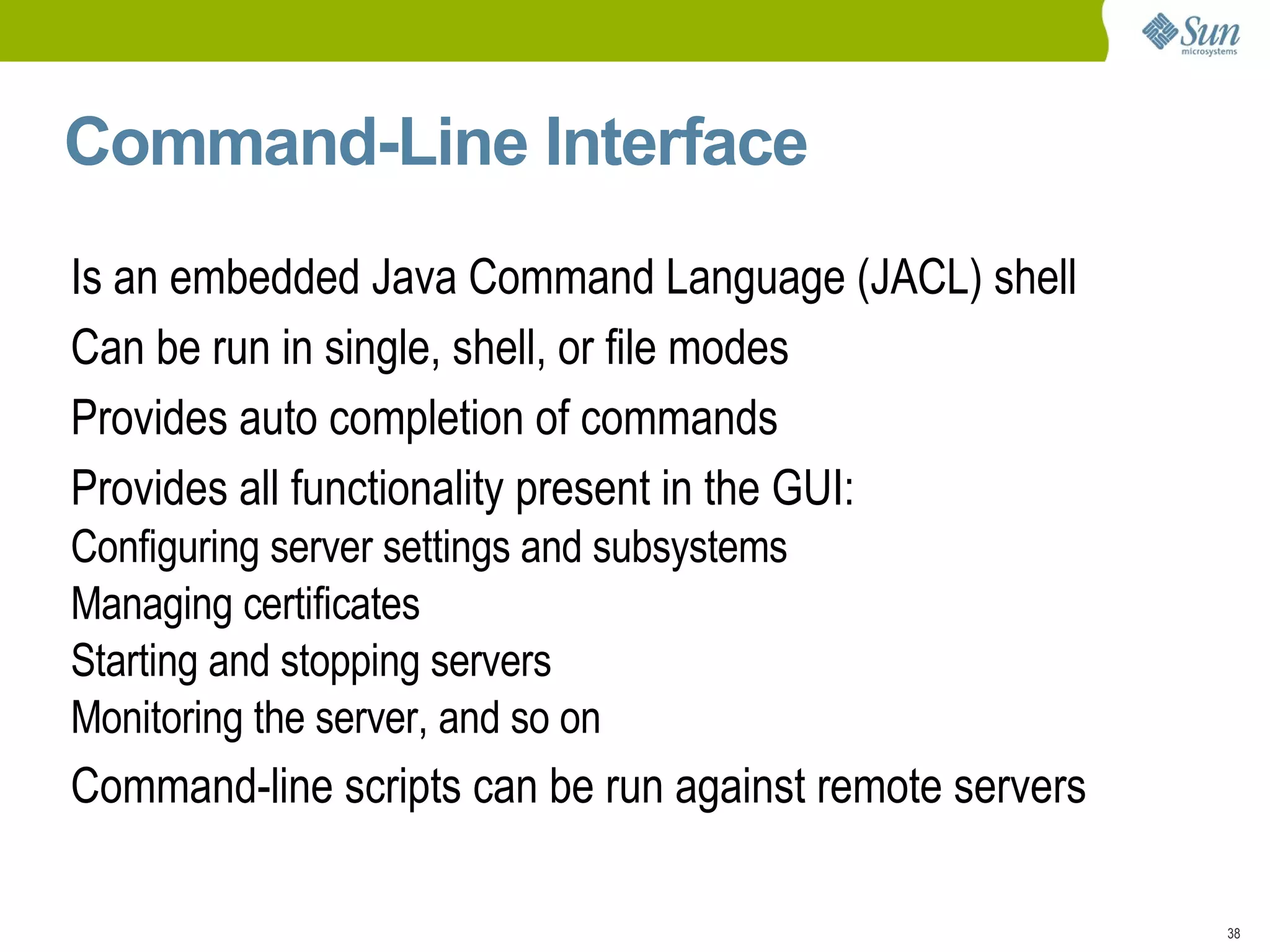

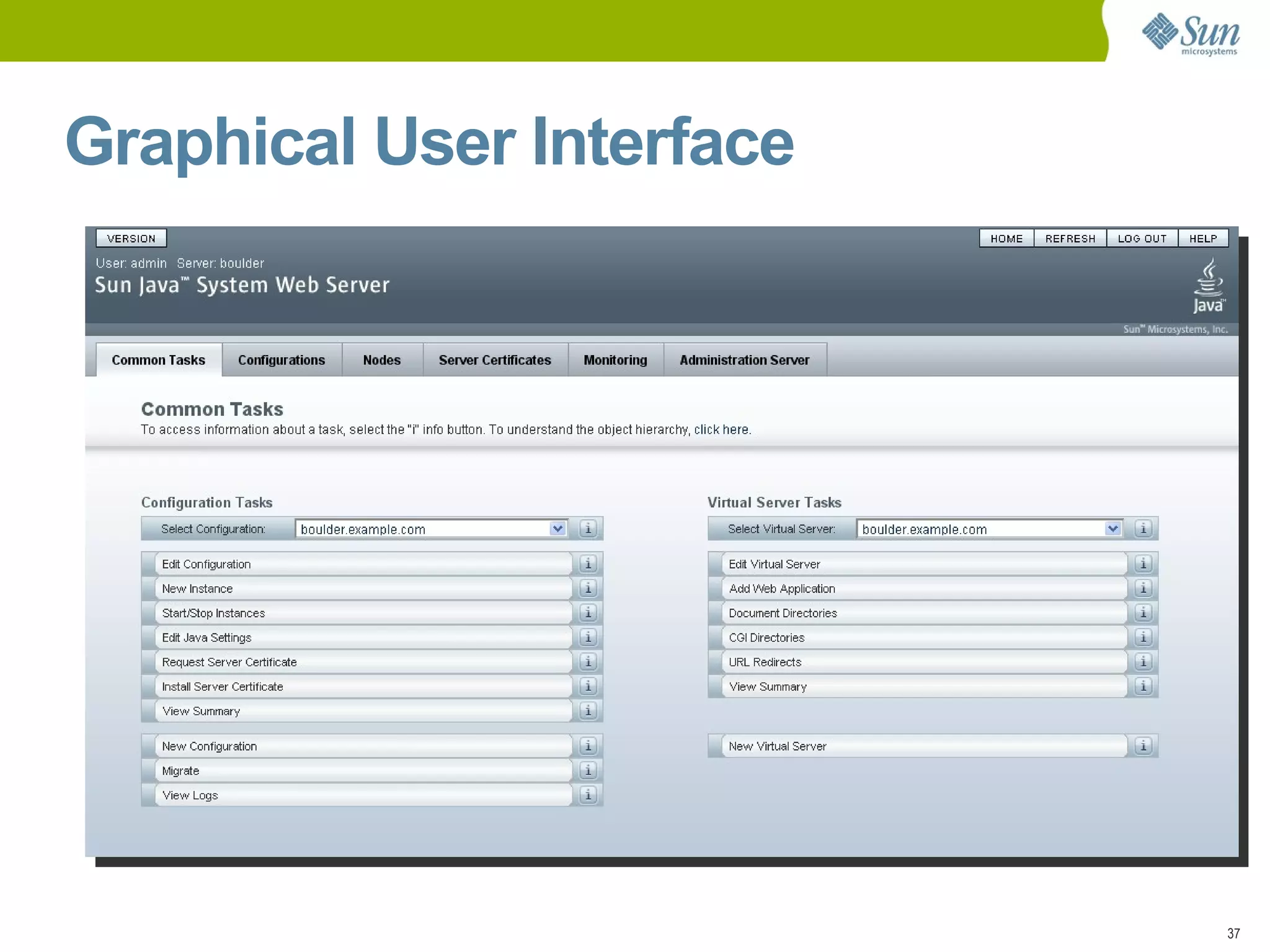

149. Graphical User Interface

150. Command-Line Interface Is an embedded Java Command Language (JACL) shell

151. Can be run in single, shell, or file modes

152. Provides auto completion of commands

153. Provides all functionality present in the GUI: Configuring server settings and subsystems

154. Managing certificates

155. Starting and stopping servers

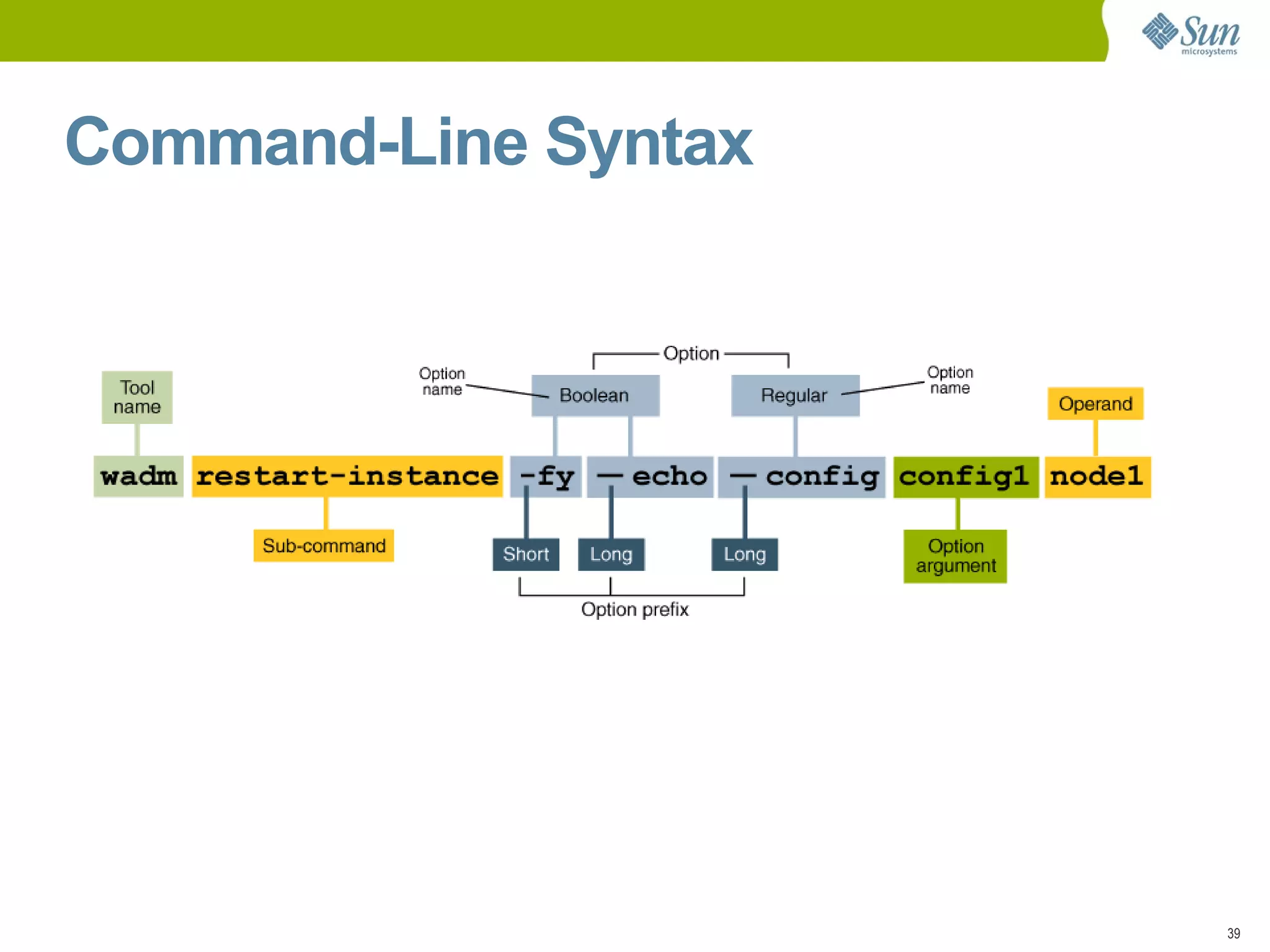

156. Monitoring the server, and so on Command-line scripts can be run against remote servers

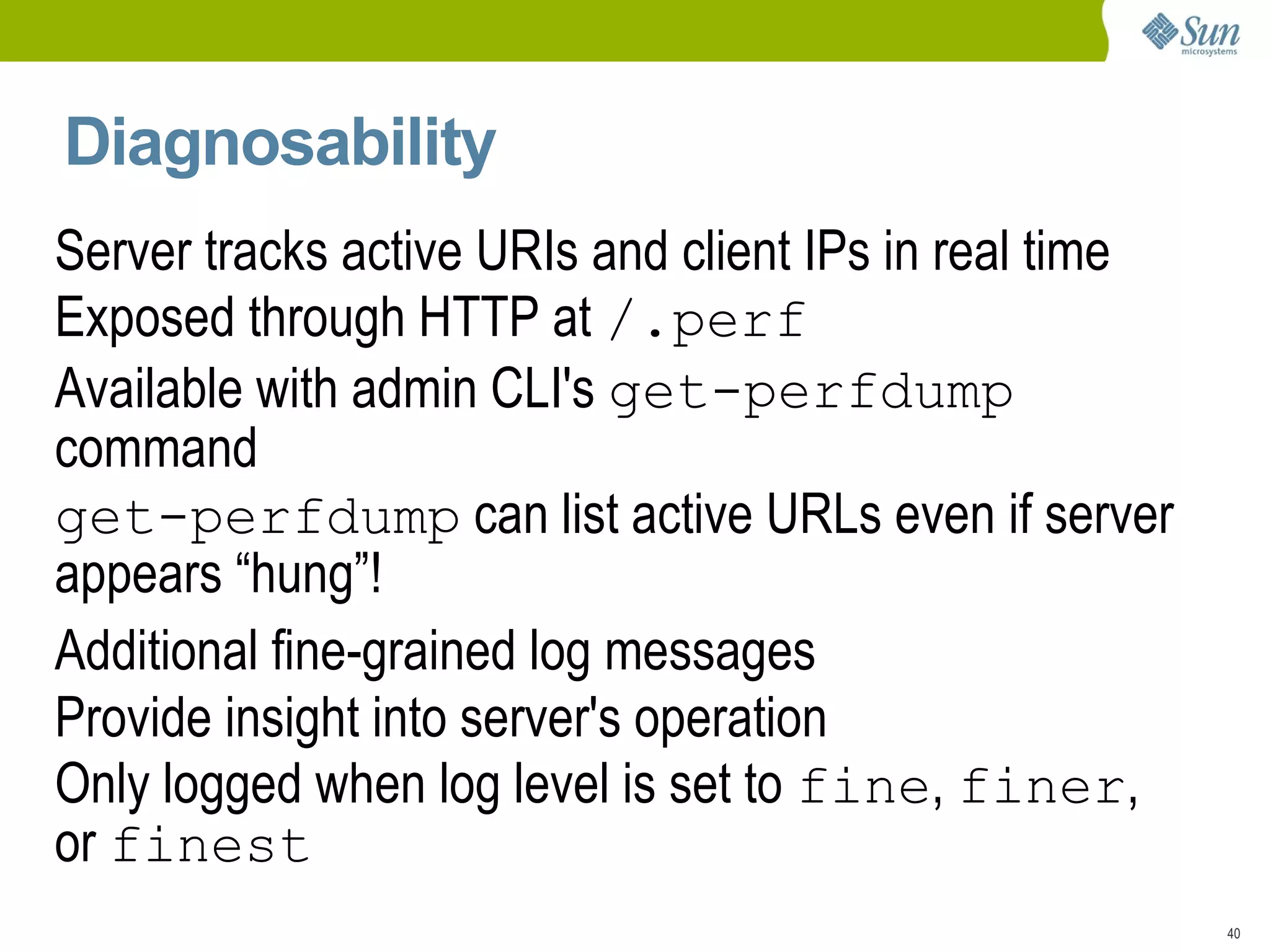

157. Command-Line Syntax

158. Diagnosability Server tracks active URIs and client IPs in real time Exposed through HTTP at /.perf

159. Available with admin CLI's get-perfdump command

160. get-perfdump can list active URLs even if server appears “hung”! Additional fine-grained log messages Provide insight into server's operation

161. Only logged when log level is set to fine , finer , or finest

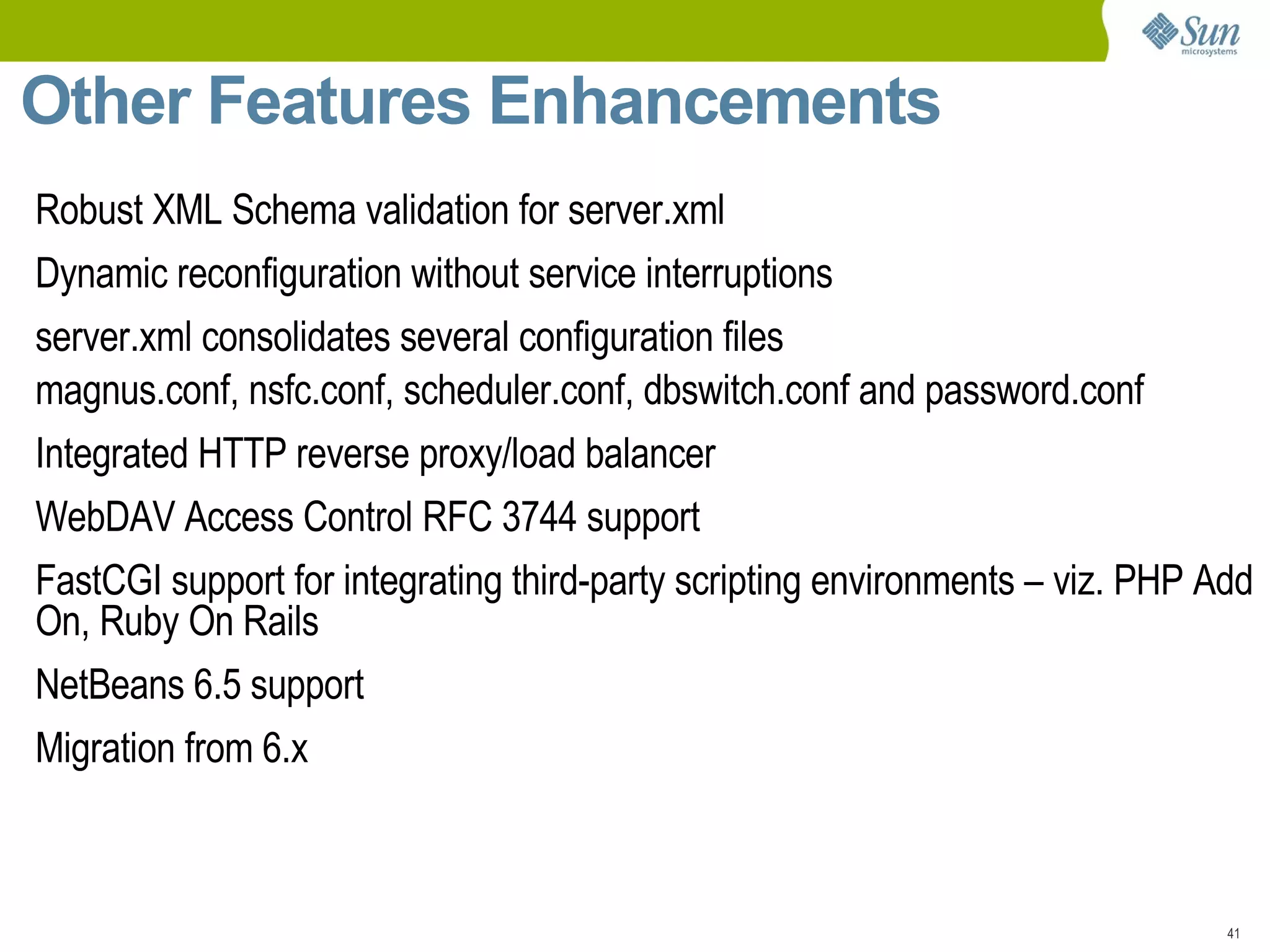

162. Other Features Enhancements Robust XML Schema validation for server.xml

163. Dynamic reconfiguration without service interruptions

164. server.xml consolidates several configuration files magnus.conf, nsfc.conf, scheduler.conf, dbswitch.conf and password.conf Integrated HTTP reverse proxy/load balancer

165. WebDAV Access Control RFC 3744 support

166. FastCGI support for integrating third-party scripting environments – viz. PHP Add On, Ruby On Rails

167. NetBeans 6.5 support

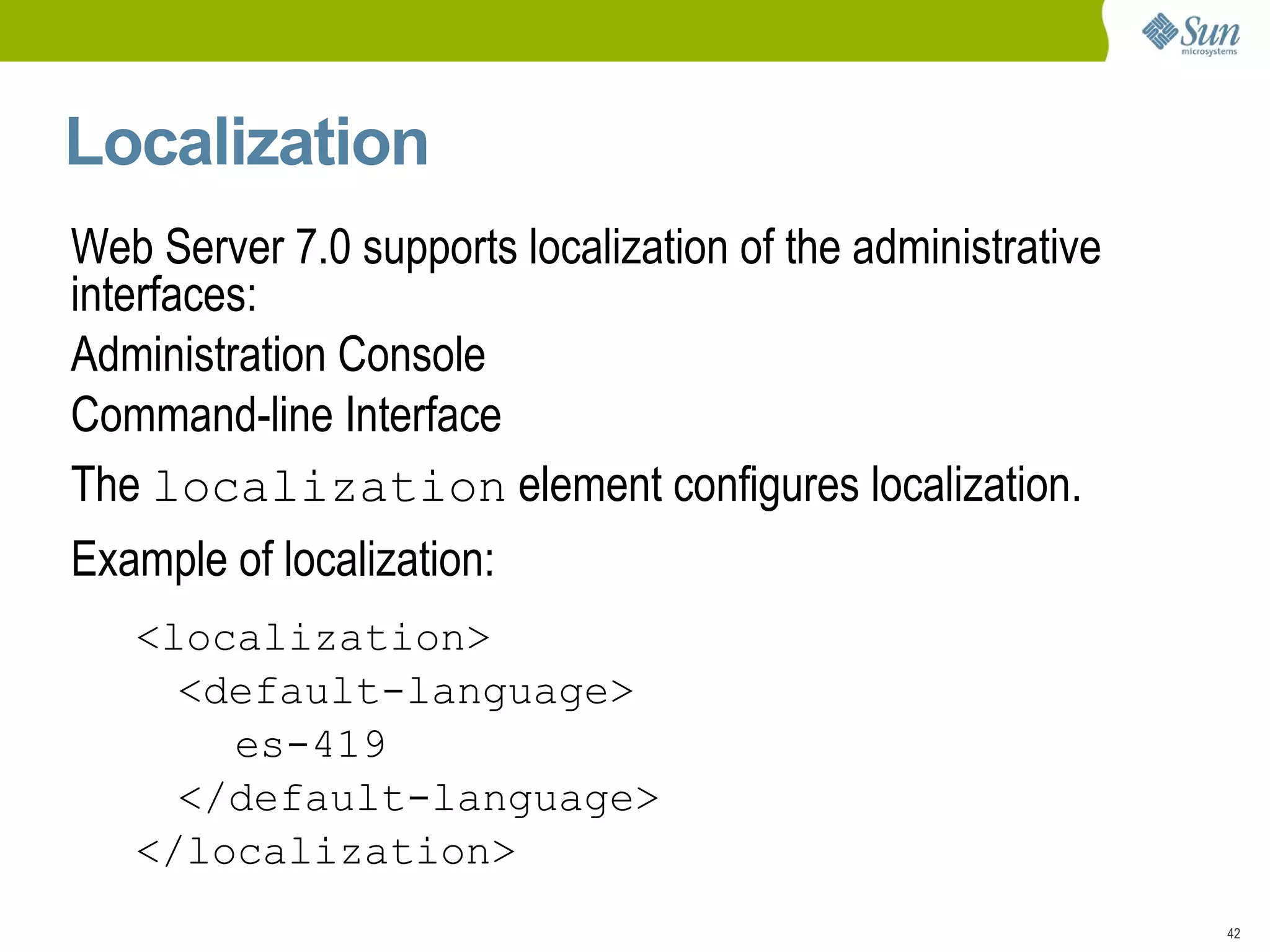

168. Migration from 6.x

169. Localization Web Server 7.0 supports localization of the administrative interfaces: Administration Console

170. Command-line Interface The localization element configures localization.

171. Example of localization: <localization> <default-language> es-419 </default-language> </localization>

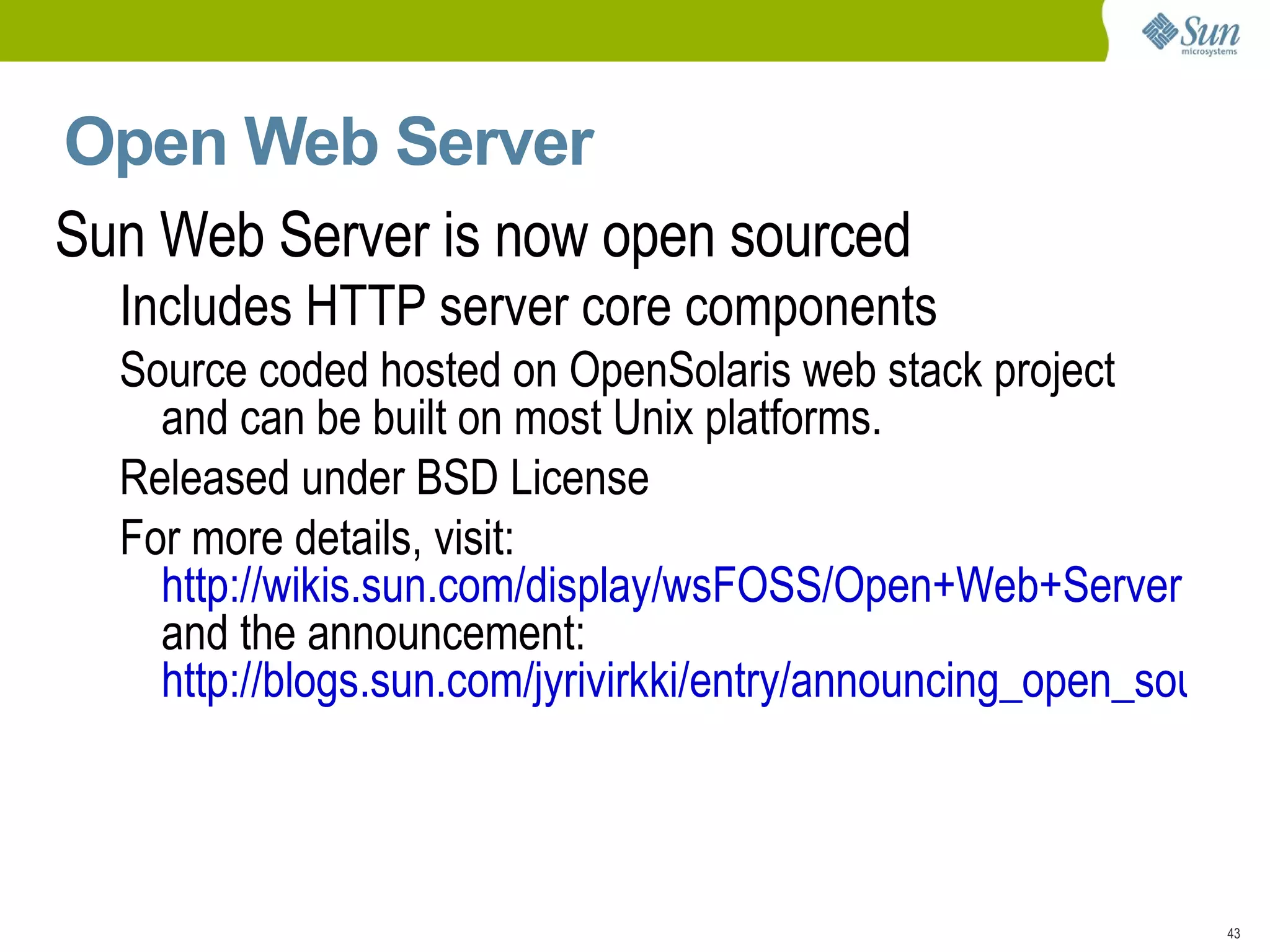

172. Open Web Server Sun Web Server is now open sourced Includes HTTP server core components

173. Source coded hosted on OpenSolaris web stack project and can be built on most Unix platforms.

174. Released under BSD License

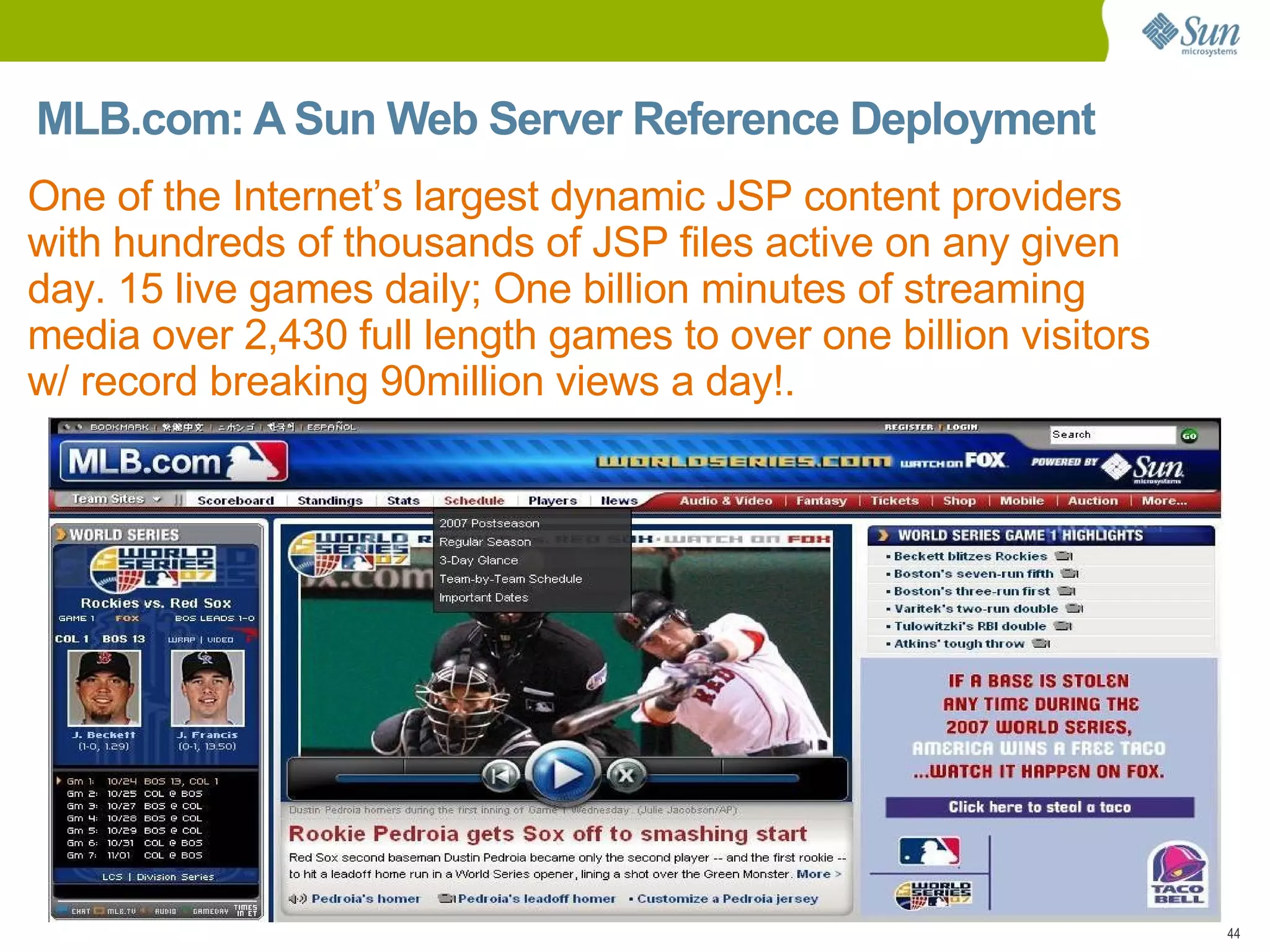

175. For more details, visit: http://wikis.sun.com/display/wsFOSS/Open+Web+Server and the announcement: http://blogs.sun.com/jyrivirkki/entry/announcing_open_source_web_server

176. One of the Internet’s largest dynamic JSP content providers with hundreds of thousands of JSP files active on any given day. 15 live games daily; One billion minutes of streaming media over 2,430 full length games to over one billion visitors w/ record breaking 90million views a day!. MLB.com: A Sun Web Server Reference Deployment

177. Sun Blogs (blogs.sun.com – A Sun Web Server site profile Premier blogging infrastructure for Sun employees

178. Hosted on SunFire T2000 servers, Web Server 7.0 and MySQL

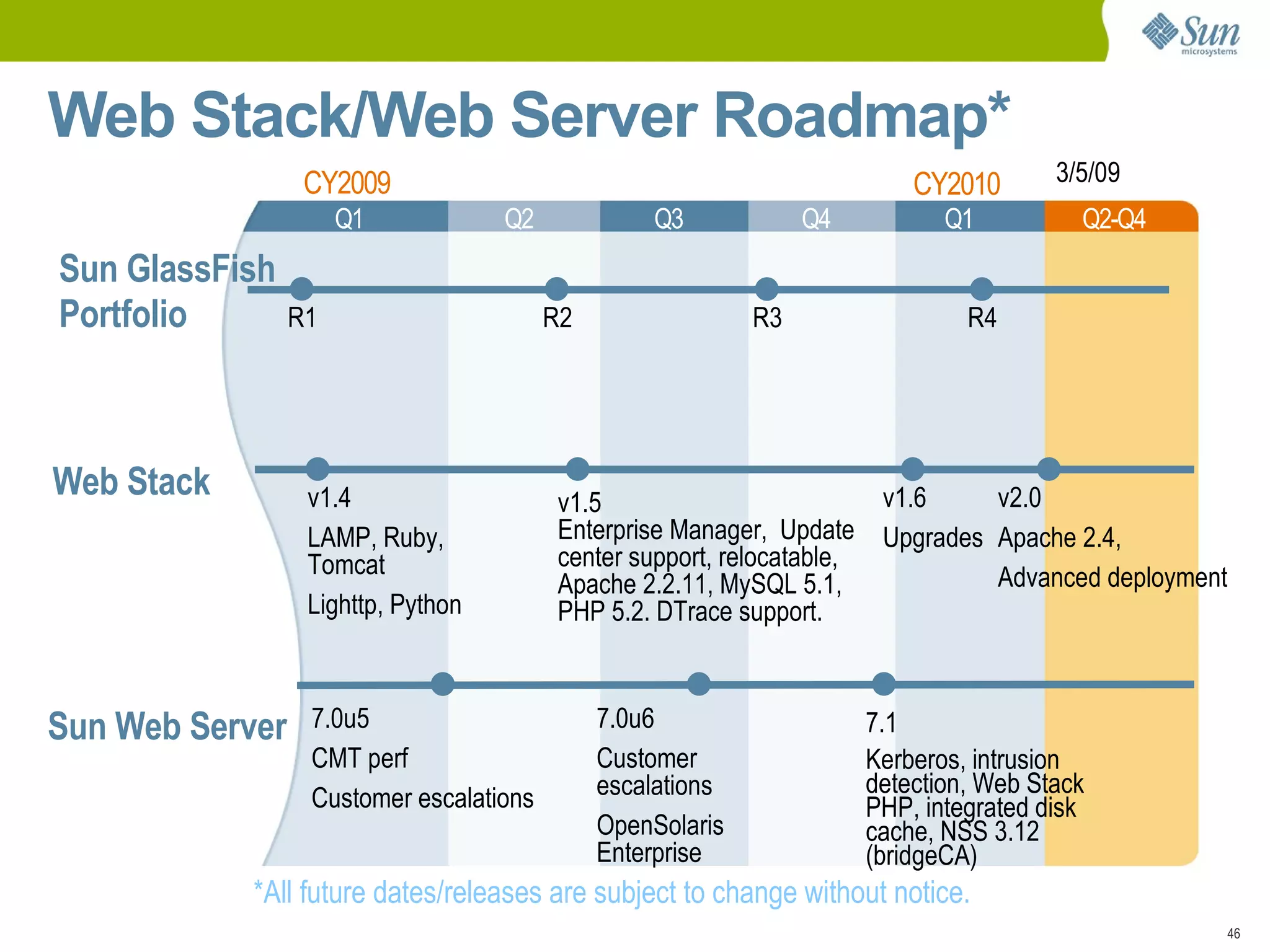

179. http://www.sun.com/bigadmin/features/articles/sunblogs.jsp?feed=RSS

180. Q1 Q2 Q3 Q2-Q4 CY2009 Web Stack/Web Server Roadmap* Q4 CY2010 Q1 Web Stack 3/5/09 v1.4 LAMP, Ruby, Tomcat Lighttp, Python v1.5 Enterprise Manager, Update center support, relocatable, Apache 2.2.11, MySQL 5.1, PHP 5.2. DTrace support. Sun GlassFish Portfolio R1 R2 R3 R4 v2.0 Apache 2.4, Advanced deployment Sun Web Server 7.1 Kerberos, intrusion detection, Web Stack PHP, integrated disk cache, NSS 3.12 (bridgeCA) 7.0u5 CMT perf Customer escalations 7.0u6 Customer escalations OpenSolaris Enterprise v1.6 Upgrades *All future dates/releases are subject to change without notice.

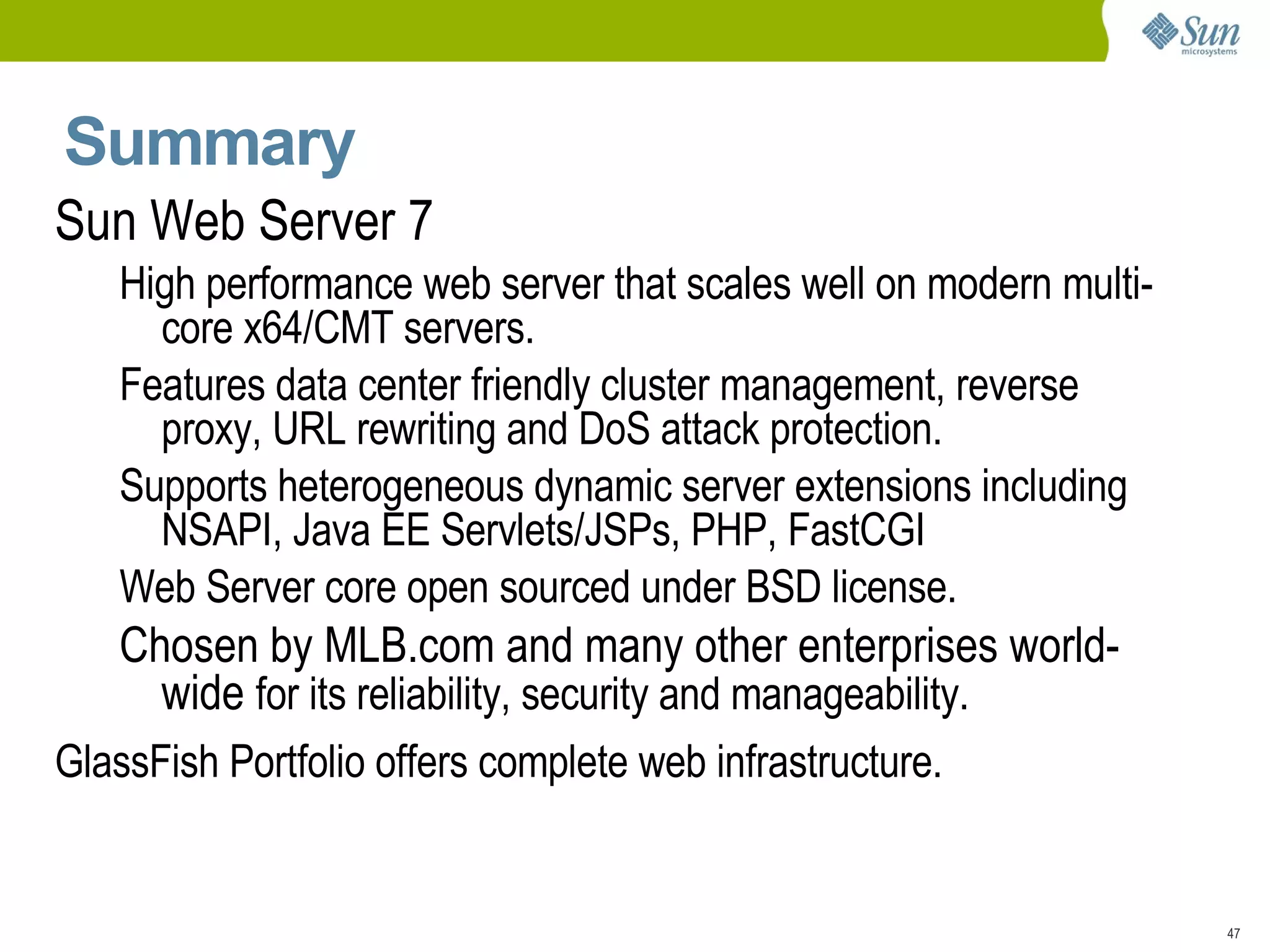

181. Summary Sun Web Server 7 High performance web server that scales well on modern multi-core x64/CMT servers.

182. Features data center friendly cluster management, reverse proxy, URL rewriting and DoS attack protection.

183. Supports heterogeneous dynamic server extensions including NSAPI, Java EE Servlets/JSPs, PHP, FastCGI

184. Web Server core open sourced under BSD license.

185. Chosen by MLB.com and many other enterprises world-wide for its reliability, security and manageability. GlassFish Portfolio offers complete web infrastructure.

186. Thank You! どうもありがとう。 감사합니다 謝謝 谢谢 Merci Gracias [email_address]

187. INTRODUCING: GLASSFISH PORTFOLIO

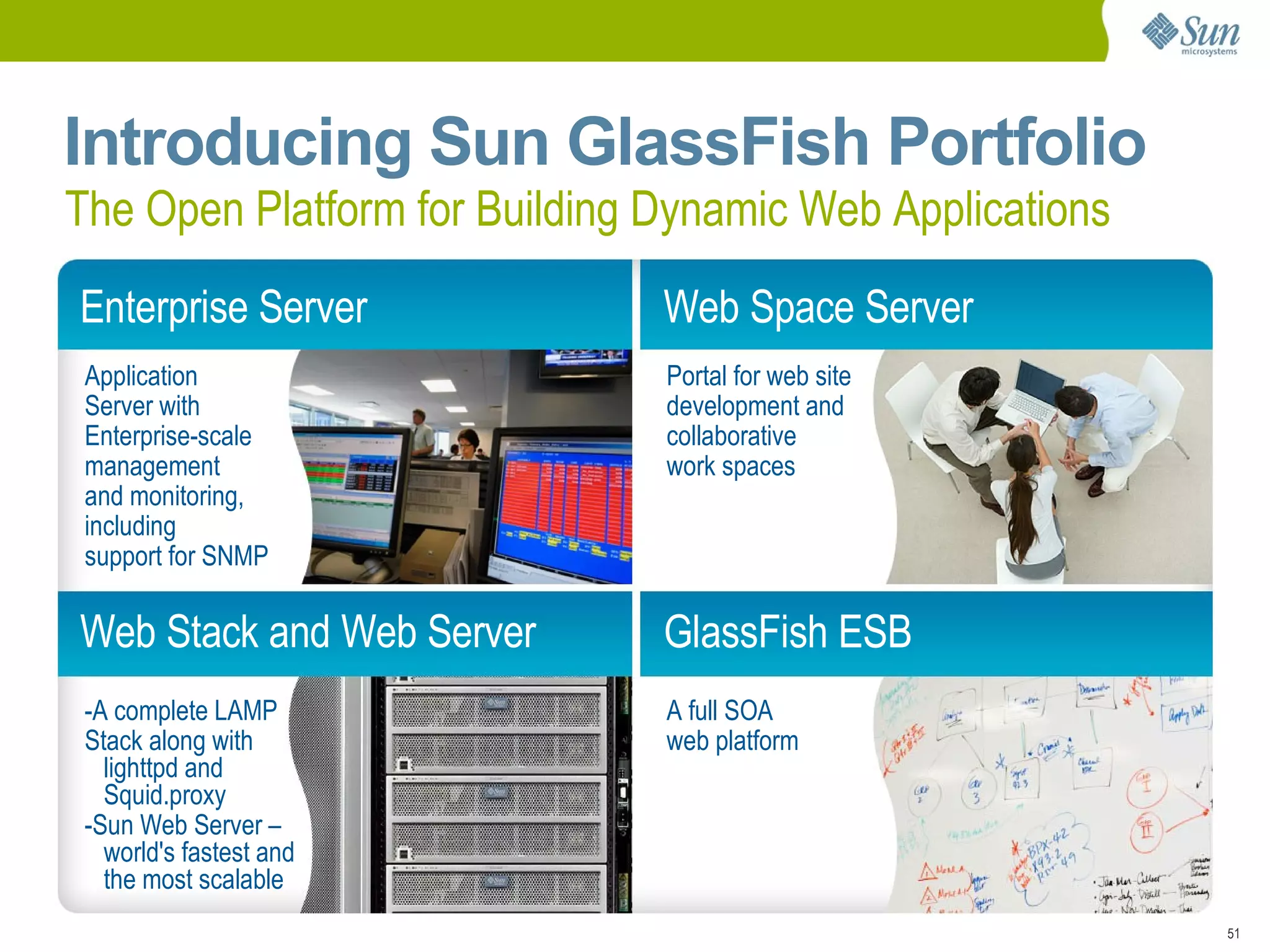

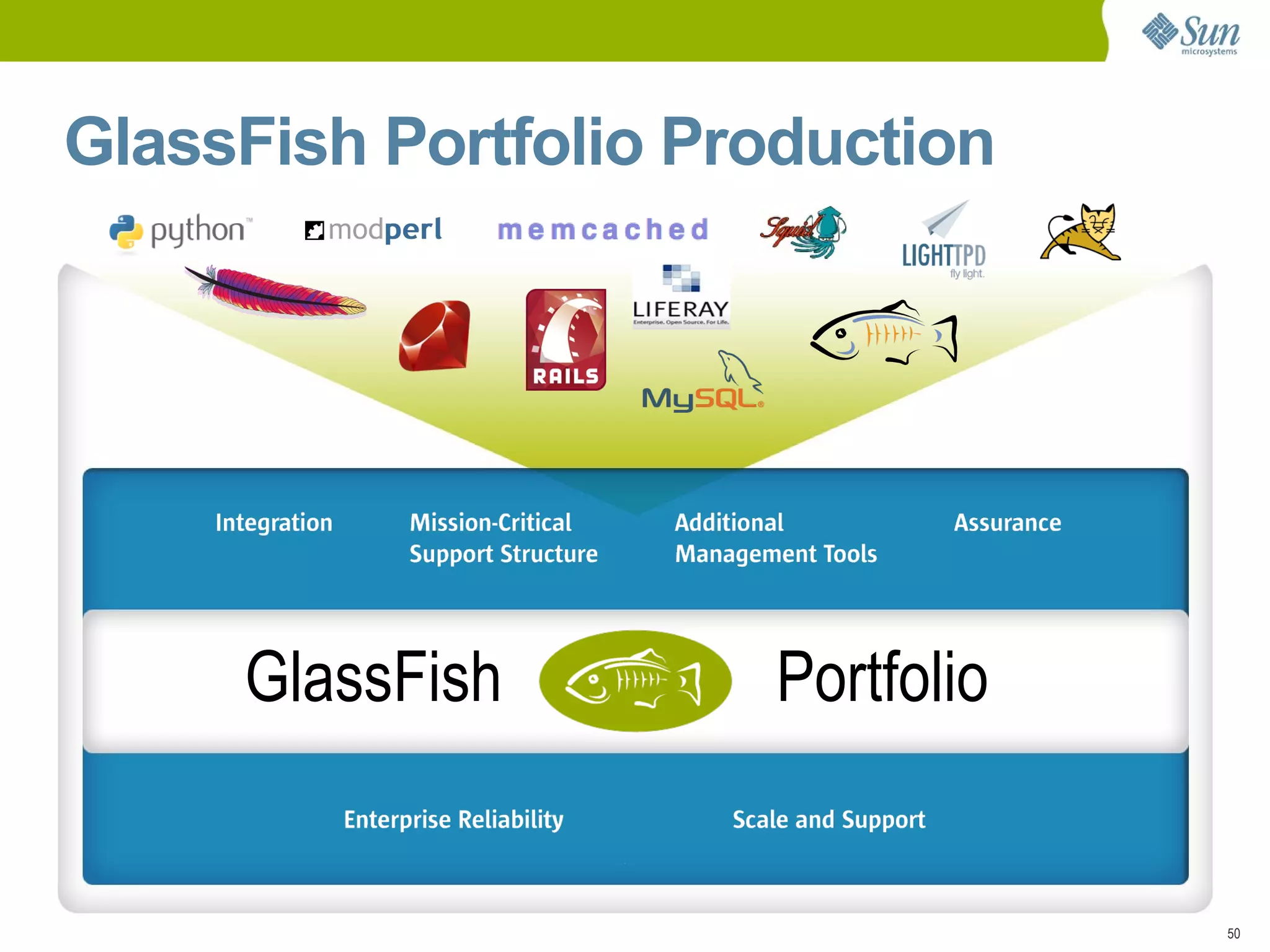

188. GlassFish Portfolio Production GlassFish Portfolio

189. Introducing Sun GlassFish Portfolio The Open Platform for Building Dynamic Web Applications Enterprise Server Web Space Server Web Stack Portal for web site development and collaborative work spaces Application Server with Enterprise-scale management and monitoring, including support for SNMP A full SOA web platform -A complete LAMP Stack along with lighttpd and Squid.proxy -Sun Web Server – world's fastest and the most scalable Web Stack and Web Server GlassFish ESB

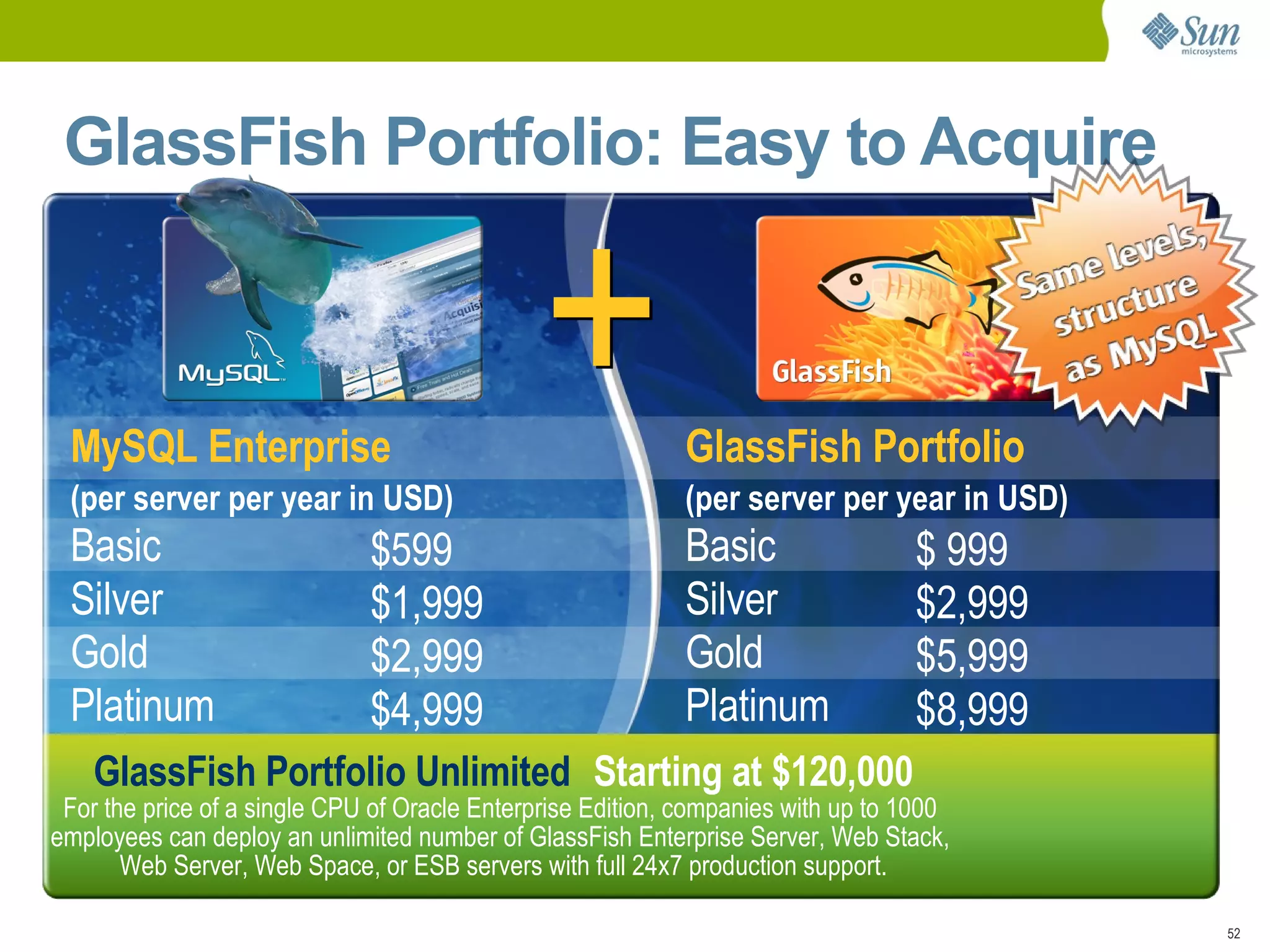

190. GlassFish Portfolio: Easy to Acquire GlassFish Portfolio

191. (per server per year in USD) Basic

192. Silver

193. Gold

194. Platinum $ 999

195. $2,999

196. $5,999

197. $8,999 MySQL Enterprise

198. (per server per year in USD) Basic

199. Silver

200. Gold

201. Platinum $599

202. $1,999

203. $2,999

204. $4,999 + +

205. GlassFish Web Stack Complete Web Tier Sun Web Server

206. Apache HTTPd

207. GlassFish

208. Lighttpd

209. Memcached

210. Mod_jk,perl, ruby

211. PHP, Ruby, Python

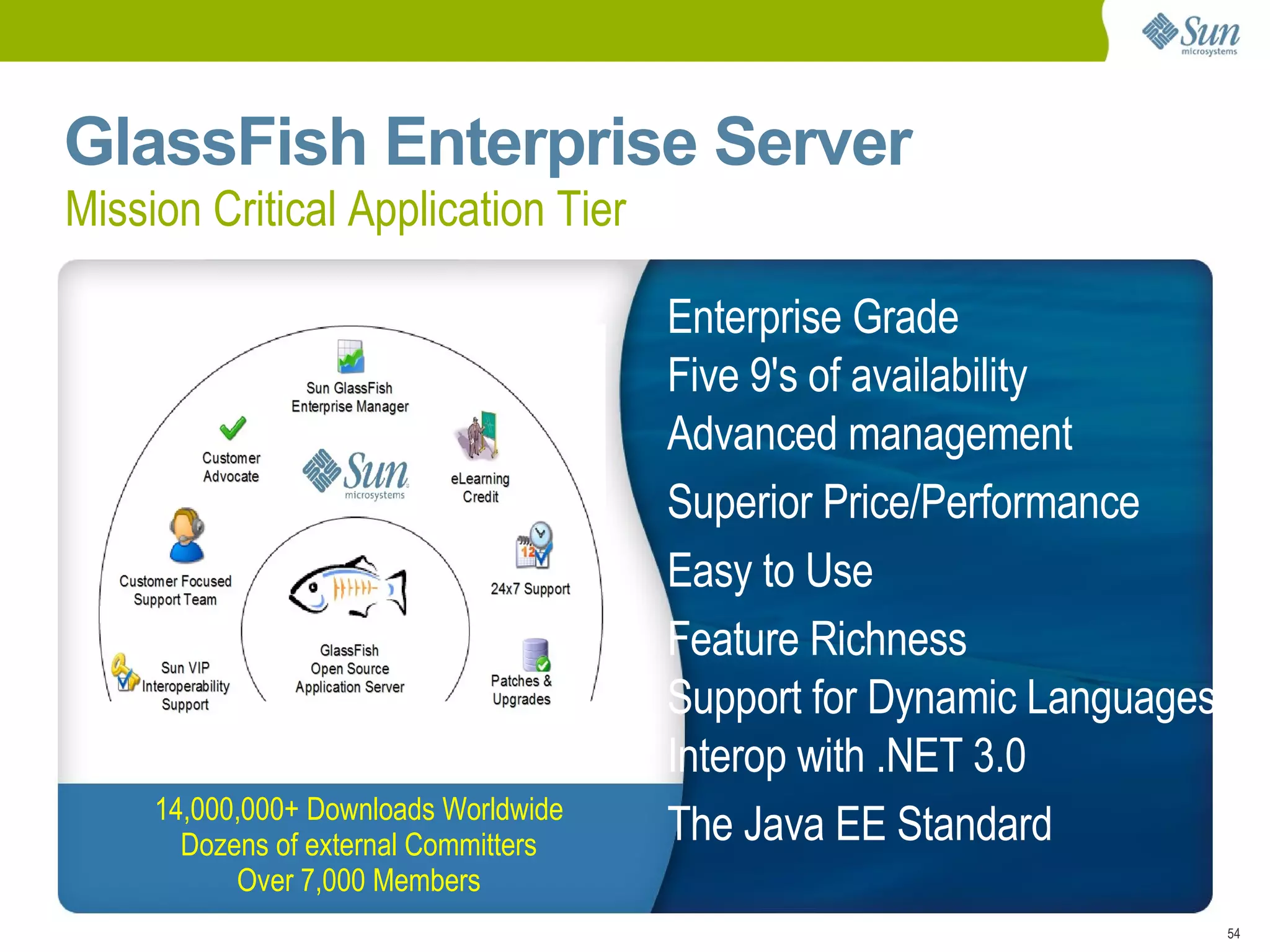

212. Squid, Tomcat MediaWiki, Drupal, Wordpress, Joomla — deploy in minutes!

213. GlassFish Enterprise Server Mission Critical Application Tier Enterprise Grade Five 9's of availability

214. Advanced management Superior Price/Performance

215. Easy to Use

216. Feature Richness Support for Dynamic Languages

217. Interop with .NET 3.0 The Java EE Standard 14,000,000+ Downloads Worldwide Dozens of external Committers Over 7,000 Members

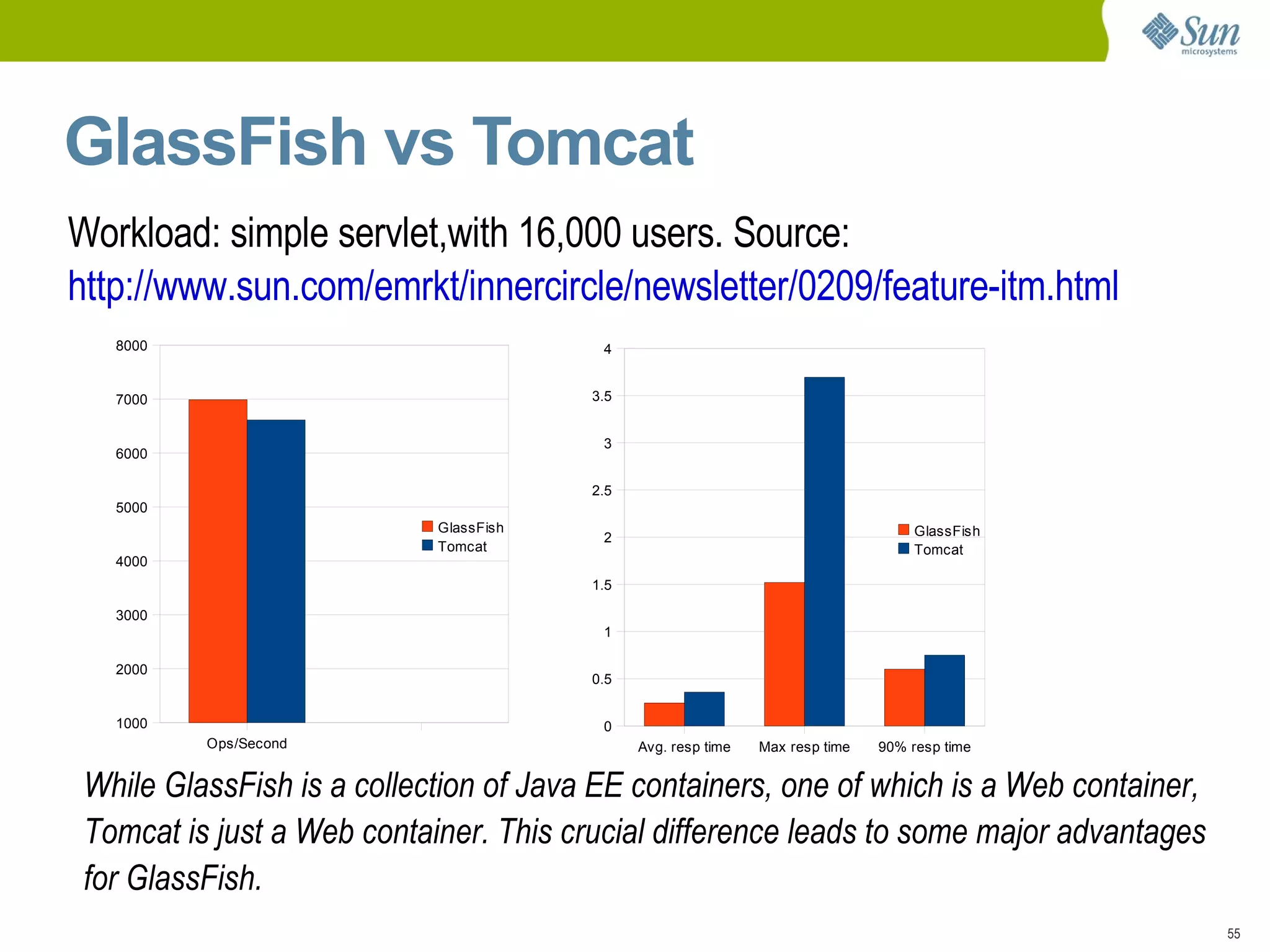

218. GlassFish vs Tomcat While GlassFish is a collection of Java EE containers, one of which is a Web container, Tomcat is just a Web container. This crucial difference leads to some major advantages for GlassFish. Workload: simple servlet,with 16,000 users. Source: http://www.sun.com/emrkt/innercircle/newsletter/0209/feature-itm.html

219. Apache HTTPd Most popular and versatile open source web server.

220. Foundation of LAMP architecture Sun Web Server 7 Most scalable web server, optimized for modern multi-core CMT (Chip-based Multi-threaded) systems.

221. Cluster management and support for heterogeneous dynamic web technologies (Java/JSP, PHP and native APIs). lighttpd light-weight open source web server known for its configuration ease and support for Async I/O and Comet. GlassFish Enterprise Server and Tomcat Open source Java application servers. A portfolio of web application servers

222. Backup Slides

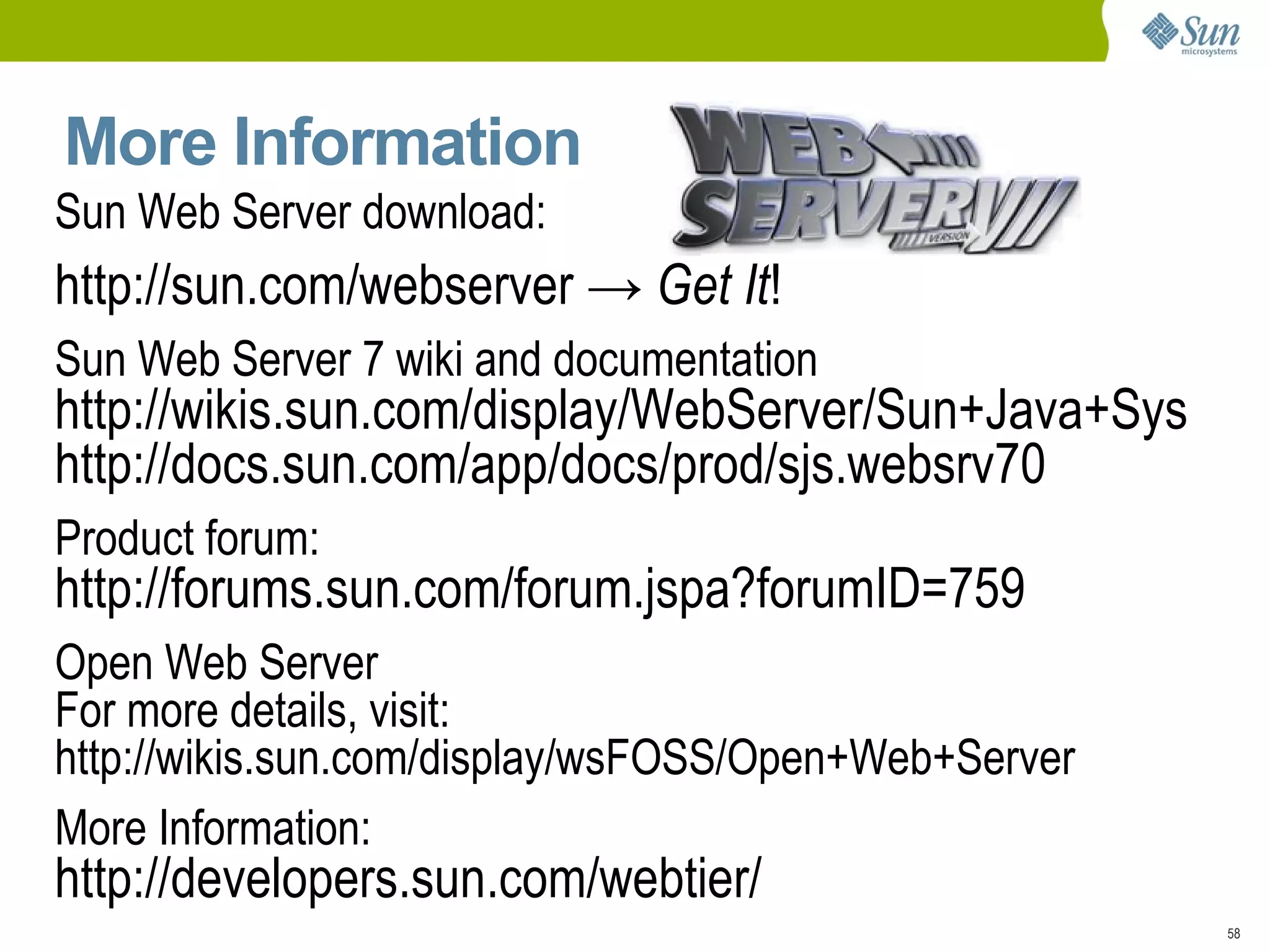

223. More Information Sun Web Server download:

224. http://sun.com/webserver -> Get It !

225. Sun Web Server 7 wiki and documentation http://wikis.sun.com/display/WebServer/Sun+Java+System+Web+Server http://docs.sun.com/app/docs/prod/sjs.websrv70

226. Product forum: http://forums.sun.com/forum.jspa?forumID=759

227. Open Web Server For more details, visit: http://wikis.sun.com/display/wsFOSS/Open+Web+Server

228. More Information: http://developers.sun.com/webtier/
