1. SUBSIDENCE
PREDICTION
P r e s e n t e d b y :
M d . F a y e z u r R a h m a n
D e b a r s h i C h o u d h u r y
M d . R o k o n U d d i n
M d . O m a r J a b e r
1

2. What is the subsidence?
 It is the vertical downward movement of a
building foundation.
 Generally caused by the loss of support of the
ground beneath the foundations.
 It results in cracking and hence property
damage.
2

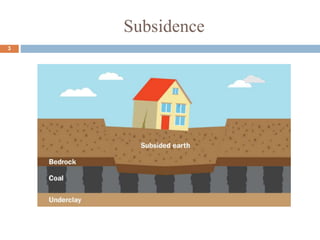

3. Subsidence
3

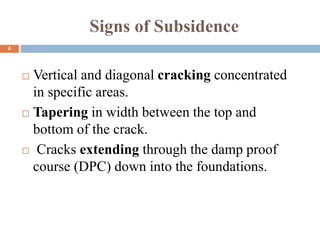

4. Signs of Subsidence
 Vertical and diagonal cracking concentrated
in specific areas.
 Tapering in width between the top and
bottom of the crack.
 Cracks extending through the damp proof
course (DPC) down into the foundations.
4

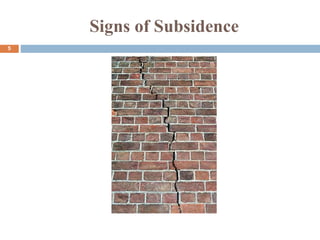

5. Signs of Subsidence
5

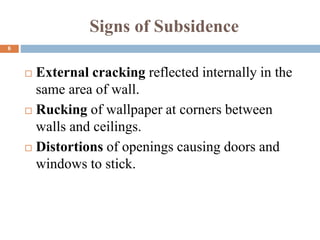

6. Signs of Subsidence
 External cracking reflected internally in the
same area of wall.
 Rucking of wallpaper at corners between
walls and ceilings.
 Distortions of openings causing doors and
windows to stick.
6

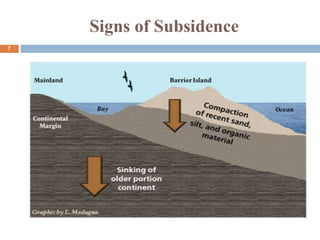

7. Signs of Subsidence
7

8. Causes of Subsidence
 Settlement after construction
 Thermal expansion and contraction of
materials
 Chemical attack
 Roof spread
 Wall tie failure.
8

9. Impact of subsidence
 Increased flood risk.
 Damage to buildings, foundations,
infrastructure and subsurface structures.
 Disruption of the water management and
related effects.
9

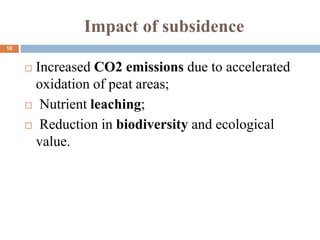

10. Impact of subsidence
 Increased CO2 emissions due to accelerated
oxidation of peat areas;
 Nutrient leaching;
 Reduction in biodiversity and ecological
value.
10

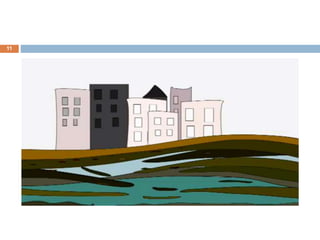

11. 11

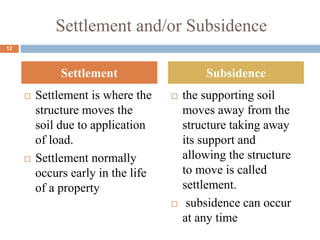

12. Settlement and/or Subsidence
 Settlement is where the
structure moves the
soil due to application
of load.
 Settlement normally
occurs early in the life
of a property
 the supporting soil
moves away from the
structure taking away
its support and
allowing the structure
to move is called
settlement.
 subsidence can occur
at any time
Settlement Subsidence
12

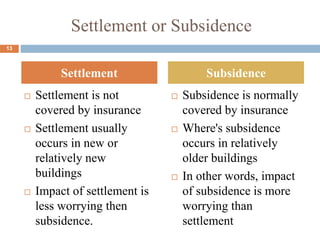

13. Settlement or Subsidence
 Settlement is not
covered by insurance
 Settlement usually
occurs in new or
relatively new
buildings
 Impact of settlement is
less worrying then
subsidence.
 Subsidence is normally
covered by insurance
 Where's subsidence
occurs in relatively
older buildings
 In other words, impact
of subsidence is more
worrying than
settlement
Settlement Subsidence
13

14. Settlement or Subsidence
Settlement Subsidence
14

15. The Soil-Ripening Process
 A freshly-deposited mud is transformed into a
dryland soil.
 The process is also called initial soil formation
or initial pedogenesis.
Mainly 3 Types:
1. Physical ripening
2. Chemical ripening
3. Biological ripening
15

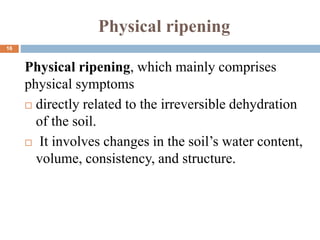

16. Physical ripening
Physical ripening, which mainly comprises
physical symptoms
 directly related to the irreversible dehydration
of the soil.
 It involves changes in the soil’s water content,
volume, consistency, and structure.
16

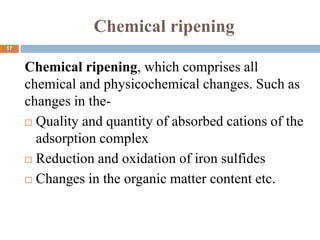

17. Chemical ripening
Chemical ripening, which comprises all
chemical and physicochemical changes. Such as
changes in the-
 Quality and quantity of absorbed cations of the
adsorption complex
 Reduction and oxidation of iron sulfides
 Changes in the organic matter content etc.
17

18. Biological ripening
Biological ripening, which comprises aspects of
the ripening process Influenced by organisms.
For example,
the number of bacteria species,
 vegetation,
oxidation of organic matter, etc
18

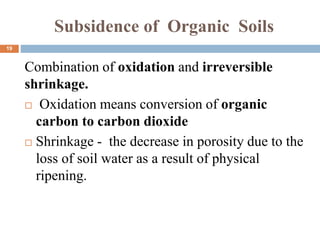

19. Subsidence of Organic Soils
Combination of oxidation and irreversible
shrinkage.
 Oxidation means conversion of organic
carbon to carbon dioxide
 Shrinkage - the decrease in porosity due to the
loss of soil water as a result of physical
ripening.
19

20. Subsidence of Organic Soils
20

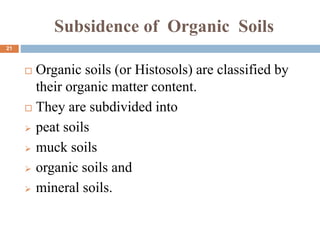

21. Subsidence of Organic Soils
 Organic soils (or Histosols) are classified by
their organic matter content.
 They are subdivided into
 peat soils
 muck soils
 organic soils and
 mineral soils.
21

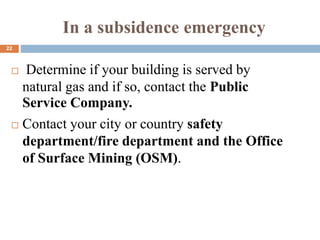

22. In a subsidence emergency
 Determine if your building is served by
natural gas and if so, contact the Public
Service Company.
 Contact your city or country safety
department/fire department and the Office
of Surface Mining (OSM).
22

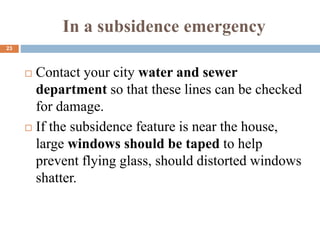

23. In a subsidence emergency
 Contact your city water and sewer
department so that these lines can be checked
for damage.
 If the subsidence feature is near the house,
large windows should be taped to help
prevent flying glass, should distorted windows
shatter.
23
