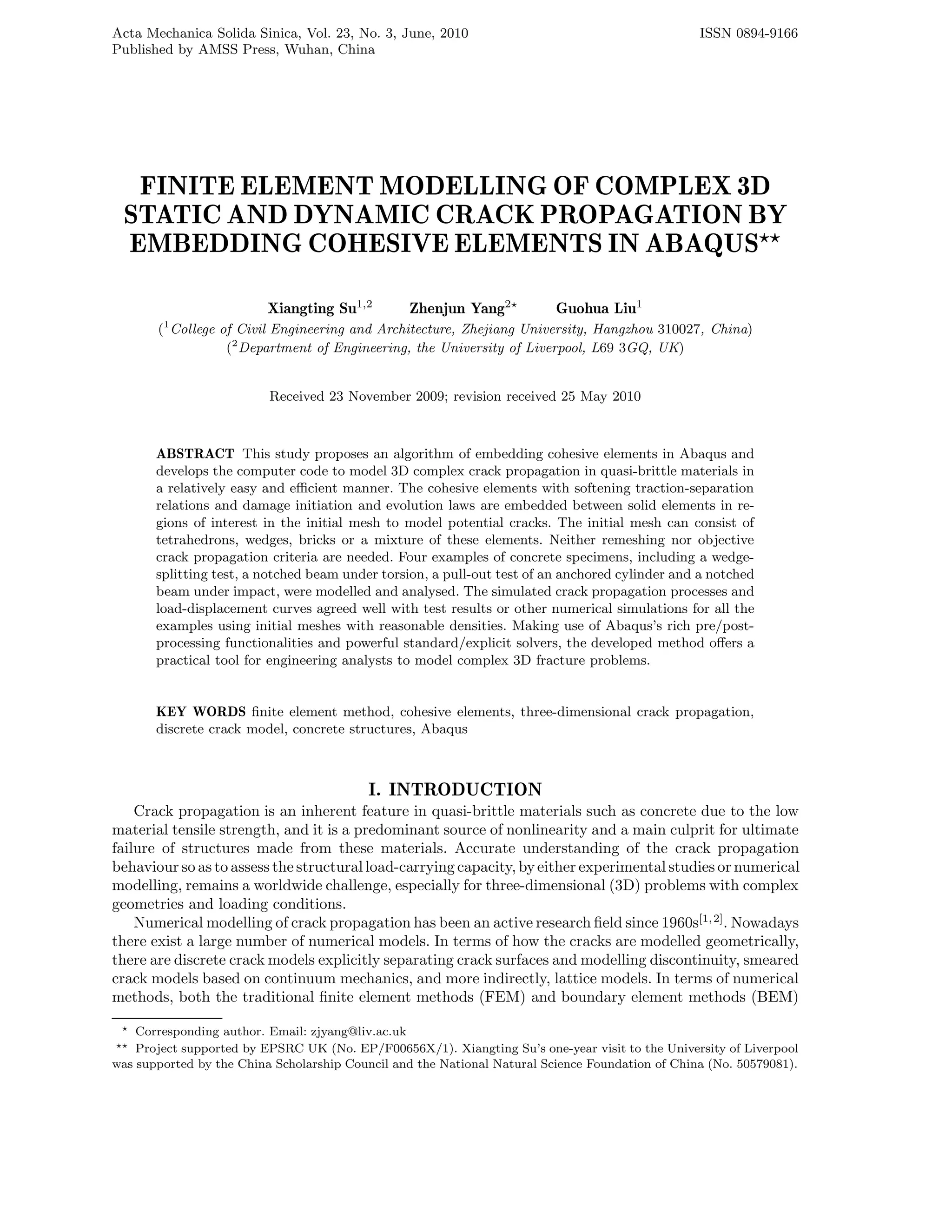

Acta Mechanica Solida Sinica, Vol. 23, No. 3, June, 2010 ISSN 0894-9166
FINITE ELEMENT MODELLING OF COMPLEX 3D
STATIC AND DYNAMIC CRACK PROPAGATION BY
EMBEDDING COHESIVE ELEMENTS IN ABAQUS
Xiangting Su1,2
Zhenjun Yang2
Guohua Liu1
(1
College of Civil Engineering and Architecture, Zhejiang University, Hangzhou 310027, China)
(2
Department of Engineering, the University of Liverpool, L69 3GQ, UK)
Received 23 November 2009; revision received 25 May 2010
ABSTRACT This study proposes an algorithm of embedding cohesive elements in Abaqus and
develops the computer code to model 3D complex crack propagation in quasi-brittle materials in
a relatively easy and efficient manner. The cohesive elements with softening traction-separation
relations and damage initiation and evolution laws are embedded between solid elements in re-
gions of interest in the initial mesh to model potential cracks. The initial mesh can consist of
tetrahedrons, wedges, bricks or a mixture of these elements. Neither remeshing nor objective
crack propagation criteria are needed. Four examples of concrete specimens, including a wedge-
splitting test, a notched beam under torsion, a pull-out test of an anchored cylinder and a notched
beam under impact, were modelled and analysed. The simulated crack propagation processes and
load-displacement curves agreed well with test results or other numerical simulations for all the
examples using initial meshes with reasonable densities. Making use of Abaqus’s rich pre/post-
processing functionalities and powerful standard/explicit solvers, the developed method offers a
practical tool for engineering analysts to model complex 3D fracture problems.
KEY WORDS finite element method, cohesive elements, three-dimensional crack propagation,
discrete crack model, concrete structures, Abaqus
I. INTRODUCTION
Crack propagation is an inherent feature in quasi-brittle materials such as concrete due to the low
material tensile strength, and it is a predominant source of nonlinearity and a main culprit for ultimate
failure of structures made from these materials. Accurate understanding of the crack propagation
behaviour so as to assess the structural load-carrying capacity, byeither experimental studies or numerical
modelling, remains a worldwide challenge, especially for three-dimensional (3D) problems with complex
geometries and loading conditions.
Numerical modelling of crack propagation has been an active research field since 1960s[1,2]
. Nowadays
there exist a large number of numerical models. In terms of how the cracks are modelled geometrically,
there are discrete crack models explicitly separating crack surfaces and modelling discontinuity, smeared
crack models based on continuum mechanics, and more indirectly, lattice models. In terms of numerical
methods, both the traditional finite element methods (FEM) and boundary element methods (BEM)
Corresponding author. Email: zjyang@liv.ac.uk
Project supported by EPSRC UK (No. EP/F00656X/1). Xiangting Su’s one-year visit to the University of Liverpool
was supported by the China Scholarship Council and the National Natural Science Foundation of China (No. 50579081).

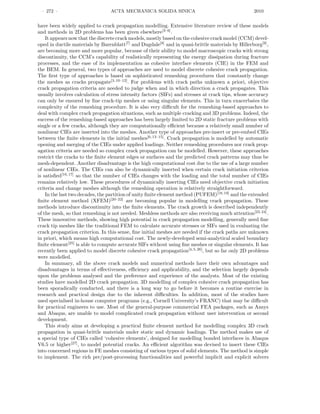

· 272 · ACTA MECHANICA SOLIDA SINICA 2010
have been widely applied to crack propagation modelling. Extensive literature review of these models
and methods in 2D problems has been given elsewhere[3–6]
.
It appears now that the discrete crack models, mostly based on the cohesive crack model (CCM) devel-
oped in ductile materials by Barenblatt[7]
and Dugdale[8]
and in quasi-brittle materials by Hillerborg[9]
,
are becoming more and more popular, because of their ability to model macroscopic cracks with strong
discontinuity, the CCM’s capability of realistically representing the energy dissipation during fracture
processes, and the ease of its implementation as cohesive interface elements (CIE) in the FEM and
the BEM. In general, two types of approaches are used to model discrete cohesive crack propagation.
The first type of approaches is based on sophisticated remeshing procedures that constantly change
the meshes as cracks propagate[3,10–12]
. For problems with crack paths unknown a priori, objective
crack propagation criteria are needed to judge when and in which direction a crack propagates. This
usually involves calculation of stress intensity factors (SIFs) and stresses at crack tips, whose accuracy
can only be ensured by fine crack-tip meshes or using singular elements. This in turn exacerbates the
complexity of the remeshing procedure. It is also very difficult for the remeshing-based approaches to
deal with complex crack propagation situations, such as multiple cracking and 3D problems. Indeed, the
success of the remeshing-based approaches has been largely limited to 2D static fracture problems with
single or a few cracks, although they are computationally efficient because a relatively small number of
nonlinear CIEs are inserted into the meshes. Another type of approaches pre-insert or pre-embed CIEs
between the finite elements in the initial meshes[6,13–15]
. Crack propagation is modelled by automatic
opening and merging of the CIEs under applied loadings. Neither remeshing procedures nor crack prop-
agation criteria are needed so complex crack propagation can be modelled. However, these approaches
restrict the cracks to the finite element edges or surfaces and the predicted crack patterns may thus be
mesh-dependent. Another disadvantage is the high computational cost due to the use of a large number
of nonlinear CIEs. The CIEs can also be dynamically inserted when certain crack initiation criterion
is satisfied[16,17]
so that the number of CIEs changes with the loading and the total number of CIEs
remains relatively low. These procedures of dynamically inserting CIEs need objective crack initiation
criteria and change meshes although the remeshing operation is relatively straightforward.
In the last two decades, the partition of unity finite element method (PUFEM)[18,19]
and the extended
finite element method (XFEM)[20–22]
are becoming popular in modelling crack propagation. These
methods introduce discontinuity into the finite elements. The crack growth is described independently
of the mesh, so that remeshing is not needed. Meshless methods are also receiving much attention[23,24]
.
These innovative methods, showing high potential in crack propagation modelling, generally need fine
crack tip meshes like the traditional FEM to calculate accurate stresses or SIFs used in evaluating the
crack propagation criterion. In this sense, fine initial meshes are needed if the crack paths are unknown
in priori, which means high computational cost. The newly-developed semi-analytical scaled boundary
finite element[25]
is able to compute accurate SIFs without using fine meshes or singular elements. It has
recently been applied to model discrete cohesive crack propagation[4,5,26]
, but so far only 2D problems
were modelled.
In summary, all the above crack models and numerical methods have their own advantages and
disadvantages in terms of effectiveness, efficiency and applicability, and the selection largely depends
upon the problems analysed and the preference and experience of the analysts. Most of the existing
studies have modelled 2D crack propagation. 3D modelling of complex cohesive crack propagation has
been sporadically conducted, and there is a long way to go before it becomes a routine exercise in
research and practical design due to the inherent difficulties. In addition, most of the studies have
used specialised in-house computer programs (e.g., Cornell University’s FRANC) that may be difficult
for practical engineers to use. Most of the general-purpose commercial FEA packages, such as Ansys
and Abaqus, are unable to model complicated crack propagation without user intervention or second
development.
This study aims at developing a practical finite element method for modelling complex 3D crack
propagation in quasi-brittle materials under static and dynamic loadings. The method makes use of
a special type of CIEs called ‘cohesive elements’, designed for modelling bonded interfaces in Abaqus
V6.5 or higher[27]
, to model potential cracks. An efficient algorithm was devised to insert these CIEs
into concerned regions in FE meshes consisting of various types of solid elements. The method is simple
to implement. The rich pre/post-processing functionalities and powerful implicit and explicit solvers

Vol. 23, No. 3 Xiangting Su et al.: Complex 3D Static and Dynamic Crack Propagation · 273 ·
of Abaqus can be fully exploited. Its effectiveness is validated by modelling various fracture problems
of concrete structures.
II. THE MODELLING METHOD
The proposed method involves the following steps:
(1) Meshing the domain using Abaqus/CAE and generating an input file.
(2) Inserting cohesive elements into the regions of interest in the initial FE mesh using an in-house
computer program and generating another input file. The initial mesh may consist of solid elements such
as 4-noded tetrahedrons (C3D4), 6-noded wedges (C3D6) and 8-noded bricks (C3D8), or a mixture of
these elements. Both 6-noded and 8-noded cohesive elements (COH3D6 and COH3D8) can be inserted.
Figure 1 shows a mesh with solid elements only, the mesh after CIEs are inserted and the 3D CIEs,
respectively.
(3) Solving the problem using Abaqus standard or explicit solvers.
This procedure can be readily automated by running a batch file. The following briefly discusses
the key elements in the method.
Fig. 1. FE meshes before and after cohesive elements are inserted and 3D cohesive elements.
2.1. Cohesive Elements with Damage in Abaqus
The cohesive crack model[7–9]
assumes the ex-
istence of a fracture process zone (FPZ) in front
of the real crack tip, in which energy dissipa-
tion occurs during fracture. In the FPZ, there
exist tractions in the normal direction (tn) and
the two tangential or shear directions (ts and tt)
across the crack surfaces, resulting from mech-
anisms such as material bonding, aggregate in-
terlocking and surface friction. Figure 2 shows a
curve relating the normal traction tn and the crack
opening displacement δn as an example. Similar
traction-separationcurves can be defined for shear
tractions (ts and tt) - crack sliding displacements
(δs and δt) relations. Before the crack initiates, a
Fig. 2 An example of traction-separation curve with softening
for cohesive elements.
linear elastic ascending phase is assumed to model the initially un-cracked material. After the crack
initiates, the traction decreases monotonically as functions of the corresponding separation, which is
often termed tension or strain softening. The initial tensile stiffness kn0 and the initial shear stiffness
ks0 and kt0 should be high enough to represent the un-cracked material, but not too high to cause
numerical ill-conditioning. These initial stiffness values are determined by a trial and error approach.
If δn is negative during loading increments or iterations, a compressive stiffness of magnitude equal to
kn0 is assigned in order to prevent penetration of crack surfaces.

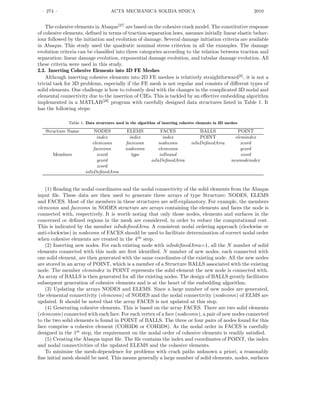

The cohesive elements in Abaqus[27]
are based on the cohesive crack model. The constitutive response
of cohesive elements, defined in terms of traction-separation laws, assumes initially linear elastic behav-
iour followed by the initiation and evolution of damage. Several damage initiation criteria are available
in Abaqus. This study used the quadratic nominal stress criterion in all the examples. The damage
evolution criteria can be classified into three categories according to the relation between traction and
separation: linear damage evolution, exponential damage evolution, and tabular damage evolution. All
these criteria were used in this study.
2.2. Inserting Cohesive Elements into 3D FE Meshes
Although inserting cohesive elements into 2D FE meshes is relatively straightforward[6]
, it is not a
trivial task for 3D problems, especially if the FE mesh is not regular and consists of different types of
solid elements. One challenge is how to robustly deal with the changes in the complicated 3D nodal and
elemental connectivity due to the insertion of CIEs. This is tackled by an effective embedding algorithm
implemented in a MATLAB[28]
program with carefully designed data structures listed in Table 1. It
has the following steps:
Table 1. Data structures used in the algorithm of inserting cohesive elements in 3D meshes
Structure Name NODES ELEMS FACES BALLS POINT
index index index POINT elemindex
elemconn faceconn nodeconn isInDefinedArea xcord
faceconn nodeconn elemconn ycord
Members xcord type isBound zcord
ycord isInDefinedArea newnodeindex
zcord
isInDefinedArea
(1) Reading the nodal coordinates and the nodal connectivity of the solid elements from the Abaqus
input file. These data are then used to generate three arrays of type Structure: NODES, ELEMS
and FACES. Most of the members in these structures are self-explanatory. For example, the members
elemconn and faceconn in NODES structure are arrays containing the elements and faces the node is
connected with, respectively. It is worth noting that only those nodes, elements and surfaces in the
concerned or defined regions in the mesh are considered, in order to reduce the computational cost.
This is indicated by the member isIndefinedArea. A consistent nodal ordering approach (clockwise or
anti-clockwise) in nodeconn of FACES should be used to facilitate determination of correct nodal order
when cohesive elements are created in the 4th
step.
(2) Inserting new nodes. For each existing node with isIndefinedArea=1, all the N number of solid
elements connected with this node are first identified. N number of new nodes, each connected with
one solid element, are then generated with the same coordinates of the existing node. All the new nodes
are stored in an array of POINT, which is a member of a Structure BALLS associated with the existing
node. The member elemindex in POINT represents the solid element the new node is connected with.
An array of BALLS is then generated for all the existing nodes. The design of BALLS greatly facilitates
subsequent generation of cohesive elements and is at the heart of the embedding algorithm.
(3) Updating the arrays NODES and ELEMS. Since a large number of new nodes are generated,
the elemental connectivity (elemconn) of NODES and the nodal connectivity (nodeconn) of ELMS are
updated. It should be noted that the array FACES is not updated at this step.
(4) Generating cohesive elements. This is based on the array FACES. There are two solid elements
(elemconn) connected with each face. For each vertex of a face (nodeconn), a pair of new nodes connected
to the two solid elements is found in POINT of BALLS. The three or four pairs of nodes found for this
face comprise a cohesive element (COH3D6 or COH3D8). As the nodal order in FACES is carefully
designed in the 1st
step, the requirement on the nodal order of cohesive elements is readily satisfied.
(5) Creating the Abaqus input file. The file contains the index and coordinates of POINT, the index
and nodal connectivities of the updated ELEMS and the cohesive elements.
To minimise the mesh-dependence for problems with crack paths unknown a priori, a reasonably
fine initial mesh should be used. This means generally a large number of solid elements, nodes, surfaces

and CIEs are used. Computer implementation of the above inserting algorithm must be carried out
with care, or the time spent on inserting CIEs may be unduly long. As an example, for an initial mesh
with 46800 C3D8 elements and 52140 nodes, it takes about 30 minutes for the developed MATLAB
program to insert 135,200 CIEs using a PC with an Intel Xeon CPU@3.16 GHz and 3 GB physical
memory.
III. NUMERICAL EXAMPLES
Four 3D concrete structures subjected to static and dynamic loadings were modelled using the
developed method as examples. A PC with two Intel Xeon CPUs @3.16GHz and 3 GB physical memory
was used. Both Abaqus/standard and explicit solvers were used to solve the nonlinear equation systems.
When the quasi-static explicit solver was used to model static problems, the analysis time was carefully
chosen to avoid dynamic effects. Because the failure mode of all the examples is mainly tensile fracture
and there is no experimental data about shear fracture resistance, the strength and the initial stiffness
in shear are assumed as 10 times those in tension for the cohesive elements so that shear fracture failure
does not occur.
3.1. Wedge-Splitting Test
The first example is the wedge-splitting test of a concrete specimen CP250 carried out by Trunk[29]
.
The test was modelled in 2D by Trunk[29]
and Feist[30]
, and in 3D by Areias and Belytschko[22]
. The
geometry and the loading condition are shown in Fig.3. The concrete has a Young’s modulus E = 28300
MPa, the Poisson ratio ν = 0.2 and mass density ρ = 2.5 × 10−6
kg/mm3
. A bilinear softening curve
shown in Fig.4 with parameters obtained from the experiment was used to model the normal traction-
separation relation of the CIEs. The area under the curve is the fracture energy Gf = 0.49 N/mm. The
initial stiffness kn0 was assumed as 1 × 105
MPa·mm. The Abaqus/explicit quasi-static solver used an
analysis time of 0.1 s.
Fig. 3. Wedge-splitting test specimen (unit: mm).
Fig. 4. Bilinear softening law used for the wedge-
splitting test.
Figure 5 shows a deformed FE mesh with 774 C3D6 and 1392 C3D8R solid elements, 1854 CIEs
and 6852 nodes in total. It can be seen that the crack path was vertical as expected because of the
symmetry of the mesh and loading conditions. Finer meshes were also modelled but they led to little
difference from the predicted crack path and the load-crack mouth opening displacement (CMOD)
curves. Figure 6 compares the load-CMOD curves from the experiment and modelling using different
solvers and solid elements. The standard solver always failed by divergence at the post-peak stage, e.g.,
it failed at CMOD=3.2 mm for C3D8 as shown in Fig.6. This also often occurred in 2D simulations[6]
.
In contrast, the explicit solver always managed to model the whole fracture process when small enough
time increments were used. The explicit solver using C3D8R with reduced integration and hourglass
control (HC) resulted in nearly the same pre-peak responses as the standard solver using C3D8, while
the explicit solver using C3D8R but without hourglass control led to too soft pre-peak responses. C3D8
was also tried with the explicit solver but the computational time nearly doubled when C3D8R was

used. Therefore, the explicit solver was used in all the following simulations and C3D8R elements with
hourglass control were chosen when 8-noded brick elements were used.

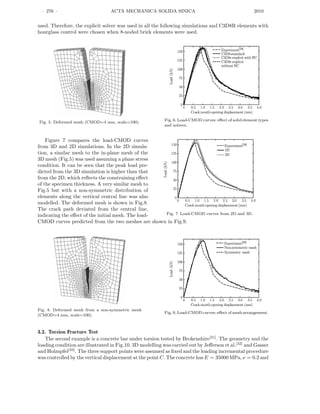

Fig. 5. Deformed mesh (CMOD=4 mm, scale=100). Fig. 6. Load-CMOD curves: effect of solid element types
and solvers.
Figure 7 compares the load-CMOD curves
from 3D and 2D simulations. In the 2D simula-
tion, a similar mesh to the in-plane mesh of the
3D mesh (Fig.5) was used assuming a plane stress
condition. It can be seen that the peak load pre-
dicted from the 3D simulation is higher than that
from the 2D, which reflects the constraining effect
of the specimen thickness. A very similar mesh to
Fig.5 but with a non-symmetric distribution of
elements along the vertical central line was also
modelled. The deformed mesh is shown in Fig.8.
The crack path deviated from the central line,
indicating the effect of the initial mesh. The load- Fig. 7 Load-CMOD curves from 2D and 3D.
CMOD curves predicted from the two meshes are shown in Fig.9.
Fig. 8. Deformed mesh from a non-symmetric mesh
(CMOD=4 mm, scale=100).
Fig. 9. Load-CMOD curves: effect of mesh arrangement.
3.2. Torsion Fracture Test
The second example is a concrete bar under torsion tested by Brokenshire[31]
. The geometry and the
loading condition are illustrated in Fig.10. 3D modelling was carried out by Jefferson et al.[32]
and Gasser
and Holzapfel[33]
. The three support points were assumed as fixed and the loading incremental procedure
was controlled by the vertical displacement at the point C. The concrete has E = 35000 MPa, ν = 0.2 and

Fig. 10. A concrete bar under torsion (unit: mm).
ρ = 2.5 × 10−6
kg/mm3
. The same linear soften-
ing curve (Fig.11) as used in Ref.[32] was adopted
to model the normal traction-separation relation
with Gf = 0.08 N/mm. The initial stiffness was
set as kn0 = 7.5×106
MPa·mm. An analysis time
of 0.3 s was used in the explicit quasi-static pro-
cedure. CMOD is defined as the relative displace-
ment between the points A and B normal to the
notch surface (ref. Fig.10). Fig. 11 Linear softening law used for the torsion test.
Two FE meshes with different solid element types were modelled to investigate the effect on the
prediction of crack surfaces. Mesh A in Fig.12(a) has 10651 C3D4 solid elements and 9606 CIEs, and
Mesh B in Fig.12(b) has 7027 C3D8R and C3D6 elements and 8055 CIEs. The predicted crack surfaces
are compared with the test result in Fig.13. It is clear that Mesh A with C3D4 led to very realistic,
tortuous fracture surfaces whereas Mesh B with C3D8R predicted an unrealistically flat and smooth
crack path. The predicted load-CMOD curves are presented in Fig.14. It can be seen that both meshes
led to curves close to the experimental data. Mesh A predicted a peak load slightly higher than Mesh
B. This may be explained by the predicted crack surfaces in Fig.13, where the tortuous and unsmooth
crack surfaces from Mesh A offer higher fracture resistance than the flat and smooth ones from Mesh B.
Jefferson et al.[32]
also modelled the same test using a similar mesh to Mesh B and the ‘Craft’ concrete
Fig. 12. Two FE meshes used for the torsion test.

Fig. 13. Crack surfaces after failure for the torsion test.
Fig. 14. Load-CMOD curves for the torsion test.
Fig. 15. Pull-out test of a steel bar embedded in concrete
(unit: mm).
model. The predicted load-CMOD curve is also shown in Fig.14 and it is very close to that from Mesh
B in this study.
3.3. Pull-out Test of a Steel-Embedded Concrete Anchor
This example models the pull-out behaviour of a steel anchor embedded in concrete. The detailed
geometry, applied boundary and loading conditions of one-quarter specimen are illustrated in Fig.15.
This example was also modelled in Ref.[19,22,23] using other methods. The anchor bolt, excluded from
the FE model, was simulated by a boundary condition of vertical displacement imposed on the top
Fig. 16. Meshes used for the pull-out test.

surface of the groove. The concrete properties are: E = 30000 MPa, ν = 0.2 and ρ = 2.5×10−6
kg/mm3
.
A linear softening curve with Gf = 0.1 N/mm, tensile strength=3 MPa and kn0 = 6 × 104
MPa·mm
was used. An analysis time of 0.1 s was used in the explicit solver.
To investigate the mesh-dependence of results, two meshes were modelled. The coarse mesh in
Fig.16(a) has 31889 C3D4 solid elements and 60164 CIEs, and the numbers for the fine mesh in Fig.16(b)
are 69798 and 138169, respectively. Figure 17 shows the load (F)-displacement (d) curves from the two
meshes and other studies. It can be seen that the two meshes predicted very close responses, especially
the same failure point when the load suddenly dropped at d = 0.25 mm.
Fig. 17. Load-displacement curves for the pull-out test.
Similar crack propagation processes and final crack patterns were predicted from the two meshes.
Figure 18 illustrates four stages of the predicted crack propagation using the fine mesh, where the
cracks are represented by grey areas consisting of highly-damaged cohesive elements (with the damage
Fig. 18. Predicted crack propagation process of the pull-out test.

index D ≥ 0.99). At F = 310 kN (60% of the peak load Fu = 503 kN), tensile cracks initiated at
the top edge of the groove, forming a cone around the groove (Fig.18(a)). As the load approached
the peak, a splitting-mode longitudinal crack initiated at the top surface and propagated in the radial
direction (Fig.18(b)). Beyond the peak load (Fig.18(c)), the longitudinal crack propagated rapidly,
leading to a drastic decline on the load-displacement curve (Fig.17). After the complete propagation
of the longitudinal crack (Fig.18(d)), the conical crack continued to advance with the load decreasing
slowly. The simultaneous propagation of the longitudinal crack and the conical crack, observed in the
experiments by Rots[34]
, was well reproduced. This may explain the difference between the predicted
load-displacement curves (Fig.17) by the present study and other studies[22,23]
which only modelled
the conical crack.
3.4. Impact Test of a Concrete Beam
The fourth example is a concrete beam under
impact tested and modelled in 2D by Du et al.[35]
.
3D modelling was reported by Belytschko et al.[36]
.
The geometry and the boundary condition are
shown in Fig.19. The impact load history obtained
from the test (Fig.20) was input as the loading
condition. The concrete properties are: E = 34480
MPa, ν = 0.2 and ρ = 2.5 × 10−6
kg/mm3
. An
Fig. 19 Impact test of a concrete beam (unit: mm).
exponential softening curve (Fig.21) with the exponential law parameter α = 1.5 and the equivalent
dynamic fracture energy Gf = 0.152 N/mm, suggested in Ref.[35], was adopted to model the CIEs.
The initial stiffness kn0 = 1 × 105
MPa·mm was used.
Figure 22 shows a deformed mesh at the post-peak stage when t = 1 ms. The mesh consists of
3645 solid elements and 606 cohesive elements. Figure 23 compares favourably the predicted load-
deflection curve with the test data. Figure 24 compares the measured and computed strain histories
at three locations (SG01, SG02 and SG03). The strain history computed for SG03 agreed well with
the measured. For the other two locations, the strain histories were underestimated, probably due to
Fig. 20. Load history used for the impact test.
Fig. 21. Exponential softening law for the impact test.
Fig. 22. Deformed mesh for the impact test.
Fig. 23. Load-displacement curves for the impact test.

the negligence of shrinkage effects in the numerical modelling[37]
. The crack-tip extension histories are
compared in Fig.25.
Fig. 24. Strain history for the impact test. Fig. 25. Crack-tip extension history for the impact test.
IV. CONCLUSIONS
A simple yet effective finite element methodology has been developed to simulate 3D complex cohesive
crack propagation in quasi-brittle materials, using Abaqus’s cohesive elements. An efficient algorithm
to insert the cohesive elements into initial finite element meshes was devised and implemented by an
in-house computer program. Several concrete examples were modelled to demonstrate the effectiveness
of the method. It is concluded that, making use of the rich pre/post-processing functionalities and
powerful standard/explicit solvers in Abaqus, the developed methodology seems promising to provide
a practical simulation tool for modelling realistic 3D fracture in various industries.
References
[1] Scordelis,A.C. and Ngo,D., Finite element analysis of reinforced concrete beams. Journal of the American
Concrete Institute , 1967, 64: 152-163.
[2] Rashid,Y.R., Ultimate strength analysis of prestressed concrete pressure vessels. Nuclear Engineering and
Design, 1968, 7(4): 334-344.
[3] Yang,Z.J. and Chen,J.F., Fully automatic modelling of cohesive discrete crack propagation in concrete
beams using local arc-length methods. International Journal of Solids and Structures, 2004, 41(3-4): 801-
826.
[4] Yang,Z.J., Fully automatic modelling of mixed-mode crack propagation using scaled boundary finite element
method. Engineering Fracture Mechanics, 2006, 73(12): 1711-1731.
[5] Yang,Z.J. and Deeks,A.J., Fully-automatic modelling of cohesive crack growth using a finite element-scaled
boundary finite element coupled method. Engineering Fracture Mechanics, 2007, 74(16): 2547-2573.
[6] Yang,Z.J., Su,X.T., Chen,J.F. and Liu,G.H., Monte Carlo simulation of complex cohesive fracture in random
heterogeneous quasi-brittle materials. International Journal of Solids and Structures, 2009, 46(17): 3222-
3234.
[7] Barenblatt,G.I., The formation of equilibrium cracks during brittle fracture: general ideas and hypothesis,
axially symmetric cracks. Applied Mathematics and Mechanics, 1959, 23: 622-636.
[8] Dugdale,D.S., Yielding of steel sheets containing slits. Journal of Mechanics of Physics and Solids, 1960,
8: 100-104.
[9] Hillerborg,A., Modeer,M. and Petersson,P., Analysis of crack formation and crack growth in concrete by
means of fracture mechanics and finite elements. Cement and Concrete Research, 1976, 6: 773-782.
[10] Wawrzynek,P.A. and Ingraffea,A.R., An interactive approach to local remeshing around a propagating
crack. Finite Elements in Analysis and Design, 1989, 5: 87-96.
[11] Xie,M. and Gerstle,W.H., Energy-Based Cohesive Crack Propagation Modeling. Journal of Engineering
Mechanics-ASCE, 1995, 121(12): 1349-1358.
[12] Yang,Z.J. and Xu,X.F., A heterogeneous cohesive model for quasi-brittle materials considering spatially
varying random fracture properties. Computer Methods in Applied Mechanics and Engineering, 2008, 197:
4027-4039.

[13] Xu,X.P. and Needleman,A., Numerical simulations of fast crack growth in brittle solids. Journal of the
Mechanics and Physics of Solids, 1994, 42(9): 1397-1434.
[14] López,C., Carol,I. and Aguado,A., Meso-structural study of concrete fracture using interface elements. I:
numerical model and tensile behavior. Materials and Structures, 2008, 41(3): 583-599.
[15] López,C., Carol,I. and Aguado,A., Meso-structural study of concrete fracture using interface elements. II:
compression, biaxial and Brazilian test. Materials and Structures, 2008, 41(3): 601-620.
[16] Camacho,G.T. and Ortiz,M., Computational modelling of impact damage in brittle materials. International
Journal of Solids and Structures, 1996, 33: 2899-2938.
[17] Pandolfi,A. and Ortiz,M., An efficient adaptive procedure for three-dimensional fragmentation simulations.
Engineering with Computers, 2002, 18: 148-159.
[18] Melenk,J.M. and Babuska,I., The partition of unity finite element method: Basic theory and applications.
Computer Methods in Applied Mechanics and Engineering, 1996, 139: 289-314.
[19] Gasser,T.C. and Holzapfel,G.A., Modeling 3D crack propagation in unreinforced concrete using PUFEM.
[20] Moes,N., Dolbow,J. and Belytschko,T., A finite element method for crack growth without remeshing. In-
ternational Journal for Numerical Methods in Engineering, 1999, 46: 131-150.
[21] Dolbow,J.E., An Extended Finite Element Method with Discontinuous Enrichment for Applied Mechanics.
Ph.D. dissertation, Northwestern University, 1999.
[22] Areias,P.M.A. and Belytschko,T., Analysis of three-dimensional crack initiation and propagation using the
extended finite element method. International Journal for Numerical Methods in Engineering, 2005, 63:
760-788.
[23] Bordas,S.P, Rabczuk,T. and Zi,G., Three-dimensional crack initiation, propagation, branching and junc-
tion in non-linear materials by an extended meshfree method without asymptotic enrichment. Engineering
Fracture Mechanics, 2008, 75: 943-960.
[24] Sun,H.T. and Wang,Y.H., The meshless virtual boundary method and its applications to 2D elasticity
problems. Acta Mechanica Solida Sinica, 2007, 20(1): 30-40.
[25] Wolf,J.P. and Song,C.M., Finite-element Modelling of Unbounded Media, Wiley, Chichester, 1996.
[26] Ooi,E.T. and Yang,Z.J., Modelling multiple cohesive crack propagation using a finite element-scaled bound-
ary finite element coupled method. Engineering Analysis with Boundary Elements, 2009, 33: 915-929.
[27] Abaqus 6.7 User Documentation, Dessault Systems, 2007.
[28] Matlab R2008a User’s Guide, MathWorks, 2008.
[29] Trunk,B., Einfluss der Bauteilgroesse auf die Bruchenergie von Beton. Aedificatio Publishers, 2000 (in
German).
[30] Feist,C., Numerical Simulations of Localization Effects in Plain Concrete. Ph.D. dissertation, University
Innsbruck, 2003.
[31] Brokenshire,D.R., A Study of Torsion Fracture Tests. Ph.D. Dissertation, Cardiff University, 1996.
[32] Jefferson,A.D., Barr,B., Bennett,T. and Hee,S., Three dimensional finite element simulations of fracture
tests using the Craft concrete model. Computers and Concrete, 2004, 1: 261-284.
[33] Gasser,T.C. and Holzapfel,G.A., 3D Crack propagation in unreinforced concrete: A two-step algorithm for
tracking 3D crack paths. Computer Methods in Applied Mechanics and Engineering, 2006, 195: 5198-5219.
[34] Rots,J.G., Computational Modelling of Concrete Fracture. Ph.D. Dissertation, Delft University of Tech-
nology, 1988.
[35] Du,J., Yon,J.H., Hawkins,N.M., Arakawa,K. and Kobayashi,A.S., Fracture process zone for concrete for
dynamic loading. ACI Materials Journal, 1992, 89: 252-258.
[36] Belytschko,T., Organ,D. and Gerlach,C., Element-free galerkin methods for dynamic fracture in concrete.
[37] Yon,J.H., Hawkins,N.M. and Kobayashi,A.S., Strain-rate sensitivity of concrete mechanical properties. ACI
Materials Journal, 1992, 89: 146-153.

Su2010 (1)

More Related Content

What's hot

Similar to Su2010 (1)

Recently uploaded

Su2010 (1)
