This document describes an experiment involving the study of microwave test benches and components. It discusses two microwave test benches that use either a klystron or Gunn diode as a signal source. It then lists and numbers 16 common active and passive microwave components that are part of the experiment, including isolators, magic tees, frequency meters, and slotted lines.

1. EC8761 -ADVANCED COMMUNICATION LABORATORY
MICROWAVE EXPERIMENTS
EXP. NO.1: STUDY OF MICROWAVE SET UP, ACTIVE AND
PASSIVE COMPONENTS

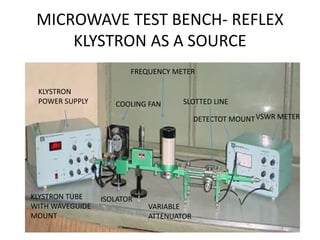

2. MICROWAVE TEST BENCH- REFLEX
KLYSTRON AS A SOURCE
KLYSTRON
POWER SUPPLY
VSWR METERDETECTOT MOUNT
SLOTTED LINE
FREQUENCY METER
VARIABLE
ATTENUATOR
COOLING FAN
ISOLATORKLYSTRON TUBE
WITH WAVEGUIDE
MOUNT

4. MICROWAVE TEST BENCH- GUNN
DIODE AS A SOURCE

5. ACTIVE COMPONENTS
REFLEX KLYSTRON
WITH WAVEGUIDE
MOUNT
GUNN DIODE WITH
WAVEGUIDE
MOUNT

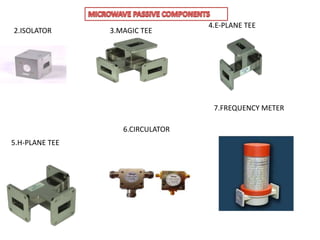

6. 2.ISOLATOR 3.MAGIC TEE
4.E-PLANE TEE
5.H-PLANE TEE
6.CIRCULATOR
7.FREQUENCY METER

7. 8.VARIABLE
ATTENUATOR
9.L BEND
10.MATCHED
TERMINATOR
11.RAT-RACE(HYBRID RING)
12.SLOTTED LINE

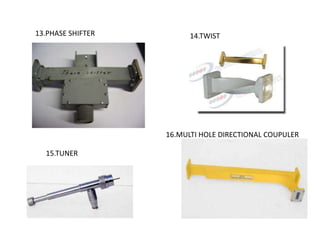

8. 13.PHASE SHIFTER 14.TWIST
15.TUNER
16.MULTI HOLE DIRECTIONAL COUPULER
