1. Transparent
Curtain LED Screen
UNIVERSITAS JENDERAL ACHMAD YANI
DIGITAL CAMPUS
Bandung - 03 Agustus 2021

2. 1. LED TRANSPARENT
2. STRUCTURE
3. PART LED TRANSPARENT
4. WIRING DIAGRAM

3. 1. LED TRANSPARENT

4. LED TRANSPARENT

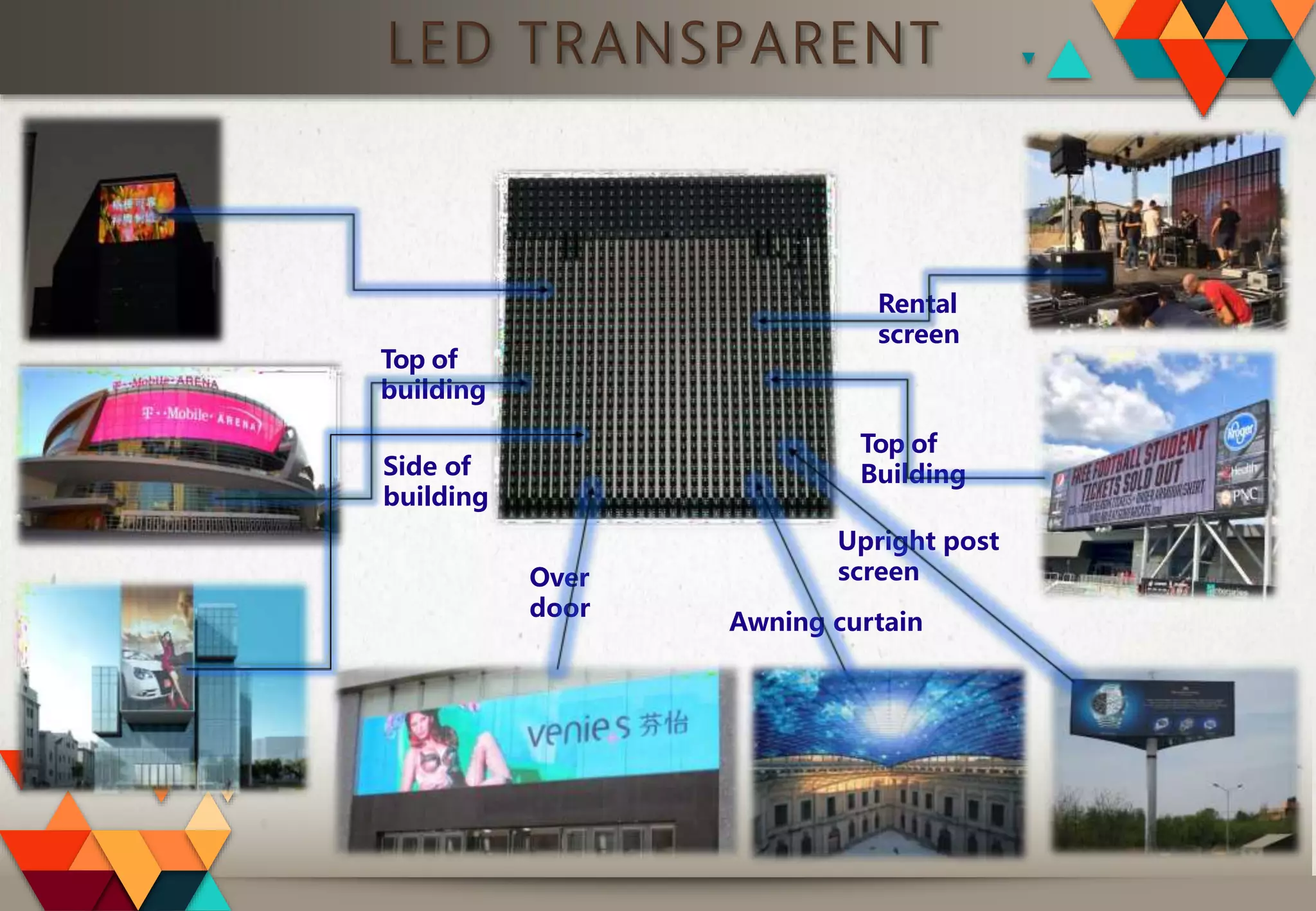

5. LED TRANSPARENT
Top of
building
Side of
building
Over
door
Upright post
screen
Awning curtain
Top of
Building
Rental
screen

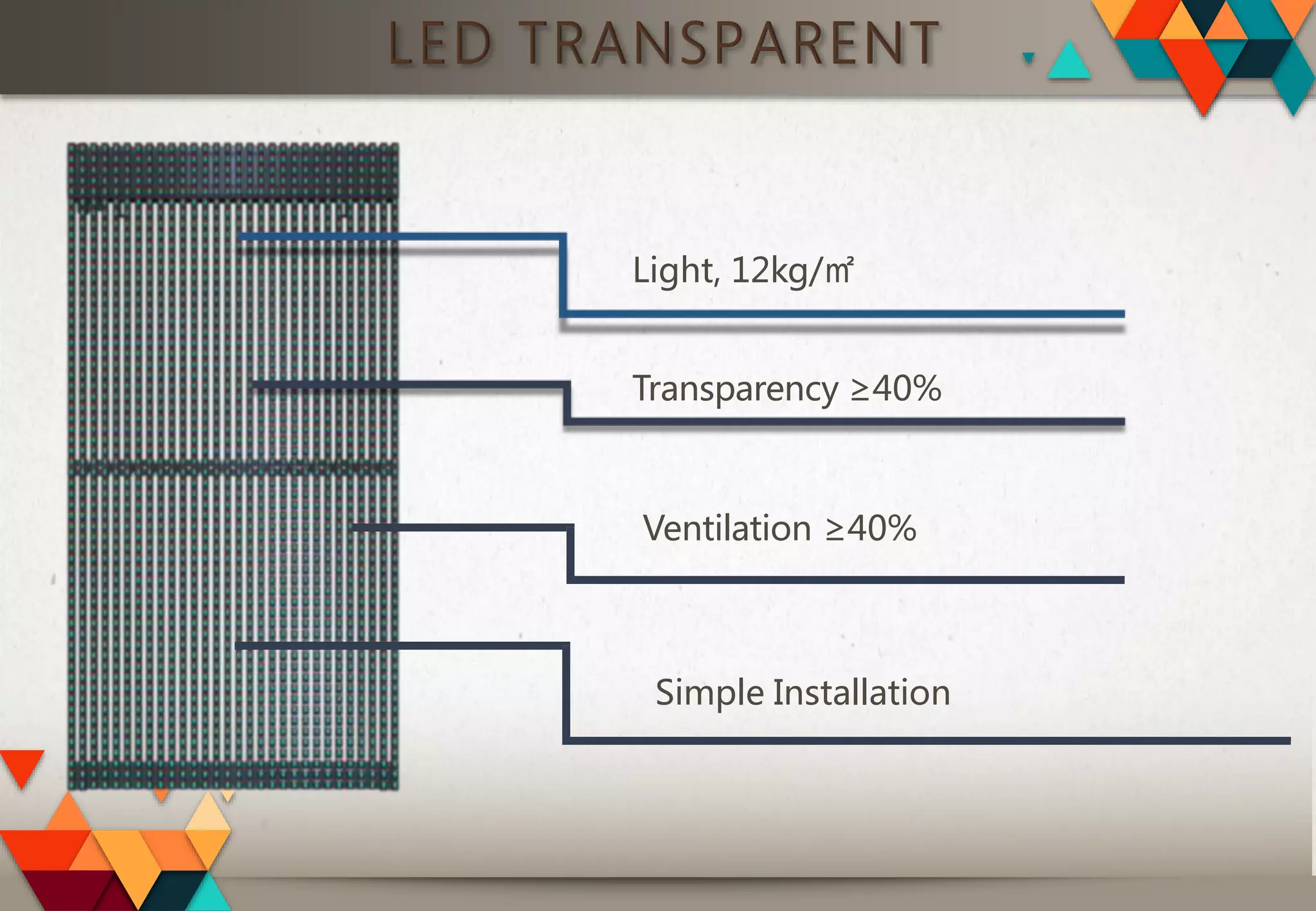

6. LED TRANSPARENT
Light, 12kg/㎡
Transparency ≥40%
Ventilation ≥40%
Simple Installation

7. LED TRANSPARENT
THIN 12Kg/㎡
Traditional LED Display 56Kg/㎡
Construction: 10kg/㎡
Traditional LED Display: 30kg/㎡
68mm
20mm
29mm

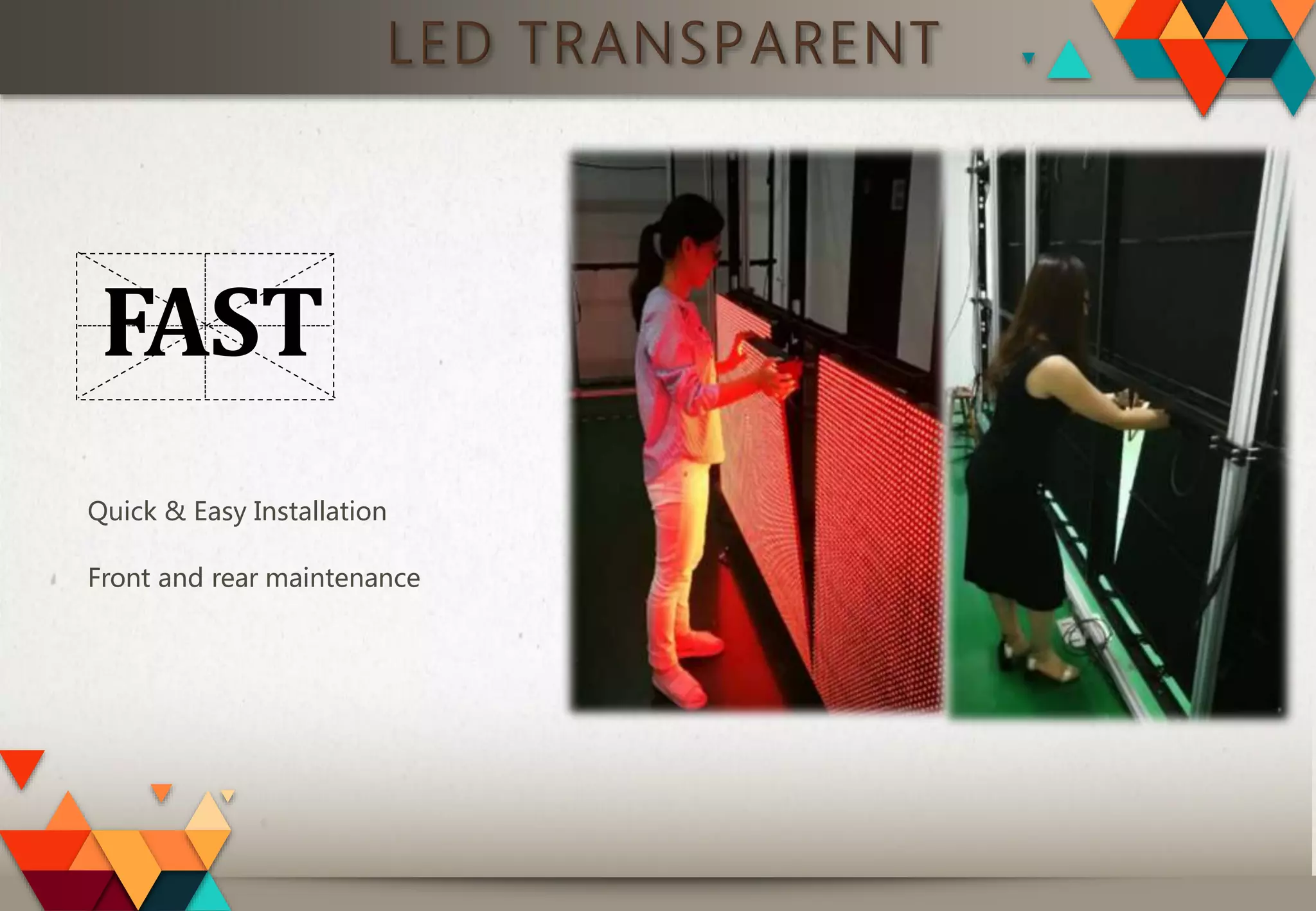

8. LED TRANSPARENT
FAST
Quick & Easy Installation
Front and rear maintenance

9. LED TRANSPARENT
Flowing air
Lighting through
VENTILATION 30%-90%
ENSURE THE NATURAL VENTILATION OF BUILDINGS
TRANSPARENCY 30%-80%
ENSURE THE NATURAL LIGHTING OF BUILDINGS

10. LED TRANSPARENT
Part No.
Part Number P15.625
Pixel Pitch 15.625mm
Display Size 19m×8m=152㎡
Display Resolution 960×576 Pixels
Cabinet Size 500×1000mm
Cabinet Resolution 32×64 Pixel
◆Sending Box
◆Receiving Card
◆Software
◆Power Supply
◆Receiving card
◆LED Lamp
◆IC
2
Control
System
Nova(MCTRL300)
Nova
NovaStudio
3 Spares
CE Certified
Nova
DIP346
1 Screen Body
◆LED Display
◆LED Cabinet
Description Specifications

11. LED TRANSPARENT
Part No.
1
2
3
4
1
2
3
4
5
No.
1
2
3
◆Genaral Details
Screen Area 19m×8m=152㎡
Screen Resolution 960×576 Pixels
Cabinet Quantity 304
Pixel Pitch 15.625mm
Pixel Encapsulation DIP346
Pixel Configuration 1R1G1B
Driving Method Static
LED Cabinet Parameters
Screen Parameters
Cabinet Weight 6kg
Cabinet Size (L*H*D) 500×1000mm
Cabinet Resolution
Cabinet Material Aluminum
32×64 Pixels
Average Power Consumption 180W/㎡ * 152 ㎡ = 27360W (TOTAL)
Description Specifications Part No.
No.
1
2
3
4
5
6
No.
1
2
No.
1
2
3
4
5
6
No.
1
2
3
4
5
Control Distance
Transparency
450W/㎡ * 152 ㎡ + 10%= 75.240W (TOTAL)
Operating Temperature -30℃ to 60℃
Operating Humidity 10%~90%
Life Span (50% Brightness) >100,000hrs
MTBF >10,000hrs
IP (Front/Rear) IP65
281 Trillions(synchronized)
◆Reliability
◆Optical Details
Density 4,096 Pixels/㎡
Brightness >8000cd
Optimum View Distance 15-300m
Gray Scale 14 bit
Fram Frequency >60HZ
Surport Signal Input S-video, RGBHV, YUV etc.
◆Power Supply
Operation Power AC110v~240v±10%
Max Power Consumption
Display Color
Brightness Adjustment 65,536 levels per color (autamatically)
◆Control System
Control Mode Synchronized
Refresh Frequency >1,920Hz
UTP140m, Single Mode Fiber 15km
40%
Description Specifications

12. 2. STRUCTURE

13. STRUCTURE
TAMPAK ATAS

14. STRUCTURE
TAMPAK DEPAN

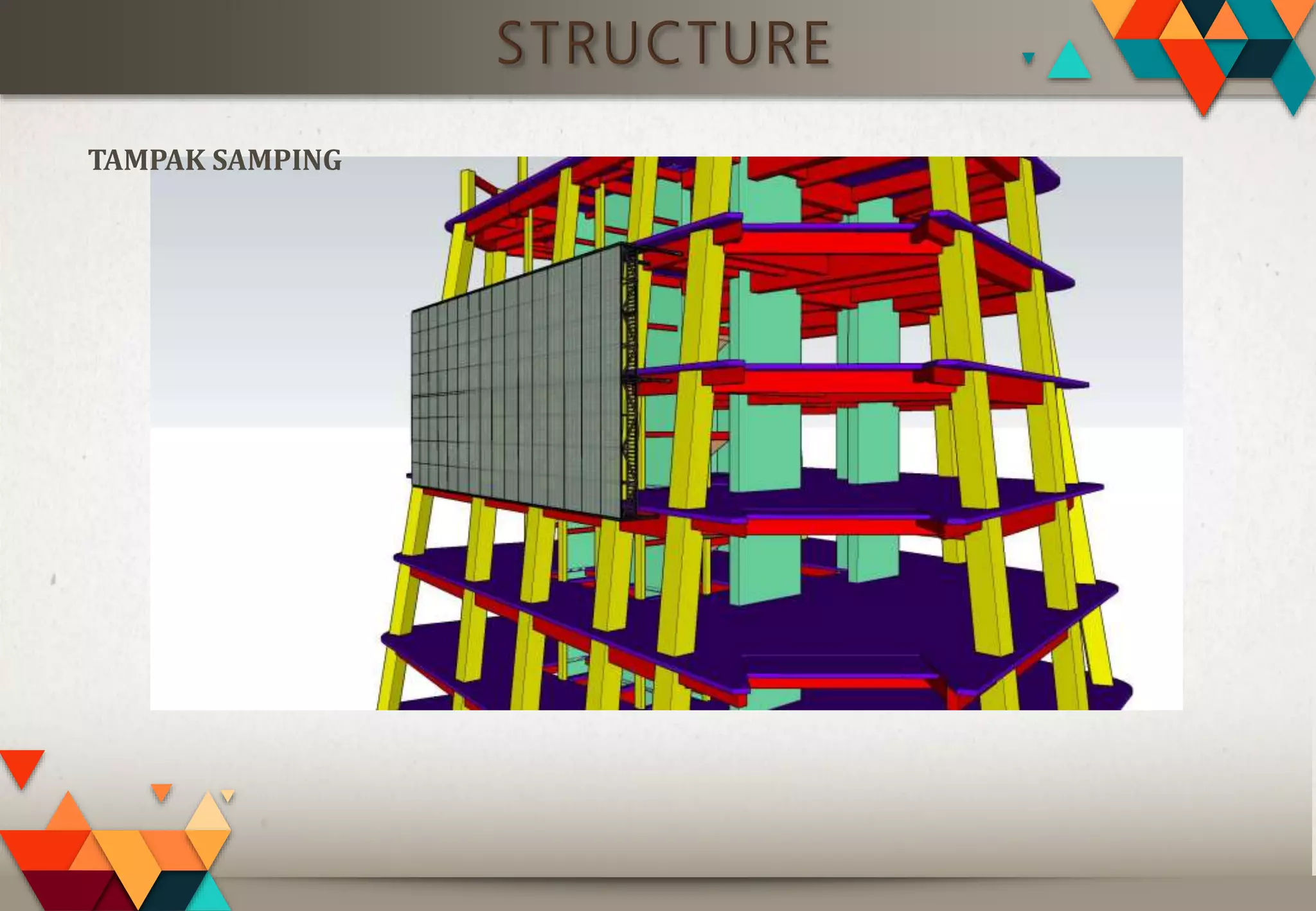

15. STRUCTURE
TAMPAK SAMPING

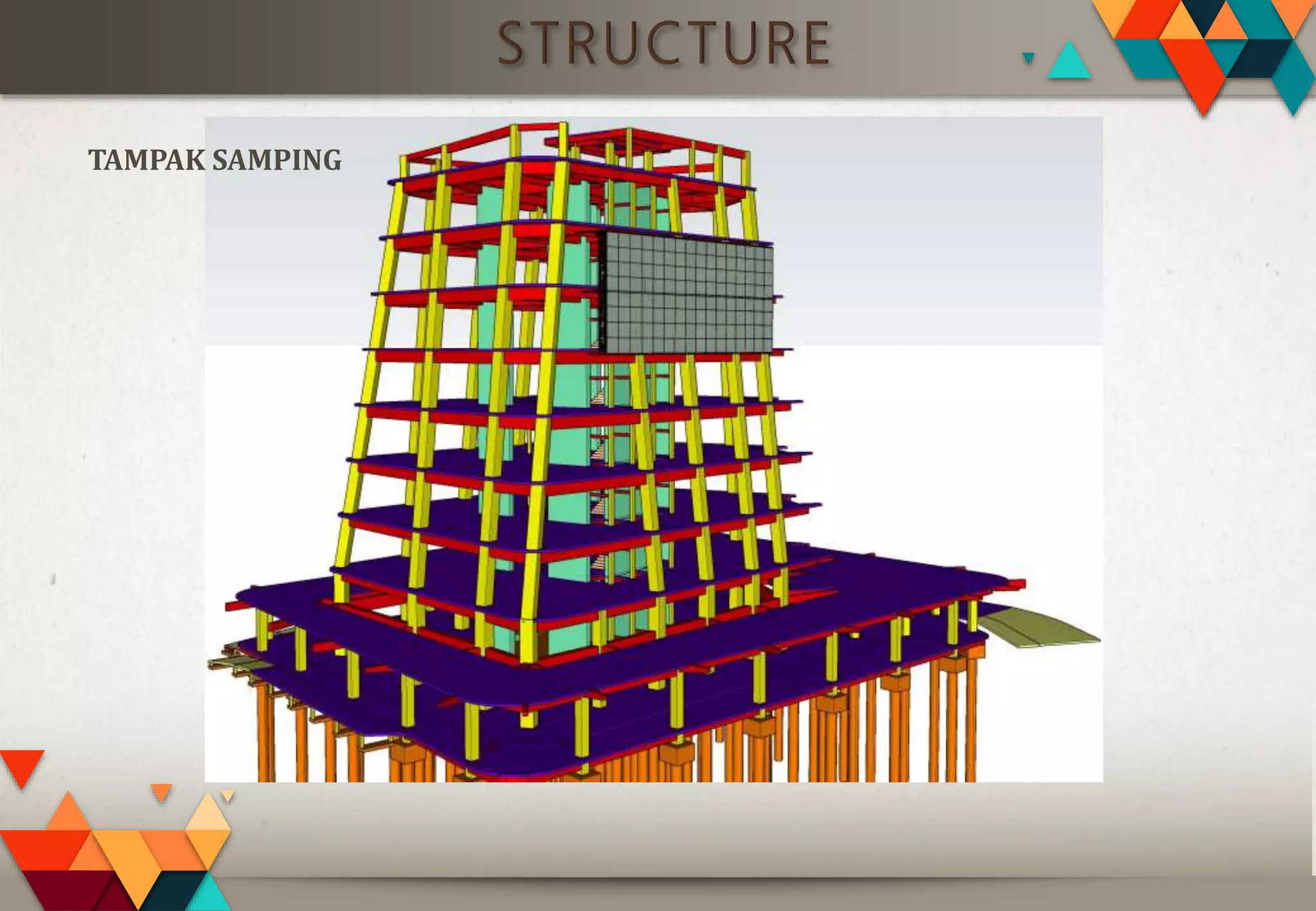

16. STRUCTURE
TAMPAK SAMPING

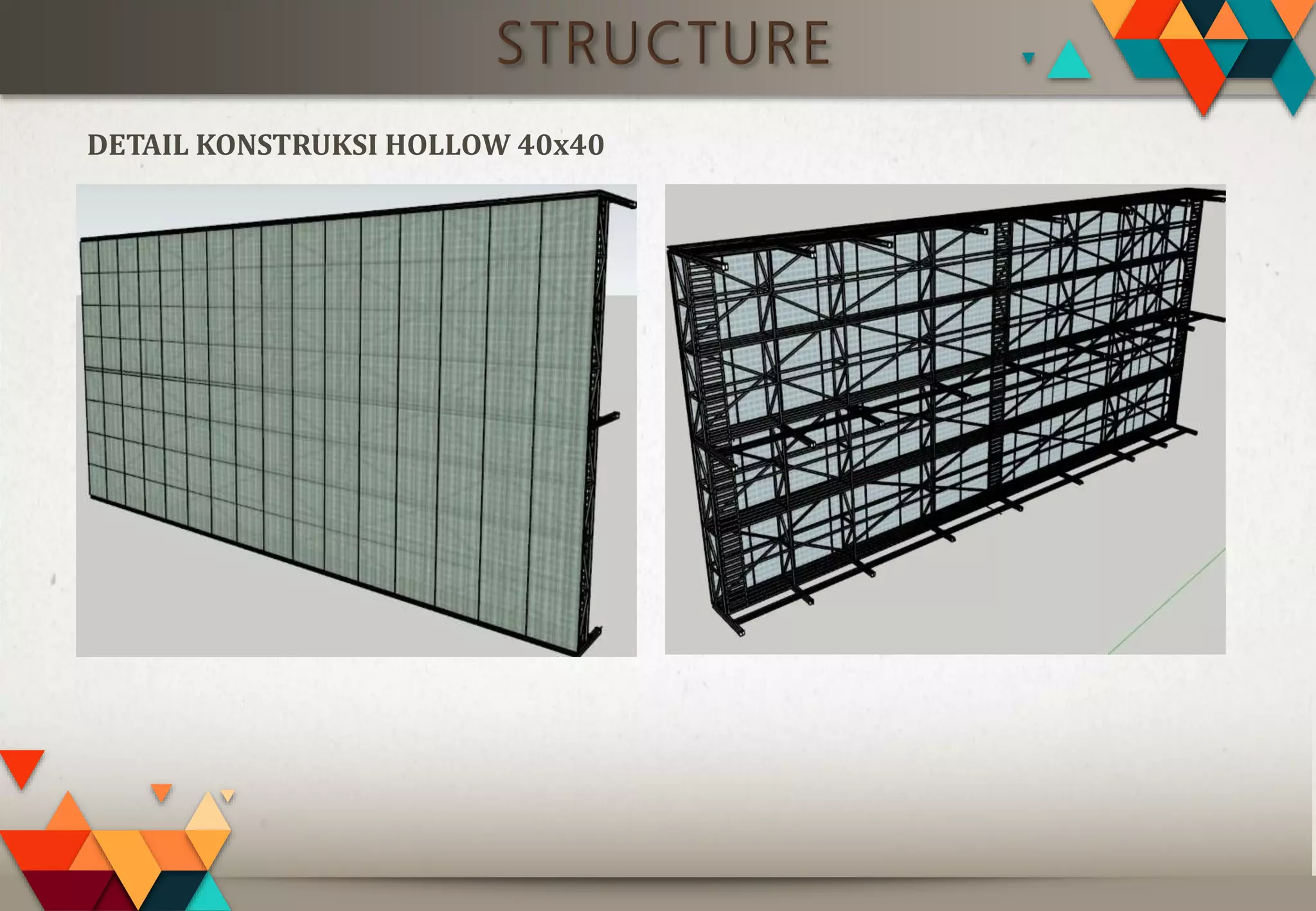

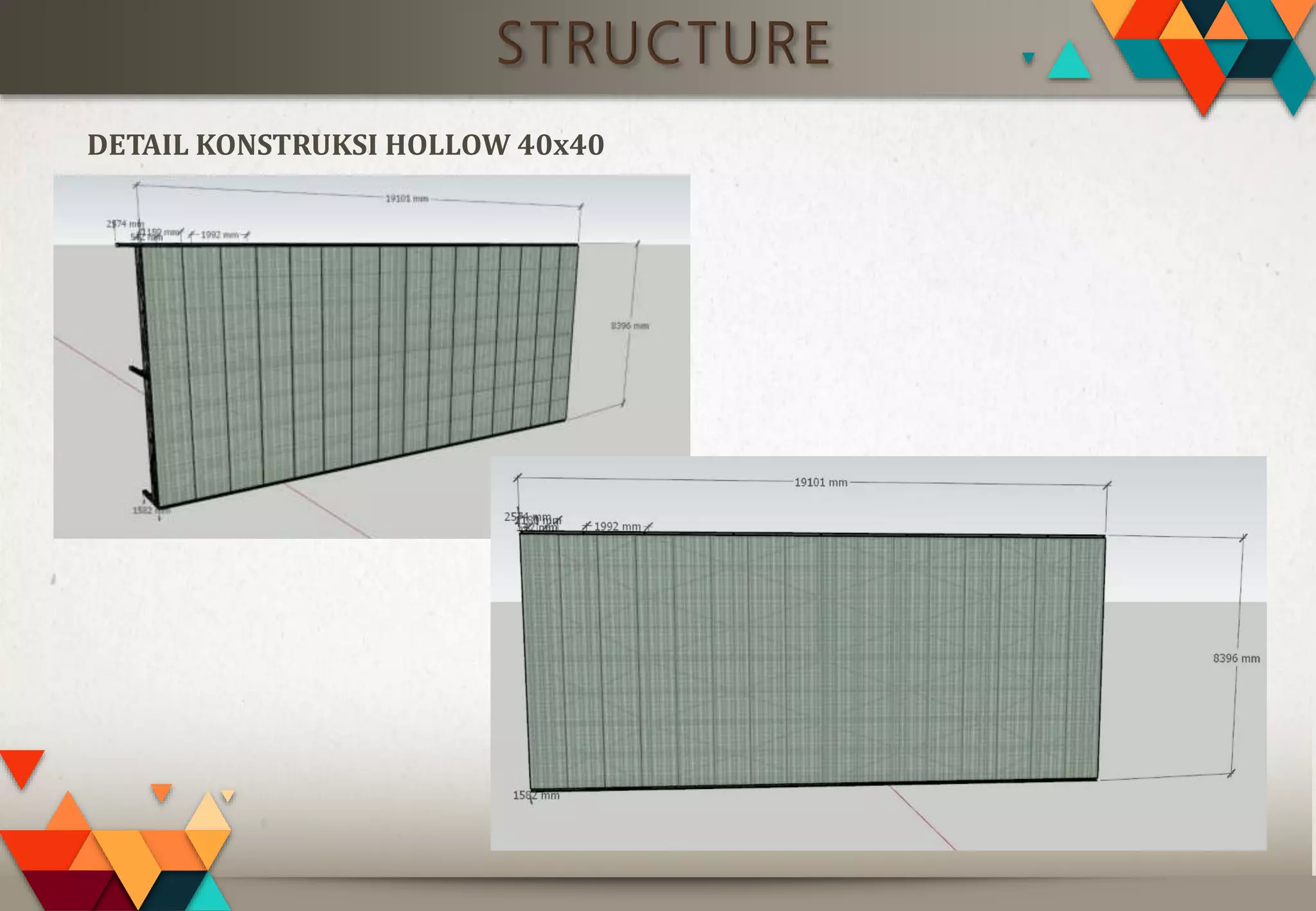

17. STRUCTURE
DETAIL KONSTRUKSI HOLLOW 40x40

18. STRUCTURE
DETAIL KONSTRUKSI HOLLOW 40x40

19. 3. PART LED
TRANSPARENT

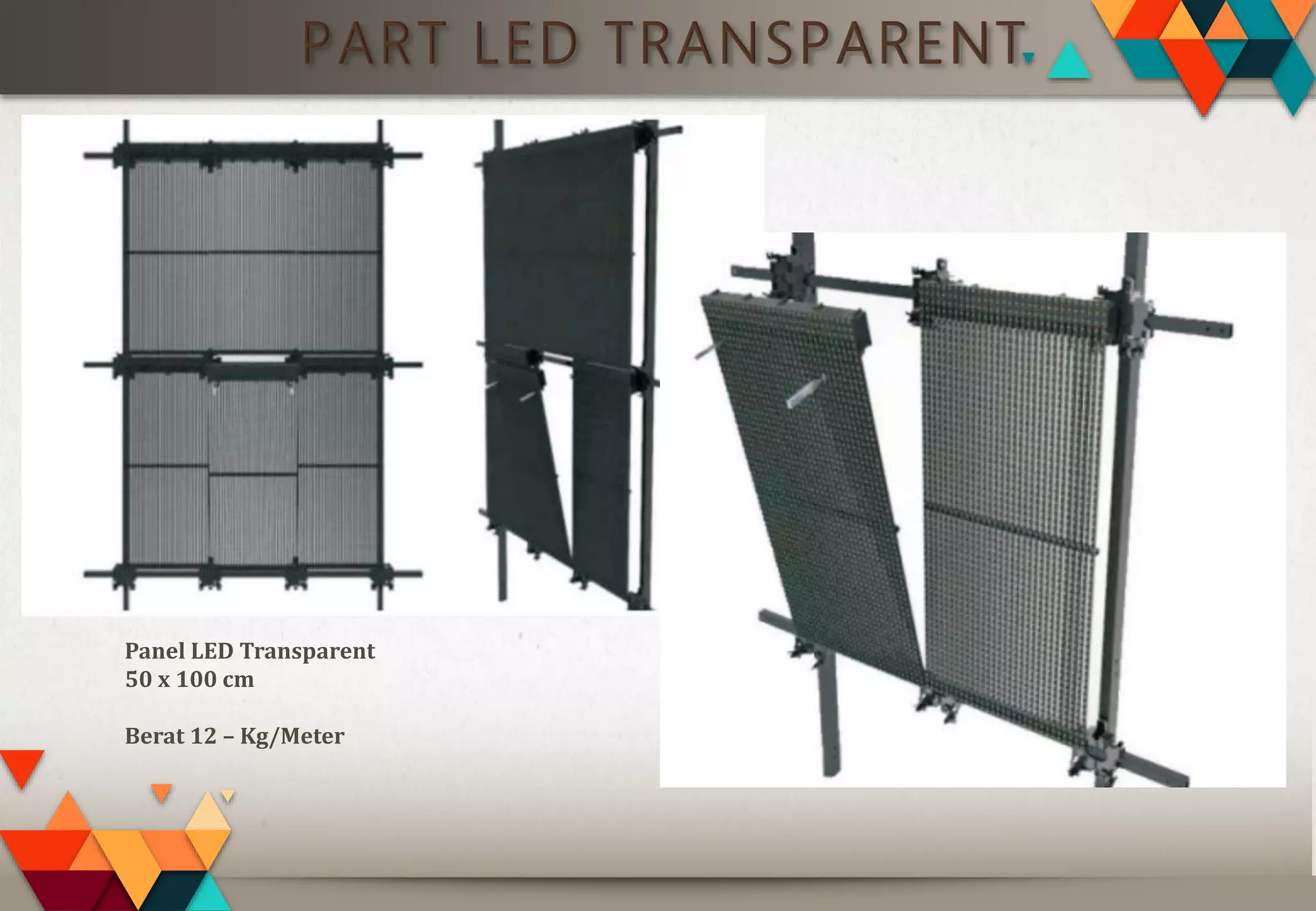

20. PART LED TRANSPARENT
Panel LED Transparent
50 x 100 cm
Berat 12 – Kg/Meter

21. PART LED TRANSPARENT
Frame Panel LED Transparent
- Lock Frame
- Hook Frame
- Hollow

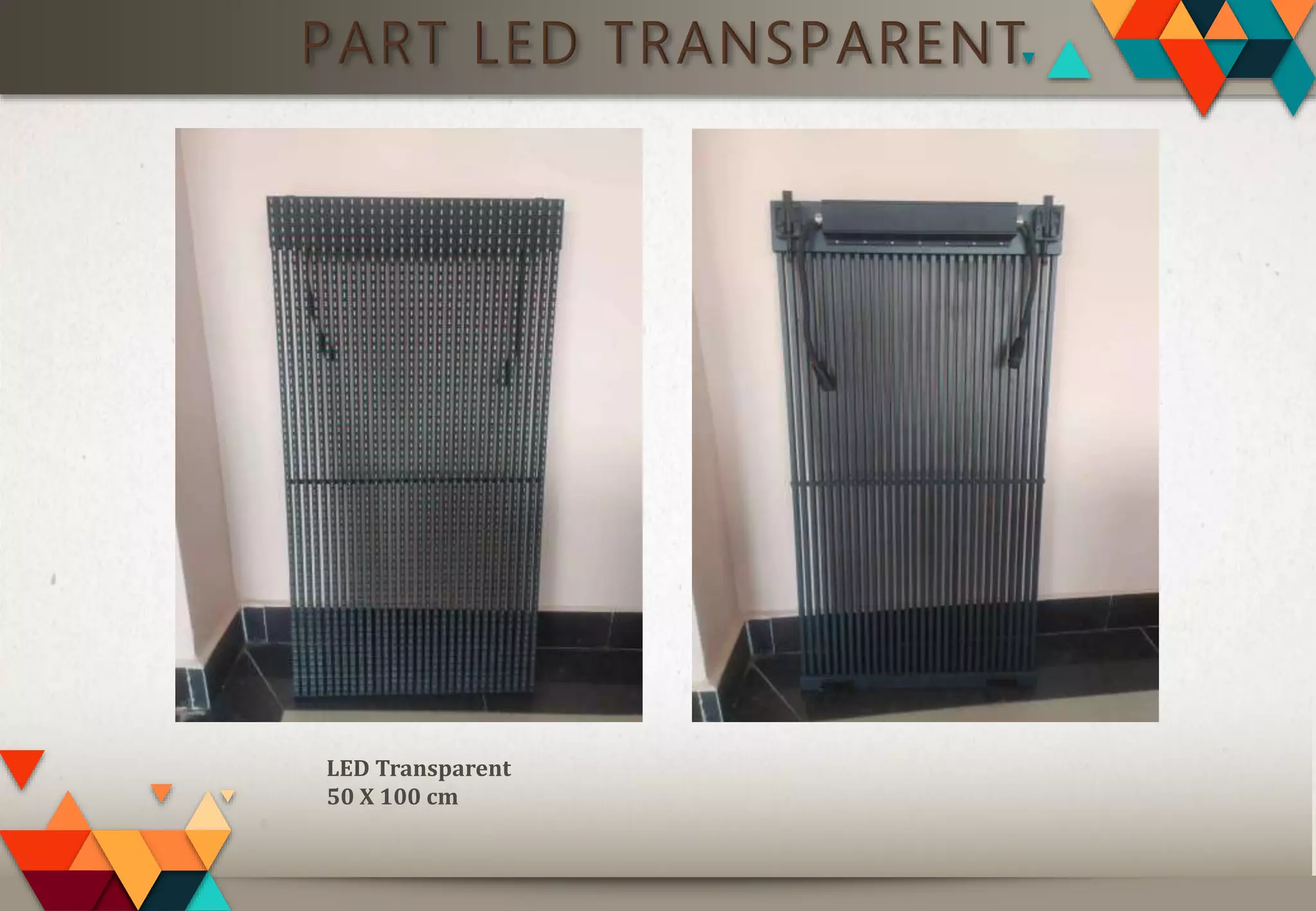

22. PART LED TRANSPARENT
LED Transparent
50 X 100 cm

23. PART LED TRANSPARENT
Novastar MRV336
Receiver Card
J9 definition（Indicator light Socket）
1 2 3 4 5
STA_LED LED +/3.3V PWR_LED - KEY + KEY -/GND
Specifications

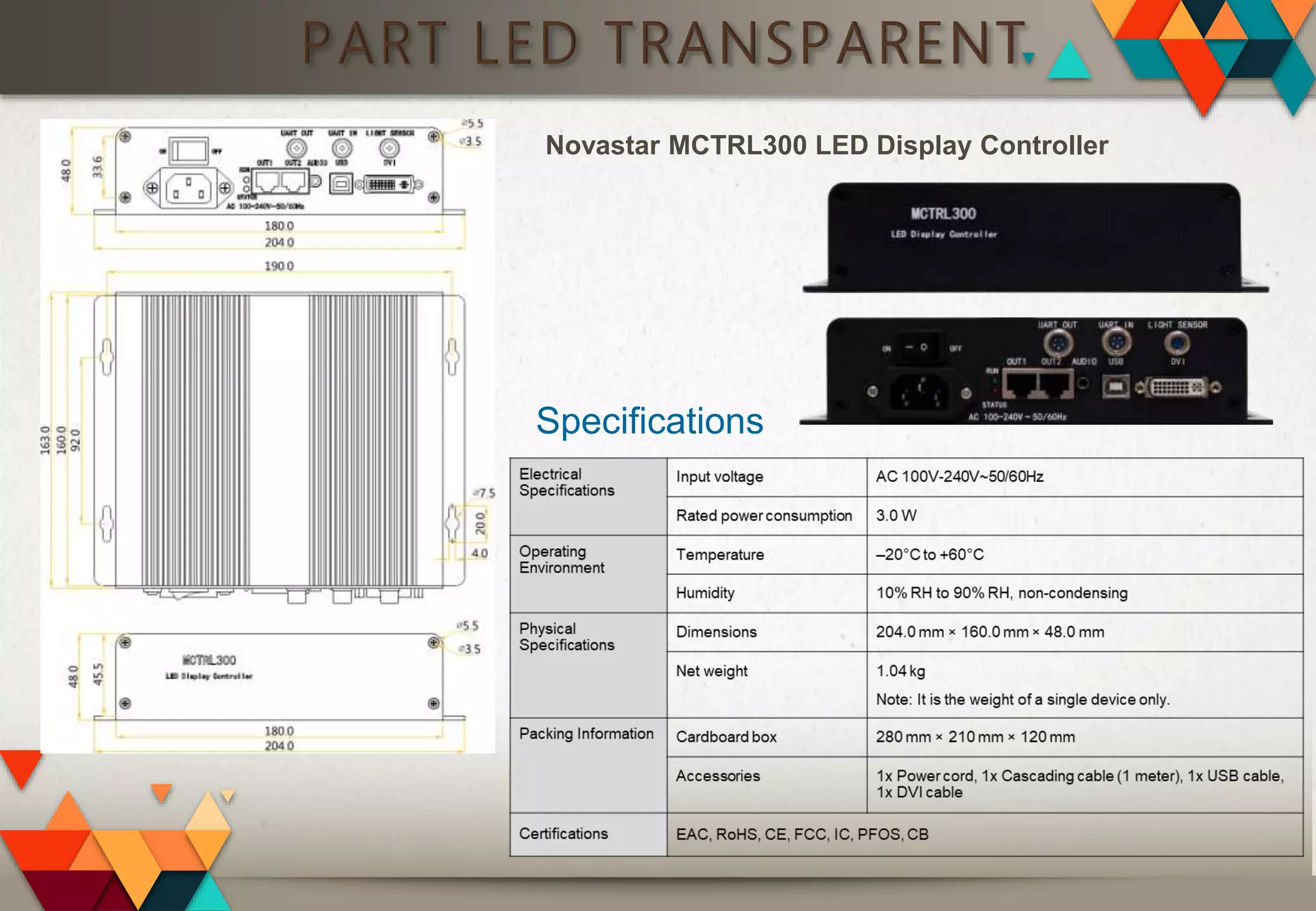

24. PART LED TRANSPARENT
Specifications
Novastar MCTRL300 LED Display Controller

25. PART LED TRANSPARENT
Specifications
Novastar J6-Seamless-Switcher

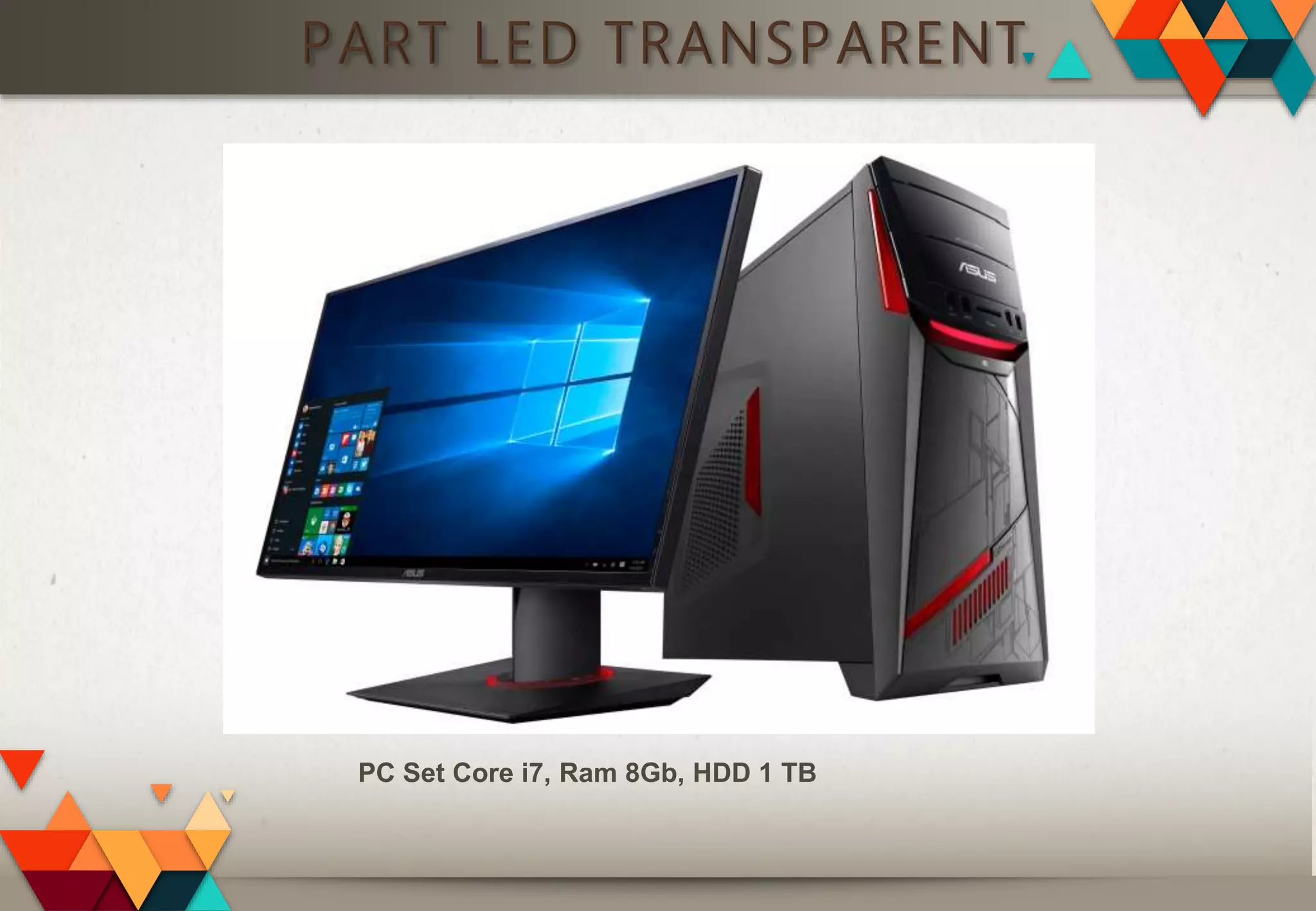

26. PART LED TRANSPARENT
PC Set Core i7, Ram 8Gb, HDD 1 TB

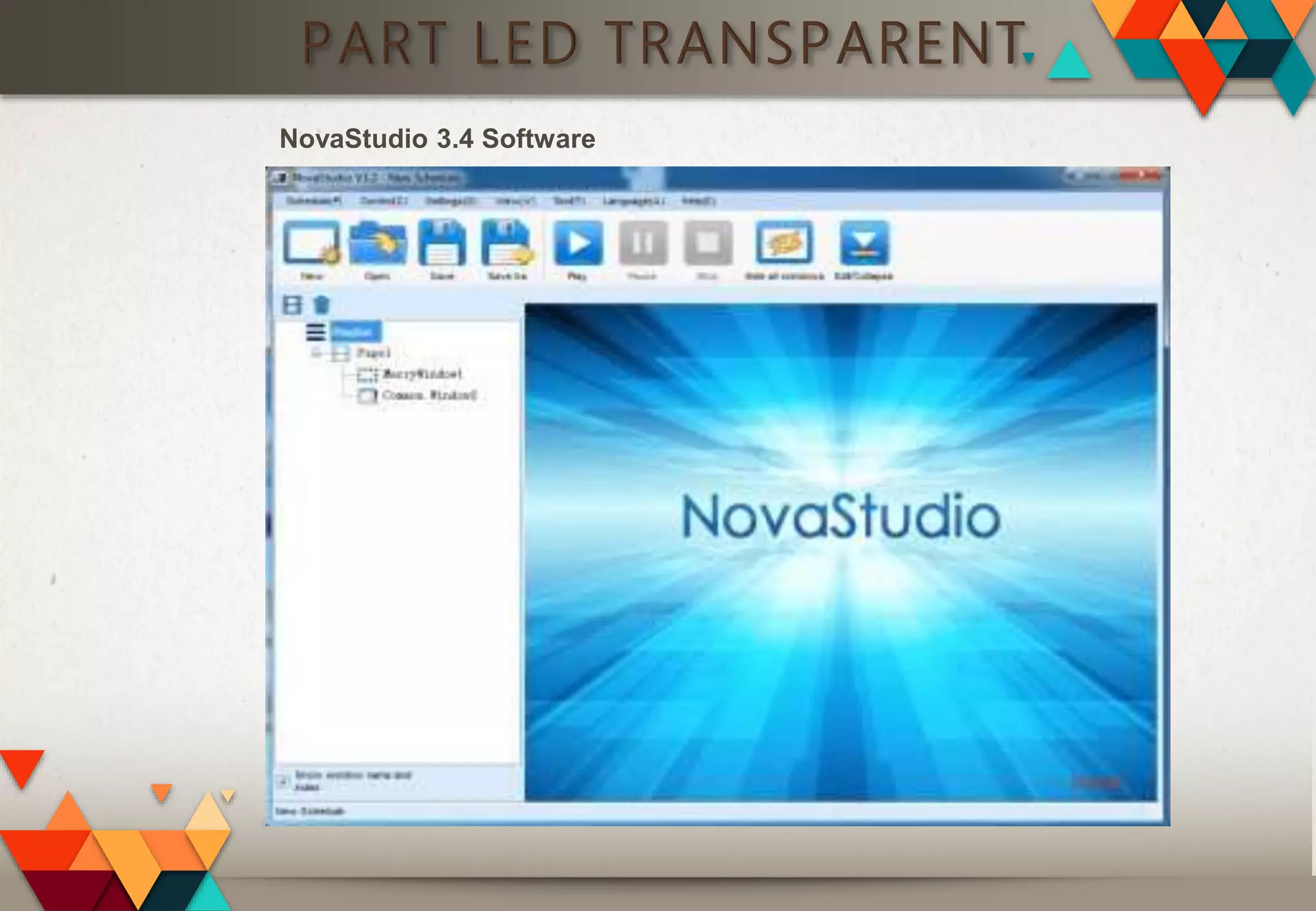

27. PART LED TRANSPARENT
NovaStudio 3.4 Software

28. PART LED TRANSPARENT
Kabel Belden Type Cat 6 – 305 Meter/Rol

29. PART LED TRANSPARENT
Besi Hollow Galvanis 40x40 – Tebal 2.0 mm

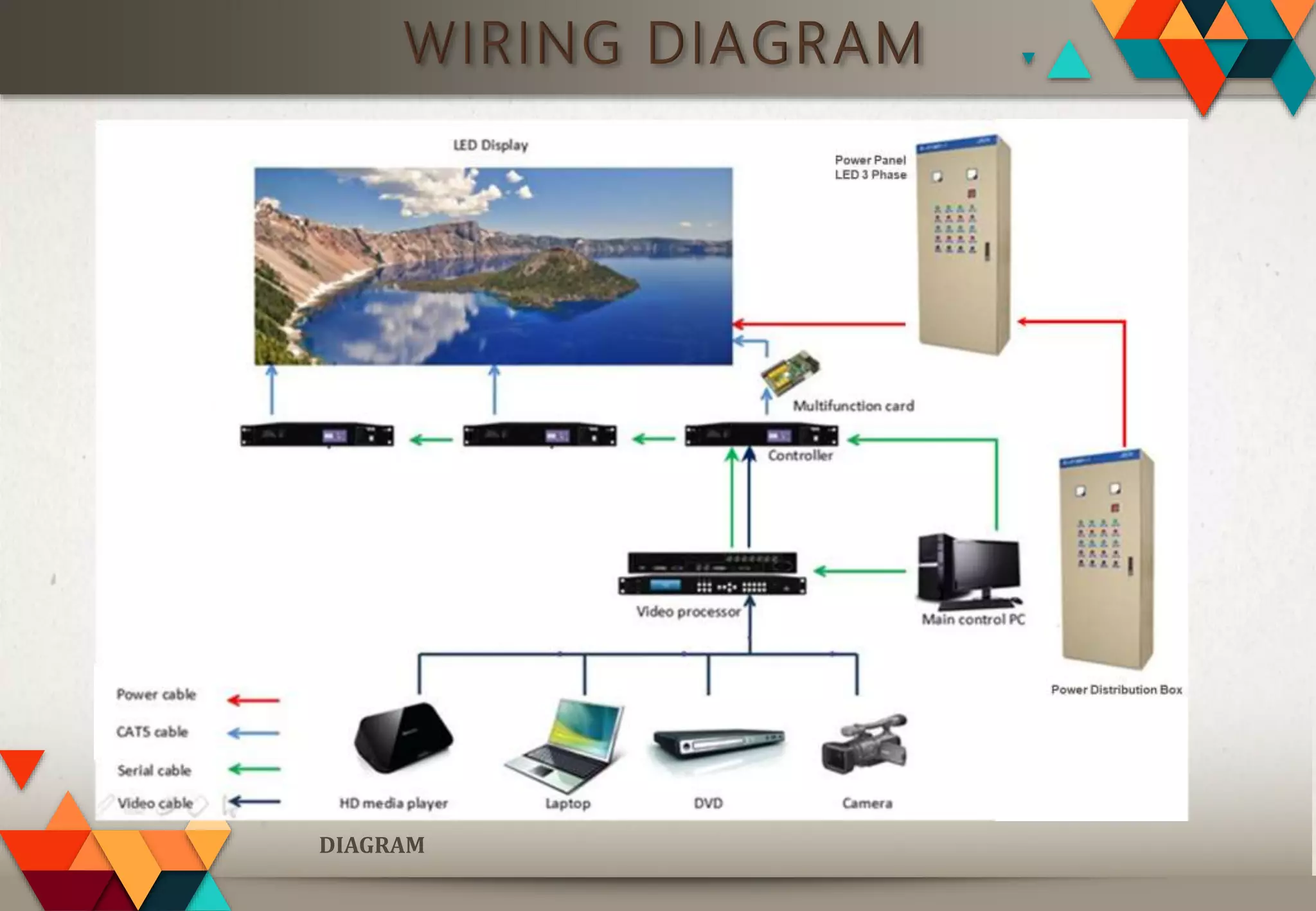

30. 4. WIRING DIAGRAM

31. WIRING DIAGRAM
DIAGRAM

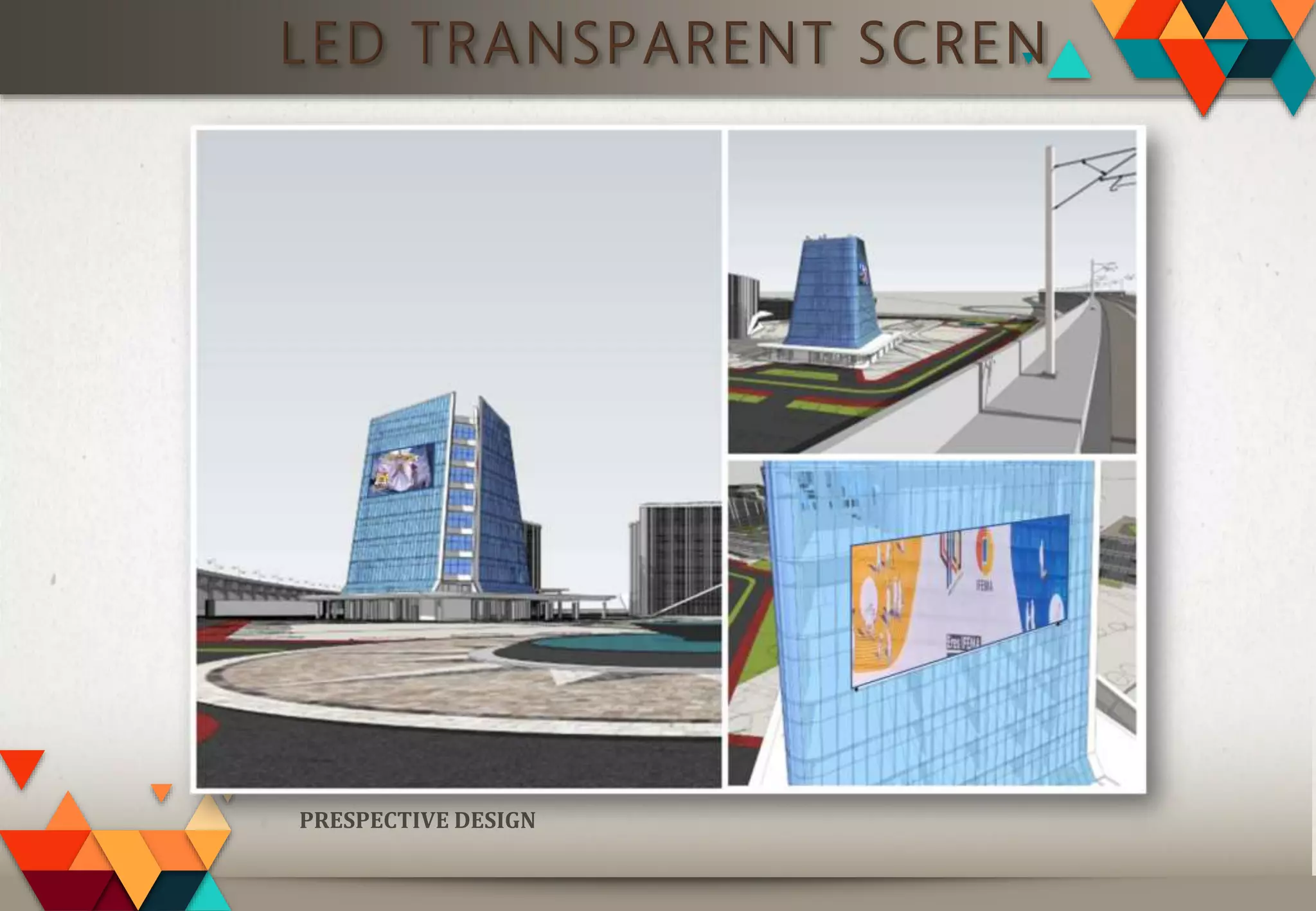

32. LED TRANSPARENT SCREN
PRESPECTIVE DESIGN

33. TERIMA
KASIH
