This document provides an overview of streaming replication in PostgreSQL, detailing its architecture, replication parameters, and mechanisms such as WAL (Write-Ahead Logging) and replication slots. It explains the processes involved in synchronous and asynchronous replication, monitoring techniques, and failover strategies. Additionally, it outlines the commands for managing replication slots and monitoring replication status, emphasizing the importance of monitoring for maintaining system health.

1. Module-3
Streaming Replication

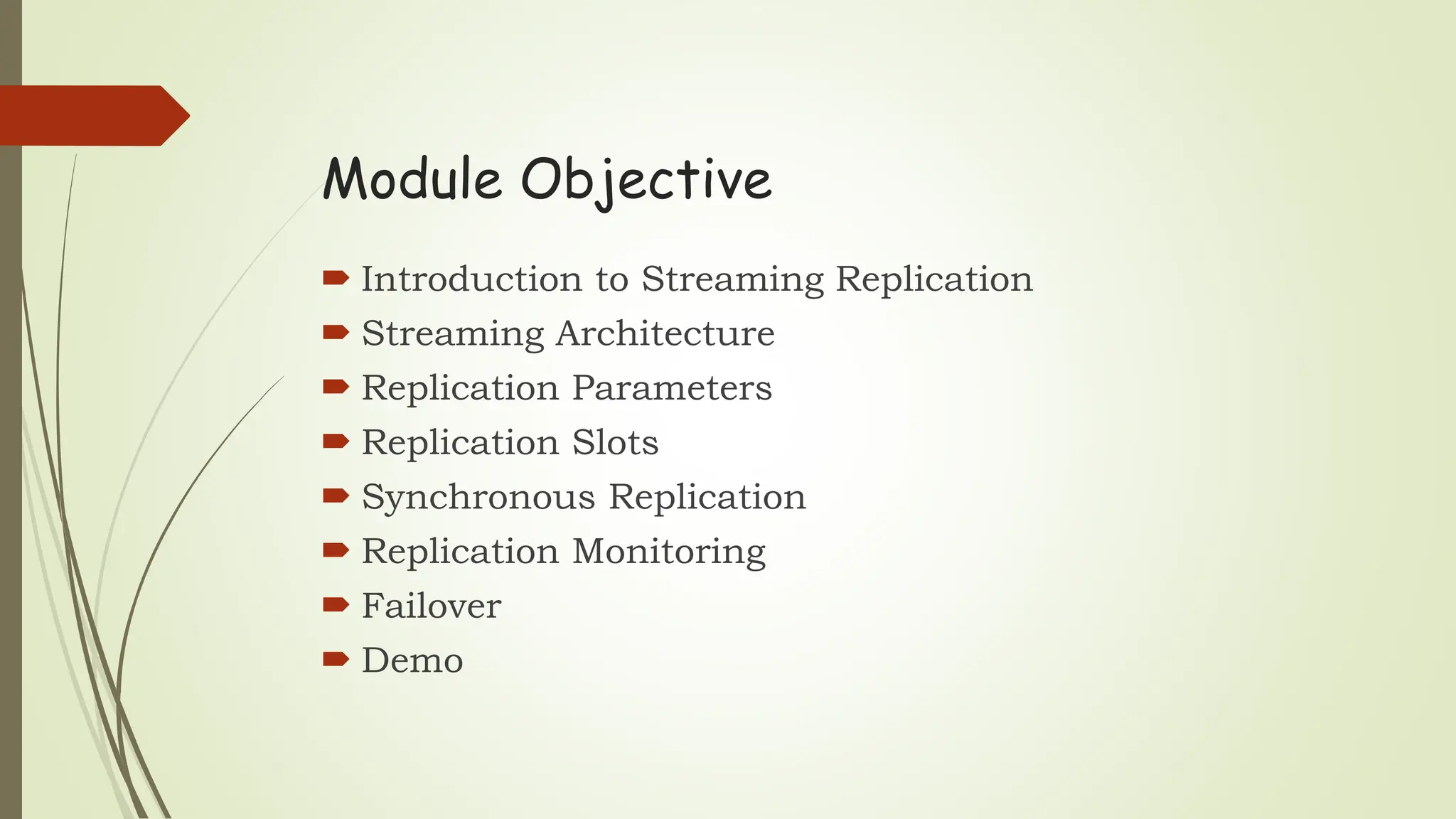

2. Module Objective
 Introduction to Streaming Replication
 Streaming Architecture
 Replication Parameters
 Replication Slots
 Synchronous Replication
 Replication Monitoring
 Failover
 Demo

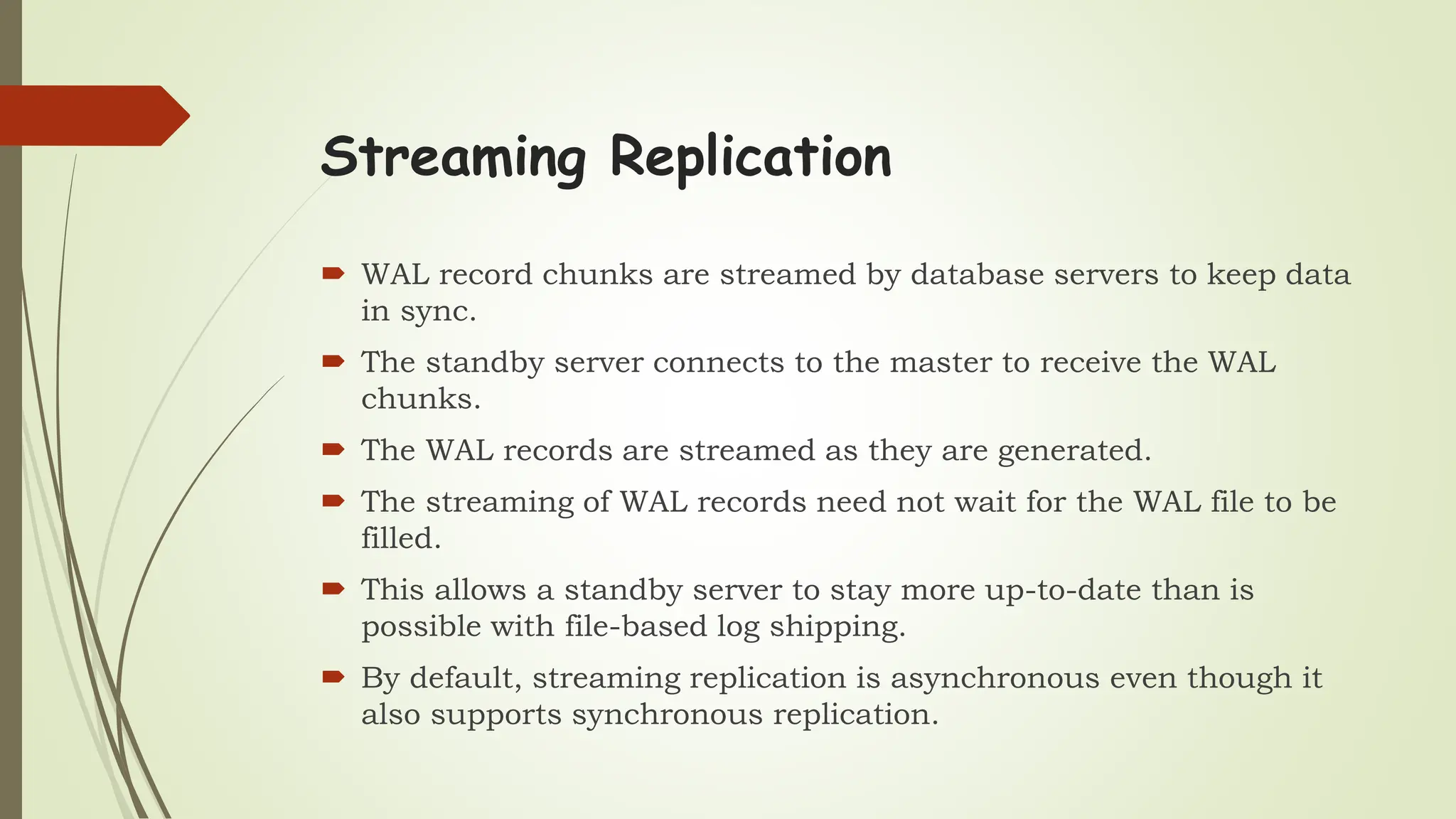

3. Streaming Replication
 WAL record chunks are streamed by database servers to keep data
in sync.
 The standby server connects to the master to receive the WAL
chunks.
 The WAL records are streamed as they are generated.
 The streaming of WAL records need not wait for the WAL file to be
filled.
 This allows a standby server to stay more up-to-date than is
possible with file-based log shipping.
 By default, streaming replication is asynchronous even though it
also supports synchronous replication.

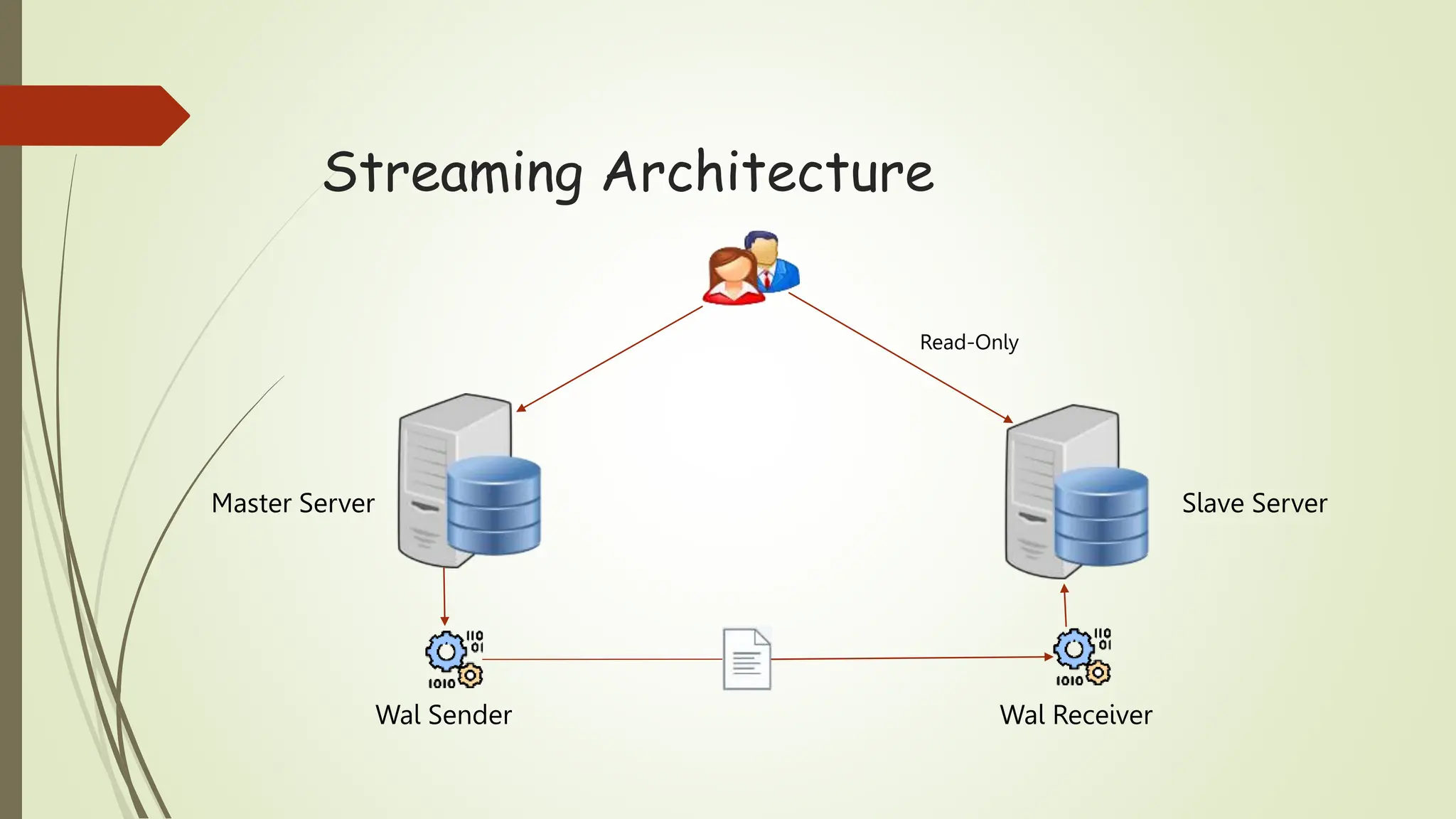

4. Streaming Architecture
Master Server Slave Server
Read-Only
Wal Sender Wal Receiver

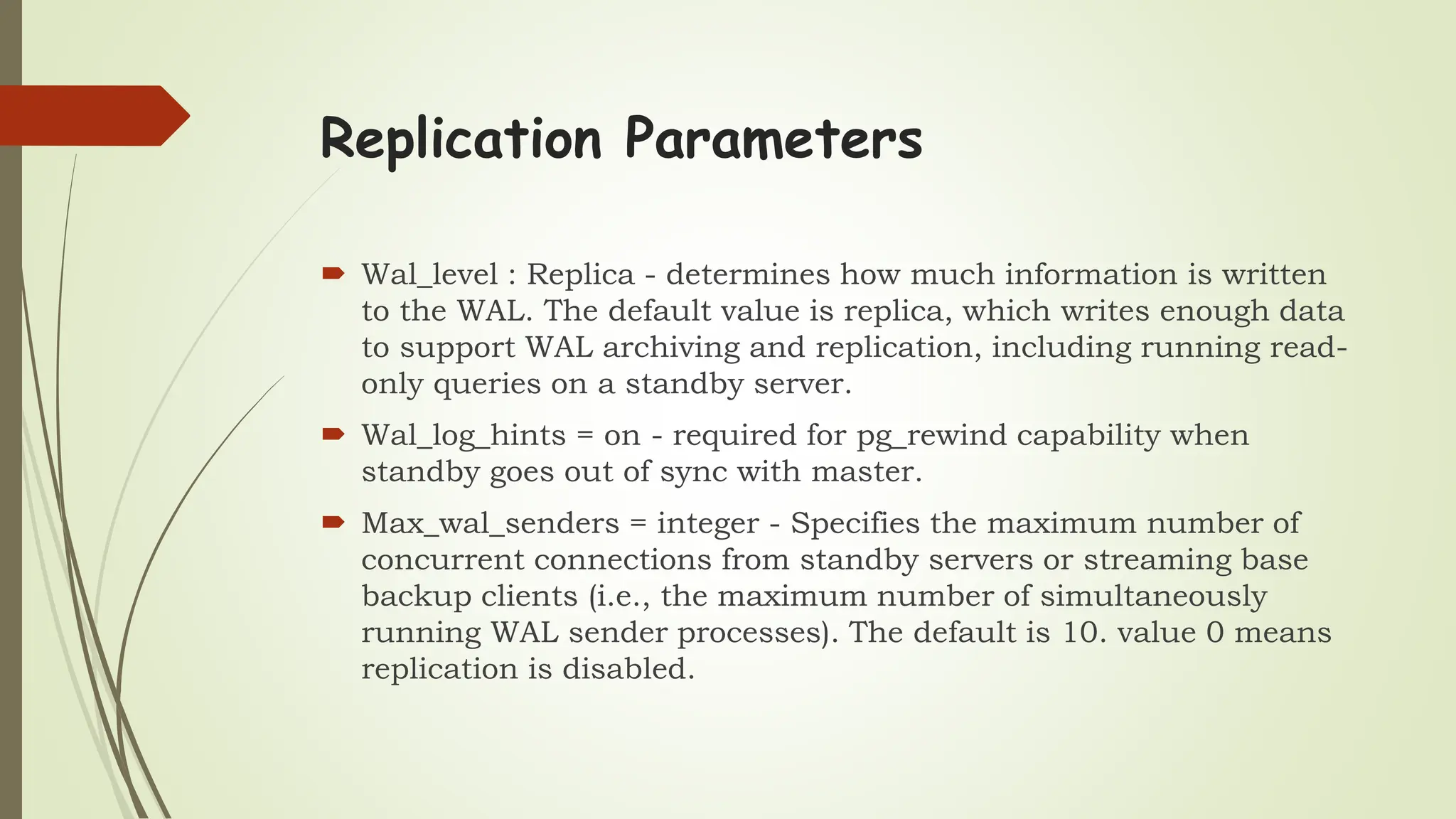

5. Replication Parameters
 Wal_level : Replica - determines how much information is written
to the WAL. The default value is replica, which writes enough data
to support WAL archiving and replication, including running read-
only queries on a standby server.
 Wal_log_hints = on - required for pg_rewind capability when
standby goes out of sync with master.
 Max_wal_senders = integer - Specifies the maximum number of
concurrent connections from standby servers or streaming base
backup clients (i.e., the maximum number of simultaneously
running WAL sender processes). The default is 10. value 0 means
replication is disabled.

6. Cont….
 Wal_keep_segments :integer - Specifies the minimum number of
past log file segments kept in the pg_wal directory, in case a
standby server needs to fetch them for streaming replication. If a
standby server connected to the sending server falls behind by
more than wal_keep_segments segments, the sending server might
remove a WAL segment still needed by the standby, in which case
the replication connection will be terminated.
 hot_standby = on - Enables read only connection on the node when
it is in standby role. This is ignored when the server is running as
master. Standby server will begin accepting read only connections
once the recovery has brought the system to a consistent state.

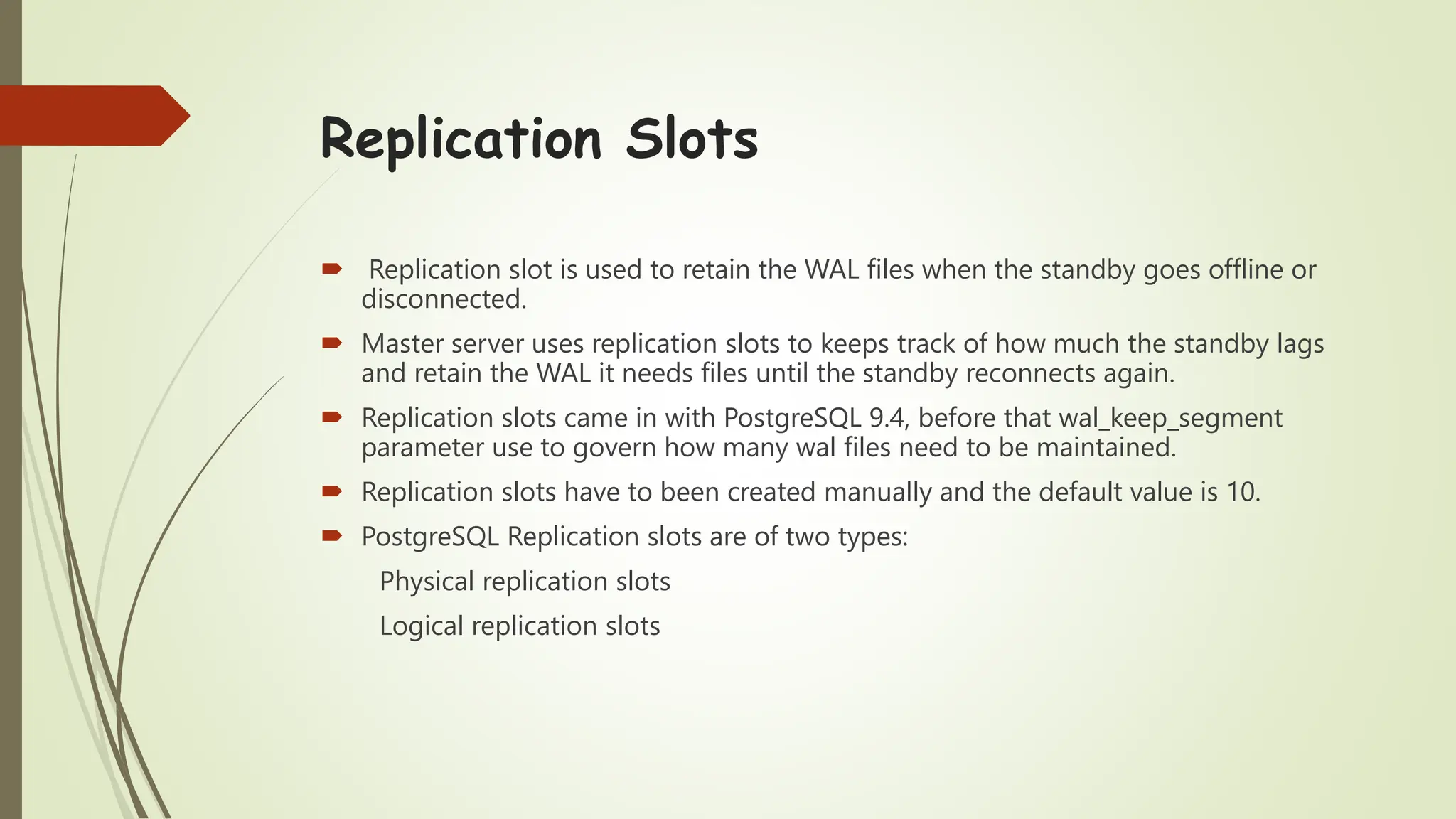

7. Replication Slots
 Replication slot is used to retain the WAL files when the standby goes offline or
disconnected.
 Master server uses replication slots to keeps track of how much the standby lags
and retain the WAL it needs files until the standby reconnects again.
 Replication slots came in with PostgreSQL 9.4, before that wal_keep_segment
parameter use to govern how many wal files need to be maintained.
 Replication slots have to been created manually and the default value is 10.
 PostgreSQL Replication slots are of two types:
Physical replication slots
Logical replication slots

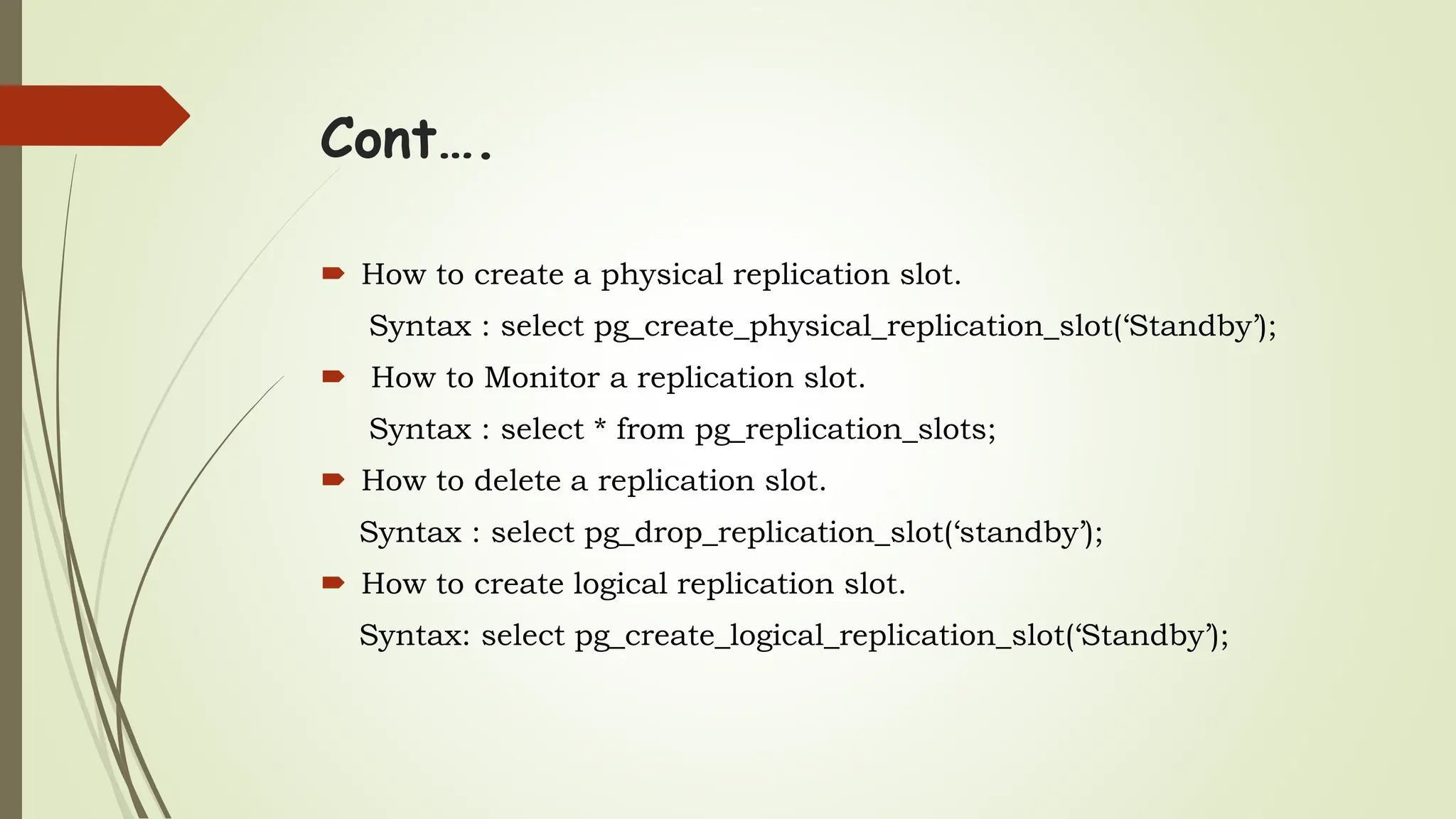

8. Cont….
 How to create a physical replication slot.
Syntax : select pg_create_physical_replication_slot(‘Standby’);
 How to Monitor a replication slot.
Syntax : select * from pg_replication_slots;
 How to delete a replication slot.
Syntax : select pg_drop_replication_slot(‘standby’);
 How to create logical replication slot.
Syntax: select pg_create_logical_replication_slot(‘Standby’);

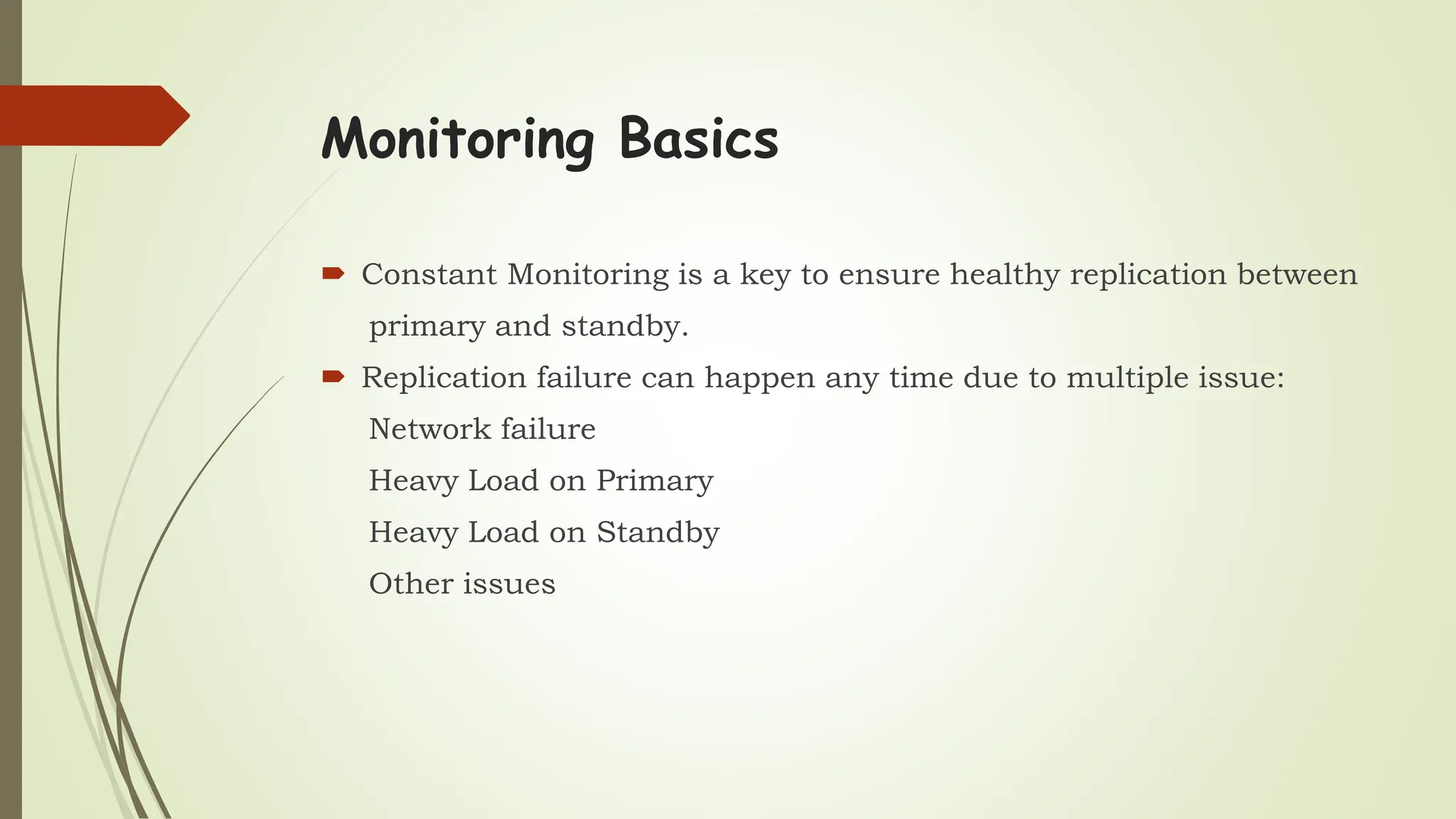

9. Monitoring Basics
 Constant Monitoring is a key to ensure healthy replication between
primary and standby.
 Replication failure can happen any time due to multiple issue:
Network failure
Heavy Load on Primary
Heavy Load on Standby
Other issues

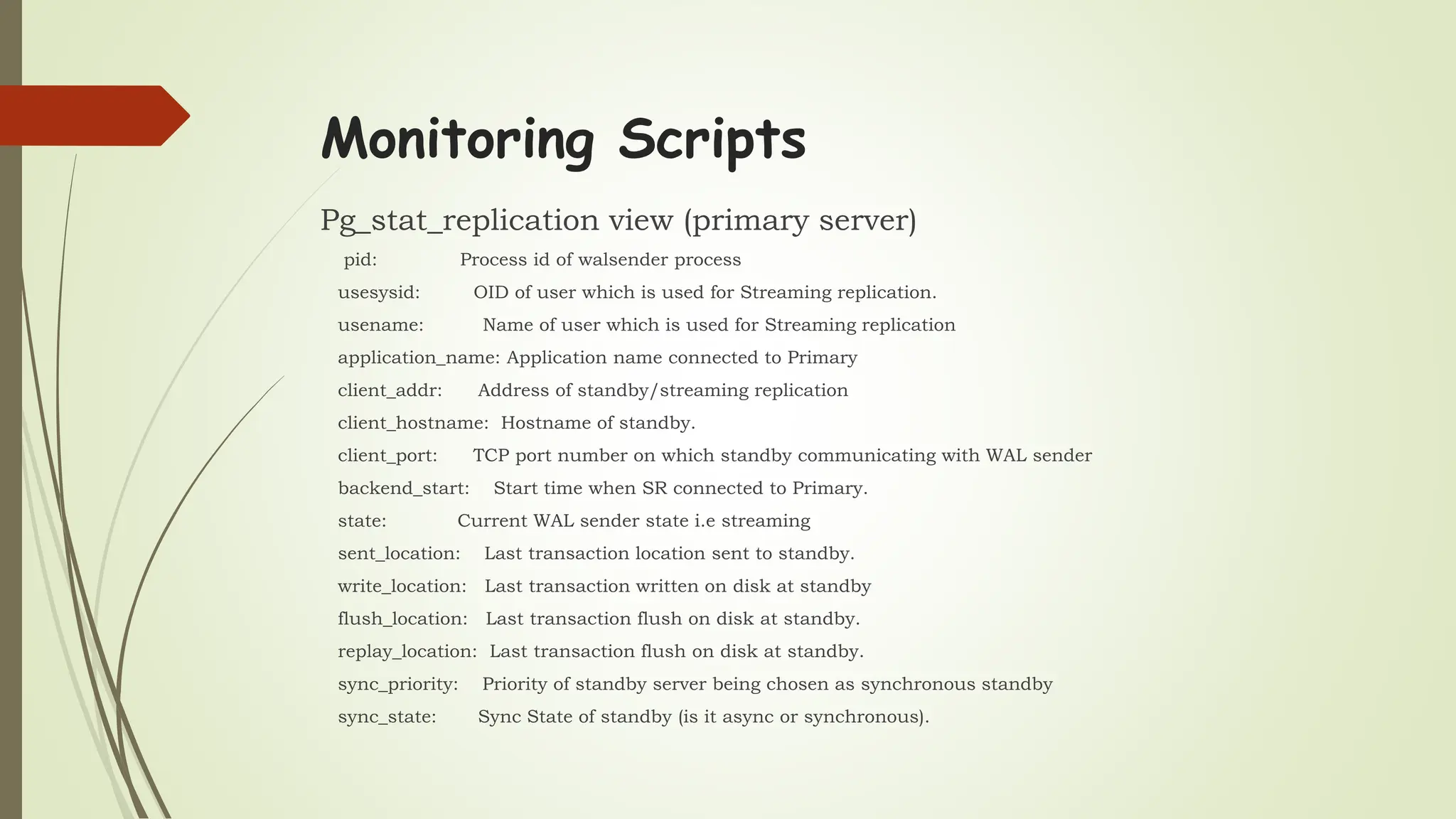

10. Monitoring Scripts
Pg_stat_replication view (primary server)
pid: Process id of walsender process
usesysid: OID of user which is used for Streaming replication.
usename: Name of user which is used for Streaming replication
application_name: Application name connected to Primary
client_addr: Address of standby/streaming replication
client_hostname: Hostname of standby.
client_port: TCP port number on which standby communicating with WAL sender
backend_start: Start time when SR connected to Primary.
state: Current WAL sender state i.e streaming
sent_location: Last transaction location sent to standby.
write_location: Last transaction written on disk at standby
flush_location: Last transaction flush on disk at standby.
replay_location: Last transaction flush on disk at standby.
sync_priority: Priority of standby server being chosen as synchronous standby
sync_state: Sync State of standby (is it async or synchronous).

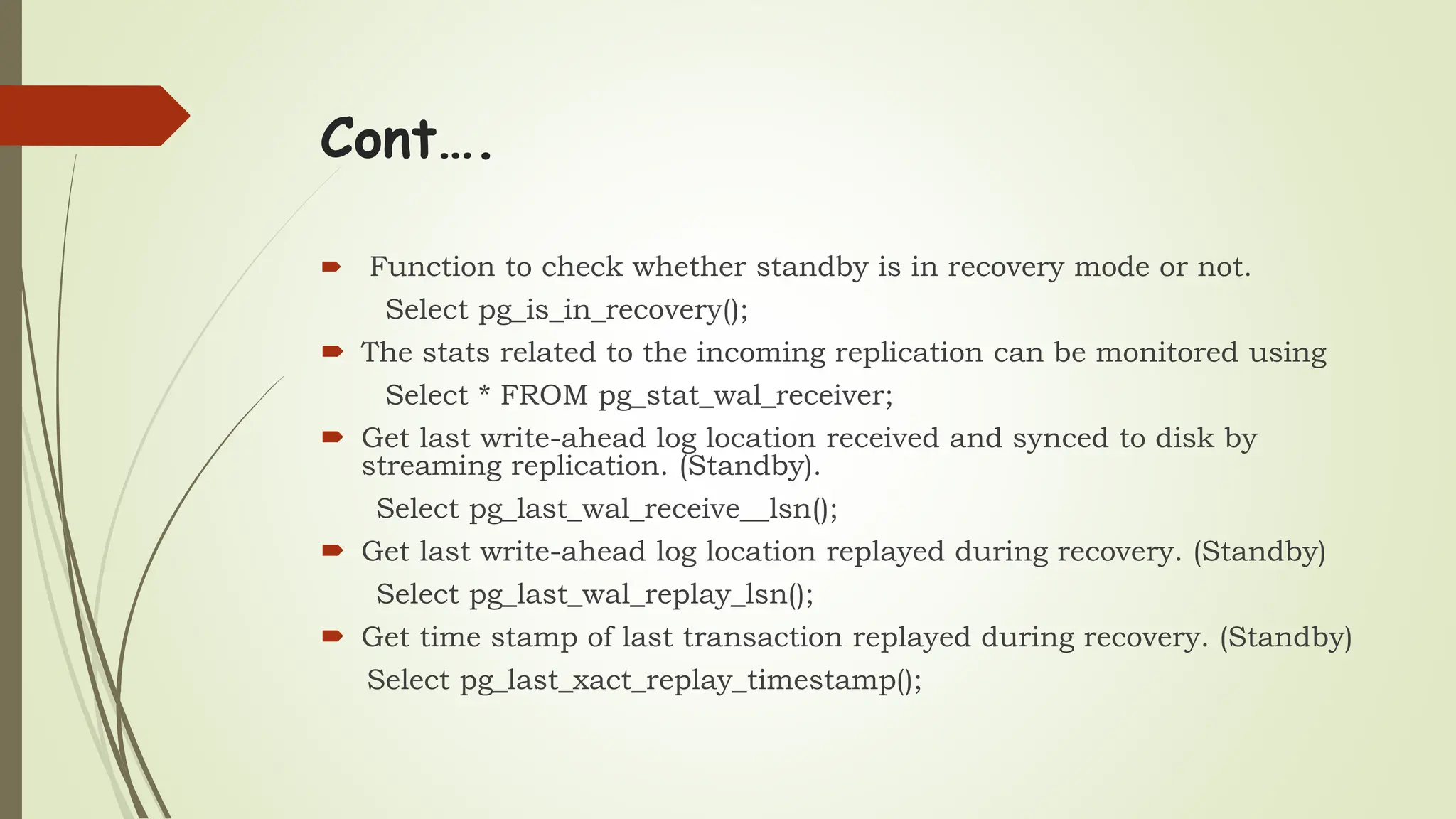

11. Cont….
 Function to check whether standby is in recovery mode or not.
Select pg_is_in_recovery();
 The stats related to the incoming replication can be monitored using
Select * FROM pg_stat_wal_receiver;
 Get last write-ahead log location received and synced to disk by
streaming replication. (Standby).
Select pg_last_wal_receive__lsn();
 Get last write-ahead log location replayed during recovery. (Standby)
Select pg_last_wal_replay_lsn();
 Get time stamp of last transaction replayed during recovery. (Standby)
Select pg_last_xact_replay_timestamp();

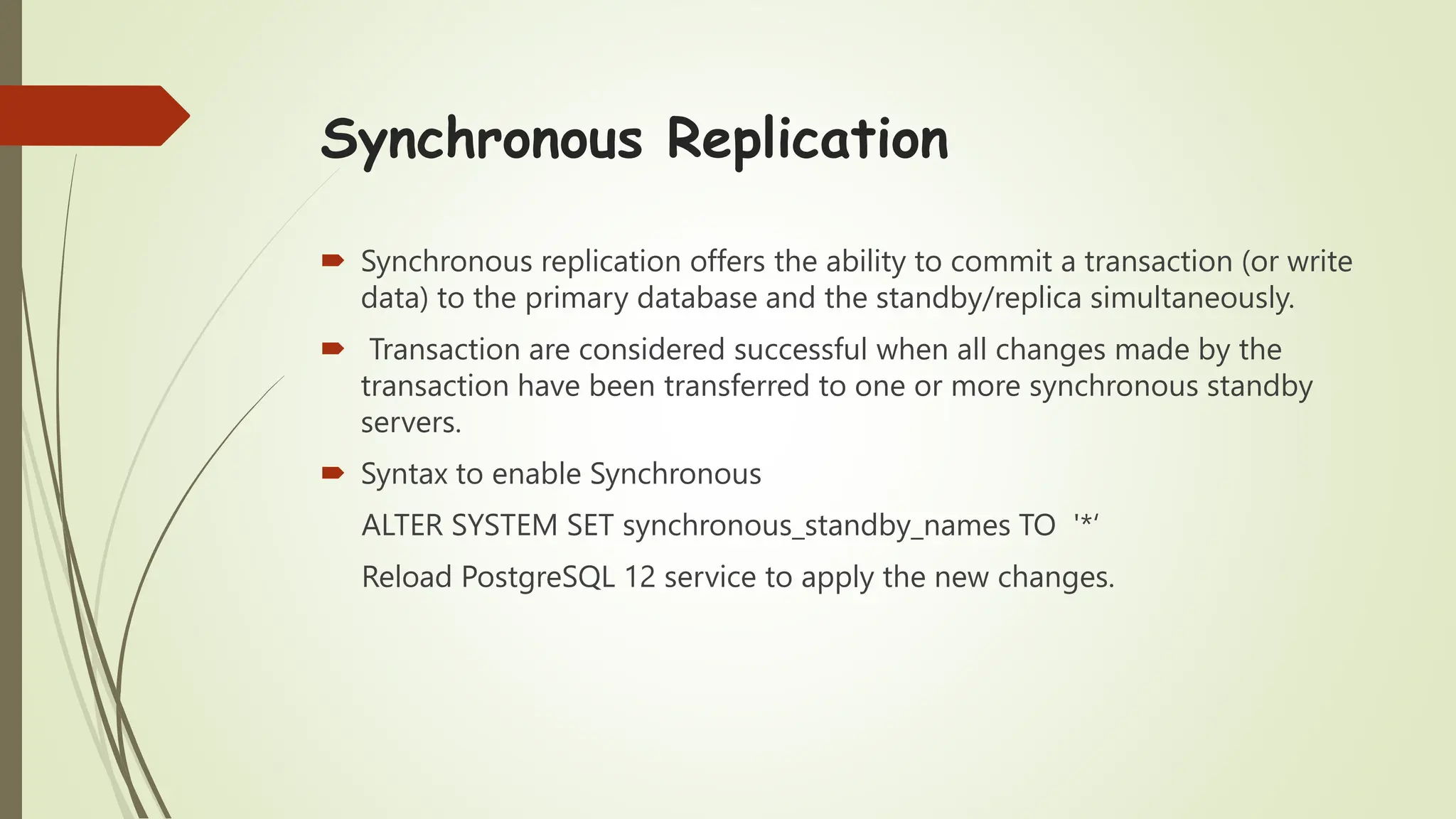

12. Synchronous Replication
 Synchronous replication offers the ability to commit a transaction (or write
data) to the primary database and the standby/replica simultaneously.
 Transaction are considered successful when all changes made by the
transaction have been transferred to one or more synchronous standby
servers.
 Syntax to enable Synchronous
ALTER SYSTEM SET synchronous_standby_names TO '*‘
Reload PostgreSQL 12 service to apply the new changes.

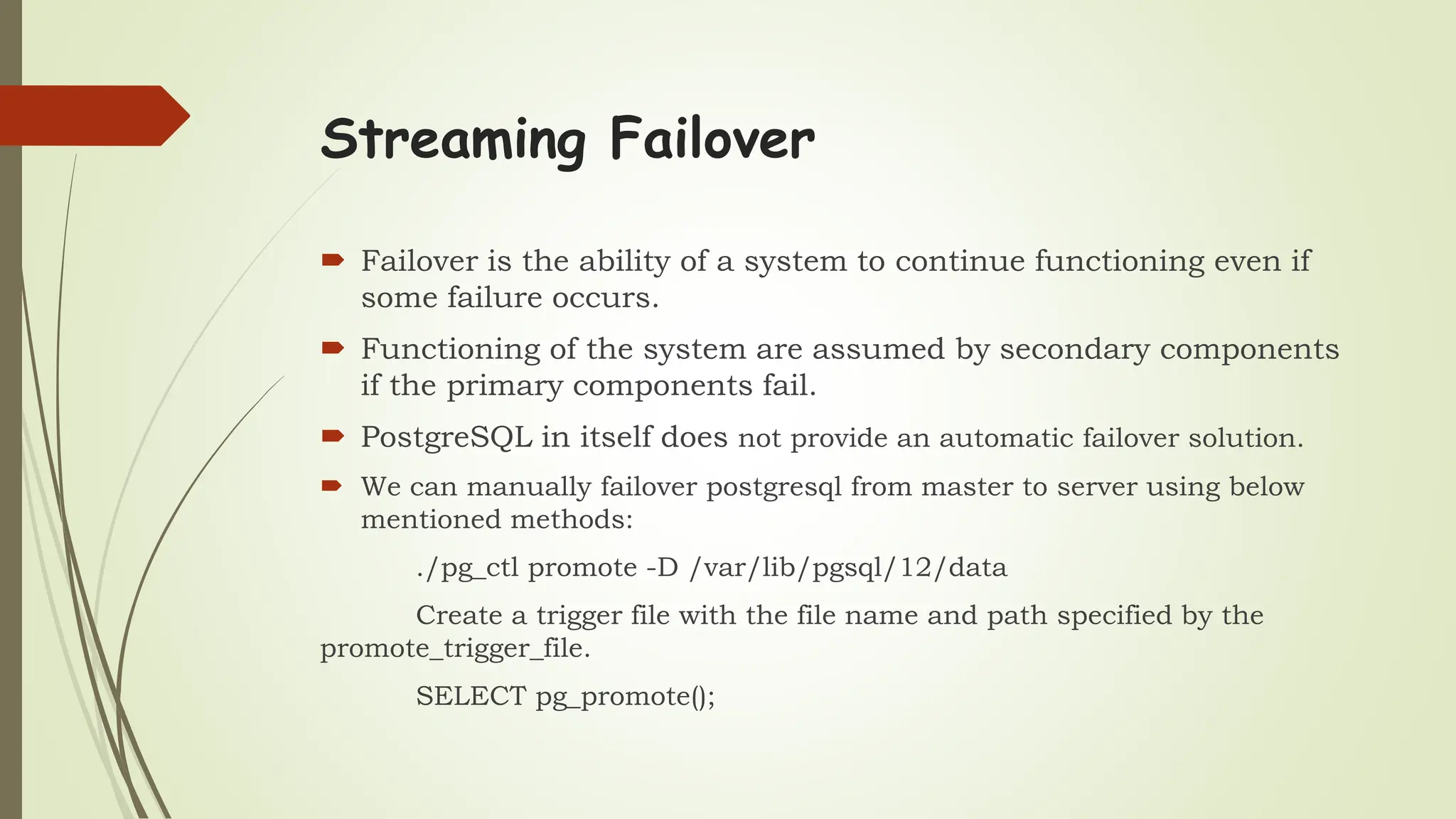

13. Streaming Failover
 Failover is the ability of a system to continue functioning even if
some failure occurs.
 Functioning of the system are assumed by secondary components
if the primary components fail.
 PostgreSQL in itself does not provide an automatic failover solution.
 We can manually failover postgresql from master to server using below
mentioned methods:
./pg_ctl promote -D /var/lib/pgsql/12/data
Create a trigger file with the file name and path specified by the
promote_trigger_file.
SELECT pg_promote();

14. Thank you. 
