Storwize SVC presentation February 2017

Joe Krotz
IBM CTS – Cloud and Storage Systems
February 2017
The IBM Storage – Moving at the speed of your business
A Smarter Solution for a Smarter Planet

Ibm.com/cloud-computing
IBM Smart
Analytics
Solutions (ISAS)
PureFlex
BM Smarter
Storage is:
Software defined Hardware optimized Massively scalable
Efficient by
Design
Cloud-agile
Enterprise
Proven
Self-
Optimizing
Cloud Enabled
Think it.
Strategize how to use IBM cloud
enabled storage solutions to drive
revenue growth and efficiencies.
Build it.
IBM storage is built from the ground
up to integrate and run your private
or hybrid cloud.
Tap into it.
Utilize IBM cloud services
delivered from IBM
SmartCloud.

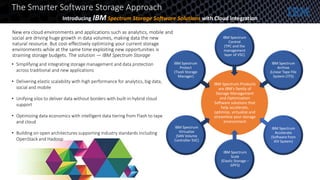

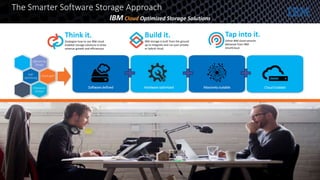

The Smarter Software Storage Approach
IBM Cloud Optimized Storage Solutions

New era cloud environments and applications such as analytics, mobile and
social are driving huge growth in data volumes, making data the new
natural resource. But cost-effectively optimizing your current storage
environments while at the same time exploiting new opportunities is
straining storage budgets. The solution — IBM Spectrum Storage
Introducing IBM Spectrum Storage Software Solutions with Cloud Integration
IBM Spectrum
Control
(TPC and the
management
layer of VSC)
IBM Spectrum
Protect
(Tivoli Storage
Manager)
IBM Spectrum
Virtualize
(SAN Volume
Controller SVC)
IBM Spectrum
Archive
(Linear Tape File
System LTFS)
IBM Spectrum
Accelerate
(Software from
XIV System)
IBM Spectrum
Scale
(Elastic Storage –
GPFS)
• Simplifying and integrating storage management and data protection
across traditional and new applications
• Delivering elastic scalability with high performance for analytics, big data,
social and mobile
• Unifying silos to deliver data without borders with built-in hybrid cloud
support
• Optimizing data economics with intelligent data tiering from Flash to tape
and cloud
• Building on open architectures supporting industry standards including
OpenStack and Hadoop
IBM Spectrum Products
are IBM’s family of
Storage Management
and Optimization
Software solutions that
help accelerate,
optimize, virtualize and
streamline your storage
environment

Introducing IBM Spectrum Storage Software Solutions new software licensing!
The solution is IBM Spectrum Storage Suite
IBM Spectrum Storage Suite gives you unlimited
access to all members of the IBM Spectrum Storage
software family with licensing on a flat, per-TB basis
to make pricing easy to understand and predictable
as capacity grows.
Structured specifically to meet changing storage
needs, the suite is ideal for organizations just starting
out with software-defined storage as well as those
with established infrastructures who need to expand
their capabilities.
IBM Spectrum Protect
IBM Spectrum Control
IBM Spectrum Archive IBM Spectrum Virtualize
IBM Spectrum Scale
IBM Spectrum Accelerate
An example of this premier model is
simple!
Lets say you purchase 100Tb of licenses. You can
use those licenses for any of these products!
As your needs change, you can carve up those
licenses by mixing and matching them as long as it
doesn’t exceed 100Tb total capacity. Add more
capacity at any time as you grow!
http://www.ibm.com/systems/storage/flash/

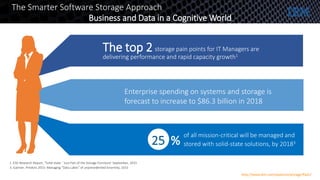

1. ESG Research Report, “Solid state: ‘ Just Part of the Storage Forniture’ September, 2015
3. Gartner, Predicts 2015: Managing “Data Lakes” of unprecedented Enormity, 2015
25 %
of all mission-critical will be managed and
stored with solid-state solutions, by 20183
Enterprise spending on systems and storage is
forecast to increase to $86.3 billion in 2018
storage pain points for IT Managers areThe top 2
delivering performance and rapid capacity growth1
Business and Data in a Cognitive World

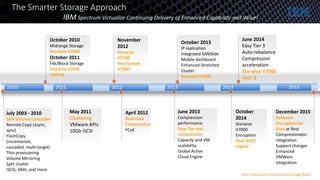

Spectrum Virtualize and Storwize
Platform

October 2010
Midrange Storage
Storwize V7000
October 2011
File/Block Storage
Storwize V7000
Unified
2011 2012 2013
November
2012
Storwize
V3700
Flex System
V7000
April 2012
Real-time
Compression
FCoE
July 2003 - 2010
SAN Volume Controller
Remote Copy (async,
sync)
FlashCopy
(incremental,
cascaded, multi-target)
Thin provisioning
Volume Mirroring
Split cluster
iSCSI, VAAI, and more
2014
October 2013
IP replication
Integrated SANSlide
Mobile dashboard
Enhanced Stretched
Cluster
Storwize V5000
June 2013
Compression
performance
Easy Tier and
compression
Capacity and VM
scalability
Global Active
Cloud Engine
October
2014
Storwize
V7000
Encryption
Dual RACE
engine
The Smarter Storage Approach
IBM Spectrum Virtualize Continuing Delivery of Enhanced Capability and Value!
2010
June 2014
Easy Tier 3
Auto-rebalance
Compression
acceleration
Storwize V7000
Gen. 2
May 2011
Clustering
VMware APIs
10Gb iSCSI
2015
December 2015
Software
Encryption for
Data at Rest
Comprestimator
integration
Support changes
Enhanced
VMWare
integration

1H 2016 2H 2016
IBM Spectrum Virtualize 7.6
Software only open beta
Storwize V5000 Gen2
IBM Spectrum Virtualize 7.7.1
Software only (SDS)
Host groups
Support for read-intensive flash drives
SVC monthly licensing
SVC enterprise class support
All-flash Storwize V5030F and V7000F
New SVC hardware
New Storwize V7000 Gen2+
External virtualization over iSCSI
NPIV
DRAID w/encryption
IP link compression
Differential licensing
Nearly 400 storage targets supported
Transparent cloud tiering
SKLM support
Enhanced Easy Tier flash drive support
High-density expansion
Storwize V5000 Gen2 upgrades
Storwize V7000 Gen 2+ upgrade
IBM Spectrum Virtualize Family Continuous Enhancement for 2016
IBM Spectrum Virtualize with Storwize

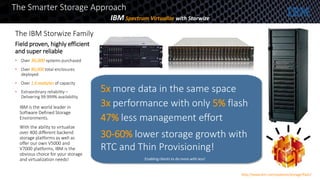

The IBM Storwize Family
• Over 36,000 systems purchased
• Over 80,000 total enclosures
deployed
• Over 1.6 exabytes of capacity
• Extraordinary reliability –
Delivering 99.999% availability
Field proven, highly efficient
and super reliable
IBM is the world leader in
Software Defined Storage
Environments.
With the ability to virtualize
over 400 different backend
storage platforms as well as
offer our own V5000 and
V7000 platforms, IBM is the
obvious choice for your storage
and virtualization needs!
5x more data in the same space
3x performance with only 5% flash
47% less management effort
30-60% lower storage growth with
RTC and Thin Provisioning!
Enabling clients to do more with less!

IBMSpectrum Virtualize with Storwize
SAN Volume Controller Engine update
SVC Storage Engine Model SV1 offers:
• Two eight-core processor with standard 64 GB memory
with options to increase memory up to 256 GB
• 16 Gb FC and 10 Gb iSCSI/FCoE connectivity options
• Hardware-assisted compression acceleration for Real-
time Compression workloads (optional feature)
• 12 Gb SAS expansion enclosure attachment for internal
flash storage (optional feature)
• Two integrated battery units
• 2U, 19-inch, rack-mount enclosure with AC power
supplies
Model SV1 includes three 10 Gb Ethernet ports for iSCSI
connectivity and system management, and can be configured
with up to four I/O adapter cards providing up to sixteen 16 Gb
FC ports or up to four 10 Gb Ethernet (iSCSI/FCoE) ports.
All SVC nodes can be upgraded from both a hardware
and software perspective with no interruption to the
workload being managed by them!
Controller swaps to the latest and greatest hardware
are seamless and since the nodes are clustered, so
are firmware updates!

IBMSpectrum Virtualize with Storwize

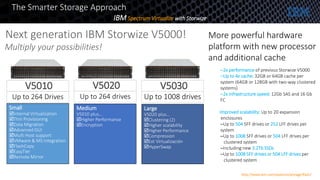

Next generation IBM Storwize V5000!
Multiply your possibilities!
V5010
Small
Internal Virtualization
Thin Provisioning
Data Migration
Advanced GUI
Multi Host support
VMware & MS Integration
FlashCopy
EasyTier
Remote Mirror
Up to 264 Drives
Medium
V5010 plus…
Higher Performance
Encryption
Up to 264 drives
Large
V5020 plus…
Clustering (2)
Higher scalability
Higher Performance
Compression
Ext Virtualización
HyperSwap
Up to 1008 drives
V5020 V5030
More powerful hardware
platform with new processor
and additional cache
–2x performance of previous Storwize V5000
–Up to 4x cache: 32GB or 64GB cache per
system (64GB or 128GB with two-way clustered
systems)
–2x infrastructure speed: 12Gb SAS and 16 Gb
FC
Improved scalability: Up to 20 expansion
enclosures
–Up to 504 SFF drives or 252 LFF drives per
system
clustered system
–Including new 3.2Tb SSDs
clustered system

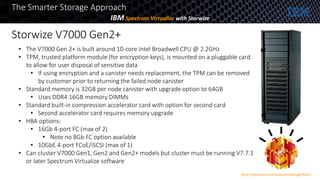

• The V7000 Gen 2+ is built around 10-core Intel Broadwell CPU @ 2.2GHz
• TPM, trusted platform module (for encryption keys), is mounted on a pluggable card
to allow for user disposal of sensitive data
• If using encryption and a canister needs replacement, the TPM can be removed
by customer prior to returning the failed node canister
• Standard memory is 32GB per node canister with upgrade option to 64GB
• Uses DDR4 16GB memory DIMMs
• Standard built-in compression accelerator card with option for second card
• Second accelerator card requires memory upgrade
• HBA options:
• 16Gb 4-port FC (max of 2)
• Note no 8Gb FC option available
• 10GbE 4-port FCoE/iSCSI (max of 1)
• Can cluster V7000 Gen1, Gen2 and Gen2+ models but cluster must be running V7.7.1
or later Spectrum Virtualize software
Storwize V7000 Gen2+

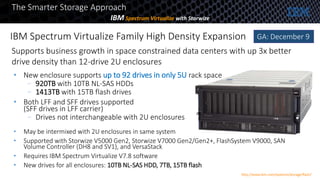

IBM Spectrum Virtualize Family High Density Expansion
• New enclosure supports up to 92 drives in only 5U rack space
– 920TB with 10TB NL-SAS HDDs
– 1413TB with 15TB flash drives
• Both LFF and SFF drives supported
(SFF drives in LFF carrier)
– Drives not interchangeable with 2U enclosures
• May be intermixed with 2U enclosures in same system
• Supported with Storwize V5000 Gen2, Storwize V7000 Gen2/Gen2+, FlashSystem V9000, SAN
Volume Controller (DH8 and SV1), and VersaStack
• Requires IBM Spectrum Virtualize V7.8 software
• New drives for all enclosures: 10TB NL-SAS HDD, 7TB, 15TB flash
Under embargo until announced
GA: December 9
Supports business growth in space constrained data centers with up 3x better
drive density than 12-drive 2U enclosures

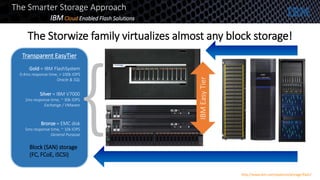

The Storwize family virtualizes almost any block storage!
Gold = IBM FlashSystem
0.4ms response time, > 100k IOPS
Oracle & SQL
Silver = IBM V7000
1ms response time, ~ 30k IOPS
Exchange / VMware
Bronze = EMC disk
5ms response time, ~ 10k IOPS
General Purpose
Block (SAN) storage
(FC, FCoE, iSCSI)
Transparent EasyTier
IBMEasyTier
IBMCloud Enabled Flash Solutions

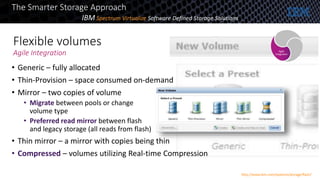

Flexible volumes
Agile Integration
• Generic – fully allocated
• Thin-Provision – space consumed on-demand
• Mirror – two copies of volume
• Migrate between pools or change
volume type
• Preferred read mirror between flash
and legacy storage (all reads from flash)
• Thin mirror – a mirror with copies being thin
• Compressed – volumes utilizing Real-time Compression
Agile
Integration
IBM Spectrum Virtualize Software Defined Storage Solutions

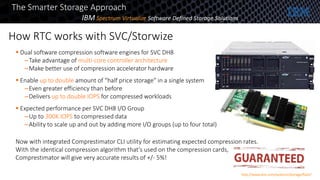

How RTC works with SVC/Storwize
16
 Dual software compression software engines for SVC DH8
–Take advantage of multi-core controller architecture
–Make better use of compression accelerator hardware
 Enable up to double amount of “half price storage” in a single system
–Even greater efficiency than before
–Delivers up to double IOPS for compressed workloads
 Expected performance per SVC DH8 I/O Group
–Up to 300K IOPS to compressed data
–Ability to scale up and out by adding more I/O groups (up to four total)
Now with integrated Comprestimator CLI utility for estimating expected compression rates.
With the identical compression algorithm that’s used on the compression cards,
Comprestimator will give very accurate results of +/- 5%!

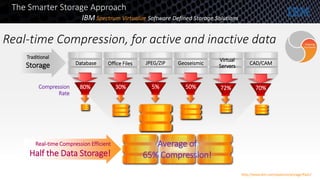

Database Office Files CAD/CAMGeoseismic
Virtual
Servers
JPEG/ZIP
80% 30% 5% 50% 72% 70%Compression
Rate
Traditional
Storage
Average of
65% Compression!
Real-time Compression Efficient
Half the Data Storage!
Real-time Compression, for active and inactive data Enduring
Economics

Quality of Service (QoS)
Scalable Performance
• Help alleviate performance
contention
• Give your application the
performance it needs
• Ability to cap IOPS or bandwidth
on a per volume basis
Scalable
Performance

• Improve workforce productivity
• Simplify management
• Single name space
Fully integrated system management
Agile Integration

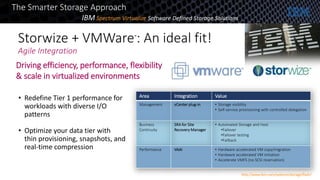

Storwize + VMWare®
: An ideal fit!
Agile Integration
• Redefine Tier 1 performance for
workloads with diverse I/O
patterns
• Optimize your data tier with
thin provisioning, snapshots, and
real-time compression
Area Integration Value
Management vCenter plug-in • Storage visibility
• Self-service provisioning with controlled delegation
Business
Continuity
SRA for Site
Recovery Manager
• Automated Storage and Host
•Failover
•Failover testing
•Failback
Performance VAAI • Hardware accelerated VM copy/migration
• Hardware accelerated VM initiation
• Accelerate VMFS (no SCSI reservation)
Driving efficiency, performance, flexibility
& scale in virtualized environments

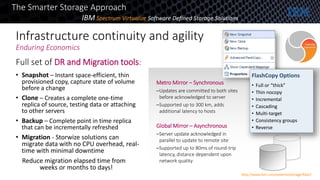

Metro Mirror – Synchronous
–Updates are committed to both sites
before acknowledged to server
–Supported up to 300 km, adds
additional latency to hosts
Global Mirror – Asynchronous
–Server update acknowledged in
parallel to update to remote site
–Supported up to 80ms of round-trip
latency, distance dependent upon
network quality
FlashCopy Options
• Full or “thick”
• Thin nocopy
• Incremental
• Cascading
• Multi-target
• Consistency groups
• Reverse
Infrastructure continuity and agility
Enduring Economics
• Snapshot – Instant space-efficient, thin
provisioned copy, capture state of volume
before a change
• Clone – Creates a complete one-time
replica of source, testing data or attaching
to other servers
• Backup – Complete point in time replica
that can be incrementally refreshed
• Migration - Storwize solutions can
migrate data with no CPU overhead, real-
time with minimal downtime
Reduce migration elapsed time from
weeks or months to days!
Full set of DR and Migration tools:
Enduring
Economics

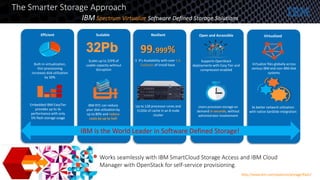

Resilient Open and Accessible Virtualized
Works seamlessly with IBM SmartCloud Storage Access and IBM Cloud
Manager with OpenStack for self-service provisioning.
99.999%
5 9’s Availability with over 1.6
Exabytes of install base
3x better network utilization
with native SanSlide integration
Supports OpenStack
deployments with Easy Tier and
compression enabled
Users provision storage on
demand in seconds, without
administrator involvement
Virtualize files globally across
various IBM and non-IBM disk
systems
Up to 128 processor cores and
512Gb of cache in an 8 node
cluster
Scalable
Scales up to 32PB of
usable capacity without
disruption
IBM RTC can reduce
your disk utilization by
up to 80% and reduce
costs by up to half
Efficient
Built-in virtualization,
thin provisioning
increases disk utilization
by 30%
Embedded IBM EasyTier
provides up to 3x
performance with only
5% flash storage usage
IBM is the World Leader in Software Defined Storage!

IBM FlashSystem 900 is an all-flash storage
systems that is used to make applications
and data centers faster and more efficient.
IBM engineers the FlashSystem 900 with a
relentless focus on lowering latency for data
accesses
IBM FlashSystems Application and Cloud Accelerator
System features and
integration
• Systems Management
• World class GUI engineered
for ease of use, install and
setup
• IBM Service Center call home
and service automation
• Remote Power On
• Hot-swappable Flash
Modules, Power Supplies,
Batteries, Fans, Controllers
w/ interface cards
Cloud-Scale Infrastructures
OLTP Databases
Virtual Infrastructures
Computational
Applications
Analytical Apps/OLAP
HPC
Enterprise ready
• Hot-swappable Flash Modules,
Power Supplies, Batteries, Fans,
Controllers w/ interface cards
• Concurrent code load and
concurrent maintenance
• Variable Stripe RAID which
allows for NAND chip failures
without Flash module failures
• V9000 virtualized for immediate
cloud integration
• Native encryption at rest
Hardware Specs
Dimensions:
• 2U Chassis
Flash Technology:
• IBM Enhanced MLC
• RAID 5: up to 57 TB
Interfaces choices:
• 16Gb FC (4/8/16GB)
• 10Gb FCoE
• Infiniband (QDR
FC and IB)
Performance Projections - RAID 5
• 1.1M Read IOPs
• Read/Write 70/30% Split 800k
IOPS
• 600K Write IOPs
• 10GB/sec Read sequential
100%
• 4.5GB/sec Write sequential
100%
The IBM FlashSystem 900 – The FlashSystems Foundation
A highly parallel all-flash platform for the cloud-scale business

IBM introduces a fully integrated, flexible, feature rich all-flash storage system
• Scalable all-flash architecture accelerates applications and entire infrastructures
• Based on IBM’s award winning Software Defined Storage strategy
• Performs at up to 2.5M IOPS with IBM MicroLatency
• Up to 57 TB usable (285 TB effective capacity) in only 6U and scales to 456 TB usable
(2.28 PB effective capacity) in only 34U
• New licensing structure to simplify ordering and planning for External Data Virtualization,
Flash Copy, Metro Mirror, and Real-time Compression
• FlashSystem Tier 1 Guarantee
Scalable Performance Agile IntegrationEnduring Economics
Powered by IBM FlashCore™
Technology
The IBM FlashSystem V9000 – Virtualized Flash PlatformA highly parallel all-flash platform for the cloud-scale business

• Scalable to 2.2 PB effective capacity
• Flash for less than the cost of disk with
IBM Real-time Compression
• Low power and cooling requirements
• Virtualize storage
• Flash wear warranty
• Infrastructure continuity with space
efficient snapshots, cloning and
replication
• Fully integrated system management
• Application-aware data services
• AES, data at rest encryption
• Tier or mirror to existing storage
• Mixed workload consolidation
• Non-disruptive data migrations
• Concurrent code load
• Scale-up or scale-out
• Scalable to 2.5 million IOPS
• Scalable to 19.2 GB/s bandwidth
• Sustained IBM MicroLatency™
• Quality of Service
FlashSystem V9000: Virtualized Architecture
Dimensions of Value
Scalable
Performance
Agile
Integration
Enduring
Economics

IBM intends to offer a model conversions for Storwize V7000 Model 524 to the new
V7000 Model 624
IBM intends to support 7.68TB and 15.36TB Read Intensive Flash Drives in the
Storwize V7000 and Storwize V5000 second-generation SFF Models
IBM intends to support a new high density expansion for attachment to the Storwize
V7000 and V5000 second-generation control models
IBM intends to support 7.68TB and 15.36TB Read Intensive Flash Drives in the SAN
Volume Controller Expansion Model 24F
IBM intends to support a new high density expansion for attachment to the SAN
Volume Controller (SVC) Storage Engine Models DH8 and SV1
• IBM's statements regarding its plans, directions, and intent are subject to change or withdrawal without notice at IBM's sole discretion. Information regarding potential future products is intended
to outline our general product direction and it should not be relied on in making a purchasing decision. The information mentioned regarding potential future products is not a commitment,
promise, or legal obligation to deliver any material, code, or functionality. Information about potential future products may not be incorporated into any contract. The development, release, and
timing of any future features or functionality described for our products remain at our sole discretion.

• IBM's statements regarding its plans, directions, and intent are subject to change or withdrawal without notice at IBM's sole discretion. Information regarding potential future products is intended
to outline our general product direction and it should not be relied on in making a purchasing decision. The information mentioned regarding potential future products is not a commitment,
promise, or legal obligation to deliver any material, code, or functionality. Information about potential future products may not be incorporated into any contract. The development, release, and
timing of any future features or functionality described for our products remain at our sole discretion.
IBM intends to enhance IBM Spectrum Virtualize with additional capabilities for flash drive
optimization and management. These capabilities are intended to help increase the service
life and usability of flash drives, particularly read intensive flash drives. The capabilities are
planned to include:
• Data deduplication for workloads and use cases where it complements our existing
industry leading compression technology
• Improved flash memory management ("garbage collection")
• Additional flash drive wear management and reporting.
By implementing these capabilities in IBM Spectrum Virtualize, they are planned to be
available for IBM Storwize family, FlashSystem V9000, and SAN Volume Controller offerings
as well as VersaStack and IBM PurePower systems.
IBM intends to implement support for the SCSI "unmap" command in IBM Spectrum
Virtualize, which is designed to reclaim space on thin provisioned volumes that has been
deleted by server software.

IBM Spectrum Virtualize transforms storage
Improving data value
Reducing the cost of storing
data by increasing utilization
and using compression, and
accelerating applications to
speed business insights
Increasing data security
Helping protect data from
disclosure, and enabling a
complete high availability
strategy including data and
application mobility and full DR
protection
Enhancing data simplicity
Data strategy independent of
infrastructure choice with
tightly integrated functionality
and consistent management
across heterogeneous storage
IBM / Business Partner Use Only

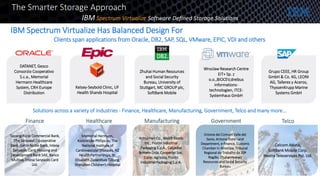

DATANET, Gesco
Consorzio Cooperativo
S.c.a., Memorial
Hermann Healthcare
System, CRH Europe
Distribution
Grupo CEEE, HR Group
GmbH & Co. KG, LEONI
AG, Talleres y Aceros,
ThyssenKrupp Marine
Systems GmbH
Zhuhai Human Resources
and Social Security
Bureau, University of
Stuttgart, MC GROUP plc,
SoftBank Mobile
Wroclaw Research Centre
EIT+ Sp. z
o.o.,BIOCEV,dreibus
informations-
technologien, ITCE-
Systemhaus GmbH
Kelsey-Seybold Clinic, UF
Health Shands Hospital
Taicang Rural Commercial Bank,
The Saraswat Co-operative
Bank, Getin Noble Bank, Intesa
Sanpaolo Card, Housing and
Development Bank SAE, Banco
Multiva, Intesa Sanpaolo Card
Ltd.
Memorial Hermann,
Koninklijke Philips nv, The
National Institute of
Cardiovascular Diseases, NZ
Health Partnerships, St.
Elisabeth Ziekenhuis Tilburg,
Shenzhen Children’s Hospital
Anhui Heli Co., Welch Foods
Inc., Fiorini Industrial
Packaging S.p.A., Calçados
Bottero Ltda, Cooperlat Soc.
Coop. Agricola, Fiorini
Industrial Packaging S.p.A.
Unione dei Comuni Valle del
Savio, Arizona State Land
Department, e-finance, Customs
Chamber in Wroclaw, Tribunal
Regional do Trabalho da 20ª
Região, Zhuhai Human
Resources and Social Security
Bureau
Celcom Axiata,
SoftBank Mobile Corp.
Nextra Teleservices Pvt. Ltd.
Clients span applications from Oracle, DB2, SAP, SQL, VMware, EPIC, VDI and others
Solutions across a variety of industries - Finance, Healthcare, Manufacturing, Government, Telco and many more…
IBM Spectrum Virtualize Has Balanced Design For

IBM Spectrum Virtualize Family Solutions
Continues to expand the footprint!
A bottleneck in storage affects the flow of data through the entire EcoSystem
IBM® Storwize V7000
Unified
ORACLE
EPICApplication
Server
Network
Storage

Integrated Systems are Integrated
Infrastructure
• Server, storage, networking
• Integration value for customers is
“easy, efficient, and versatile”
• Exceptional scale both up / out!
• All VersaStack platforms can
virtualize up to 32Pb of external
disk!
IBM Spectrum Virtualize
brings critically needed
capabilities to VersaStack
VersaStack – The Importance of Storage
• Data protection – Metro
Mirror and Global Mirror
• Snapshots – FlashCopy and
FlashCopy Manager
• RtC – Reduces cost by
storing more data in
physical space
• Provisioning and
management
• Migrate data to / from
external storage
• Access existing data on
external storage system
FlashSystem V9000
Scale out to four pairs with 2 PB
internal all flash capacity
Storwize V7000
Scale out to four pair with 8 PB
internal
Storwize V5000
Scale out to two pairs with 4 PB
internal
The IBM VersaStack Converged Solution
• Performance – High
performance storage
systems with the ability
to optimize flash and
scale performance and
capacity
• Cost effective data
storage with data
reduction to optimize
capacity usage
• Business Continuity in an
Integrated System with
HyperSwap between
Storwize Platform
Extend IBM Spectrum
Virtualize functions to existing
storage

Spectrum Control and Storage Insights
IBM Spectrum Control data management and storage
management solutions provide comprehensive
monitoring, automation and analytics. They address the
two most significant storage costs: physical capacity and
storage administration. You can get important insights
into cloud, virtualized and software defined storage
environments.
IBM data management and storage management
solutions can help to:
•Identify and categorize storage assets for file, block and
object data
•Generate departmental and application views of storage
•Optimize data placement within the infrastructure
•Identify unused and wasted storage space

Data Center and Point of Presence
New Data Centers in 2014
Network Point of Presence
IBM SoftLayer Global Footprint
100,000+
Servers
21,000
Customers
20,000,000
Active
Domains
•IPv4/IPv6 dual stack
•Global DNS
•Global DDOS Mitigation
•Global Internet Exchanges &
Peering
www.ibm.com/systems/storage/

 Infrastructure solution with a common management interface and API across a unified architecture
 Mix and match bare metal servers, virtual server instances, and hosted private clouds
 Full integration with all IBM storage portfolio offerings
 Full OpenStack, RESTful API, SmartCloud Storage and IBM Storage Integration Server integration
 Seamless scaling for Cloud and large deployments. This include Public, Private and Hybrid solutions
Bare metal with
your own stack
Dedicated virtualized
environment
Shared virtual
environment
Dedicated virtualized
environment
Triple Network Architecture
Automation & Support
Delivers Outstanding Performance & Price
Flexibility to Deliver Dynamic/ Hybrid Capability
www.ibm.com/systems/storage/

For more information:
Websites:
http://www-03.ibm.com/systems/storage/
http://www.ibm.com/cloud-computing/us/en/
Product Pages:
http://www-03.ibm.com/systems/storage/flash/
http://www-
03.ibm.com/systems/storage/storwize/
http://www-03.ibm.com/systems/storage/disk/xiv/
IBM RedBooks
https://www.redbooks.ibm.com/
Thank you!

Storwize SVC presentation February 2017

More Related Content

What's hot

Viewers also liked

Similar to Storwize SVC presentation February 2017

Recently uploaded

Storwize SVC presentation February 2017

Editor's Notes
