1. How to Develop STM32F429i-
Discovery
Emp,CHEN

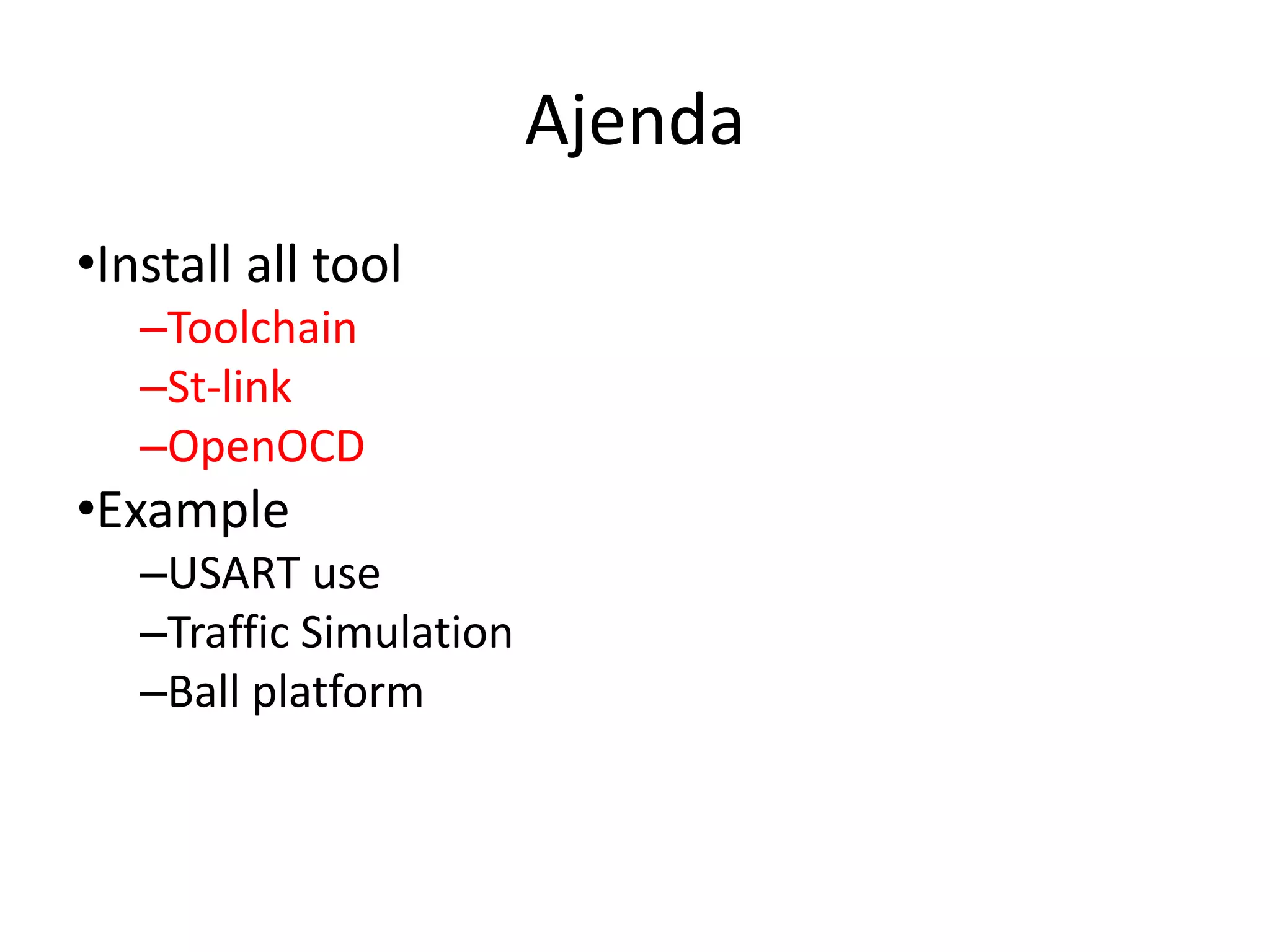

2. Ajenda
•Install all tool
–Toolchain
–St-link
–OpenOCD
•Example
–USART use
–Traffic Simulation
–Ball platform

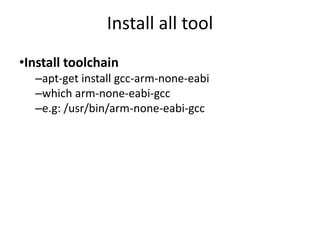

3. Install all tool
•Install toolchain
–apt-get install gcc-arm-none-eabi
–which arm-none-eabi-gcc
–e.g: /usr/bin/arm-none-eabi-gcc

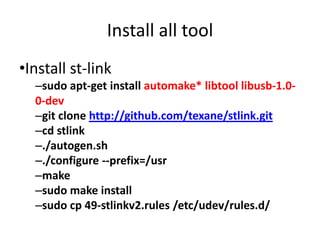

4. Install all tool
•Install st-link
–sudo apt-get install automake* libtool libusb-1.0-
0-dev
–git clone http://github.com/texane/stlink.git
–cd stlink
–./autogen.sh
–./configure --prefix=/usr
–make
–sudo make install
–sudo cp 49-stlinkv2.rules /etc/udev/rules.d/

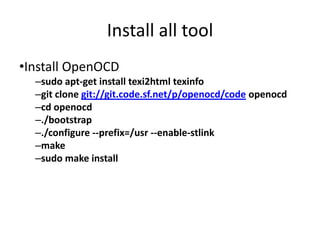

5. Install all tool
•Install OpenOCD
–sudo apt-get install texi2html texinfo
–git clone git://git.code.sf.net/p/openocd/code openocd
–cd openocd
–./bootstrap
–./configure --prefix=/usr --enable-stlink
–make
–sudo make install

6. Update Firmware
•Download firmware.
–“STM32F429I-Discovery_FW_V1.0.1”
–http://www.st.com/web/en/catalog/tools/PF259429
•Update
–arm-none-eabi-objcopy -I ihex -O binary `find -name
STM32F429I-DISCOVERY_
Demo_V1.0.1.hex` /tmp/out.bin
–st-flash write /tmp/out.bin 0x8000000

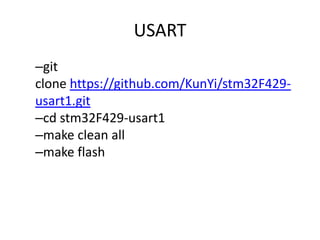

7. USART
–git
clone https://github.com/KunYi/stm32F429-
usart1.git
–cd stm32F429-usart1
–make clean all
–make flash

8. USART
•PA9=USART1_TX
•PA10=USART1_RX
Greed=TX
White=RX
•Tools introduce
–putty
–screen
–minicom

9. Example

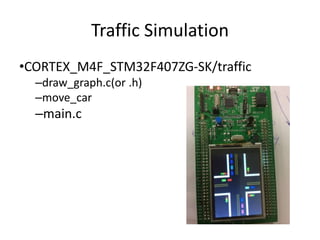

10. Traffic Simulation
•CORTEX_M4F_STM32F407ZG-SK/traffic
–draw_graph.c(or .h)
–move_car
–main.c

11. Ball platform
•CORTEX_M4F_STM32F407ZG-SK/game
–game.c
–global.h
–main.c
