This document describes a project to control a 2-axis stepping motor platform using a Raspberry Pi single-board computer running Xenomai. A kernel module and userspace program were developed to control two 42-type stepper motors connected to A4988 motor driver boards via the Raspberry Pi's GPIO pins. The platform measures 45 by 40 cm and each motor step is 1.8 degrees. Xenomai was used to provide real-time control of the motors by modifying the Linux kernel and enabling hard real-time capabilities.

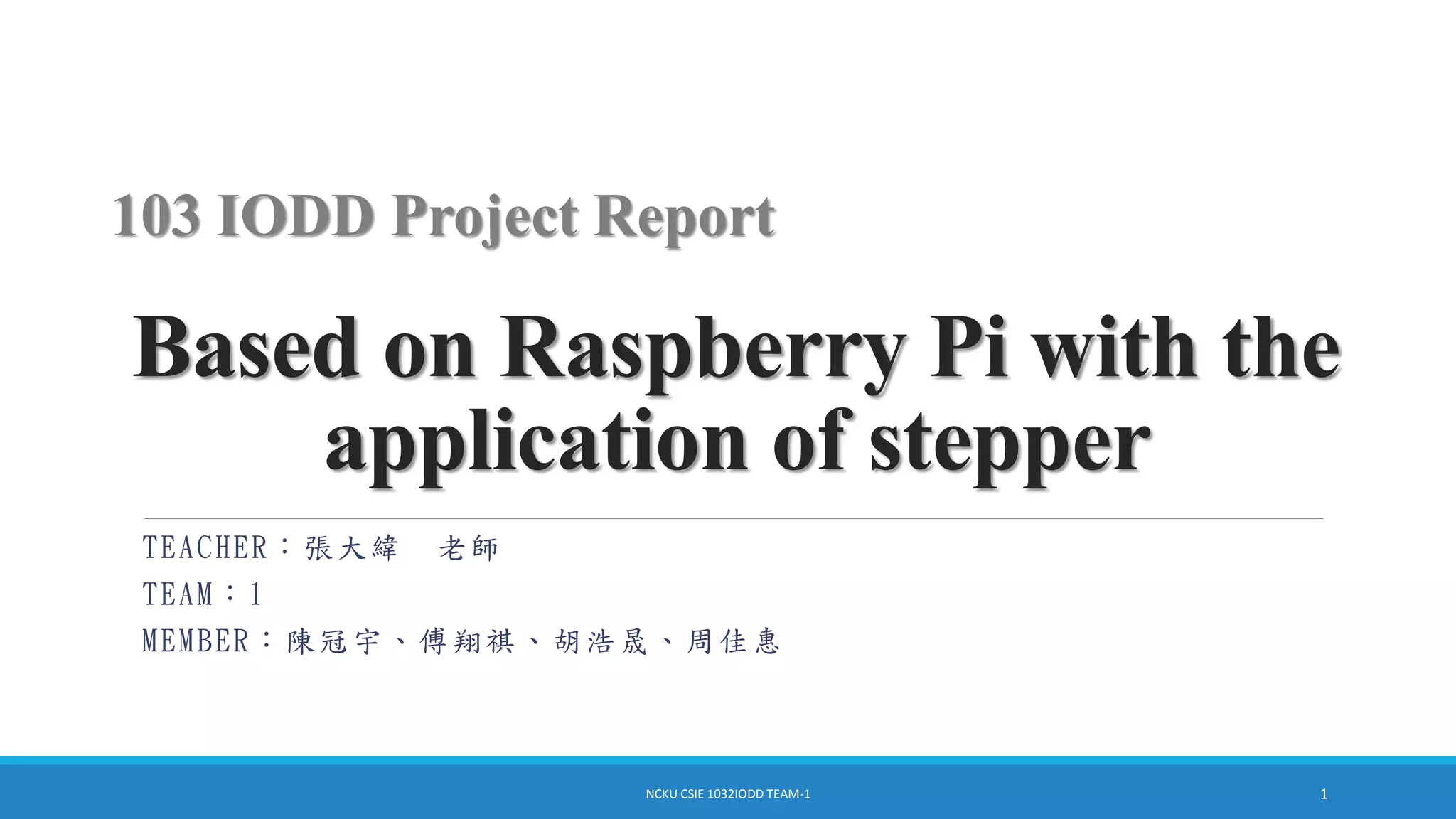

1. TEACHER：張大緯 老師
TEAM：1
MEMBER：陳冠宇、傅翔祺、胡浩晟、周佳惠
103 IODD Project Report
Based on Raspberry Pi with the
application of stepper
NCKU CSIE 1032IODD TEAM-1 1

2. Agenda
Result Architecture
Method
• Control Motor
• Xenomai
NCKU CSIE 1032IODD TEAM-1 2

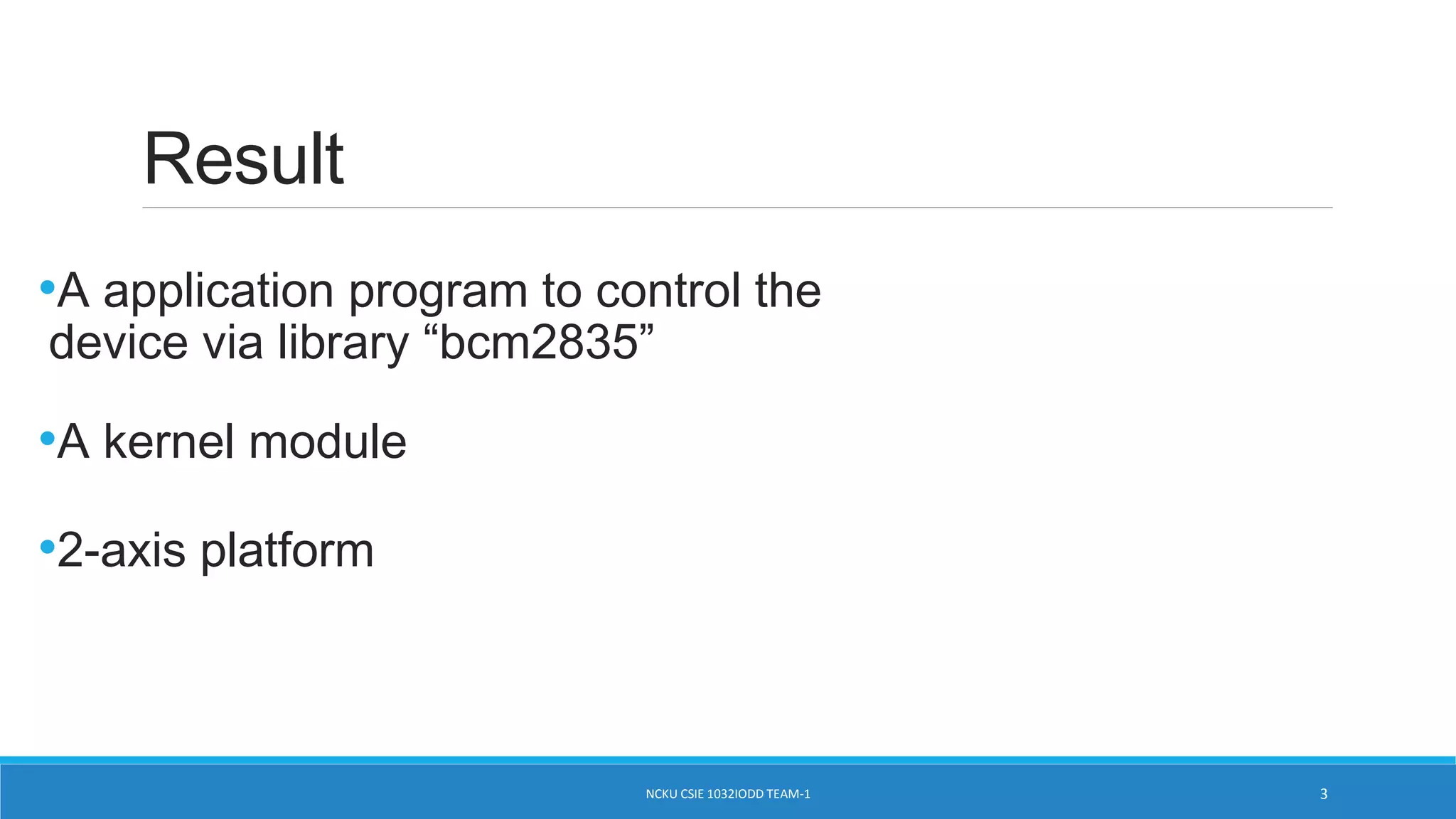

3. Result
•A application program to control the
device via library “bcm2835”
•A kernel module
•2-axis platform
3NCKU CSIE 1032IODD TEAM-1

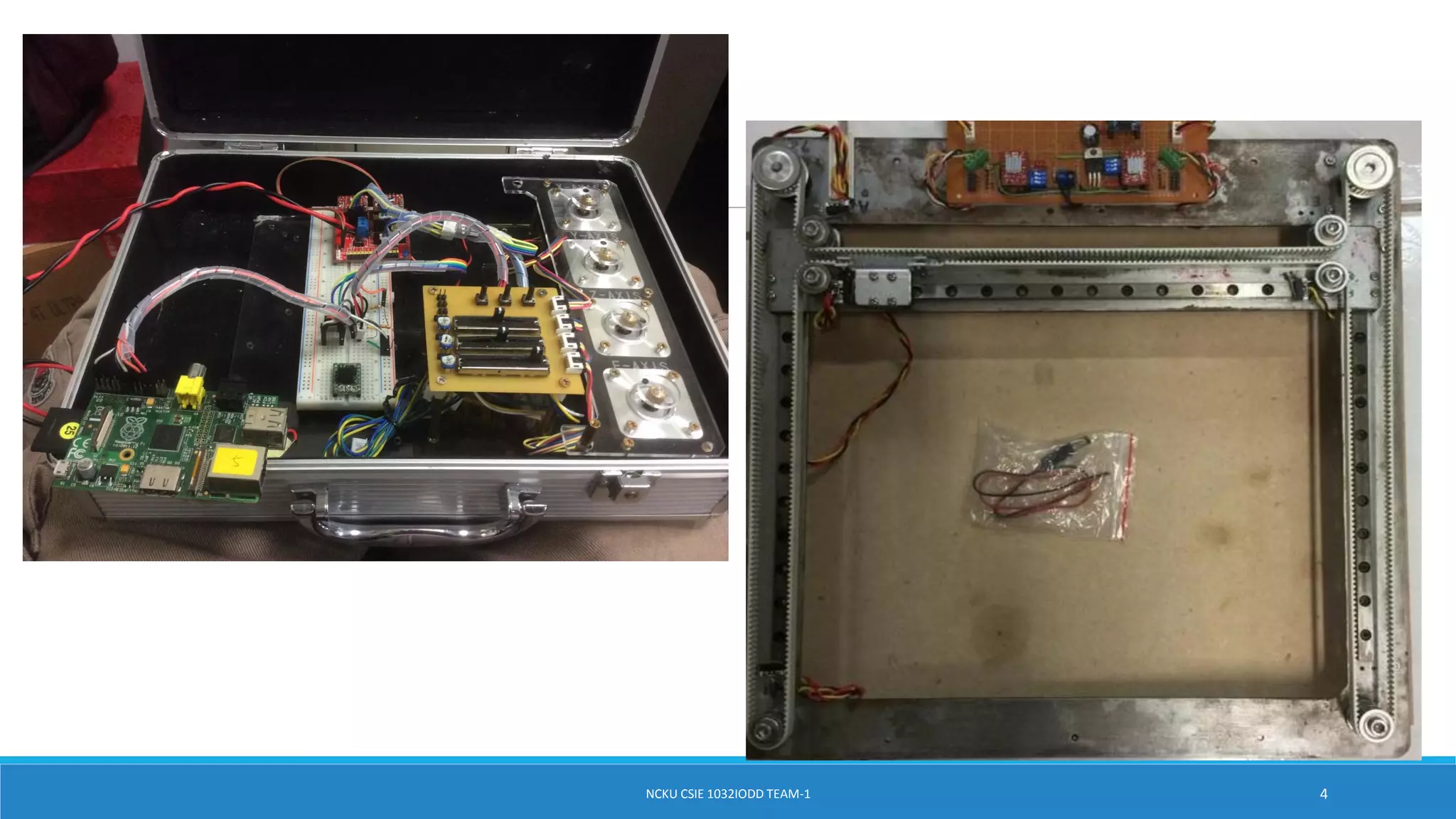

4. NCKU CSIE 1032IODD TEAM-1 4

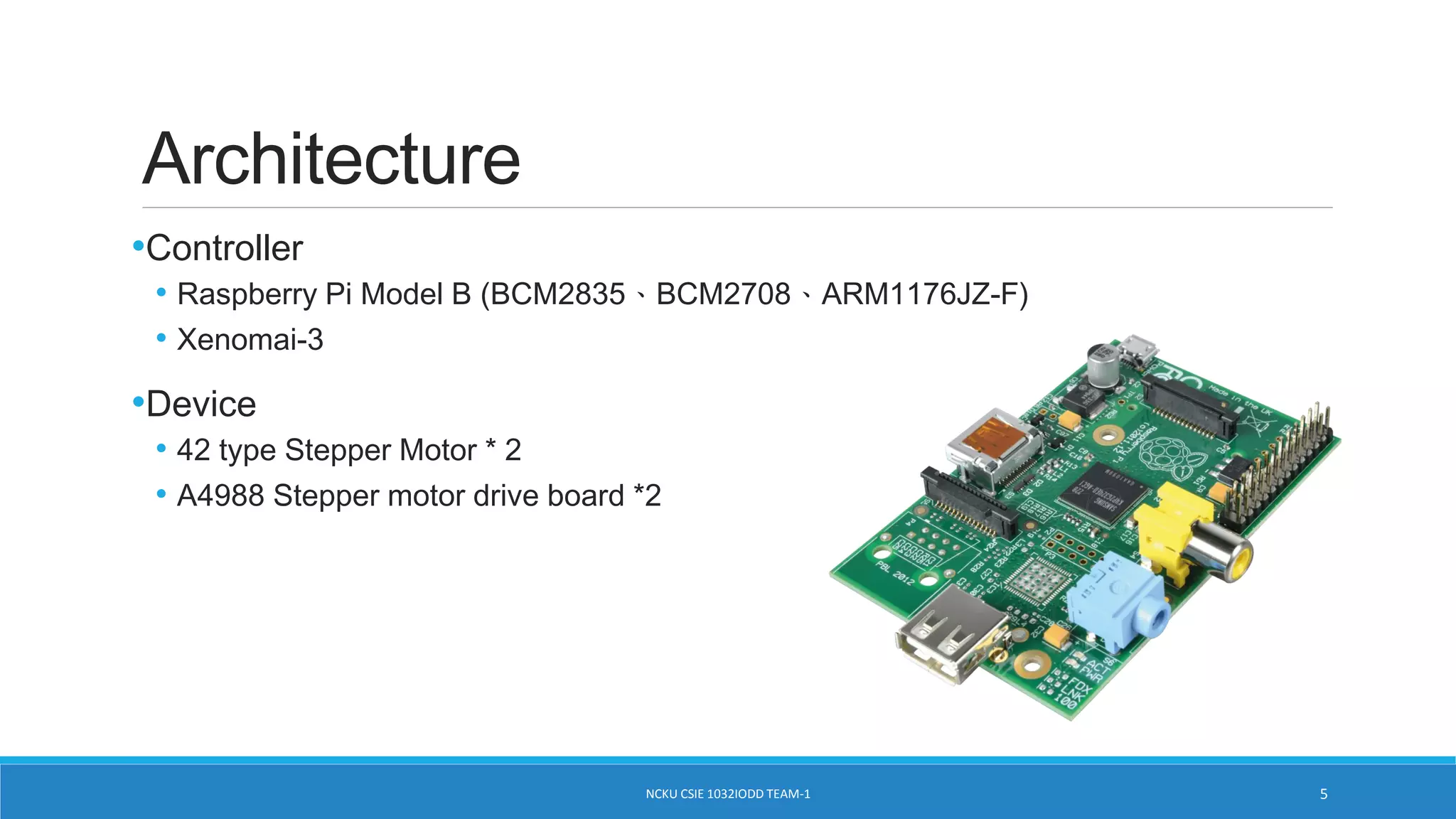

5. Architecture
•Controller
• Raspberry Pi Model B (BCM2835、BCM2708、ARM1176JZ-F)
• Xenomai-3
•Device
• 42 type Stepper Motor * 2
• A4988 Stepper motor drive board *2
5NCKU CSIE 1032IODD TEAM-1

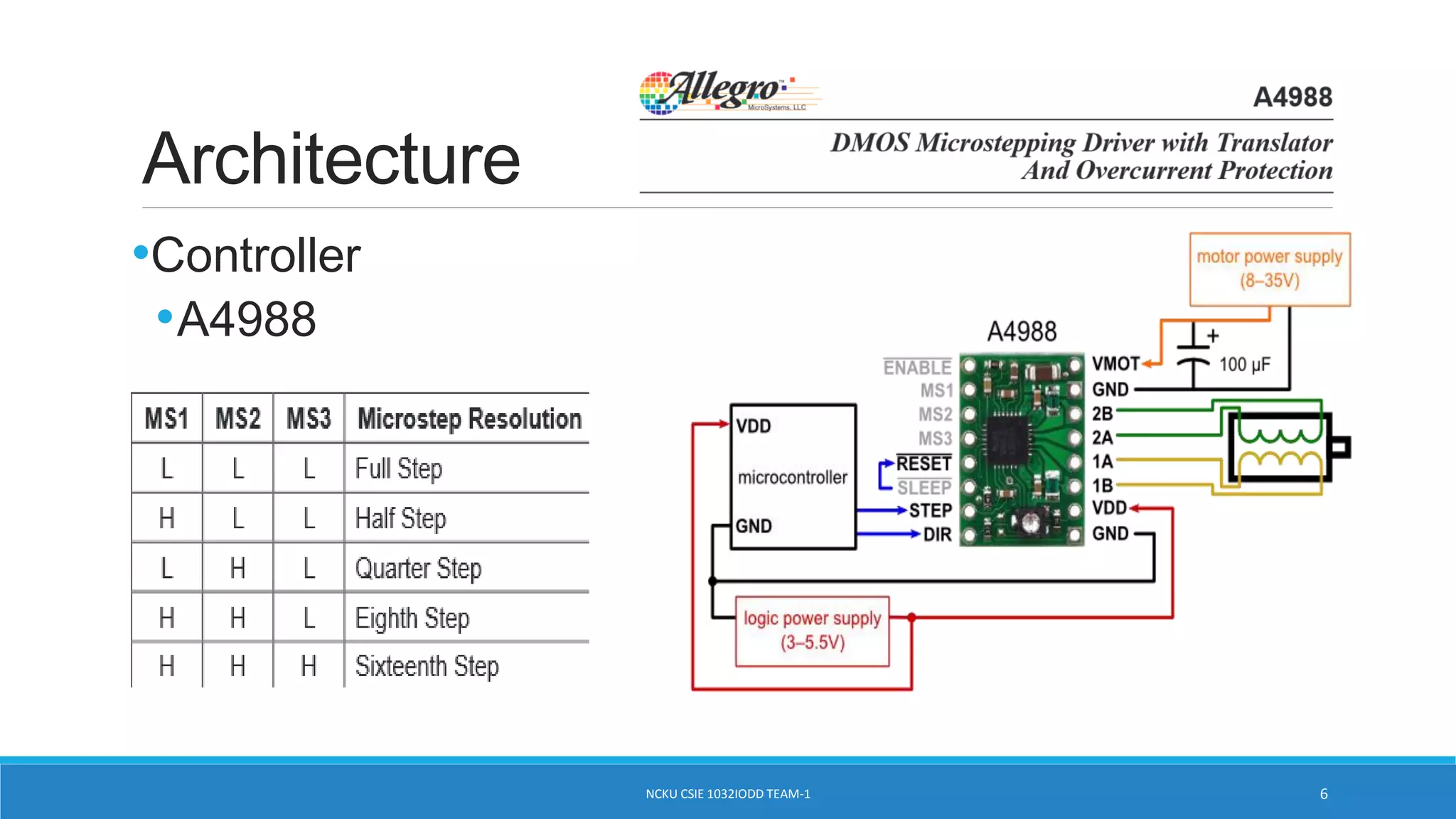

6. Architecture
•Controller
•A4988
6NCKU CSIE 1032IODD TEAM-1

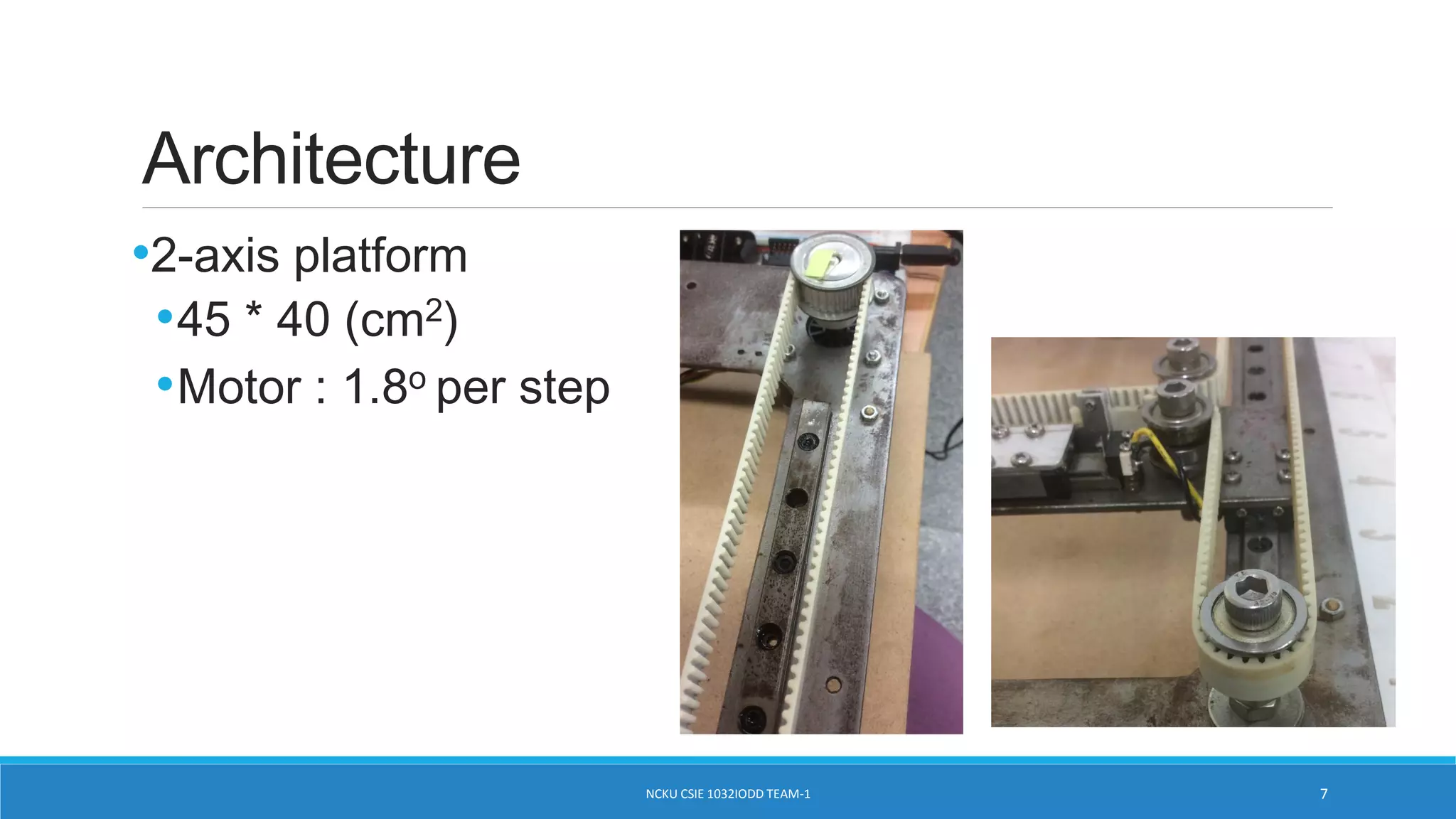

7. Architecture
•2-axis platform
•45 * 40 (cm2)
•Motor : 1.8o per step
7NCKU CSIE 1032IODD TEAM-1

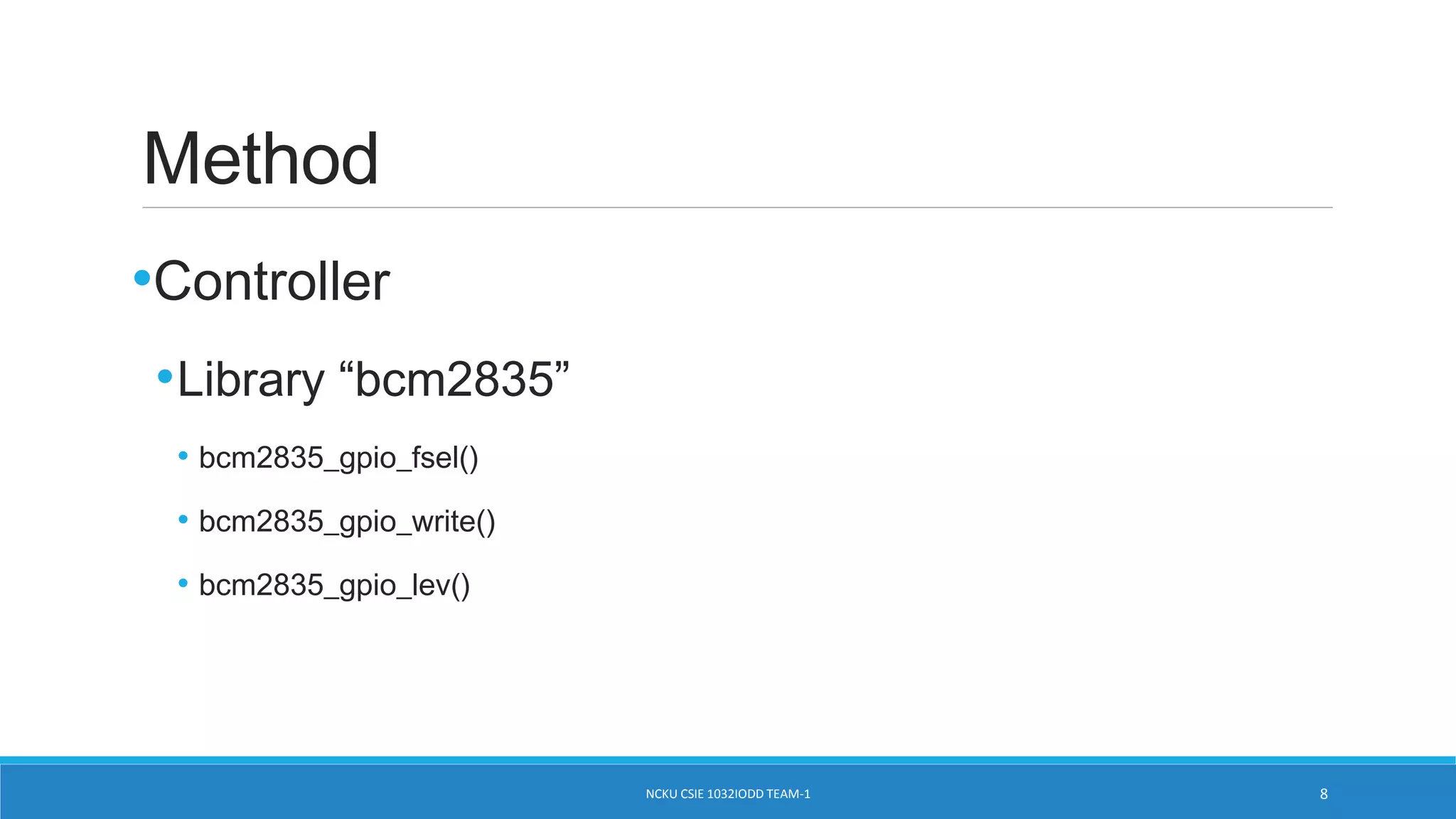

8. Method
•Controller
•Library “bcm2835”
• bcm2835_gpio_fsel()
• bcm2835_gpio_write()
• bcm2835_gpio_lev()
8NCKU CSIE 1032IODD TEAM-1

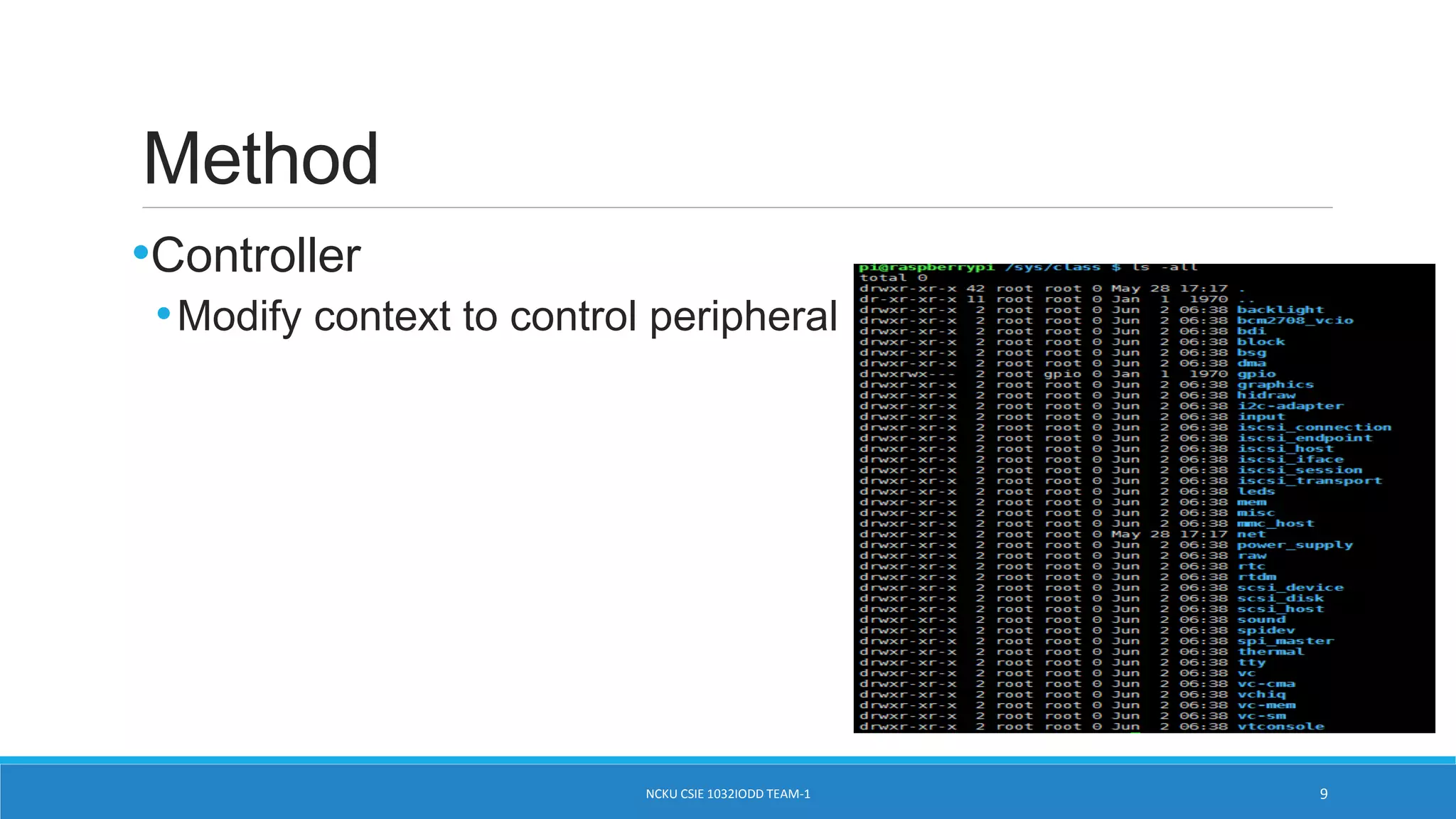

9. Method
•Controller
•Modify context to control peripheral
9NCKU CSIE 1032IODD TEAM-1

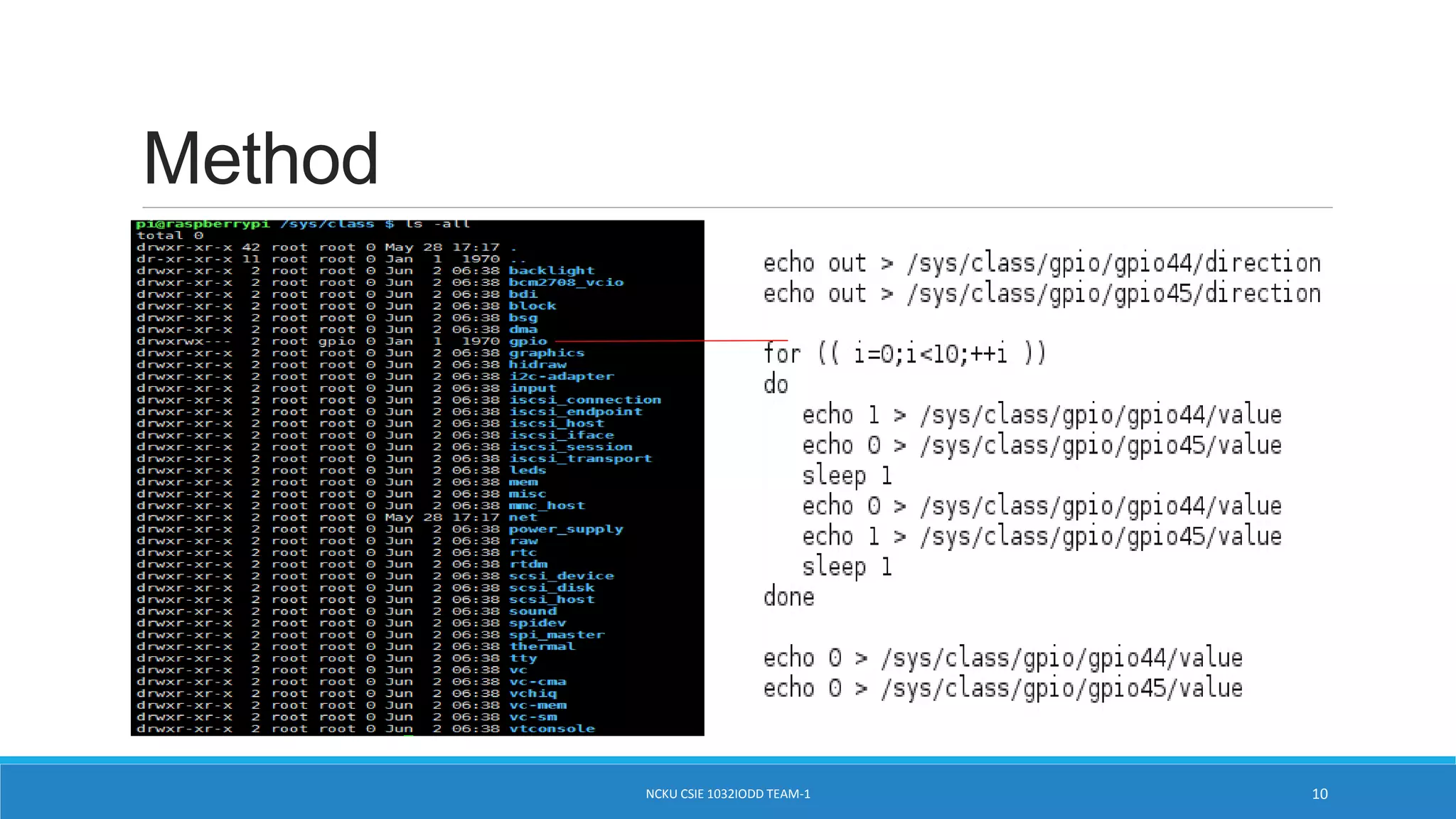

10. Method
10NCKU CSIE 1032IODD TEAM-1

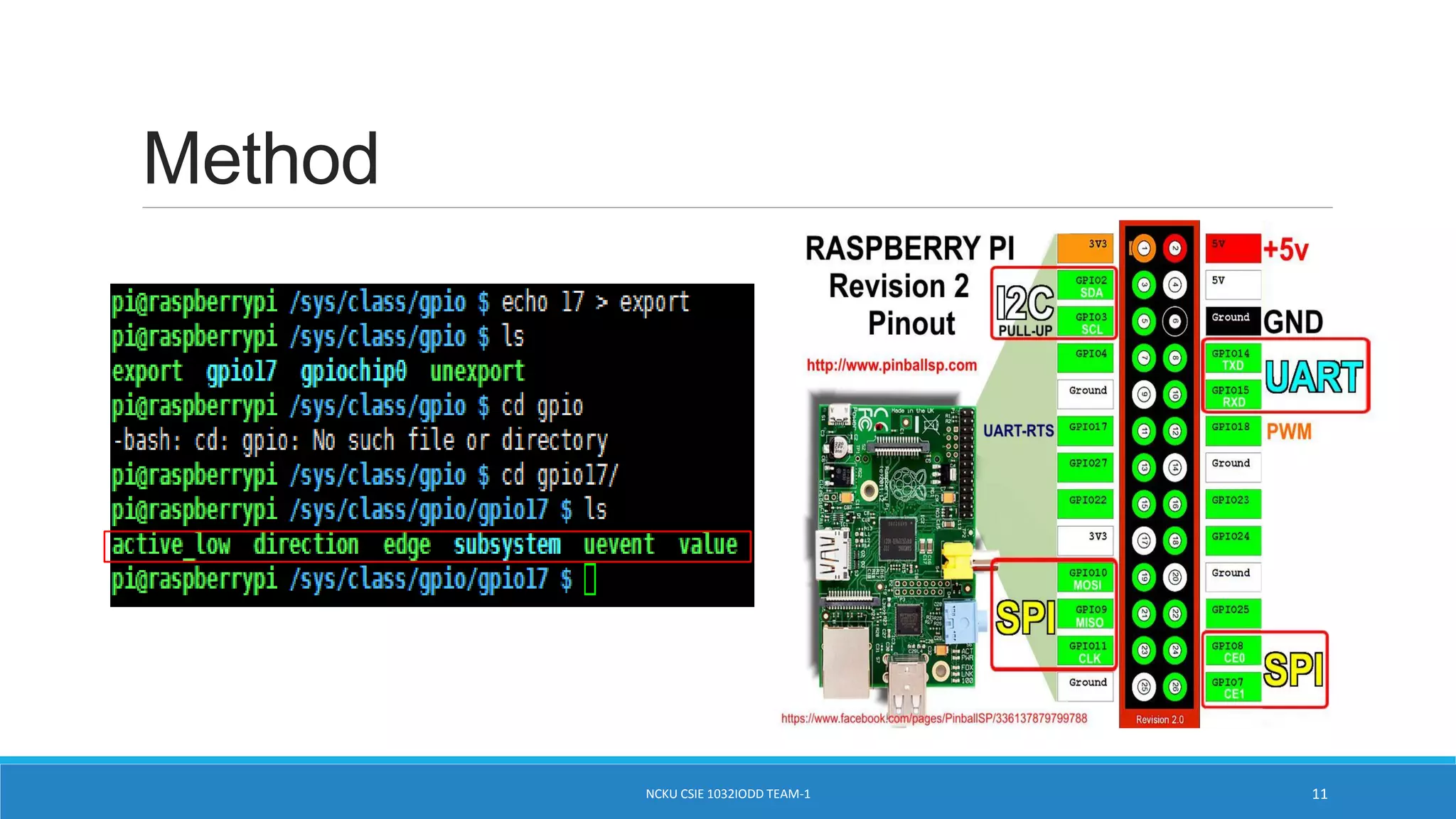

11. Method
11NCKU CSIE 1032IODD TEAM-1

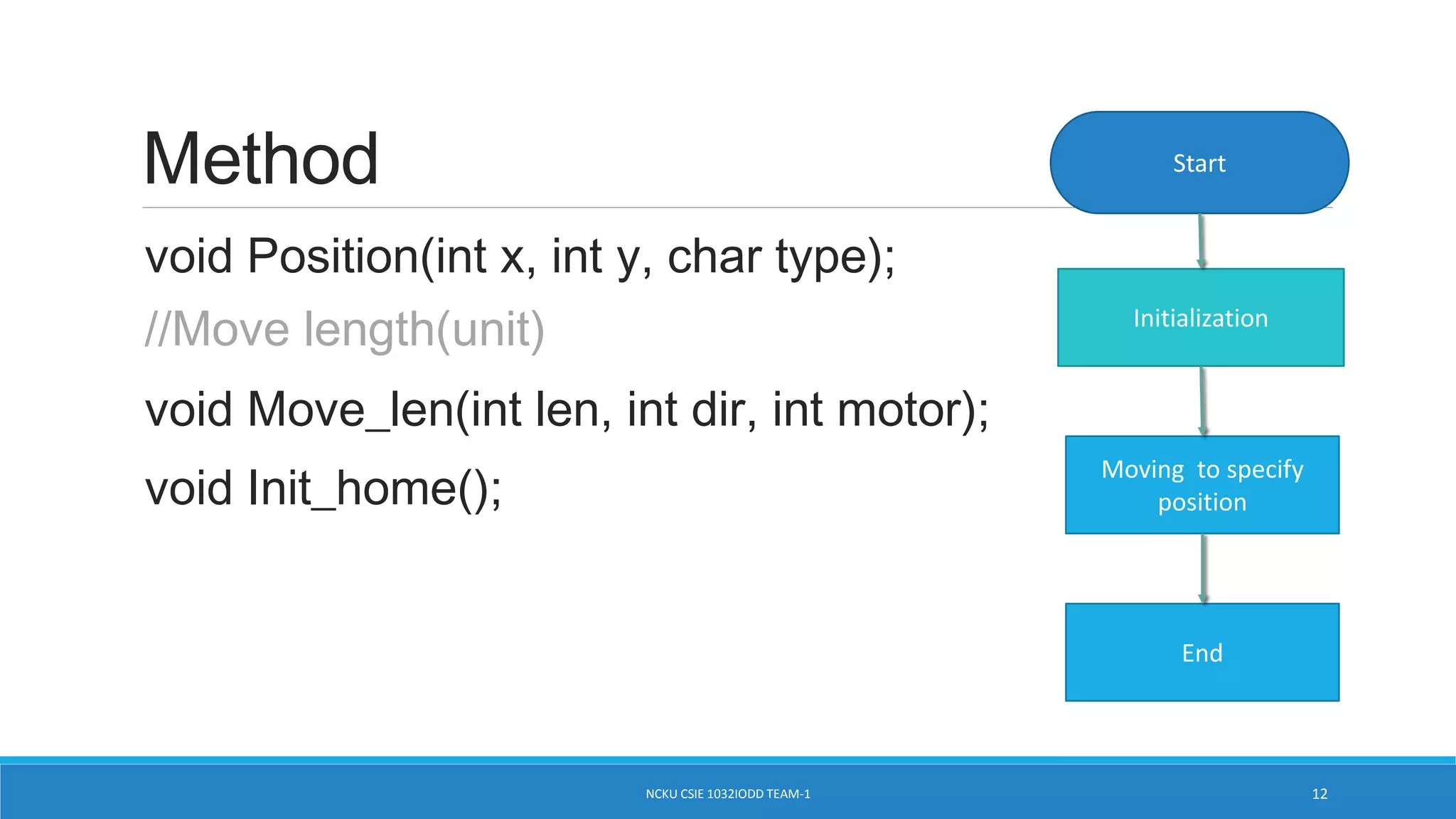

12. Method
void Position(int x, int y, char type);
//Move length(unit)
void Move_len(int len, int dir, int motor);
void Init_home();
Start
Moving to specify
position
Initialization
12
End
NCKU CSIE 1032IODD TEAM-1

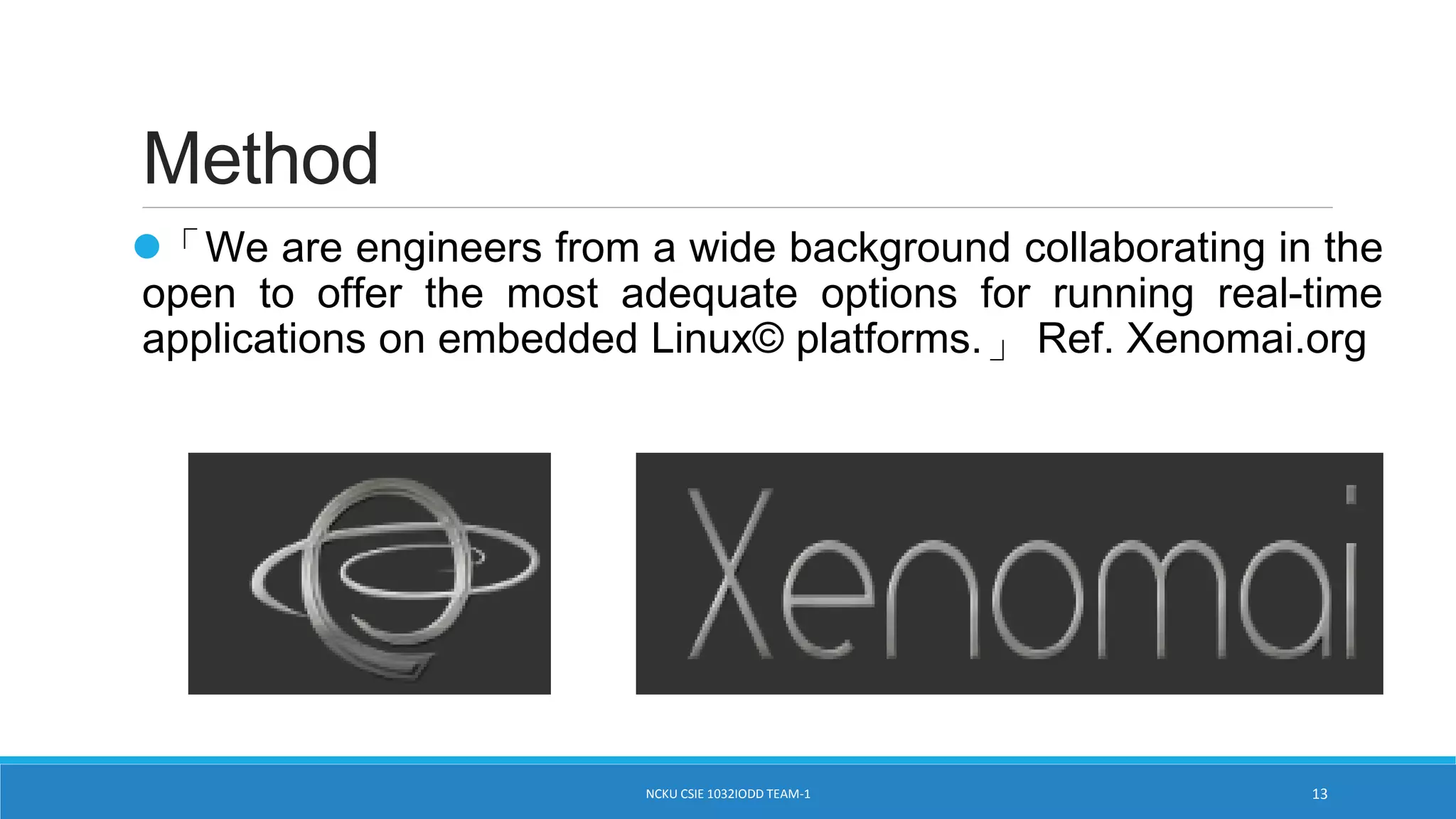

13. Method
「We are engineers from a wide background collaborating in the
open to offer the most adequate options for running real-time
applications on embedded Linux© platforms.」 Ref. Xenomai.org
13NCKU CSIE 1032IODD TEAM-1

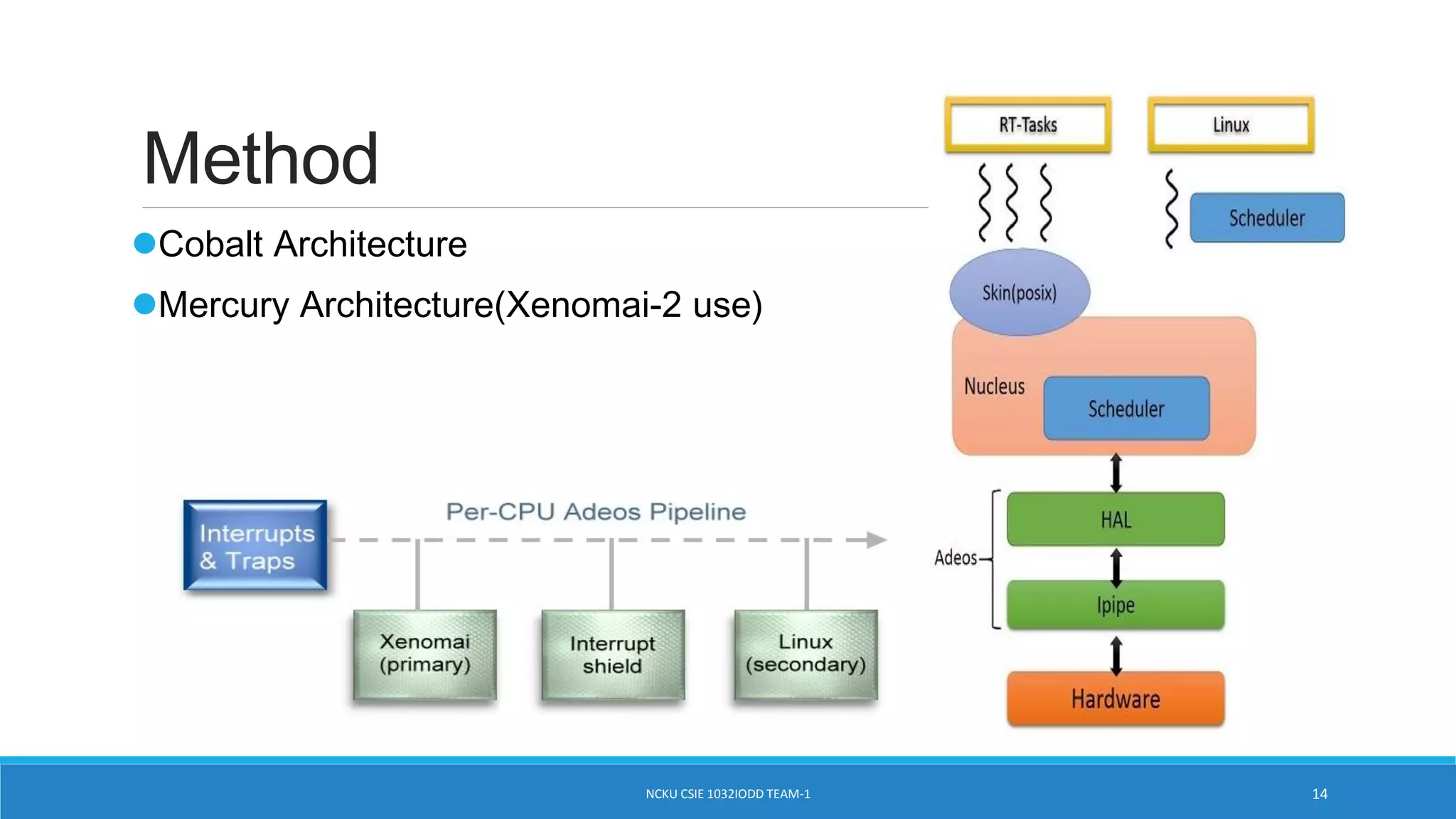

14. Method
Cobalt Architecture
Mercury Architecture(Xenomai-2 use)
14NCKU CSIE 1032IODD TEAM-1

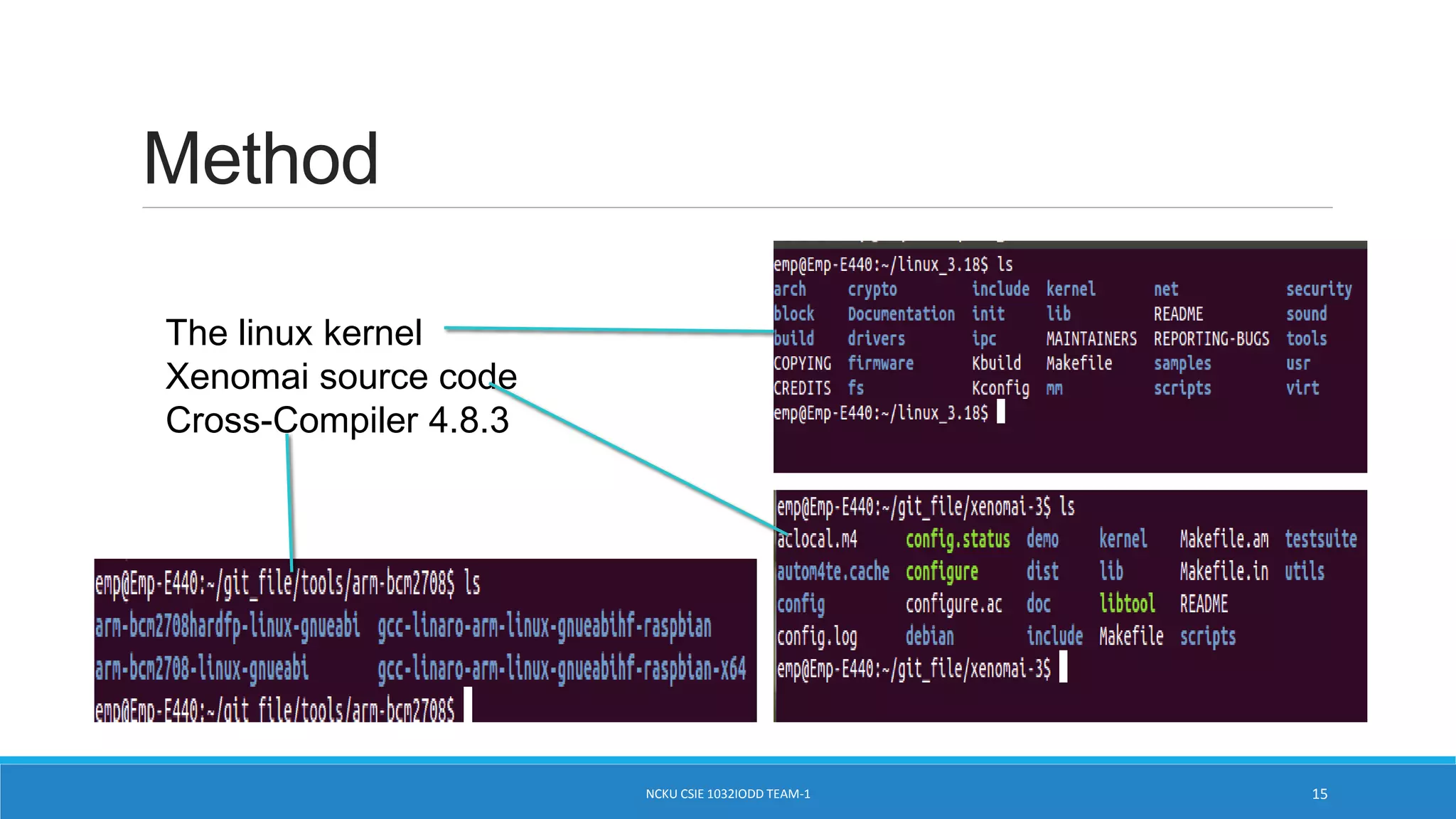

15. Method
The linux kernel
Xenomai source code
Cross-Compiler 4.8.3
15NCKU CSIE 1032IODD TEAM-1

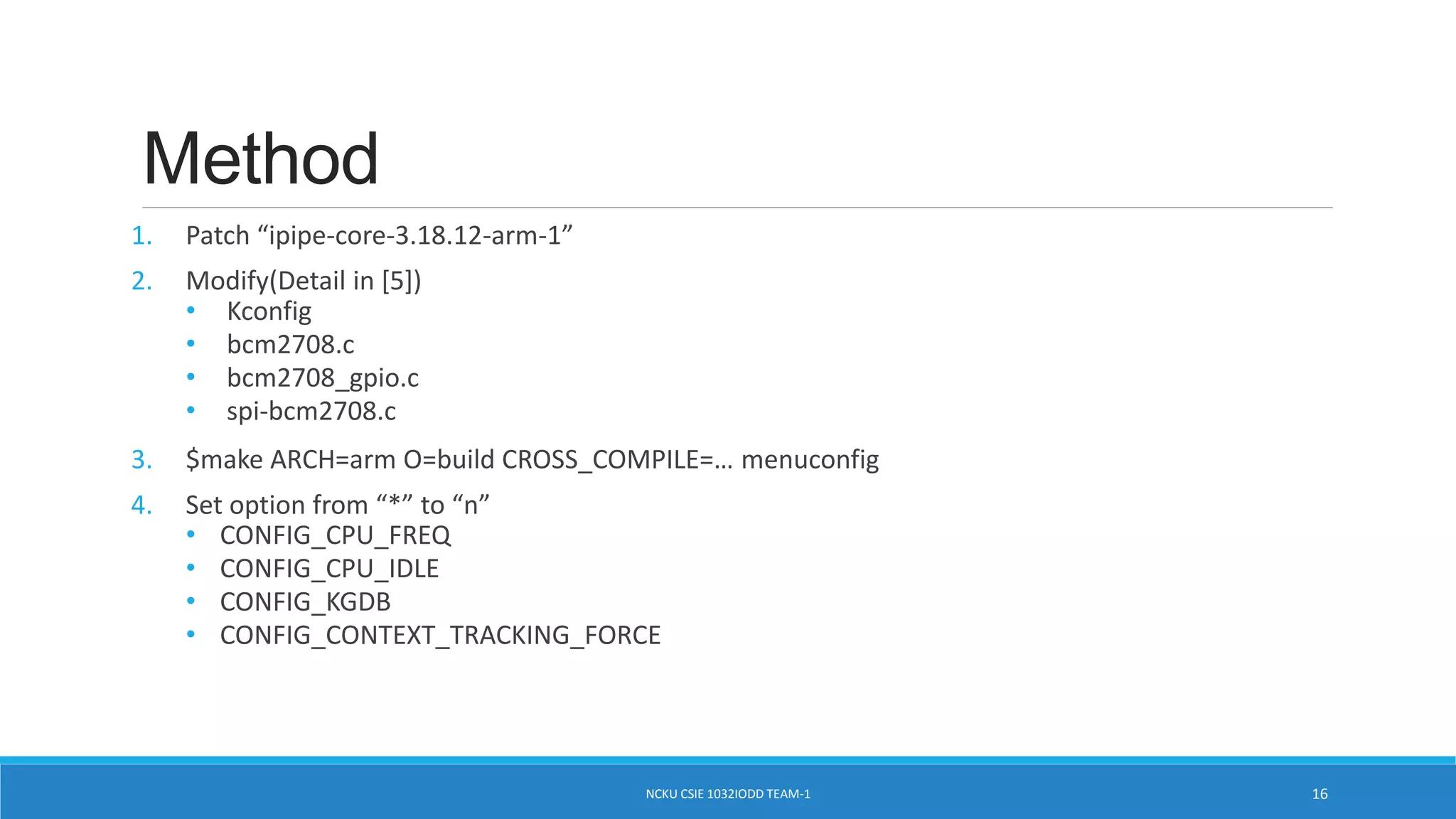

16. Method
1. Patch “ipipe-core-3.18.12-arm-1”
2. Modify(Detail in [5])
• Kconfig
• bcm2708.c
• bcm2708_gpio.c
• spi-bcm2708.c
3. $make ARCH=arm O=build CROSS_COMPILE=… menuconfig
4. Set option from “*” to “n”
• CONFIG_CPU_FREQ
• CONFIG_CPU_IDLE
• CONFIG_KGDB
• CONFIG_CONTEXT_TRACKING_FORCE
16NCKU CSIE 1032IODD TEAM-1

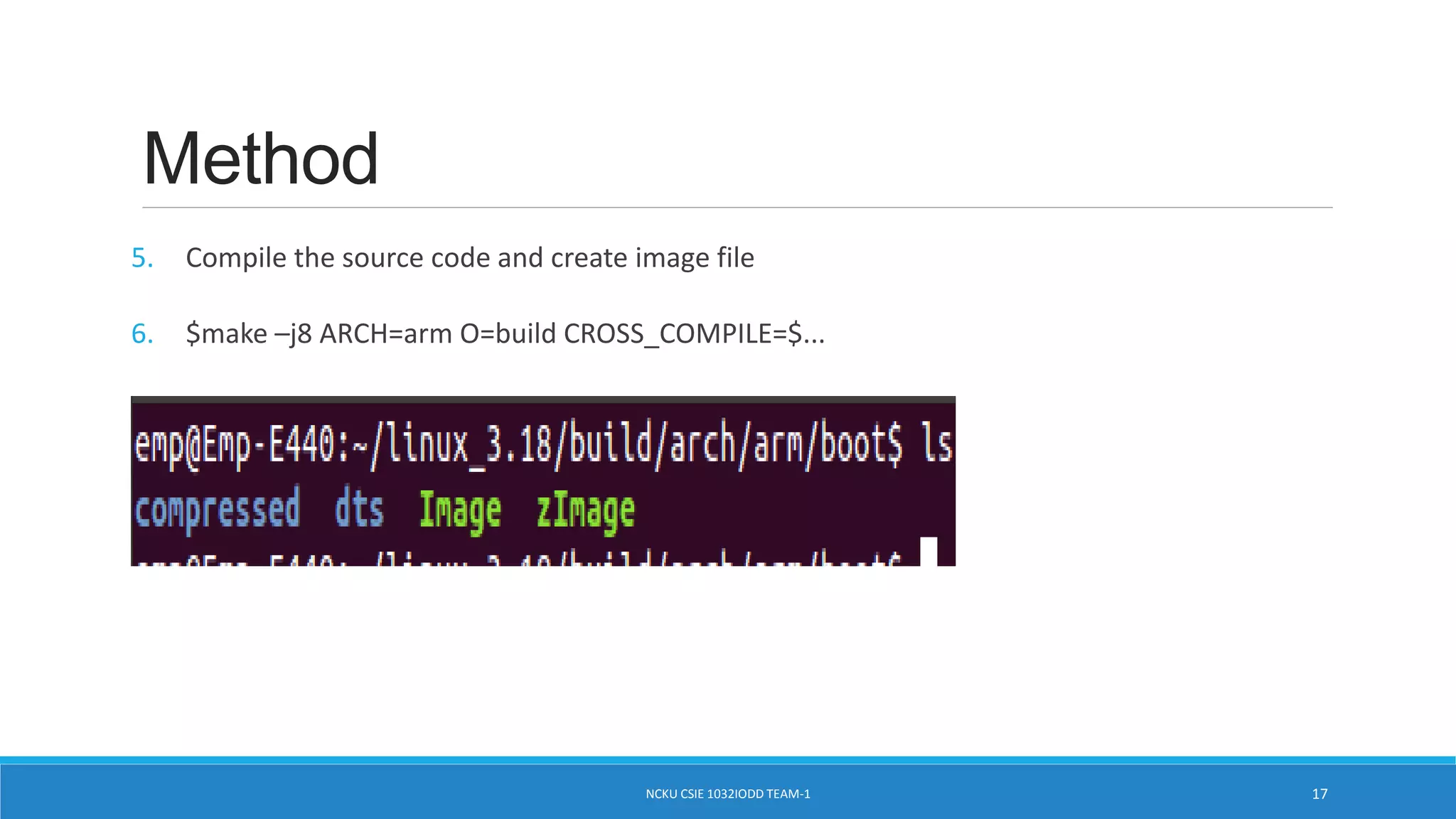

17. Method
5. Compile the source code and create image file
6. $make –j8 ARCH=arm O=build CROSS_COMPILE=$...
17NCKU CSIE 1032IODD TEAM-1

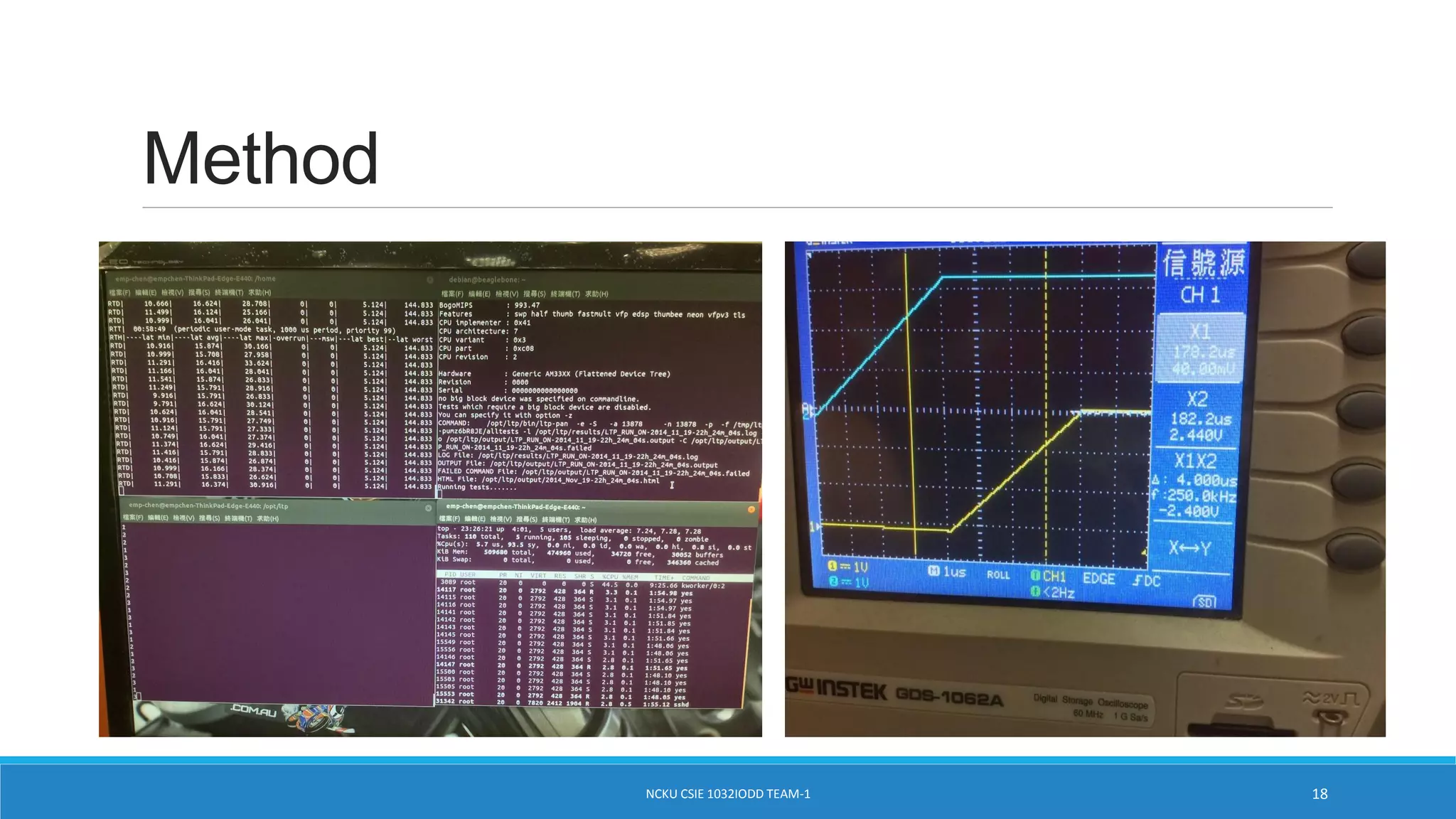

18. Method
18NCKU CSIE 1032IODD TEAM-1

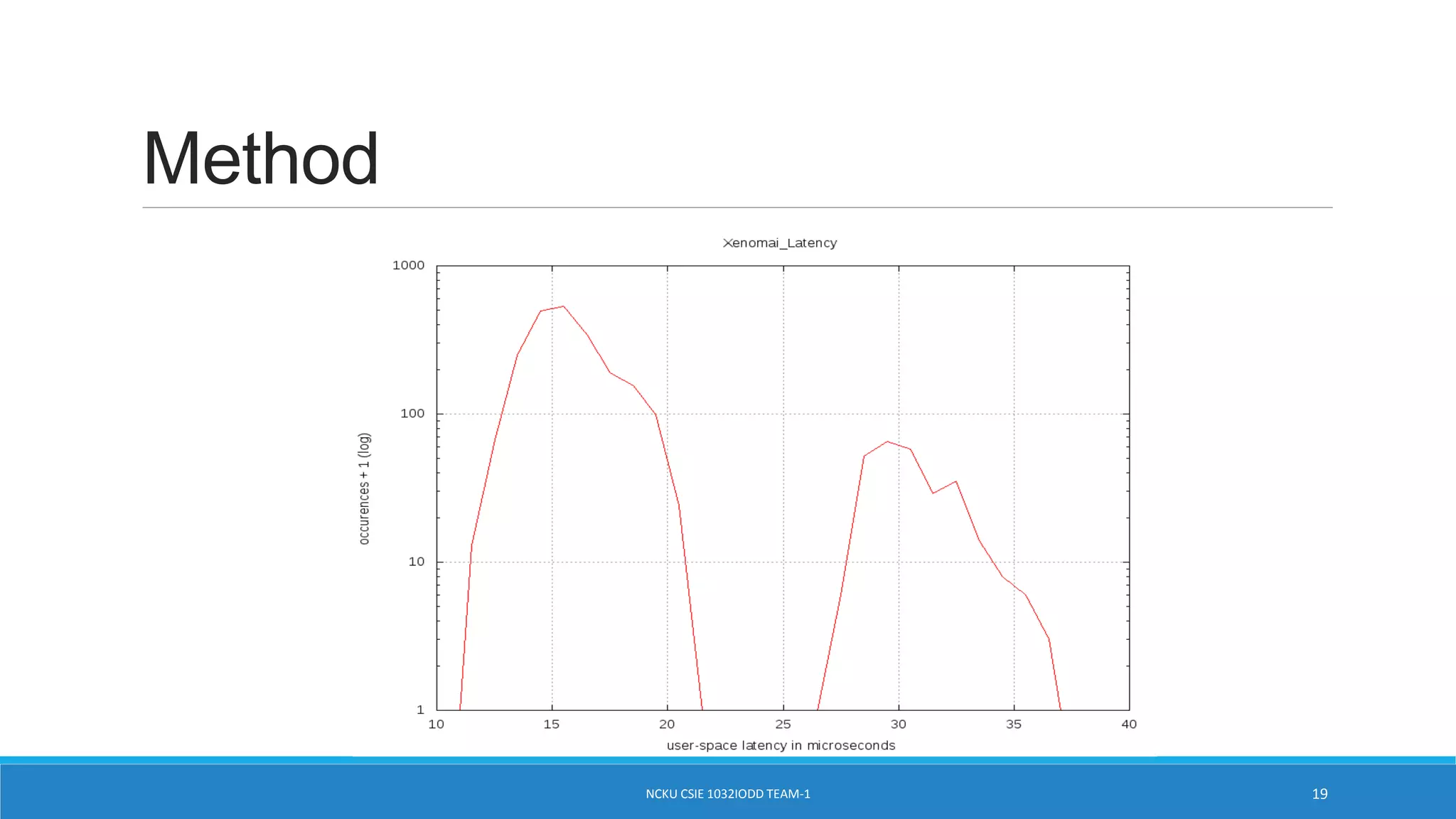

19. Method
19NCKU CSIE 1032IODD TEAM-1

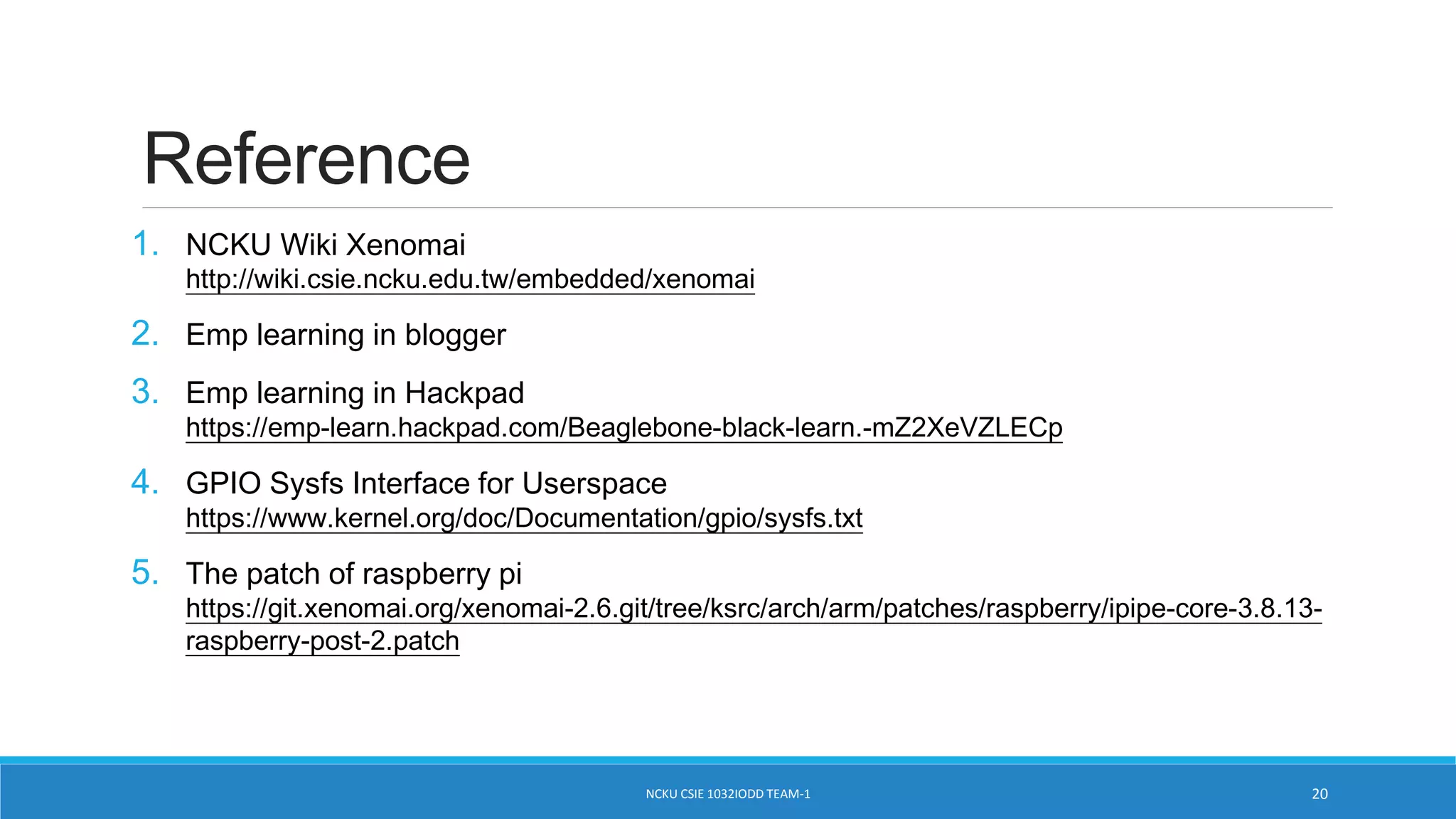

20. Reference
1. NCKU Wiki Xenomai
http://wiki.csie.ncku.edu.tw/embedded/xenomai
2. Emp learning in blogger
3. Emp learning in Hackpad
https://emp-learn.hackpad.com/Beaglebone-black-learn.-mZ2XeVZLECp
4. GPIO Sysfs Interface for Userspace
https://www.kernel.org/doc/Documentation/gpio/sysfs.txt
5. The patch of raspberry pi
https://git.xenomai.org/xenomai-2.6.git/tree/ksrc/arch/arm/patches/raspberry/ipipe-core-3.8.13-
raspberry-post-2.patch
20NCKU CSIE 1032IODD TEAM-1

21. NCKU CSIE 1032IODD TEAM-1 21
