1
STM 32 Networking
●Course Title: Embedded Systems & IoT
●Course Code: CSE233
PREPARED BY:
Muha. Humayet Islam
Lecturer, Dept. of CSE, DIU
CSE233@DIU, SPRING 2025
2
 Overview of STM32
 STM32 Development Environment
 Setting up the First STM32 Project
 STM32 Microcontroller Architecture
 Interrupts in STM32
 STM32 Peripherals and Communication Protocols
 Power Management and Low-Power Modes
 Debugging and Troubleshooting

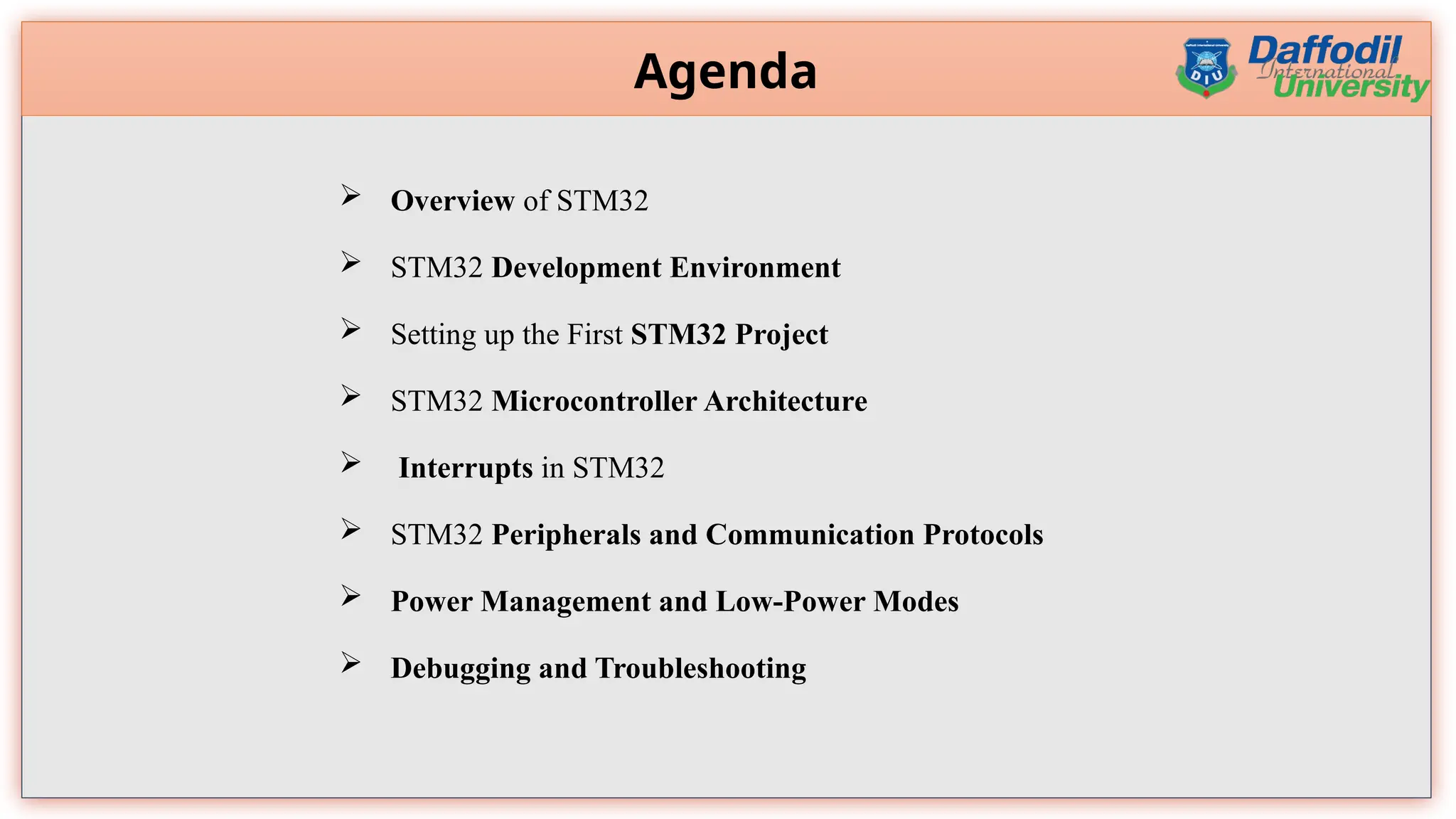

Agenda
3
Overview of STM32
STM32 is a family of 32-bit microcontrollers from
STMicroelectronics, based on ARM Cortex-M cores.
It includes various series like
• STM32F0 (entry-level),
• STM32F4 (high-performance),
• STM32L (low-power), and others.
STM32 offers a wide range of peripherals, power
management features, and processing power,
making it suitable for embedded applications.
4

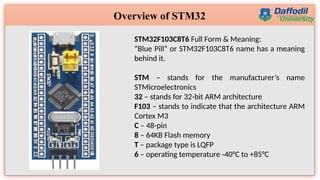

Overview of STM32
STM32F103C8T6 Full Form & Meaning:
“Blue Pill” or STM32F103C8T6 name has a meaning
behind it.
STM – stands for the manufacturer’s name
STMicroelectronics
32 – stands for 32-bit ARM architecture
F103 – stands to indicate that the architecture ARM
Cortex M3
C – 48-pin
8 – 64KB Flash memory
T – package type is LQFP
6 – operating temperature -40°C to +85°C
5
STM32 Nucleo-64
• Supports Arduino and ST morpho connectivity
• ARDUINO®
Uno V3 expansion connector
• 32.768 kHz crystal oscillator
• 1 user and 1 reset push-buttons
• 24 MHz or 48 MHz HSE
• USB Type-C®, Micro-B, or Mini-B connector for the ST-
LINK
• CAN FD header
• Memories: 256kB Flash, 48kB RAM
6

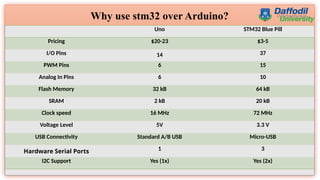

Why use stm32 over Arduino?
Uno STM32 Blue Pill
Pricing $20-23 $3-5
I/O Pins 14 37
PWM Pins 6 15
Analog In Pins 6 10
Flash Memory 32 kB 64 kB
SRAM 2 kB 20 kB
Clock speed 16 MHz 72 MHz
Voltage Level 5V 3.3 V
USB Connectivity Standard A/B USB Micro-USB
Hardware Serial Ports 1 3
I2C Support Yes (1x) Yes (2x)
7

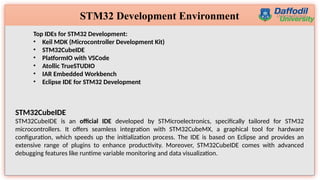

STM32 Development Environment
Top IDEs for STM32 Development:
• Keil MDK (Microcontroller Development Kit)
• STM32CubeIDE
• PlatformIO with VSCode
• Atollic TrueSTUDIO
• IAR Embedded Workbench
• Eclipse IDE for STM32 Development
STM32CubeIDE
STM32CubeIDE is an official IDE developed by STMicroelectronics, specifically tailored for STM32
microcontrollers. It offers seamless integration with STM32CubeMX, a graphical tool for hardware
configuration, which speeds up the initialization process. The IDE is based on Eclipse and provides an
extensive range of plugins to enhance productivity. Moreover, STM32CubeIDE comes with advanced
debugging features like runtime variable monitoring and data visualization.
8

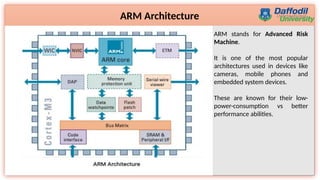

ARM Architecture
ARM stands for Advanced Risk
Machine.
It is one of the most popular
architectures used in devices like
cameras, mobile phones and
embedded system devices.
These are known for their low-
power-consumption vs better
performance abilities.
9
STM32 project to blink an LED
while (1)
{
// Toggle the LED
HAL_GPIO_TogglePin(GPIOC, GPIO_PIN_13);
// Wait for 500 ms
HAL_Delay(500);
}
10

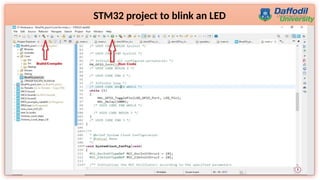

STM32 project to blink an LED
11

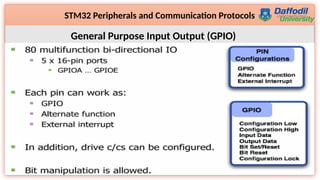

STM32 Peripherals and Communication Protocols
General Purpose Input Output (GPIO)
12
STM32 Peripherals and Communication Protocols
GPIO Configuration Mode
13
STM32 Peripherals and Communication Protocols
Dual Configuration Mode
14

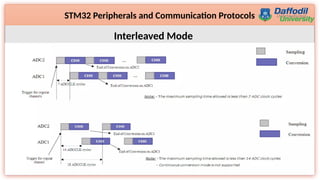

STM32 Peripherals and Communication Protocols
Interleaved Mode
15
STM32 Peripherals and Communication Protocols
Timers
16

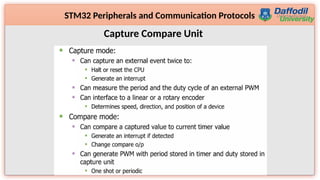

STM32 Peripherals and Communication Protocols
Capture Compare Unit
17

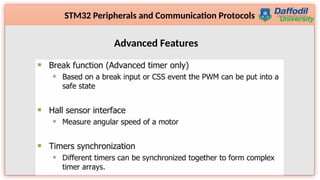

STM32 Peripherals and Communication Protocols
Advanced Features
18
STM32 Peripherals and Communication Protocols
RTC & Backup Registers
19
STM32 Peripherals and Communication Protocols
Serial Peripheral Interface
20

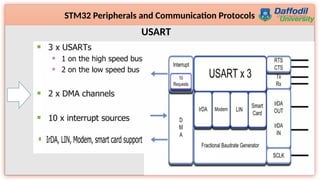

STM32 Peripherals and Communication Protocols
USART
21

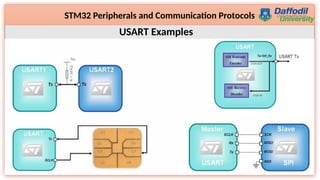

STM32 Peripherals and Communication Protocols
USART Examples
22

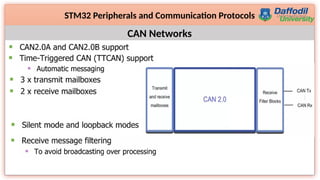

STM32 Peripherals and Communication Protocols
CAN Networks
23
Power Management and Low-Power Modes
RUN Mode
24

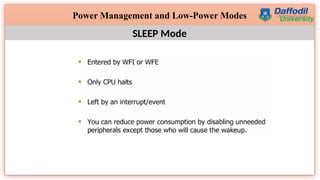

Power Management and Low-Power Modes
SLEEP Mode
25
Power Management and Low-Power Modes
STOP Mode
26

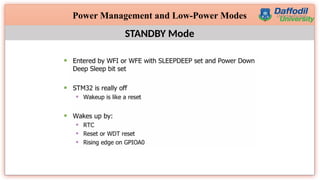

Power Management and Low-Power Modes
STANDBY Mode
