Start stop circuit
1. 1
2
3
1
1
1
2
5
3 4
4
[2,3]
K1
5
Start Stop
K1.1
K1.2
‘On’ Indicator
Lamp
‘Latch’ Contact
Coil
K1
5
K1
5S1 S2

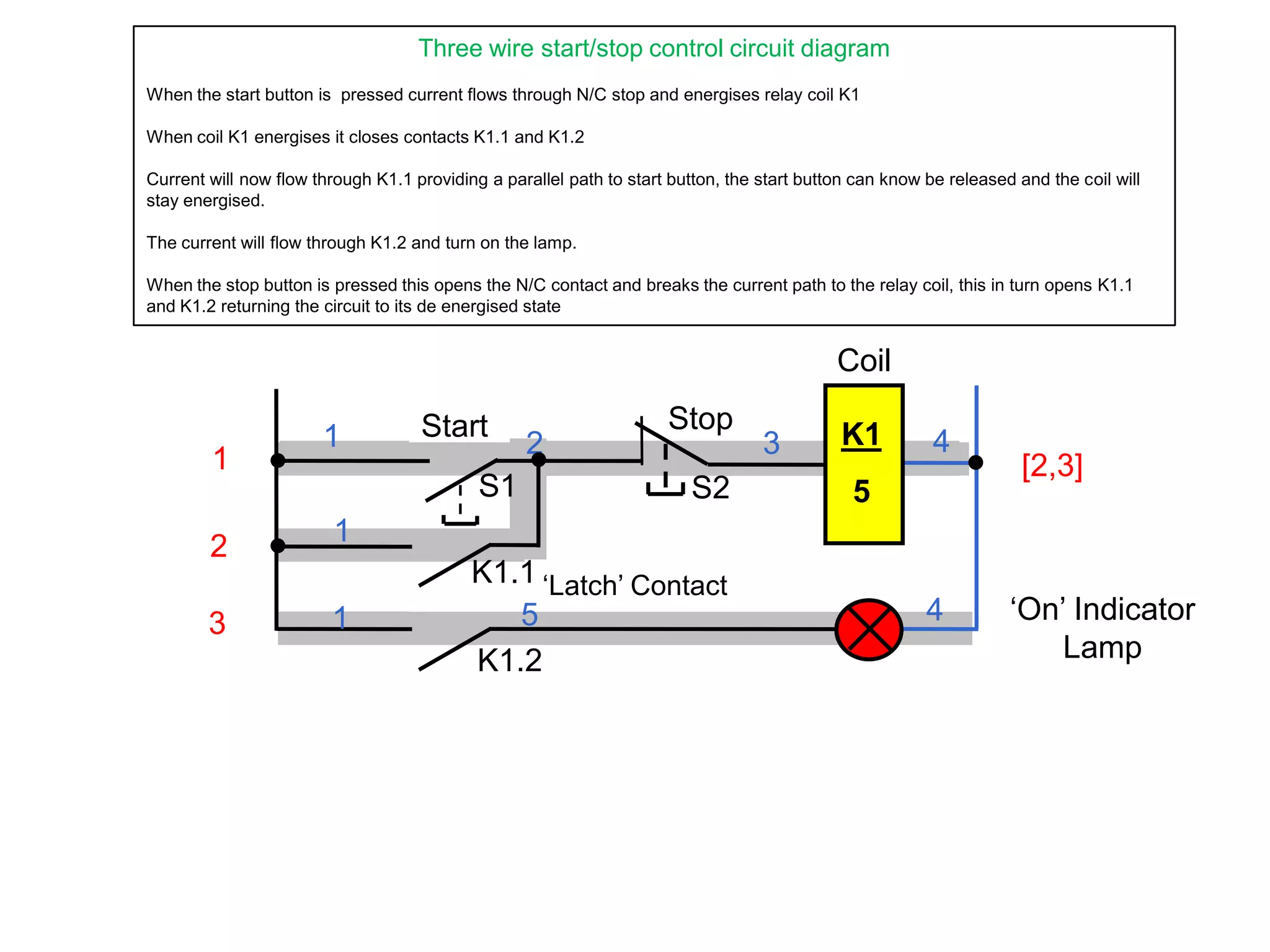

Three wire start/stop control circuit diagram
When the start button is pressed current flows through N/C stop and energises relay coil K1
When coil K1 energises it closes contacts K1.1 and K1.2
Current will now flow through K1.1 providing a parallel path to start button, the start button can know be released and the coil will
stay energised.
The current will flow through K1.2 and turn on the lamp.
When the stop button is pressed this opens the N/C contact and breaks the current path to the relay coil, this in turn opens K1.1
and K1.2 returning the circuit to its de energised state
