This document discusses the Spray framework for building RESTful web services on Akka in Scala. It describes Spray as a suite of libraries for building and consuming REST APIs on Akka in an asynchronous, non-blocking way using actors. The key components include tools for building server-side APIs with a routing DSL, a complementary HTTP client, low-level server and client functionality, and JSON serialization. Responsibilities of the API layer built with Spray include request routing, object marshalling, encoding/decoding, authentication, caching, and error handling. Routes are defined using directives that allow extracting parameters and concatenating routes.

1. REST on Akka

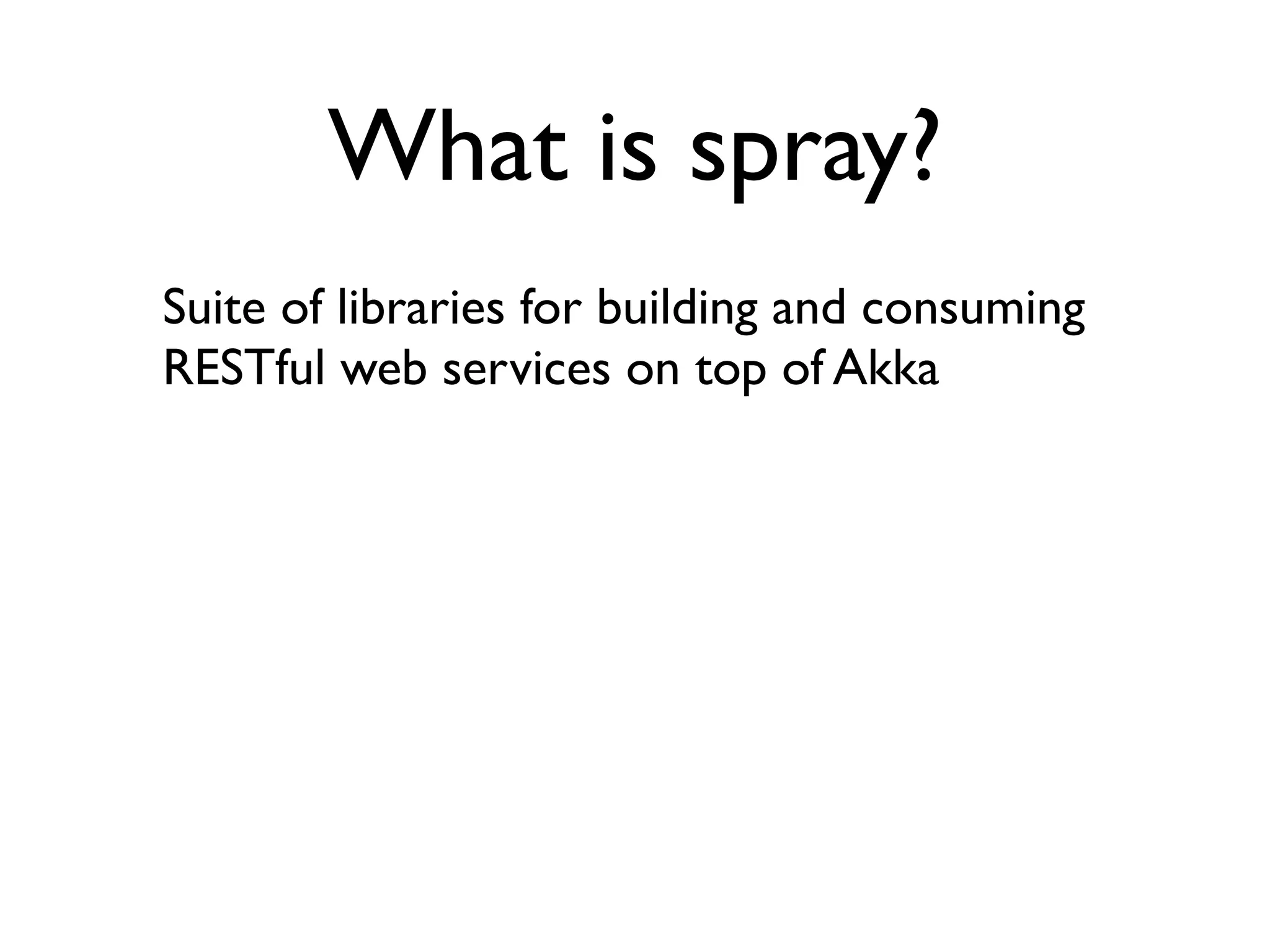

⇗ northeast scala symposium
March 9th, 2012

2. What is spray?

3. What is spray?
Suite of libraries for building and consuming
RESTful web services on top of Akka

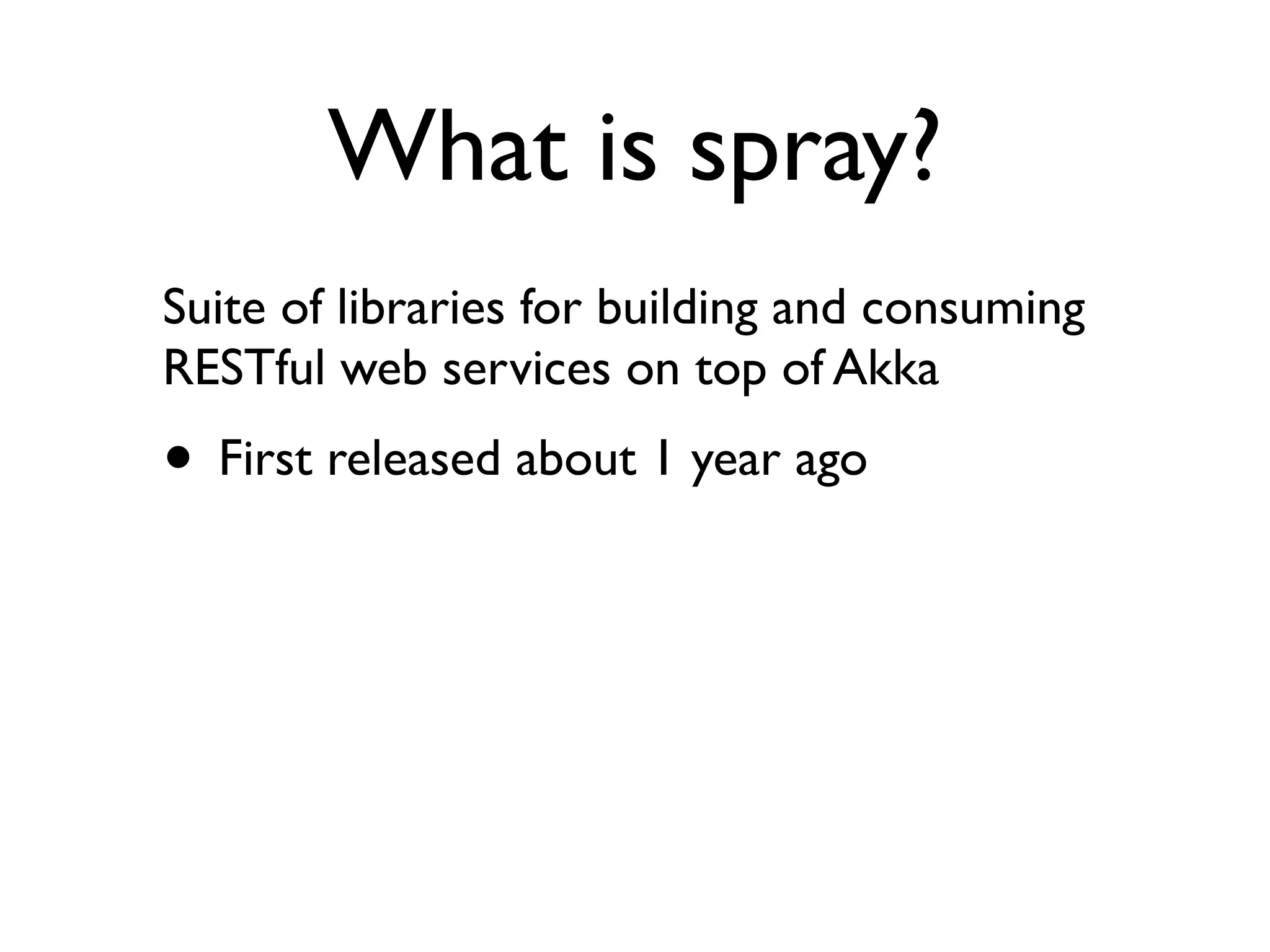

4. What is spray?
Suite of libraries for building and consuming
RESTful web services on top of Akka
• First released about 1 year ago

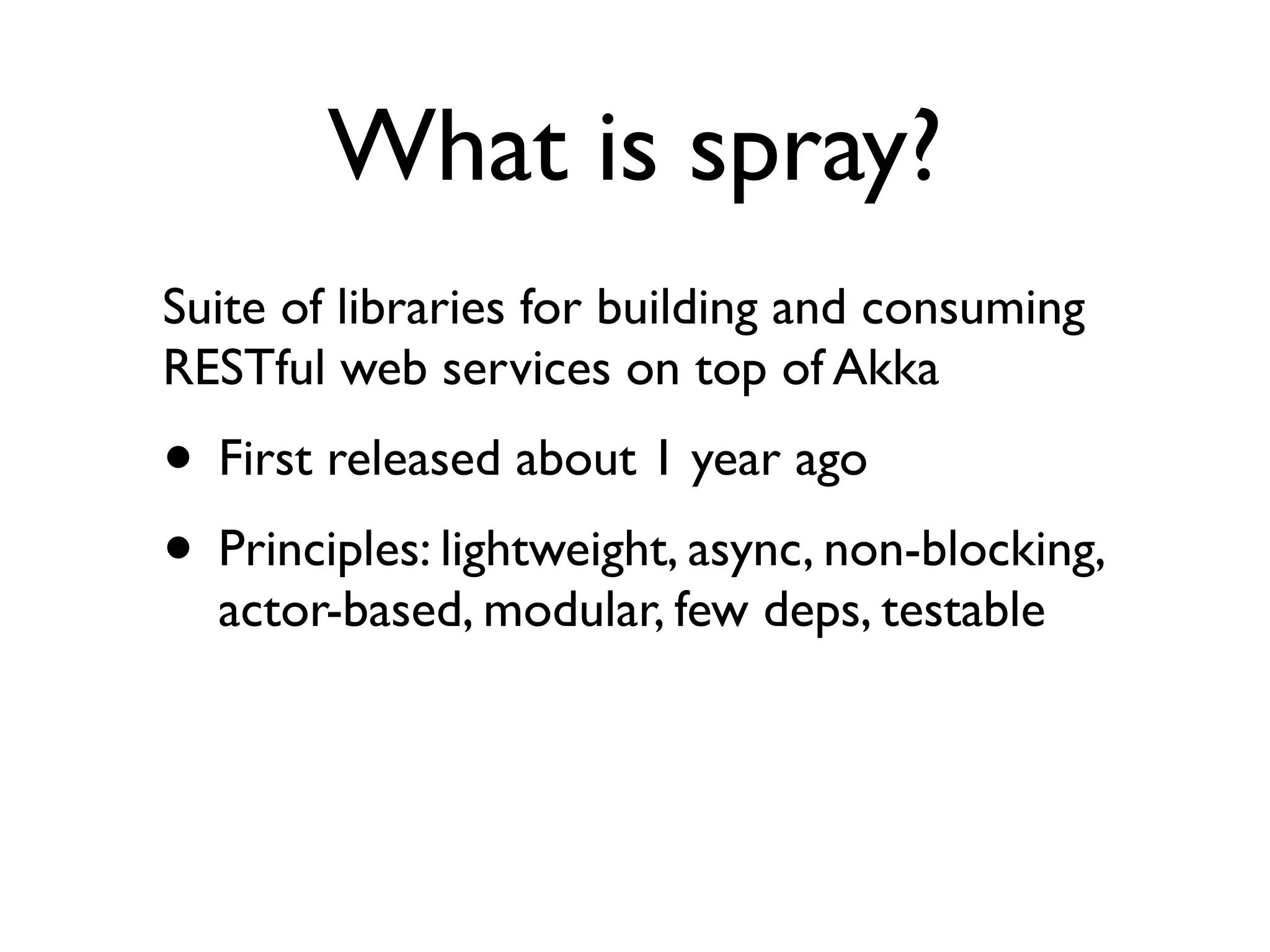

5. What is spray?
Suite of libraries for building and consuming
RESTful web services on top of Akka
• First released about 1 year ago
• Principles: lightweight, async, non-blocking,
actor-based, modular, few deps, testable

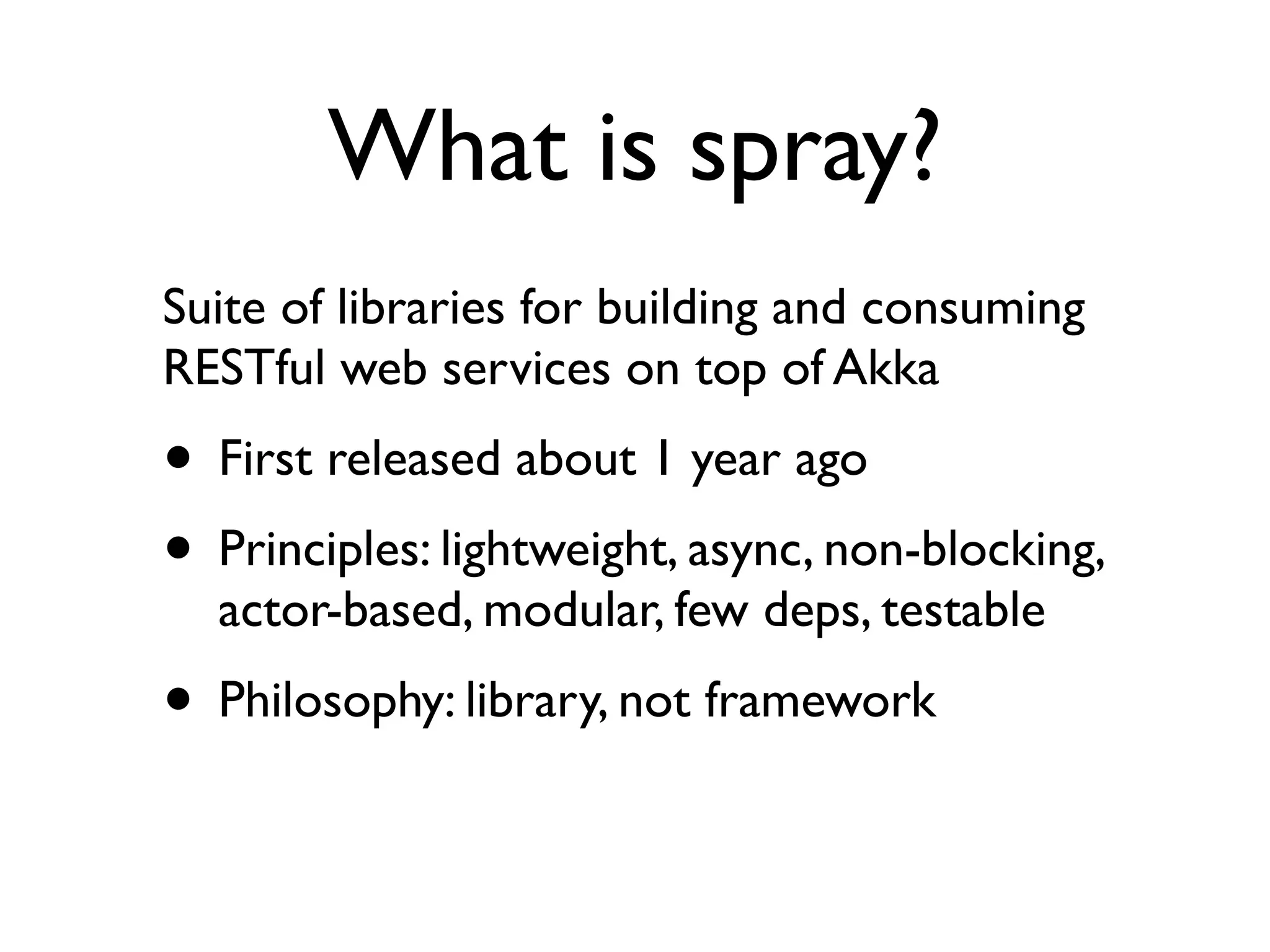

6. What is spray?
Suite of libraries for building and consuming
RESTful web services on top of Akka
• First released about 1 year ago
• Principles: lightweight, async, non-blocking,
actor-based, modular, few deps, testable
• Philosophy: library, not framework

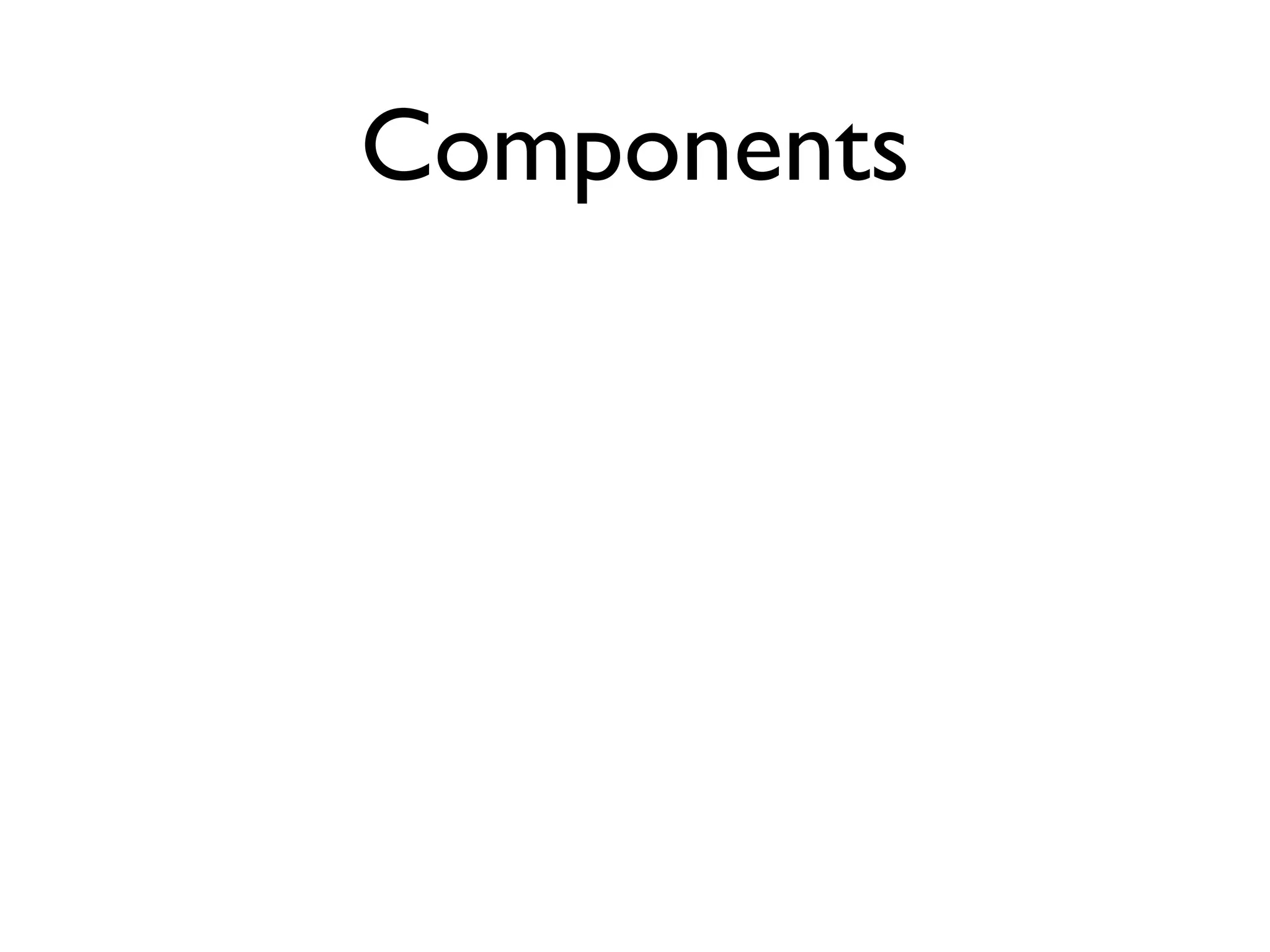

7. Components

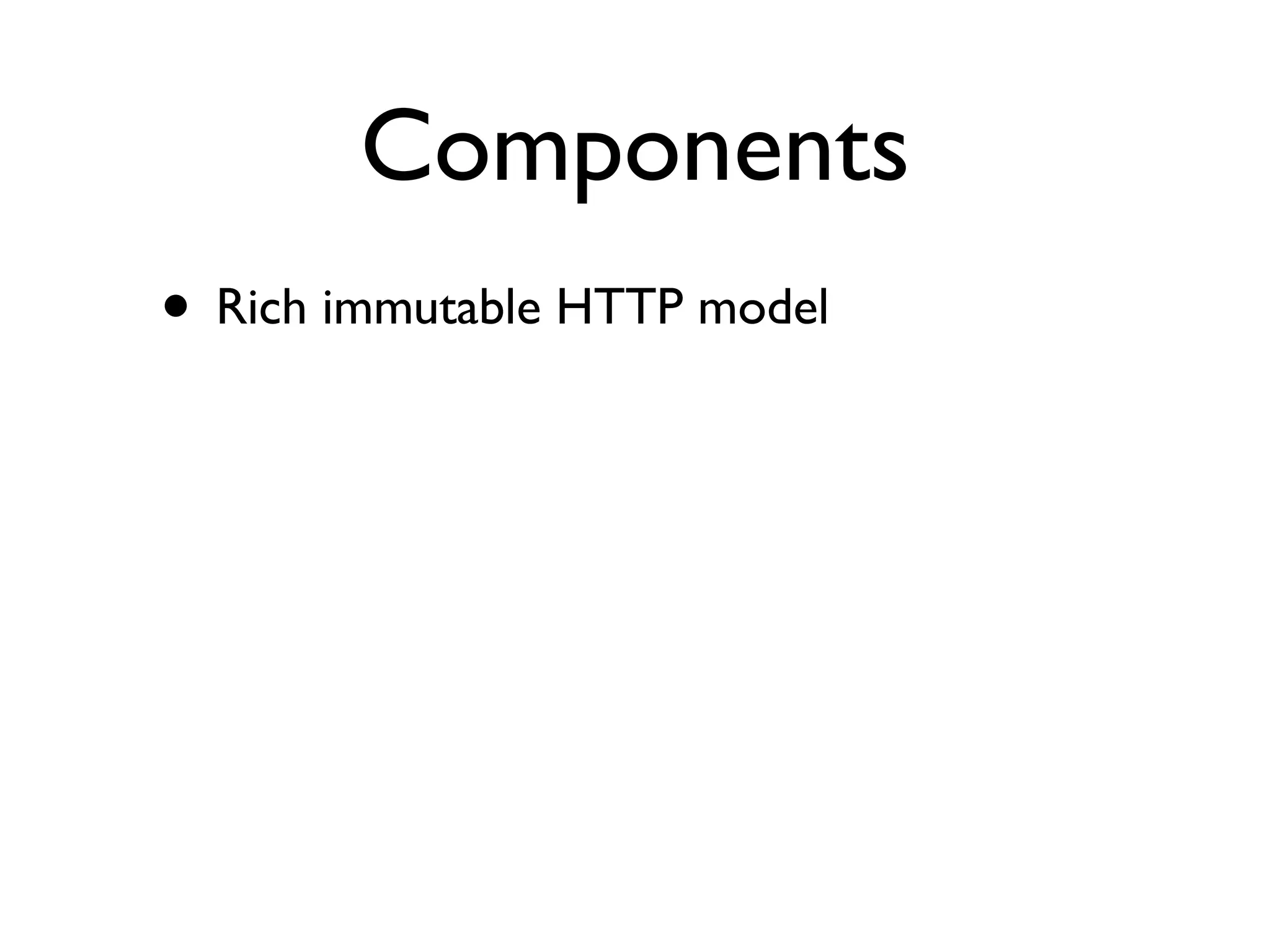

8. Components
• Rich immutable HTTP model

9. Components
• Rich immutable HTTP model
• spray-server:
DSL for server-side API construction

10. Components
• Rich immutable HTTP model
• spray-server:
DSL for server-side API construction
• spray-client: complementary HTTP client

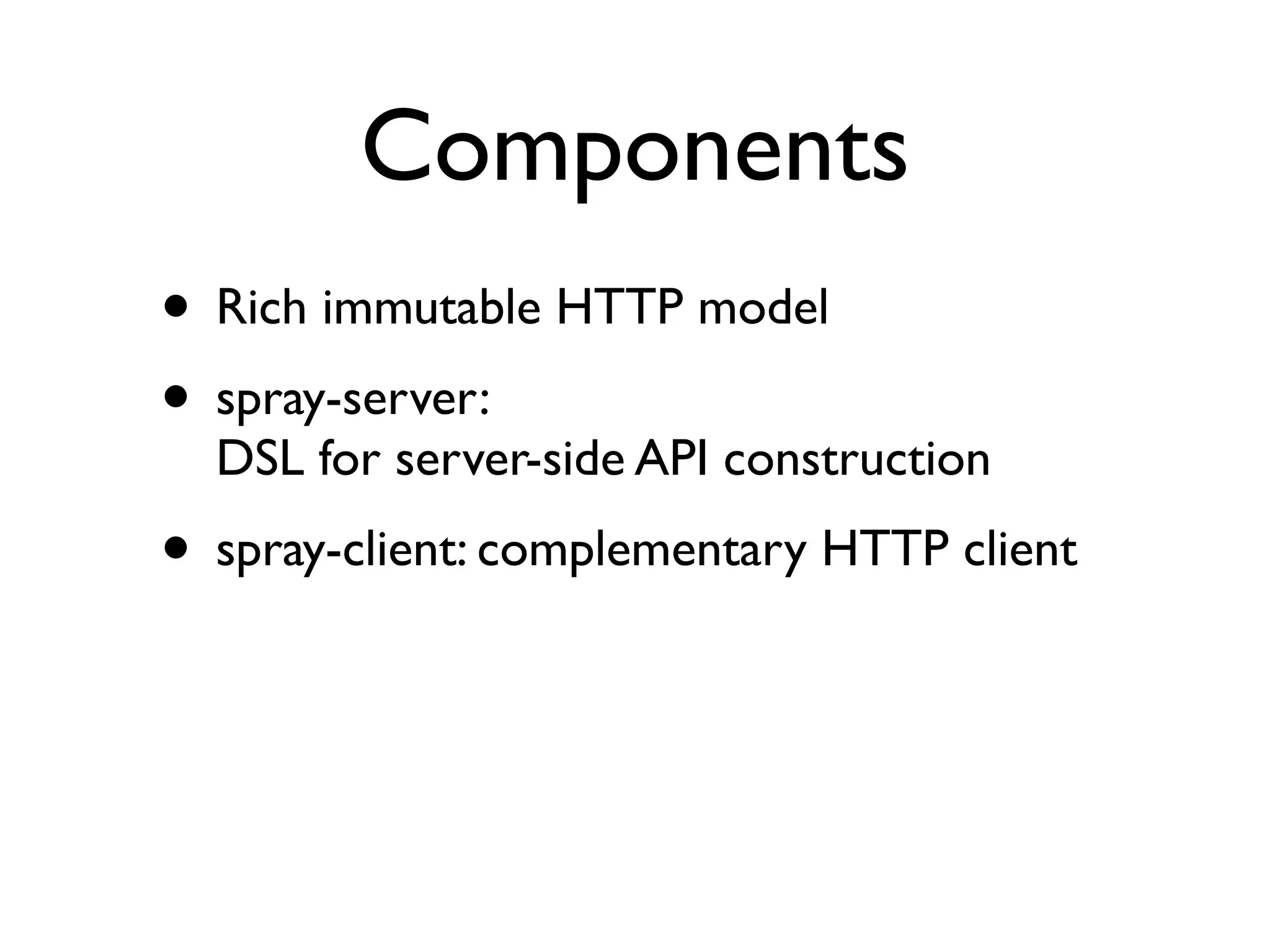

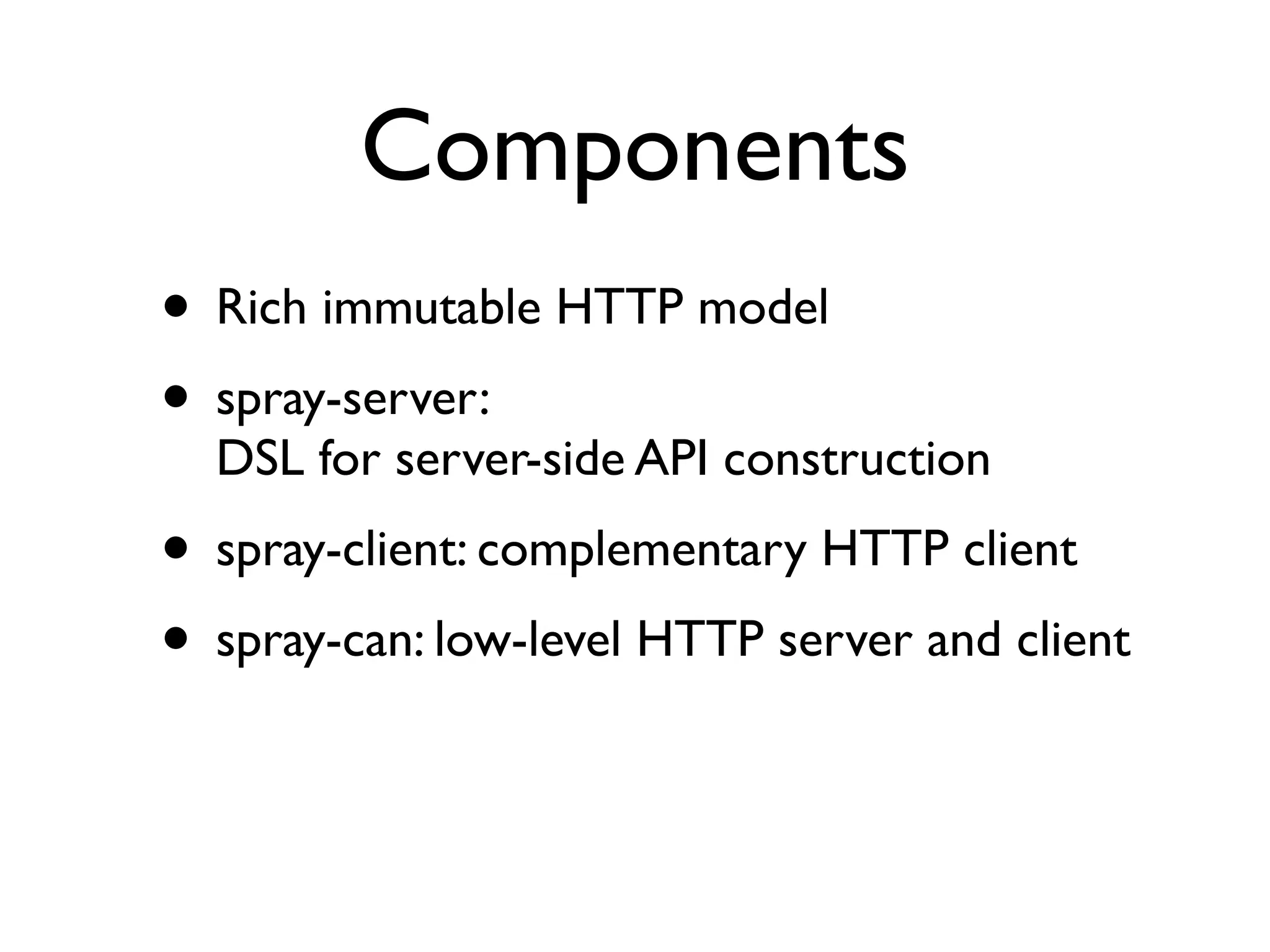

11. Components
• Rich immutable HTTP model
• spray-server:
DSL for server-side API construction
• spray-client: complementary HTTP client
• spray-can: low-level HTTP server and client

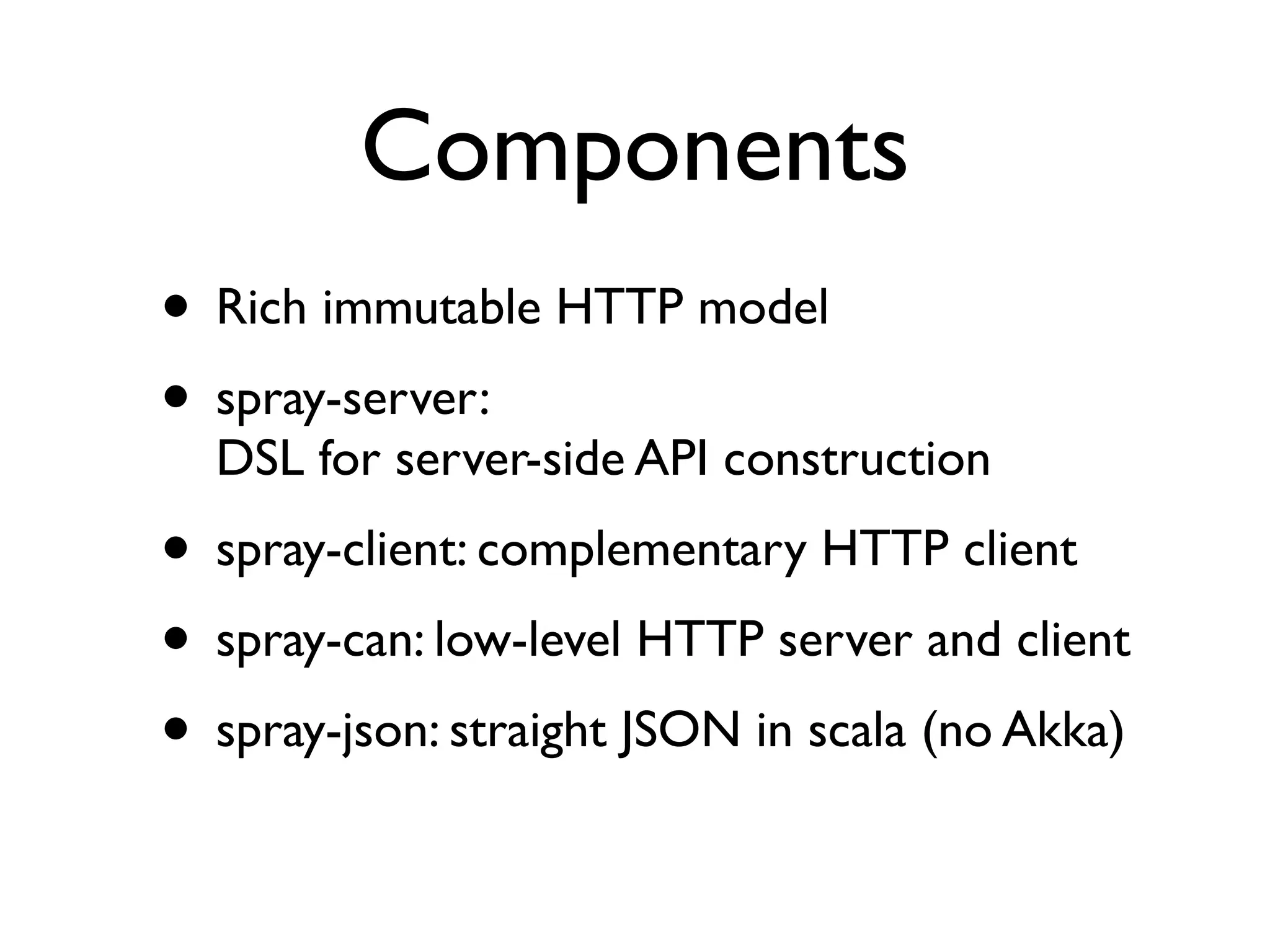

12. Components
• Rich immutable HTTP model
• spray-server:
DSL for server-side API construction
• spray-client: complementary HTTP client
• spray-can: low-level HTTP server and client
• spray-json: straight JSON in scala (no Akka)

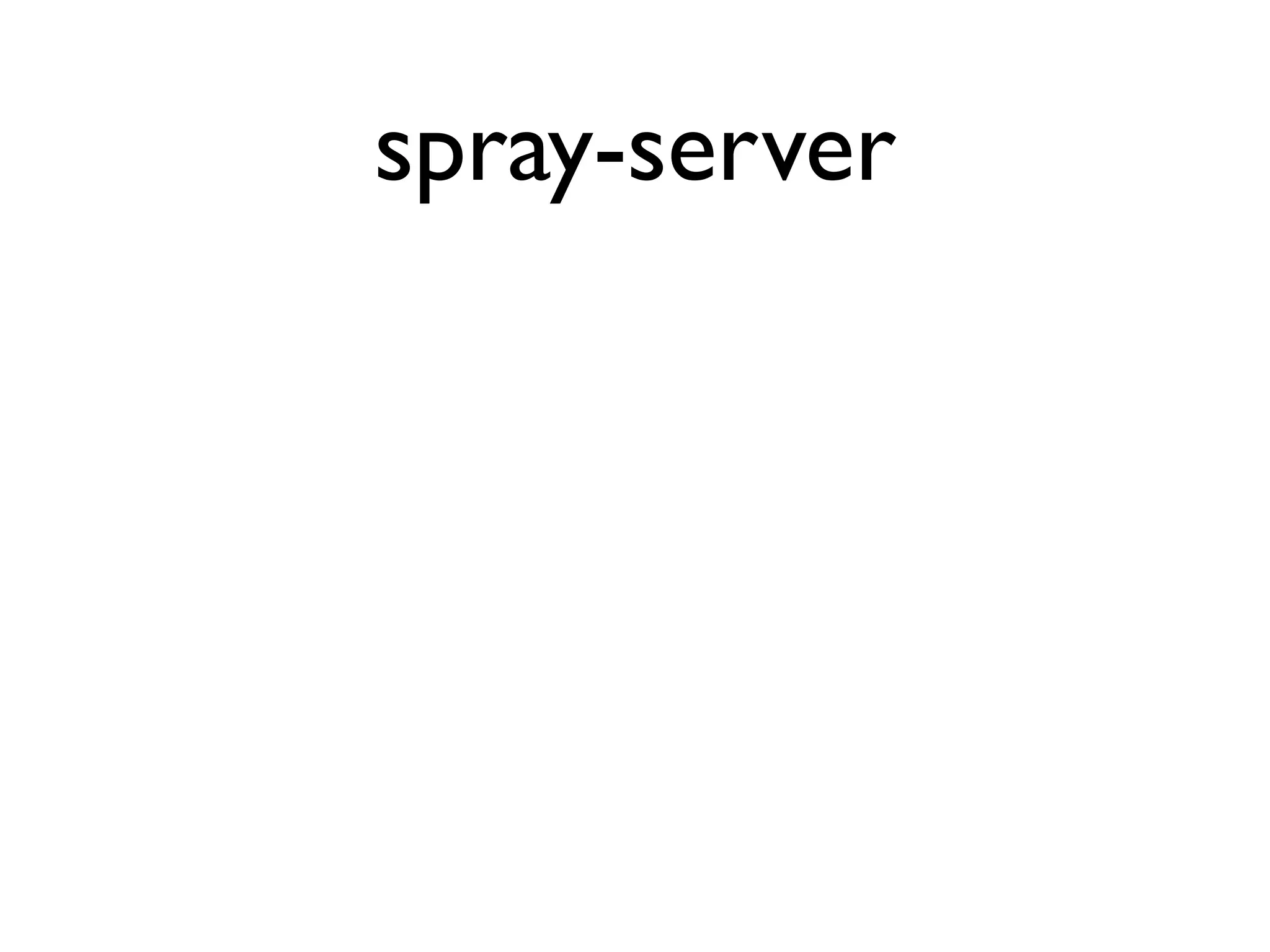

13. spray-server

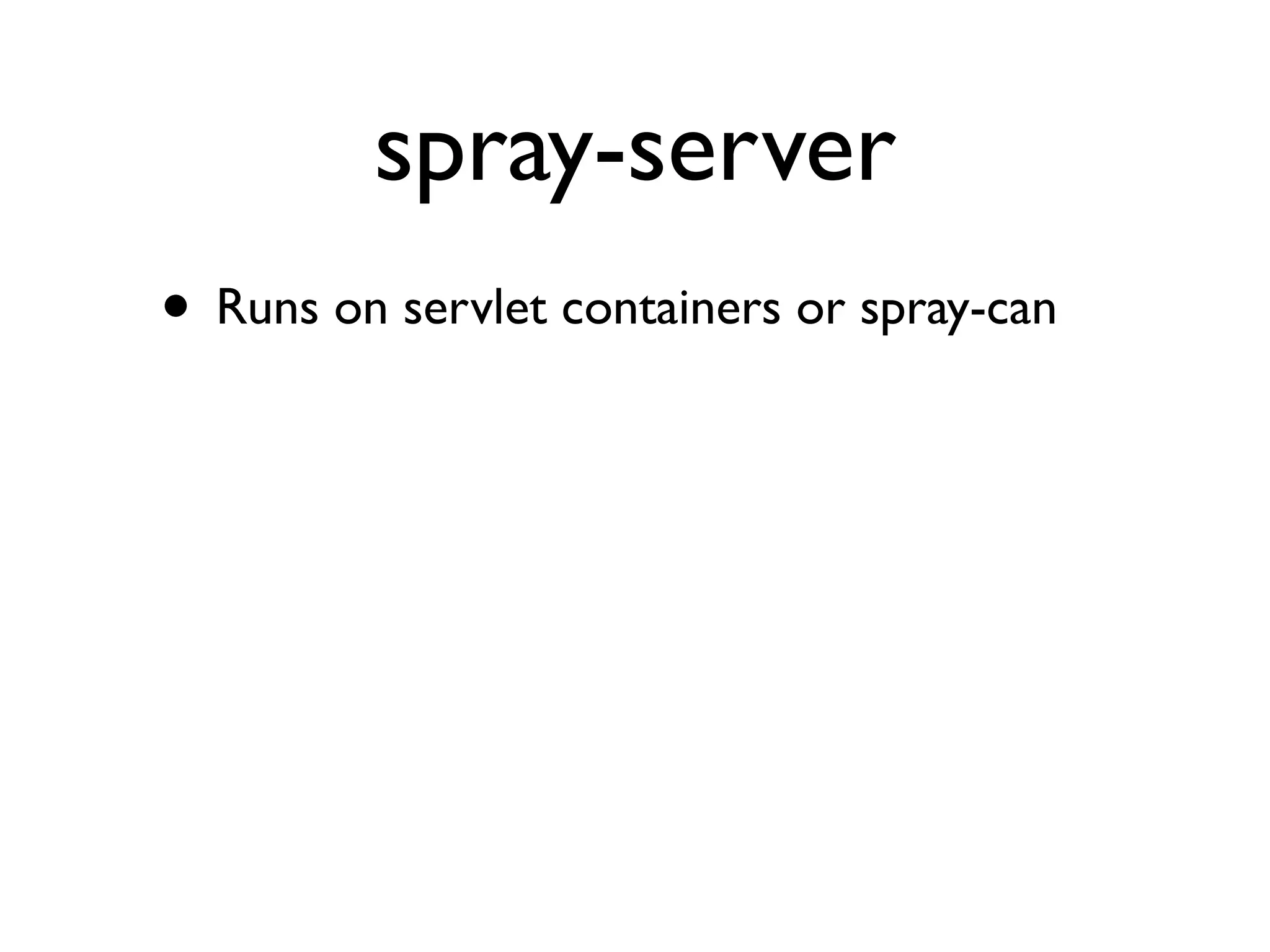

14. spray-server
• Runs on servlet containers or spray-can

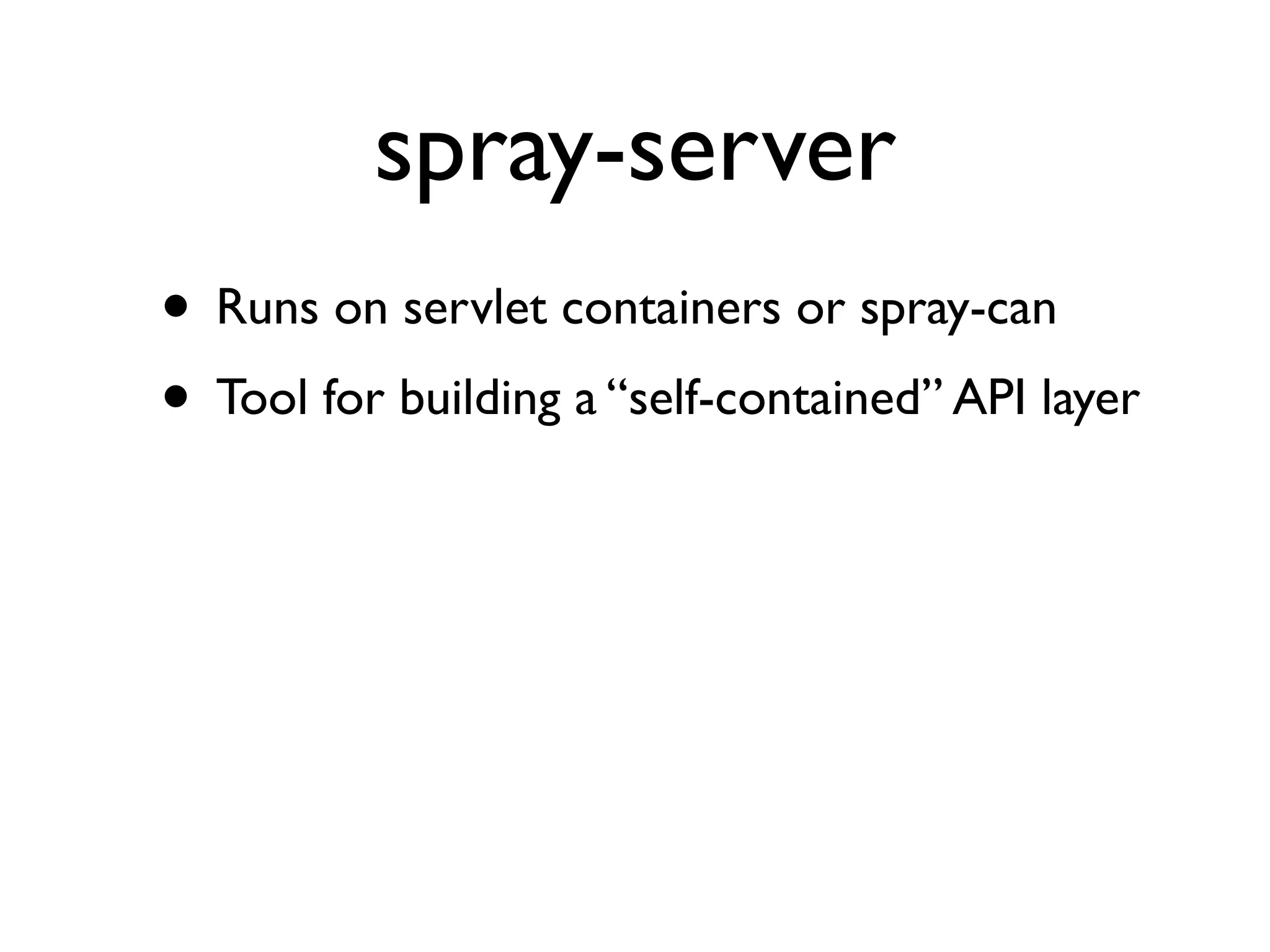

15. spray-server
• Runs on servlet containers or spray-can
• Tool for building a “self-contained” API layer

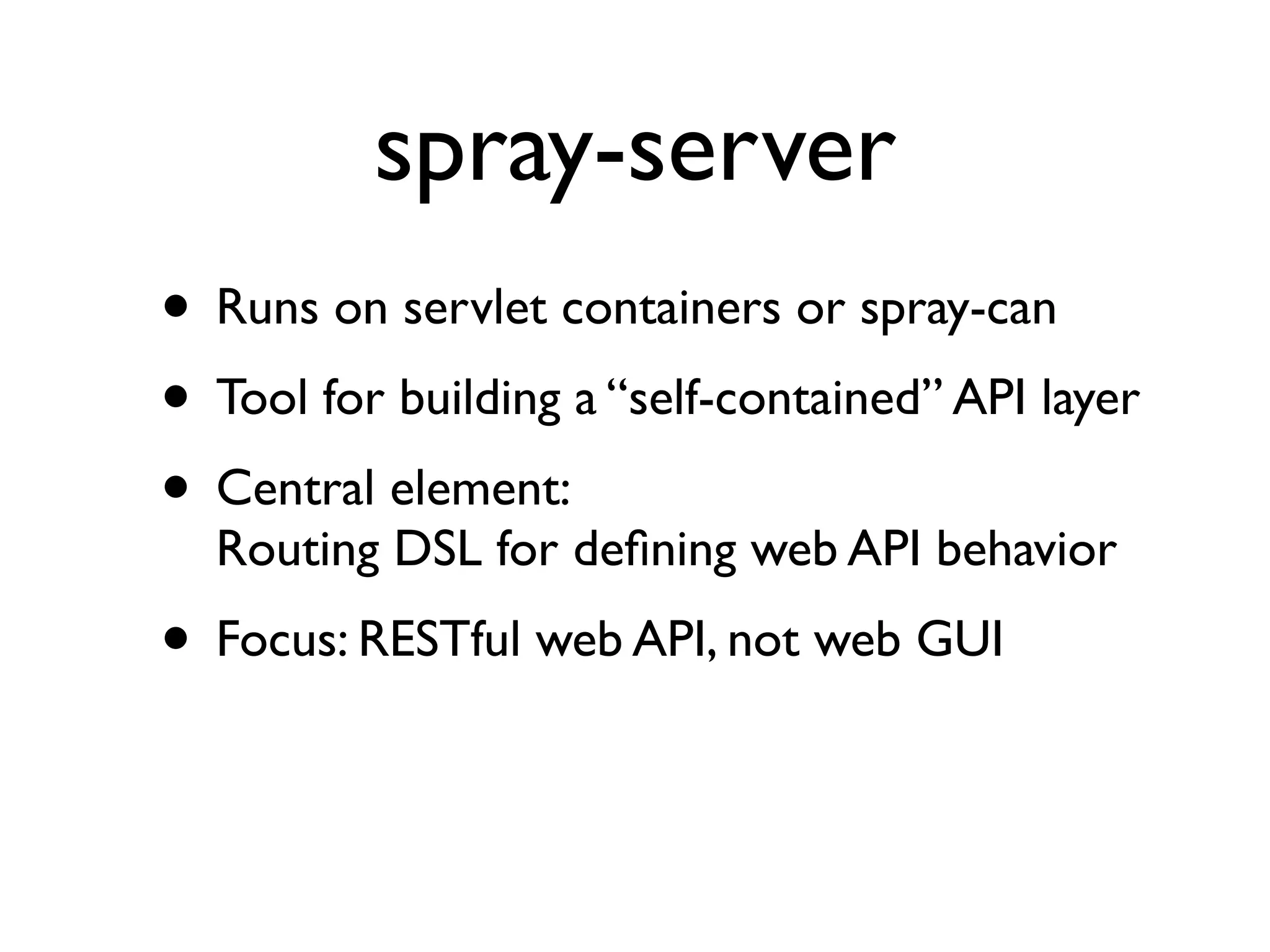

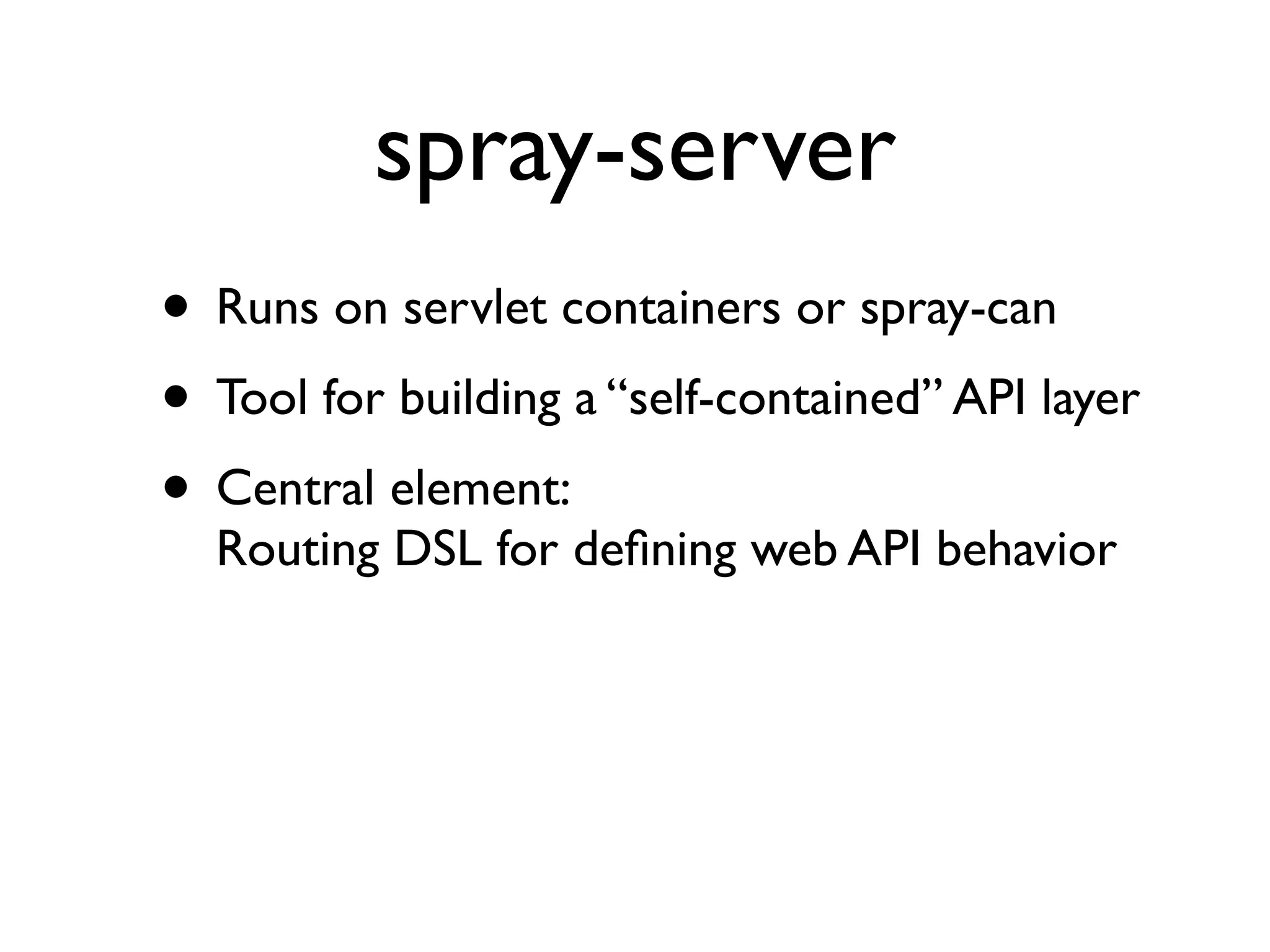

16. spray-server
• Runs on servlet containers or spray-can
• Tool for building a “self-contained” API layer
• Central element:
Routing DSL for defining web API behavior

17. spray-server
• Runs on servlet containers or spray-can
• Tool for building a “self-contained” API layer
• Central element:
Routing DSL for defining web API behavior
• Focus: RESTful web API, not web GUI

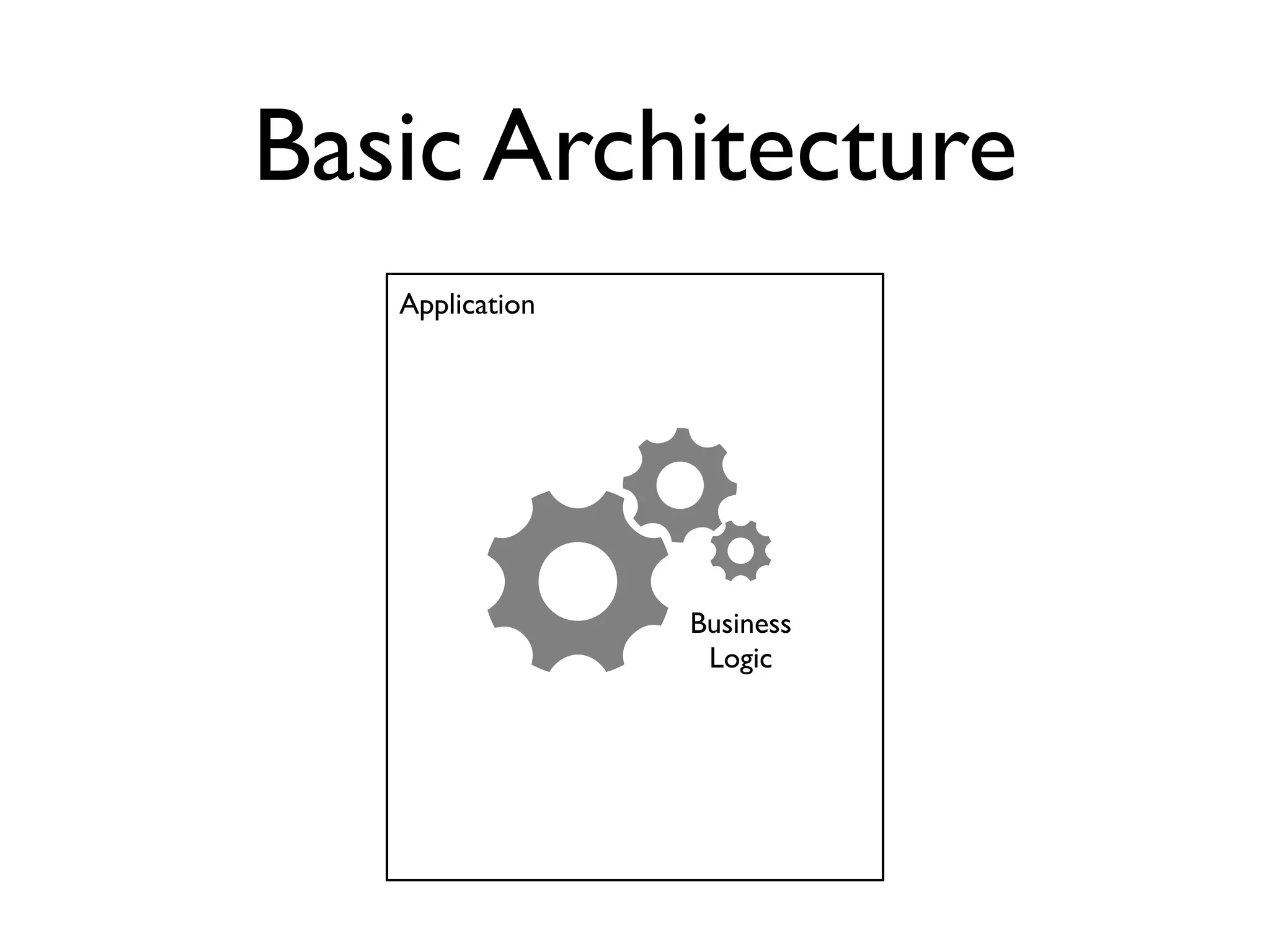

18. Basic Architecture
Application
Business
Logic

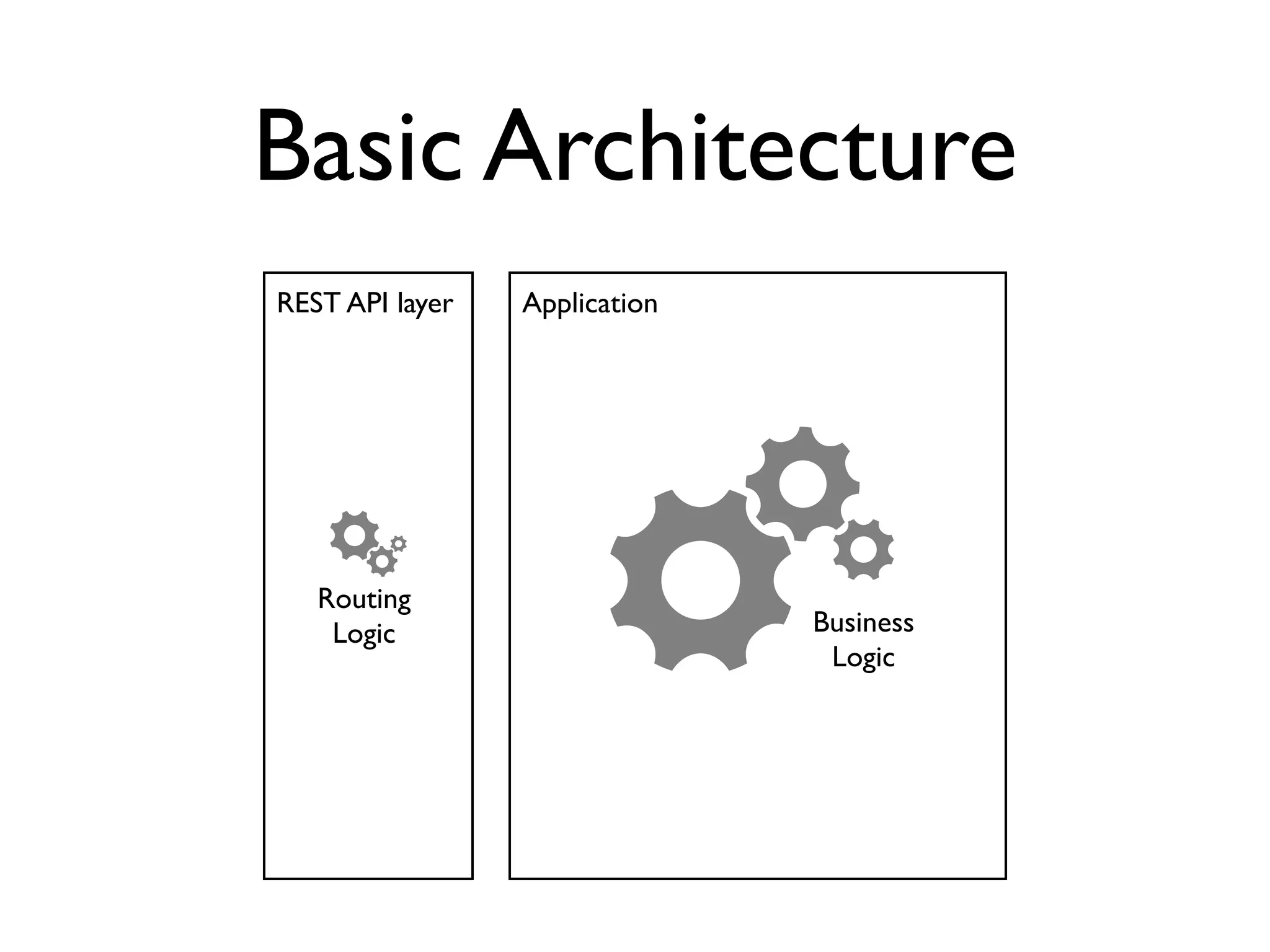

19. Basic Architecture
REST API layer Application
Routing
Logic Business
Logic

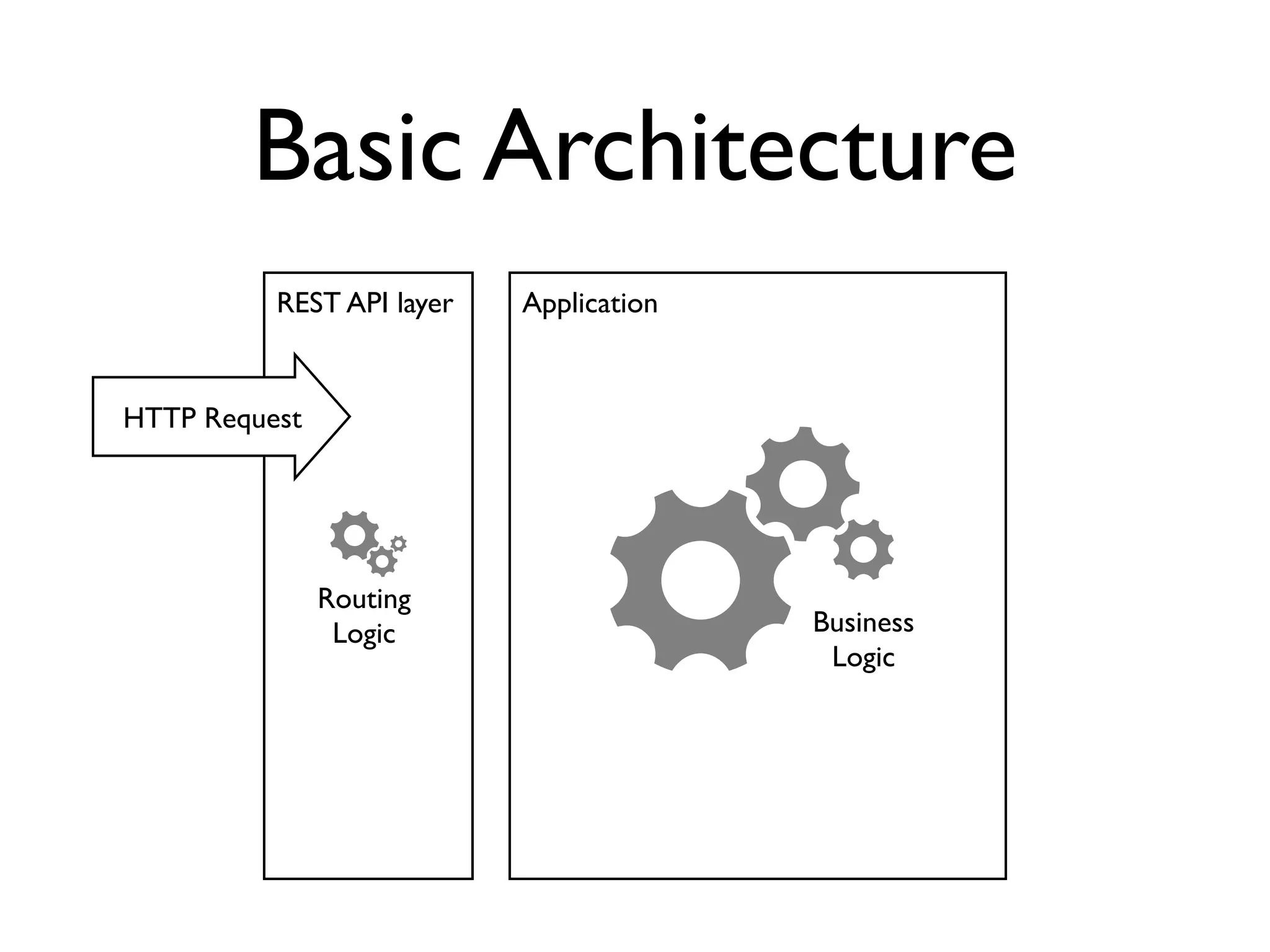

20. Basic Architecture
REST API layer Application
HTTP Request
Routing
Logic Business
Logic

21. Basic Architecture
REST API layer Application
HTTP Request Action
Routing
Logic Business
Logic

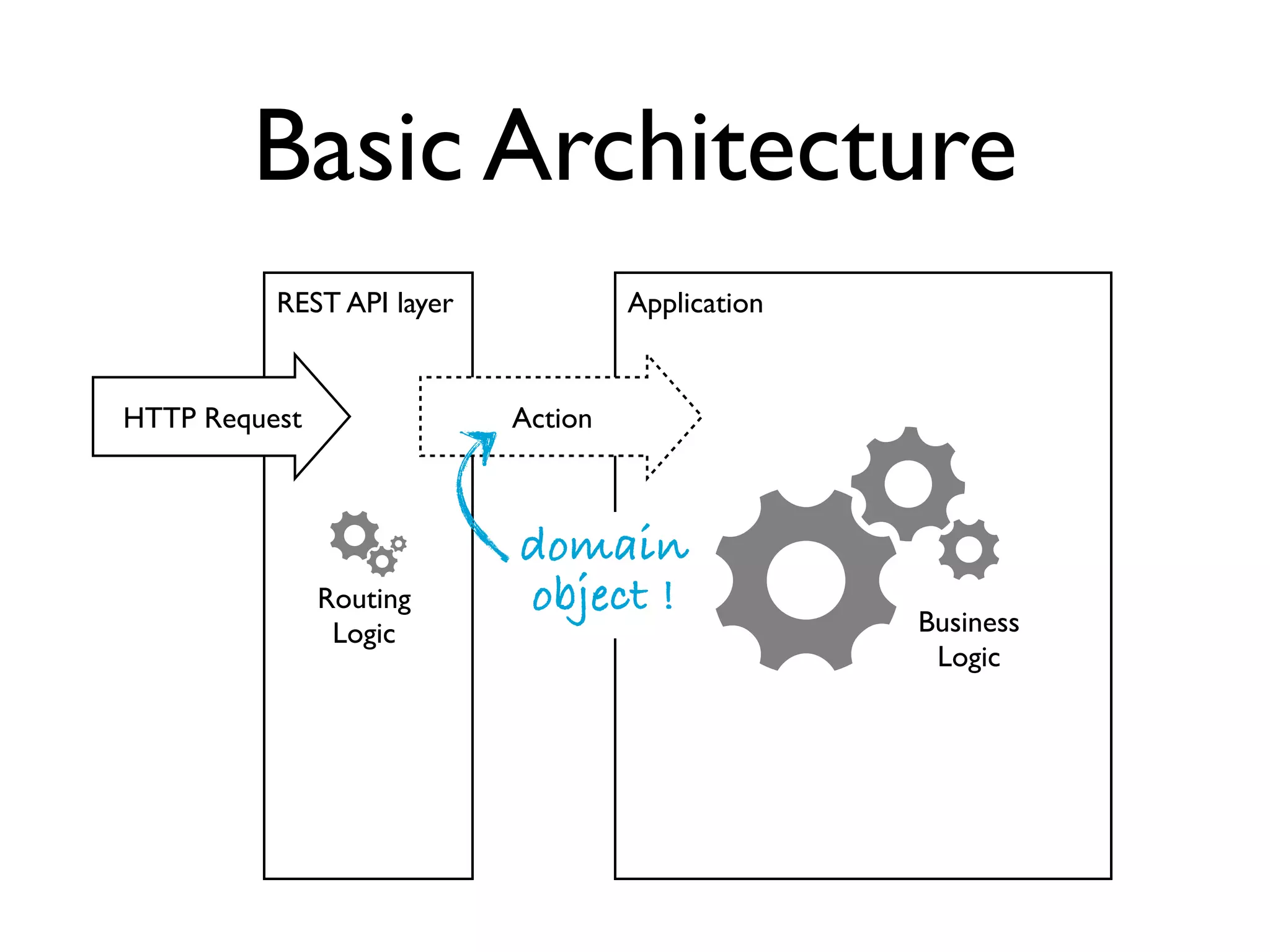

22. Basic Architecture
REST API layer Application
HTTP Request Action
domain
Routing object ! Business
Logic
Logic

23. Basic Architecture
REST API layer Application
HTTP Request Action
domain
Routing object ! Business
Logic
Logic
Reply

24. Basic Architecture
REST API layer Application
HTTP Request Action
domain
Routing object ! Business
Logic
Logic
Reply

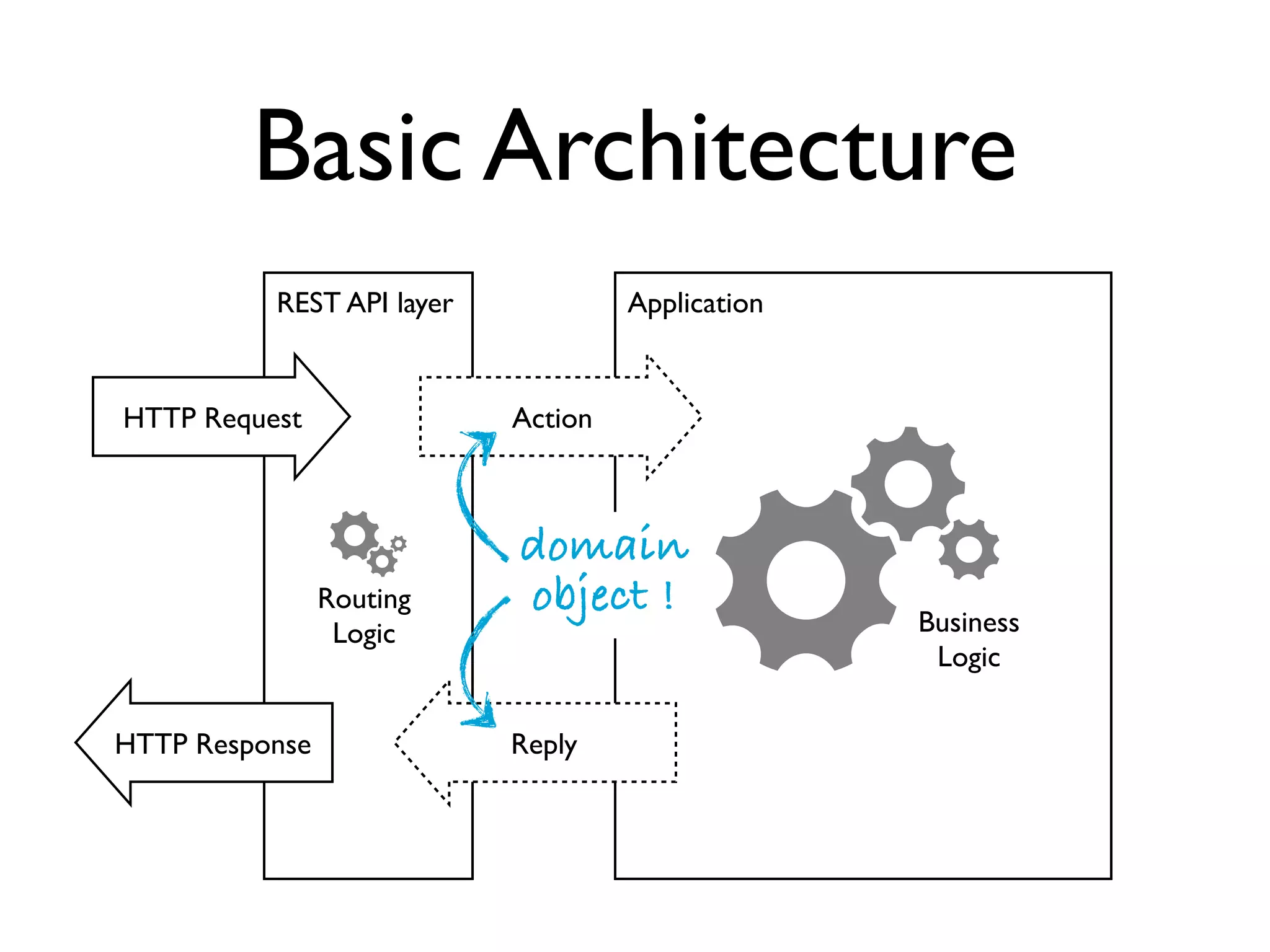

25. Basic Architecture
REST API layer Application
HTTP Request Action
domain
Routing object ! Business
Logic
Logic
HTTP Response Reply

26. API Layer Responsibilities

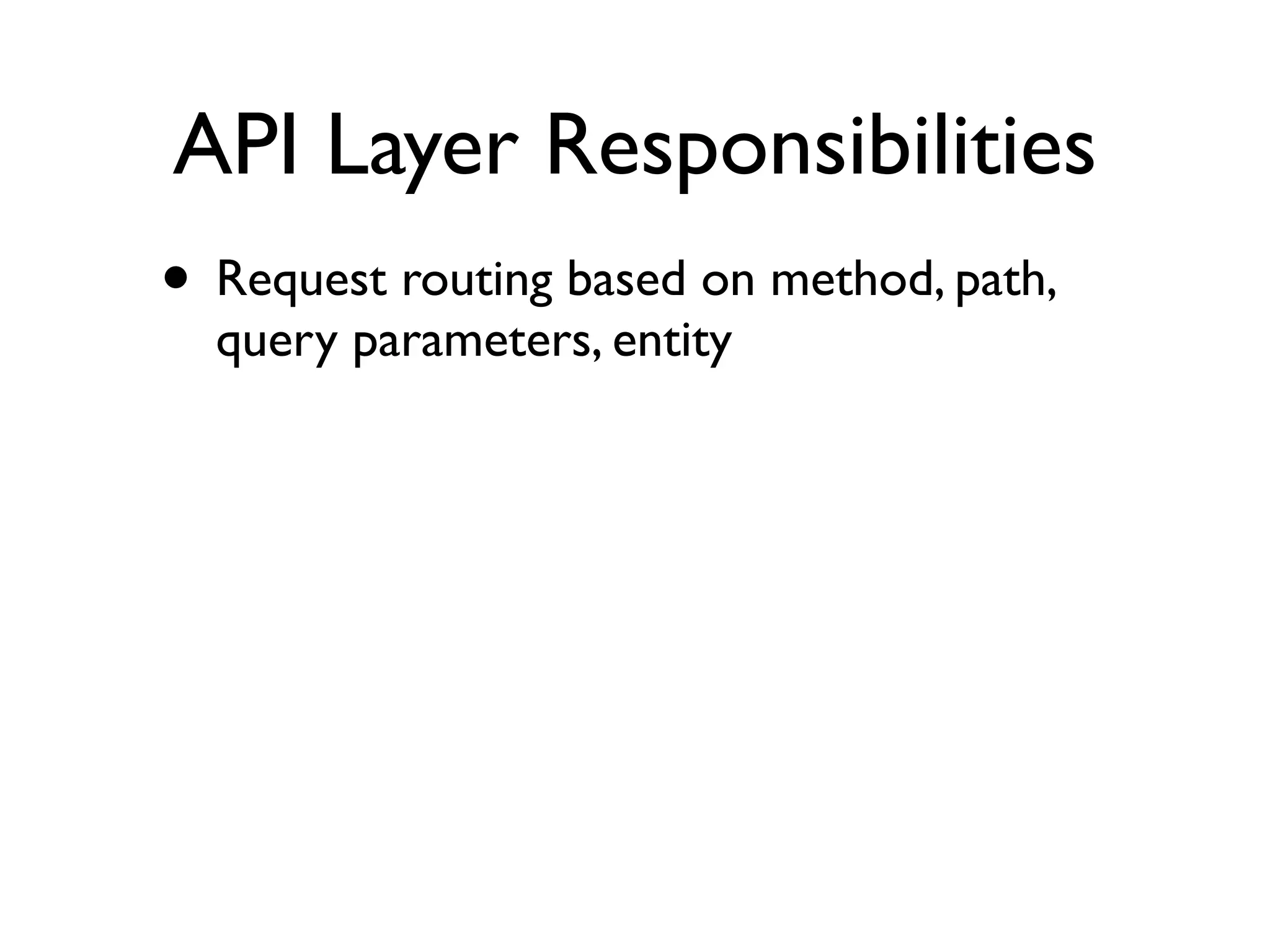

27. API Layer Responsibilities
• Request routing based on method, path,
query parameters, entity

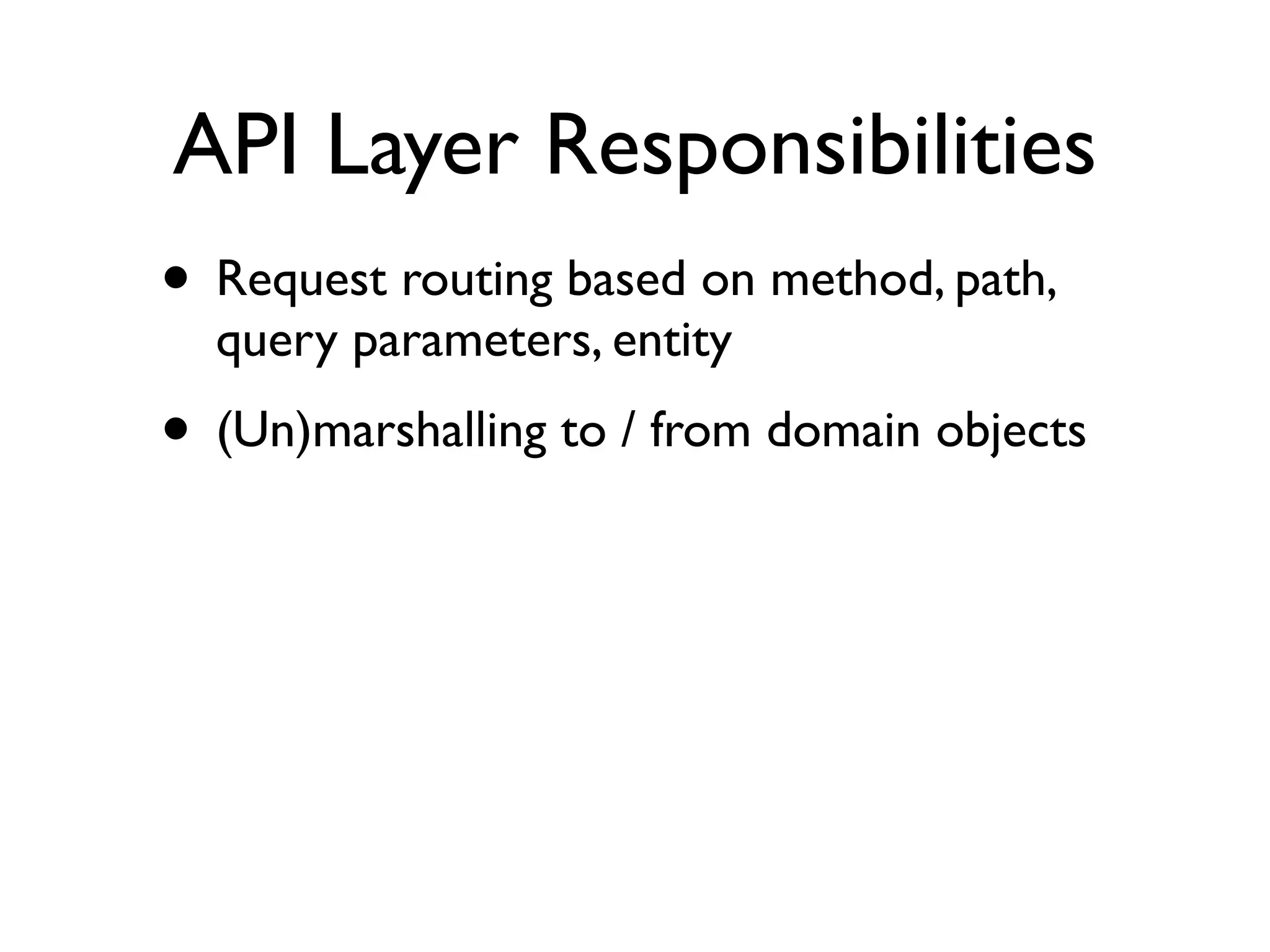

28. API Layer Responsibilities
• Request routing based on method, path,
query parameters, entity
• (Un)marshalling to / from domain objects

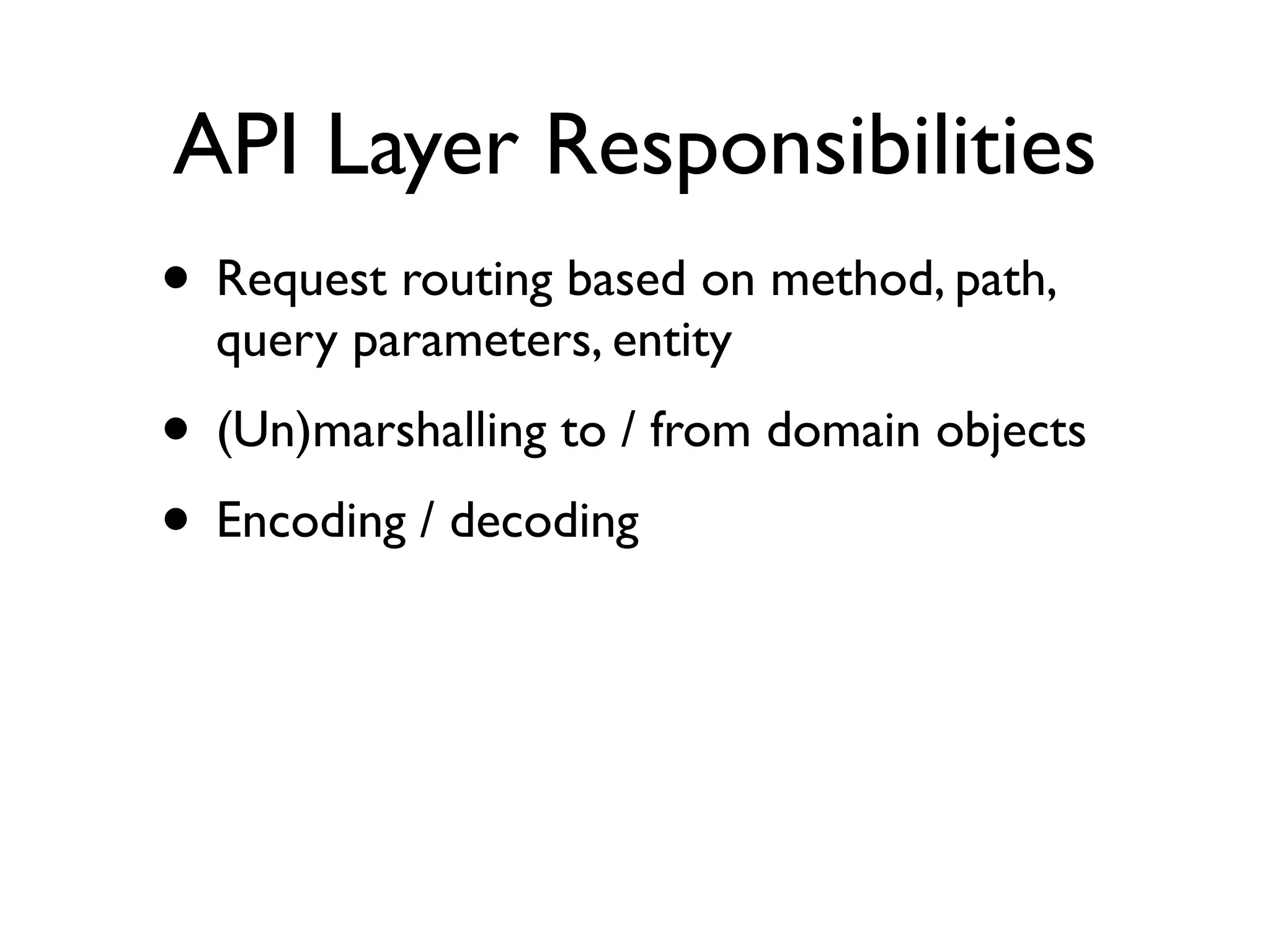

29. API Layer Responsibilities
• Request routing based on method, path,
query parameters, entity
• (Un)marshalling to / from domain objects
• Encoding / decoding

30. API Layer Responsibilities
• Request routing based on method, path,
query parameters, entity
• (Un)marshalling to / from domain objects
• Encoding / decoding
• Authentication / authorization

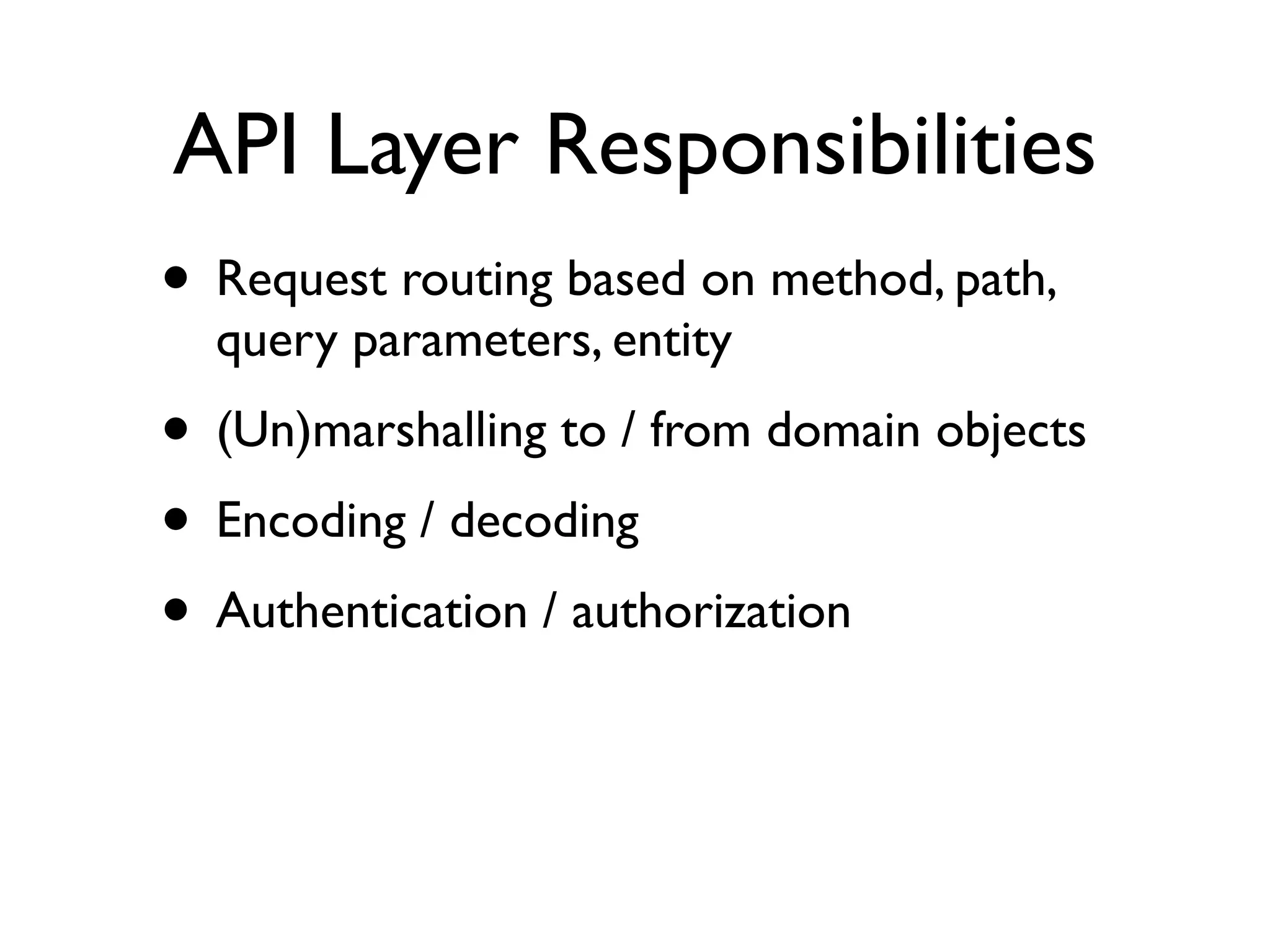

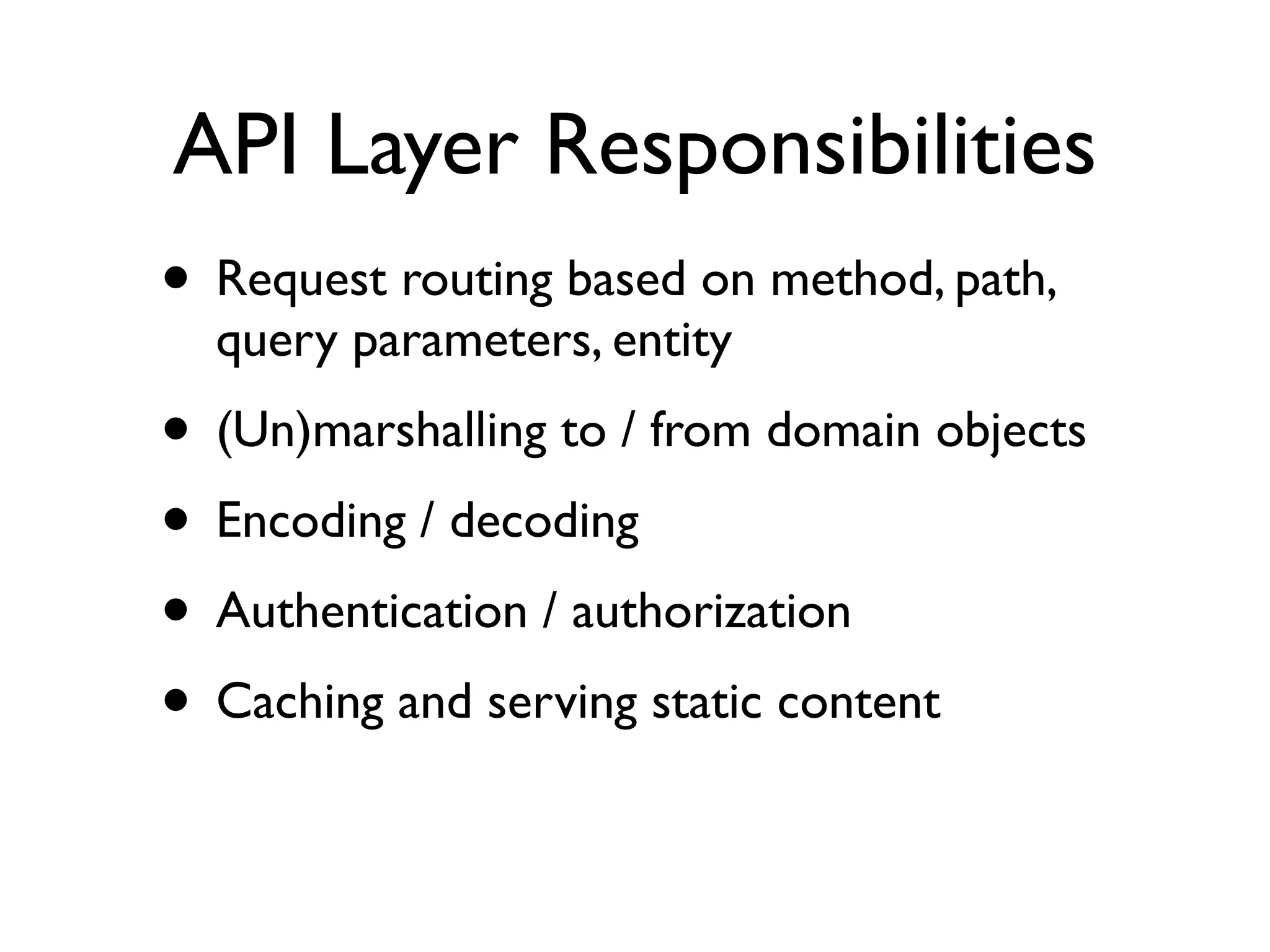

31. API Layer Responsibilities
• Request routing based on method, path,
query parameters, entity
• (Un)marshalling to / from domain objects
• Encoding / decoding
• Authentication / authorization
• Caching and serving static content

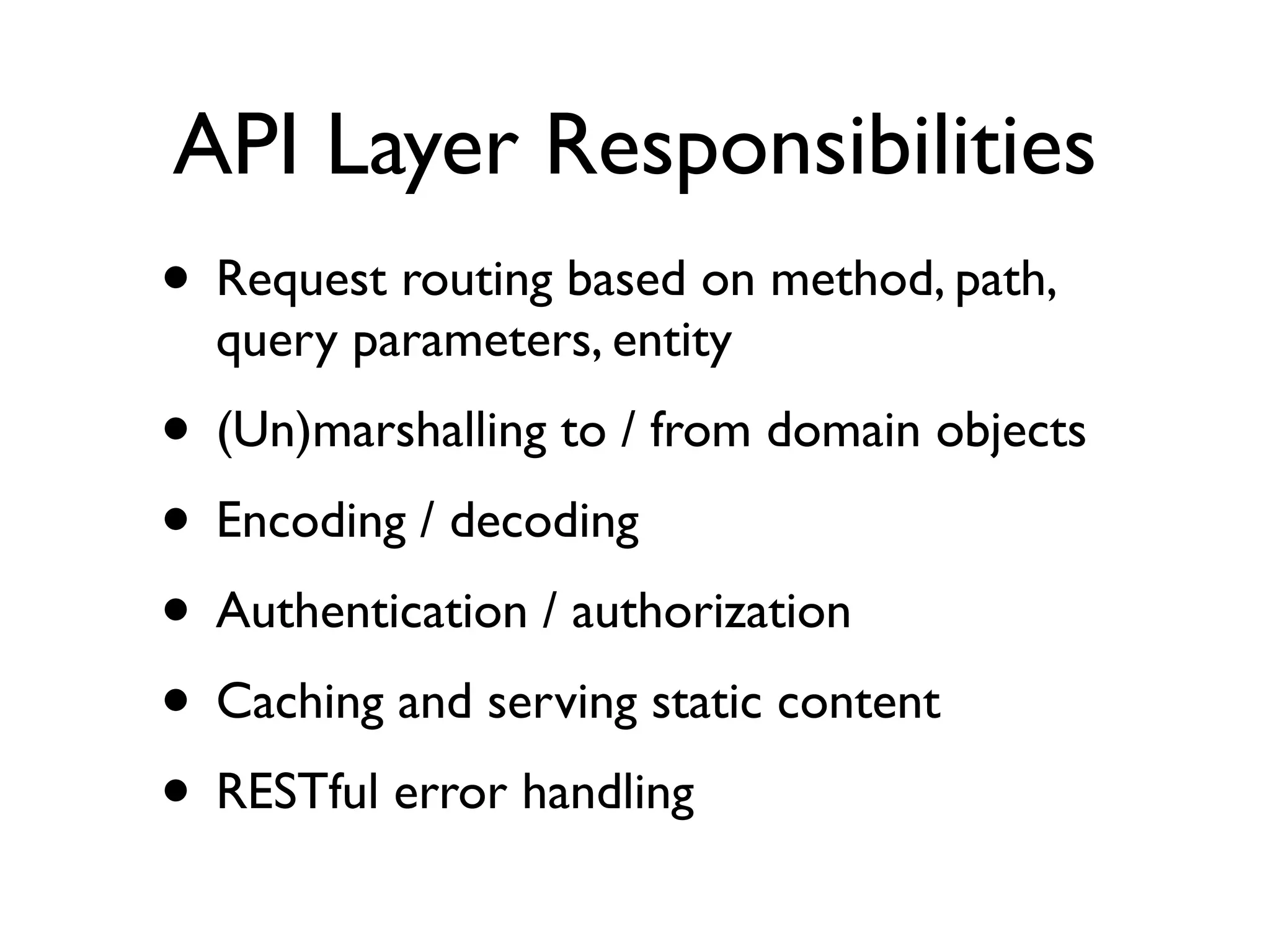

32. API Layer Responsibilities
• Request routing based on method, path,
query parameters, entity
• (Un)marshalling to / from domain objects
• Encoding / decoding
• Authentication / authorization
• Caching and serving static content
• RESTful error handling

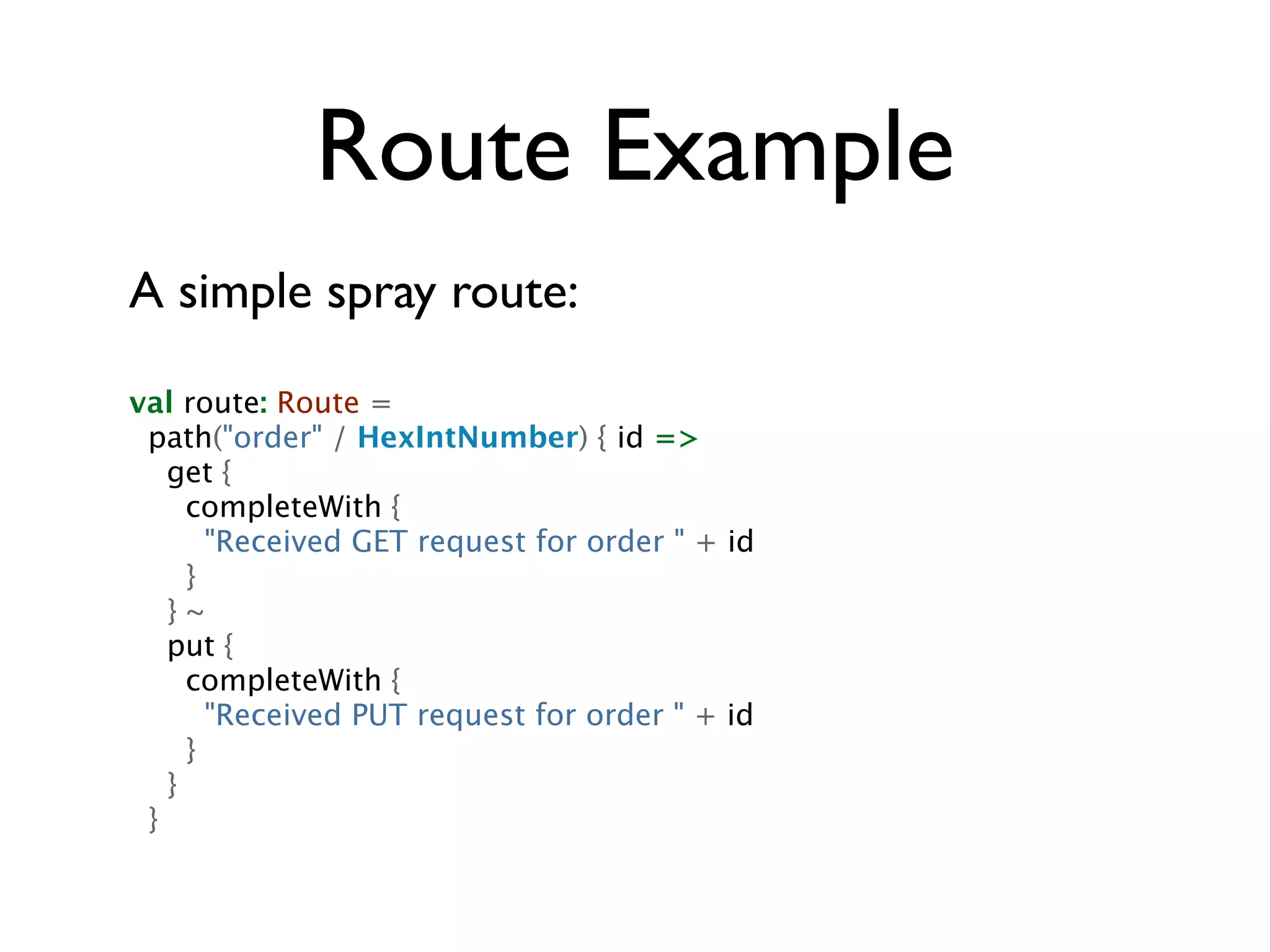

33. Route Example
A simple spray route:
val route: Route =
path("order" / HexIntNumber) { id =>
get {
completeWith {
"Received GET request for order " + id
}
}~
put {
completeWith {
"Received PUT request for order " + id
}
}
}

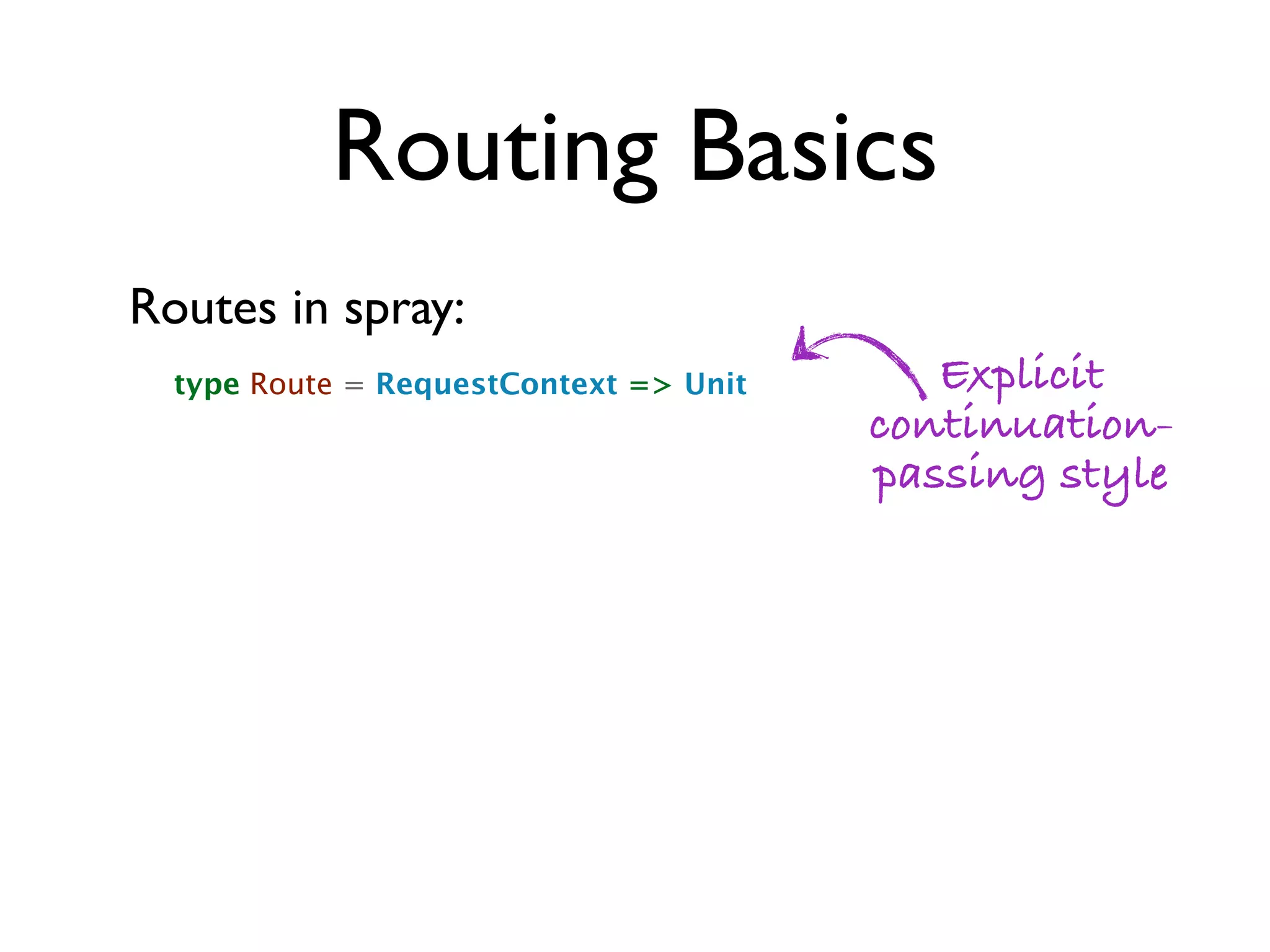

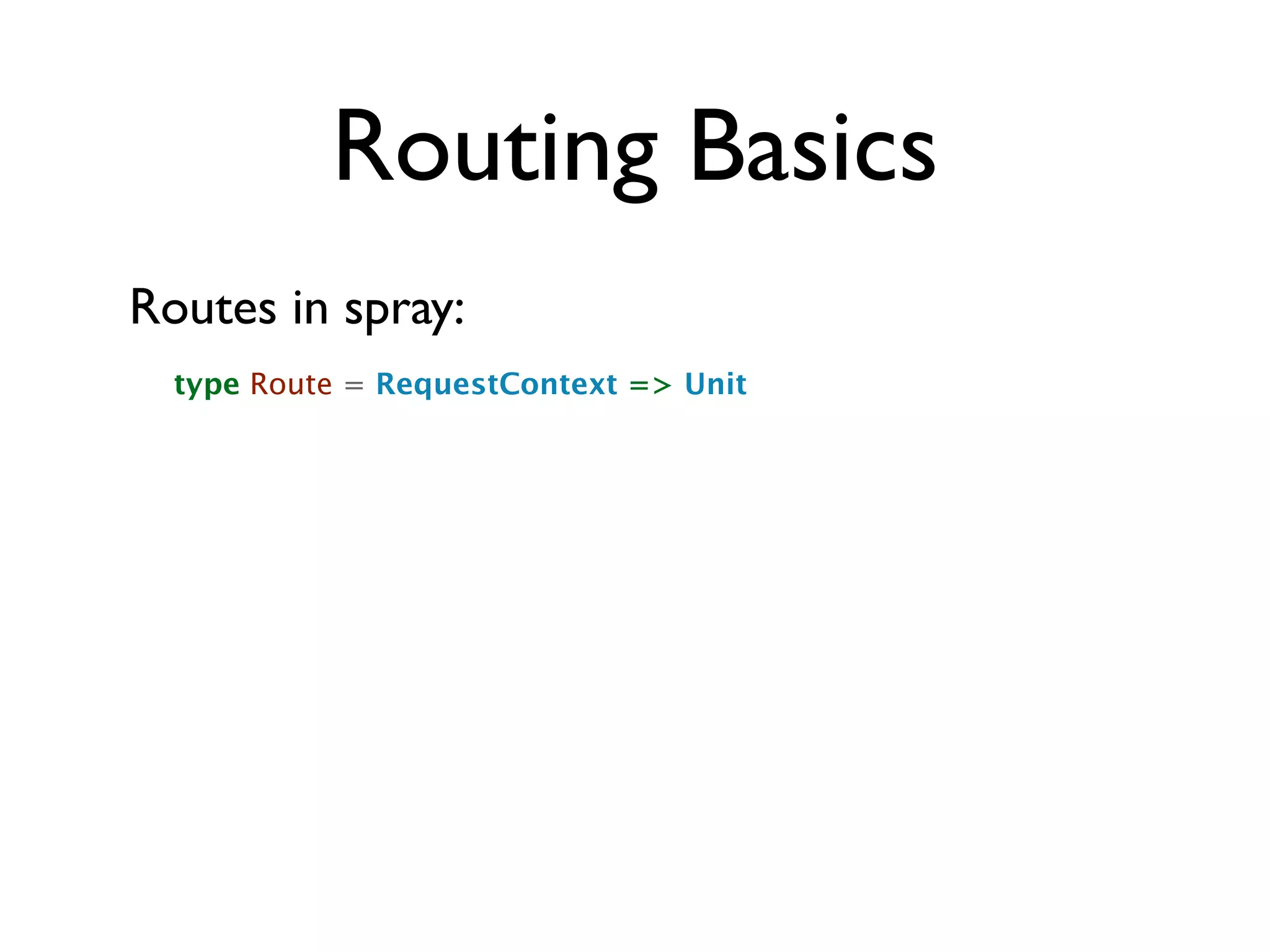

34. Routing Basics
Routes in spray:
type Route = RequestContext => Unit

35. Routing Basics
Routes in spray:
type Route = RequestContext => Unit Explicit
continuation-
passing style

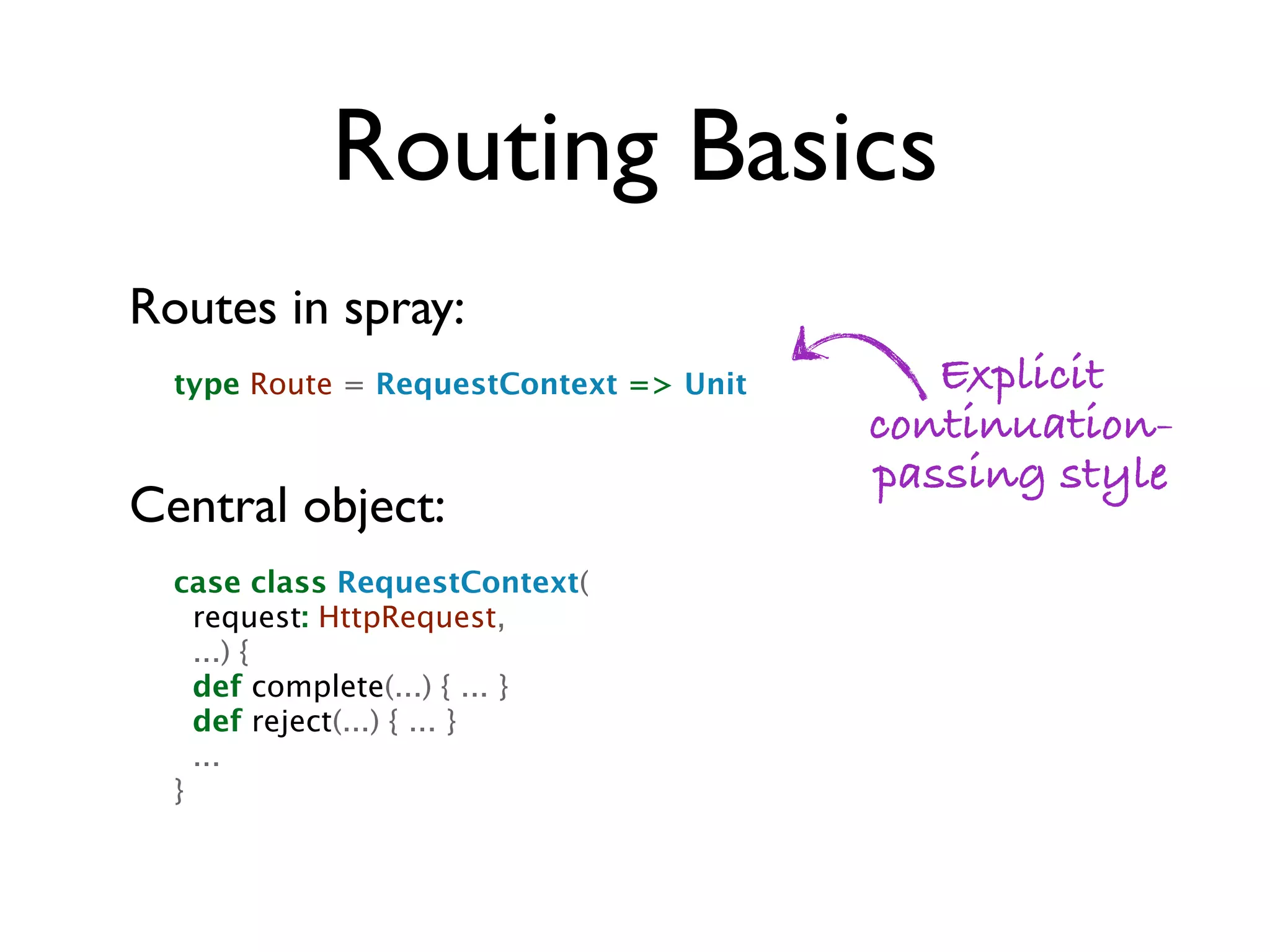

36. Routing Basics
Routes in spray:
type Route = RequestContext => Unit Explicit
continuation-
passing style
Central object:
case class RequestContext(
request: HttpRequest,
...) {
def complete(...) { ... }
def reject(...) { ... }
...
}

37. Routing Basics

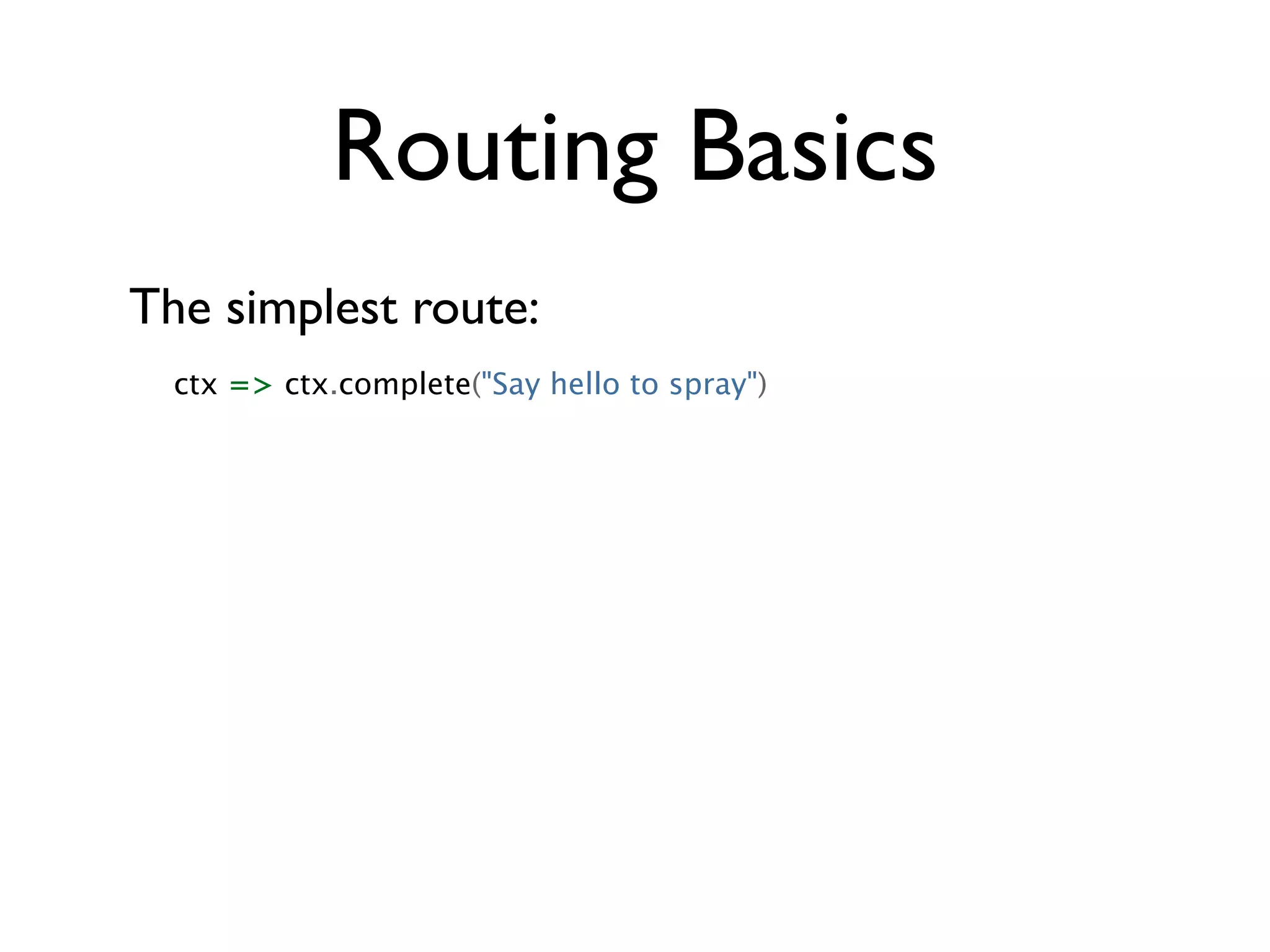

The simplest route:
ctx => ctx.complete("Say hello to spray")

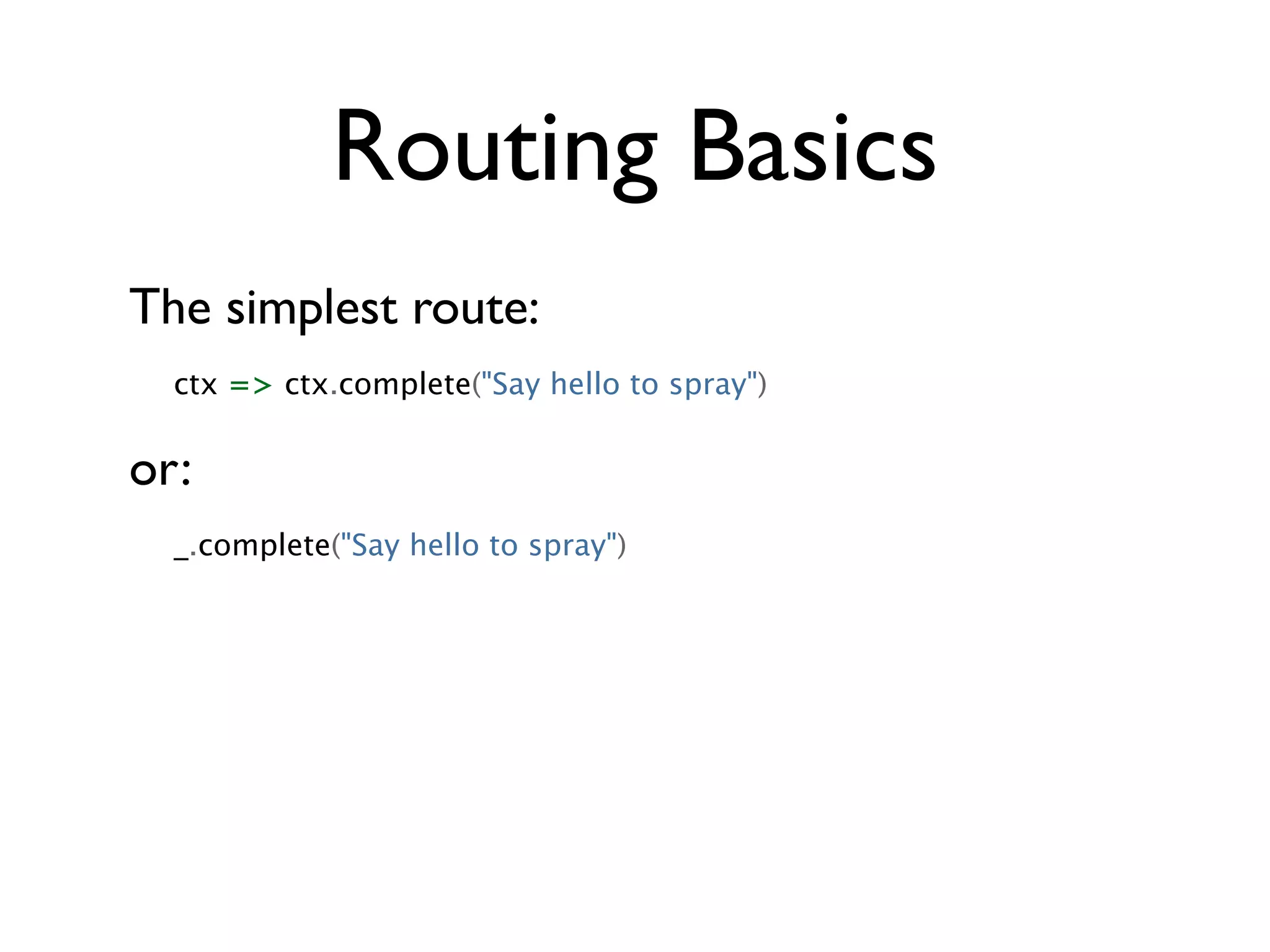

38. Routing Basics
The simplest route:
ctx => ctx.complete("Say hello to spray")
or:
_.complete("Say hello to spray")

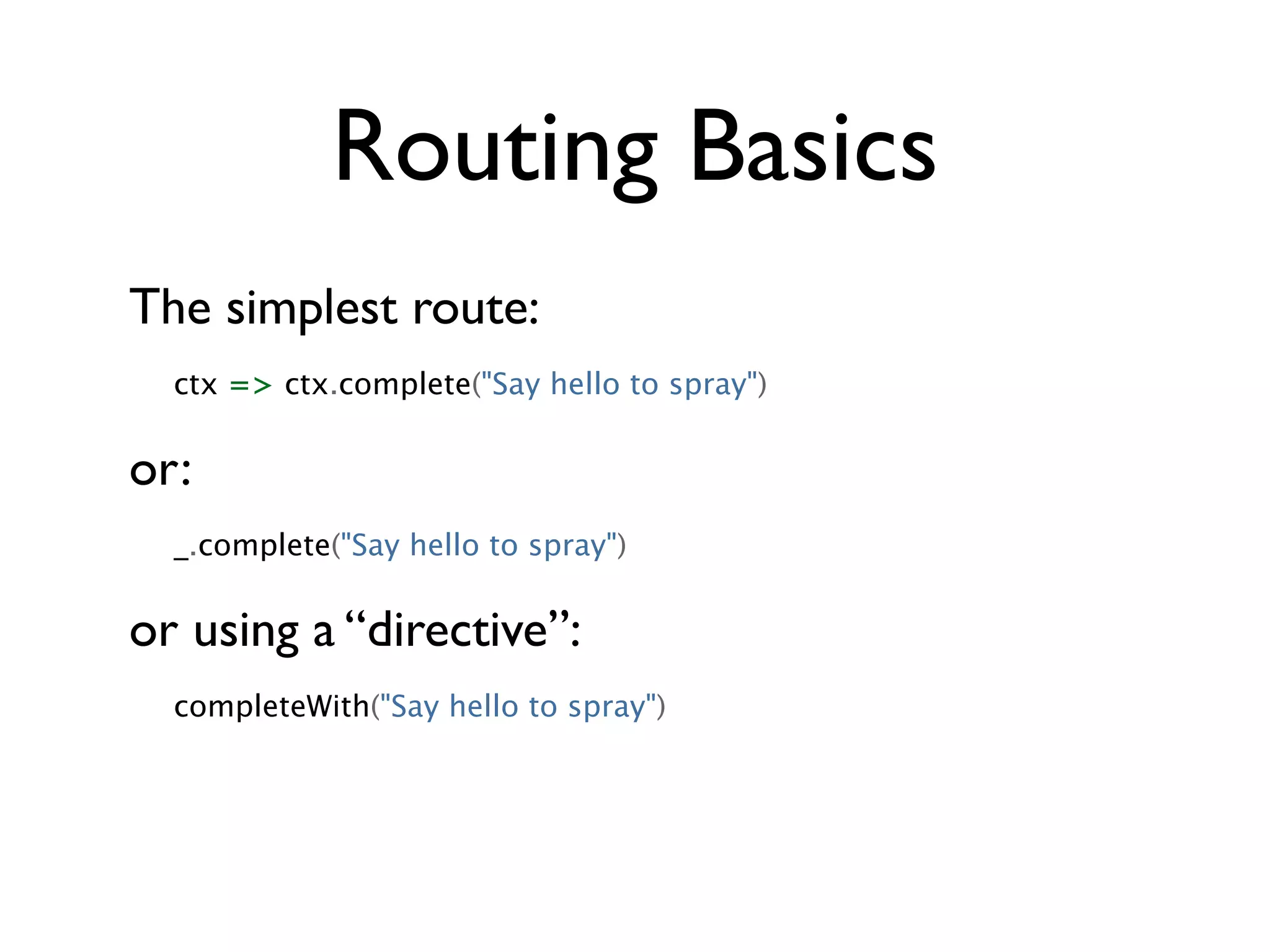

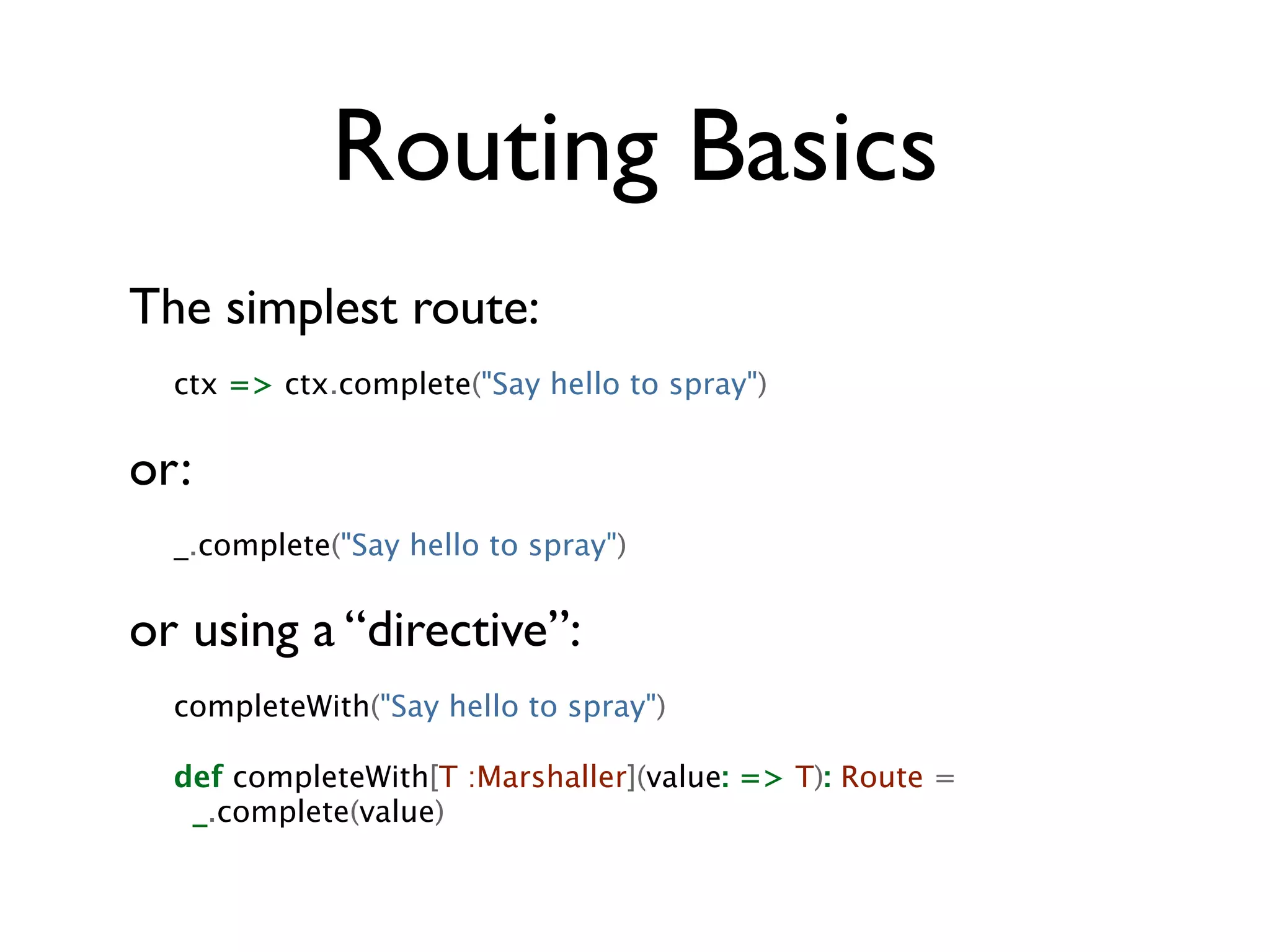

39. Routing Basics
The simplest route:
ctx => ctx.complete("Say hello to spray")
or:
_.complete("Say hello to spray")
or using a “directive”:
completeWith("Say hello to spray")

40. Routing Basics
The simplest route:
ctx => ctx.complete("Say hello to spray")
or:
_.complete("Say hello to spray")
or using a “directive”:
completeWith("Say hello to spray")
def completeWith[T :Marshaller](value: => T): Route =
_.complete(value)

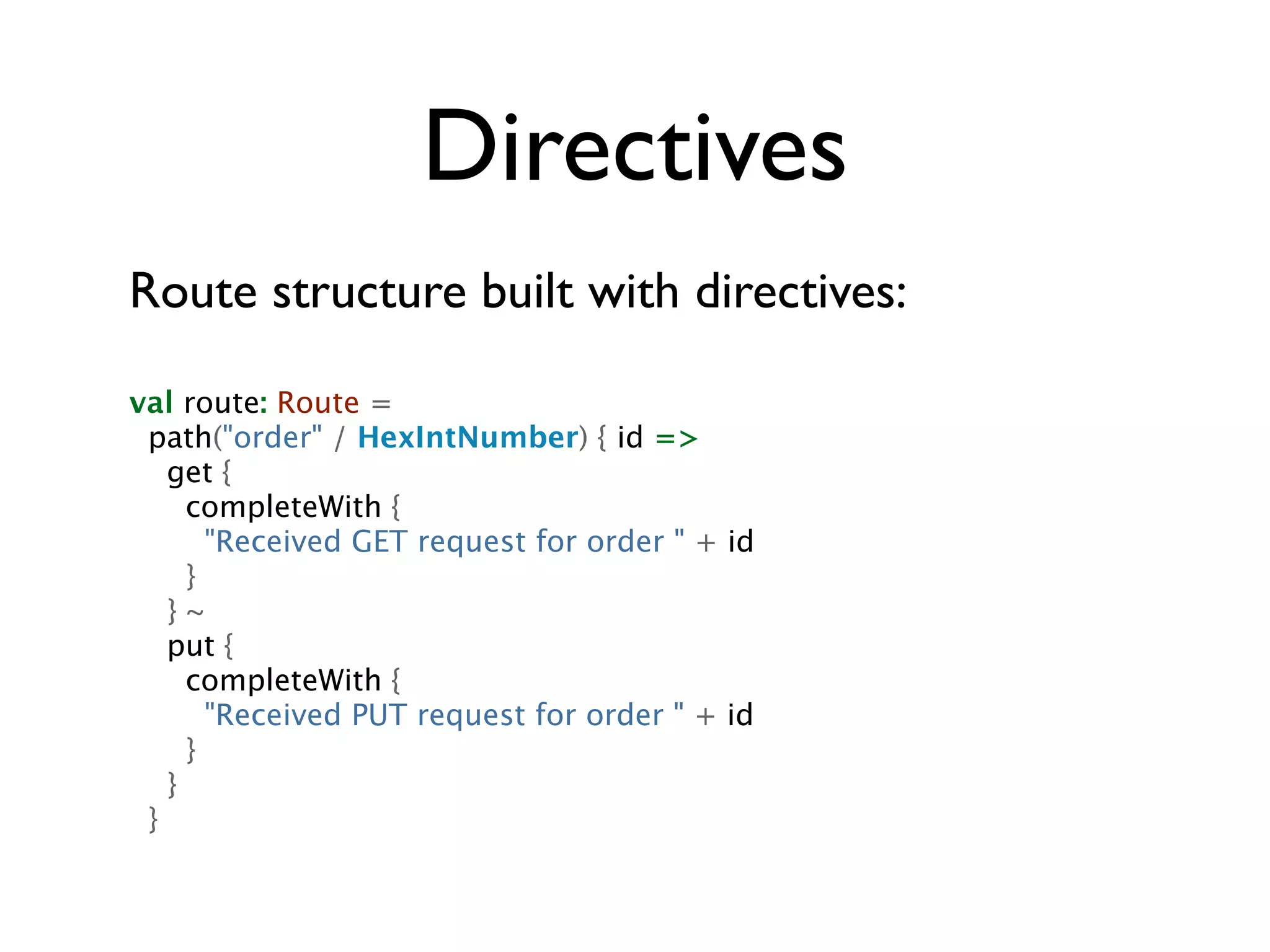

41. Directives
Route structure built with directives:
val route: Route =
path("order" / HexIntNumber) { id =>
get {
completeWith {
"Received GET request for order " + id
}
}~
put {
completeWith {
"Received PUT request for order " + id
}
}
}

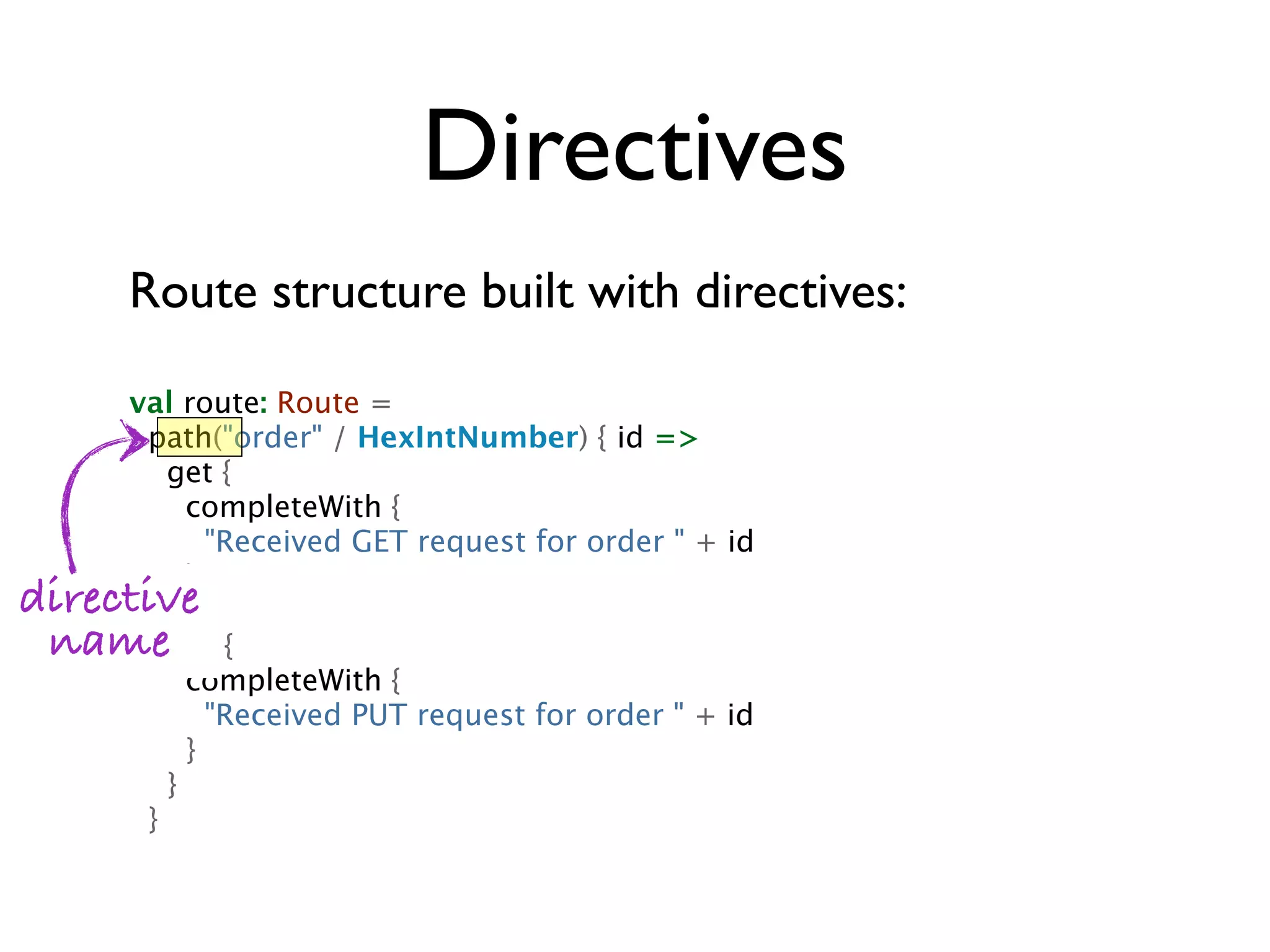

42. Directives
Route structure built with directives:
val route: Route =
path("order" / HexIntNumber) { id =>
get {
completeWith {
"Received GET request for order " + id
}
directive
}~
name put {
completeWith {
"Received PUT request for order " + id
}
}
}

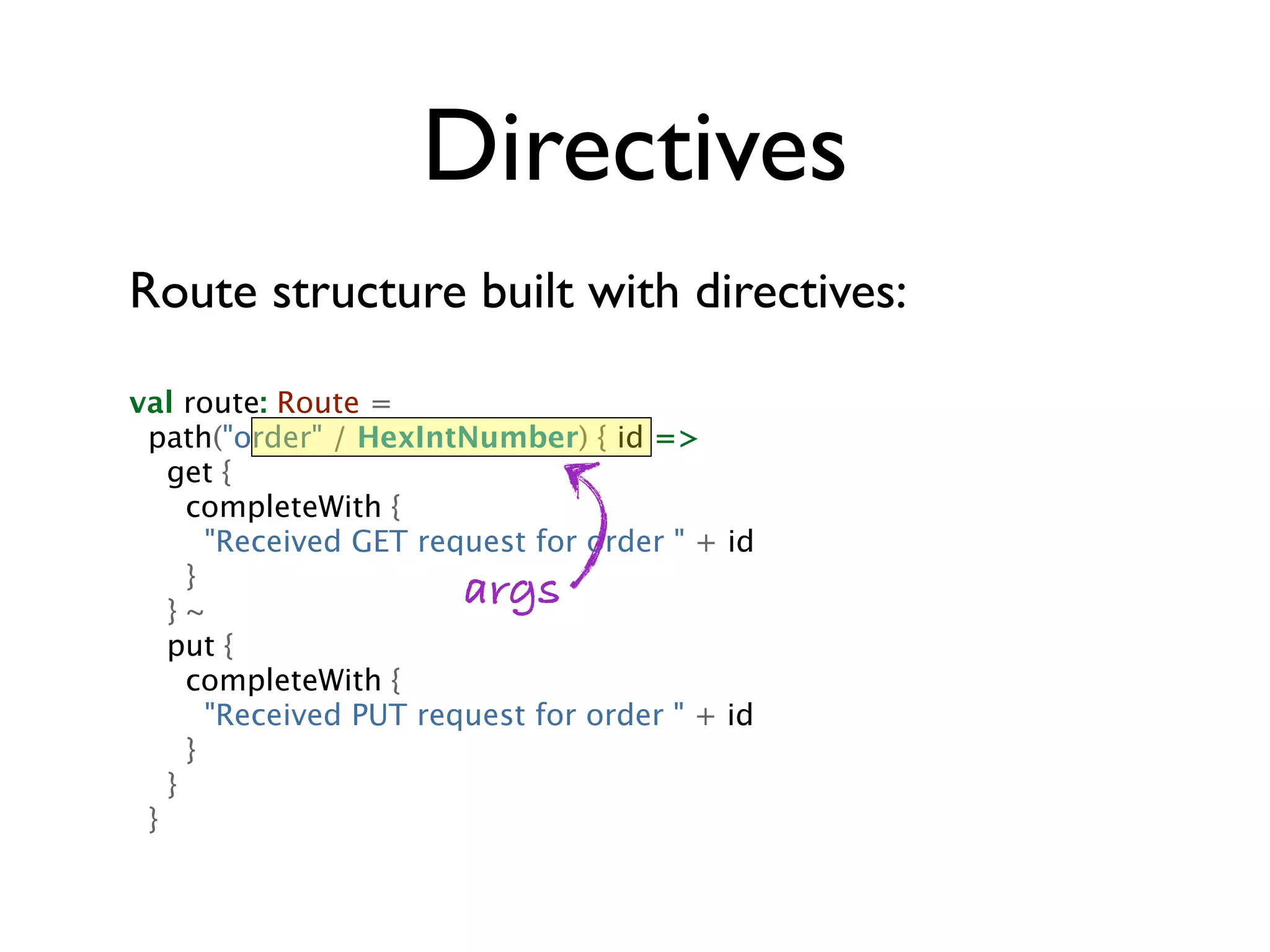

43. Directives
Route structure built with directives:
val route: Route =
path("order" / HexIntNumber) { id =>
get {
completeWith {
"Received GET request for order " + id
}
}~
args
put {
completeWith {
"Received PUT request for order " + id
}
}
}

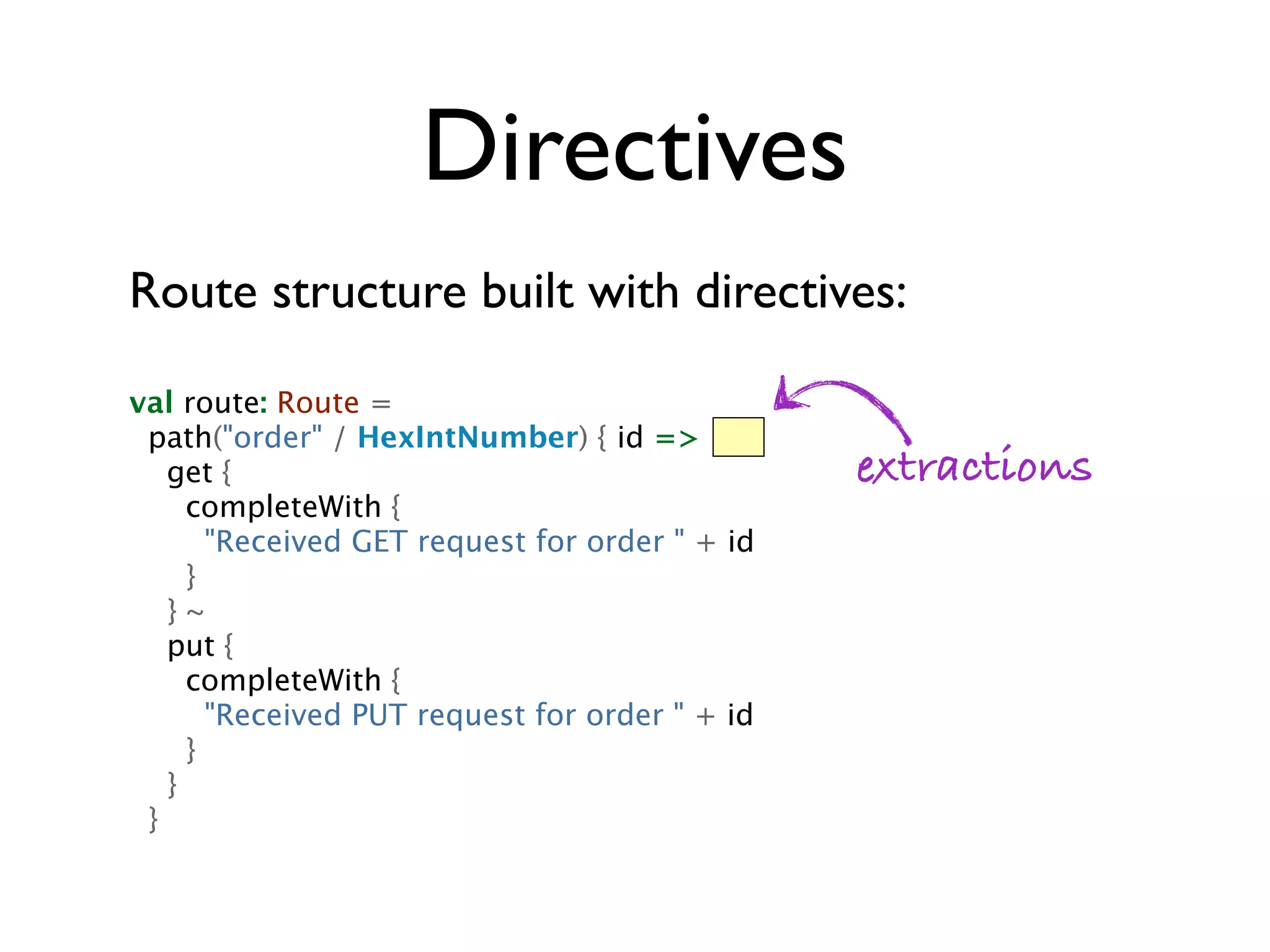

44. Directives
Route structure built with directives:
val route: Route =
path("order" / HexIntNumber) { id =>
get { extractions
completeWith {
"Received GET request for order " + id
}
}~
put {
completeWith {
"Received PUT request for order " + id
}
}
}

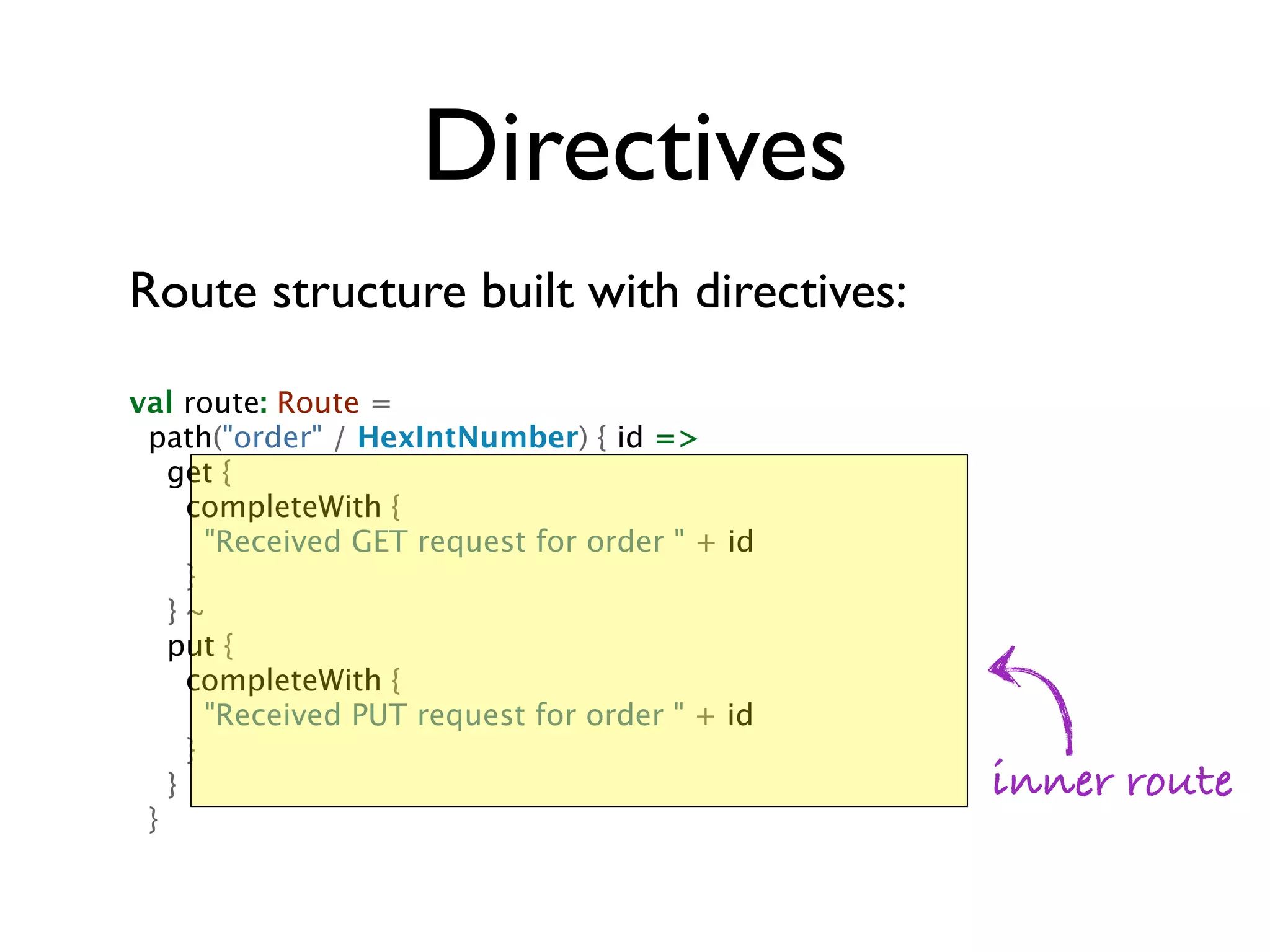

45. Directives
Route structure built with directives:
val route: Route =
path("order" / HexIntNumber) { id =>
get {
completeWith {
"Received GET request for order " + id
}
}~
put {
completeWith {
"Received PUT request for order " + id
}
} inner route
}

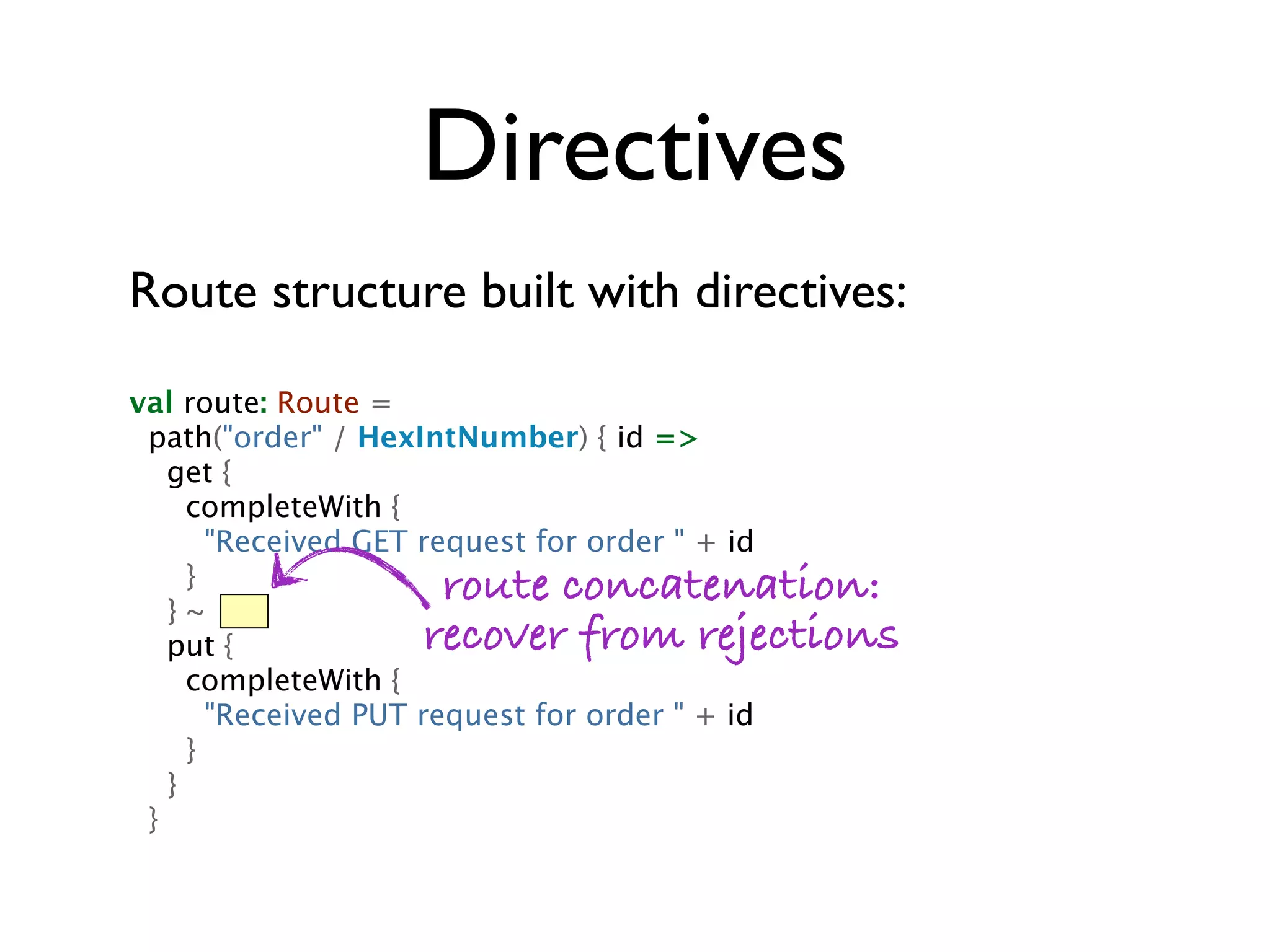

46. Directives
Route structure built with directives:
val route: Route =
path("order" / HexIntNumber) { id =>
get {
completeWith {
"Received GET request for order " + id
}~
} route concatenation:
put { recover from rejections
completeWith {
"Received PUT request for order " + id
}
}
}

47. Directives
Route structure built with directives:
val route: Route =
path("order" / HexIntNumber) { id =>
get {
completeWith {
"Received GET request for order " + id
}
}~
put {
completeWith {
"Received PUT request for order " + id
}
}
}

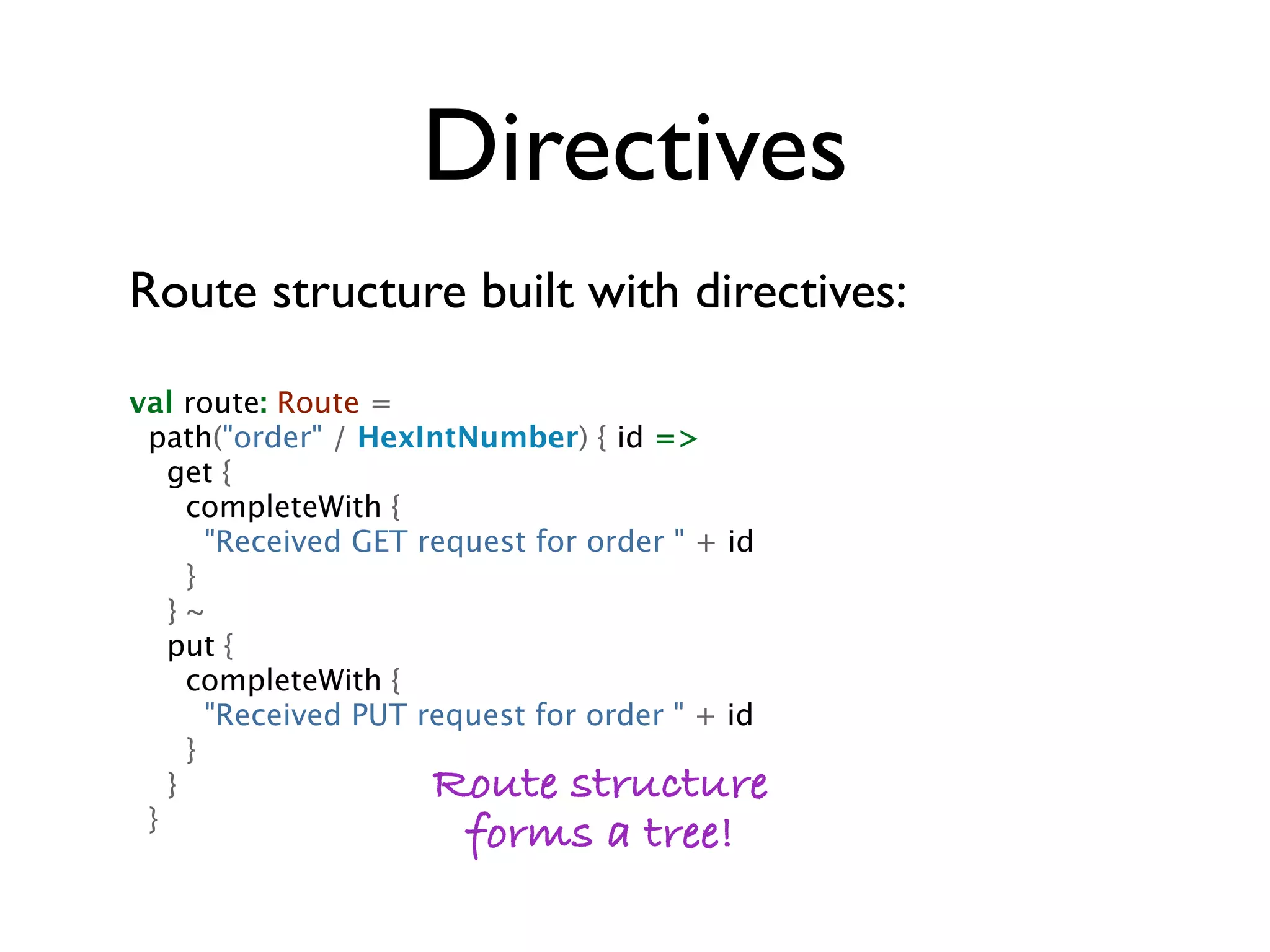

48. Directives
Route structure built with directives:
val route: Route =
path("order" / HexIntNumber) { id =>
get {
completeWith {
"Received GET request for order " + id
}
}~
put {
completeWith {
"Received PUT request for order " + id
}
} Route structure
}
forms a tree!

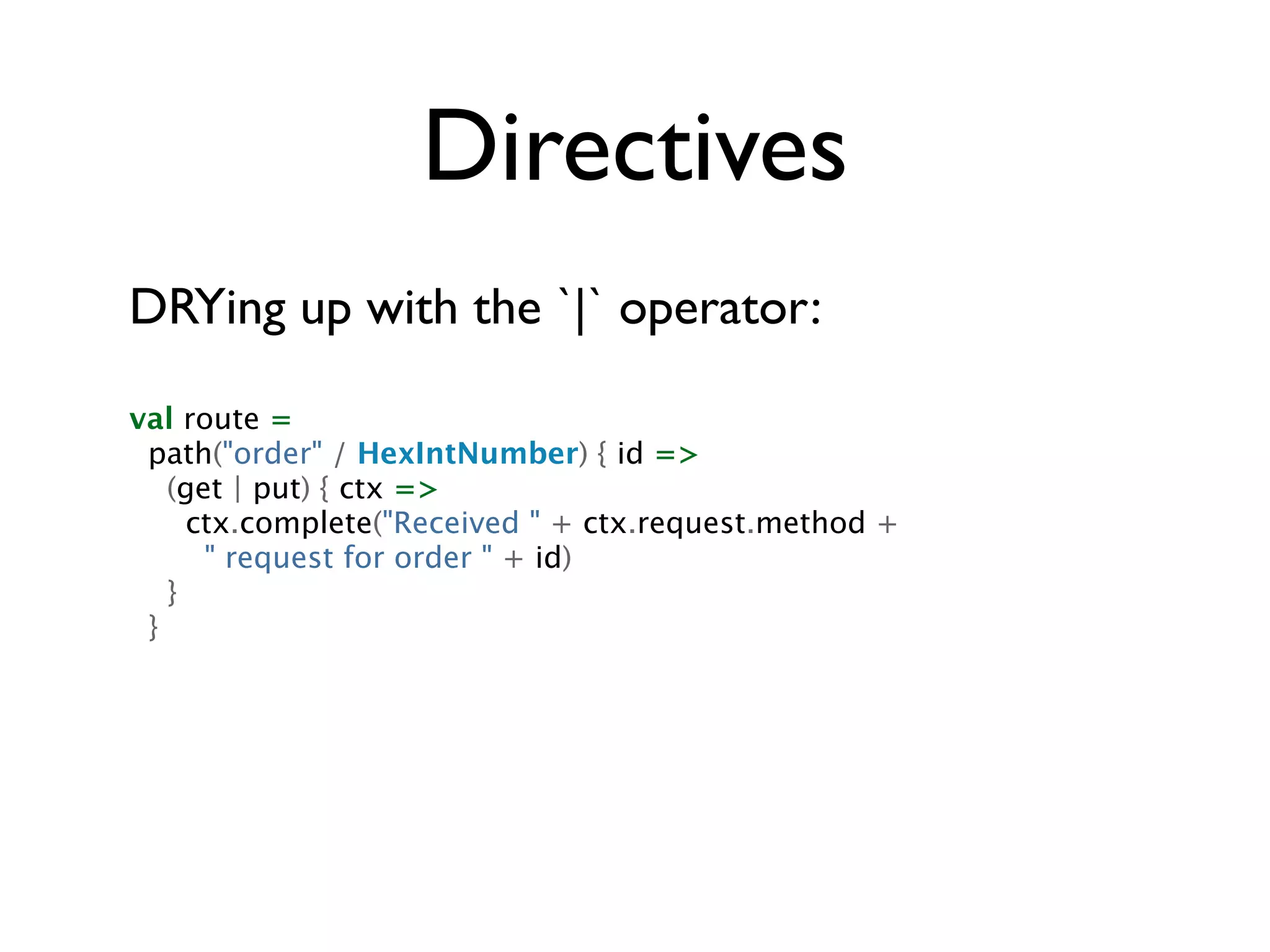

49. Directives
DRYing up with the `|` operator:
val route =
path("order" / HexIntNumber) { id =>
(get | put) { ctx =>
ctx.complete("Received " + ctx.request.method +
" request for order " + id)
}
}

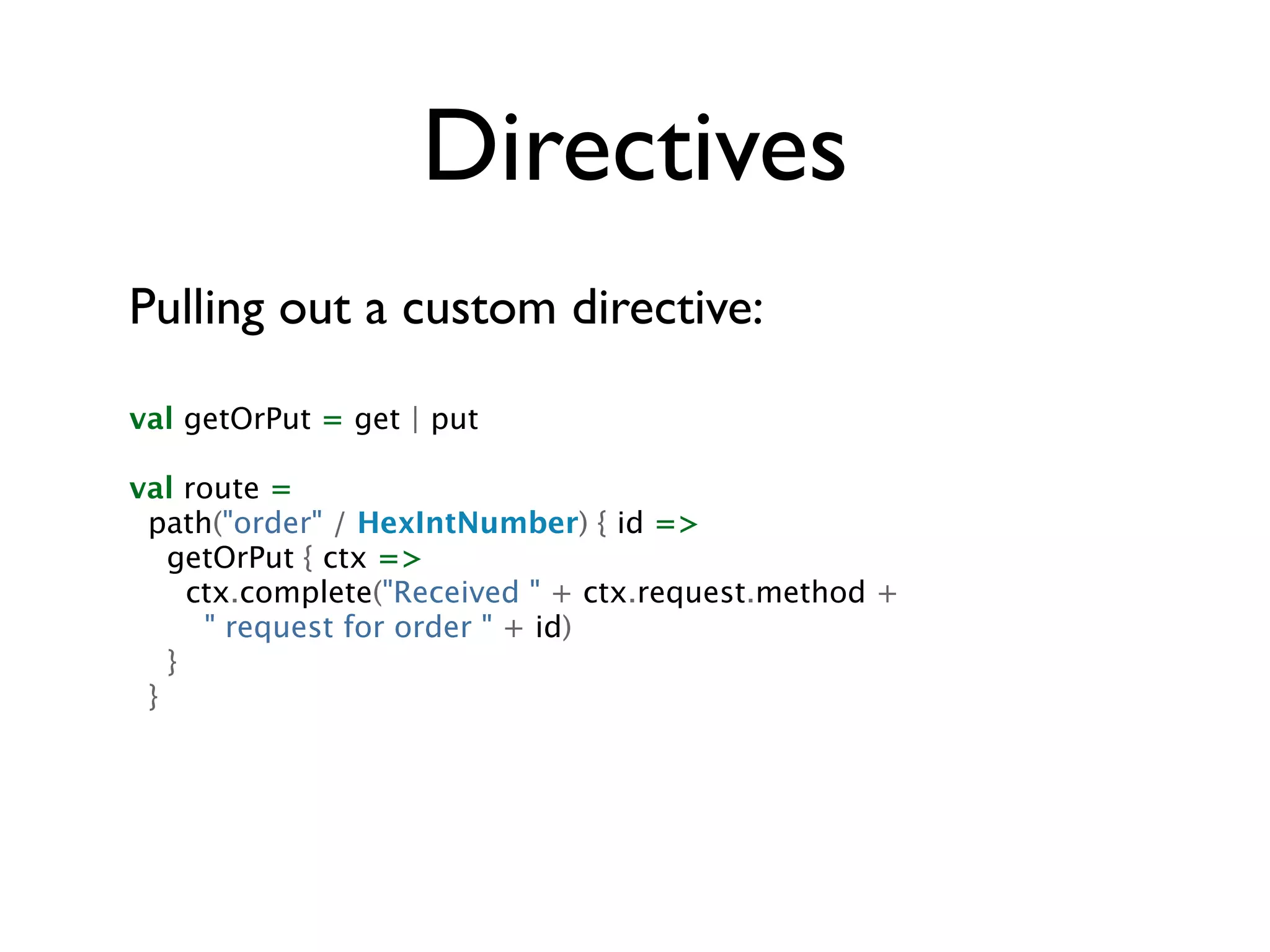

50. Directives
Pulling out a custom directive:
val getOrPut = get | put
val route =
path("order" / HexIntNumber) { id =>
getOrPut { ctx =>
ctx.complete("Received " + ctx.request.method +
" request for order " + id)
}
}

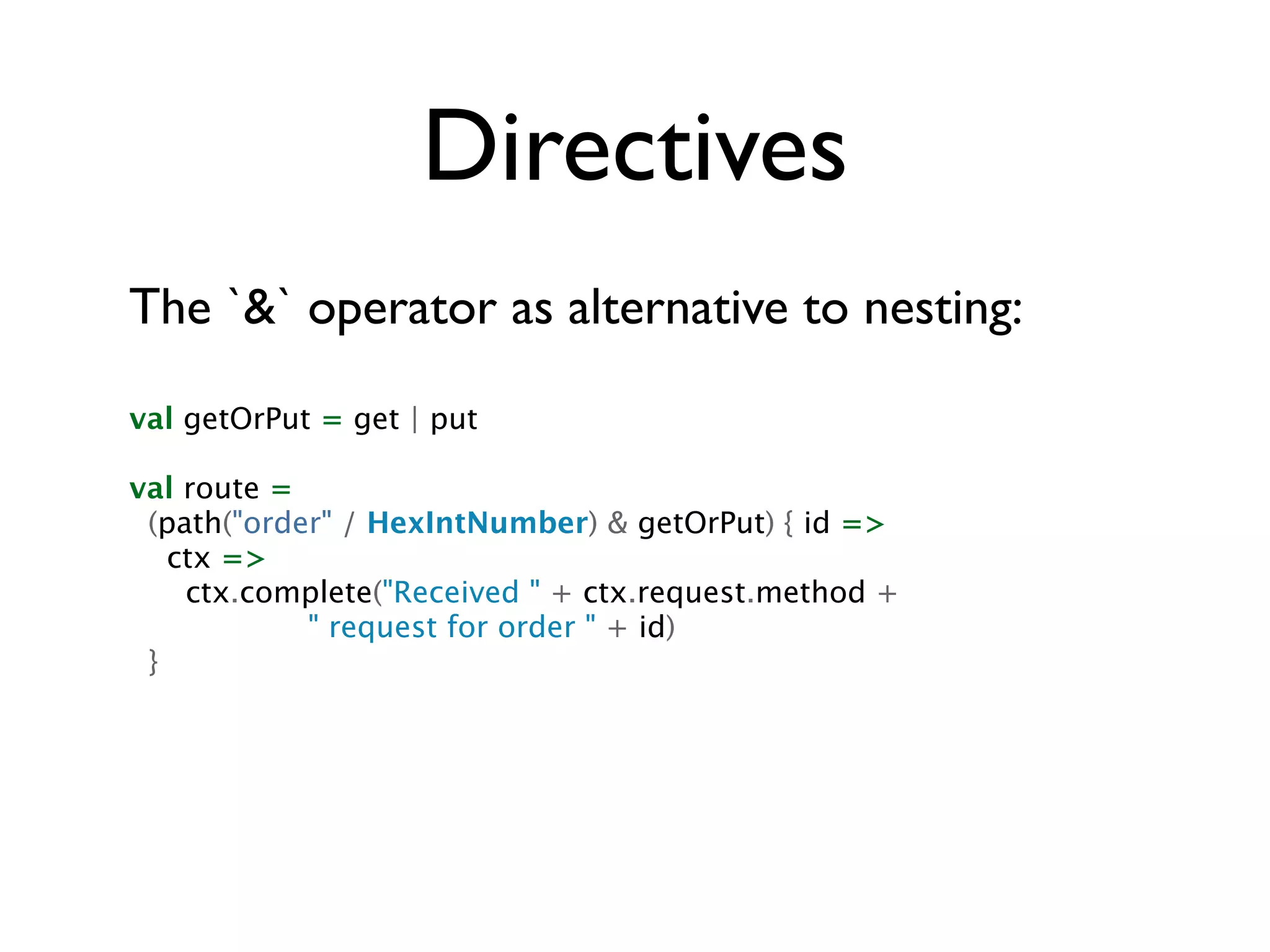

51. Directives
The `&` operator as alternative to nesting:
val getOrPut = get | put
val route =
(path("order" / HexIntNumber) & getOrPut) { id =>
ctx =>
ctx.complete("Received " + ctx.request.method +
" request for order " + id)
}

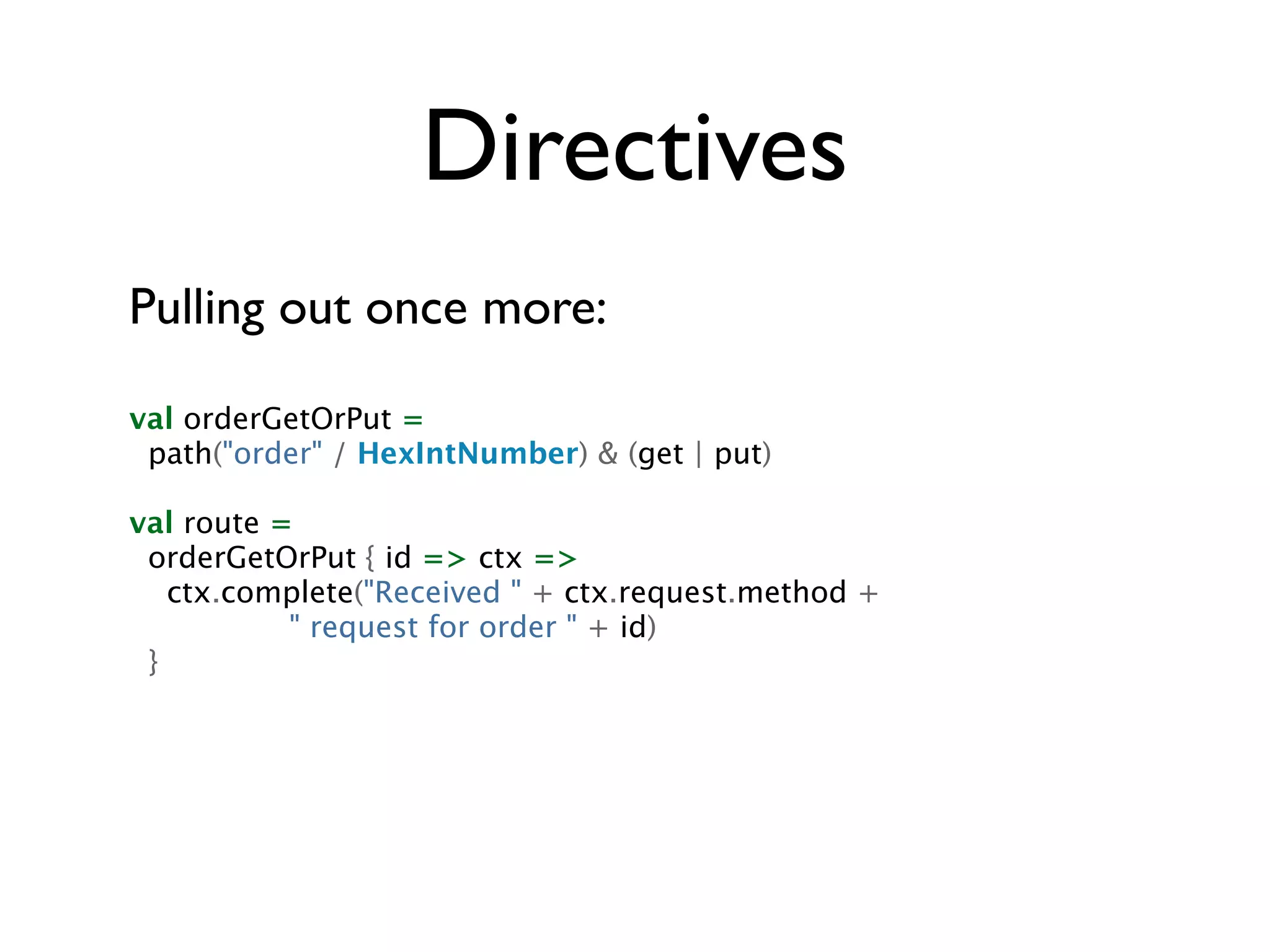

52. Directives
Pulling out once more:
val orderGetOrPut =
path("order" / HexIntNumber) & (get | put)
val route =
orderGetOrPut { id => ctx =>
ctx.complete("Received " + ctx.request.method +
" request for order " + id)
}

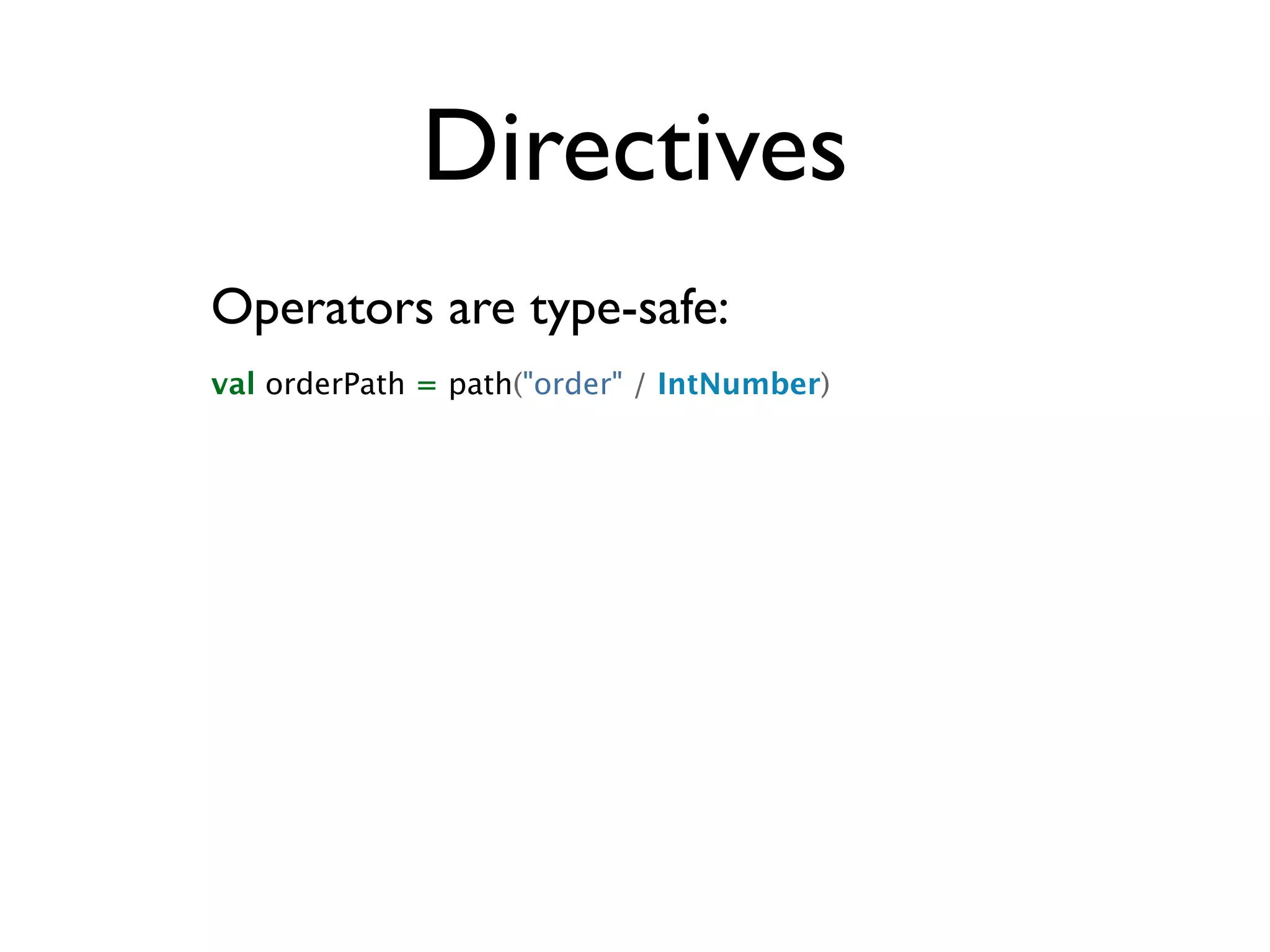

53. Directives
Operators are type-safe:
val orderPath = path("order" / IntNumber)

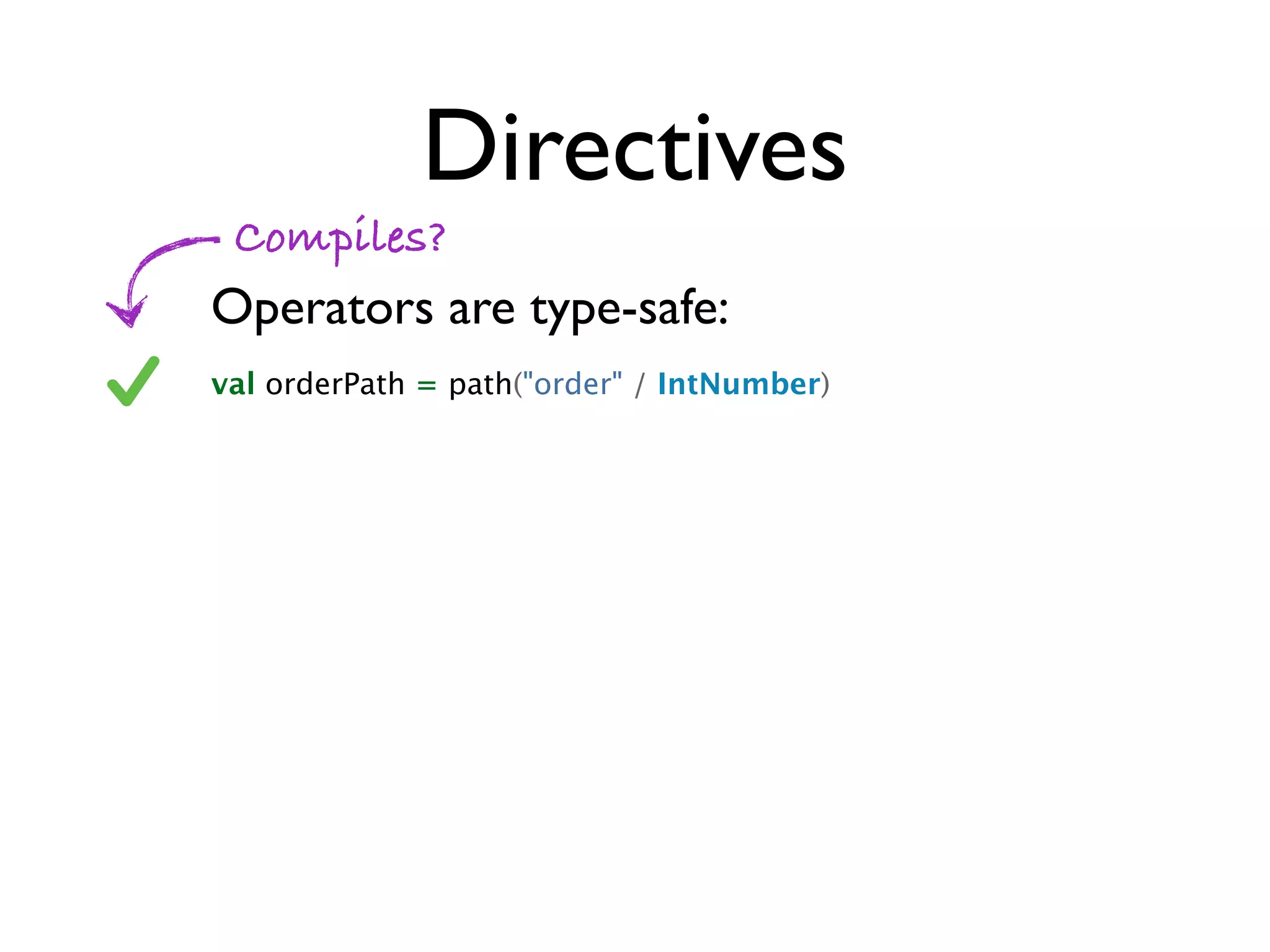

54. Directives
Compiles?
Operators are type-safe:
val orderPath = path("order" / IntNumber)

55. Directives
Compiles?
Operators are type-safe:
val orderPath = path("order" / IntNumber)
val dir = orderPath | get

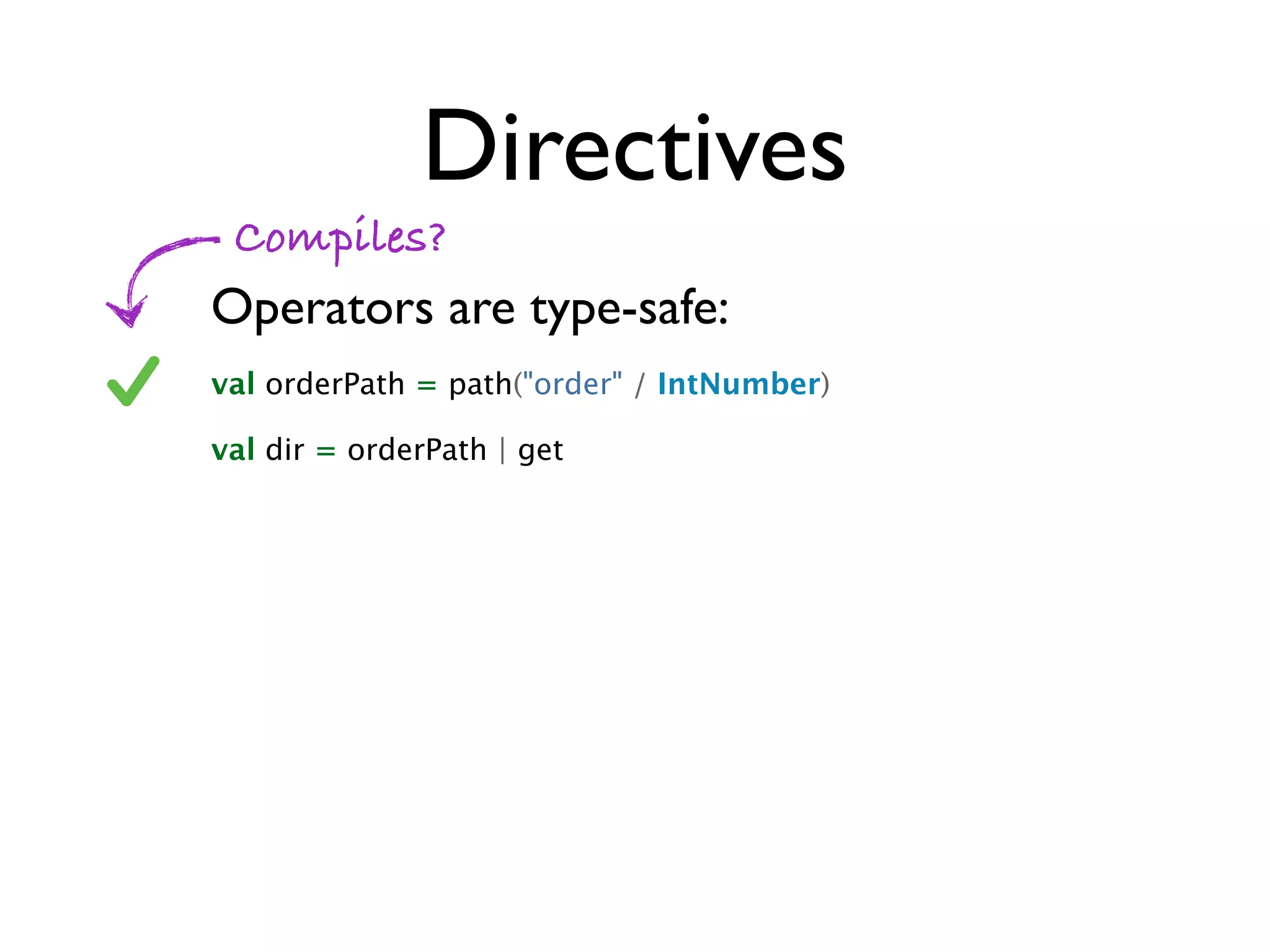

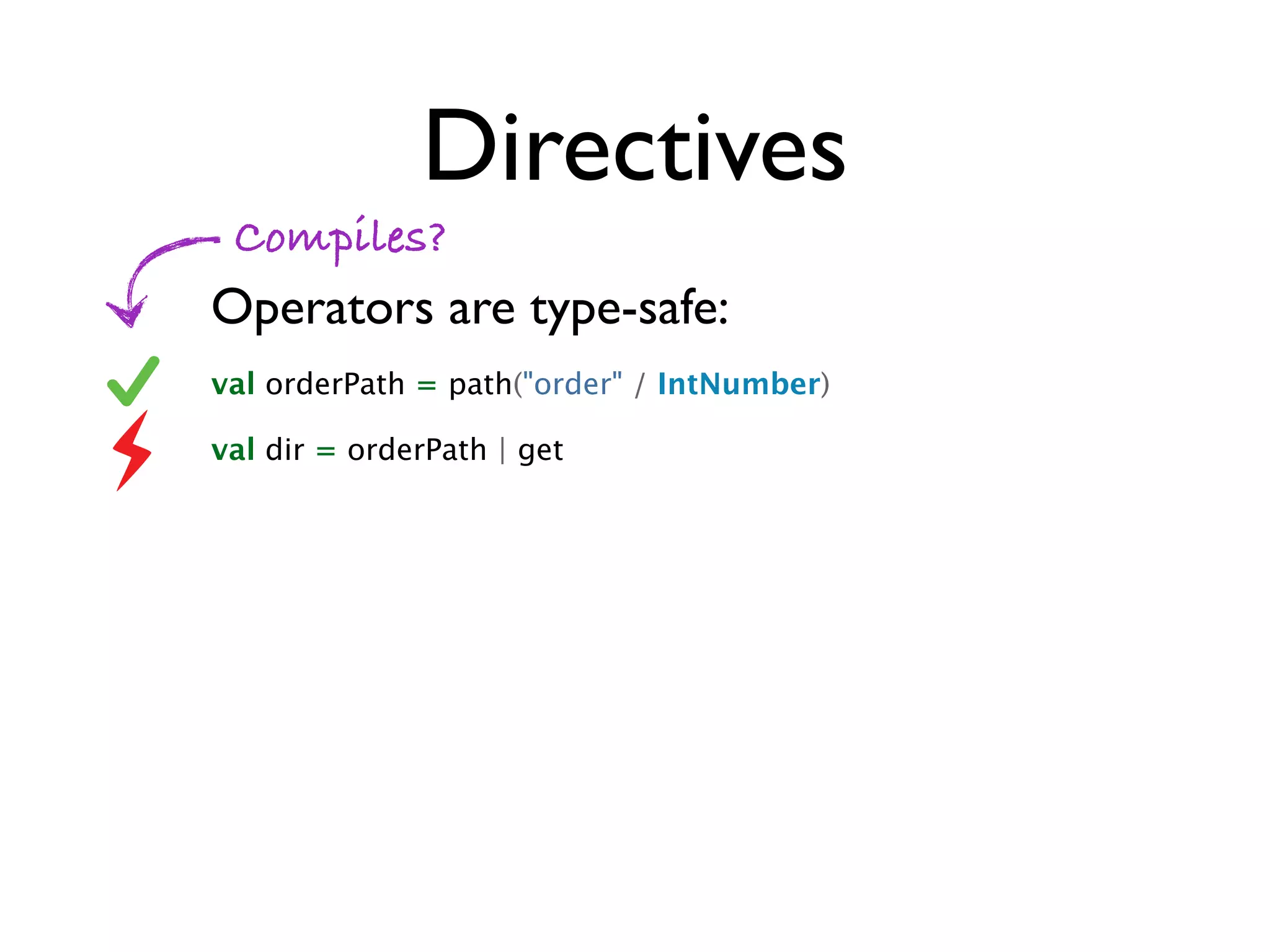

56. Directives
Compiles?
Operators are type-safe:
val orderPath = path("order" / IntNumber)
val dir = orderPath | get

57. Directives
Compiles?
Operators are type-safe:
val orderPath = path("order" / IntNumber)
val dir = orderPath | get
val dir = orderPath | path("[^/]+".r / DoubleNumber)

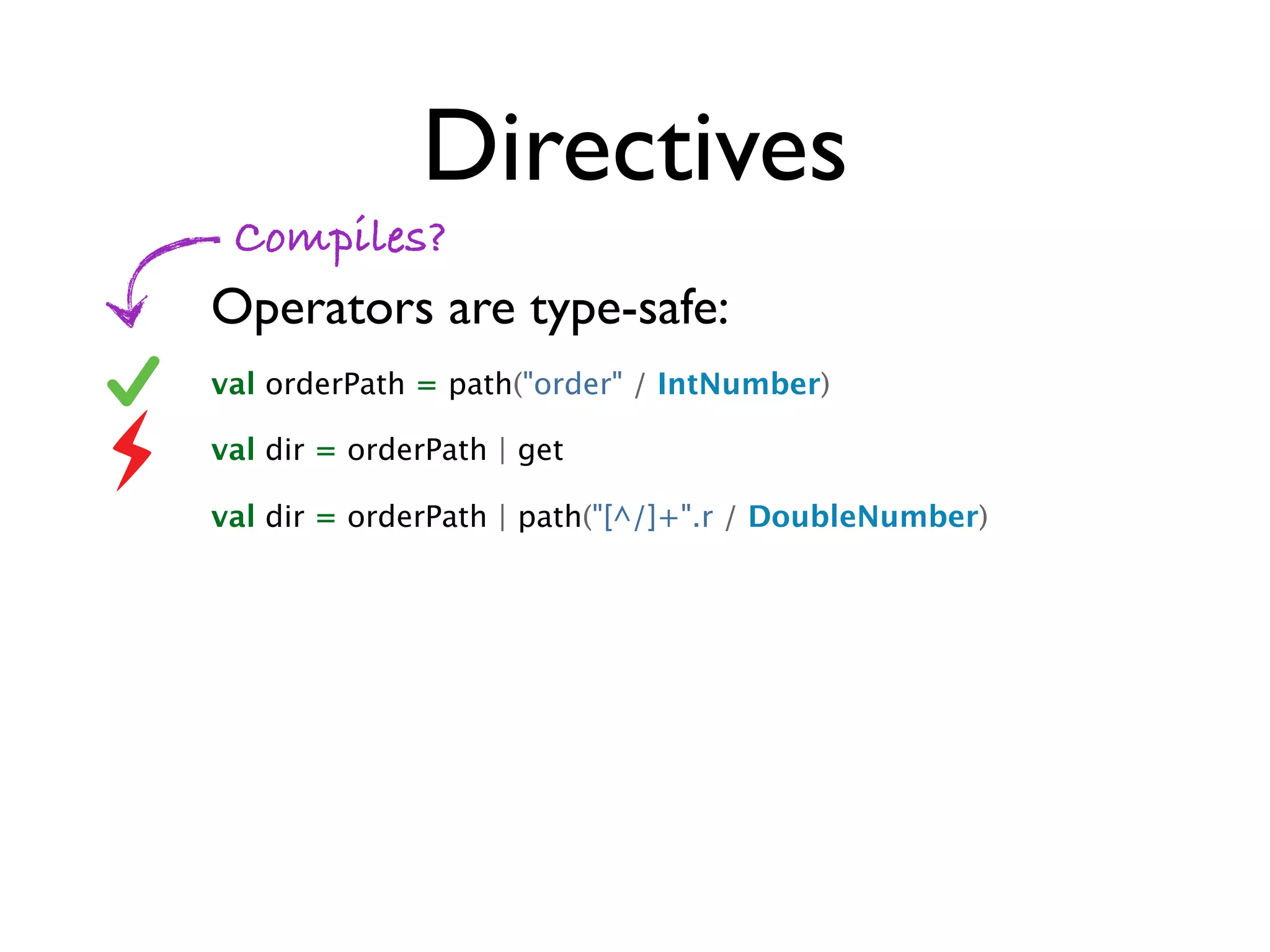

58. Directives
Compiles?
Operators are type-safe:
val orderPath = path("order" / IntNumber)
val dir = orderPath | get
val dir = orderPath | path("[^/]+".r / DoubleNumber)

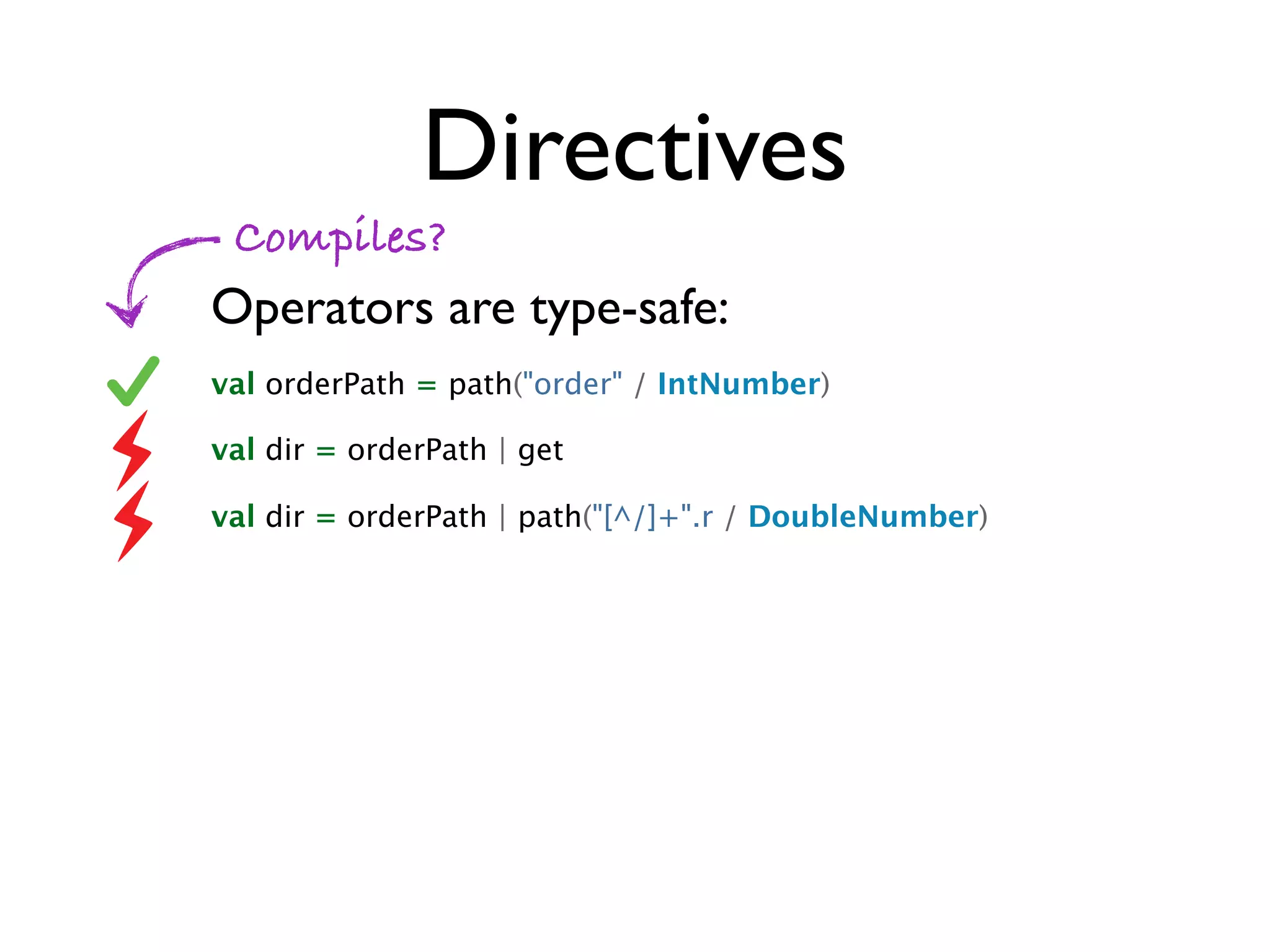

59. Directives
Compiles?
Operators are type-safe:
val orderPath = path("order" / IntNumber)
val dir = orderPath | get
val dir = orderPath | path("[^/]+".r / DoubleNumber)
val dir = orderPath | parameter('order.as[Int])

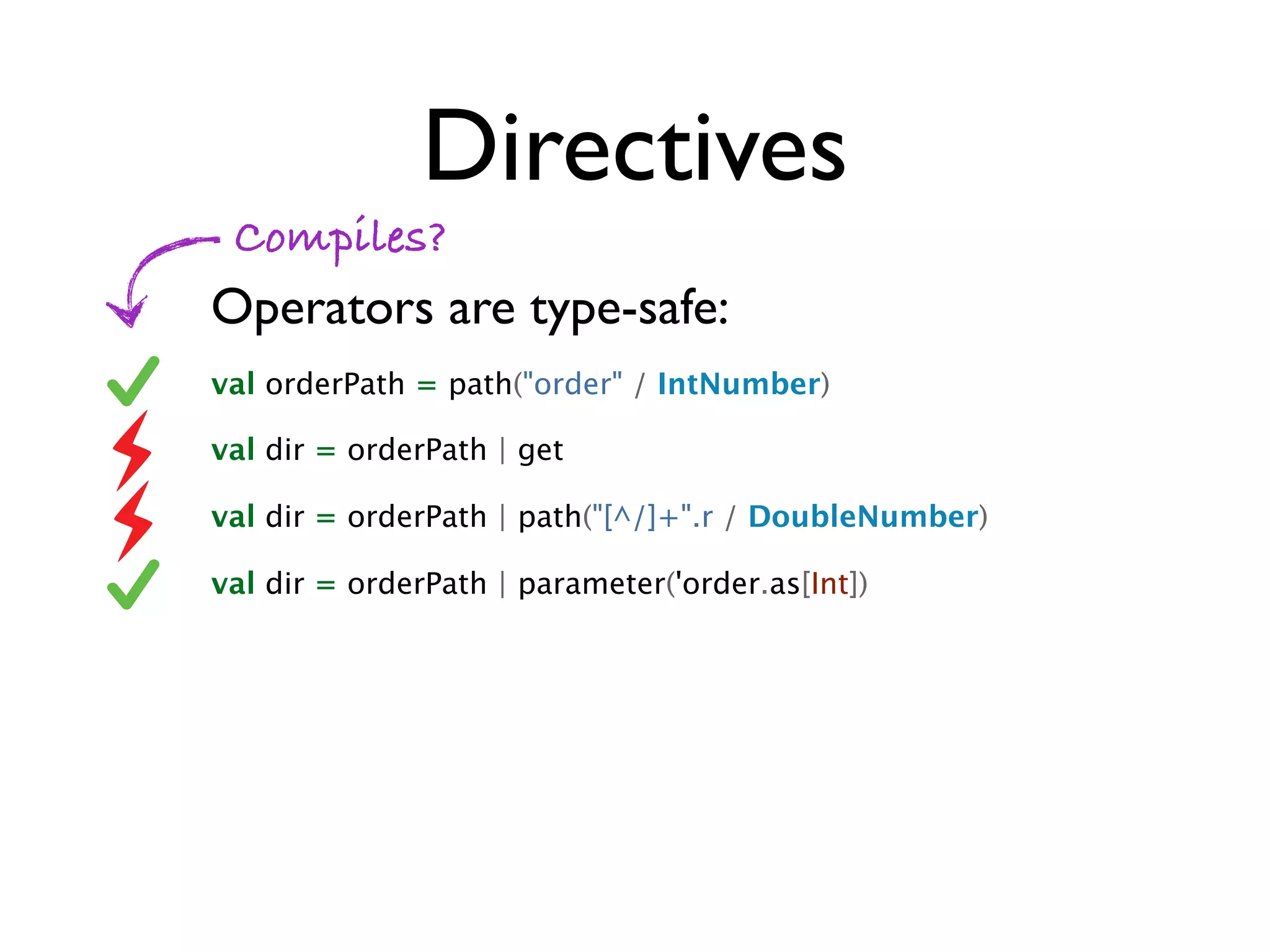

60. Directives
Compiles?
Operators are type-safe:
val orderPath = path("order" / IntNumber)
val dir = orderPath | get
val dir = orderPath | path("[^/]+".r / DoubleNumber)
val dir = orderPath | parameter('order.as[Int])

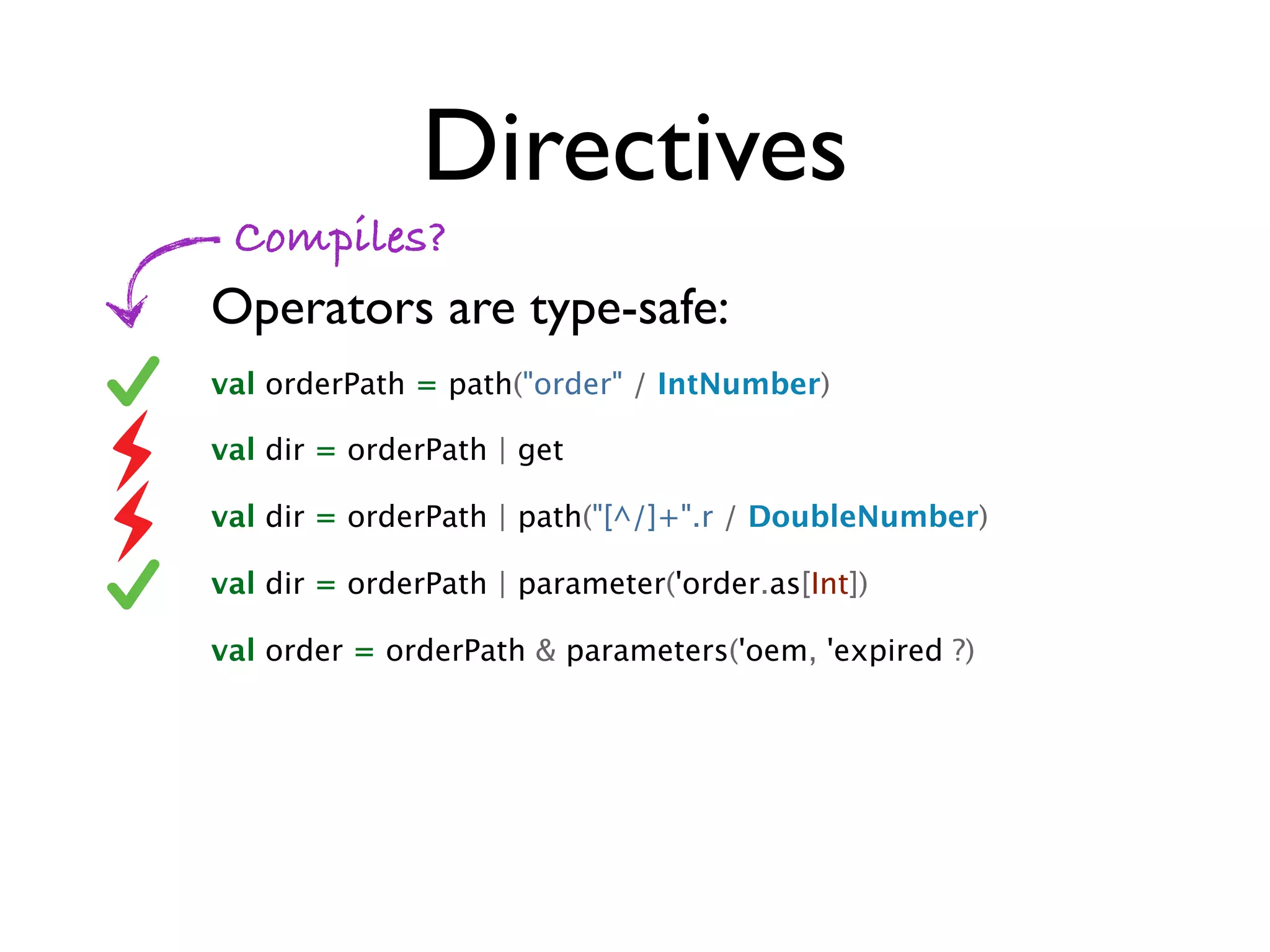

61. Directives
Compiles?
Operators are type-safe:
val orderPath = path("order" / IntNumber)
val dir = orderPath | get
val dir = orderPath | path("[^/]+".r / DoubleNumber)
val dir = orderPath | parameter('order.as[Int])
val order = orderPath & parameters('oem, 'expired ?)

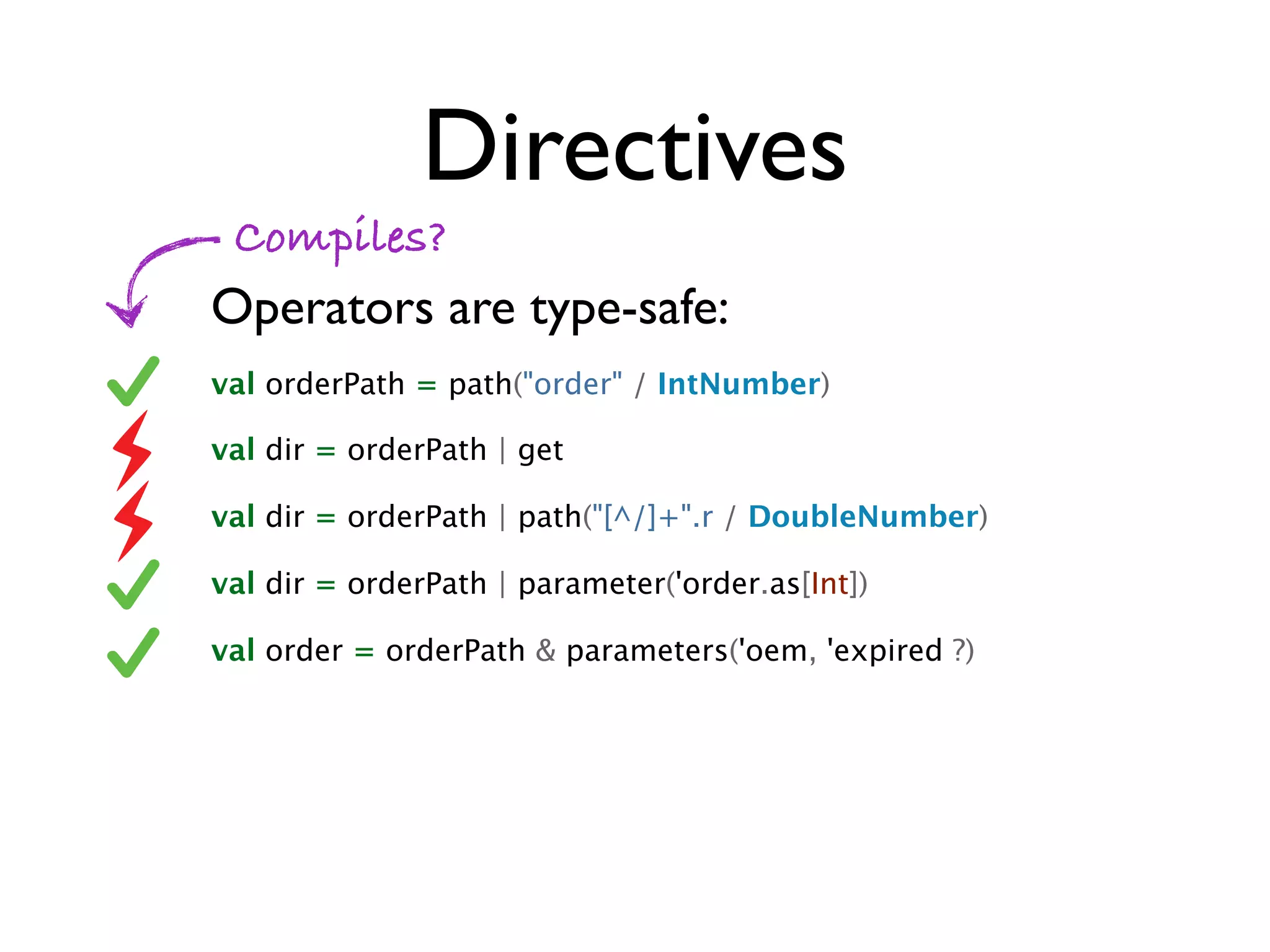

62. Directives
Compiles?
Operators are type-safe:
val orderPath = path("order" / IntNumber)
val dir = orderPath | get
val dir = orderPath | path("[^/]+".r / DoubleNumber)
val dir = orderPath | parameter('order.as[Int])
val order = orderPath & parameters('oem, 'expired ?)

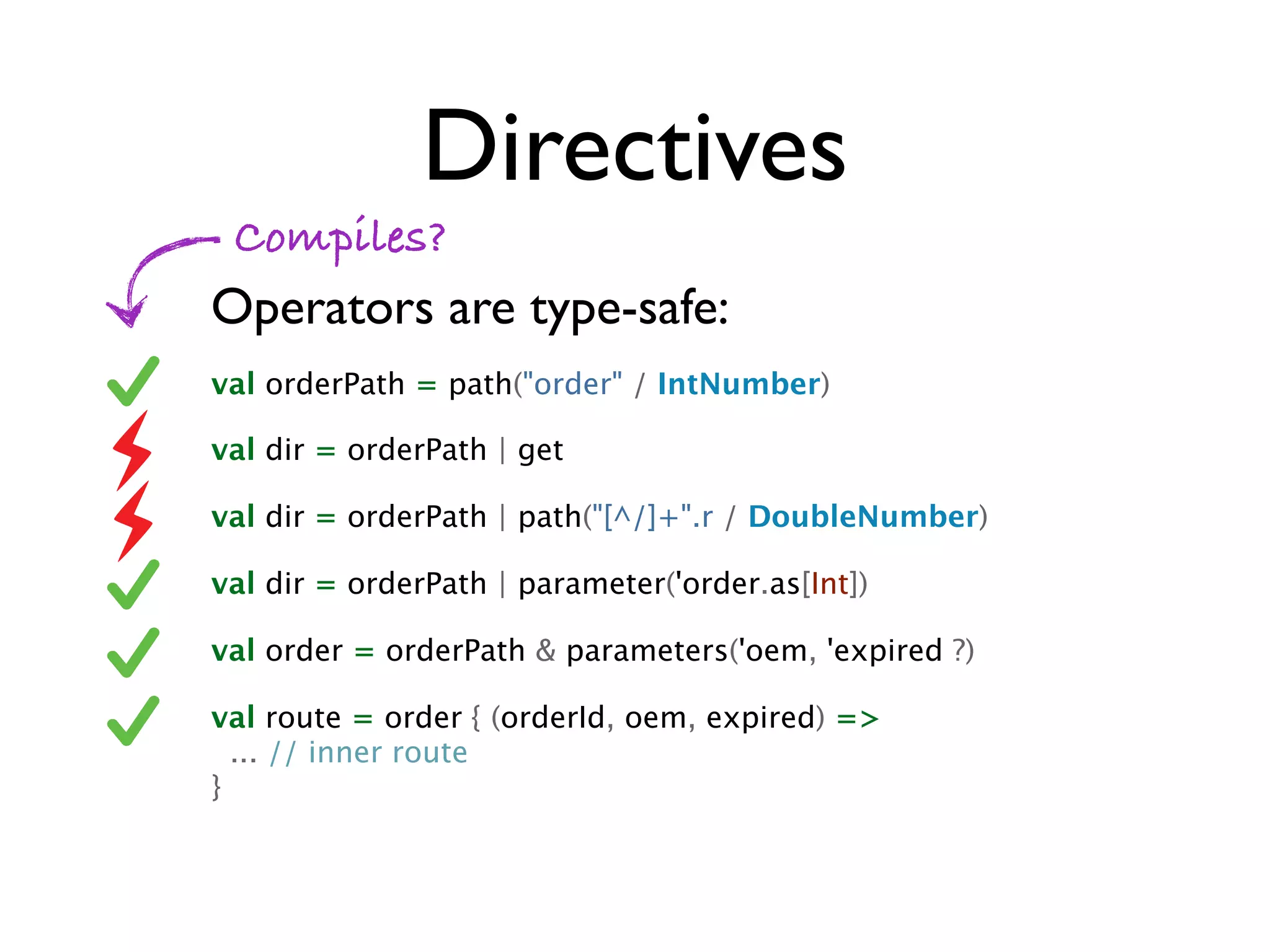

63. Directives
Compiles?
Operators are type-safe:
val orderPath = path("order" / IntNumber)
val dir = orderPath | get
val dir = orderPath | path("[^/]+".r / DoubleNumber)
val dir = orderPath | parameter('order.as[Int])
val order = orderPath & parameters('oem, 'expired ?)
val route = order { (orderId, oem, expired) =>
... // inner route
}

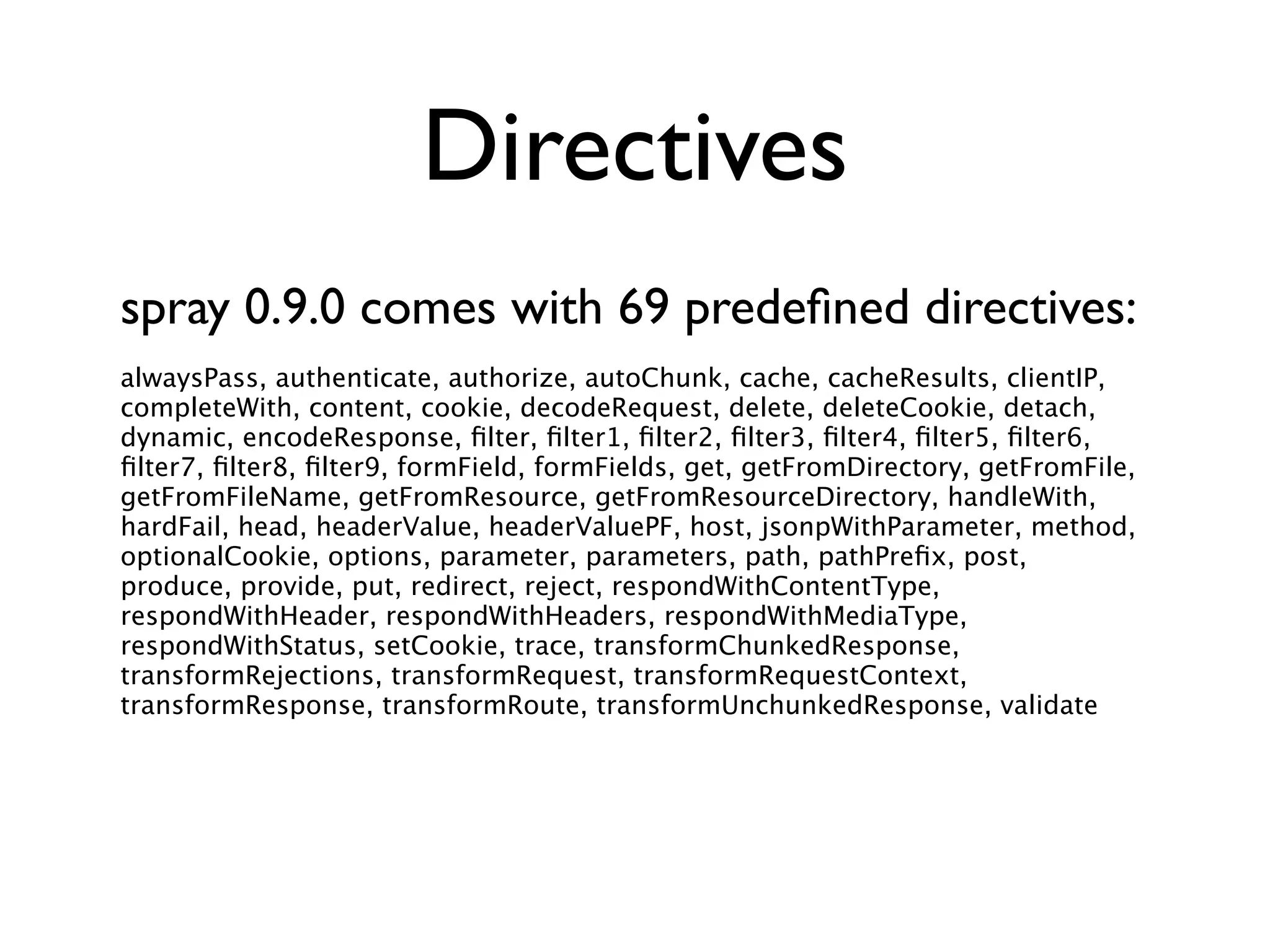

64. Directives
spray 0.9.0 comes with 69 predefined directives:
alwaysPass, authenticate, authorize, autoChunk, cache, cacheResults, clientIP,
completeWith, content, cookie, decodeRequest, delete, deleteCookie, detach,
dynamic, encodeResponse, filter, filter1, filter2, filter3, filter4, filter5, filter6,
filter7, filter8, filter9, formField, formFields, get, getFromDirectory, getFromFile,
getFromFileName, getFromResource, getFromResourceDirectory, handleWith,
hardFail, head, headerValue, headerValuePF, host, jsonpWithParameter, method,
optionalCookie, options, parameter, parameters, path, pathPrefix, post,
produce, provide, put, redirect, reject, respondWithContentType,
respondWithHeader, respondWithHeaders, respondWithMediaType,
respondWithStatus, setCookie, trace, transformChunkedResponse,
transformRejections, transformRequest, transformRequestContext,
transformResponse, transformRoute, transformUnchunkedResponse, validate

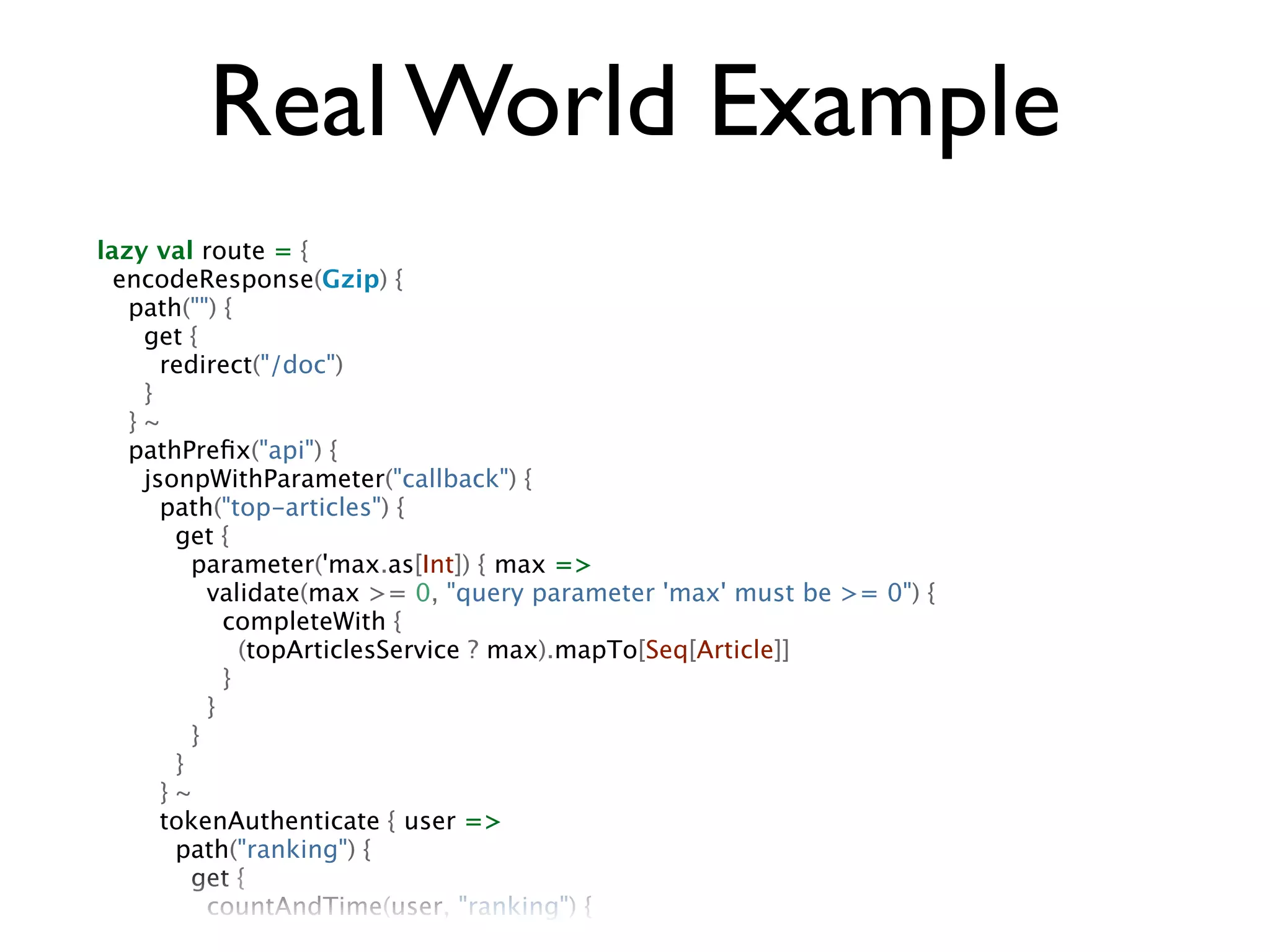

65. Real World Example
lazy val route = {
encodeResponse(Gzip) {
path("") {
get {
redirect("/doc")
}
}~
pathPrefix("api") {
jsonpWithParameter("callback") {
path("top-articles") {
get {
parameter('max.as[Int]) { max =>
validate(max >= 0, "query parameter 'max' must be >= 0") {
completeWith {
(topArticlesService ? max).mapTo[Seq[Article]]
}
}
}
}
}~
tokenAuthenticate { user =>
path("ranking") {
get {
countAndTime(user, "ranking") {
parameters('fixed ? 0, 'mobile ? 0, 'sms ? 0, 'mms ? 0,

66. }
}
}~
}
}

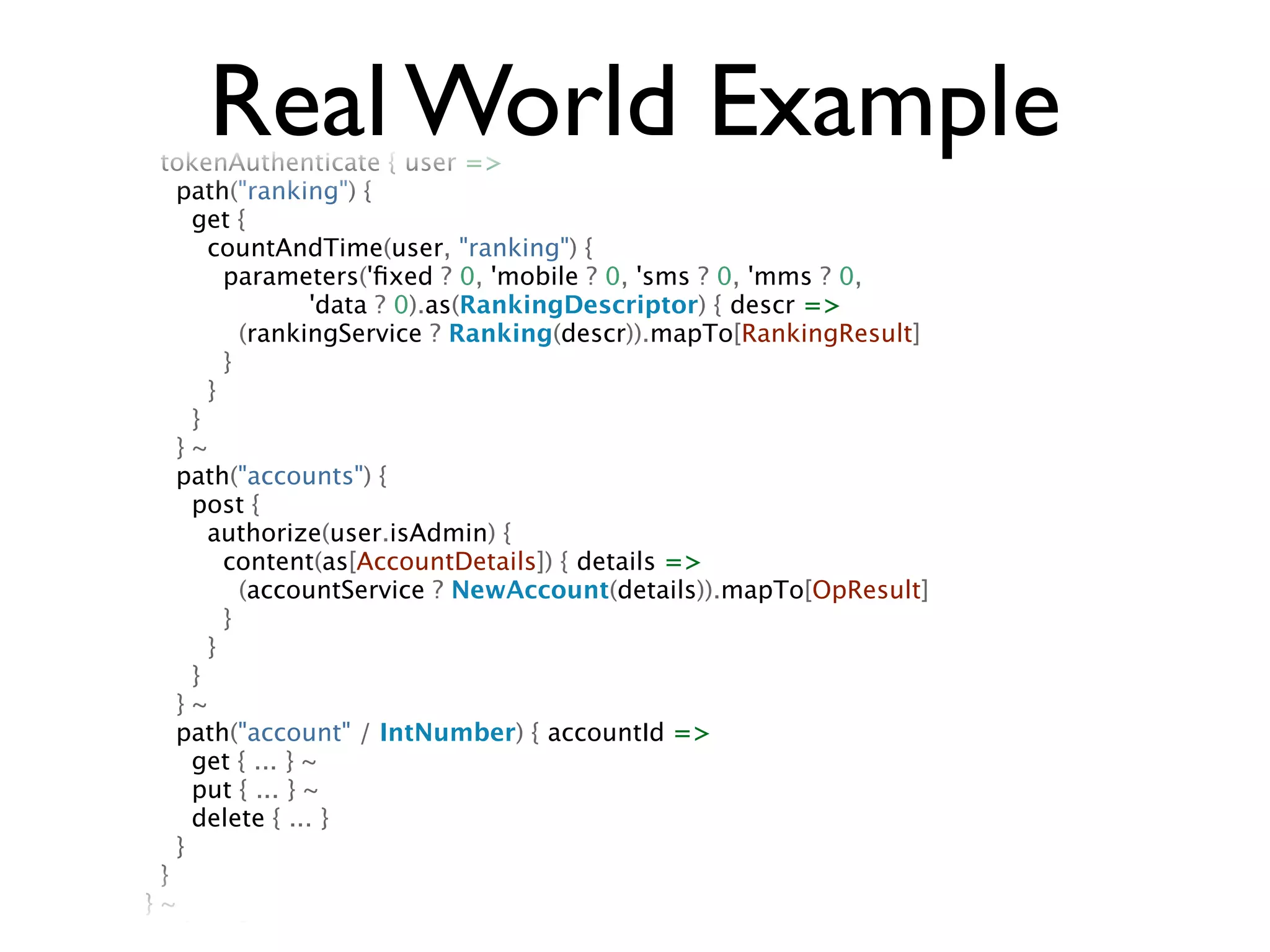

Real World Example
tokenAuthenticate { user =>
path("ranking") {
get {
countAndTime(user, "ranking") {
parameters('fixed ? 0, 'mobile ? 0, 'sms ? 0, 'mms ? 0,
'data ? 0).as(RankingDescriptor) { descr =>
(rankingService ? Ranking(descr)).mapTo[RankingResult]
}
}
}
}~
path("accounts") {
post {
authorize(user.isAdmin) {
content(as[AccountDetails]) { details =>
(accountService ? NewAccount(details)).mapTo[OpResult]
}
}
}
}~
path("account" / IntNumber) { accountId =>
get { ... } ~
put { ... } ~
delete { ... }
}
}
}~
pathPrefix("v1") {

67. }
}~

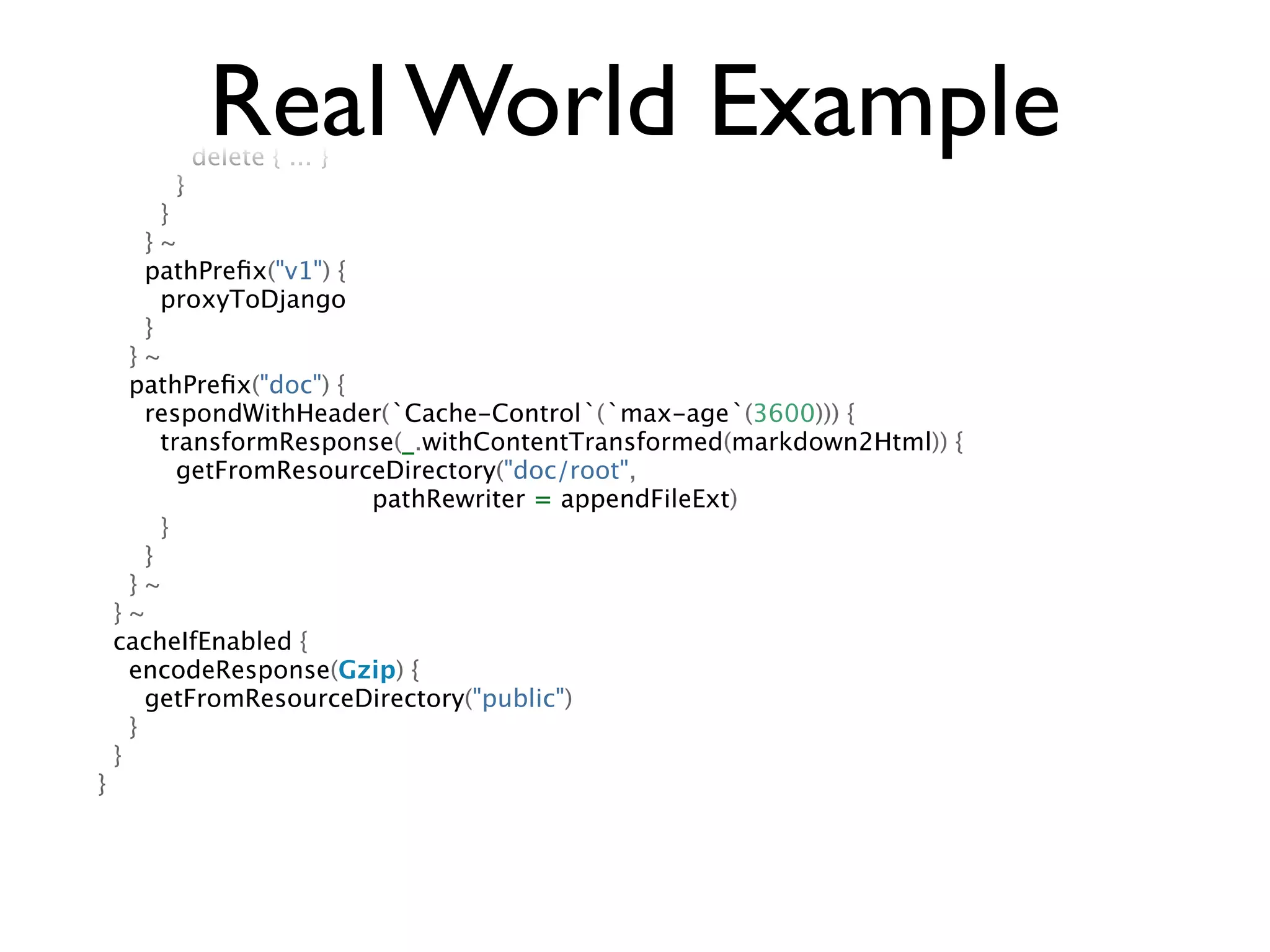

Real World Example
path("account" / IntNumber) { accountId =>
get { ... } ~
put { ... } ~
delete { ... }
}
}
}~
pathPrefix("v1") {
proxyToDjango
}
}~
pathPrefix("doc") {
respondWithHeader(`Cache-Control`(`max-age`(3600))) {
transformResponse(_.withContentTransformed(markdown2Html)) {
getFromResourceDirectory("doc/root",
pathRewriter = appendFileExt)
}
}
}~
}~
cacheIfEnabled {
encodeResponse(Gzip) {
getFromResourceDirectory("public")
}
}
}

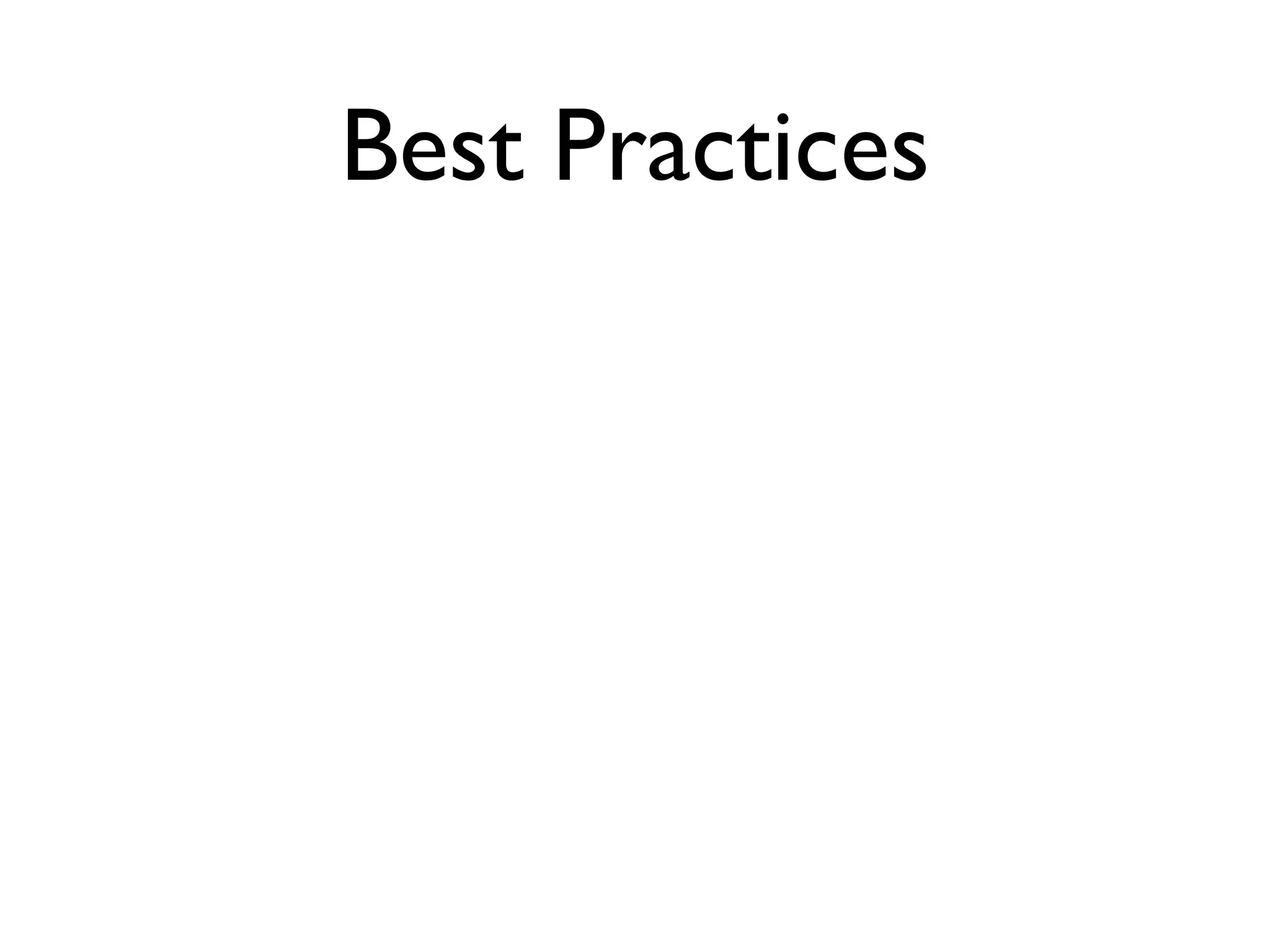

68. Best Practices

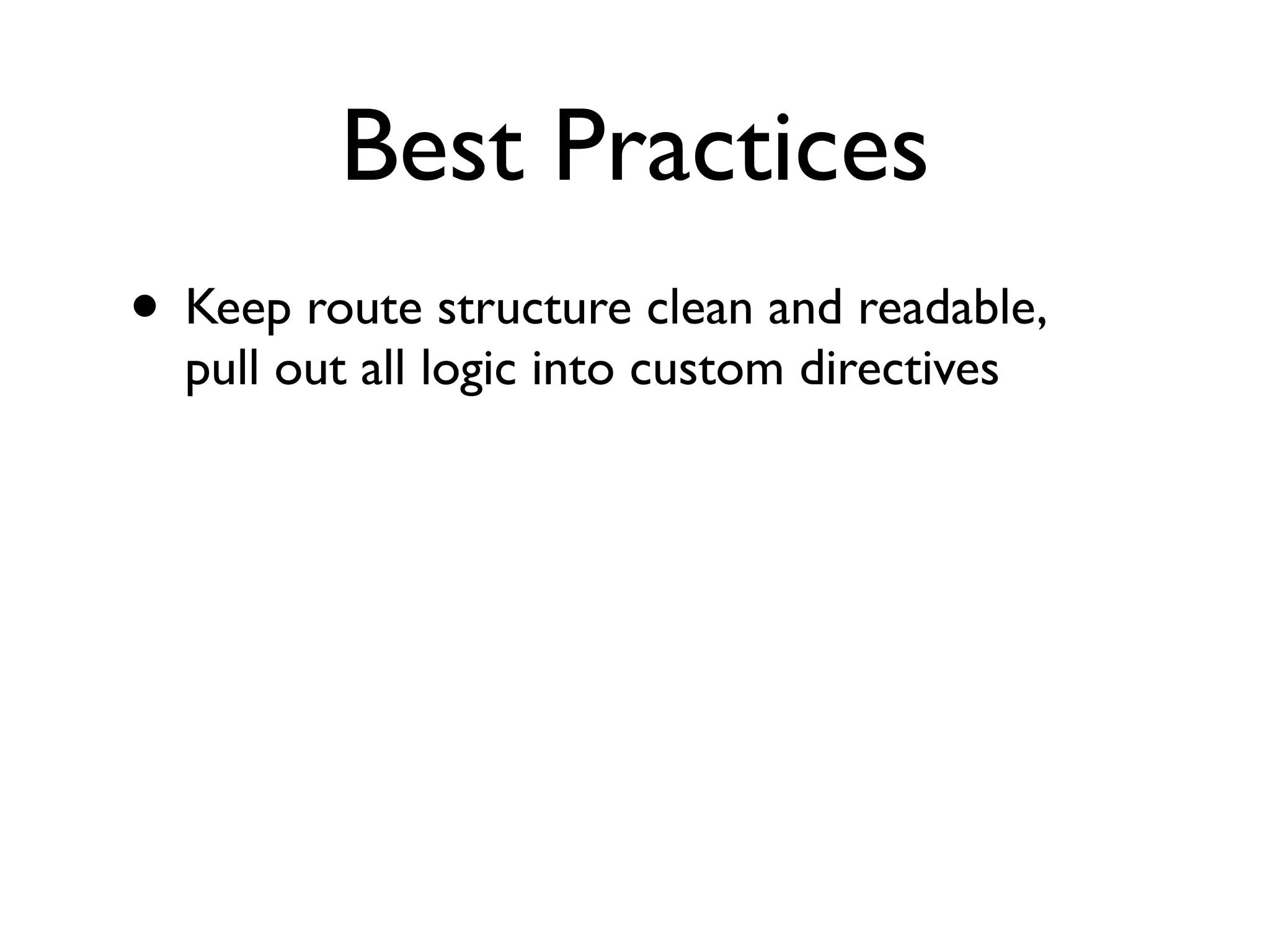

69. Best Practices
• Keep route structure clean and readable,
pull out all logic into custom directives

70. Best Practices
• Keep route structure clean and readable,
pull out all logic into custom directives
• Don’t let API layer leak into application

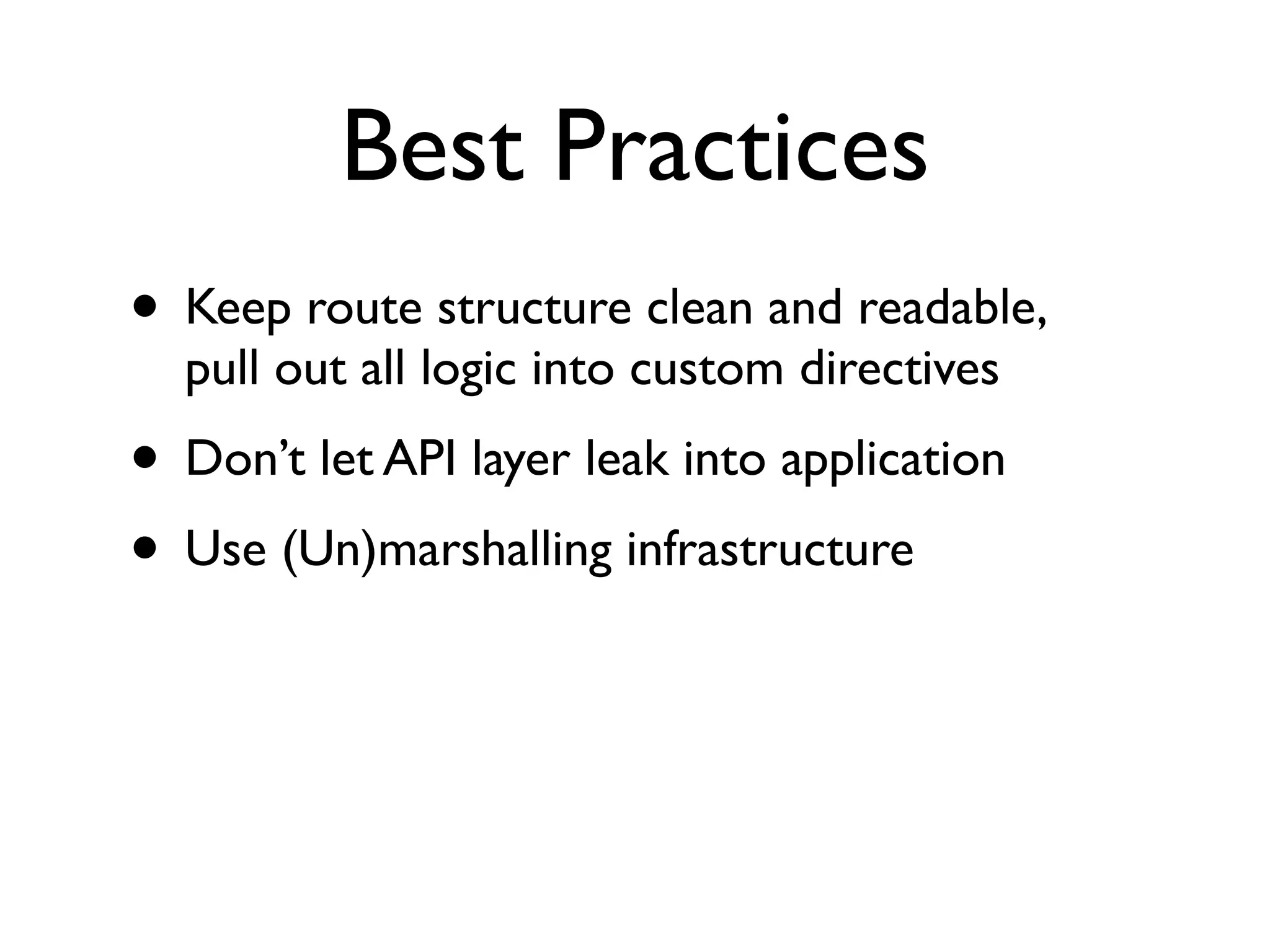

71. Best Practices
• Keep route structure clean and readable,
pull out all logic into custom directives
• Don’t let API layer leak into application
• Use (Un)marshalling infrastructure

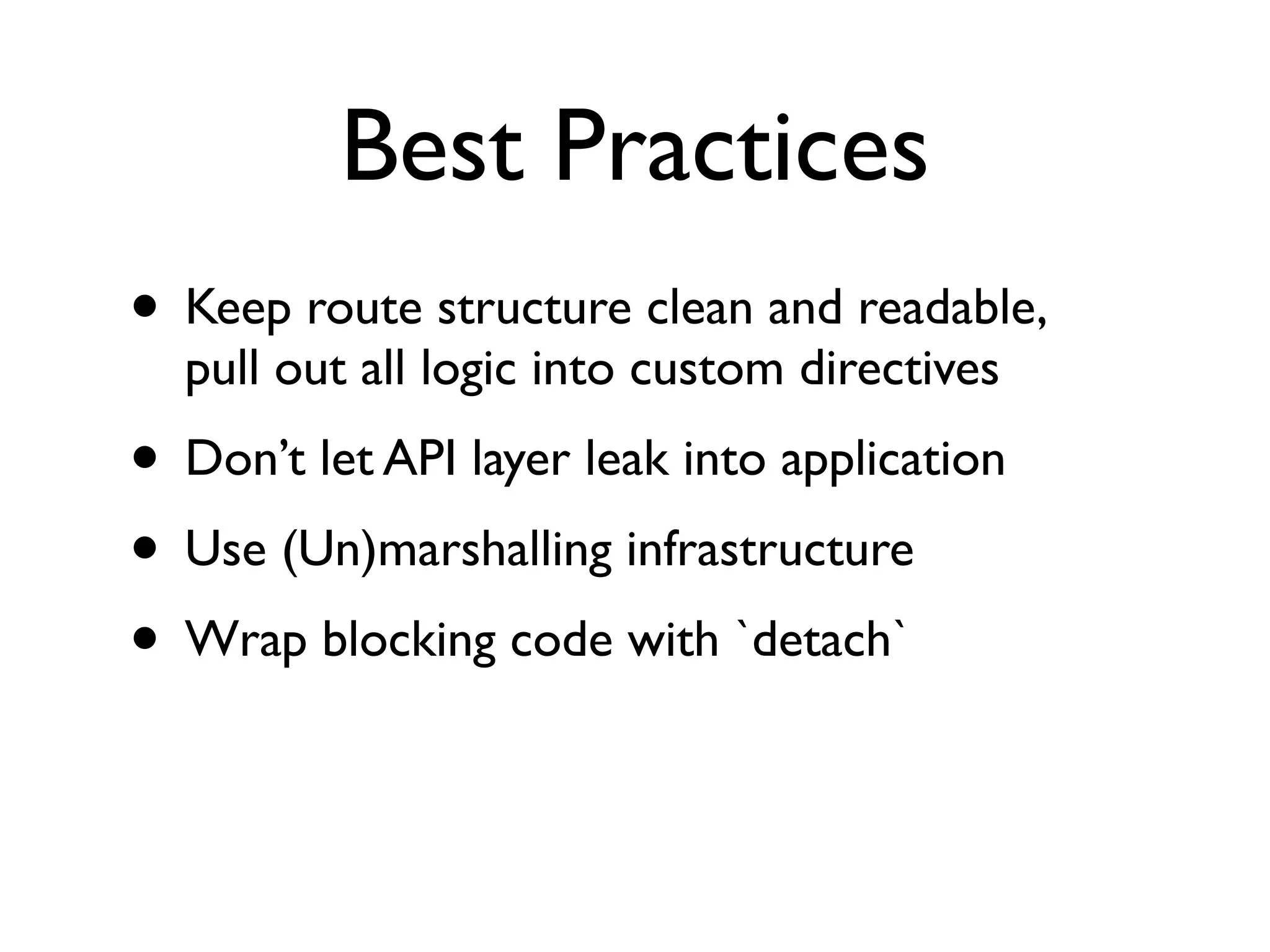

72. Best Practices
• Keep route structure clean and readable,
pull out all logic into custom directives
• Don’t let API layer leak into application
• Use (Un)marshalling infrastructure
• Wrap blocking code with `detach`

73. Best Practices
• Keep route structure clean and readable,
pull out all logic into custom directives
• Don’t let API layer leak into application
• Use (Un)marshalling infrastructure
• Wrap blocking code with `detach`
• Use sbt-revolver + JRebel for fast dev turn-
around

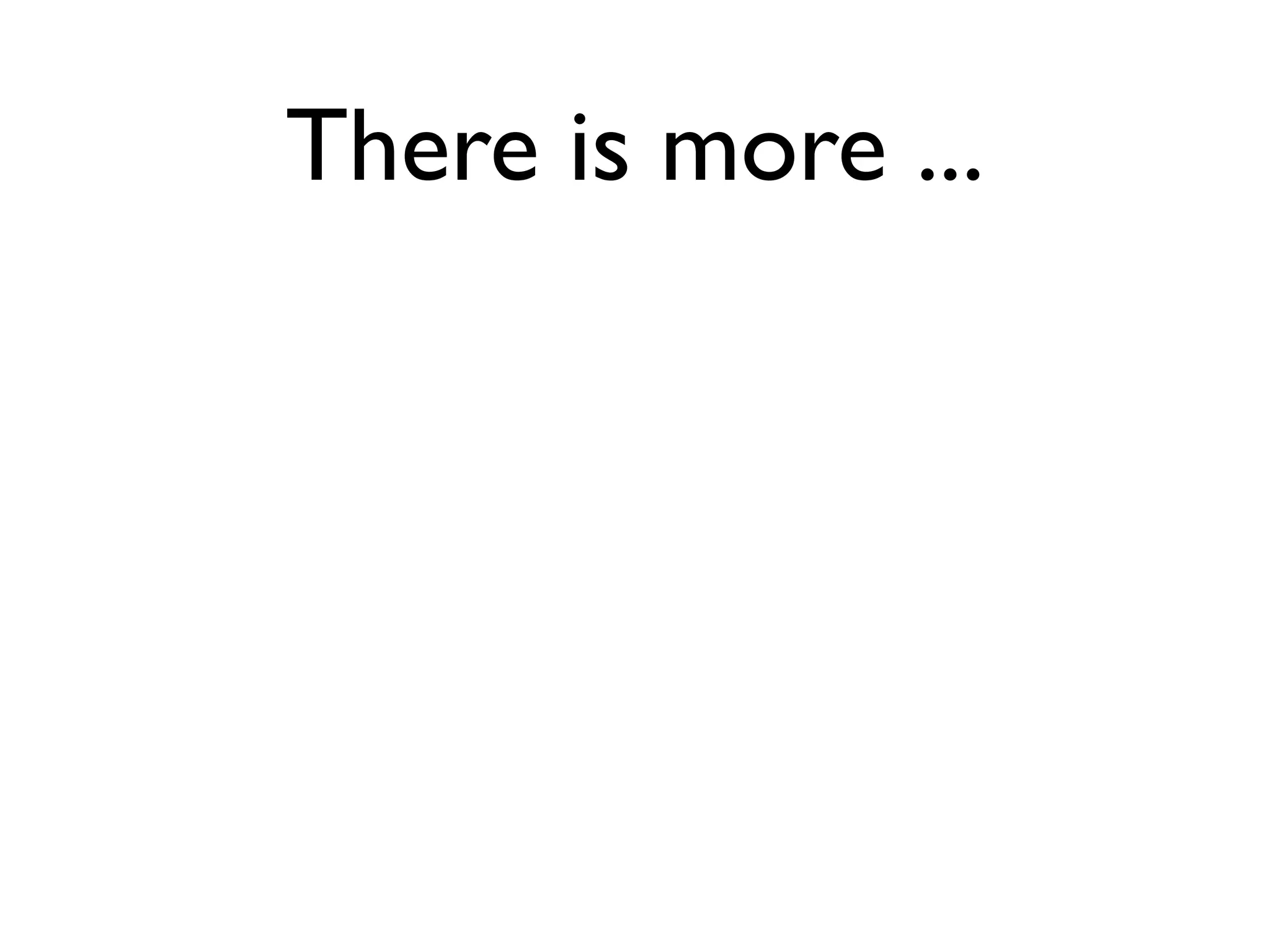

74. There is more ...

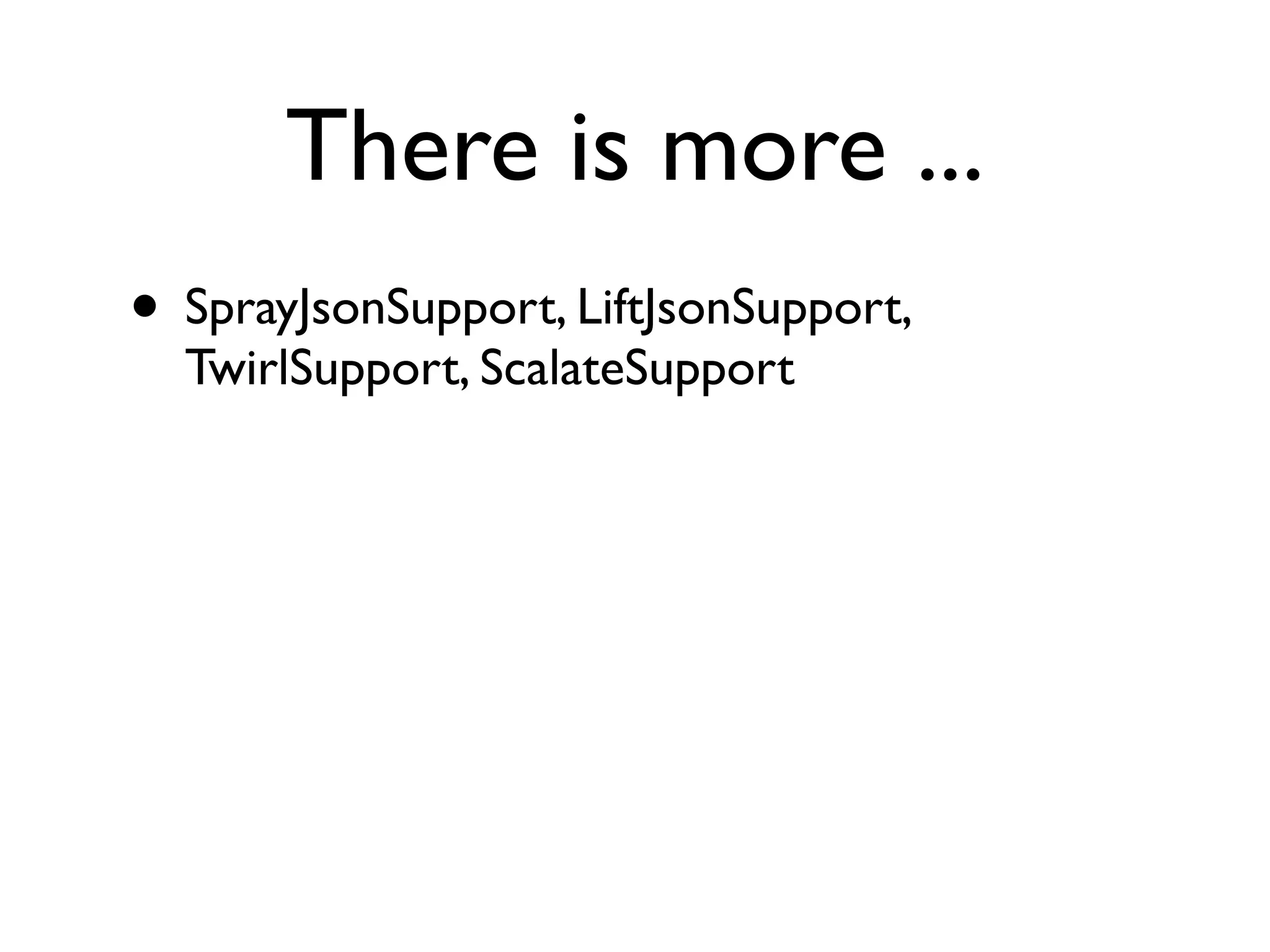

75. There is more ...
• SprayJsonSupport, LiftJsonSupport,
TwirlSupport, ScalateSupport

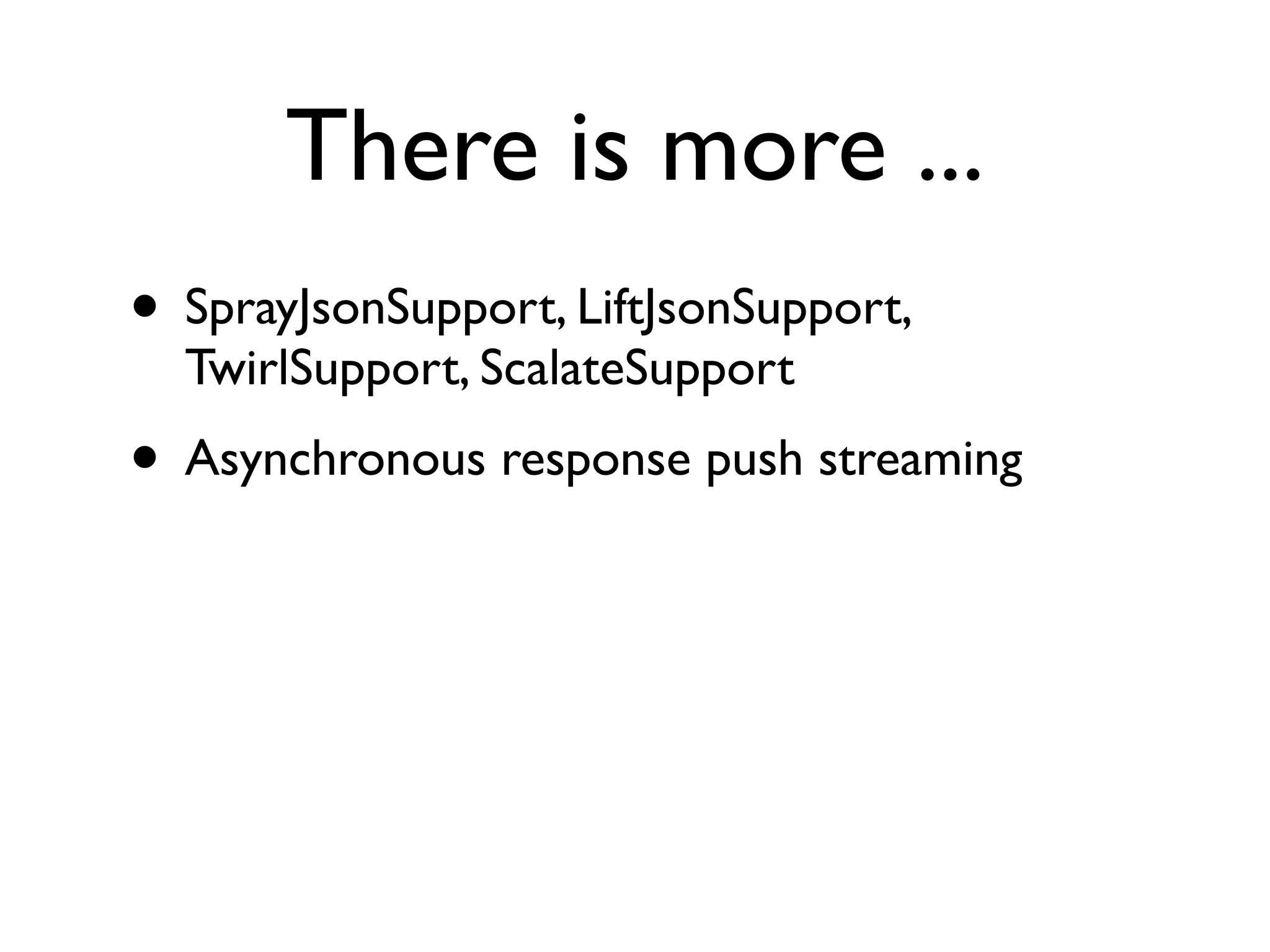

76. There is more ...
• SprayJsonSupport, LiftJsonSupport,
TwirlSupport, ScalateSupport
• Asynchronous response push streaming

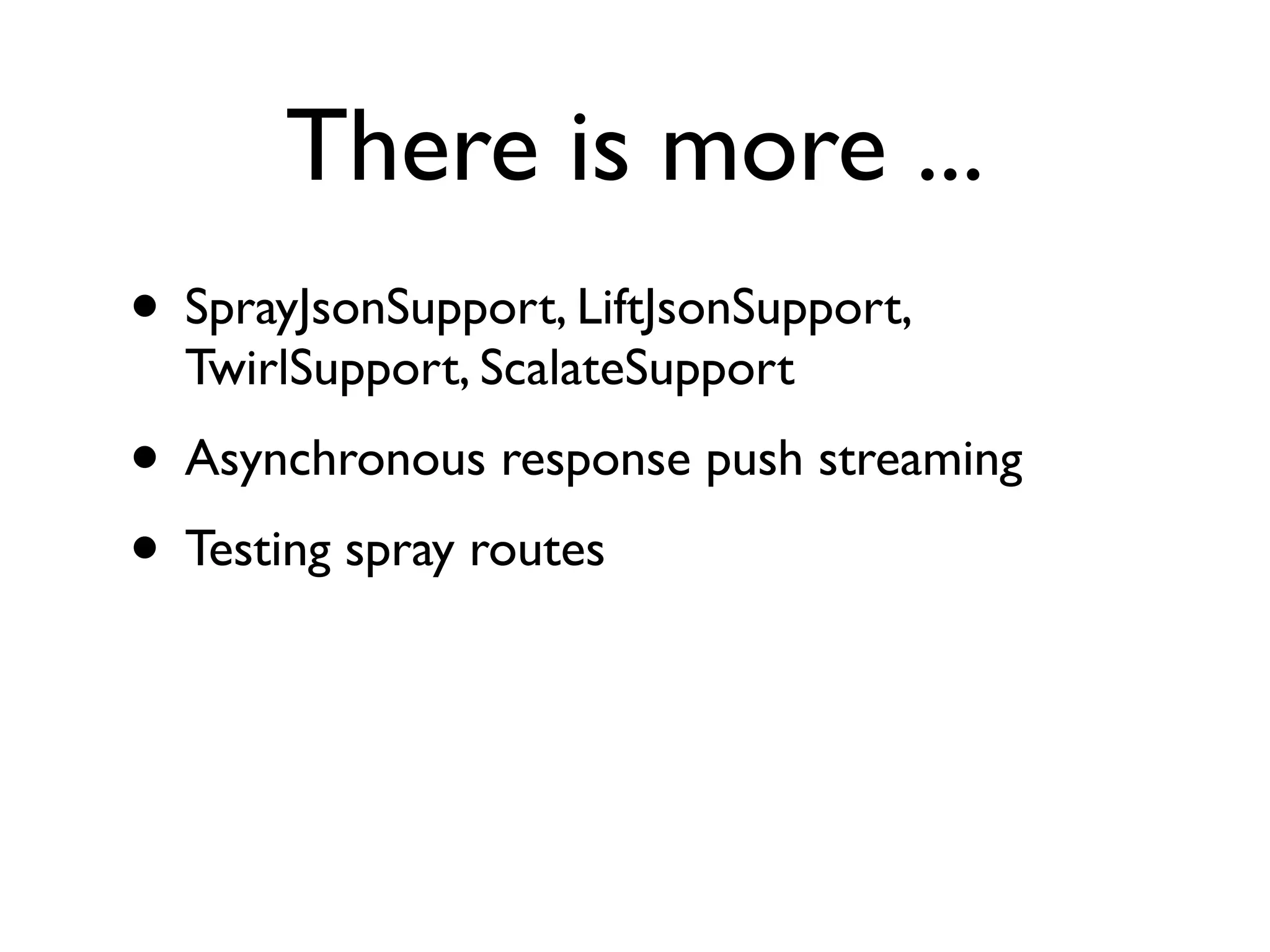

77. There is more ...
• SprayJsonSupport, LiftJsonSupport,
TwirlSupport, ScalateSupport
• Asynchronous response push streaming
• Testing spray routes

78. There is more ...
• SprayJsonSupport, LiftJsonSupport,
TwirlSupport, ScalateSupport
• Asynchronous response push streaming
• Testing spray routes
• RESTful errors

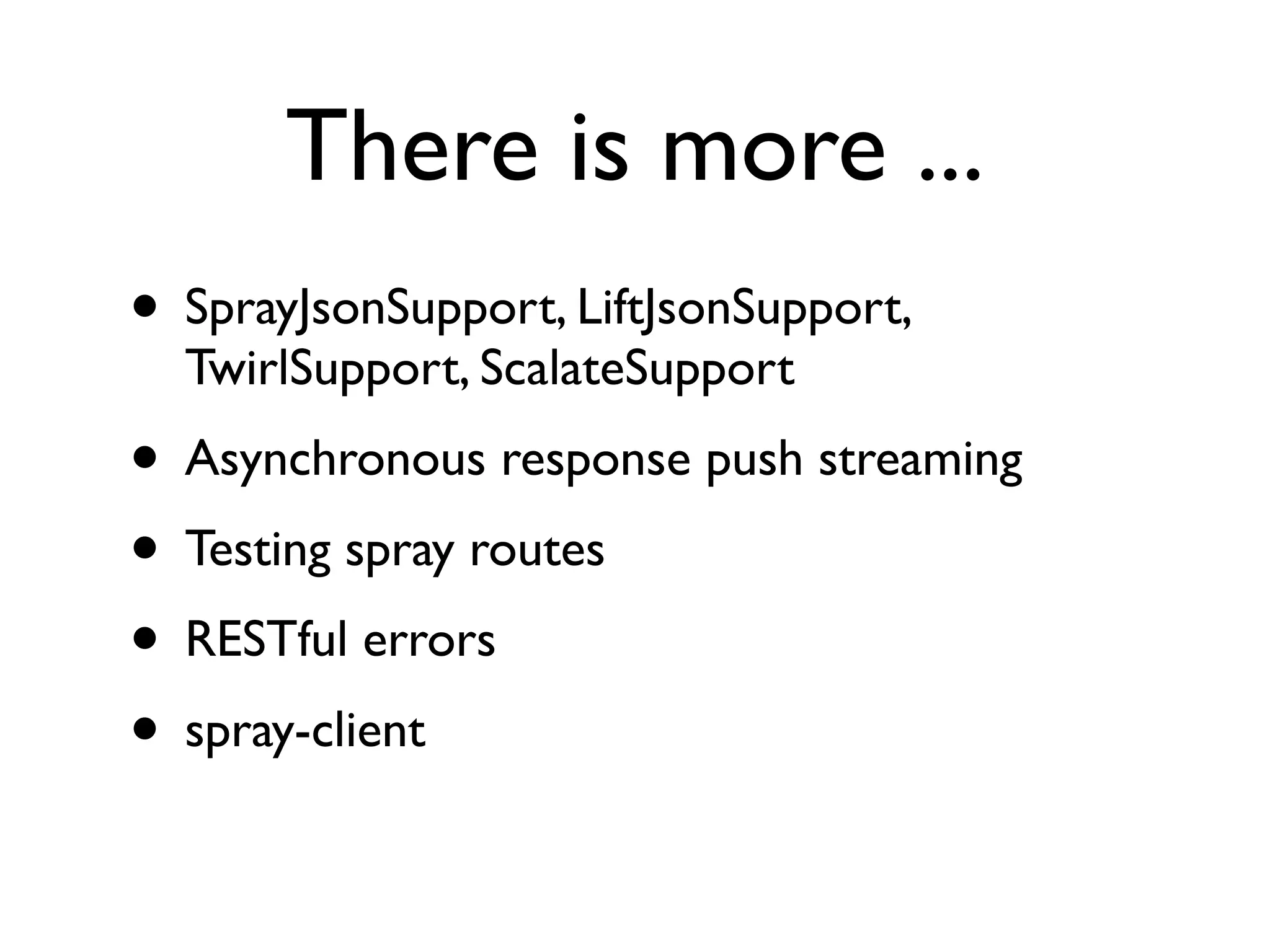

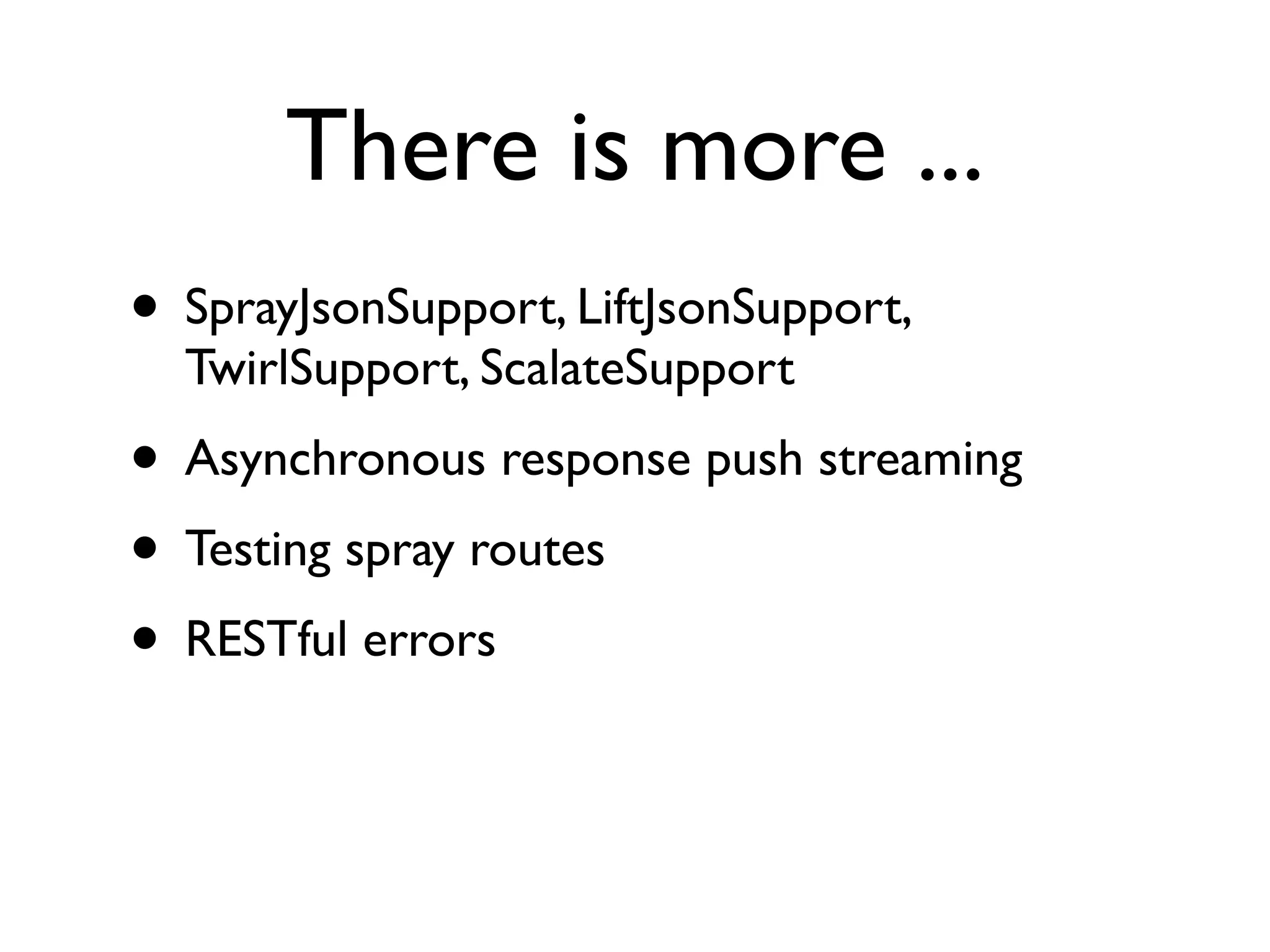

79. There is more ...
• SprayJsonSupport, LiftJsonSupport,
TwirlSupport, ScalateSupport
• Asynchronous response push streaming
• Testing spray routes
• RESTful errors
• spray-client

80. Current State

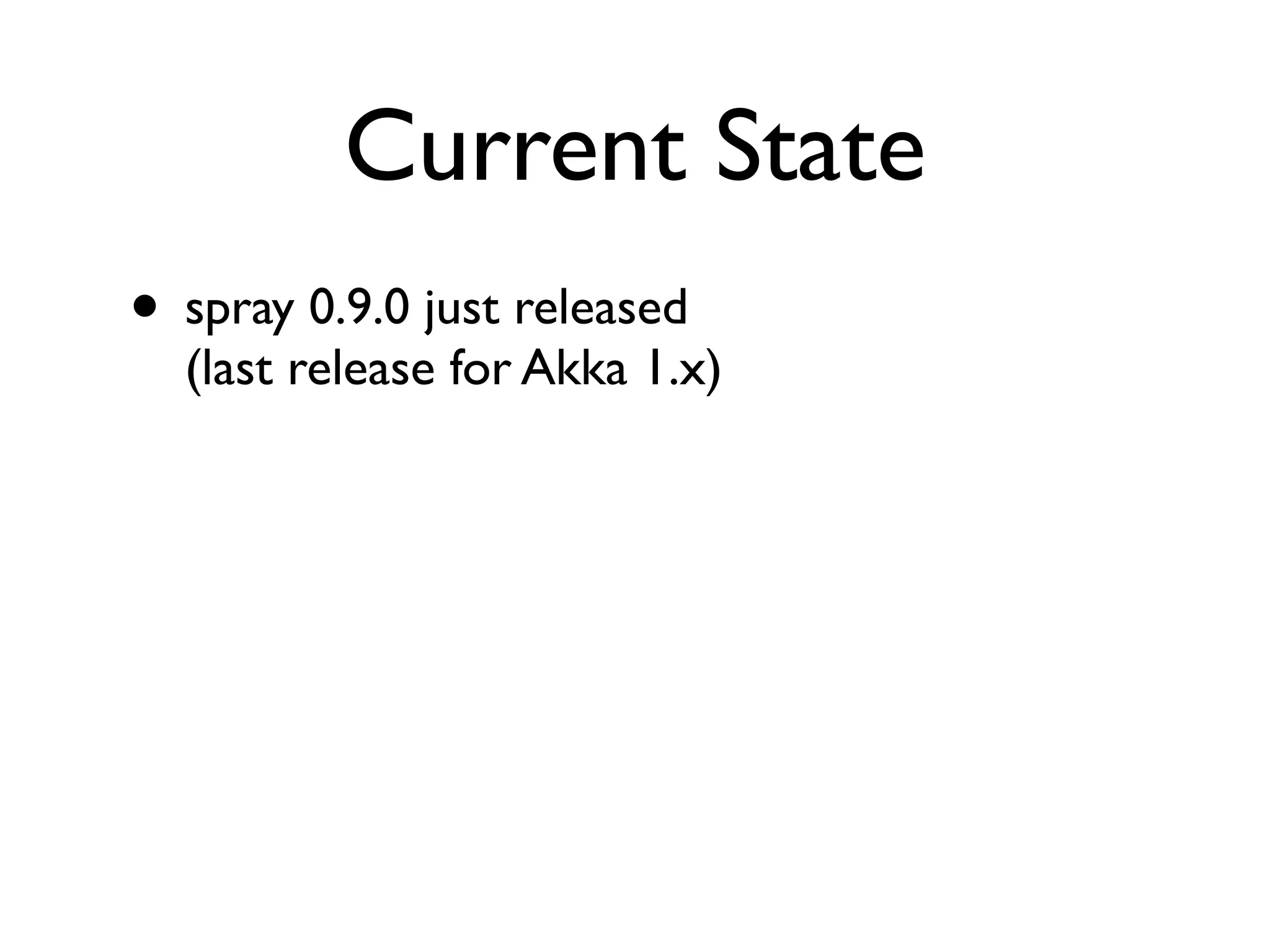

81. Current State
• spray 0.9.0 just released
(last release for Akka 1.x)

82. Current State
• spray 0.9.0 just released
(last release for Akka 1.x)
• Current focus: Release first Akka 2.0
compatible milestone of spray 1.0

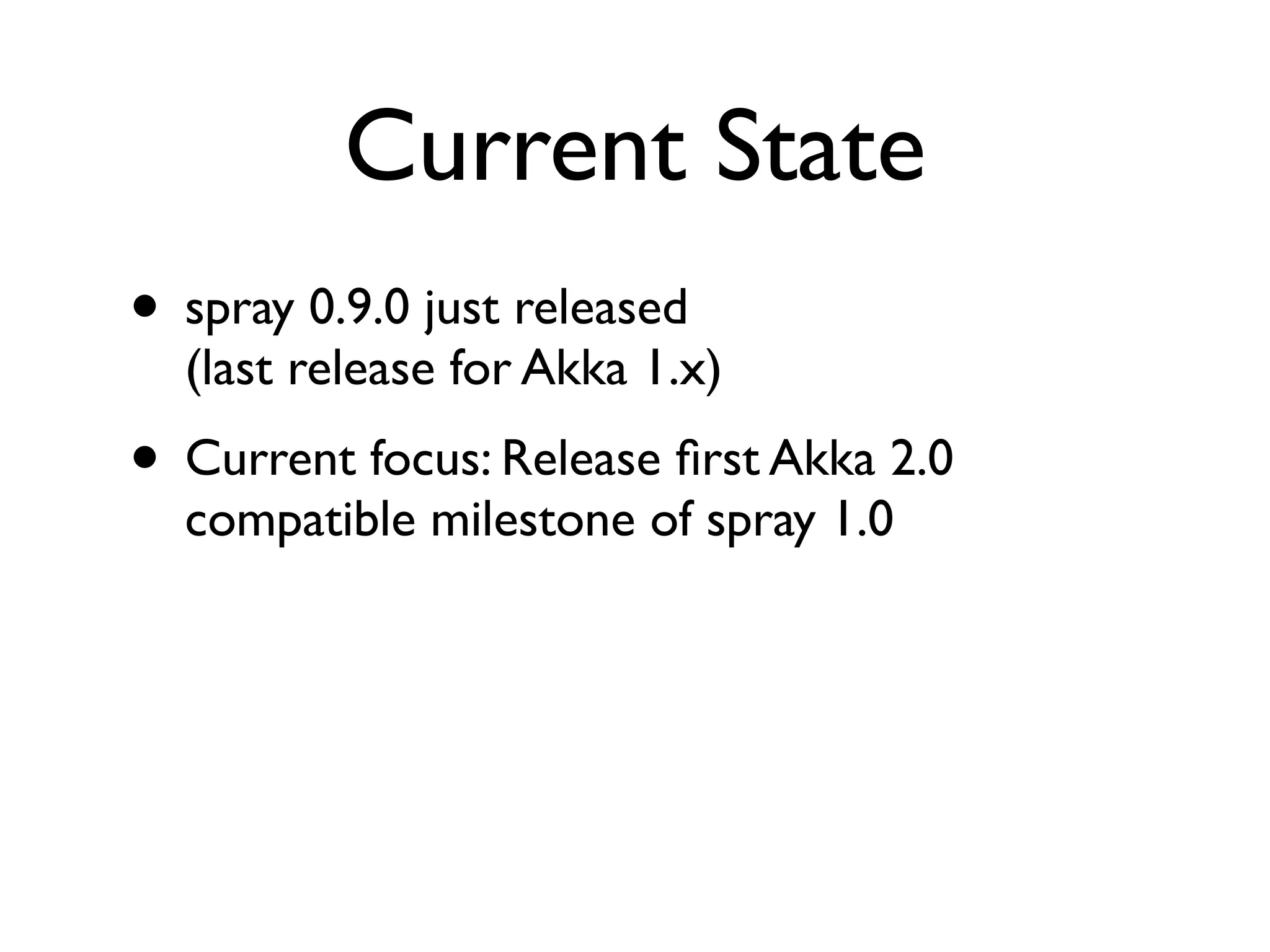

83. Current State
• spray 0.9.0 just released
(last release for Akka 1.x)
• Current focus: Release first Akka 2.0
compatible milestone of spray 1.0
• Coming features: new documentation site,
deeper REST support, monitoring, request
throttling, and more ...

84. A few current sprayers ...

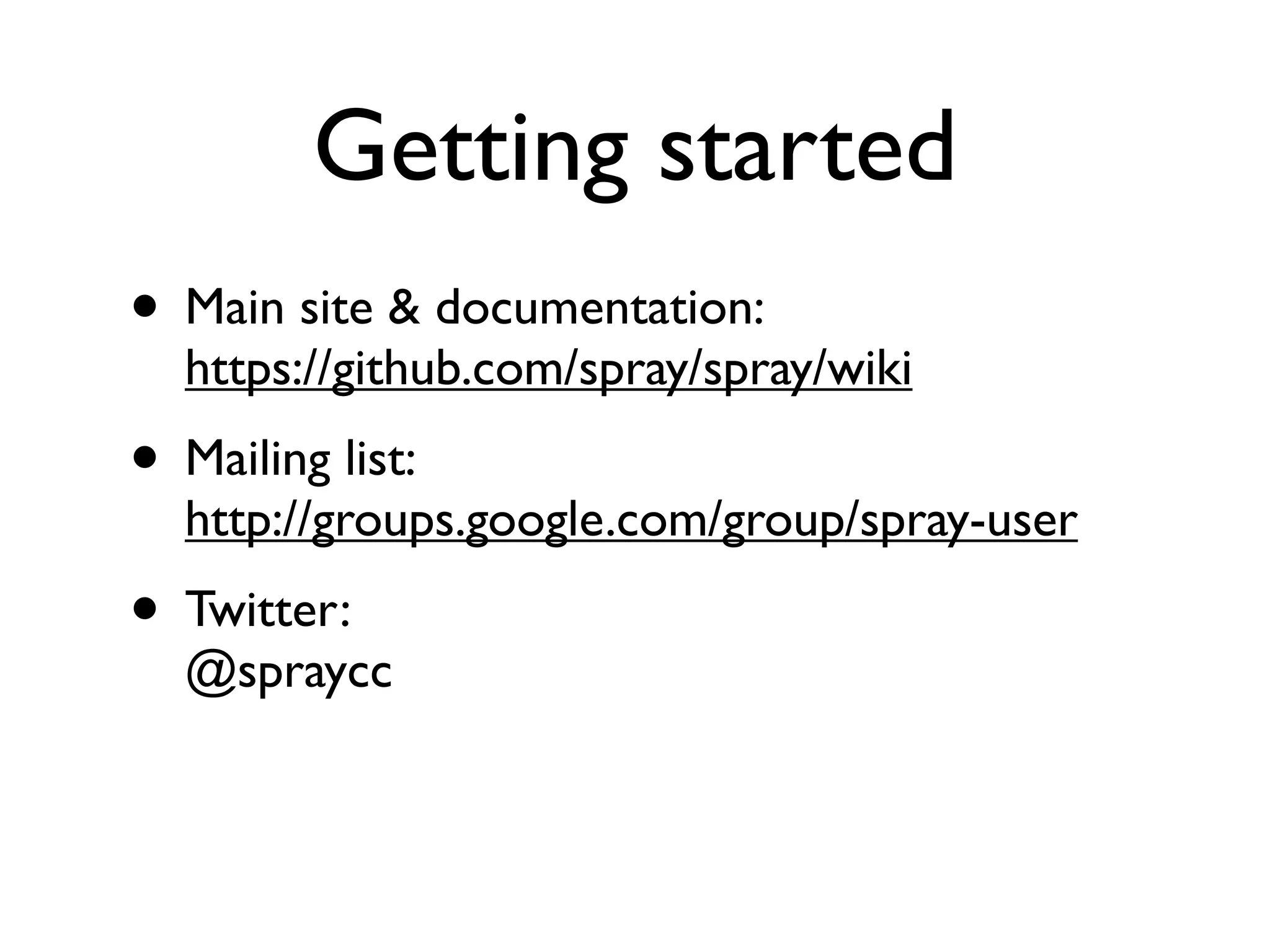

85. Getting started
• Main site & documentation:
https://github.com/spray/spray/wiki
• Mailing list:
http://groups.google.com/group/spray-user
• Twitter:
@spraycc

86. Thank you!

87. More

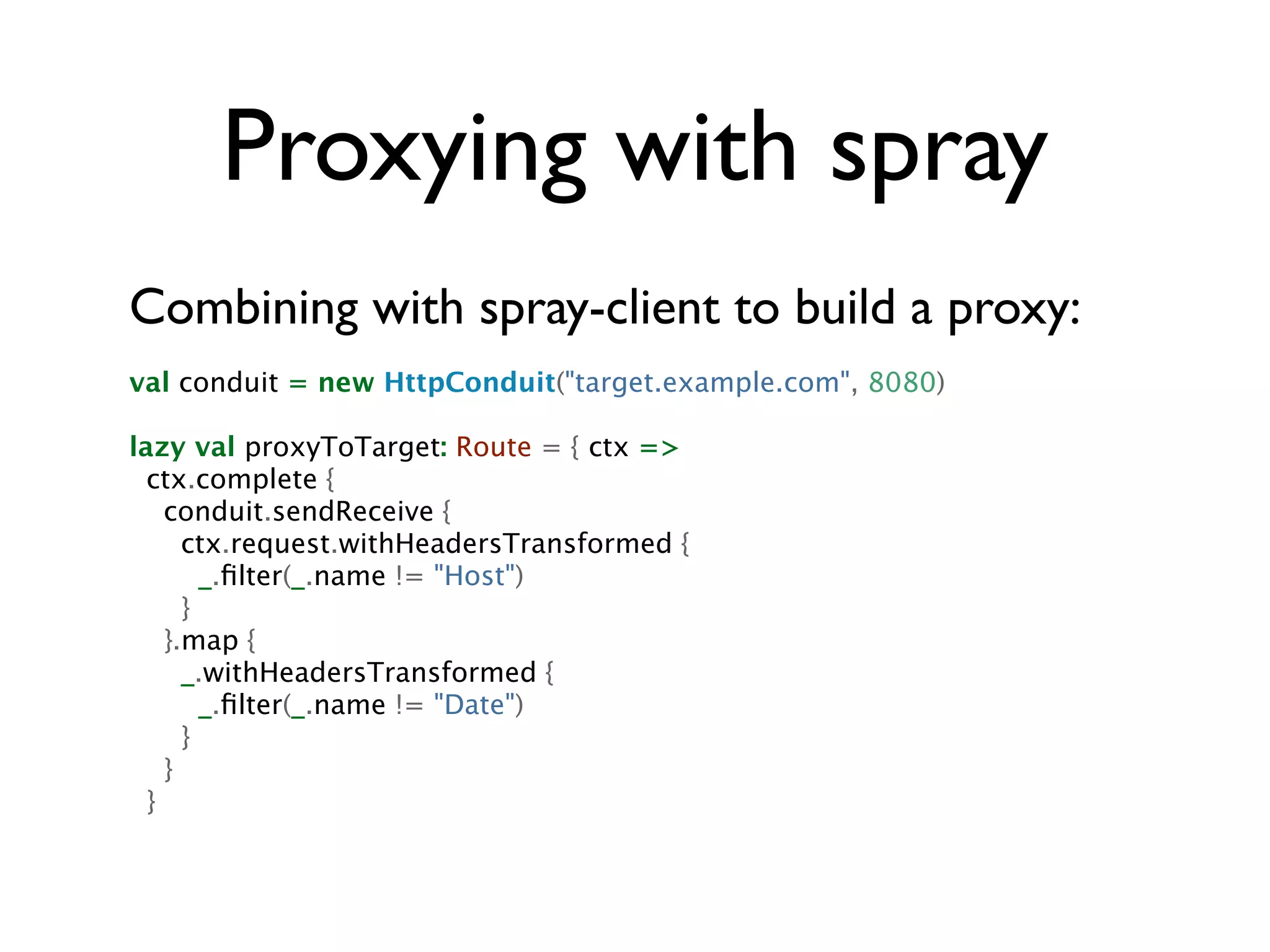

88. Proxying with spray
Combining with spray-client to build a proxy:
val conduit = new HttpConduit("target.example.com", 8080)
lazy val proxyToTarget: Route = { ctx =>
ctx.complete {
conduit.sendReceive {
ctx.request.withHeadersTransformed {
_.filter(_.name != "Host")
}
}.map {
_.withHeadersTransformed {
_.filter(_.name != "Date")
}
}
}
