1. REST on Akka
!
Antoine Comte
Twitter : @comte_a
antoine.comte@gmail.com
Slidedeck courtesy of the Spray team

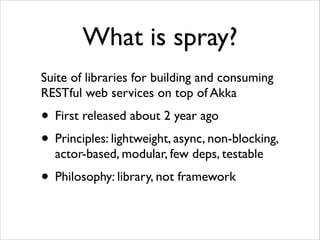

2. What is spray?
Suite of libraries for building and consuming
RESTful web services on top of Akka
• First released about 2 year ago
• Principles: lightweight, async, non-blocking,
actor-based, modular, few deps, testable
• Philosophy: library, not framework

3. Components
• Rich immutable HTTP model
• spray-server:
DSL for server-side API construction
• spray-client: complementary HTTP client
• spray-can: low-level HTTP server and client
• spray-json: straight JSON in scala (no Akka)

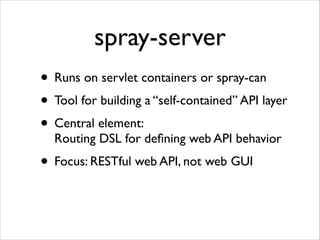

4. spray-server
• Runs on servlet containers or spray-can
• Tool for building a “self-contained” API layer
• Central element:
Routing DSL for defining web API behavior
• Focus: RESTful web API, not web GUI

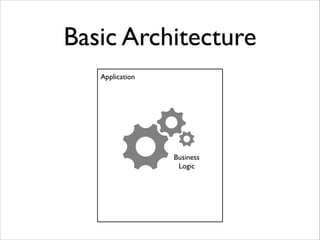

5. Basic Architecture
Application
Business
Logic

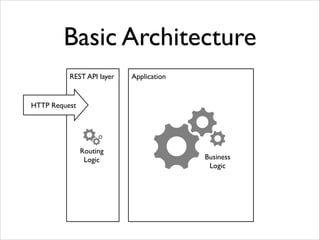

6. Basic Architecture
REST API layer
Application
HTTP Request
Routing
Logic
Business
Logic

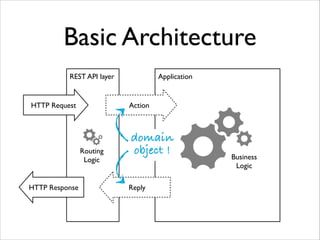

7. Basic Architecture
REST API layer
HTTP Request
Action
Routing
Logic
HTTP Response
Application
domain
object !
Reply
Business
Logic

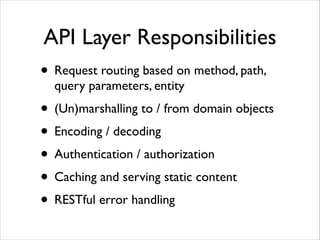

8. API Layer Responsibilities
• Request routing based on method, path,
query parameters, entity
• (Un)marshalling to / from domain objects
• Encoding / decoding
• Authentication / authorization
• Caching and serving static content
• RESTful error handling

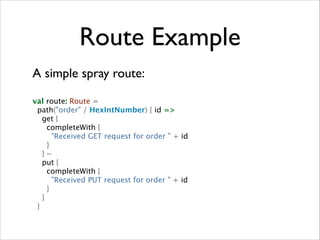

9. Route Example
A simple spray route:
!
val route: Route =
path("order" / HexIntNumber) { id =>
get {
completeWith {
"Received GET request for order " + id
}
} ~
put {
completeWith {
"Received PUT request for order " + id
}
}
}

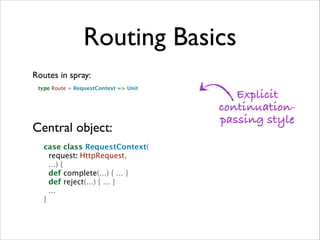

10. Routing Basics
Routes in spray:
type Route = RequestContext => Unit
!
Central object:
case class RequestContext(
request: HttpRequest,
...) {
def complete(...) { ... }
def reject(...) { ... }
...
}
Explicit
continuation-
passing style

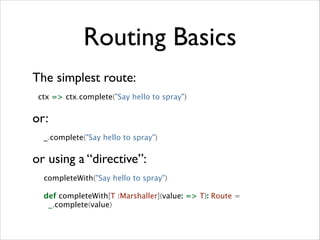

11. Routing Basics
The simplest route:
ctx => ctx.complete("Say hello to spray")
or:
_.complete("Say hello to spray")
or using a “directive”:
completeWith("Say hello to spray")
def completeWith[T :Marshaller](value: => T): Route =
_.complete(value)

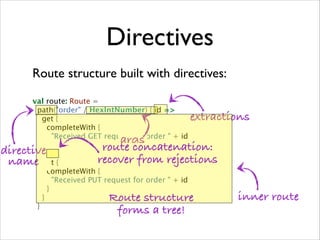

12. Directives
Route structure built with directives:
!
val route: Route =
path("order" / HexIntNumber) { id =>
get {
completeWith {
"Received GET request for order " + id
}
} ~
put {
completeWith {
"Received PUT request for order " + id
}
}
}
extractions
directive
name
args
route concatenation:
recover from rejections
Route structure
forms a tree!
inner route

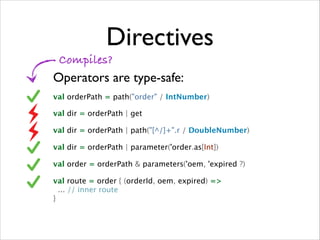

13. Directives
Compiles?
Operators are type-safe:
val orderPath = path("order" / IntNumber)
val dir = orderPath | get
val dir = orderPath | path("[^/]+".r / DoubleNumber)
val dir = orderPath | parameter('order.as[Int])
val order = orderPath & parameters('oem, 'expired ?)
val route = order { (orderId, oem, expired) =>
... // inner route
}

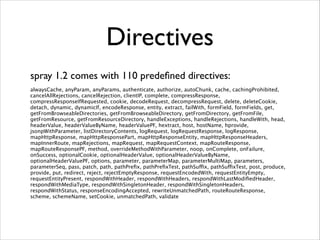

14. Directives
spray 1.2 comes with 110 predefined directives:
alwaysCache, anyParam, anyParams, authenticate, authorize, autoChunk, cache, cachingProhibited,
cancelAllRejections, cancelRejection, clientIP, complete, compressResponse,
compressResponseIfRequested, cookie, decodeRequest, decompressRequest, delete, deleteCookie,
detach, dynamic, dynamicIf, encodeResponse, entity, extract, failWith, formField, formFields, get,
getFromBrowseableDirectories, getFromBrowseableDirectory, getFromDirectory, getFromFile,
getFromResource, getFromResourceDirectory, handleExceptions, handleRejections, handleWith, head,
headerValue, headerValueByName, headerValuePF, hextract, host, hostName, hprovide,
jsonpWithParameter, listDirectoryContents, logRequest, logRequestResponse, logResponse,
mapHttpResponse, mapHttpResponsePart, mapHttpResponseEntity, mapHttpResponseHeaders,
mapInnerRoute, mapRejections, mapRequest, mapRequestContext, mapRouteResponse,
mapRouteResponsePF, method, overrideMethodWithParameter, noop, onComplete, onFailure,
onSuccess, optionalCookie, optionalHeaderValue, optionalHeaderValueByName,
optionalHeaderValuePF, options, parameter, parameterMap, parameterMultiMap, parameters,
parameterSeq, pass, patch, path, pathPrefix, pathPrefixTest, pathSuffix, pathSuffixTest, post, produce,
provide, put, redirect, reject, rejectEmptyResponse, requestEncodedWith, requestEntityEmpty,
requestEntityPresent, respondWithHeader, respondWithHeaders, respondWithLastModifiedHeader,
respondWithMediaType, respondWithSingletonHeader, respondWithSingletonHeaders,
respondWithStatus, responseEncodingAccepted, rewriteUnmatchedPath, routeRouteResponse,
scheme, schemeName, setCookie, unmatchedPath, validate

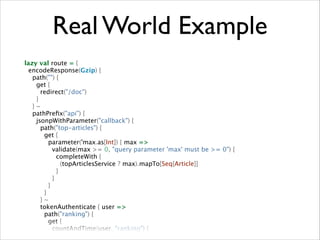

15. Real World Example
lazy val route = {
encodeResponse(Gzip) {
path("") {
get {
redirect("/doc")
}
} ~
pathPrefix("api") {
jsonpWithParameter("callback") {
path("top-articles") {
get {
parameter('max.as[Int]) { max =>
validate(max >= 0, "query parameter 'max' must be >= 0") {
completeWith {
(topArticlesService ? max).mapTo[Seq[Article]]
}
}
}
}
} ~
tokenAuthenticate { user =>
path("ranking") {
get {
countAndTime(user, "ranking") {
parameters('fixed ? 0, 'mobile ? 0, 'sms ? 0, 'mms ? 0,

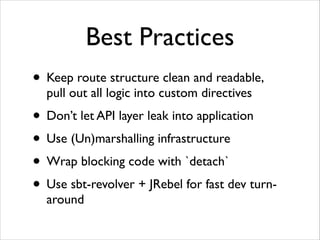

16. Best Practices
• Keep route structure clean and readable,
pull out all logic into custom directives
• Don’t let API layer leak into application
• Use (Un)marshalling infrastructure
• Wrap blocking code with `detach`
• Use sbt-revolver + JRebel for fast dev turnaround

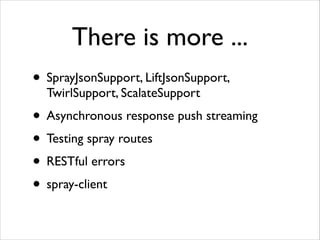

17. There is more ...
• SprayJsonSupport, LiftJsonSupport,
TwirlSupport, ScalateSupport
• Asynchronous response push streaming
• Testing spray routes
• RESTful errors
• spray-client

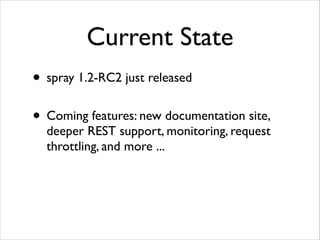

18. Current State
• spray 1.2-RC2 just released
• Coming features: new documentation site,
deeper REST support, monitoring, request
throttling, and more ...

19. A few current sprayers ...

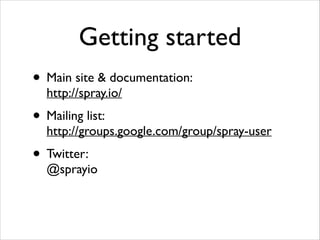

20. Getting started
• Main site & documentation:
http://spray.io/
• Mailing list:
http://groups.google.com/group/spray-user
• Twitter:
@sprayio

21. Thank you!
