sohar-oman-1000-mw-cycle-power-plant-wallchart

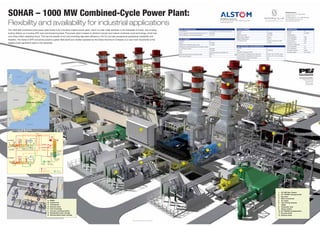

- 1. 6 9 8 7 12 11 10 1 2 3 4 5 SOHAR – 1000MW Combined-Cycle Power Plant: Flexibility and availability for industrial applications Pennwell Corporatation Warlies Park House Horseshoe Hill Upshire, Essex UK, EN9 3SR Note the illustration used has no contractual value 1. GT13E2 Gas Turbine 2. GT TOPAIR turbogenerator 3. Bus duct 4. Main transformer 5. Air intake 6. Gas Turbine exhaust 7. HRSG 8. Feedwater tank 9. Steam turbine 10. ST TOPAIR turbogenerator 11. By-pass stack 12. Exhaust stack ALSTOM Power Systems S.A. 3 avenue des Trois Chênes, 90018, Belfort Cedex, France www.power.alstom.com The 1000 MW combined-cycle power plant Sohar is an innovative captive power plant, which is under initial operation in the Sultanate of Oman, and is being built by Alstom on a turnkey EPC and commissioning basis. The power plant is based on Alstom’s proven and mature combined-cycle technology, which has over three million operating hours. This has the benefit of not only providing high plant efficiency (>50 %), but also exceptional operational availability and flexibility. The Sohar CCPP exclusively powers a green field aluminium smelter operated by the Sohar Aluminium Company LLC and most importantly is the largest power generation plant in the Sultanate. SOHAR Aluminium P.O. Box 327, P.C.322, Falaj Al Qabail, Sultanate of Oman Tel: 00968 26844278 Fax: 00968 26844642 Email: info@sohar-aluminium.com www.sohar-aluminium.com LP steam LPHP HP BYPASS 1 HP BYPASS 2 LP BYPASS HP steam HRSG 2 Generator High Pressure Steam HRSG 1 CONDENSER Demineralised water make-up Circulating water Service Steam Ejector Condenser Gland Steam Condenser HP/LP Feedwater Pumps GAS TURBINE 1 Diverter Damper Feedwater Tank HP DRUM LP DRUM Gas or fuel Oil Air HP Super Heater HP Evapo LP Evapo HP Eco LP Eco LP Super Heater G G G G Supplementary Firing Fuel Gas GAS TURBINE 2 Condensate Extraction Pump FLASH TANK STEAM TURBINE Low Pressure Steam Feedwater Cooling Water Sohar A H G F E D C B A. HRSG B. Turbine hall C. Transformer D. Exhaust stack E. Fuel oil storage F. Fuel gas receiving station G. Desalinated water storage H. Demineralized water storage BASIC TECHNICAL DATA Configuration 2 x KA13E2-2 dual fuel direct cooling Gross output at nominal air temperature (46 °C) 500 MW Gross efficiency at nominal temperature 51.2 % GAS TURBINES Number 4 Model GT13E2 Rating ISO conditions (open cycle) 172 MW Rating at nominal temperature (combined-cycle): 420 MW 139 MW Fuel Dual (natural gas & distillate oil) Exhaust temperature (combined-cycle) 528 °C NOx control system Dry STEAM TURBINES Number 2 Model COMAX Rating (nominal) 217 MW Main steam pressure 90 bar Steam temperature 540 °C LP exhaust type Lateral condenser, water- cooled GENERATORS Number 6 Model TOPAIR Rating (MVA) 225 300 Power factor 0.8 Frequency (Hz) 50 Terminal voltage (kV): 15 19 Excitation system static Cooling system air-cooled HEAT RECOVERY STEAM GENERATORS Number 4 Type Horizontal Number of pressure levels 2 93 bar, 544 °C & 85.7 kg/s 5.4 bar, 273 °C & 13.8 kg/s Exhaust gas by-pass and damper Yes Supplementary firing Yes
