Software Development Life Cycle - SDLC

Classification: Restricted
Business Analysis
Training
SDLC

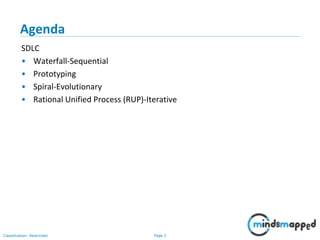

Agenda
SDLC
• Waterfall-Sequential
• Prototyping
• Spiral-Evolutionary
• Rational Unified Process (RUP)-Iterative

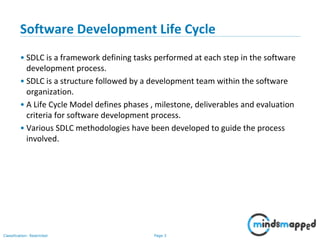

Software Development Life Cycle
• SDLC is a framework defining tasks performed at each step in the software
development process.
• SDLC is a structure followed by a development team within the software
organization.
• A Life Cycle Model defines phases , milestone, deliverables and evaluation
criteria for software development process.
• Various SDLC methodologies have been developed to guide the process
involved.

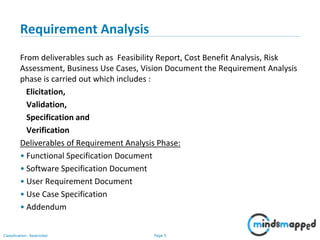

Requirement Analysis
From deliverables such as Feasibility Report, Cost Benefit Analysis, Risk
Assessment, Business Use Cases, Vision Document the Requirement Analysis
phase is carried out which includes :
Elicitation,
Validation,
Specification and
Verification
Deliverables of Requirement Analysis Phase:
• Functional Specification Document
• Software Specification Document
• User Requirement Document
• Use Case Specification
• Addendum

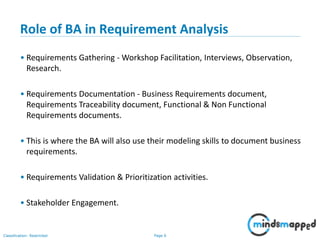

Role of BA in Requirement Analysis
• Requirements Gathering - Workshop Facilitation, Interviews, Observation,
Research.
• Requirements Documentation - Business Requirements document,
Requirements Traceability document, Functional & Non Functional
Requirements documents.
• This is where the BA will also use their modeling skills to document business
requirements.
• Requirements Validation & Prioritization activities.
• Stakeholder Engagement.

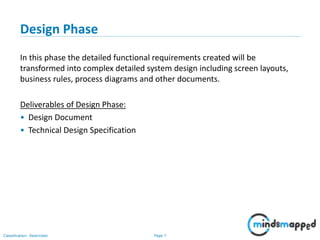

Design Phase
In this phase the detailed functional requirements created will be
transformed into complex detailed system design including screen layouts,
business rules, process diagrams and other documents.
Deliverables of Design Phase:
• Design Document
• Technical Design Specification

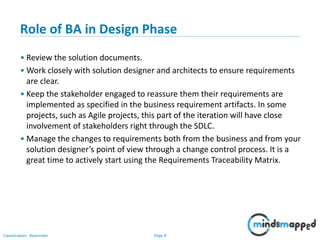

Role of BA in Design Phase
• Review the solution documents.
• Work closely with solution designer and architects to ensure requirements
are clear.
• Keep the stakeholder engaged to reassure them their requirements are
implemented as specified in the business requirement artifacts. In some
projects, such as Agile projects, this part of the iteration will have close
involvement of stakeholders right through the SDLC.
• Manage the changes to requirements both from the business and from your
solution designer’s point of view through a change control process. It is a
great time to actively start using the Requirements Traceability Matrix.

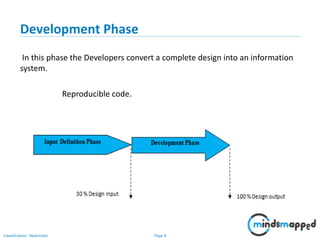

Development Phase
In this phase the Developers convert a complete design into an information
system.
Reproducible code.

Role of BA in Development Phase
• The Business Analyst’s role is lighter during this phase. In small teams it can
happen that the BA is asked to clarify requirements or in Agile projects the
BA will be asked to review prototypes.

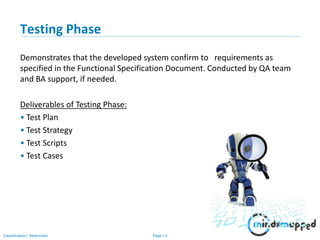

Testing Phase
Demonstrates that the developed system confirm to requirements as
specified in the Functional Specification Document. Conducted by QA team
and BA support, if needed.
Deliverables of Testing Phase:
• Test Plan
• Test Strategy
• Test Scripts
• Test Cases

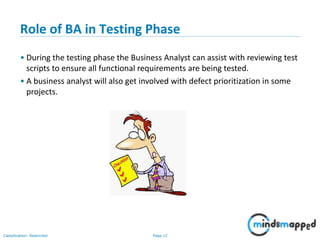

Role of BA in Testing Phase
• During the testing phase the Business Analyst can assist with reviewing test
scripts to ensure all functional requirements are being tested.
• A business analyst will also get involved with defect prioritization in some
projects.

Release and Maintenance
• Includes the preparation of the system into a production environment and
resolution of problems identified in the test phases and ready to be
released at client site.
• Training manuals.
• Maintenance includes post implementation problems and add on request
by the client.
Deliverables :
• The Software Application.
• Test Case and Reports.

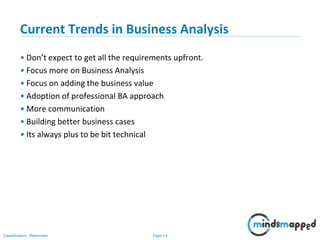

Current Trends in Business Analysis
• Don’t expect to get all the requirements upfront.
• Focus more on Business Analysis
• Focus on adding the business value
• Adoption of professional BA approach
• More communication
• Building better business cases
• Its always plus to be bit technical

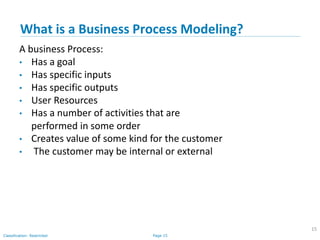

What is a Business Process Modeling?
15
A business Process:
• Has a goal
• Has specific inputs
• Has specific outputs
• User Resources
• Has a number of activities that are
performed in some order
• Creates value of some kind for the customer
• The customer may be internal or external

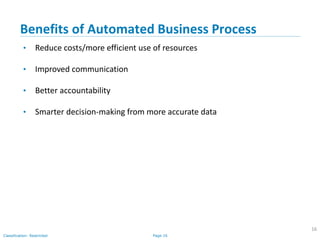

Benefits of Automated Business Process
16
• Reduce costs/more efficient use of resources
• Improved communication
• Better accountability
• Smarter decision-making from more accurate data

IT Project Structure
Business Stakeholders
Subject Matter Experts (SMEs)
Technology Head
Technical Architect Project Manager QA Manager Production
Support
Junior Technical
Architects/
Assistants
Technical Lead
Developer
QA Leads
QA Analysis
Business Analyst

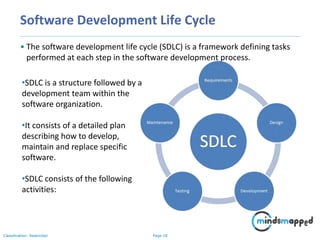

• The software development life cycle (SDLC) is a framework defining tasks
performed at each step in the software development process.
•SDLC is a structure followed by a
development team within the
software organization.
•It consists of a detailed plan
describing how to develop,
maintain and replace specific
software.
•SDLC consists of the following
activities:

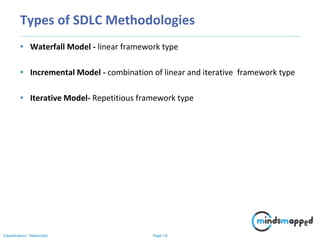

Types of SDLC Methodologies
• Waterfall Model - linear framework type
• Incremental Model - combination of linear and iterative framework type
• Iterative Model- Repetitious framework type

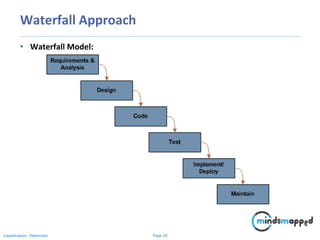

Waterfall Approach
• Waterfall Model:

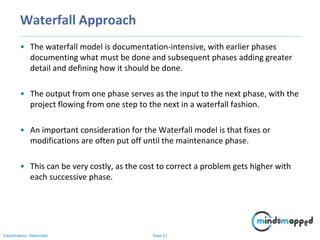

Waterfall Approach
• The waterfall model is documentation-intensive, with earlier phases
documenting what must be done and subsequent phases adding greater
detail and defining how it should be done.
• The output from one phase serves as the input to the next phase, with the
project flowing from one step to the next in a waterfall fashion.
• An important consideration for the Waterfall model is that fixes or
modifications are often put off until the maintenance phase.
• This can be very costly, as the cost to correct a problem gets higher with
each successive phase.

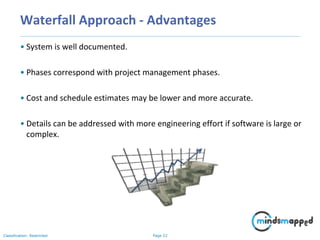

Waterfall Approach - Advantages
• System is well documented.
• Phases correspond with project management phases.
• Cost and schedule estimates may be lower and more accurate.
• Details can be addressed with more engineering effort if software is large or
complex.

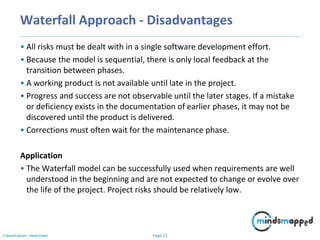

Waterfall Approach - Disadvantages
• All risks must be dealt with in a single software development effort.
• Because the model is sequential, there is only local feedback at the
transition between phases.
• A working product is not available until late in the project.
• Progress and success are not observable until the later stages. If a mistake
or deficiency exists in the documentation of earlier phases, it may not be
discovered until the product is delivered.
• Corrections must often wait for the maintenance phase.
Application
• The Waterfall model can be successfully used when requirements are well
understood in the beginning and are not expected to change or evolve over
the life of the project. Project risks should be relatively low.

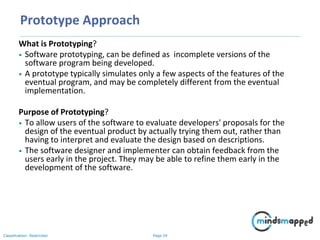

Prototype Approach
What is Prototyping?
• Software prototyping, can be defined as incomplete versions of the
software program being developed.
• A prototype typically simulates only a few aspects of the features of the
eventual program, and may be completely different from the eventual
implementation.
Purpose of Prototyping?
• To allow users of the software to evaluate developers' proposals for the
design of the eventual product by actually trying them out, rather than
having to interpret and evaluate the design based on descriptions.
• The software designer and implementer can obtain feedback from the
users early in the project. They may be able to refine them early in the
development of the software.

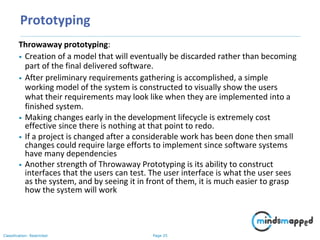

Prototyping
Throwaway prototyping:
• Creation of a model that will eventually be discarded rather than becoming
part of the final delivered software.
• After preliminary requirements gathering is accomplished, a simple
working model of the system is constructed to visually show the users
what their requirements may look like when they are implemented into a
finished system.
• Making changes early in the development lifecycle is extremely cost
effective since there is nothing at that point to redo.
• If a project is changed after a considerable work has been done then small
changes could require large efforts to implement since software systems
have many dependencies
• Another strength of Throwaway Prototyping is its ability to construct
interfaces that the users can test. The user interface is what the user sees
as the system, and by seeing it in front of them, it is much easier to grasp
how the system will work

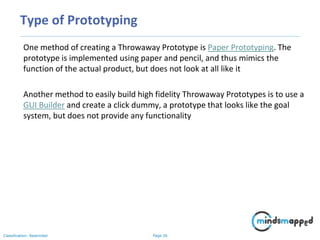

Type of Prototyping
One method of creating a Throwaway Prototype is Paper Prototyping. The
prototype is implemented using paper and pencil, and thus mimics the
function of the actual product, but does not look at all like it
Another method to easily build high fidelity Throwaway Prototypes is to use a
GUI Builder and create a click dummy, a prototype that looks like the goal
system, but does not provide any functionality

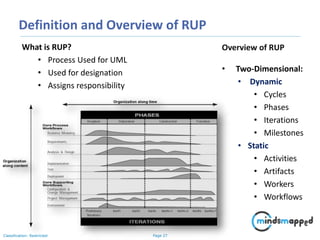

Definition and Overview of RUP
What is RUP?
• Process Used for UML
• Used for designation
• Assigns responsibility
Overview of RUP
• Two-Dimensional:
• Dynamic
• Cycles
• Phases
• Iterations
• Milestones
• Static
• Activities
• Artifacts
• Workers
• Workflows

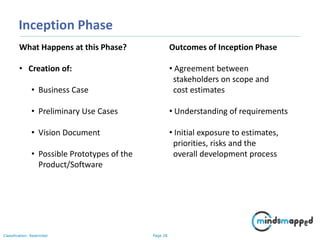

Inception Phase
What Happens at this Phase?
• Creation of:
• Business Case
• Preliminary Use Cases
• Vision Document
• Possible Prototypes of the
Product/Software
Outcomes of Inception Phase
• Agreement between
stakeholders on scope and
cost estimates
• Understanding of requirements
• Initial exposure to estimates,
priorities, risks and the
overall development process

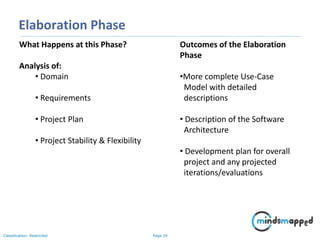

Elaboration Phase
Analysis of:
• Domain
• Requirements
• Project Plan
• Project Stability & Flexibility
Outcomes of the Elaboration
Phase
•More complete Use-Case
Model with detailed
descriptions
• Description of the Software
Architecture
• Development plan for overall
project and any projected
iterations/evaluations

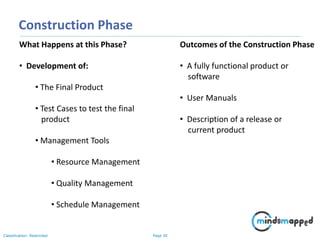

Construction Phase
• Development of:
• The Final Product
• Test Cases to test the final
product
• Management Tools
• Resource Management
• Quality Management
• Schedule Management
Outcomes of the Construction Phase
• A fully functional product or
software
• User Manuals
• Description of a release or
current product

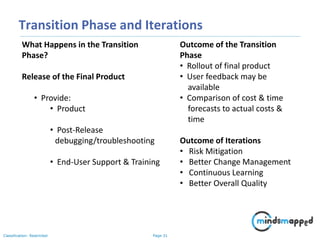

Transition Phase and Iterations
What Happens in the Transition
Phase?
Release of the Final Product
• Provide:
• Product
• Post-Release
debugging/troubleshooting
• End-User Support & Training
Outcome of the Transition
Phase
• Rollout of final product
• User feedback may be
available
• Comparison of cost & time
forecasts to actual costs &
time
Outcome of Iterations
• Risk Mitigation
• Better Change Management
• Continuous Learning
• Better Overall Quality

Static Structure of the Process
A process describes who is doing what, how, and when.
• Workers, The ‘who’
• Activities, The ‘how’
• Artifacts, The ‘what’
• Workflows, The ‘when’

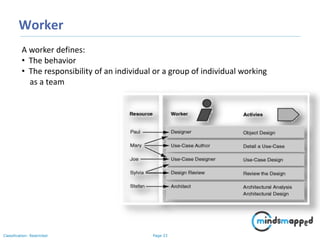

Worker
A worker defines:
• The behavior
• The responsibility of an individual or a group of individual working
as a team

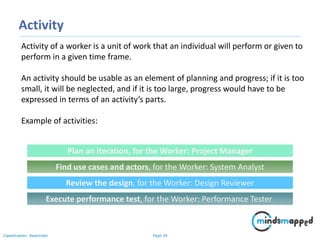

Activity
Activity of a worker is a unit of work that an individual will perform or given to
perform in a given time frame.
An activity should be usable as an element of planning and progress; if it is too
small, it will be neglected, and if it is too large, progress would have to be
expressed in terms of an activity’s parts.
Example of activities:
Plan an iteration, for the Worker: Project Manager
Find use cases and actors, for the Worker: System Analyst
Review the design, for the Worker: Design Reviewer
Execute performance test, for the Worker: Performance Tester

Artifacts
An artifact is a piece of information that is
Produced
Modified
or used by a process
Artifacts are used as input by workers to perform an activity
Parameters of activities
Artifacts may take various shapes or forms:
• A model, such as the Use-Case Model or the Design Model
• A model element, i.e. an element within a model, such as a class, a use
case or a subsystem
• A document, such as Business Case or Software Architecture Document
• Source code
• Executables

Workflow
A workflow is a sequence of activities that produces a result of observable
value. A workflow can be expressed as a sequence diagram, a collaboration
diagram, or an activity diagram.

Core Workflow
There are nine core process workflows in the Rational Unified Process.

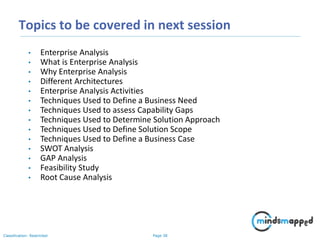

Topics to be covered in next session
• Enterprise Analysis
• What is Enterprise Analysis
• Why Enterprise Analysis
• Different Architectures
• Enterprise Analysis Activities
• Techniques Used to Define a Business Need
• Techniques Used to assess Capability Gaps
• Techniques Used to Determine Solution Approach
• Techniques Used to Define Solution Scope
• Techniques Used to Define a Business Case
• SWOT Analysis
• GAP Analysis
• Feasibility Study
• Root Cause Analysis

Thank you!

Software Development Life Cycle - SDLC

More Related Content

What's hot

Similar to Software Development Life Cycle - SDLC

More from Shwetha-BA

Recently uploaded

Software Development Life Cycle - SDLC
