IT6602 - Software Architecture UNIT IV

1. Unit 4 - Architectural Styles

2. Common Architectural Styles
of our Homes2

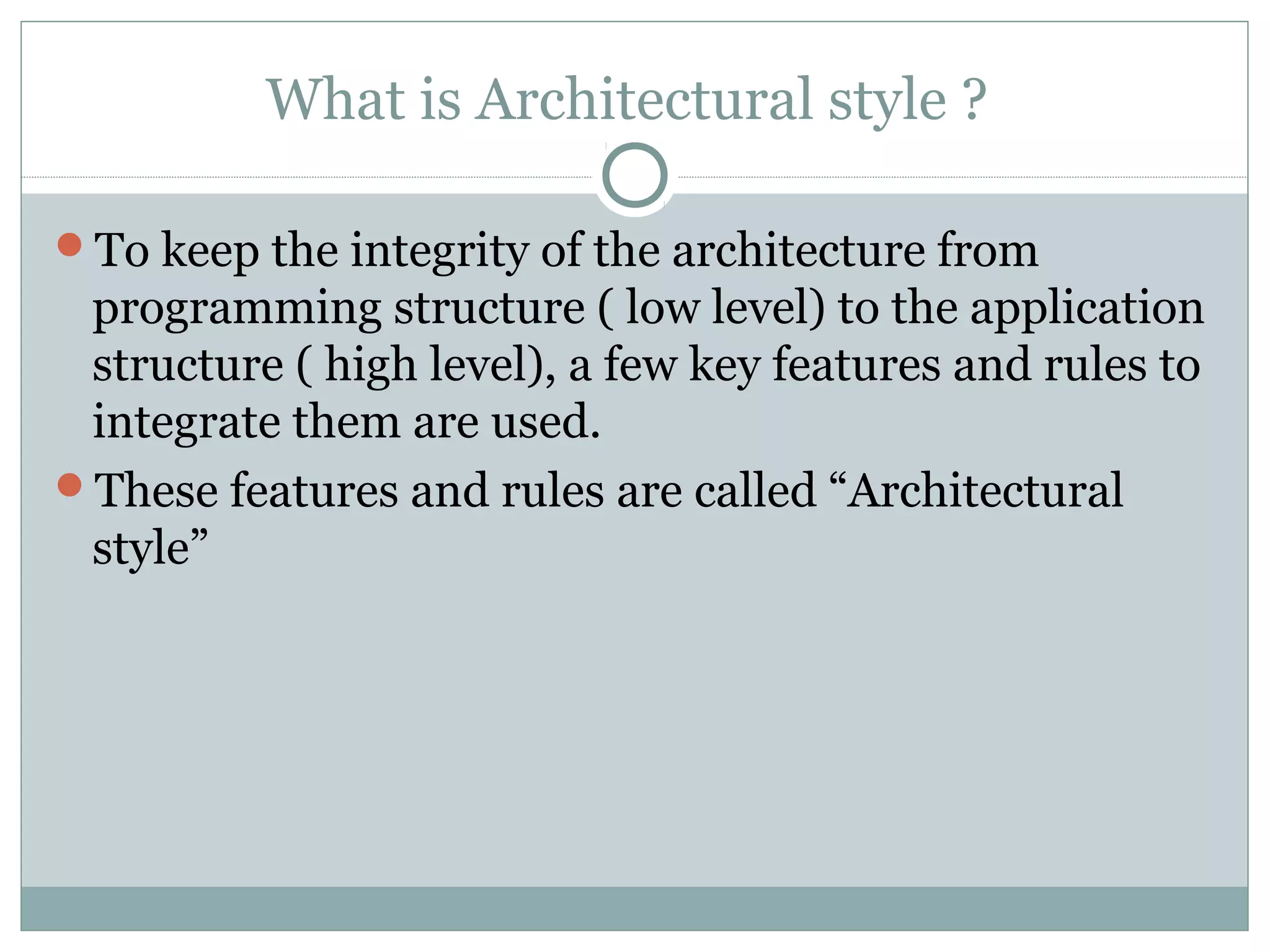

3. What is Architectural style ?
To keep the integrity of the architecture from
programming structure ( low level) to the application
structure ( high level), a few key features and rules to
integrate them are used.
These features and rules are called “Architectural
style”

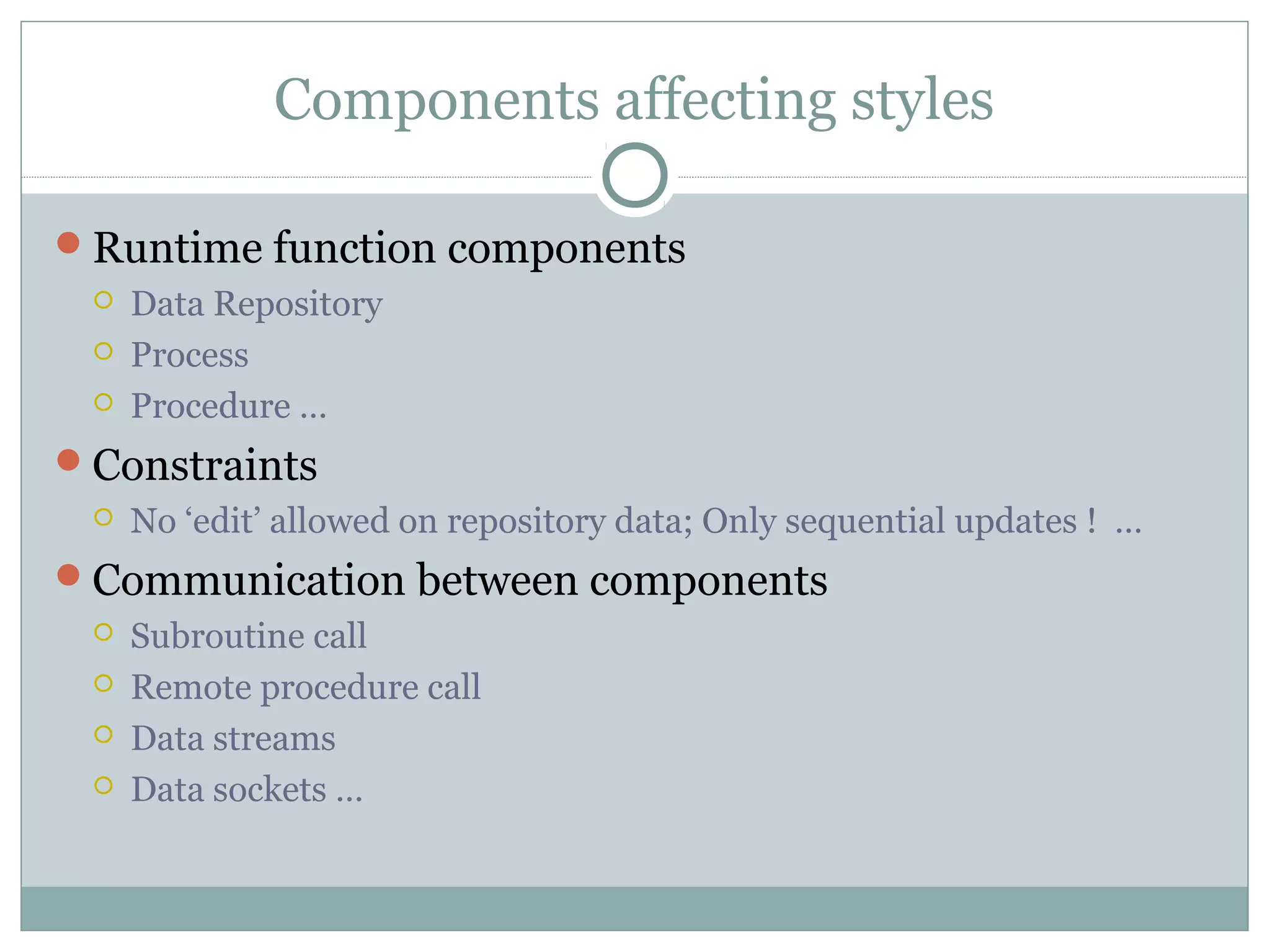

4. Components affecting styles
Runtime function components
 Data Repository
 Process
 Procedure …
Constraints
 No ‘edit’ allowed on repository data; Only sequential updates ! …
Communication between components
 Subroutine call
 Remote procedure call
 Data streams
 Data sockets …

5. Benefits of styles
Reuse
 Design ( Appointment system Vs Reservation system )
 Code ( Calendar function)
Understandability
Interoperability
Style specificity

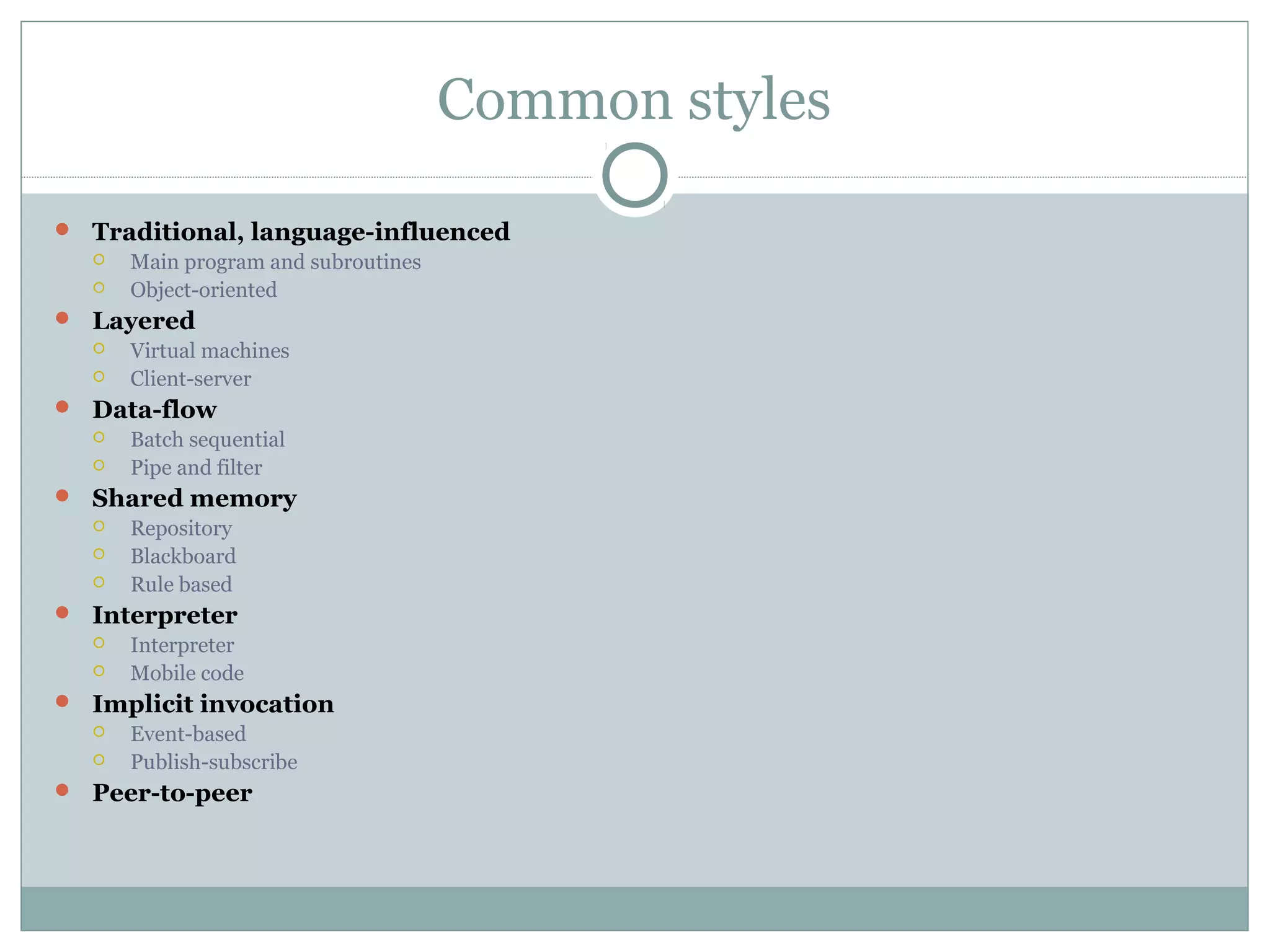

6. Common styles
 Traditional, language-influenced
 Main program and subroutines
 Object-oriented
 Layered
 Virtual machines
 Client-server
 Data-flow
 Batch sequential
 Pipe and filter
 Shared memory
 Repository
 Blackboard
 Rule based
 Interpreter
 Interpreter

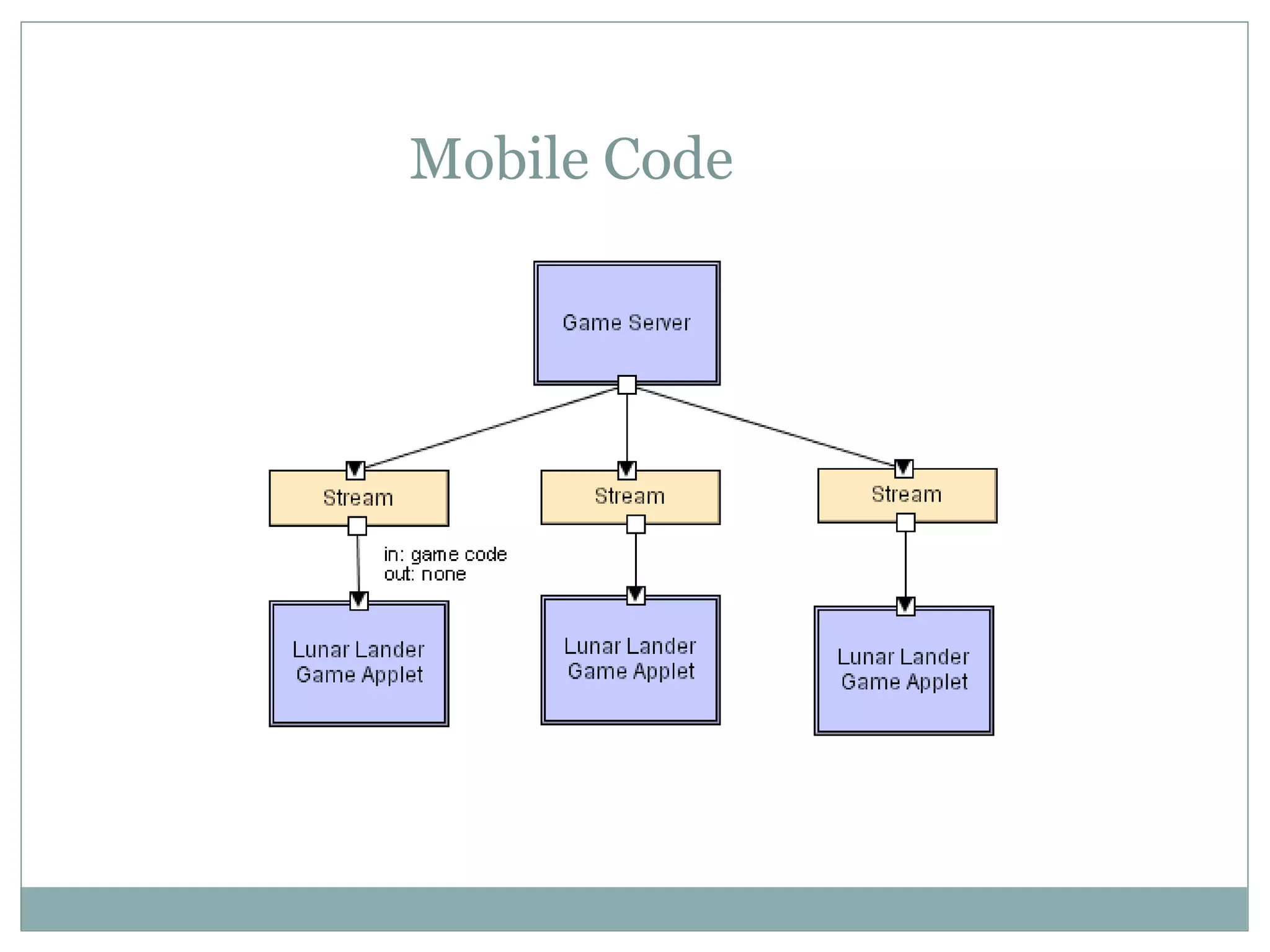

 Mobile code
 Implicit invocation
 Event-based
 Publish-subscribe
 Peer-to-peer

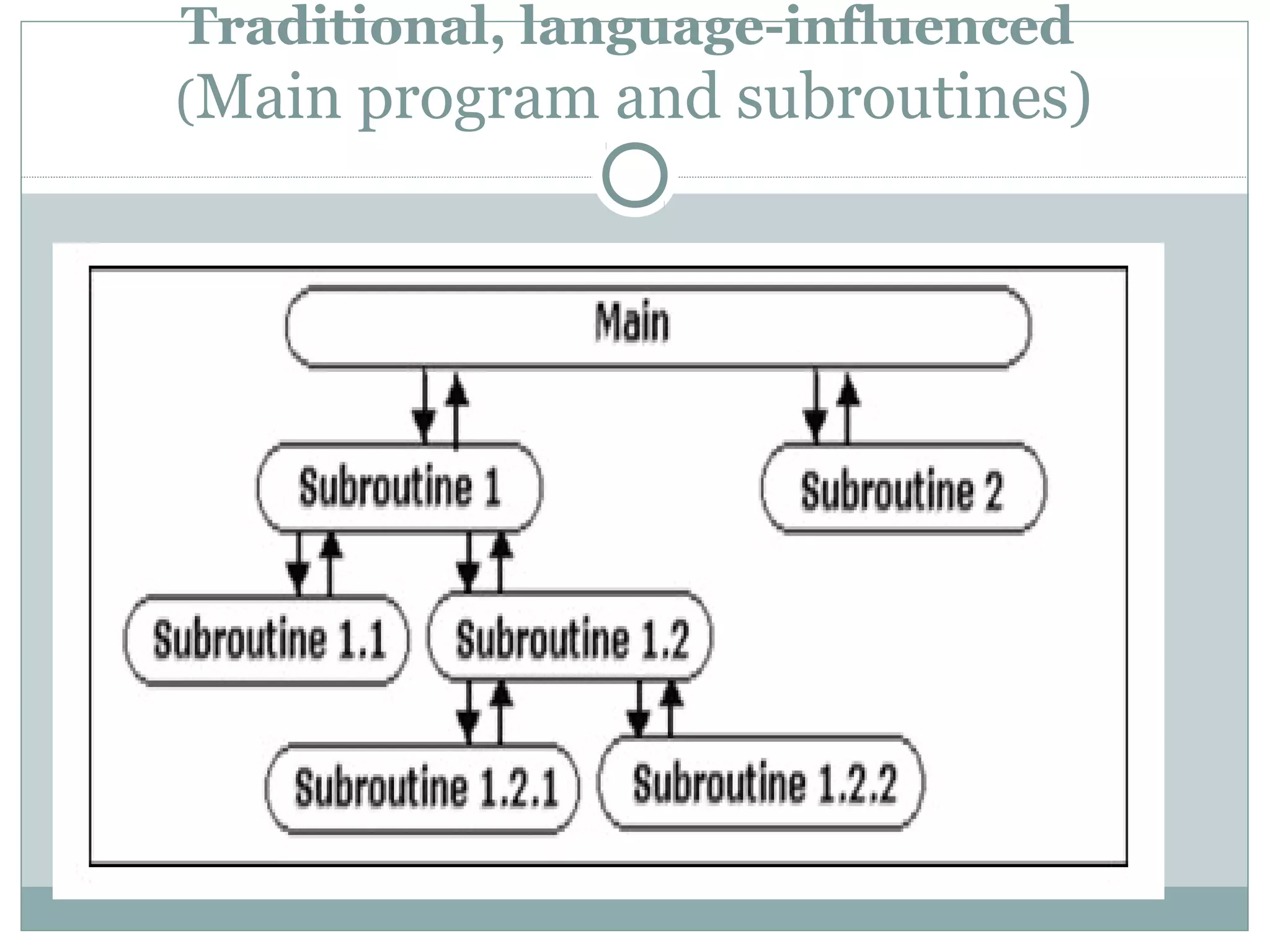

7. Traditional, language-influenced
(Main program and subroutines)

8. Main Program and Subroutines
8

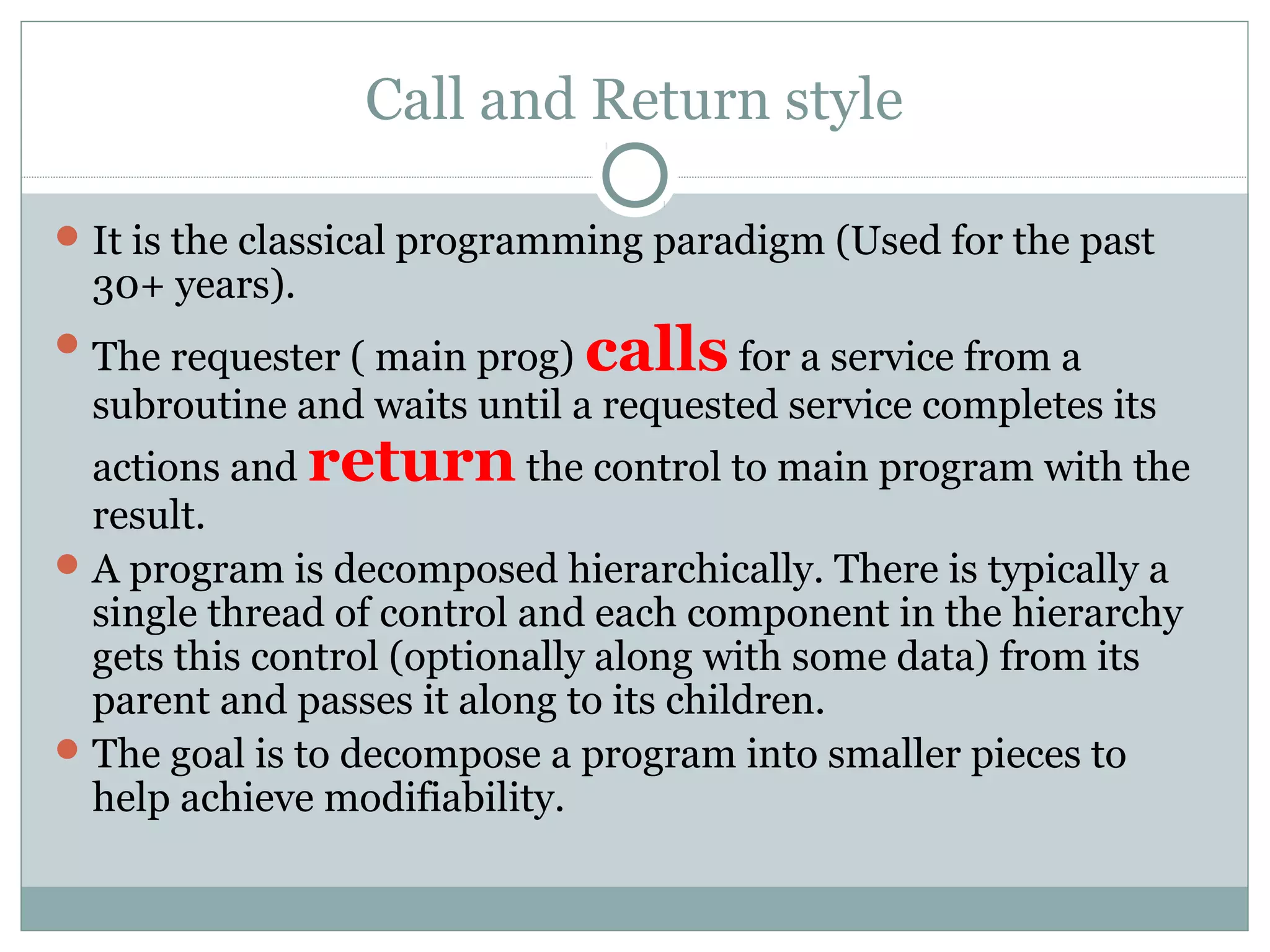

9. Call and Return style
It is the classical programming paradigm (Used for the past
30+ years).
The requester ( main prog) calls for a service from a
subroutine and waits until a requested service completes its
actions and return the control to main program with the
result.
A program is decomposed hierarchically. There is typically a
single thread of control and each component in the hierarchy
gets this control (optionally along with some data) from its
parent and passes it along to its children.
The goal is to decompose a program into smaller pieces to
help achieve modifiability.

10. Remote procedure call
Main program and subroutine systems that are decomposed
into parts that live on different computers connected via a
network.
The goal is to increase performance by distributing the
computations and taking advantage of multiple processors.
In remote procedure call systems, the actual assignment of
parts to processors is deferred until runtime, meaning that the
assignment is easily changed to accommodate performance
tuning.
In fact, except that subroutine calls may take longer to
accomplish if it is invoking a function on a remote machine, a
remote procedure call is indistinguishable from standard
main program and subroutine systems.

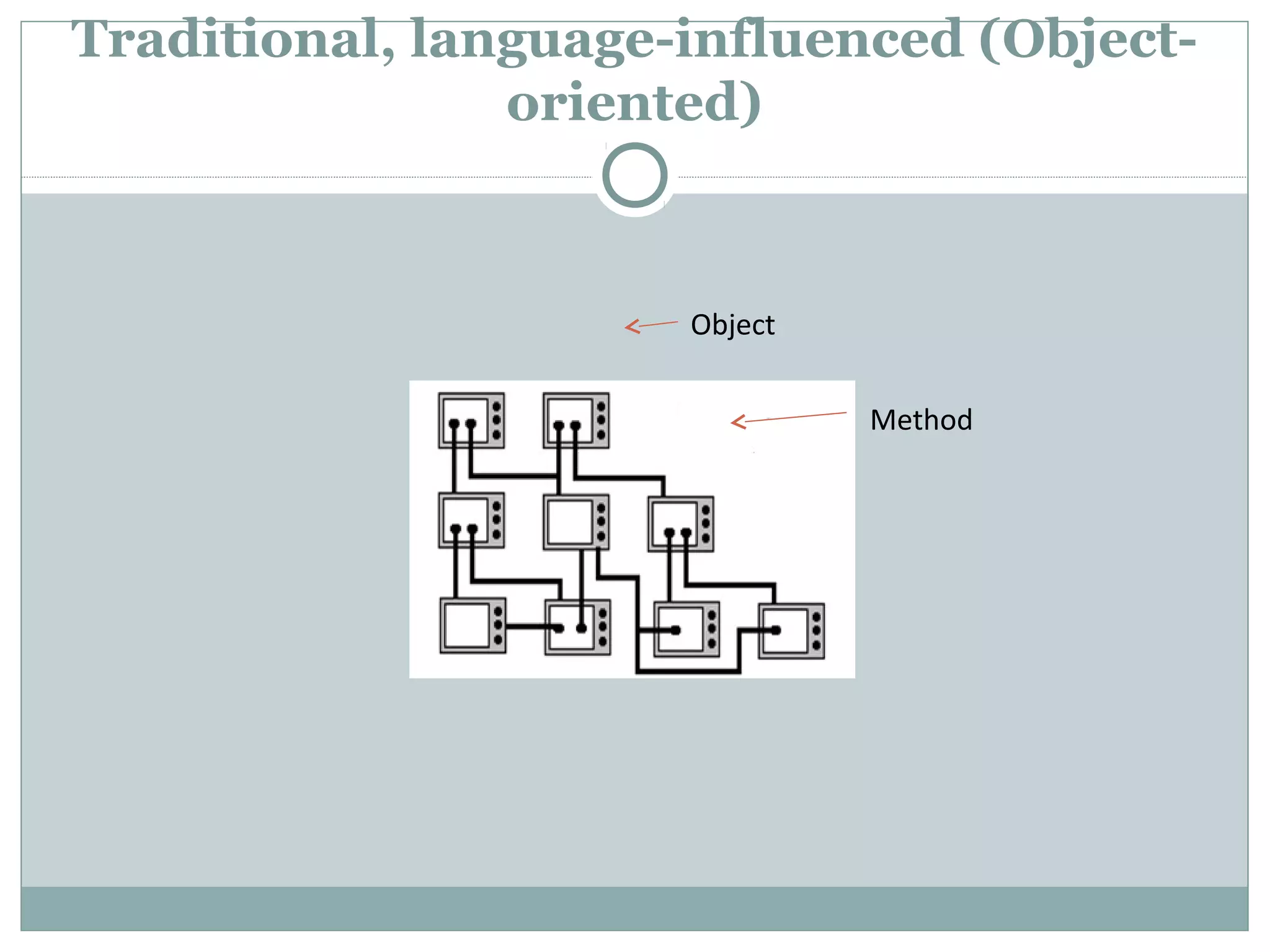

11. Traditional, language-influenced (Object-
oriented)
Object
Method

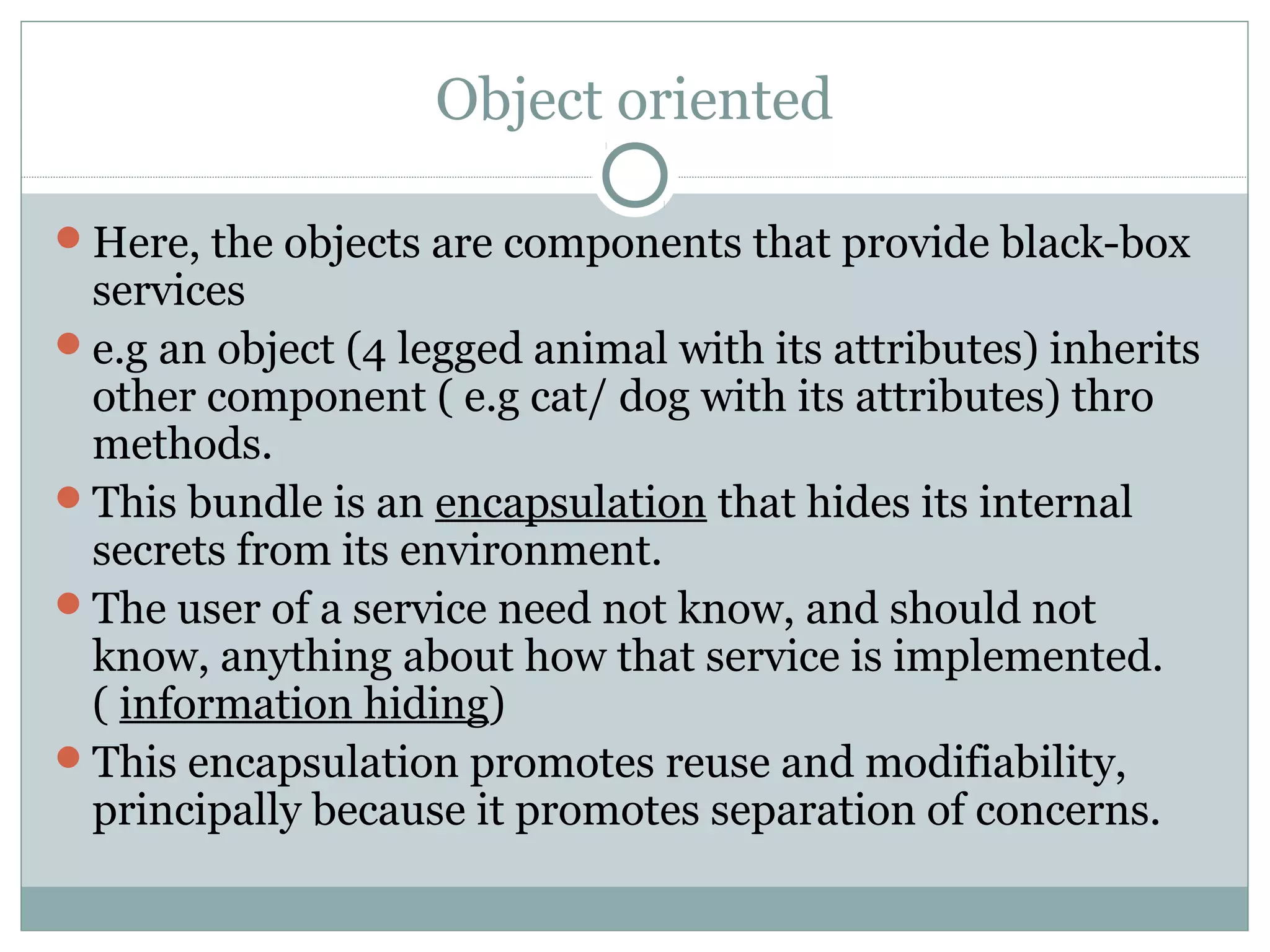

12. Object oriented
Here, the objects are components that provide black-box
services
e.g an object (4 legged animal with its attributes) inherits
other component ( e.g cat/ dog with its attributes) thro
methods.
This bundle is an encapsulation that hides its internal
secrets from its environment.
The user of a service need not know, and should not
know, anything about how that service is implemented.
( information hiding)
This encapsulation promotes reuse and modifiability,
principally because it promotes separation of concerns.

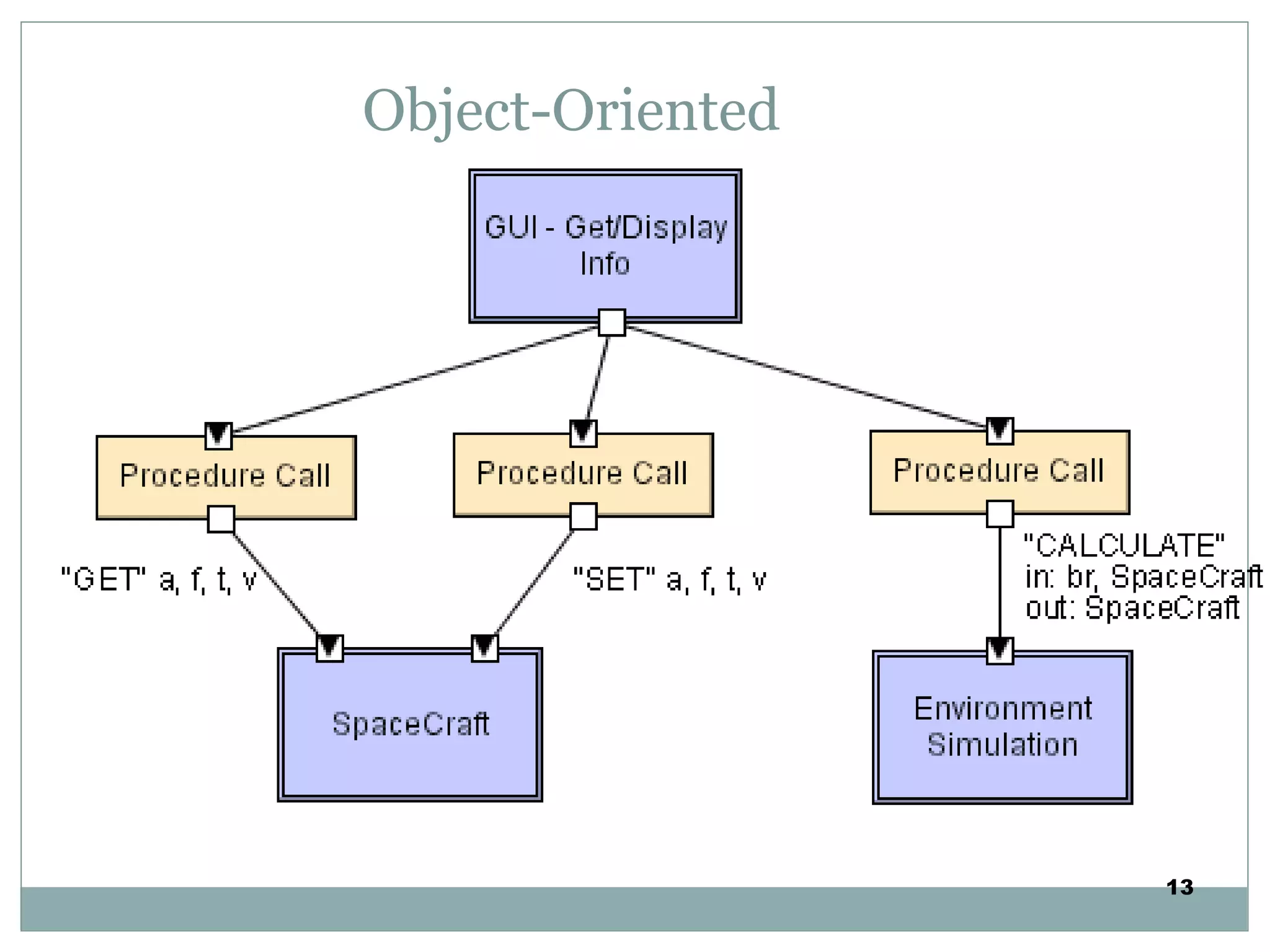

13. Object-Oriented
13

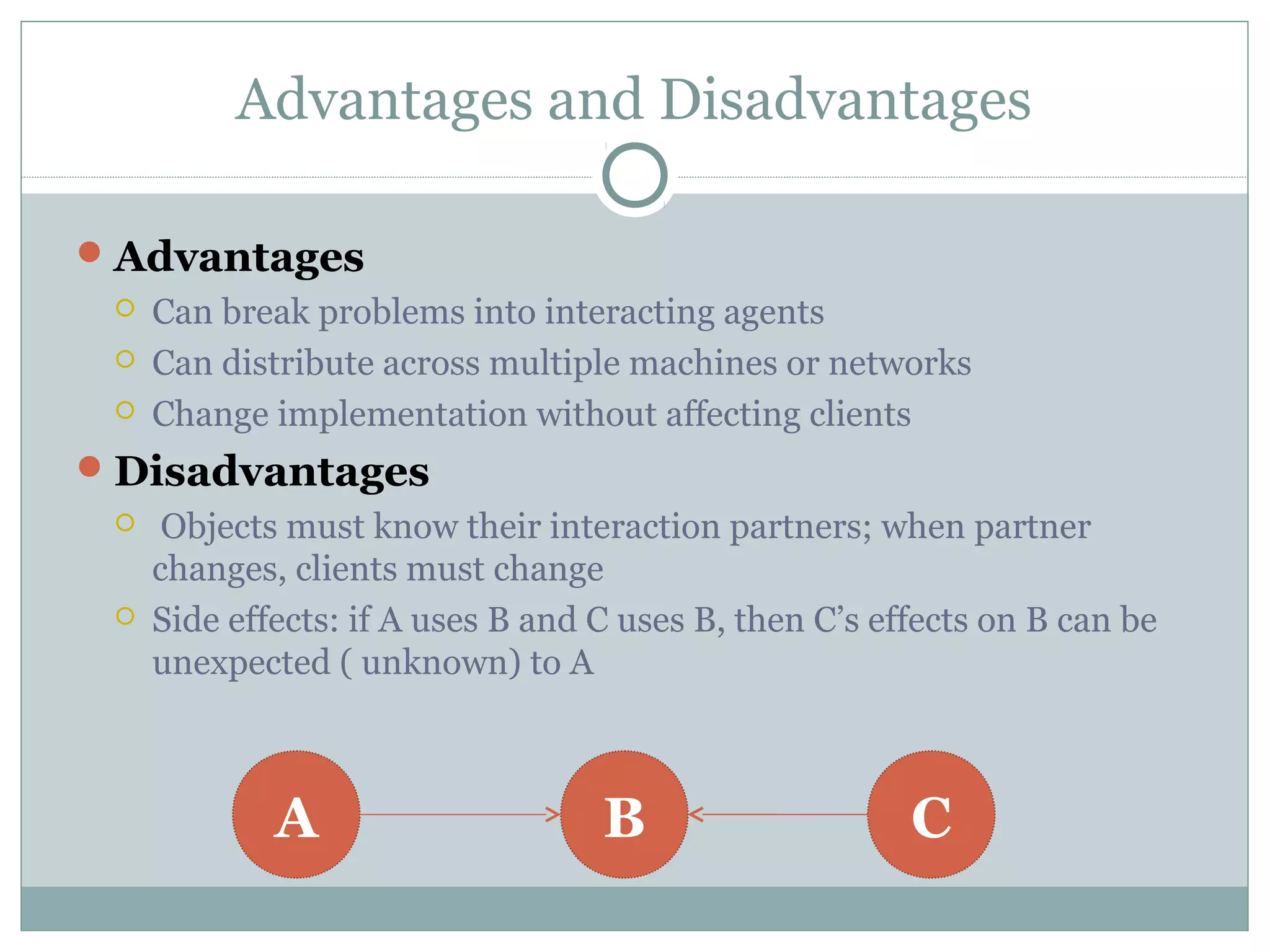

14. Advantages and Disadvantages
Advantages
 Can break problems into interacting agents
 Can distribute across multiple machines or networks
 Change implementation without affecting clients
Disadvantages
 Objects must know their interaction partners; when partner
changes, clients must change
 Side effects: if A uses B and C uses B, then C’s effects on B can be
unexpected ( unknown) to A
A B C

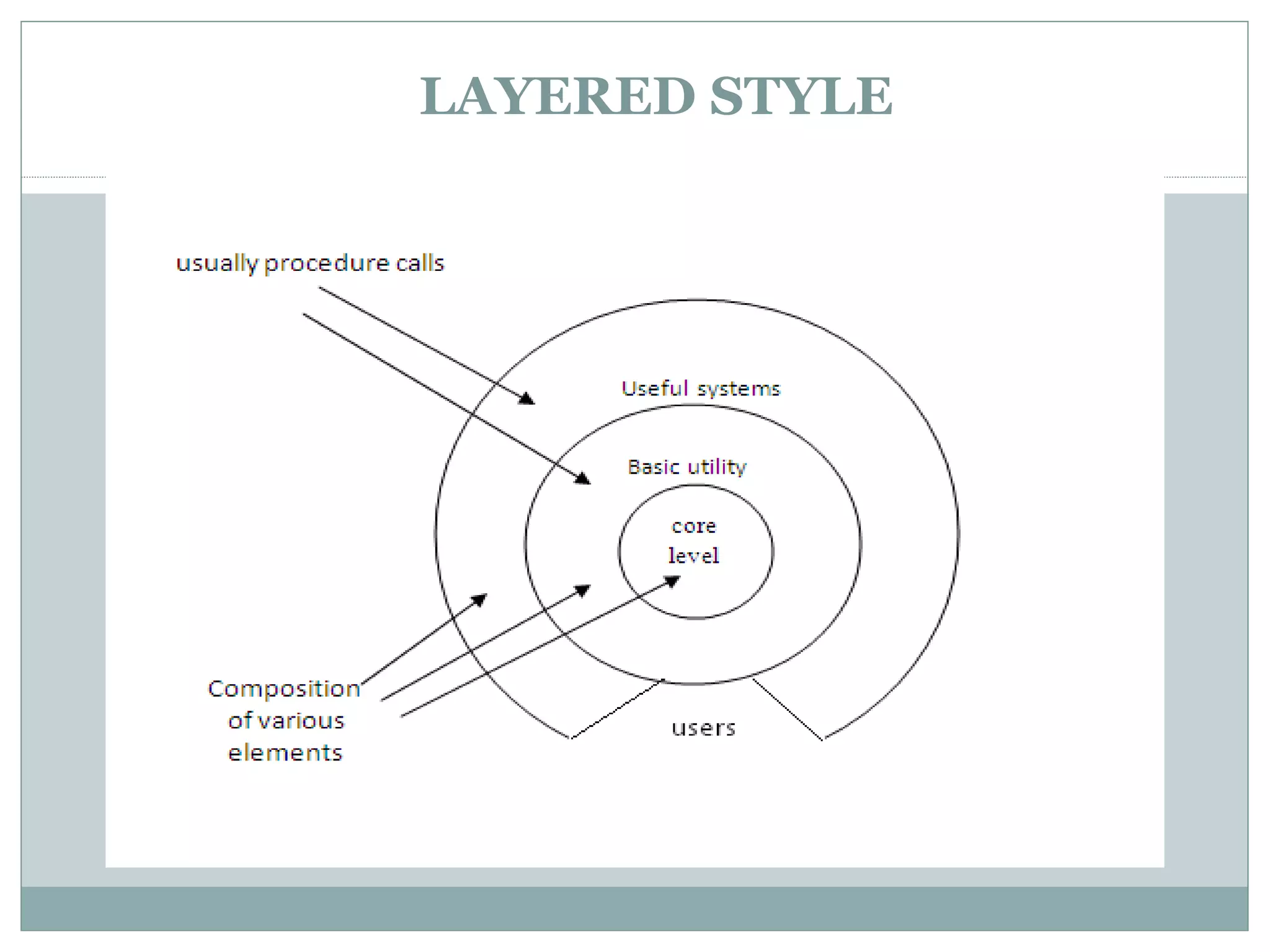

15. LAYERED STYLE

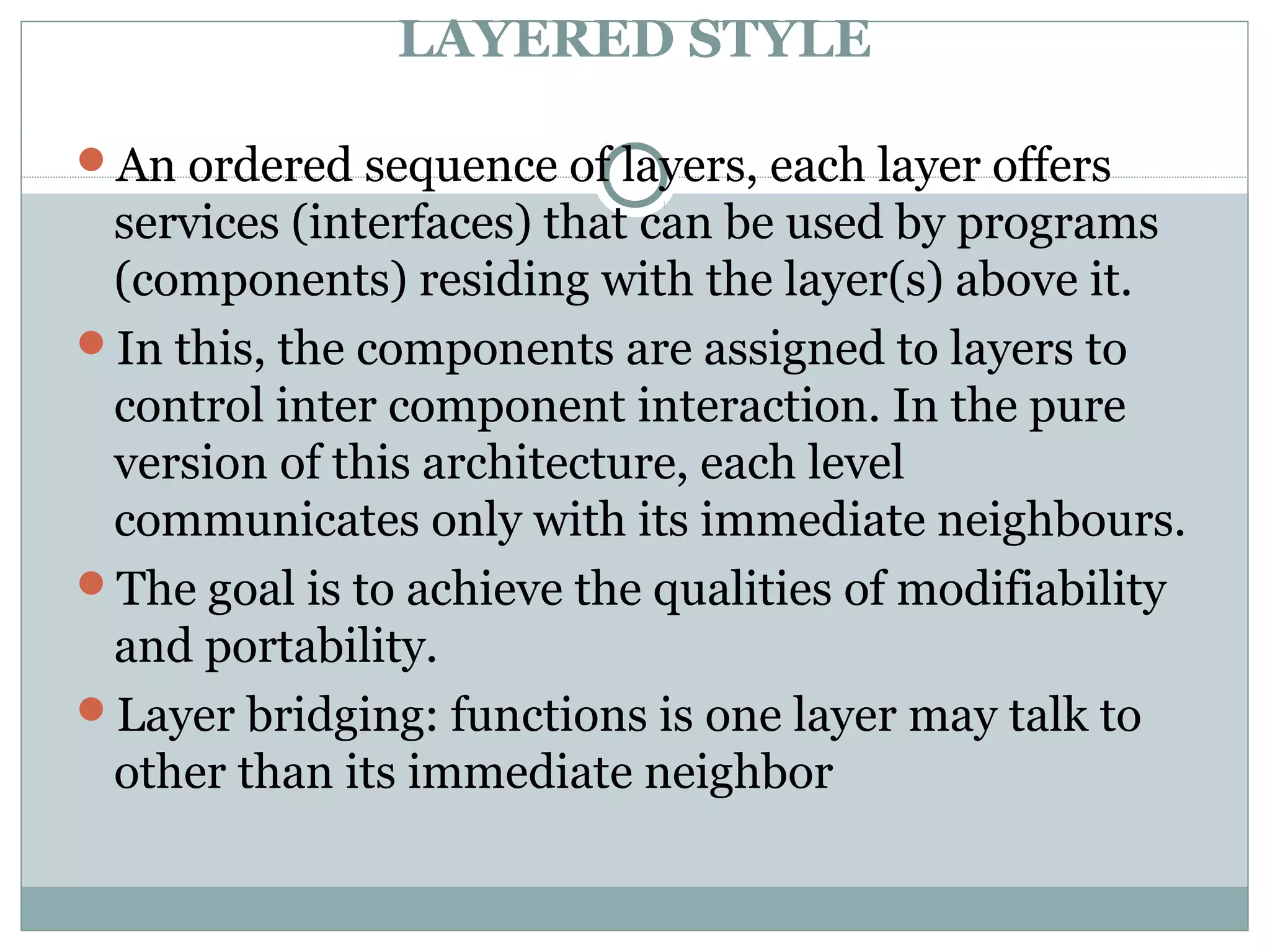

16. LAYERED STYLE
An ordered sequence of layers, each layer offers
services (interfaces) that can be used by programs
(components) residing with the layer(s) above it.
In this, the components are assigned to layers to
control inter component interaction. In the pure
version of this architecture, each level
communicates only with its immediate neighbours.
The goal is to achieve the qualities of modifiability
and portability.
Layer bridging: functions is one layer may talk to
other than its immediate neighbor

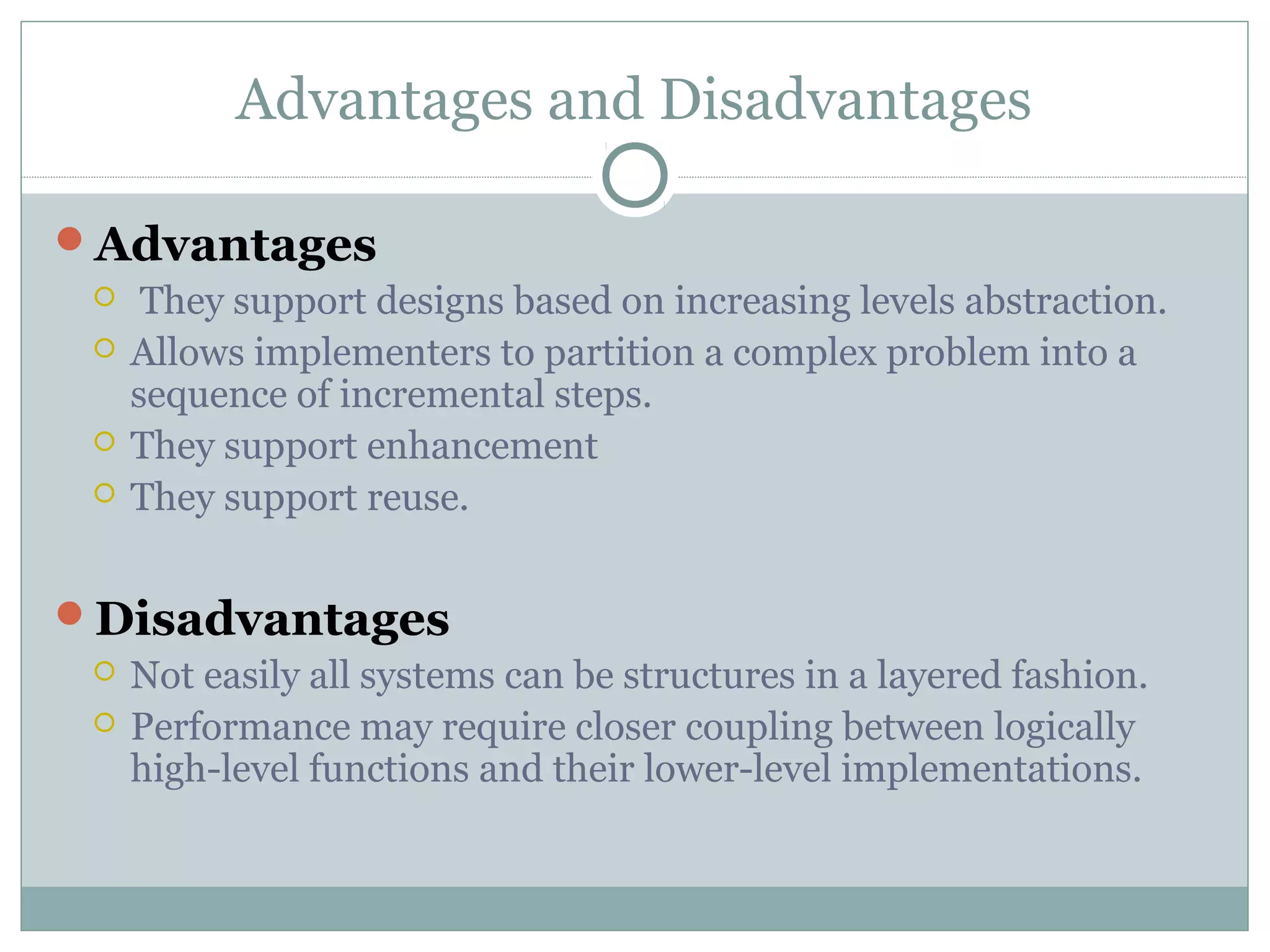

17. Advantages and Disadvantages
Advantages
 They support designs based on increasing levels abstraction.
 Allows implementers to partition a complex problem into a
sequence of incremental steps.
 They support enhancement
 They support reuse.
Disadvantages
 Not easily all systems can be structures in a layered fashion.
 Performance may require closer coupling between logically
high-level functions and their lower-level implementations.

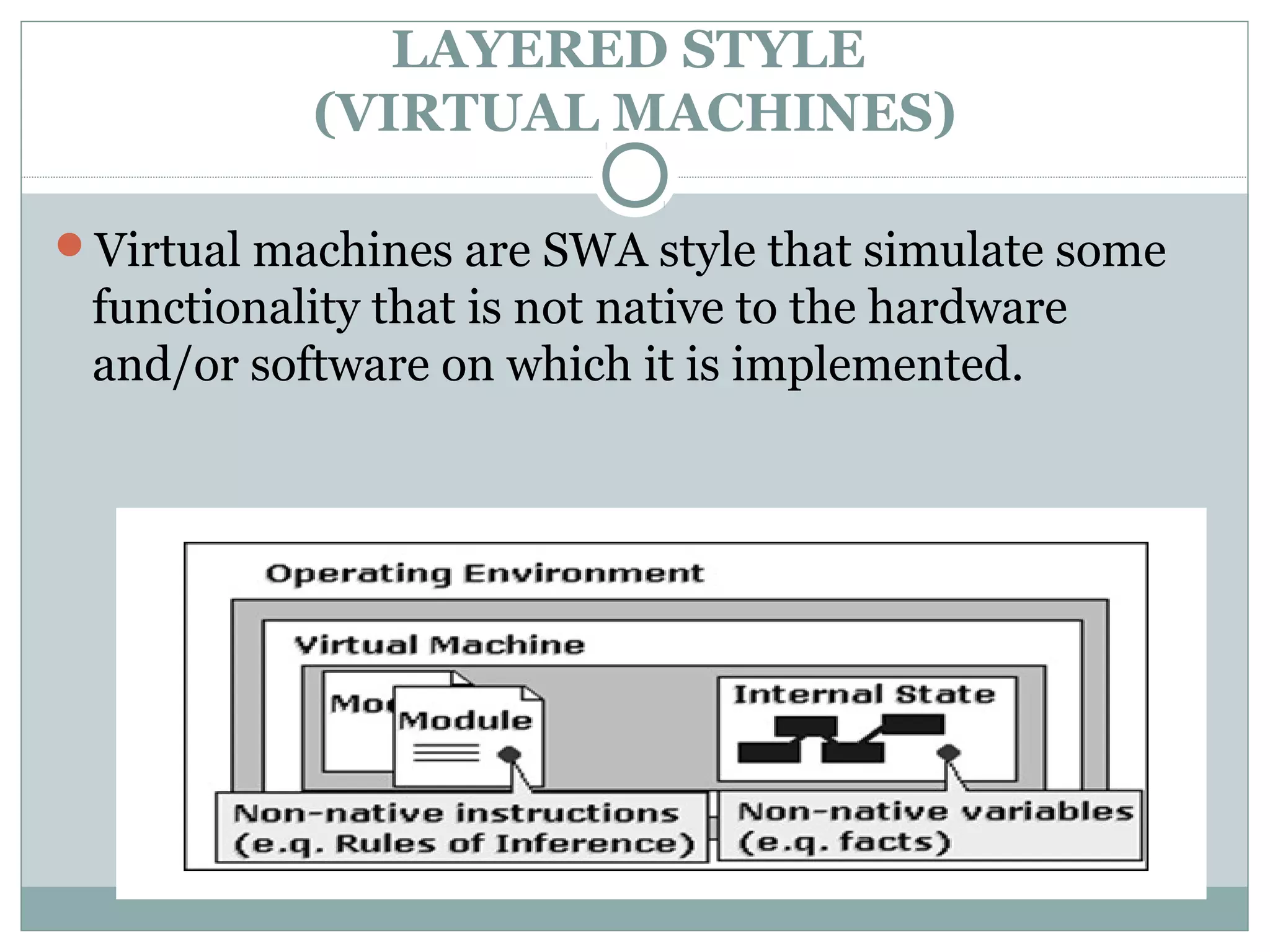

18. LAYERED STYLE
(VIRTUAL MACHINES)
Virtual machines are SWA style that simulate some
functionality that is not native to the hardware
and/or software on which it is implemented.

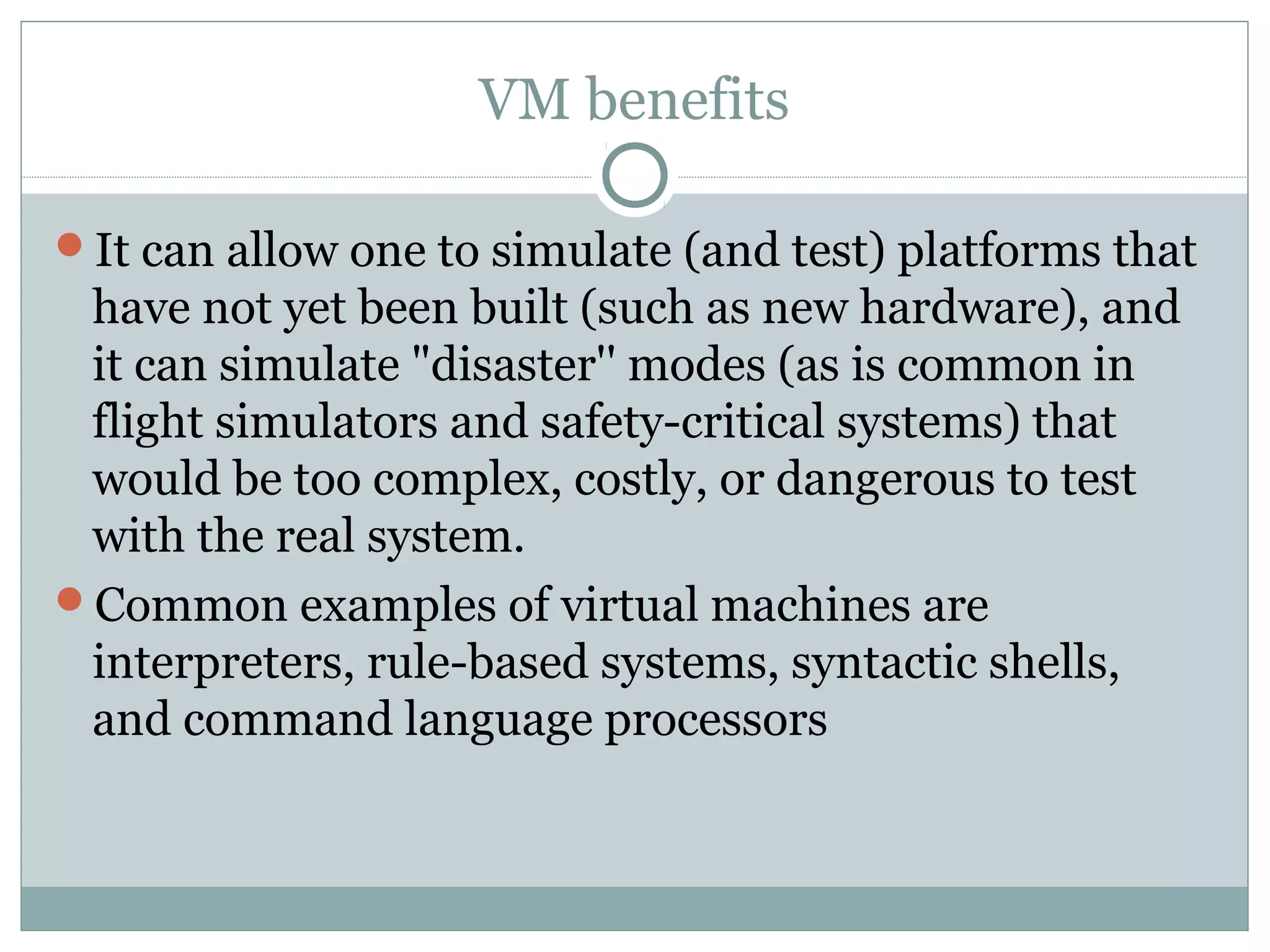

19. VM benefits
It can allow one to simulate (and test) platforms that
have not yet been built (such as new hardware), and
it can simulate "disaster'' modes (as is common in
flight simulators and safety-critical systems) that
would be too complex, costly, or dangerous to test
with the real system.
Common examples of virtual machines are
interpreters, rule-based systems, syntactic shells,
and command language processors

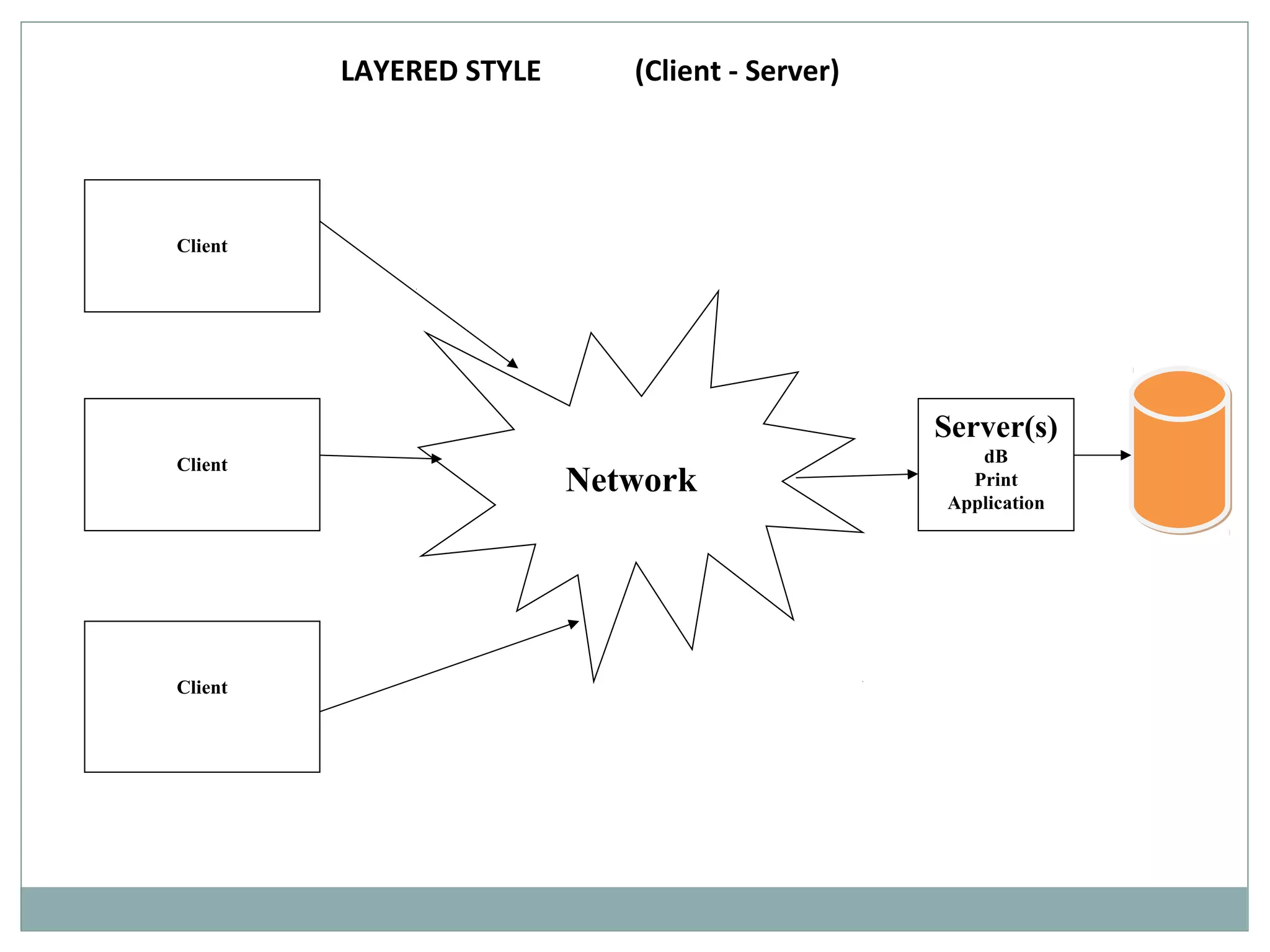

20. Network
Client
Client
Client
Server(s)
dB
Print
Application
LAYERED STYLE (Client - Server)

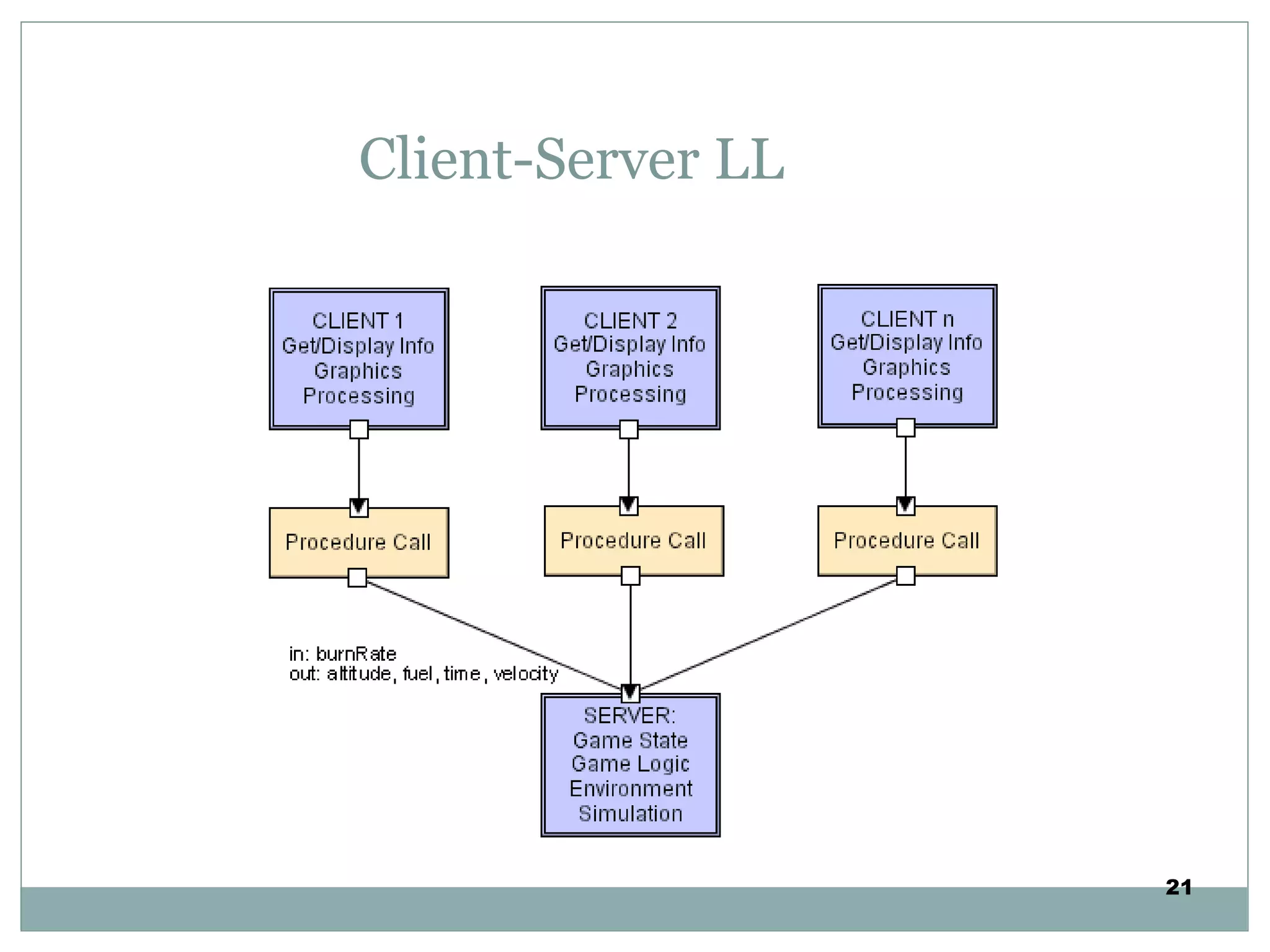

21. Client-Server LL
21

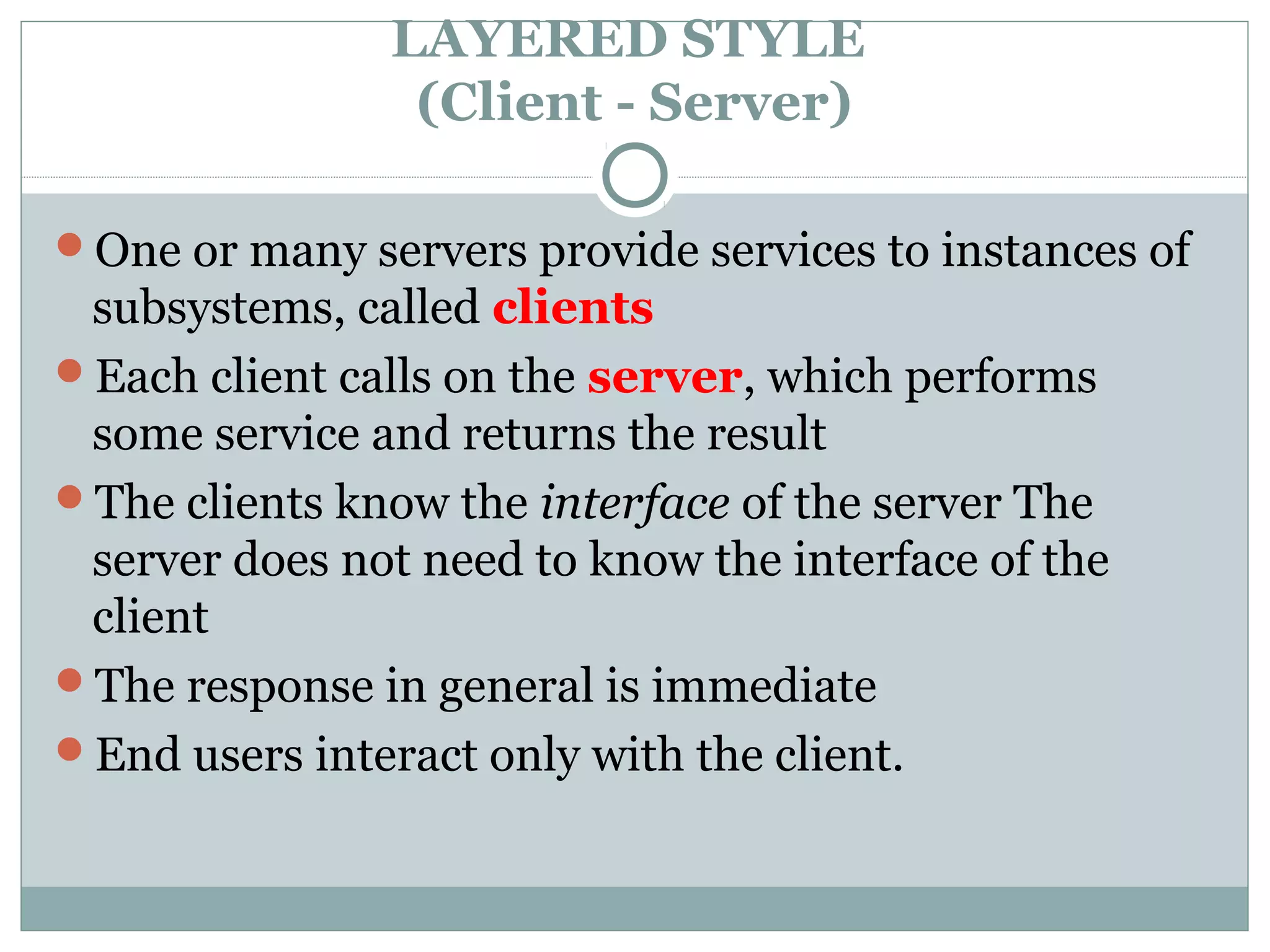

22. LAYERED STYLE
(Client - Server)
One or many servers provide services to instances of
subsystems, called clients
Each client calls on the server, which performs
some service and returns the result
The clients know the interface of the server The
server does not need to know the interface of the
client
The response in general is immediate
End users interact only with the client.

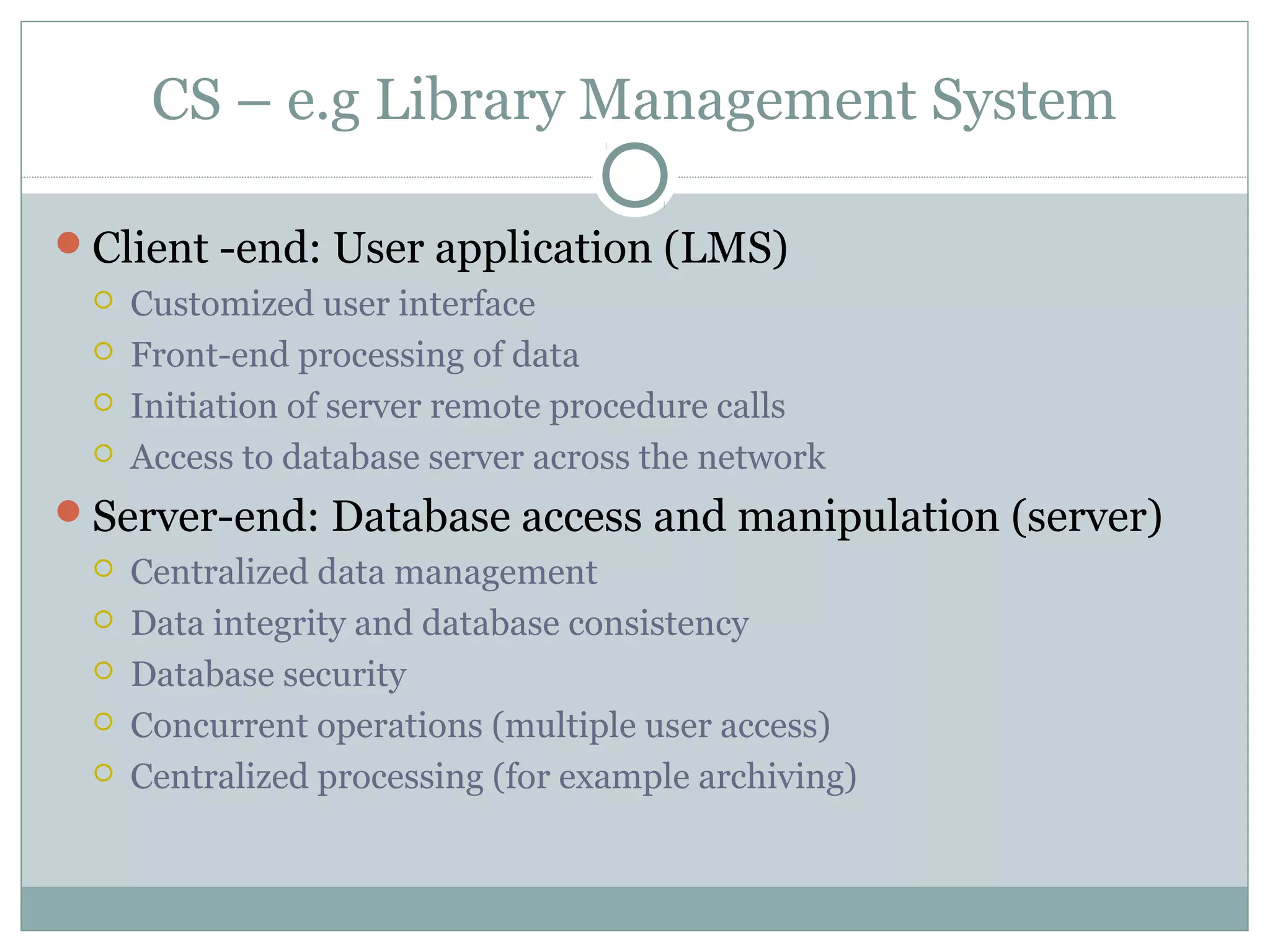

23. CS – e.g Library Management System
Client -end: User application (LMS)
 Customized user interface
 Front-end processing of data
 Initiation of server remote procedure calls
 Access to database server across the network
Server-end: Database access and manipulation (server)
 Centralized data management
 Data integrity and database consistency
 Database security
 Concurrent operations (multiple user access)
 Centralized processing (for example archiving)

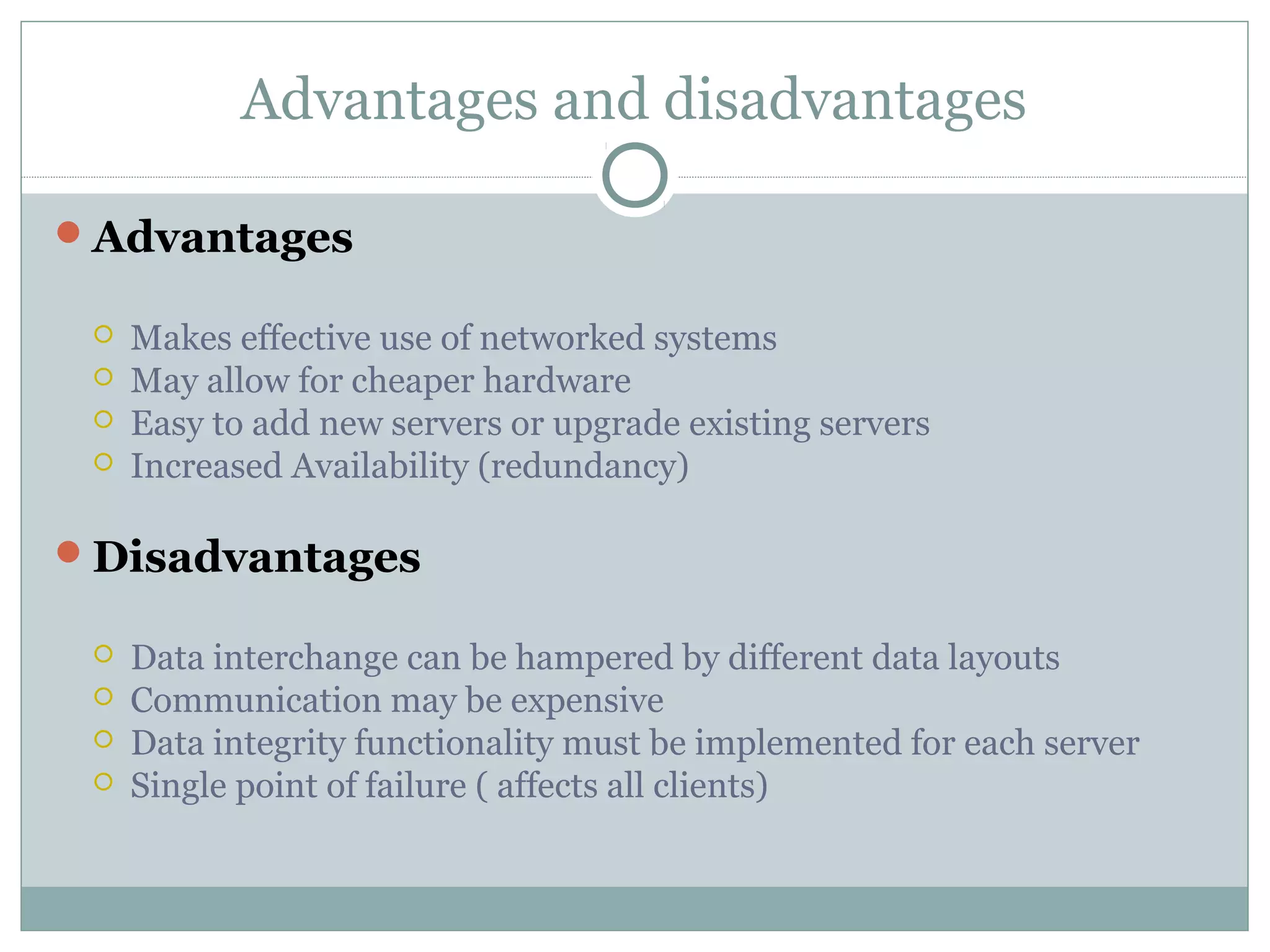

24. Advantages and disadvantages
Advantages
 Makes effective use of networked systems
 May allow for cheaper hardware
 Easy to add new servers or upgrade existing servers
 Increased Availability (redundancy)
Disadvantages
 Data interchange can be hampered by different data layouts
 Communication may be expensive
 Data integrity functionality must be implemented for each server
 Single point of failure ( affects all clients)

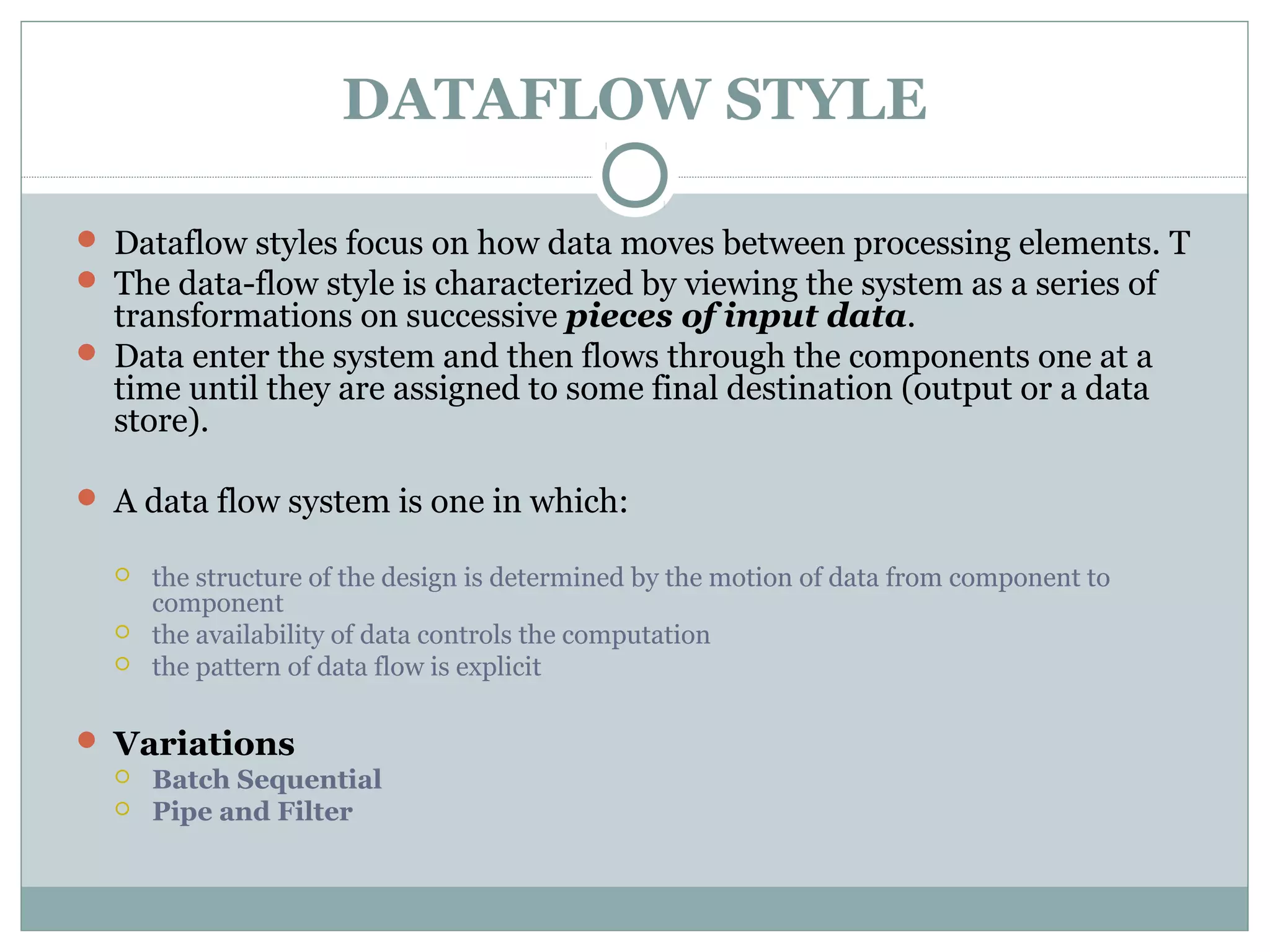

25. DATAFLOW STYLE
 Dataflow styles focus on how data moves between processing elements. T
 The data-flow style is characterized by viewing the system as a series of
transformations on successive pieces of input data.
 Data enter the system and then flows through the components one at a
time until they are assigned to some final destination (output or a data
store).
 A data flow system is one in which:
 the structure of the design is determined by the motion of data from component to
component
 the availability of data controls the computation
 the pattern of data flow is explicit
 Variations
 Batch Sequential
 Pipe and Filter

26. Dataflow
( Batch Sequential)
Date format check
Standard format
Use logic
To validate

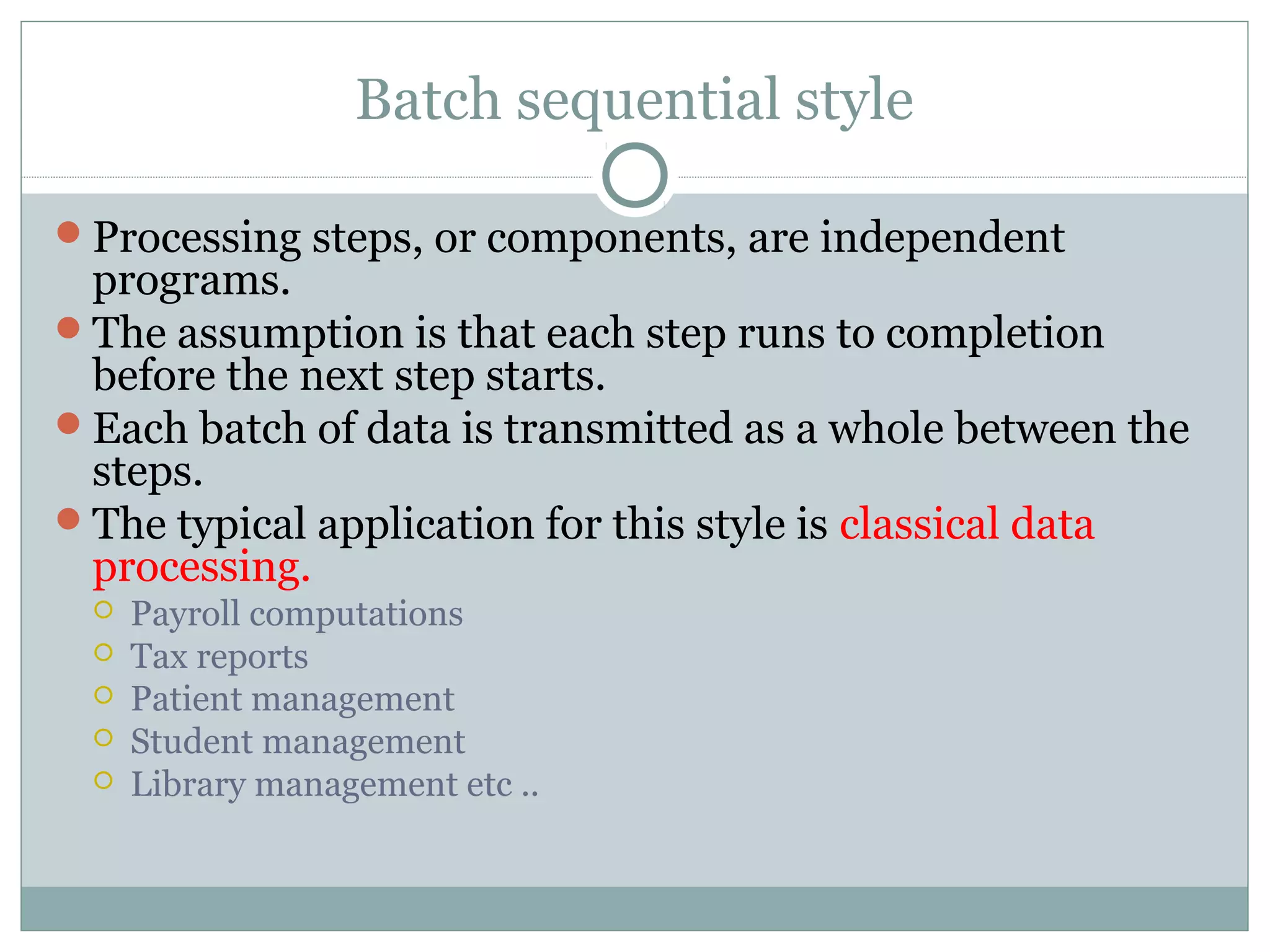

27. Batch sequential style
Processing steps, or components, are independent
programs.
The assumption is that each step runs to completion
before the next step starts.
Each batch of data is transmitted as a whole between the
steps.
The typical application for this style is classical data
processing.
 Payroll computations
 Tax reports
 Patient management
 Student management
 Library management etc ..

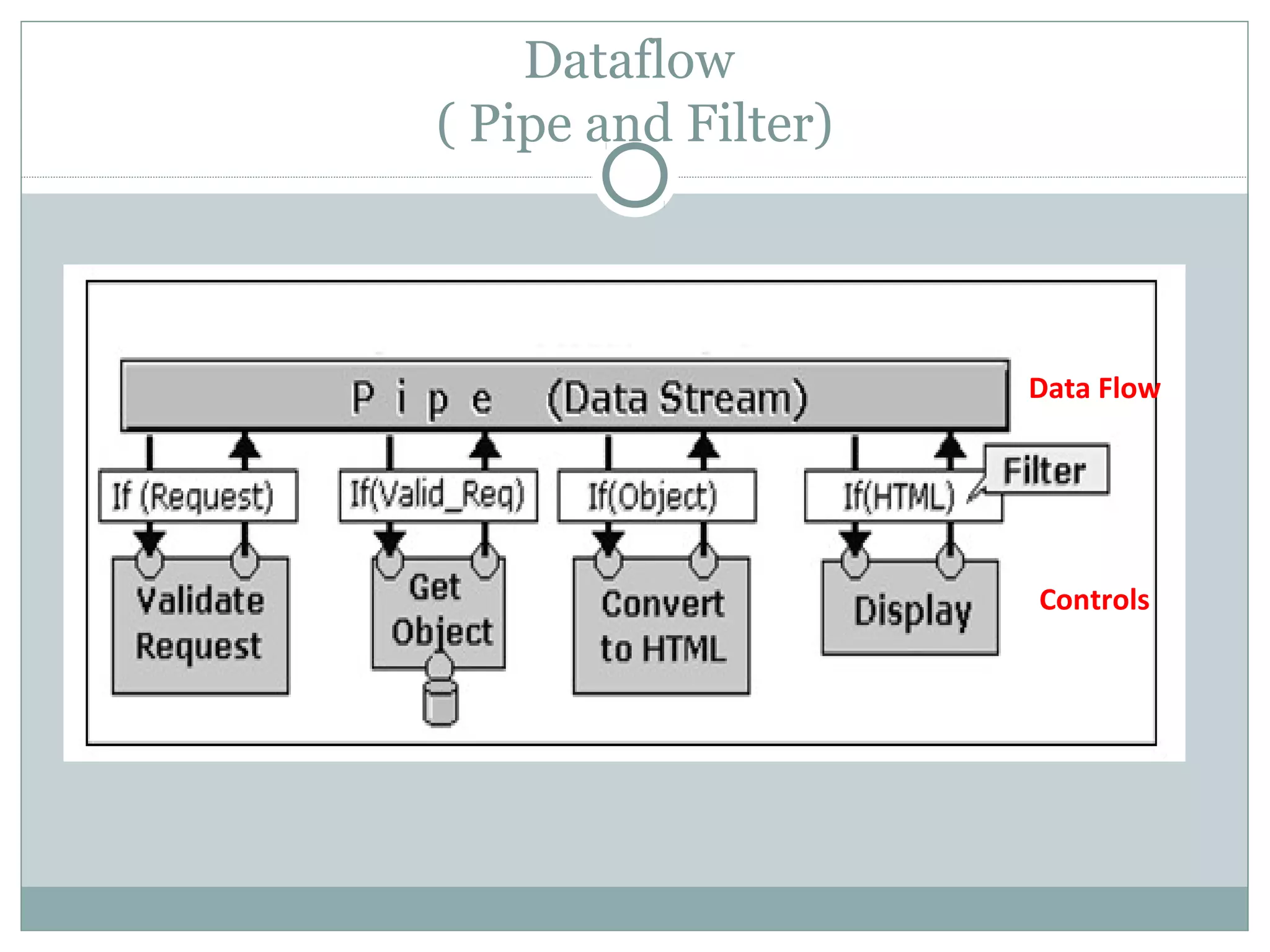

28. Dataflow
( Pipe and Filter)
Data Flow
Controls

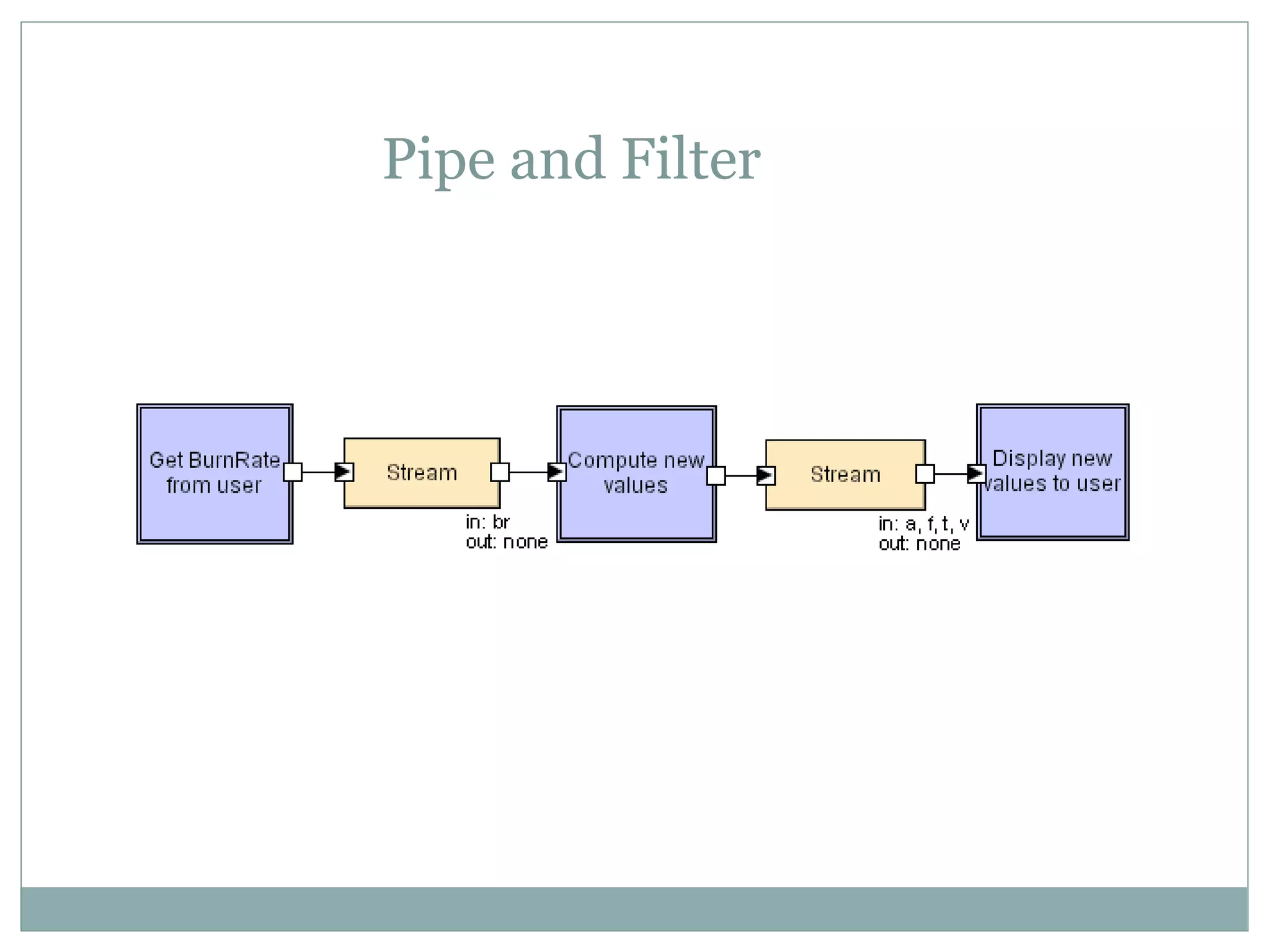

29. Pipe and Filter

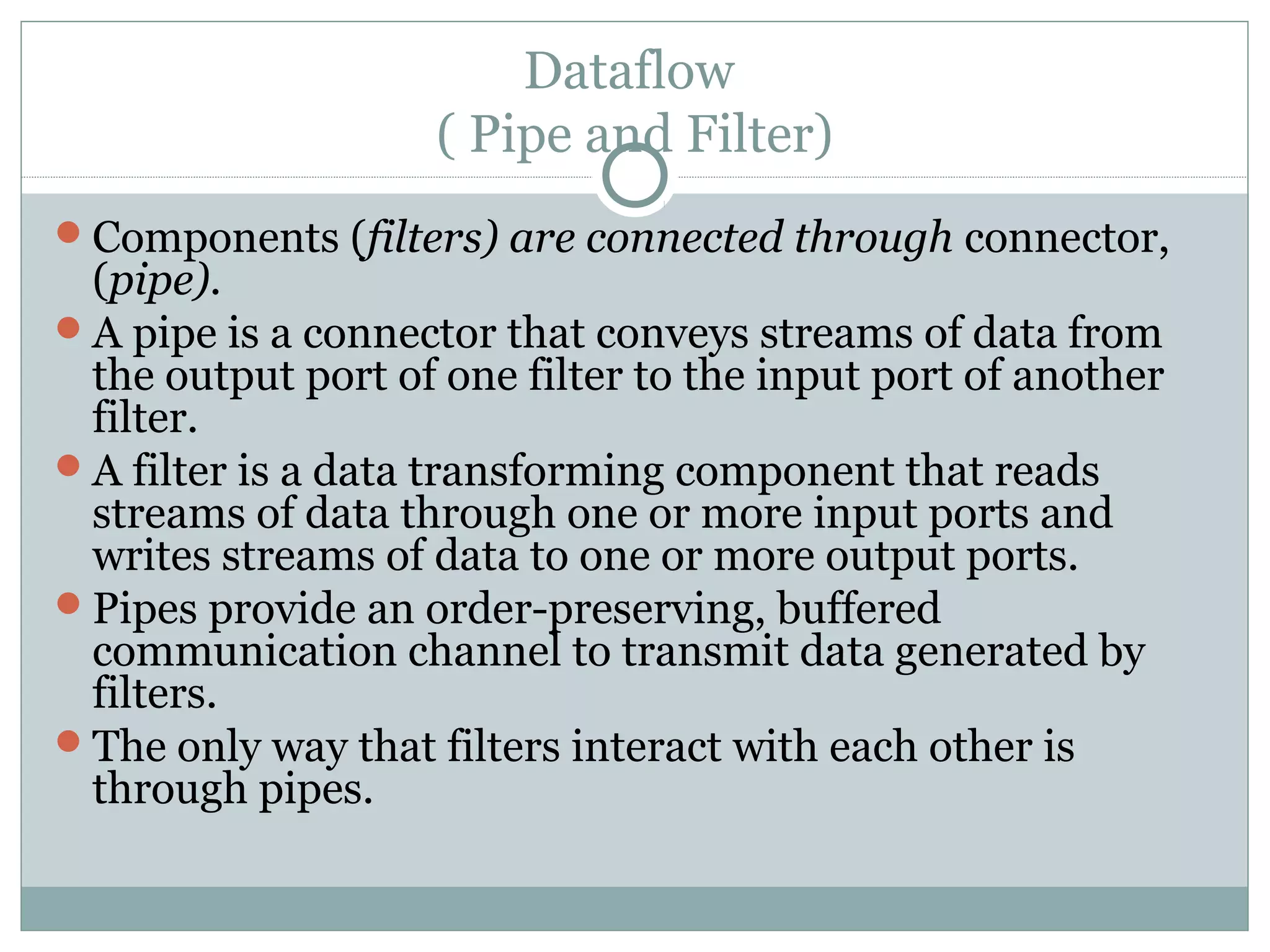

30. Dataflow
( Pipe and Filter)
Components (filters) are connected through connector,
(pipe).
A pipe is a connector that conveys streams of data from
the output port of one filter to the input port of another
filter.
A filter is a data transforming component that reads
streams of data through one or more input ports and
writes streams of data to one or more output ports.
Pipes provide an order-preserving, buffered
communication channel to transmit data generated by
filters.
The only way that filters interact with each other is
through pipes.

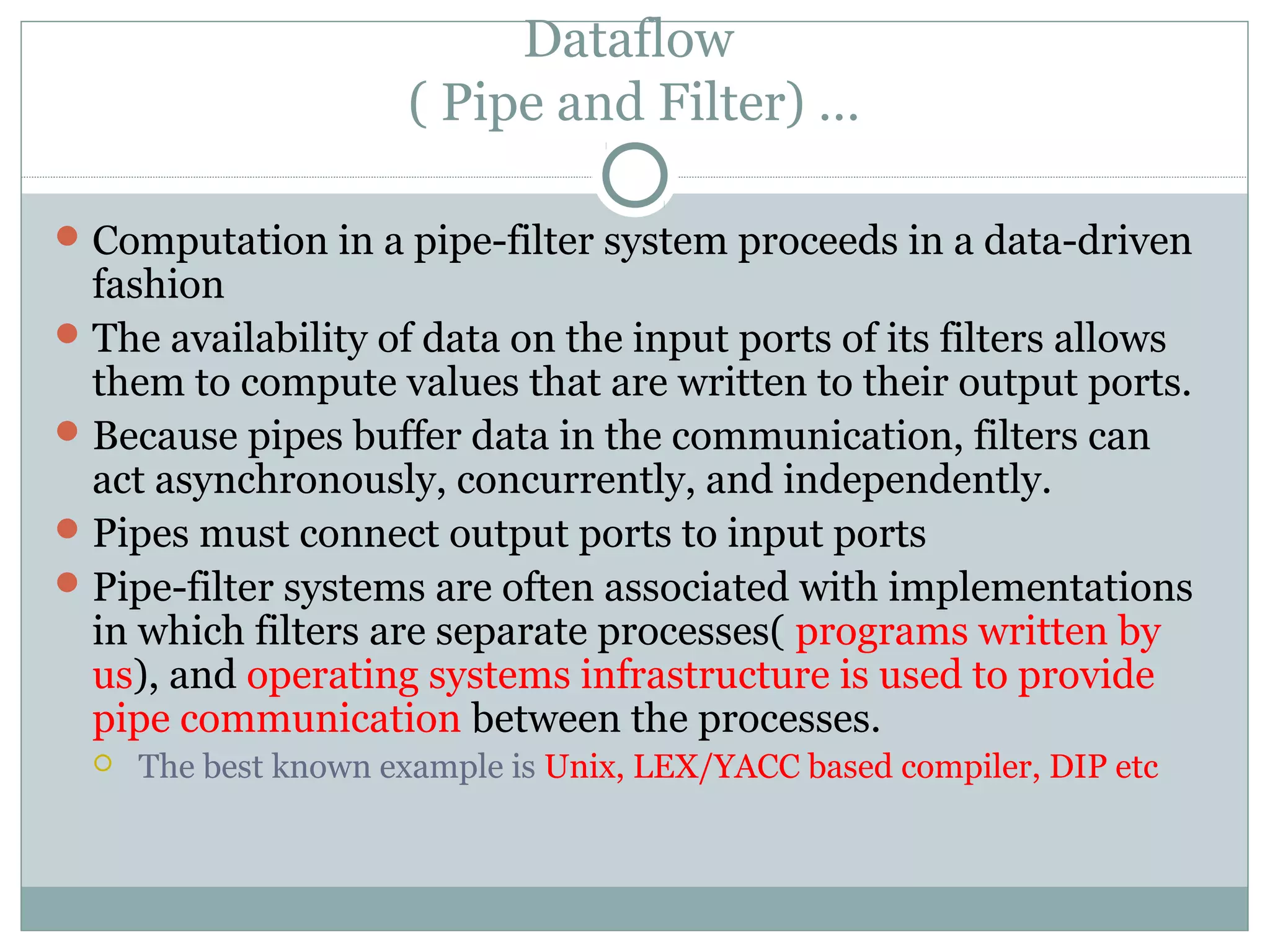

31. Dataflow
( Pipe and Filter) …
Computation in a pipe-filter system proceeds in a data-driven
fashion
The availability of data on the input ports of its filters allows
them to compute values that are written to their output ports.
Because pipes buffer data in the communication, filters can
act asynchronously, concurrently, and independently.
Pipes must connect output ports to input ports
Pipe-filter systems are often associated with implementations
in which filters are separate processes( programs written by
us), and operating systems infrastructure is used to provide
pipe communication between the processes.
 The best known example is Unix, LEX/YACC based compiler, DIP etc

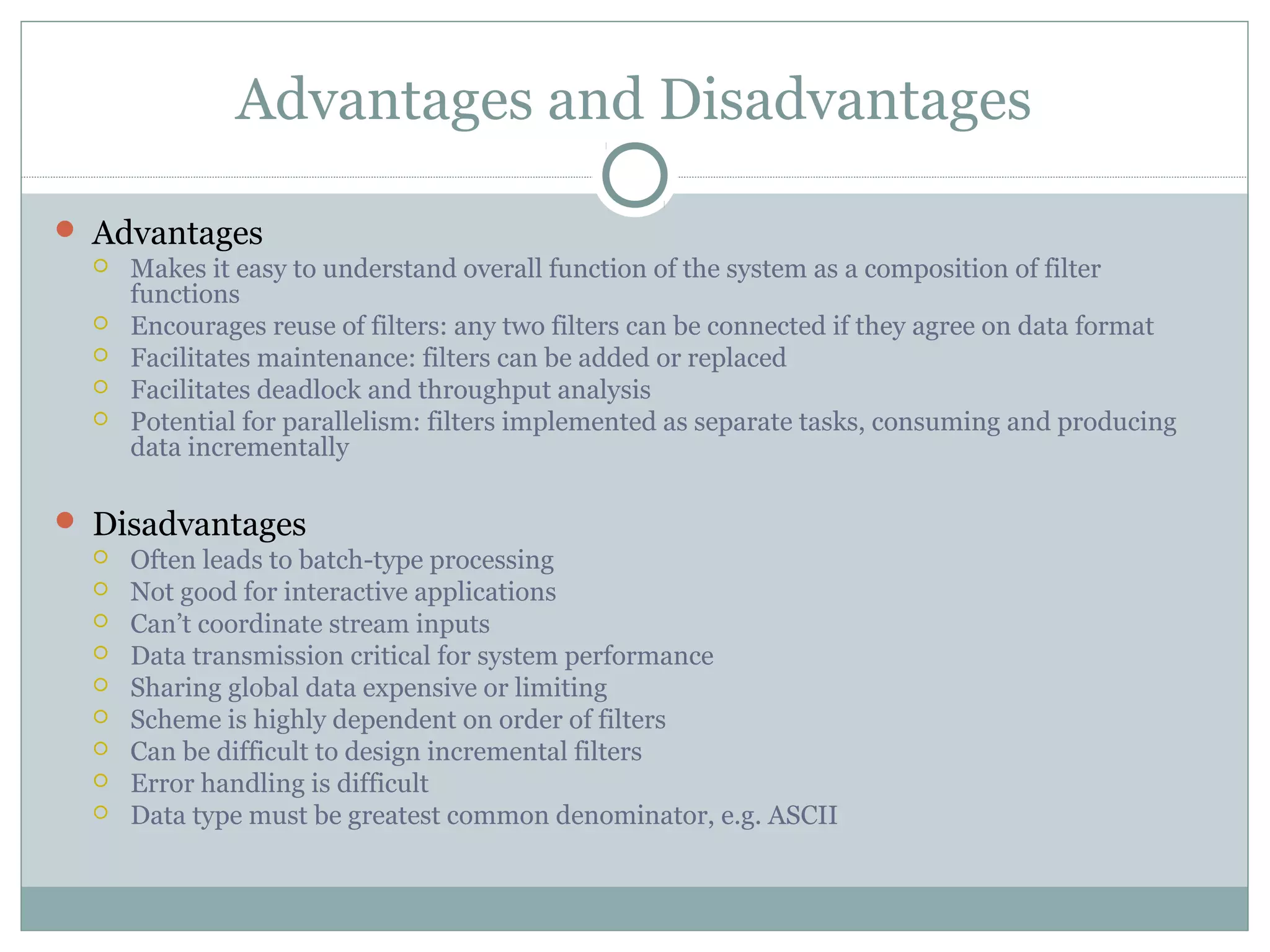

32. Advantages and Disadvantages
 Advantages
 Makes it easy to understand overall function of the system as a composition of filter
functions
 Encourages reuse of filters: any two filters can be connected if they agree on data format
 Facilitates maintenance: filters can be added or replaced
 Facilitates deadlock and throughput analysis
 Potential for parallelism: filters implemented as separate tasks, consuming and producing
data incrementally
 Disadvantages
 Often leads to batch-type processing
 Not good for interactive applications
 Can’t coordinate stream inputs
 Data transmission critical for system performance
 Sharing global data expensive or limiting
 Scheme is highly dependent on order of filters
 Can be difficult to design incremental filters
 Error handling is difficult
 Data type must be greatest common denominator, e.g. ASCII

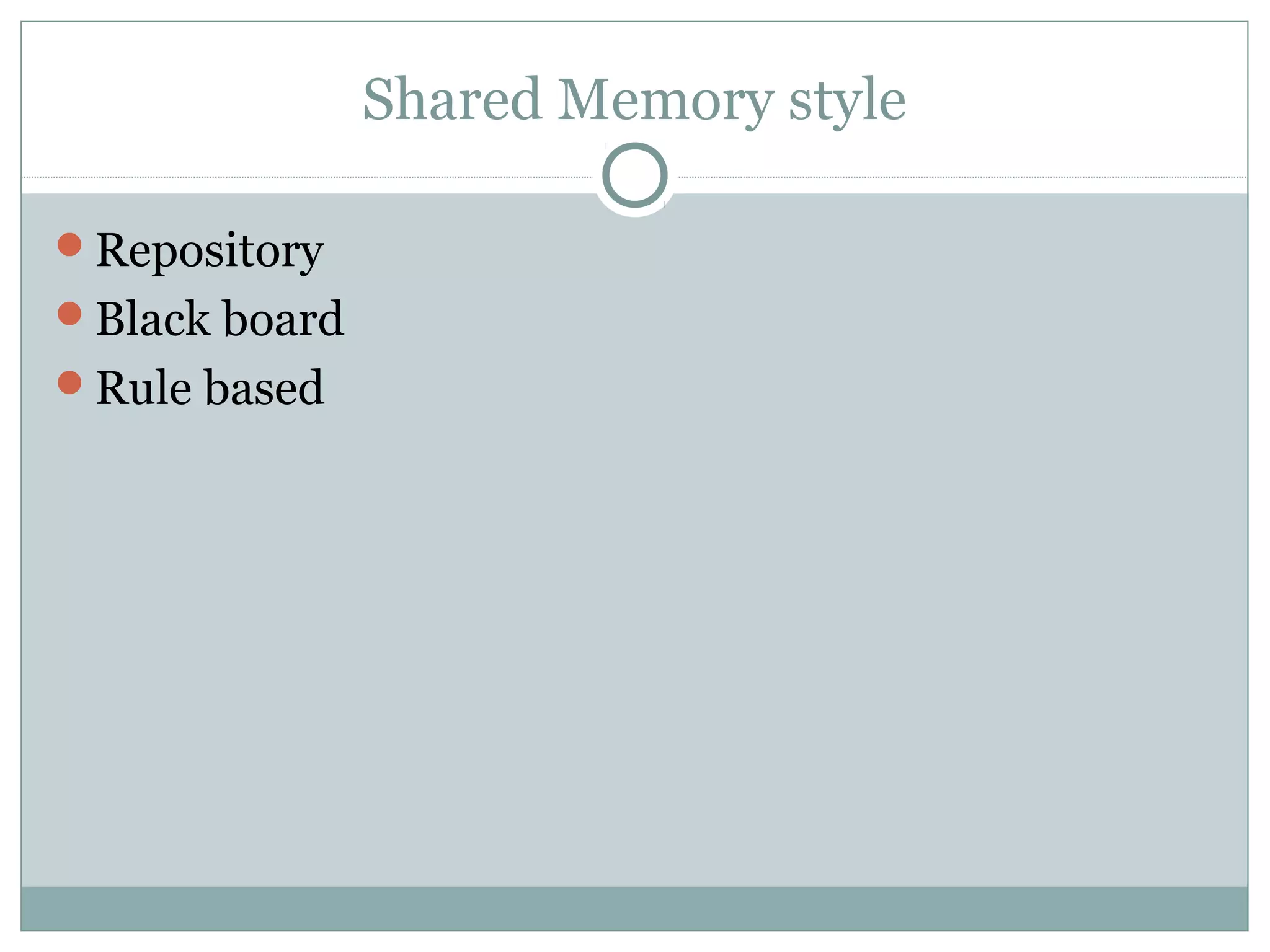

33. Shared Memory style
Repository
Black board
Rule based

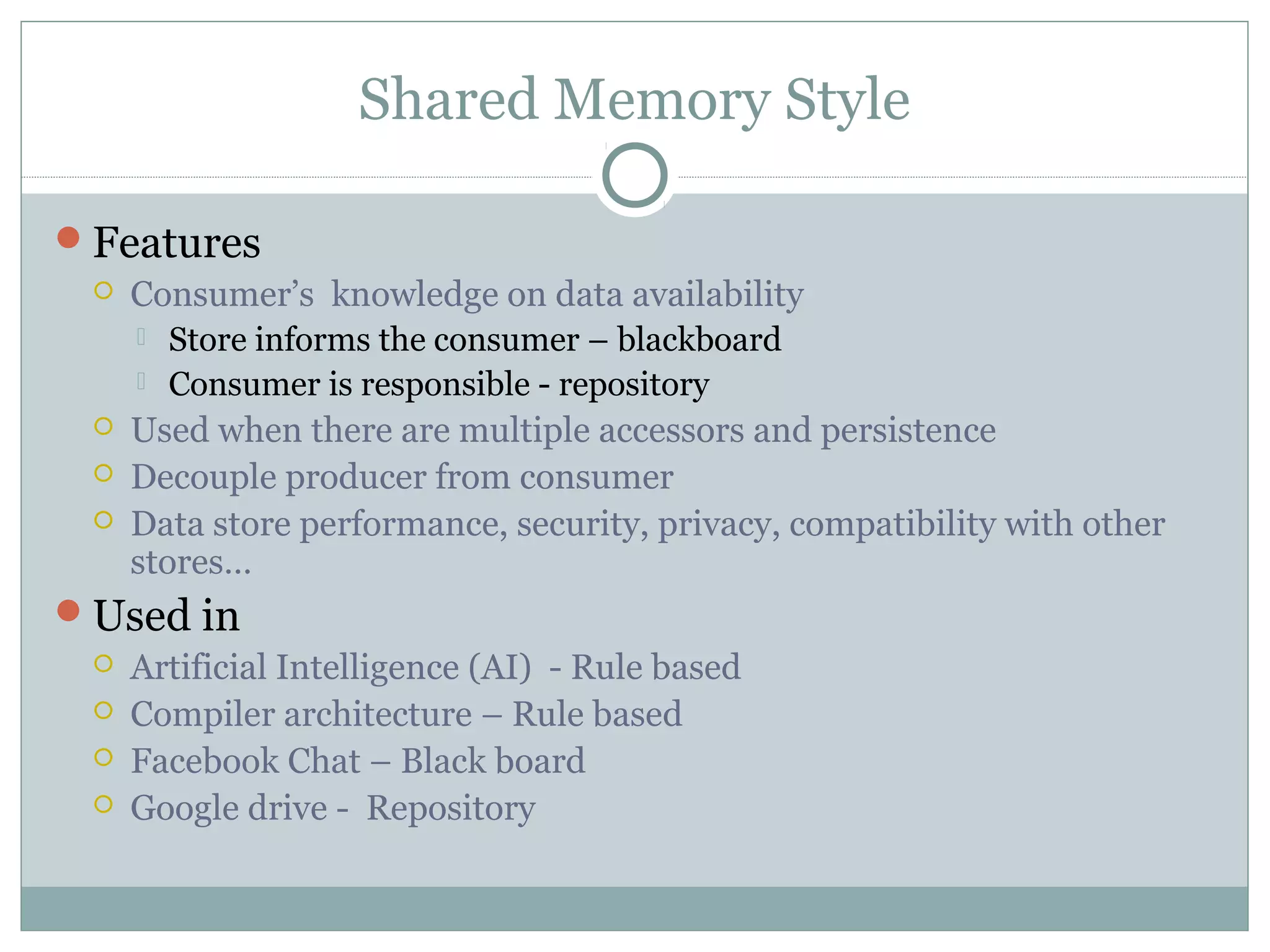

34. Shared Memory Style
Features
 Consumer’s knowledge on data availability
 Store informs the consumer – blackboard
 Consumer is responsible - repository
 Used when there are multiple accessors and persistence
 Decouple producer from consumer
 Data store performance, security, privacy, compatibility with other
stores…
Used in

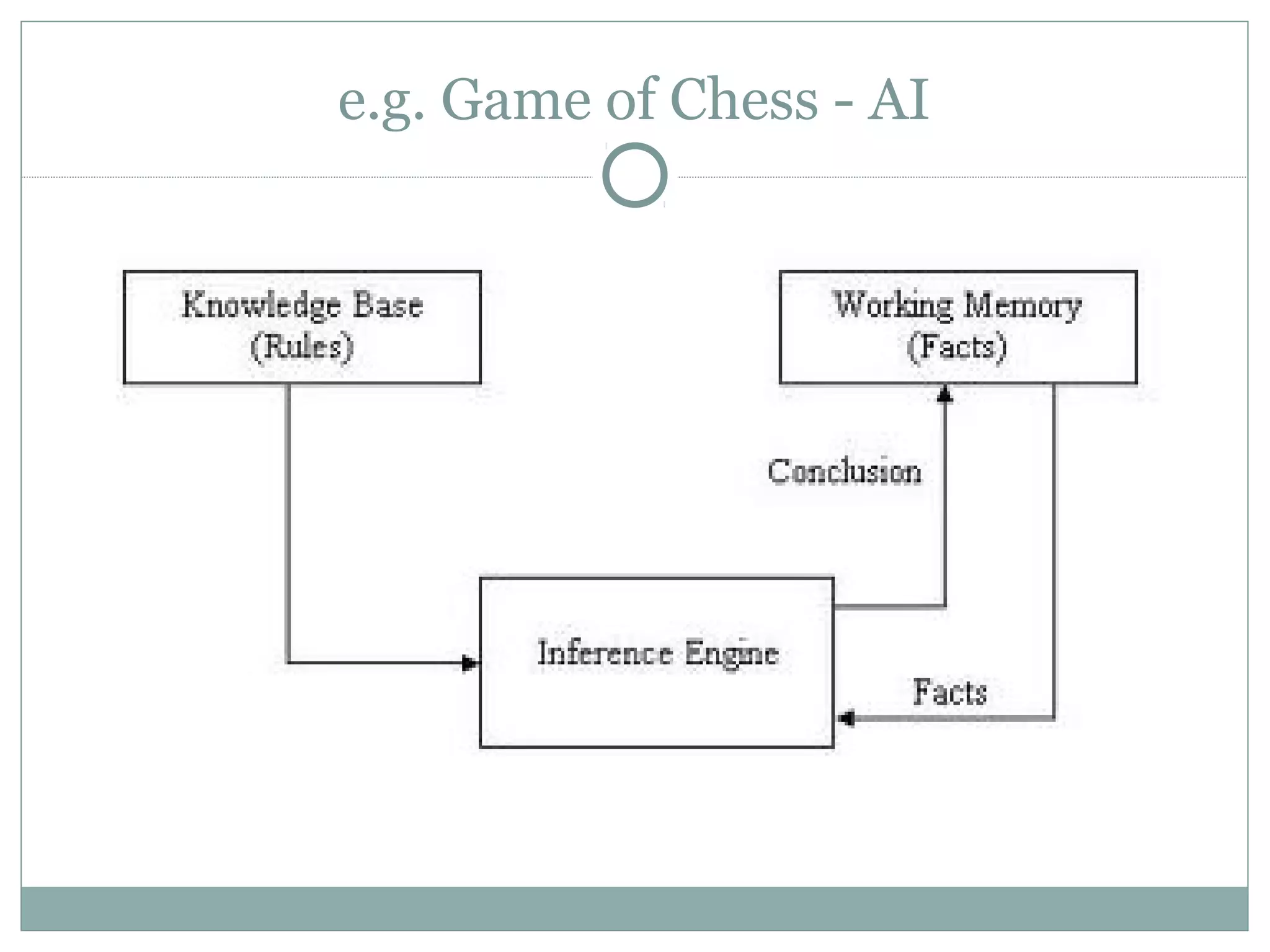

 Artificial Intelligence (AI) - Rule based
 Compiler architecture – Rule based

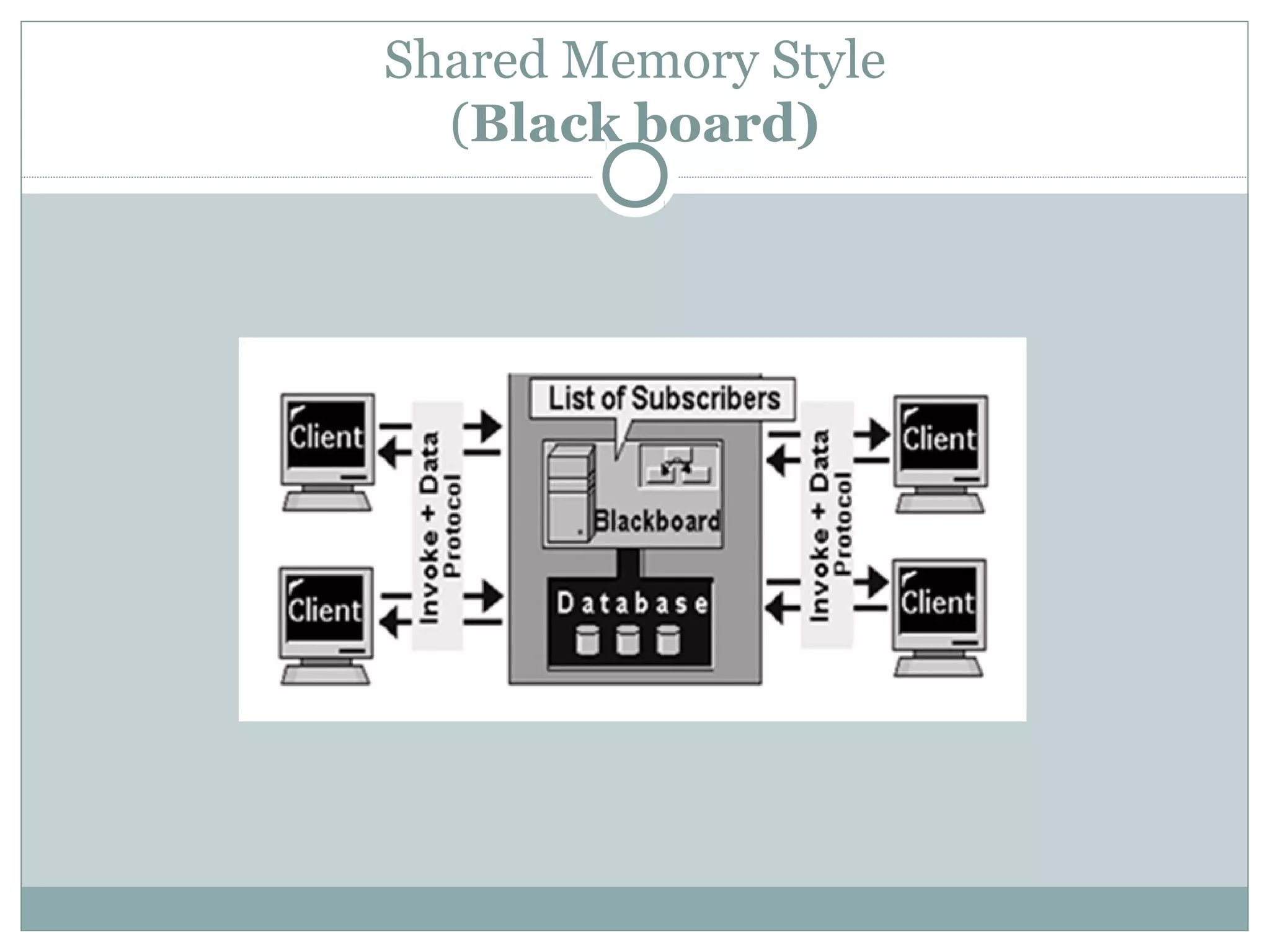

 Facebook Chat – Black board
 Google drive - Repository

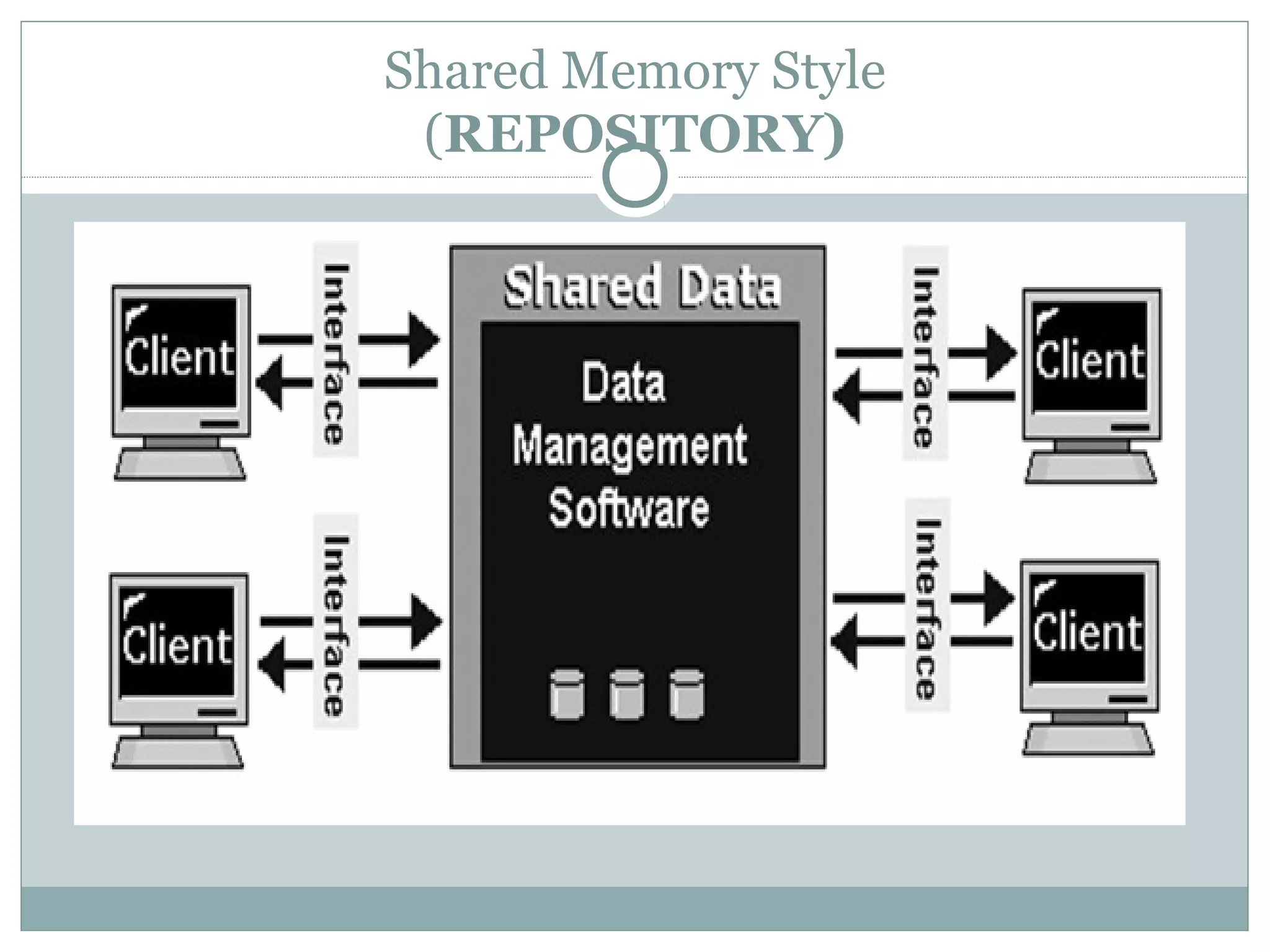

35. Shared Memory Style
(REPOSITORY)

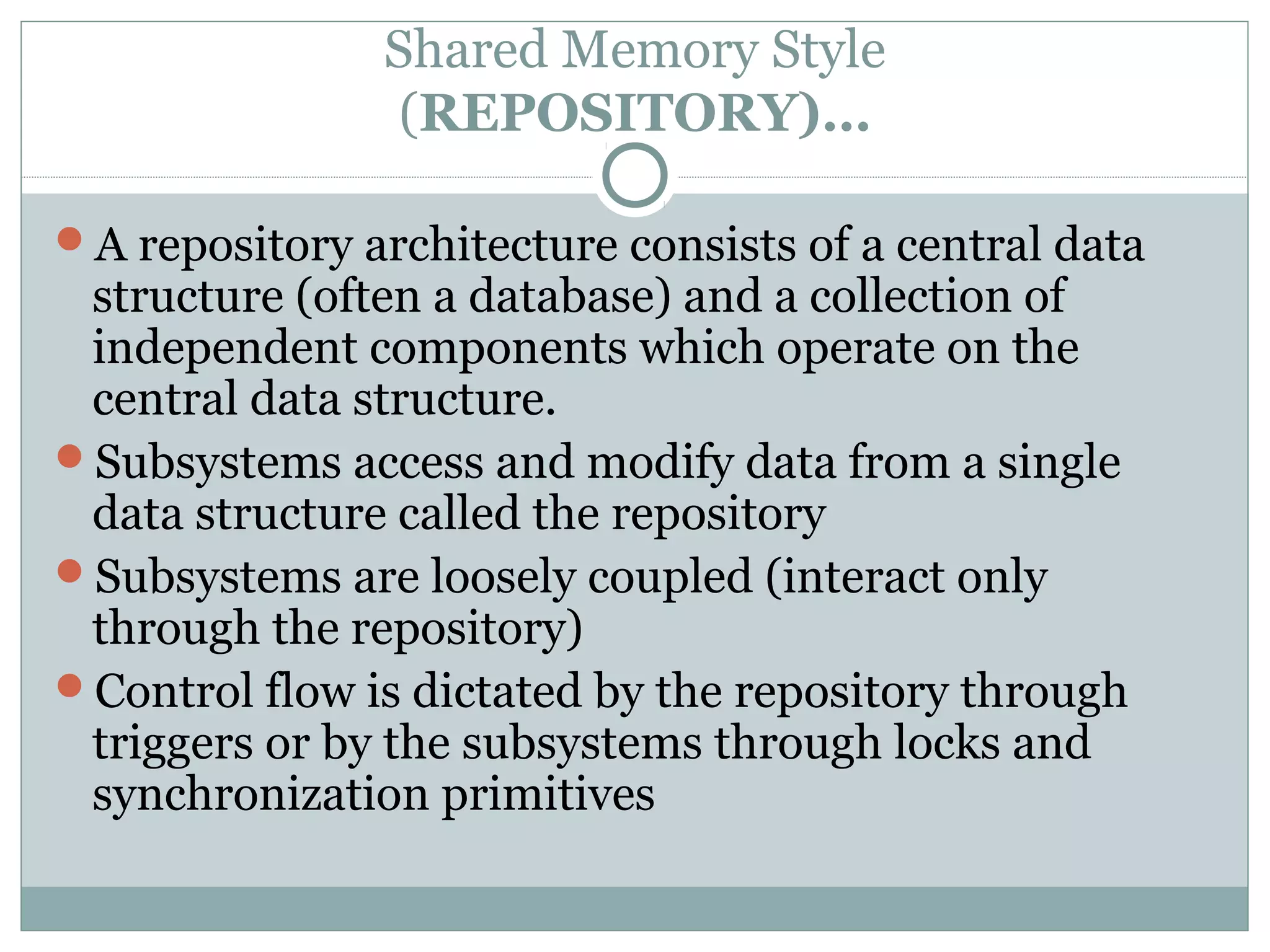

36. Shared Memory Style
(REPOSITORY)…
A repository architecture consists of a central data
structure (often a database) and a collection of
independent components which operate on the
central data structure.
Subsystems access and modify data from a single
data structure called the repository
Subsystems are loosely coupled (interact only
through the repository)
Control flow is dictated by the repository through
triggers or by the subsystems through locks and
synchronization primitives

37. Shared Memory Style
(Black board)

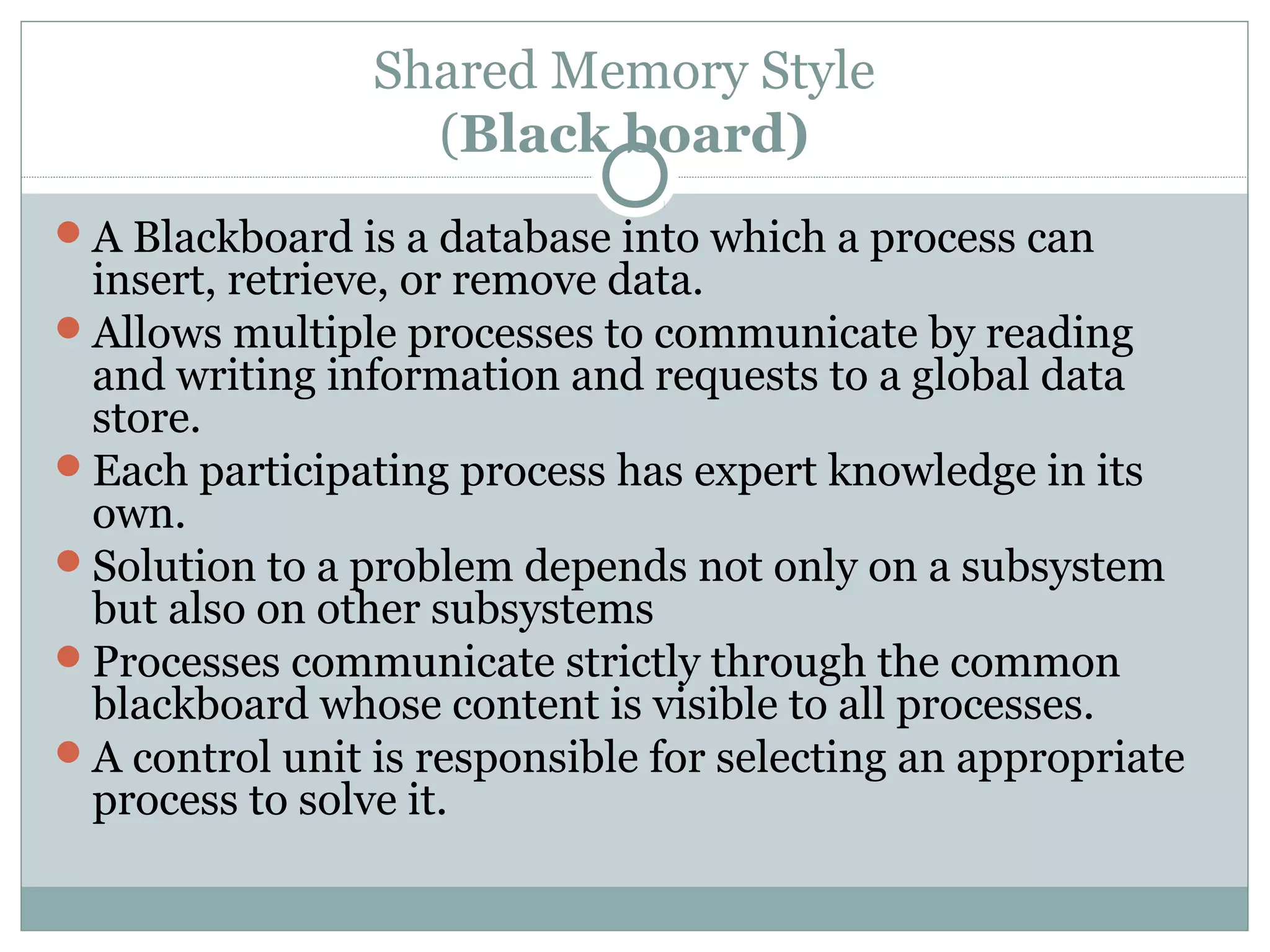

38. Shared Memory Style
(Black board)
A Blackboard is a database into which a process can
insert, retrieve, or remove data.
Allows multiple processes to communicate by reading
and writing information and requests to a global data
store.
Each participating process has expert knowledge in its
own.
Solution to a problem depends not only on a subsystem
but also on other subsystems
Processes communicate strictly through the common
blackboard whose content is visible to all processes.
A control unit is responsible for selecting an appropriate
process to solve it.

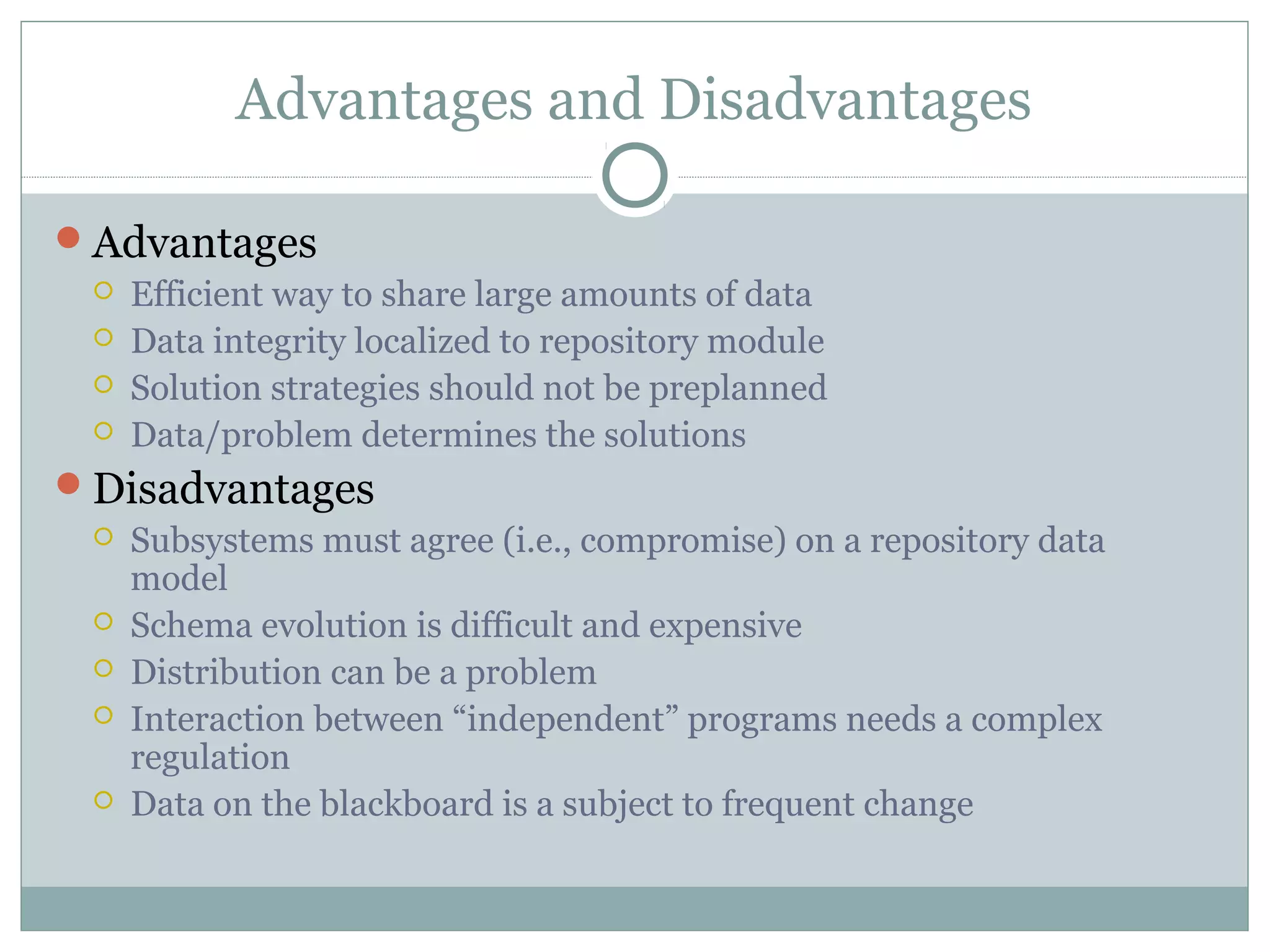

39. Advantages and Disadvantages
Advantages
 Efficient way to share large amounts of data
 Data integrity localized to repository module
 Solution strategies should not be preplanned
 Data/problem determines the solutions
Disadvantages
 Subsystems must agree (i.e., compromise) on a repository data
model
 Schema evolution is difficult and expensive
 Distribution can be a problem
 Interaction between “independent” programs needs a complex
regulation
 Data on the blackboard is a subject to frequent change

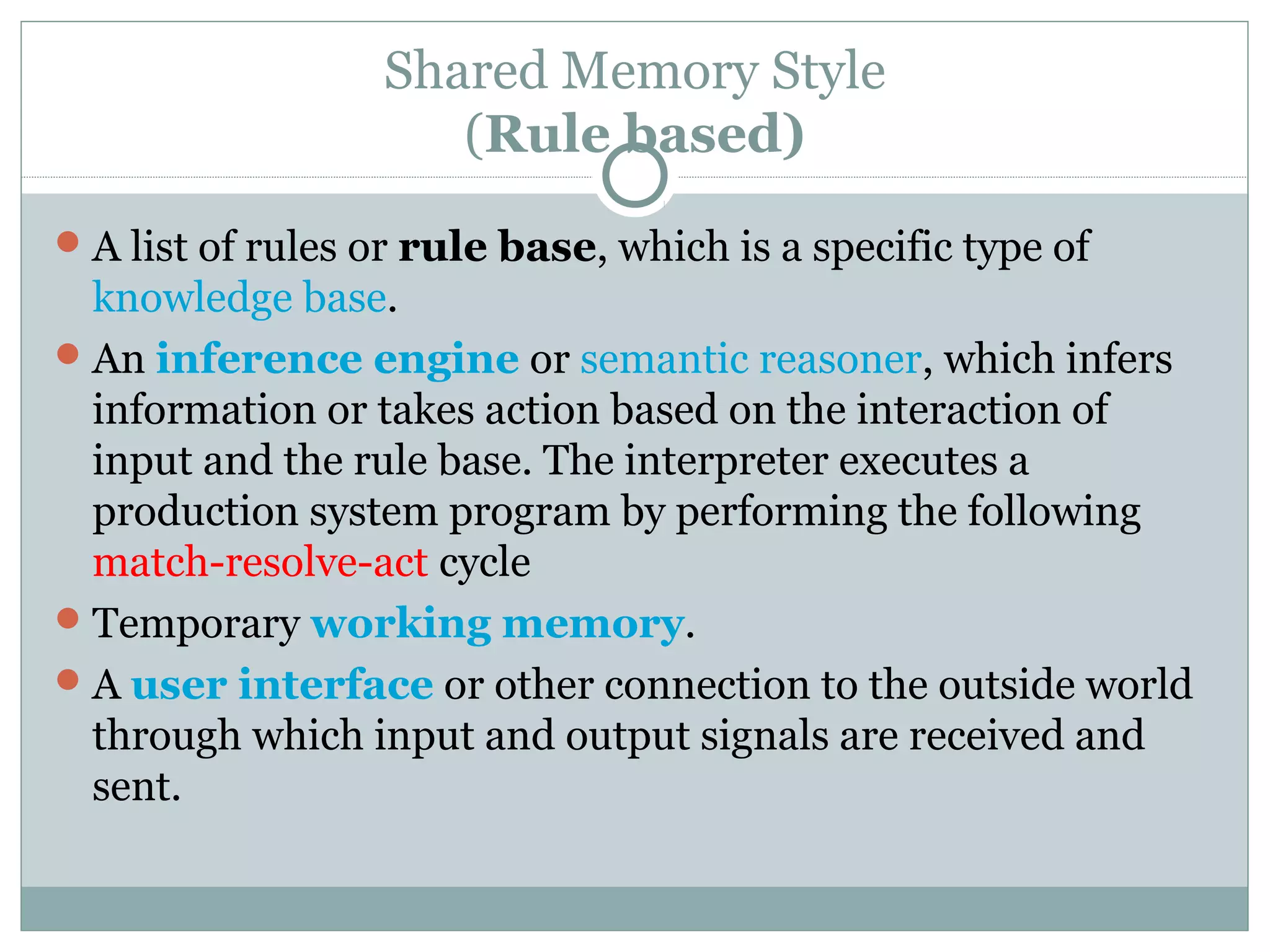

40. Shared Memory Style
(Rule based)
A list of rules or rule base, which is a specific type of
knowledge base.
An inference engine or semantic reasoner, which infers
information or takes action based on the interaction of
input and the rule base. The interpreter executes a
production system program by performing the following
match-resolve-act cycle
Temporary working memory.
A user interface or other connection to the outside world
through which input and output signals are received and
sent.

41. e.g. Game of Chess - AI

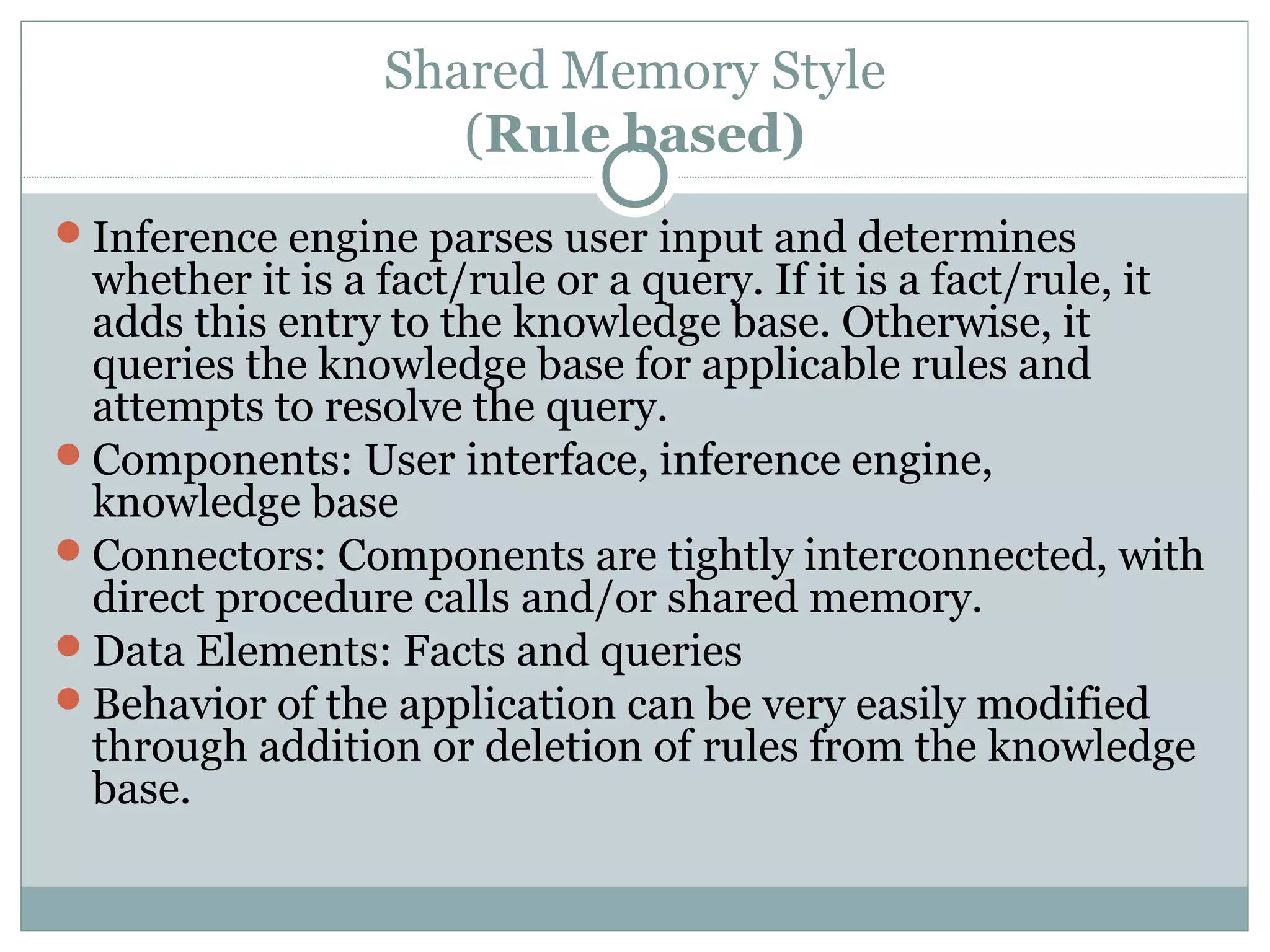

42. Shared Memory Style
(Rule based)
Inference engine parses user input and determines
whether it is a fact/rule or a query. If it is a fact/rule, it
adds this entry to the knowledge base. Otherwise, it
queries the knowledge base for applicable rules and
attempts to resolve the query.
Components: User interface, inference engine,
knowledge base
Connectors: Components are tightly interconnected, with
direct procedure calls and/or shared memory.
Data Elements: Facts and queries
Behavior of the application can be very easily modified
through addition or deletion of rules from the knowledge
base.

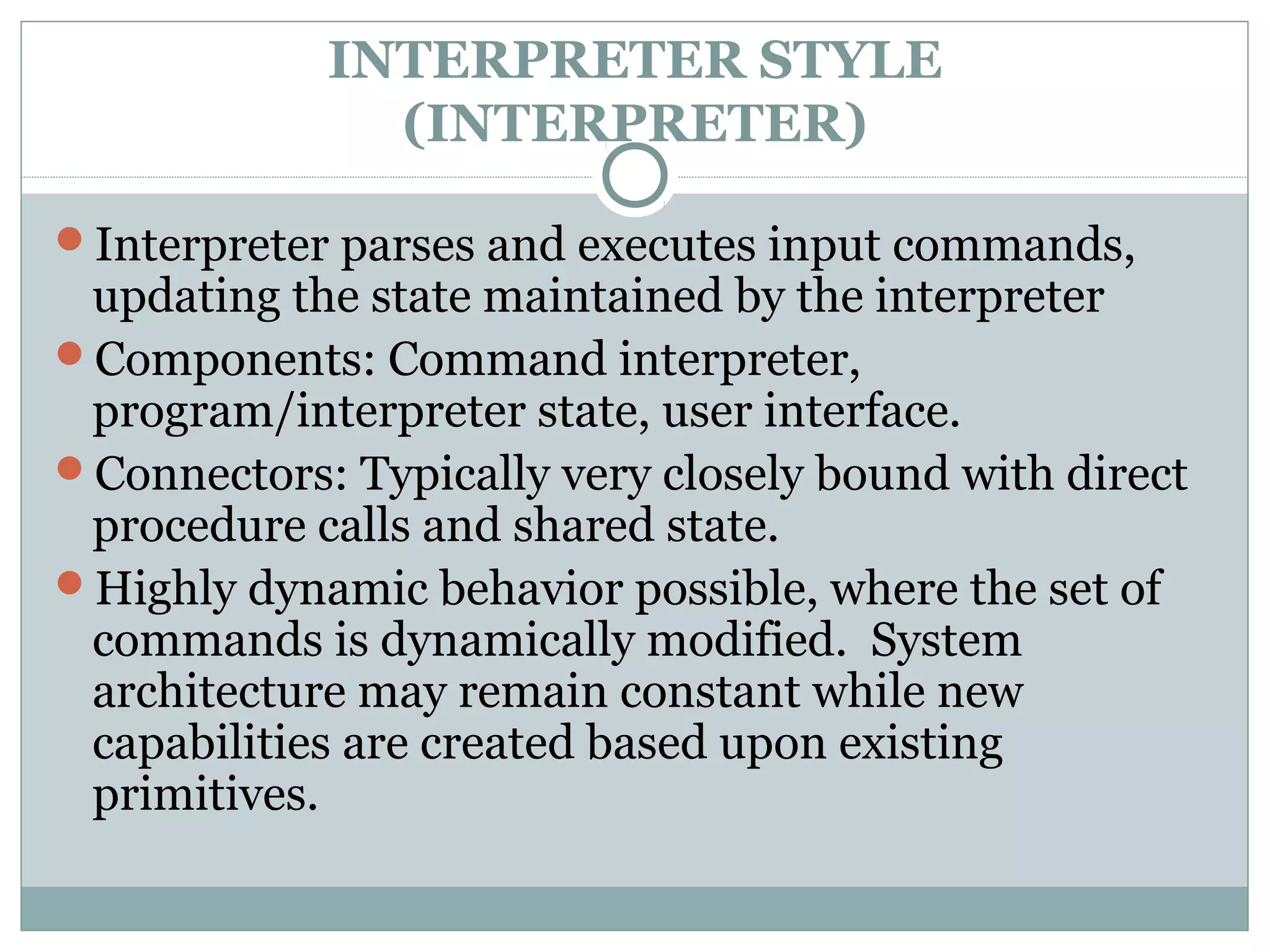

43. INTERPRETER STYLE
(INTERPRETER)
Interpreter parses and executes input commands,
updating the state maintained by the interpreter
Components: Command interpreter,
program/interpreter state, user interface.
Connectors: Typically very closely bound with direct
procedure calls and shared state.
Highly dynamic behavior possible, where the set of
commands is dynamically modified. System
architecture may remain constant while new
capabilities are created based upon existing
primitives.

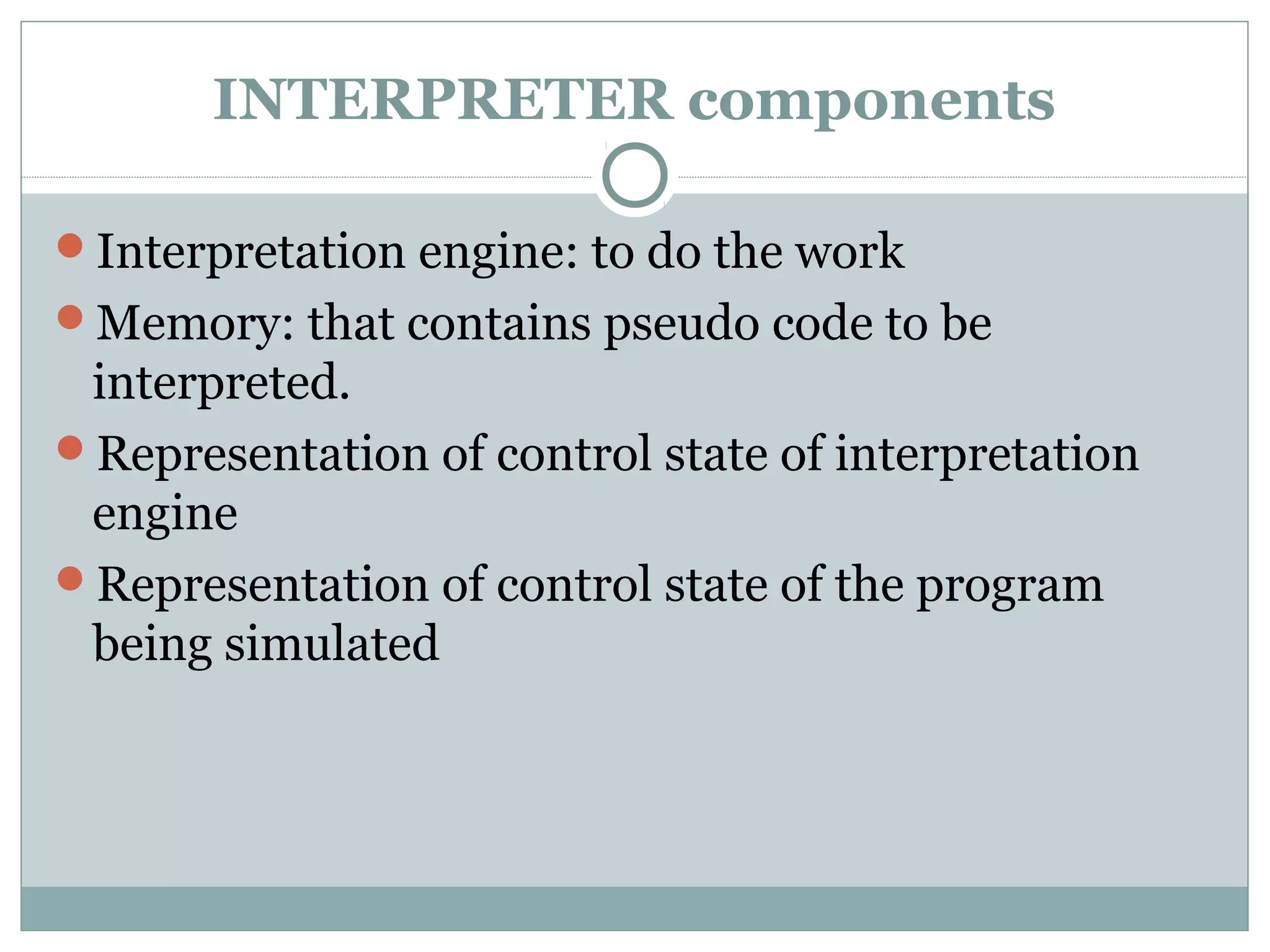

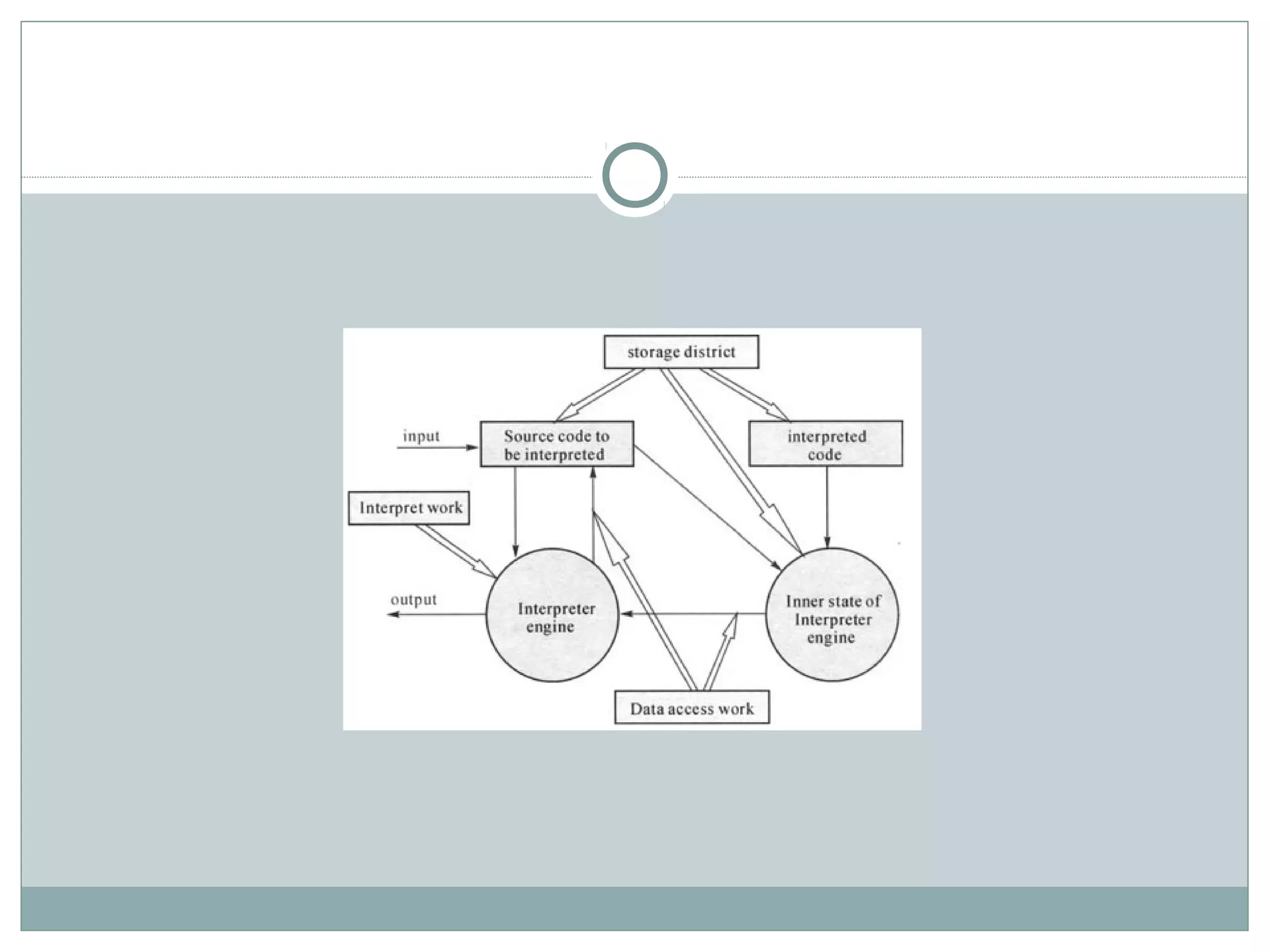

44. INTERPRETER components
Interpretation engine: to do the work
Memory: that contains pseudo code to be
interpreted.
Representation of control state of interpretation
engine
Representation of control state of the program
being simulated

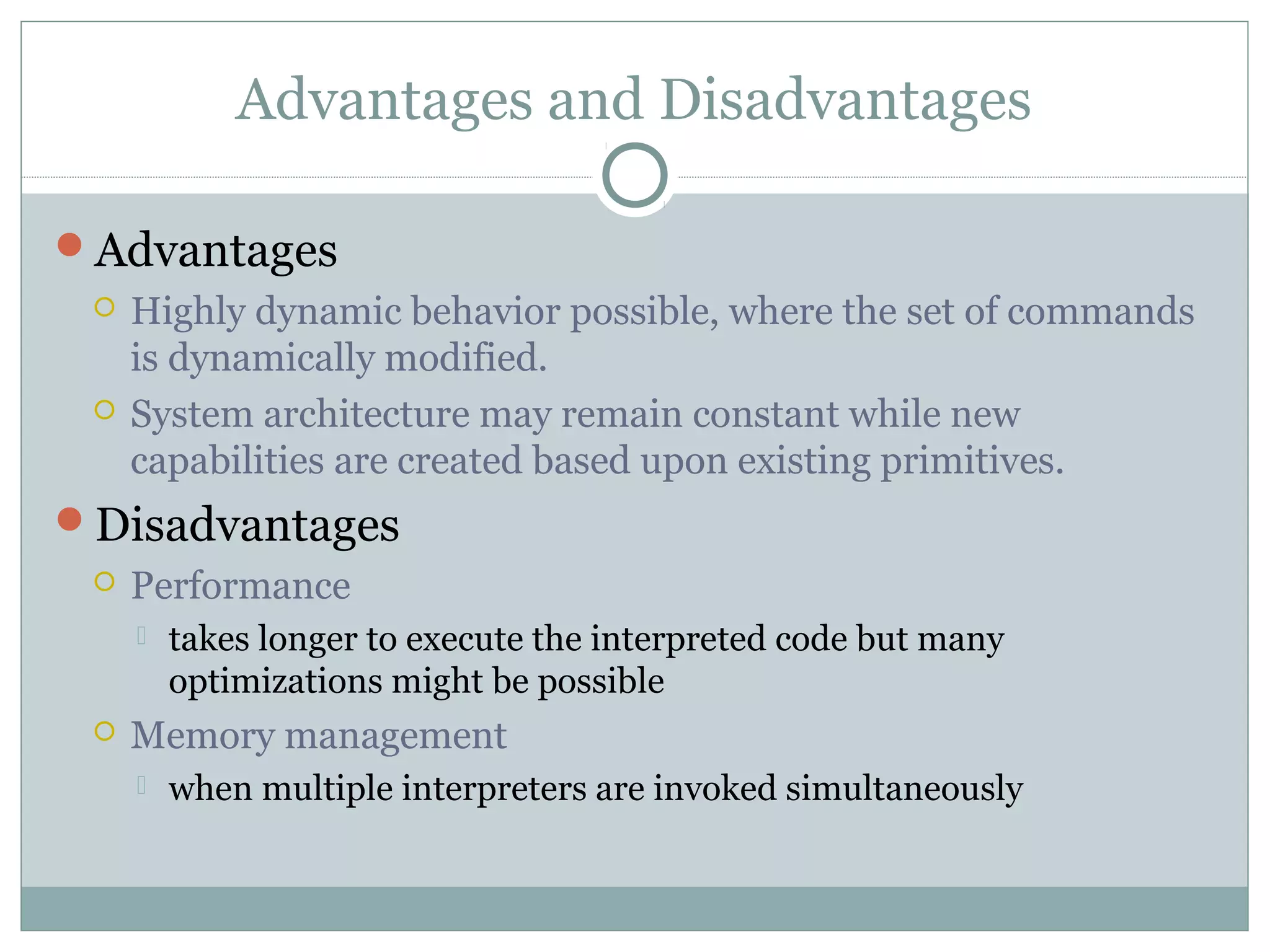

46. Advantages and Disadvantages
Advantages
 Highly dynamic behavior possible, where the set of commands
is dynamically modified.
 System architecture may remain constant while new
capabilities are created based upon existing primitives.
Disadvantages
 Performance
 takes longer to execute the interpreted code but many
optimizations might be possible
 Memory management
 when multiple interpreters are invoked simultaneously

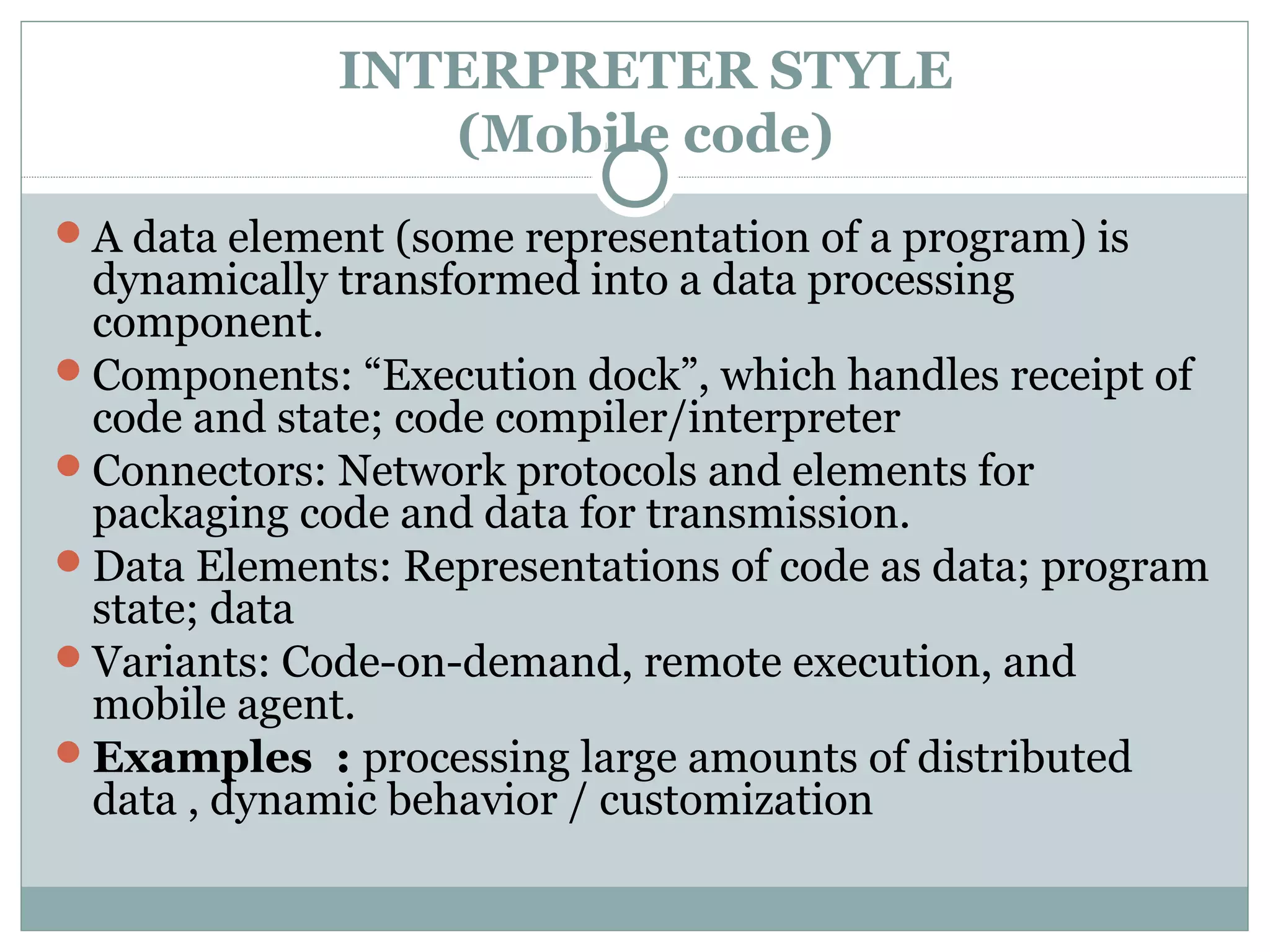

47. INTERPRETER STYLE
(Mobile code)
A data element (some representation of a program) is
dynamically transformed into a data processing
component.
Components: “Execution dock”, which handles receipt of
code and state; code compiler/interpreter
Connectors: Network protocols and elements for
packaging code and data for transmission.
Data Elements: Representations of code as data; program
state; data
Variants: Code-on-demand, remote execution, and
mobile agent.
Examples : processing large amounts of distributed
data , dynamic behavior / customization

48. Mobile Code

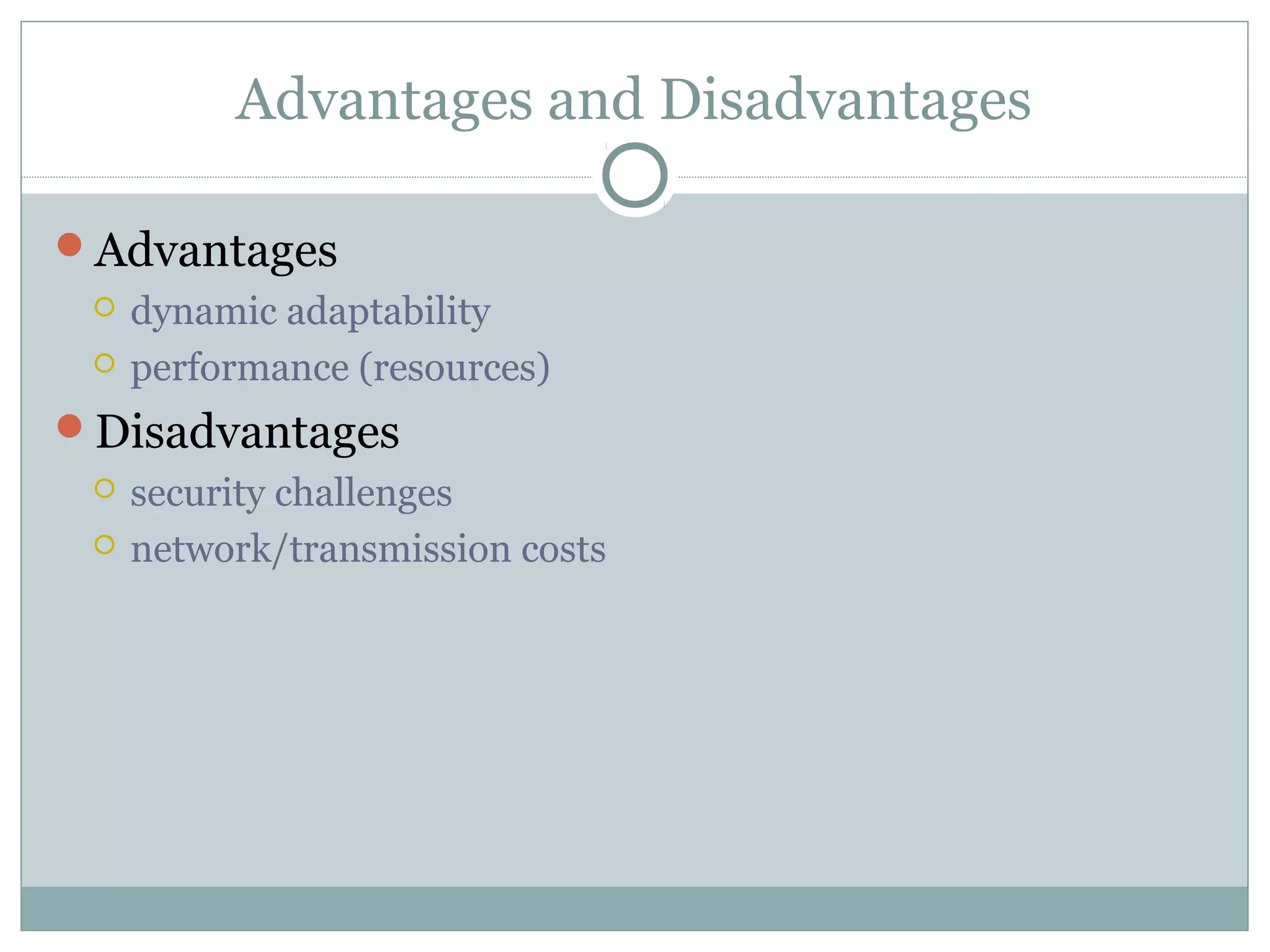

49. Advantages and Disadvantages
Advantages
 dynamic adaptability
 performance (resources)
Disadvantages
 security challenges
 network/transmission costs

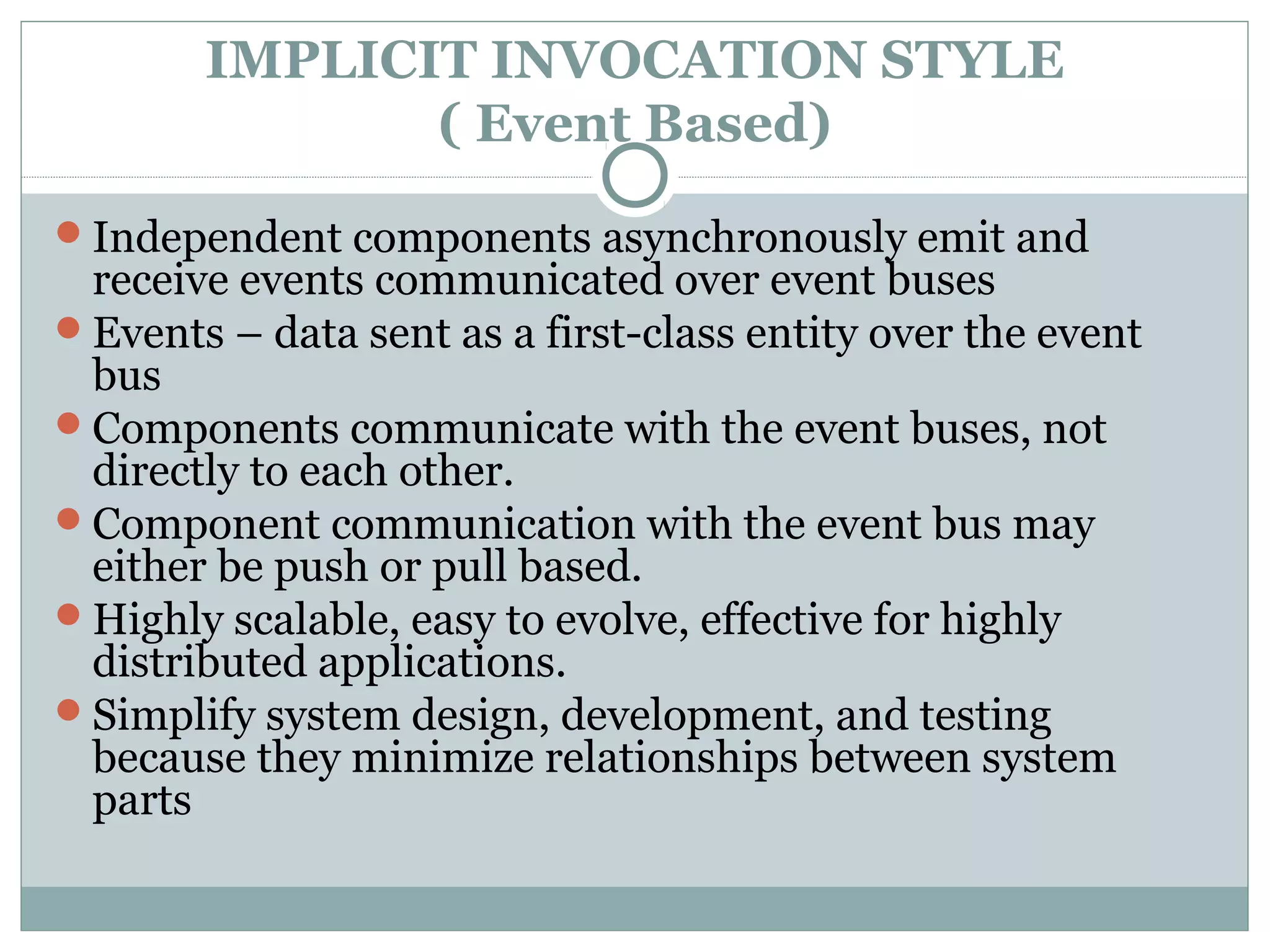

50. IMPLICIT INVOCATION STYLE
( Event Based)
Independent components asynchronously emit and
receive events communicated over event buses
Events – data sent as a first-class entity over the event
bus
Components communicate with the event buses, not
directly to each other.
Component communication with the event bus may
either be push or pull based.
Highly scalable, easy to evolve, effective for highly
distributed applications.
Simplify system design, development, and testing
because they minimize relationships between system
parts

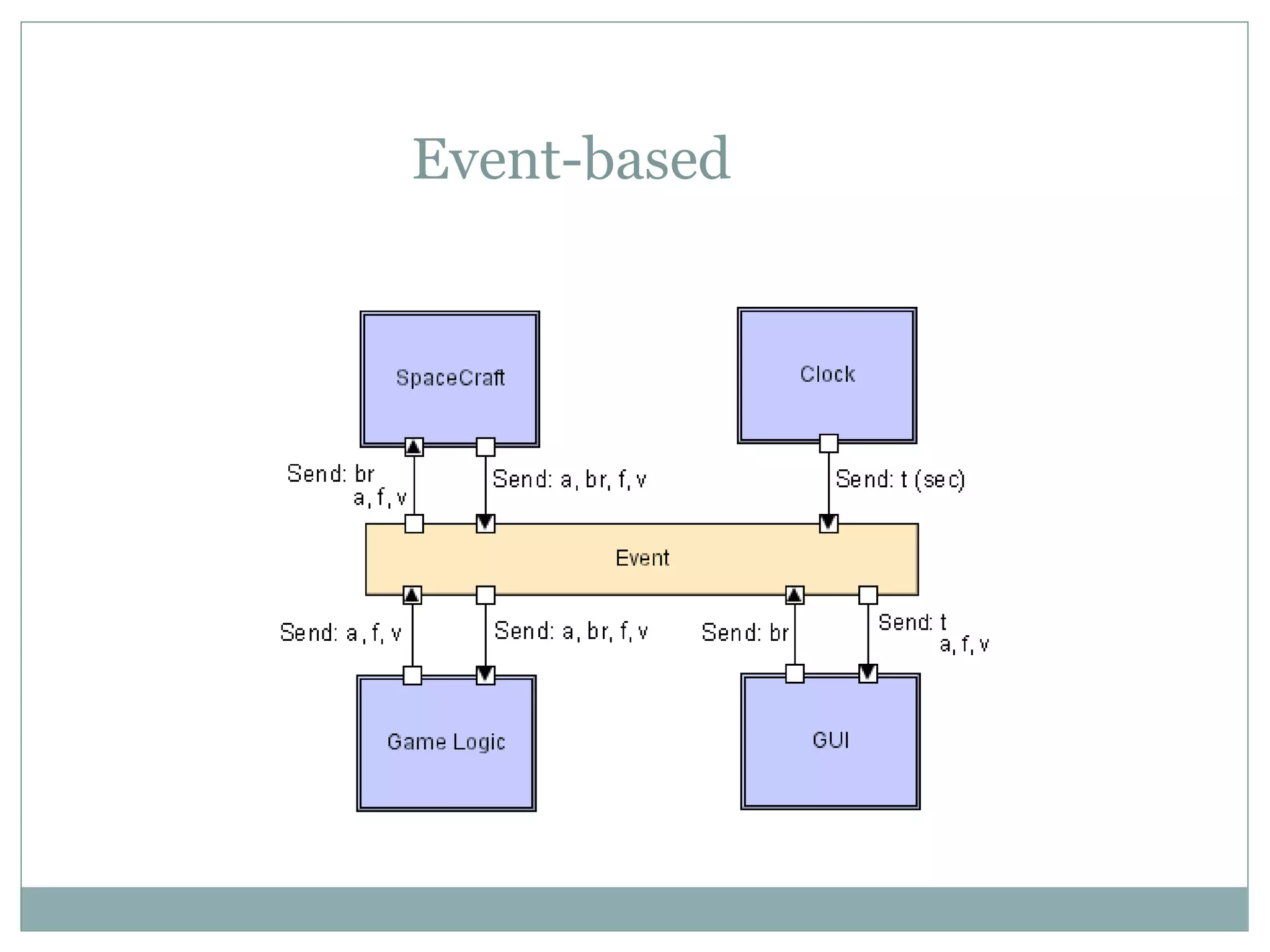

51. Event-based

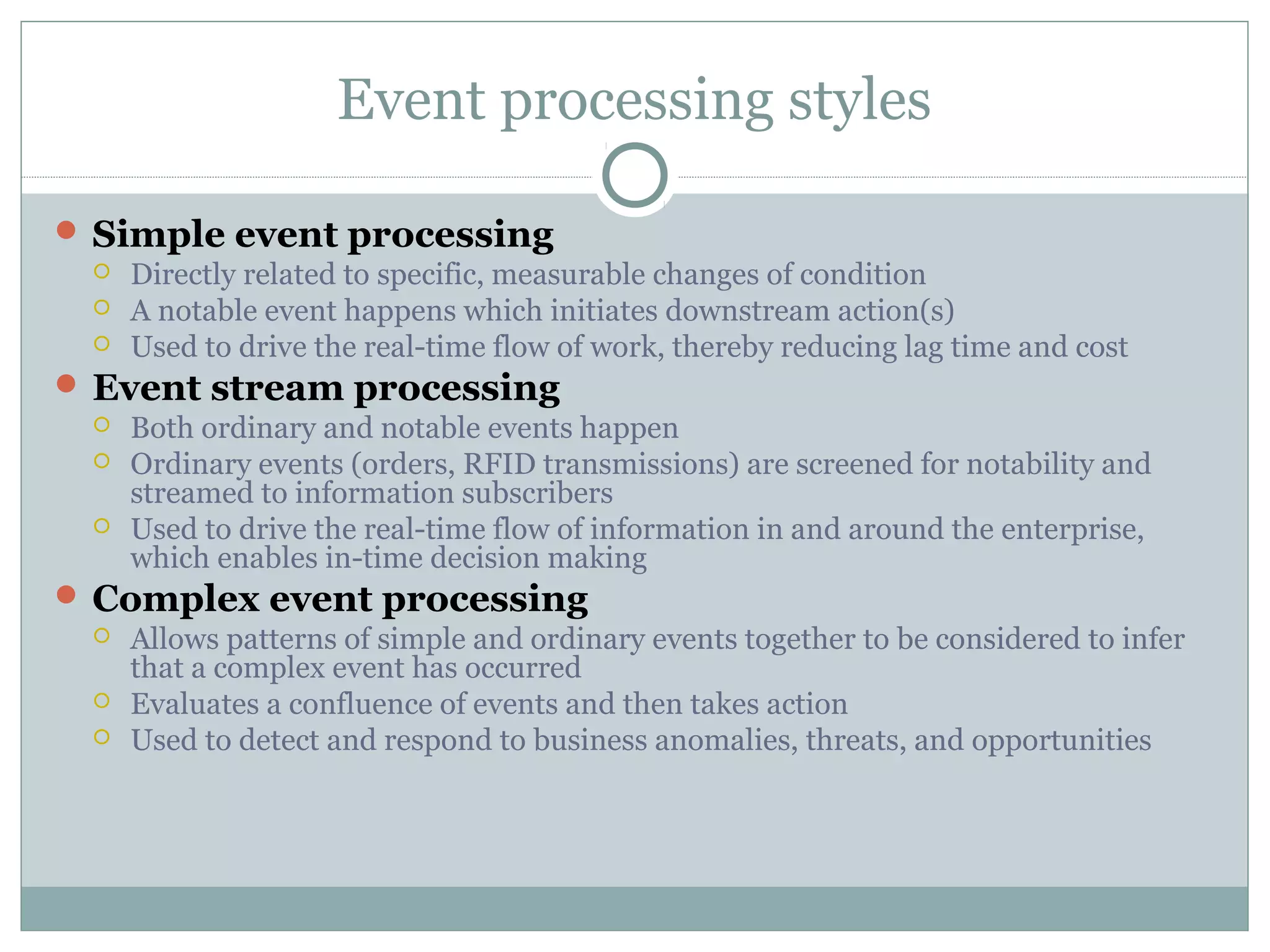

53. Event processing styles
 Simple event processing
 Directly related to specific, measurable changes of condition
 A notable event happens which initiates downstream action(s)
 Used to drive the real-time flow of work, thereby reducing lag time and cost
 Event stream processing
 Both ordinary and notable events happen
 Ordinary events (orders, RFID transmissions) are screened for notability and
streamed to information subscribers
 Used to drive the real-time flow of information in and around the enterprise,
which enables in-time decision making
 Complex event processing
 Allows patterns of simple and ordinary events together to be considered to infer
that a complex event has occurred
 Evaluates a confluence of events and then takes action
 Used to detect and respond to business anomalies, threats, and opportunities

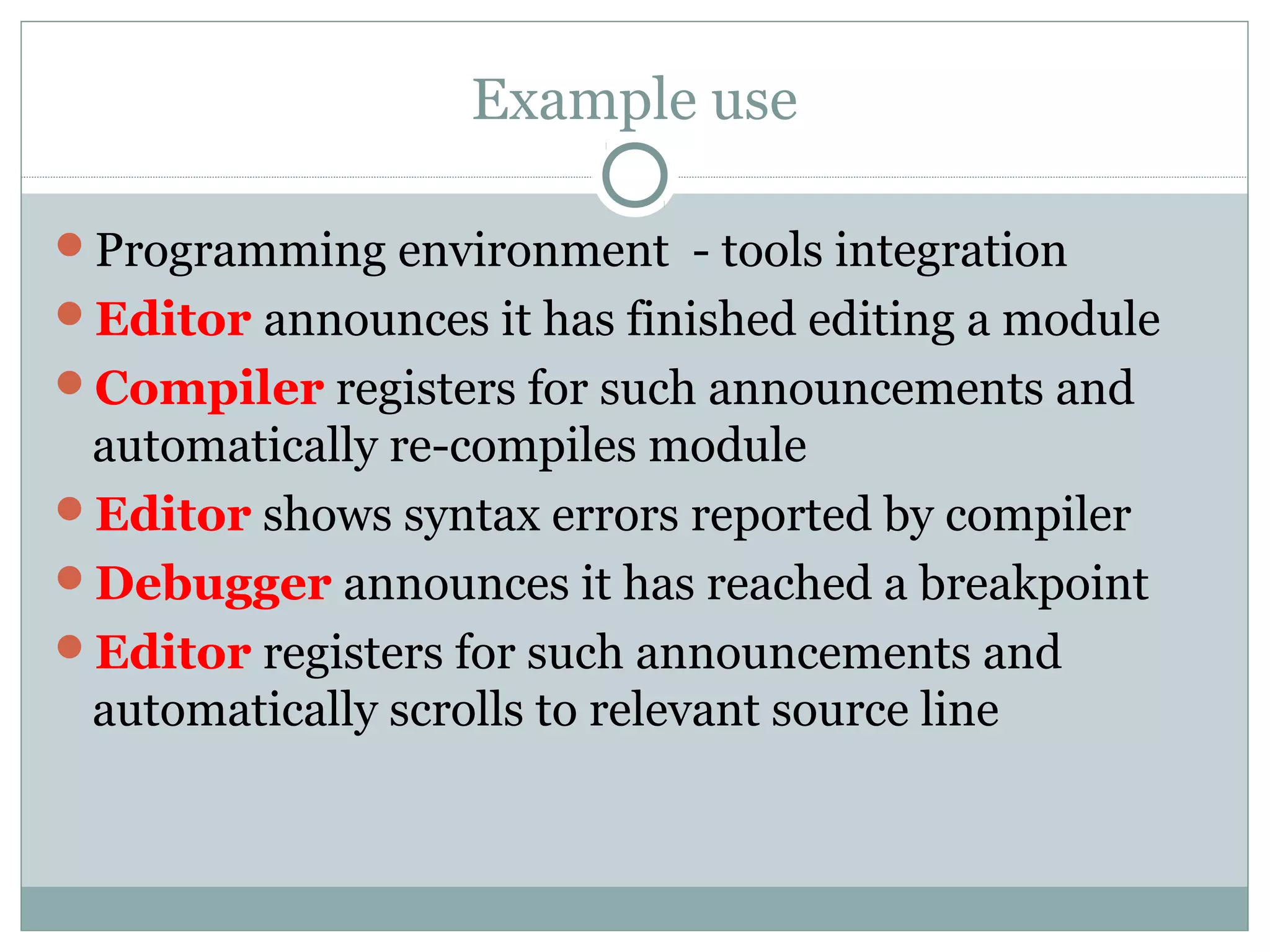

54. Example use
Programming environment - tools integration
Editor announces it has finished editing a module
Compiler registers for such announcements and
automatically re-compiles module
Editor shows syntax errors reported by compiler
Debugger announces it has reached a breakpoint
Editor registers for such announcements and
automatically scrolls to relevant source line

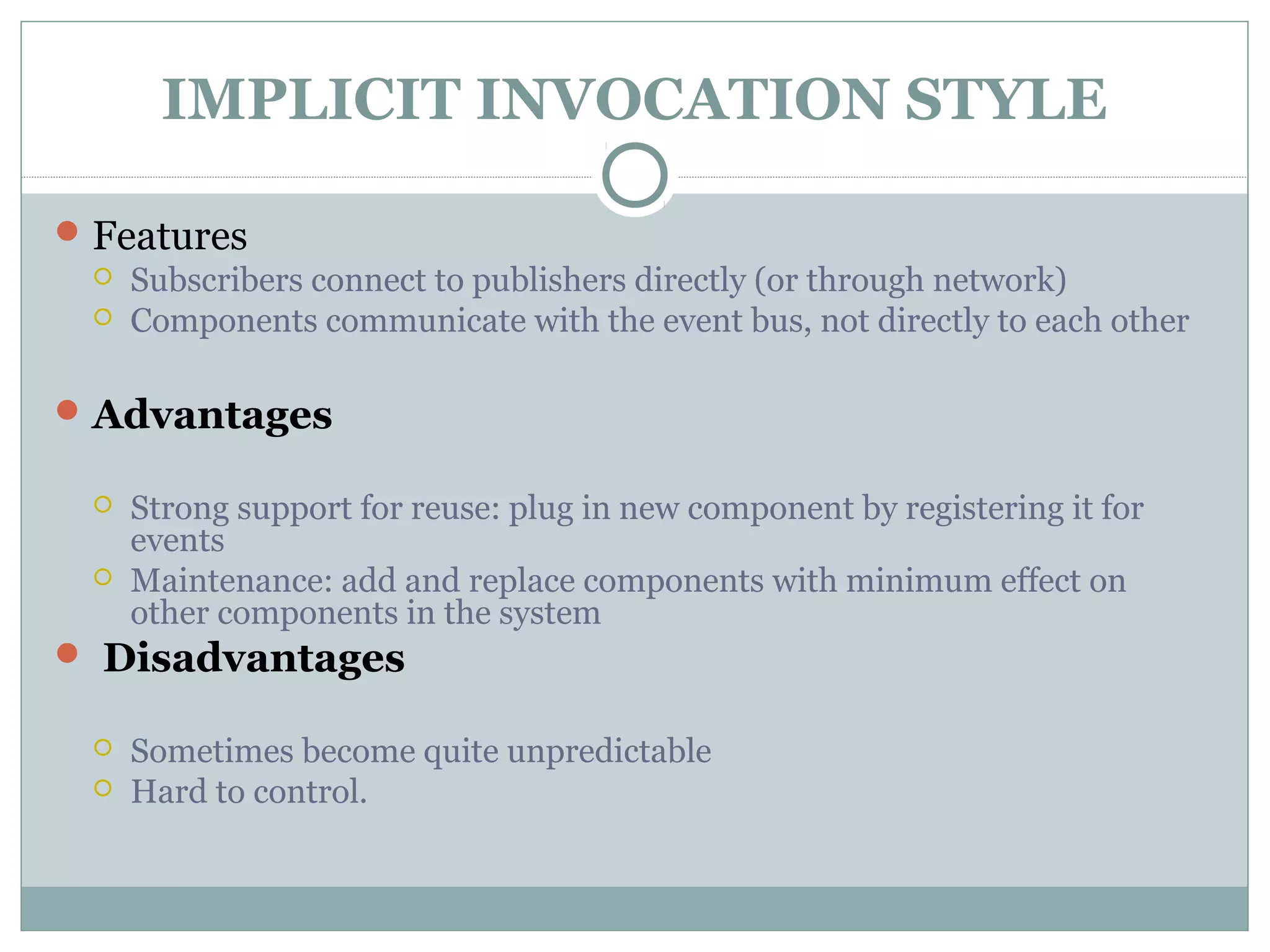

55. IMPLICIT INVOCATION STYLE
Features
 Subscribers connect to publishers directly (or through network)
 Components communicate with the event bus, not directly to each other
Advantages
 Strong support for reuse: plug in new component by registering it for
events
 Maintenance: add and replace components with minimum effect on
other components in the system
 Disadvantages
 Sometimes become quite unpredictable
 Hard to control.

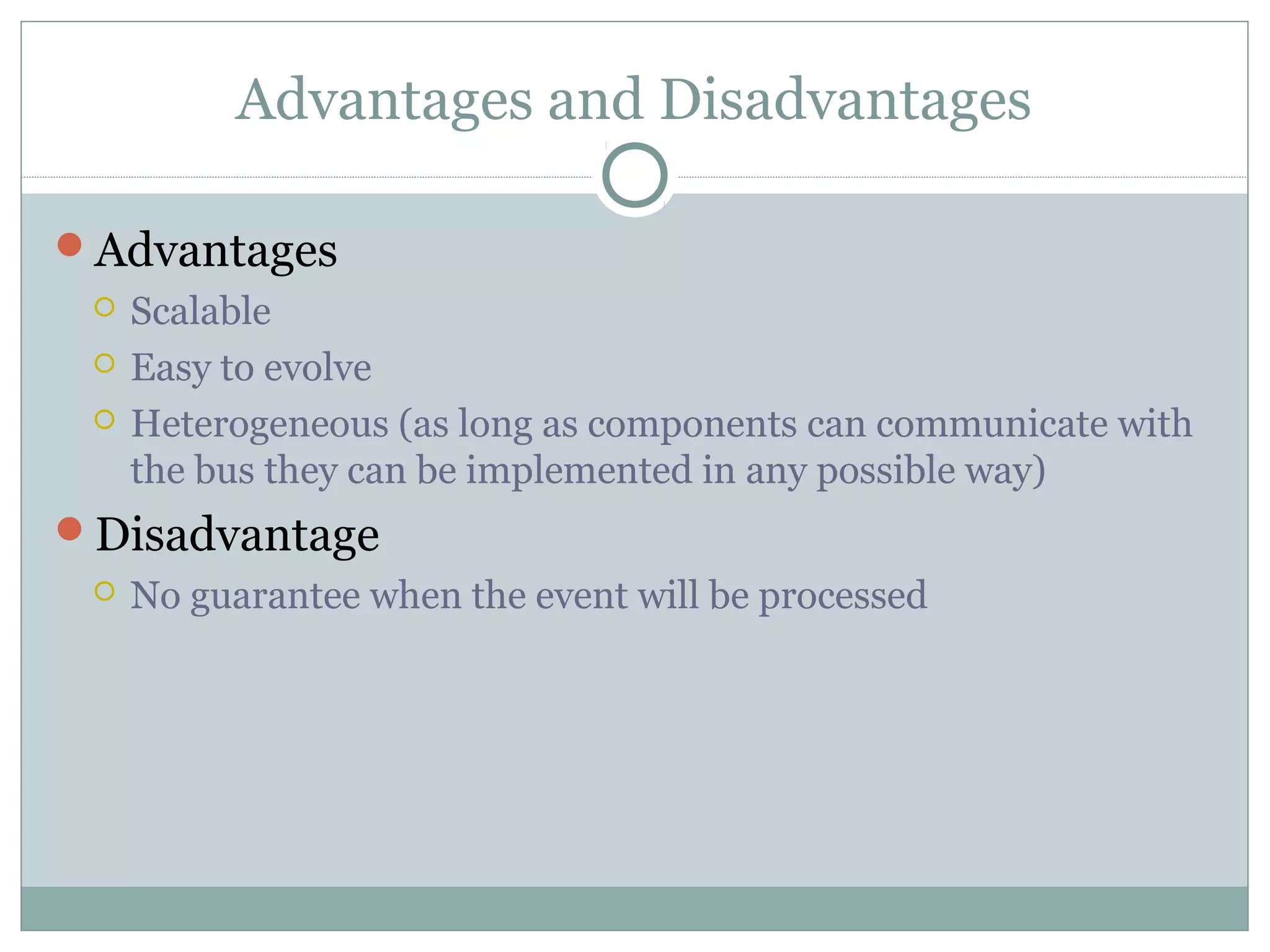

56. Advantages and Disadvantages
Advantages
 Scalable
 Easy to evolve
 Heterogeneous (as long as components can communicate with
the bus they can be implemented in any possible way)
Disadvantage
 No guarantee when the event will be processed

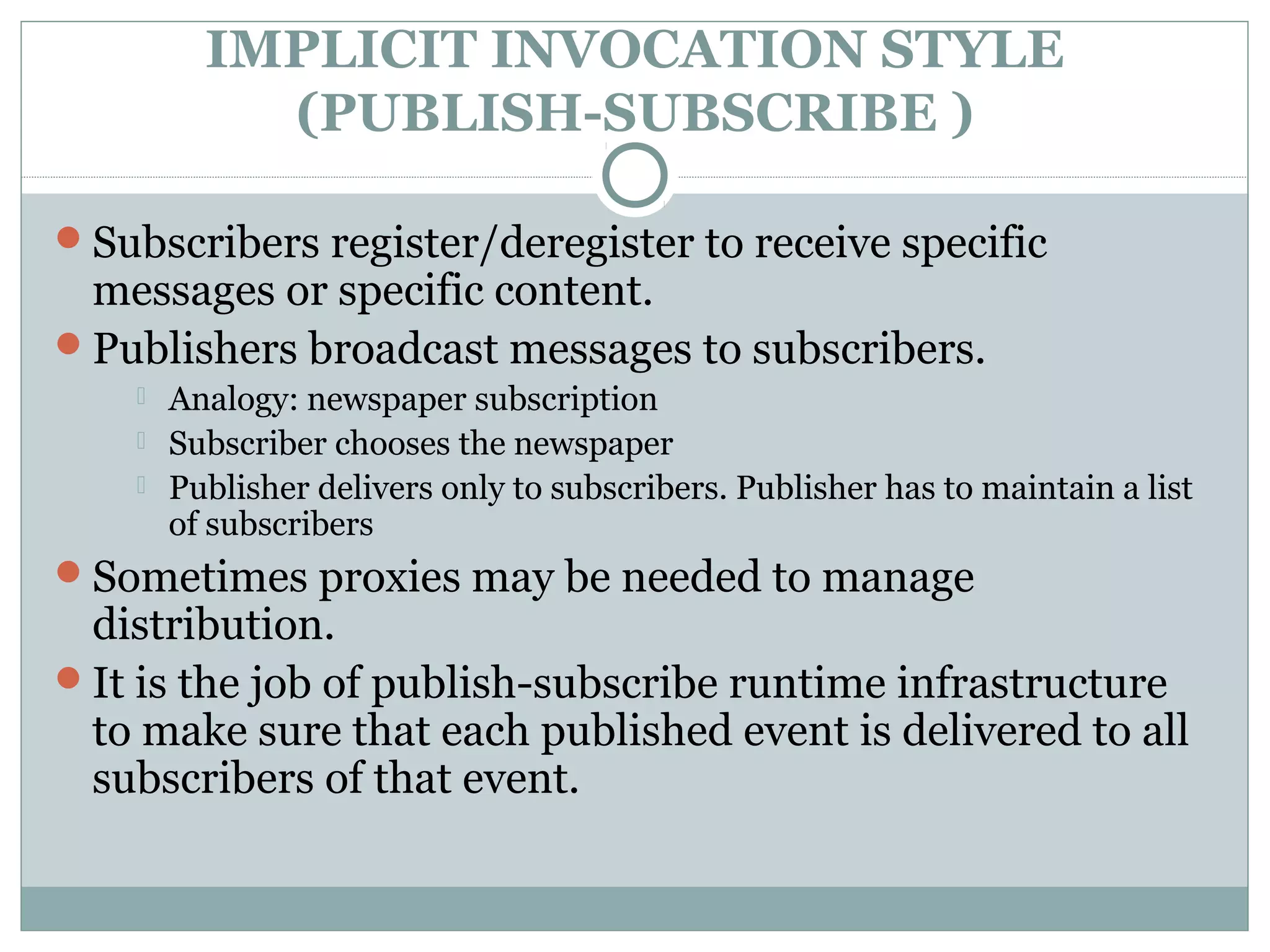

57. IMPLICIT INVOCATION STYLE
(PUBLISH-SUBSCRIBE )
Subscribers register/deregister to receive specific
messages or specific content.
Publishers broadcast messages to subscribers.
 Analogy: newspaper subscription
 Subscriber chooses the newspaper
 Publisher delivers only to subscribers. Publisher has to maintain a list
of subscribers
Sometimes proxies may be needed to manage
distribution.
It is the job of publish-subscribe runtime infrastructure
to make sure that each published event is delivered to all
subscribers of that event.

58. Routine
Routine
Routine
Routine

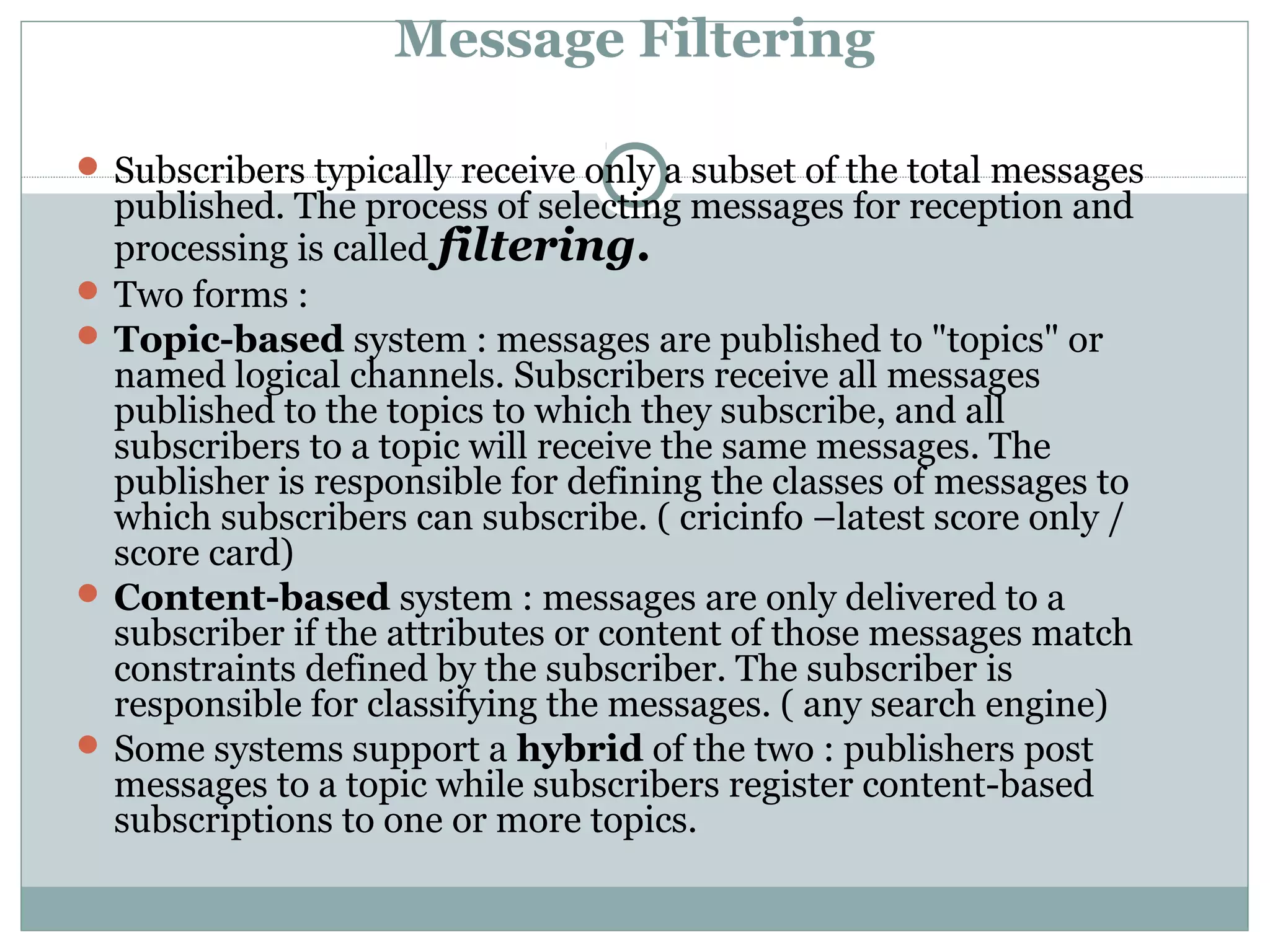

59. Message Filtering
 Subscribers typically receive only a subset of the total messages
published. The process of selecting messages for reception and
processing is called filtering.
 Two forms :
 Topic-based system : messages are published to "topics" or
named logical channels. Subscribers receive all messages
published to the topics to which they subscribe, and all
subscribers to a topic will receive the same messages. The
publisher is responsible for defining the classes of messages to
which subscribers can subscribe. ( cricinfo –latest score only /
score card)
 Content-based system : messages are only delivered to a
subscriber if the attributes or content of those messages match
constraints defined by the subscriber. The subscriber is
responsible for classifying the messages. ( any search engine)
 Some systems support a hybrid of the two : publishers post
messages to a topic while subscribers register content-based
subscriptions to one or more topics.

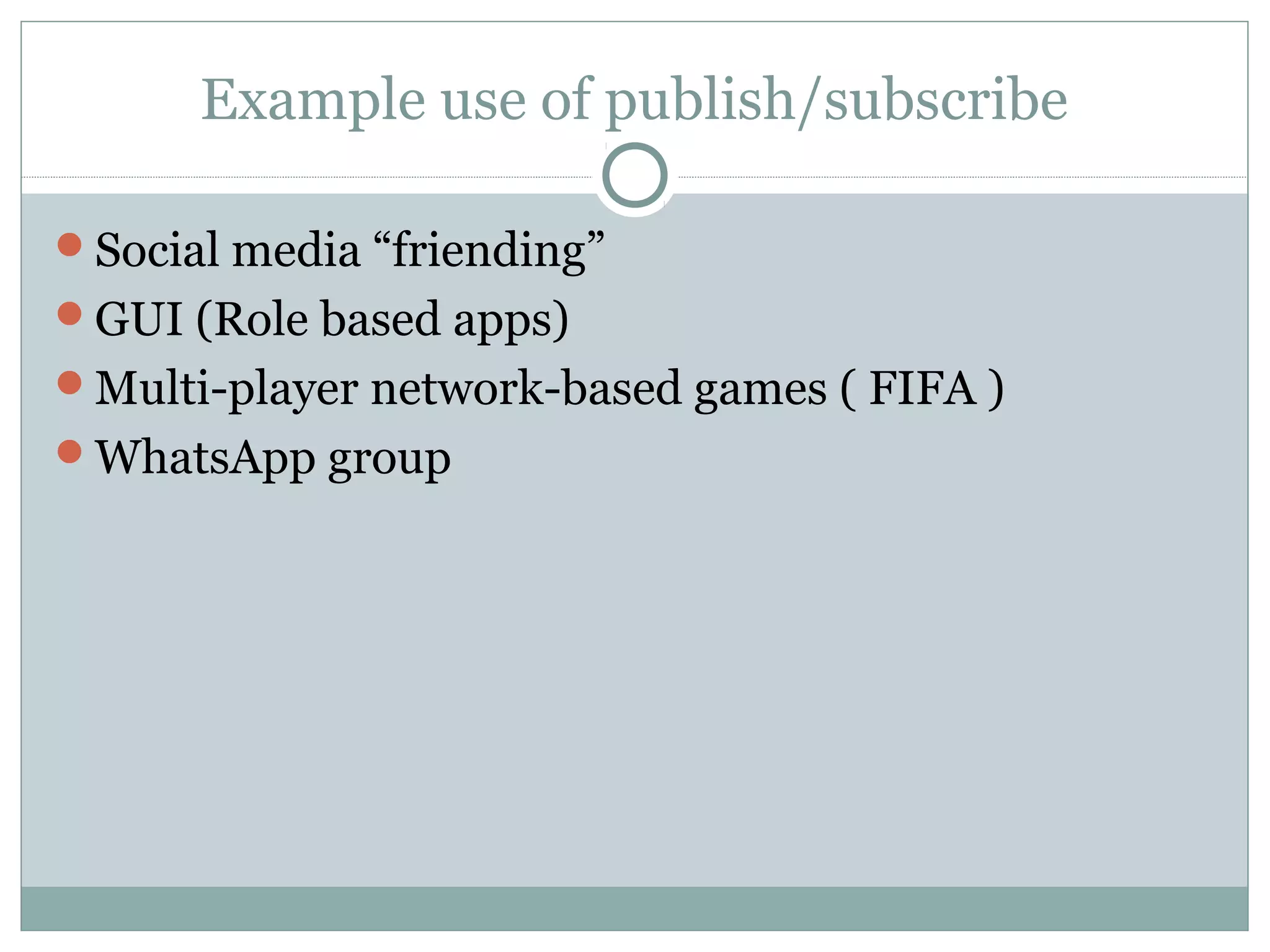

60. Example use of publish/subscribe
Social media “friending”
GUI (Role based apps)
Multi-player network-based games ( FIFA )
WhatsApp group

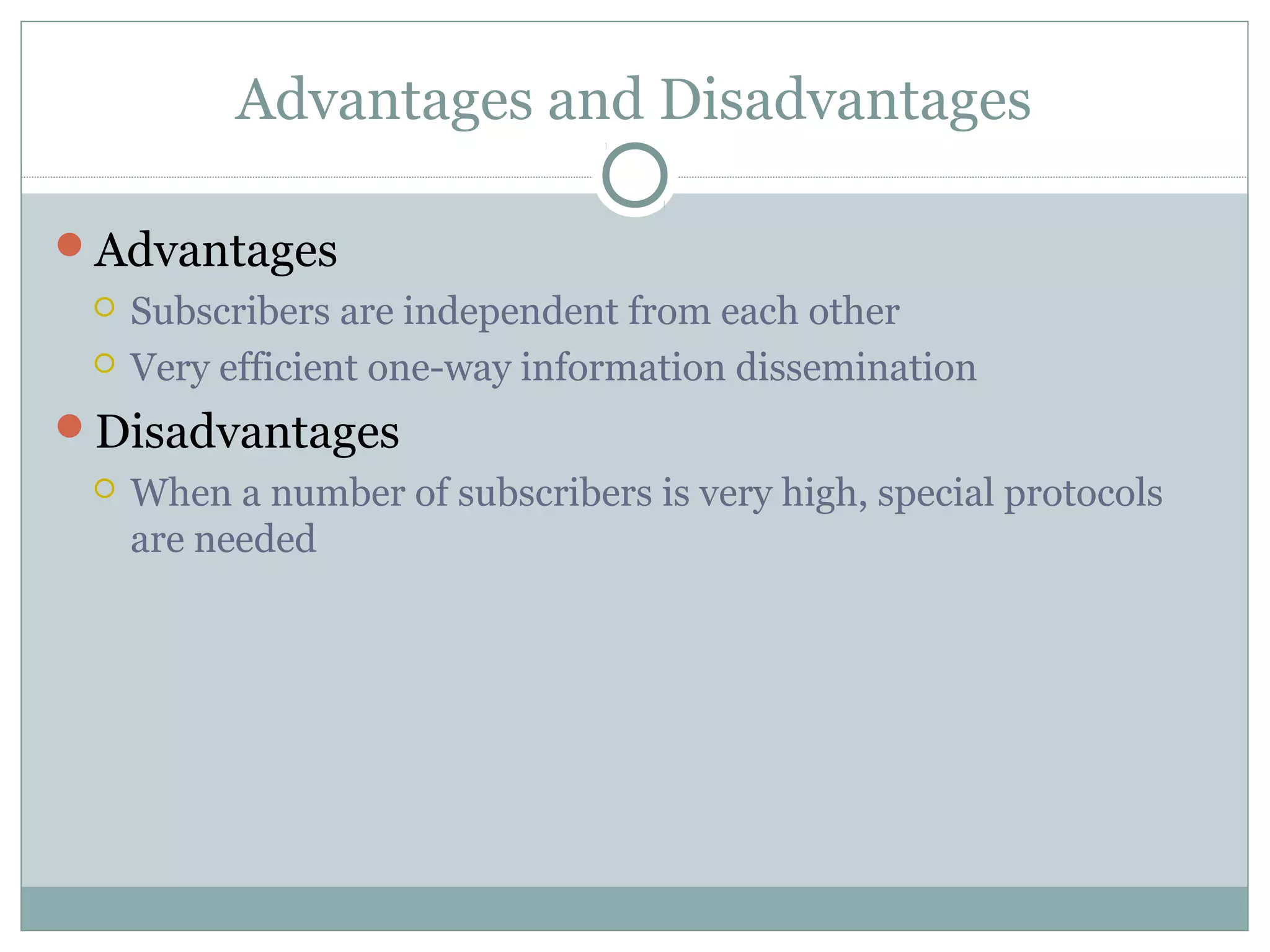

61. Advantages and Disadvantages
Advantages
 Subscribers are independent from each other
 Very efficient one-way information dissemination
Disadvantages
 When a number of subscribers is very high, special protocols
are needed

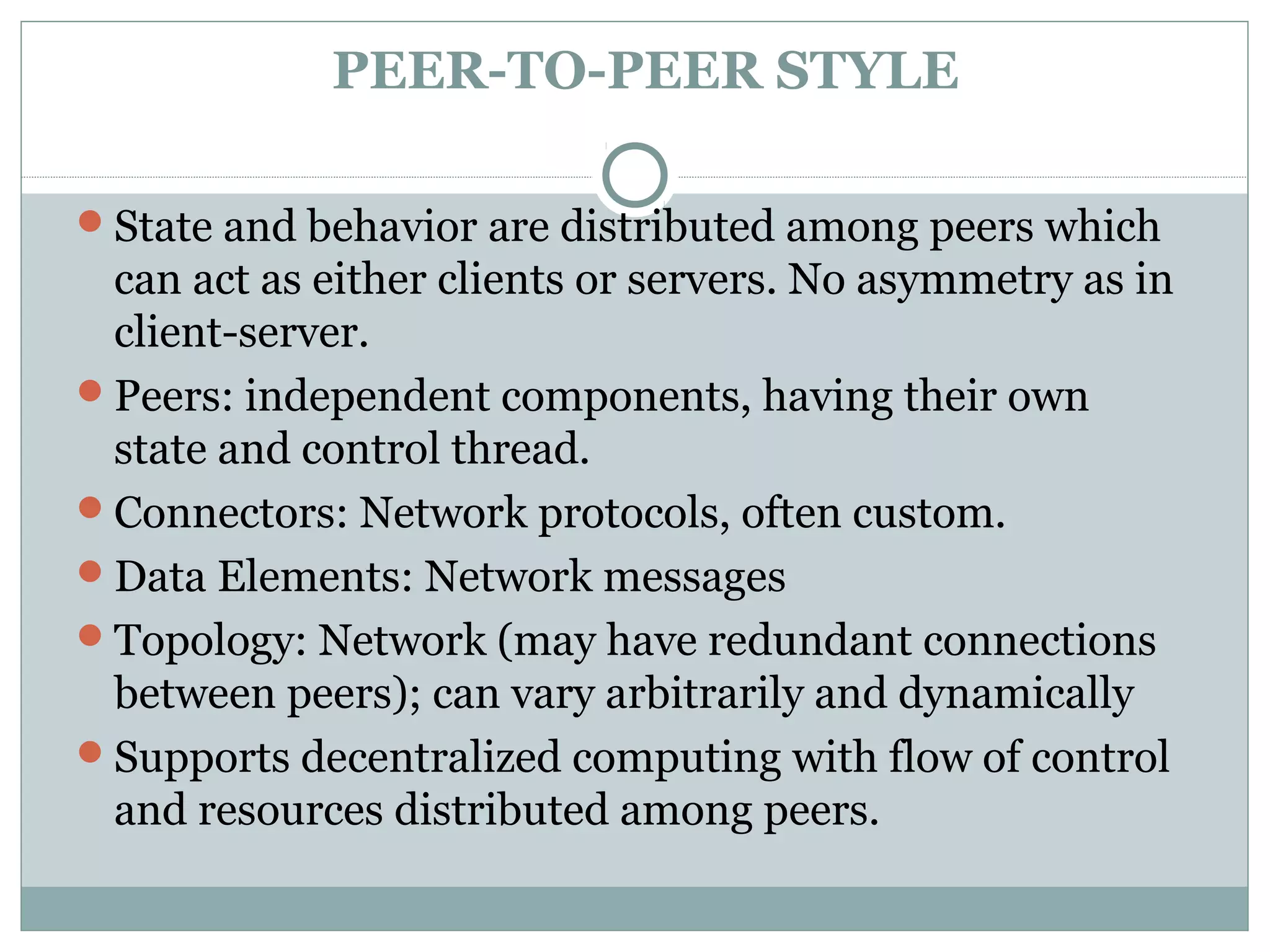

62. PEER-TO-PEER STYLE
State and behavior are distributed among peers which
can act as either clients or servers. No asymmetry as in
client-server.
Peers: independent components, having their own
state and control thread.
Connectors: Network protocols, often custom.
Data Elements: Network messages
Topology: Network (may have redundant connections
between peers); can vary arbitrarily and dynamically
Supports decentralized computing with flow of control
and resources distributed among peers.

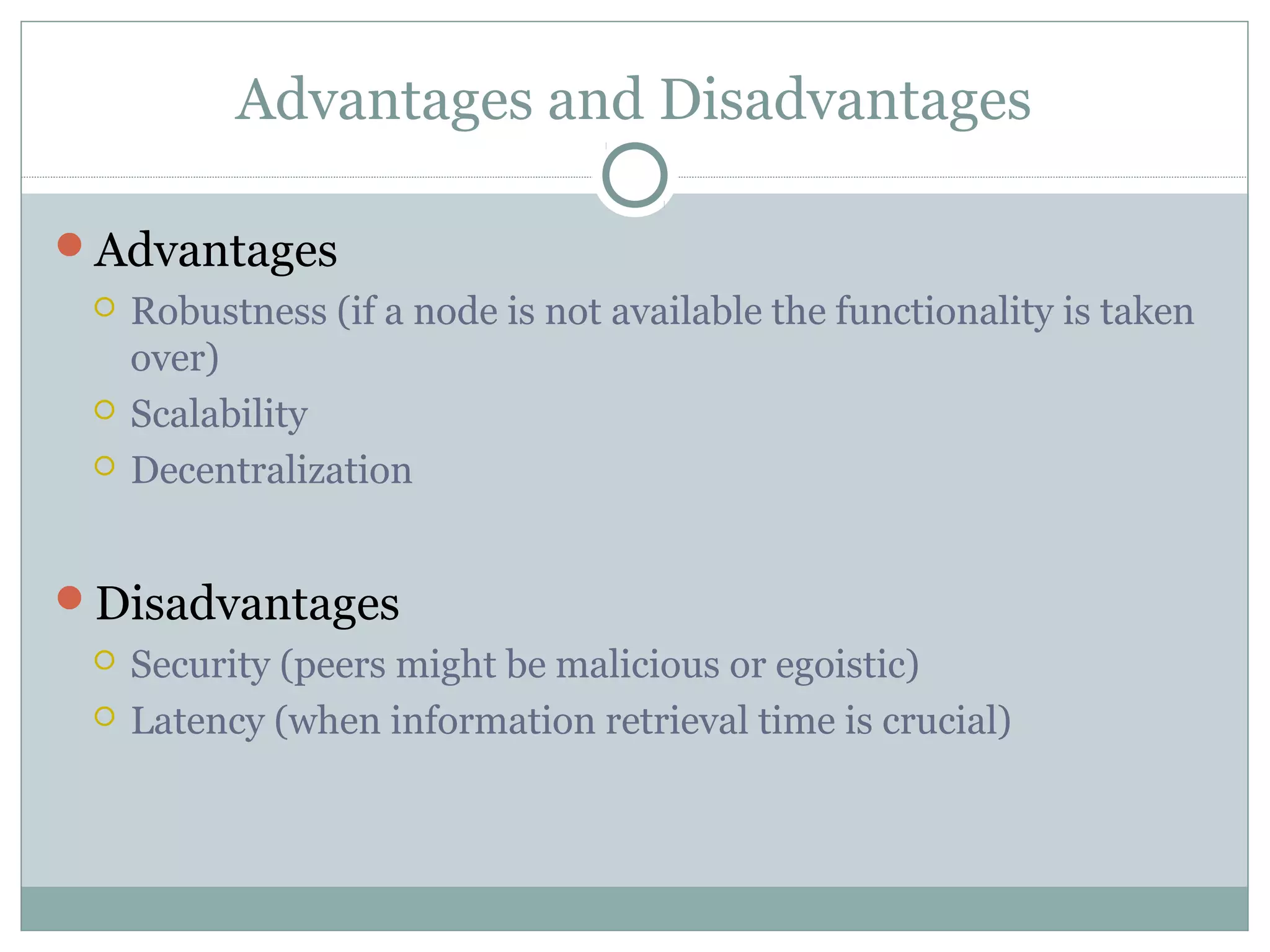

63. Advantages and Disadvantages
Advantages
 Robustness (if a node is not available the functionality is taken
over)
 Scalability
 Decentralization
Disadvantages
 Security (peers might be malicious or egoistic)
 Latency (when information retrieval time is crucial)
