Software Archaeology

Chris Bailey – IBM Java Service Architect

2nd October 2012

Software Archaeology
Rediscovering Your Architecture

1

© 2012 IBM Corporation

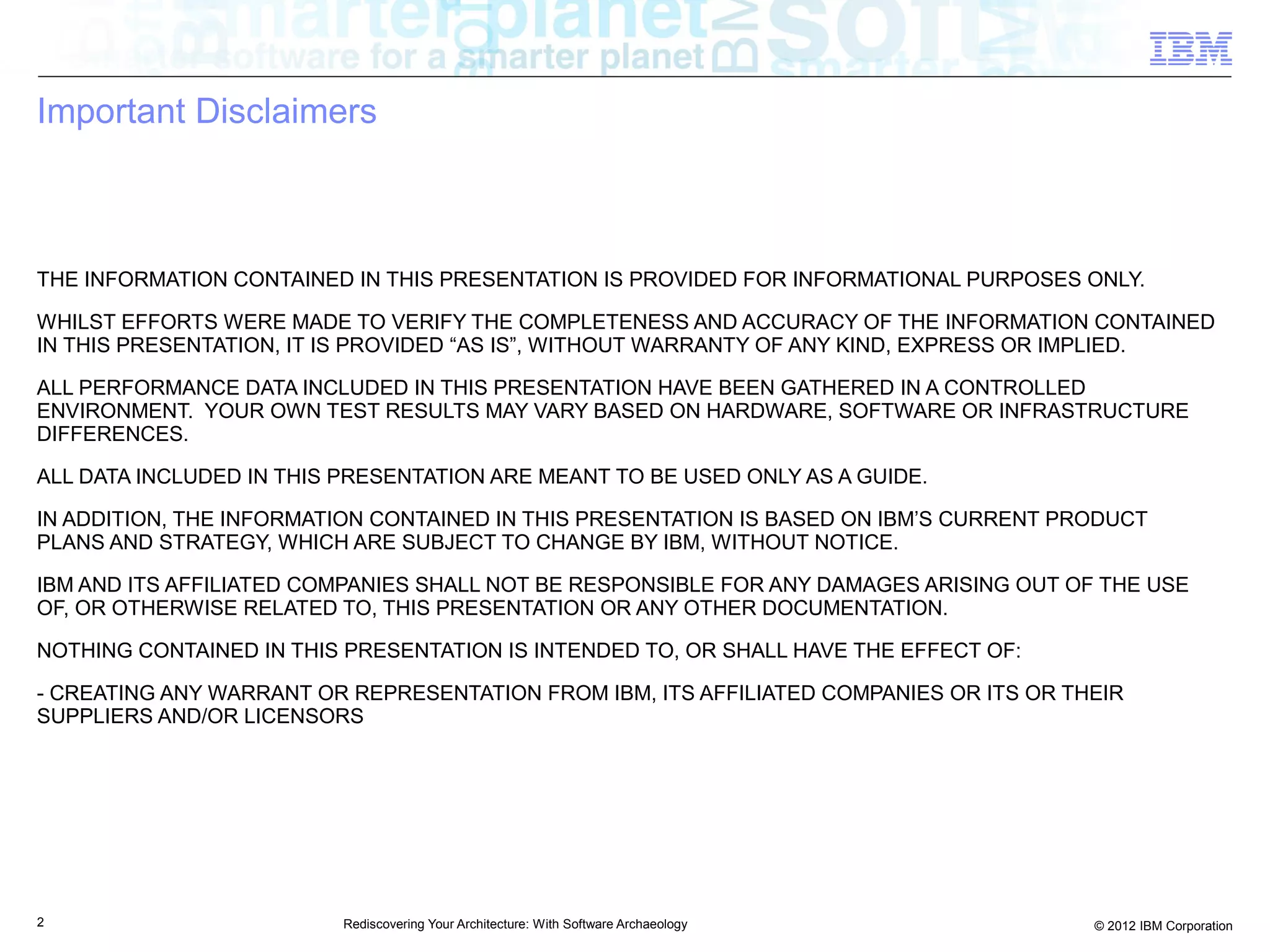

Important Disclaimers

THE INFORMATION CONTAINED IN THIS PRESENTATION IS PROVIDED FOR INFORMATIONAL PURPOSES ONLY.

WHILST EFFORTS WERE MADE TO VERIFY THE COMPLETENESS AND ACCURACY OF THE INFORMATION CONTAINED
IN THIS PRESENTATION, IT IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED.

ALL PERFORMANCE DATA INCLUDED IN THIS PRESENTATION HAVE BEEN GATHERED IN A CONTROLLED
ENVIRONMENT. YOUR OWN TEST RESULTS MAY VARY BASED ON HARDWARE, SOFTWARE OR INFRASTRUCTURE
DIFFERENCES.

ALL DATA INCLUDED IN THIS PRESENTATION ARE MEANT TO BE USED ONLY AS A GUIDE.

IN ADDITION, THE INFORMATION CONTAINED IN THIS PRESENTATION IS BASED ON IBM’S CURRENT PRODUCT
PLANS AND STRATEGY, WHICH ARE SUBJECT TO CHANGE BY IBM, WITHOUT NOTICE.

IBM AND ITS AFFILIATED COMPANIES SHALL NOT BE RESPONSIBLE FOR ANY DAMAGES ARISING OUT OF THE USE
OF, OR OTHERWISE RELATED TO, THIS PRESENTATION OR ANY OTHER DOCUMENTATION.

NOTHING CONTAINED IN THIS PRESENTATION IS INTENDED TO, OR SHALL HAVE THE EFFECT OF:

- CREATING ANY WARRANT OR REPRESENTATION FROM IBM, ITS AFFILIATED COMPANIES OR ITS OR THEIR
SUPPLIERS AND/OR LICENSORS

2 Rediscovering Your Architecture: With Software Archaeology © 2012 IBM Corporation

Introduction to the speaker

■ 12 years experience developing and deploying Java SDKs

■ Recent work focus:
– Java applications in the cloud
– Java usability and quality
– Debugging tools and capabilities
– Requirements gathering
– Highly resilient and scalable deployments

■ My contact information:
– baileyc@uk.ibm.com
– http://www.linkedin.com/profile/view?id=3100666

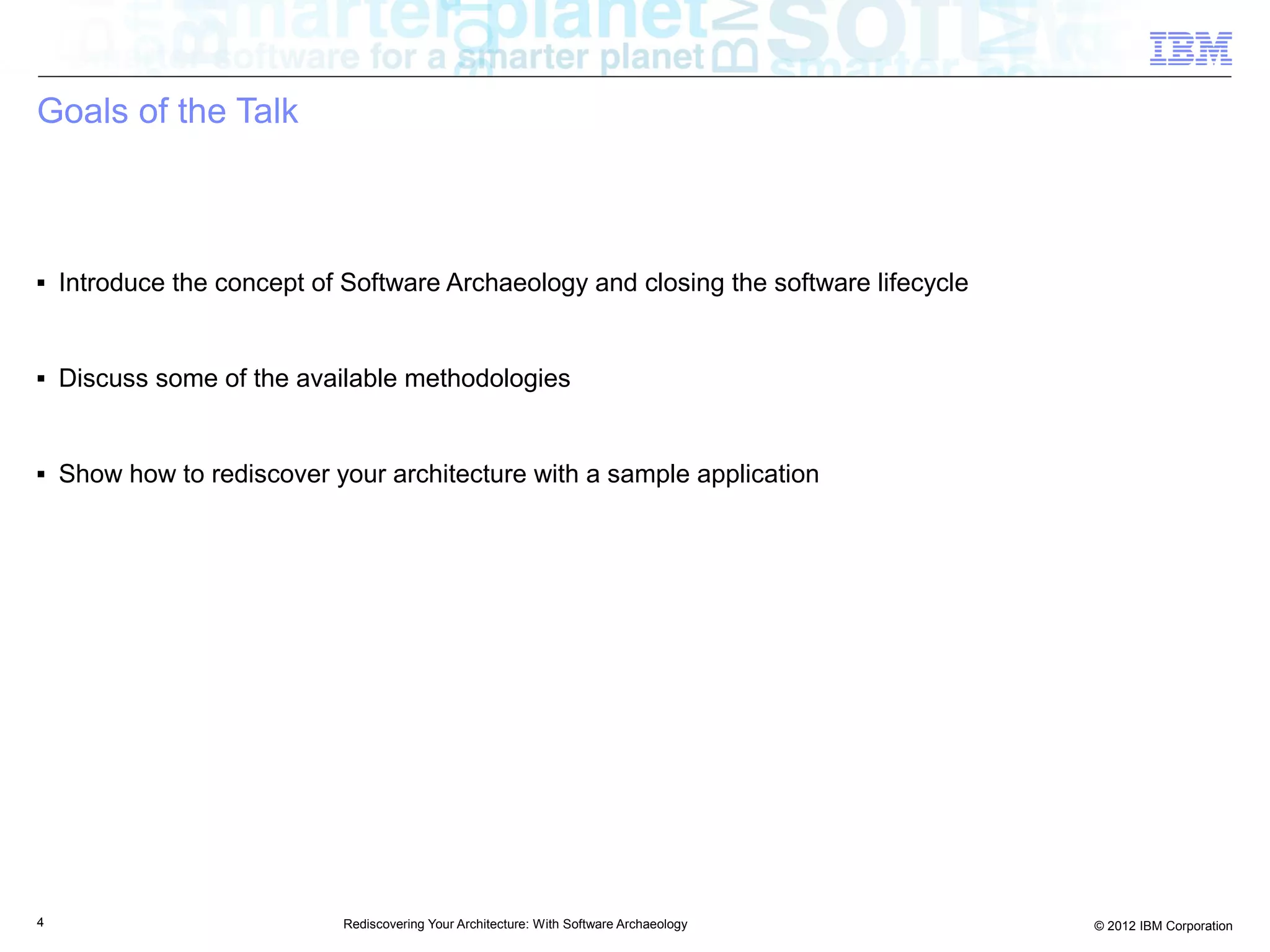

Goals of the Talk

■ Introduce the concept of Software Archaeology and closing the software lifecycle

■ Discuss some of the available methodologies

■ Show how to rediscover your architecture with a sample application

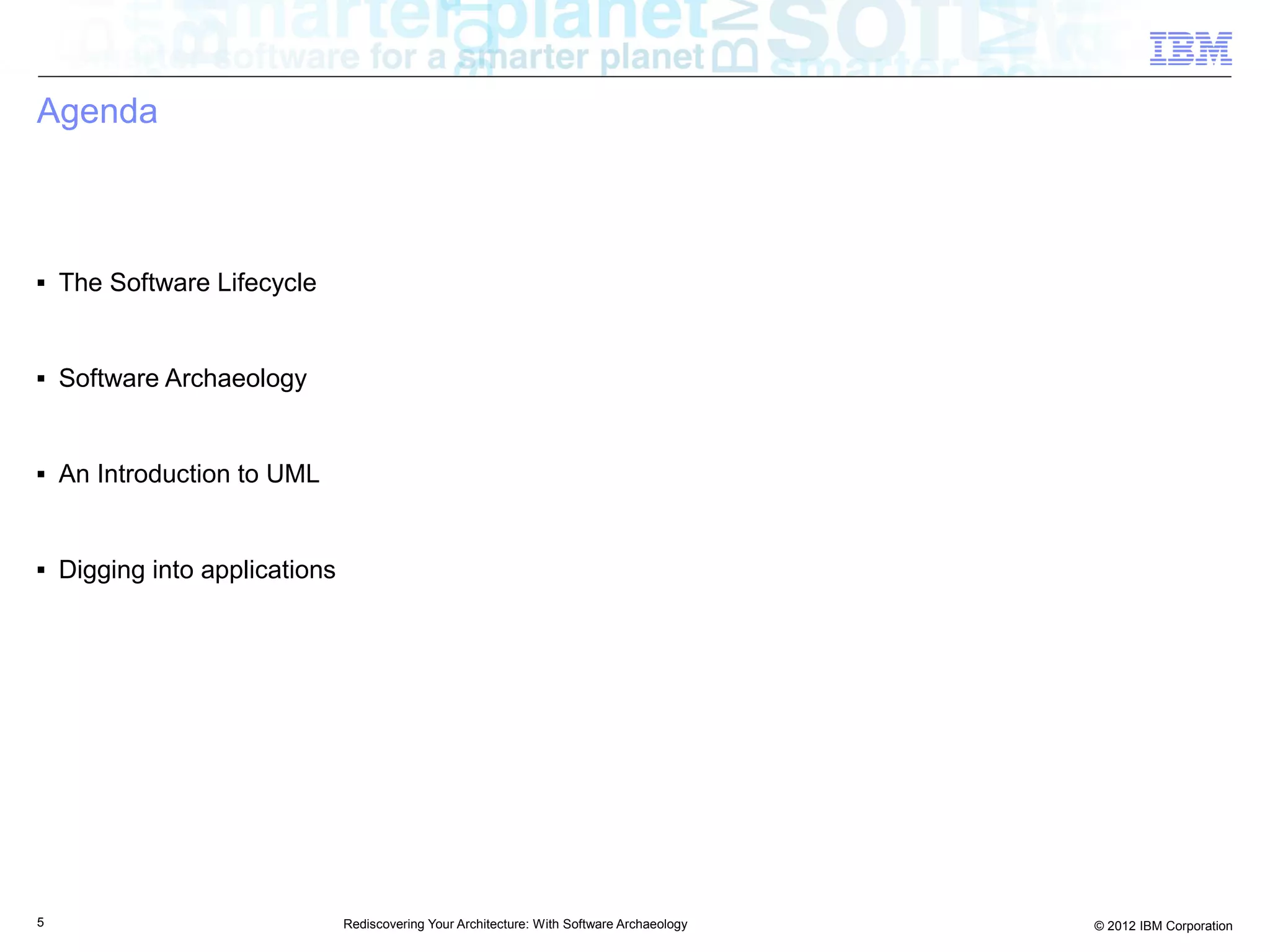

Agenda

■ The Software Lifecycle

■ Software Archaeology

■ An Introduction to UML

■ Digging into applications

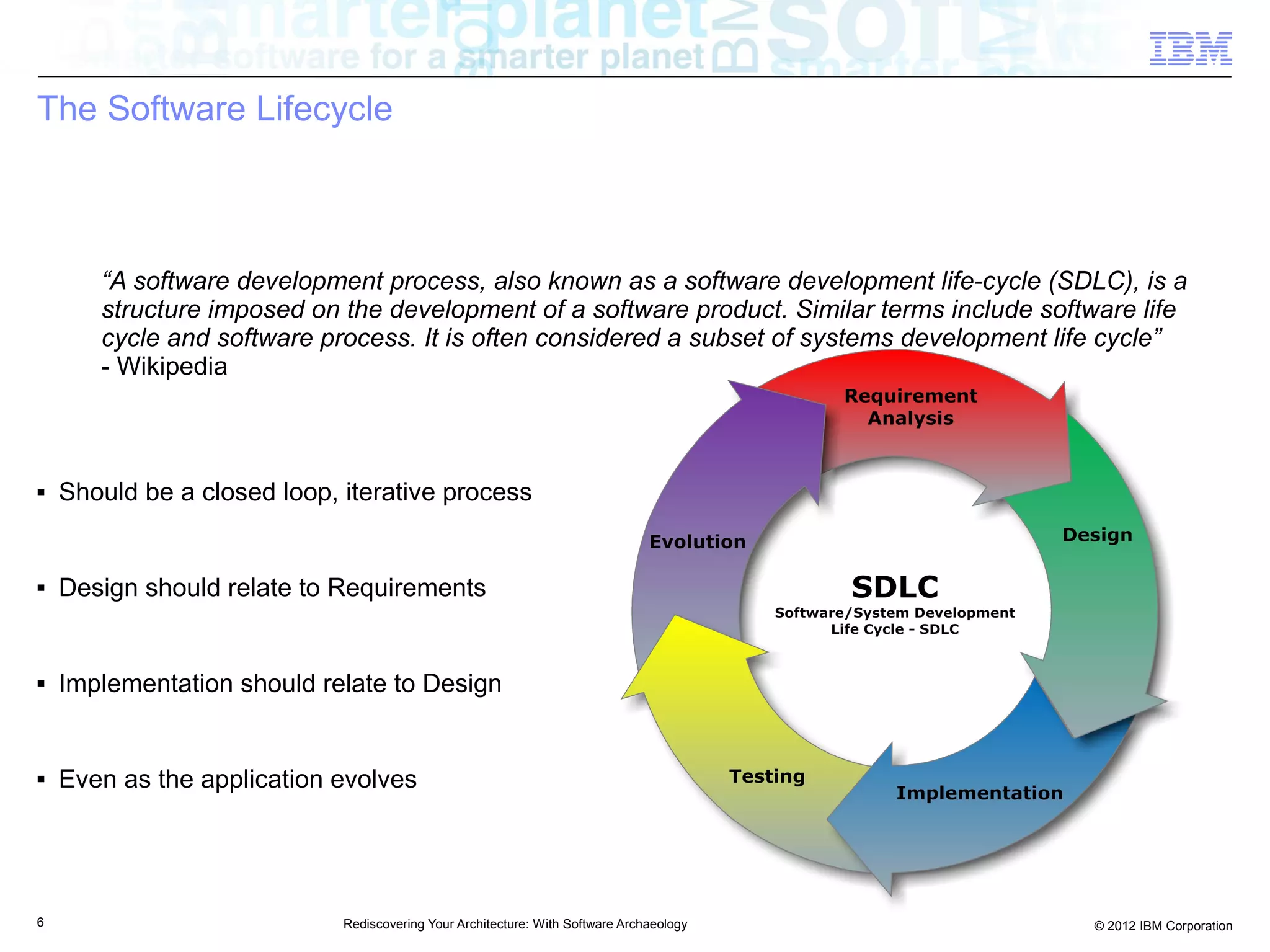

The Software Lifecycle

“A software development process, also known as a software development life-cycle (SDLC), is a
structure imposed on the development of a software product. Similar terms include software life
cycle and software process. It is often considered a subset of systems development life cycle”
- Wikipedia

■ Should be a closed loop, iterative process

■ Design should relate to Requirements

■ Implementation should relate to Design

■ Even as the application evolves

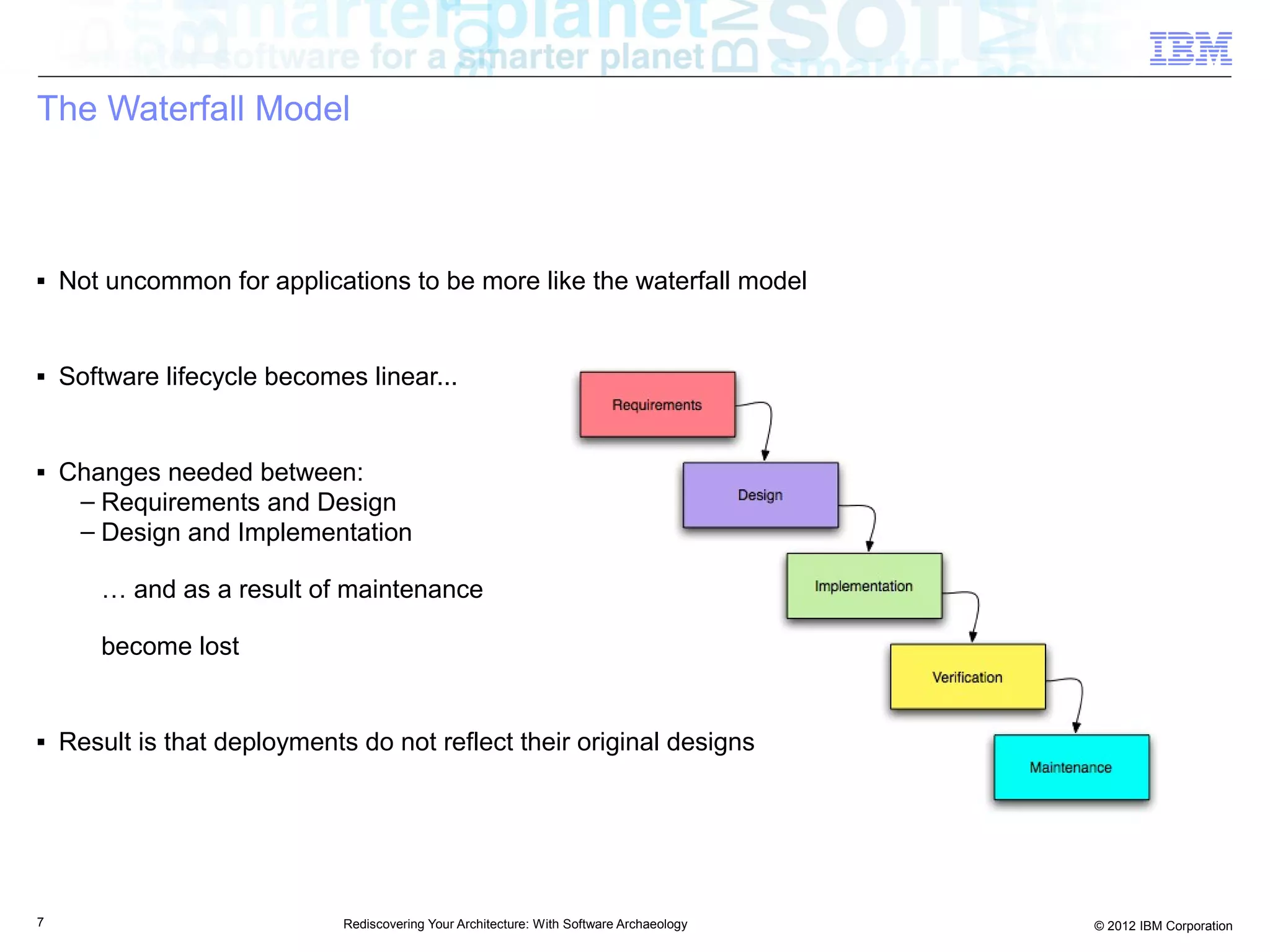

The Waterfall Model

■ Not uncommon for applications to be more like the waterfall model

■ Software lifecycle becomes linear...

■ Changes needed between:
– Requirements and Design
– Design and Implementation

… and as a result of maintenance

become lost

■ Result is that deployments do not reflect their original designs

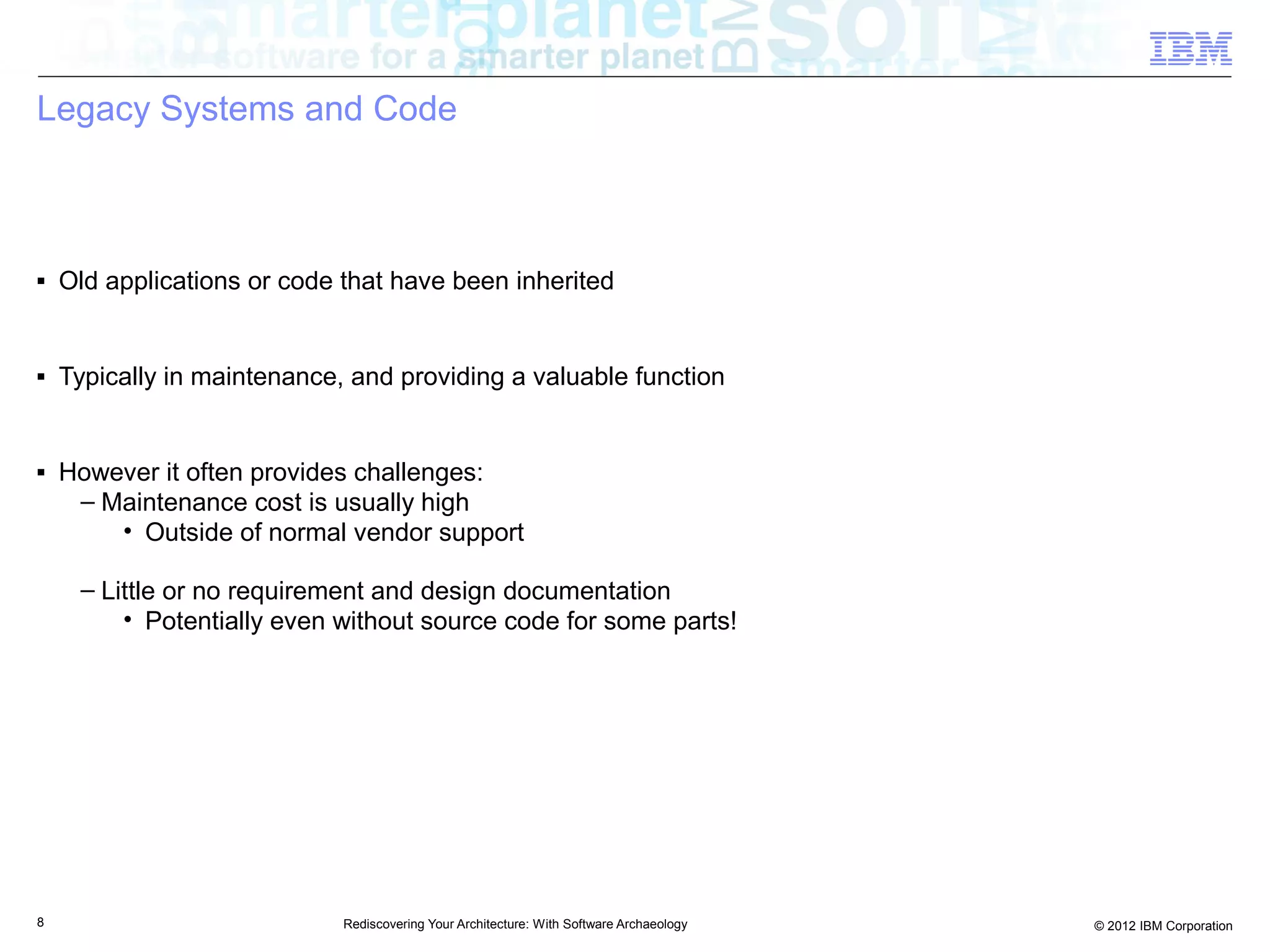

Legacy Systems and Code

■ Old applications or code that have been inherited

■ Typically in maintenance, and providing a valuable function

■ However it often provides challenges:
– Maintenance cost is usually high
• Outside of normal vendor support

– Little or no requirement and design documentation
• Potentially even without source code for some parts!

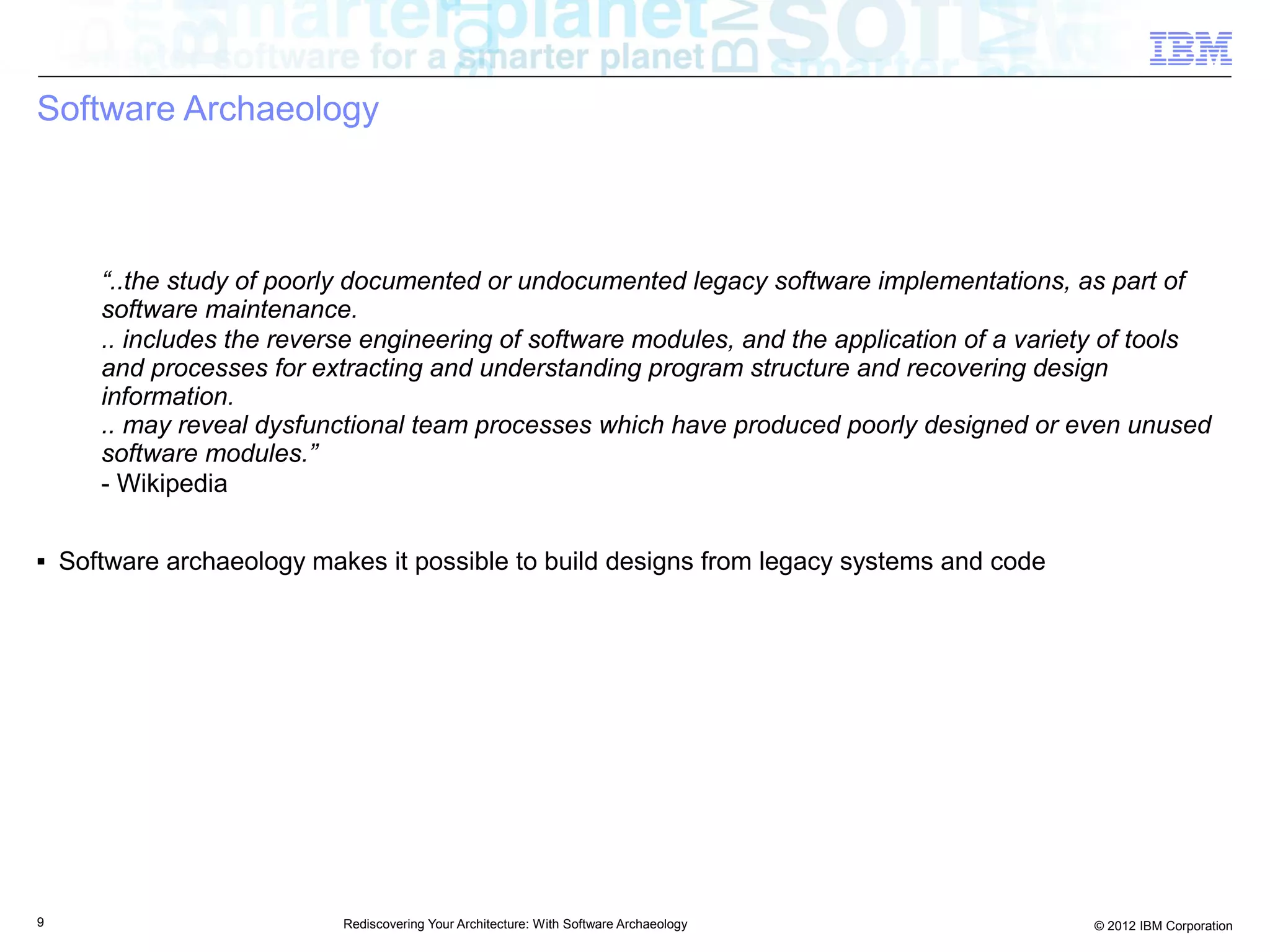

Software Archaeology

“..the study of poorly documented or undocumented legacy software implementations, as part of
software maintenance.
.. includes the reverse engineering of software modules, and the application of a variety of tools
and processes for extracting and understanding program structure and recovering design
information.
.. may reveal dysfunctional team processes which have produced poorly designed or even unused
software modules.”
- Wikipedia

■ Software archaeology makes it possible to build designs from legacy systems and code

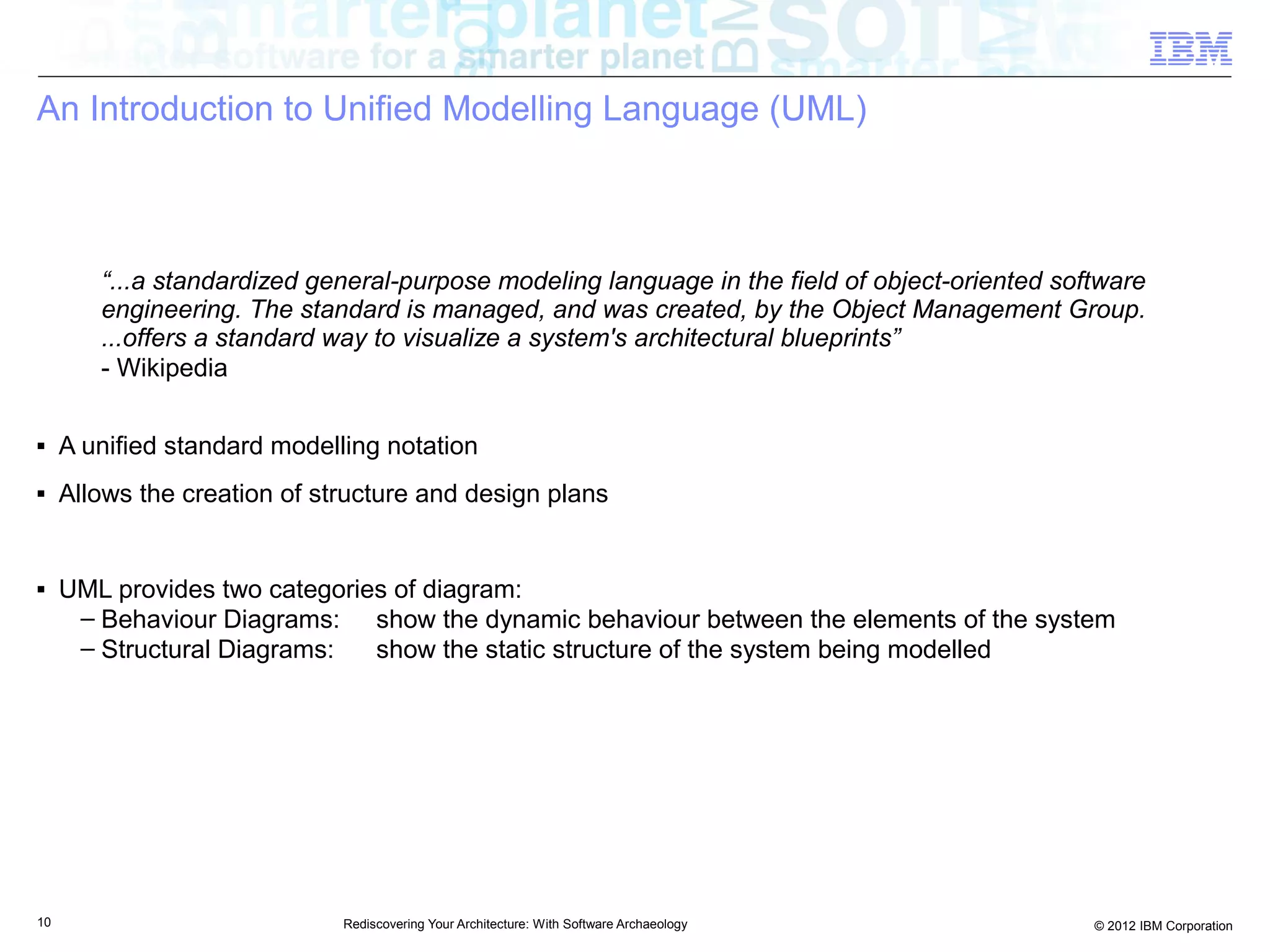

An Introduction to Unified Modelling Language (UML)

“...a standardized general-purpose modeling language in the field of object-oriented software
engineering. The standard is managed, and was created, by the Object Management Group.
...offers a standard way to visualize a system's architectural blueprints”
- Wikipedia

■ A unified standard modelling notation
■ Allows the creation of structure and design plans

■ UML provides two categories of diagram:
– Behaviour Diagrams: show the dynamic behaviour between the elements of the system
– Structural Diagrams: show the static structure of the system being modelled


UML Behaviour Diagrams

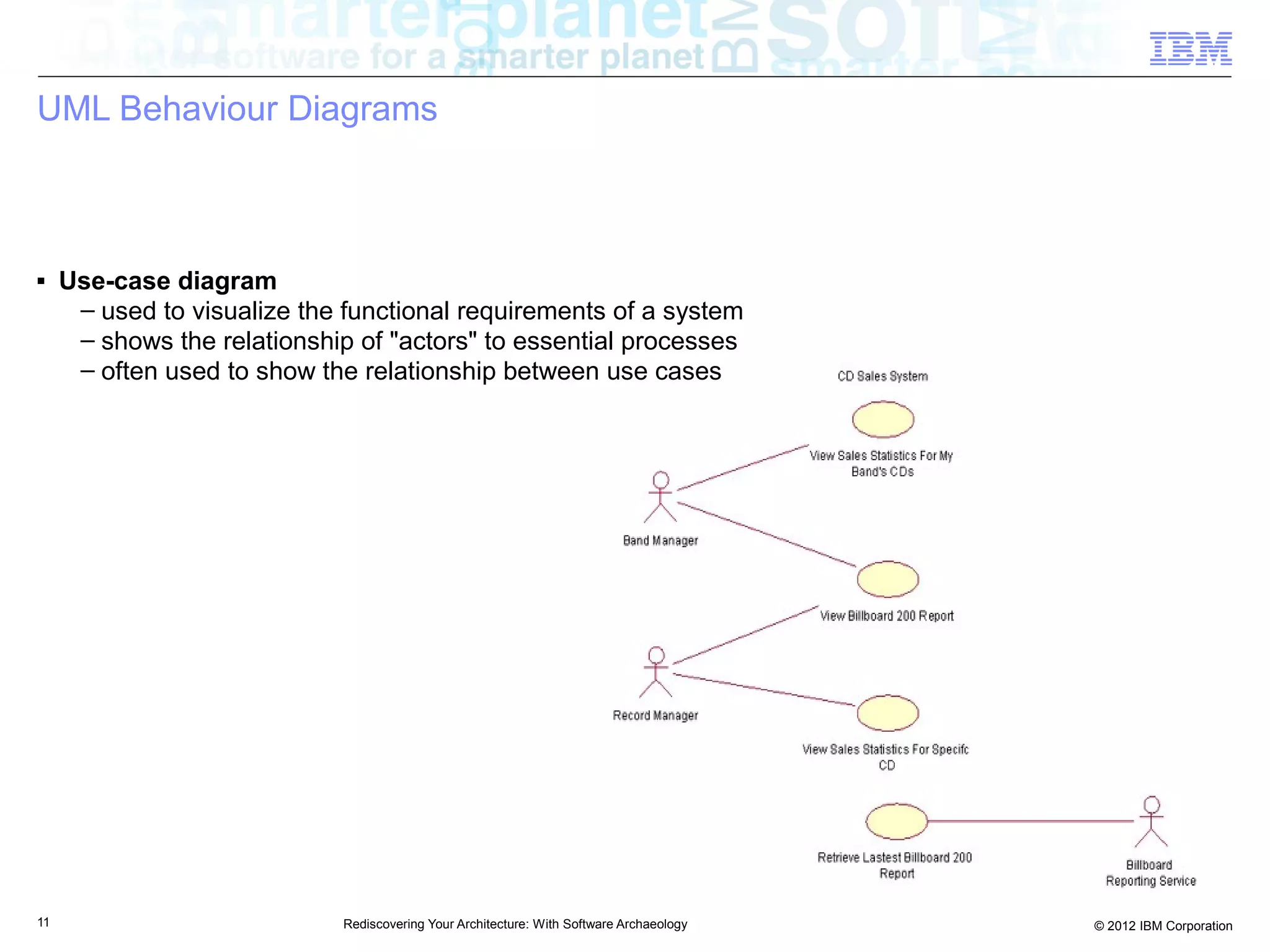

■ Use-case diagram
– used to visualize the functional requirements of a system
– shows the relationship of "actors" to essential processes
– often used to show the relationship between use cases

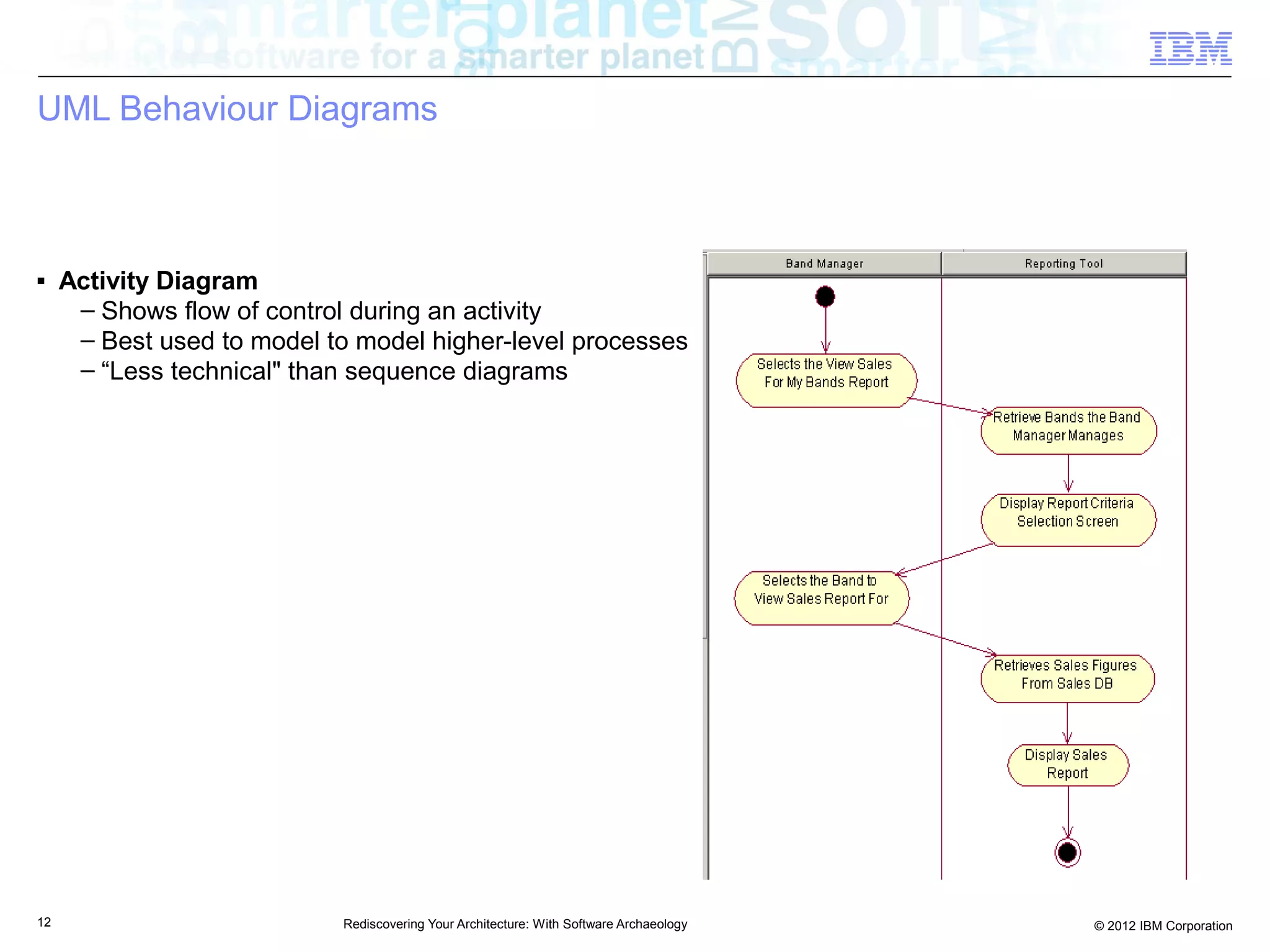

■ Activity Diagram
– Shows flow of control during an activity
– Best used to model to model higher-level processes
– “Less technical" than sequence diagrams

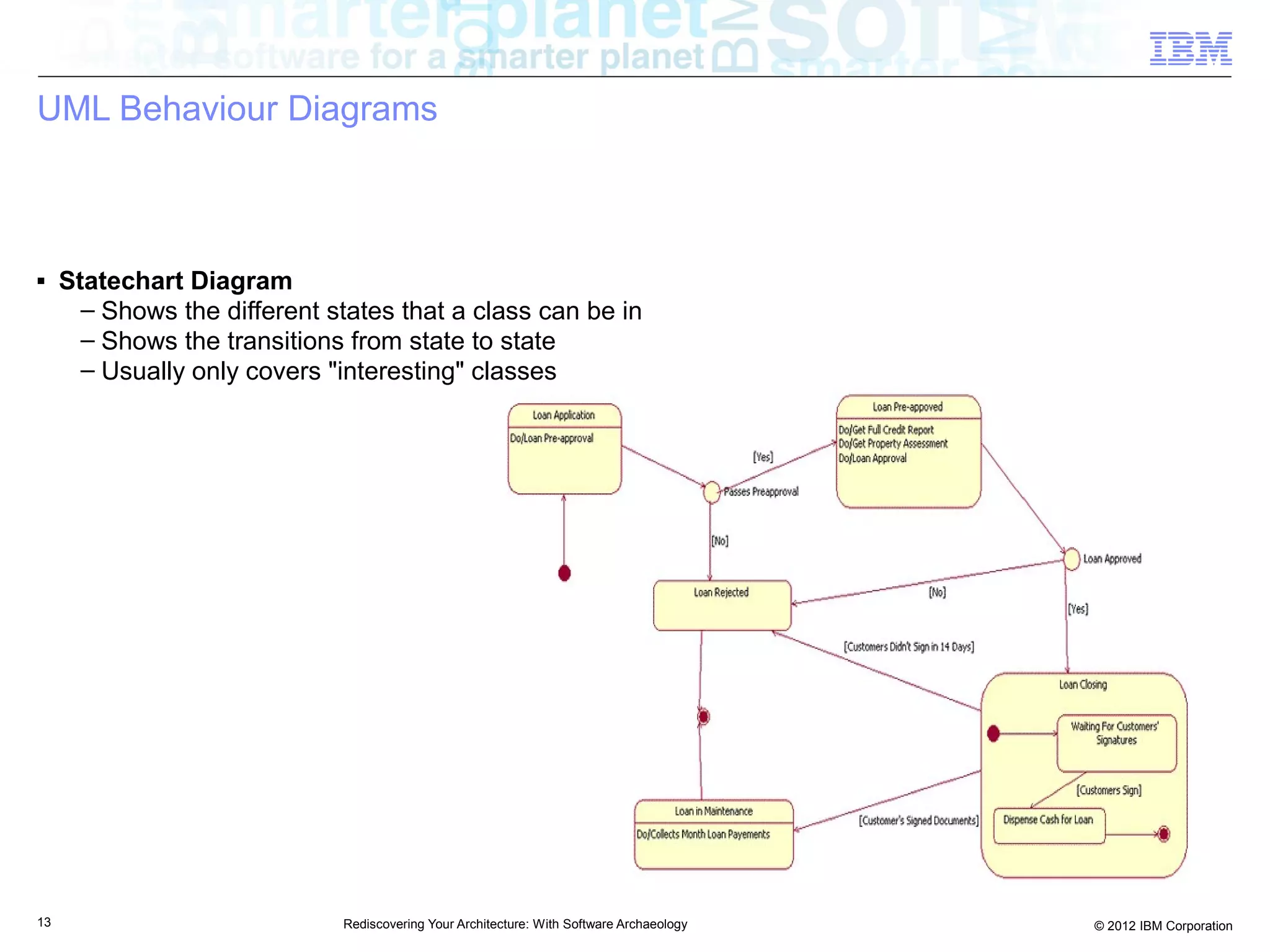

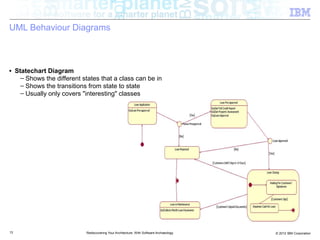

■ Statechart Diagram
– Shows the different states that a class can be in
– Shows the transitions from state to state
– Usually only covers "interesting" classes

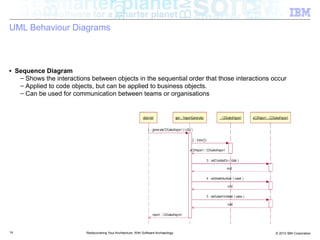

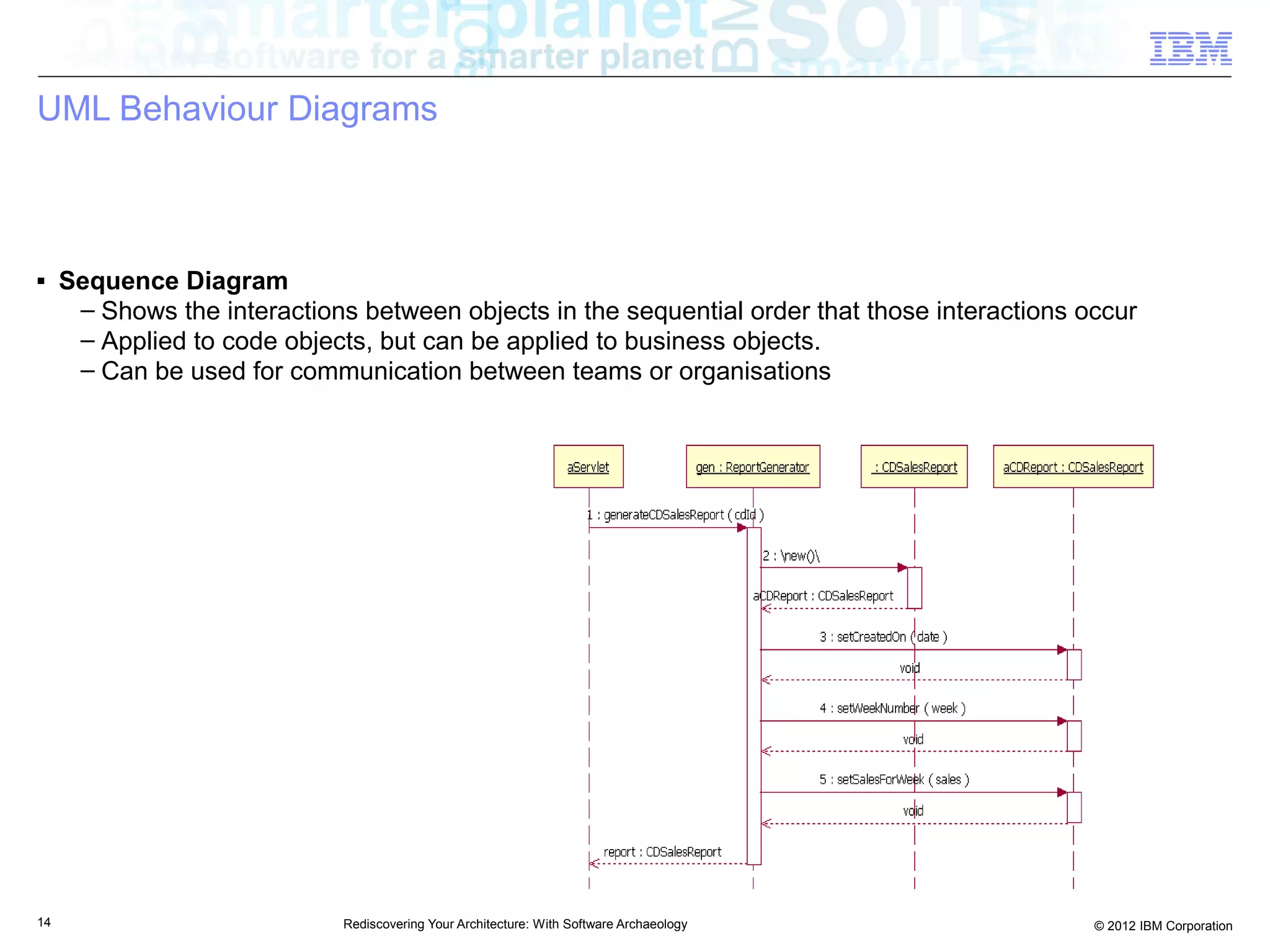

■ Sequence Diagram
– Shows the interactions between objects in the sequential order that those interactions occur
– Applied to code objects, but can be applied to business objects.
– Can be used for communication between teams or organisations


UML Structural Diagrams

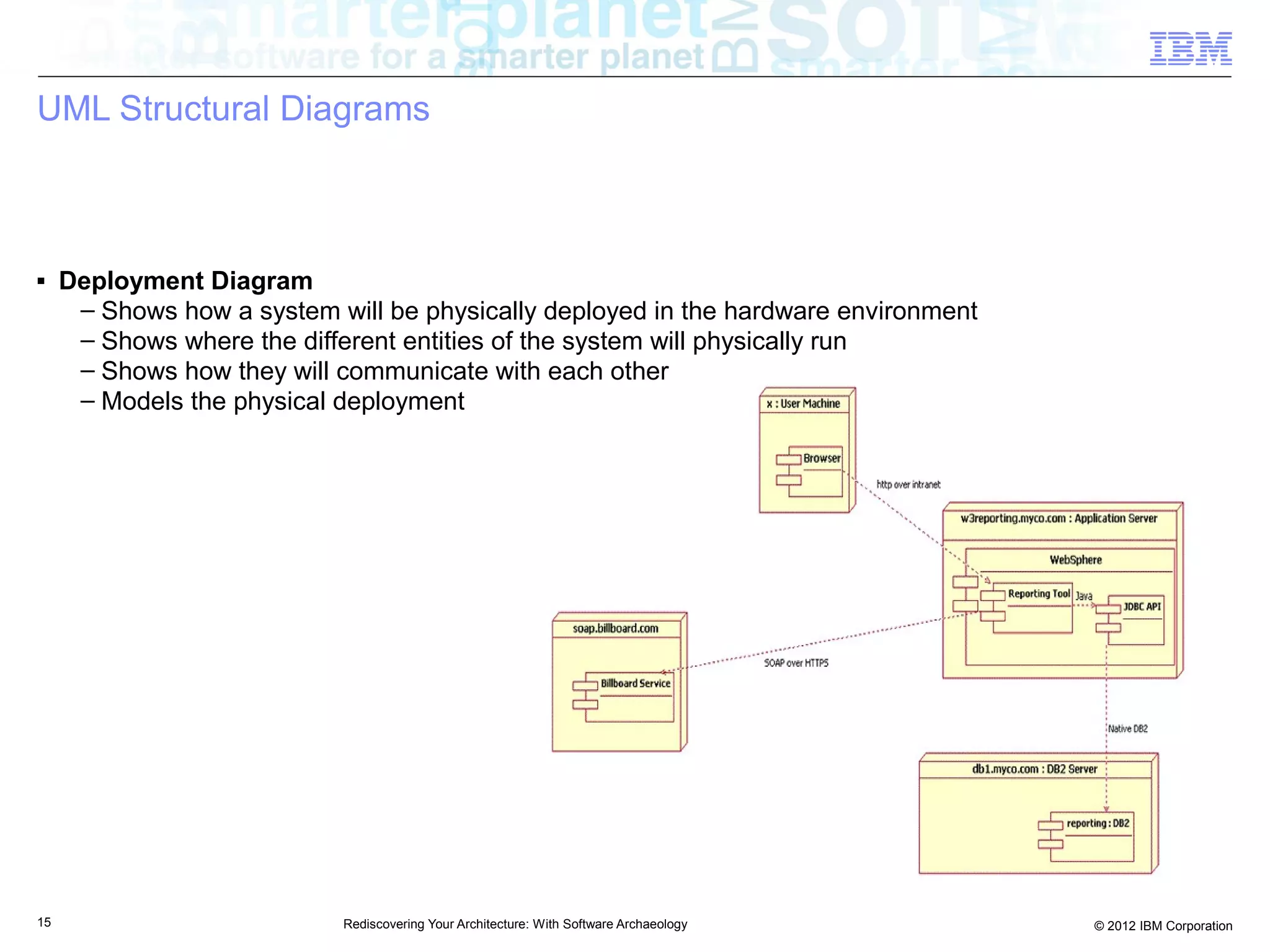

■ Deployment Diagram
– Shows how a system will be physically deployed in the hardware environment
– Shows where the different entities of the system will physically run
– Shows how they will communicate with each other
– Models the physical deployment

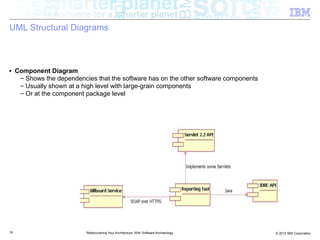

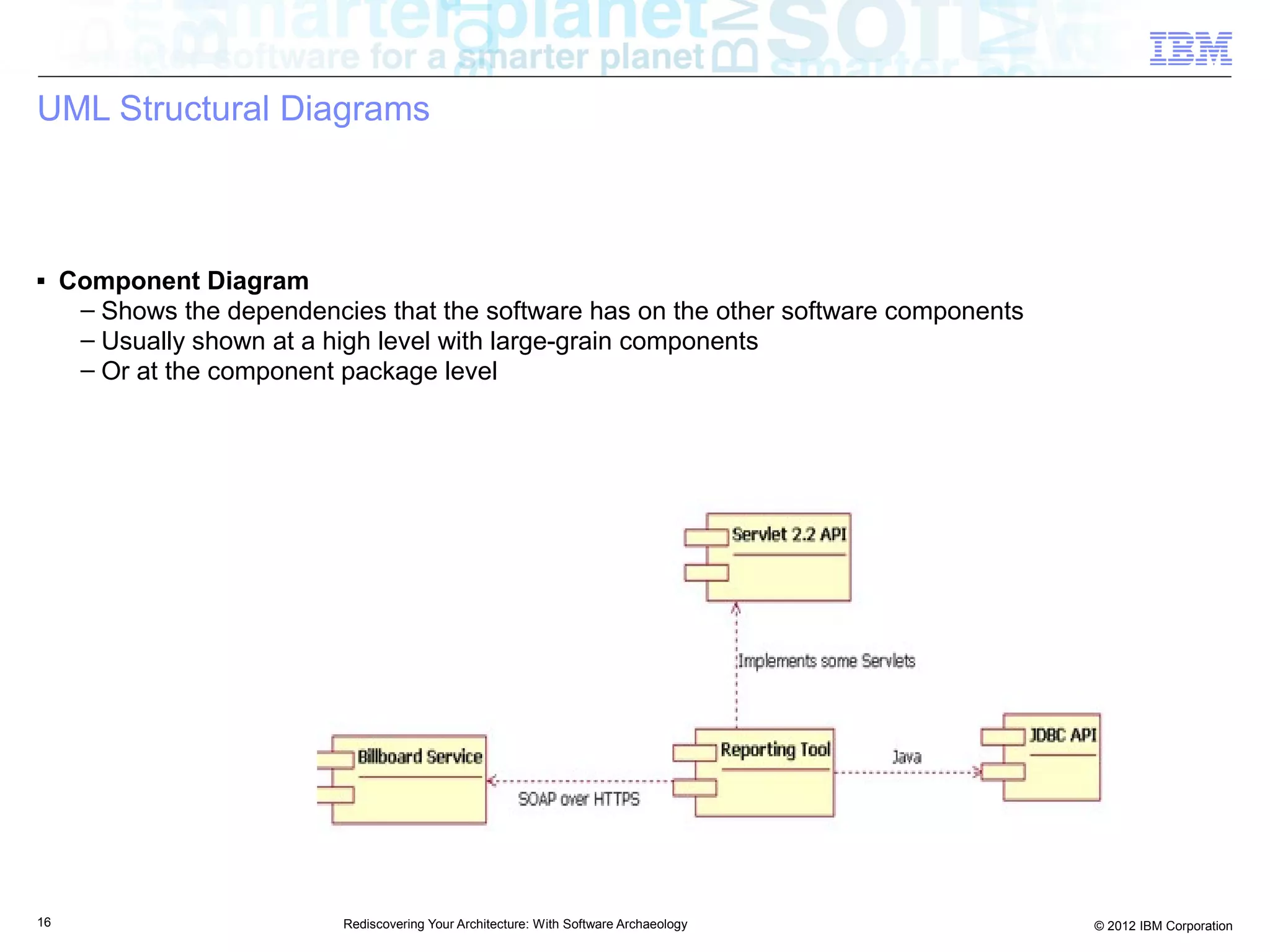

■ Component Diagram
– Shows the dependencies that the software has on the other software components
– Usually shown at a high level with large-grain components
– Or at the component package level

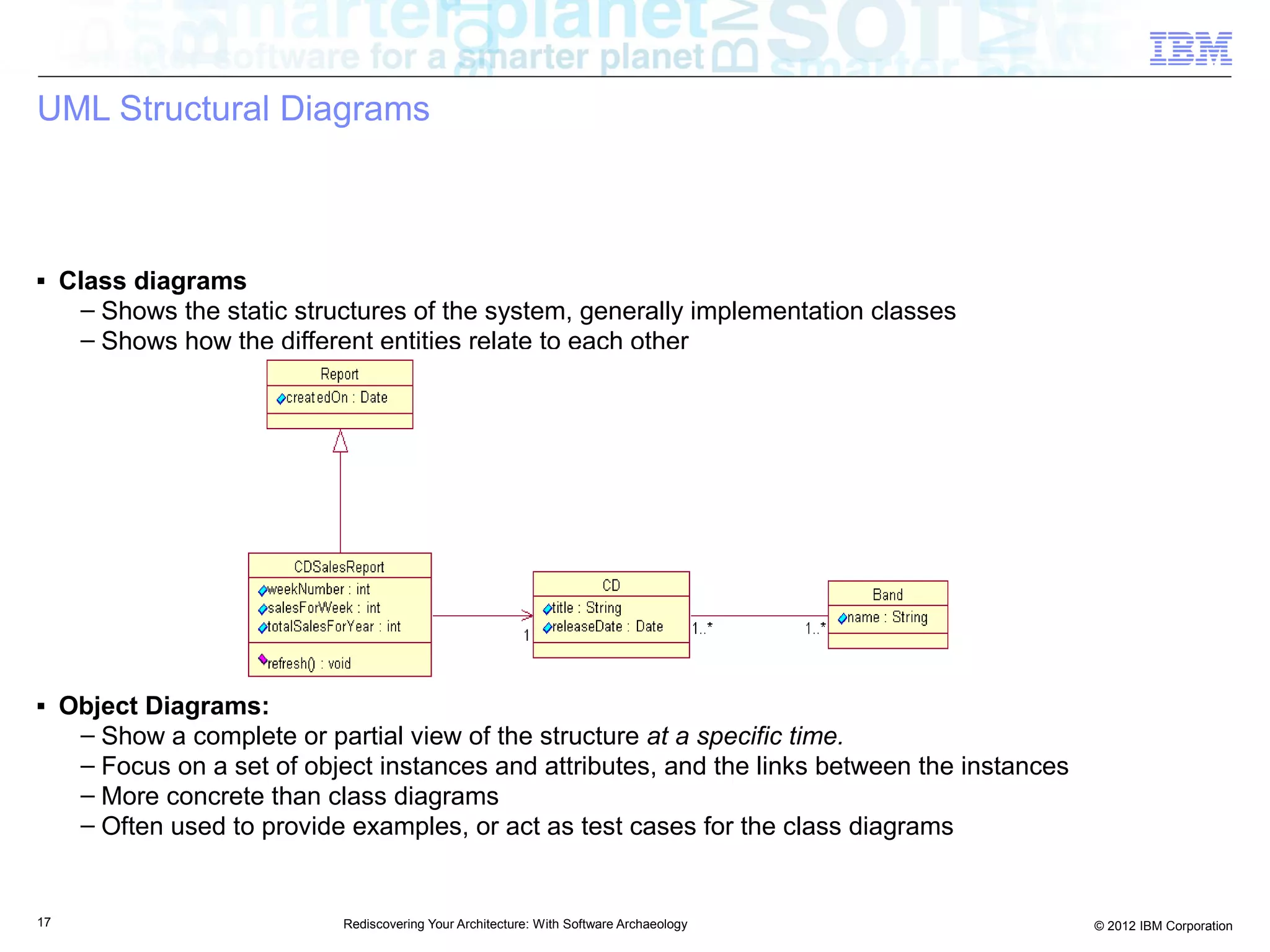

■ Class diagrams
– Shows the static structures of the system, generally implementation classes
– Shows how the different entities relate to each other

■ Object Diagrams:
– Show a complete or partial view of the structure at a specific time.
– Focus on a set of object instances and attributes, and the links between the instances
– More concrete than class diagrams
– Often used to provide examples, or act as test cases for the class diagrams

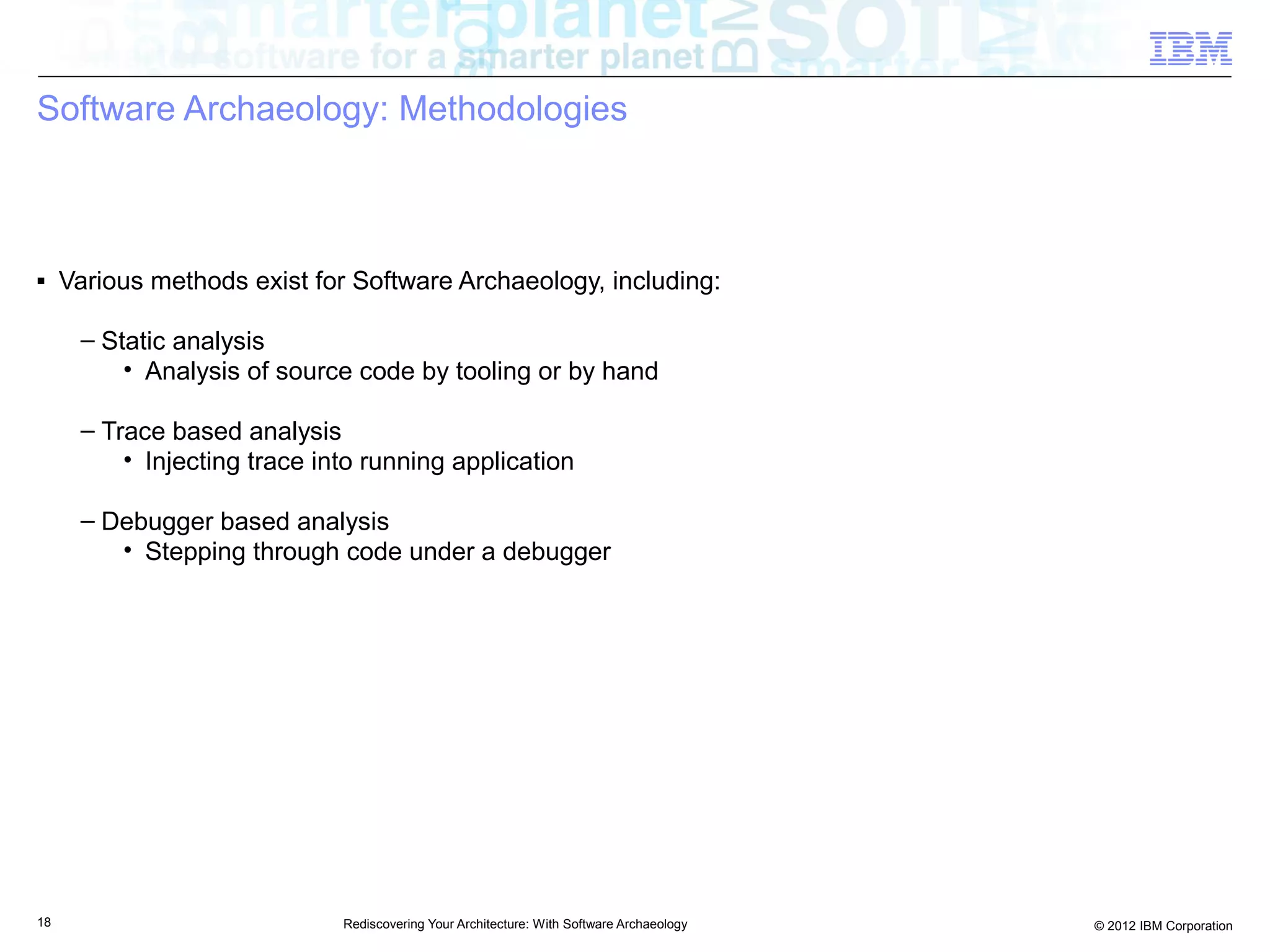

Software Archaeology: Methodologies

■ Various methods exist for Software Archaeology, including:

– Static analysis
• Analysis of source code by tooling or by hand

– Trace based analysis
• Injecting trace into running application

– Debugger based analysis
• Stepping through code under a debugger

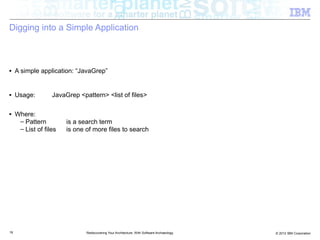

Digging into a Simple Application

■ A simple application: “JavaGrep”

■ Usage: JavaGrep <pattern> <list of files>

■ Where:
– Pattern is a search term
– List of files is one of more files to search

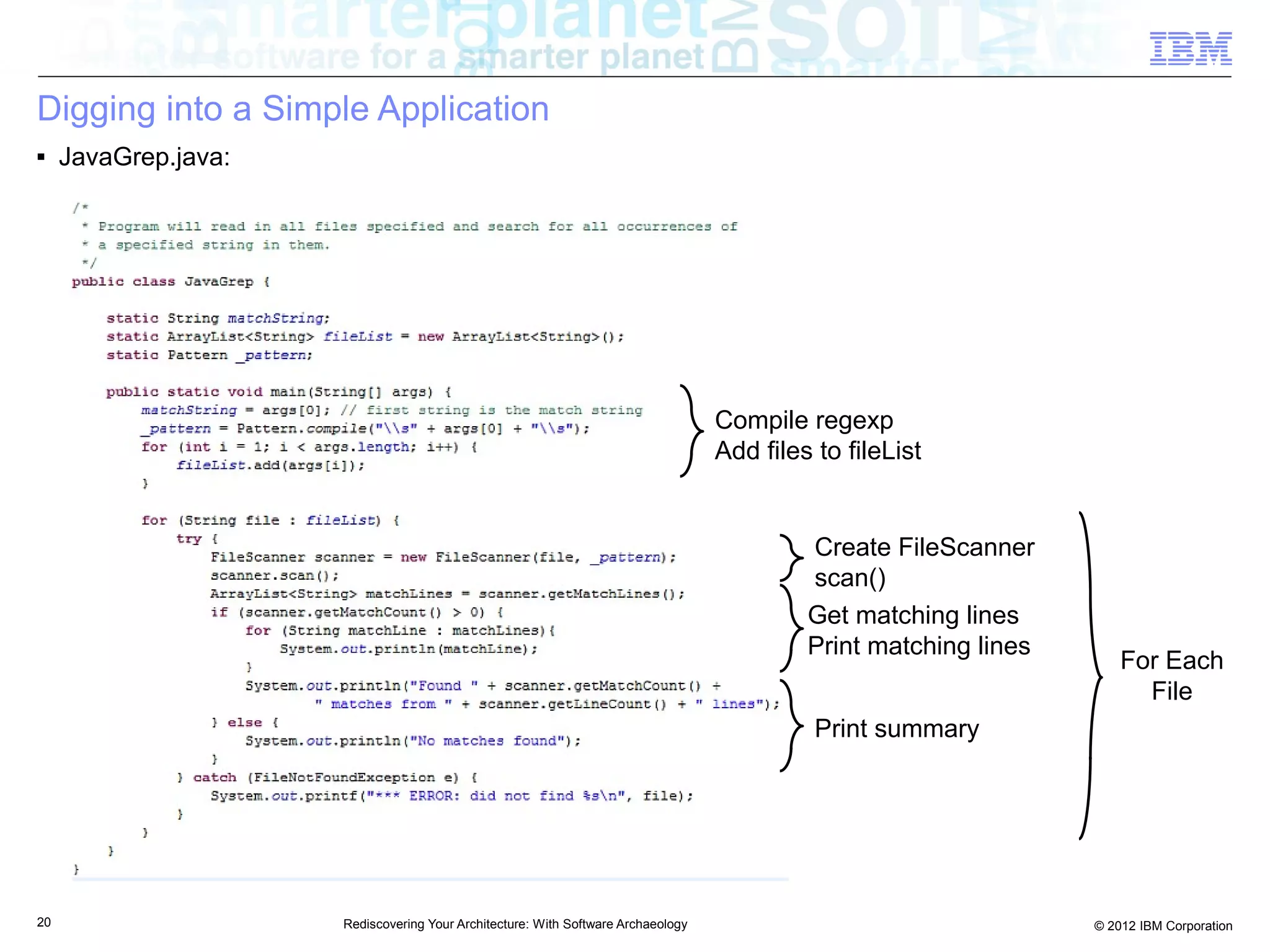

■ JavaGrep.java:

Compile regexp
Add files to fileList

Create FileScanner
scan()
Get matching lines
Print matching lines
For Each
File
Print summary

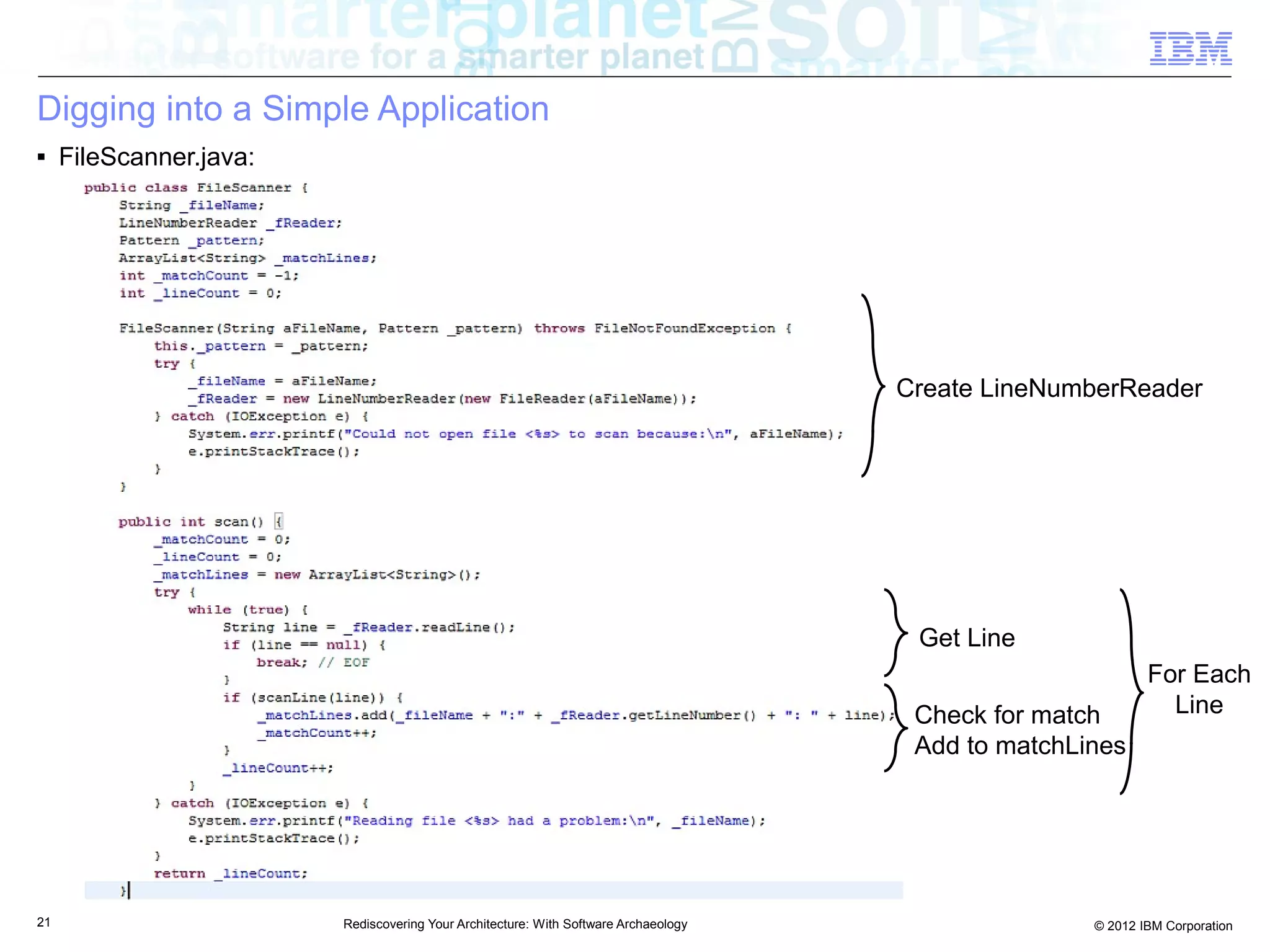

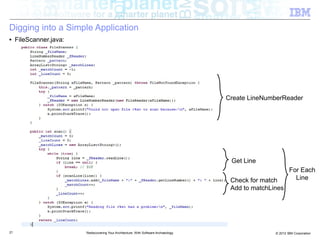

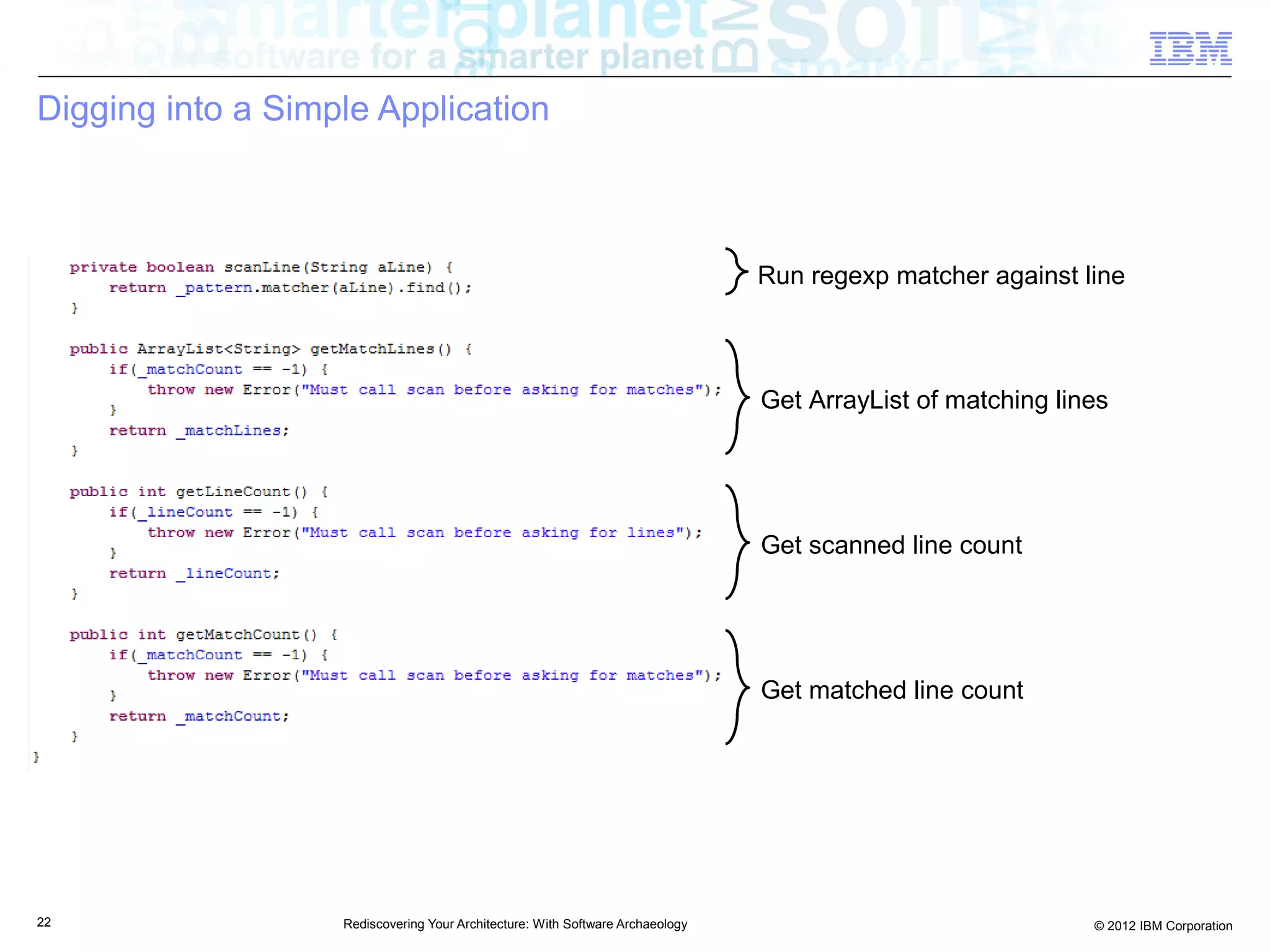

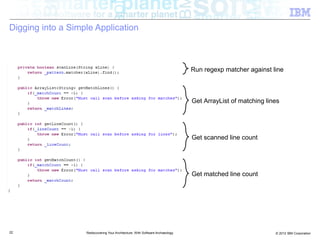

■ FileScanner.java:

Create LineNumberReader

Get Line
For Each
Check for match Line
Add to matchLines



Run regexp matcher against line

Get ArrayList of matching lines

Get scanned line count

Get matched line count

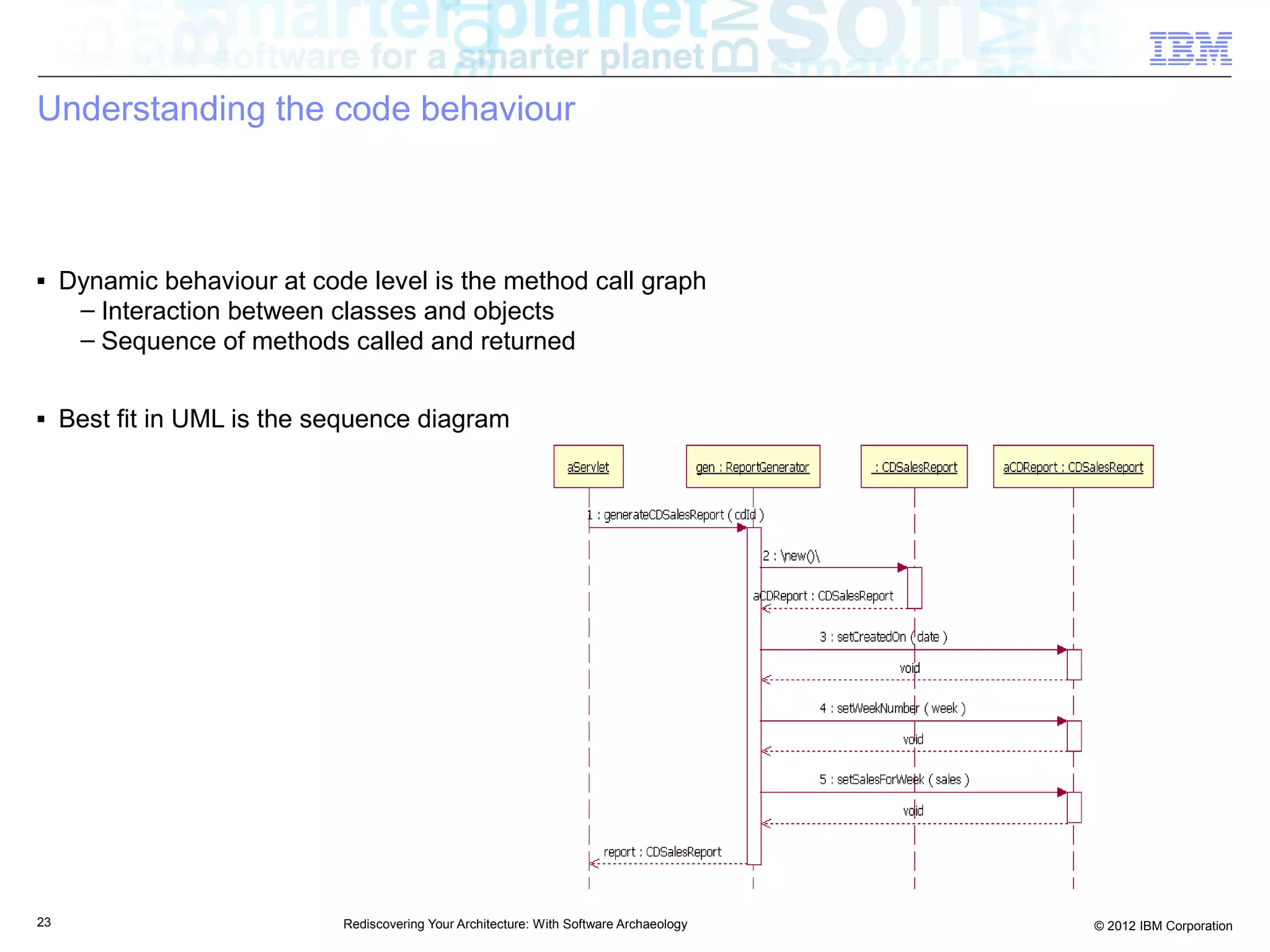

Understanding the code behaviour

■ Dynamic behaviour at code level is the method call graph
– Interaction between classes and objects
– Sequence of methods called and returned

■ Best fit in UML is the sequence diagram

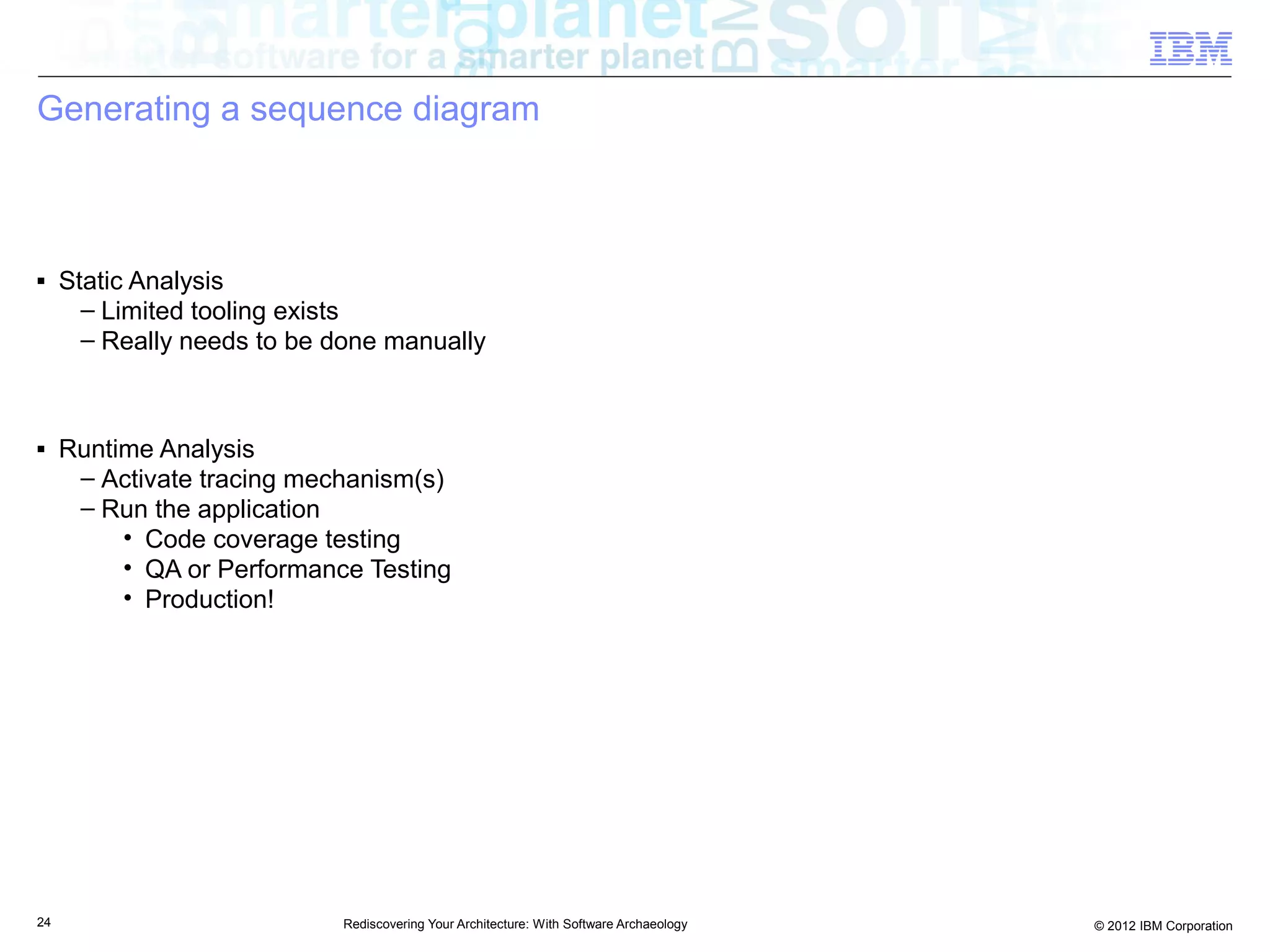

Generating a sequence diagram

■ Static Analysis
– Limited tooling exists
– Really needs to be done manually

■ Runtime Analysis
– Activate tracing mechanism(s)
– Run the application
• Code coverage testing
• QA or Performance Testing
• Production!

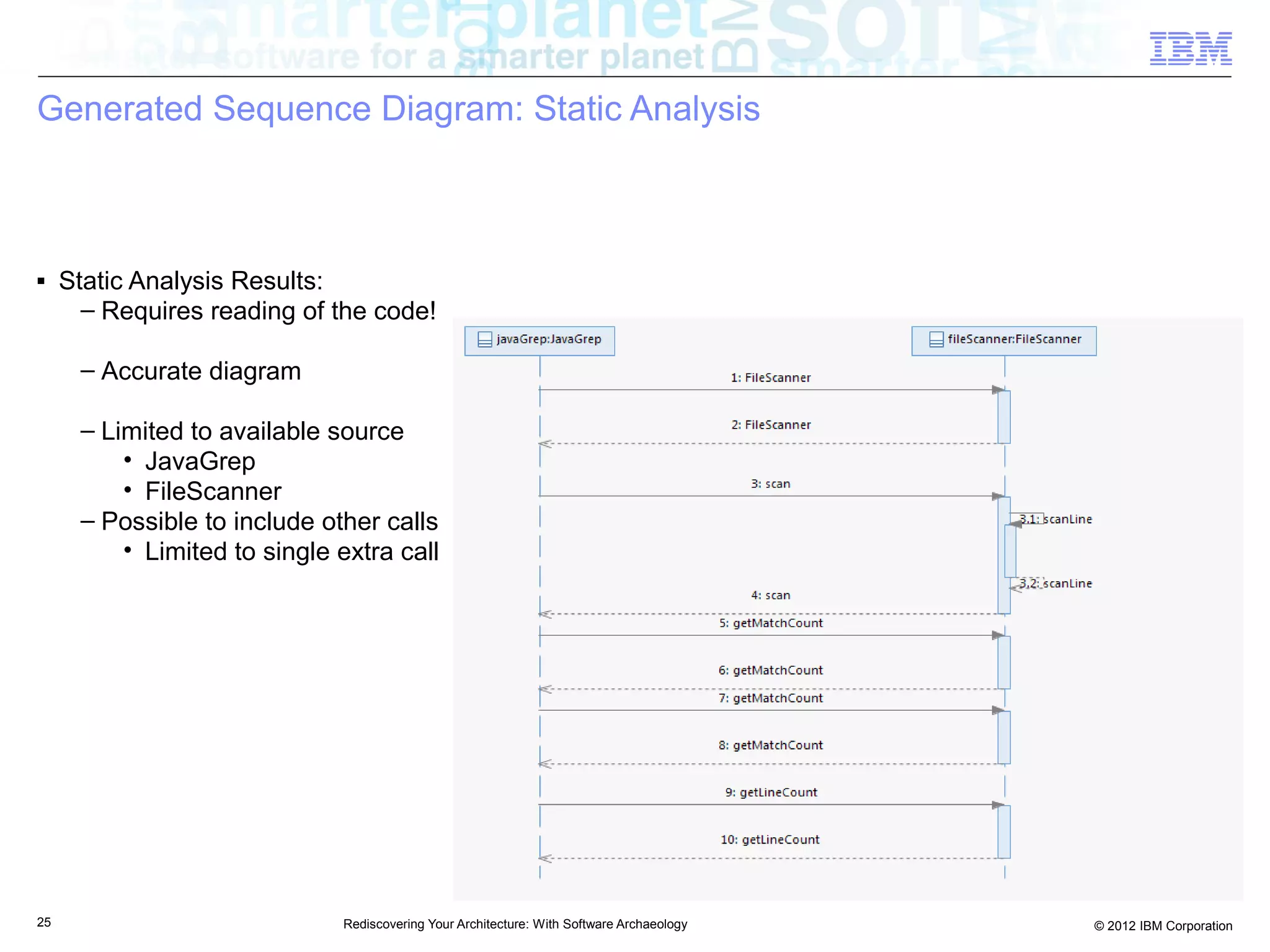

Generated Sequence Diagram: Static Analysis

■ Static Analysis Results:
– Requires reading of the code!

– Accurate diagram

– Limited to available source
• JavaGrep
• FileScanner
– Possible to include other calls
• Limited to single extra call

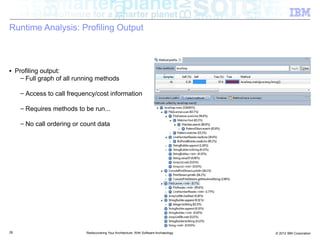

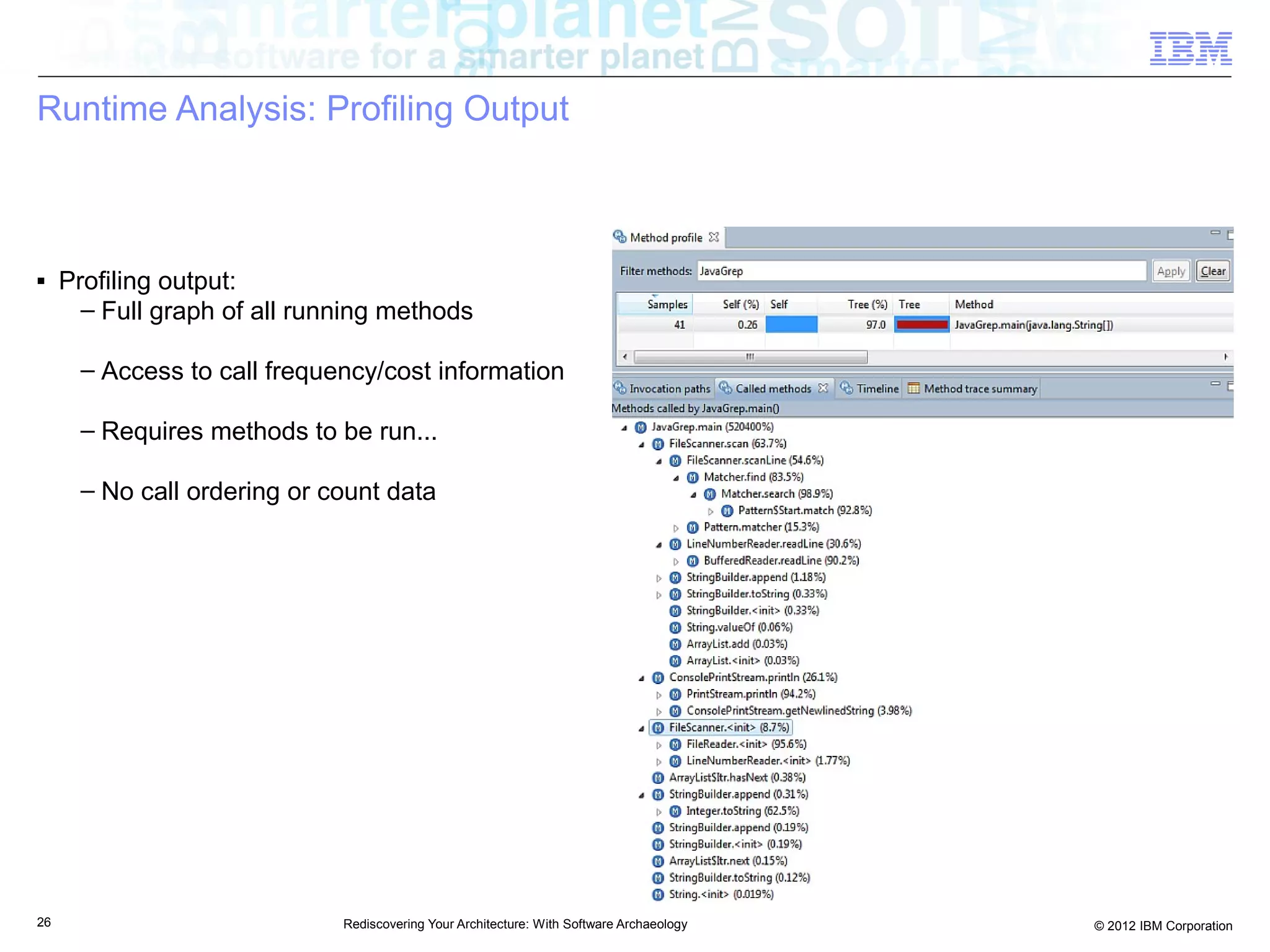

Runtime Analysis: Profiling Output

■ Profiling output:
– Full graph of all running methods

– Access to call frequency/cost information

– Requires methods to be run...

– No call ordering or count data

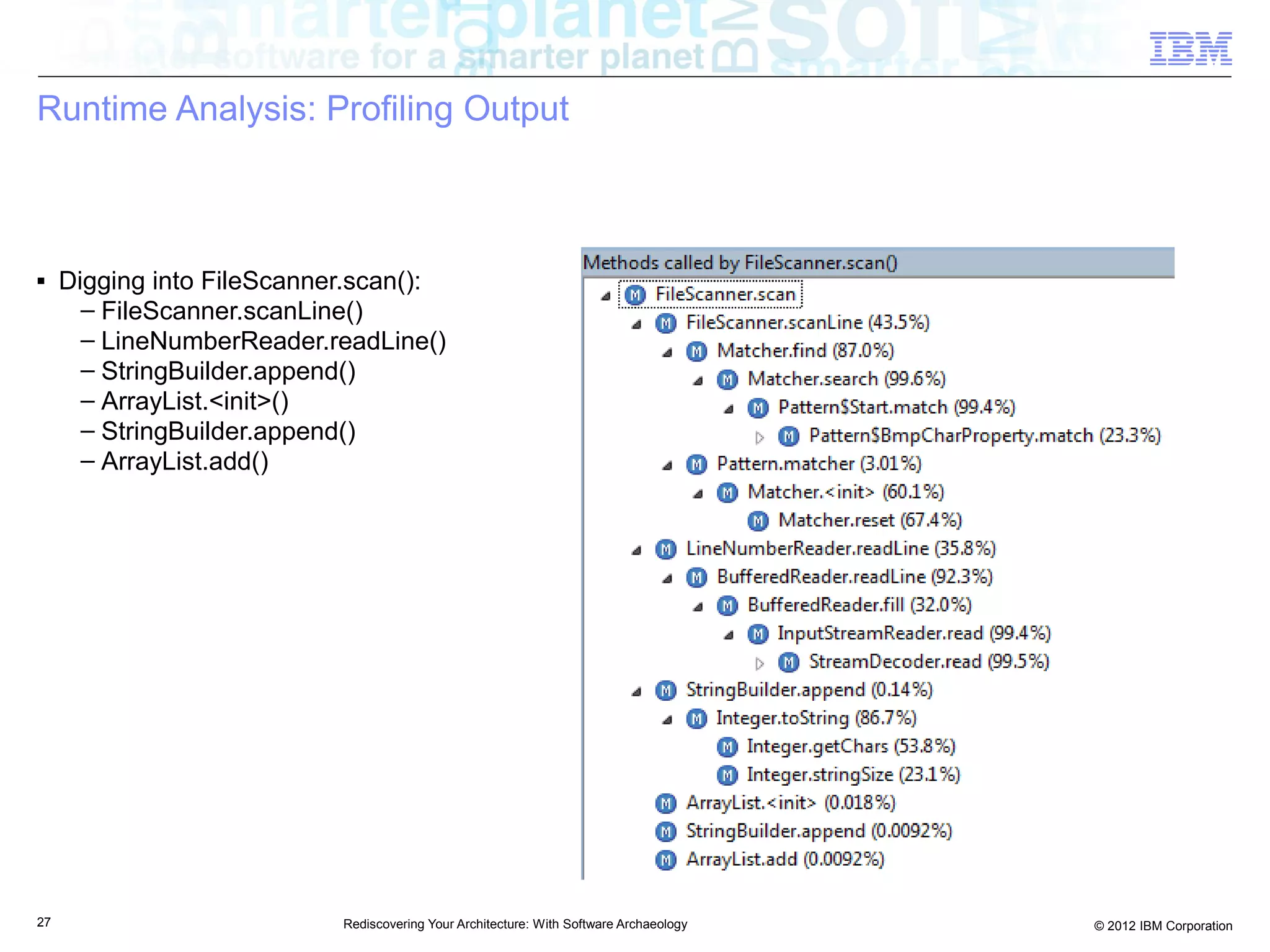

Runtime Analysis: Profiling Output

■ Digging into FileScanner.scan():
– FileScanner.scanLine()
– LineNumberReader.readLine()
– StringBuilder.append()
– ArrayList.<init>()
– StringBuilder.append()
– ArrayList.add()

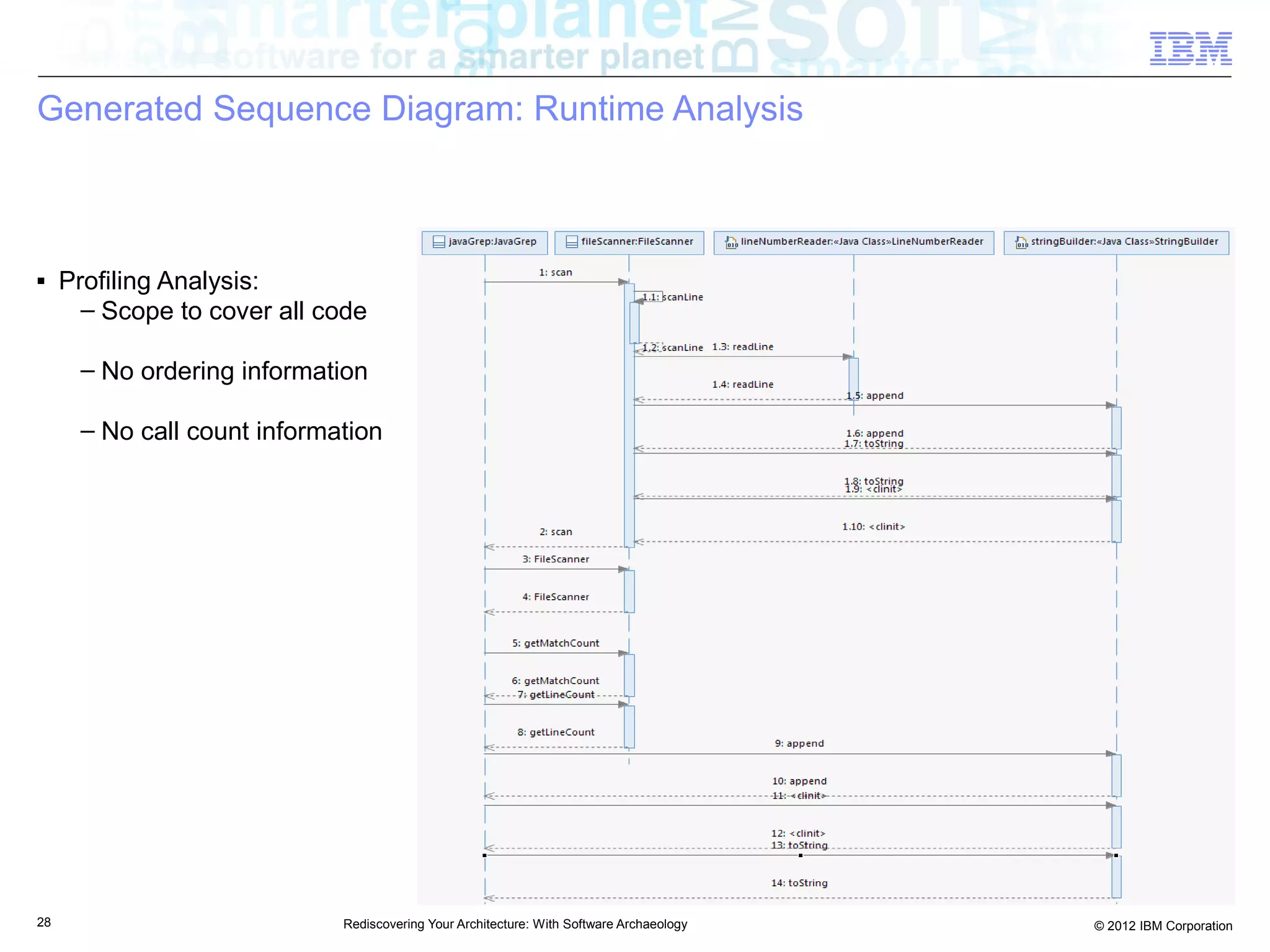

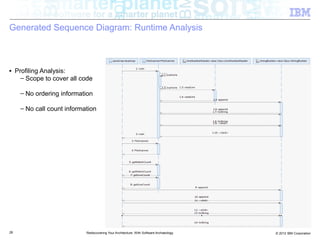

Generated Sequence Diagram: Runtime Analysis

■ Profiling Analysis:
– Scope to cover all code

– No ordering information

– No call count information

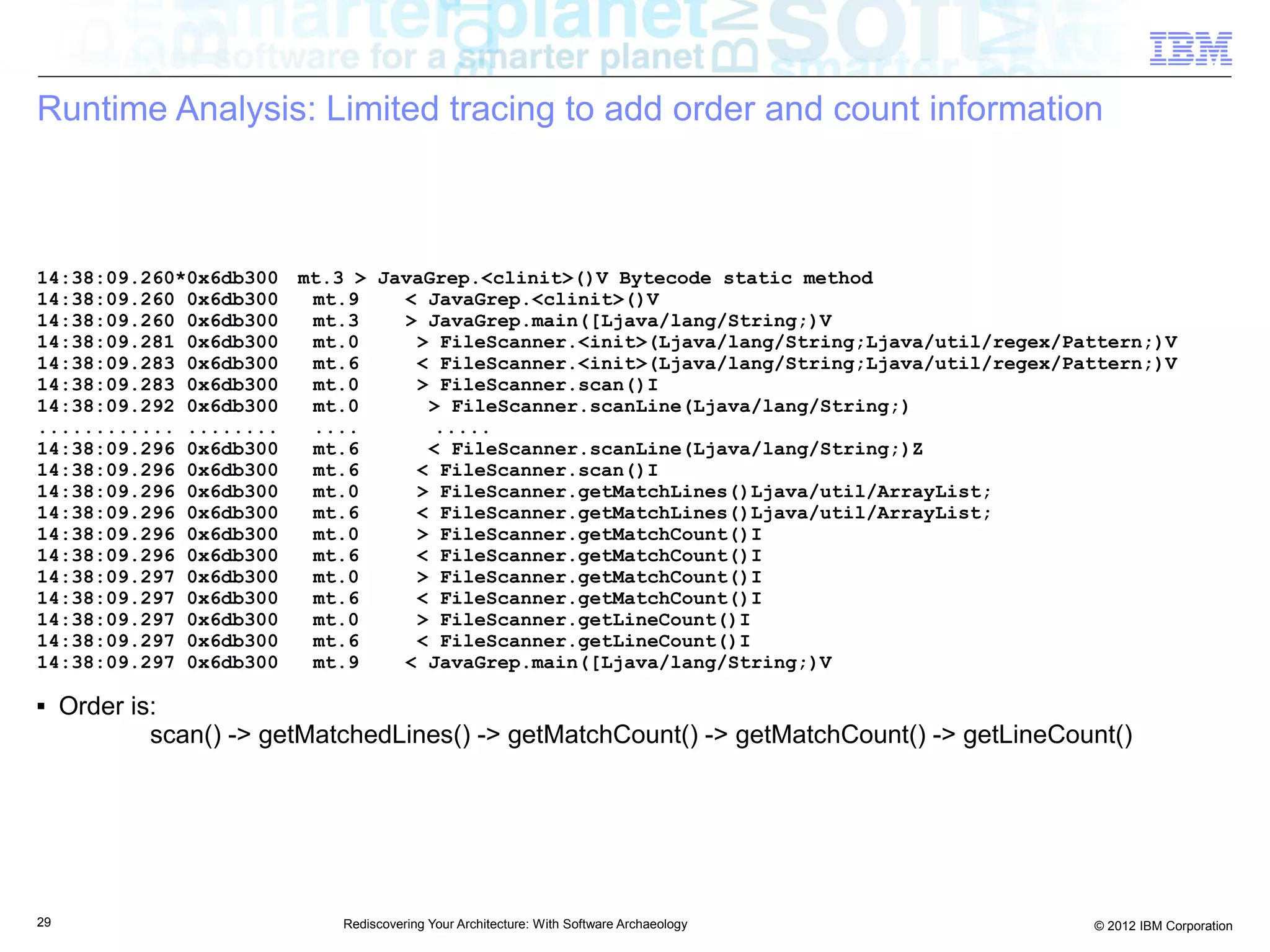

Runtime Analysis: Limited tracing to add order and count information

14:38:09.260*0x6db300 mt.3 > JavaGrep.<clinit>()V Bytecode static method
14:38:09.260 0x6db300 mt.9 < JavaGrep.<clinit>()V
14:38:09.260 0x6db300 mt.3 > JavaGrep.main([Ljava/lang/String;)V
14:38:09.281 0x6db300 mt.0 > FileScanner.<init>(Ljava/lang/String;Ljava/util/regex/Pattern;)V
14:38:09.283 0x6db300 mt.6 < FileScanner.<init>(Ljava/lang/String;Ljava/util/regex/Pattern;)V
14:38:09.283 0x6db300 mt.0 > FileScanner.scan()I
14:38:09.292 0x6db300 mt.0 > FileScanner.scanLine(Ljava/lang/String;)
............ ........ .... .....
14:38:09.296 0x6db300 mt.6 < FileScanner.scanLine(Ljava/lang/String;)Z
14:38:09.296 0x6db300 mt.6 < FileScanner.scan()I
14:38:09.296 0x6db300 mt.0 > FileScanner.getMatchLines()Ljava/util/ArrayList;
14:38:09.296 0x6db300 mt.6 < FileScanner.getMatchLines()Ljava/util/ArrayList;
14:38:09.296 0x6db300 mt.0 > FileScanner.getMatchCount()I
14:38:09.296 0x6db300 mt.6 < FileScanner.getMatchCount()I
14:38:09.297 0x6db300 mt.0 > FileScanner.getMatchCount()I
14:38:09.297 0x6db300 mt.6 < FileScanner.getMatchCount()I
14:38:09.297 0x6db300 mt.0 > FileScanner.getLineCount()I
14:38:09.297 0x6db300 mt.6 < FileScanner.getLineCount()I
14:38:09.297 0x6db300 mt.9 < JavaGrep.main([Ljava/lang/String;)V

■ Order is:
scan() -> getMatchedLines() -> getMatchCount() -> getMatchCount() -> getLineCount()

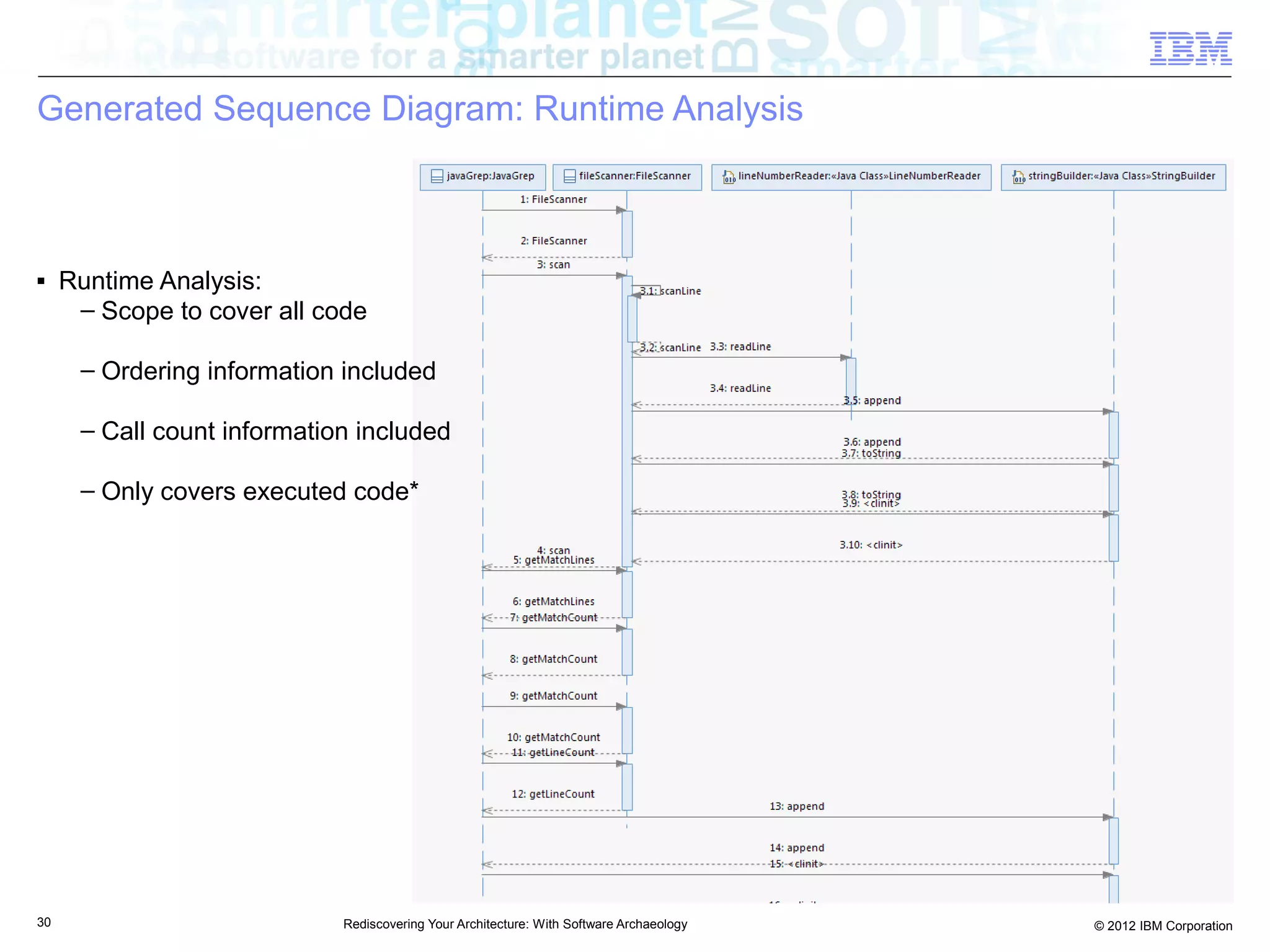

Generated Sequence Diagram: Runtime Analysis

■ Runtime Analysis:
– Scope to cover all code

– Ordering information included

– Call count information included

– Only covers executed code*

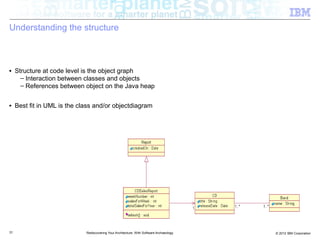

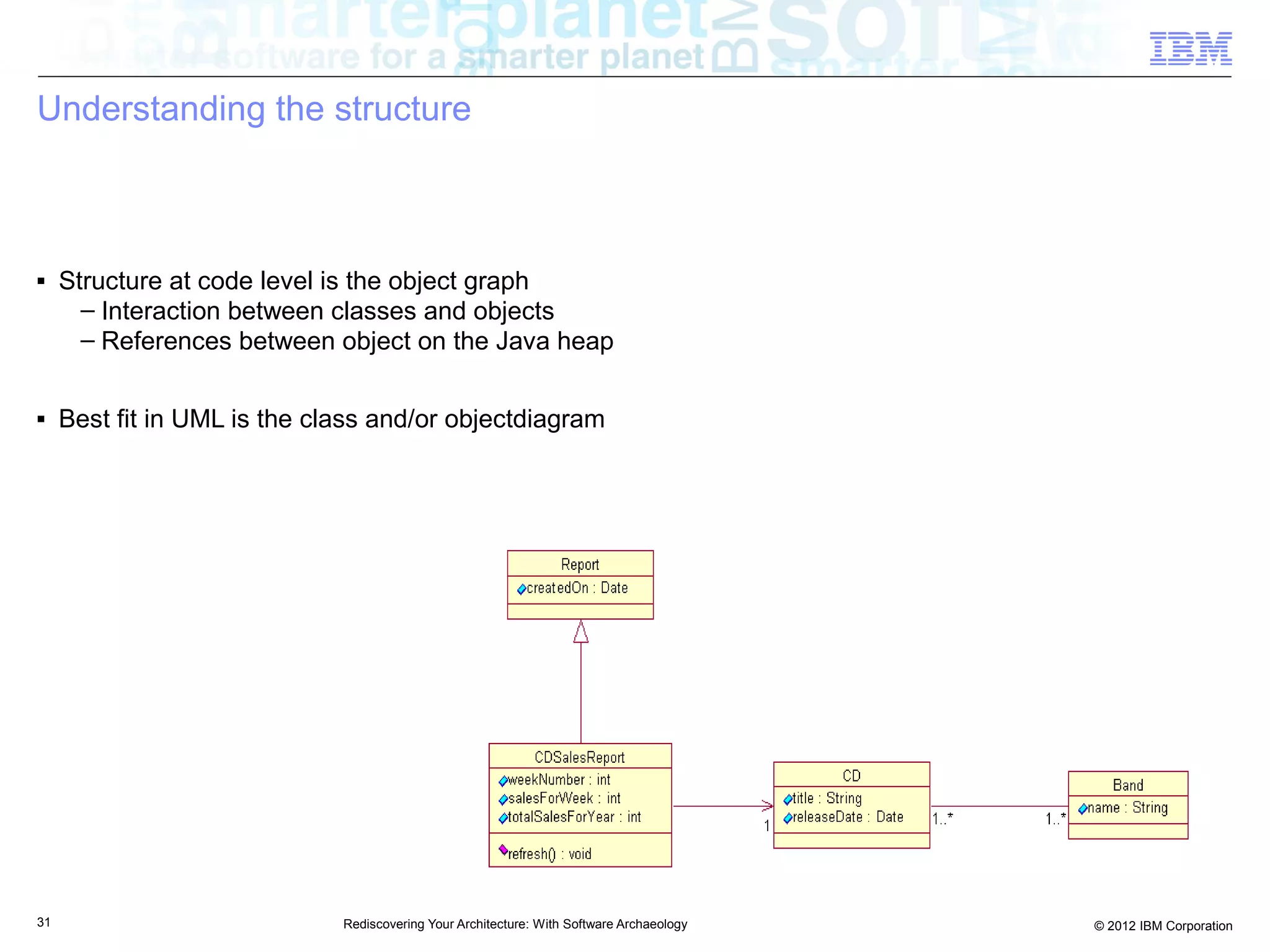

Understanding the structure

■ Structure at code level is the object graph
– Interaction between classes and objects
– References between object on the Java heap

■ Best fit in UML is the class and/or objectdiagram

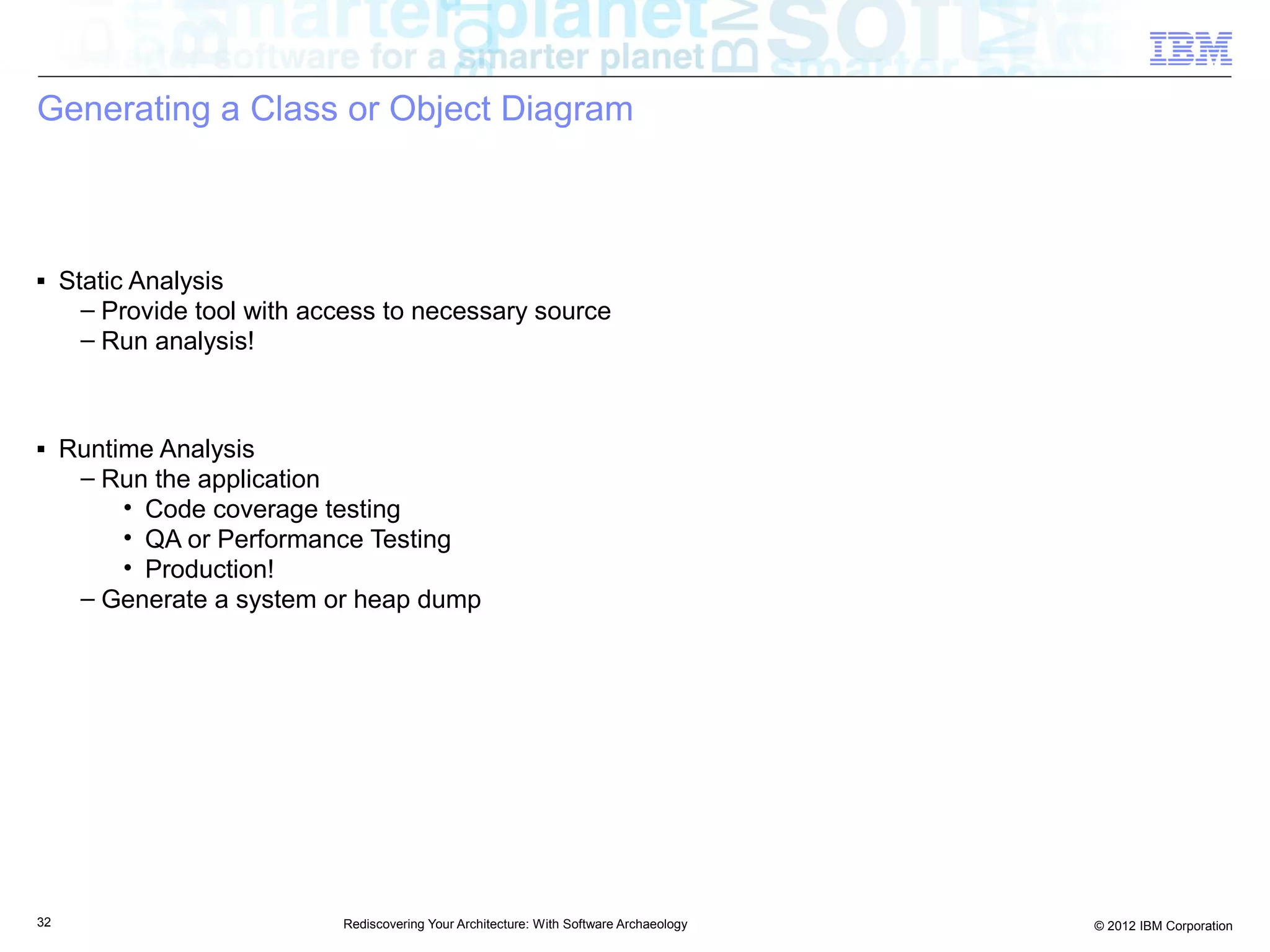

Generating a Class or Object Diagram

■ Static Analysis
– Provide tool with access to necessary source
– Run analysis!

■ Runtime Analysis
– Run the application
• Code coverage testing
• QA or Performance Testing
• Production!
– Generate a system or heap dump

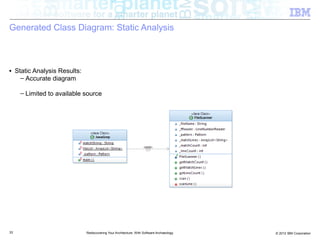

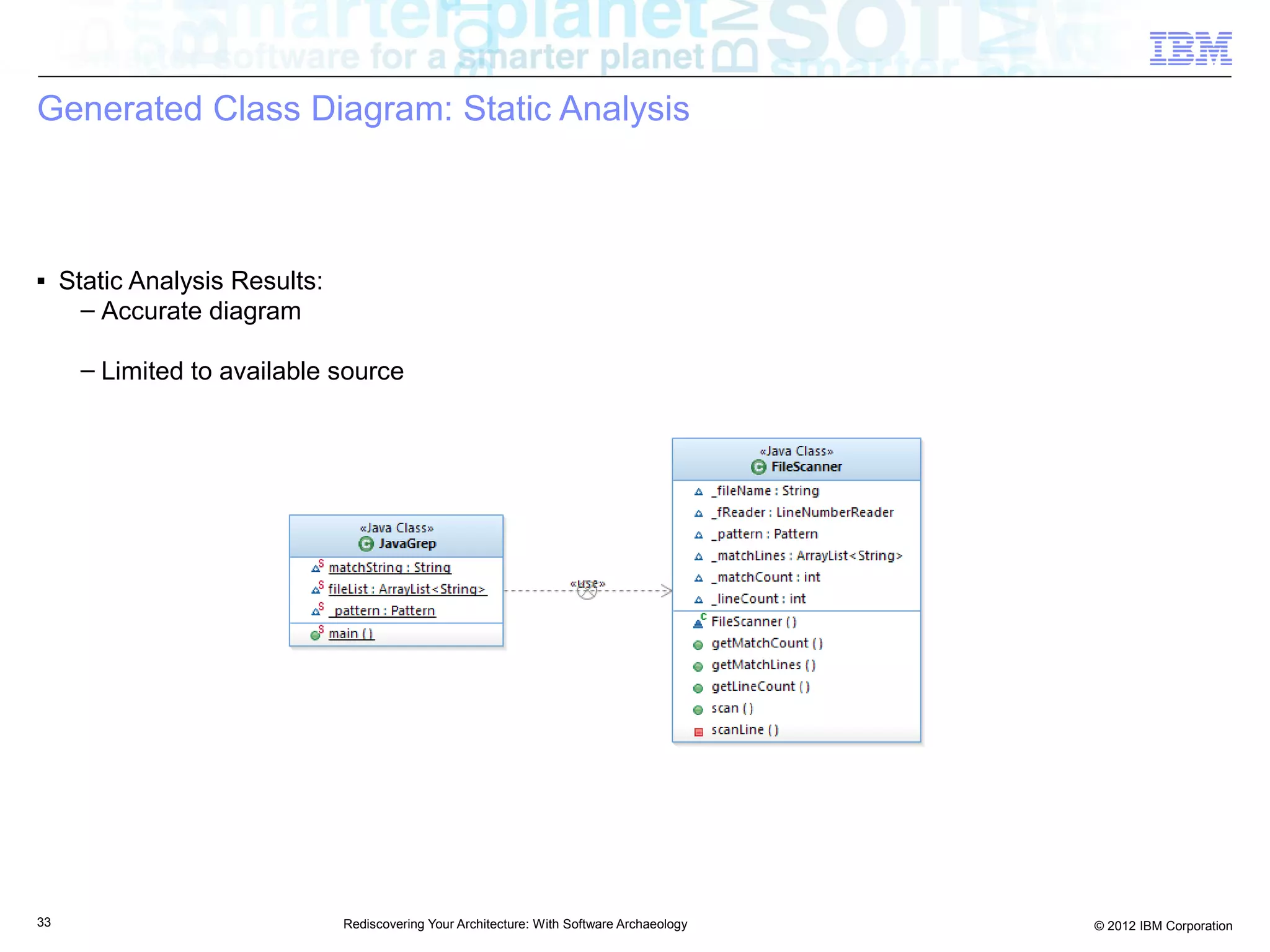

Generated Class Diagram: Static Analysis

■ Static Analysis Results:
– Accurate diagram

– Limited to available source

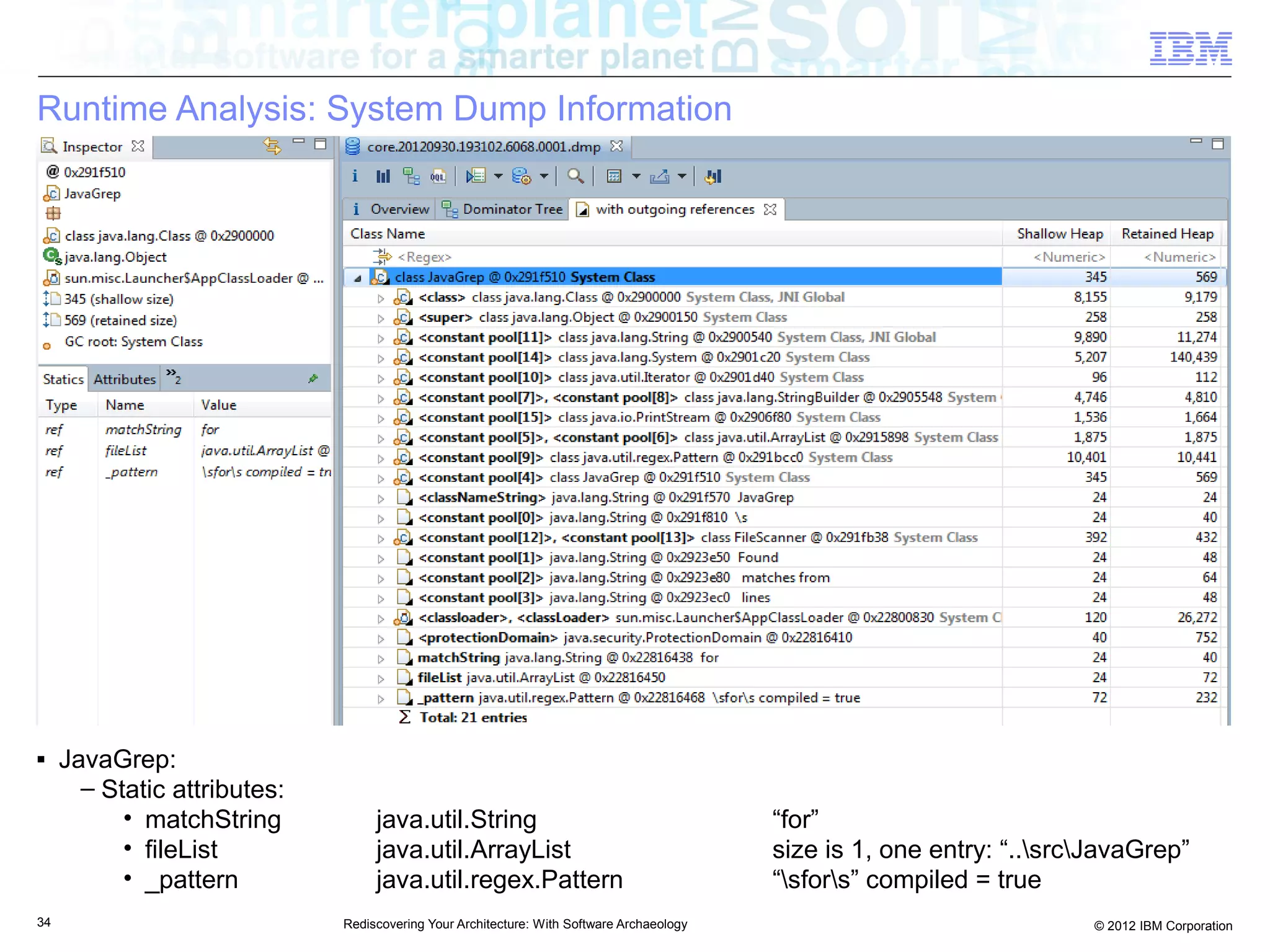

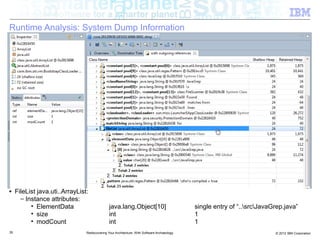

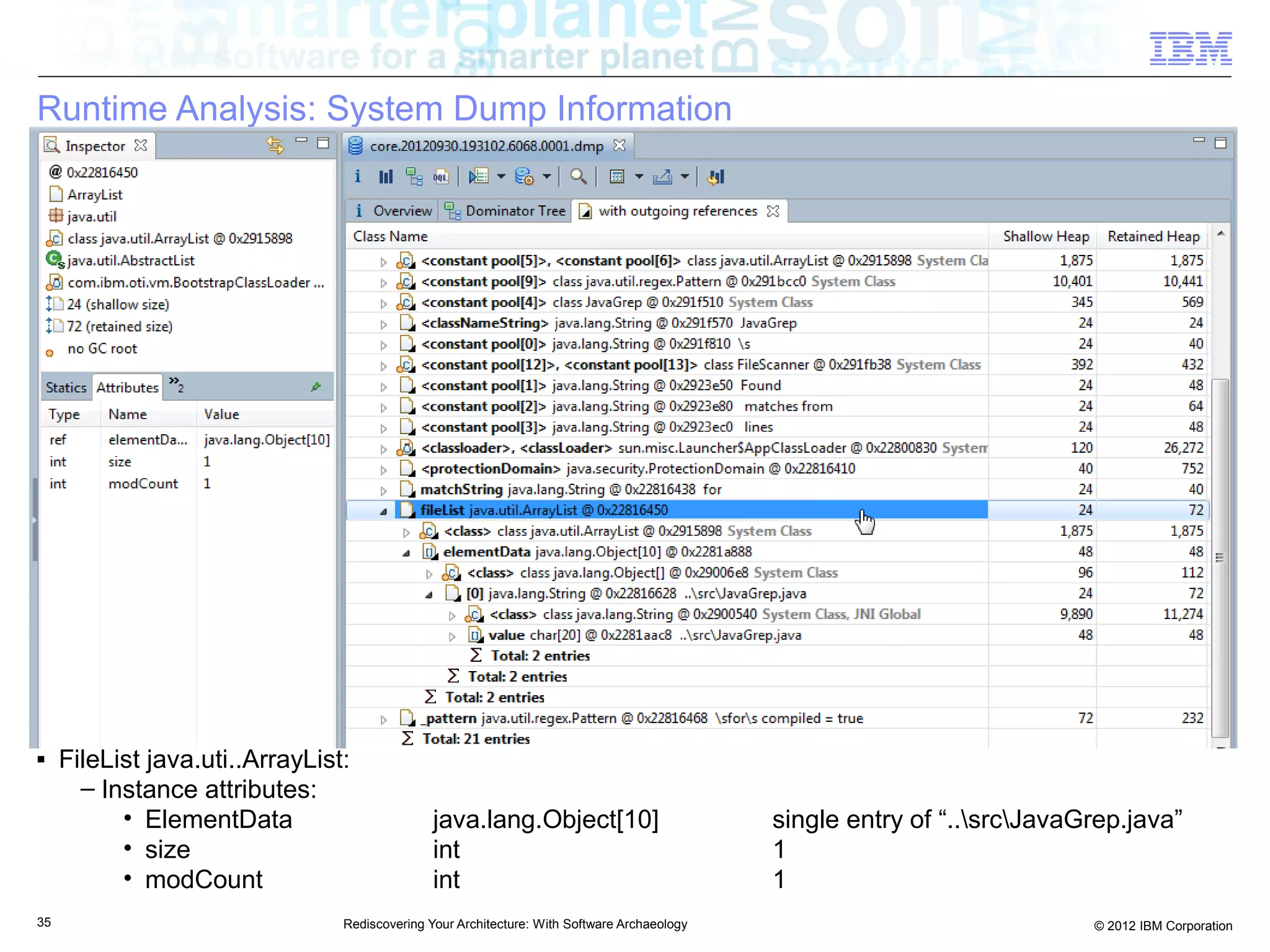

Runtime Analysis: System Dump Information

■ JavaGrep:
– Static attributes:
• matchString java.util.String “for”
• fileList java.util.ArrayList size is 1, one entry: “..srcJavaGrep”
• _pattern java.util.regex.Pattern “sfors” compiled = true


■ FileList java.uti..ArrayList:
– Instance attributes:
• ElementData java.lang.Object[10] single entry of “..srcJavaGrep.java”
• size int 1
• modCount int 1

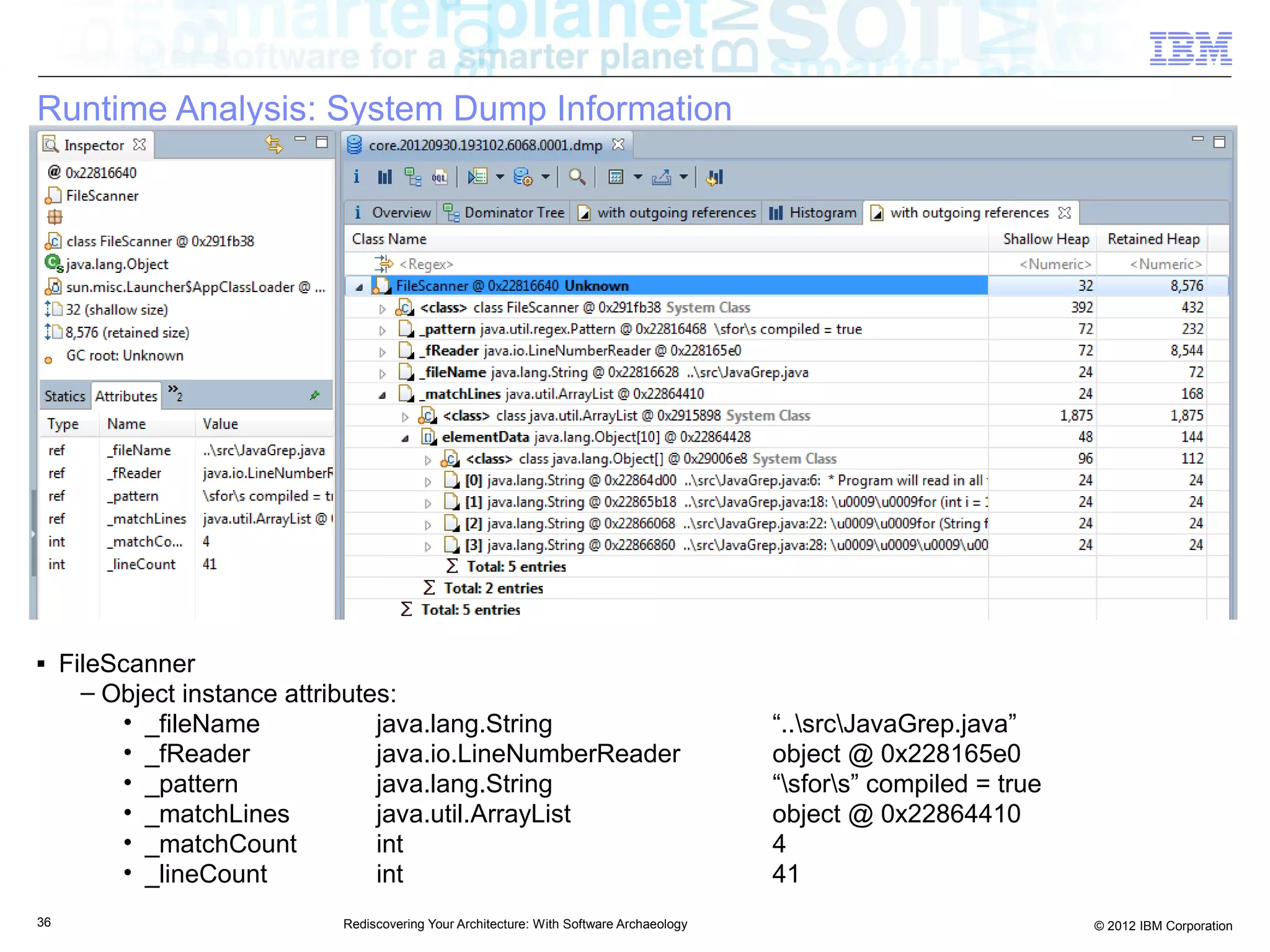

■ FileScanner
– Object instance attributes:
• _fileName java.lang.String “..srcJavaGrep.java”
• _fReader java.io.LineNumberReader object @ 0x228165e0
• _pattern java.lang.String “sfors” compiled = true
• _matchLines java.util.ArrayList object @ 0x22864410
• _matchCount int 4
• _lineCount int 41

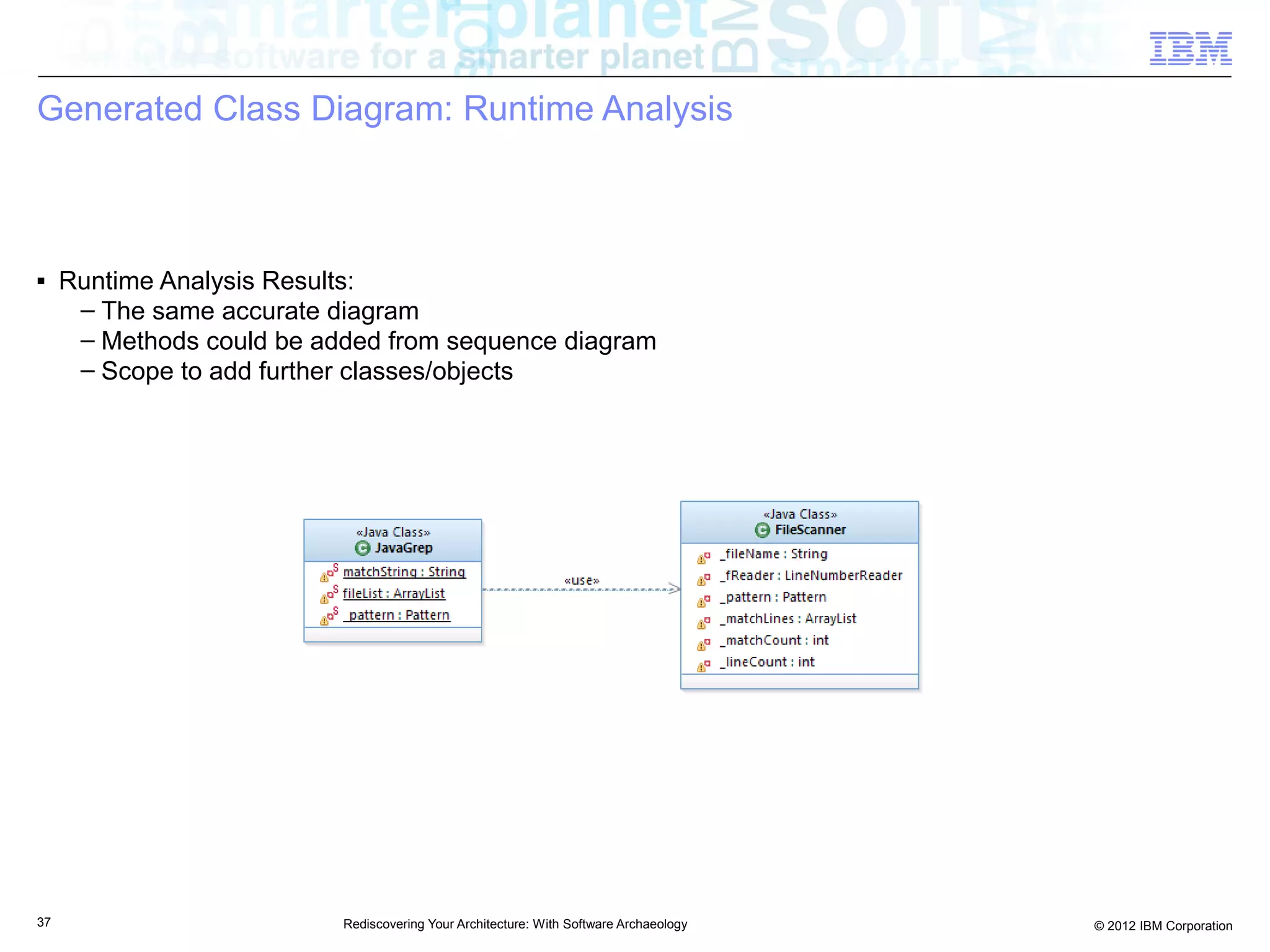

Generated Class Diagram: Runtime Analysis

■ Runtime Analysis Results:
– The same accurate diagram
– Methods could be added from sequence diagram
– Scope to add further classes/objects

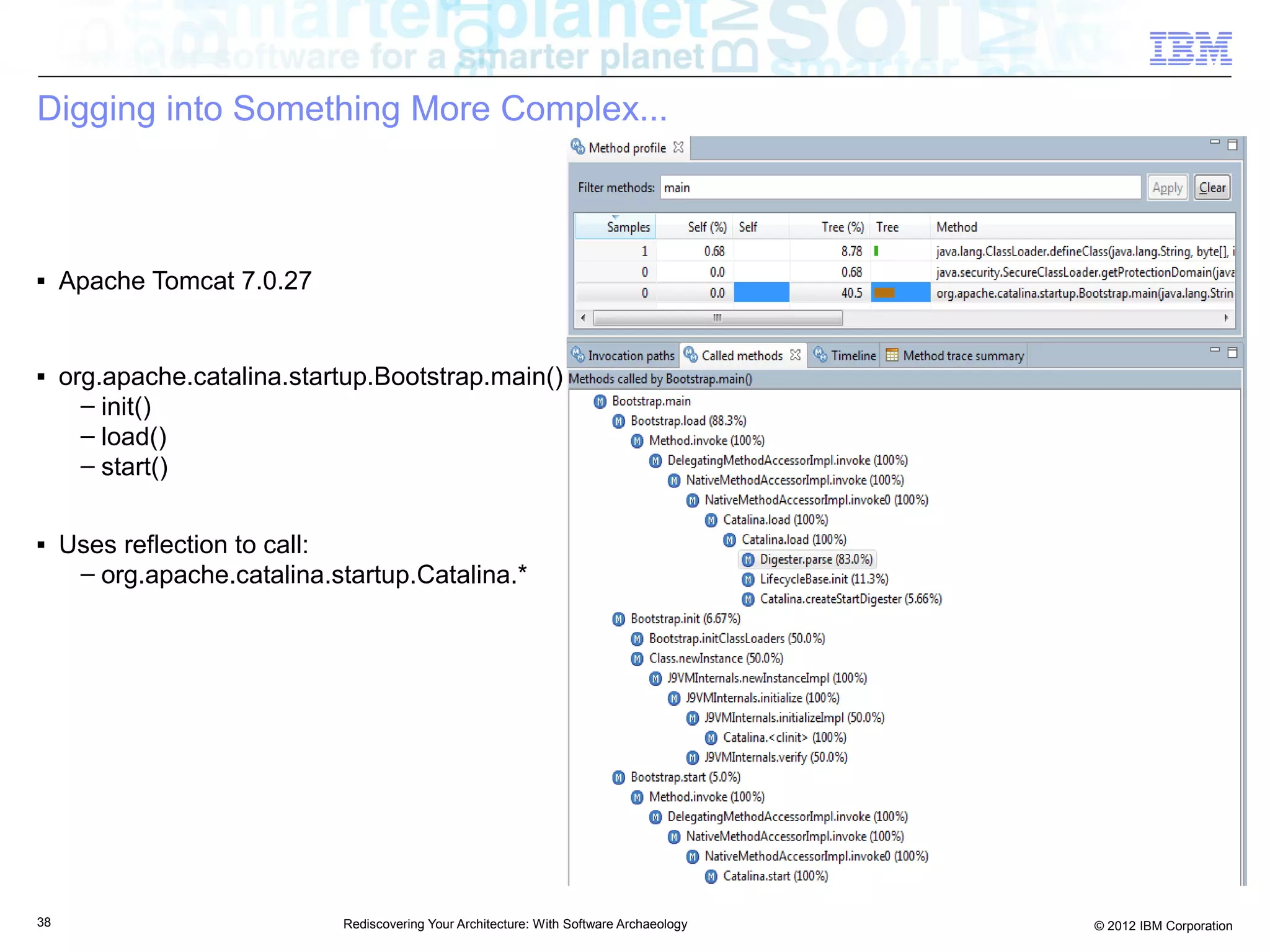

Digging into Something More Complex...

■ Apache Tomcat 7.0.27

■ org.apache.catalina.startup.Bootstrap.main()
– init()
– load()
– start()

■ Uses reflection to call:
– org.apache.catalina.startup.Catalina.*

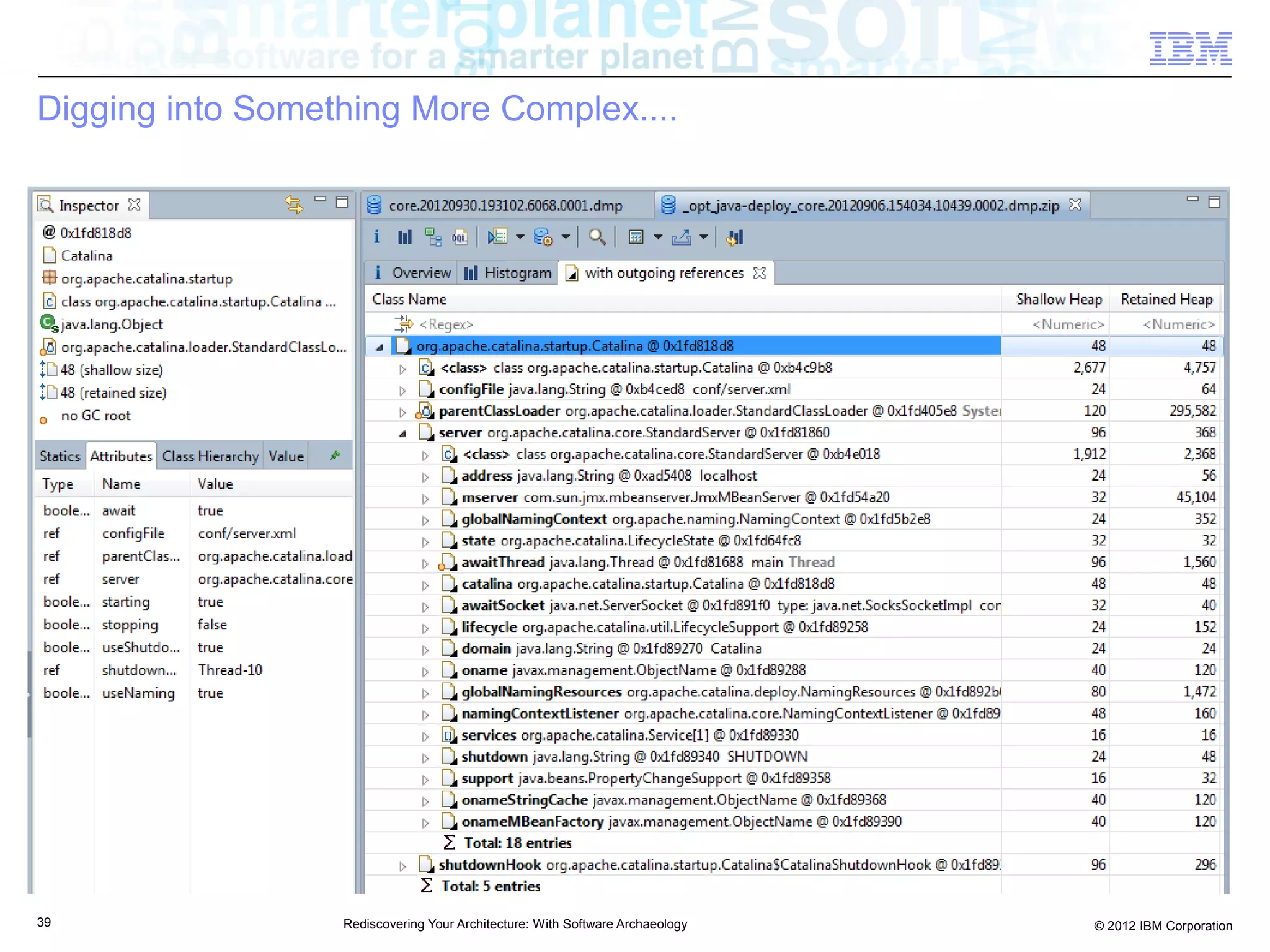

Digging into Something More Complex....

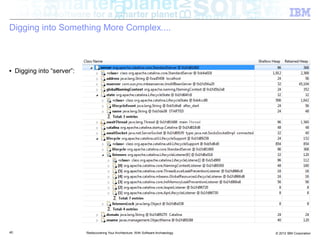

Digging into Something More Complex....

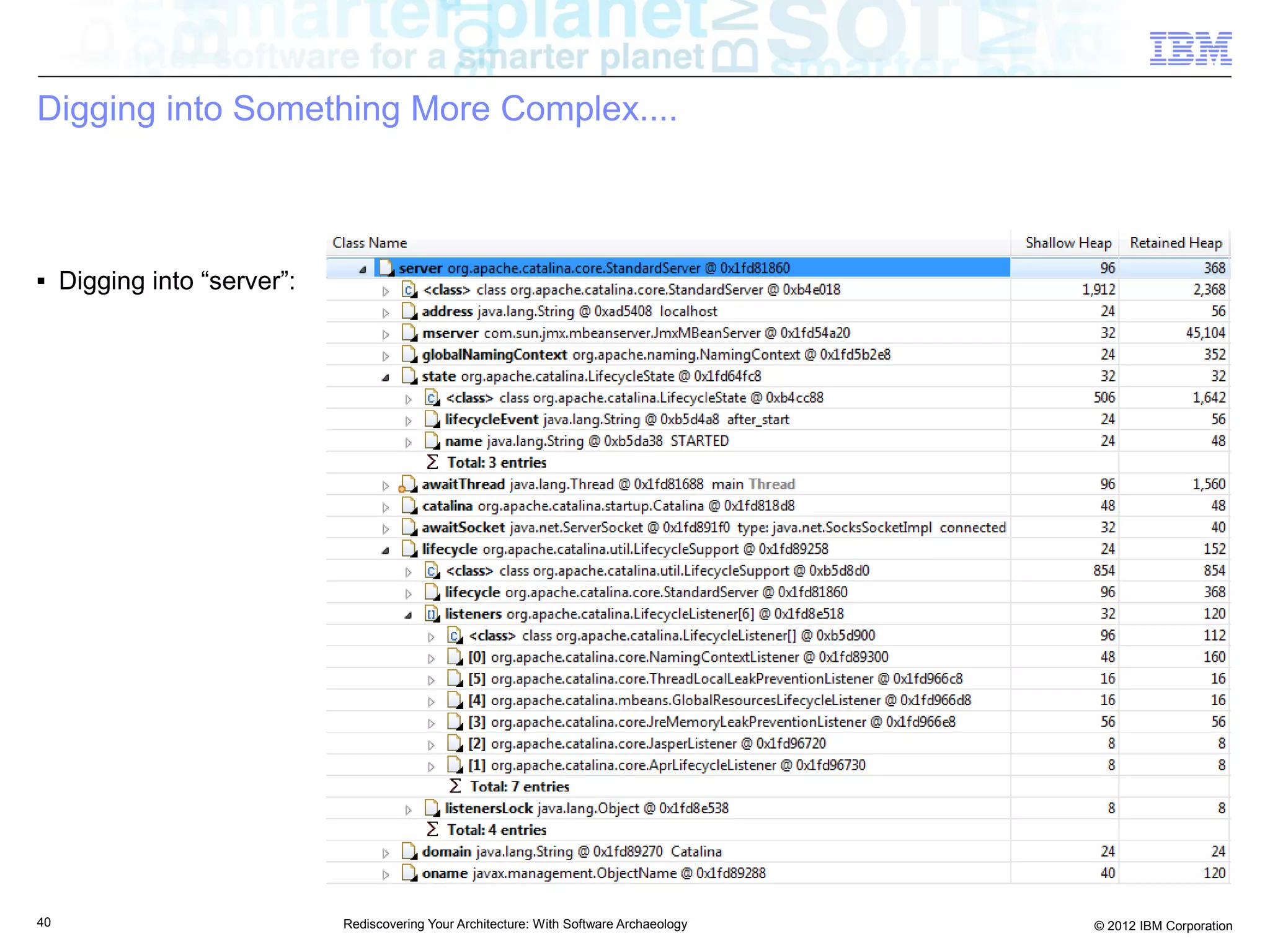

■ Digging into “server”:

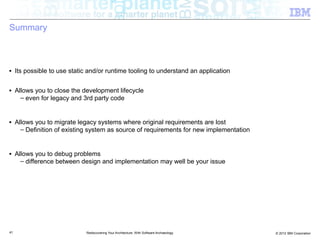

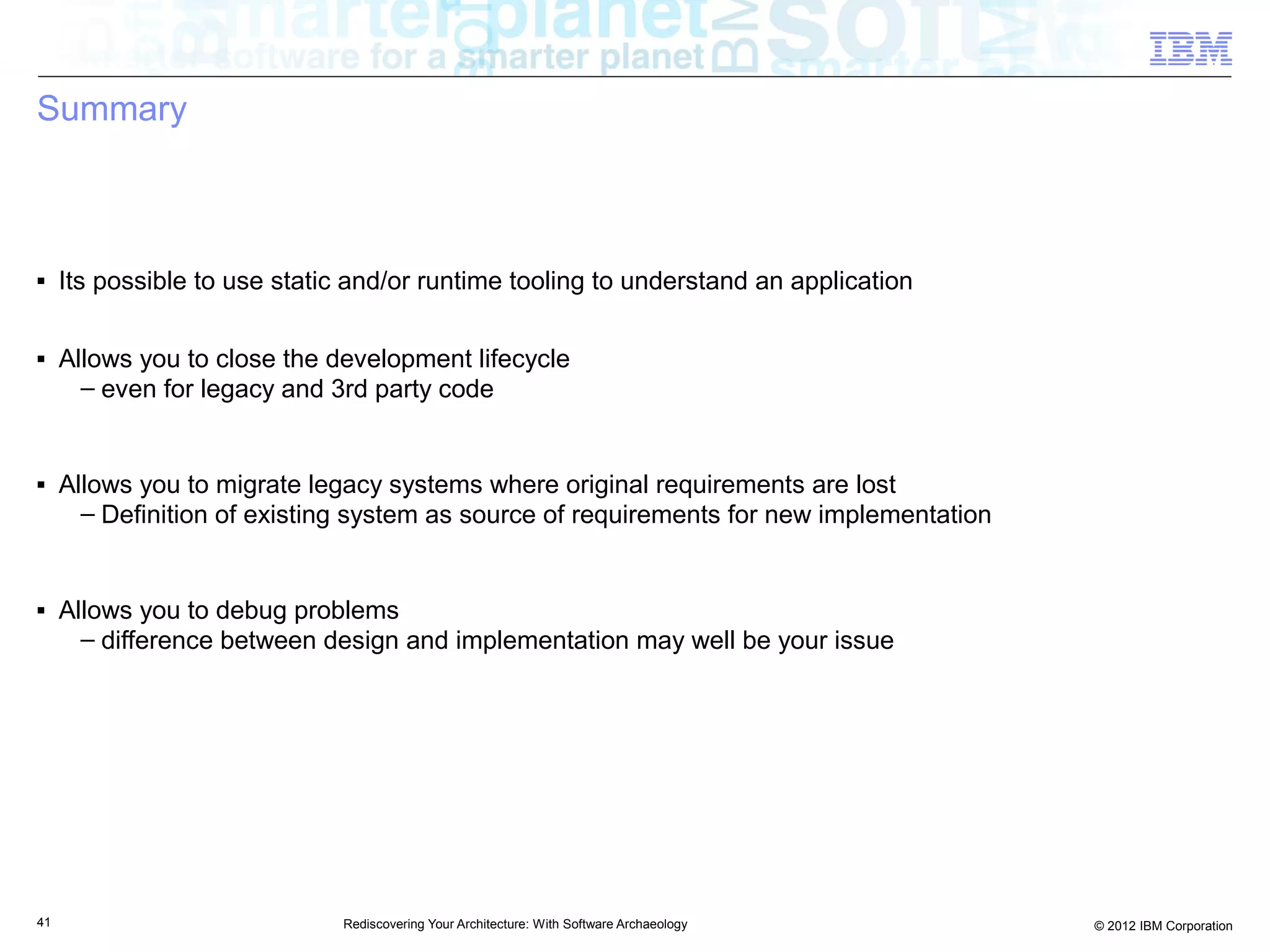

Summary

■ Its possible to use static and/or runtime tooling to understand an application

■ Allows you to close the development lifecycle
– even for legacy and 3rd party code

■ Allows you to migrate legacy systems where original requirements are lost
– Definition of existing system as source of requirements for new implementation

■ Allows you to debug problems
– difference between design and implementation may well be your issue

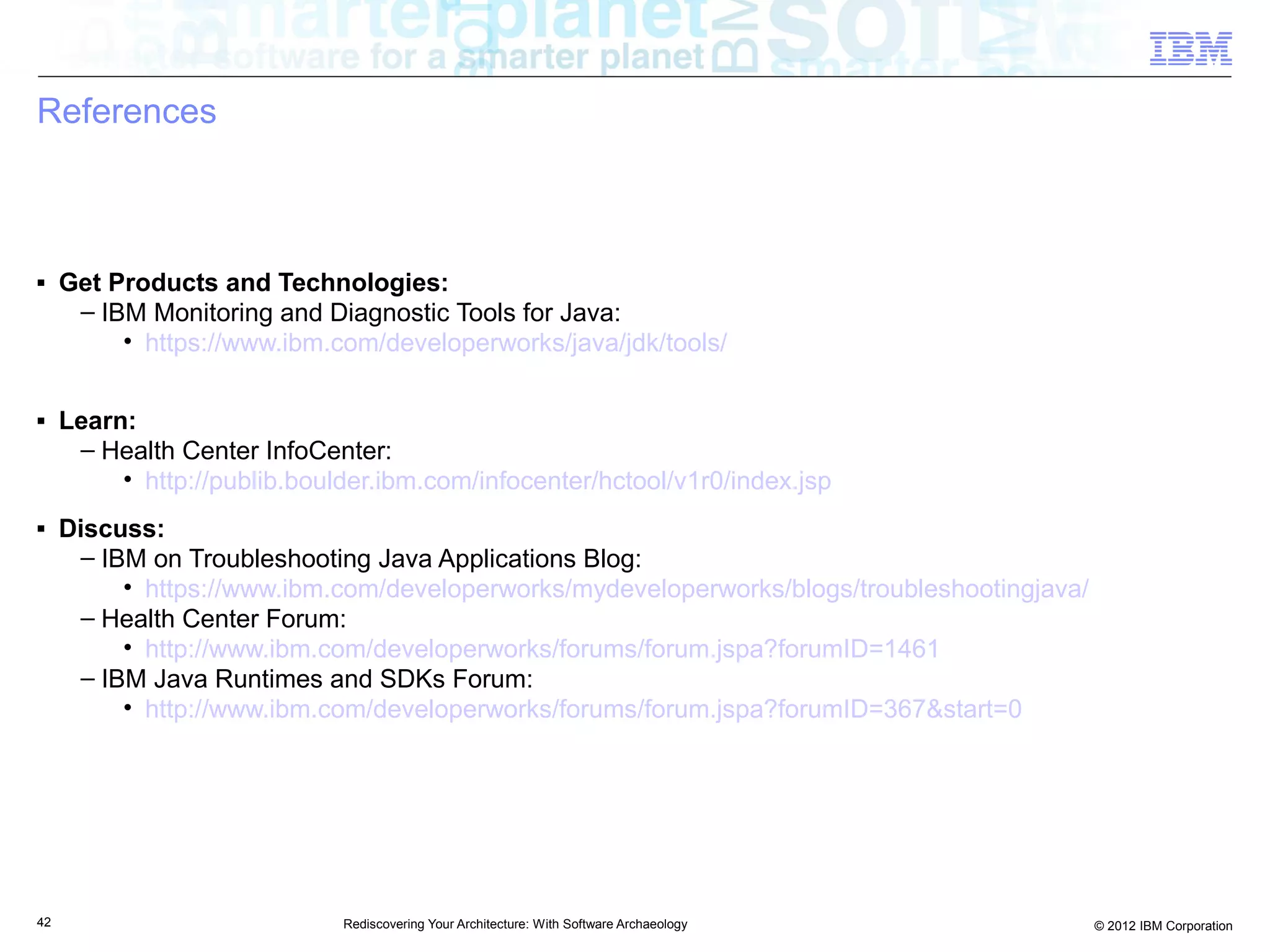

References

■ Get Products and Technologies:
– IBM Monitoring and Diagnostic Tools for Java:
• https://www.ibm.com/developerworks/java/jdk/tools/

■ Learn:
– Health Center InfoCenter:
• http://publib.boulder.ibm.com/infocenter/hctool/v1r0/index.jsp
■ Discuss:
– IBM on Troubleshooting Java Applications Blog:
• https://www.ibm.com/developerworks/mydeveloperworks/blogs/troubleshootingjava/
– Health Center Forum:
• http://www.ibm.com/developerworks/forums/forum.jspa?forumID=1461
– IBM Java Runtimes and SDKs Forum:
• http://www.ibm.com/developerworks/forums/forum.jspa?forumID=367&start=0

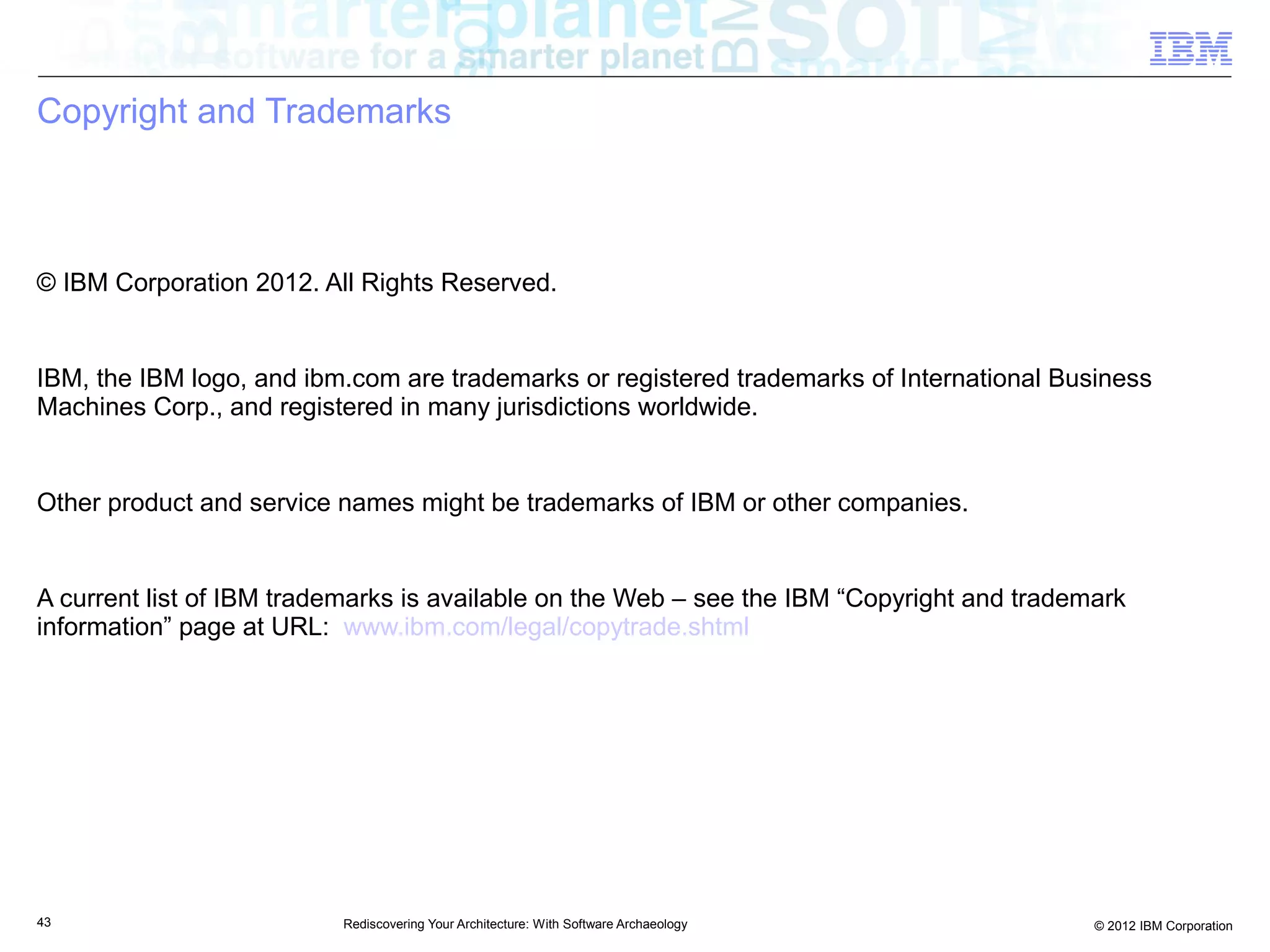

Copyright and Trademarks

© IBM Corporation 2012. All Rights Reserved.

IBM, the IBM logo, and ibm.com are trademarks or registered trademarks of International Business
Machines Corp., and registered in many jurisdictions worldwide.

Other product and service names might be trademarks of IBM or other companies.

A current list of IBM trademarks is available on the Web – see the IBM “Copyright and trademark
information” page at URL: www.ibm.com/legal/copytrade.shtml


Software Archaeology

More Related Content

What's hot

Viewers also liked

Similar to Software Archaeology

More from Chris Bailey

Software Archaeology
