2. IBM Software Group | Rational software

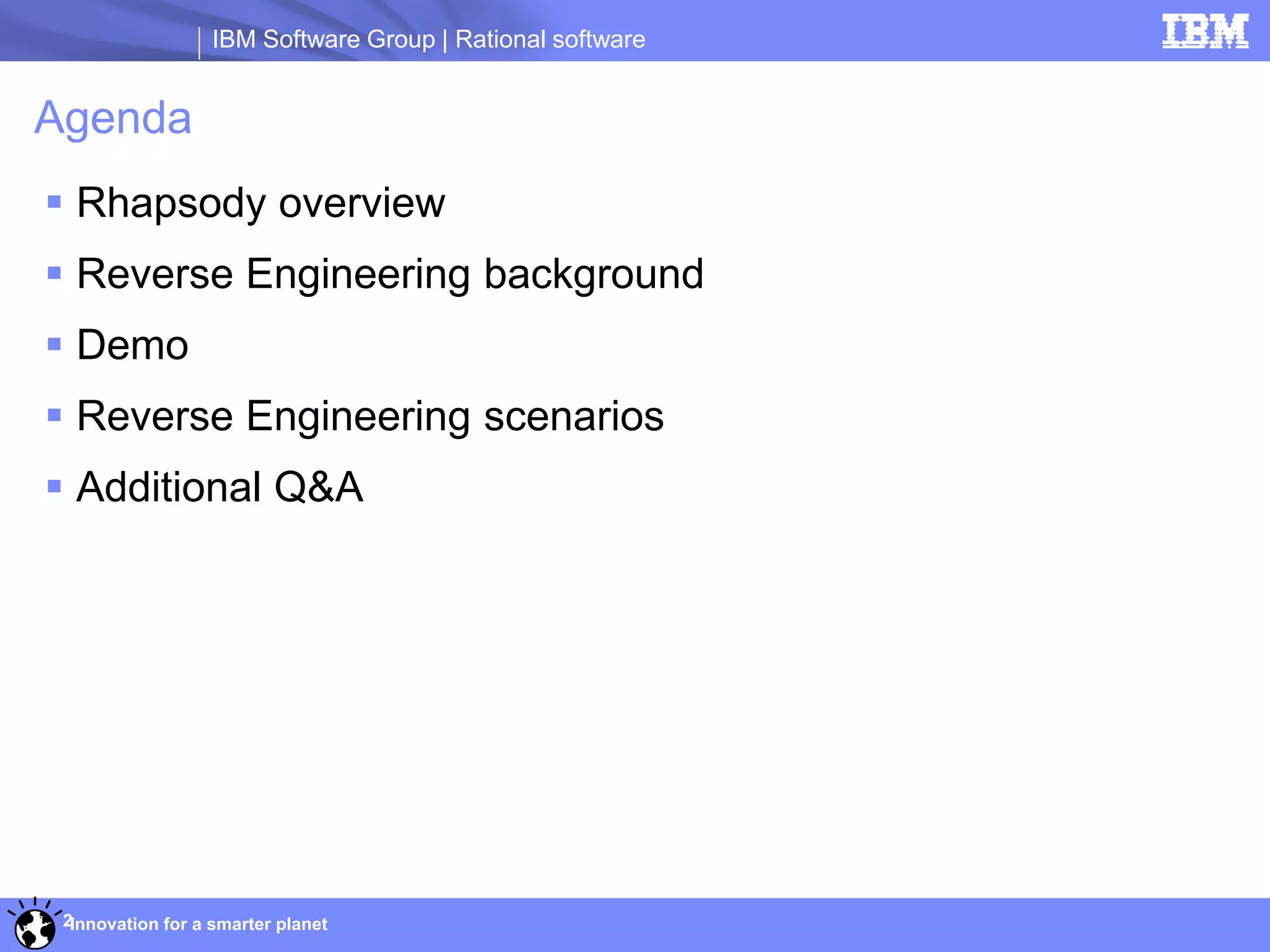

Agenda
Rhapsody overview
Reverse Engineering background
Demo
Reverse Engineering scenarios
Additional Q&A
2Innovation for a smarter planet
3. IBM Software Group | Rational software

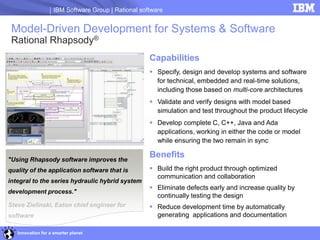

Model-Driven Development for Systems & Software
Rational Rhapsody®
Capabilities
Specify, design and develop systems and software
for technical, embedded and real-time solutions,
including those based on multi-core architectures
Validate and verify designs with model based
simulation and test throughout the product lifecycle
Develop complete C, C++, Java and Ada
applications, working in either the code or model
while ensuring the two remain in sync
"Using Rhapsody software improves the
Benefits
quality of the application software that is Build the right product through optimized
communication and collaboration
integral to the series hydraulic hybrid system
Eliminate defects early and increase quality by
development process."
continually testing the design
Steve Zielinski, Eaton chief engineer for Reduce development time by automatically
software generating applications and documentation
Innovation for a smarter planet
4. IBM Software Group | Rational software

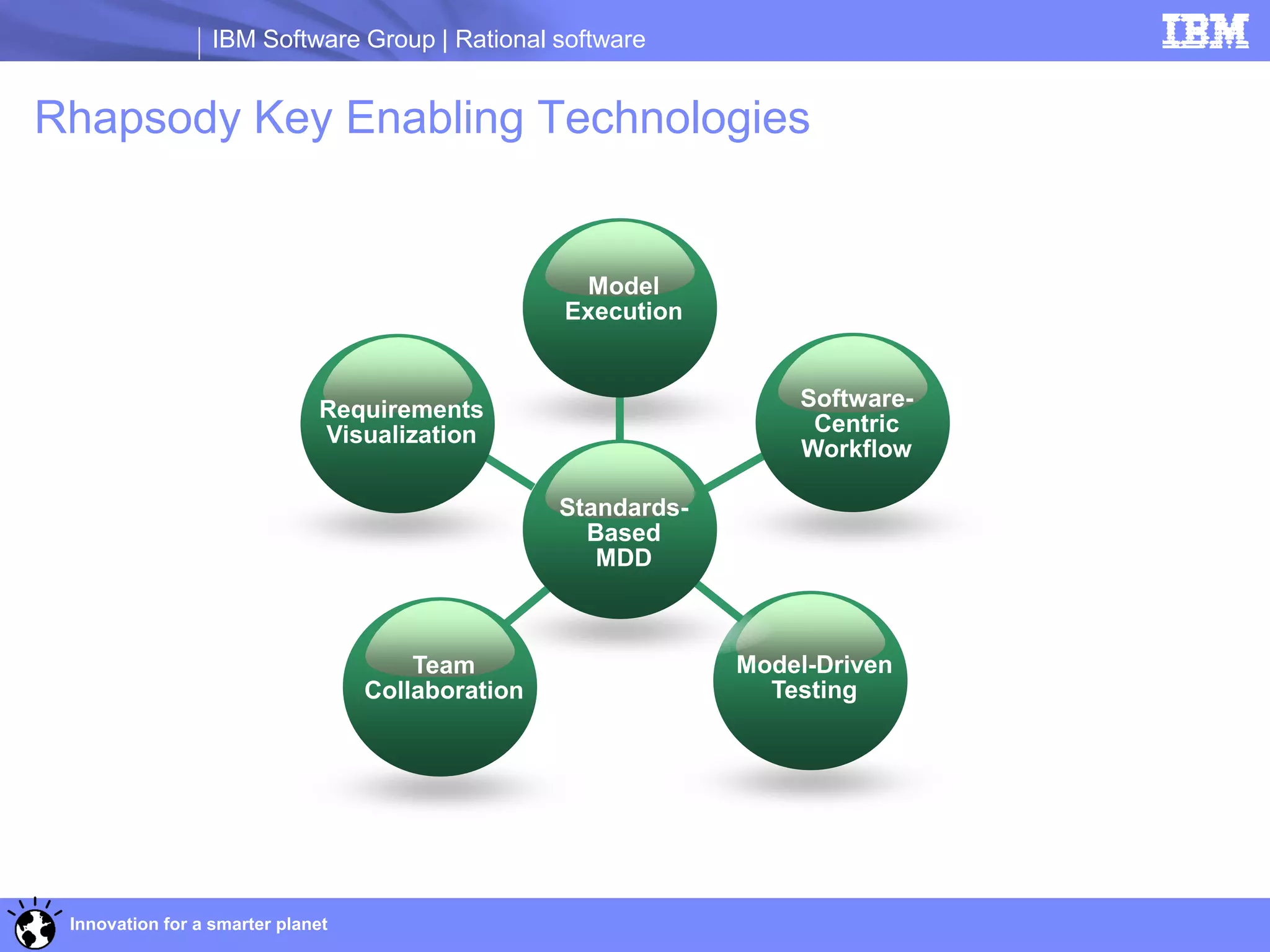

Rhapsody Key Enabling Technologies
Model
Execution
Requirements Software-
Visualization Centric
Workflow
Standards-
Based
MDD
Team Model-Driven
Collaboration Testing
Innovation for a smarter planet
5. IBM Software Group | Rational software
Requirements
Visualize Requirements in Context Visualization

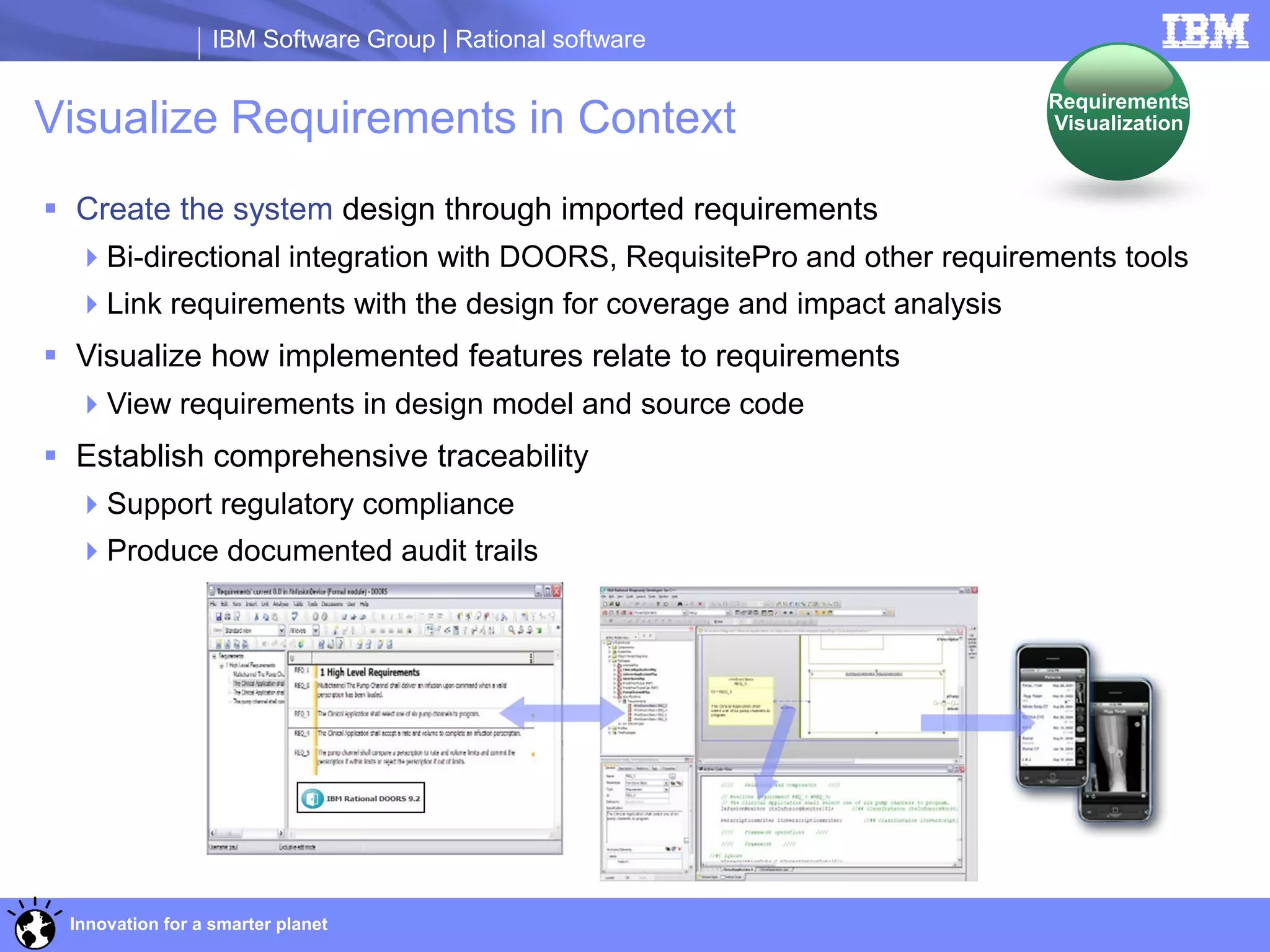

Create the system design through imported requirements
Bi-directional integration with DOORS, RequisitePro and other requirements tools
Link requirements with the design for coverage and impact analysis
Visualize how implemented features relate to requirements
View requirements in design model and source code
Establish comprehensive traceability
Support regulatory compliance
Produce documented audit trails
Innovation for a smarter planet
6. IBM Software Group | Rational software
Model
Simulation & Animation Execution

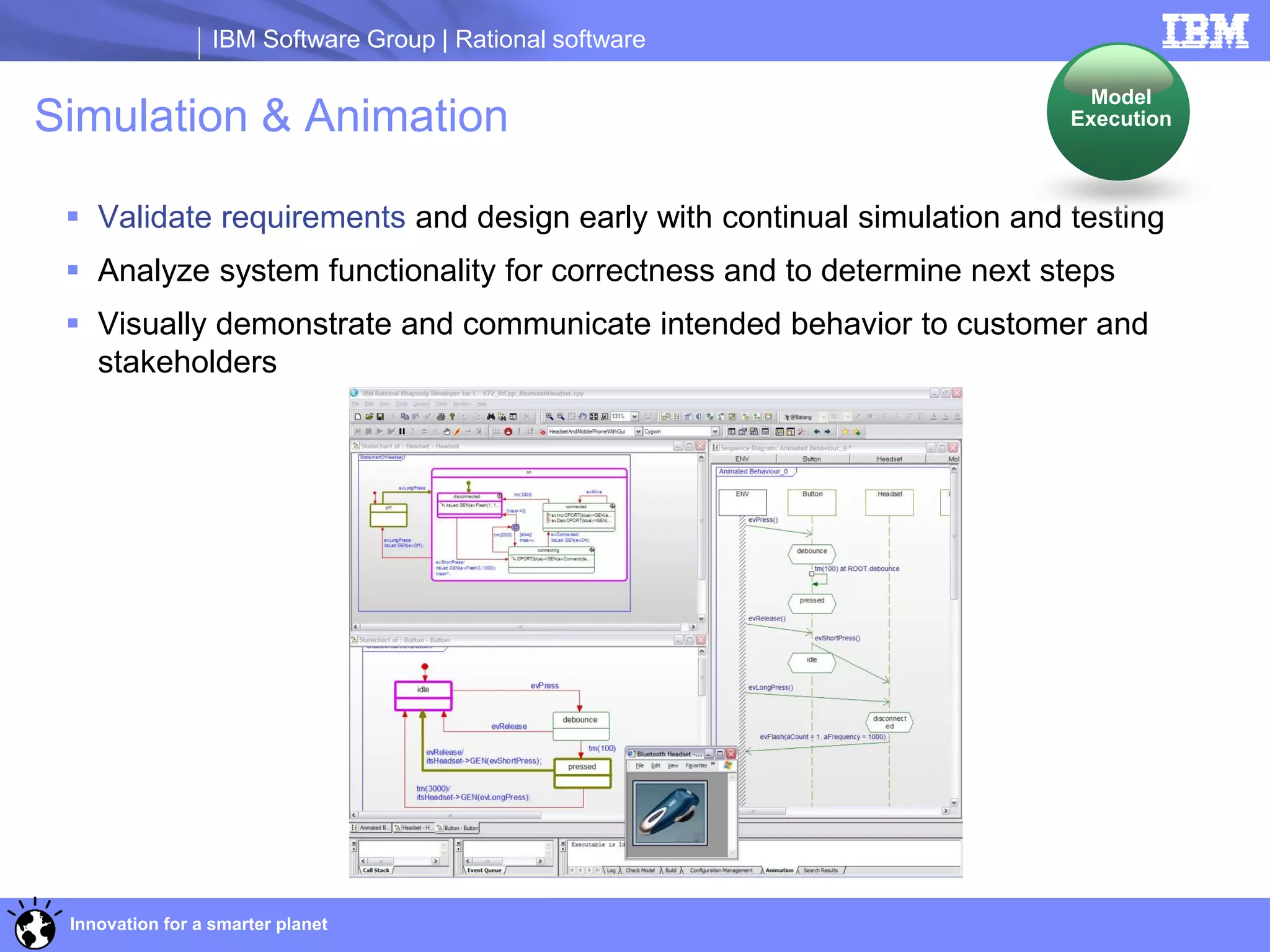

Validate requirements and design early with continual simulation and testing
Analyze system functionality for correctness and to determine next steps
Visually demonstrate and communicate intended behavior to customer and
stakeholders
Innovation for a smarter planet
7. IBM Software Group | Rational software

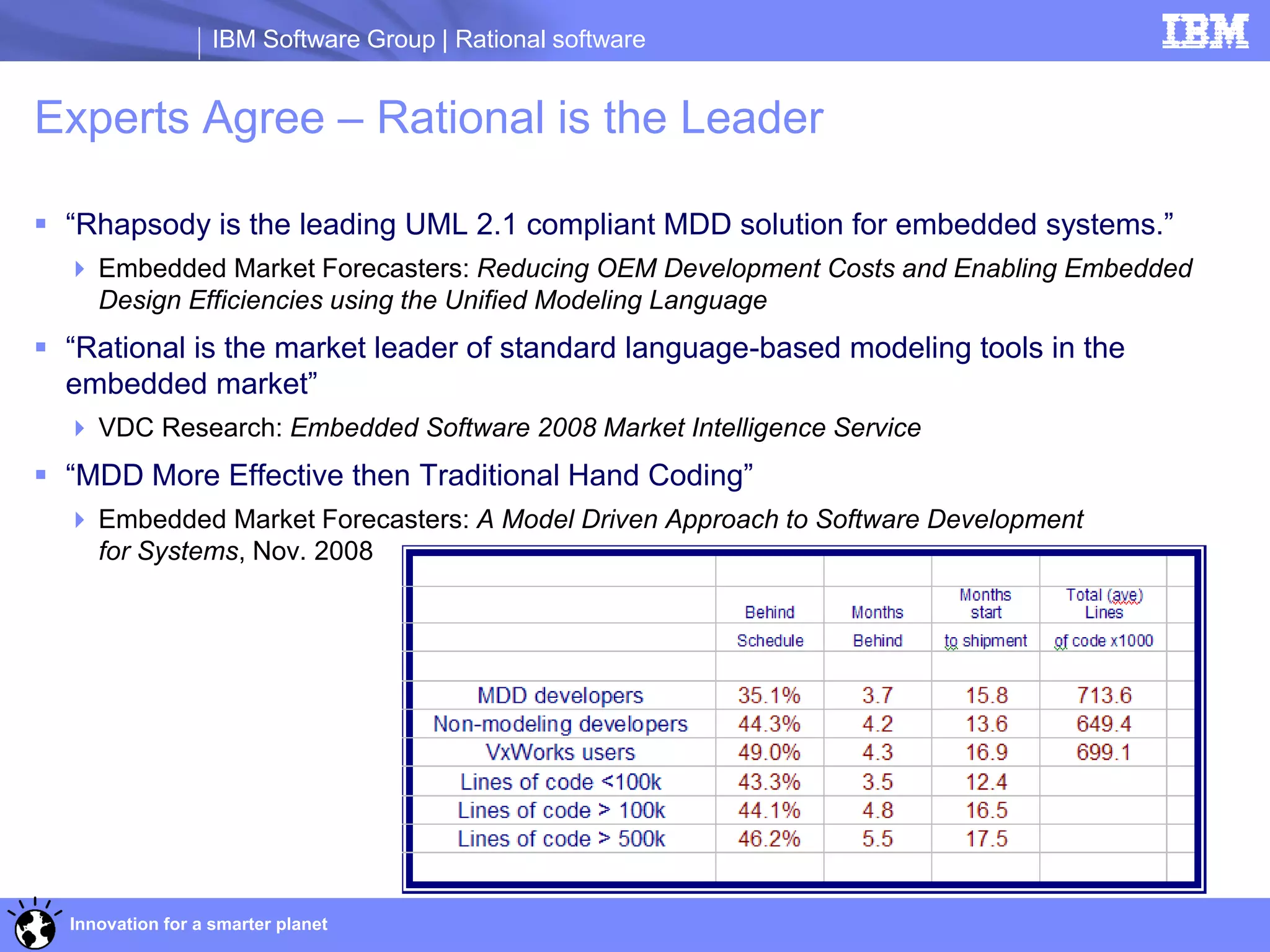

Experts Agree – Rational is the Leader
“Rhapsody is the leading UML 2.1 compliant MDD solution for embedded systems.”
Embedded Market Forecasters: Reducing OEM Development Costs and Enabling Embedded
Design Efficiencies using the Unified Modeling Language
“Rational is the market leader of standard language-based modeling tools in the
embedded market”
VDC Research: Embedded Software 2008 Market Intelligence Service
“MDD More Effective then Traditional Hand Coding”
Embedded Market Forecasters: A Model Driven Approach to Software Development
for Systems, Nov. 2008
Innovation for a smarter planet
8. IBM Software Group | Rational software

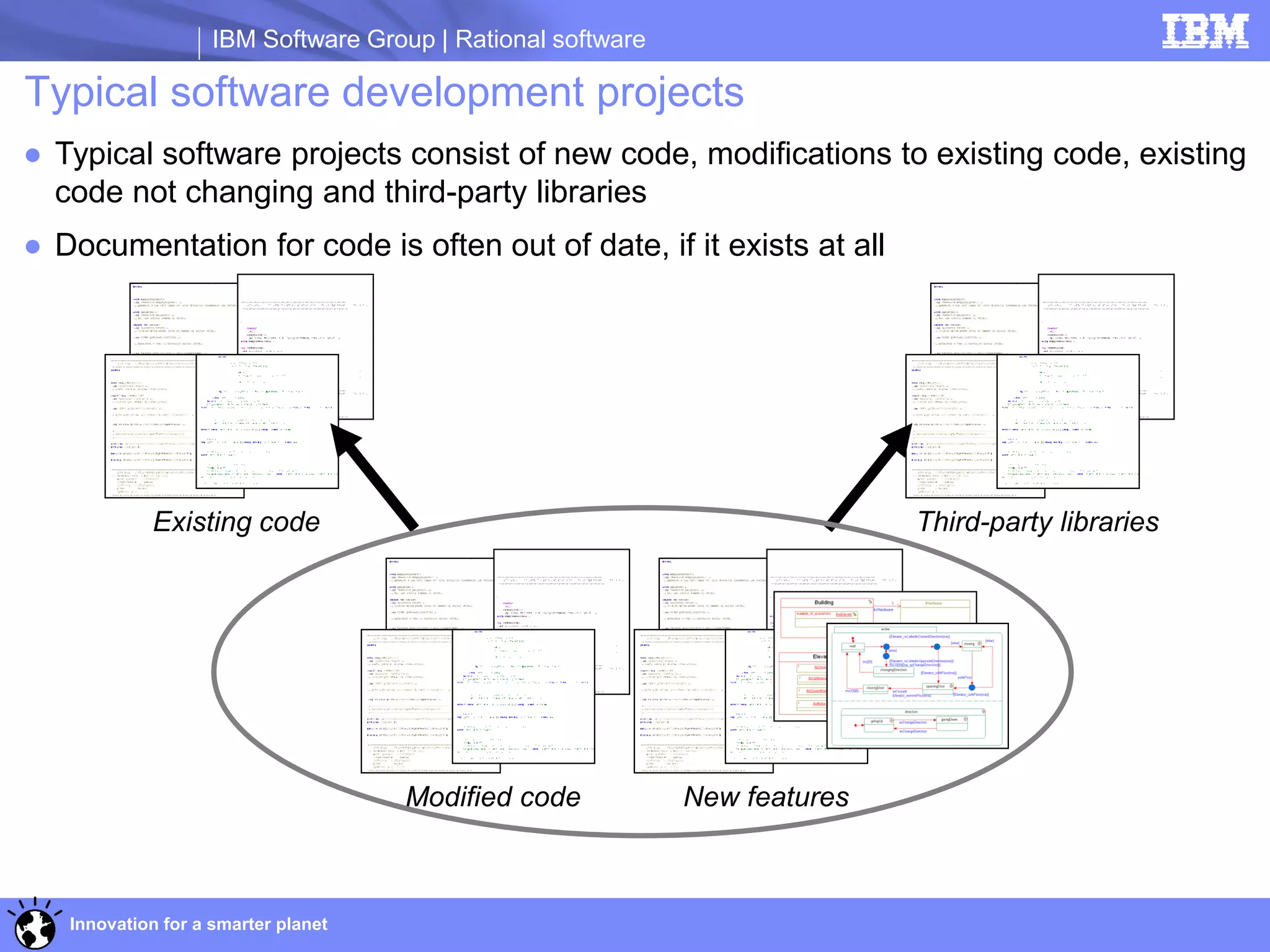

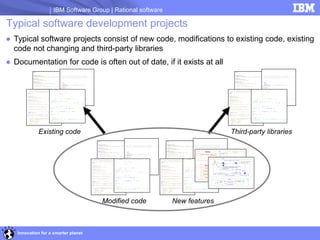

Typical software development projects
● Typical software projects consist of new code, modifications to existing code, existing
code not changing and third-party libraries
● Documentation for code is often out of date, if it exists at all
Existing code Third-party libraries
Modified code New features
Innovation for a smarter planet
9. IBM Software Group | Rational software

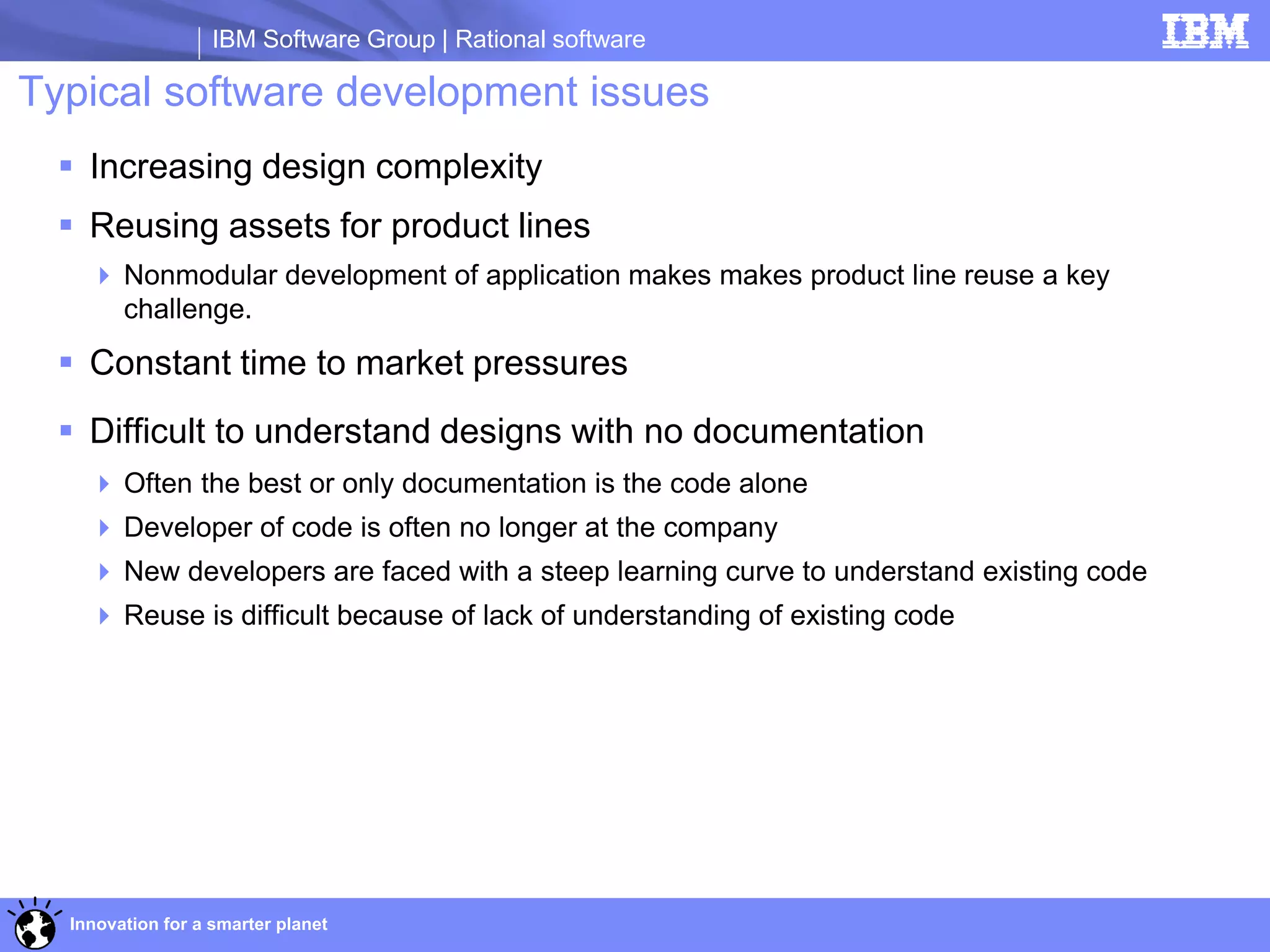

Typical software development issues
Increasing design complexity
Reusing assets for product lines
Nonmodular development of application makes makes product line reuse a key
challenge.
Constant time to market pressures
Difficult to understand designs with no documentation
Often the best or only documentation is the code alone
Developer of code is often no longer at the company
New developers are faced with a steep learning curve to understand existing code
Reuse is difficult because of lack of understanding of existing code
Innovation for a smarter planet
10. IBM Software Group | Rational software

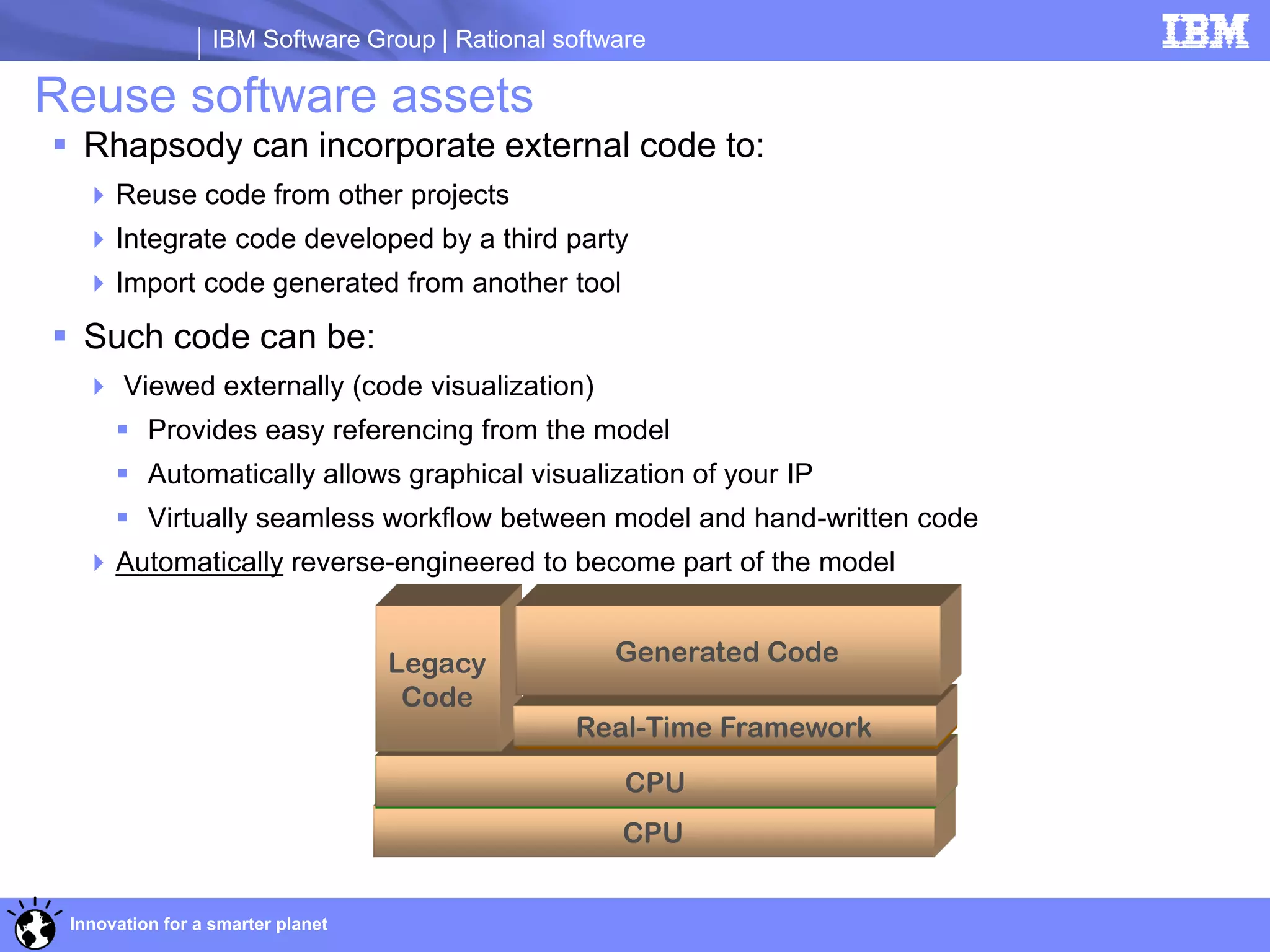

Reuse software assets
Rhapsody can incorporate external code to:
Reuse code from other projects
Integrate code developed by a third party
Import code generated from another tool
Such code can be:
Viewed externally (code visualization)
Provides easy referencing from the model
Automatically allows graphical visualization of your IP
Virtually seamless workflow between model and hand-written code
Automatically reverse-engineered to become part of the model
Legacy Generated Code
Code
LightweightFramework
Real-Time Framework
Target : VxWorks RTOS / LinuxLinux / …
Small Target:::IDF/Synchronous/No /OS
Target Windows Nucleus …
Host ThreadX
/CPU
INTEGRITY /
CPU
Innovation for a smarter planet
11. IBM Software Group | Rational software

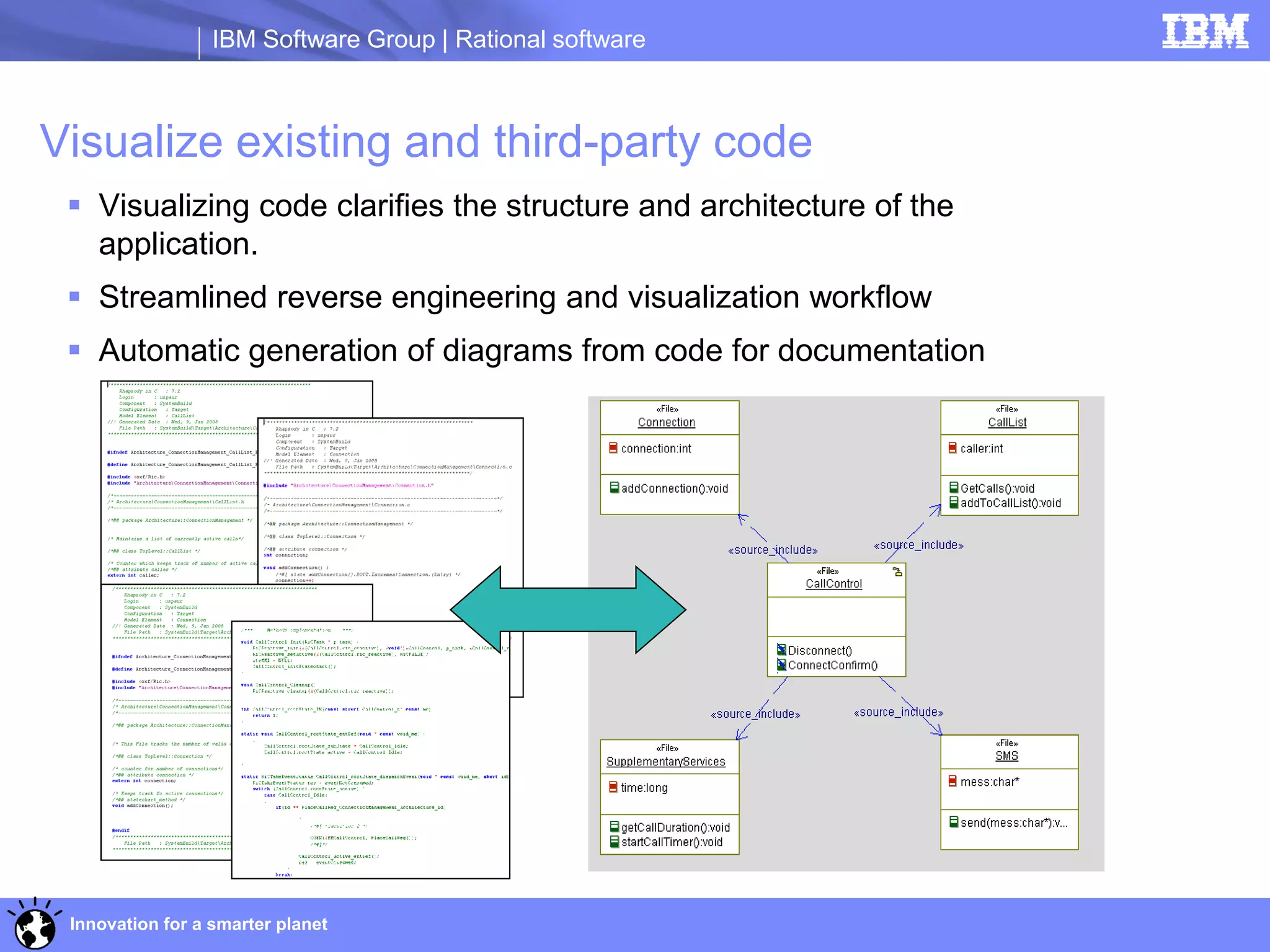

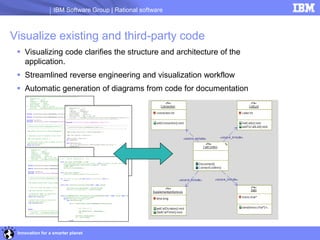

Visualize existing and third-party code
Visualizing code clarifies the structure and architecture of the
application.
Streamlined reverse engineering and visualization workflow
Automatic generation of diagrams from code for documentation
Innovation for a smarter planet

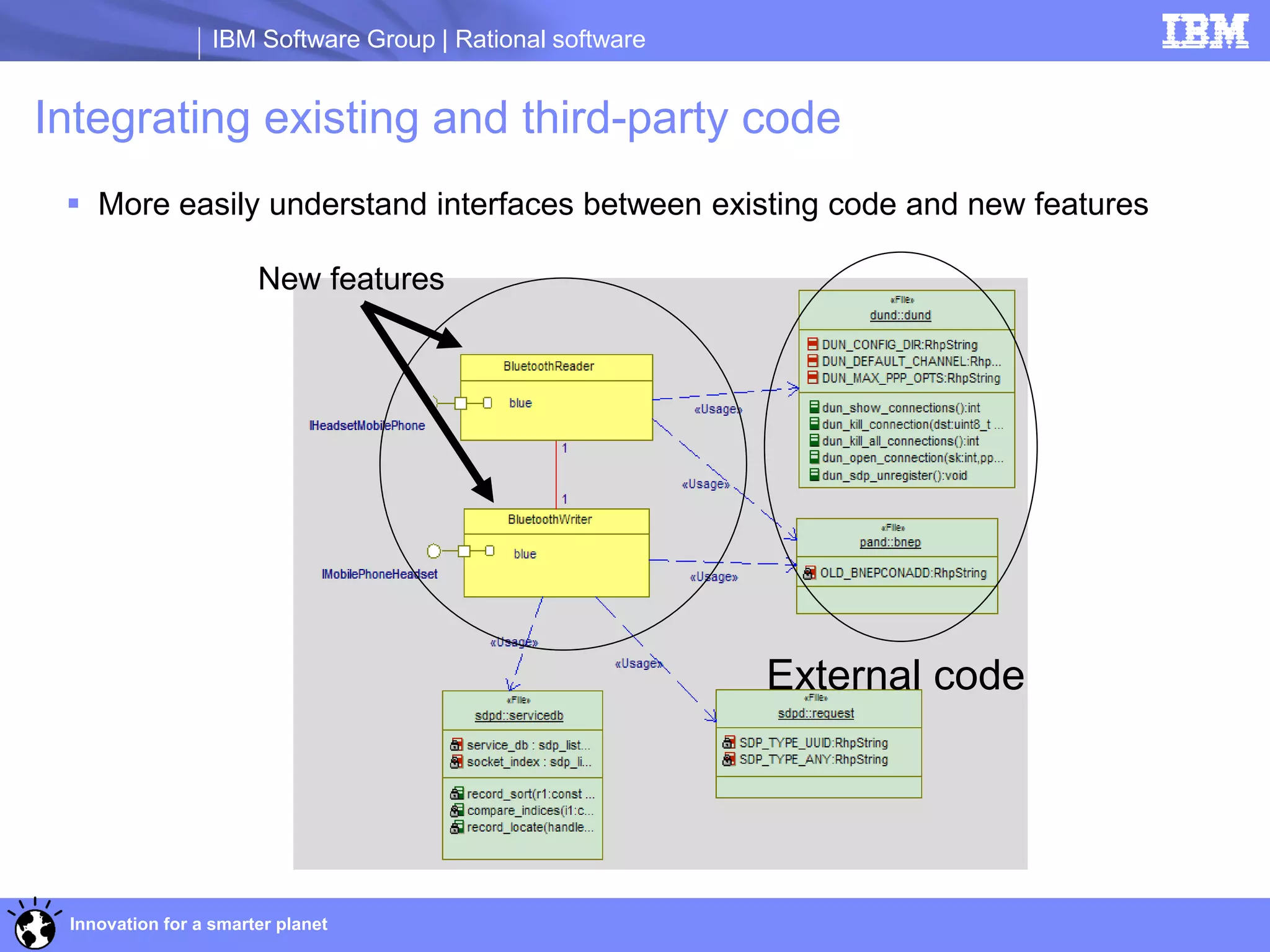

12. IBM Software Group | Rational software
Integrating existing and third-party code
More easily understand interfaces between existing code and new features
New features
External code
Innovation for a smarter planet
13. IBM Software Group | Rational software

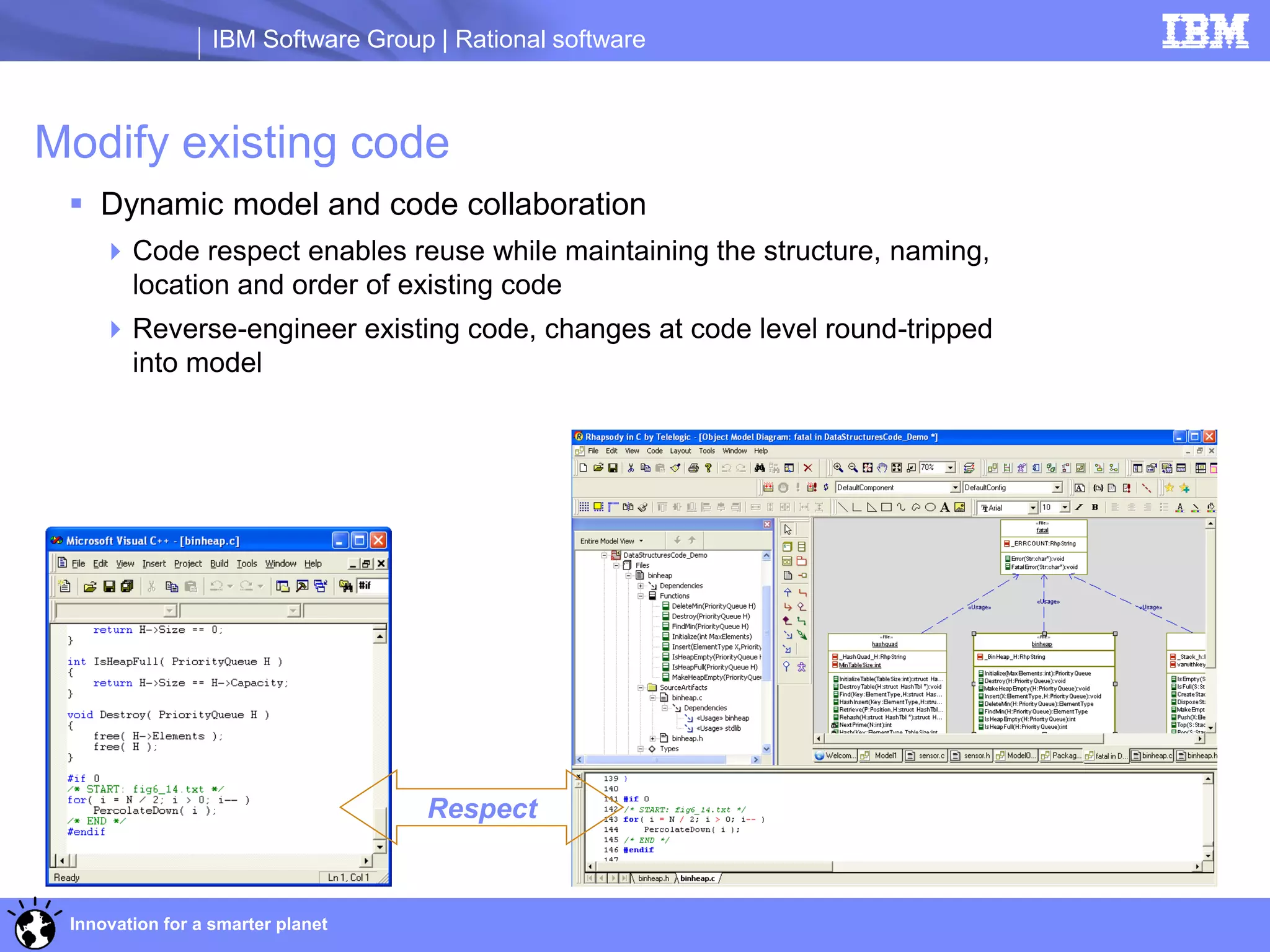

Modify existing code
Dynamic model and code collaboration
Code respect enables reuse while maintaining the structure, naming,
location and order of existing code
Reverse-engineer existing code, changes at code level round-tripped
into model
Respect
Innovation for a smarter planet
14. IBM Software Group | Rational software

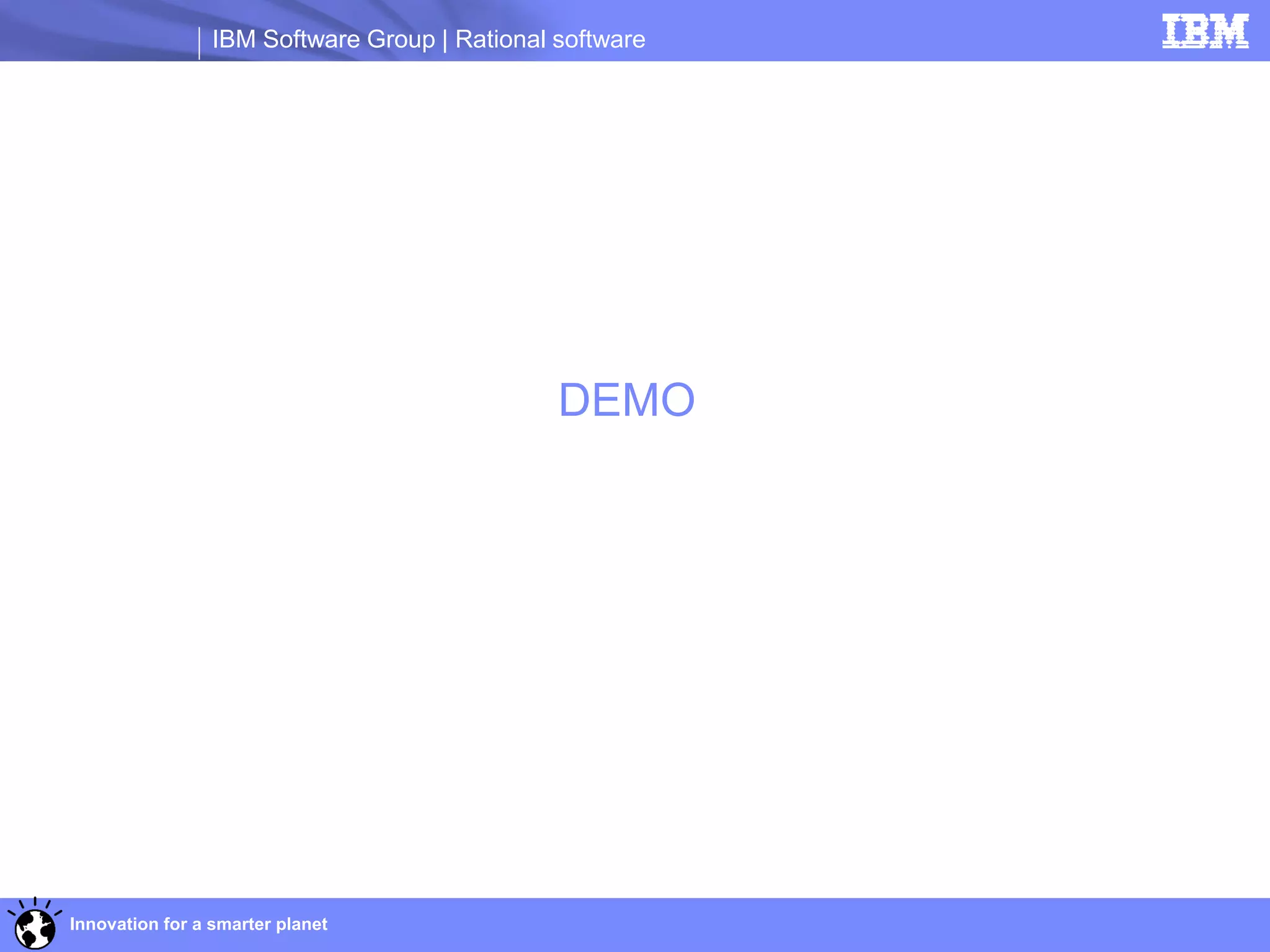

DEMO
Innovation for a smarter planet
15. IBM Software Group | Rational software

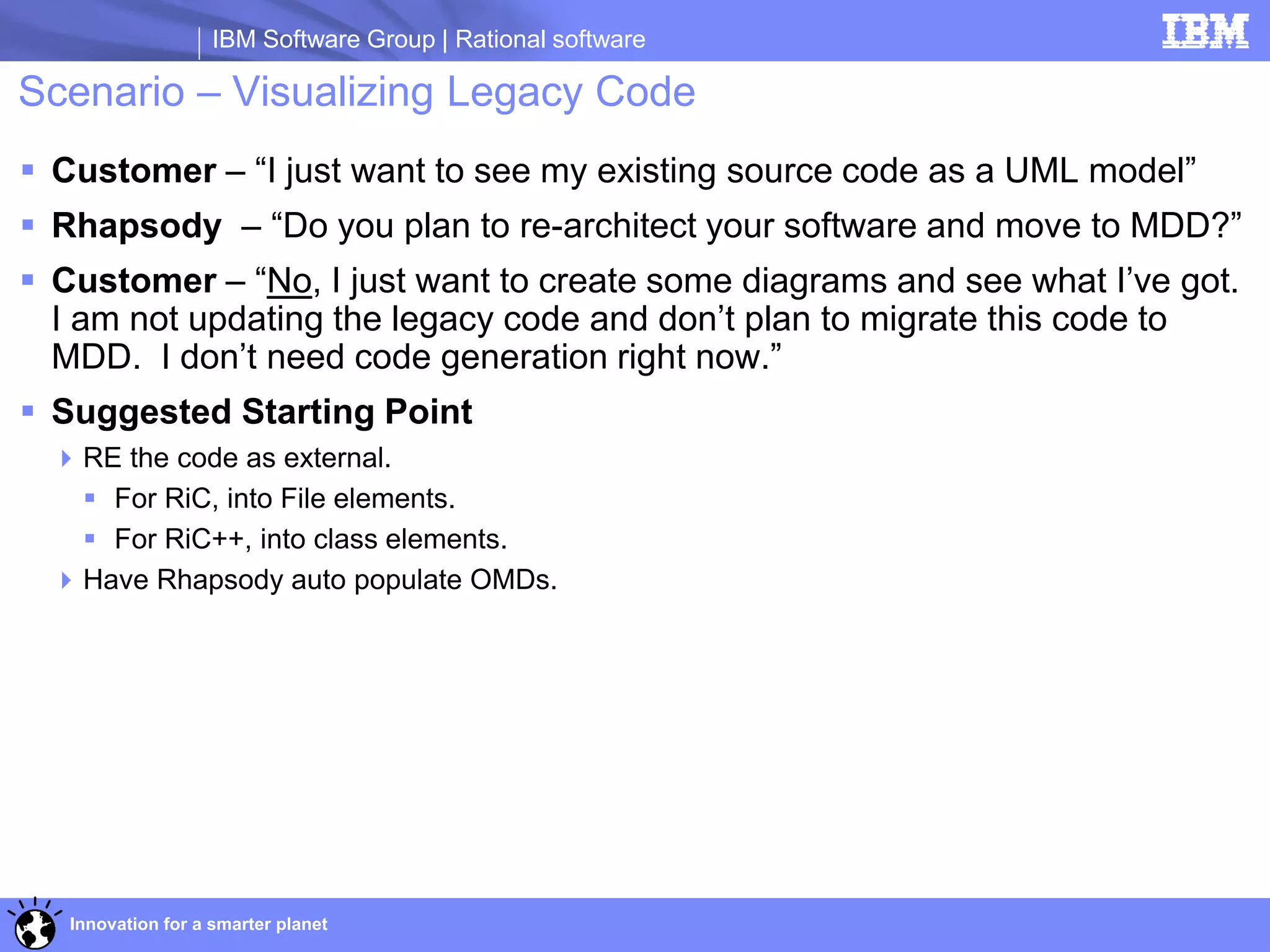

Scenario – Visualizing Legacy Code
Customer – “I just want to see my existing source code as a UML model”
Rhapsody – “Do you plan to re-architect your software and move to MDD?”
Customer – “No, I just want to create some diagrams and see what I’ve got.
I am not updating the legacy code and don’t plan to migrate this code to
MDD. I don’t need code generation right now.”
Suggested Starting Point
RE the code as external.
For RiC, into File elements.
For RiC++, into class elements.
Have Rhapsody auto populate OMDs.
Innovation for a smarter planet
16. IBM Software Group | Rational software

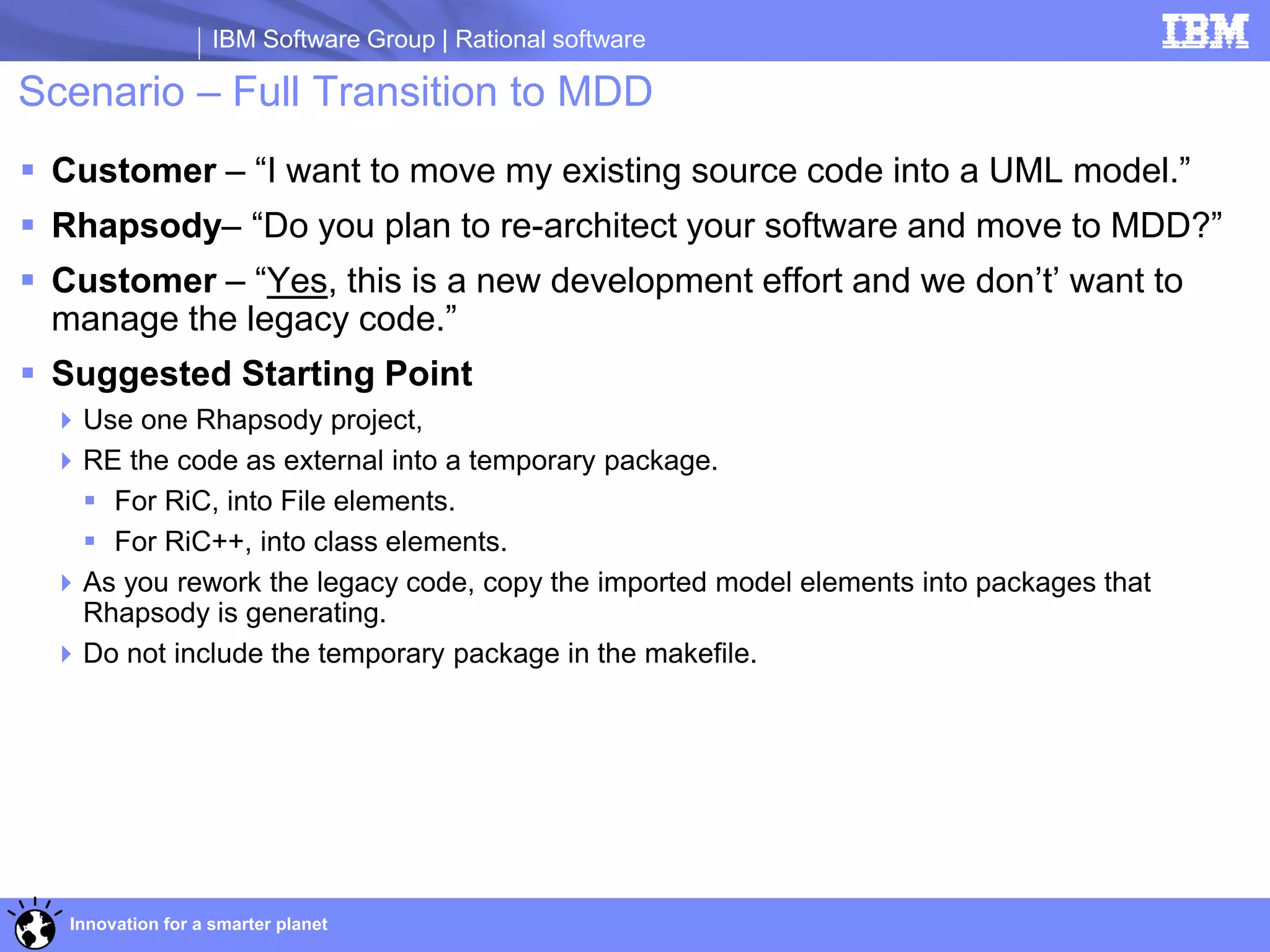

Scenario – Full Transition to MDD
Customer – “I want to move my existing source code into a UML model.”
Rhapsody– “Do you plan to re-architect your software and move to MDD?”
Customer – “Yes, this is a new development effort and we don’t’ want to
manage the legacy code.”
Suggested Starting Point
Use one Rhapsody project,
RE the code as external into a temporary package.
For RiC, into File elements.
For RiC++, into class elements.
As you rework the legacy code, copy the imported model elements into packages that
Rhapsody is generating.
Do not include the temporary package in the makefile.
Innovation for a smarter planet

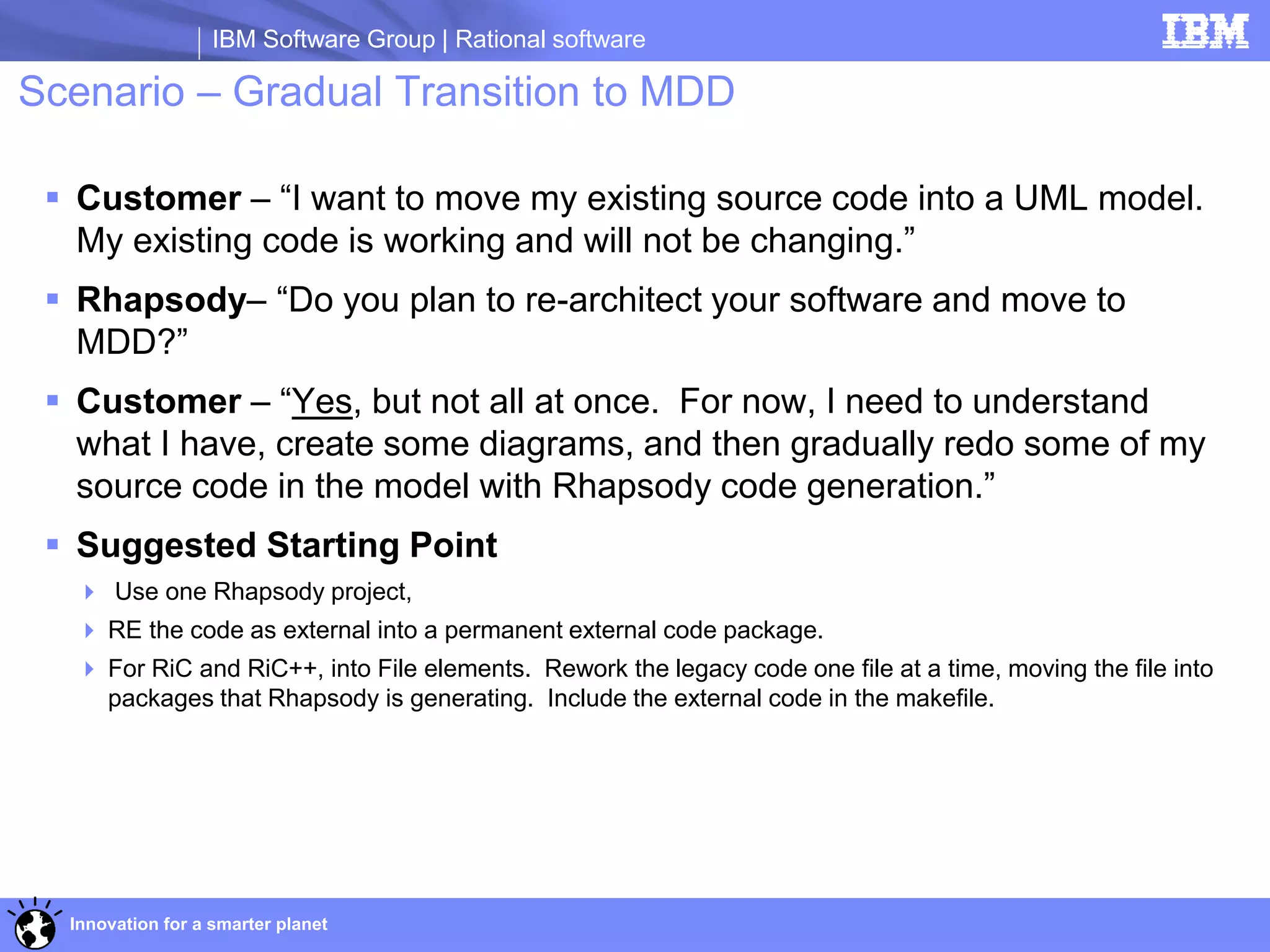

17. IBM Software Group | Rational software
Scenario – Gradual Transition to MDD
Customer – “I want to move my existing source code into a UML model.
My existing code is working and will not be changing.”
Rhapsody– “Do you plan to re-architect your software and move to
MDD?”
Customer – “Yes, but not all at once. For now, I need to understand
what I have, create some diagrams, and then gradually redo some of my
source code in the model with Rhapsody code generation.”
Suggested Starting Point
Use one Rhapsody project,
RE the code as external into a permanent external code package.
For RiC and RiC++, into File elements. Rework the legacy code one file at a time, moving the file into
packages that Rhapsody is generating. Include the external code in the makefile.
Innovation for a smarter planet
18. IBM Software Group | Rational software

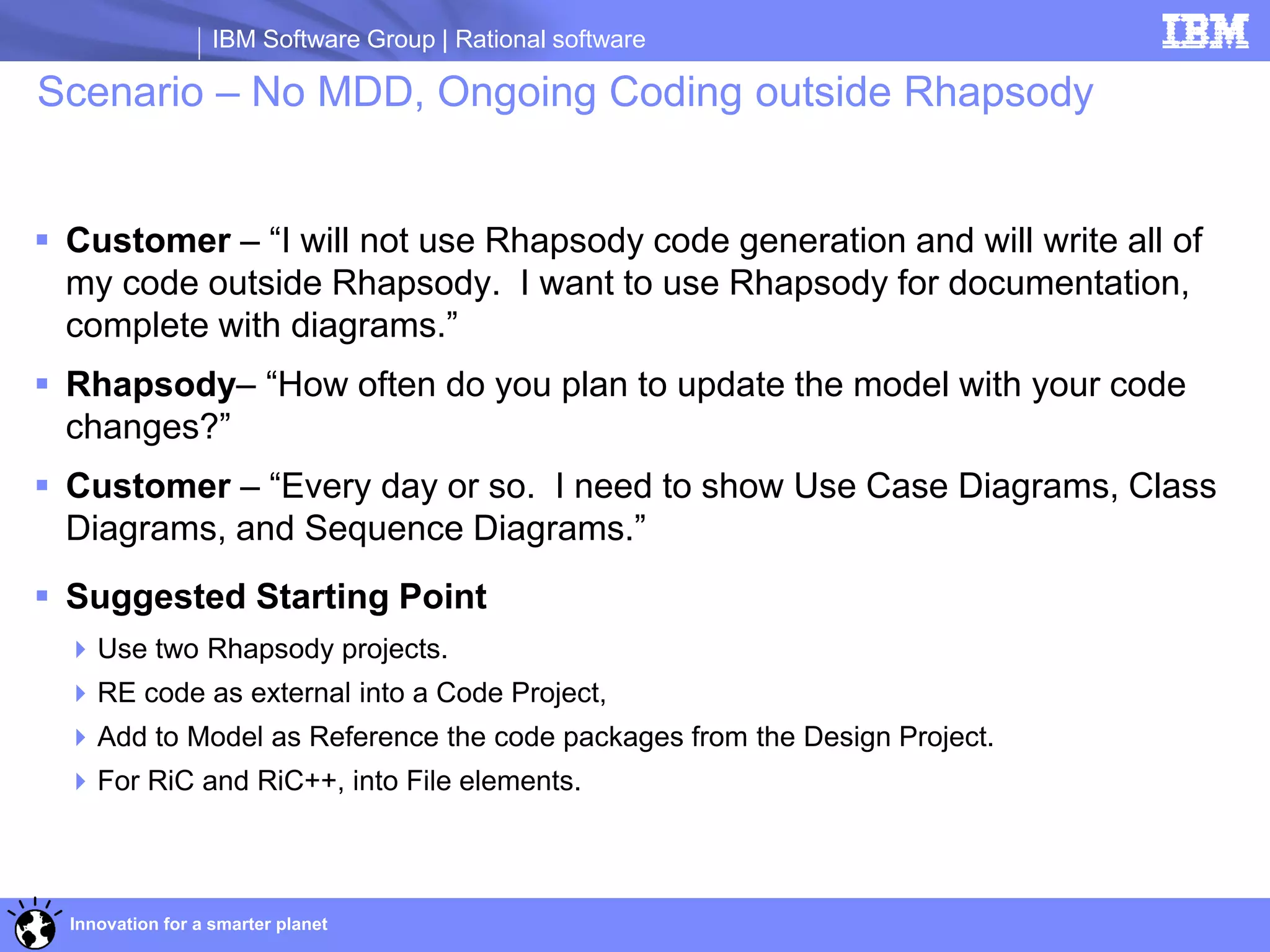

Scenario – No MDD, Ongoing Coding outside Rhapsody
Customer – “I will not use Rhapsody code generation and will write all of
my code outside Rhapsody. I want to use Rhapsody for documentation,
complete with diagrams.”
Rhapsody– “How often do you plan to update the model with your code
changes?”
Customer – “Every day or so. I need to show Use Case Diagrams, Class
Diagrams, and Sequence Diagrams.”
Suggested Starting Point
Use two Rhapsody projects.
RE code as external into a Code Project,
Add to Model as Reference the code packages from the Design Project.
For RiC and RiC++, into File elements.
Innovation for a smarter planet
19. IBM Software Group | Rational software

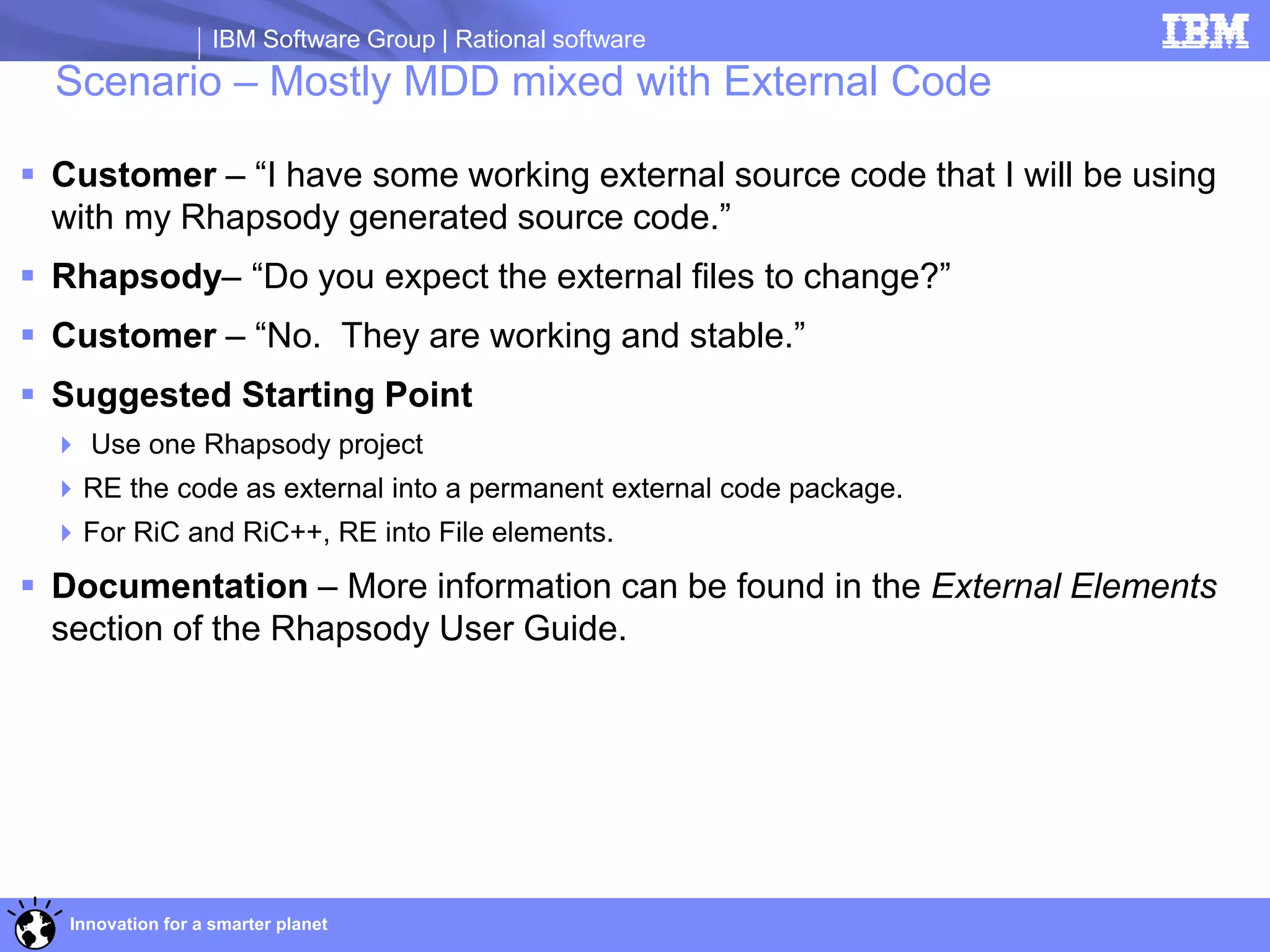

Scenario – Mostly MDD mixed with External Code
Customer – “I have some working external source code that I will be using
with my Rhapsody generated source code.”
Rhapsody– “Do you expect the external files to change?”
Customer – “No. They are working and stable.”
Suggested Starting Point
Use one Rhapsody project
RE the code as external into a permanent external code package.
For RiC and RiC++, RE into File elements.
Documentation – More information can be found in the External Elements
section of the Rhapsody User Guide.
Innovation for a smarter planet
20. IBM Software Group | Rational software

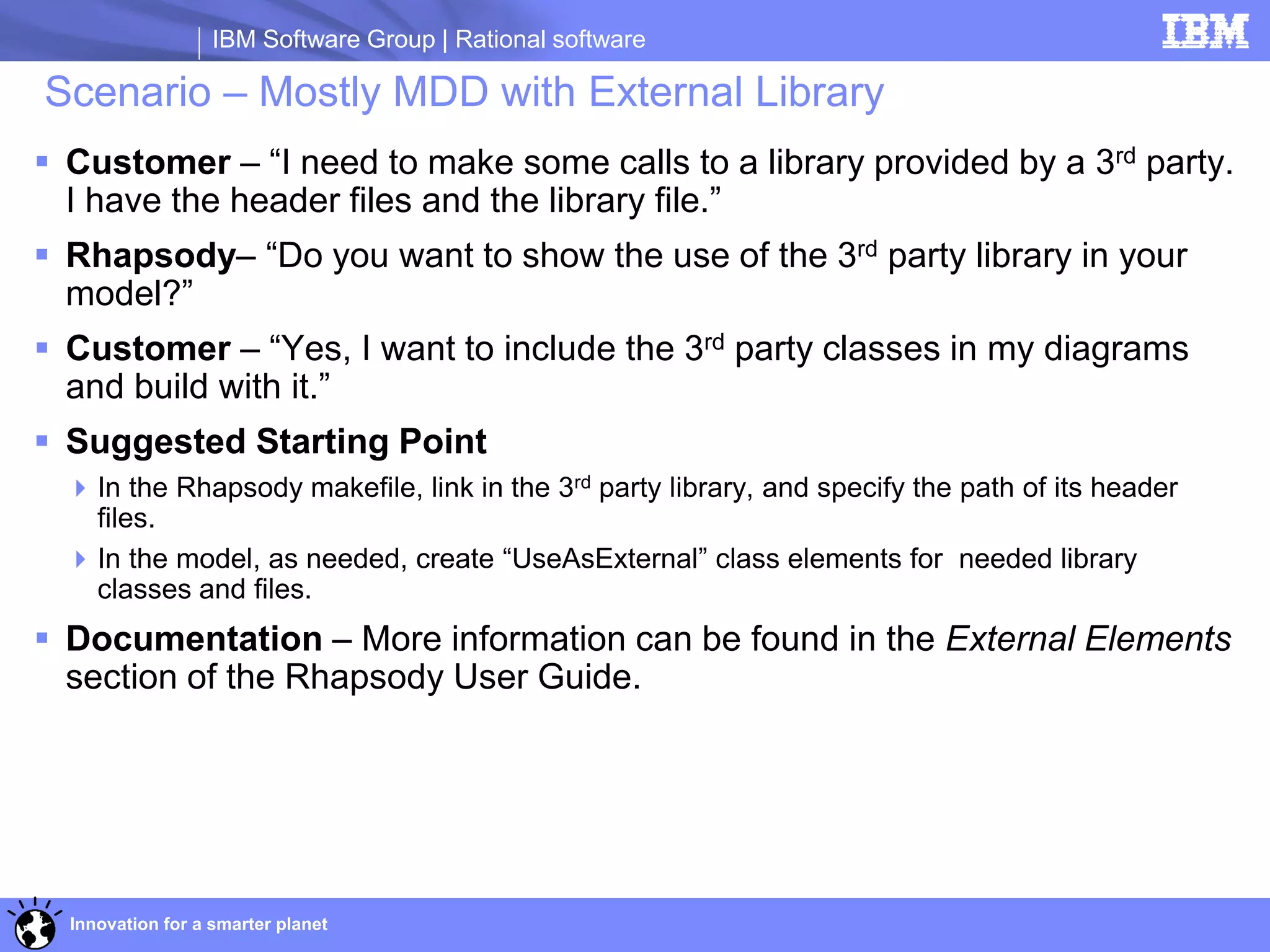

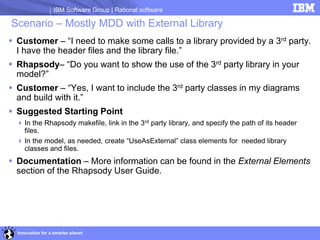

Scenario – Mostly MDD with External Library
Customer – “I need to make some calls to a library provided by a 3rd party.
I have the header files and the library file.”
Rhapsody– “Do you want to show the use of the 3rd party library in your
model?”
Customer – “Yes, I want to include the 3rd party classes in my diagrams
and build with it.”
Suggested Starting Point
In the Rhapsody makefile, link in the 3rd party library, and specify the path of its header
files.
In the model, as needed, create “UseAsExternal” class elements for needed library
classes and files.
Documentation – More information can be found in the External Elements
section of the Rhapsody User Guide.
Innovation for a smarter planet
21. IBM Software Group | Rational software
Q&A
