This document summarizes the equipment and capabilities of the D-TECH HD SNG fully redundant uplink system. It includes a 1.5 meter antenna, dual 400W HPAs, HD/SD encoders and decoders, an 8 input HD/SD video switcher, HD/SD frame synchronizers, a 16x2 backup switch, HD/SD VTRs, a 16 channel audio console, wireless systems, generators, UPS systems, and a spacious production area. It can provide HD or SD encoding and transmission over Ku-band satellite uplink from its vehicle setup.

1. Powered by
D-TECHD-TECH
HD SNGHD SNGFully RedundantFully Redundant
ROU -ROU -
045045

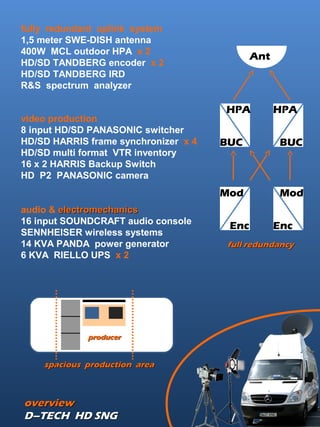

2. overviewoverview
D–TECH HD SNGD–TECH HD SNG
fully redundant uplink system
1,5 meter SWE-DISH antenna
400W MCL outdoor HPA x 2
HD/SD TANDBERG encoder x 2
HD/SD TANDBERG IRD
R&S spectrum analyzer
video production
8 input HD/SD PANASONIC switcher
HD/SD HARRIS frame synchronizer x 4
HD/SD multi format VTR inventory
16 x 2 HARRIS Backup Switch
HD P2 PANASONIC camera
audio & electromechanicselectromechanics
16 input SOUNDCRAFT audio console
SENNHEISER wireless systems
14 KVA PANDA power generator
6 KVA RIELLO UPS x 2
Enc
Mod
Enc
Mod
BUC
HPA
BUC
HPA
Ant
full redundancyfull redundancy
producerproducer
spacious production areaspacious production area

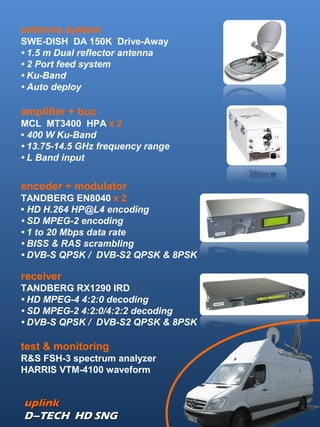

3. uplinkuplink
D–TECH HD SNGD–TECH HD SNG
antenna system
SWE-DISH DA 150K Drive-Away
• 1.5 m Dual reflector antenna
• 2 Port feed system
• Ku-Band
• Auto deploy
amplifier + buc
MCL MT3400 HPA x 2
• 400 W Ku-Band
• 13.75-14.5 GHz frequency range
• L Band input
encoder + modulator
TANDBERG EN8040 x 2
• HD H.264 HP@L4 encoding
• SD MPEG-2 encoding
• 1 to 20 Mbps data rate
• BISS & RAS scrambling
• DVB-S QPSK / DVB-S2 QPSK & 8PSK
receiver
TANDBERG RX1290 IRD
• HD MPEG-4 4:2:0 decoding
• SD MPEG-2 4:2:0/4:2:2 decoding
• DVB-S QPSK / DVB-S2 QPSK & 8PSK
test & monitoring
R&S FSH-3 spectrum analyzer
HARRIS VTM-4100 waveform

4. video switcher
PANASONIC AV-HS400 A
• HD/SD multi-format
• 8 inputs
• Built-in multiviewer
signal inputs
HARRIS X75HD x 4
• HD/SD multi-format
• Frame Sync & TBC
• DAC & ADC
• Up/down & aspect ratio conversion
routing & distribution
HARRIS HDC6800 x 4
• HDTV utility down-converter
HARRIS P16X2HSCO
• 16 x 2 HD & SD clean switch
vtr
PANASONIC AJ - HD1400
PANASONIC AJ - HPG10
SONY J – 30
… any format upon request
camera
PANASONIC AG – HPX500
• 2/3" 3-CCD 16:9 P2 HD camera
videovideo
D–TECH HD SNGD–TECH HD SNG

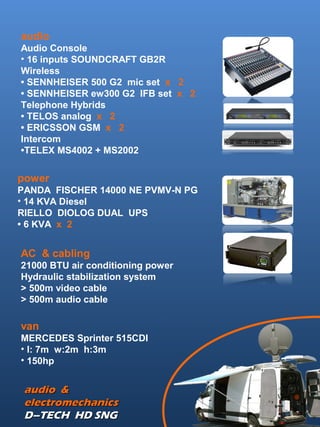

5. AC & cabling
21000 BTU air conditioning power
Hydraulic stabilization system
> 500m video cable
> 500m audio cable
power
PANDA FISCHER 14000 NE PVMV-N PG
• 14 KVA Diesel
RIELLO DIOLOG DUAL UPS
• 6 KVA x 2
audio &audio &
electromechanicselectromechanics
D–TECH HD SNGD–TECH HD SNG
audio
Audio Console
• 16 inputs SOUNDCRAFT GB2R
Wireless
• SENNHEISER 500 G2 mic set x 2
• SENNHEISER ew300 G2 IFB set x 2
Telephone Hybrids
• TELOS analog x 2
• ERICSSON GSM x 2
Intercom
•TELEX MS4002 + MS2002
van
MERCEDES Sprinter 515CDI
• l: 7m w:2m h:3m
• 150hp

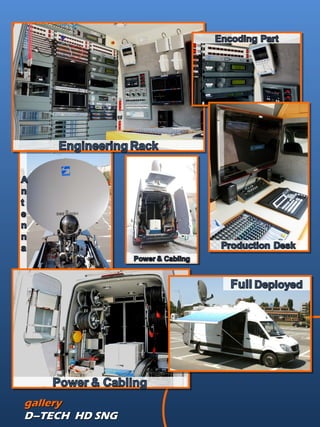

6. gallerygallery
D–TECH HD SNGD–TECH HD SNG

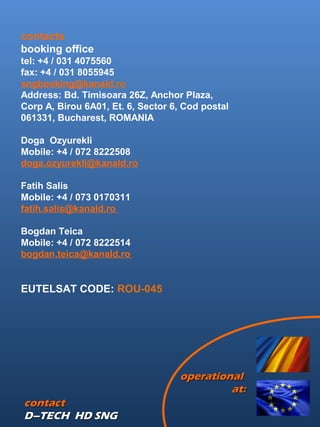

7. contactcontact
D–TECH HD SNGD–TECH HD SNG
contacts
booking office
tel: +4 / 031 4075560
fax: +4 / 031 8055945
sngbooking@kanald.ro
Address: Bd. Timisoara 26Z, Anchor Plaza,
Corp A, Birou 6A01, Et. 6, Sector 6, Cod postal
061331, Bucharest, ROMANIA
Doga Ozyurekli
Mobile: +4 / 072 8222508
doga.ozyurekli@kanald.ro
Fatih Salis
Mobile: +4 / 073 0170311
fatih.salis@kanald.ro
Bogdan Teica
Mobile: +4 / 072 8222514
bogdan.teica@kanald.ro
EUTELSAT CODE: ROU-045
