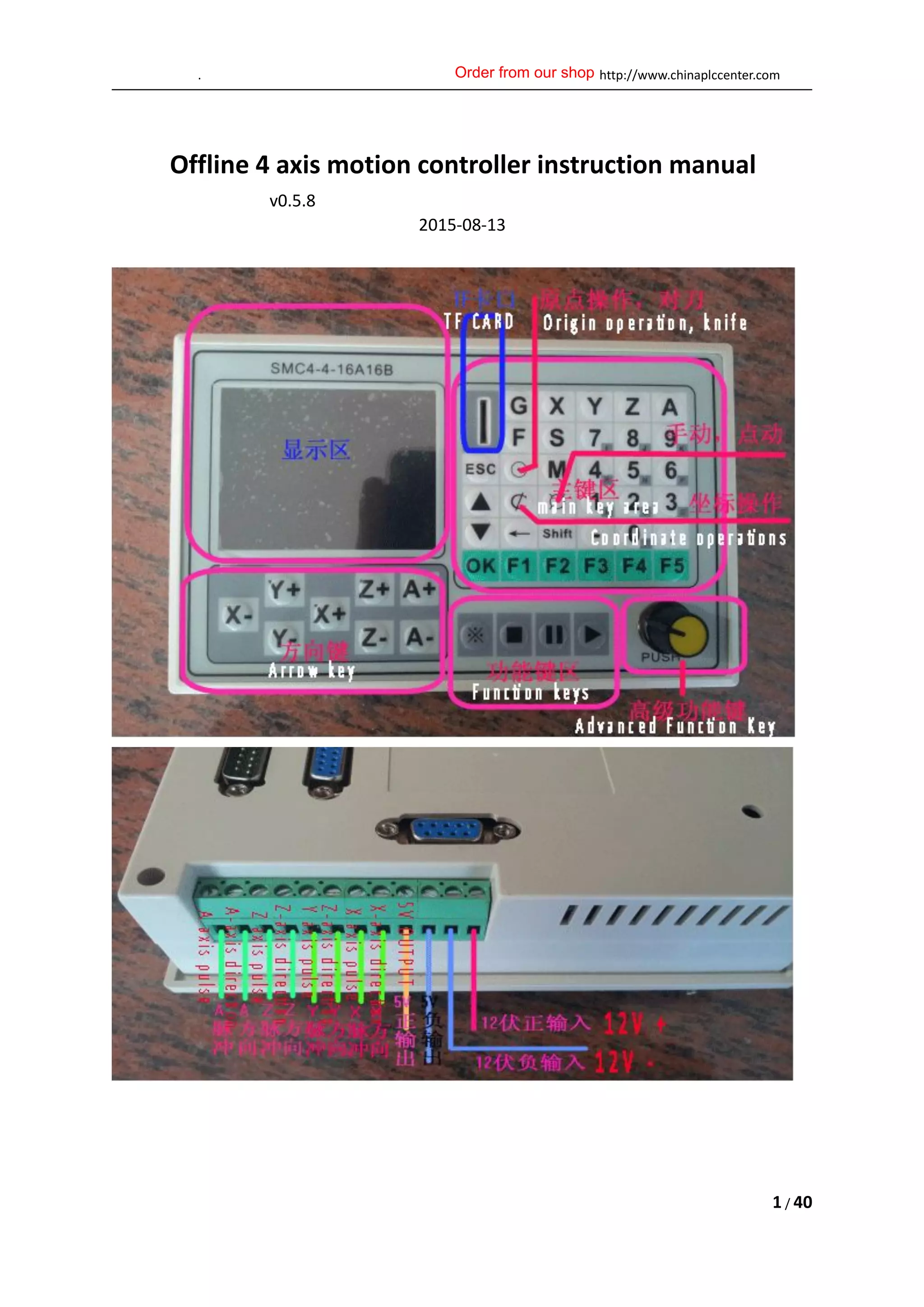

Offline 4 axis motion controller instruction manual
v0.5.8
2015-08-13
Order from our shop
. http://www.chinaplccenter.com
2 / 40

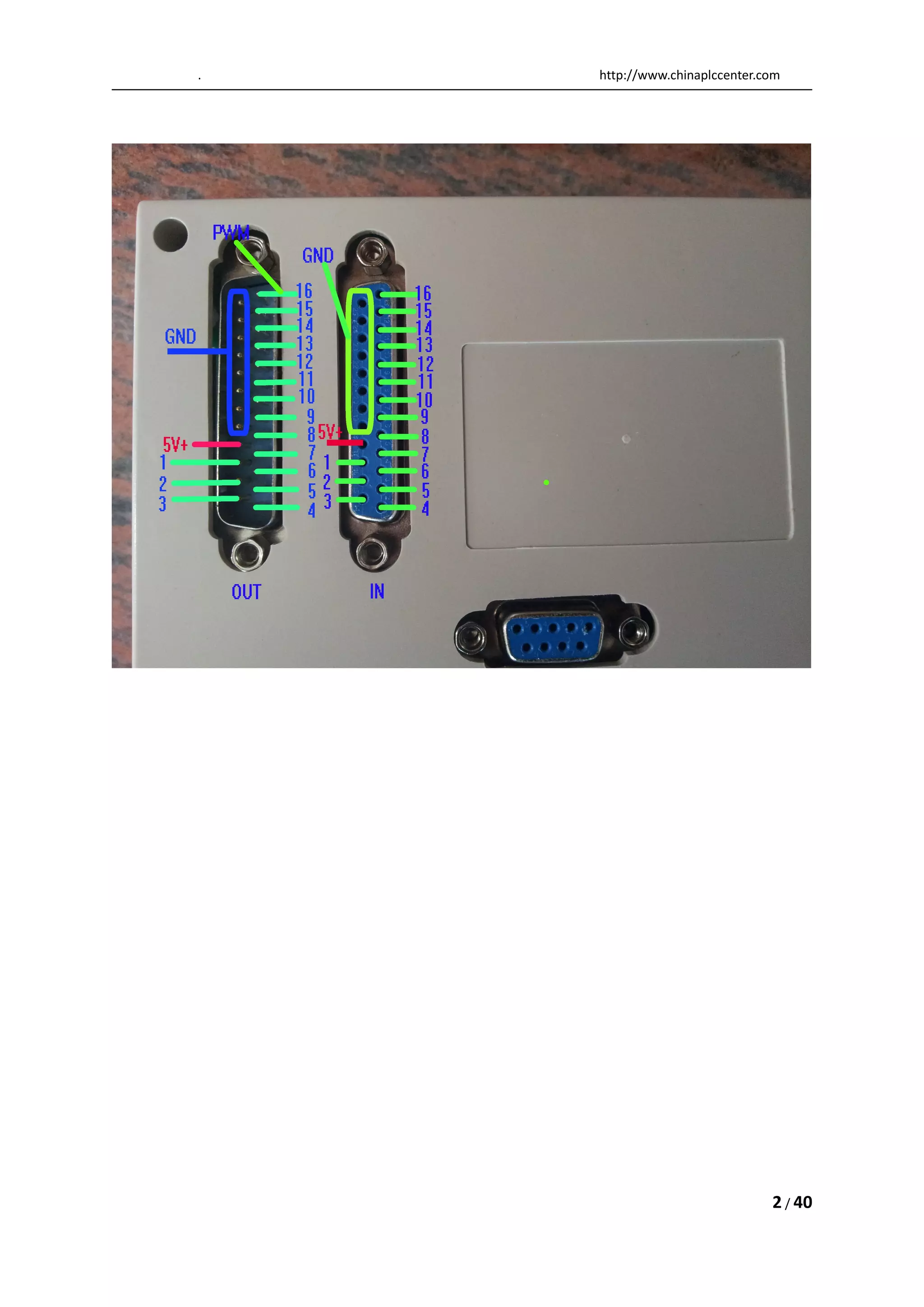

. http://www.chinaplccenter.com
3 / 40
Interface Rendering
. http://www.chinaplccenter.com
4 / 40
Power required to stabilize the direct pressure 12V, current should be greater than 1A, this controller is
that the operating current 300MA-800MA
When access to power, be sure to distinguish between the positive and negative terminals!
Shown mimic diagram "5V 输出" means the output power, this current can be provided about the
current 500MA to external devices so !!!!
G Code instruction
command parameter Features Remark
G00 X.Y.Z.A. Fast-moving machine
According to the
maximum speed of the
machine for fast moving
G01 X.Y.Z.A.F. Processing Run F value is limited
G02 X.Y.Z.A.F.
Clockwise circular
machining
G03 X.Y.Z.A.F.
Counterclockwise
circular machining
G04 P Delay P values affected
G17 (X,Y) Coordinate plane
G18 (X,Z) Coordinate plane
G19 (Y,Z) Coordinate plane
G28
XYZA
Back to the mechanical
origin
It can be controlled
separately or in
combination
P1X*Y*Z*A*
Assigned to the current
coordinates
P2X*Y*Z*A*
Plus given the current
coordinate values
P3XYZA
Conditional back to
mechanical origin
Only after the effective
power back through
mechanical origin, then
call this function is
invalid
G54 Workpiece coordinate 1
Memory workpiece
origin and
mechanical origin
offset value
. http://www.chinaplccenter.com
5 / 40
G55 Workpiece coordinate 2
Memory workpiece
origin and
mechanical origin
offset value
G56 Workpiece coordinate 3
Memory workpiece
origin and
mechanical origin
offset value
G57 Workpiece coordinate 4
Memory workpiece
origin and
mechanical origin
offset value
G58 Workpiece coordinate 5
Memory workpiece
origin and
mechanical origin
offset value
G59 Workpiece coordinate 6
Memory workpiece
origin and
mechanical origin
offset value
G80 End drilling instructions
G81 X.Y.Z.R.F Drilling instruction Universal drilling
G82 X.Y.Z.R.P.F Drilling instruction
Controllable bottom
residence time
G83 X.Y.Z.R.I.F Drilling instruction Row pin drilling
G Code instruction 2
instruction parameter Features Remark
G90 Absolute value size default
G91
Incremental
dimension
G Code instruction 3
instruction parameter Features Remark
. http://www.chinaplccenter.com
6 / 40
M00 Pause instruction
Until you press the start button to
continue
M03 Spindle Forward Affected delay parameters
M04 Spindle reversal Affected delay parameters
M05 Spindle stop
M07 Spray Open Affected delay parameters
M08 Cooling Open Affected delay parameters 响
M09
Meanwhile Close
M07M08
M30
The total program is
stopped
M47 Loop instruction Return to the first line to run
A. Safety Precautions
Before using this control system, please read this manual carefully before do related operations.
Carefully read the operating instructions and user Safety Precautions, the user should do the
appropriate protection, take the necessary security measures before proceeding to operate.
First time operation of the operator, should know the proper use of the corresponding functions,
you can perform the appropriate action, For those unfamiliar the functions or parameters,
Prohibited actions or change system parameters.
System maintenance:
. http://www.chinaplccenter.com
7 / 40
When the system is under unusual circumstances, the need to repair the appropriate cable or
socket connection, you should turn off power. And then make the necessary repair.
The operator has not been rigorously trained or authorized by the studio units or individuals, can
not open the control system for maintenance operations, modification, repair, and other acts.
Other matters:
If there is any system functions is different from the manual,please with system software features
to prevail.
Control system functions to change or improve (upgrade), without notice. If you have other
requirements, please contact us.
B: Outline
Our latest "motion controller" using high-performance 32-bit CPU,with an LCD display,
Humanized Window-type interface, Using external TF card memory, storage space than 2G,
Operating voltage and control voltage using isolation mode, and touch keyboard. The system has
high reliability, high precision, low noise, easy operation characteristics.
The controller can four simultaneous axes,multiple micro segment look ahead control algorithm,
The controller can four simultaneous axes,multiple micro segment look ahead control algorithm,
can be achieved with four - axis straight line interpolation and a micro multi-line multi-axis
continuous interpolation,controlled by a breakpoint carving.
Simple, clear parameters for your convenience and fast operation. Input / output can be set up
functions to facilitate your use and maintenance.
The main function
Parameter settings: You can set the processing and operations relating control parameters,
Making process to achieve the best condition.
Manual operation: can be achieved manually, jog,back to procedure zero, back to mechanical
zero, cleared coordinate operations.
Program Management: Program can create, delete, modify, read, preserve, automatic processing,
continuous, and pause.
External Manual: a variety of external functions can be defined Manually,In order to facilitate the
use of the freedom to select the input function: the limited input can achieve a variety of user
needs.
System components
CNC system mainly consists of the following parts:
High-performance, high-speed 32-bit ARM CPU;
Liquid crystal display (resolution: 320 * 240);
Input / Output (16 channels opto-isolated 10MA inputs, 16 channels opto-isolated pull-down tank
500MA output).
Users machining program memory can be arbitrary Storage in TF card.
Technical indicators:
. http://www.chinaplccenter.com
8 / 40
The smallest unit of data 0.0001mm
Conventional precision of plus or minus 2 PP amount pole
Even following the linear accuracy is one of the four corner points of the corner arch high
The maximum data size ± 99999.999mm
Maximum pulse output frequency 50KHZ (three-axis simultaneous 50KHZ)
Control axes 4 axes (X, Y, Z, A)
4-axis intermodal and has a four-axis multi-micro multi-segment prospective interpolation control
Appearance and Panel: Dimensions: length 165, width 101, thickness 50
Appearance and Panel: Dimensions: length 165, width 101, thickness 50
Hole size: 157 * 93mm
External view
. http://www.chinaplccenter.com
9 / 40
C.Operating Instructions
Boot screen
. http://www.chinaplccenter.com
10 / 40
Function key area:
Open the file
Starts running
Advanced features
Document Management
RESET(RESET)
Jog
The following screen appears after the control system is powered
This boot interface is divided into four zones:
 the top district: the main display file name now opens, real-time the number of processing
rows.
 the coordinate display area: The main display real-time three-axis coordinate and real-time
processing speed.
 the function key area: the main control keys.
 file area: file name, or processed documents.
(Note: TF card support hot swap, when the new insert TF card, need to initialization after
re-insert, so sometimes prompts OPENER, Just several times "open file" !)
Because the system requirements for the TF card data is extremely strict, so the general low-end
cards (cottage card) will be excluded, and then replace the other genuine card reading! ! !
After the show !!!!!! does not give the total number of files and the folders stored in the TF card is greater
than 50
For HDSD (TF), because of the card problem, and can not fully understand, replace other cards
and then read!
. http://www.chinaplccenter.com
11 / 40
shortcut key ⊙ as "Origin Operation"
“返回参考点” Z-axis height to rise to
safety, all other axes back to the specified
location, Z axis return to the specified location
(in the mechanical origin can be set at this
point)
“返回原点” Z-axis height to rise to safety,
XY axis back to square one, Z-axis and then
passed back to the origin.
“返回机械原点” : Z axis mechanical origin
retreated, Y-axis mechanical origin retreated, Y
axis retreated mechanical origin,
(Please note that configuration pins, level and enable)
“对刀” Z axis decline (or increase), when it comes to the probe,
after Stop running clearing the Z-axis coordinate for the knife offset, and Z-axis carrying knives have to
bounce high end of this process.
(Please note that configuration pins, level and enable)
. http://www.chinaplccenter.com
12 / 40
shortcut key ¢ as "coordinate cleanup operations."
X axis triaxial cleared
Y axis triaxial cleared
Z axis triaxial cleared
A axis uniaxial cleared
All axes cleared
drop out
Panel shortcut key ¤ "Jog"
"Manual" Recovery Manual
"1mm": When the time selected by pressing the
corresponding arrow keys will move the
corresponding length (incremental moves)
If you want to move to a specific length, you can
enter a specific number in the input basket,
(only press "OK" to enter the basket after
becomes yellow, green valid return), press the
corresponding axis key, you can.
Corresponding to X + X-Y + Y-Z + Z-A + A- valid
Panel shortcut key X Y Z A "direct coordinate operations"
“运行到到” The corresponding axis directly
run the specified coordinates.
“更变坐标” : The axis corresponding number
directly into the set (this action is irreversible,
please carefully operation)
. http://www.chinaplccenter.com
13 / 40
Panel shortcut key S as "Spindle Operation"
Input box to fill in the number of
revolutions, the maximum value of this
parameter can be set in the host settings.
Panel shortcut key F "Manual feed speed operation"
Value D shows box manual feed speed.
Panel shortcut key G "Workpiece
coordinate system operator"
. http://www.chinaplccenter.com
14 / 40
Selected G *, you can choose to sit workpiece coordinate system, the need to coordinate with the
mechanical operations.
Click on the "machine configuration" below, then click "motor parameters" to enter the following picture
字意解释:
脉 冲 当 量 : The required number of
pulses per unit length (pulse required for each
millimeter) support floating point input
最 高 速 度 : Maximum speed of this
motor can run (mm / min), when the input
exceeds the maximum attainable system will
press system can achieve maximum prevail. Ideal
maximum value of 70%
More than the maximum 70% will prompt
red warning
加速度: The maximum acceleration of the motor can run. This value is too small will seriously
affect more corner speed micro segment
脉冲电平: 1 or 0, active high or active low, determined by the drive, most effective drive this
value is 0.
方向电平: 1 or 0 active high or active low, this will change the direction of change
脉冲宽度: Pulse output valid time, only for a measure, under normal can be 0.
Values are as follows: T = 4.3 sec + 0.43 * N (the number of the selected)
Note Version V0.5.8 15_6_26 later.
Stepper motor driver pulse equivalent = number of subdivisions × (360 / stepper motor step angle)
/ screw pitch
Example: Stepping angle = 1.8 leadscrew = 5mm segments = 8
Pulse equivalent = 8 * (360 / 1.8) / 5 = 320
Maximum speed value: To finalize the ability of the motor according to the principle of losing step,
taking 70% of the maximum speed value, leaving 30% margin to the motor
T acceleration table is as follows:
. http://www.chinaplccenter.com
15 / 40
Acceleration values:the ability to be finalized in accordance with the motor,based on not fall out
step,take 70% of maximum speed values​ ​ , leaving 30% margin to the motor (characteristics of
stepper motor).
Pulse relationship level and pulse width (Note: The actual width is Given width Plus default width)
Direction level
When the direction level of 1, the shaft is running, the Output is high level, Anti-run is low level;
When the direction level of 0, the shaft is running, the Output is low level, Anti-run is high level.
About IO interface level set Description:
Running, back to the origin, all axes cleared, pause, back to the mechanical origin
1 normally open (press down turned, the red lights change), set the level to zero.
2 normally closed (goes off, black light turns red), set the level to 1. (Anti-interference strongest)
Emergency:
After connecting switch line, so that the switch is in the pop-up state, see "Test light"
If the light is red, set the level to 0.
. http://www.chinaplccenter.com
16 / 40
If the lamp is black, set the level to 1.
Note: The pop-up state is working condition, is pressed into the self-locking emergency stop state.
Limit input:
1, normally open (when you hit the limit turned on the red light black light), set the level to 1.
2, normally closed (when you hit the limit off, black and red becomes red), set the level to zero.
Mechanical origin:
1, normally open (when you hit the limit turned on the red light black light), set the level to 1.
2, normally closed (when you hit the limit off, black and red becomes red), set the level to zero.
G script parameters:
G2/G3 超差:Enter the G02 / G03 after
manual calculations or other calculation because
of accuracy issues, so that the arc center is
inconsistent with the values given at the
moment, there is a fault-tolerant, the system will
be based on the given parameters, recalculate
the optimal center coordinate
弦长: System fitting curved arc chord when
generating segment
精确停止:Open CVL control CVL 控制:Corner length restrictions
G1 分辩率:G01 minimum length, which is defined algorithm, users can use the default value:
0.0001
安全高度:Pause, or homing reference point, Z axis height elevation of security.
对刀偏移:The value of the Z-axis clear bias after the knife after 0, this value is mainly used for
cutting height adjustment.
对刀弹回:After the knife, after the Z axis stopped, according to the value left on the knife, the knife
. http://www.chinaplccenter.com
17 / 40
is easy to take away.
Advanced operating functions:
. http://www.chinaplccenter.com
18 / 40
In standby (not running processing) for speed: Press and hold the stop button (黑四方键),
while another swirling advanced function keys, you can directly adjust the speed percentage, on the main
screen you can see the speed percentage (I: 100-1) display.
In the processing operation, direct swirling advanced function keys, you can adjust the speed of the
percentage, on the main screen you can see the speed percentage (I: 100-1) display.
In standby (not running processing) for speed: Press and hold the stop button (black square button) while
pressing the middle button Advanced function keys can switch to adjust the spindle speed and running
speed. It can directly press the middle button to adjust runtime as shown:
. http://www.chinaplccenter.com
19 / 40
( Specific feature factory mode)
1: Open the F1, F2, F3, F4, F5
OUT1-5 manual control function, specify a password for: 033,501
Open,
033500 closed.
2: The soft limit on the workpiece coordinate, MODE: 1 (default).
Password: 085601.
Soft limit based on mechanical coordinates, MODE: 0 password is:
085600.
3, the system initialization parameters: password: 100001.
4, machine system parameters stored in the TF card: password:
. http://www.chinaplccenter.com
20 / 40
001001.
TF card data within bounce Machine: password: 001000.
5, change the order of returning to mechanical origin axis mode:
password: 83156 *
*, 0ZXYZ, 1ZAXY, 2ZYXA, 3XYZA, 4XZYA, 5YXZA, 6YZXA, 7AZXY,
8AZYX, 9AXYZ, * ZXYA (default).
G command interpretation
G00
Format:. G0X .. Y. Z ... A
Axis rapid traverse, G0 for fast positioning tool, No machining of the workpiece. Can quickly move
in several axis simultaneously, thereby producing a linear trajectory (point to point) as
shown.Machine data specified maximum value for each axis rapid traverse rate of an axis running
speed on this fast-moving. the moving speed of the synthesized vector speed of the two axes.In
the address programmed feed rate F is invalid with G0 move quickly. The system will be run by
the maximum value of each axis vector synthesis rate.
To go four cases:
G0X0Y0Z0
. http://www.chinaplccenter.com
21 / 40
G0X10
G0Y10
G0X0
G0Y0
G01
Format G1X .. Y.. Z.. A.. F..
The tool moves on a straight line from the starting point to the target point, Programming with F
feedrate speed. All axes can be run simultaneously. G1 remain valid until they are replaced by
other commands.
This controller support multi-micro multi-line forward control interpolation algorithm, That is more
than one segment will be calculated tracks as Continuous interpolation algorithm,To achieve a
smooth transition,Prospective method and will increase the operating speed as much as possible.
Red trace is the actual running tracks, F is the processing speed
Painting Quartet Case:
G0X0Y0Z0
X10F1200
Y10
X0
Y0
. http://www.chinaplccenter.com
22 / 40
G02 G03
Format (1) G02X .. Y.. Z.. R.. F.. (Radius method)
(2) G02X .. Y.. Z.. I.. J.. K.. F (circle center method)
Format (1) G03X .. Y.. Z.. R.. F.. (Radius method)
(2) G03X .. Y.. Z.. I.. J.. K.. F (circle center method)
G02 clockwise circle G03 counterclockwise circle
G17 (X, Y) coordinate plane (plane default)
G18 (X, Z) coordinate plane
G19 (Y.Z) coordinate plane
circle center method:
G02 (G03) X.. Y.. Z.. I.. J.. K.. F
X. Y. Z represents Terminal point coordinate, F processing speed
I represents projection of the arc starting point to circle center distance in the X-axis
J represents projection of the arc starting point to circle center distance in the Y-axis
K represents projection of the arc starting point to circle center distance in the Z-axis
L, J, K direction is corresponding to the negative direction of the XYZ
. http://www.chinaplccenter.com
23 / 40
Legitimacy of the parameter (in XY plane):
circle center method can be obtained directly radius R = sqrt (i ^ 2 + j ^ 2), If the length of the line
start and end points of the arc is greater than 2R is impossible to go wrong prompt.
When the above conditions are satisfied, the system will recalculate the center coordinates of the
most reasonable, When it has some deviation with given center coordinates actually,Called super
difference,If this deviation value is greater than the system given,it will prompt an error,This super
difference can be set in the system,Facilitate more rapid input parameters.
(Note:The difference between the actual center of the arc can constitute
And input circle center called super difference,This difference can be super-max settings, you can
tolerate a wider parameter input limit)
Case:
G0X0Y0Z0
G1Z-1F1200
Y10
. http://www.chinaplccenter.com
24 / 40
X20
G02X30Y20I10J0
G1X80
Y0
X0
G0X0Y0Z5
Radius method:
G02 (G03) X.. Y.. Z.. R.. F..
X, Y, Z Terminal point coordinates,F processing speed
R represents the radius of the arc
F processing speed
In the case of a known start and end points of the arc with a radius of programming,By geometric
mapping will be two arcs, a large arc and a small arc, in order not to generate ambiguities
provisions R> 0 is a small arc, R <0 is great arc.
For full circle, because the starting point coincides with Terminal point, with R programming, there
will be countless solution, can not define the center position, it can only be programmed with the
center coordinates method.
case:
G0X0Y0Z0
G1Z-1F1200
Y10
X20
. http://www.chinaplccenter.com
25 / 40
G02X30Y20R10
G1X80
Y0
X0
G0X0Y0Z5
Chord length:
After the system calculates the combined resistance parameter,Given G02, G03 proposed
synthesis and decomposition micro segment, This micro multi-segment shaped scale is Chord
length, This length can be set in the system, Reference value (0.1mm-5mm),
Note: Due to system has prospective multi-micro multi-line interpolation calculation, and therefore
Chord length is undesirable too short,when it is necessary to be too short, and processing speed
must be somewhat lowered! ! !
G17 (X, Y) coordinate plane (plane default)
G18 (X, Z) coordinate plane
G19 (Y, Z) coordinate plane
G04 (pause, delay)
Format: G04P ..
Between the two blocks by inserting a G4 block, You can make the given time of interrupt the
. http://www.chinaplccenter.com
26 / 40
machining P suffix to be milliseconds, a minimum of 500ms + P *
Case: (delay 1 second)
G0X0Y0
G1Z-1F1200
G1X20Y20
G04P1000
G1X40Y40
G0Z5
G0X0Y0
G90 (default): Absolute dimensions G91: Incremental dimension
G90 and G91 commands corresponding to the absolute position data input and incremental
position data input. G90 represents the coordinate dimension of coordinates target point, G91
represents the displacement to be run.G90/G91 applies to all axes.These instructions do not
decide to end position trajectory, Trajectory is determined by the other G group G function
commands (G0, G1, G2, G3 ...).After the program starts G90 applies to all axes and remains
active until later in the block have appeared G91.
G specific instructions:
G54 G55 G56 G57 G58 G59 (workpiece coordinate system)
Format: G54 G55 G56 G57 G58 G59
You can choose six different work coordinate
It is calculated based on the mechanical origin of the workpiece coordinate offset
Conditions of Use:
1 equipment mechanical origin
2 turned back once the mechanical origin (a return call can tie G28P3 mechanical origin)
On the main interface of G54 from red to yellow
After the above two conditions are satisfied, when each axis is automatically cleared
Memory current datum and offset mechanical machine origin and storage.
If the last memory had been the coordinate system, when the return to mechanical origin, will bounce
coordinate value of the last memory.
. http://www.chinaplccenter.com
27 / 40
G54~ 59
G28: (coordinates back to the mechanical origin operation)
Format (four models):
G28XYZA
G28 P1X*Y*Z*A*
G28 P2X*Y*Z*A*
G28 P3XYZA
G28XYZA Will automatically return to mechanical origin after executing this command,
X, Y, Z, A can be individually write, such as the following are legitimate
1: G28X (expressed Press X mechanical origin)
2: G28XY (expressed Press XY mechanical origin)
3: G28Z
G28Y (the latter two combinations have prior instruction, he said they would first perform mechanical
origin Z, Y after returning to mechanical origin)
G28P1X*Y*Z*A* After executing this command, will X, Y, Z, A axes corresponding
value is assigned to the current coordinates.
example:
. http://www.chinaplccenter.com
28 / 40
Such as the current coordinates: X100 Y100 Z50 A0
Code execution G28P1X200Y500Z10A20 the current coordinate value becomes:
X:200
Y:500
Z:10
A:20
G28P2X*Y*Z*A*After executing this command, will X, Y, Z, A axes
corresponding value assigned plus the current value of the axis, such as * to negative, performs
subtraction.
Case:
Such as the current coordinates: X200 Y300 Z400 A500
Code execution G28P2X-20Y-500Z60A520 the current coordinate value becomes:
X:180
Y:-200
Z:460
A:1020
G28P3XYZA
This instruction is only turned on, it did not hand back to the mechanical origin, to be effective, that
G54 will be shown to be effective in red.
As performed back to mechanical origin, and then execute the entry instructions will be invalid.
Case :( boot did not back off mechanical origin)
1: G28P3X
X axis will automatically return to mechanical origin.
2: G28P3Y
Y-axis will automatically return to mechanical origin.
3: Can the many G28P3XYZA combination
(Power has been back to the mechanical origin)
1: G28P3X
invalid
2: G28P3Y
. http://www.chinaplccenter.com
29 / 40
invalid
(Note: This instruction is mainly used in the operation coordinate system, and
the establishment of a relationship between mechanical origin and artifacts from
standard system, after power up and running again, did not return to prevent
mechanical origin, arising from mistakes.)
G81: (drill instruction)
Format: G81X .. Y.. Z.. R.. F..
X.Y represent end coordinates, Z represents the depth of machining
F processing speed
R represent operating plane (safe altitude) at the beginning, represent and Z Terminal point after
returned
Case: (coordinates (20.0), (20.20), (0.20), (0,0) four drill holes 5mm in depth, the two safety plane,
a speed of 200)
G0X0Y0Z5
G81X20YOR2Z-5F200
G81X20Y20R2Z-5F200
G81X0Y20R2Z-5F200
G81X0Y0R2Z-5F200
G0X0Y0Z5
G82: (drilling instruction)
Format: G83X .. Y.. Z.. R.. P.. F....
X, Y represent Terminal point coordinates,Z represents the depth of machining, S represents
dwell time at the hole bottom.
F processing speed
R represent theoperating plane of the beginning,and represent Z terminal point after returned.
. http://www.chinaplccenter.com
30 / 40
Case: (coordinates (20.0), (20.20), (0.20), (0,0) four drill holes 5mm in depth, the two safety plane,
and one second stay at the hole bottom, a speed of 200)
G0X0Y0Z5
G82X20YOR2Z-5P1000F200
G82X20Y20R2Z-5P1000F200
G82X0Y20R2Z-5P1000F200
G82X0Y0R2Z-5P1000F200
G0X0Y0Z5
G83: (canned cycle drilling instruction)
Format: G83X .. Y. Z. R. I. F....
X, Y represent end coordinates, Z represents the depth of processing,I represents the
displacement of each fall,it will be cut back action When processed to I depth.
F processing speed
R represents the beginning of the start plane and said Z end after returned
. http://www.chinaplccenter.com
31 / 40
Case: (coordinates (20.0), (20.20), (0.20), (0,0) four drill holes 5mm in depth, the two safety plane,
G0X0Y0Z5
G83X20YOR2Z-5I1F200
G83X20Y20R2Z-5I1F200
G83X0Y20R2Z-5I1F200
G83X0Y0R2Z-5I1F200
G0X0Y0Z5
M commands:
M00: Pause command, and will prompt "PAUSE" on the screen until you press Start to continue.
M03: turn off the inverted signal, and then open a spindle forward, it will be affected by the delay
parameters of the open,
M04: turn off the forward signal, and then open a spindle reversal, will be affected by the delay
parameter of the open
M05: spindle stop, to close the M03, M04.
M07: spray on, will be affected by the delay parameters of the open
M08: cooling Open, will be affected by the delay parameter of the open
M09: while closing the M07, M08;
M30: processing end, after no call. Exit.
M47: return to the first line, spin ring non-stop processing. Stop until you press stop or pause before exit.
. http://www.chinaplccenter.com
32 / 40
specific M instructions:
The controllers do some advanced control with specific instructions M
M47 return to the first line to start again, can be added at the end of the program cycle not to stop.
Output Control M command (M1 **, M2 **)
M101 corresponds OUT_1 Output High Level (artificially high, Facilitate different
voltage connect pull-up resistor)
M102 corresponds OUT_2 Output High Level (artificially high, Facilitate different
voltage connect pull-up resistor)
M103 corresponds OUT_3 Output High Level (artificially high, Facilitate different
voltage connect pull-up resistor)
M104 corresponds OUT_4 Output High Level (artificially high, Facilitate different
voltage connect pull-up resistor)
M105 corresponds OUT_5 Output High Level (artificially high, Facilitate different
voltage connect pull-up resistor)
M106 corresponds OUT_6 Output High Level (artificially high, Facilitate different
voltage connect pull-up resistor)
M107 corresponds OUT_7 Output High Level (artificially high, Facilitate different
voltage connect pull-up resistor)
M108 corresponds OUT_8 Output High Level (artificially high, Facilitate different
voltage connect pull-up resistor)
M109 corresponds OUT_9 Output High Level (artificially high, Facilitate different
voltage connect pull-up resistor)
M110 corresponds OUT_10 Output High Level (artificially high, Facilitate different
voltage connect pull-up resistor)
M111 corresponds OUT_11 Output High Level (artificially high, Facilitate different
voltage connect pull-up resistor)
M112 corresponds OUT_12 Output High Level (artificially high, Facilitate different
voltage connect pull-up resistor)
M113 corresponds OUT_13 Output High Level (artificially high, Facilitate different
voltage connect pull-up resistor)
M114 corresponds OUT_14 Output High Level (artificially high, Facilitate different
voltage connect pull-up resistor)
M115 corresponds OUT_15 Output High Level (artificially high, Facilitate different
voltage connect pull-up resistor)
M116 Because logic easy to confuse, so give up on the OUT_16 Output Control
M201 corresponding OUT_1 output low level (perfusion 500ma to ground)
M202 corresponding OUT_2 output low level (perfusion 500ma to ground)
M203 corresponding OUT_3 output low level (perfusion 500ma to ground)
M204 corresponding OUT_4 output low level (perfusion 500ma to ground)
. http://www.chinaplccenter.com
33 / 40
M205 corresponding OUT_5 output low level (perfusion 500ma to ground)
M206 corresponding OUT_6 output low level (perfusion 500ma to ground)
M207 corresponding OUT_7 output low level (perfusion 500ma to ground)
M208 corresponding OUT_8 output low level (perfusion 500ma to ground)
M209 corresponding OUT_9 output low level (perfusion 500ma to ground)
M210 corresponding OUT_10 output low level (perfusion 500ma to ground)
M211 corresponding OUT_11 output low level (perfusion 500ma to ground)
M212 corresponding OUT_12 output low level (perfusion 500ma to ground)
M213 corresponding OUT_13 output low level (perfusion 500ma to ground)
M214 corresponding OUT_14 output low level (perfusion 500ma to ground)
M215 corresponding OUT_15 output low level (perfusion 500ma to ground)
M216 Because logic easy to confuse, so give up on the OUT_16 Output Control
Enter the judgment M command (M3 **, M4 **)
M301 corresponding the input terminal INTPU_1 Judgment if it is low level execute the next
line, otherwise go on waiting
M302 corresponding the input terminal INTPU_2 Judgment if it is low level execute the next
line, otherwise go on waiting
M303 corresponding the input terminal INTPU_3 Judgment if it is low level execute the next
line, otherwise go on waiting
M304 corresponding the input terminal INTPU_4 Judgment if it is low level execute the next
line, otherwise go on waiting
M305 corresponding the input terminal INTPU_5 Judgment if it is low level execute the next
line, otherwise go on waiting
M306 corresponding the input terminal INTPU_6 Judgment if it is low level execute the next
line, otherwise go on waiting
M307 corresponding the input terminal INTPU_7 Judgment if it is low level execute the next
line, otherwise go on waiting
M308 corresponding the input terminal INTPU_8 Judgment if it is low level execute the next
line, otherwise go on waiting
M309 corresponding the input terminal INTPU_9 Judgment if it is low level execute the next
line, otherwise go on waiting
M310 corresponding the input terminal INTPU_10 Judgment if it is low level execute the next
line, otherwise go on waiting
M311 corresponding the input terminal INTPU_11 Judgment if it is low level execute the next
line, otherwise go on waiting
M312 corresponding the input terminal INTPU_12 Judgment if it is low level execute the next
line, otherwise go on waiting
M313 corresponding the input terminal INTPU_13 Judgment if it is low level execute the next
line, otherwise go on waiting
. http://www.chinaplccenter.com
34 / 40
M314 corresponding the input terminal INTPU_14 Judgment if it is low level execute the next
line, otherwise go on waiting
M315 corresponding the input terminal INTPU_15 Judgment if it is low level execute the next
line, otherwise go on waiting
M316 corresponding the input terminal INTPU_16 Judgment if it is low level execute the next
line, otherwise go on waiting
M401 corresponding the input terminal INTPU_1 Judgment if it is low level execute the next
line, otherwise go on waiting
M402 corresponding the input terminal INTPU_2 Judgment if it is low level execute the next
line, otherwise go on waiting
M403 corresponding the input terminal INTPU_3 Judgment if it is low level execute the next
line, otherwise go on waiting
M404 corresponding the input terminal INTPU_4 Judgment if it is low level execute the next
line, otherwise go on waiting
M405 corresponding the input terminal INTPU_5 Judgment if it is low level execute the next
line, otherwise go on waiting
M406 corresponding the input terminal INTPU_6 Judgment if it is low level execute the next
line, otherwise go on waiting
M407 corresponding the input terminal INTPU_7 Judgment if it is low level execute the next
line, otherwise go on waiting
M408 corresponding the input terminal INTPU_8 Judgment if it is low level execute the next
line, otherwise go on waiting
M409 corresponding the input terminal INTPU_9 Judgment if it is low level execute the next
line, otherwise go on waiting
M410 corresponding the input terminal INTPU_10 Judgment if it is low level execute the next
line, otherwise go on waiting
M411 corresponding the input terminal INTPU_11 Judgment if it is low level execute the next
line, otherwise go on waiting
M412 corresponding the input terminal INTPU_12 Judgment if it is low level execute the next
line, otherwise go on waiting
M413 corresponding the input terminal INTPU_13 Judgment if it is low level execute the next
line, otherwise go on waiting
M414 corresponding the input terminal INTPU_14 Judgment if it is low level execute the next
line, otherwise go on waiting
M415 corresponding the input terminal INTPU_15 Judgment if it is low level execute the next
line, otherwise go on waiting
M416 corresponding the input terminal INTPU_16 Judgment if it is low level execute the next
line, otherwise go on waiting
G, M instruction combinations Case
Project goal: to start the switch after triggered,X-axis control operation of the mobile speeds of
600, To specify the location of the first point A,output an action to pneumatic A,2 seconds,then
semi-closed return,1 seconds, then move the operating speed of 600 to point B,Then output a
. http://www.chinaplccenter.com
35 / 40
move to the Pneumatic B,2 seconds,then closing the return, 1 seconds, then move the operating
speed of 1200 to return to point A and wait for the start switch triggered ......
As shown in Figure
A position of the origin point, B point 500MM, C point 1000MM
connect the X-axis control all circuits,An input switch connected to the input port 1 as the start
button, and connect the two-way Pneumatic units A, B to the output port 1,2, A connect 1, B
connect 2.
Program instructions are as follows:
G1X500F600 (the workpiece is moved to the 500 position)
M101 (Open Pneumatic A)
G4P2000 (delay 2 seconds)
M201 (Close Pneumatic A return)
G4P1000 (delay 1 second)
G1X1000F600 (the workpiece is moved to the 1000 position)
M102 (Open Pneumatic B)
G4P2000 (delay 2 seconds)
M202 (Close Pneumatic B returns)
G4P1000 (delay 1 second)
G1X0F1200 (the workpiece is moved to the 0 position)
M301 (wait for the start button triggered)
M47 (back to the first line to restart Note: The last line of the last to join the carriage return)
(Carriage return or empty)
. http://www.chinaplccenter.com
36 / 40
. http://www.chinaplccenter.com
37 / 40
. http://www.chinaplccenter.com
38 / 40
. http://www.chinaplccenter.com
39 / 40
. http://www.chinaplccenter.com
40 / 40

More Related Content

What's hot

Logical instructions (and, or, xor, not, test)
Logical instructions (and, or, xor, not, test)Logical instructions (and, or, xor, not, test)
Logical instructions (and, or, xor, not, test)
Irfan Anjum

Kien truc bo_lenh_mips
Kien truc bo_lenh_mipsKien truc bo_lenh_mips
Kien truc bo_lenh_mips
VN Phan

Đề tài: Thiết kế động cơ đốt trong, HAY, 9đ
Đề tài: Thiết kế động cơ đốt trong, HAY, 9đĐề tài: Thiết kế động cơ đốt trong, HAY, 9đ
Đề tài: Thiết kế động cơ đốt trong, HAY, 9đ
Dịch vụ viết bài trọn gói ZALO 0917193864

GIẢI PHẪU GAN
GIẢI PHẪU GANGIẢI PHẪU GAN
GIẢI PHẪU GAN
Tín Nguyễn-Trương

Phác đồ 1 giờ trong chẩn đoán và điều trị nhồi máu cơ tim cấp
Phác đồ 1 giờ trong chẩn đoán và điều trị nhồi máu cơ tim cấpPhác đồ 1 giờ trong chẩn đoán và điều trị nhồi máu cơ tim cấp
Phác đồ 1 giờ trong chẩn đoán và điều trị nhồi máu cơ tim cấp
jackjohn45

8051 instruction set
8051 instruction set8051 instruction set
8051 instruction set
prakash y

Benh he tuan hoan
Benh he tuan hoanBenh he tuan hoan
Benh he tuan hoan
Danh Lợi Huỳnh

Điện tâm đồ cơ bản
Điện tâm đồ cơ bảnĐiện tâm đồ cơ bản
Điện tâm đồ cơ bản
youngunoistalented1995

VẠT DA - THẦN KINH HIỂN CÓ CUỐNG VÀ ĐẦU XA
VẠT DA - THẦN KINH HIỂN CÓ CUỐNG VÀ ĐẦU XAVẠT DA - THẦN KINH HIỂN CÓ CUỐNG VÀ ĐẦU XA
VẠT DA - THẦN KINH HIỂN CÓ CUỐNG VÀ ĐẦU XA
SoM

8051 Programming Instruction Set
 8051 Programming Instruction Set 8051 Programming Instruction Set
8051 Programming Instruction Set
Shreyans Pathak

Lcd display
Lcd displayLcd display
Lcd display
Nelarapu Mahesh

Dụng cụ Phục hồi Chức năng
Dụng cụ Phục hồi Chức năngDụng cụ Phục hồi Chức năng
Dụng cụ Phục hồi Chức năng
Nguyễn Bá Khánh Hòa

Scilab for Beginners (Vietnamese)
Scilab for Beginners (Vietnamese)Scilab for Beginners (Vietnamese)
Scilab for Beginners (Vietnamese)
TBSS Group

Architecture of 8086 Microprocessor
Architecture of 8086 Microprocessor  Architecture of 8086 Microprocessor
Architecture of 8086 Microprocessor
Mustapha Fatty

CHẨN ĐOÁN ĐIỆN HỌC
CHẨN ĐOÁN ĐIỆN HỌCCHẨN ĐOÁN ĐIỆN HỌC
CHẨN ĐOÁN ĐIỆN HỌC
SoM

Tim mach 2016
Tim mach 2016Tim mach 2016
Tim mach 2016
Lộc Joach

ECG CƠ BẢN
ECG CƠ BẢNECG CƠ BẢN
ECG CƠ BẢN
SoM

Đồ Án Thiết Kế Hệ Thống Dẫn Động Xích Tải (Kèm File Autocad Full)
Đồ Án Thiết Kế Hệ Thống Dẫn Động Xích Tải (Kèm File Autocad Full) Đồ Án Thiết Kế Hệ Thống Dẫn Động Xích Tải (Kèm File Autocad Full)
Đồ Án Thiết Kế Hệ Thống Dẫn Động Xích Tải (Kèm File Autocad Full)
nataliej4

Van hanh may phay
Van hanh may phayVan hanh may phay
Van hanh may phay
QUY VĂN

Chuong3 lập trình hợp ngữ
Chuong3 lập trình hợp ngữChuong3 lập trình hợp ngữ
Chuong3 lập trình hợp ngữ
Đinh Công Thiện Taydo University


What's hot (20)

Logical instructions (and, or, xor, not, test)
Logical instructions (and, or, xor, not, test)Logical instructions (and, or, xor, not, test)
Logical instructions (and, or, xor, not, test)

Kien truc bo_lenh_mips
Kien truc bo_lenh_mipsKien truc bo_lenh_mips
Kien truc bo_lenh_mips

Đề tài: Thiết kế động cơ đốt trong, HAY, 9đ
Đề tài: Thiết kế động cơ đốt trong, HAY, 9đĐề tài: Thiết kế động cơ đốt trong, HAY, 9đ
Đề tài: Thiết kế động cơ đốt trong, HAY, 9đ

GIẢI PHẪU GAN
GIẢI PHẪU GANGIẢI PHẪU GAN
GIẢI PHẪU GAN

Phác đồ 1 giờ trong chẩn đoán và điều trị nhồi máu cơ tim cấp
Phác đồ 1 giờ trong chẩn đoán và điều trị nhồi máu cơ tim cấpPhác đồ 1 giờ trong chẩn đoán và điều trị nhồi máu cơ tim cấp
Phác đồ 1 giờ trong chẩn đoán và điều trị nhồi máu cơ tim cấp

8051 instruction set
8051 instruction set8051 instruction set
8051 instruction set

Benh he tuan hoan
Benh he tuan hoanBenh he tuan hoan
Benh he tuan hoan

Điện tâm đồ cơ bản
Điện tâm đồ cơ bảnĐiện tâm đồ cơ bản
Điện tâm đồ cơ bản

VẠT DA - THẦN KINH HIỂN CÓ CUỐNG VÀ ĐẦU XA
VẠT DA - THẦN KINH HIỂN CÓ CUỐNG VÀ ĐẦU XAVẠT DA - THẦN KINH HIỂN CÓ CUỐNG VÀ ĐẦU XA
VẠT DA - THẦN KINH HIỂN CÓ CUỐNG VÀ ĐẦU XA

8051 Programming Instruction Set
 8051 Programming Instruction Set 8051 Programming Instruction Set
8051 Programming Instruction Set

Lcd display
Lcd displayLcd display
Lcd display

Dụng cụ Phục hồi Chức năng
Dụng cụ Phục hồi Chức năngDụng cụ Phục hồi Chức năng
Dụng cụ Phục hồi Chức năng

Scilab for Beginners (Vietnamese)
Scilab for Beginners (Vietnamese)Scilab for Beginners (Vietnamese)
Scilab for Beginners (Vietnamese)

Architecture of 8086 Microprocessor
Architecture of 8086 Microprocessor  Architecture of 8086 Microprocessor
Architecture of 8086 Microprocessor

CHẨN ĐOÁN ĐIỆN HỌC
CHẨN ĐOÁN ĐIỆN HỌCCHẨN ĐOÁN ĐIỆN HỌC
CHẨN ĐOÁN ĐIỆN HỌC

Tim mach 2016
Tim mach 2016Tim mach 2016
Tim mach 2016

ECG CƠ BẢN
ECG CƠ BẢNECG CƠ BẢN
ECG CƠ BẢN

Đồ Án Thiết Kế Hệ Thống Dẫn Động Xích Tải (Kèm File Autocad Full)
Đồ Án Thiết Kế Hệ Thống Dẫn Động Xích Tải (Kèm File Autocad Full) Đồ Án Thiết Kế Hệ Thống Dẫn Động Xích Tải (Kèm File Autocad Full)
Đồ Án Thiết Kế Hệ Thống Dẫn Động Xích Tải (Kèm File Autocad Full)

Van hanh may phay
Van hanh may phayVan hanh may phay
Van hanh may phay

Chuong3 lập trình hợp ngữ
Chuong3 lập trình hợp ngữChuong3 lập trình hợp ngữ
Chuong3 lập trình hợp ngữ


Viewers also liked

50 khz cnc 4 axis offline controller ——mc4 4-16a16b
50 khz cnc 4 axis offline controller ——mc4 4-16a16b50 khz cnc 4 axis offline controller ——mc4 4-16a16b
50 khz cnc 4 axis offline controller ——mc4 4-16a16b
arco zhang

PLC control Three phase asynchronous motor Positive inversion
PLC control Three phase asynchronous motor Positive inversionPLC control Three phase asynchronous motor Positive inversion
PLC control Three phase asynchronous motor Positive inversion
arco zhang

Dsp controller a11 manual
Dsp controller a11 manualDsp controller a11 manual
Dsp controller a11 manual
Jinan APEX CNC Technology Co., Ltd

Fanuc pmc programming manual
Fanuc pmc programming manualFanuc pmc programming manual
Fanuc pmc programming manual
Antonio J

Getting Started With SlideShare
Getting Started With SlideShareGetting Started With SlideShare
Getting Started With SlideShare
SlideShare

2015 Upload Campaigns Calendar - SlideShare
2015 Upload Campaigns Calendar - SlideShare2015 Upload Campaigns Calendar - SlideShare
2015 Upload Campaigns Calendar - SlideShare
SlideShare

What to Upload to SlideShare
What to Upload to SlideShareWhat to Upload to SlideShare
What to Upload to SlideShare
SlideShare

Mitsubishi FX PLC Crosswalk Programming Ladder Diagram
Mitsubishi FX PLC Crosswalk Programming Ladder DiagramMitsubishi FX PLC Crosswalk Programming Ladder Diagram
Mitsubishi FX PLC Crosswalk Programming Ladder Diagram
arco zhang

Artsofte for b2 b
Artsofte for b2 b Artsofte for b2 b
Artsofte for b2 b
Artsofte IT company

Artsofte_Компетенции для авиаперевозчиков
Artsofte_Компетенции для авиаперевозчиковArtsofte_Компетенции для авиаперевозчиков
Artsofte_Компетенции для авиаперевозчиков
Artsofte IT company

Marine piping systems
Marine piping systemsMarine piping systems
Marine piping systems
kmsu

Eiiiiiiiiiiii
EiiiiiiiiiiiiEiiiiiiiiiiii
Eiiiiiiiiiiii
alexlur

What's a Good Chinese Daily Deal - A Market Analysis - May 2011 - Dataotuan.com
What's a Good Chinese Daily Deal - A Market Analysis - May 2011 - Dataotuan.com What's a Good Chinese Daily Deal - A Market Analysis - May 2011 - Dataotuan.com
What's a Good Chinese Daily Deal - A Market Analysis - May 2011 - Dataotuan.com
dataotuan

Quiz 3 (answer)
Quiz 3 (answer)Quiz 3 (answer)
Quiz 3 (answer)
nurulimanabdulrazak

Classification of Fonts and Calligraphy Styles based on Complex Wavelet Trans...
Classification of Fonts and Calligraphy Styles based on Complex Wavelet Trans...Classification of Fonts and Calligraphy Styles based on Complex Wavelet Trans...
Classification of Fonts and Calligraphy Styles based on Complex Wavelet Trans...
Alican Bozkurt

Activities
ActivitiesActivities
Activities
MaTerish Soliman

Chapter 7
Chapter 7Chapter 7
Chapter 7
Salman Javed

Q2 2013 ASSA ABLOY investors presentation 19 july
Q2 2013 ASSA ABLOY investors presentation 19 julyQ2 2013 ASSA ABLOY investors presentation 19 july
Q2 2013 ASSA ABLOY investors presentation 19 july
ASSA ABLOY

How We're Using Data Consolidation to Gain X-Ray Vision Into Marketing Perfor...
How We're Using Data Consolidation to Gain X-Ray Vision Into Marketing Perfor...How We're Using Data Consolidation to Gain X-Ray Vision Into Marketing Perfor...
How We're Using Data Consolidation to Gain X-Ray Vision Into Marketing Perfor...
Janessa Lantz


Viewers also liked (20)

50 khz cnc 4 axis offline controller ——mc4 4-16a16b
50 khz cnc 4 axis offline controller ——mc4 4-16a16b50 khz cnc 4 axis offline controller ——mc4 4-16a16b
50 khz cnc 4 axis offline controller ——mc4 4-16a16b

PLC control Three phase asynchronous motor Positive inversion
PLC control Three phase asynchronous motor Positive inversionPLC control Three phase asynchronous motor Positive inversion
PLC control Three phase asynchronous motor Positive inversion

Dsp controller a11 manual
Dsp controller a11 manualDsp controller a11 manual
Dsp controller a11 manual

Fanuc pmc programming manual
Fanuc pmc programming manualFanuc pmc programming manual
Fanuc pmc programming manual

Getting Started With SlideShare
Getting Started With SlideShareGetting Started With SlideShare
Getting Started With SlideShare

2015 Upload Campaigns Calendar - SlideShare
2015 Upload Campaigns Calendar - SlideShare2015 Upload Campaigns Calendar - SlideShare
2015 Upload Campaigns Calendar - SlideShare

What to Upload to SlideShare
What to Upload to SlideShareWhat to Upload to SlideShare
What to Upload to SlideShare

Mitsubishi FX PLC Crosswalk Programming Ladder Diagram
Mitsubishi FX PLC Crosswalk Programming Ladder DiagramMitsubishi FX PLC Crosswalk Programming Ladder Diagram
Mitsubishi FX PLC Crosswalk Programming Ladder Diagram

Artsofte for b2 b
Artsofte for b2 b Artsofte for b2 b
Artsofte for b2 b

Artsofte_Компетенции для авиаперевозчиков
Artsofte_Компетенции для авиаперевозчиковArtsofte_Компетенции для авиаперевозчиков
Artsofte_Компетенции для авиаперевозчиков

Marine piping systems
Marine piping systemsMarine piping systems
Marine piping systems

Eiiiiiiiiiiii
EiiiiiiiiiiiiEiiiiiiiiiiii
Eiiiiiiiiiiii

What's a Good Chinese Daily Deal - A Market Analysis - May 2011 - Dataotuan.com
What's a Good Chinese Daily Deal - A Market Analysis - May 2011 - Dataotuan.com What's a Good Chinese Daily Deal - A Market Analysis - May 2011 - Dataotuan.com
What's a Good Chinese Daily Deal - A Market Analysis - May 2011 - Dataotuan.com

Quiz 3 (answer)
Quiz 3 (answer)Quiz 3 (answer)
Quiz 3 (answer)

Classification of Fonts and Calligraphy Styles based on Complex Wavelet Trans...
Classification of Fonts and Calligraphy Styles based on Complex Wavelet Trans...Classification of Fonts and Calligraphy Styles based on Complex Wavelet Trans...
Classification of Fonts and Calligraphy Styles based on Complex Wavelet Trans...

Activities
ActivitiesActivities
Activities

Chapter 7
Chapter 7Chapter 7
Chapter 7

Q2 2013 ASSA ABLOY investors presentation 19 july
Q2 2013 ASSA ABLOY investors presentation 19 julyQ2 2013 ASSA ABLOY investors presentation 19 july
Q2 2013 ASSA ABLOY investors presentation 19 july

Info penting
Info pentingInfo penting
Info penting

How We're Using Data Consolidation to Gain X-Ray Vision Into Marketing Perfor...
How We're Using Data Consolidation to Gain X-Ray Vision Into Marketing Perfor...How We're Using Data Consolidation to Gain X-Ray Vision Into Marketing Perfor...
How We're Using Data Consolidation to Gain X-Ray Vision Into Marketing Perfor...


Similar to SMC4-4-16A16B offline CNC controller manual

Shaoge smc4 4-16a16b offline cnc controller
Shaoge smc4 4-16a16b offline cnc controllerShaoge smc4 4-16a16b offline cnc controller
Shaoge smc4 4-16a16b offline cnc controller
arco zhang

Pf700 energy savings_lab
Pf700 energy savings_labPf700 energy savings_lab
Pf700 energy savings_lab
confidencial

Bien tan-mini
Bien tan-miniBien tan-mini
Sino SDS6 Digital Readouts
Sino SDS6 Digital ReadoutsSino SDS6 Digital Readouts
Sino SDS6 Digital Readouts
TunNht3

Catalog Biến tần Frenic MINI mới nhất 2019
Catalog Biến tần Frenic MINI mới nhất 2019Catalog Biến tần Frenic MINI mới nhất 2019
Catalog Biến tần Frenic MINI mới nhất 2019
CTY TNHH HẠO PHƯƠNG

Catalog Biến tần Frenic ACE Mini (Fuji Electric) - Beeteco.com
Catalog Biến tần Frenic ACE Mini (Fuji Electric) - Beeteco.comCatalog Biến tần Frenic ACE Mini (Fuji Electric) - Beeteco.com
Catalog Biến tần Frenic ACE Mini (Fuji Electric) - Beeteco.com
Beeteco

Ls catalog thiet bi tu dong i e5_e_1105
Ls catalog thiet bi tu dong i e5_e_1105Ls catalog thiet bi tu dong i e5_e_1105
Ls catalog thiet bi tu dong i e5_e_1105
Dien Ha The

Ls catalog thiet bi tu dong i e5_e_1105_dienhathe.vn
Ls catalog thiet bi tu dong i e5_e_1105_dienhathe.vnLs catalog thiet bi tu dong i e5_e_1105_dienhathe.vn
Ls catalog thiet bi tu dong i e5_e_1105_dienhathe.vn
Dien Ha The

P6 semi auto printer manual
P6 semi auto printer manualP6 semi auto printer manual
P6 semi auto printer manual
Mark Tung

P3 semi auto printer manual
P3 semi auto printer manualP3 semi auto printer manual
P3 semi auto printer manual
Mark Tung

Cnc 2 unit palanivendhan cnc elements
Cnc 2 unit palanivendhan cnc elementsCnc 2 unit palanivendhan cnc elements
Cnc 2 unit palanivendhan cnc elements
palanivendhan

Fuji frenic-5000-drives
Fuji frenic-5000-drivesFuji frenic-5000-drives
Fuji frenic-5000-drives
REFILWE MOTHIBA

Bien tan ls gioi thieu bien tan i e5 series (new)-1
Bien tan ls   gioi thieu bien tan i e5 series (new)-1Bien tan ls   gioi thieu bien tan i e5 series (new)-1
Bien tan ls gioi thieu bien tan i e5 series (new)-1
Dien Ha The

Bien tan ls gioi thieu bien tan i e5 series (new)-1-dienhathe.vn
Bien tan ls   gioi thieu bien tan i e5 series (new)-1-dienhathe.vnBien tan ls   gioi thieu bien tan i e5 series (new)-1-dienhathe.vn
Bien tan ls gioi thieu bien tan i e5 series (new)-1-dienhathe.vn
Dien Ha The

Bien tan ls gioi thieu bien tan i e5 series (new)-1-dienhathe.vn
Bien tan ls   gioi thieu bien tan i e5 series (new)-1-dienhathe.vnBien tan ls   gioi thieu bien tan i e5 series (new)-1-dienhathe.vn
Bien tan ls gioi thieu bien tan i e5 series (new)-1-dienhathe.vn
Dien Ha The

MT50 for LS1024B/ LS2024B/ LS3024B PWM solar controller
MT50 for LS1024B/ LS2024B/ LS3024B PWM solar controllerMT50 for LS1024B/ LS2024B/ LS3024B PWM solar controller
MT50 for LS1024B/ LS2024B/ LS3024B PWM solar controller
Shandong iSentrol Electronic Technology Co., Ltd

EEP301: Ca06 sample
EEP301: Ca06 sampleEEP301: Ca06 sample
EEP301: Ca06 sample
Umang Gupta

ManualSinoSDS6V-3axisDRO.pdf
ManualSinoSDS6V-3axisDRO.pdfManualSinoSDS6V-3axisDRO.pdf
ManualSinoSDS6V-3axisDRO.pdf
bruno bassotti

BHEL CNC MACHINE TRAINING REPORT
BHEL CNC MACHINE TRAINING REPORT BHEL CNC MACHINE TRAINING REPORT
BHEL CNC MACHINE TRAINING REPORT
piyush singh

bhel6-171106130647.pdf
bhel6-171106130647.pdfbhel6-171106130647.pdf
bhel6-171106130647.pdf
ARYAKUMARNIRAV


Similar to SMC4-4-16A16B offline CNC controller manual (20)

Shaoge smc4 4-16a16b offline cnc controller
Shaoge smc4 4-16a16b offline cnc controllerShaoge smc4 4-16a16b offline cnc controller
Shaoge smc4 4-16a16b offline cnc controller

Pf700 energy savings_lab
Pf700 energy savings_labPf700 energy savings_lab
Pf700 energy savings_lab

Bien tan-mini
Bien tan-miniBien tan-mini
Bien tan-mini

Sino SDS6 Digital Readouts
Sino SDS6 Digital ReadoutsSino SDS6 Digital Readouts
Sino SDS6 Digital Readouts

Catalog Biến tần Frenic MINI mới nhất 2019
Catalog Biến tần Frenic MINI mới nhất 2019Catalog Biến tần Frenic MINI mới nhất 2019
Catalog Biến tần Frenic MINI mới nhất 2019

Catalog Biến tần Frenic ACE Mini (Fuji Electric) - Beeteco.com
Catalog Biến tần Frenic ACE Mini (Fuji Electric) - Beeteco.comCatalog Biến tần Frenic ACE Mini (Fuji Electric) - Beeteco.com
Catalog Biến tần Frenic ACE Mini (Fuji Electric) - Beeteco.com

Ls catalog thiet bi tu dong i e5_e_1105
Ls catalog thiet bi tu dong i e5_e_1105Ls catalog thiet bi tu dong i e5_e_1105
Ls catalog thiet bi tu dong i e5_e_1105

Ls catalog thiet bi tu dong i e5_e_1105_dienhathe.vn
Ls catalog thiet bi tu dong i e5_e_1105_dienhathe.vnLs catalog thiet bi tu dong i e5_e_1105_dienhathe.vn
Ls catalog thiet bi tu dong i e5_e_1105_dienhathe.vn

P6 semi auto printer manual
P6 semi auto printer manualP6 semi auto printer manual
P6 semi auto printer manual

P3 semi auto printer manual
P3 semi auto printer manualP3 semi auto printer manual
P3 semi auto printer manual

Cnc 2 unit palanivendhan cnc elements
Cnc 2 unit palanivendhan cnc elementsCnc 2 unit palanivendhan cnc elements
Cnc 2 unit palanivendhan cnc elements

Fuji frenic-5000-drives
Fuji frenic-5000-drivesFuji frenic-5000-drives
Fuji frenic-5000-drives

Bien tan ls gioi thieu bien tan i e5 series (new)-1
Bien tan ls   gioi thieu bien tan i e5 series (new)-1Bien tan ls   gioi thieu bien tan i e5 series (new)-1
Bien tan ls gioi thieu bien tan i e5 series (new)-1

Bien tan ls gioi thieu bien tan i e5 series (new)-1-dienhathe.vn
Bien tan ls   gioi thieu bien tan i e5 series (new)-1-dienhathe.vnBien tan ls   gioi thieu bien tan i e5 series (new)-1-dienhathe.vn
Bien tan ls gioi thieu bien tan i e5 series (new)-1-dienhathe.vn

Bien tan ls gioi thieu bien tan i e5 series (new)-1-dienhathe.vn
Bien tan ls   gioi thieu bien tan i e5 series (new)-1-dienhathe.vnBien tan ls   gioi thieu bien tan i e5 series (new)-1-dienhathe.vn
Bien tan ls gioi thieu bien tan i e5 series (new)-1-dienhathe.vn

MT50 for LS1024B/ LS2024B/ LS3024B PWM solar controller
MT50 for LS1024B/ LS2024B/ LS3024B PWM solar controllerMT50 for LS1024B/ LS2024B/ LS3024B PWM solar controller
MT50 for LS1024B/ LS2024B/ LS3024B PWM solar controller

EEP301: Ca06 sample
EEP301: Ca06 sampleEEP301: Ca06 sample
EEP301: Ca06 sample

ManualSinoSDS6V-3axisDRO.pdf
ManualSinoSDS6V-3axisDRO.pdfManualSinoSDS6V-3axisDRO.pdf
ManualSinoSDS6V-3axisDRO.pdf

BHEL CNC MACHINE TRAINING REPORT
BHEL CNC MACHINE TRAINING REPORT BHEL CNC MACHINE TRAINING REPORT
BHEL CNC MACHINE TRAINING REPORT

bhel6-171106130647.pdf
bhel6-171106130647.pdfbhel6-171106130647.pdf
bhel6-171106130647.pdf


More from arco zhang

DYZ-103.pdf
DYZ-103.pdfDYZ-103.pdf
DYZ-103.pdf
arco zhang

DYZL-101.pdf
DYZL-101.pdfDYZL-101.pdf
DYZL-101.pdf
arco zhang

DYZ-109.pdf
DYZ-109.pdfDYZ-109.pdf
DYZ-109.pdf
arco zhang

DYZ-106.pdf
DYZ-106.pdfDYZ-106.pdf
DYZ-106.pdf
arco zhang

DYZC-055.pdf
DYZC-055.pdfDYZC-055.pdf
DYZC-055.pdf
arco zhang

DYZ-014.pdf
DYZ-014.pdfDYZ-014.pdf
DYZ-014.pdf
arco zhang

DYZ-107.pdf
DYZ-107.pdfDYZ-107.pdf
DYZ-107.pdf
arco zhang

DYZ-102.pdf
DYZ-102.pdfDYZ-102.pdf
DYZ-102.pdf
arco zhang

DYZ-100.pdf
DYZ-100.pdfDYZ-100.pdf
DYZ-100.pdf
arco zhang

DYZL-106.pdf
DYZL-106.pdfDYZL-106.pdf
DYZL-106.pdf
arco zhang

DYX-307.pdf
DYX-307.pdfDYX-307.pdf
DYX-307.pdf
arco zhang

DYZL-104.pdf
DYZL-104.pdfDYZL-104.pdf
DYZL-104.pdf
arco zhang

DYZ-013.pdf
DYZ-013.pdfDYZ-013.pdf
DYZ-013.pdf
arco zhang

DYX-302.pdf
DYX-302.pdfDYX-302.pdf
DYX-302.pdf
arco zhang

DYZ-104.pdf
DYZ-104.pdfDYZ-104.pdf
DYZ-104.pdf
arco zhang

DYZX-001.pdf
DYZX-001.pdfDYZX-001.pdf
DYZX-001.pdf
arco zhang

DYTB-001.pdf
DYTB-001.pdfDYTB-001.pdf
DYTB-001.pdf
arco zhang

DYZ-015.pdf
DYZ-015.pdfDYZ-015.pdf
DYZ-015.pdf
arco zhang

DYZ-011.pdf
DYZ-011.pdfDYZ-011.pdf
DYZ-011.pdf
arco zhang

DYZHL.pdf
DYZHL.pdfDYZHL.pdf
DYZHL.pdf
arco zhang


More from arco zhang (20)

DYZ-103.pdf
DYZ-103.pdfDYZ-103.pdf
DYZ-103.pdf

DYZL-101.pdf
DYZL-101.pdfDYZL-101.pdf
DYZL-101.pdf

DYZ-109.pdf
DYZ-109.pdfDYZ-109.pdf
DYZ-109.pdf

DYZ-106.pdf
DYZ-106.pdfDYZ-106.pdf
DYZ-106.pdf

DYZC-055.pdf
DYZC-055.pdfDYZC-055.pdf
DYZC-055.pdf

DYZ-014.pdf
DYZ-014.pdfDYZ-014.pdf
DYZ-014.pdf

DYZ-107.pdf
DYZ-107.pdfDYZ-107.pdf
DYZ-107.pdf

DYZ-102.pdf
DYZ-102.pdfDYZ-102.pdf
DYZ-102.pdf

DYZ-100.pdf
DYZ-100.pdfDYZ-100.pdf
DYZ-100.pdf

DYZL-106.pdf
DYZL-106.pdfDYZL-106.pdf
DYZL-106.pdf

DYX-307.pdf
DYX-307.pdfDYX-307.pdf
DYX-307.pdf

DYZL-104.pdf
DYZL-104.pdfDYZL-104.pdf
DYZL-104.pdf

DYZ-013.pdf
DYZ-013.pdfDYZ-013.pdf
DYZ-013.pdf

DYX-302.pdf
DYX-302.pdfDYX-302.pdf
DYX-302.pdf

DYZ-104.pdf
DYZ-104.pdfDYZ-104.pdf
DYZ-104.pdf

DYZX-001.pdf
DYZX-001.pdfDYZX-001.pdf
DYZX-001.pdf

DYTB-001.pdf
DYTB-001.pdfDYTB-001.pdf
DYTB-001.pdf

DYZ-015.pdf
DYZ-015.pdfDYZ-015.pdf
DYZ-015.pdf

DYZ-011.pdf
DYZ-011.pdfDYZ-011.pdf
DYZ-011.pdf

DYZHL.pdf
DYZHL.pdfDYZHL.pdf
DYZHL.pdf


Recently uploaded

Redefining Cybersecurity with AI Capabilities
Redefining Cybersecurity with AI CapabilitiesRedefining Cybersecurity with AI Capabilities
Redefining Cybersecurity with AI Capabilities
Priyanka Aash

Step-By-Step Process to Develop a Mobile App From Scratch
Step-By-Step Process to Develop a Mobile App From ScratchStep-By-Step Process to Develop a Mobile App From Scratch
Step-By-Step Process to Develop a Mobile App From Scratch
softsuave

kk vathada _digital transformation frameworks_2024.pdf
kk vathada _digital transformation frameworks_2024.pdfkk vathada _digital transformation frameworks_2024.pdf
kk vathada _digital transformation frameworks_2024.pdf
KIRAN KV

Communications Mining Series - Zero to Hero - Session 3
Communications Mining Series - Zero to Hero - Session 3Communications Mining Series - Zero to Hero - Session 3
Communications Mining Series - Zero to Hero - Session 3
DianaGray10

leewayhertz.com-AI agents for healthcare Applications benefits and implementa...
leewayhertz.com-AI agents for healthcare Applications benefits and implementa...leewayhertz.com-AI agents for healthcare Applications benefits and implementa...
leewayhertz.com-AI agents for healthcare Applications benefits and implementa...
alexjohnson7307

Computer HARDWARE presenattion by CWD students class 10
Computer HARDWARE presenattion by CWD students class 10Computer HARDWARE presenattion by CWD students class 10
Computer HARDWARE presenattion by CWD students class 10
ankush9927

How UiPath Discovery Suite supports identification of Agentic Process Automat...
How UiPath Discovery Suite supports identification of Agentic Process Automat...How UiPath Discovery Suite supports identification of Agentic Process Automat...
How UiPath Discovery Suite supports identification of Agentic Process Automat...
DianaGray10

Vertex AI Agent Builder - GDG Alicante - Julio 2024
Vertex AI Agent Builder - GDG Alicante - Julio 2024Vertex AI Agent Builder - GDG Alicante - Julio 2024
Vertex AI Agent Builder - GDG Alicante - Julio 2024
Nicolás Lopéz

Retrieval Augmented Generation Evaluation with Ragas
Retrieval Augmented Generation Evaluation with RagasRetrieval Augmented Generation Evaluation with Ragas
Retrieval Augmented Generation Evaluation with Ragas
Zilliz

Opencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of MünsterOpencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of Münster
Matthias Neugebauer

Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...
Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...
Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...
maigasapphire

Patch Tuesday de julio
Patch Tuesday de julioPatch Tuesday de julio
Patch Tuesday de julio
Ivanti

UX Webinar Series: Drive Revenue and Decrease Costs with Passkeys for Consume...
UX Webinar Series: Drive Revenue and Decrease Costs with Passkeys for Consume...UX Webinar Series: Drive Revenue and Decrease Costs with Passkeys for Consume...
UX Webinar Series: Drive Revenue and Decrease Costs with Passkeys for Consume...
FIDO Alliance

UX Webinar Series: Essentials for Adopting Passkeys as the Foundation of your...
UX Webinar Series: Essentials for Adopting Passkeys as the Foundation of your...UX Webinar Series: Essentials for Adopting Passkeys as the Foundation of your...
UX Webinar Series: Essentials for Adopting Passkeys as the Foundation of your...
FIDO Alliance

Types of Weaving loom machine & it's technology
Types of Weaving loom machine & it's technologyTypes of Weaving loom machine & it's technology
Types of Weaving loom machine & it's technology
ldtexsolbl

Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
sunilverma7884

Tailored CRM Software Development for Enhanced Customer Insights
Tailored CRM Software Development for Enhanced Customer InsightsTailored CRM Software Development for Enhanced Customer Insights
Tailored CRM Software Development for Enhanced Customer Insights
SynapseIndia

Camunda Chapter NY Meetup July 2024.pptx
Camunda Chapter NY Meetup July 2024.pptxCamunda Chapter NY Meetup July 2024.pptx
Camunda Chapter NY Meetup July 2024.pptx
ZachWylie3

Feature sql server terbaru performance.pptx
Feature sql server terbaru performance.pptxFeature sql server terbaru performance.pptx
Feature sql server terbaru performance.pptx
ssuser1915fe1

Improving Learning Content Efficiency with Reusable Learning Content
Improving Learning Content Efficiency with Reusable Learning ContentImproving Learning Content Efficiency with Reusable Learning Content
Improving Learning Content Efficiency with Reusable Learning Content
Enterprise Knowledge


Recently uploaded (20)

Redefining Cybersecurity with AI Capabilities
Redefining Cybersecurity with AI CapabilitiesRedefining Cybersecurity with AI Capabilities
Redefining Cybersecurity with AI Capabilities

Step-By-Step Process to Develop a Mobile App From Scratch
Step-By-Step Process to Develop a Mobile App From ScratchStep-By-Step Process to Develop a Mobile App From Scratch
Step-By-Step Process to Develop a Mobile App From Scratch

kk vathada _digital transformation frameworks_2024.pdf
kk vathada _digital transformation frameworks_2024.pdfkk vathada _digital transformation frameworks_2024.pdf
kk vathada _digital transformation frameworks_2024.pdf

Communications Mining Series - Zero to Hero - Session 3
Communications Mining Series - Zero to Hero - Session 3Communications Mining Series - Zero to Hero - Session 3
Communications Mining Series - Zero to Hero - Session 3

leewayhertz.com-AI agents for healthcare Applications benefits and implementa...
leewayhertz.com-AI agents for healthcare Applications benefits and implementa...leewayhertz.com-AI agents for healthcare Applications benefits and implementa...
leewayhertz.com-AI agents for healthcare Applications benefits and implementa...

Computer HARDWARE presenattion by CWD students class 10
Computer HARDWARE presenattion by CWD students class 10Computer HARDWARE presenattion by CWD students class 10
Computer HARDWARE presenattion by CWD students class 10

How UiPath Discovery Suite supports identification of Agentic Process Automat...
How UiPath Discovery Suite supports identification of Agentic Process Automat...How UiPath Discovery Suite supports identification of Agentic Process Automat...
How UiPath Discovery Suite supports identification of Agentic Process Automat...

Vertex AI Agent Builder - GDG Alicante - Julio 2024
Vertex AI Agent Builder - GDG Alicante - Julio 2024Vertex AI Agent Builder - GDG Alicante - Julio 2024
Vertex AI Agent Builder - GDG Alicante - Julio 2024

Retrieval Augmented Generation Evaluation with Ragas
Retrieval Augmented Generation Evaluation with RagasRetrieval Augmented Generation Evaluation with Ragas
Retrieval Augmented Generation Evaluation with Ragas

Opencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of MünsterOpencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of Münster

Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...
Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...
Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...

Patch Tuesday de julio
Patch Tuesday de julioPatch Tuesday de julio
Patch Tuesday de julio

UX Webinar Series: Drive Revenue and Decrease Costs with Passkeys for Consume...
UX Webinar Series: Drive Revenue and Decrease Costs with Passkeys for Consume...UX Webinar Series: Drive Revenue and Decrease Costs with Passkeys for Consume...
UX Webinar Series: Drive Revenue and Decrease Costs with Passkeys for Consume...

UX Webinar Series: Essentials for Adopting Passkeys as the Foundation of your...
UX Webinar Series: Essentials for Adopting Passkeys as the Foundation of your...UX Webinar Series: Essentials for Adopting Passkeys as the Foundation of your...
UX Webinar Series: Essentials for Adopting Passkeys as the Foundation of your...

Types of Weaving loom machine & it's technology
Types of Weaving loom machine & it's technologyTypes of Weaving loom machine & it's technology
Types of Weaving loom machine & it's technology

Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery

Tailored CRM Software Development for Enhanced Customer Insights
Tailored CRM Software Development for Enhanced Customer InsightsTailored CRM Software Development for Enhanced Customer Insights
Tailored CRM Software Development for Enhanced Customer Insights

Camunda Chapter NY Meetup July 2024.pptx
Camunda Chapter NY Meetup July 2024.pptxCamunda Chapter NY Meetup July 2024.pptx
Camunda Chapter NY Meetup July 2024.pptx

Feature sql server terbaru performance.pptx
Feature sql server terbaru performance.pptxFeature sql server terbaru performance.pptx
Feature sql server terbaru performance.pptx

Improving Learning Content Efficiency with Reusable Learning Content
Improving Learning Content Efficiency with Reusable Learning ContentImproving Learning Content Efficiency with Reusable Learning Content
Improving Learning Content Efficiency with Reusable Learning Content


SMC4-4-16A16B offline CNC controller manual

  • 1. . http://www.chinaplccenter.com 1 / 40 Offline 4 axis motion controller instruction manual v0.5.8 2015-08-13 Order from our shop
  • 3. . http://www.chinaplccenter.com 3 / 40 Interface Rendering
  • 4. . http://www.chinaplccenter.com 4 / 40 Power required to stabilize the direct pressure 12V, current should be greater than 1A, this controller is that the operating current 300MA-800MA When access to power, be sure to distinguish between the positive and negative terminals! Shown mimic diagram "5V 输出" means the output power, this current can be provided about the current 500MA to external devices so !!!! G Code instruction command parameter Features Remark G00 X.Y.Z.A. Fast-moving machine According to the maximum speed of the machine for fast moving G01 X.Y.Z.A.F. Processing Run F value is limited G02 X.Y.Z.A.F. Clockwise circular machining G03 X.Y.Z.A.F. Counterclockwise circular machining G04 P Delay P values affected G17 (X,Y) Coordinate plane G18 (X,Z) Coordinate plane G19 (Y,Z) Coordinate plane G28 XYZA Back to the mechanical origin It can be controlled separately or in combination P1X*Y*Z*A* Assigned to the current coordinates P2X*Y*Z*A* Plus given the current coordinate values P3XYZA Conditional back to mechanical origin Only after the effective power back through mechanical origin, then call this function is invalid G54 Workpiece coordinate 1 Memory workpiece origin and mechanical origin offset value
  • 5. . http://www.chinaplccenter.com 5 / 40 G55 Workpiece coordinate 2 Memory workpiece origin and mechanical origin offset value G56 Workpiece coordinate 3 Memory workpiece origin and mechanical origin offset value G57 Workpiece coordinate 4 Memory workpiece origin and mechanical origin offset value G58 Workpiece coordinate 5 Memory workpiece origin and mechanical origin offset value G59 Workpiece coordinate 6 Memory workpiece origin and mechanical origin offset value G80 End drilling instructions G81 X.Y.Z.R.F Drilling instruction Universal drilling G82 X.Y.Z.R.P.F Drilling instruction Controllable bottom residence time G83 X.Y.Z.R.I.F Drilling instruction Row pin drilling G Code instruction 2 instruction parameter Features Remark G90 Absolute value size default G91 Incremental dimension G Code instruction 3 instruction parameter Features Remark
  • 6. . http://www.chinaplccenter.com 6 / 40 M00 Pause instruction Until you press the start button to continue M03 Spindle Forward Affected delay parameters M04 Spindle reversal Affected delay parameters M05 Spindle stop M07 Spray Open Affected delay parameters M08 Cooling Open Affected delay parameters 响 M09 Meanwhile Close M07M08 M30 The total program is stopped M47 Loop instruction Return to the first line to run A. Safety Precautions Before using this control system, please read this manual carefully before do related operations. Carefully read the operating instructions and user Safety Precautions, the user should do the appropriate protection, take the necessary security measures before proceeding to operate. First time operation of the operator, should know the proper use of the corresponding functions, you can perform the appropriate action, For those unfamiliar the functions or parameters, Prohibited actions or change system parameters. System maintenance:
  • 7. . http://www.chinaplccenter.com 7 / 40 When the system is under unusual circumstances, the need to repair the appropriate cable or socket connection, you should turn off power. And then make the necessary repair. The operator has not been rigorously trained or authorized by the studio units or individuals, can not open the control system for maintenance operations, modification, repair, and other acts. Other matters: If there is any system functions is different from the manual,please with system software features to prevail. Control system functions to change or improve (upgrade), without notice. If you have other requirements, please contact us. B: Outline Our latest "motion controller" using high-performance 32-bit CPU,with an LCD display, Humanized Window-type interface, Using external TF card memory, storage space than 2G, Operating voltage and control voltage using isolation mode, and touch keyboard. The system has high reliability, high precision, low noise, easy operation characteristics. The controller can four simultaneous axes,multiple micro segment look ahead control algorithm, The controller can four simultaneous axes,multiple micro segment look ahead control algorithm, can be achieved with four - axis straight line interpolation and a micro multi-line multi-axis continuous interpolation,controlled by a breakpoint carving. Simple, clear parameters for your convenience and fast operation. Input / output can be set up functions to facilitate your use and maintenance. The main function Parameter settings: You can set the processing and operations relating control parameters, Making process to achieve the best condition. Manual operation: can be achieved manually, jog,back to procedure zero, back to mechanical zero, cleared coordinate operations. Program Management: Program can create, delete, modify, read, preserve, automatic processing, continuous, and pause. External Manual: a variety of external functions can be defined Manually,In order to facilitate the use of the freedom to select the input function: the limited input can achieve a variety of user needs. System components CNC system mainly consists of the following parts: High-performance, high-speed 32-bit ARM CPU; Liquid crystal display (resolution: 320 * 240); Input / Output (16 channels opto-isolated 10MA inputs, 16 channels opto-isolated pull-down tank 500MA output). Users machining program memory can be arbitrary Storage in TF card. Technical indicators:
  • 8. . http://www.chinaplccenter.com 8 / 40 The smallest unit of data 0.0001mm Conventional precision of plus or minus 2 PP amount pole Even following the linear accuracy is one of the four corner points of the corner arch high The maximum data size ± 99999.999mm Maximum pulse output frequency 50KHZ (three-axis simultaneous 50KHZ) Control axes 4 axes (X, Y, Z, A) 4-axis intermodal and has a four-axis multi-micro multi-segment prospective interpolation control Appearance and Panel: Dimensions: length 165, width 101, thickness 50 Appearance and Panel: Dimensions: length 165, width 101, thickness 50 Hole size: 157 * 93mm External view
  • 9. . http://www.chinaplccenter.com 9 / 40 C.Operating Instructions Boot screen
  • 10. . http://www.chinaplccenter.com 10 / 40 Function key area: Open the file Starts running Advanced features Document Management RESET(RESET) Jog The following screen appears after the control system is powered This boot interface is divided into four zones:  the top district: the main display file name now opens, real-time the number of processing rows.  the coordinate display area: The main display real-time three-axis coordinate and real-time processing speed.  the function key area: the main control keys.  file area: file name, or processed documents. (Note: TF card support hot swap, when the new insert TF card, need to initialization after re-insert, so sometimes prompts OPENER, Just several times "open file" !) Because the system requirements for the TF card data is extremely strict, so the general low-end cards (cottage card) will be excluded, and then replace the other genuine card reading! ! ! After the show !!!!!! does not give the total number of files and the folders stored in the TF card is greater than 50 For HDSD (TF), because of the card problem, and can not fully understand, replace other cards and then read!
  • 11. . http://www.chinaplccenter.com 11 / 40 shortcut key ⊙ as "Origin Operation" “返回参考点” Z-axis height to rise to safety, all other axes back to the specified location, Z axis return to the specified location (in the mechanical origin can be set at this point) “返回原点” Z-axis height to rise to safety, XY axis back to square one, Z-axis and then passed back to the origin. “返回机械原点” : Z axis mechanical origin retreated, Y-axis mechanical origin retreated, Y axis retreated mechanical origin, (Please note that configuration pins, level and enable) “对刀” Z axis decline (or increase), when it comes to the probe, after Stop running clearing the Z-axis coordinate for the knife offset, and Z-axis carrying knives have to bounce high end of this process. (Please note that configuration pins, level and enable)
  • 12. . http://www.chinaplccenter.com 12 / 40 shortcut key ¢ as "coordinate cleanup operations." X axis triaxial cleared Y axis triaxial cleared Z axis triaxial cleared A axis uniaxial cleared All axes cleared drop out Panel shortcut key ¤ "Jog" "Manual" Recovery Manual "1mm": When the time selected by pressing the corresponding arrow keys will move the corresponding length (incremental moves) If you want to move to a specific length, you can enter a specific number in the input basket, (only press "OK" to enter the basket after becomes yellow, green valid return), press the corresponding axis key, you can. Corresponding to X + X-Y + Y-Z + Z-A + A- valid Panel shortcut key X Y Z A "direct coordinate operations" “运行到到” The corresponding axis directly run the specified coordinates. “更变坐标” : The axis corresponding number directly into the set (this action is irreversible, please carefully operation)
  • 13. . http://www.chinaplccenter.com 13 / 40 Panel shortcut key S as "Spindle Operation" Input box to fill in the number of revolutions, the maximum value of this parameter can be set in the host settings. Panel shortcut key F "Manual feed speed operation" Value D shows box manual feed speed. Panel shortcut key G "Workpiece coordinate system operator"
  • 14. . http://www.chinaplccenter.com 14 / 40 Selected G *, you can choose to sit workpiece coordinate system, the need to coordinate with the mechanical operations. Click on the "machine configuration" below, then click "motor parameters" to enter the following picture 字意解释: 脉 冲 当 量 : The required number of pulses per unit length (pulse required for each millimeter) support floating point input 最 高 速 度 : Maximum speed of this motor can run (mm / min), when the input exceeds the maximum attainable system will press system can achieve maximum prevail. Ideal maximum value of 70% More than the maximum 70% will prompt red warning 加速度: The maximum acceleration of the motor can run. This value is too small will seriously affect more corner speed micro segment 脉冲电平: 1 or 0, active high or active low, determined by the drive, most effective drive this value is 0. 方向电平: 1 or 0 active high or active low, this will change the direction of change 脉冲宽度: Pulse output valid time, only for a measure, under normal can be 0. Values are as follows: T = 4.3 sec + 0.43 * N (the number of the selected) Note Version V0.5.8 15_6_26 later. Stepper motor driver pulse equivalent = number of subdivisions × (360 / stepper motor step angle) / screw pitch Example: Stepping angle = 1.8 leadscrew = 5mm segments = 8 Pulse equivalent = 8 * (360 / 1.8) / 5 = 320 Maximum speed value: To finalize the ability of the motor according to the principle of losing step, taking 70% of the maximum speed value, leaving 30% margin to the motor T acceleration table is as follows:
  • 15. . http://www.chinaplccenter.com 15 / 40 Acceleration values:the ability to be finalized in accordance with the motor,based on not fall out step,take 70% of maximum speed values​ ​ , leaving 30% margin to the motor (characteristics of stepper motor). Pulse relationship level and pulse width (Note: The actual width is Given width Plus default width) Direction level When the direction level of 1, the shaft is running, the Output is high level, Anti-run is low level; When the direction level of 0, the shaft is running, the Output is low level, Anti-run is high level. About IO interface level set Description: Running, back to the origin, all axes cleared, pause, back to the mechanical origin 1 normally open (press down turned, the red lights change), set the level to zero. 2 normally closed (goes off, black light turns red), set the level to 1. (Anti-interference strongest) Emergency: After connecting switch line, so that the switch is in the pop-up state, see "Test light" If the light is red, set the level to 0.
  • 16. . http://www.chinaplccenter.com 16 / 40 If the lamp is black, set the level to 1. Note: The pop-up state is working condition, is pressed into the self-locking emergency stop state. Limit input: 1, normally open (when you hit the limit turned on the red light black light), set the level to 1. 2, normally closed (when you hit the limit off, black and red becomes red), set the level to zero. Mechanical origin: 1, normally open (when you hit the limit turned on the red light black light), set the level to 1. 2, normally closed (when you hit the limit off, black and red becomes red), set the level to zero. G script parameters: G2/G3 超差:Enter the G02 / G03 after manual calculations or other calculation because of accuracy issues, so that the arc center is inconsistent with the values given at the moment, there is a fault-tolerant, the system will be based on the given parameters, recalculate the optimal center coordinate 弦长: System fitting curved arc chord when generating segment 精确停止:Open CVL control CVL 控制:Corner length restrictions G1 分辩率:G01 minimum length, which is defined algorithm, users can use the default value: 0.0001 安全高度:Pause, or homing reference point, Z axis height elevation of security. 对刀偏移:The value of the Z-axis clear bias after the knife after 0, this value is mainly used for cutting height adjustment. 对刀弹回:After the knife, after the Z axis stopped, according to the value left on the knife, the knife
  • 17. . http://www.chinaplccenter.com 17 / 40 is easy to take away. Advanced operating functions:
  • 18. . http://www.chinaplccenter.com 18 / 40 In standby (not running processing) for speed: Press and hold the stop button (黑四方键), while another swirling advanced function keys, you can directly adjust the speed percentage, on the main screen you can see the speed percentage (I: 100-1) display. In the processing operation, direct swirling advanced function keys, you can adjust the speed of the percentage, on the main screen you can see the speed percentage (I: 100-1) display. In standby (not running processing) for speed: Press and hold the stop button (black square button) while pressing the middle button Advanced function keys can switch to adjust the spindle speed and running speed. It can directly press the middle button to adjust runtime as shown:
  • 19. . http://www.chinaplccenter.com 19 / 40 ( Specific feature factory mode) 1: Open the F1, F2, F3, F4, F5 OUT1-5 manual control function, specify a password for: 033,501 Open, 033500 closed. 2: The soft limit on the workpiece coordinate, MODE: 1 (default). Password: 085601. Soft limit based on mechanical coordinates, MODE: 0 password is: 085600. 3, the system initialization parameters: password: 100001. 4, machine system parameters stored in the TF card: password:
  • 20. . http://www.chinaplccenter.com 20 / 40 001001. TF card data within bounce Machine: password: 001000. 5, change the order of returning to mechanical origin axis mode: password: 83156 * *, 0ZXYZ, 1ZAXY, 2ZYXA, 3XYZA, 4XZYA, 5YXZA, 6YZXA, 7AZXY, 8AZYX, 9AXYZ, * ZXYA (default). G command interpretation G00 Format:. G0X .. Y. Z ... A Axis rapid traverse, G0 for fast positioning tool, No machining of the workpiece. Can quickly move in several axis simultaneously, thereby producing a linear trajectory (point to point) as shown.Machine data specified maximum value for each axis rapid traverse rate of an axis running speed on this fast-moving. the moving speed of the synthesized vector speed of the two axes.In the address programmed feed rate F is invalid with G0 move quickly. The system will be run by the maximum value of each axis vector synthesis rate. To go four cases: G0X0Y0Z0
  • 21. . http://www.chinaplccenter.com 21 / 40 G0X10 G0Y10 G0X0 G0Y0 G01 Format G1X .. Y.. Z.. A.. F.. The tool moves on a straight line from the starting point to the target point, Programming with F feedrate speed. All axes can be run simultaneously. G1 remain valid until they are replaced by other commands. This controller support multi-micro multi-line forward control interpolation algorithm, That is more than one segment will be calculated tracks as Continuous interpolation algorithm,To achieve a smooth transition,Prospective method and will increase the operating speed as much as possible. Red trace is the actual running tracks, F is the processing speed Painting Quartet Case: G0X0Y0Z0 X10F1200 Y10 X0 Y0
  • 22. . http://www.chinaplccenter.com 22 / 40 G02 G03 Format (1) G02X .. Y.. Z.. R.. F.. (Radius method) (2) G02X .. Y.. Z.. I.. J.. K.. F (circle center method) Format (1) G03X .. Y.. Z.. R.. F.. (Radius method) (2) G03X .. Y.. Z.. I.. J.. K.. F (circle center method) G02 clockwise circle G03 counterclockwise circle G17 (X, Y) coordinate plane (plane default) G18 (X, Z) coordinate plane G19 (Y.Z) coordinate plane circle center method: G02 (G03) X.. Y.. Z.. I.. J.. K.. F X. Y. Z represents Terminal point coordinate, F processing speed I represents projection of the arc starting point to circle center distance in the X-axis J represents projection of the arc starting point to circle center distance in the Y-axis K represents projection of the arc starting point to circle center distance in the Z-axis L, J, K direction is corresponding to the negative direction of the XYZ
  • 23. . http://www.chinaplccenter.com 23 / 40 Legitimacy of the parameter (in XY plane): circle center method can be obtained directly radius R = sqrt (i ^ 2 + j ^ 2), If the length of the line start and end points of the arc is greater than 2R is impossible to go wrong prompt. When the above conditions are satisfied, the system will recalculate the center coordinates of the most reasonable, When it has some deviation with given center coordinates actually,Called super difference,If this deviation value is greater than the system given,it will prompt an error,This super difference can be set in the system,Facilitate more rapid input parameters. (Note:The difference between the actual center of the arc can constitute And input circle center called super difference,This difference can be super-max settings, you can tolerate a wider parameter input limit) Case: G0X0Y0Z0 G1Z-1F1200 Y10
  • 24. . http://www.chinaplccenter.com 24 / 40 X20 G02X30Y20I10J0 G1X80 Y0 X0 G0X0Y0Z5 Radius method: G02 (G03) X.. Y.. Z.. R.. F.. X, Y, Z Terminal point coordinates,F processing speed R represents the radius of the arc F processing speed In the case of a known start and end points of the arc with a radius of programming,By geometric mapping will be two arcs, a large arc and a small arc, in order not to generate ambiguities provisions R> 0 is a small arc, R <0 is great arc. For full circle, because the starting point coincides with Terminal point, with R programming, there will be countless solution, can not define the center position, it can only be programmed with the center coordinates method. case: G0X0Y0Z0 G1Z-1F1200 Y10 X20
  • 25. . http://www.chinaplccenter.com 25 / 40 G02X30Y20R10 G1X80 Y0 X0 G0X0Y0Z5 Chord length: After the system calculates the combined resistance parameter,Given G02, G03 proposed synthesis and decomposition micro segment, This micro multi-segment shaped scale is Chord length, This length can be set in the system, Reference value (0.1mm-5mm), Note: Due to system has prospective multi-micro multi-line interpolation calculation, and therefore Chord length is undesirable too short,when it is necessary to be too short, and processing speed must be somewhat lowered! ! ! G17 (X, Y) coordinate plane (plane default) G18 (X, Z) coordinate plane G19 (Y, Z) coordinate plane G04 (pause, delay) Format: G04P .. Between the two blocks by inserting a G4 block, You can make the given time of interrupt the
  • 26. . http://www.chinaplccenter.com 26 / 40 machining P suffix to be milliseconds, a minimum of 500ms + P * Case: (delay 1 second) G0X0Y0 G1Z-1F1200 G1X20Y20 G04P1000 G1X40Y40 G0Z5 G0X0Y0 G90 (default): Absolute dimensions G91: Incremental dimension G90 and G91 commands corresponding to the absolute position data input and incremental position data input. G90 represents the coordinate dimension of coordinates target point, G91 represents the displacement to be run.G90/G91 applies to all axes.These instructions do not decide to end position trajectory, Trajectory is determined by the other G group G function commands (G0, G1, G2, G3 ...).After the program starts G90 applies to all axes and remains active until later in the block have appeared G91. G specific instructions: G54 G55 G56 G57 G58 G59 (workpiece coordinate system) Format: G54 G55 G56 G57 G58 G59 You can choose six different work coordinate It is calculated based on the mechanical origin of the workpiece coordinate offset Conditions of Use: 1 equipment mechanical origin 2 turned back once the mechanical origin (a return call can tie G28P3 mechanical origin) On the main interface of G54 from red to yellow After the above two conditions are satisfied, when each axis is automatically cleared Memory current datum and offset mechanical machine origin and storage. If the last memory had been the coordinate system, when the return to mechanical origin, will bounce coordinate value of the last memory.
  • 27. . http://www.chinaplccenter.com 27 / 40 G54~ 59 G28: (coordinates back to the mechanical origin operation) Format (four models): G28XYZA G28 P1X*Y*Z*A* G28 P2X*Y*Z*A* G28 P3XYZA G28XYZA Will automatically return to mechanical origin after executing this command, X, Y, Z, A can be individually write, such as the following are legitimate 1: G28X (expressed Press X mechanical origin) 2: G28XY (expressed Press XY mechanical origin) 3: G28Z G28Y (the latter two combinations have prior instruction, he said they would first perform mechanical origin Z, Y after returning to mechanical origin) G28P1X*Y*Z*A* After executing this command, will X, Y, Z, A axes corresponding value is assigned to the current coordinates. example:
  • 28. . http://www.chinaplccenter.com 28 / 40 Such as the current coordinates: X100 Y100 Z50 A0 Code execution G28P1X200Y500Z10A20 the current coordinate value becomes: X:200 Y:500 Z:10 A:20 G28P2X*Y*Z*A*After executing this command, will X, Y, Z, A axes corresponding value assigned plus the current value of the axis, such as * to negative, performs subtraction. Case: Such as the current coordinates: X200 Y300 Z400 A500 Code execution G28P2X-20Y-500Z60A520 the current coordinate value becomes: X:180 Y:-200 Z:460 A:1020 G28P3XYZA This instruction is only turned on, it did not hand back to the mechanical origin, to be effective, that G54 will be shown to be effective in red. As performed back to mechanical origin, and then execute the entry instructions will be invalid. Case :( boot did not back off mechanical origin) 1: G28P3X X axis will automatically return to mechanical origin. 2: G28P3Y Y-axis will automatically return to mechanical origin. 3: Can the many G28P3XYZA combination (Power has been back to the mechanical origin) 1: G28P3X invalid 2: G28P3Y
  • 29. . http://www.chinaplccenter.com 29 / 40 invalid (Note: This instruction is mainly used in the operation coordinate system, and the establishment of a relationship between mechanical origin and artifacts from standard system, after power up and running again, did not return to prevent mechanical origin, arising from mistakes.) G81: (drill instruction) Format: G81X .. Y.. Z.. R.. F.. X.Y represent end coordinates, Z represents the depth of machining F processing speed R represent operating plane (safe altitude) at the beginning, represent and Z Terminal point after returned Case: (coordinates (20.0), (20.20), (0.20), (0,0) four drill holes 5mm in depth, the two safety plane, a speed of 200) G0X0Y0Z5 G81X20YOR2Z-5F200 G81X20Y20R2Z-5F200 G81X0Y20R2Z-5F200 G81X0Y0R2Z-5F200 G0X0Y0Z5 G82: (drilling instruction) Format: G83X .. Y.. Z.. R.. P.. F.... X, Y represent Terminal point coordinates,Z represents the depth of machining, S represents dwell time at the hole bottom. F processing speed R represent theoperating plane of the beginning,and represent Z terminal point after returned.
  • 30. . http://www.chinaplccenter.com 30 / 40 Case: (coordinates (20.0), (20.20), (0.20), (0,0) four drill holes 5mm in depth, the two safety plane, and one second stay at the hole bottom, a speed of 200) G0X0Y0Z5 G82X20YOR2Z-5P1000F200 G82X20Y20R2Z-5P1000F200 G82X0Y20R2Z-5P1000F200 G82X0Y0R2Z-5P1000F200 G0X0Y0Z5 G83: (canned cycle drilling instruction) Format: G83X .. Y. Z. R. I. F.... X, Y represent end coordinates, Z represents the depth of processing,I represents the displacement of each fall,it will be cut back action When processed to I depth. F processing speed R represents the beginning of the start plane and said Z end after returned
  • 31. . http://www.chinaplccenter.com 31 / 40 Case: (coordinates (20.0), (20.20), (0.20), (0,0) four drill holes 5mm in depth, the two safety plane, G0X0Y0Z5 G83X20YOR2Z-5I1F200 G83X20Y20R2Z-5I1F200 G83X0Y20R2Z-5I1F200 G83X0Y0R2Z-5I1F200 G0X0Y0Z5 M commands: M00: Pause command, and will prompt "PAUSE" on the screen until you press Start to continue. M03: turn off the inverted signal, and then open a spindle forward, it will be affected by the delay parameters of the open, M04: turn off the forward signal, and then open a spindle reversal, will be affected by the delay parameter of the open M05: spindle stop, to close the M03, M04. M07: spray on, will be affected by the delay parameters of the open M08: cooling Open, will be affected by the delay parameter of the open M09: while closing the M07, M08; M30: processing end, after no call. Exit. M47: return to the first line, spin ring non-stop processing. Stop until you press stop or pause before exit.
  • 32. . http://www.chinaplccenter.com 32 / 40 specific M instructions: The controllers do some advanced control with specific instructions M M47 return to the first line to start again, can be added at the end of the program cycle not to stop. Output Control M command (M1 **, M2 **) M101 corresponds OUT_1 Output High Level (artificially high, Facilitate different voltage connect pull-up resistor) M102 corresponds OUT_2 Output High Level (artificially high, Facilitate different voltage connect pull-up resistor) M103 corresponds OUT_3 Output High Level (artificially high, Facilitate different voltage connect pull-up resistor) M104 corresponds OUT_4 Output High Level (artificially high, Facilitate different voltage connect pull-up resistor) M105 corresponds OUT_5 Output High Level (artificially high, Facilitate different voltage connect pull-up resistor) M106 corresponds OUT_6 Output High Level (artificially high, Facilitate different voltage connect pull-up resistor) M107 corresponds OUT_7 Output High Level (artificially high, Facilitate different voltage connect pull-up resistor) M108 corresponds OUT_8 Output High Level (artificially high, Facilitate different voltage connect pull-up resistor) M109 corresponds OUT_9 Output High Level (artificially high, Facilitate different voltage connect pull-up resistor) M110 corresponds OUT_10 Output High Level (artificially high, Facilitate different voltage connect pull-up resistor) M111 corresponds OUT_11 Output High Level (artificially high, Facilitate different voltage connect pull-up resistor) M112 corresponds OUT_12 Output High Level (artificially high, Facilitate different voltage connect pull-up resistor) M113 corresponds OUT_13 Output High Level (artificially high, Facilitate different voltage connect pull-up resistor) M114 corresponds OUT_14 Output High Level (artificially high, Facilitate different voltage connect pull-up resistor) M115 corresponds OUT_15 Output High Level (artificially high, Facilitate different voltage connect pull-up resistor) M116 Because logic easy to confuse, so give up on the OUT_16 Output Control M201 corresponding OUT_1 output low level (perfusion 500ma to ground) M202 corresponding OUT_2 output low level (perfusion 500ma to ground) M203 corresponding OUT_3 output low level (perfusion 500ma to ground) M204 corresponding OUT_4 output low level (perfusion 500ma to ground)
  • 33. . http://www.chinaplccenter.com 33 / 40 M205 corresponding OUT_5 output low level (perfusion 500ma to ground) M206 corresponding OUT_6 output low level (perfusion 500ma to ground) M207 corresponding OUT_7 output low level (perfusion 500ma to ground) M208 corresponding OUT_8 output low level (perfusion 500ma to ground) M209 corresponding OUT_9 output low level (perfusion 500ma to ground) M210 corresponding OUT_10 output low level (perfusion 500ma to ground) M211 corresponding OUT_11 output low level (perfusion 500ma to ground) M212 corresponding OUT_12 output low level (perfusion 500ma to ground) M213 corresponding OUT_13 output low level (perfusion 500ma to ground) M214 corresponding OUT_14 output low level (perfusion 500ma to ground) M215 corresponding OUT_15 output low level (perfusion 500ma to ground) M216 Because logic easy to confuse, so give up on the OUT_16 Output Control Enter the judgment M command (M3 **, M4 **) M301 corresponding the input terminal INTPU_1 Judgment if it is low level execute the next line, otherwise go on waiting M302 corresponding the input terminal INTPU_2 Judgment if it is low level execute the next line, otherwise go on waiting M303 corresponding the input terminal INTPU_3 Judgment if it is low level execute the next line, otherwise go on waiting M304 corresponding the input terminal INTPU_4 Judgment if it is low level execute the next line, otherwise go on waiting M305 corresponding the input terminal INTPU_5 Judgment if it is low level execute the next line, otherwise go on waiting M306 corresponding the input terminal INTPU_6 Judgment if it is low level execute the next line, otherwise go on waiting M307 corresponding the input terminal INTPU_7 Judgment if it is low level execute the next line, otherwise go on waiting M308 corresponding the input terminal INTPU_8 Judgment if it is low level execute the next line, otherwise go on waiting M309 corresponding the input terminal INTPU_9 Judgment if it is low level execute the next line, otherwise go on waiting M310 corresponding the input terminal INTPU_10 Judgment if it is low level execute the next line, otherwise go on waiting M311 corresponding the input terminal INTPU_11 Judgment if it is low level execute the next line, otherwise go on waiting M312 corresponding the input terminal INTPU_12 Judgment if it is low level execute the next line, otherwise go on waiting M313 corresponding the input terminal INTPU_13 Judgment if it is low level execute the next line, otherwise go on waiting
  • 34. . http://www.chinaplccenter.com 34 / 40 M314 corresponding the input terminal INTPU_14 Judgment if it is low level execute the next line, otherwise go on waiting M315 corresponding the input terminal INTPU_15 Judgment if it is low level execute the next line, otherwise go on waiting M316 corresponding the input terminal INTPU_16 Judgment if it is low level execute the next line, otherwise go on waiting M401 corresponding the input terminal INTPU_1 Judgment if it is low level execute the next line, otherwise go on waiting M402 corresponding the input terminal INTPU_2 Judgment if it is low level execute the next line, otherwise go on waiting M403 corresponding the input terminal INTPU_3 Judgment if it is low level execute the next line, otherwise go on waiting M404 corresponding the input terminal INTPU_4 Judgment if it is low level execute the next line, otherwise go on waiting M405 corresponding the input terminal INTPU_5 Judgment if it is low level execute the next line, otherwise go on waiting M406 corresponding the input terminal INTPU_6 Judgment if it is low level execute the next line, otherwise go on waiting M407 corresponding the input terminal INTPU_7 Judgment if it is low level execute the next line, otherwise go on waiting M408 corresponding the input terminal INTPU_8 Judgment if it is low level execute the next line, otherwise go on waiting M409 corresponding the input terminal INTPU_9 Judgment if it is low level execute the next line, otherwise go on waiting M410 corresponding the input terminal INTPU_10 Judgment if it is low level execute the next line, otherwise go on waiting M411 corresponding the input terminal INTPU_11 Judgment if it is low level execute the next line, otherwise go on waiting M412 corresponding the input terminal INTPU_12 Judgment if it is low level execute the next line, otherwise go on waiting M413 corresponding the input terminal INTPU_13 Judgment if it is low level execute the next line, otherwise go on waiting M414 corresponding the input terminal INTPU_14 Judgment if it is low level execute the next line, otherwise go on waiting M415 corresponding the input terminal INTPU_15 Judgment if it is low level execute the next line, otherwise go on waiting M416 corresponding the input terminal INTPU_16 Judgment if it is low level execute the next line, otherwise go on waiting G, M instruction combinations Case Project goal: to start the switch after triggered,X-axis control operation of the mobile speeds of 600, To specify the location of the first point A,output an action to pneumatic A,2 seconds,then semi-closed return,1 seconds, then move the operating speed of 600 to point B,Then output a
  • 35. . http://www.chinaplccenter.com 35 / 40 move to the Pneumatic B,2 seconds,then closing the return, 1 seconds, then move the operating speed of 1200 to return to point A and wait for the start switch triggered ...... As shown in Figure A position of the origin point, B point 500MM, C point 1000MM connect the X-axis control all circuits,An input switch connected to the input port 1 as the start button, and connect the two-way Pneumatic units A, B to the output port 1,2, A connect 1, B connect 2. Program instructions are as follows: G1X500F600 (the workpiece is moved to the 500 position) M101 (Open Pneumatic A) G4P2000 (delay 2 seconds) M201 (Close Pneumatic A return) G4P1000 (delay 1 second) G1X1000F600 (the workpiece is moved to the 1000 position) M102 (Open Pneumatic B) G4P2000 (delay 2 seconds) M202 (Close Pneumatic B returns) G4P1000 (delay 1 second) G1X0F1200 (the workpiece is moved to the 0 position) M301 (wait for the start button triggered) M47 (back to the first line to restart Note: The last line of the last to join the carriage return) (Carriage return or empty)
