- 1. Course project forAANSW Course project for AANSW Revealing MPLS Tunnels obscured fromtraceroute Revealing MPLS Tunnels osbuscured by traceroute inin ItalianInternetinfrastructure Italian internet infrastructure Adriano Donato De Matteis Daniele Di Proietto Enrico D’Urso Tutor: Dott. Valerio Luconi Prof: Luciano Lenzini
- 2. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Outline 1 Introduction 2 Inference Methodology 3 Our Experiment 4 Analysis 5 Results and Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure

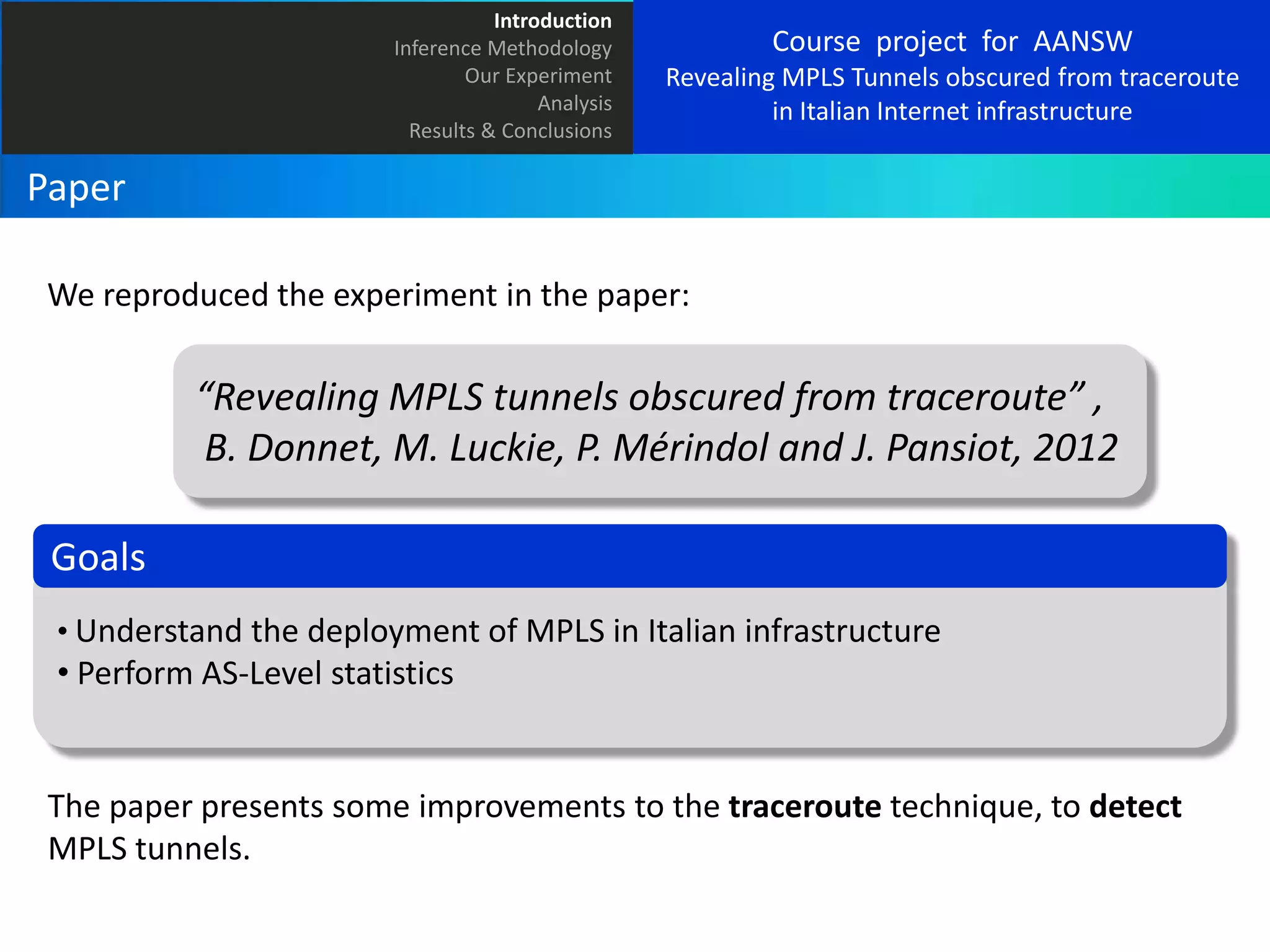

- 3. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure Paper We reproduced the experiment in the paper: “Revealing MPLS tunnels obscured from traceroute” , B. Donnet, M. Luckie, P. Mérindol and J. Pansiot, 2012 Goals • Understand the deployment of MPLS in Italian infrastructure • Perform AS-Level statistics The paper presents some improvements to the traceroute technique, to detect MPLS tunnels.

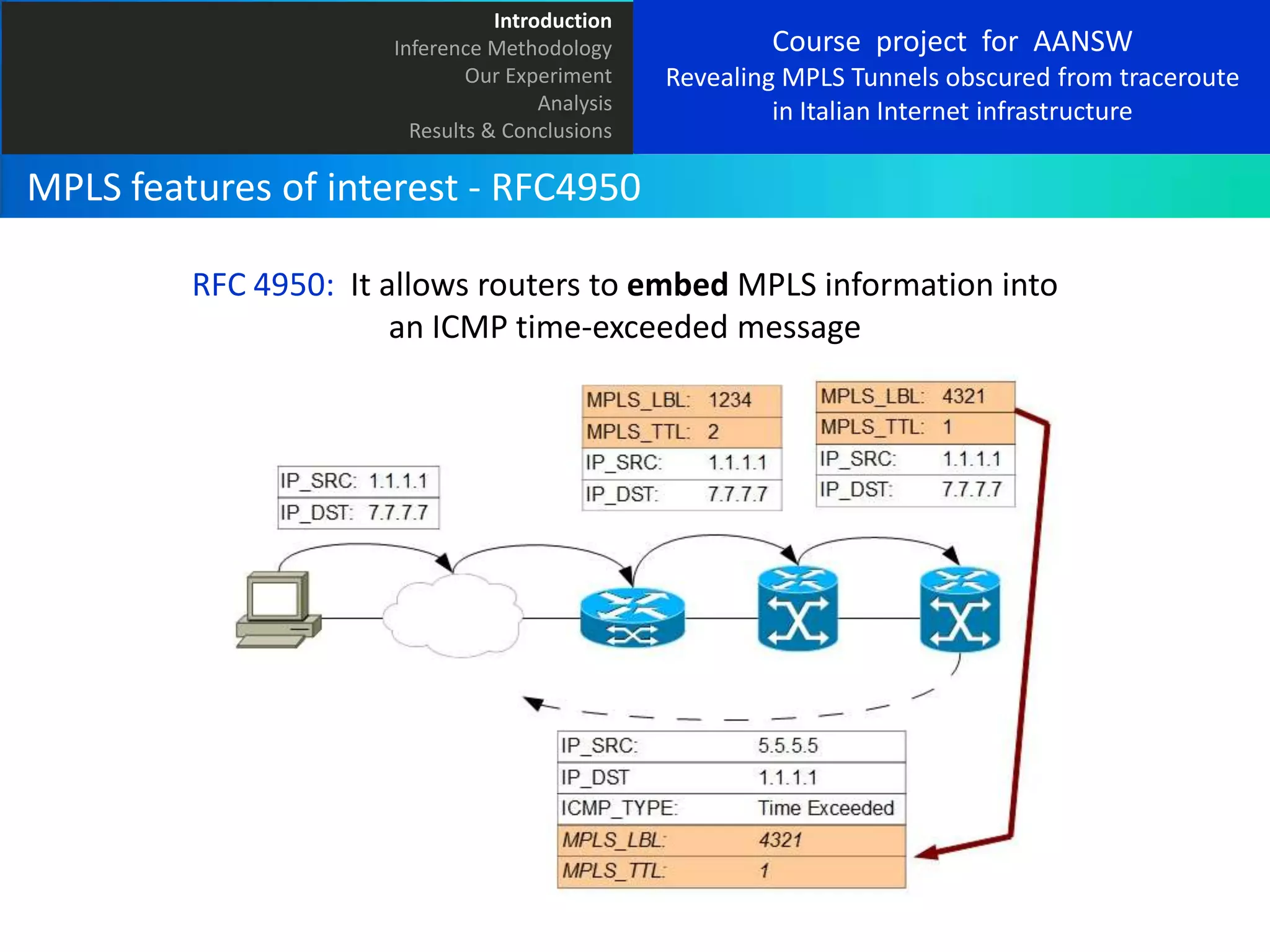

- 4. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure MPLS features of interest - RFC4950 RFC 4950: It allows routers to embed MPLS information into an ICMP time-exceeded message

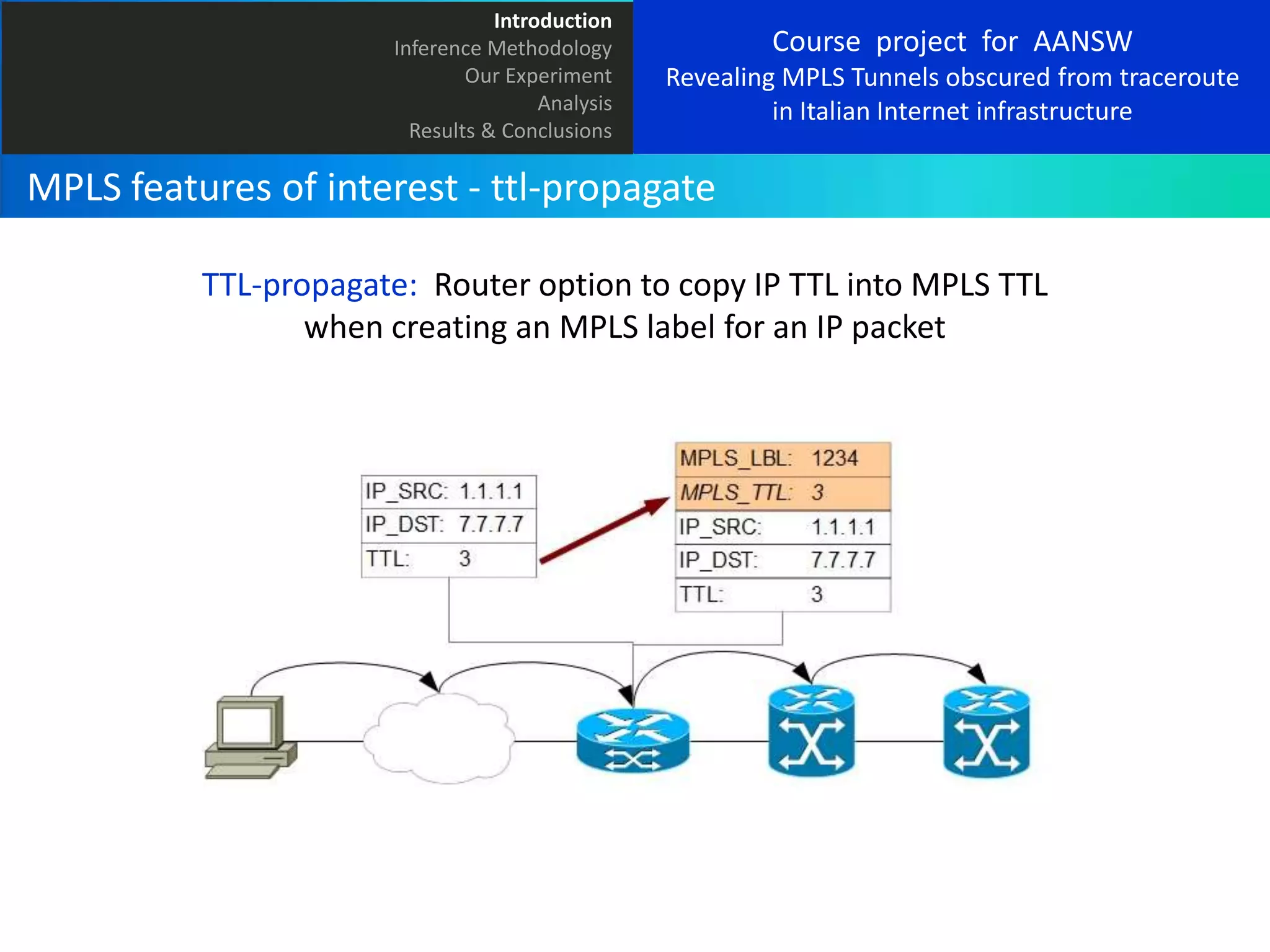

- 5. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure MPLS features of interest - ttl-propagate TTL-propagate: Router option to copy IP TTL into MPLS TTL when creating an MPLS label for an IP packet

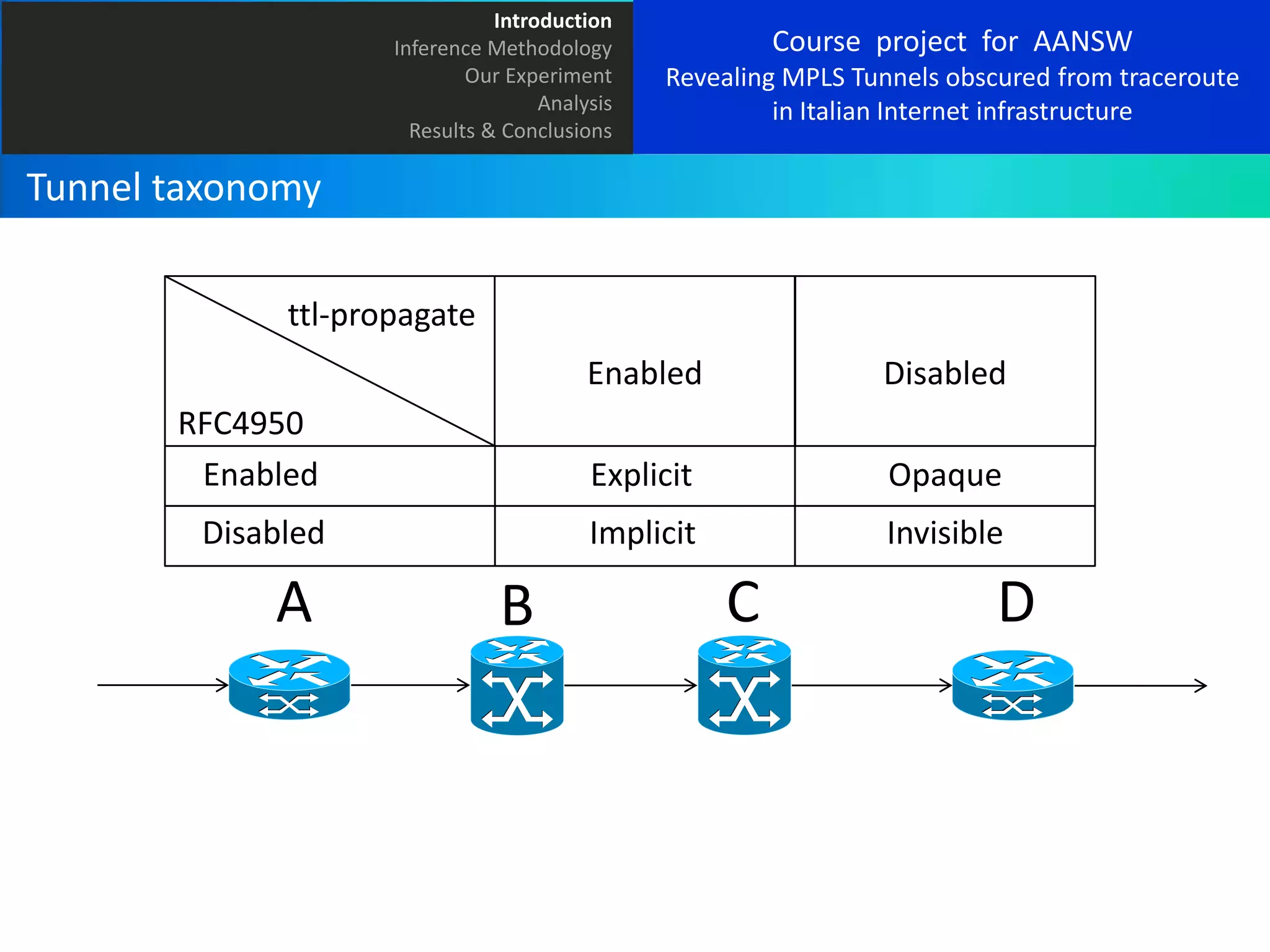

- 6. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure Tunnel taxonomy ttl-propagate Enabled Disabled RFC4950 Enabled Explicit Opaque Disabled Implicit Invisible A B C D

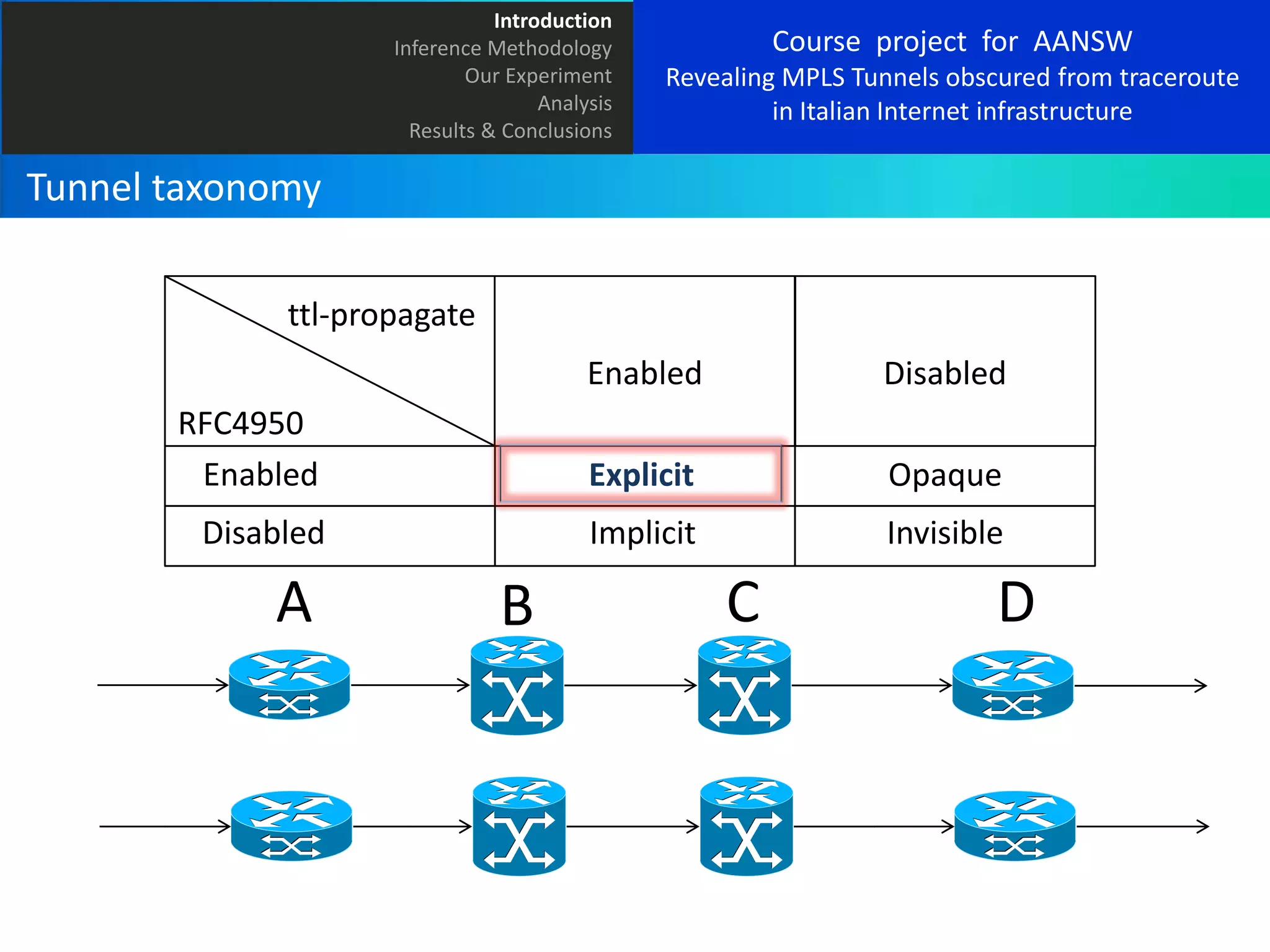

- 7. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure Tunnel taxonomy ttl-propagate Enabled Disabled RFC4950 Enabled Explicit Opaque Disabled Implicit Invisible A B C D

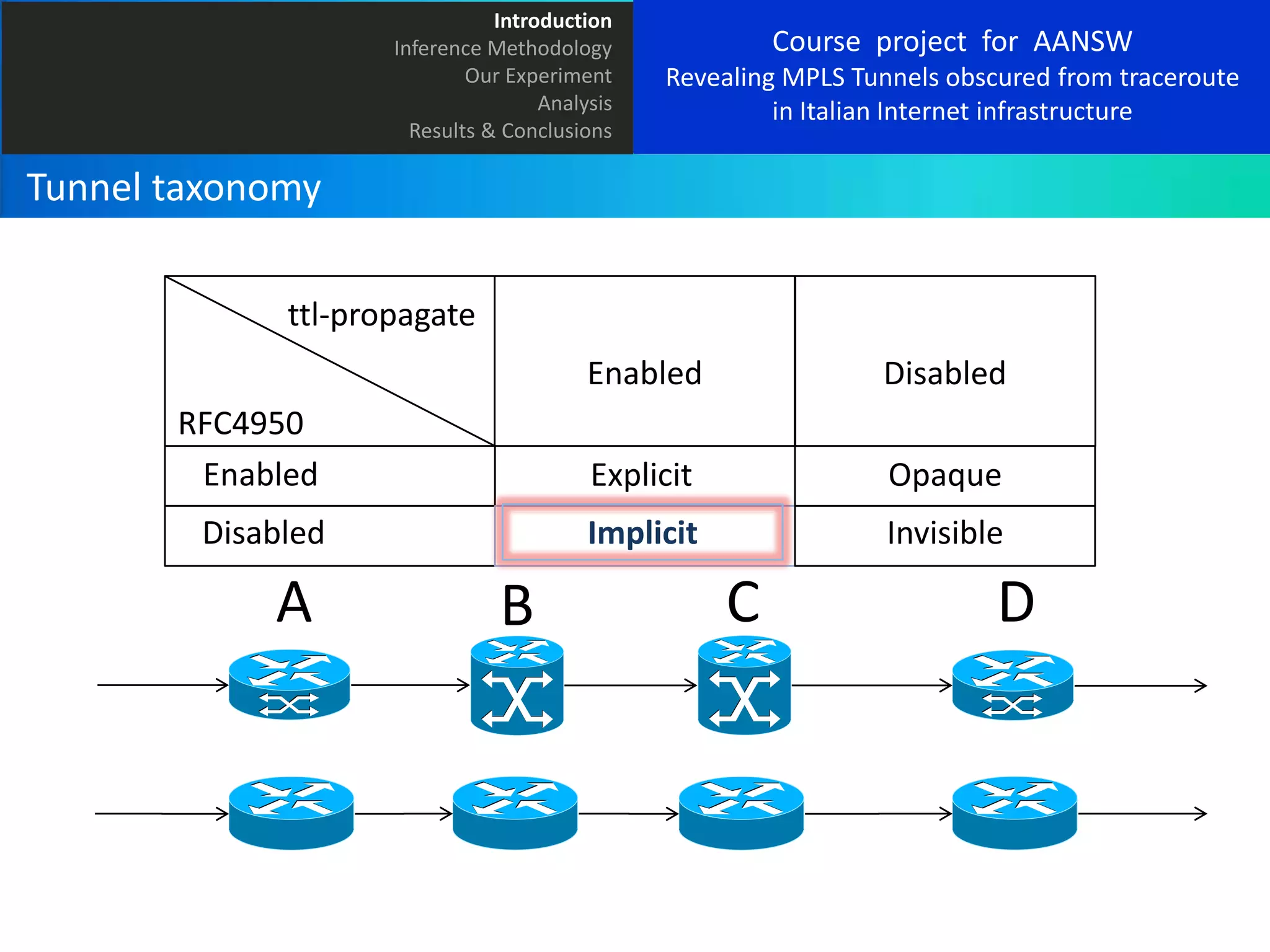

- 8. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure Tunnel taxonomy ttl-propagate Enabled Disabled RFC4950 Enabled Explicit Opaque Disabled Implicit Invisible A B C D

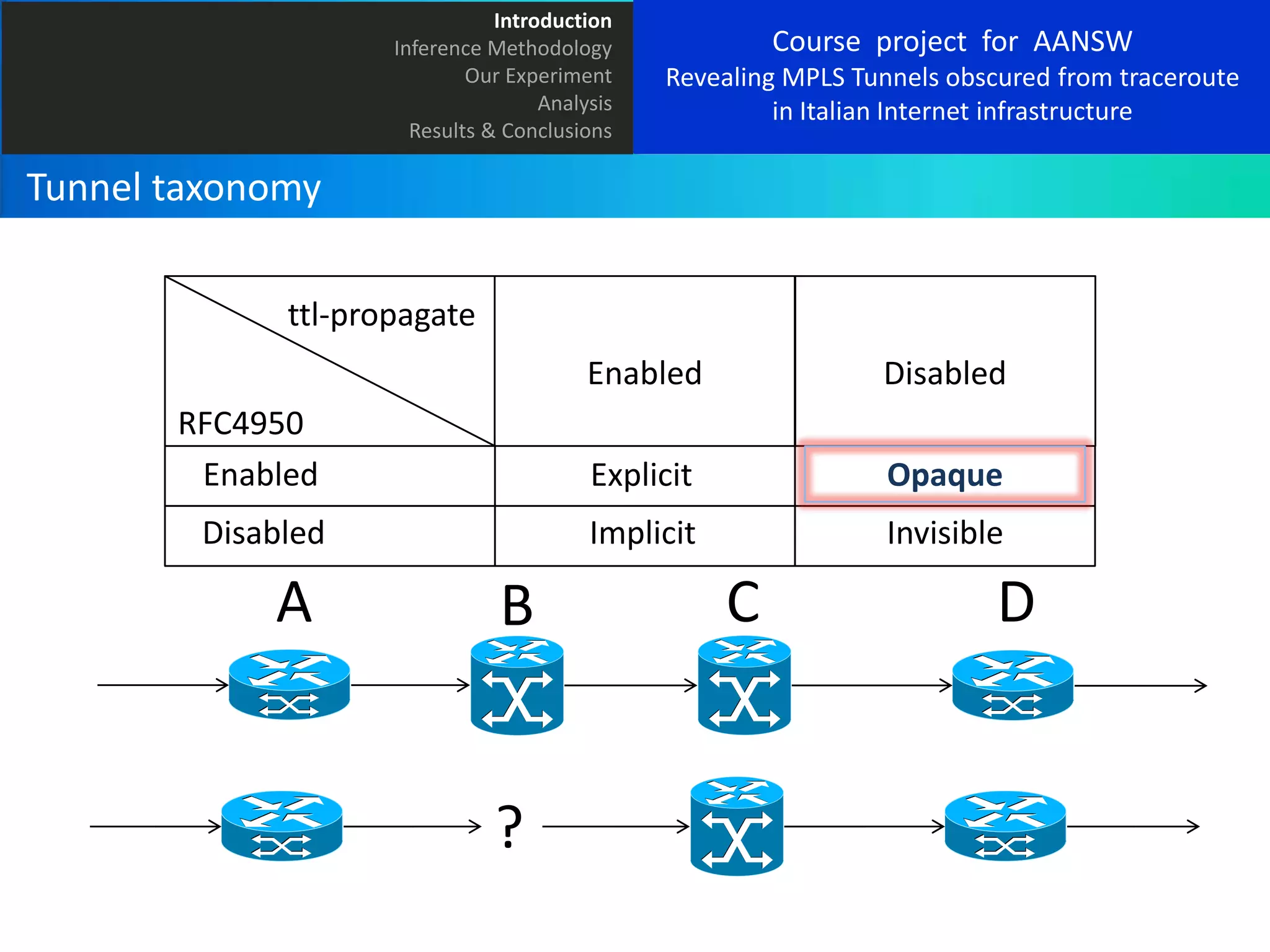

- 9. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure Tunnel taxonomy ttl-propagate Enabled Disabled RFC4950 Enabled Explicit Opaque Disabled Implicit Invisible A B ? C D

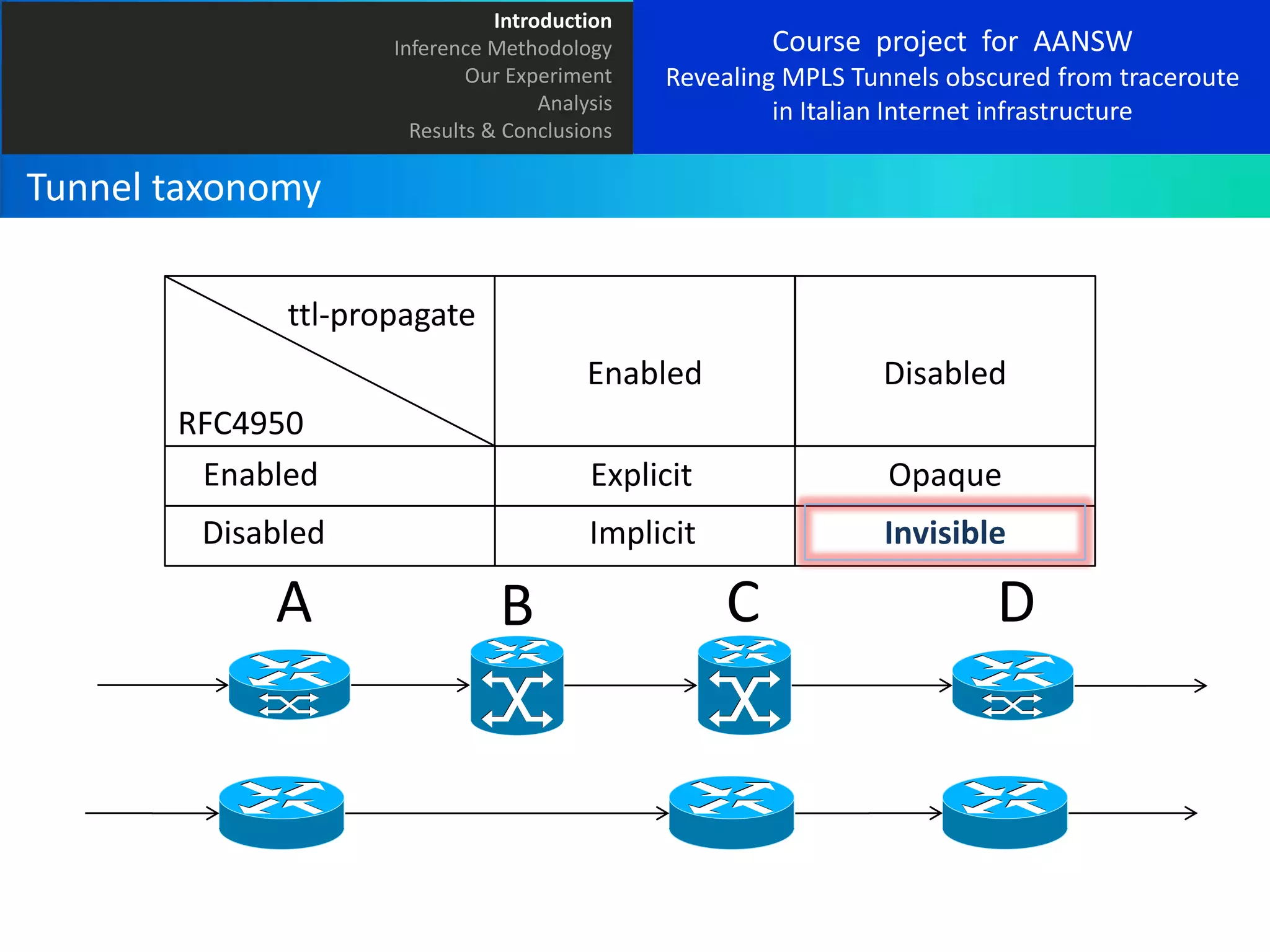

- 10. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure Tunnel taxonomy ttl-propagate Enabled Disabled RFC4950 Enabled Explicit Opaque Disabled Implicit Invisible A B C D

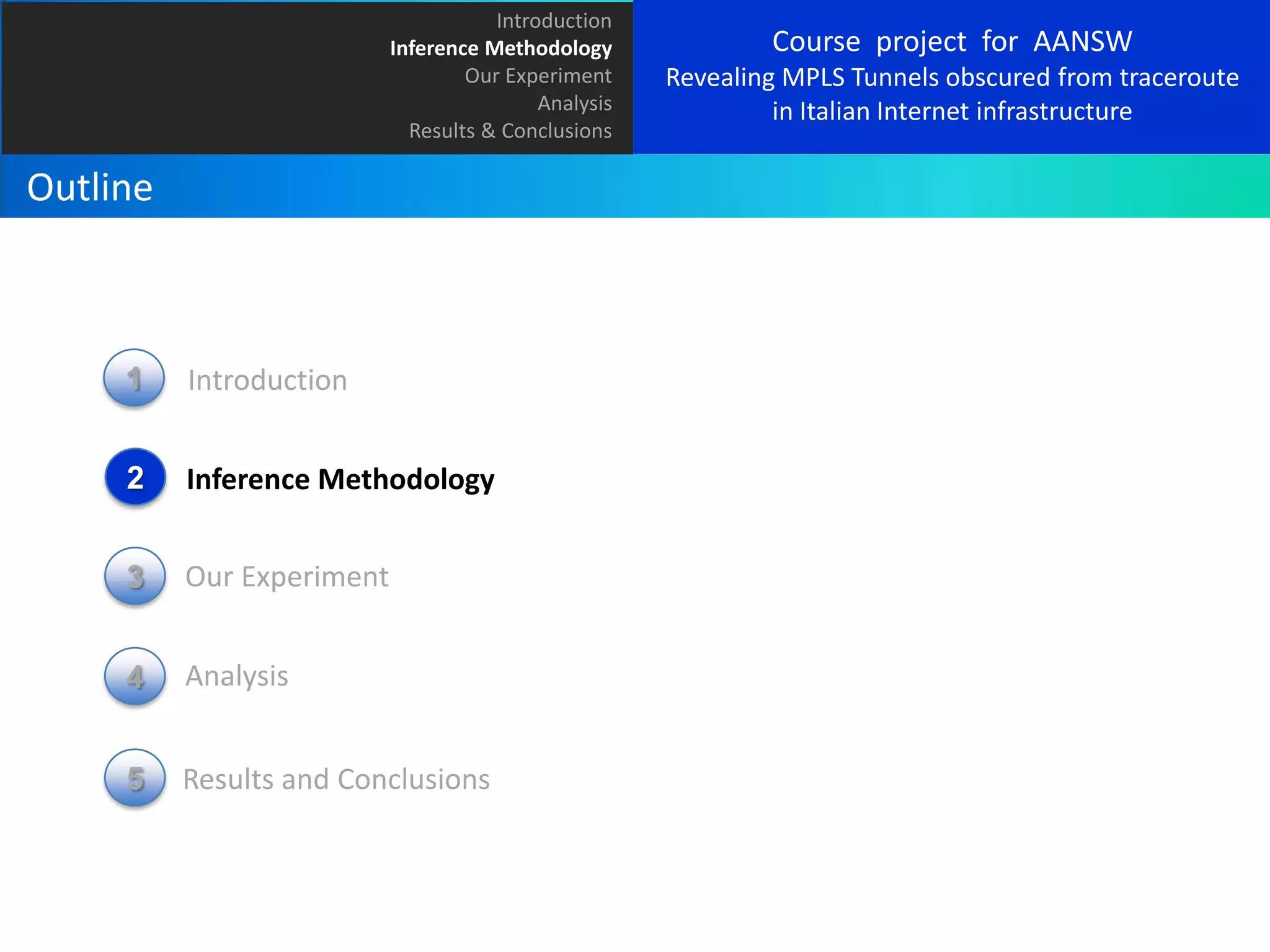

- 11. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Outline 1 Introduction 2 Inference Methodology 3 Our Experiment 4 Analysis 5 Results and Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure

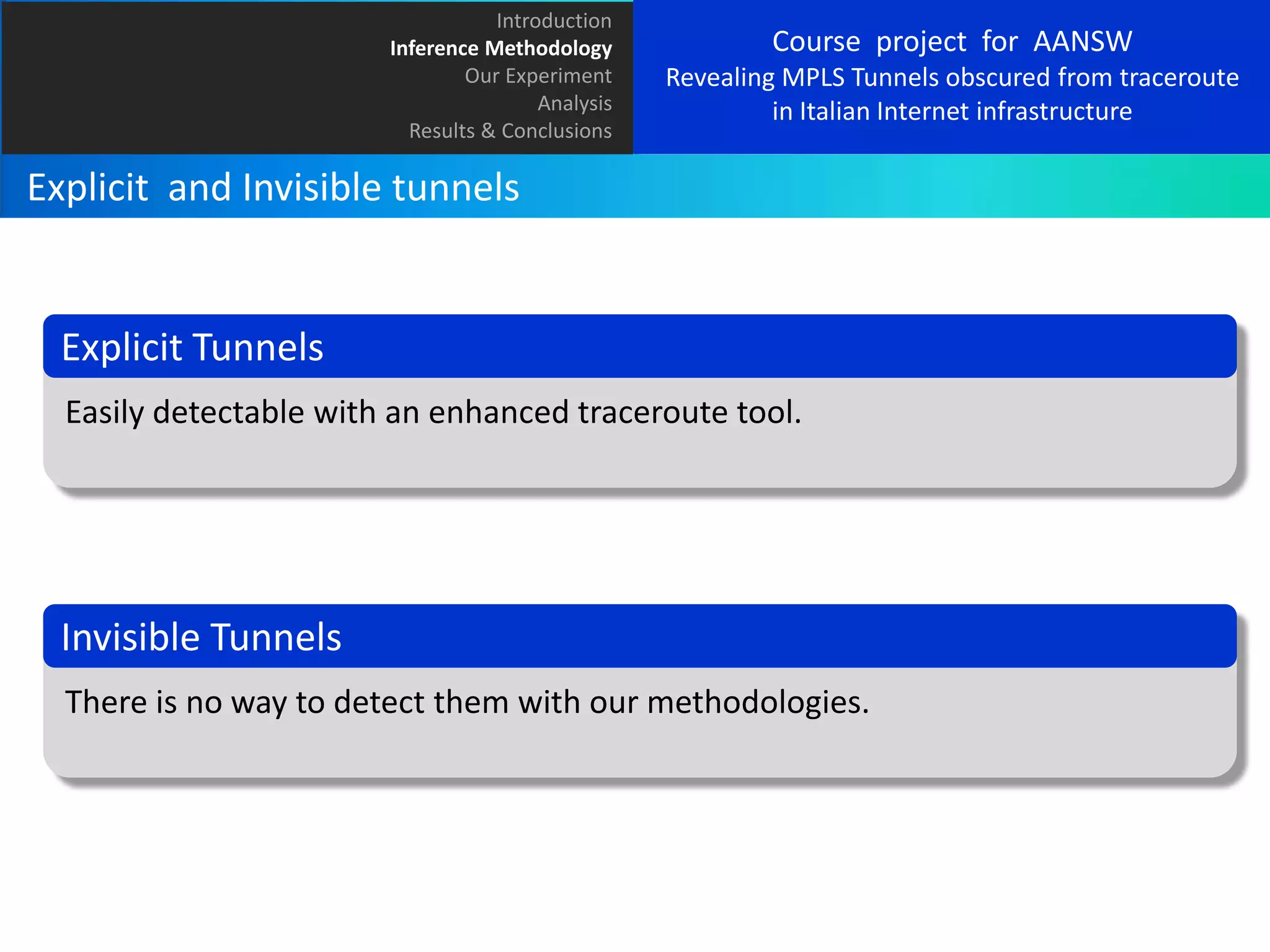

- 12. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure Explicit and Invisible tunnels Explicit Tunnels Easily detectable with an enhanced traceroute tool. Invisible Tunnels There is no way to detect them with our methodologies.

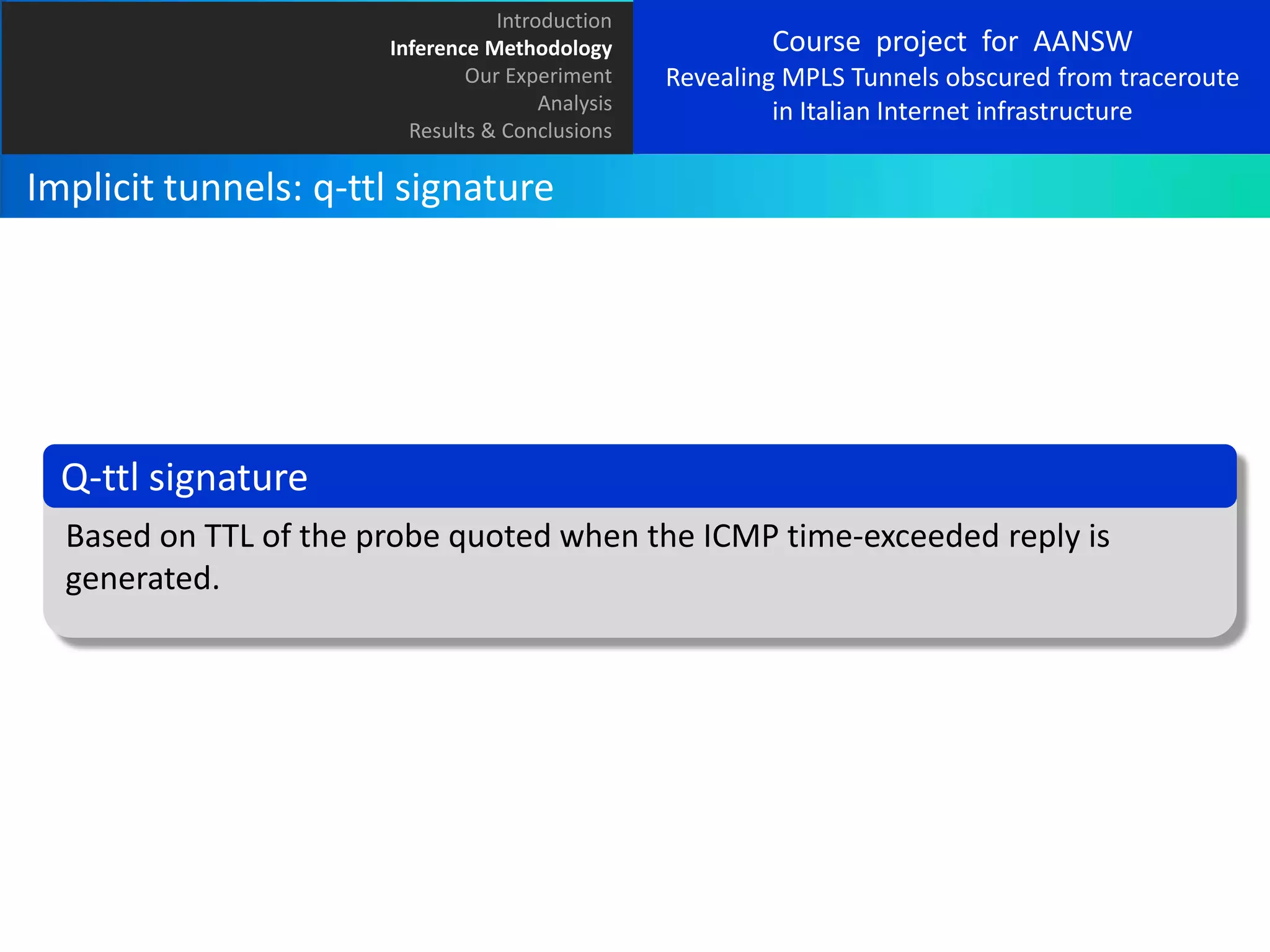

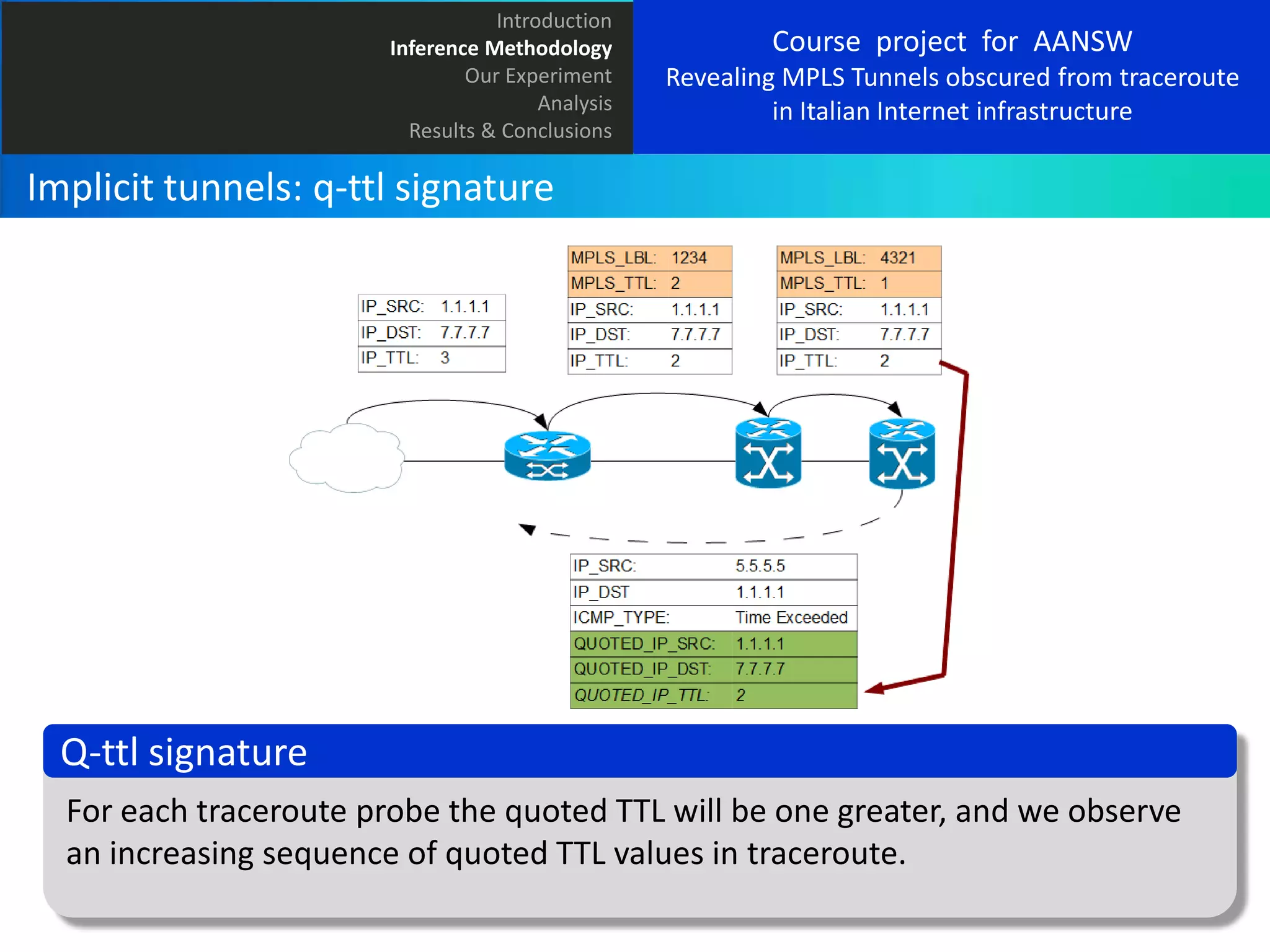

- 13. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure Implicit tunnels: q-ttl signature Q-ttl signature Based on TTL of the probe quoted when the ICMP time-exceeded reply is generated.
- 14. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure Implicit tunnels: q-ttl signature Q-ttl signature For each traceroute probe the quoted TTL will be one greater, and we observe an increasing sequence of quoted TTL values in traceroute.

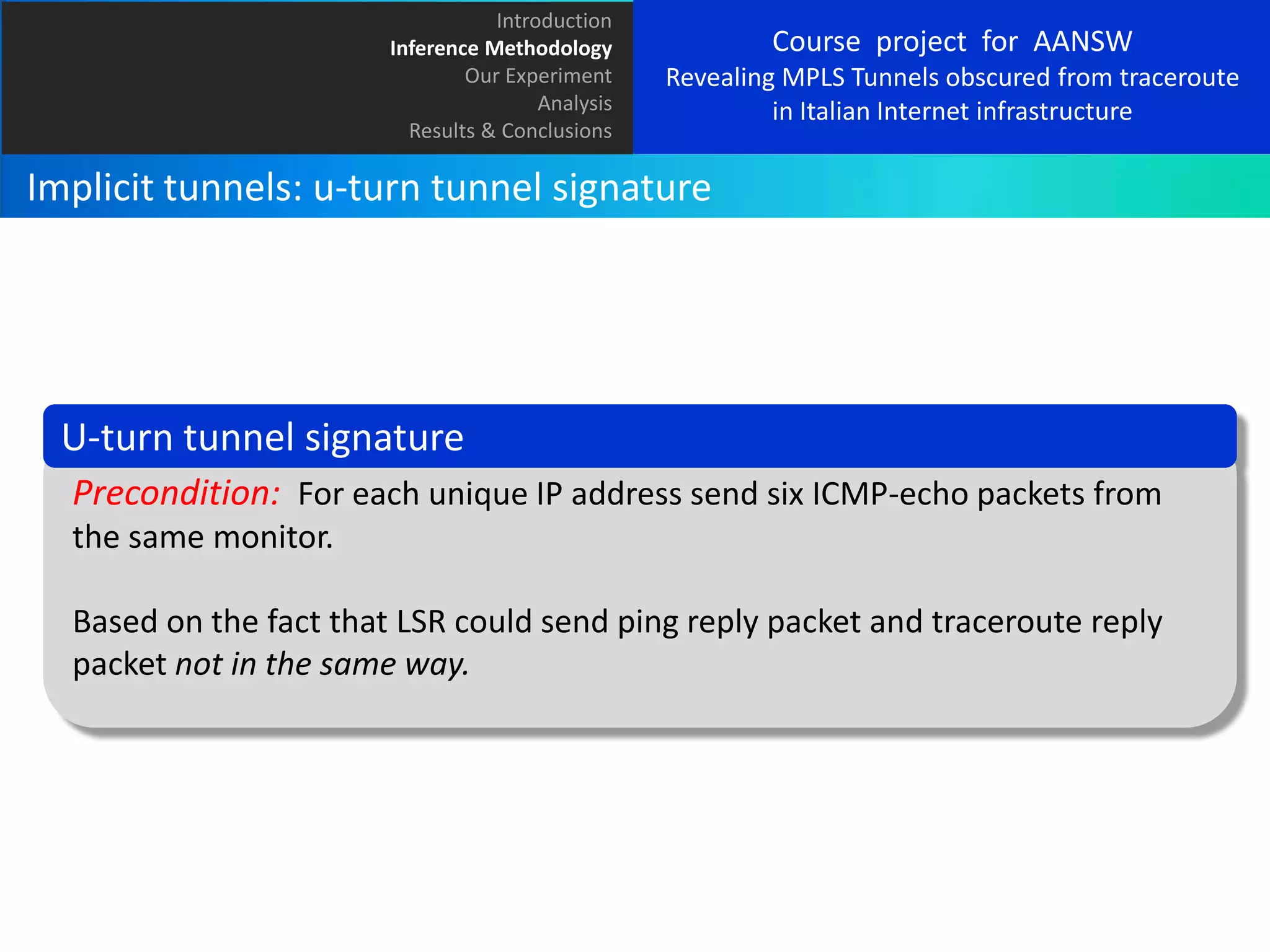

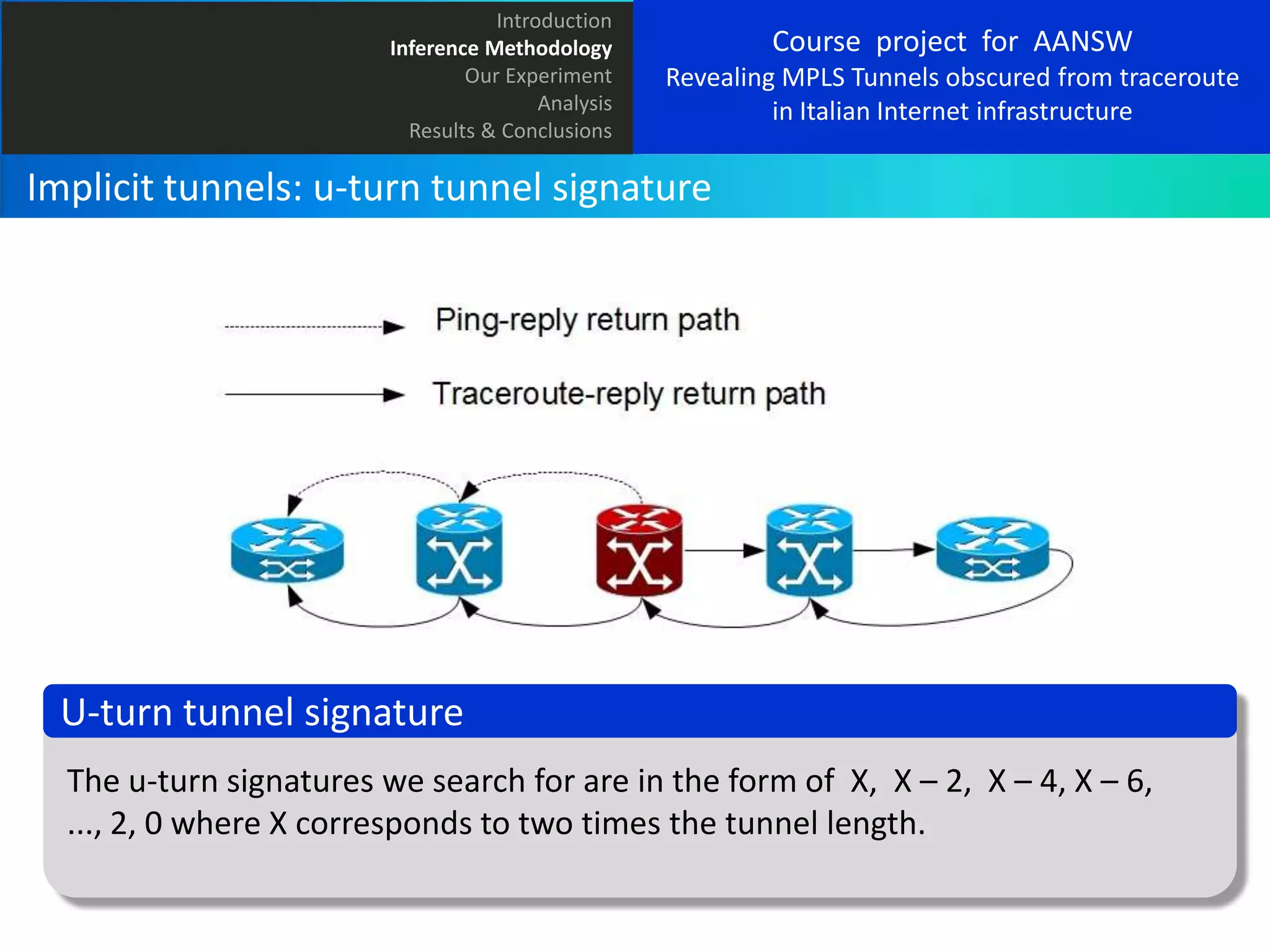

- 15. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure Implicit tunnels: u-turn tunnel signature U-turn tunnel signature Precondition: For each unique IP address send six ICMP-echo packets from the same monitor. Based on the fact that LSR could send ping reply packet and traceroute reply packet not in the same way.
- 16. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure Implicit tunnels: u-turn tunnel signature U-turn tunnel signature The u-turn signatures we search for are in the form of X, X – 2, X – 4, X – 6, ..., 2, 0 where X corresponds to two times the tunnel length.

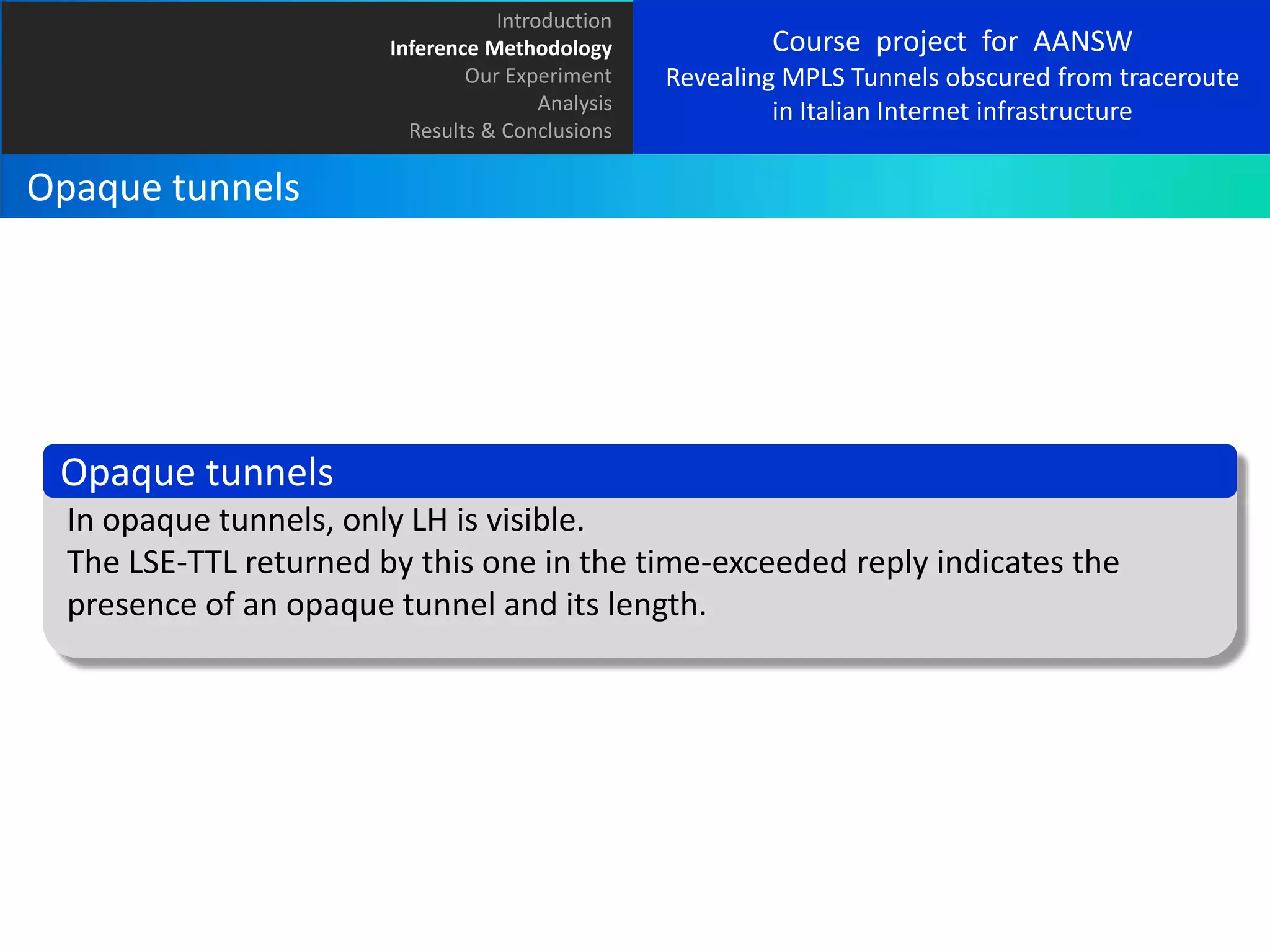

- 17. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure Opaque tunnels Opaque tunnels In opaque tunnels, only LH is visible. The LSE-TTL returned by this one in the time-exceeded reply indicates the presence of an opaque tunnel and its length.

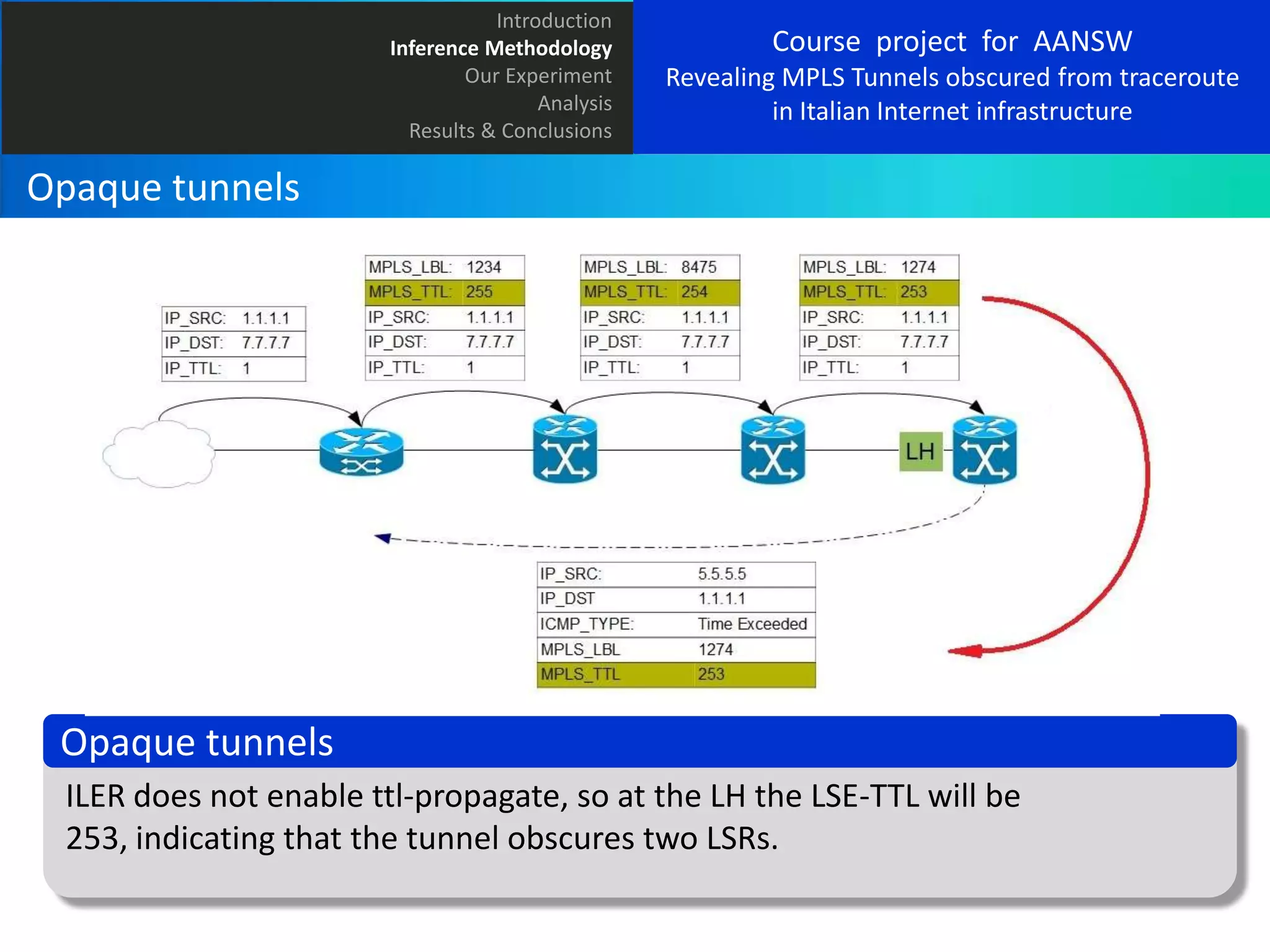

- 18. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure Opaque tunnels Opaque tunnels ILER does not enable ttl-propagate, so at the LH the LSE-TTL will be 253, indicating that the tunnel obscures two LSRs.
- 19. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Outline 1 Introduction 2 Inference Methodology 3 Our Experiment 4 Analysis 5 Results and Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure

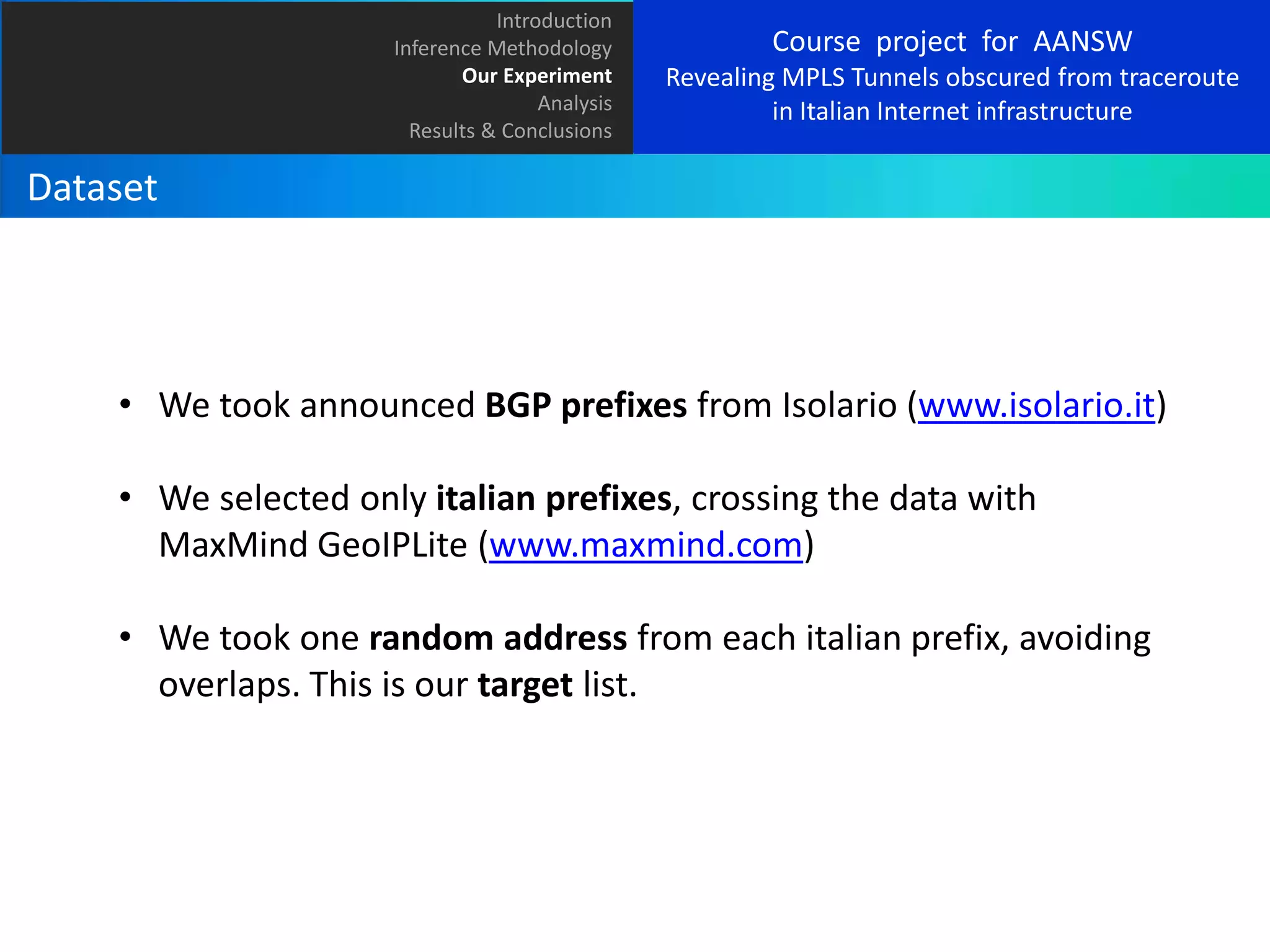

- 20. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure Dataset • We took announced BGP prefixes from Isolario (www.isolario.it) • We selected only italian prefixes, crossing the data with MaxMind GeoIPLite (www.maxmind.com) • We took one random address from each italian prefix, avoiding overlaps. This is our target list.

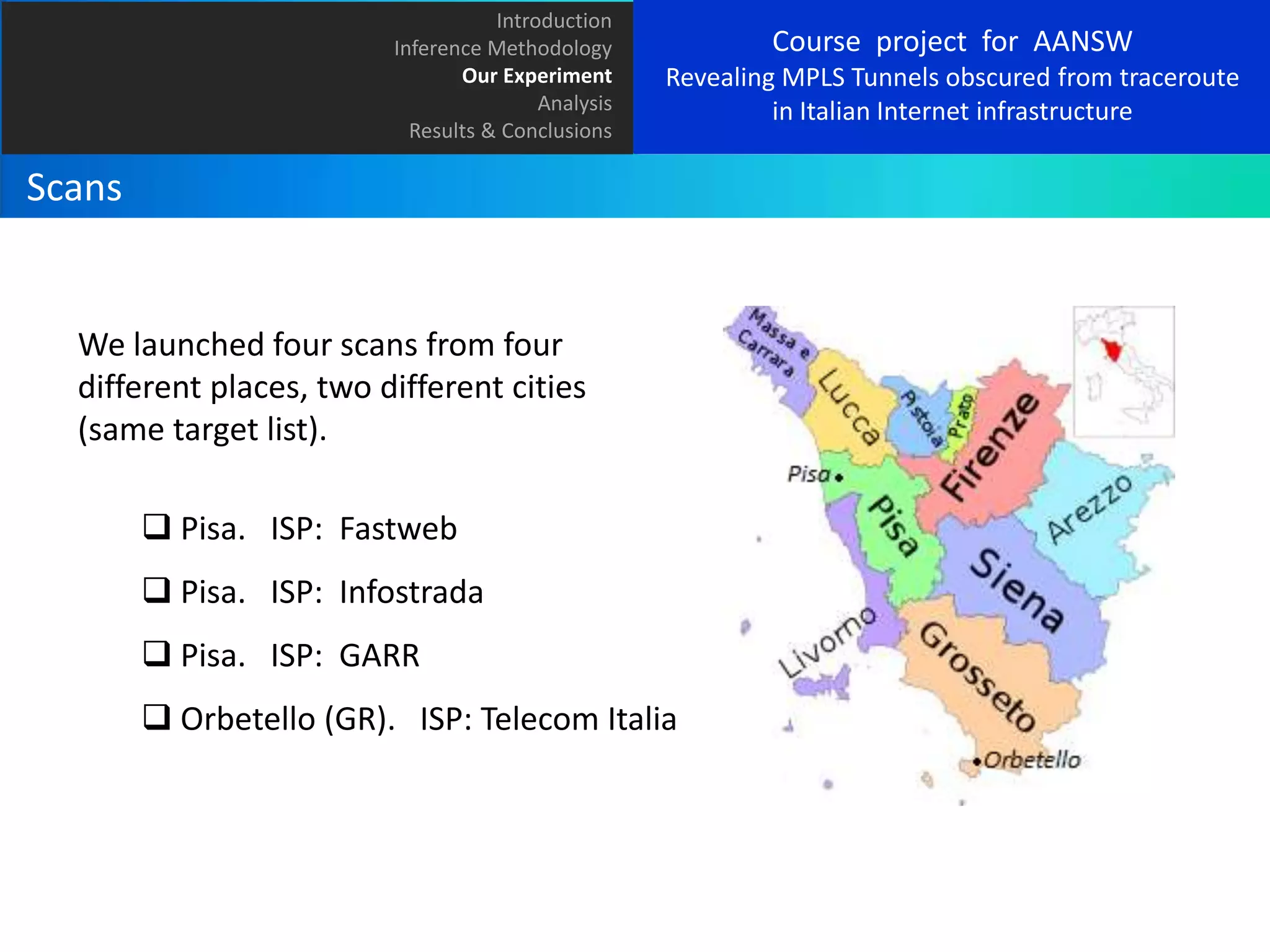

- 21. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure Scans We launched four scans from four different places, two different cities (same target list). Pisa. ISP: Fastweb Pisa. ISP: Infostrada Pisa. ISP: GARR Orbetello (GR). ISP: Telecom Italia

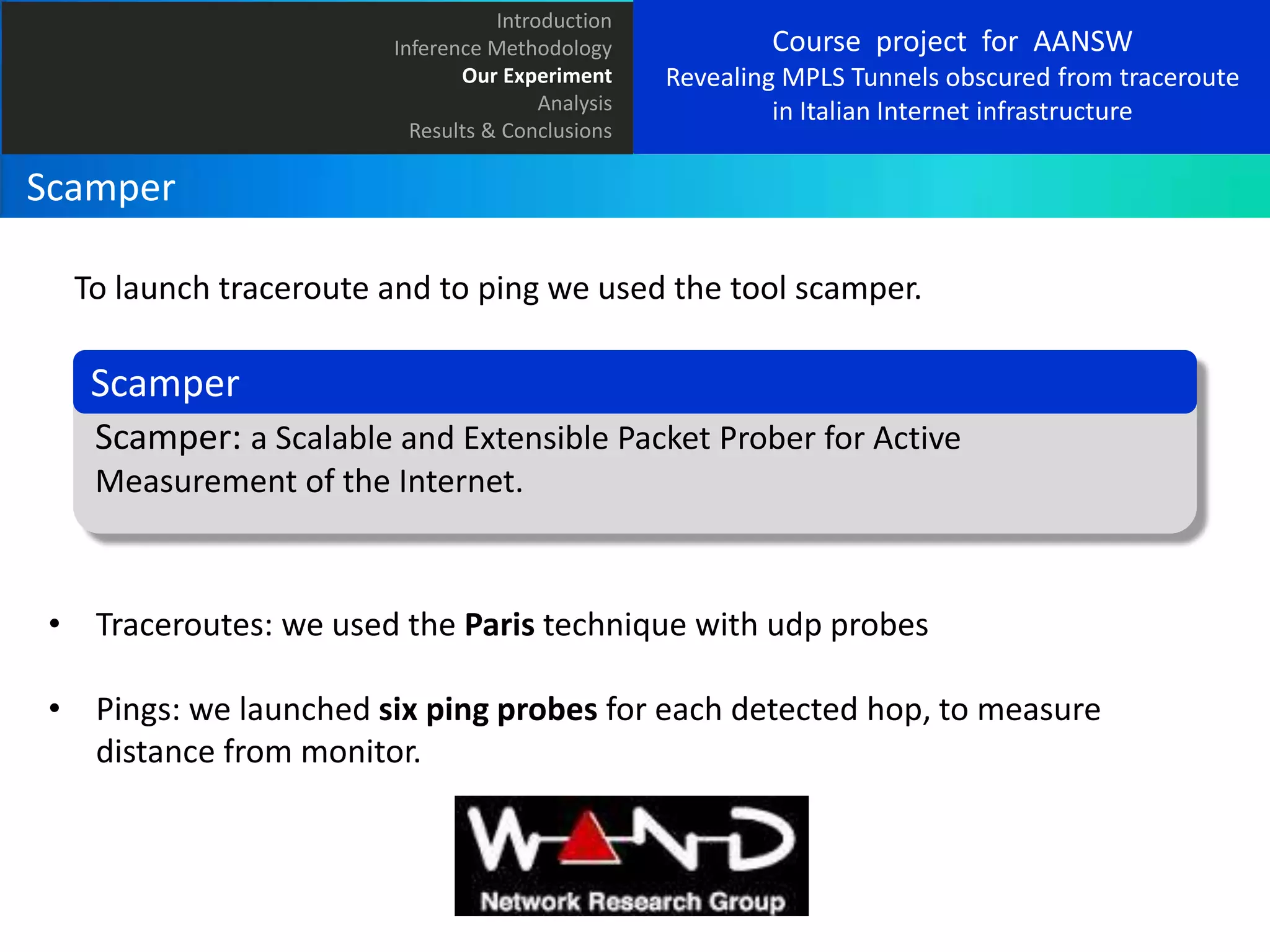

- 22. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure Scamper To launch traceroute and to ping we used the tool scamper. Scamper Scamper: a Scalable and Extensible Packet Prober for Active Measurement of the Internet. • Traceroutes: we used the Paris technique with udp probes • Pings: we launched six ping probes for each detected hop, to measure distance from monitor.

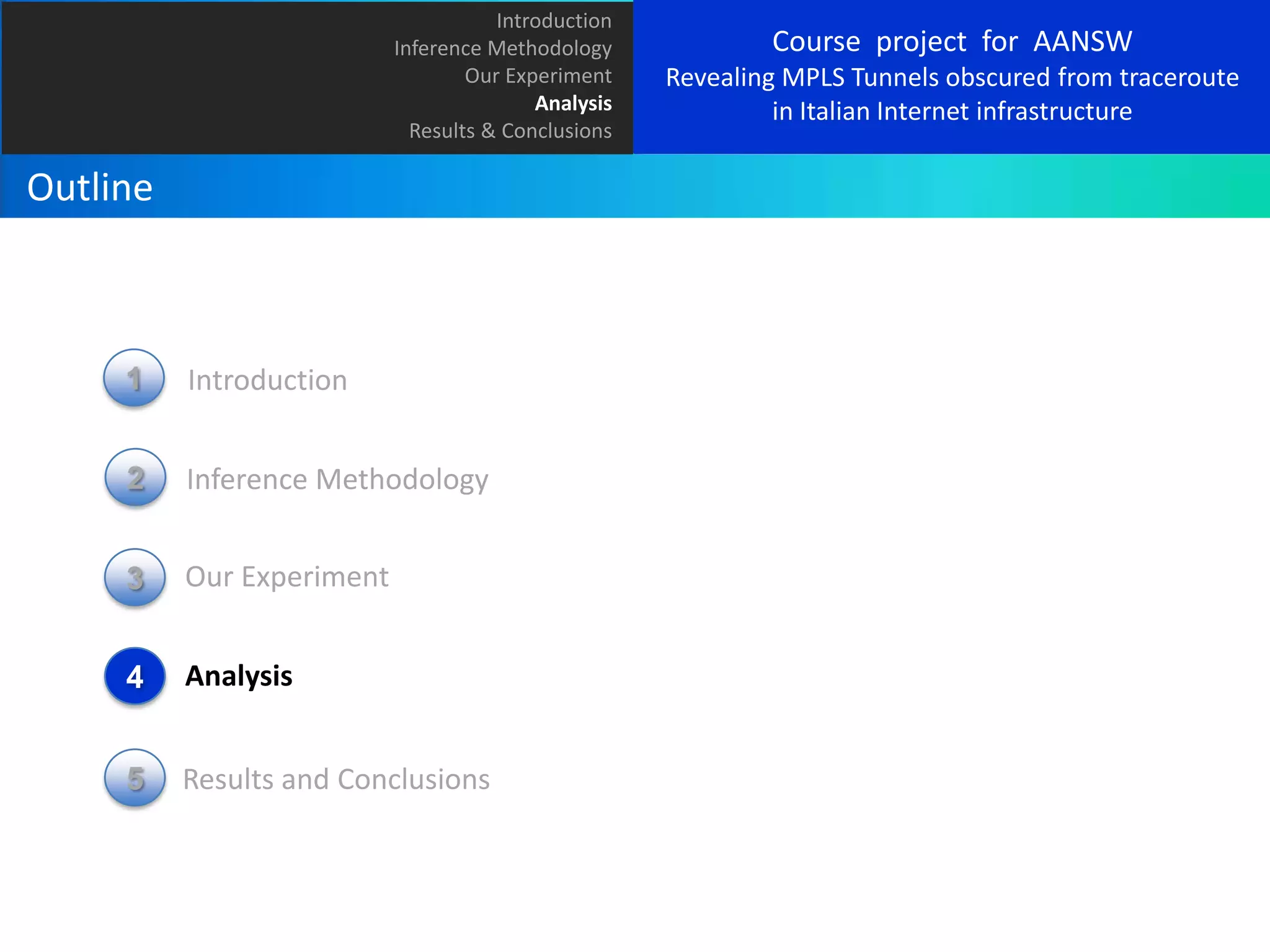

- 23. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Outline 1 Introduction 2 Inference Methodology 3 Our Experiment 4 Analysis 5 Results and Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure

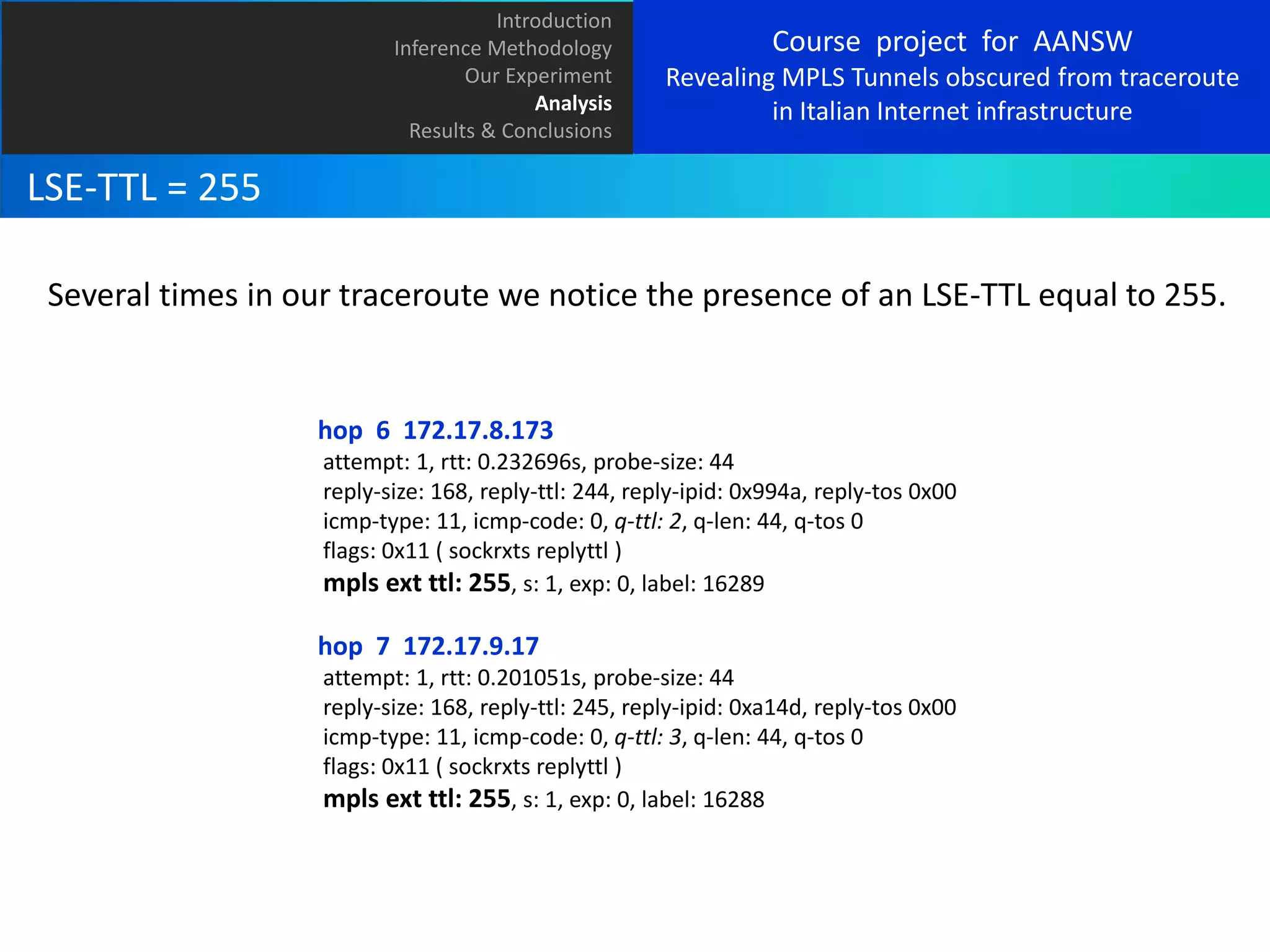

- 24. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure LSE-TTL = 255 Several times in our traceroute we notice the presence of an LSE-TTL equal to 255. hop 6 172.17.8.173 attempt: 1, rtt: 0.232696s, probe-size: 44 reply-size: 168, reply-ttl: 244, reply-ipid: 0x994a, reply-tos 0x00 icmp-type: 11, icmp-code: 0, q-ttl: 2, q-len: 44, q-tos 0 flags: 0x11 ( sockrxts replyttl ) mpls ext ttl: 255, s: 1, exp: 0, label: 16289 hop 7 172.17.9.17 attempt: 1, rtt: 0.201051s, probe-size: 44 reply-size: 168, reply-ttl: 245, reply-ipid: 0xa14d, reply-tos 0x00 icmp-type: 11, icmp-code: 0, q-ttl: 3, q-len: 44, q-tos 0 flags: 0x11 ( sockrxts replyttl ) mpls ext ttl: 255, s: 1, exp: 0, label: 16288
- 25. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure LSE-TTL = 255 In these cases, according to the paper's authors, in our analysis we assume an LSE-TTL equal to 1.

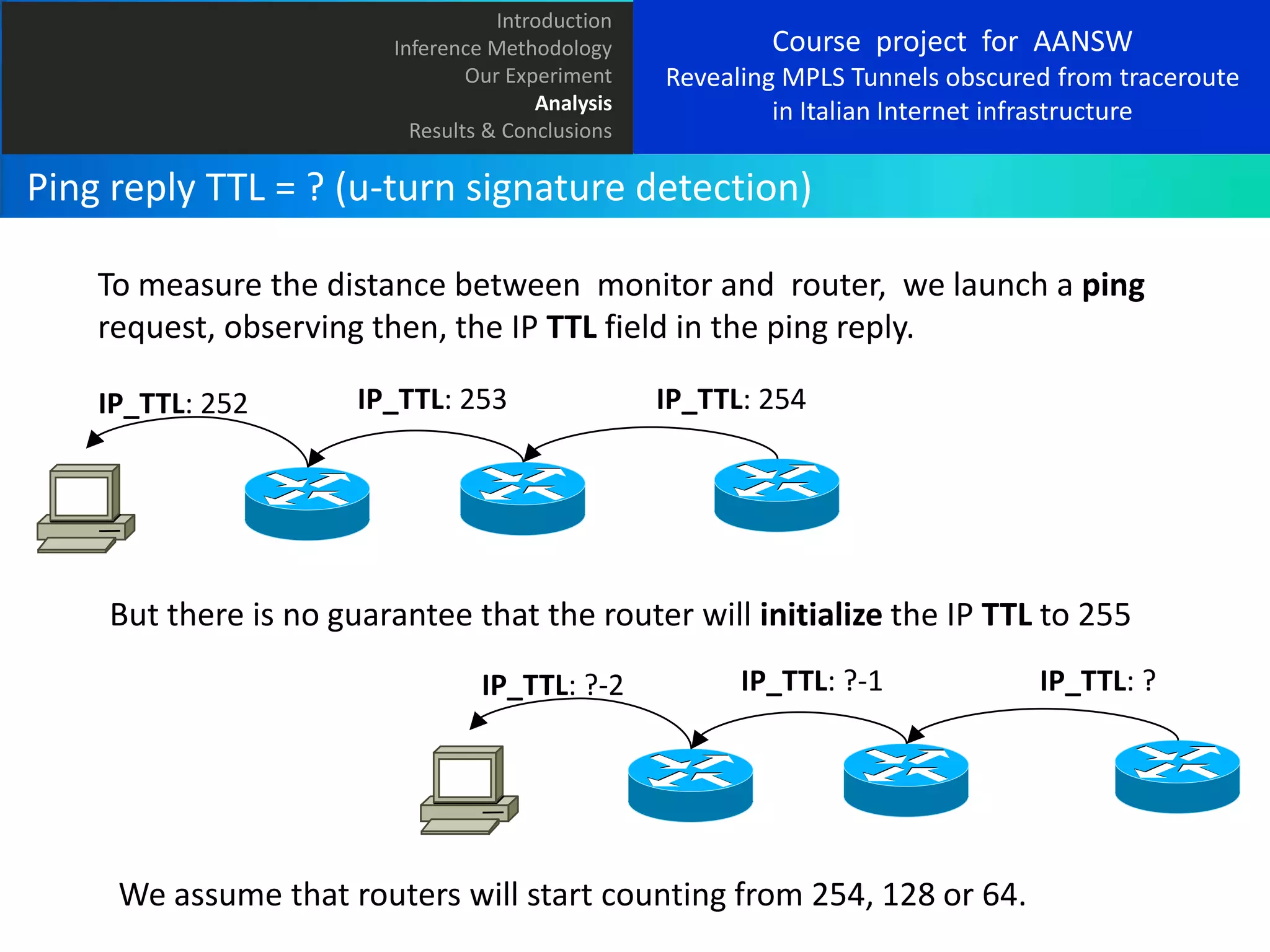

- 26. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure Ping reply TTL = ? (u-turn signature detection) To measure the distance between monitor and router, we launch a ping request, observing then, the IP TTL field in the ping reply. IP_TTL: 252 IP_TTL: 253 IP_TTL: 254 But there is no guarantee that the router will initialize the IP TTL to 255 IP_TTL: ?-2 IP_TTL: ?-1 We assume that routers will start counting from 254, 128 or 64. IP_TTL: ?

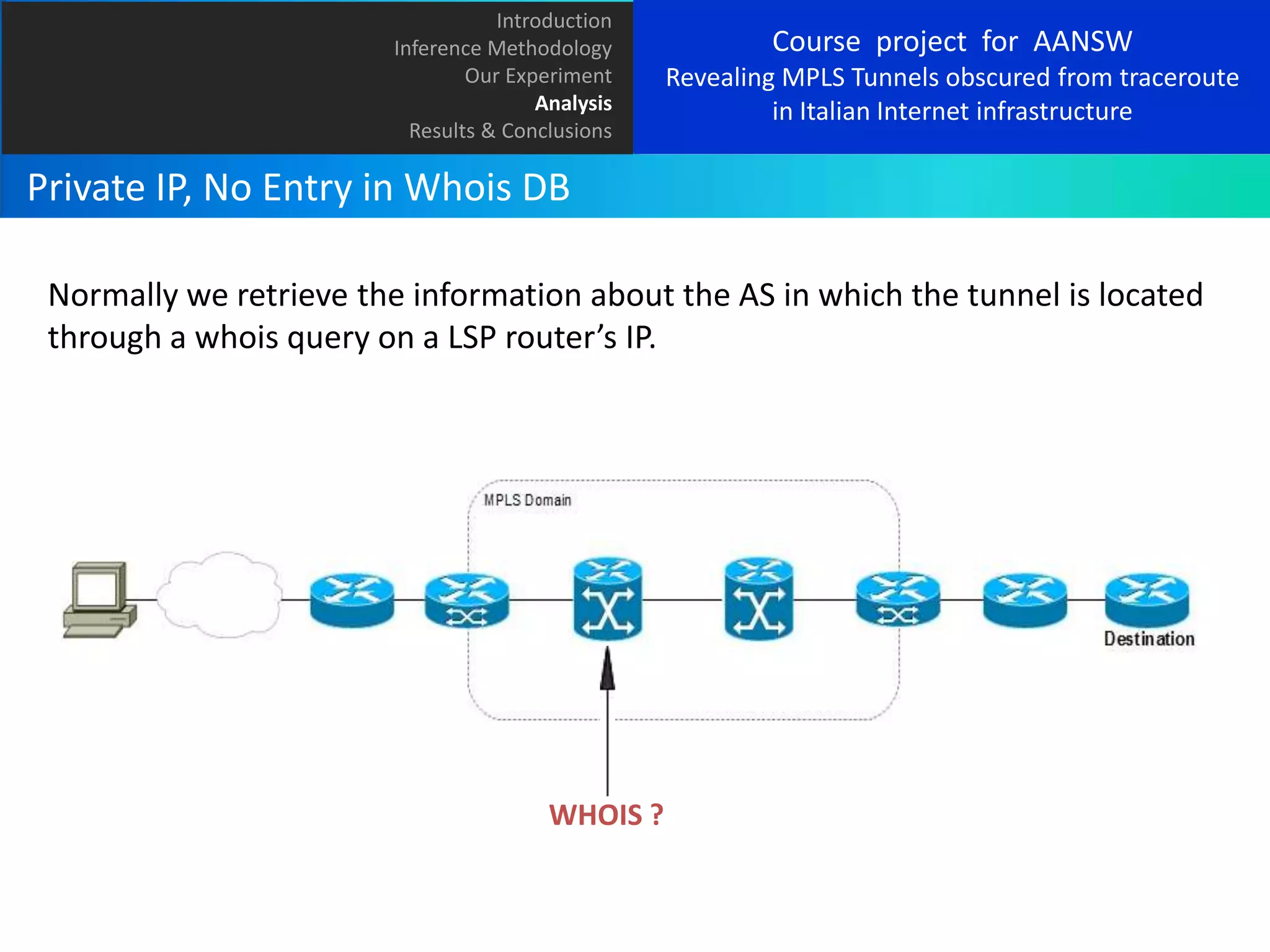

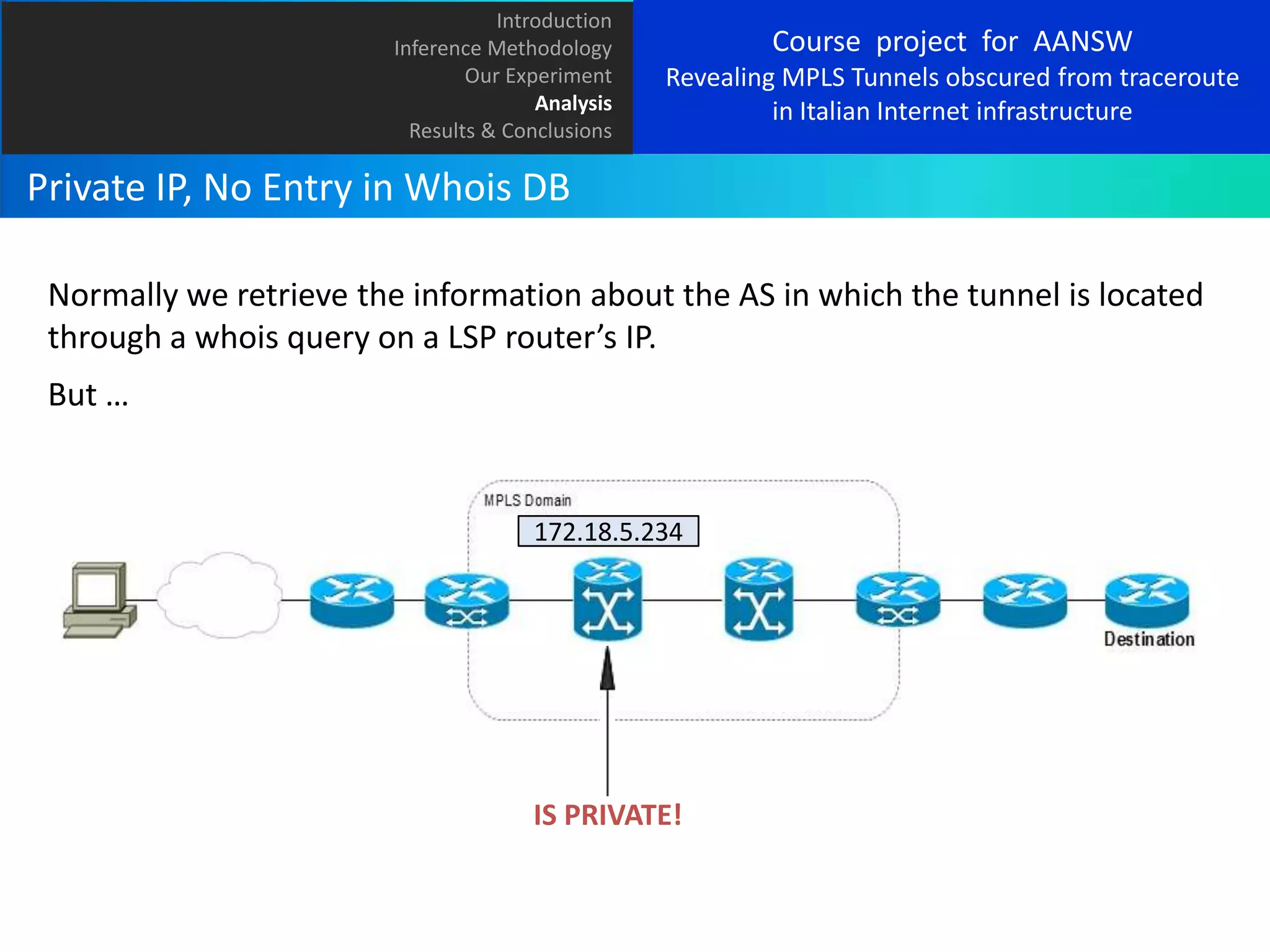

- 27. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure Private IP, No Entry in Whois DB Normally we retrieve the information about the AS in which the tunnel is located through a whois query on a LSP router’s IP. WHOIS ?

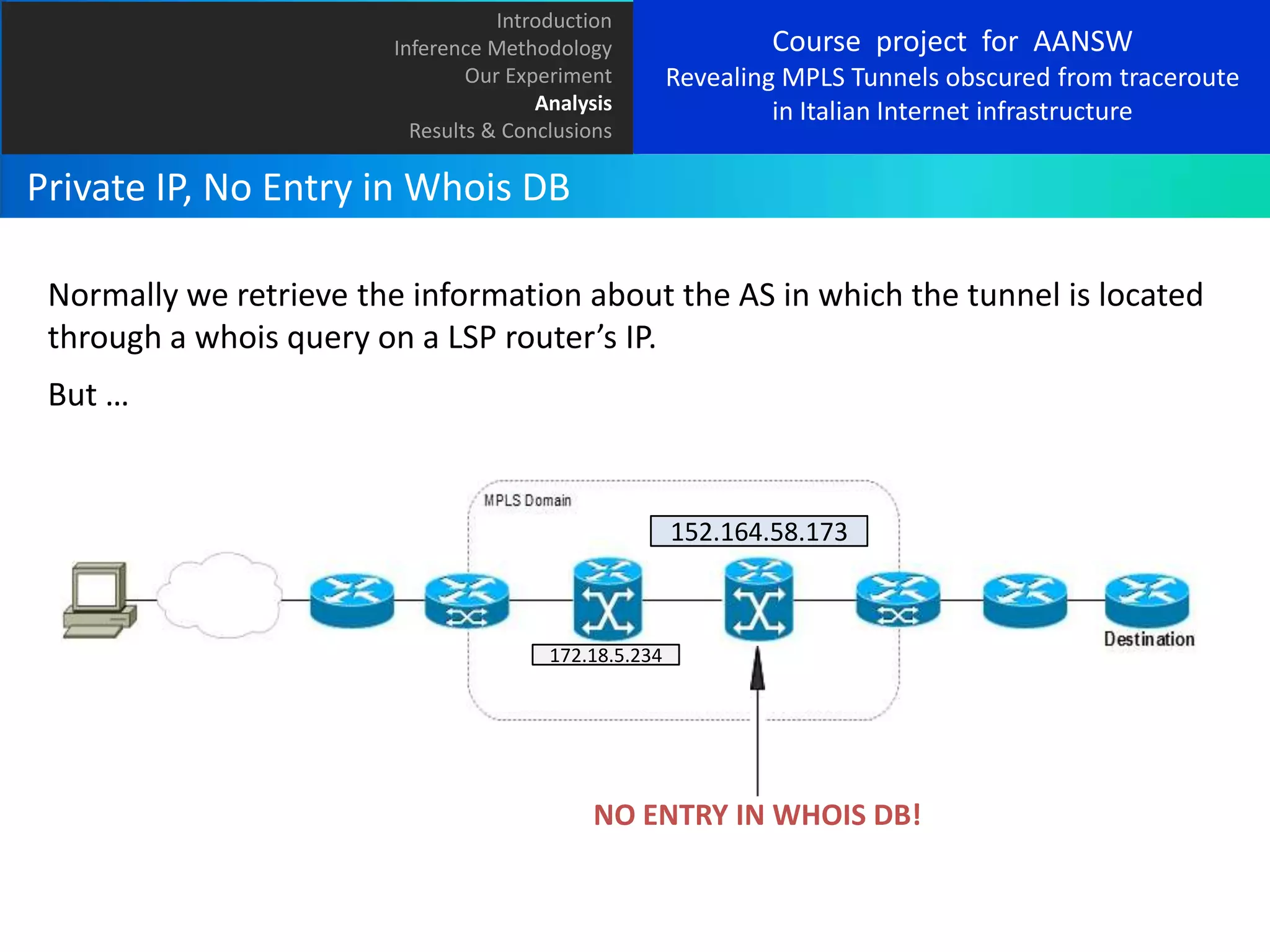

- 28. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure Private IP, No Entry in Whois DB Normally we retrieve the information about the AS in which the tunnel is located through a whois query on a LSP router’s IP. But … 172.18.5.234 IS PRIVATE!
- 29. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure Private IP, No Entry in Whois DB Normally we retrieve the information about the AS in which the tunnel is located through a whois query on a LSP router’s IP. But … 152.164.58.173 172.18.5.234 NO ENTRY IN WHOIS DB!

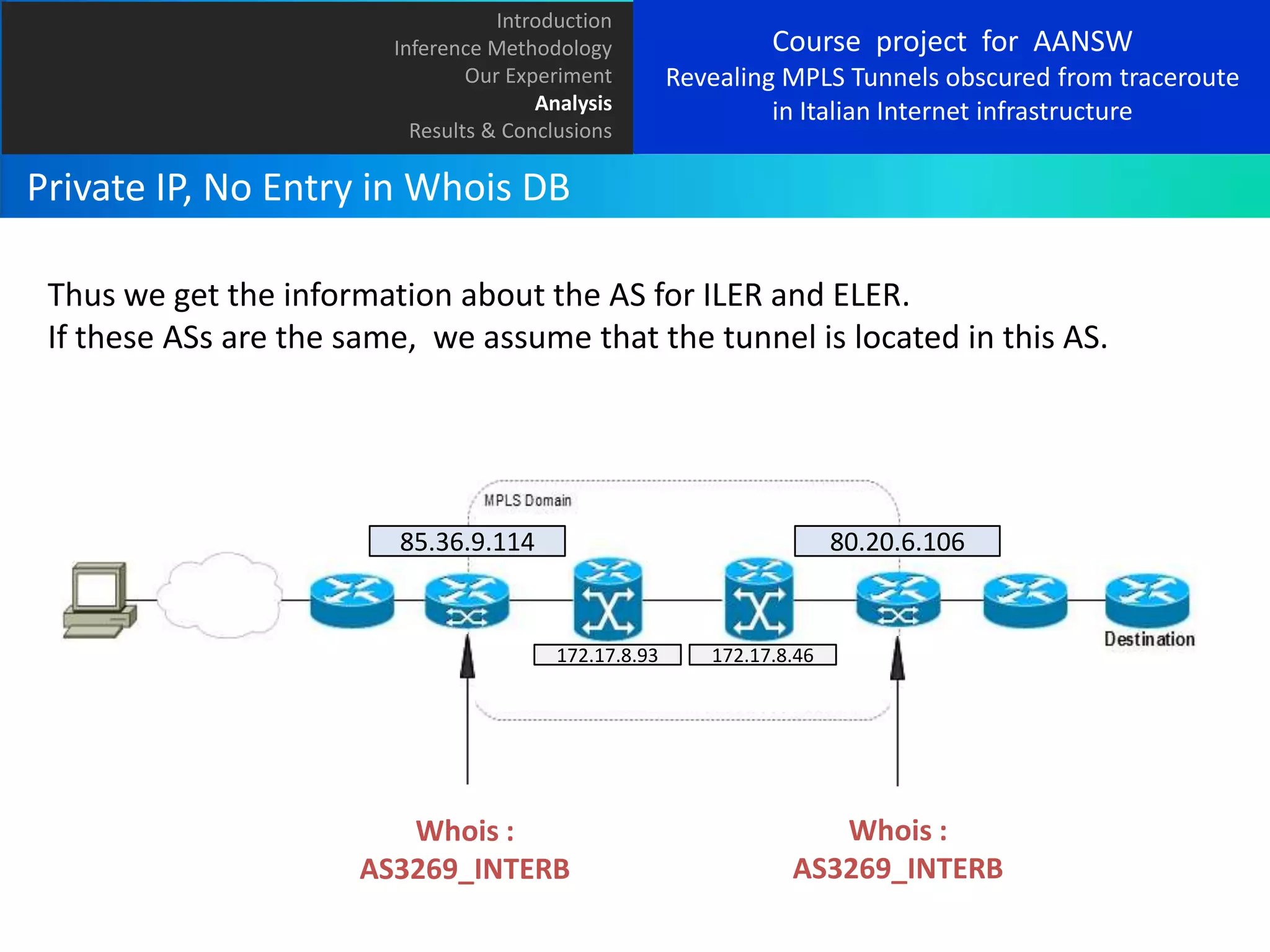

- 30. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure Private IP, No Entry in Whois DB Thus we get the information about the AS for ILER and ELER. If these ASs are the same, we assume that the tunnel is located in this AS. 85.36.9.114 80.20.6.106 172.17.8.93 Whois : AS3269_INTERB 172.17.8.46 Whois : AS3269_INTERB

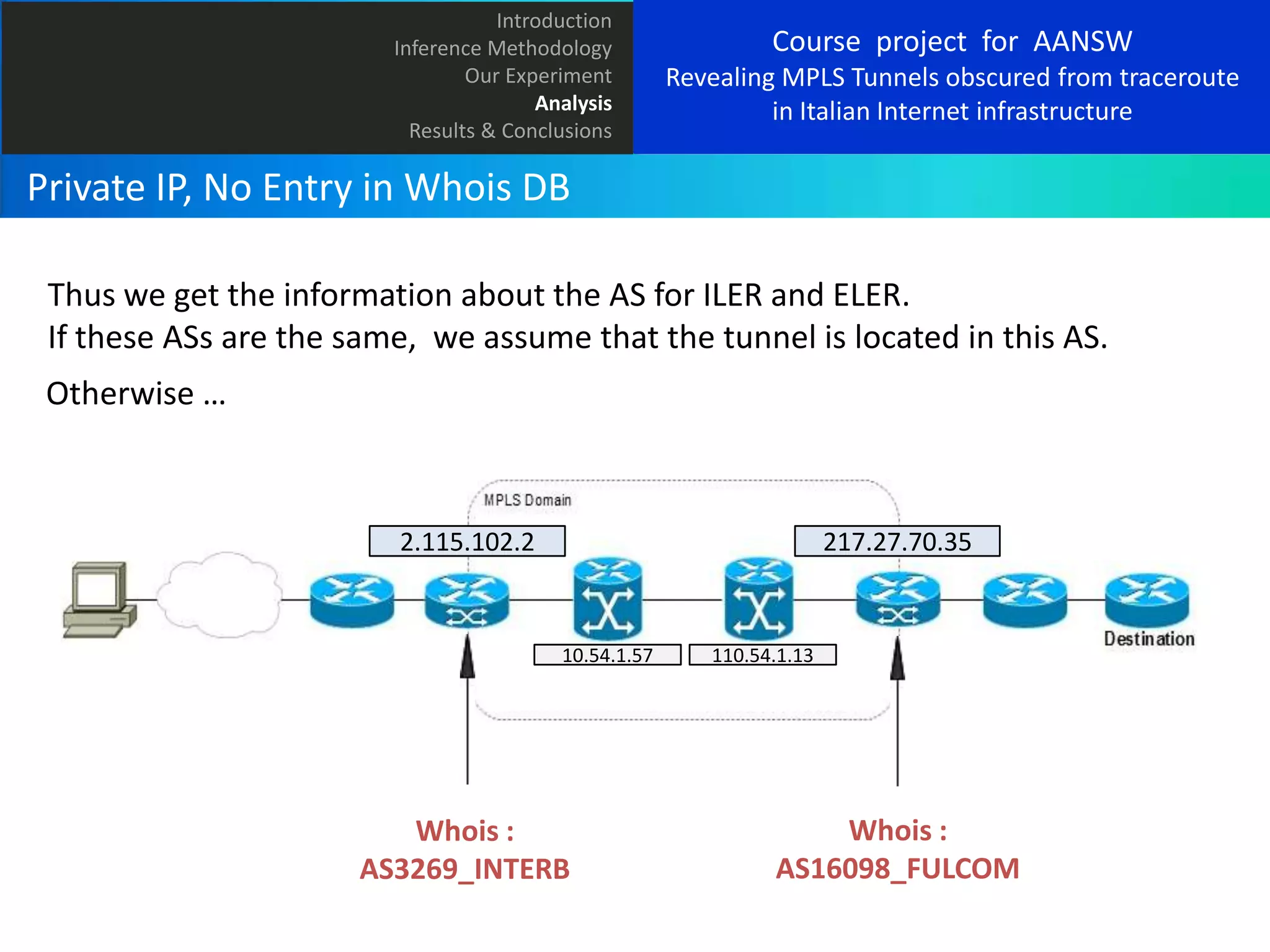

- 31. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure Private IP, No Entry in Whois DB Thus we get the information about the AS for ILER and ELER. If these ASs are the same, we assume that the tunnel is located in this AS. Otherwise … 2.115.102.2 217.27.70.35 10.54.1.57 Whois : AS3269_INTERB 110.54.1.13 Whois : AS16098_FULCOM

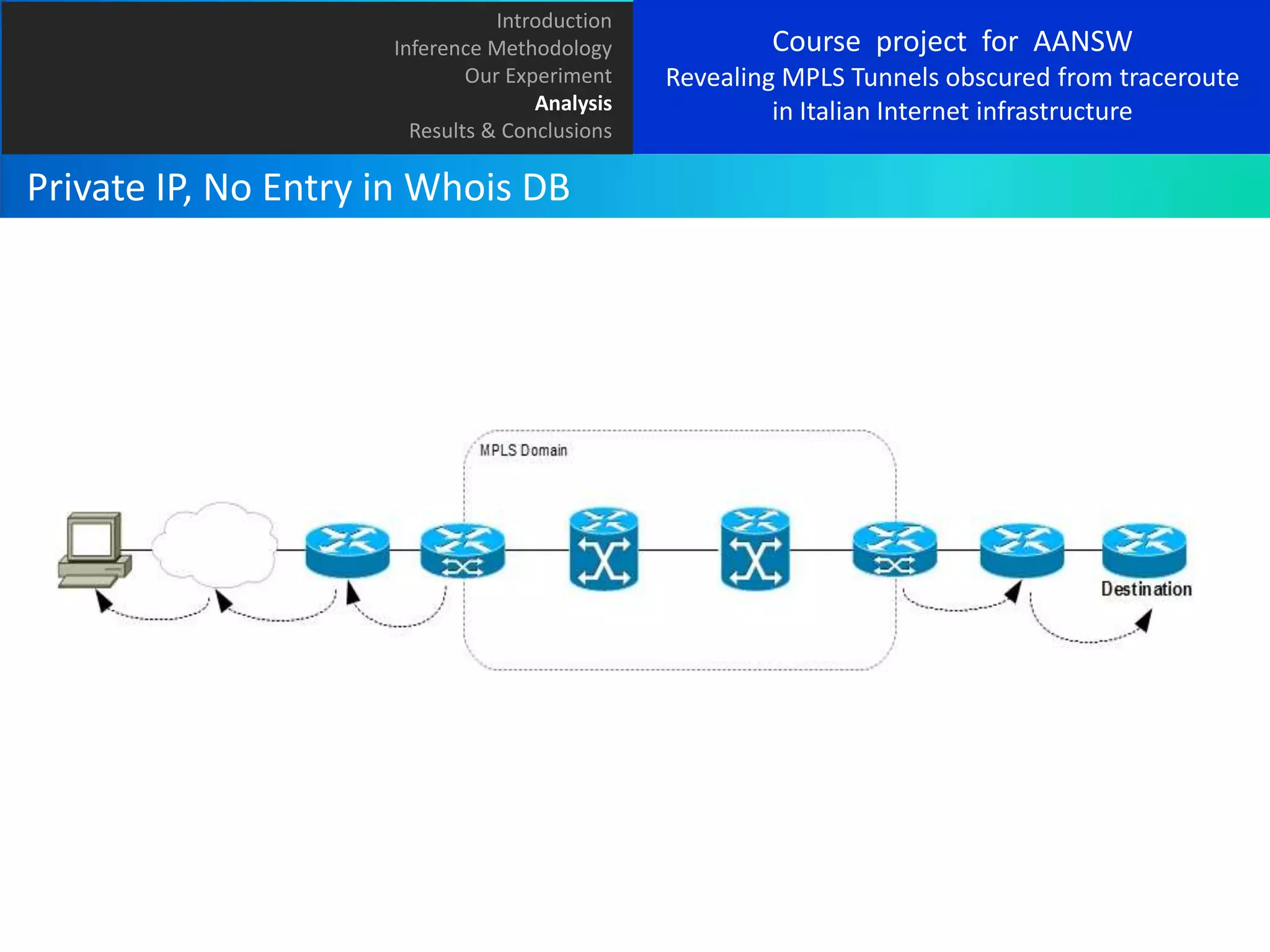

- 32. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Private IP, No Entry in Whois DB Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure

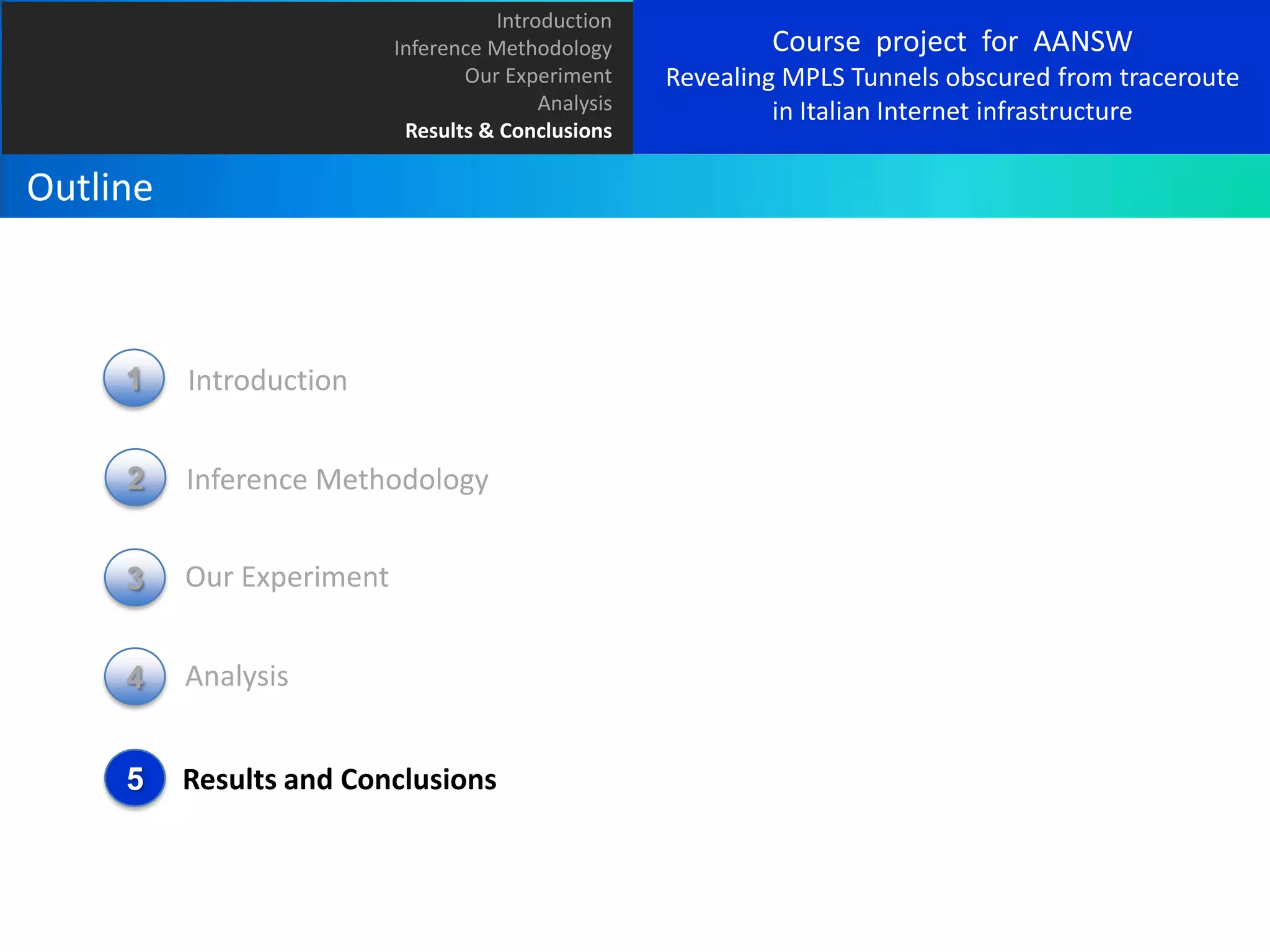

- 33. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Outline 1 Introduction 2 Inference Methodology 3 Our Experiment 4 Analysis 5 Results and Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure

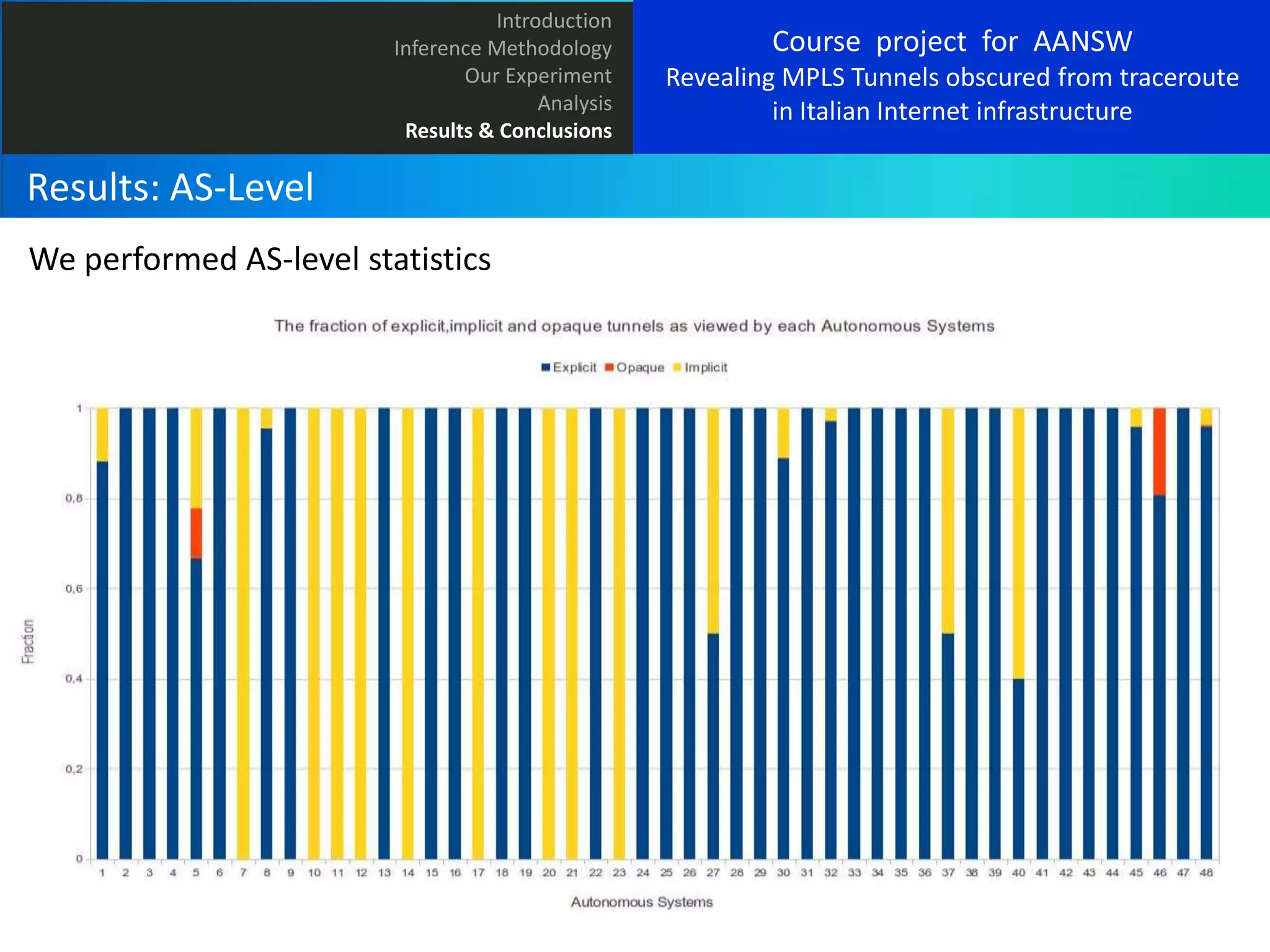

- 34. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Results: AS-Level We performed AS-level statistics Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure
- 35. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure Results: AS-Level Distribution of tunnels among the AS AS 3269 - INTERB 137 - GARR 3356-LEVEL3 1267 - INFOSTRADA % 15.5% 6.5% 4.3% 3%

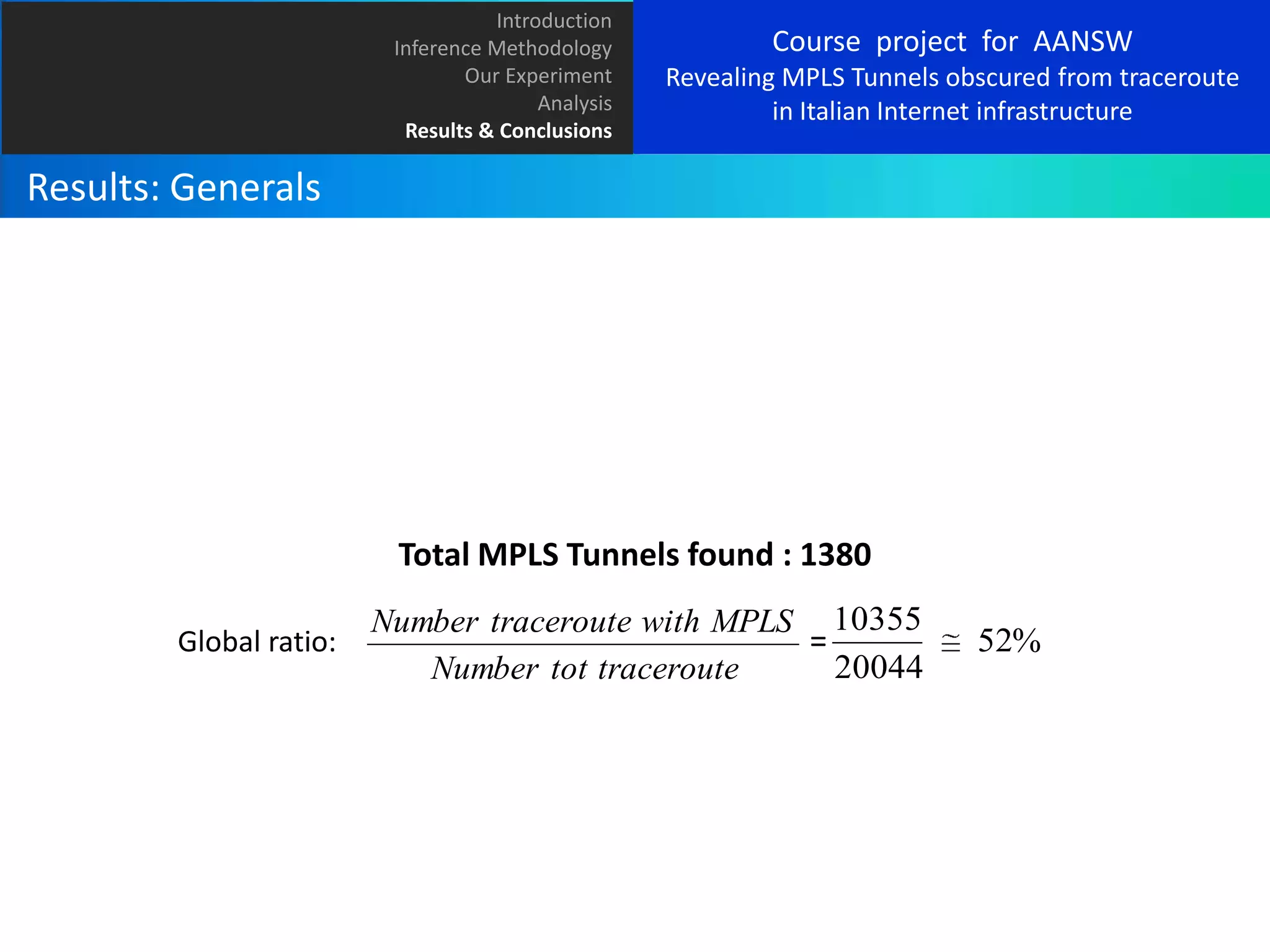

- 36. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure Results: Generals Total MPLS Tunnels found : 1380 Global ratio: Number traceroute with MPLS 10355 = 20044 Number tot traceroute 52%
- 37. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure Results: Explicit Tunnels Fraction of paths with MPLS tunnels observed per monitor IP interface granularity: Average Explicit Tunnels observed per monitor : 676 Total Explicit Tunnels found : 1264 (number of interfaces that return an ICMP response with RFC4950 ext.) More prevalent in AS3269-INTERB (Telecom Italia) : 208 (≈1/6) Interfaces with RFC 4950 687 Tot Interfaces 7159 9.6%

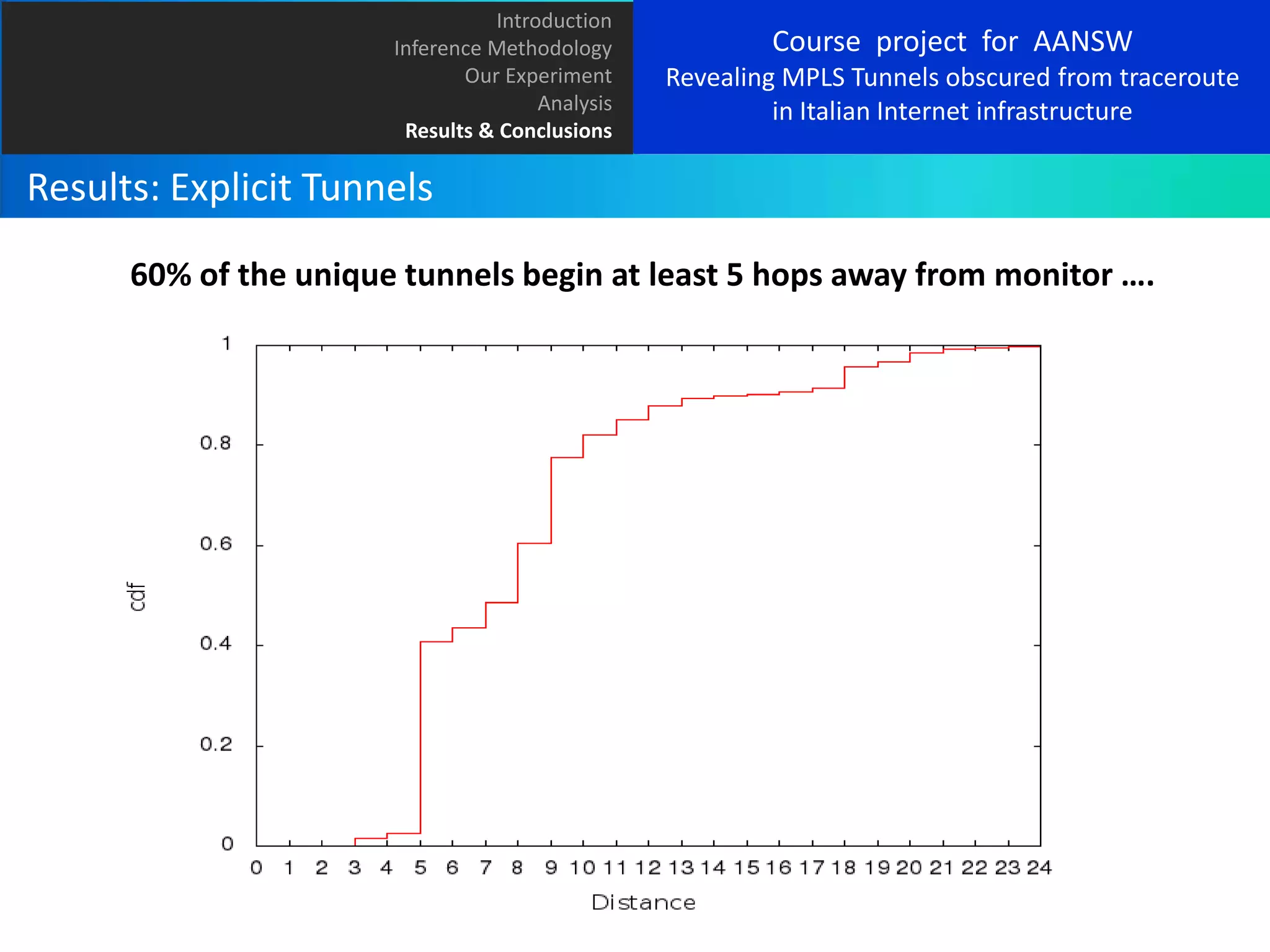

- 38. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure Results: Explicit Tunnels 60% of the unique tunnels begin at least 5 hops away from monitor ….

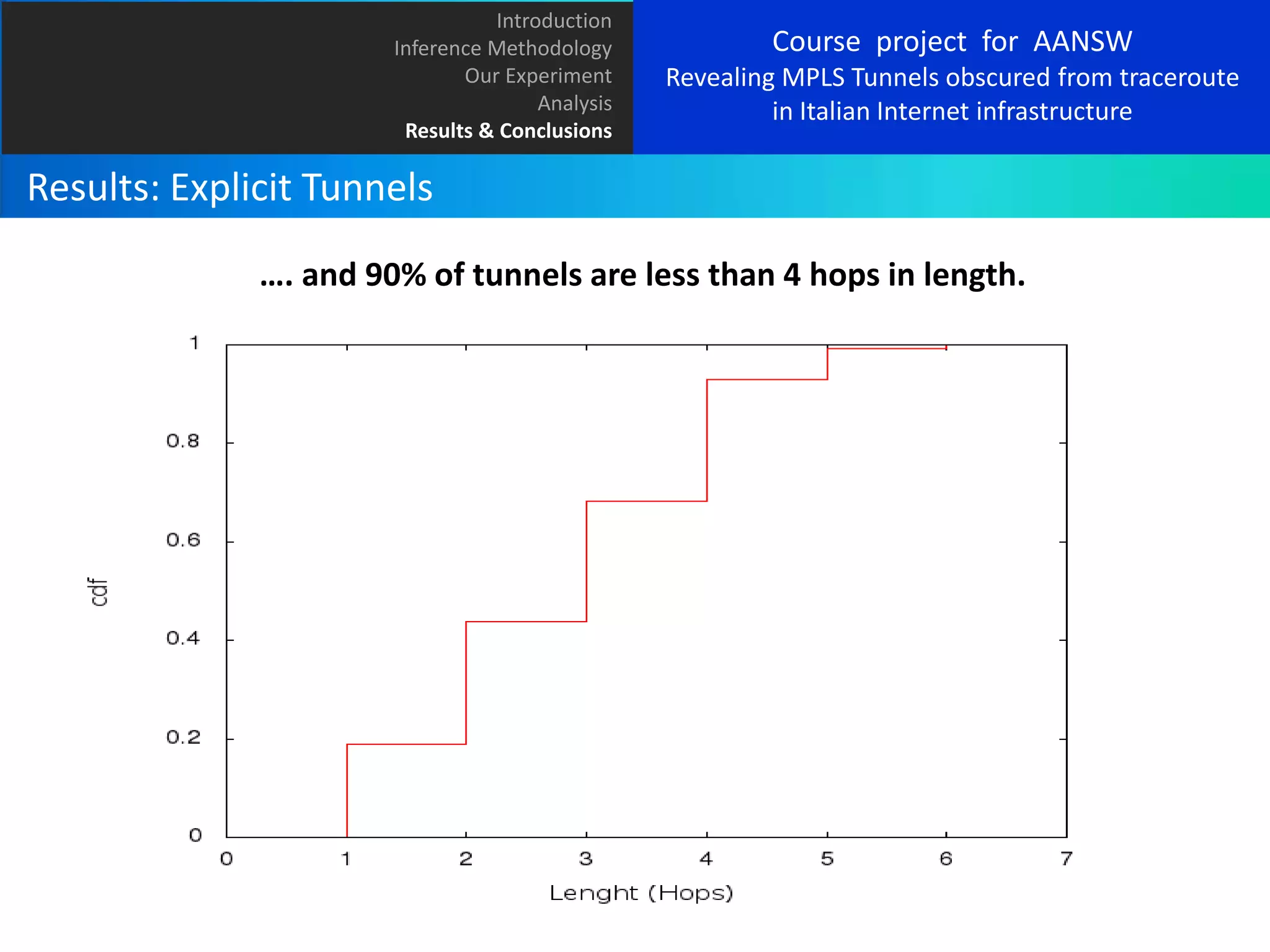

- 39. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute osbuscured by in Italian Internet infrastructure internet Results: Explicit Tunnels …. and 90% of tunnels are less than 4 hops in length.
- 40. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute osbuscured by in Italian Internet infrastructure internet Results: Implicit Tunnels Total Implicit Tunnels found : 107 91,6% were identified through q-ttl signature technique More prealentthrough u-ttl tunnel signature technique27 (≈1/4) 8,4% in AS20746-FULCOM (Telecom Italia) :
- 41. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure Results: Opaque Tunnels In our experiment Opaque tunnels were not prevalent … We have found only nine unique opaque tunnels. More prevalent in AS8968-ALBACOM LH are hidden) (unique paths between ILER and (BT Italia) : 6 (2/3)

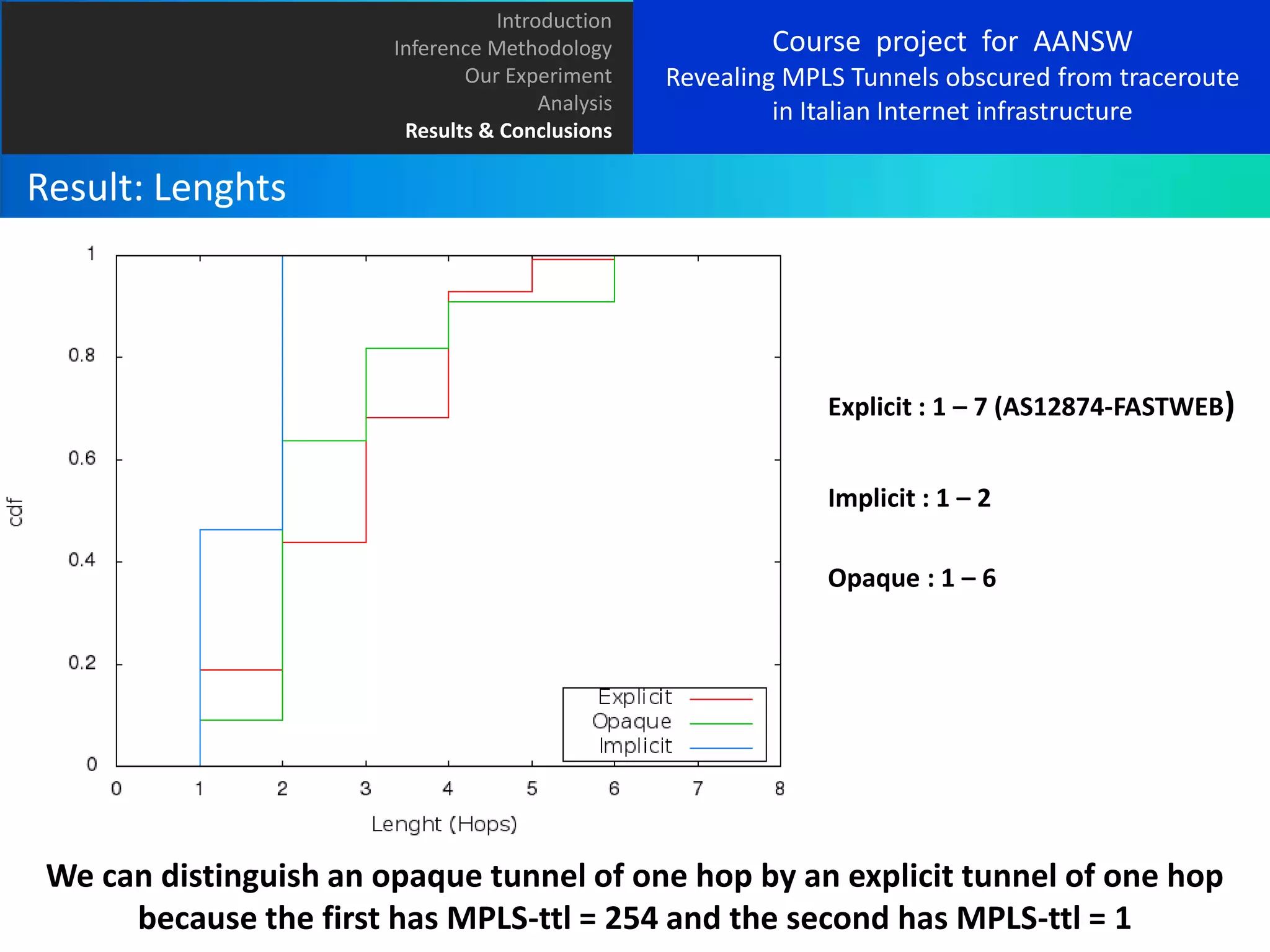

- 42. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure Result: Lenghts Explicit : 1 – 7 (AS12874-FASTWEB) Implicit : 1 – 2 Opaque : 1 – 6 We can distinguish an opaque tunnel of one hop by an explicit tunnel of one hop because the first has MPLS-ttl = 254 and the second has MPLS-ttl = 1

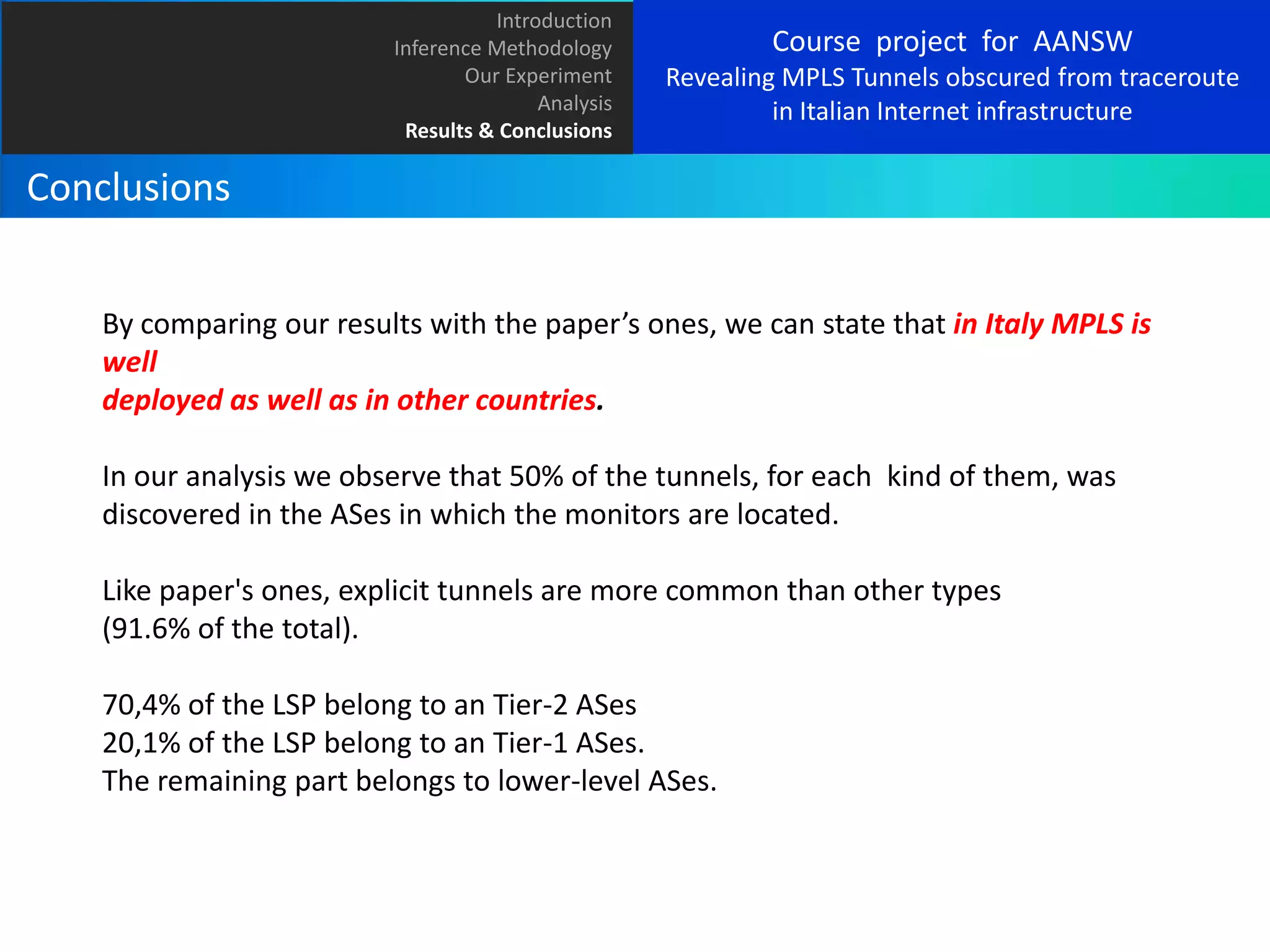

- 43. Introduction Inference Methodology Our Experiment Analysis Results& Conclusions Course project for AANSW Revealing MPLS Tunnels obscured from traceroute in Italian Internet infrastructure Conclusions By comparing our results with the paper’s ones, we can state that in Italy MPLS is well deployed as well as in other countries. In our analysis we observe that 50% of the tunnels, for each kind of them, was discovered in the ASes in which the monitors are located. Like paper's ones, explicit tunnels are more common than other types (91.6% of the total). 70,4% of the LSP belong to an Tier-2 ASes 20,1% of the LSP belong to an Tier-1 ASes. The remaining part belongs to lower-level ASes.
