Neural Waveform Modeling

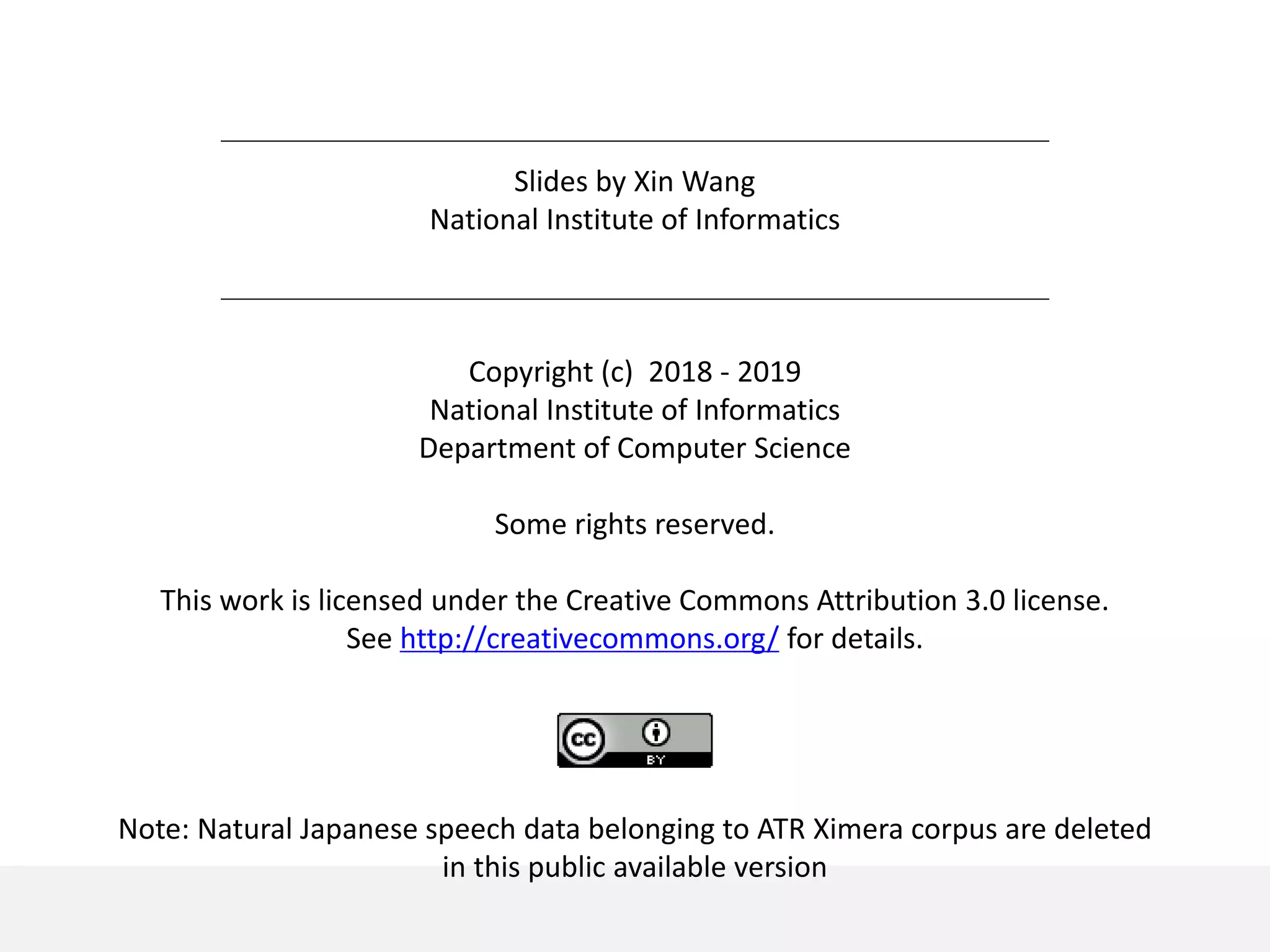

- 1. Slides by Xin Wang National Institute of Informatics Copyright (c) 2018 - 2019 National Institute of Informatics Department of Computer Science Some rights reserved. This work is licensed under the Creative Commons Attribution 3.0 license. See http://creativecommons.org/ for details. Note: Natural Japanese speech data belonging to ATR Ximera corpus are deleted in this public available version

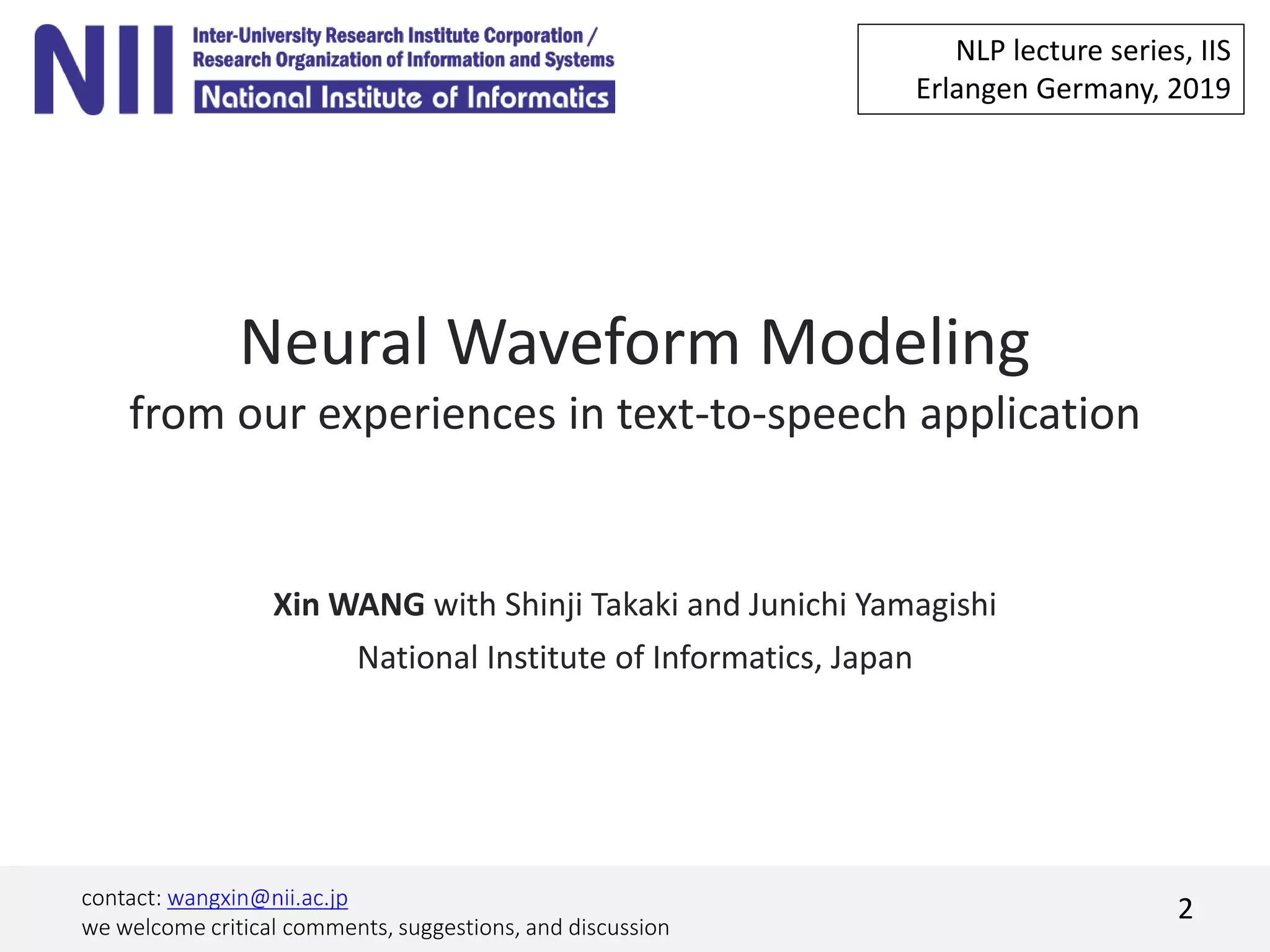

- 2. Neural Waveform Modeling from our experiences in text-to-speech application 2contact: wangxin@nii.ac.jp we welcome critical comments, suggestions, and discussion Xin WANG with Shinji Takaki and Junichi Yamagishi National Institute of Informatics, Japan NLP lecture series, IIS Erlangen Germany, 2019
- 3. Postdoc, Yamagishi-lab, NII Research keywords: • Text-to-speech synthesis (TTS) 1. Neural network 2. Hidden Markov model • Speech anti-spoofing SELF-INTRODUCTION 3 WANG Xin Pronunciation one shin ☛Research-map page: https://researchmap.jp/wangxin/?lang=english ☛Personal page: http://tonywangx.github.io 鑫王
- 4. CONTENTS 4 Introduction Theory Practice Summary • AR & flow-based models • No AR nor flow • WaveNet • Neural source-filter model • Beyond speech • Future direction
- 5. 5 Text-to-speech synthesis http://www.hawking.org.uk/the-computer.html https://hackaday.com/2018/05/10/googles-duplex-ai-has-conversation-indistinguishable-from-humans/ Text TTS Speech waveform INTRODUCTION
- 6. Text TTS Speech waveform Text-to-speech synthesis Statistical parametric speech synthesis 1 6 Marianna made the marmalade Linguistic features Acoustic features Front-end (Text-analyzer) Back-end Waveform generator Acoustic models Text /m/ /ɛ/ /r/ … H* on Marianna … (S (NP (N Marianna)) (VP (V made) (NP (ART the)) (N marmalade)))) Mel-spectrum, F0, Band-aperiodicity, etc. 1. H. Zen, K. Tokuda, and A. W. Black. Statistical parametric speech synthesis. Speech Communication, 51:1039–1064, 2009. INTRODUCTION
- 7. Text-to-speech synthesis Recent TTS frameworks 7 Front-end (Text-analyzer) Back-end Waveform generator Acoustic models Text Trimmed front-end ‘end-to-end’ TTS system Text Waveform module Attention-based acoustic model Front-end (Text-analyzer) Unified back-end Text Waveform module Pre- processing A. van den Oord, et al. WaveNet: A generative model for raw audio. arXiv preprint arXiv:1609.03499, 2016. Y. Wang, et al. Tacotron: Towards end-to-end speech synthesis. In Proc. Interspeech, pages 4006–4010, 2017. J. Shen, et al. Natural TTS synthesis by conditioning WaveNet on Mel spectrogram predictions. In Proc. ICASSP, pages 4779–4783, 2017 INTRODUCTION
- 8. 8 Spectral features, F0, etc. Neural waveform modeling INTRODUCTION
- 9. 9 Neural waveform modeling 1 2 3 4 T… Waveform values Neural waveform models … INTRODUCTION
- 10. 10 Naïve neural waveform model … 1 2 3 4 T… Convolution network (CNN) / Recurrent network (RNN) Mean-square-error (MSE) / Cross-entropy (CE) Waveform values INTRODUCTION
- 11. 11 Naïve neural waveform model … … 1 2 3 4 T… INTRODUCTION
- 12. 12 INTRODUCTION ☛ Reference in appendix ☛ Tutorial slides: https://www.slideshare.net/jyamagis/ Autoregressive (AR) neural model WaveRNNSampleRNN FFTNet WaveNet LPCNetExcitNet GlotNet Multi-head CNN No AR, nor flow Neural source-filter Model (NSF) • No explicit Improve naïve model Naïve model Flow-based model FloWaveNetWaveGlow ClariNet Parallel WaveNet GELP Theoretical interpretation Practical issues
- 13. CONTENTS 13 Introduction Theory Practice Summary • AR & flow-based models • Neural source filter model • WaveNet • Neural source-filter model • Beyond speech • Future work
- 14. MCNN GELP 14 THEORY: AR NEURAL WAVEFORM MODEL Flow-based model FloWaveNetWaveGlow No AR, nor flow Neural source-filter Model (NSF) • No explicit • Spectral-domain training criterion • Source-filter architecture ClariNet Parallel WaveNet Naïve model AR neural model WaveRNNSampleRNN FFTNet WaveNet LPCNetExcitNet GlotNet Jordan network Michael I. Jordan. Serial order: A parallel distributed processing approach. Technical Report 8604, Institute for Cognitive Science, 1986. Overview
- 15. 15 THEORY: AR NEURAL WAVEFORM MODEL General idea Training: teacher forcing 1 1 2 3 4 T… … …1 2 3 Natural waveform 1 R. J. Williams and D. Zipser. A learning algorithm for continually running fully recurrent neural networks. Neural computation, 1(2):270–280, 1989.
- 16. 16 General idea Training: teacher forcing 1 1 2 3 4 T… … …1 2 3 1 R. J. Williams and D. Zipser. A learning algorithm for continually running fully recurrent neural networks. Neural computation, 1(2):270–280, 1989. THEORY: AR NEURAL WAVEFORM MODEL
- 17. 17 General idea Sequential generation … …1 2 1 2 3 4 3 T …Generated waveform THEORY: AR NEURAL WAVEFORM MODEL
- 18. MCNN GELP 18 Flow-based model FloWaveNetWaveGlow No AR, nor flow Neural source-filter Model (NSF) • No explicit • Spectral-domain training criterion • Source-filter architecture ClariNet Parallel WaveNet Naïve model WaveNet • Tractable probability & powerful AR dependency • Slow sequential generation & only left-to-right dependency WaveRNN 1 • Batch-sampling: faster generation • Subscale-dependency: more than left-to-right dependency LPCNet & GlotNet 2,3 • Classical AR + neural AR AR neural model WaveRNNSampleRNN FFTNet WaveNet LPCNetExcitNet GlotNet 1. N. Kalchbrenner, et al Efficient neural audio synthesis. In Proc. ICML, volume 80, pages 2410–2419, 10–15 Jul 2018. 2. J.-M. Valin and J. Skoglund. LPCNet: Improving neural speech synthesis through linear prediction. In Proc. ICASSP, pages 5891–5895, 2019. 3. L. Juvela, et al . Speaker-independent raw waveform model for glottal excitation. In Proc. Interspeech 2018, pages 2012–2016, 2018. THEORY: AR NEURAL WAVEFORM MODEL
- 19. MCNN GELP Flow-based model FloWaveNetWaveGlow 19 THEORY: FLOW-BASED MODELS No AR, nor flow Neural source-filter Model (NSF) • No explicit • Spectral-domain training criterion • Source-filter architecture ClariNet Parallel WaveNet Naïve model AR neural model WaveRNNSampleRNN FFTNet WaveNet LPCNetExcitNet GlotNet Flow-based model FloWaveNetWaveGlow Fast generation?
- 20. 20 Revisit AR model Consider an AR model using a Gaussian distribution 1 2 3 T 1 2 3 NN 1 2 3 T 1 2 3 NN Training Generation G. Papamakarios, T. Pavlakou, and I. Murray. Masked autoregressive flow for density estimation. Proc NIPS, pages 2338–2347, 2017. THEORY: FLOW-BASED MODELS Or equivalently
- 21. 21 Revisit AR model Consider an AR model using a Gaussian distribution 1 2 3 T 1 2 3 NN 1 2 3 T 1 2 3 NN Training Generation z-1 denotes time delay See proof of in appendix NN z-1 H(.) NN z-1 H-1(.) G. Papamakarios, T. Pavlakou, and I. Murray. Masked autoregressive flow for density estimation. Proc NIPS, pages 2338–2347, 2017. THEORY: FLOW-BASED MODELS
- 22. 22 Revisit AR model Consider an AR model using a Gaussian distribution 1 2 3 T 1 2 3 NN 1 2 3 T 1 2 3 NN Training Generation NN z-1 H(.) NN z-1 H-1(.) z-1 denotes time delay See proof of in appendix G. Papamakarios, T. Pavlakou, and I. Murray. Masked autoregressive flow for density estimation. Proc NIPS, pages 2338–2347, 2017. Such an AR model is a flow-based model Training: 1. Transform o1:T to n1:T 2. Maximizing n1:T likelihood over N(nt 0, 1) Generation: 1. Sample nt from N(nt 0, 1) 2. Transform nt to ot 3. Repeat from t=1 to t=T THEORY: FLOW-BASED MODELS
- 23. 23 THEORY: FLOW-BASED MODELS From AR to Inverse AR flow-based model z-1 denotes time delay NN z-1 H(.) Training Generation NN z-1 H(.) NN z-1 H-1(.) NN z-1 H-1(.) AR flow Inverse-AR flow
- 24. 24 THEORY: FLOW-BASED MODELS From AR to Inverse AR flow-based model z-1 denotes time delay NN z-1 H(.) Training Generation NN z-1 H-1(.) AR flow NN z-1 H(.) NN z-1 H-1(.) Inverse-AR flow ✓ O(1) ! O(T)✓ O(1) ! O(T) Knowledge distilling Parallel WaveNet & ClariNet
- 25. 25 MCNN No AR, nor flow Neural source-filter Model (NSF) Naïve model AR neural model WaveRNNSampleRNN FFTNet WaveNet LPCNetExcitNet GlotNet WaveGlow1 & FloWaveNet2 • Fast generation & slow training Parallel WaveNet3 & ClariNet4 • Knowledge-distilling is complicated 1. R. Prenger, R. Valle, and B. Catanzaro. Waveglow: A flow-based generative network for speech synthesis. ICASSP 2019, 2018. 2. S. Kim, S.-g. Lee, J. Song, and S. Yoon. Flowavenet: A generative flow for raw audio. ICML 2019. 3. A. van den Oord, Y. Li, I. Babuschkin, et. al.. Parallel WaveNet: Fast high-fidelity speech synthesis. Proc. ICML, pages 3918–3926, 2018. 4. W. Ping, K. Peng, and J. Chen. Clarinet: Parallel wave generation in end-to-end text-to-speech. ICLR, 2018. Inverse AR flow FloWaveNetWaveGlow ClariNet Parallel WaveNet THEORY: FLOW-BASED MODELS
- 26. • Faster training & generation • Easy to implement Inverse AR flow FloWaveNetWaveGlow 26 THEORY: NEURAL SOURCE-FILTER MODEL No AR, no flow Neural source-filter Model (NSF) 1 • Source-filter architecture • Spectral-domain training criterion Naïve model AR neural model WaveRNNSampleRNN FFTNet WaveNet LPCNetExcitNet GlotNet ClariNet Parallel WaveNet 1. X. Wang, et al. Neural source-filter-based waveform model for statistical para- metric speech synthesis. In Proc. ICASSP, pages 5916–5920, 2019. 2. S. O ̈. Arık, et. al. Fast spectrogram inversion using multi-head convolutional neural networks. IEEE Signal Processing Letters, 26(1):94–98, 2018. MCNN2 GELP3
- 27. 27 THEORY: NEURAL SOURCE-FILTER MODEL 1 2 3 4 T… … General idea • No AR or inverse AR flow … 1 2 3 4 T ‘Filter’ Natural waveform Generated waveform 1 2 3 4 TF0/pitch ‘Source’
- 28. 28 THEORY: NEURAL SOURCE-FILTER MODEL 1 2 3 4 T… … General idea • Based on short-time Fourier transform (STFT) … Generated waveform Natural waveform 1 2 3 4 T Spectral distance … … 1 2 3 4 TF0/pitch
- 29. … … 1 2 3 4 TF0/pitch 29 THEORY: NEURAL SOURCE-FILTER MODEL 1 2 3 4 T… Probabilistic interpretation? Generated waveform Natural waveform 1 2 3 4 T Spectral distance … … What is the ?
- 30. 30 THEORY: NEURAL SOURCE-FILTER MODEL 1 2 3 4 T… Probabilistic interpretation? • Spectral distance 1 2 3 4 T… Framing Framing Spectral distance FFT FFT , where D is frame length. where K is FFT points.
- 31. 31 THEORY: NEURAL SOURCE-FILTER MODEL 1 2 3 4 T… Probabilistic interpretation? • 1 2 3 4 T… Framing Framing FFT FFT Likelihood over Gaussian For explanation, denotes spectral power vector , where D is frame length. where K is FFT points.
- 32. 32 THEORY: NEURAL SOURCE-FILTER MODEL Probabilistic interpretation? • 1 2 3 4 T… Framing FFT 1 2 3 4 T… Framing FFT Likelihood over Gaussian , where K is FFT points For explanation, denotes spectral power vector
- 33. 33 Naïve model AR model Inverse-AR flow NSF THEORY IN SUMMARY
- 34. CONTENTS 34 Introduction Theory Practice Summary • AR & flow-based models • Neural source filter model • WaveNet • Neural source-filter model ➣ • Beyond speech • Future work
- 35. 35 PRACTICE: WAVENET WaveNet variants Discretized or continuous-valued waveforms • Two practical issues: 1. How to generate waveform samples? ➣ 2. How to train WaveNet Gaussian? ➣ 1 2 1 2 3 4 3 1 2 1 2 3 4 3 GMM/GaussianSoftmax ➣
- 36. 36 PRACTICE: WAVENET WaveNet variants Discretized or continuous-valued waveforms Other variants • WaveNet using mixture of logistic distribution 1 • WaveNet + Spline 2 • Quantization noise shaping 3, related noise shaping method 4 1. T. Salimans, A. Karpathy, X. Chen, and D. P. Kingma. Pixelcnn++: Improving the pixelcnn with discretized logistic mixture likelihood and other modifications. arXiv preprint arXiv:1701.05517, 2017. 2. Y. Agiomyrgiannakis. B-spline PDF: A generalization of histograms to continuous density models for generative audio networks. In Proc. ICASSP, pages 5649–5653. IEEE, 2018. 3. T. Yoshimura, et al. Mel-cepstrum-based quantization noise shaping applied to neural-network-based speech waveform synthesis. IEEE TASLP, 26(7):1173–1180, 2018. 4. K. Tachibana, T. Toda, Y. Shiga, and H. Kawai. An investigation of noise shaping with perceptual weighting for WaveNet-based speech generation. In Proc. ICASSP, pages 5664–5668. IEEE, 2018. 1 2 1 2 3 4 3 Softmax 1 2 1 2 3 4 3 GMM/Gaussian
- 37. Generation strategy WaveNet-softmax • Generation as a search problem • Search space: 256T for 8-bits waveform of length T 1 2 1 2 3 4 3 37 PRACTICE: WAVENET 1 2 3 4 … … … …
- 38. Generation strategy WaveNet-softmax • Sub-optimal search by o Exploitation o Exploration o Or mix of both 38 PRACTICE: WAVENET 1 2 3 4 … … … … Random sampling Greedy search
- 39. Generation strategy WaveNet-softmax 39 8900.0 9100.0 9300.0 9500.0 9700.0 9900.0 0 200 400 600 800 1000 waveform(mu-law) 8900.0 9100.0 9300.0 9500.0 9700.0 9900.0 sampling point 0 200 400 600 800 1000 probablityWaveformlevels(0-1024)Waveformlevels(0-1024) PRACTICE: WAVENET
- 40. PRACTICE: WAVENET Generation method Experiments on WaveNet vocoder Sampling point 9300.0 9305.0 9310.0 9315.0 9320.0 Waveform level 0 200 400 600 800 1000 1200 0.0 0.1 0.2 0.3 0.4 0.5 Sampling point 8900.0 8905.0 8910.0 8915.0 8920.0 Waveform level 0 200 400 600 800 1000 1200 0.0 0.1 0.2 0.3 0.4 0.5 59 How about 1. Exploration in unvoiced steps 2. Exploitation in randomly selected voiced steps
- 42. 42 PRACTICE: WAVENET Rainbow gram: https://gist.github.com/jesseengel/e223622e255bd5b8c9130407397a0494 Natural Greedy search Random sampling Mixed approach
- 43. Generation strategy WaveNet-softmax • Exploitation & exploration • Other strategy: temperature of softmax 1 WaveNet-Gaussian • Infinite search space: the best is impossible • Same strategy as WaveNet-softmax 43 PRACTICE: WAVENET Greedy best? Sampling? 1. Z. Jin, A. Finkelstein, G. J. Mysore, and J. Lu. FFTNet: A real-time speaker-dependent neural vocoder. In Proc. ICASSP, pages 2251–2255, 2018.
- 44. 44 PRACTICE: WAVENET Training stability WaveNet-Gaussian • Maximum likelihood training is risky: very large gradients NN 1 2 1 2 3 4 3
- 45. 45 PRACTICE: WAVENET Training stability WaveNet-Gaussian
- 46. -10 -5 0 5 10 15 20 25 30 1 20 39 58 77 96 115 134 153 172 191 210 229 248 267 286 305 324 343 362 381 400 419 438 457 476 495 514 533 552 571 590 609 628 647 666 685 704 723 742 761 780 799 818 837 856 875 894 913 932 951 970 989 -loglikelihood 46 Negative log-likelihood PRACTICE: WAVENET Training stability WaveNet-Gaussian • Toy experiment o 1 utterance & network well-initialized o Variance floor applied Epoch
- 48. 48 PART 1: IMPLICIT SOURCE-FILTER MODELWAVENET Illness of fitting Gaussian Why joint learning is unstable? Toy experiment • Use the MSE network • Fit only one utterance -10 -5 0 5 10 15 20 25 30 1 20 39 58 77 96 115 134 153 172 191 210 229 248 267 286 305 324 343 362 381 400 419 438 457 476 495 514 533 552 571 590 609 628 647 666 685 704 723 742 761 780 799 818 837 856 875 894 913 932 951 970 989 -loglikelihood Epoch Natural 𝜇 𝑡 𝜎𝑡
- 49. PRACTICE: WAVENET Training stability WaveNet-Gaussian • Our two-steps strategy 1. Train blue part with 2. Train red part only • Gradient will be mild 1. Minimizes while keep gradient mild 2. Gradient not explode when 49 NN 1 2 1 2 3 4 3
- 50. Training stability WaveNet-Gaussian • Experiment: 5 hours data 50 PRACTICE: WAVENET -5.5 -5 -4.5 -4 -3.5 -3 -2.5 -2 -1.5 -1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 Negative log-likelihood Naïve strategy Our strategy Epoch On training set On validation set Step 1 Step 2
- 51. Training stability WaveNet-Gaussian • Experiment: 5 hours data 51 PRACTICE: WAVENET -5.5 -5 -4.5 -4 -3.5 -3 -2.5 -2 -1.5 -1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 Negative log-likelihood Naïve strategy Our strategy Epoch On training set On validation set Step 1 Step 2
- 52. Generation strategy Training WaveNet-Gaussian 52 PRACTICE: WAVENET Greedy best? Sampling? Exploitation + exploration Keep gradients mild NN 1 2 1 2 3 4 3
- 53. CONTENTS 53 Introduction Theory Practice Summary • AR & flow-based models • Neural source filter model • WaveNet • Neural source-filter model • Beyond speech • Future work
- 54. 54 PRACTICE: NSF 1 2 3 4 T… … General idea • Spectral-domain training criterion • Source-filter structure … Generated waveform Natural waveform 1 2 3 4 T Spectral distance … … 1 2 3 4 TF0/pitch
- 55. 55 PRACTICE: NSF Common structure • No AR or inverse AR • No knowledge distilling Spectral features & F0 Condition module Source module Filter module Frequency-domain distance Natural waveform Generated waveform F0 infor. Spectral infor. Generated waveform Gradients
- 56. 56 PRACTICE: NSF Common structure • Condition module: input feature pre-process Spectral features & F0 Source module Filter module Frequency-domain distance Natural waveform Generated waveform Up sampling Up samplingBi-LSTM CONV F0 Generated waveform Gradients Up sampling Dimension change Temporal smoothing Cat.
- 57. 57 PRACTICE: NSF Common structure • Source module: generate a sine waveform given F0 FF: feedforward layer with Tanh Spectral features & F0 Filter module Frequency-domain distance Natural waveform Generated waveform Up sampling Noise FF Sine generator harmonics Generated waveform Gradients Up samplingBi-LSTM CONV Cat. F0
- 58. Spectral features & F0 Filter module Frequency-domain distance Natural waveform Generated waveform Up sampling Noise FF Sine generator harmonics Generated waveform Gradients Up samplingBi-LSTM CONV Cat. F0 58 PRACTICE: NSF Common structure … Random initial phase Sampling rate Noise FF Sine generator Fundamental component Voiced: Unvoiced: noise
- 59. 59 PRACTICE: NSF Common structure • Error metric Spectral features & F0 Frequency-domain distance Natural waveform Up sampling Noise FF Sine generator harmonics Filter module Generated waveform Gradients Compute frequency-domain distance Compute gradients for SGD Up samplingBi-LSTM CONV Cat. F0
- 60. 60 PRACTICE: NSF Common structure • Based on short-time Fourier transform Spectral features & F0 Natural waveform Generated waveform Up sampling Noise FF Sine generator harmonics FFTFraming FFT Framing iFFT De-framing Filter module Up samplingBi-LSTM CONV Cat. F0
- 61. 61 PRACTICE: NSF Common structure • Different frame shifts / window lengths / FFT points • Homogenous distances • FFTFraming FFT Framing iFFT De-framing FFTFraming FFT Framing iFFT De-framing FFTFraming FFT Framing iFFT De-framing +
- 62. 62 PRACTICE: NSF Common structure • Different NSF models, different neural filter modules Spectral features & F0 Natural waveform Generated waveform Up sampling Noise FF Sine generator harmonics FFTFraming FFT Framing iFFT De-framing Filter module Up samplingBi-LSTM CONV Cat. F0 Filter module
- 63. 63 PRACTICE: NSF Common structure Spectral features & F0 Natural waveform Generated waveform Up sampling Noise FF Sine generator harmonics FFTFraming FFT Framing iFFT De-framing Filter module Up samplingBi-LSTM CONV Cat. F0 Filter module NSF models Baseline NSF (b-NSF) Simplified NSF (s-NSF) Harmonic-plus-noise NSF (hn-NSF) hn-NSF Ver.1 hn-NSF with ver.2 ICASSP 2019 Journal paper submitted SSW 2019
- 64. 64 PRACTICE: NSF Baseline and simplified NSF • Baseline filter block follows WaveNet / ClariNet • Baseline filter block can be simplified Baseline filter block 1 Baseline filter block 2 Baseline filter block 5 … Simplified filter block 1 Simplified filter block 2 Simplified filter block 5 … b-NSF s-NSF simplify
- 65. simplify 65 PRACTICE: NSF Baseline and simplified NSF Baseline filter block 2 Baseline filter block 5 … Simplified filter block 2 Simplified filter block 5 … b-NSF s-NSF Element-wise multiplication Baseline filter block 1 Simplified filter block 1 Simplified filter block Dilated CONV +FF … FF Dilated CONV + Baseline filter block Dilated CONV + Tanh Sigmoid • FF FF FF + Dilated CONV + Tanh Sigmoid • FF FF + … + FF
- 66. 66 PRACTICE: NSF Baseline and simplified NSF • Both models: 1. Strong harmonics in high-frequency bands 2. Awful unvoiced (fricative) sounds • Model ‘overfitted’ to voiced sounds? Baseline filter block 1 Baseline filter block 2 Baseline filter block 5 … Simplified filter block 1 Simplified filter block 2 Simplified filter block 5 … b-NSF s-NSF simplify
- 67. 67 PRACTICE: NSF Harmonic-plus-noise NSF HP, LP: high- and low-pass finite-impulse-response (FIR) filter Baseline filter block 1 Baseline filter block 2 Baseline filter block 5 … Simplified filter block 1 Simplified filter block 2 Simplified filter block 5 … Simplified filter block 1 Simplified filter block 2 … Simplified filter block 5 Simplified filter block 5 noise + HP LP b-NSF s-NSF hn-NSF simplify upgrade
- 68. Baseline filter block 2 Baseline filter block 5 … Simplified filter block 2 Simplified filter block 5 … Simplified filter block 2 … Simplified filter block 5 Simplified filter block 5 noise + HP LP b-NSF s-NSF hn-NSF simplification improvement Baseline filter block 1 Simplified filter block 1 Simplified filter block 1 68 PRACTICE: NSF Harmonic-plus-noise NSF Simplified filter block 1 Simplified filter block 2 … Simplified filter block 5 Simplified filter block 5 noise + HP LP Maximum voicing frequency (MVF) hn-NSF
- 69. 69 PRACTICE: NSF Harmonic-plus-noise NSF Version I: choose MVF based on u/v Simplified filter block 1 Simplified filter block 2 … Simplified filter block 5 Simplified filter block 5 noise + HP LP u/v flag For voiced sounds For unvoiced sounds Condition module for hn-NSF Fixed MVFs
- 70. 70 PRACTICE: NSF Harmonic-plus-noise NSF Version II: predict MVF from input features • Predict MVF from condition module (SSW paper) • From MVF to FIR filter coefficients (SSW paper) MVF Simplified filter block 1 Simplified filter block 2 … Simplified filter block 5 Simplified filter block 5 noise + HP LP Condition module for hn-NSF sinc Hamming window Gain norm. HP LP
- 71. 71 PRACTICE: NSF Simplified filter block 1 Simplified filter block 2 … Simplified filter block 5 Simplified filter block 5 noise + HP LP u/v flag Condition module for hn-NSF MVF Simplified filter block 1 Simplified filter block 2 … Simplified filter block 5 Simplified filter block 5 noise + HP LP Condition module for hn-NSF
- 72. 72 PRACTICE: NSF Simplified filter block 1 Simplified filter block 2 … Simplified filter block 5 Simplified filter block 5 noise + HP LP u/v flag Condition module for hn-NSF MVF Simplified filter block 1 Simplified filter block 2 … Simplified filter block 5 Simplified filter block 5 noise + HP LP Condition module for hn-NSF
- 73. 73 PRACTICE: NSF Simplified filter block 1 Simplified filter block 2 … Simplified filter block 5 Simplified filter block 5 noise + HP LP u/v flag Condition module for hn-NSF MVF Simplified filter block 1 Simplified filter block 2 … Simplified filter block 5 Simplified filter block 5 noise + HP LP Condition module for hn-NSF
- 74. 74 PRACTICE: NSF Simplified filter block 1 Simplified filter block 2 … Simplified filter block 5 Simplified filter block 5 noise + HP LP u/v flag Condition module for hn-NSF MVF Simplified filter block 1 Simplified filter block 2 … Simplified filter block 5 Simplified filter block 5 noise + HP LP Condition module for hn-NSF
- 75. 75 PRACTICE: NSF Spectral features & F0 Up sampling Noise FF Sine generator harmonics Up samplingBi-LSTM CONV Cat. F0 MVF Simplified filter block 1 Simplified filter block 2 … Simplified filter block 5 noise + HP LP Simplified filter block 5 Condition module for proposed hn-NSF Source module NSF is a deep-residual network
- 76. 76 PRACTICE: NSF Spectral features & F0 Up sampling Noise FF Sine generator harmonics Up samplingBi-LSTM CONV Cat. F0 MVF Simplified filter block 1 Simplified filter block 2 … Simplified filter block 5 noise + HP LP Simplified filter block 5 Condition module for proposed hn-NSF Source module NSF is a deep-residual network
- 77. 77Spectral features & F0 Up sampling Noise FF Sine generator harmonics Up samplingBi-LSTM CONV Cat. F0 MVF Simplified filter block 1 Simplified filter block 2 … Simplified filter block 5 noise + HP LP Simplified filter block 5 Condition module for proposed hn-NSF Source module PRACTICE: NSF NSF is a deep-residual network
- 78. 78Spectral features & F0 Up sampling Noise FF Sine generator harmonics Up samplingBi-LSTM CONV Cat. F0 MVF Simplified filter block 1 Simplified filter block 2 … Simplified filter block 5 noise + HP LP Simplified filter block 5 Condition module for proposed hn-NSF Source module PRACTICE: NSF NSF is a deep-residual network
- 79. 79Spectral features & F0 Up sampling Noise FF Sine generator harmonics Up samplingBi-LSTM CONV Cat. F0 MVF Simplified filter block 1 Simplified filter block 2 … Simplified filter block 5 noise + HP LP Simplified filter block 5 Condition module for proposed hn-NSF Source module PRACTICE: NSF NSF is a deep-residual network
- 80. 80Spectral features & F0 Up sampling Noise FF Sine generator harmonics Up samplingBi-LSTM CONV Cat. F0 MVF Simplified filter block 1 Simplified filter block 2 … Simplified filter block 5 noise + HP LP Simplified filter block 5 Condition module for proposed hn-NSF Source module PRACTICE: NSF NSF is a deep-residual network
- 81. 81Spectral features & F0 Up sampling Noise FF Sine generator harmonics Up samplingBi-LSTM CONV Cat. F0 MVF Simplified filter block 1 Simplified filter block 2 … Simplified filter block 5 noise + HP LP Simplified filter block 5 Condition module for proposed hn-NSF Source module PRACTICE: NSF NSF is a deep-residual network
- 82. 82Spectral features & F0 Up sampling Noise FF Sine generator harmonics Up samplingBi-LSTM CONV Cat. F0 MVF Simplified filter block 1 Simplified filter block 2 … Simplified filter block 5 noise + HP LP Simplified filter block 5 Condition module for proposed hn-NSF Source module PRACTICE: NSF NSF is a deep-residual network
- 83. 83Spectral features & F0 Up sampling Noise FF Sine generator harmonics Up samplingBi-LSTM CONV Cat. F0 MVF Simplified filter block 1 Simplified filter block 2 … Simplified filter block 5 noise + HP LP Simplified filter block 5 Condition module for proposed hn-NSF Source module PRACTICE: NSF NSF is a deep-residual network
- 84. 84Spectral features & F0 Up sampling Noise FF Sine generator harmonics Up samplingBi-LSTM CONV Cat. F0 MVF Simplified filter block 1 Simplified filter block 2 … Simplified filter block 5 noise + HP LP Simplified filter block 5 Condition module for proposed hn-NSF Source module PRACTICE: NSF NSF is a deep-residual network
- 85. Configuration Data and features Models 85 Corpus Size Note ATR Ximera F009 [1] 15 hours 16kHz, Japanese, neutral style Feature Dimension Acoustic Mel-generalized cepstrum coefficients (MGC) or Mel-spectra 60 80 F0 1 PRACTICE: COMPARISON WaveNet softmax b-NSF hn-NSF trainable MVF WaveNet Gaussian s-NSF hn-NSF fixed MVF WORLD vocoder
- 86. Speech quality (ICASSP) • 245 paid evaluators, 1450 evaluation sets 86 PRACTICE: COMPARISON Copy-synthesis Pipeline TTS WaveNet softmax b-NSF hn-NSF trainable MVF WaveNet Gaussian s-NSF hn-NSF fixed MVF WORLD vocoder WORLD vocoder WaveNet softmax WaveNet Gaussian b-NSF ☛ Samples, models, codes: https://nii-yamagishilab.github.io/samples-nsf/nsf-v1.html
- 87. Speech quality (Journal paper submitted) • >150 paid evaluators • s-NSF did badly on unvoiced sounds 87 PRACTICE: COMPARISON ☛ Samples, models, codes: https://nii-yamagishilab.github.io/samples-nsf/nsf-v2.html WaveNet softmax b-NSF hn-NSF trainable MVF WaveNet Gaussian s-NSF hn-NSF fixed MVF WORLD vocoder
- 88. Speech quality (SSW 2019) • >150 paid evaluators 88 ☛ Samples, models, codes: https://nii-yamagishilab.github.io/samples-nsf/nsf-v3.html PRACTICE: COMPARISON ■ Copy-synthesis ■ Pipeline TTS WaveNet softmax b-NSF hn-NSF trainable MVF WaveNet Gaussian s-NSF hn-NSF fixed MVF WORLD vocoder WaveNet softmax hn-NSF trainable MVF hn-NSF fixed MVF Natural
- 89. Generation speed Mem-save mode: allocate and release GPU memory layer by layer (limited by our CUDA implemetation) Normal mode: allocate GPU memory once 89 How many waveform points can be generated in 1s (Tesla p100)? PRACTICE: COMPARISON WaveNet softmax b-NSF hn-NSF trainable MVF WaveNet Gaussian s-NSF hn-NSF fixed MVF WORLD vocoder
- 90. CONTENTS 90 Introduction Theory Practice Summary • AR & flow-based models • Neural source filter model • WaveNet • Neural source-filter model • Beyond speech • Future work
- 91. 91 SUMMARY AR model WaveRNNSampleRNN FFTNet WaveNet LPCNetExcitNet GlotNet Multi-head CNN No AR, no flow Neural source-filter Model (NSF) • No explicit Naïve model Inverse AR flow FloWaveNetWaveGlow ClariNet Parallel WaveNet GELP
- 92. 92 BEYOND SPEECH (c.f. HTS Slides, by HTS Working Group) Source module Filter module
- 93. 93 BEYOND SPEECH Music performance Training • URPM dataset1 o ground-truth F0 o 13 instruments o solo recording • One model for all instruments 1 University of Rochester Multi-Modal Music Performance (URMP) Dataset http://www2.ece.rochester.edu/projects/air/projects/URMP.html Neural waveform model F0 Mel-spectra
- 94. Natural b-NSF S-NSF hn-NSF trainable MVF Violin Viola Oboe Trumpet Saxophone BEYOND SPEECH Music performance Testing with natural Mel-spectra and F0 as input WaveNet
- 95. Natural b-NSF S-NSF hn-NSF trainable MVF Horn Trombone Tuba Clarinet Flute BEYOND SPEECH Music performance Testing with natural Mel-spectra and F0 as input
- 96. 96 FUTURE DIRECTION (c.f. HTS Slides, by HTS Working Group)
- 97. Questions & Comments are always Welcome! 97 https://nii-yamagishilab.github.io/samples-nsf/index.html
- 98. 98 REFERENCE WaveNet: A. van den Oord, S. Dieleman, H. Zen, K. Simonyan, O. Vinyals, A. Graves, N. Kalchbrenner, A. Senior, and K. Kavukcuoglu. WaveNet: A generative model for raw audio. arXiv preprint arXiv:1609.03499, 2016. SampleRNN: S. Mehri, K. Kumar, I. Gulrajani, R. Kumar, S. Jain, J. Sotelo, A. Courville, and Y. Bengio. Samplernn: An unconditional end-to-end neural audio generation model. arXiv preprint arXiv:1612.07837, 2016. WaveRNN: N. Kalchbrenner, E. Elsen, K. Simonyan, et.al. Efficient neural audio synthesis. In J. Dy and A. Krause, editors, Proc. ICML, volume 80 of Proceedings of Machine Learning Research, pages 2410–2419, 10–15 Jul 2018. FFTNet: Z. Jin, A. Finkelstein, G. J. Mysore, and J. Lu. FFTNet: A real-time speaker-dependent neural vocoder. In Proc. ICASSP, pages 2251– 2255. IEEE, 2018. Universal vocoder: J. Lorenzo-Trueba, T. Drugman, J. Latorre, T. Merritt, B. Putrycz, and R. Barra-Chicote. Robust universal neural vocoding. arXiv preprint arXiv:1811.06292, 2018. Subband WaveNet: T. Okamoto, K. Tachibana, T. Toda, Y. Shiga, and H. Kawai. An investigation of subband wavenet vocoder covering entire audible frequency range with limited acoustic features. In Proc. ICASSP, pages 5654–5658. 2018. Parallel WaveNet: A. van den Oord, Y. Li, I. Babuschkin, et. al.. Parallel WaveNet: Fast high-fidelity speech synthesis. In Proc. ICML, pages 3918– 3926, 2018. ClariNet: W. Ping, K. Peng, and J. Chen. Clarinet: Parallel wave generation in end-to-end text-to-speech. arXiv preprint arXiv:1807.07281, 2018. FlowWaveNet: S. Kim, S.-g. Lee, J. Song, and S. Yoon. Flowavenet: A generative flow for raw audio. arXiv preprint arXiv:1811.02155, 2018. WaveGlow: R. Prenger, R. Valle, and B. Catanzaro. Waveglow: A flow-based generative network for speech synthesis. arXiv preprint arXiv:1811.00002, 2018. RNN+STFT: S. Takaki, T. Nakashika, X. Wang, and J. Yamagishi. STFT spectral loss for training a neural speech waveform model. In Proc. ICASSP (submitted), 2018. NSF: X. Wang, S. Takaki, and J. Yamagishi. Neural source-filter-based waveform model for statistical para- metric speech synthesis. arXiv preprint arXiv:1810.11946, 2018. LP-WavNet: M.-J. Hwang, F. Soong, F. Xie, X. Wang, and H.-G. Kang. Lp-wavenet: Linear prediction-based wavenet speech synthesis. arXiv preprint arXiv:1811.11913, 2018. GlotNet: L. Juvela, V. Tsiaras, B. Bollepalli, M. Airaksinen, J. Yamagishi, and P. Alku. Speaker-independent raw waveform model for glottal excitation. arXiv preprint arXiv:1804.09593, 2018. ExcitNet: E. Song, K. Byun, and H.-G. Kang. Excitnet vocoder: A neural excitation model for parametric speech synthesis systems. arXiv preprint arXiv:1811.04769, 2018. LPCNet: J.-M. Valin and J. Skoglund. Lpcnet: Improving neural speech synthesis through linear prediction. arXiv preprint arXiv:1810.11846, 2018. MCNN: S. O ̈. Arık, H. Jun, and G. Diamos. Fast spectrogram inversion using multi-head convolutional neural networks. IEEE Signal Processing Letters, 26(1):94–98, 2018. GELP: J. Lauri, et. al. GELP: GAN-Excited Linear Prediction for Speech Synthesis from Mel-spectrogram, Proc. Interspeech, 2019
- 99. 99 REFERENCE By Lauri Juvela, Aalto University
- 100. DFT Framing/ windowing DFT Framing/ windowing Generated waveform Natural waveform … N frames …K DFT bins K-points DFT Frame Length M Padding K-M 0 0 0 0 0 0 0 0 0 0 Framing/ windowing Complex-value domain Real-value domain APPENDIX Training criterion
- 101. X= … 1st Frame 2nd Frame Nth Frame T rows M (frame length) … … Frame shift NM columns … … 0 0 0 0 0 0 0 0 0 0 0 0 APPENDIX Training criterion
- 102. Training criterion DFT Framing/ windowing DFT Framing/ windowing Generated waveform Natural waveform … N frames …K DFT bins K-points iDFT Frame Length M De-framing/ windowing inverse DFT De-framing /windowing Gradients Gradients w.r.t. zero-padded part Not used in de-framing/windowing Padding K-M Complex-value domain Real-value domain APPENDIX
- 103. 103 FLOW-BASED MODELS Recap AR model Consider a WaveNet using a Gaussian distribution 1. Because , we have 1 2 3 T 1 2 3 NN z-1 denotes time delay NN z-1 H-1(.)
- 105. 105 FLOW-BASED MODELS Recap AR model Consider a WaveNet using a Gaussian distribution 2. Because , we have 3. Therefore z-1 denotes time delay Triangle-matrix, as nt depends on o<t
- 106. 106 FLOW-BASED MODELS Recap AR model Consider a WaveNet using a Gaussian distribution • So: z-1 denotes time delay
- 107. 107 FLOW-BASED MODELS Inverse-AR flow 1. Because , we have z-1 denotes time delay NN z-1 H-1(.) Triangle-matrix, as nt depends on ot
- 108. 108 FLOW-BASED MODELS Inverse-AR flow 2. Therefore z-1 denotes time delay NN z-1 H-1(.)
- 109. 109 FLOW-BASED MODELS AR flow vs inverse-AR z-1 denotes time delay NN z-1 H-1(.)NN z-1 H-1(.)
- 110. 110 FLOW-BASED MODELS z-1 denotes time delay NN z-1 H-1(.)NN z-1 H-1(.) AR flow AR flow vs inverse-AR Inverse-AR flow
