Shunra VE Network Appliance

A Shunra Software Datasheet

The Virtual Enterprise
Network Appliance
Improve Application Performance by emulating Production Network
behavior and revealing the root cause of performance issues.

The STA appliance limits bandwidth and
The STN appliance limits bandwidth and impairs multiple traffic flows using 1 Gbps
The STJ appliance limits bandwidth and
impairs multiple traffic flows using 10/100 and 10 Gbps Ethernet interfaces.
impairs multiple traffic flows using 10/100
Mbps and 1 Gbps Ethernet interfaces.
Mbps Ethernet interfaces.

Today’s networks, built on top of Ethernet, IP and MPLS services, require an
emulation solution that combines high-performance, flexible network modeling,
test automation and integrated application analysis. Shunra’s family of VE Network
Appliances continue to lead the market with high-performance, scalable WAN
emulation that brings the behavior of a production network into a controlled lab
environment. A VE Appliance can help ensure service levels are met as applications
scale and complexity increases on your production network.

Whether you’re managing a significant Data Center Consolidation project, planning
the deployment of a business-critical application or adopting WAN Optimization
technology, including network behavior in your application performance testing
has become a critical success factor.

Shunra offers appliances that range from several 10/100 Ethernet interfaces up
to the latest STA appliance supporting 10Gbps service interfaces and a switching
capacity up to 24Gbps. Shunra’s WAN emulation appliances can function in an “east
west” tunnel mode; its unique switching architecture also supports flexible network
topology emulation providing any-port-to-any-port Layer 2 switching, VLAN
Trunking, Layer 3 Routing; and it provides built-in, intelligent packet capture buffers
that enable application analysis.

All Shunra VE Network Appliances support a user-friendly GUI for WAN emulation
testing, and several teams can share a single appliance and run independent
emulations in parallal. Shunra’s award-winning Virtual Enterprise Suite software
provides easy-to-use network modeling, test automation with industry-leading load
tools and integrated application performance analysis.

See reverse for the complete VE Appliance comparison chart.

© 2009 Shunra Software Ltd. All rights reserved. Shunra is a registered trademark of Shunra Software.

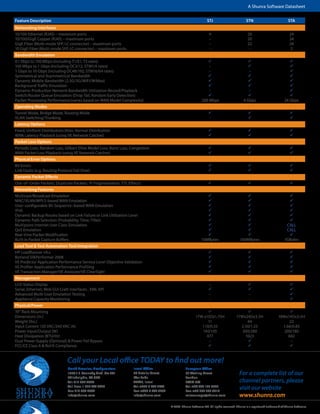

A Shunra Software Datasheet

Feature Description STJ STN STA
Networking Interfaces
10/100 Ethernet (RJ45) – maximum ports 4 20 24
10/100/GigE Copper (RJ45) – maximum ports – 20 24
GigE Fiber (Multi-mode SFP, LC connector) – maximum ports – 22 24
10 GigE Fiber (Multi-mode SFP, LC connector) – maximum ports – – 2
Bandwidth Emulation
0.1 Kbps to 100 Mbps (including T1/E1, T3 rates)   
100 Mbps to 1 Gbps (including OC3/12, STM1/4 rates) –  
1 Gbps to 10 Gbps (including OC48/192, STM16/64 rates) – – 
Symmetrical and Asymmetrical Bandwidth   
Dynamic Mobile Bandwidth (2.5G/3G/WiFi/WiMax)   
Background Traffic Emulation   
Dynamic Production Network Bandwidth Utilization Record/Playback – – 
Switch/Router Queue Emulation (Drop Tail, Random Early Detection)   
Packet Processing Performance (varies based on WAN Model Complexity) 200 Mbps 4 Gbps 24 Gbps
Operating Modes
Tunnel Mode, Bridge Mode, Routing Mode   
VLAN Switching/Trunking -  
Latency Options
Fixed, Uniform Distribution/Jitter, Normal Distribution   
WAN Latency Playback (using VE Network Catcher)   
Packet Loss Options
Periodic Loss, Random Loss, Gilbert Elliot Model Loss, Burst Loss, Congestion   
WAN Packet Loss Playback (using VE Network Catcher)   
Physical Error Options
Bit Errors   
Link Faults (e.g. Routing Protocol Fail Over)   
Dynamic Packet Effects
Out–of–Order Packets, Duplicate Packets, IP Fragmentation, TTL Effects   
Networking Features
Multicast/Broadcast Emulation   
MAC/VLAN/MPLS-based WAN Emulation   
User–configurable Bit Sequence–based WAN Emulation   
IPv6   
Dynamic Backup Routes based on Link Failure or Link Utilization Level   
Dynamic Path Selection (Probability, Time, Filter)   
Multipoint Internet User Class Simulation   CALL
QoS Emulation   CALL
Real-time Packet Modification   
Built-in Packet Capture Buffers 10MBytes 100MBytes 1GBytes
Load Tool & Test Automation Tool Integration
HP LoadRunner v9.x   
Borland SilkPerformer 2008   
VE Predictor Application Performance Service Level Objective Validation   
VE Profiler Application Performance Profiling   
VE Transaction Manager/VE Analyzer/VE ClearSight   
Management
LCD Status Display –  
Serial, Ethernet, Web GUI Craft Interfaces , XML API   
Advanced Multi-User Emulation Testing – – 
Appliance Capacity Monitoring – – 
Physical/Power
19” Rack Mounting   
Dimensions (in.) 17W x15Dx1.75H 17Wx24Dx3.5H 18Wx14Dx3.5H
Weight (lbs.) 11 44 22
Input Current 120 VAC/240 VAC (A) 1.10/0.55 2.50/1.25 1.66/0.83
Power Input/Output (W) 140/105 300/280 200/180
Heat Dissipation (BTU/Hr) 477 1023 682
Dual Power Supply (Optional) & Power Fail Bypass –  –
FCC/CE Class A & RoHS Compliance   

Call your Local office TODAY to find out more!
North America, Headquarters Israel Office European Office
1800 J.F. Kennedy Blvd. Ste 601 20 Hata’as Street 73 Watling Street For a complete list of our
Philadelphia, PA USA Kfar Saba London
Tel: 215 564 4046 44425, Israel EC4M 9BJ channel partners, please
Toll Free: 1 877 474 8672
Fax: 215 564 4047
Tel: +972 9 764 3743
Fax: +972 9 764 3754
Tel: +44 207 153 9835
Fax: +44 207 285 6816
visit our website
info@shunra.com info@shunra.com saleseurope@shunra.com www.shunra.com
© 2009 Shunra Software Ltd. All rights reserved. Shunra is a registered trademark of Shunra Software.
