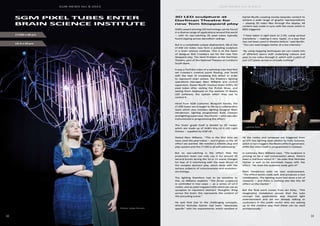

SGM PIXEL TUBES ENTER
BRAIN SCIENCE INSTITUTE
SGM’s award winning LED technology can be found
in a diverse range of applications around the world
— with its eye-catching 3D pixel tubes typically
found zipping across dancefloor ceilings.
But in a completely unique deployment, 68 of the
LT-200 2m tubes now form a pulsating sculpture
in a brain science institute. This is at the heart
of designer Bob Crowley’s set for the new Tom
Stoppard play, The Hard Problem at the Dorfman
Theatre, part of the National Theatre on London’s
South Bank.
It was a YouTube video of a spinning cube that first
set Crowley’s creative juices flowing, and faced
with the task of emulating this effect in order
to represent brain pulses, the theatre’s lighting
operations manager, Marc Williams and control
supervisor, Daniel Murfin tracked down SGM’s 3D
pixel tubes after visiting the PLASA Show, and
seeing them displayed on the website of Madrix
LED software, the system which they use to
control it.
Hired from SGM customer, Blueprint Events, the
LT-200 tubes are brought to life by a collaborative
team which also includes lighting designer Mark
Henderson, lighting programmer Kate Greaves
and lighting supervisor, Paul Knott — who was also
instrumental in programming the effect.

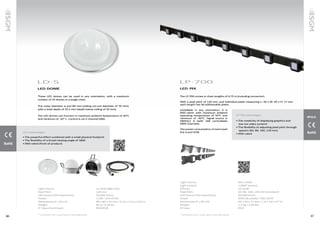

The ‘brain’ graph itself is divided by 20 ‘nodes’
which are made up of SGM’s tiny LD-5 LED Light
Domes — supplied by SGM UK.
Stated Marc Williams, “This is the first time we
have used the pixel tubes — and it gives us the 3D
effect we wanted. We needed a reliable plug and
play system and the LT-200 is all self-addressing.”
But so eye-catching is the effect that the
production team can only use it for around 30
second bursts during the 10 or 11 scene changes
for fear of it interfering with the main thrust of
the complex abstract play, which deals with the
serious subjects of consciousness and evolution-
ary biology.
The lighting therefore had to be sensitive to
this, as Williams explains: “The [brain sculpture]
is controlled in two ways — as a series of LD-5
nodes, and as pixel-mapped LEDs which we use as
synapses to represent abstract ‘thoughts’ firing
across the brain; this represents the content of
the preceding scene.”
He said that due to the challenging concepts,
director Nicholas Hytner had been “absolutely
specific” with his requirements, which resulted in
Daniel Murfin creating mostly bespoke content to
achieve a wide range of graphic representations
— playing 2D video files through the display. All
content was made in sync with the music which is
MIDI triggered.
“I have taken it right back to 2-3%, using vertical
transitions — making it very ‘ripply’, in a way that
has not been used in theatre before,” said Murfin.
“You can read images better at a low intensity.”
“By using mapping techniques we can create lots
of different layers with underlying colours and
pass lo-res video through it, which with a pitch of
just 227 pixels across is virtually nothing!”
All the nodes and synapses are triggered from
an ETC Eos lighting desk piloted by Kate Greaves,
which in turn triggers the Madrix effects generator,
while the video itself is programmed in Catalyst.
In summary Marc Williams says, “The sculpture is
proving to be a real conversation piece, there’s
been a real buzz about it.” He adds that Nicholas
Hytner is said to be extremely happy with the
effect. “He feels the audience really gets it!”
Mark Henderson adds his own endorsement.
“The effect works really well, and produces a nice
combination. The lighting team had done a lot of
research — and there is nothing else like this 3D
effect on the market.”
But the final word comes from Ian Kirby. “This
imaginative installation proves that the tube
concept has applications way beyond light
entertainment and we are already talking to
customers in the public sector who are waking
up to the creative way that these can be used
architecturally.”
3D LED sculpture at
Dorfman Theatre for
new Tom Stoppard play
LT-200 x 68 pcs
LD-5 x 20 pcs
Photos: Johan Persson
Lighting Team](https://image.slidesharecdn.com/a5780ace-392c-4d97-8ef1-2278cbc0cb49-150421060938-conversion-gate01/85/SGM_News_No-8_email-17-320.jpg)

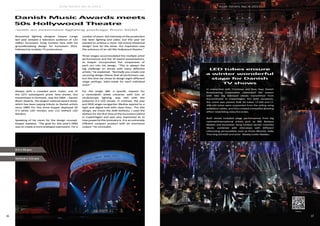

![36
SGM NEWS No. 8 2015 SGM NEWS No. 8 2015
37
Renowned lighting designer Kasper Lange
last year amazed a television audience of 120
million Eurovision Song Contest fans with his
groundbreaking design for Eurovision 2014,
followed by multiple TV productions.
Always with a crowded work roster, one of
the LD’s subsequent prime time shows, live
transmitted in Denmark, was the DMA – Danish
Music Awards, the largest national award show,
which has been paying tribute to Danish artists
since 1989. For this show Kasper deployed 50
X-5 white LED strobes and 112 SixPack LED
blinders.
Speaking of his vision for the design concept,
Kasper explains: “The goal for this year’s DMA
was to create a more analogue expression. For a
number of years, the mainstay of the production
has been lighting and video, but this year we
wanted to achieve a more ‘old school theatrical
design’ look for the show. Our inspiration was
the entrance of an old 50s Hollywood theatre.”
Three stages accommodated the multiple artist
performances and the 19 award presentations,
as Kasper incorporated the uniqueness of
each act into his design. “This is always the
big challenge on shows with many different
artists,” he explained. “Normally you create one
recurring design theme that all performers use,
but this time we chose to design eight different
stage settings, tailor-made for each individual
artist.”
For the singer MØ, a specific request for
a minimalistic white universe, with lots of
stroboscopic lighting, was met with the
powerful X-5 LED strobe. In contrast, the pop
and R&B singer-songwriter Medina aspired to a
tight and digital look with clean lines. “For this
design, we chose the SGM SixPacks. I used the
SixPack for the first time at the Eurovision [2014]
in Copenhagen and was very impressed as to
how powerful this luminaire is. It is an extremely
efficient compact product with an enormous
output,” he concludes.
Danish Music Awards meets
50s Hollywood Theatre
In connection with Christmas and New Year, Danish
Broadcasting Corporation celebrated the season
with two big televised shows transmitted from
Koncerthuset in Copenhagen. For both occasions,
the scene was packed SGM 3D tubes. LT-100 and LT-
200 LED tubes were suspended from the ceiling using
extension cables, and thus created a beautiful drizzling
effect resembling colourful icicles.
Both shows included stage performances from big
national/international artists such as MØ, Barbara
Moleko and Eurovision Song Contest winner Conchita
Wurst, combined with interviews with different
interesting personalities such as Prime Minister Helle
Thorning-Schmidt and actor Nikolaj Coster-Waldau.
LED tubes ensure
a winter wonderful
stage for Danish
TV shows
-with an extensive lighting package from SGM
X-5 x 50 pcs
SixPack x 112 pcs
Video](https://image.slidesharecdn.com/a5780ace-392c-4d97-8ef1-2278cbc0cb49-150421060938-conversion-gate01/85/SGM_News_No-8_email-19-320.jpg)

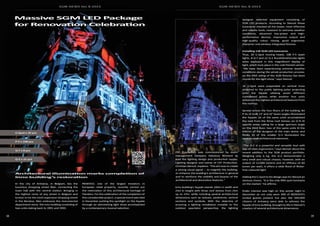

![40 41
SGM NEWS No. 8 2015

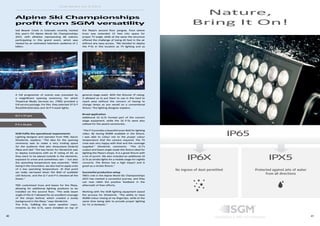

Vail Beaver Creek in Colorado recently hosted

this year’s FIS Alpine World Ski Championships
2015, with athletes representing 68 nations
participating in this grand event, which was
viewed by an estimated television audience of 1
billion.
A full programme of events was preceded by
a magnificent opening ceremony, for which
Theatrical Media Services Inc. (TMS) provided a
full service package. For this, they selected 37 Q-7
flood/blind/strobes and 16 P-5 wash lights.
SGM fulfils the operational requirements
Lighting designer and operator from TMS, Aaron
Stinebrink, explains: “The idea for the opening
ceremony was to make a very inviting space
for the audience that also showcased [Solaris]
Plaza and Vail.” The key factor for Stinebrink was
to deploy luminaires with an IP rating of 65, as
they were to be placed outside in the elements,
exposed to snow and sometimes rain — but also
the operating temperature was essential. “With
being in the mountains, we also had to apply units
of a low operating temperature. At that point
we really narrowed down the field of available
LED fixtures, and the Q-7 and P-5 checked all the
boxes.”
TMS customised truss and bases for the Plaza,
allowing for additional lighting positions to be
installed on the second floor. “The wide beam
angle of the Q-7 allowed for an excellent coverage
of the shops behind, which created a lovely
background in the Plaza,” says Stinebrink.
The P-5s, fulfilling the same weather requi-
rements as the Q-7s, were installed on top of
the Plaza’s second floor pergola, from where
truss was extended 15 feet into space for
proper TV angle, while at the same the structure
offered the challenge of being 40 feet in the air
without any easy access. “We decided to deploy
the P-5s in this location as TV lighting and as
general stage wash. With the fixtures’ IP rating,
it allowed us to put them to use in this hard to
reach area without the concern of having to
change lamps as you would on a conventional
fixture,” the lighting designer explains.
Broad application
Additional 10 Q-7s formed part of the concert
stage equipment, while the 16 P-5s were also
utilised for the award ceremonies.
“The P-5 provides a beautiful even field for lighting
video. By having RGBW available in the fixture,
I was able to colour mix to the proper colour
temperature that the camera required. The TV
crew was very happy with that and the coverage
supplied,” Stinebrink comments. “The Q-7’s
output and beam angle made this fixture ideal for
lighting the Plaza’s shops. It is a great fixture with
a lot of punch. We also included an additional 10
Q-7s as strobe lights for a mobile stage for nightly
concerts. The fixture has a high impact and is
great as a strobe fixture.”
Successful production setup
TMS’s role in the Alpine World Ski Championships
2015 has marked a successful journey, and they
can now relish the positive feedback in the
aftermath of their efforts.
Working with the SGM lighting equipment eased
the process for Stinebrink. “The ability to have
RGBW colour mixing at my fingertips, while at the
same time being able to provide proper lighting
for TV, is fantastic.”
Alpine Ski Championships
profit from SGM versatility
Q-7 x 37 pcs
P-5 x 16 pcs
Nature,
Bring It On!
IP6X IPX5
No ingress of dust permitted
Specialized in IP65 LED luminaires
Protected against jets of water
from all directions
IP65](https://image.slidesharecdn.com/a5780ace-392c-4d97-8ef1-2278cbc0cb49-150421060938-conversion-gate01/85/SGM_News_No-8_email-21-320.jpg)
![SGM NEWS No. 8 2015
4746
other lights being drowned out by the output of
the LED screens, when at the same time trying
to conceal the lamps. I have reduced the screens’
output intensity to only 35%, and even then the
lamps at times struggle to keep pace when the
full video surface is brightly lit” notes Hauge.
While still aiming for perfection by continuously
correcting minor details, Hauge is very satisfied
with the result and the balance he has
accomplished between ease of handling, ‘rider-
friendliness’ and value-for-the-money. Great
praise has gone out to the technical skills behind
this show, overwhelming the audience with the
massive use of video, making the comedian a
constant ‘actor and co-actor’ on stage.
Hauge has been very satisfied with the SGM LS-
4.6 LED screens. “It is an extremely lightweight
and elegant LED module, providing space and
atmosphere to the scene image. Furthermore,
the pixel pitch [of 4.6mm] is ideal even for the
first row to have a good image without the use of
a canvas in front of the screens”, he concludes.
When lighting designer and technician Malte
Hauge became involved in the preparation of
comedian Andreas Bo’s Original set design at
an early stage, he was able to participate in the
perfect format and scenography; at the same
time he could meet the technical challenges in
order, to achieve the vision of technical consultant
Thomas Scharling and the artist himself.
“I’m a fan of surprising the audiences,” explains
Hauge about his refined yet downplayed design.
“Instead of having one big LED screen, we have
divided the screen surface into three equally large
segments to generate new opportunities for
interaction between Andreas Bo and the video
content.” Between the three screen surfaces
are beams of light, adding to the depth of the
scenography.
With 80 expected performances, it is essential for
the designer to feel confident in the gear. “These
modules are reliable and solid, making me feel
secure with the product during transportation
and execution of the show,” says Hauge.
The 45 LS-4.6 LED screens are mounted in 3x5
modules (144x240 cm) yet are driven as one
screen from a Mac Pro running QLab, and pre-
mounted on three movable podiums for quick
and easy setup. Through each podium top,
two vertical aluminium tubes carry the screens
secured by half couplers. This results in a physical
slimness, adding a refined option for costume
changing behind them.
It is Hauge’s most accomplished task to ensure
correct light setting on Andreas Bo and add punch
to his comic timing and the atmosphere of the
show. The integration of the LS-4.6 screens on
stage builds the illusion, effectively adding more
persona to the one-man show. Photographer
and editor Per Dreyer has facilitated this illusion
in the finest manner, making the audiences
almost forget that only Andreas Bo and a video
projection are in front of them, when met by a
fully equipped rock band or three opponents in
Greenlandic drum dance.
“My biggest challenge has been to avoid my
SGM LED screens provide
ease and elegance
for comedy tour
Creative deployment of LS-4.6
LS-4.6 x 45 pcs
Lighting designer
and technician
Malte Hauge](https://image.slidesharecdn.com/a5780ace-392c-4d97-8ef1-2278cbc0cb49-150421060938-conversion-gate01/85/SGM_News_No-8_email-24-320.jpg)
![56
SGM NEWS No. 8 2015
57
SGM NEWS No. 8 2015
SGM has appointed one of
Spain’s most prominent
lighting designers as its
new representative in
South America.
Ben Díaz takes up the
position of Area Sales
Manager with immediate
effect, in a role that also
includes product training
on the Continent.
Since 2000 Díaz has been involved in many
creative roles within the entertainment industry,
including lighting / production design and opera-
tion, video programming for media servers,
cinematography and technical education.
He has worked in 16 countries as a crew
member, including Europe and America, and has
a deep and comprehensive understanding of
all technical matters relating to show business
worldwide.
Ben Díaz has spent the last ten years touring as
a lighting designer, programmer and operator,
and creating visual shows for TV.
PLASA Award panel: ”[G-Spot] is the first fully weatherised automated profile spot. It’s an
elegant and aesthetically pleasing fixture that will be able to withstand any show in any
environment, and be able to withstand even the British festival season.”
Hew Llewellyn, National Theatre: “We certainly put it through its paces as we had torrential
rain the night after we put it up. But I needn’t have worried about that, or the output, as it
was certainly bright enough.
This is perfect for outdoor theme parks; you don’t need expensive domes and it will handle
proper architectural lighting.”
Andrei Popea, FIVE’S: “We mainly selected the G-Spot for its IP65 rating, taking the
opportunity to place them safely on the downstage. We have been searching a long time
for a fixture like this, that brings together a high output and an optical system capable of
covering a broad spectrum of angles – from a narrow spot to a wide even wash.”
It was during one such tour — with Latin pop-rock
artist Rosana — that he first met SGM CEO Peter
Johansen in February 2013. The tour’s arrival in
Mexico coincided with a seminar held by SGM
in conjunction with their Mexican distributor,
Representaciones de Audio, which the LD took
the opportunity to attend.
By this time Díaz had already clocked up
several years of experience with SGM products,
and following the seminar he reviewed the
rejuvenated brand and new product portfolio as
“maybe the coolest in the market right now.”
“We are fortunate to be able to recruit someone
with Ben’s experience who already had a working
knowledge of our fixtures and was committed
to the brand,” stated Peter Johansen. “He has
the perfect credentials for representing us in
this strategically important and fast developing
part of the world."
Ben Díaz speaks Spanish, English and Portugue-
se, and has a profound knowledge of the
different Latin American cultures. As of January
2015, he will be based in Mexico City where he
can be contacted at +52 55 19 488 485 or on
Skype as bendiaz_sgm.
BEN DÍAZ TO HEAD UP
SGM IN SOUTH AMERICA
G-Spot Testimonials American rock legends, Foo Fighters, recently
visited Colombia on the South American leg of their
Sonic Highways World Tour. At the Estadio Nemesio
Camacho, commonly known as ‘El Campín’, in
Bogotá, they were greeted by a crowd of 40,000
fans for what was to be an amazing concert.
Prior to the concert, event production company
Iluminación Jaime Dussán had been contacted to
supply the roof structure as well as LED screens.
Dedicated to providing technical services for
large scale events such as this, they had the
inventory to fulfill the requirements — including
big screen reinforcement. “The client required
an outdoor screen with a 6mm pitch from a
European manufacturer,” informs the company
spokesperson, Ms. Andrea Dussán.
The SGM LS-6.67 is IP65-rated and ideal for the job,
with its pixel pitch of 6.67mm and a brightness of
5,000 nits per sqm. It comes in a robust but sleek
display design, which is easy to install and offers a
superior viewing angle of 140˚ - still providing the
observer with a complete focused display even in
extreme viewing angles.
Side panels surrounding the concert stage each
consisted of 7 x 11 low-weight modules, offering
a high picture resolution for this huge mass of
fans. Another 5 x 8 modules were mounted in
delay positions, close to the FOH technical control
platform, from where they provided enhanced
viewing for the audience behind the mix tower.
“The band has a very visual show so video was of
high importance to them,” says Andrea Dussán,
who reports the client’s full satisfaction with their
services and show results. “They congratulated us
for the perfect image and excellent definition,” she
says in conclusion.
SGM LED screens provide perfect
definition for Foo Fighters
Video
LS-6.67 x 117 pcs
Jaime Dussán](https://image.slidesharecdn.com/a5780ace-392c-4d97-8ef1-2278cbc0cb49-150421060938-conversion-gate01/85/SGM_News_No-8_email-29-320.jpg)
