Agenda Classes UI & UX Intro to Xaml Element positioning Containers

1. Prepared by : Mohamed Samir & Khaled Taher

2. Revision

3. 1
2
3
4
5
6

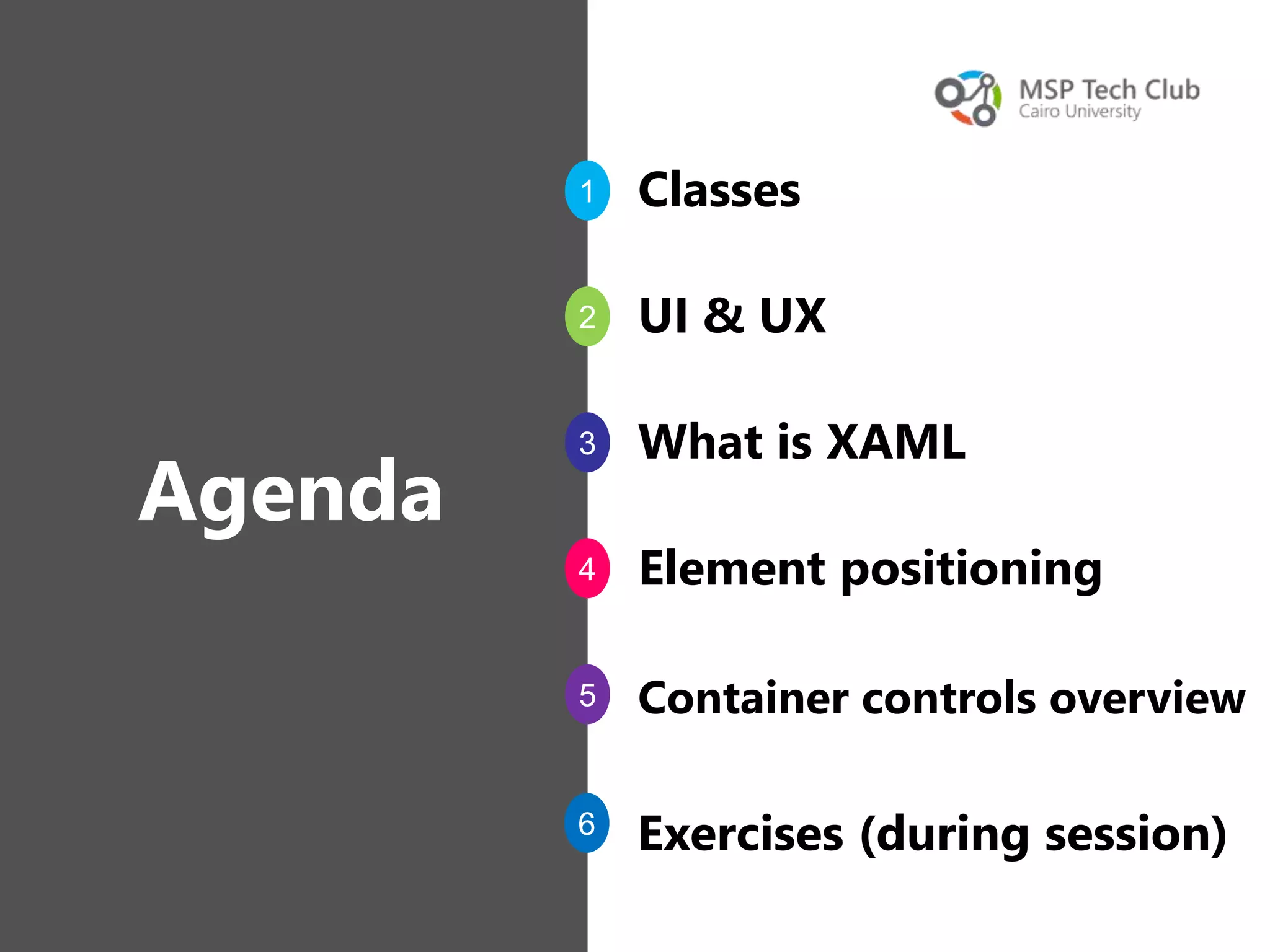

Agenda
Classes
UI & UX
What is XAML
Element positioning
Container controls overview
Exercises (during session)

4. 1. Saif El-deen
2. Fatema Mahmoud
3. Mahmoud Atef
4. Hadeer El-naggar
5. Hagar Farouk
6. Abd Al-Rahman Allam
7. Mohamed Reda
8. Nada Maher
9. Mahmood mohey
The heroes who finished Exercise 2

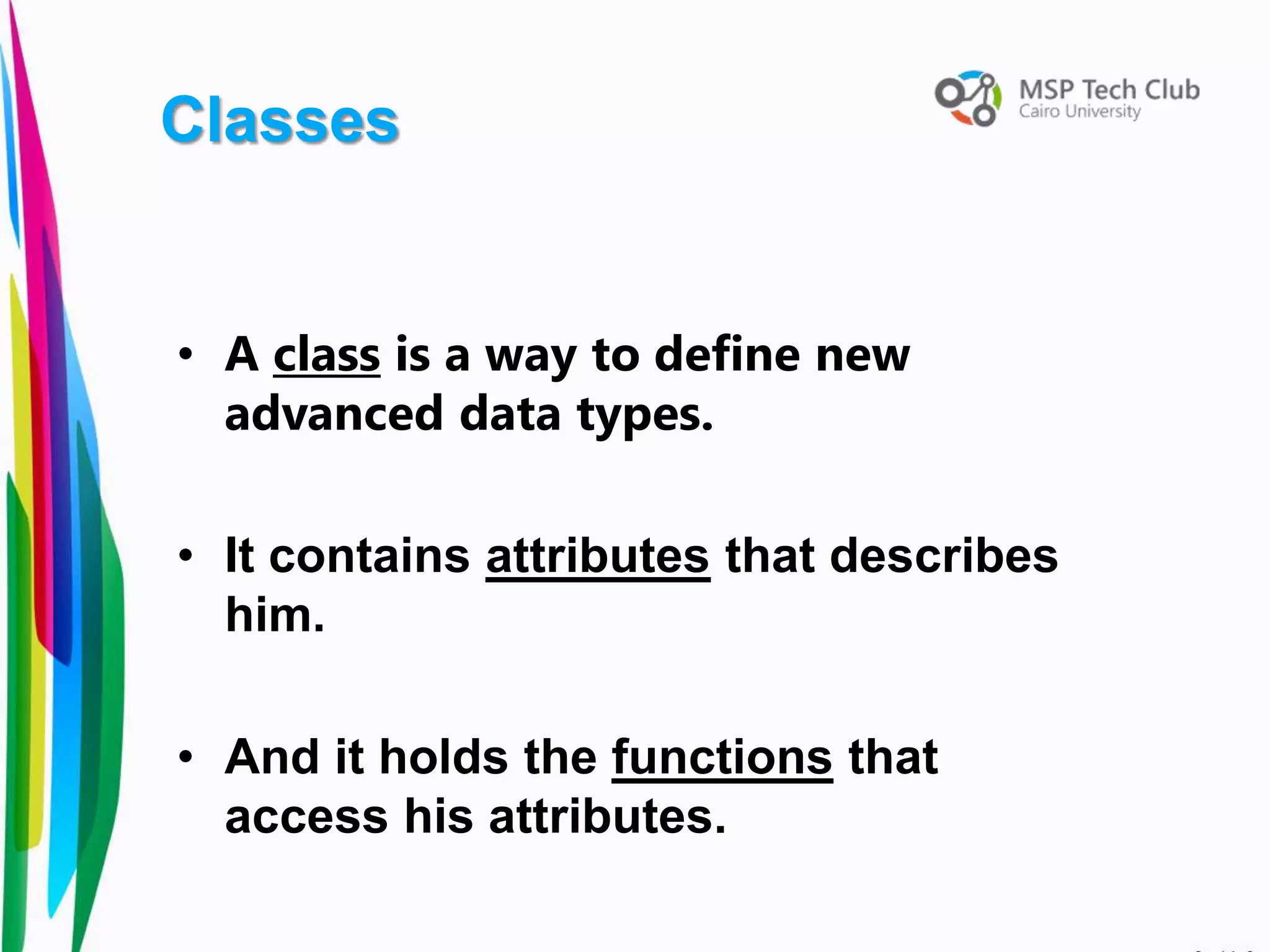

5. • A class is a way to define new
advanced data types.
• It contains attributes that describes
him.
• And it holds the functions that
access his attributes.
Classes

6. Class Frog {
private string name;
private string color;
public Frog() { } [constructor]
public void set_name(string name) { } [setter]
public string get_name () {} [getter]
public void jump() { }
}
Classes

7. Object
It is an instance of a class:
Frog kermit = new Frog () ;
Each object holds a (Unique)
assignment of value to the class
attributes:
kermit.set_Name (“Kermit The Frog”);
kermit.set_Color (“Green”);
kermit.set_hight (183);
Classes

8. Class Object
Classes

9. Constructor:
• is the first function the
object does after its creation.
• Constructor can either hold
parameters or not.
• class Frog {
Frog ()
{
Console.WriteLine(“I am a frog”);
}
}
Classes

10. • Access modifiers are keywords set
the visibility of an attribute or
function in a class to the other
classes.
private string name;
public string eye_color ;
public int hight;;
kermit.set_name (“Kermit The Frog”) ;
kermit.eye_color = “Green” ;
kermit.set_hight(183) ;
Classes

11. Classes

12. • Is when two classes share
attributes with each others.
• Like for example harry (child) and
his mother (parent)
– Harry is a wizard as his mother
– Has his mother eyes
• All these are attributes harry
inherited from his mother
Inheritance

13. • * Full code in notes bellow.
Inheritance

14. 1. Learning programming basics on
console (C#)
2. How to design UI (XAML)
3. how to design database (SQL Server)
4. Integrate all your skills into APP
Our Workshop Plan

15. Woo hoo !!!
Universal Windows Platform Apps

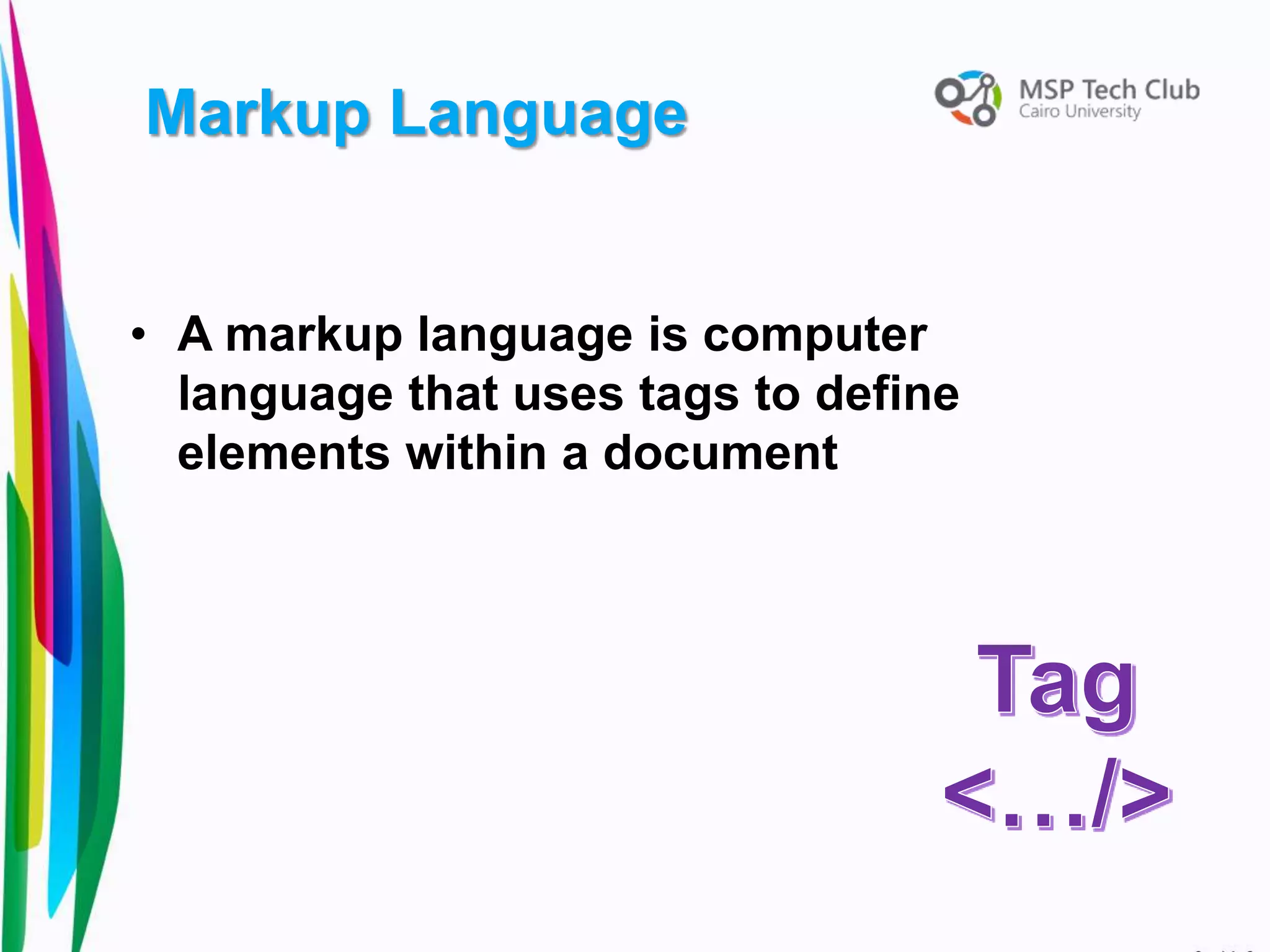

17. • A markup language is computer
language that uses tags to define
elements within a document
Markup Language

18. Uses of XAML

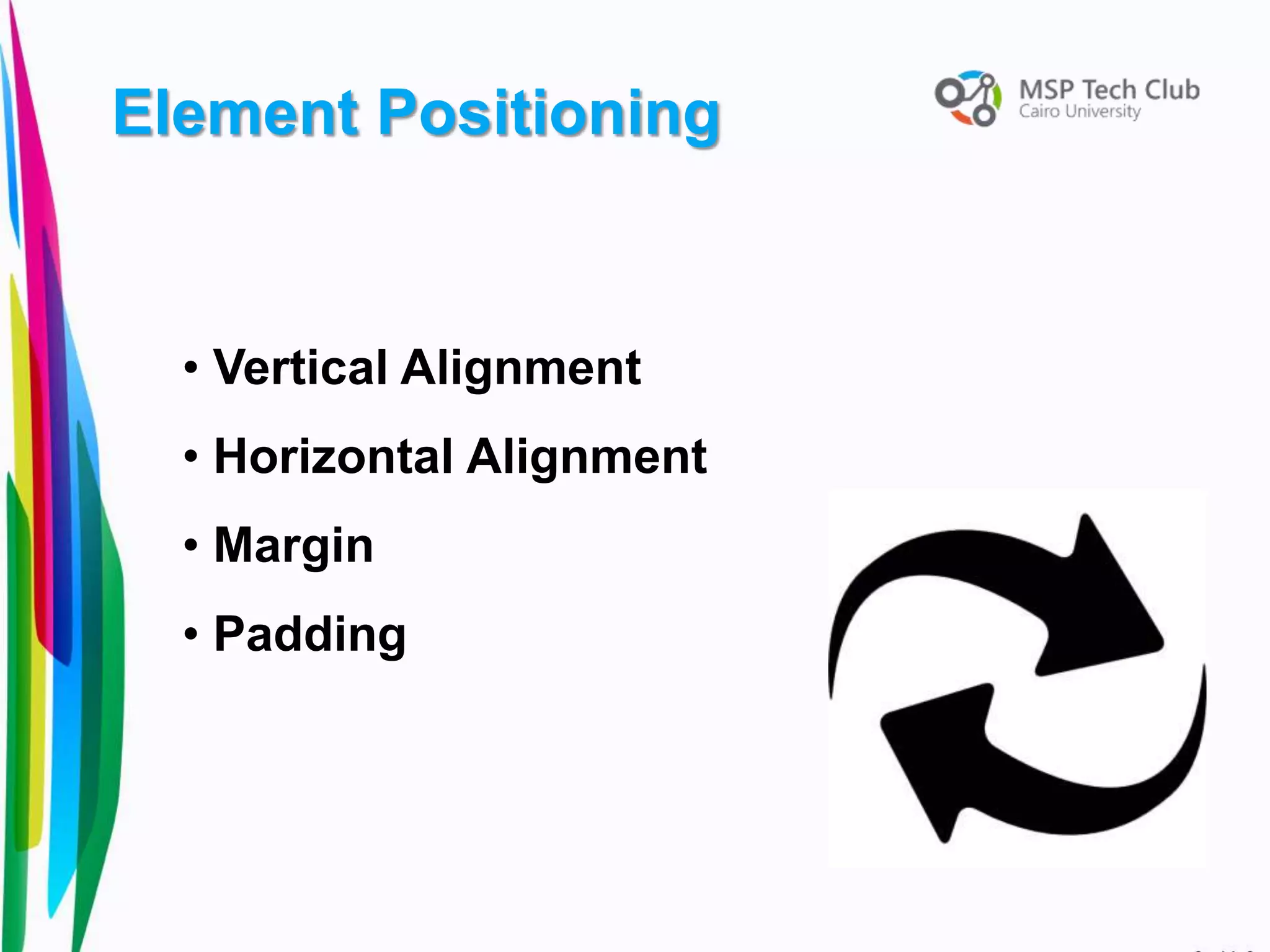

19. • Vertical Alignment
• Horizontal Alignment
• Margin
• Padding
Element Positioning

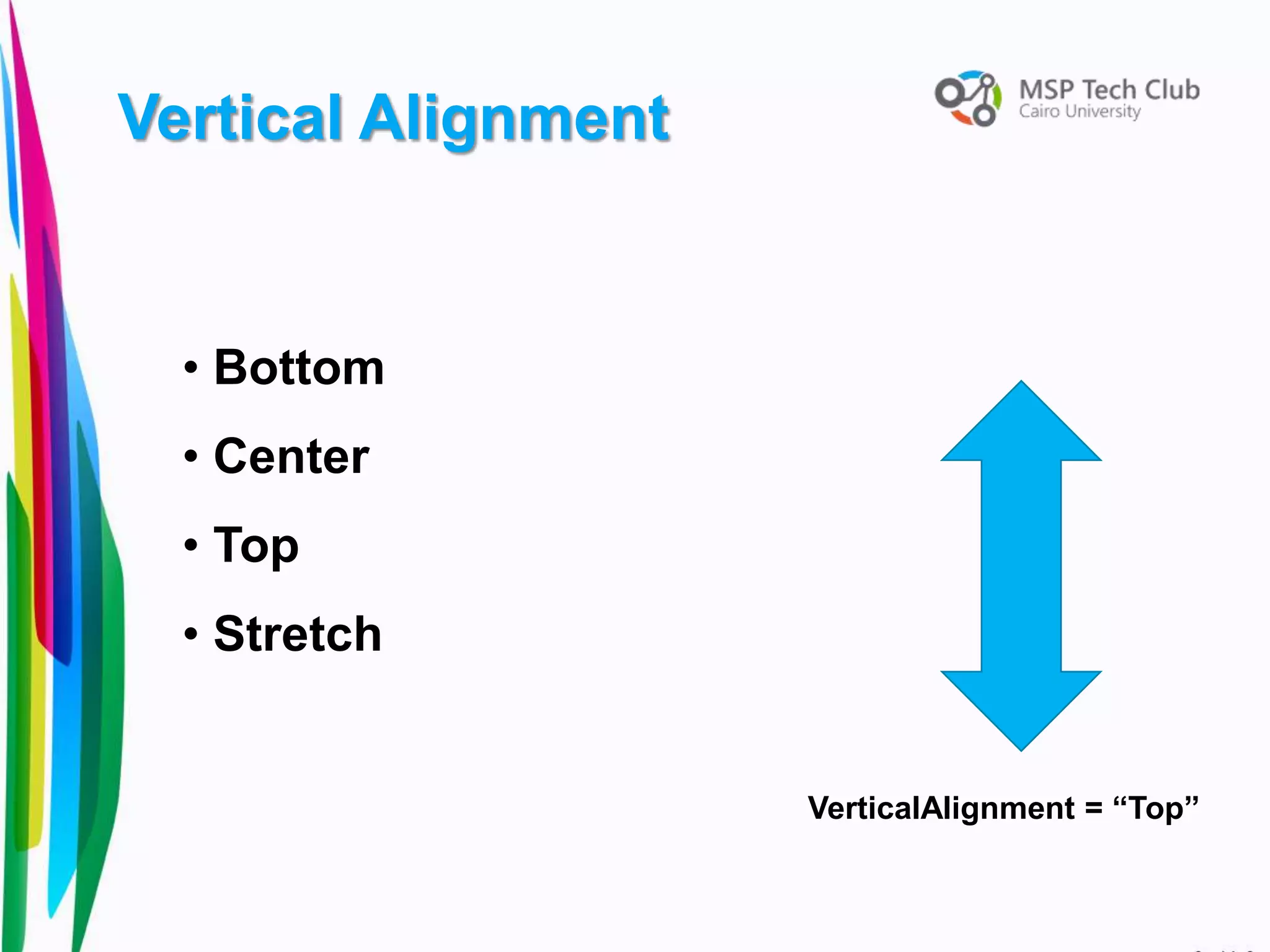

20. Vertical Alignment
• Bottom
• Center
• Top
• Stretch
VerticalAlignment = “Top”

21. Horizontal Alignment
• Left
• Center
• Right
• Stretch
HorizontalAlignment = “Left”

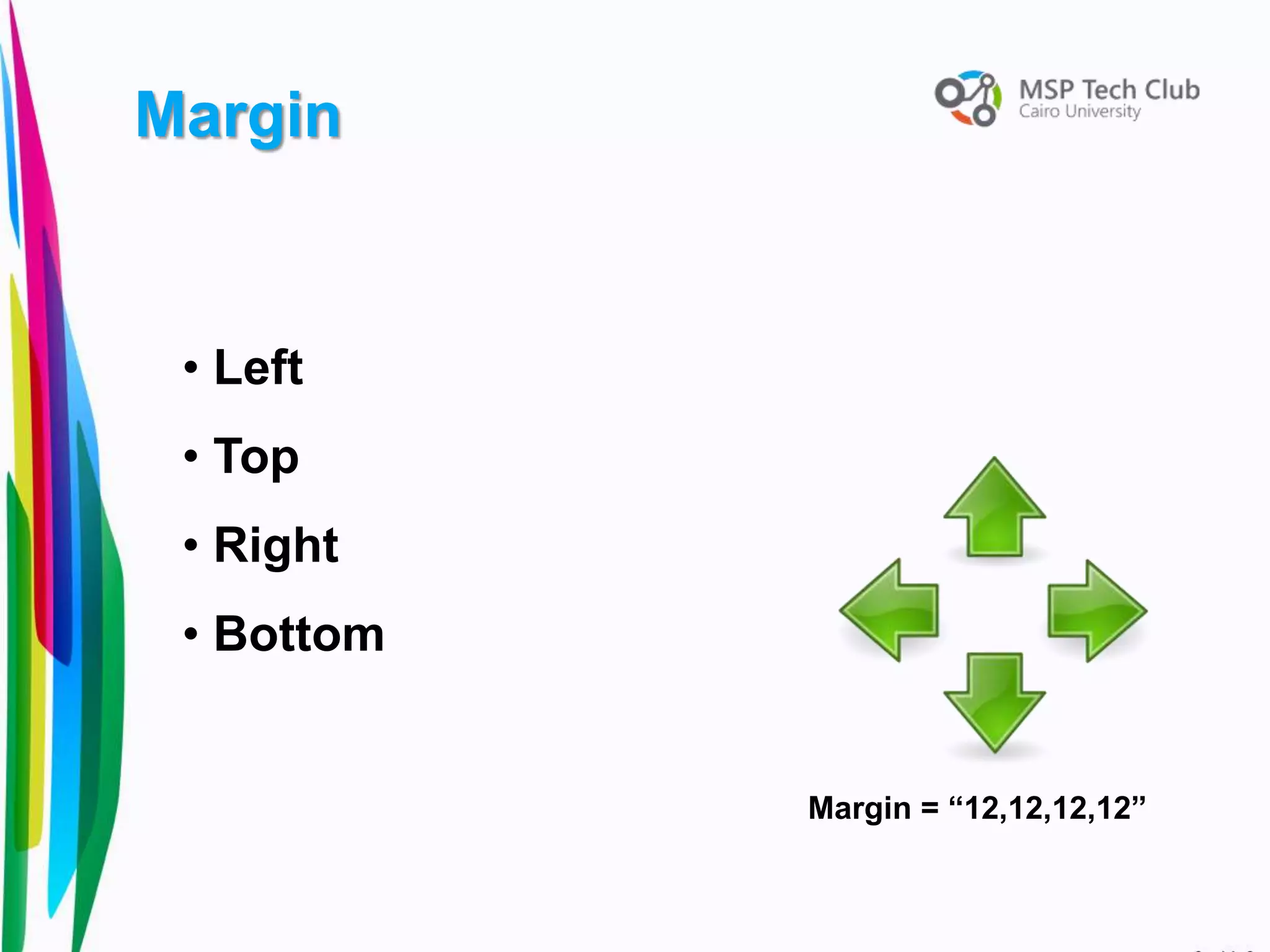

22. • Left
• Top
• Right
• Bottom
Margin
Margin = “12,12,12,12”

23. Padding
Padding = “15”
Creating space
between content and
borders

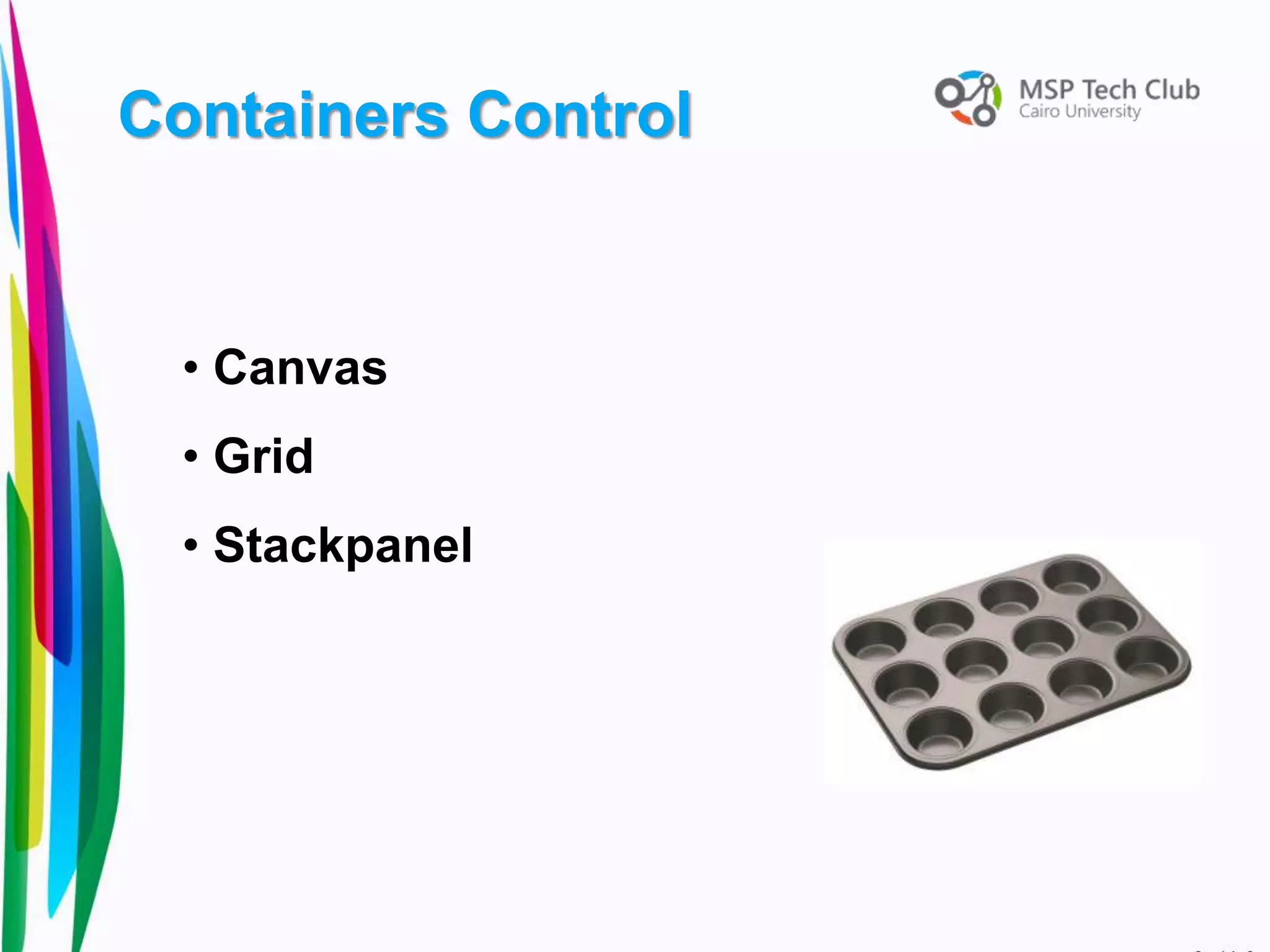

24. • Canvas
• Grid
• Stackpanel
Containers Control

25. It just allows you to
put controls in it
<Canvas Width = “100” Height = 200” >
Your work
</Canvas>
Canvas

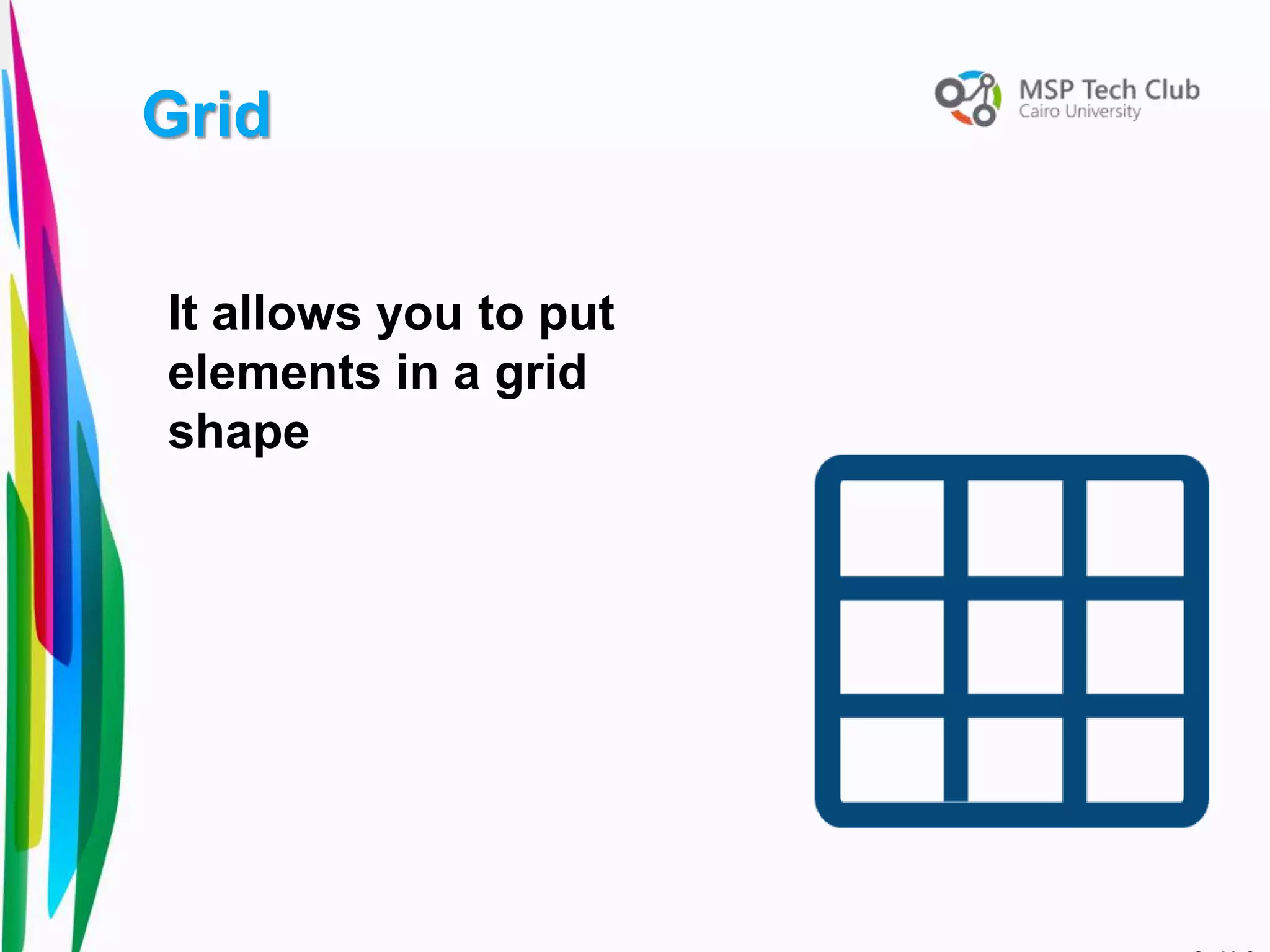

26. It allows you to put
elements in a grid
shape
Grid

27. <Grid Background = “White”>
<Grid.ColumnDefinitions>
<ColumnDefinition Width=“ 1* " />
<ColumnDefinition Width=“ 1* " />
<ColumnDefinition Width=“ 1* " />
</Grid.ColumnDefinitions>
<Grid.RowDefinitions>
<RowDefinition Height=“ 1* " />
<RowDefinition Height=“ 1* " />
<RowDefinition Height=“ 1* " />
</Grid.RowDefinitions>
</Grid>
Grid

28. It stacks its child
elements below or beside
each other.
<StackPanel Orientation = “Vertical”>
Your work
</StackPanel>
Stackpanel

29. 29

30. Exercise

31. 31
