The Capital is an 18-floor residential building located in Bandra Kurla Complex in Mumbai, India. It was constructed between 2009 and 2012 by developer Wadhwa Group to ARCHITECT James Law's designs. Some key details include a 350 KLD sewage treatment plant, 2-level parking with a smart parking system for 1000 cars, 18 elevators, and various fire safety features like sprinklers, detectors, and extinguishers.

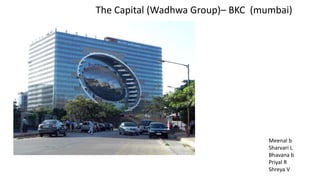

1. The Capital (Wadhwa Group)– BKC (mumbai)
Meenal b
Sharvari L
Bhavana b
Priyal R
Shreya V

2. • ARCHITECT – Ar. James Law
• Developer – Wadhwa group
• Built in – 2008 – 2012
• Total no. Of floors – 18 floors
• Total height of the structure – 61.26 m
• Facade – Media tic
• Parking – 2 level parking
• Elevators – 18
• ‘The capital’ is located in 'g’ block of Bandra
Kurla complex, the international finance
and business center of Mumbai.
• Fsi is 2.5
• Plot area – 7107 sq. mt
• Construction of ‘the capital’ was started in
year 2009 and completed in the year 2012.

4. STP Capacity
STP Area & Height AHU – Air flow
Air Flow
AHU Duct Size & Length Air Changes per Hour
350 KLD
300 m² x 6.0 m
19,000 cfm (32,200 m3/hr) Intermittent [Automatic]
600 x 600mm x 20 m
18 - 20 nos.
Site Data

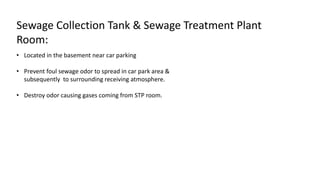

5. • Located in the basement near car parking
• Prevent foul sewage odor to spread in car park area &
subsequently to surrounding receiving atmosphere.
• Destroy odor causing gases coming from STP room.
Sewage Collection Tank & Sewage Treatment Plant
Room:

6. • AHU duct air ozonation.
• Ozone is a very strong oxidizing agent.
• All foul odor generated from sewage are organic in
nature, and can very easily be oxidized (destroyed) by
ozone.
• After oxidation by products does not cause
objectionable odor & are safe to dispose in
surrounding air.
• Crucial part of the solution is to trap the foul odor &
efficiently mix with ozone gas to oxidize.
Air Handling Unit (AHU)

7. General Arrangement Layout : - Plan view

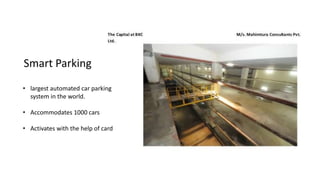

8. Smart Parking
• largest automated car parking
system in the world.
• Accommodates 1000 cars
• Activates with the help of card

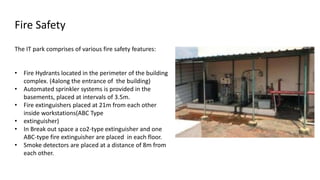

9. The IT park comprises of various fire safety features:
• Fire Hydrants located in the perimeter of the building
complex. (4along the entrance of the building)
• Automated sprinkler systems is provided in the
basements, placed at intervals of 3.5m.
• Fire extinguishers placed at 21m from each other
inside workstations(ABC Type
• extinguisher)
• In Break out space a co2-type extinguisher and one
ABC-type fire extinguisher are placed in each floor.
• Smoke detectors are placed at a distance of 8m from
each other.
Fire Safety
