This document describes an external temperature probe (SES 001) that can be used with various temperature and humidity sensors to sense temperature for heating, hot water, and underfloor heating systems. The SES 001 has a flexible, waterproof casing housing a 5mm diameter probe that extends 20mm from the end of a 3m cable. It has an operating temperature range of -40°C to +125°C and is IP68 rated for water resistance. The SES 001 provides accurate temperature readings to extend the capabilities of comfort control systems.

1. Application
· Pipetemperaturesensingforheatingandhotwatersystems
· Hotwatertanktemperaturesensing
· Temperaturesensingforunderfloorheating

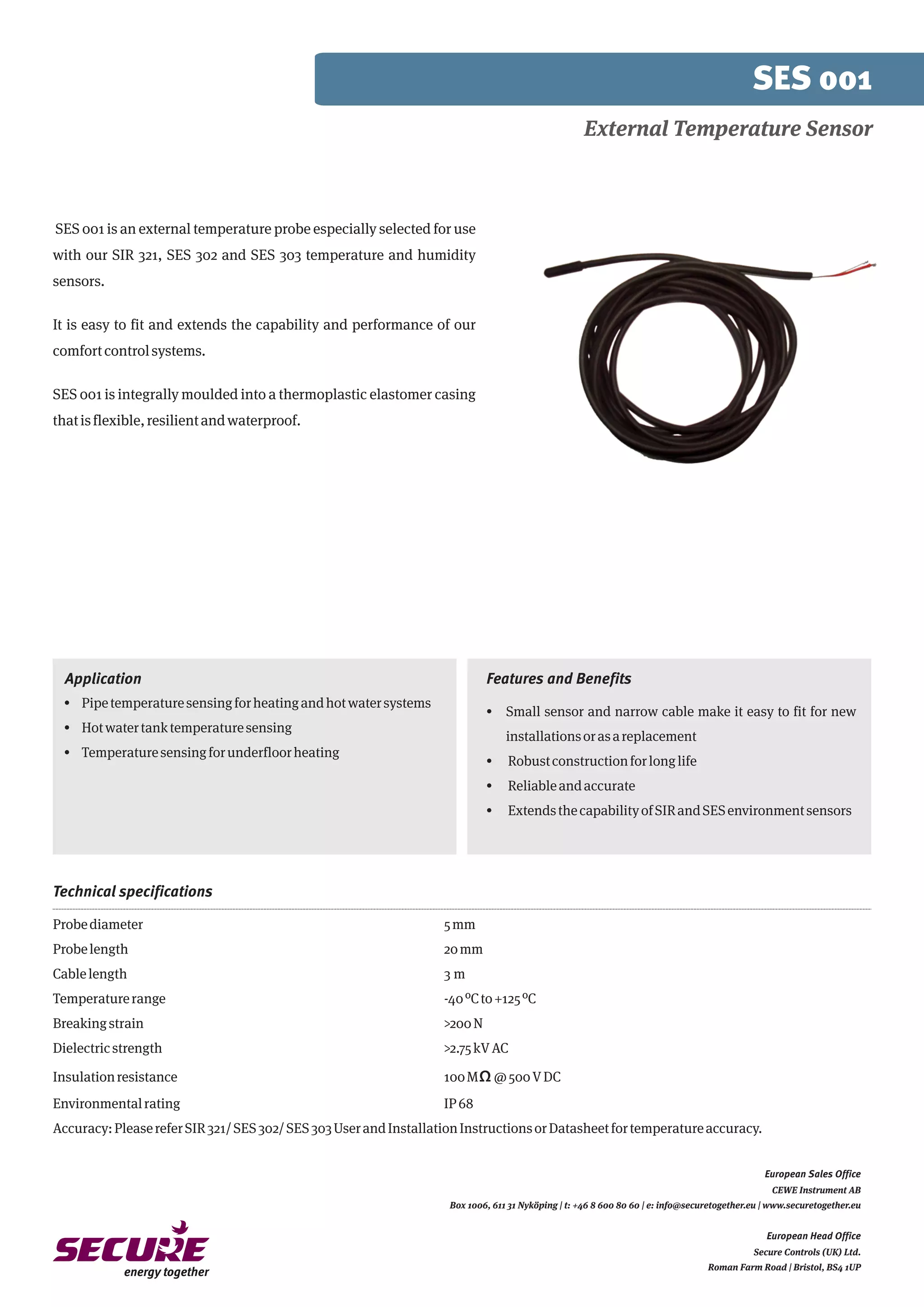

SES 001
SES 001 is an external temperature probe especially selected for use
with our SIR 321, SES 302 and SES 303 temperature and humidity
sensors.
It is easy to fit and extends the capability and performance of our
comfortcontrolsystems.
SES 001 is integrally moulded into a thermoplastic elastomer casing
thatisflexible,resilientandwaterproof.
Probediameter 5mm
Probelength 20mm
Cablelength 3 m
Temperaturerange -40ºCto+125ºC
Breakingstrain >200N
Dielectricstrength >2.75kVAC
Insulationresistance 100MΩ@500VDC
Environmentalrating IP68
Accuracy:PleasereferSIR321/SES302/SES303UserandInstallationInstructionsorDatasheetfortemperatureaccuracy.
Technical specifications
External Temperature Sensor
CEWE Instrument AB
Box 1006, 611 31 Nyköping | t: +46 8 600 80 60 | e: info@securetogether.eu | www.securetogether.eu
European Head Office
Secure Controls (UK) Ltd.
Roman Farm Road | Bristol, BS4 1UP
European Sales Office
· Small sensor and narrow cable make it easy to fit for new
installationsorasareplacement
· Robustconstructionforlonglife
· Reliableandaccurate
· ExtendsthecapabilityofSIRandSESenvironmentsensors
Features and Benefits
