SE project

Facebook
SystemRequirements
Specification(SRS)
Submittedto: Mam Maria
Submittedby: Quratulain Naqvi (F16-1305)
MohsinAbbas (F16-1011)
Zain Jameel

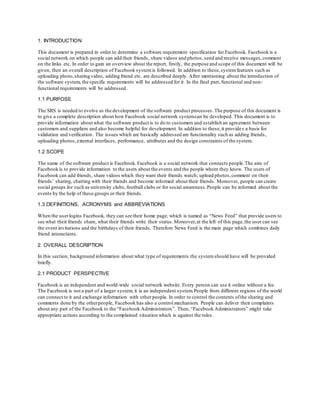

1. INTRODUCTION
This document is prepared in order to determine a software requirement specification for Facebook. Facebook is a
social network on which people can add their friends, share videos and photos,send and receive messages,comment
on the links etc. In order to gain an overview about the report, firstly, the purpose and scope of this document will be
given, then an overall description of Facebook systemis followed. In addition to these,systemfeatures such as
uploading photo,sharing video, adding friend etc. are described deeply. After mentioning about the introduction of
the software system, the specific requirements will be addressed for it. In the final part, functional and non-
functional requirements will be addressed.
1.1 PURPOSE
The SRS is needed to evolve as the development of the software product processes. The purpose of this document is
to give a complete description about how Facebook social network systemcan be developed. This document is to
provide information about what the software product is to do to customers and establish an agreement between
customers and suppliers and also become helpful for development. In addition to these,it provides a basis for
validation and verification. The issues which are basically addressed are functionality such as adding friends,
uploading photos,external interfaces, performance, attributes and the design constraints of the system.
1.2 SCOPE
The name of the software product is Facebook. Facebook is a social network that connects people.The aim of
Facebook is to provide information to the users about the events and the people whom they know. The users of
Facebook can add friends, share videos which they want their friends watch; upload photos,comment on their
friends’ sharing, chatting with their friends and become informed about their friends. Moreover, people can create
social groups for such as university clubs, football clubs or for social awareness.People can be informed about the
events by the help of these groups or their friends.
1.3 DEFINITIONS, ACRONYMS and ABBREVIATIONS
When the userlogins Facebook, they can see their home page, which is named as “News Feed” that provide users to
see what their friends share, what their friends write their status.Moreover,at the left of this page,the user can see
the event invitations and the birthdays of their friends. Therefore News Feed is the main page which combines daily
friend interactions.
2. OVERALL DESCRIPTION
In this section, background information about what type of requirements the system should have will be provided
briefly.
2.1 PRODUCT PERSPECTIVE
Facebook is an independent and world-wide social network website. Every person can use it online without a fee.
The Facebook is not a part of a larger system, it is an independent system.People from different regions of the world
can connect to it and exchange information with other people. In order to control the contents ofthe sharing and
comments done by the otherpeople, Facebook has also a control mechanism. People can deliver their complaints
about any part of the Facebook to the “Facebook Administrators”. Then, “Facebook Administrators” might take
appropriate actions according to the complained situation which is against the rules.

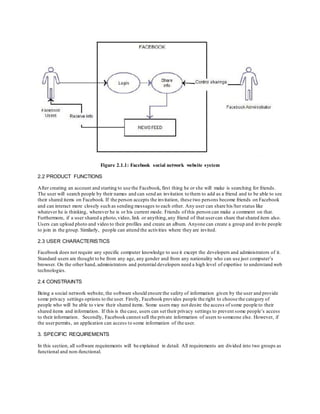

Figure 2.1.1: Facebook social network website system
2.2 PRODUCT FUNCTIONS
After creating an account and starting to use the Facebook, first thing he or she will make is searching for friends.
The user will search people by their names and can send an invitation to them to add as a friend and to be able to see
their shared items on Facebook. If the person accepts the invitation, these two persons become friends on Facebook
and can interact more closely such as sending messages to each other. Any user can share his/her status like
whatever he is thinking, wherever he is or his current mode. Friends of this person can make a comment on that.
Furthermore, if a user shared a photo,video, link or anything,any friend of that usercan share that shared item also.
Users can upload photo and video to their profiles and create an album. Anyone can create a group and invite people
to join in the group. Similarly, people can attend the activities where they are invited.
2.3 USER CHARACTERISTICS
Facebook does not require any specific computer knowledge to use it except the developers and administrators of it.
Standard users are thought to be from any age, any gender and from any nationality who can use just computer’s
browser. On the other hand, administrators and potential developers need a high level of expertise to understand web
technologies.
2.4 CONSTRAINTS
Being a social network website, the software should ensure the safety of information given by the user and provide
some privacy settings options to the user. Firstly, Facebook provides people the right to choose the category of
people who will be able to view their shared items. Some users may not desire the access of some people to their
shared items and information. If this is the case, users can set their privacy settings to prevent some people’s access
to their information. Secondly, Facebook cannot sell the private information of users to someone else. However, if
the userpermits, an application can access to some information of the user.
3. SPECIFIC REQUIREMENTS
In this section, all software requirements will be explained in detail. All requirements are divided into two groups as
functional and non-functional.

3.1 EXTERNAL INTERFACE REQUIREMENTS
In this section, external interface requirements for userand communication channels will be described in order to
clarify the relationship of this software with other entities and systems.In the first part, user’s interfaces will be
explained with the layout information, textual items and error handling types for two types of users of the system, as
standard users and Facebook administrators. In the second part, communication interfaces of our systemwill be
described in order to explain the relationship with other systems which are sharing information with Facebook.
3.1.1 USER’S INTERFACES
3.1.1.1 STANDARD USER INTERFACE
Standard users shall be using the web browser to use the product. Thus,it shall have a login page and users must
login with their e-mail addresses and passwords.Aftera successful login, they shall be taken to their “News Feed”
which is their homepage thereafter. Since they are logged into the system, there must be logout button and their
Facebook profile names at the top of the page until they logged out of the system. In addition, there shall be Help
menu in order to explain the processes ofFacebook to the users.

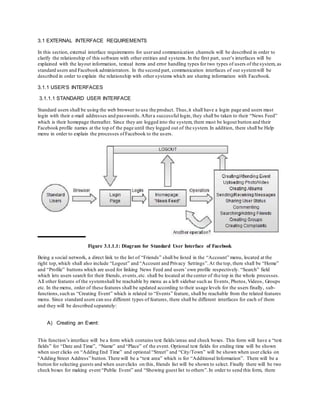

Figure 3.1.1.1: Diagram for Standard User Interface of Facebook
Being a social network, a direct link to the list of “Friends” shall be listed in the “Account” menu, located at the
right top,which shall also include “Logout” and “Account and Privacy Settings”.At the top, there shall be “Home”
and “Profile” buttons which are used for linking News Feed and users’own profile respectively. “Search” field
which lets users search for their friends, events,etc. shall be located at the center of the top in the whole processes.
All other features of the systemshall be reachable by menu as a left sidebar such as Events, Photos,Videos, Groups
etc. In the menu, order of these features shall be updated according to their usage levels for the users finally, sub-
functions,such as “Creating Event” which is related to “Events” feature, shall be reachable from the related features
menu. Since standard users can use different types of features, there shall be different interfaces for each of them
and they will be described separately:

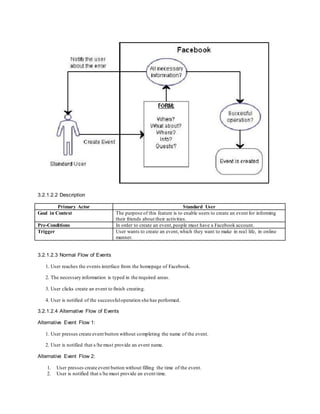

A) Creating an Event:
This function’s interface will be a form which contains text fields/areas and check boxes. This form will have a “text
fields” for “Date and Time”, “Name” and “Place” of the event. Optional text fields for ending time will be shown
when user clicks on “Adding End Time” and optional “Street” and “City/Town” will be shown when user clicks on
“Adding Street Address” button.There will be a “text area” which is for “Additional Information”. There will be a
button for selecting guests and when userclicks on this, friends list will be shown to select. Finally there will be two
check boxes for making event “Public Event” and “Showing guest list to others”.In order to send this form, there

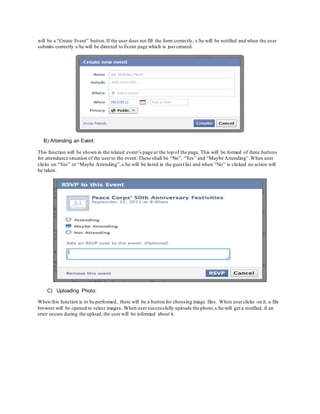

will be a “Create Event” button.If the user does not fill the form correctly, s/he will be notified and when the user
submits correctly s/he will be directed to Event page which is just created.
B) Attending an Event:
This function will be shown in the related event’s page at the top of the page. This will be formed of three buttons
for attendance situation of the userto the event.These shall be “No”, “Yes” and “Maybe Attending”.When user
clicks on “Yes” or “Maybe Attending”,s/he will be listed in the guest list and when “No” is clicked no action will
be taken.
C) Uploading Photo:
When this function is to be performed, there will be a button for choosing image files. When userclicks on it, a file
browser will be opened to select images. When user successfully uploads the photo,s/he will get a notified, if an
error occurs during the upload, the userwill be informed about it.

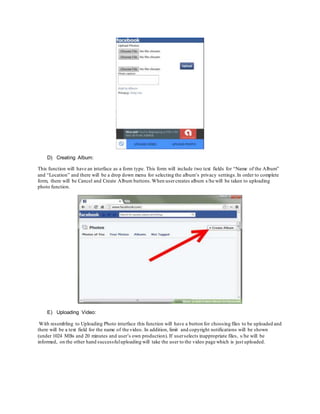

D) Creating Album:
This function will have an interface as a form type. This form will include two text fields for “Name of the Album”
and “Location” and there will be a drop down menu for selecting the album’s privacy settings.In order to complete
form, there will be Cancel and Create Album buttons.When usercreates album s/he will be taken to uploading
photo function.
E) Uploading Video:
With resembling to Uploading Photo interface this function will have a button for choosing files to be uploaded and
there will be a text field for the name of the video. In addition, limit and copyright notifications will be shown
(under 1024 MBs and 20 minutes and user’s own production). If userselects inappropriate files, s/he will be
informed, on the other hand successfuluploading will take the user to the video page which is just uploaded.

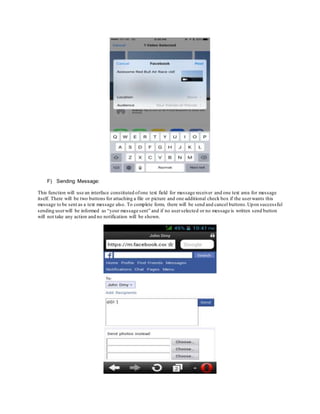

F) Sending Message:
This function will use an interface constituted ofone text field for message receiver and one text area for message
itself. There will be two buttons for attaching a file or picture and one additional check box if the userwants this
message to be sent as a text message also. To complete form, there will be send and cancel buttons.Upon successful
sending userwill be informed as “your message sent” and if no userselected or no message is written send button
will not take any action and no notification will be shown.

G) Receiving Message:
This function will be available through the “message received notification” in the home page. Reaching the
receiving message interface, the sent message will be shown with the sender’s “Profile Name” and “Profile Picture”.
Time at the message sent will be shown at the right top of the message and subject of the message will be shown
below time. In order to continue conservation,at the bottomthere will be Sending Message interface.

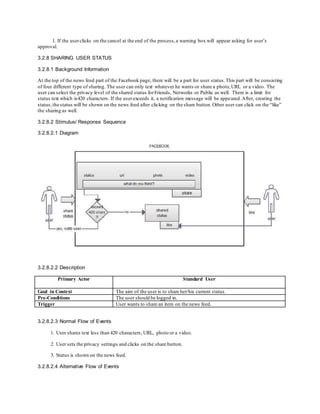

H) Sharing User Status:
For this function, there will be a text field for the status to be shared and there will be a drop down menu for
selecting the privacy level of the shared status for Friends, Networks or Public. Finally, there
will be a share button to complete the form. When the user exceeds the limit of status,which is 420 characters, s/he
will be informed for “Exceeding limit”; therefore the remaining character limit will be shown at the right top of the
text area. Upon sharing in the limits, the shared status will be shown in the News Feed thereafter.
I) Commenting:
This function will be reachable for the every shared item such as pictures, videos, user status etc.This interface will
have a text area for comments and when the user presses “Enter” key after writing the comment in the text field, the
comment will be listed thereafter in the bottomof the related item.

J) Searching Friend:
This interface will be reachable from every page and will include one text field for text to be searched and one
button at the left to start searching. This interface will take the user to the results page which shows the list of the
search results.
K) Adding Friend:
This function will be reachable from every profile page which is not already added as a friend. Clicking the “Add as
a Friend” button from the top of the profile page, interface of this function will be reached. This interface will have
an optional button for adding “Personal Message” to the other user which will open a text field for this personal
message. At the right bottomof the interface, there will be two buttons forcancelling the request and sending the
request.Sending the request successfully,an informative text will be shown at the profile page of the userwhich the
request sent as “a friendship request sent” instead of “Add as a Friend” button thereafter.

L) Creating Group:
This interface will be in a form style. There will be a text field for the group name and a text area for writing the
names of the group members. At the bottomof the interface, a drop-down menu will help userto select the privacy
level of the group and these will be followed by create and cancel buttons.If the usereither does not type a group
name or any friend’s name to be member of the group, the user will be informed. When the user successfully fills
fields, the interface will take the user to the group page which is just created.
M) Creating Complaint:
This interface will be reachable from any of the profile pages,shared items or events by clicking a direct link. This
interface will be in a form style which lets users to select any of the reasons why they are complaining about the
content.Therefore the reasons will be listed with radio boxes. In order to send the complain report, there shall be
“Continue” and “Cancel” buttons.Upon successfulsending the user will be informed about the completion.
3.1.1.2 FACEBOOK ADMINISTRATION INTERFACE
Administrators of the Facebook will be using the administration features by logging into their specific interface
using a browser. Therefore, there shall be a login page which is different than standard users’login page and
administrators shall use that page to login system.After successfullogin they will be taken to the reading complaints
interface directly. In addition, administrator’s name, authority level and logout button shall be located at the top of
the page thereafter. Basic outline for the Facebook administrators’ interface can be seen the figure below 3.1.1.2:

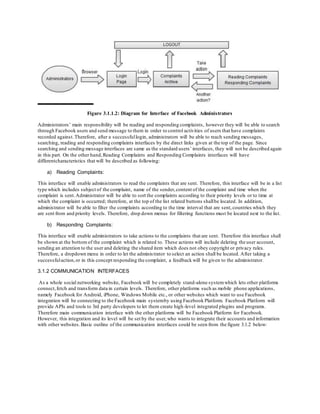

Figure 3.1.1.2: Diagram for Interface of Facebook Administrators
Administrators’ main responsibility will be reading and responding complaints, however they will be able to search
through Facebook users and send message to them in order to control activities of users that have complaints
recorded against.Therefore, after a successfullogin, administrators will be able to reach sending messages,
searching, reading and responding complaints interfaces by the direct links given at the top of the page. Since
searching and sending message interfaces are same as the standard users’ interfaces, they will not be described again
in this part. On the other hand,Reading Complaints and Responding Complaints interfaces will have
differentcharacteristics that will be described as following:

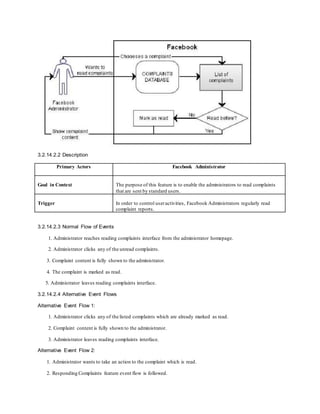

a) Reading Complaints:
This interface will enable administrators to read the complaints that are sent. Therefore, this interface will be in a list
type which includes subject of the complaint, name of the sender,content of the complaint and time when the
complaint is sent.Administrator will be able to sort the complaints according to their priority levels or to time at
which the complaint is occurred; therefore, at the top of the list related buttons shallbe located. In addition,
administrator will be able to filter the complaints according to the time interval that are sent,countries which they
are sent from and priority levels. Therefore, drop down menus for filtering functions must be located next to the list.

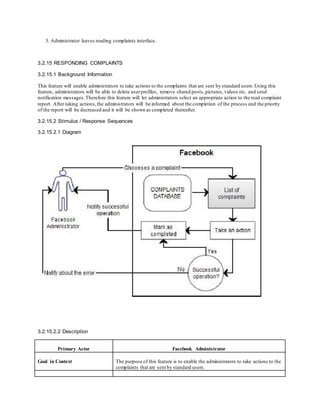

b) Responding Complaints:
This interface will enable administrators to take actions to the complaints that are sent. Therefore this interface shall
be shown at the bottom of the complaint which is related to. These actions will include deleting the user account,
sending an attention to the user and deleting the shared item which does not obey copyright or privacy rules.
Therefore, a dropdown menu in order to let the administrator to select an action shall be located. After taking a
successfulaction,or in this concept responding the complaint, a feedback will be given to the administrator.

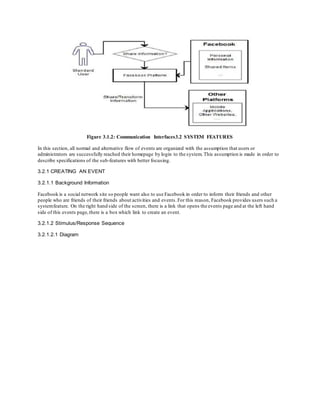

3.1.2 COMMUNICATION INTERFACES
As a whole social networking website, Facebook will be completely stand-alone systemwhich lets other platforms
connect,fetch and transform data in certain levels. Therefore, other platforms such as mobile phone applications,
namely Facebook for Android, iPhone, Windows Mobile etc., or other websites which want to use Facebook
integration will be connecting to the Facebook main systemby using Facebook Platform. Facebook Platform will
provide APIs and tools to 3rd party developers to let them create high-level integrated plugins and programs.
Therefore main communication interface with the other platforms will be Facebook Platform for Facebook.
However, this integration and its level will be set by the user,who wants to integrate their accounts and information
with other websites.Basic outline of the communication interfaces could be seen from the figure 3.1.2 below:

Figure 3.1.2: Communication Interfaces3.2 SYSTEM FEATURES
In this section, all normal and alternative flow of events are organized with the assumption that users or
administrators are successfully reached their homepage by login to the system. This assumption is made in order to
describe specifications of the sub-features with better focusing.
3.2.1 CREATING AN EVENT
3.2.1.1 Background Information
Facebook is a social network site so people want also to use Facebook in order to inform their friends and other
people who are friends of their friends about activities and events.For this reason, Facebook provides users such a
systemfeature. On the right hand side of the screen, there is a link that opens the events page and at the left hand
side of this events page,there is a box which link to create an event.
3.2.1.2 Stimulus/Response Sequence
3.2.1.2.1 Diagram

3.2.1.2.2 Description
Primary Actor Standard User
Goal in Context The purpose of this feature is to enable users to create an event for informing
their friends about their activities.
Pre-Conditions In order to create an event,people must have a Facebook account.
Trigger User wants to create an event,which they want to make in real life, in online
manner.
3.2.1.2.3 Normal Flow of Events
1. User reaches the events interface from the homepage of Facebook.
2. The necessary information is typed in the required areas.
3. User clicks create an event to finish creating.
4. User is notified of the successfuloperation she has performed.
3.2.1.2.4 Alternative Flow of Events
Alternative Event Flow 1:
1. User presses create event button without completing the name of the event.
2. User is notified that s/he must provide an event name.
1. User presses create event button without filling the time of the event.
2. User is notified that s/he must provide an event time.

3.2.1.3 Functional Requirements
REQ. 1:
System shall check whether the name of the event is entered.
REQ. 2:
System shall check whether the time of the event is entered.
3.2.2 ATTENDING AN EVENT
The created events can be sent to the people in user’s friend list in order to inform them about the event and ask
whether they attend or not. The users,who are sent event request,can learn the details of the event and attend this
event. After attending an event in online manner, they can learn any change in the event schedule,place or content.
3.2.2.2 Stimulus/Response Sequences
3.2.2.2.1 Diagram
Goal in Context The purpose of this function is to enable the user to attend events in the online
manner and inform people about the changes.
Pre-Conditions There must be a created event in order to attend.
Trigger User wants to attend and be informed about the events.
1. User reaches the event invitation interface from the homepage of Facebook.
2. User presses I’m attending button.

3. The page is renewed and the useradded to attending list.
1. User does not respond the event invitation.
2. The event invitation is removed automatically when the event time is finished.

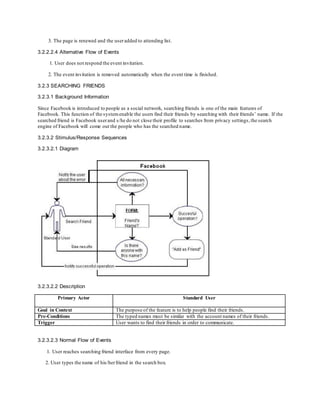

3.2.3 SEARCHING FRIENDS
Since Facebook is introduced to people as a social network, searching friends is one of the main features of
Facebook. This function of the systemenable the users find their friends by searching with their friends’ name. If the
searched friend is Facebook userand s/he do not close their profile to searches from privacy settings,the search
engine of Facebook will come out the people who has the searched name.
3.2.3.2.1 Diagram
Goal in Context The purpose of the feature is to help people find their friends.
Pre-Conditions The typed names must be similar with the account names of their friends.
Trigger User wants to find their friends in order to communicate.
1. User reaches searching friend interface from every page.
2. User types the name of his/herfriend in the search box.

3. The results are shown on the screen.
1. User typed a name that is not a name of the user of Facebook.
2. User is notified of the no results.
REQ. 3:
System shall not view the users who do not want to showthemselves at search results.
3.2.4 ADDING FRIENDS
The users can add their friends from search results or from the name of their friends that is listed as “people who you
may know” part of the homepage. After reaching the interface, the user can send request to his/her friend by clicking
the “Add as Friend” button.If the friend accepts the friend request by clicking accept option, the friend is added to
friend list.
3.2.4.2.1 Diagram
Goal in Context The purpose of the feature is to enable the users to add their friends into their
friends list.
Pre-Conditions The friend must allow otherpeople to add herself/himself as a friend.
Trigger User wants to add his friend to friend list to follow and communicate his
friend.

1. User reaches the profile page of her friend whom s/he want to add.
2. User presses add as friend button.
3. User is notified of the friend request is sent.
REQ. 4:
If the other userhas set privacy level to prevent others adding as a friend, system shall not let other users add as
friend.

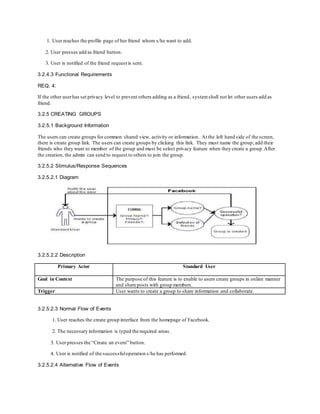

3.2.5 CREATING GROUPS
The users can create groups for common shared view, activity or information. At the left hand side of the screen,
there is create group link. The users can create groups by clicking this link. They must name the group; add their
friends who they want to member of the group and must be select privacy feature when they create a group.After
the creation, the admin can send to request to others to join the group.
3.2.5.2.1 Diagram
Goal in Context The purpose of this feature is to enable to users create groups in online manner
and share posts with group members.
Trigger User wants to create a group to share information and collaborate.
1. User reaches the create group interface from the homepage of Facebook.
2. The necessary information is typed the required areas.
3. User presses the “Create an event” button.
4. User is notified of the successfuloperation s/he has performed.

1. User presses create button without completing the group name.
2. User is notified that s/he must write a group name.
3.2.6 UPLOADING PHOTOS
In order to upload a photo in a already created album or upload photo without having an existing album, the user
should click on the profile tab on the right top of the Facebook page. Then, if the userwants to add a photo to an
album, the usershould choose the album first and then the photo from the file browser. If the user does not want to
upload a photo to existing albums, then an album has to be created first.
3.2.6.2 Stimulus/ Response Sequence
3.2.6.2.1 Diagram
Goal in Context The aim of the user is to upload a photo on his/her profile and make his/her
friends see it.
Pre-Conditions User has to have a created album.
Trigger User wants to upload a photo to an album.
1. User clicks the profile tab and sees the already created albums.
2. User clicks the album where he wants to add a photo.
3. User chooses the photo from the file browser and marks one of the quality options in the radio box.
4. If the user desired, s/he can tag his friends in the photo.5. User is notified that s/he successfully uploaded the
photo.

1. When the userwants to upload photo without choosing an album, album creation form is opened.
3.2.7 CREATING ALBUMS
When the userwants to create an album on his profile, a form type interface will appear with fields or “Name of the
Album” and “Location”. In addition to these,there will be a quality of the photos option and a drop down list to
choose the group with whom the album will be shared.After this step,the userwill be directed to photo uploading
feature. Finally, the usercan click on create the album or cancel option.
3.2.7.2.1 Diagram
Goal in Context The aim of the user is to create an album on his profile and make his friends
see it.
Pre-Conditions The user should be logged in.
Trigger User wants to create an album.
1. User reaches the album creation form.
2. User fills the required fields.
3. Photo uploading stage takes place.
4. User chooses create album and completes creation.

1. If the userclicks on the cancel at the end of the process,a warning box will appear asking for user’s
approval.
3.2.8 SHARING USER STATUS
At the top of the news feed part of the Facebook page, there will be a part for user status.This part will be consisting
of four different type of sharing. The user can only text whatever he wants or share a photo,URL or a video. The
user can select the privacy level of the shared status forFriends, Networks or Public as well. There is a limit for
status text which is420 characters. If the userexceeds it, a notification message will be appeared.After, creating the
status,the status will be shown on the news feed after clicking on the share button.Other user can click on the “like”
the sharing as well.
3.2.8.2.1 Diagram
Goal in Context The aim of the user is to share her/his current status.
Trigger User wants to share an item on the news feed.
1. User shares text less than 420 characters, URL, photo or a video.
2. User sets the privacy settings and clicks on the share button.
3. Status is shown on the news feed.

1. User exceeds the limit and gets an error message.
REQ. 5:
A user can like the sharing if he/she is included in the group specified in the privacy settings by the userwho shared
the status.
REQ. 6:
System shall check whether the size of the status is less than 420 characters.
3.2.9 SENDING MESSAGES
Being a social network, Facebook will enable users to send messages to each other. Sending message interface will
be available from messages menu in the homepage and this will let users to send messages to their friends. In
addition, there will be direct links at the profile pages,which lets users send messages to the profile owner they are
visiting, therefore users will be able to send messages to the people that are not their friends. Sending message will
include filling a text area and optionally attaching images or any other kind of files to the messages.In addition,
senderwill be able to choose to send the same message as an SMS message to the receiver, if the receiver is a friend
of sender in the Facebook.
Goal in Context The purpose of this feature is to send messages,optionally with attachments, to
the otherusers,which are already their friends or not.

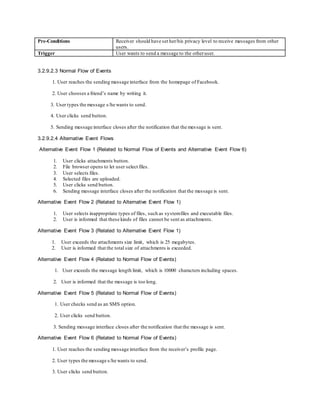

Pre-Conditions Receiver should have set her/his privacy level to receive messages from other
users.
Trigger User wants to send a message to the otheruser.
1. User reaches the sending message interface from the homepage of Facebook.
2. User chooses a friend’s name by writing it.
3. User types the message s/he wants to send.
4. User clicks send button.
5. Sending message interface closes after the notification that the message is sent.
3.2.9.2.4 Alternative Event Flows
Alternative Event Flow 1 (Related to Normal Flow of Events and Alternative Event Flow 6)
1. User clicks attachments button.
2. File browser opens to let user select files.
3. User selects files.
4. Selected files are uploaded.
Alternative Event Flow 2 (Related to Alternative Event Flow 1)
1. User selects inappropriate types of files, such as systemfiles and executable files.
2. User is informed that these kinds of files cannot be sent as attachments.
Alternative Event Flow 3 (Related to Alternative Event Flow 1)
1. User exceeds the attachments size limit, which is 25 megabytes.
2. User is informed that the total size of attachments is exceeded.
Alternative Event Flow 4 (Related to Normal Flow of Events)
1. User exceeds the message length limit, which is 10000 characters including spaces.
2. User is informed that the message is too long.
1. User checks send as an SMS option.
1. User reaches the sending message interface from the receiver’s profile page.
2. User types the message s/he wants to send.

REQ. 7:
System shall check whether the receiver allows receiving messages.
REQ. 8:
System shall check whether senderand receiver are friends to allow sending by SMS.
REQ. 9:
System shall check the file types of attachments to prevent misuse of messages.
REQ 10:
System shall check the size of the attachments, whether total size of attachments is less than 25 MB.
REQ 11:
System shall check the length of the message, whether it is longer than 10000 characters.

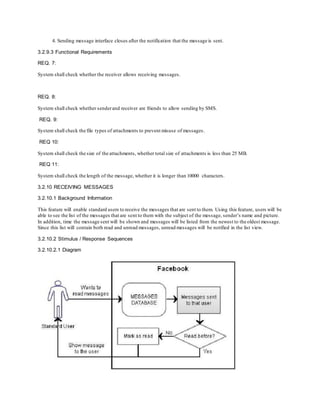

3.2.10 RECEIVING MESSAGES
This feature will enable standard users to receive the messages that are sent to them. Using this feature, users will be
able to see the list of the messages that are sent to them with the subject of the message, sender’s name and picture.
In addition, time the message sent will be shown and messages will be listed from the newest to the oldest message.
Since this list will contain both read and unread messages, unread messages will be notified in the list view.
3.2.10.2 Stimulus / Response Sequences
3.2.10.2.1 Diagram

Goal in Context The purpose of this feature is to convey the messages that are sent to userby
correctly listing the archive of sent messages.
Pre-Conditions The primary actor should be able to receive messages according to his/her
privacy settings.
Trigger Being notified about unread messages or not, the user wants to read the
messages that are sent.
1. User reaches the messages interface from the homepage of Facebook.
2. User clicks an unread message that is listed.
3. Message content is fully shown to the user and unread sign is removed from the message.
4. User leaves receiving message interface.
1. User clicks an already read message that is listed.
2. Message content is fully shown to the user.
1. User writes a reply through Sending Message interface shown in the bottomof the message that is
received.
2. Sending Message feature event flow is followed.
REQ. 12:
System shall view the messages only that are sent to the user
3.2.11 COMMENTING
This feature will enable standard users to comment on the shared items on the Facebook. Commenting will be done
by an interface of a text field located at the bottomof every shared item throughout the Facebook. This feature and
the interface will be available only on the friends’ shared items; however comments will be shown to the every user
who could see the shared item.
3.2.11.2.1 Diagram

Goal in Context The purpose of this feature is to enable users to share their ideas on the shared
items all over the Facebook.
Pre-Conditions Primary actor must be the friend of the other user in order to comment on the
other user’s shared item.
Trigger The user wants to comment on the other friends’ shared item.
1. User reaches commenting interface from any shared item.
2. User types the comment into the text field.
3. User presses enter.
4. Written comment is shown thereafter and new comment interface is located underthat comment.
5. User leaves commenting interface.
REQ.13:
System shall view commenting interface only for the friend’s shared items.
3.2.12 UPLOADING VIDEOS
Uploading video includes similar steps with uploading a photo.The usershould click on his profile and then upload
video button.Then, the file browser will be opened and the user can select the video from there. However, the video
must be less than 20 minutes or 1024 MB and it has to be user’s own production, not a copyrighted video. In case of
inappropriate files, the userwill be notified. If it is successfully uploaded,the user will be directed to the page where
the video is uploaded.
3.2.8.2.1 Diagram

Primary Actor Standard user
Goal in Context The aim of the user is to upload a video.
Trigger User wants to upload a video on his profile.
1. User chooses a video less than 20 minutes or 1024 MB and not a copyrighted video from the file browser.
2. User clicks on the upload button.
3. The video is uploaded to profile page.
Alternative Flow 1:
1. User exceeds the limit and notified about unsuccessfuloperation.
Alternative Flow 2:
1. User chooses a copyrighted video and notified about unsuccessfuloperation.
Alternative Flow 3:
1. User chooses an unsupported video format. An error box with a list of supported video format will be
appeared.
REQ. 14:
System shall check whether the size of the video is less than 20 minutes or 1024 MBs .
REQ. 15:
System shall check whether the video is copyrighted or not.
REQ. 16:

System should support all the video formats of the other platforms that are connected to Facebook.
3.2.13 CREATING COMPLAINT REPORTS
This feature will enable standard users to report their complaints to the Facebook administrators, which is the only
controlling mechanism of this social network. Standard users will be able to report copyright issues,harassment,
inappropriate profile pictures and posts (shared items) therefore this feature will be reachable from any part of
Facebook. After selecting appropriate reasons from the creating complaints interface, report will be sent to the
database and userwill be informed that complaint is successfully sent.
3.2.13.2.1 Diagram
Goal in Context The purpose of this feature is to enable users to report inappropriate use of
Facebook.
Pre-Conditions The profile or the item about which the complaint will be reported, should not
have any unresolved complaints.
Trigger The user wants to report a complaint about any item or the profile in the
Facebook.
1. User reaches creating complaint interface from any shared item or profile page.
2. User selects any one of the reasons.
3. User clicks continue button.

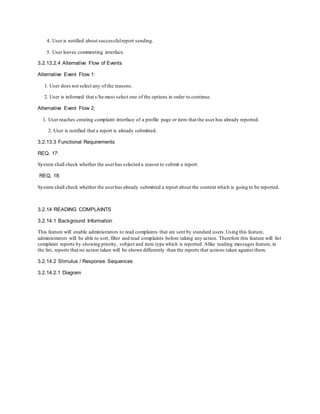

4. User is notified about successfulreport sending.
5. User leaves commenting interface.
1. User does not select any of the reasons.
2. User is informed that s/he must select one of the options in order to continue.
1. User reaches creating complaint interface of a profile page or item that the user has already reported.
2. User is notified that a report is already submitted.
REQ. 17:
System shall check whether the userhas selected a reason to submit a report.
REQ. 18:
System shall check whether the userhas already submitted a report about the content which is going to be reported.
3.2.14 READING COMPLAINTS
This feature will enable administrators to read complaints that are sent by standard users.Using this feature,
administrators will be able to sort, filter and read complaints before taking any action. Therefore this feature will list
complaint reports by showing priority, subject and item type which is reported. Alike reading messages feature, in
the list, reports that no action taken will be shown differently than the reports that actions taken against them.
3.2.14.2.1 Diagram

Primary Actors Facebook Administrator
Goal in Context The purpose of this feature is to enable the administrators to read complaints
that are sent by standard users.
Trigger In order to control useractivities, Facebook Administrators regularly read
complaint reports.
1. Administrator reaches reading complaints interface from the administrator homepage.
2. Administrator clicks any of the unread complaints.
3. Complaint content is fully shown to the administrator.
4. The complaint is marked as read.
5. Administrator leaves reading complaints interface.
1. Administrator clicks any of the listed complaints which are already marked as read.
2. Complaint content is fully shown to the administrator.
1. Administrator wants to take an action to the complaint which is read.
2. Responding Complaints feature event flow is followed.

3.2.15 RESPONDING COMPLAINTS
This feature will enable administrators to take actions to the complaints that are sent by standard users.Using this
feature, administrators will be able to delete userprofiles, remove shared posts,pictures, videos etc. and send
notification messages.Therefore this feature will let administrators select an appropriate action to the read complaint
report. After taking actions,the administrators will be informed about the completion of the process and the priority
of the report will be decreased and it will be shown as completed thereafter.
3.2.15.2.1 Diagram
Primary Actor Facebook Administrator
Goal in Context The purpose of this feature is to enable the administrators to take actions to the
complaints that are sent by standard users.

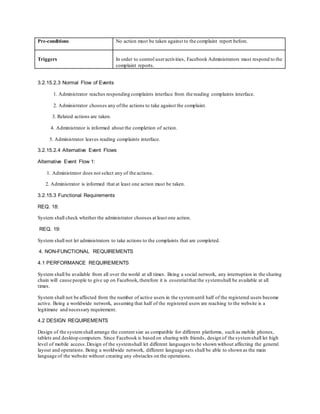

Pre-conditions No action must be taken against to the complaint report before.
Triggers In order to control useractivities, Facebook Administrators must respond to the
complaint reports.
1. Administrator reaches responding complaints interface from the reading complaints interface.
2. Administrator chooses any ofthe actions to take against the complaint.
3. Related actions are taken.
4. Administrator is informed about the completion of action.
1. Administrator does not select any of the actions.
2. Administrator is informed that at least one action must be taken.
REQ. 18:
System shall check whether the administrator chooses at least one action.
REQ. 19:
System shall not let administrators to take actions to the complaints that are completed.
4. NON-FUNCTIONAL REQUIREMENTS
4.1 PERFORMANCE REQUIREMENTS
System shall be available from all over the world at all times. Being a social network, any interruption in the sharing
chain will cause people to give up on Facebook, therefore it is essentialthat the systemshall be available at all
times.
System shall not be affected from the number of active users in the systemuntil half of the registered users become
active. Being a worldwide network, assuming that half of the registered users are reaching to the website is a
legitimate and necessary requirement.
4.2 DESIGN REQUIREMENTS
Design of the systemshall arrange the content size as compatible for different platforms, such as mobile phones,
tablets and desktop computers. Since Facebook is based on sharing with friends, design of the systemshall let high
level of mobile access. Design of the systemshall let different languages to be shown without affecting the general
layout and operations. Being a worldwide network, different language sets shall be able to shown as the main
language of the website without creating any obstacles on the operations.

SE project

More Related Content

What's hot

Similar to SE project

Recently uploaded

SE project
