The document presents a presentation by Hojjat Jafarpour, a software engineer at Confluent, on using KSQL with Apache Kafka for streaming ETL. It covers key concepts of KSQL, including stream processing, window aggregations, and practical applications such as web analytics pipelines. Additionally, it discusses the features of the Confluent platform that enable real-time data streaming and integration.

1. PRESENTATION TITLE ON ONE LINE
AND ON TWO LINES
First and last name
Position, company
Streaming ETL in Kafka
for Everyone with KSQL
Software Engineer, Confluent Inc.
Hojjat Jafarpour

2. PRESENTATION TITLE ON ONE LINE
AND ON TWO LINES
First and last name
Position, company
Hojjat Jafarpour
2
Software Engineer at Confluent
○Starter KSQL project at Confluent
Previously at Tidemark, Quantcast, Informatica and
NEC Labs
PhD in Computer Science from UC Irvine
○Data management, pub/sub and streaming
hojjat@confluent.io
@hojjat

3. PRESENTATION TITLE ON ONE LINE
AND ON TWO LINES
First and last name
Position, company

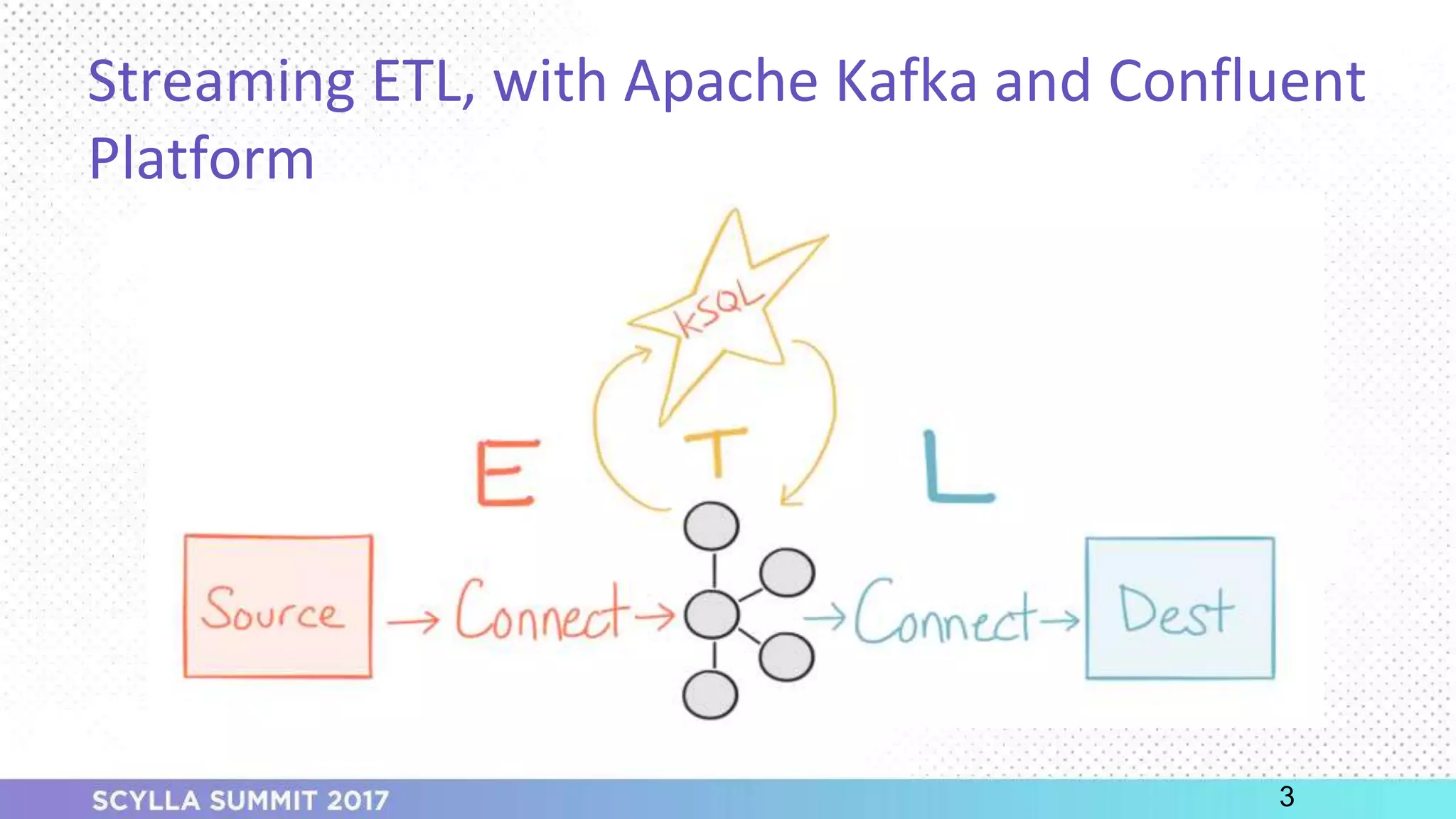

Streaming ETL, with Apache Kafka and Confluent
Platform
3

4. PRESENTATION TITLE ON ONE LINE
AND ON TWO LINES
First and last name
Position, company
4

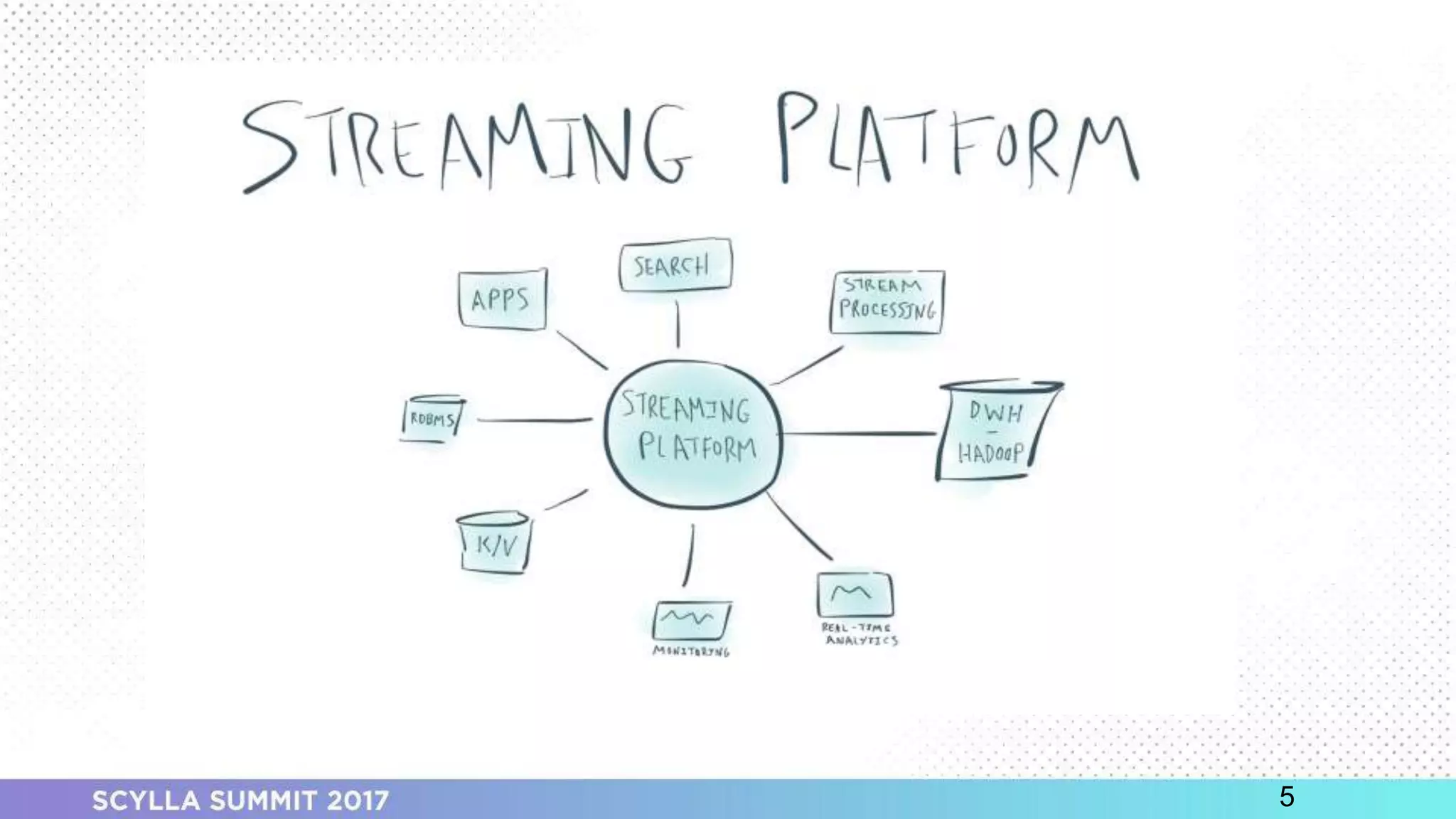

5. PRESENTATION TITLE ON ONE LINE
AND ON TWO LINES
First and last name
Position, company
5

6. PRESENTATION TITLE ON ONE LINE
AND ON TWO LINES
First and last name
Position, company
6

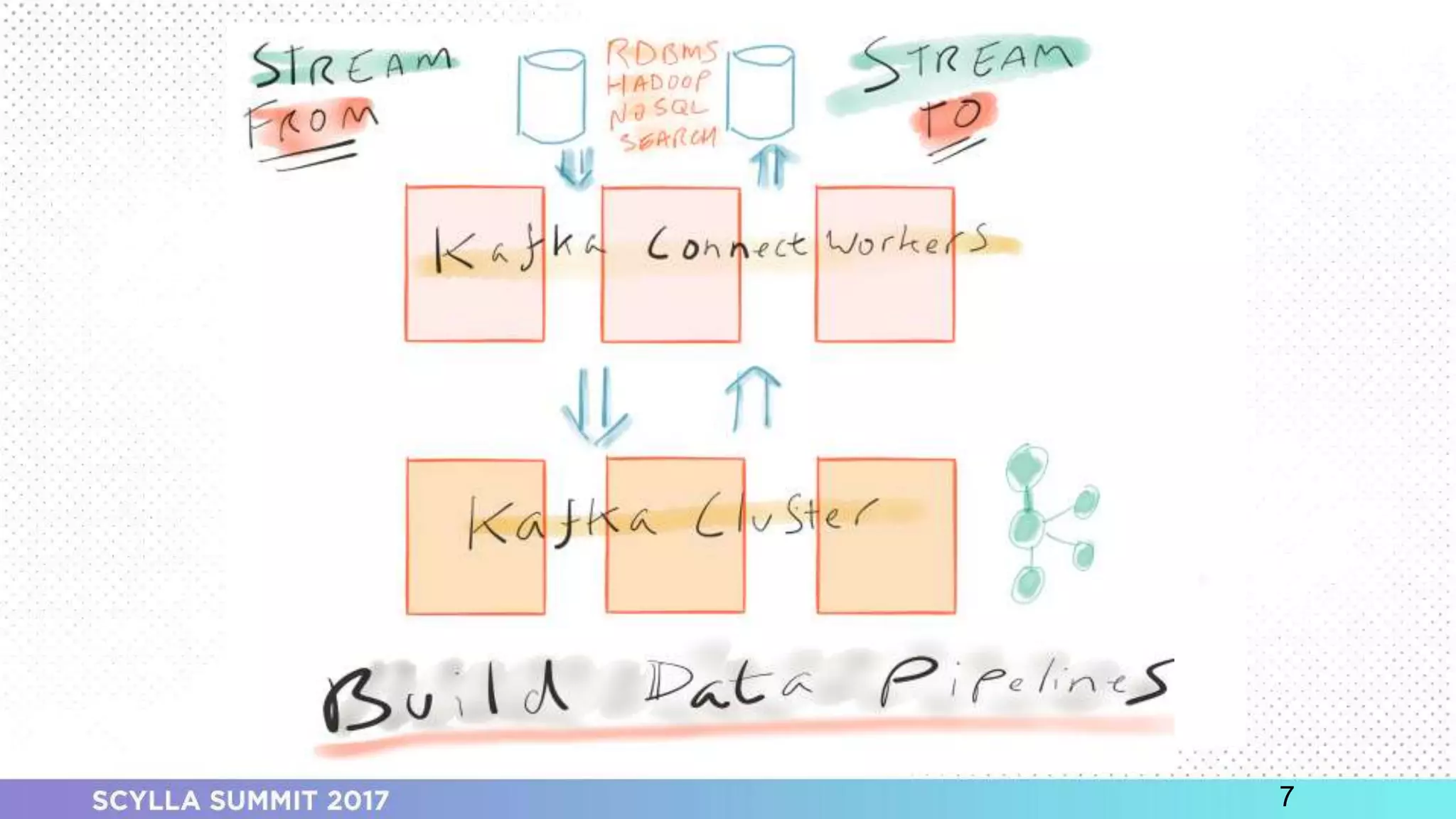

7. PRESENTATION TITLE ON ONE LINE
AND ON TWO LINES
First and last name
Position, company
7

8. PRESENTATION TITLE ON ONE LINE
AND ON TWO LINES
First and last name
Position, company

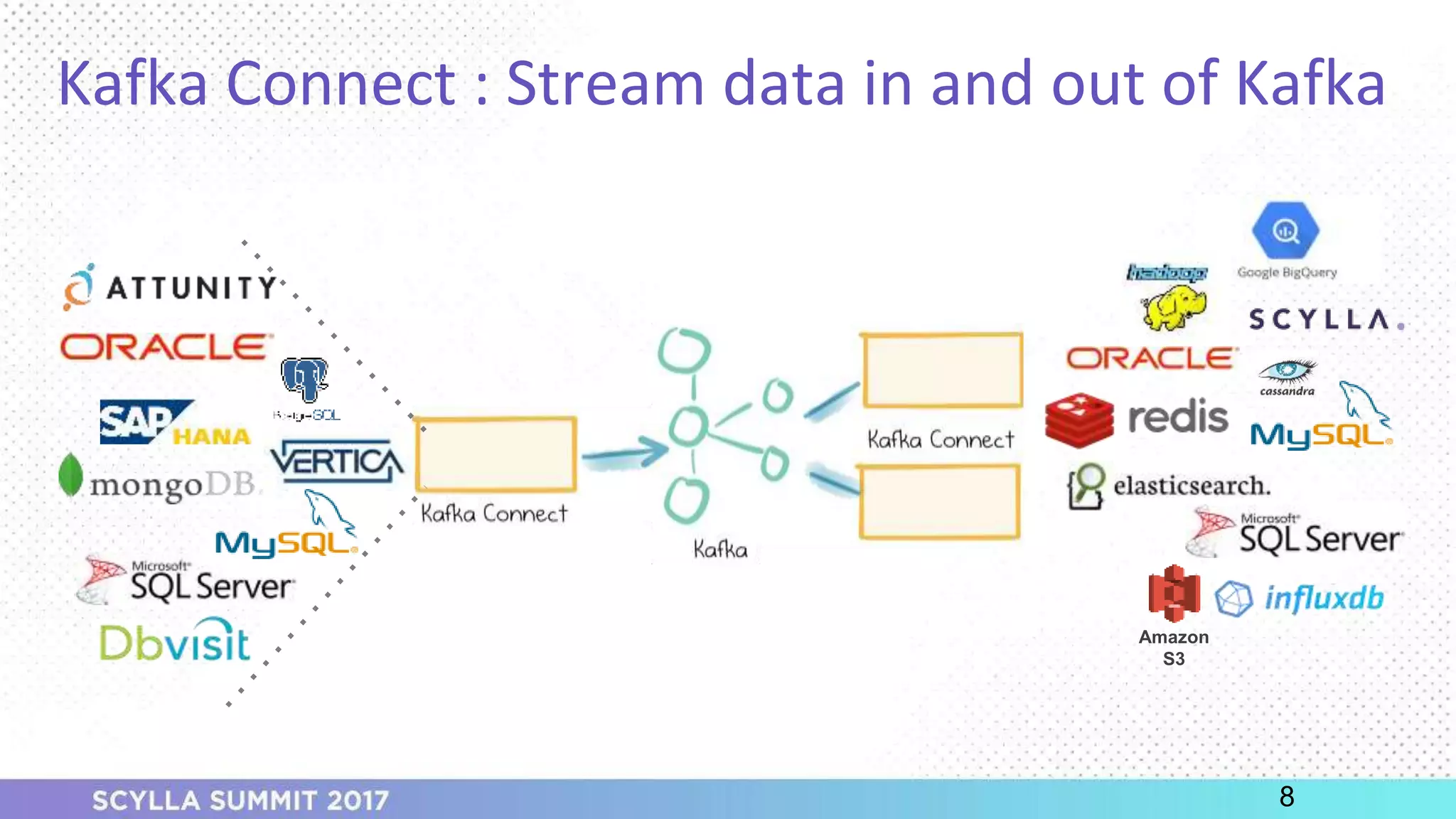

Kafka Connect : Stream data in and out of Kafka
8
Amazon
S3

9. PRESENTATION TITLE ON ONE LINE
AND ON TWO LINES
First and last name
Position, company

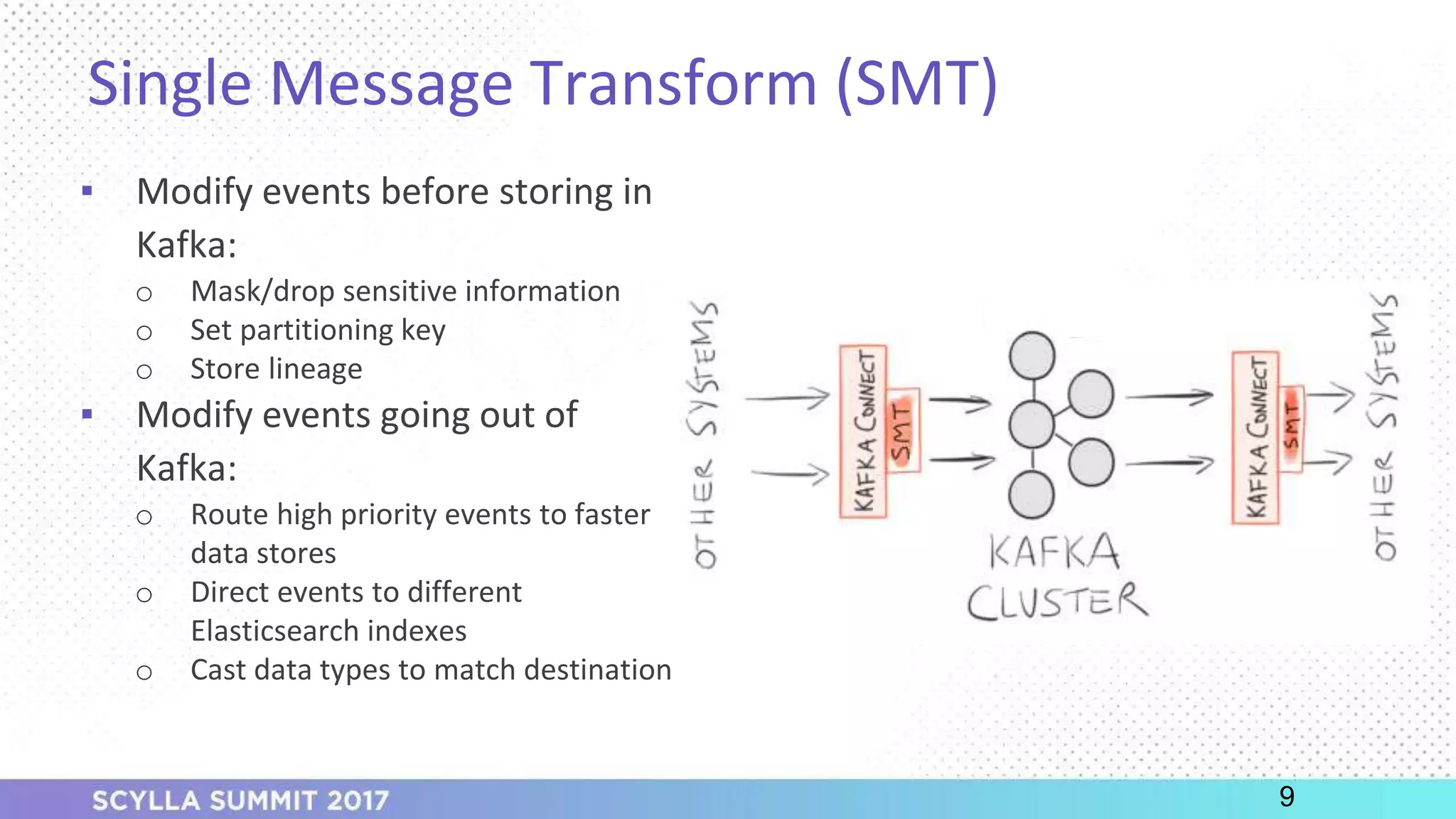

Single Message Transform (SMT)
9
▪ Modify events before storing in
Kafka:
o Mask/drop sensitive information
o Set partitioning key
o Store lineage
▪ Modify events going out of
Kafka:
o Route high priority events to faster
data stores
o Direct events to different
Elasticsearch indexes
o Cast data types to match destination

10. PRESENTATION TITLE ON ONE LINE
AND ON TWO LINES
First and last name
Position, company
10

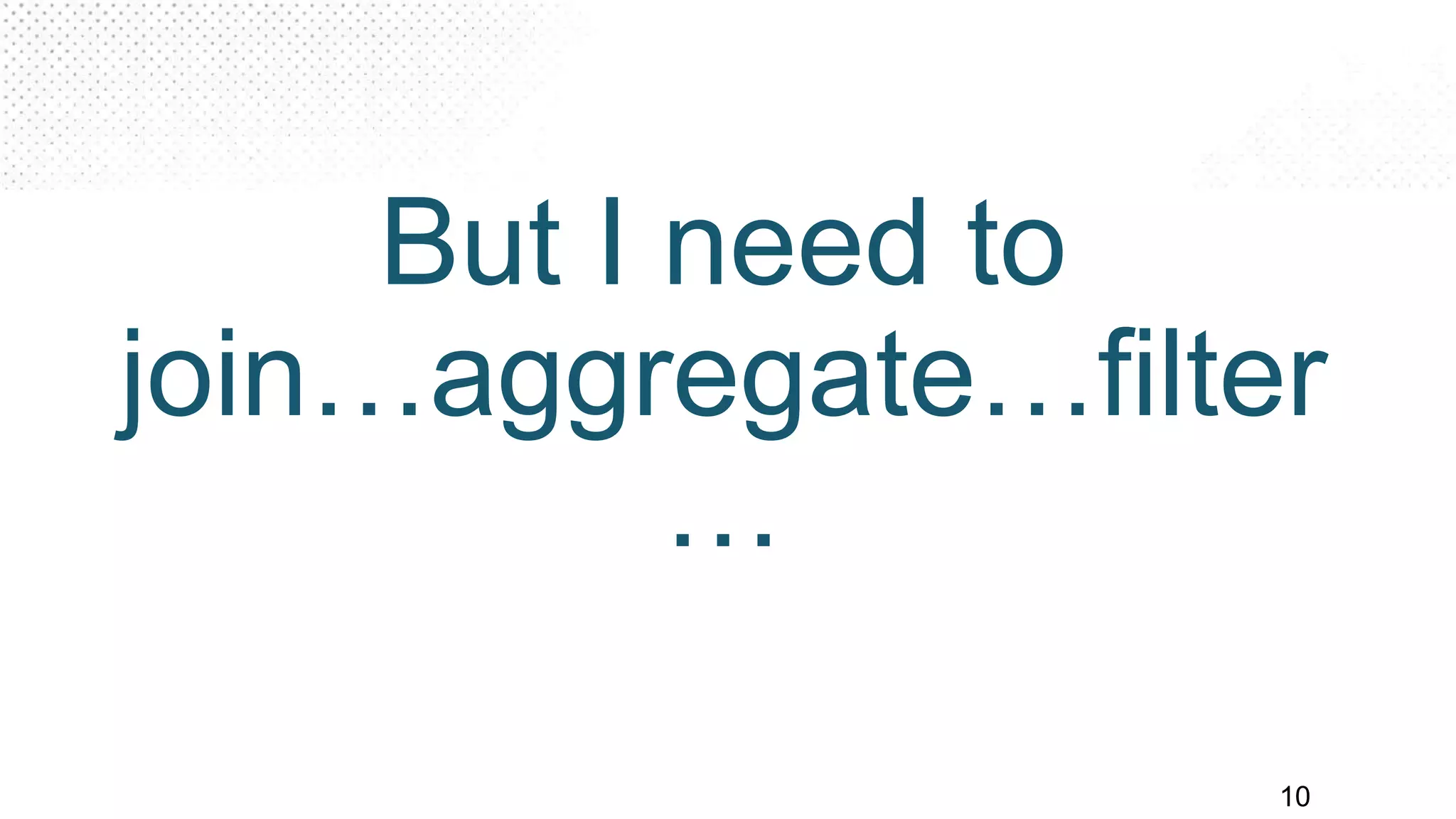

But I need to
join…aggregate…filter
…

11. PRESENTATION TITLE ON ONE LINE
AND ON TWO LINES
First and last name
Position, company

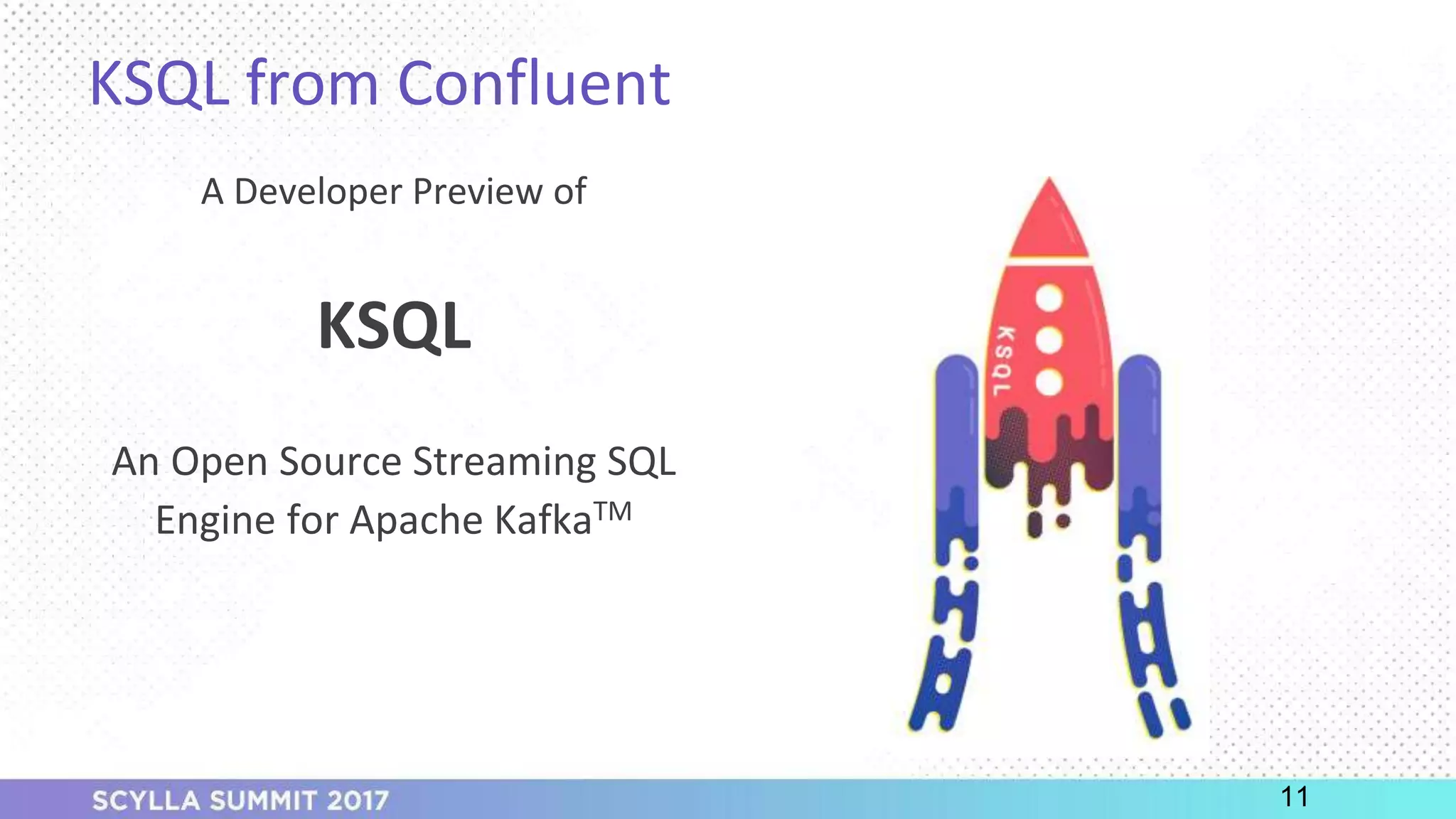

KSQL from Confluent
11
A Developer Preview of
KSQL
An Open Source Streaming SQL
Engine for Apache KafkaTM

12. PRESENTATION TITLE ON ONE LINE
AND ON TWO LINES
First and last name
Position, company

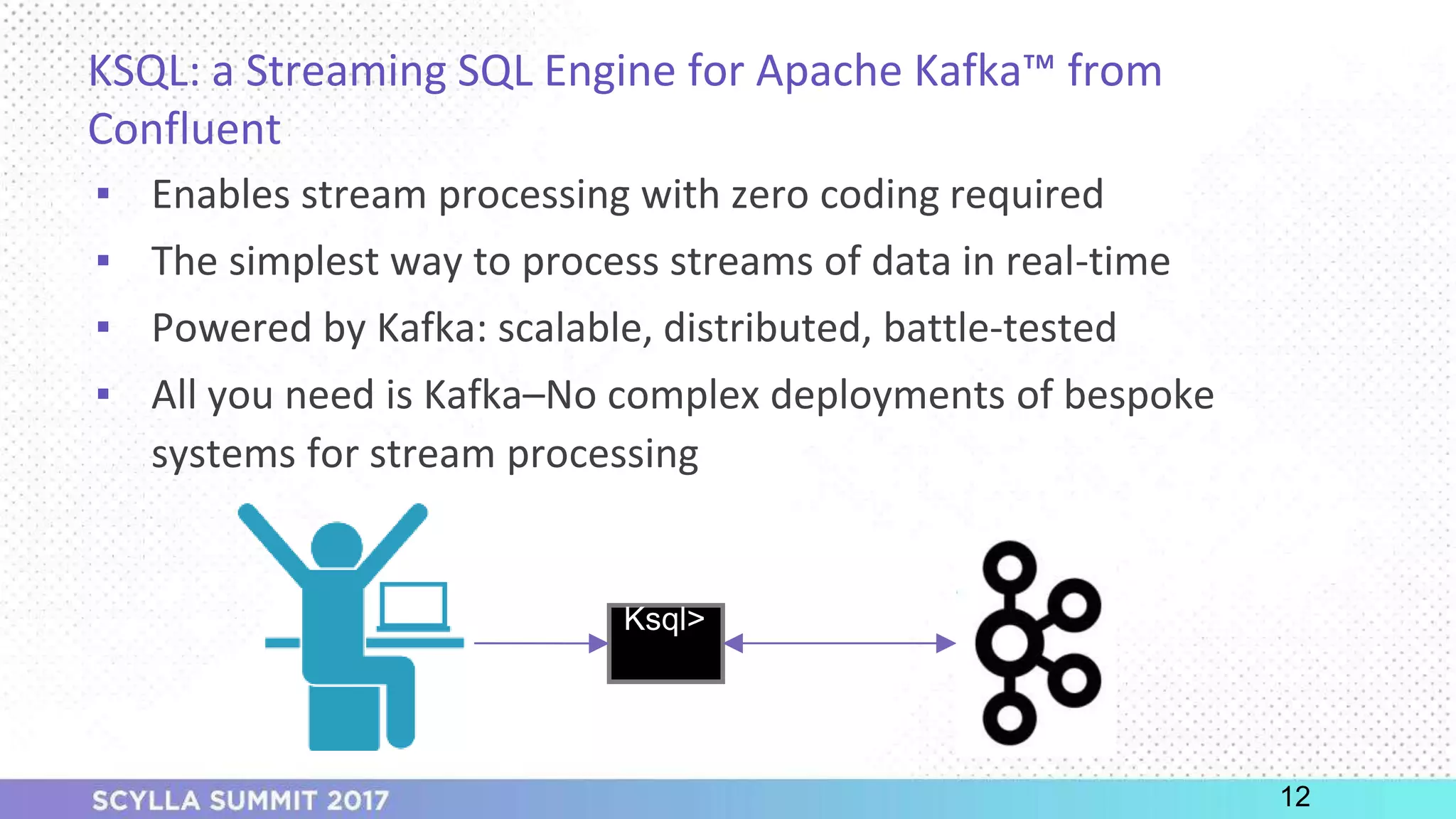

KSQL: a Streaming SQL Engine for Apache Kafka™ from
Confluent
▪ Enables stream processing with zero coding required
▪ The simplest way to process streams of data in real-time
▪ Powered by Kafka: scalable, distributed, battle-tested
▪ All you need is Kafka–No complex deployments of bespoke
systems for stream processing
12
Ksql>

13. PRESENTATION TITLE ON ONE LINE
AND ON TWO LINES
First and last name
Position, company

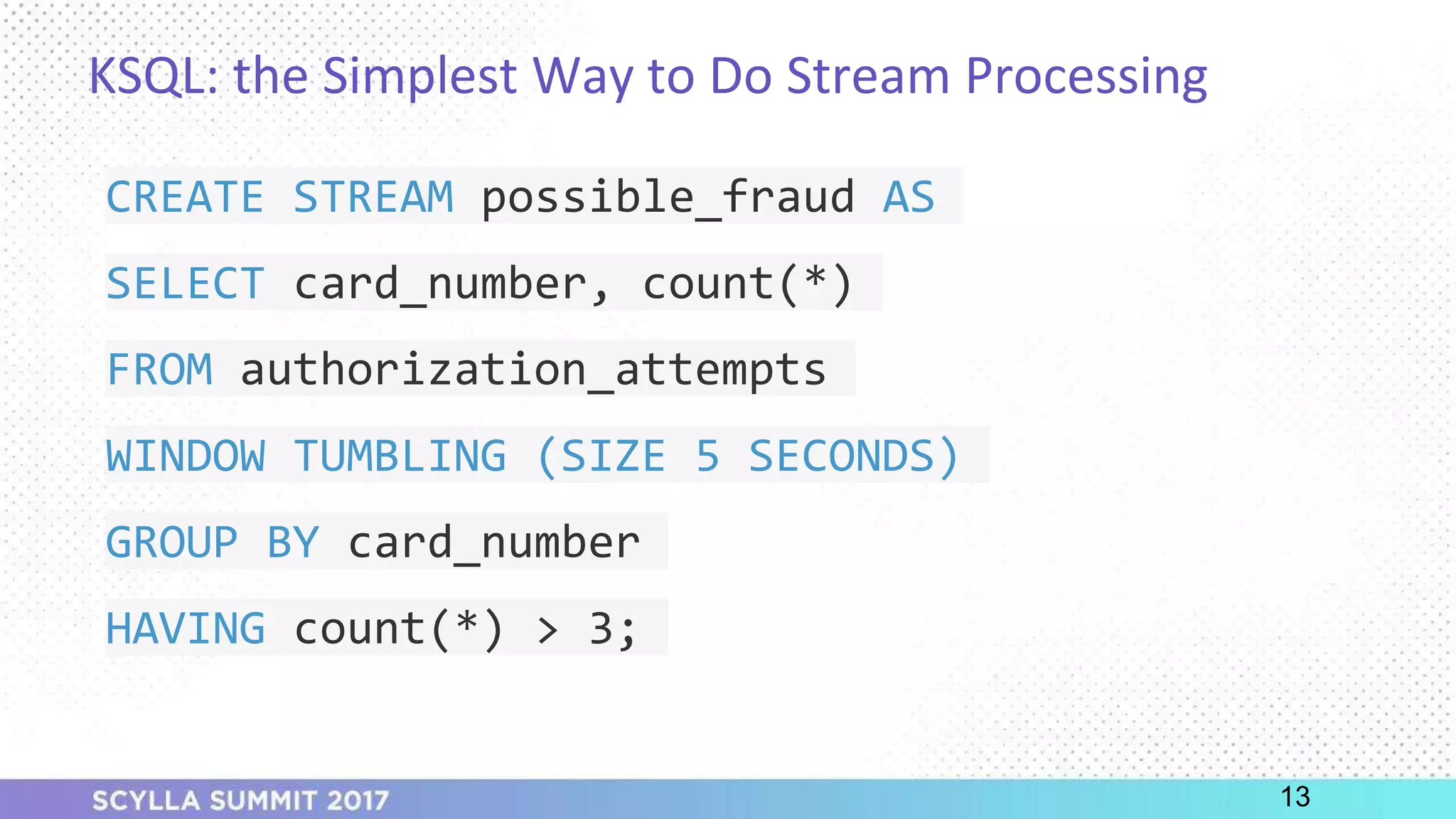

KSQL: the Simplest Way to Do Stream Processing
CREATE STREAM possible_fraud AS
SELECT card_number, count(*)
FROM authorization_attempts
WINDOW TUMBLING (SIZE 5 SECONDS)
GROUP BY card_number
HAVING count(*) > 3;
13

14. PRESENTATION TITLE ON ONE LINE
AND ON TWO LINES
First and last name
Position, company

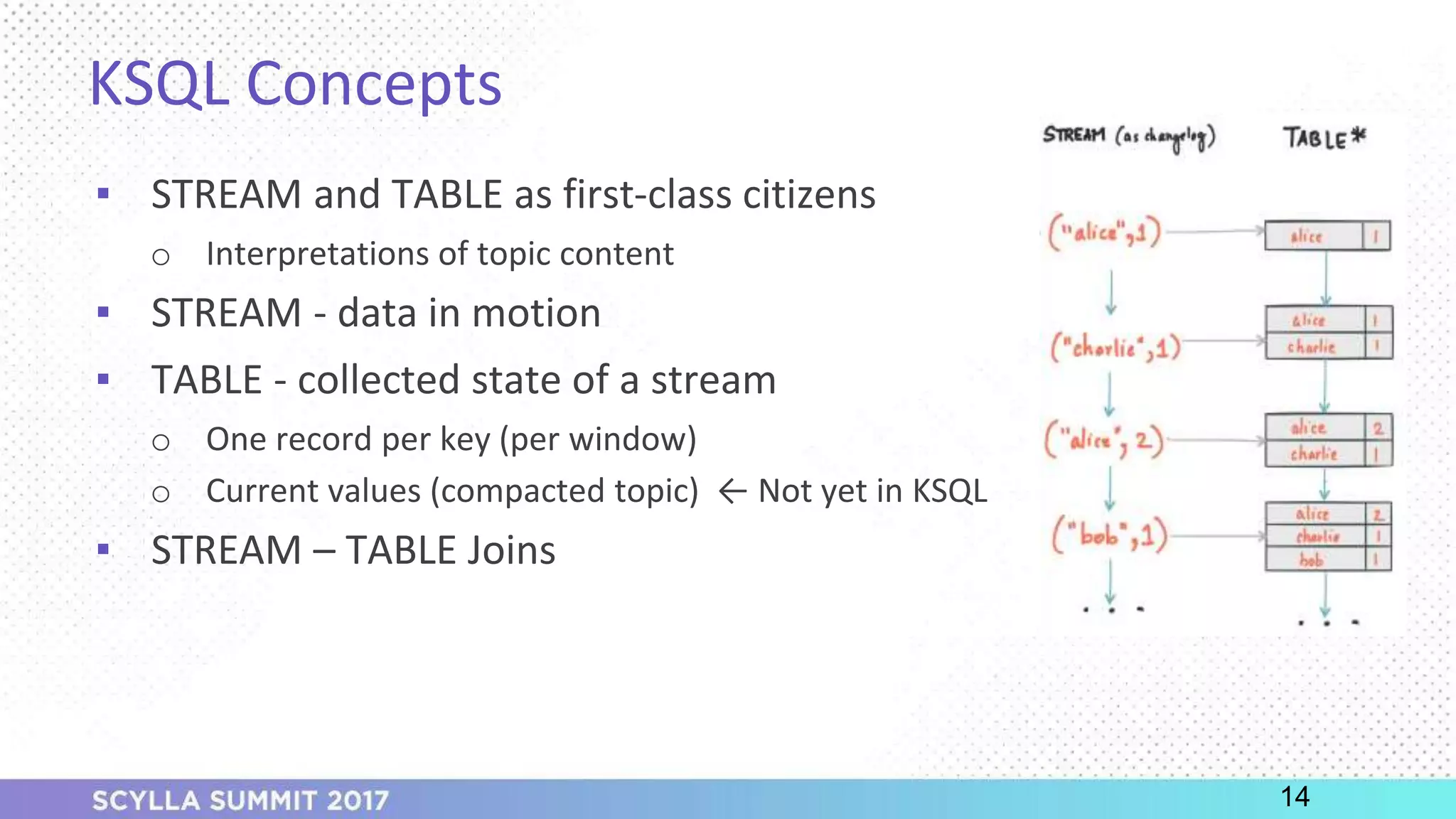

KSQL Concepts
▪ STREAM and TABLE as first-class citizens
o Interpretations of topic content
▪ STREAM - data in motion
▪ TABLE - collected state of a stream
o One record per key (per window)
o Current values (compacted topic) ← Not yet in KSQL
▪ STREAM – TABLE Joins
14

15. PRESENTATION TITLE ON ONE LINE
AND ON TWO LINES
First and last name
Position, company

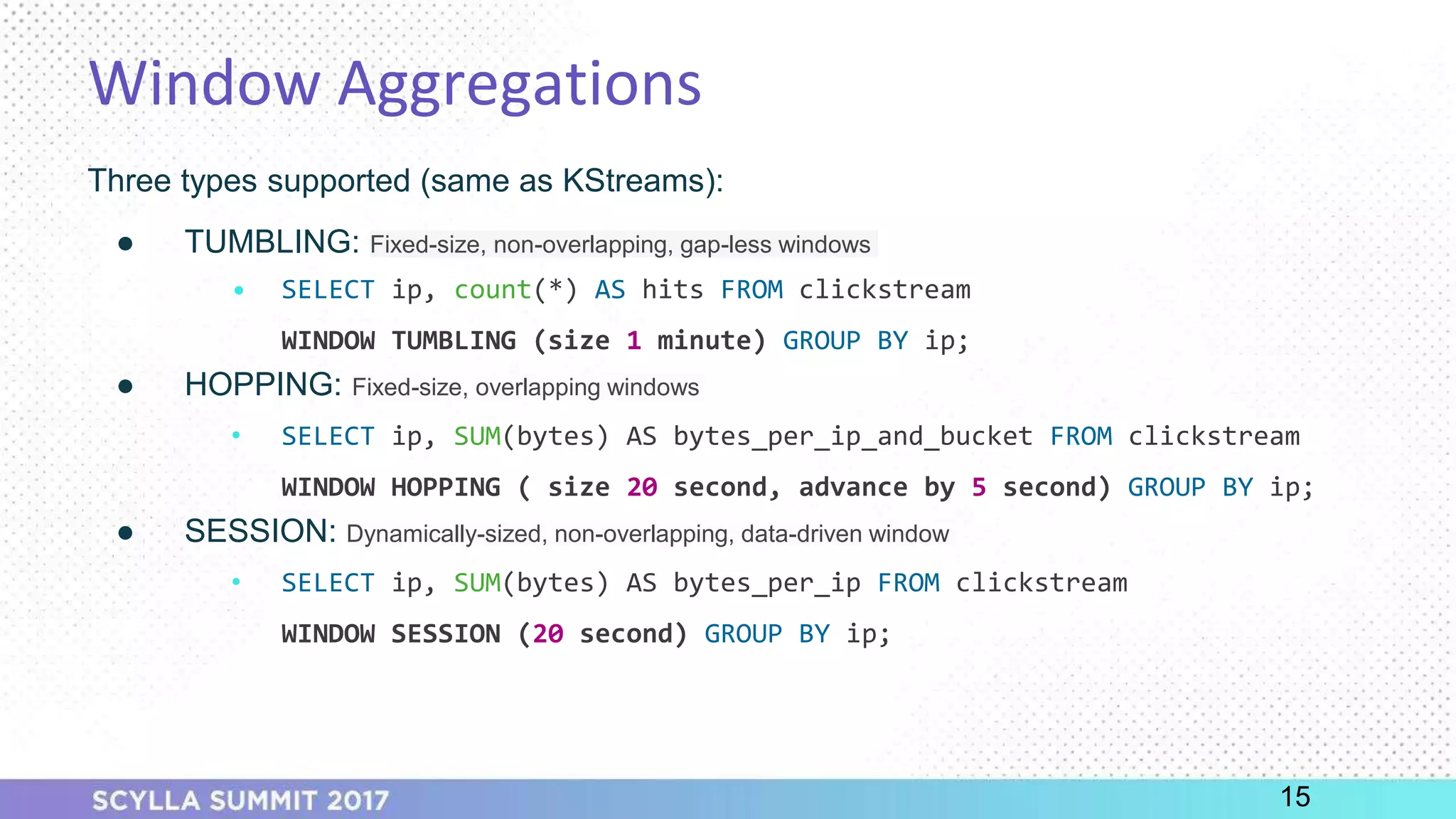

Window Aggregations
Three types supported (same as KStreams):
● TUMBLING: Fixed-size, non-overlapping, gap-less windows
• SELECT ip, count(*) AS hits FROM clickstream
WINDOW TUMBLING (size 1 minute) GROUP BY ip;
● HOPPING: Fixed-size, overlapping windows
• SELECT ip, SUM(bytes) AS bytes_per_ip_and_bucket FROM clickstream
WINDOW HOPPING ( size 20 second, advance by 5 second) GROUP BY ip;
● SESSION: Dynamically-sized, non-overlapping, data-driven window
• SELECT ip, SUM(bytes) AS bytes_per_ip FROM clickstream
WINDOW SESSION (20 second) GROUP BY ip;
15

16. PRESENTATION TITLE ON ONE LINE
AND ON TWO LINES
First and last name
Position, company

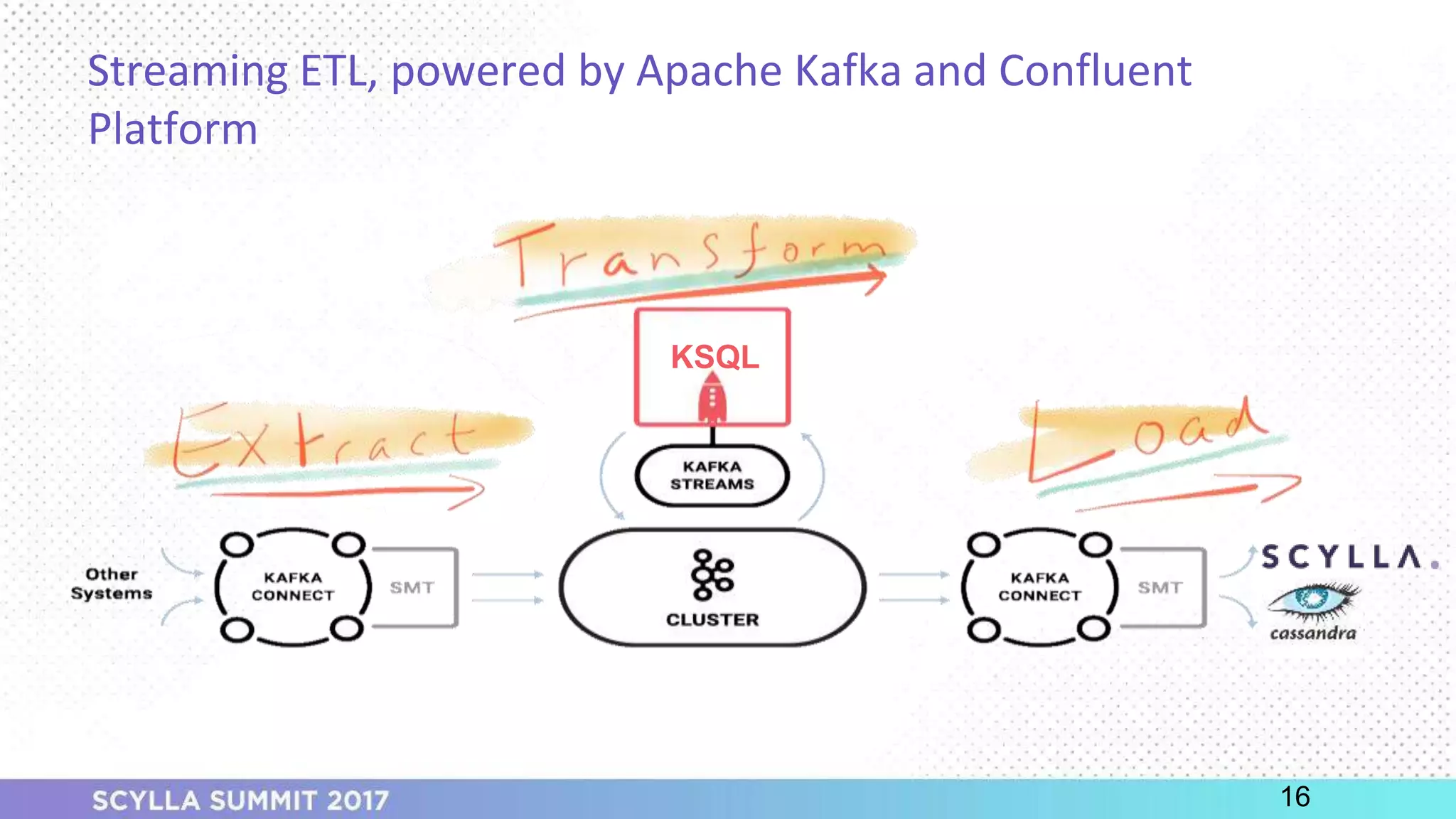

Streaming ETL, powered by Apache Kafka and Confluent
Platform
16
KSQL

17. PRESENTATION TITLE ON ONE LINE
AND ON TWO LINES
First and last name
Position, company

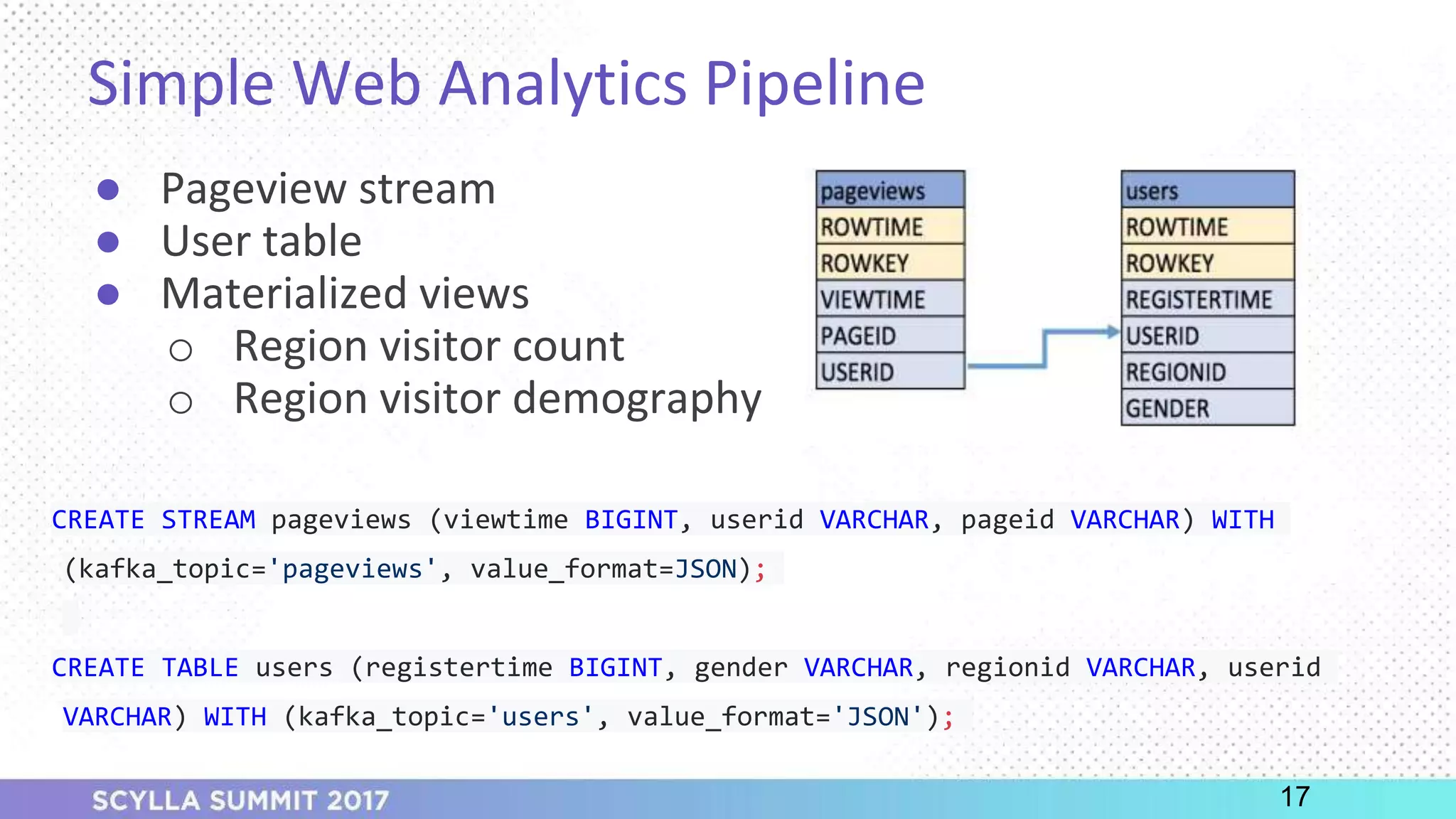

Simple Web Analytics Pipeline
● Pageview stream
● User table
● Materialized views
o Region visitor count
o Region visitor demography
17
CREATE STREAM pageviews (viewtime BIGINT, userid VARCHAR, pageid VARCHAR) WITH
(kafka_topic='pageviews', value_format=JSON);
CREATE TABLE users (registertime BIGINT, gender VARCHAR, regionid VARCHAR, userid
VARCHAR) WITH (kafka_topic='users', value_format='JSON');

18. PRESENTATION TITLE ON ONE LINE
AND ON TWO LINES
First and last name
Position, company

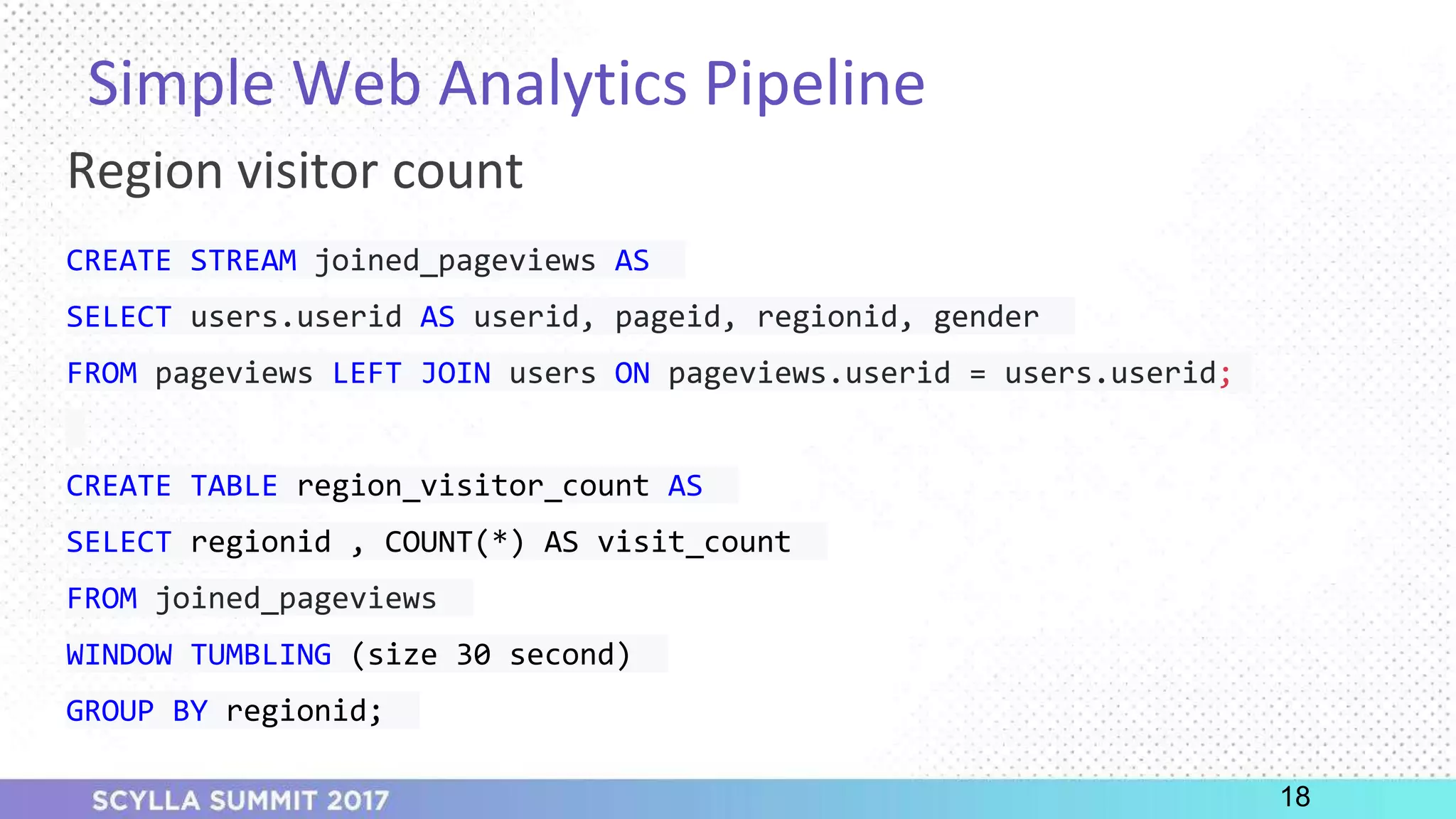

Simple Web Analytics Pipeline
18
Region visitor count
CREATE STREAM joined_pageviews AS
SELECT users.userid AS userid, pageid, regionid, gender
FROM pageviews LEFT JOIN users ON pageviews.userid = users.userid;
CREATE TABLE region_visitor_count AS
SELECT regionid , COUNT(*) AS visit_count
FROM joined_pageviews
WINDOW TUMBLING (size 30 second)
GROUP BY regionid;

19. PRESENTATION TITLE ON ONE LINE
AND ON TWO LINES
First and last name
Position, company

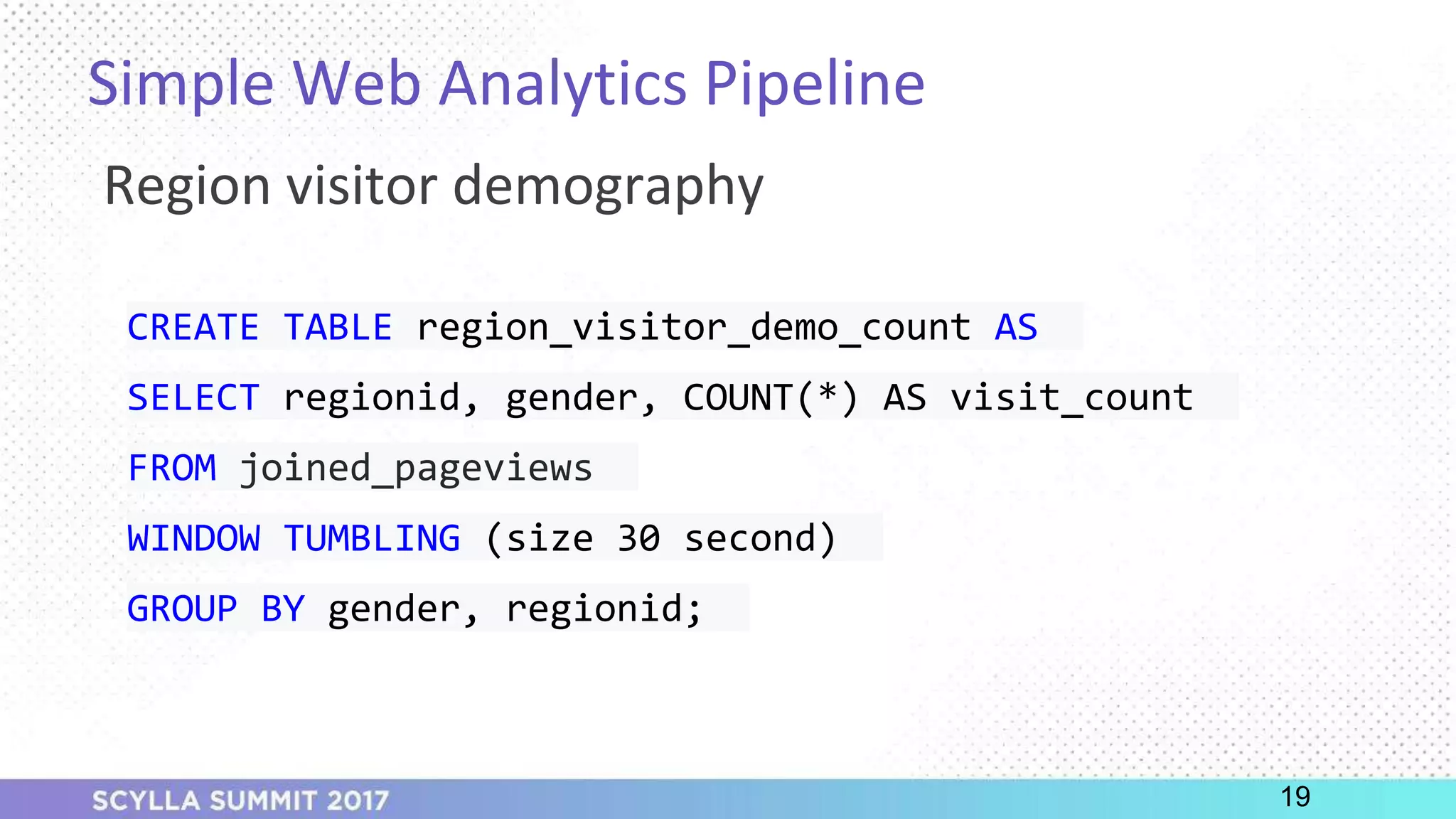

Simple Web Analytics Pipeline
19
Region visitor demography
CREATE TABLE region_visitor_demo_count AS
SELECT regionid, gender, COUNT(*) AS visit_count
FROM joined_pageviews
WINDOW TUMBLING (size 30 second)
GROUP BY gender, regionid;

20. PRESENTATION TITLE ON ONE LINE
AND ON TWO LINES
First and last name
Position, company

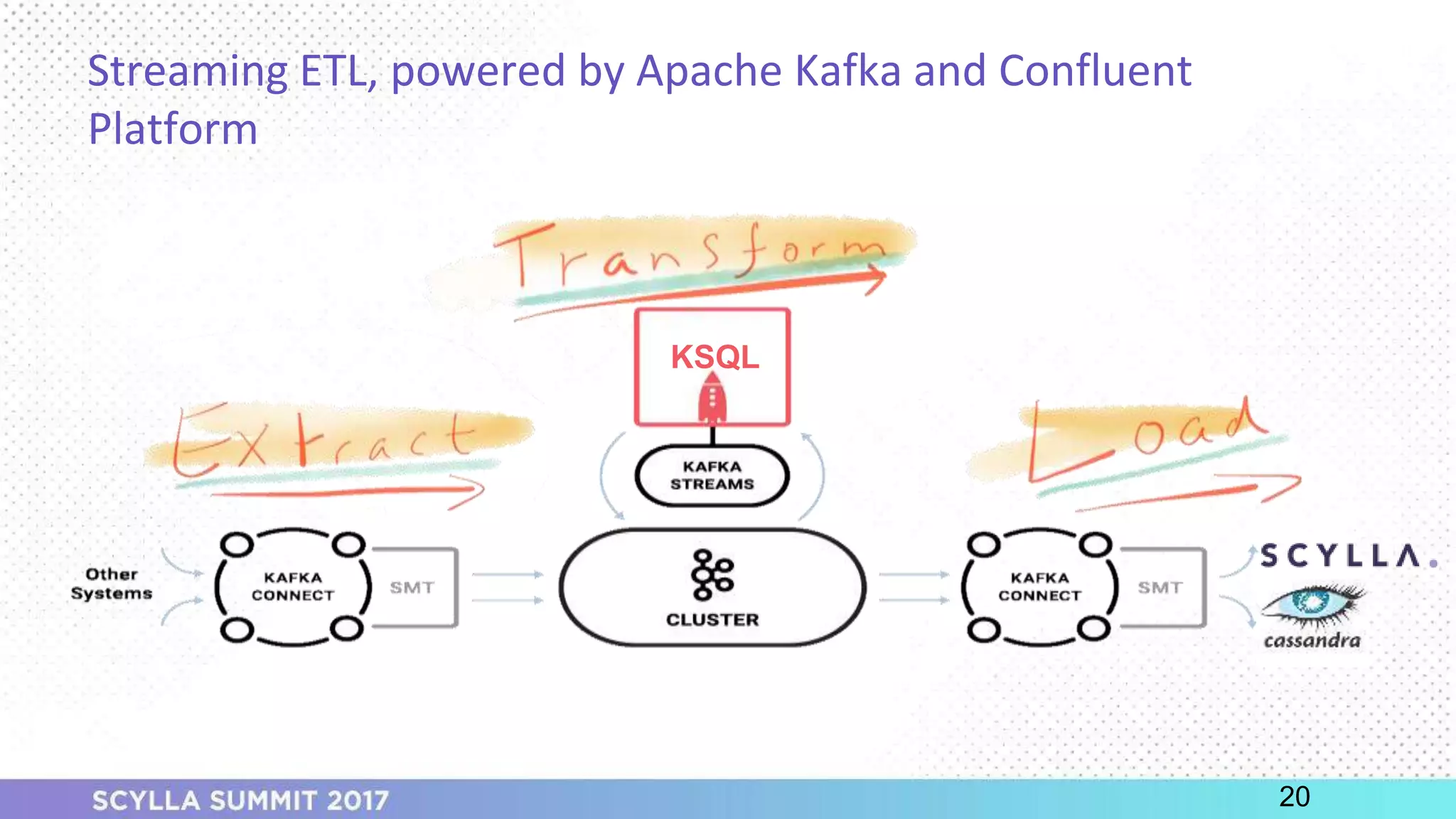

Streaming ETL, powered by Apache Kafka and Confluent
Platform
20
KSQL

21. PRESENTATION TITLE ON ONE LINE
AND ON TWO LINES
First and last name
Position, company

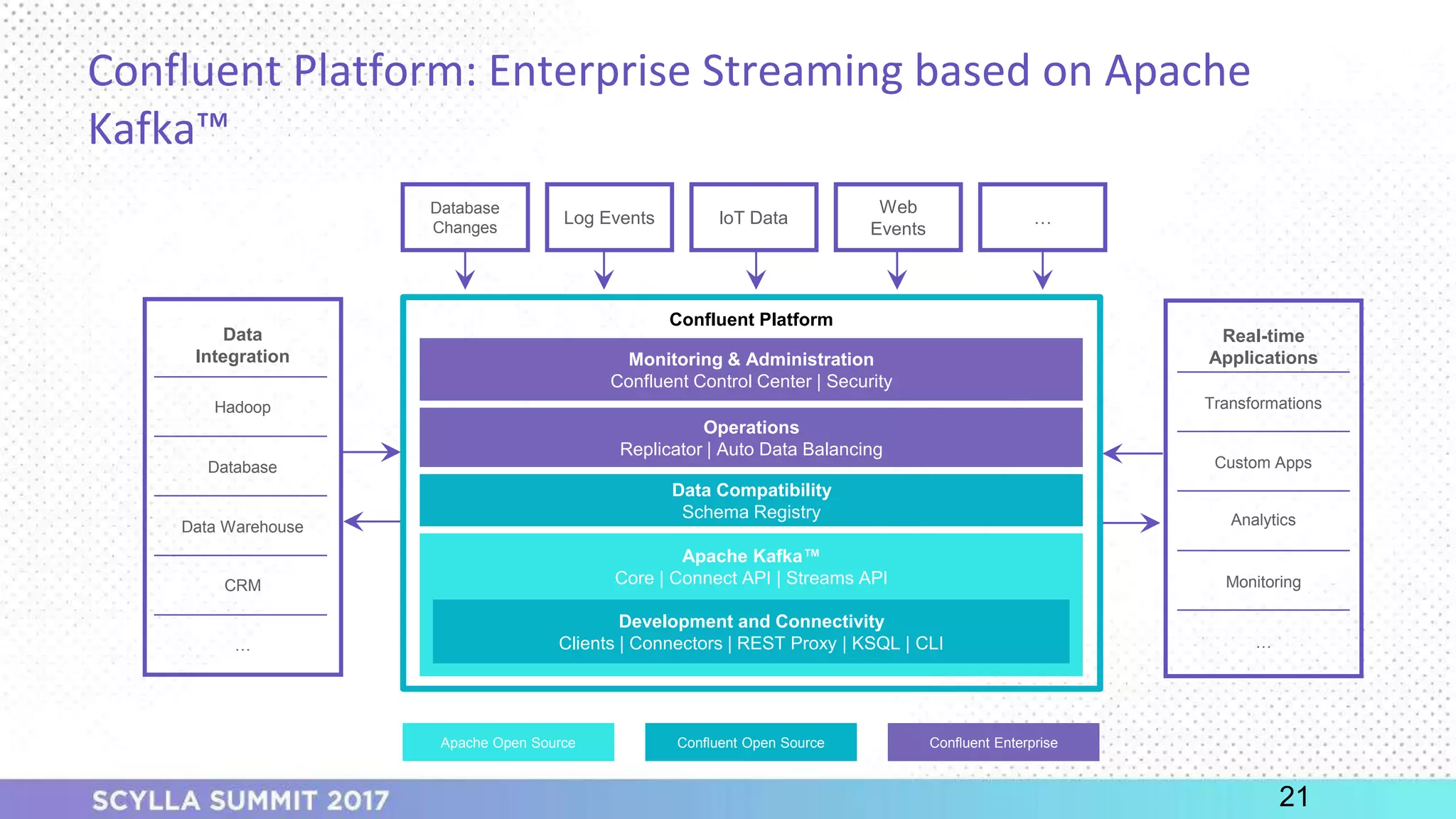

Confluent Platform: Enterprise Streaming based on Apache
Kafka™
21
Database
Changes
Log Events loT Data
Web
Events
…
CRM
Data Warehouse
Database
Hadoop
Data
Integration
…
Monitoring
Analytics
Custom Apps
Transformations
Real-time
Applications
…
Apache Open Source Confluent Open Source Confluent Enterprise
Confluent Platform
Confluent Platform
Apache Kafka™
Core | Connect API | Streams API
Data Compatibility
Schema Registry
Monitoring & Administration
Confluent Control Center | Security
Operations
Replicator | Auto Data Balancing
Development and Connectivity
Clients | Connectors | REST Proxy | KSQL | CLI

22. PRESENTATION TITLE ON ONE LINE
AND ON TWO LINES
First and last name
Position, company

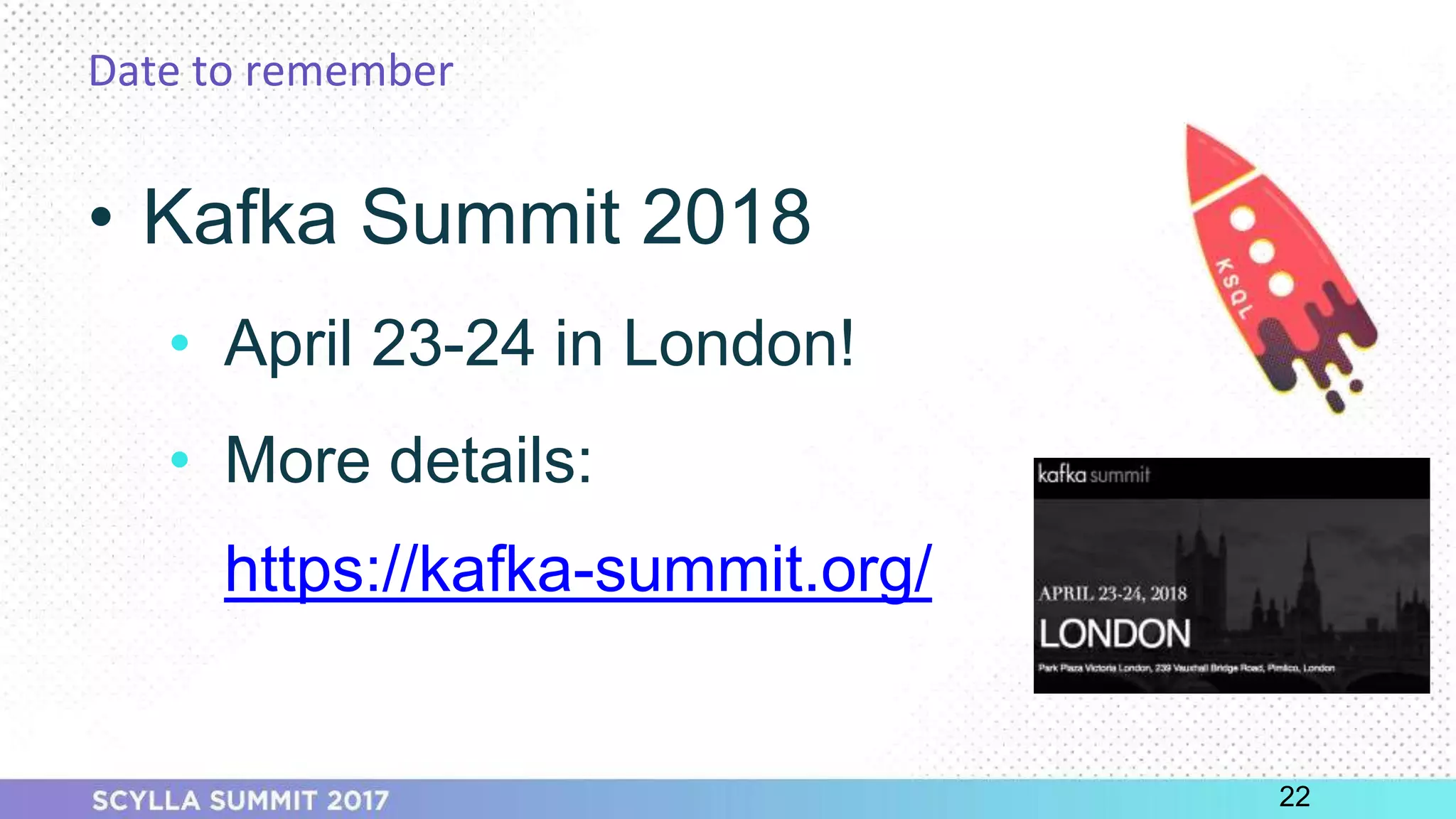

Date to remember
22
• Kafka Summit 2018
• April 23-24 in London!
• More details:
https://kafka-summit.org/

23. PRESENTATION TITLE ON ONE LINE
AND ON TWO LINES
First and last name
Position, company
THANK YOU
hojjat@confluent.io
@hojjat
Please stay in touch
Any questions?
https://github.com/confluentinc/ksql/
https://www.confluent.io/download/
