1. ScribeUI
MapServer Mapfile Managment
Made Easy
Simon Mercier
Mapgears
@simonmercier

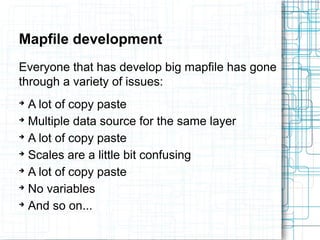

2. Mapfile development
Everyone that has develop big mapfile has gone
through a variety of issues:
➔ A lot of copy paste
➔ Multiple data source for the same layer
➔ A lot of copy paste
➔ Scales are a little bit confusing
➔ A lot of copy paste
➔ No variables
➔ And so on...

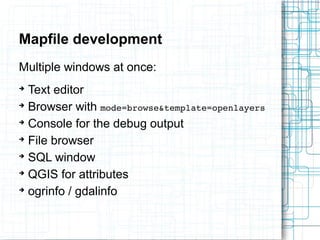

3. Mapfile development
Multiple windows at once:
➔ Text editor
➔ Browser with mode=browse&template=openlayers
➔ Console for the debug output
➔ File browser
➔ SQL window
➔ QGIS for attributes
➔ ogrinfo / gdalinfo

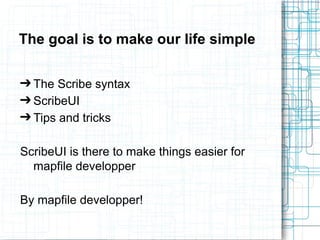

4. The goal is to make our life simple
➔The Scribe syntax
➔ScribeUI
➔Tips and tricks
ScribeUI is there to make things easier for
mapfile developper
By mapfile developper!

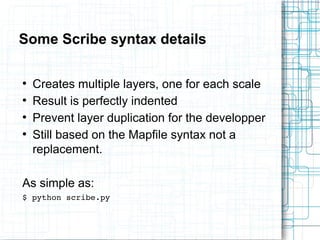

5. Some Scribe syntax details
● Creates multiple layers, one for each scale
● Result is perfectly indented
● Prevent layer duplication for the developper
● Still based on the Mapfile syntax not a
replacement.
As simple as:
$ python scribe.py

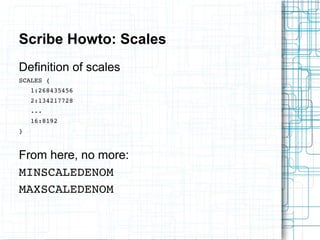

6. Scribe Howto: Scales
Definition of scales
SCALES {
1:268435456
2:134217728
...
16:8192
}
From here, no more:
MINSCALEDENOM
MAXSCALEDENOM

7. Scribe Howto: Scales

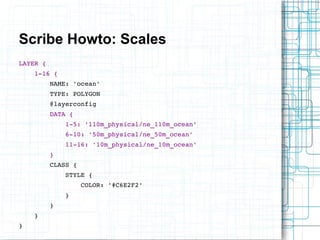

LAYER {
1­16
{
NAME: 'ocean'
TYPE: POLYGON
@layerconfig
DATA {
1­5:
'110m_physical/ne_110m_ocean'
6­10:
'50m_physical/ne_50m_ocean'
11­16:
'10m_physical/ne_10m_ocean'
}
CLASS {
STYLE {
COLOR: '#C6E2F2'
}
}
}
}

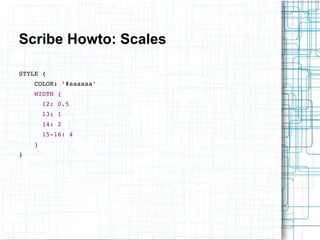

8. Scribe Howto: Scales
STYLE {
COLOR: '#aaaaaa'
WIDTH {
12: 0.5
13: 1
14: 2
15­16:
4
}
}

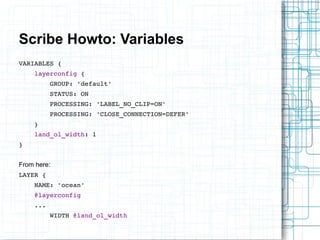

9. Scribe Howto: Variables
VARIABLES {
layerconfig {
GROUP: 'default'
STATUS: ON
PROCESSING: 'LABEL_NO_CLIP=ON'
PROCESSING: 'CLOSE_CONNECTION=DEFER'
}
land_ol_width: 1
}
From here:
LAYER {
NAME: 'ocean'
@layerconfig
...
WIDTH @land_ol_width

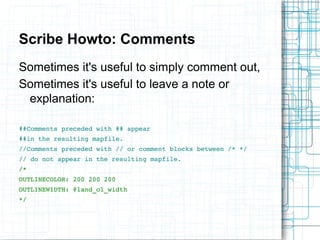

10. Scribe Howto: Comments
Sometimes it's useful to simply comment out,
Sometimes it's useful to leave a note or
explanation:
##Comments preceded with ## appear
##in the resulting mapfile.
//Comments preceded with // or comment blocks between /* */
// do not appear in the resulting mapfile.
/*
OUTLINECOLOR: 200 200 200
OUTLINEWIDTH: @land_ol_width
*/

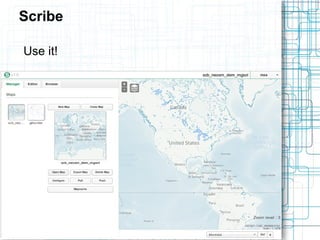

11. Scribe
Use it!

12. ScribeUI: Take a tour (Basics)
➔ Workspace
Project, may be password protected
➔ New Map Template
You can use any existing map as a template
➔ Git integration
You can Clone or push a mapping projet in your Git
➔ Editor
Edit layers per group

13. ScribeUI: Take a tour (Basics)
➔ Layer groups
Add groups and modify their order
➔ MAP definition
Keep it at hand
➔ Seed your map with Mapcache
You can throw on your server seeding mapcache job
➔ See your changes live

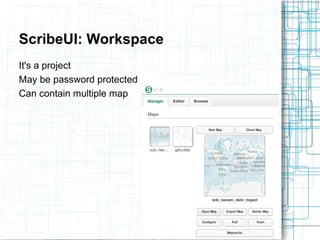

14. ScribeUI: Workspace
It's a project
May be password protected
Can contain multiple map

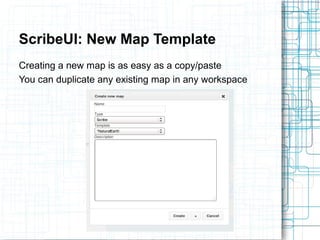

15. ScribeUI: New Map Template
Creating a new map is as easy as a copy/paste
You can duplicate any existing map in any workspace

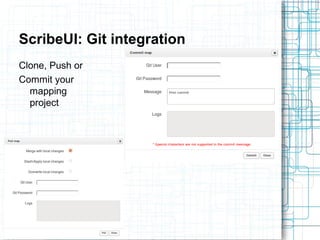

16. ScribeUI: Git integration
Clone, Push or
Commit your
mapping
project

17. ScribeUI: Git integration
Clone, Push or
Commit your
mapping
project

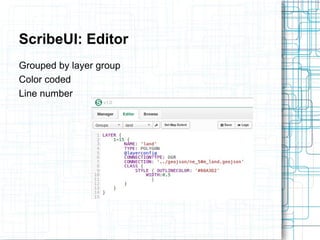

18. ScribeUI: Editor
Grouped by layer group
Color coded
Line number

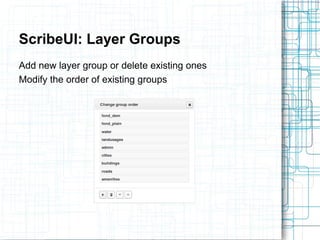

19. ScribeUI: Layer Groups
Add new layer group or delete existing ones
Modify the order of existing groups

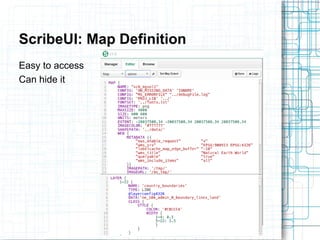

20. ScribeUI: Map Definition
Easy to access
Can hide it

21. ScribeUI: MapCache
Throw mapcache seed job on your server

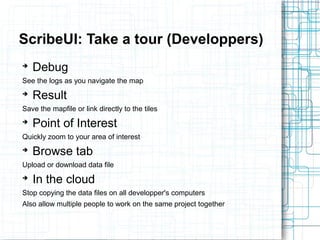

22. ScribeUI: Take a tour (Developpers)
➔ Debug
See the logs as you navigate the map
➔ Result
Save the mapfile or link directly to the tiles
➔ Point of Interest
Quickly zoom to your area of interest
➔ Browse tab
Upload or download data file
➔ In the cloud
Stop copying the data files on all developper's computers
Also allow multiple people to work on the same project together

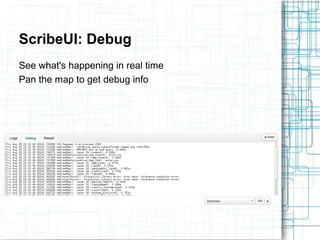

23. ScribeUI: Debug
See what's happening in real time
Pan the map to get debug info

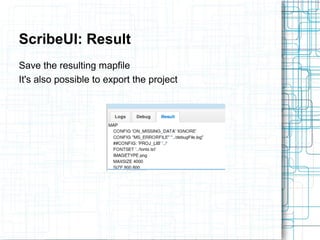

24. ScribeUI: Result
Save the resulting mapfile
It's also possible to export the project

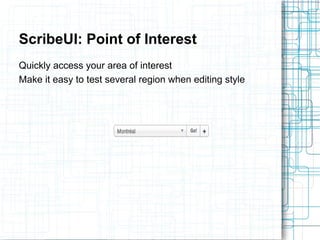

25. ScribeUI: Point of Interest
Quickly access your area of interest
Make it easy to test several region when editing style

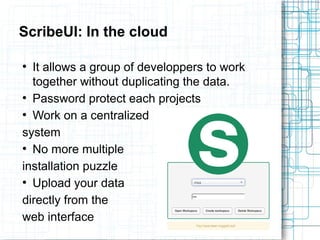

26. ScribeUI: In the cloud
● It allows a group of developpers to work
together without duplicating the data.
● Password protect each projects
● Work on a centralized
system
● No more multiple
installation puzzle
● Upload your data
directly from the
web interface

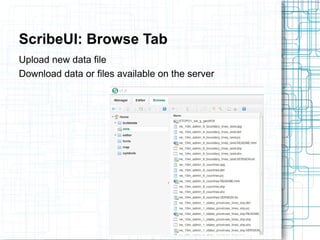

27. ScribeUI: Browse Tab
Upload new data file
Download data or files available on the server

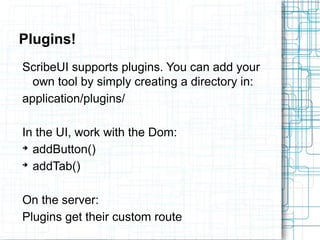

28. Plugins!
ScribeUI supports plugins. You can add your
own tool by simply creating a directory in:
application/plugins/
In the UI, work with the Dom:
➔ addButton()
➔ addTab()
On the server:
Plugins get their custom route

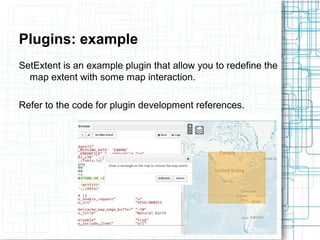

29. Plugins: example
SetExtent is an example plugin that allow you to redefine the
map extent with some map interaction.
Refer to the code for plugin development references.

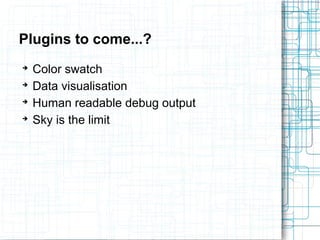

30. Plugins to come...?
➔ Color swatch
➔ Data visualisation
➔ Human readable debug output
➔ Sky is the limit

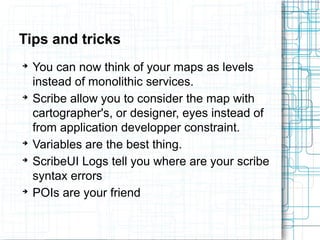

31. Tips and tricks
➔ You can now think of your maps as levels
instead of monolithic services.
➔ Scribe allow you to consider the map with
cartographer's, or designer, eyes instead of
from application developper constraint.
➔ Variables are the best thing.
➔ ScribeUI Logs tell you where are your scribe
syntax errors
➔ POIs are your friend

32. Demo!
If time permits...

33. Questions?
Thank you!
Simon Mercier
Mapgears
@simonmercier
