This document discusses scaling applications with microservices. It first introduces the speaker and their background. It then provides reasons for choosing microservices like separating concerns, resource allocation, and trends. It goes on to explain how to implement microservices through techniques like bounded context, service communication through REST, SOAP, and other protocols, using micro frameworks, and Docker containers. It finally discusses service discovery, configuration, logging, monitoring, and continuous integration/deployment to support microservices applications at scale.

1. Scale with
Microservices
Võ
Duy
Tuấn
CEO/Founder
Teamcrop.com

2. Vo DuyTuan
CEO/Founder @Teamcrop.com
§ PHP
§ Web Scalability & Optimization
§ Data Mining
§ E-Commerce
§ Docker & Microservices
Interests

3. WHY we choose
Microservices?

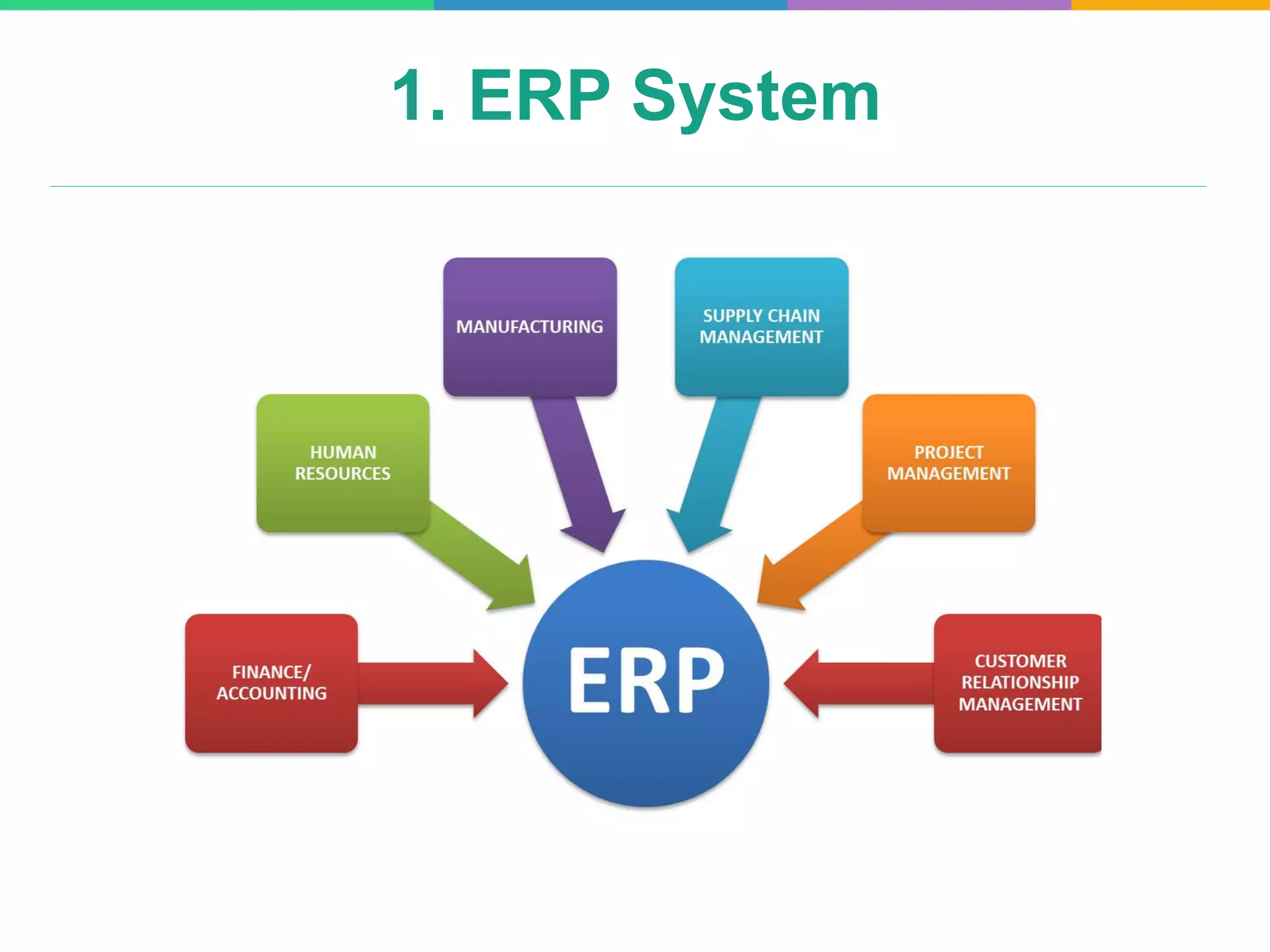

4. 1. ERP System

5. 2. Multi-platform

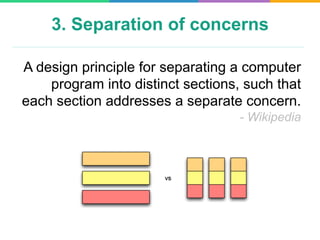

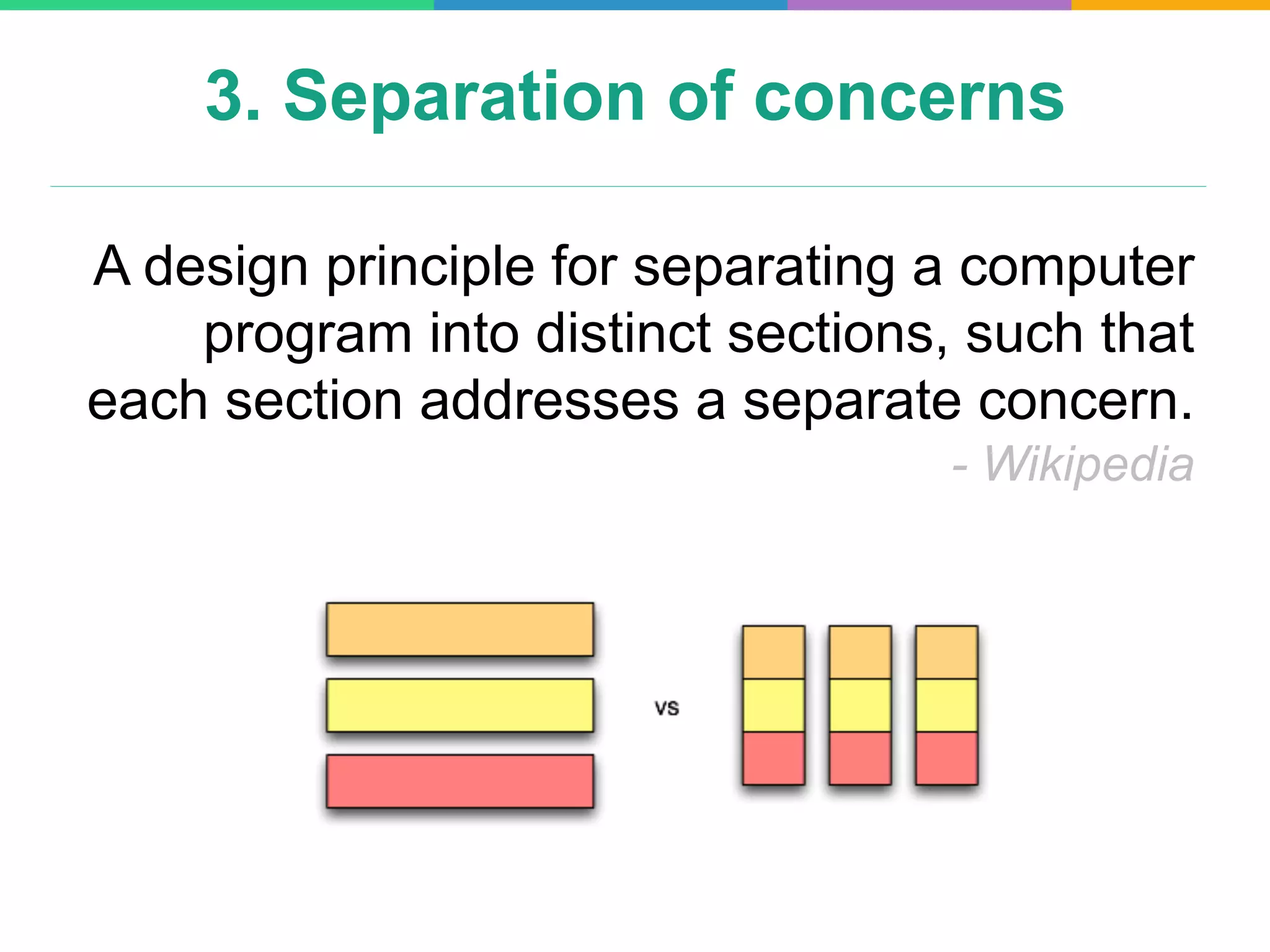

6. 3. Separation of concerns
A design principle for separating a computer
program into distinct sections, such that
each section addresses a separate concern.
- Wikipedia

7. 4. Resource allocation

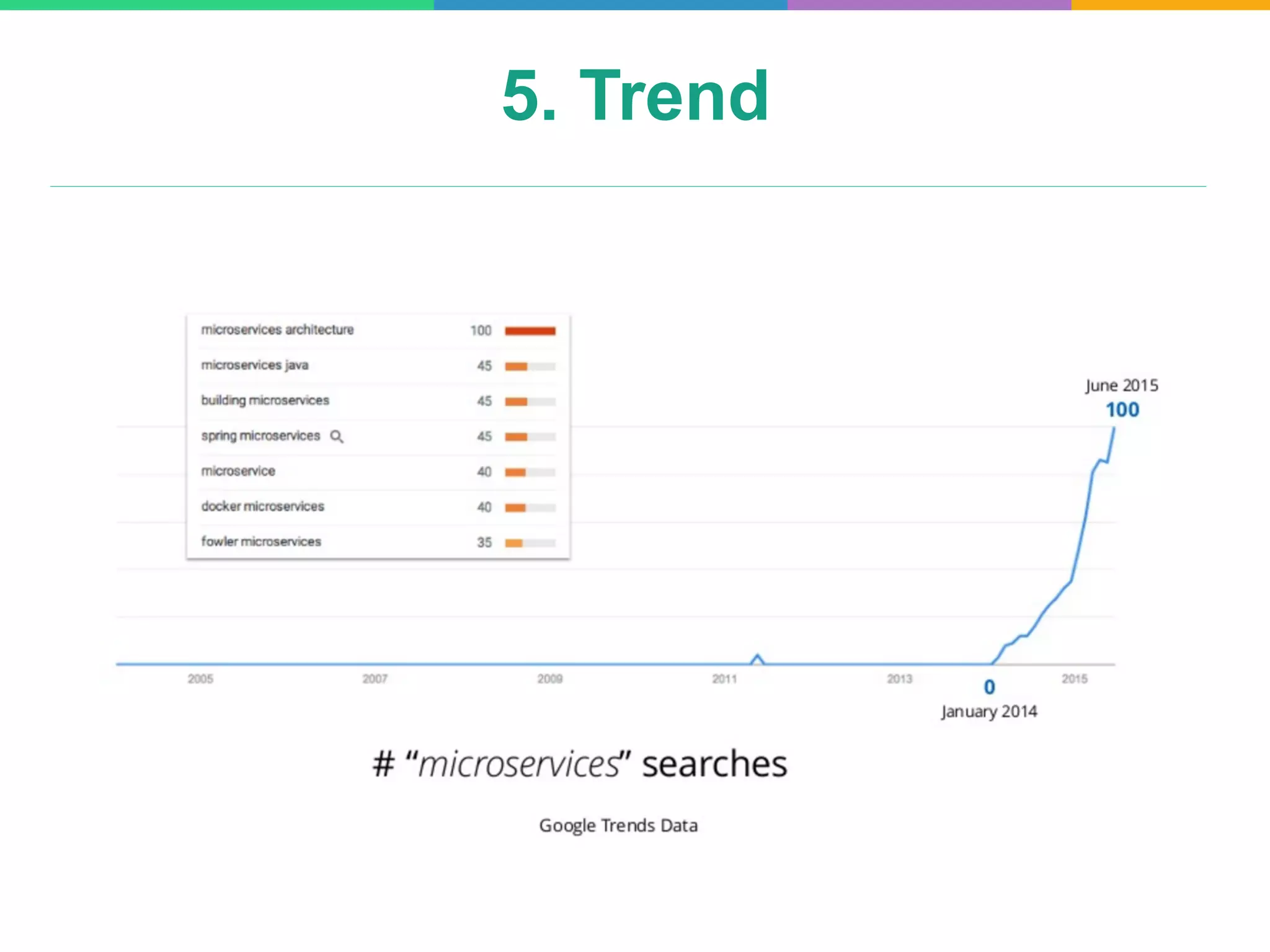

8. 5. Trend

9. HOW we implement
Microservices?

10. 1. Bounded context

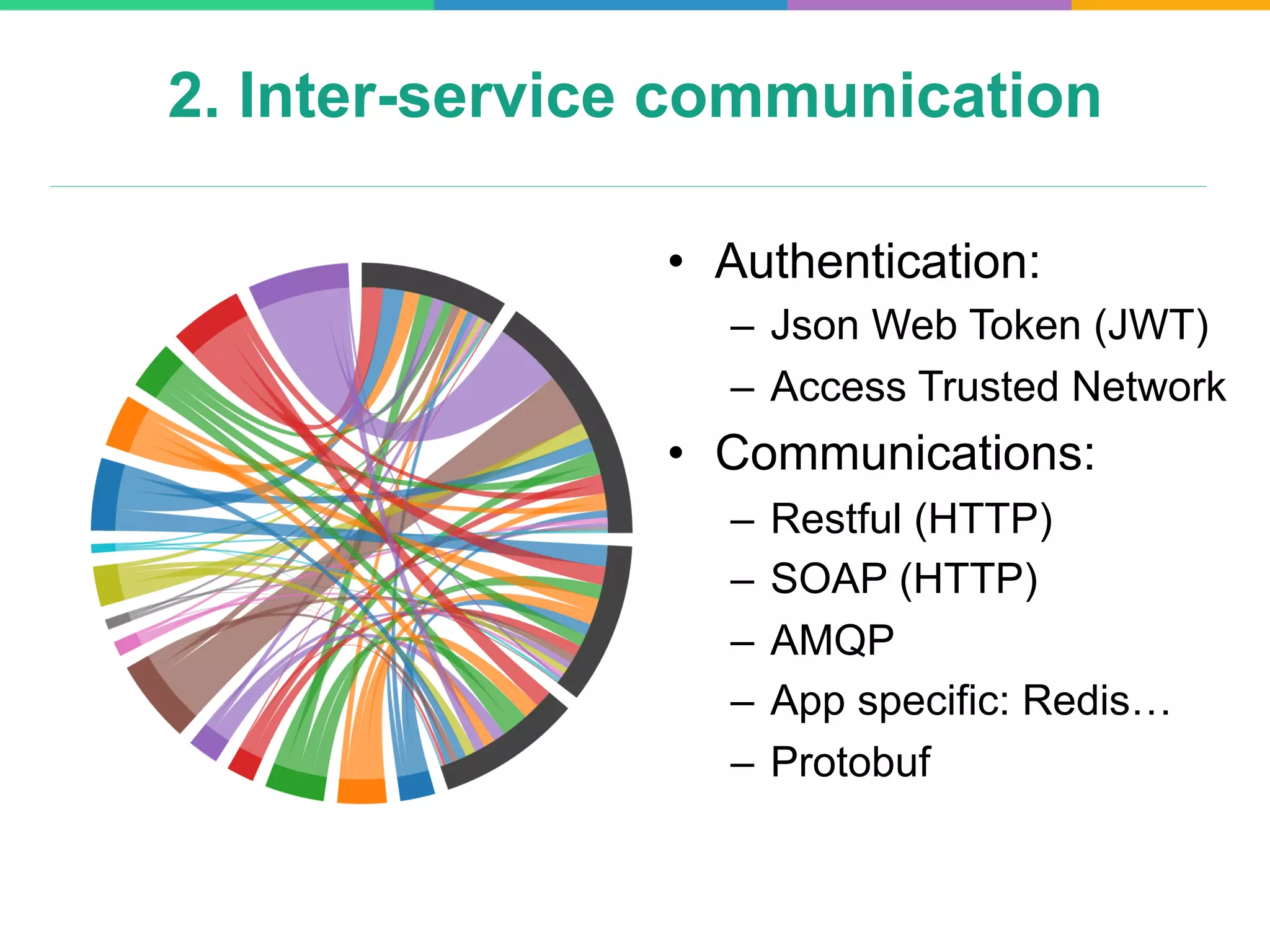

11. 2. Inter-service communication
• Authentication:
– Json Web Token (JWT)
– Access Trusted Network
• Communications:
– Restful (HTTP)
– SOAP (HTTP)
– AMQP
– App specific: Redis…
– Protobuf

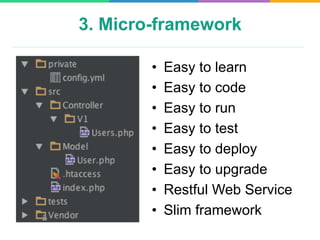

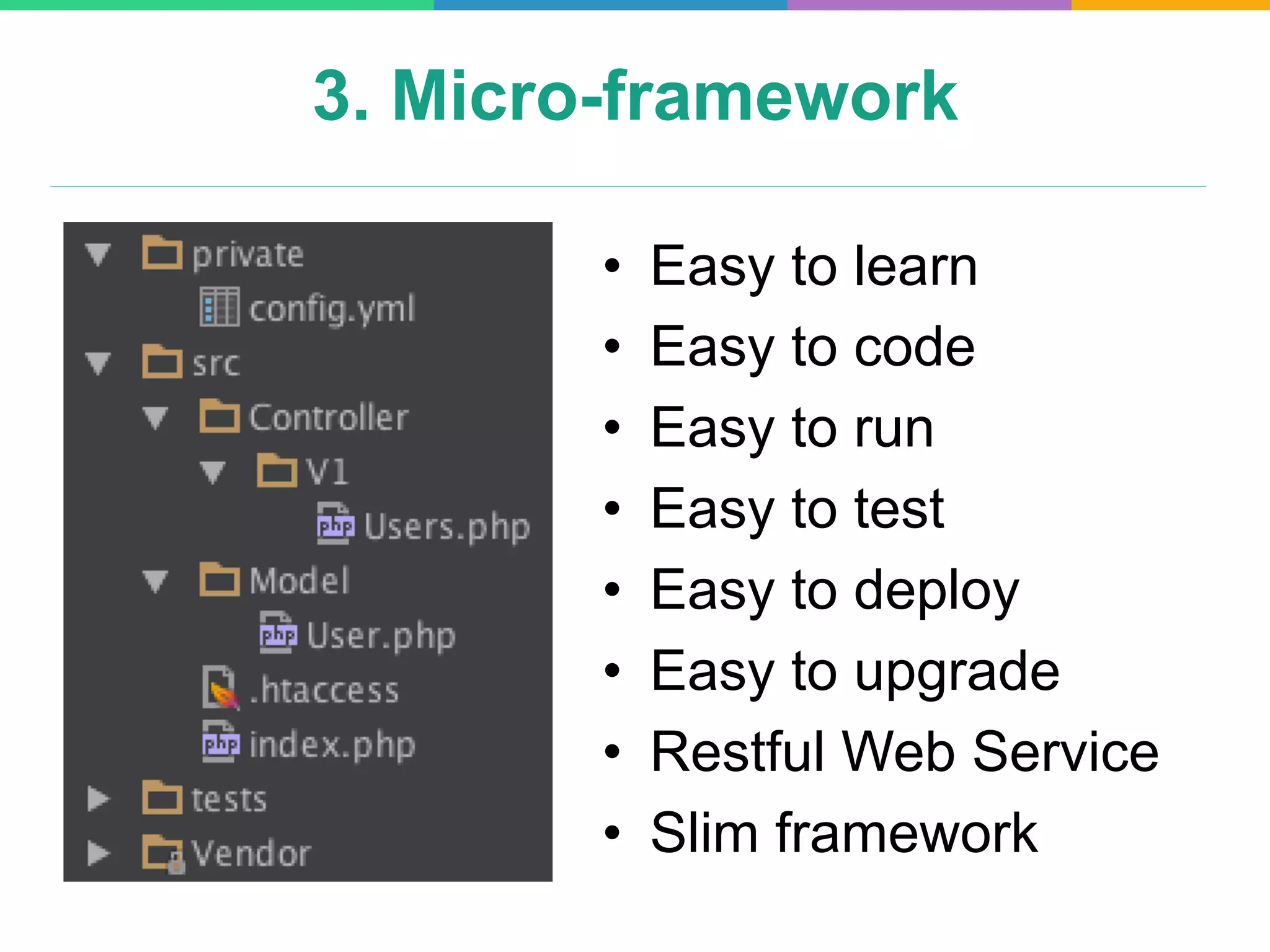

12. 3. Micro-framework
• Easy to learn
• Easy to code
• Easy to run
• Easy to test
• Easy to deploy
• Easy to upgrade
• Restful Web Service
• Slim framework

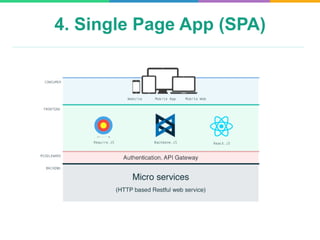

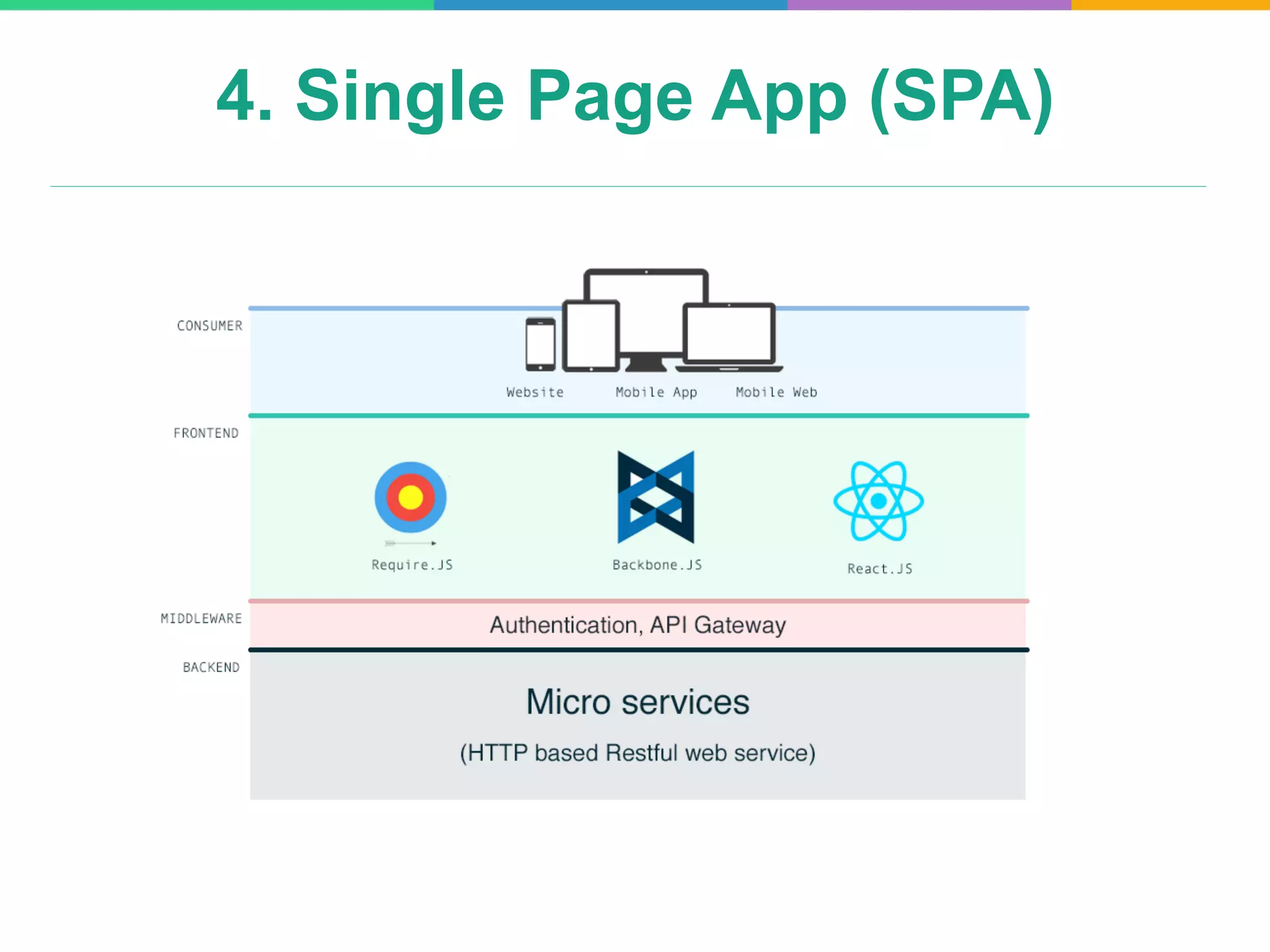

13. 4. Single Page App (SPA)

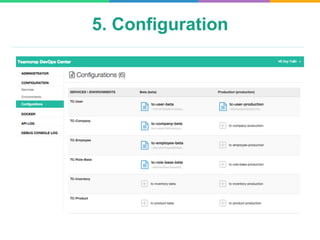

14. 5. Configuration

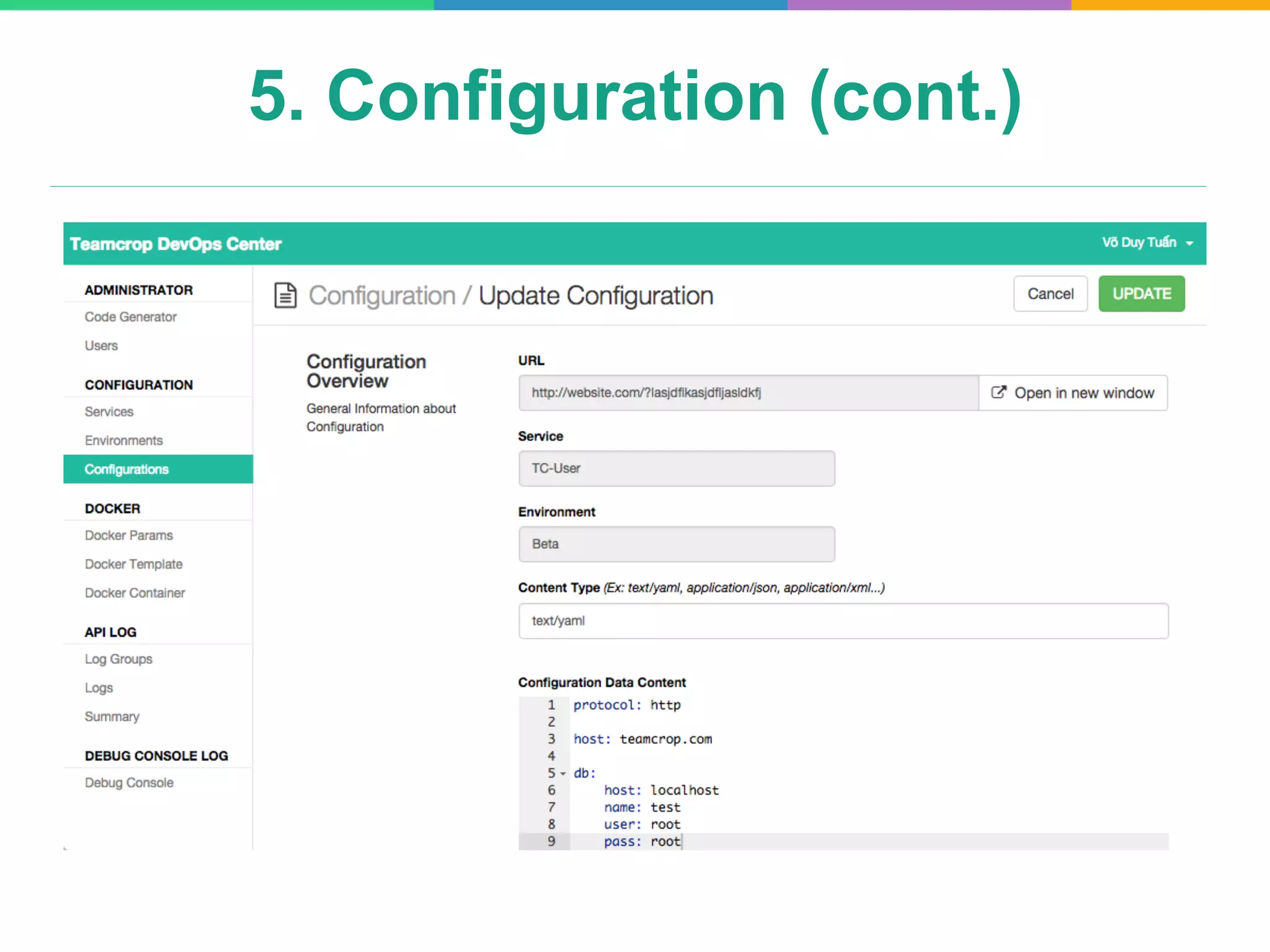

15. 5. Configuration (cont.)

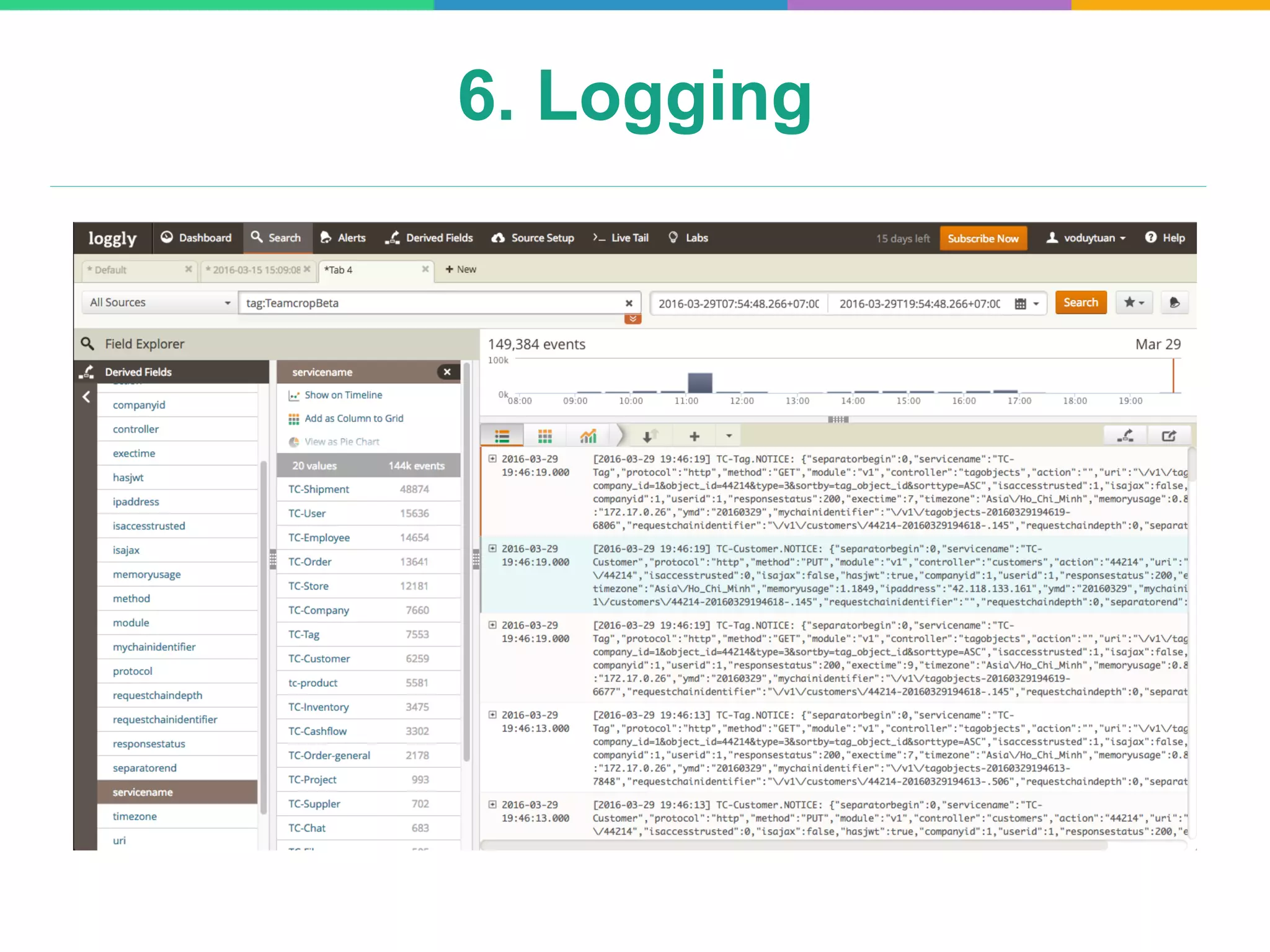

16. 6. Logging

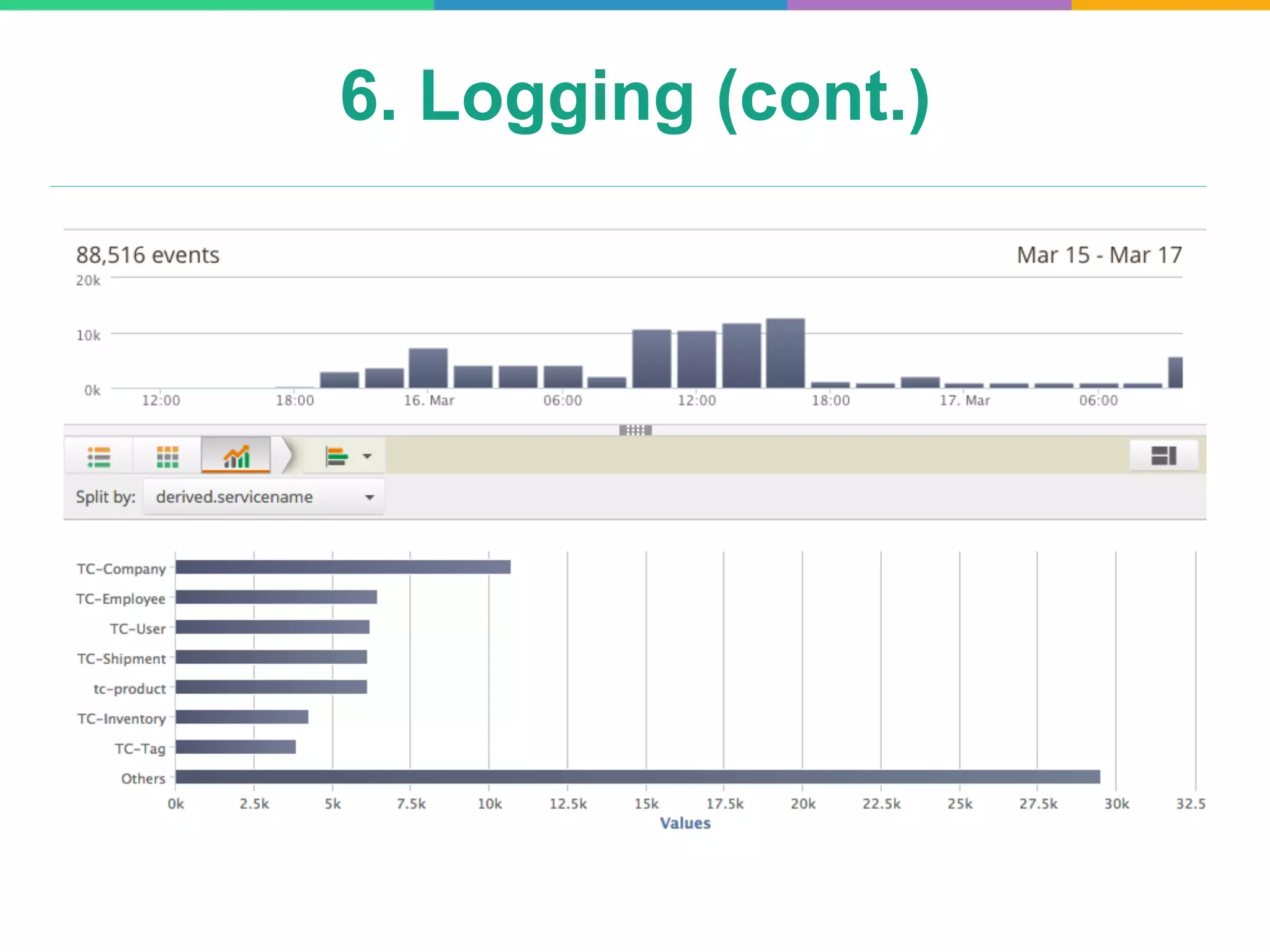

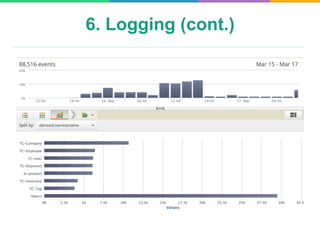

17. 6. Logging (cont.)

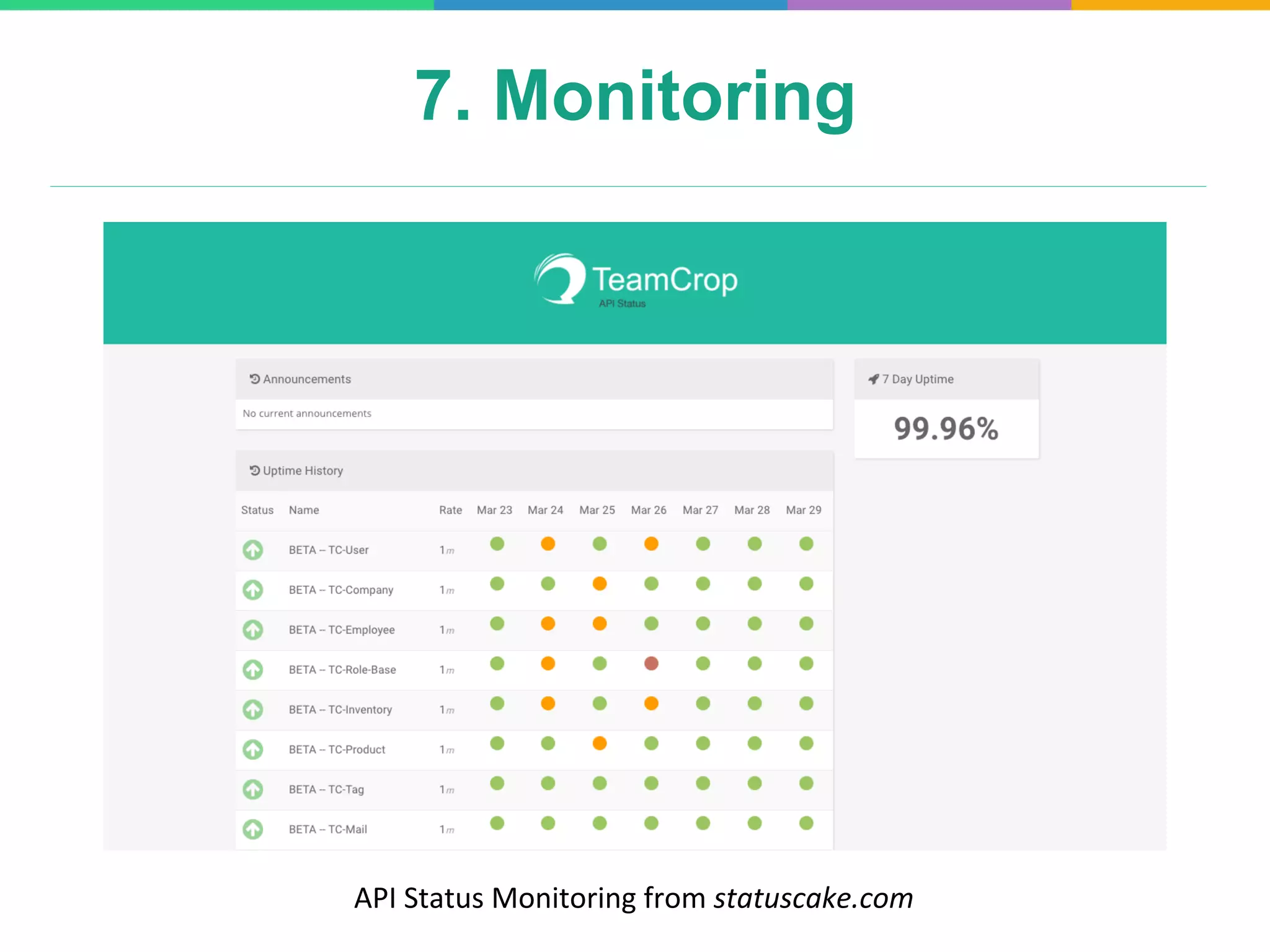

18. 7. Monitoring
API
Status
Monitoring
from
statuscake.com

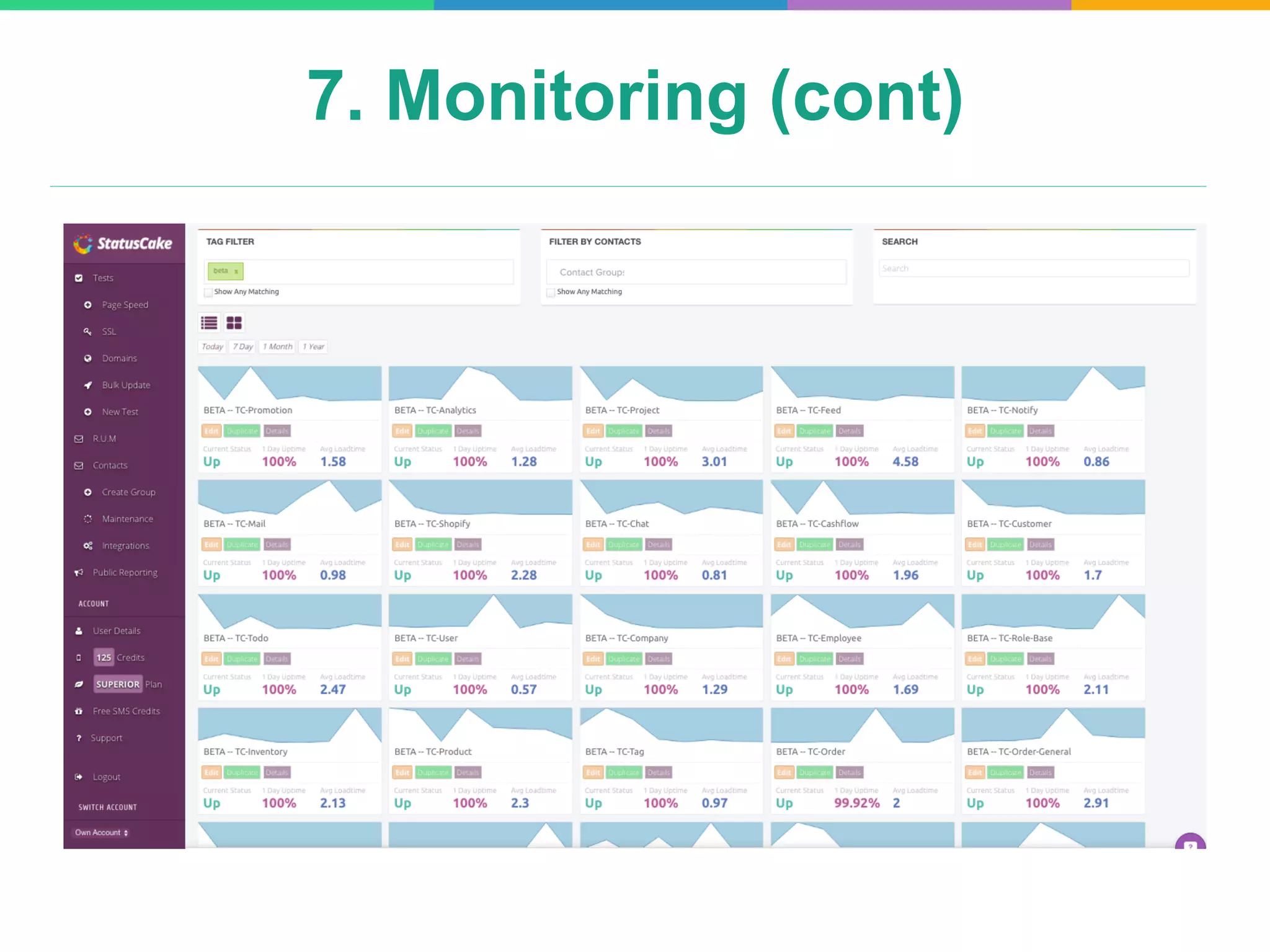

19. 7. Monitoring (cont)

20. 8. Docker

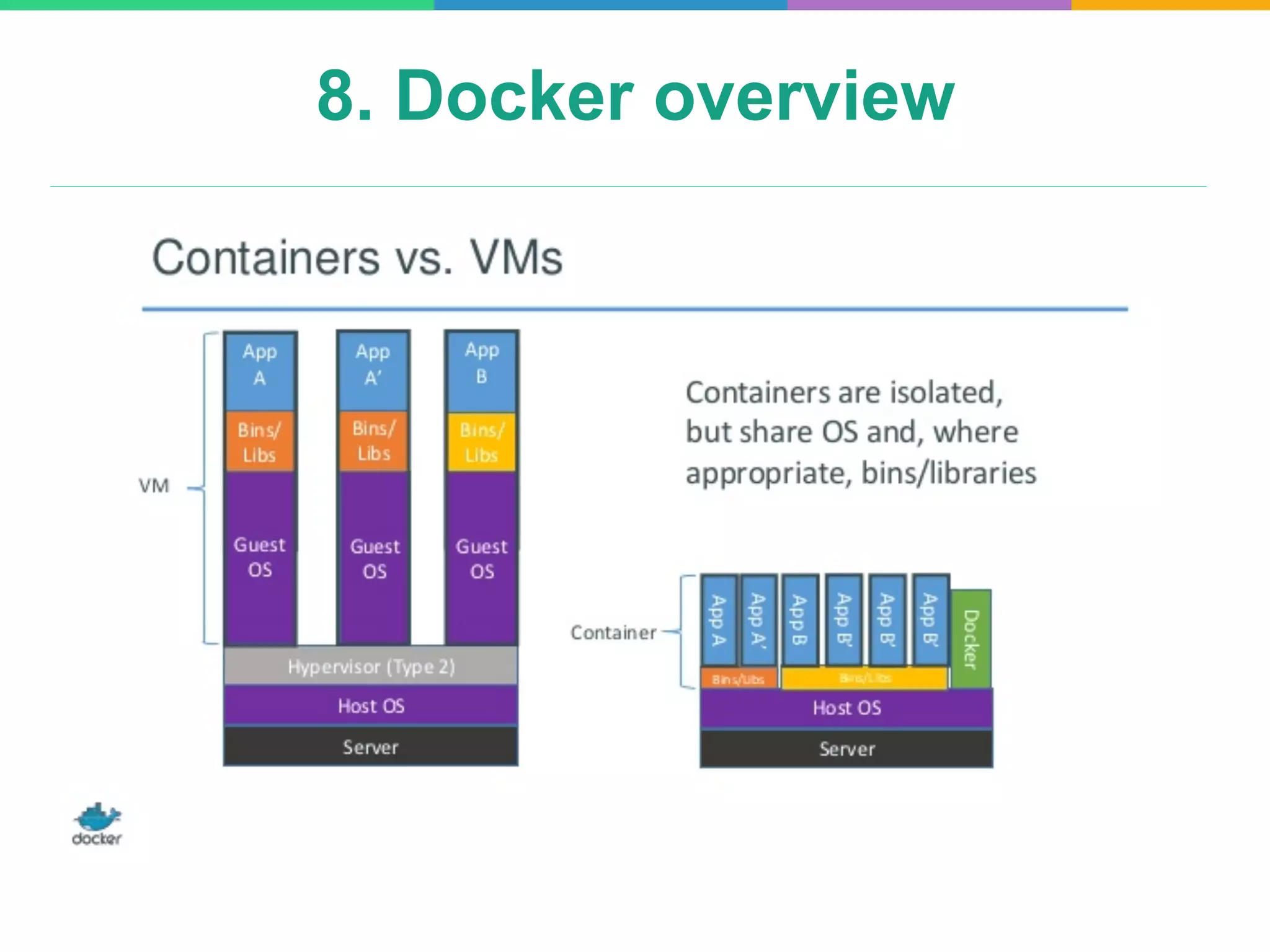

21. 8. Docker overview

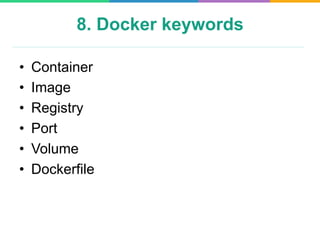

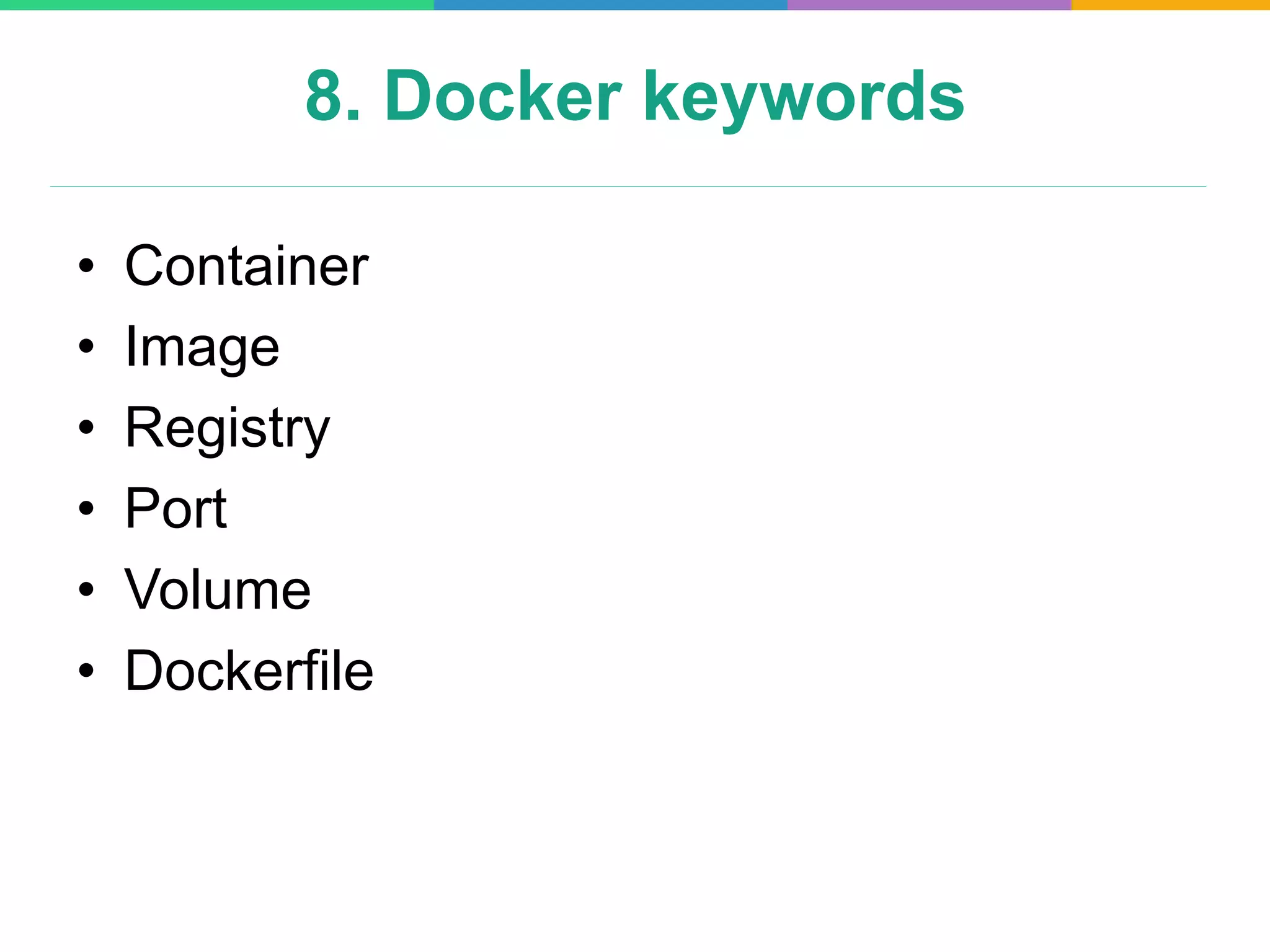

22. 8. Docker keywords
• Container
• Image
• Registry
• Port
• Volume
• Dockerfile

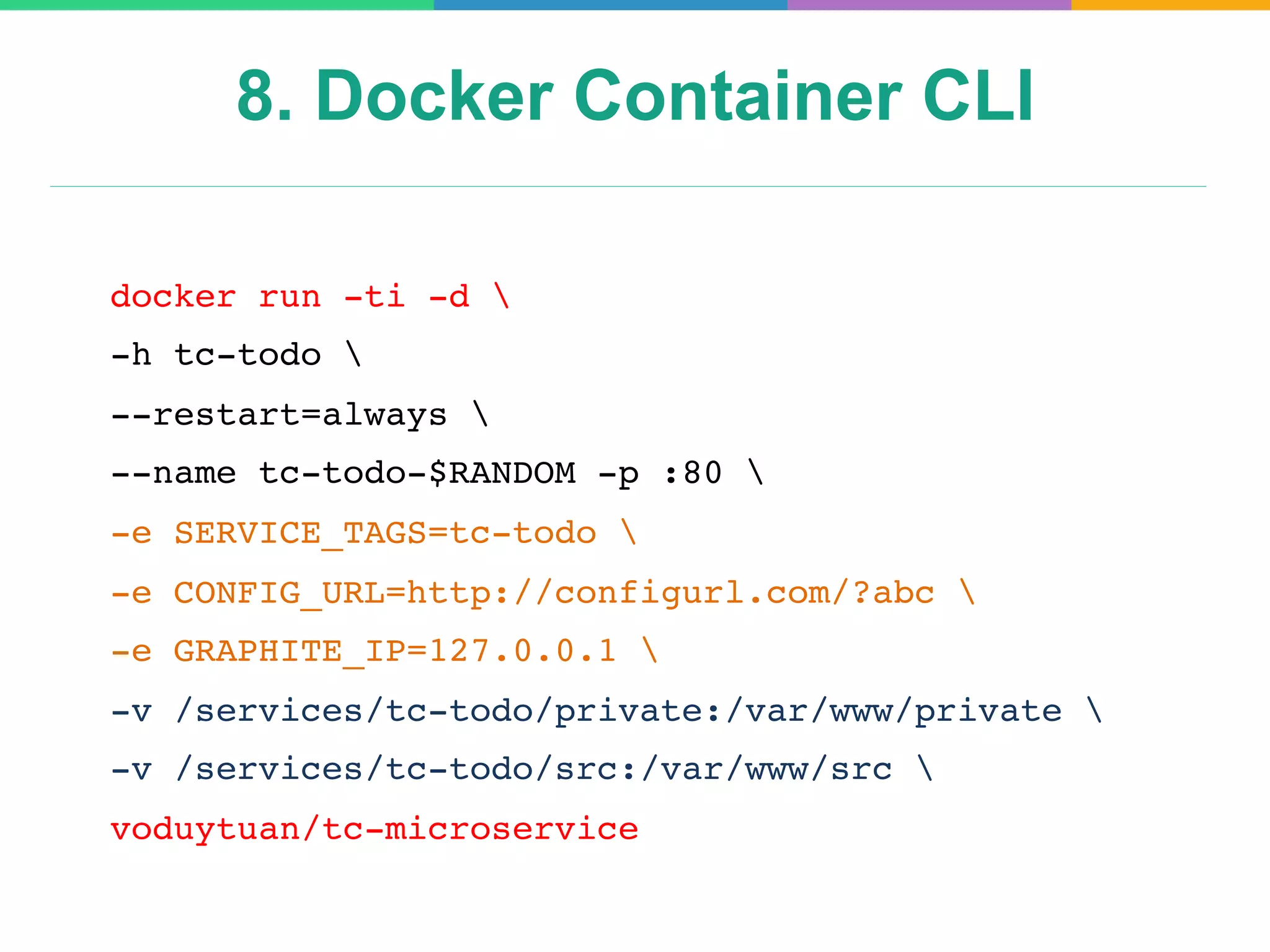

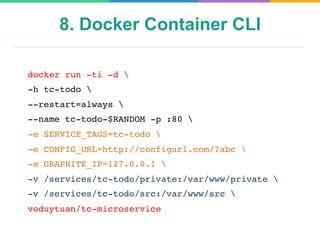

23. 8. Docker Container CLI
docker run -ti -d
-h tc-todo
--restart=always
--name tc-todo-$RANDOM -p :80
-e SERVICE_TAGS=tc-todo
-e CONFIG_URL=http://configurl.com/?abc
-e GRAPHITE_IP=127.0.0.1
-v /services/tc-todo/private:/var/www/private
-v /services/tc-todo/src:/var/www/src
voduytuan/tc-microservice

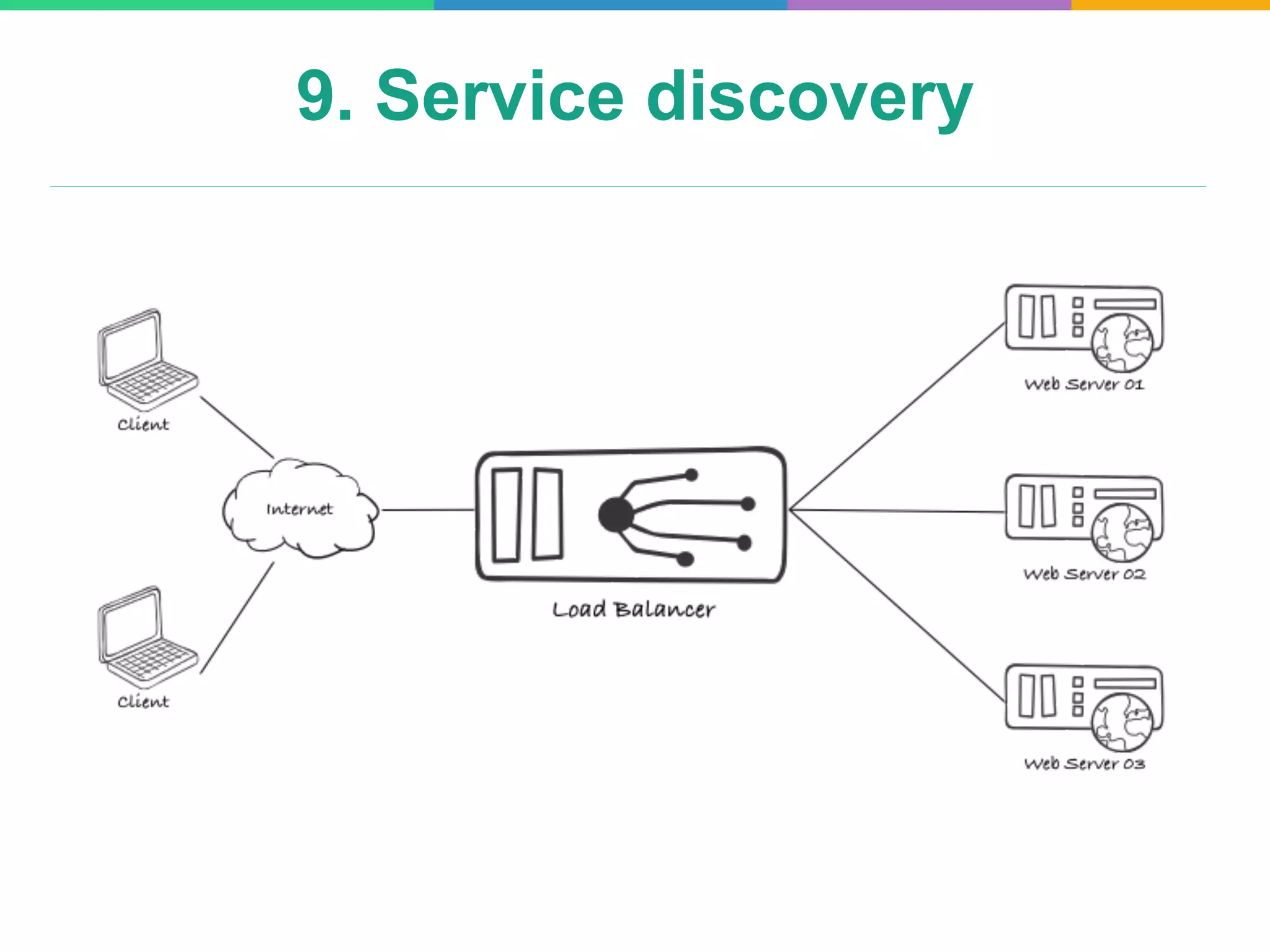

24. 9. Service discovery

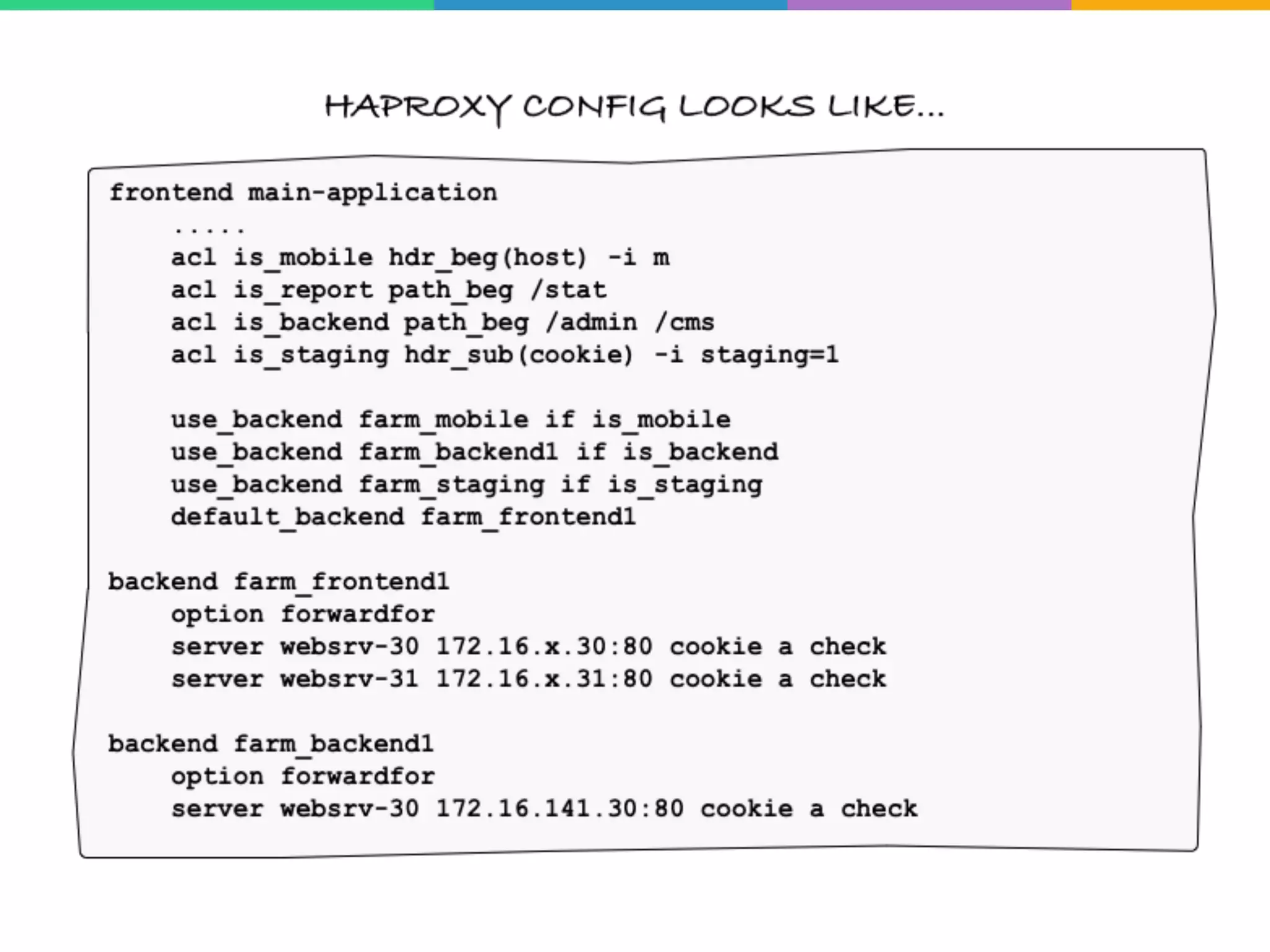

25. OPS / Service discovery
(cont.)

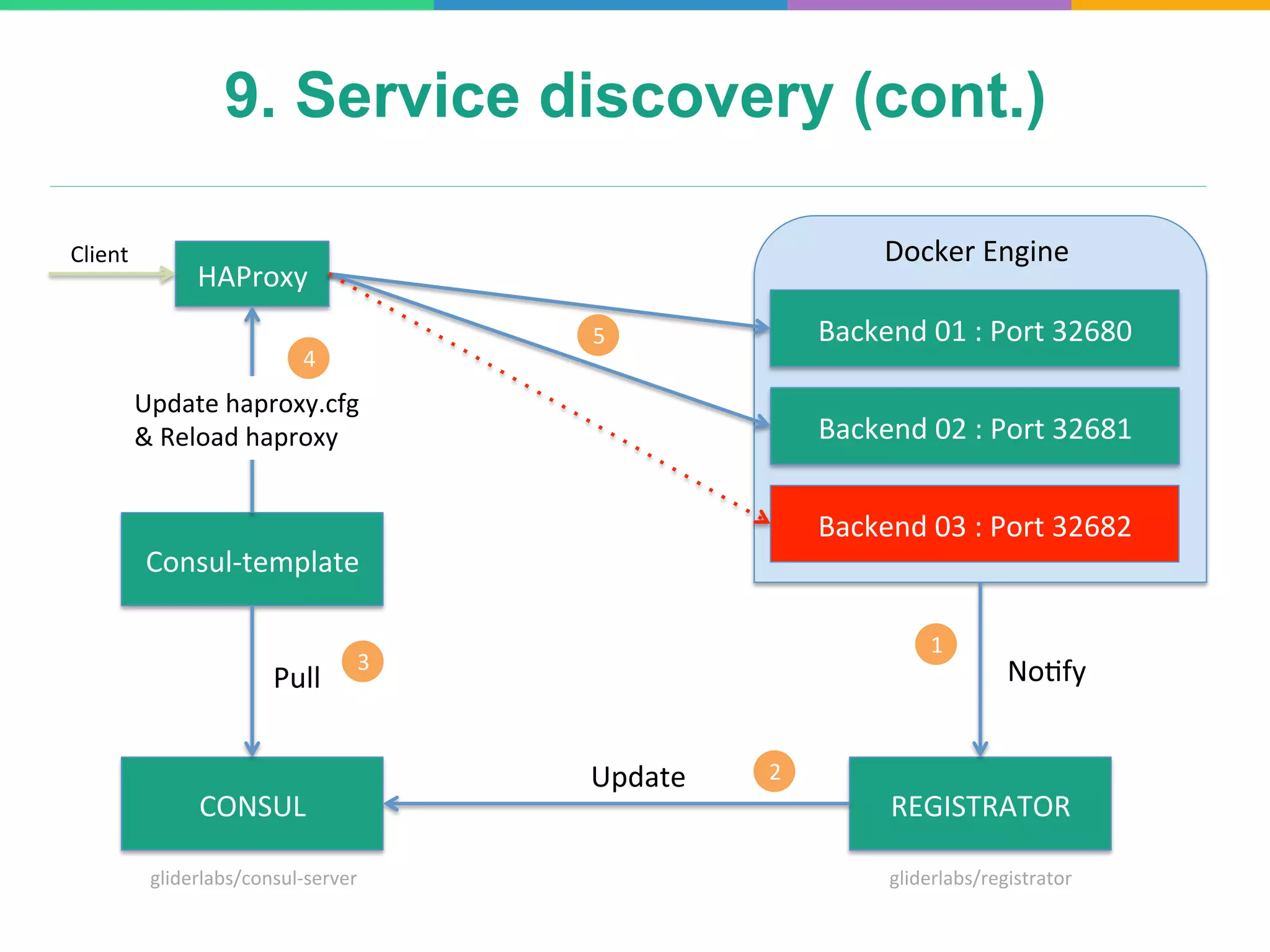

26. 9. Service discovery (cont.)
HAProxy
Consul-­‐template
Docker
Engine
Backend
01
:
Port
32680
Backend
02
:
Port
32681
Backend
03
:
Port
32682
Update
haproxy.cfg
&
Reload
haproxy
CONSUL
REGISTRATOR
NoSfy
Update
Pull
1
2
3
4
5
Client
gliderlabs/registrator
gliderlabs/consul-­‐server

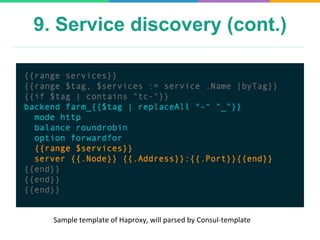

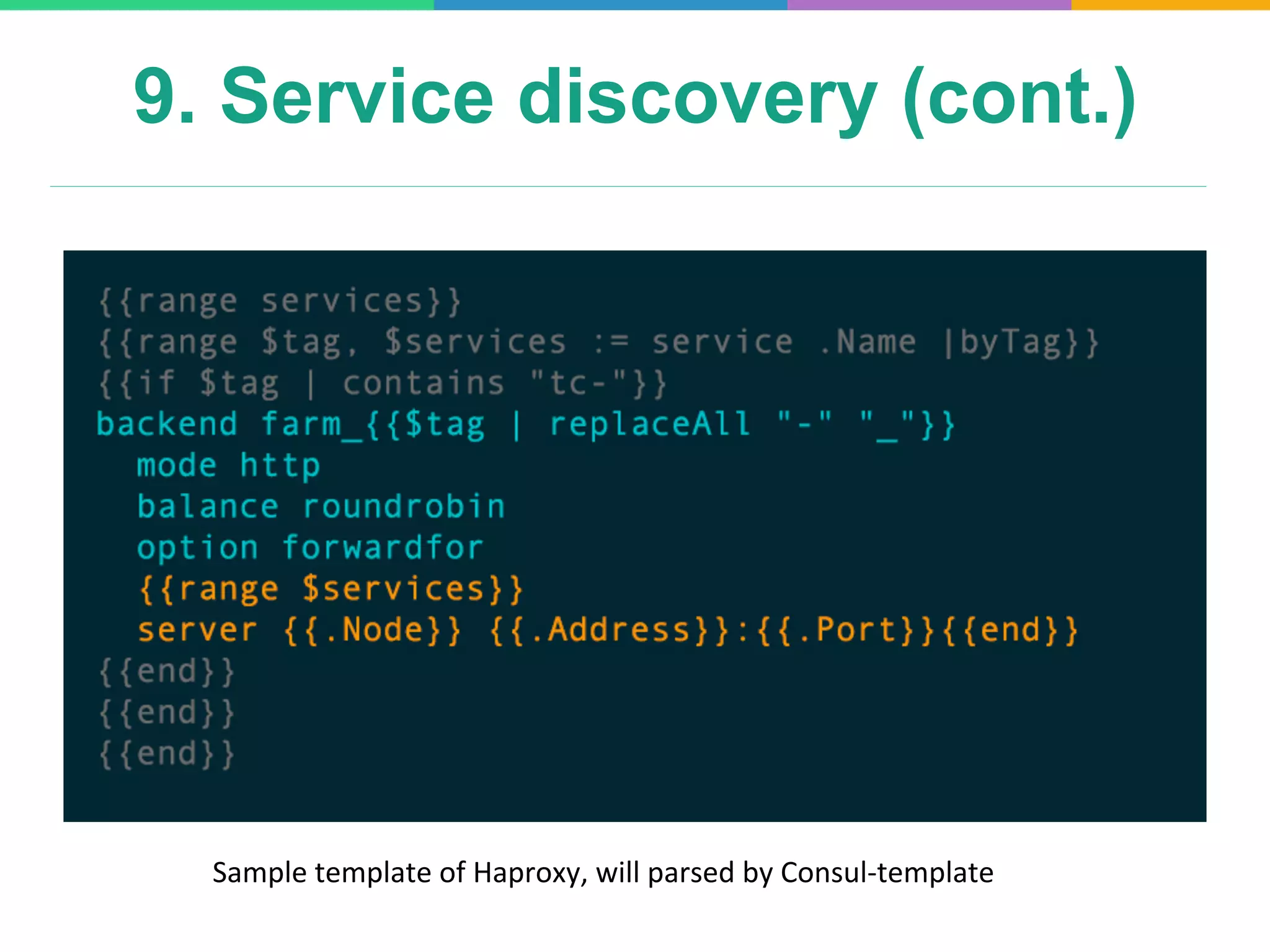

27. 9. Service discovery (cont.)
Sample
template
of
Haproxy,
will
parsed
by
Consul-­‐template

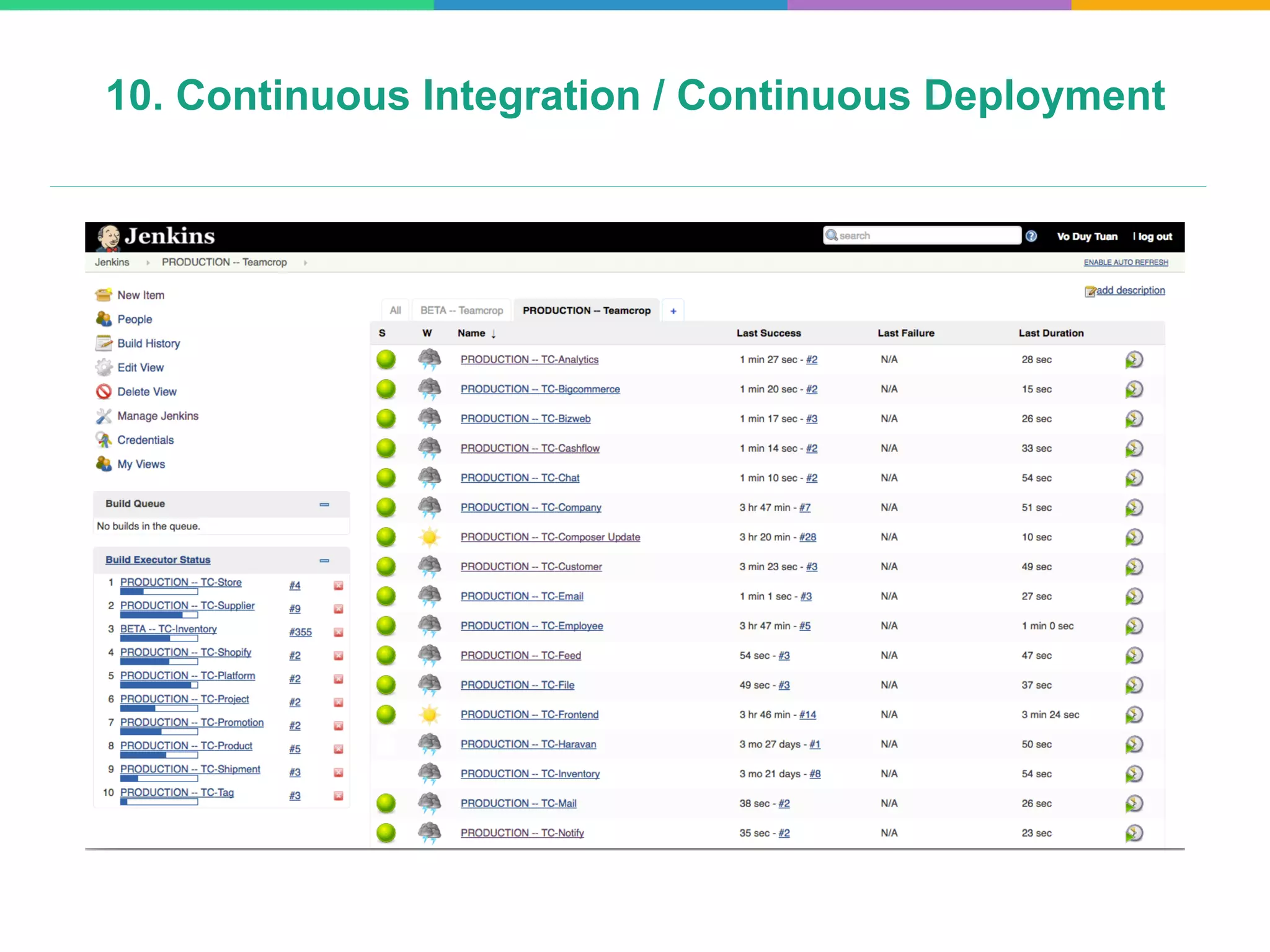

28. 10. Continuous Integration / Continuous Deployment

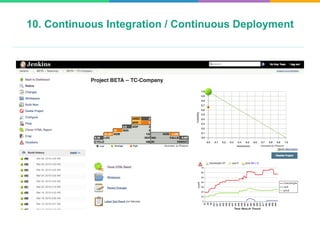

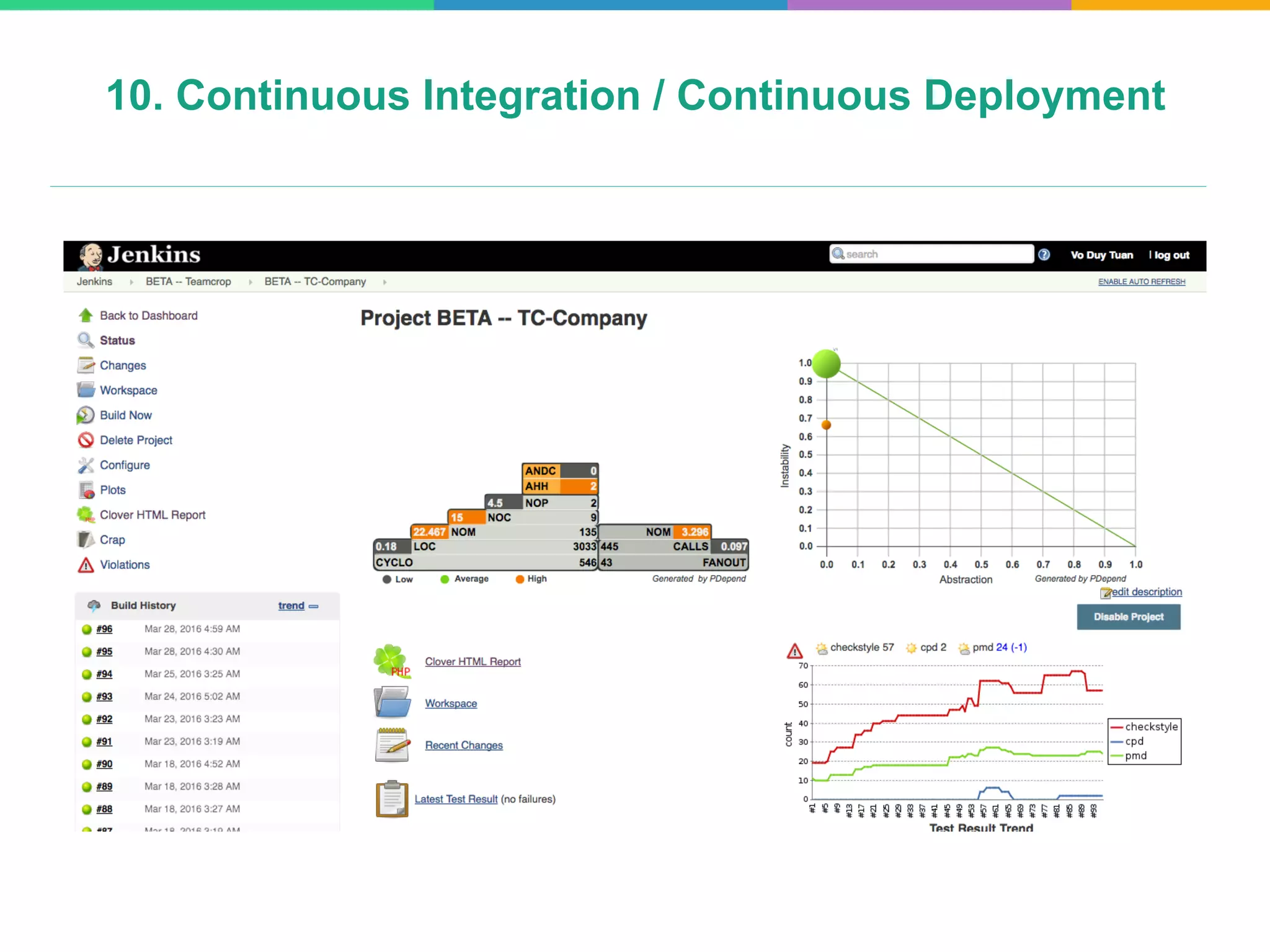

29. 10. Continuous Integration / Continuous Deployment

30. Thanks!
CONTACT:
tuanmaster2012@gmail.com
0938 916 902
teamcrop.com
