1. Microservices
Patterns & Practices
By : Meysam Javadi
SANAY

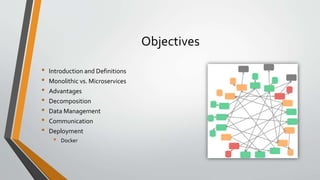

2. Objectives
• Introduction and Definitions
• Monolithic vs. Microservices
• Advantages
• Decomposition
• Data Management
• Communication
• Deployment
• Docker

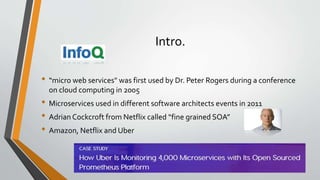

3. Intro.
• “micro web services" was first used by Dr. Peter Rogers during a conference
on cloud computing in 2005
• Microservices used in different software architects events in 2011
• Adrian Cockcroft from Netflix called “fine grained SOA”
• Amazon, Netflix and Uber

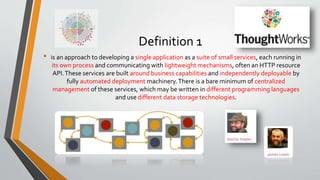

4. Definition 1
• is an approach to developing a single application as a suite of small services, each running in
its own process and communicating with lightweight mechanisms, often an HTTP resource
API.These services are built around business capabilities and independently deployable by
fully automated deployment machinery.There is a bare minimum of centralized
management of these services, which may be written in different programming languages
and use different data storage technologies.

5. Definition 2
• The microservice architecture is an architectural style that structures an application
as a set of services
• Each microservice is:
• • highly maintainable and testable
• • loosely coupled
• • independently deployable
• • organized around business capabilities
• • owned by a small team
Chris Richardson

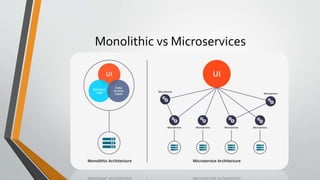

6. Monolithic vs Microservices

7. Monolithic architecture: -ilities decline over
time
• Size/Complexity
• Maintainability
• Testability
• Deploy ability
• Modularity
• Evolvability
Risk of
Disruption
Time

8. Advantages of Microservices
• Shrinking Big problems and Small teams
• Continuous Integration/Continuous delivery & Fast iteration
• Improved maintainability
• Better testability
• Fault & Performance isolation
• Technology independent
• Scalability

9. Decomposition
How to decompose an application into services?
• Business capability
• Stable architecture since the business
capabilities are relatively stable
• Development teams are cross-functional,
autonomous, and organized around
delivering business value rather than
technical features
• Services are cohesive and loosely coupled

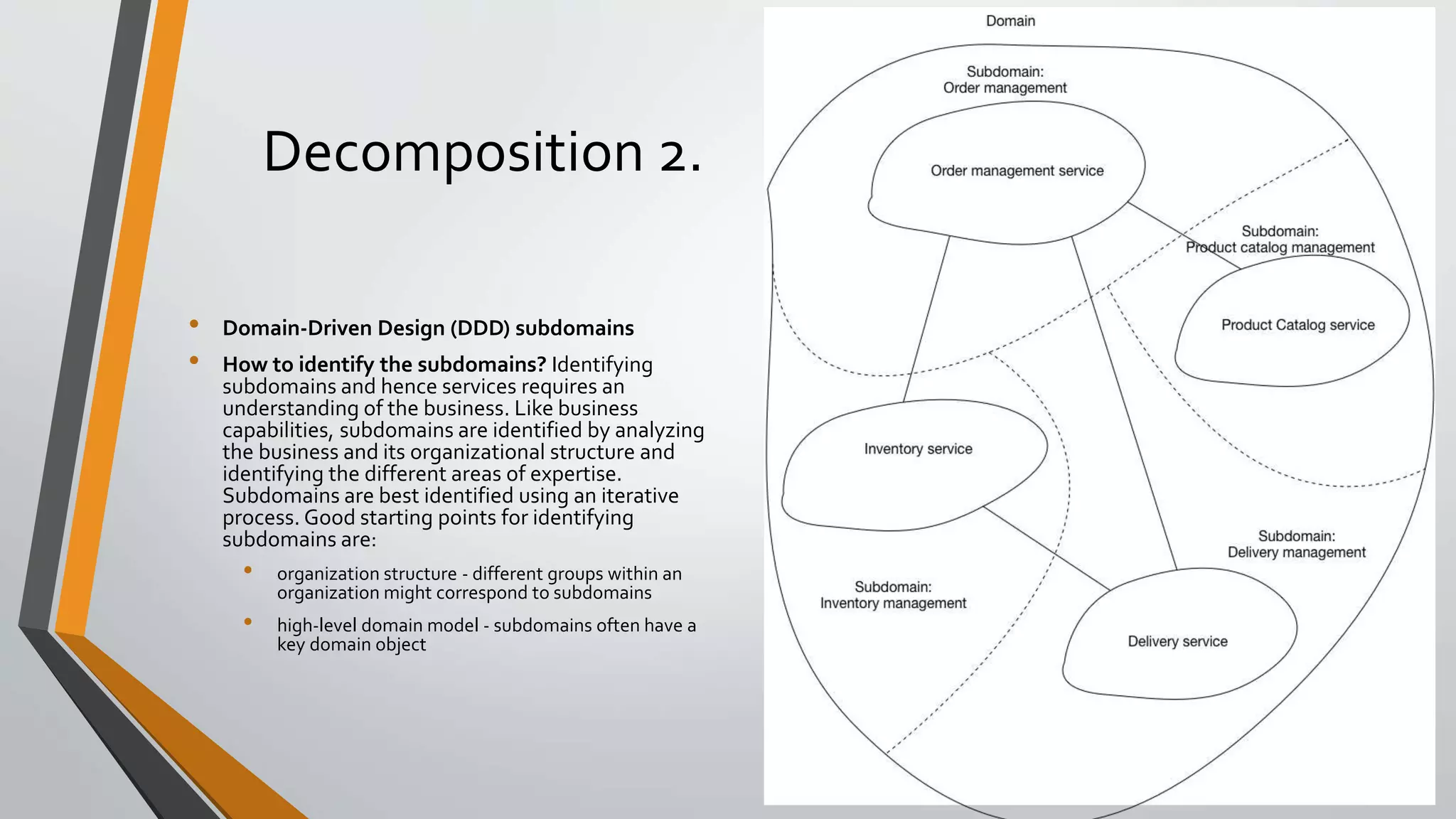

10. Decomposition 2.
• Domain-Driven Design (DDD) subdomains
• How to identify the subdomains? Identifying
subdomains and hence services requires an
understanding of the business. Like business
capabilities, subdomains are identified by analyzing
the business and its organizational structure and
identifying the different areas of expertise.
Subdomains are best identified using an iterative
process. Good starting points for identifying
subdomains are:
• organization structure - different groups within an
organization might correspond to subdomains
• high-level domain model - subdomains often have a
key domain object

11. Decomposition 3.
• Service per team
• Enables each team to be autonomous
and work with minimal coordination with
other teams
• Enables the teams to be loosely coupled
• Achieves team autonomy and loose
coupling with the minimum number of
services
• Improves code quality due to long term
code ownership

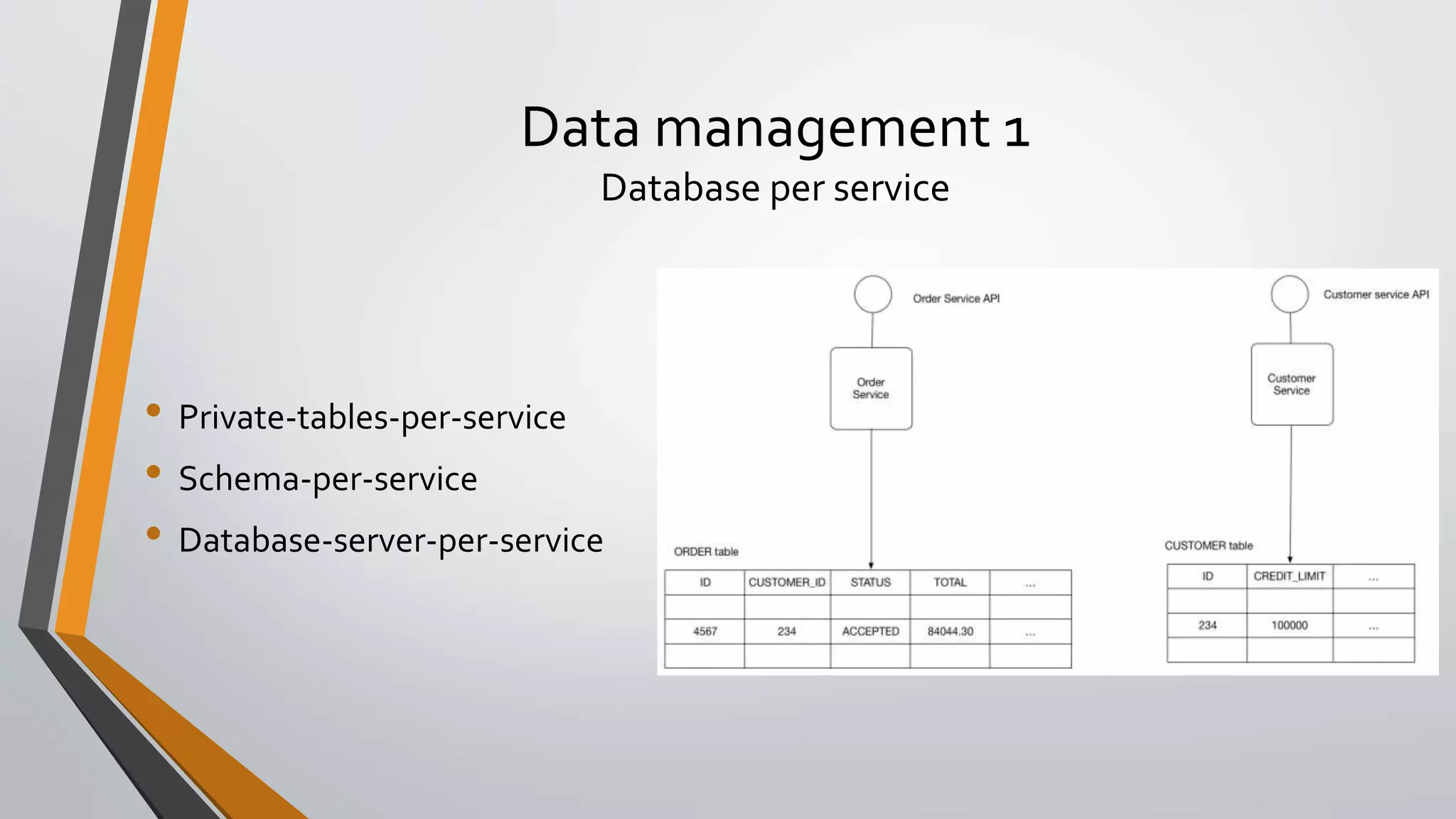

12. Data management 1
Database per service
• Private-tables-per-service
• Schema-per-service
• Database-server-per-service

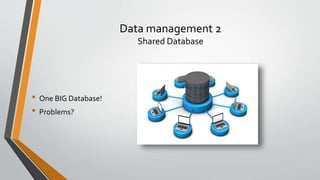

13. Data management 2
Shared Database
• One BIG Database!
• Problems?

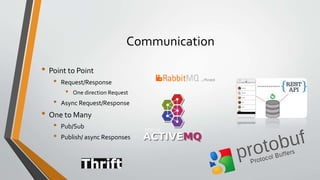

14. Communication
• Point to Point
• Request/Response
• One direction Request
• Async Request/Response
• One to Many
• Pub/Sub
• Publish/ async Responses

15. Index Page
API Gateway

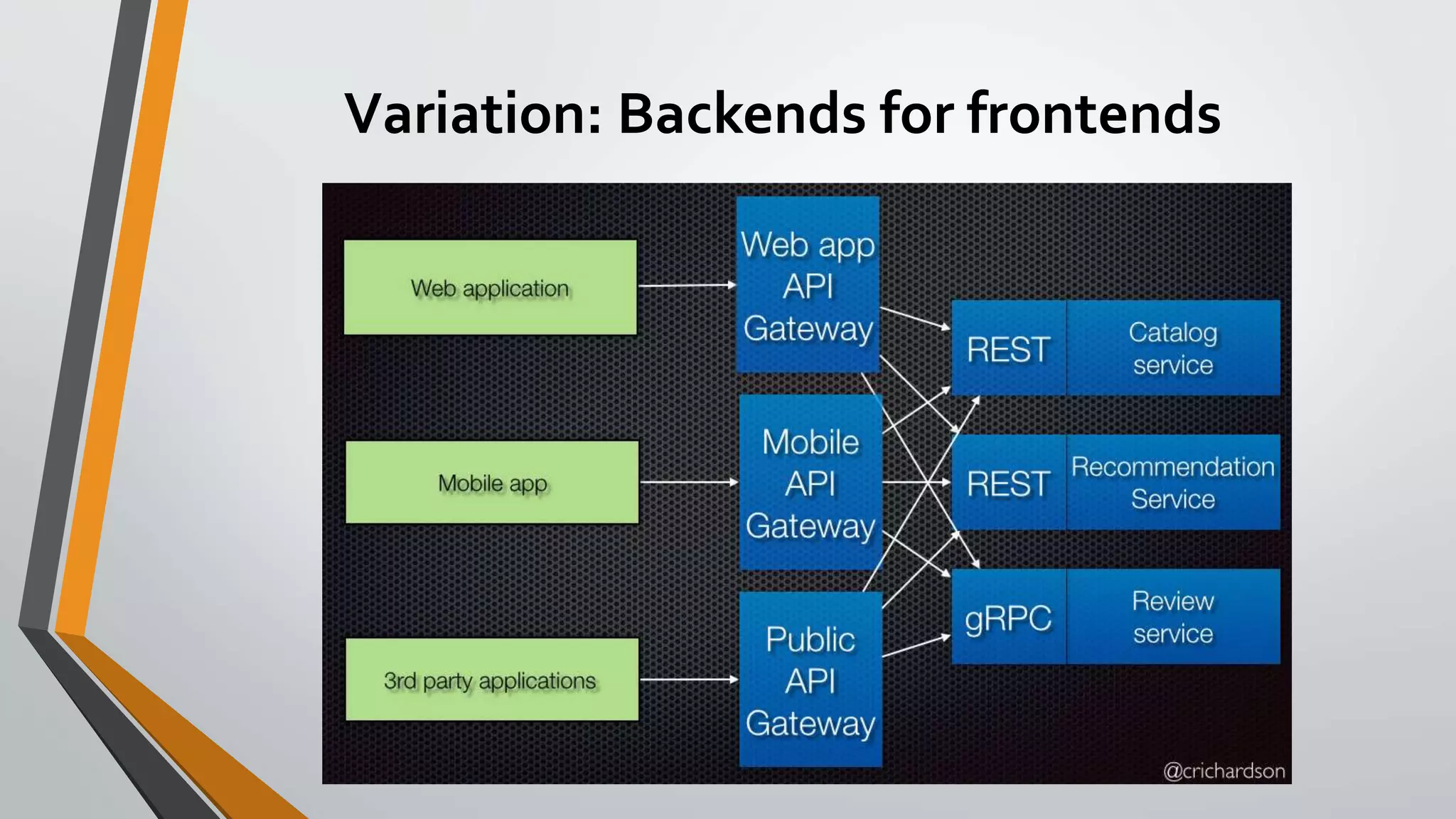

16. Variation: Backends for frontends

17. Deployment Requirements
• Services are written using a variety of languages, frameworks, and framework
versions
• Each service consists of multiple service instances for throughput and availability
• Building and deploying a service must be fast
• Service must be deployed and scaled independently
• Service instances need to be isolated
• Resources consumed by a service must be constrained
• Deployment must be cost-effective

18. Introduction to Docker

19. What Is Docker?
• Lightweight, Simplify building, shipping,
running apps
• Runs natively on Linux orWindows Server
• Standardized packaging for software and
dependencies
• Isolate apps from each other
• Share the same OS kernel
• Runs onWindows or Mac Development
machines
• Relies on "images" and "containers"

20. Some Docker vocabulary
Docker Image
The basis of a Docker container. Represents a full application
Docker Container
The standard unit in which the application service resides and executes
Docker Engine
Creates, ships and runs Docker containers deployable on a physical or
virtual, host locally, in a datacenter or cloud service provider
Registry Service (Docker Hub(Public) or Docker Trusted
Registry(Private))
Cloud or server based storage and distribution service for your images

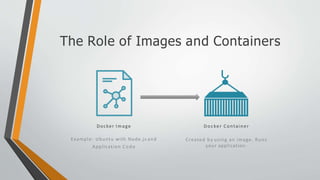

21. The Role of Images and Containers
Docker Image
Example: Ubuntu with Node.js and
Application Code
Docker Container
Created by using an image. Runs
your application.

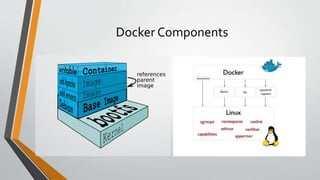

22. Docker Components

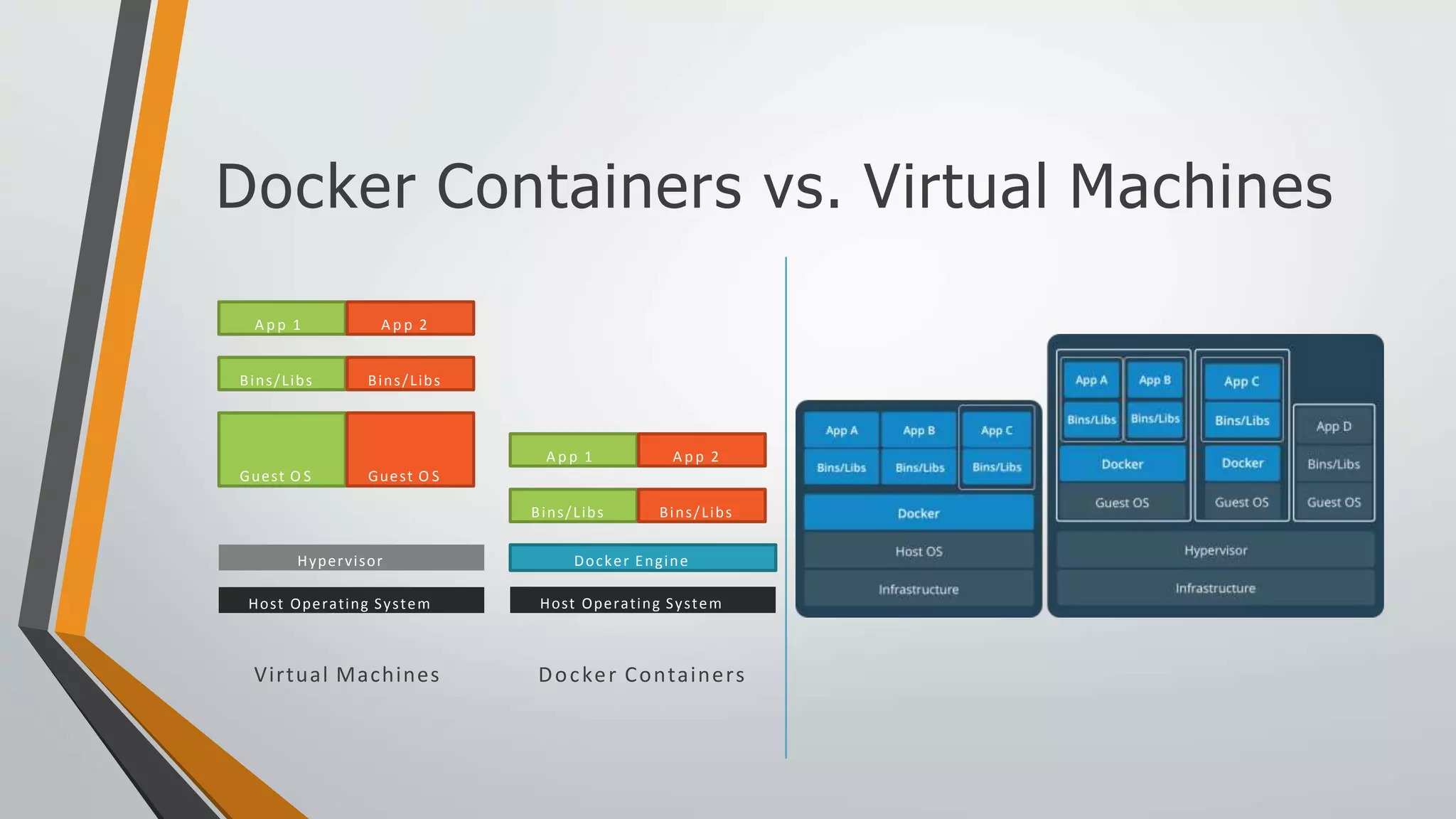

23. Docker Containers vs. Virtual Machines
A p p 1 A p p 2
Bins/Libs Bins/Libs
Guest O S Guest O S
Hypervisor
Host Operating System
A p p 1
Bins/Libs
A p p 2
Bins/Libs
Docker Engine
Host Operating System
Virtual Machines Docker Containers

24. Basic Docker Commands
$ docker image pull node:latest
$ docker image ls
$ docker container run –d –p 5000:5000 –-name node node:latest
$ docker container ps
$ docker container stop node(or <container id>)
$ docker container rm node (or <container id>)
$ docker image rmi (or <image id>)
$ docker build –t node:2.0 .
$ docker image push node:2.0
$ docker --help

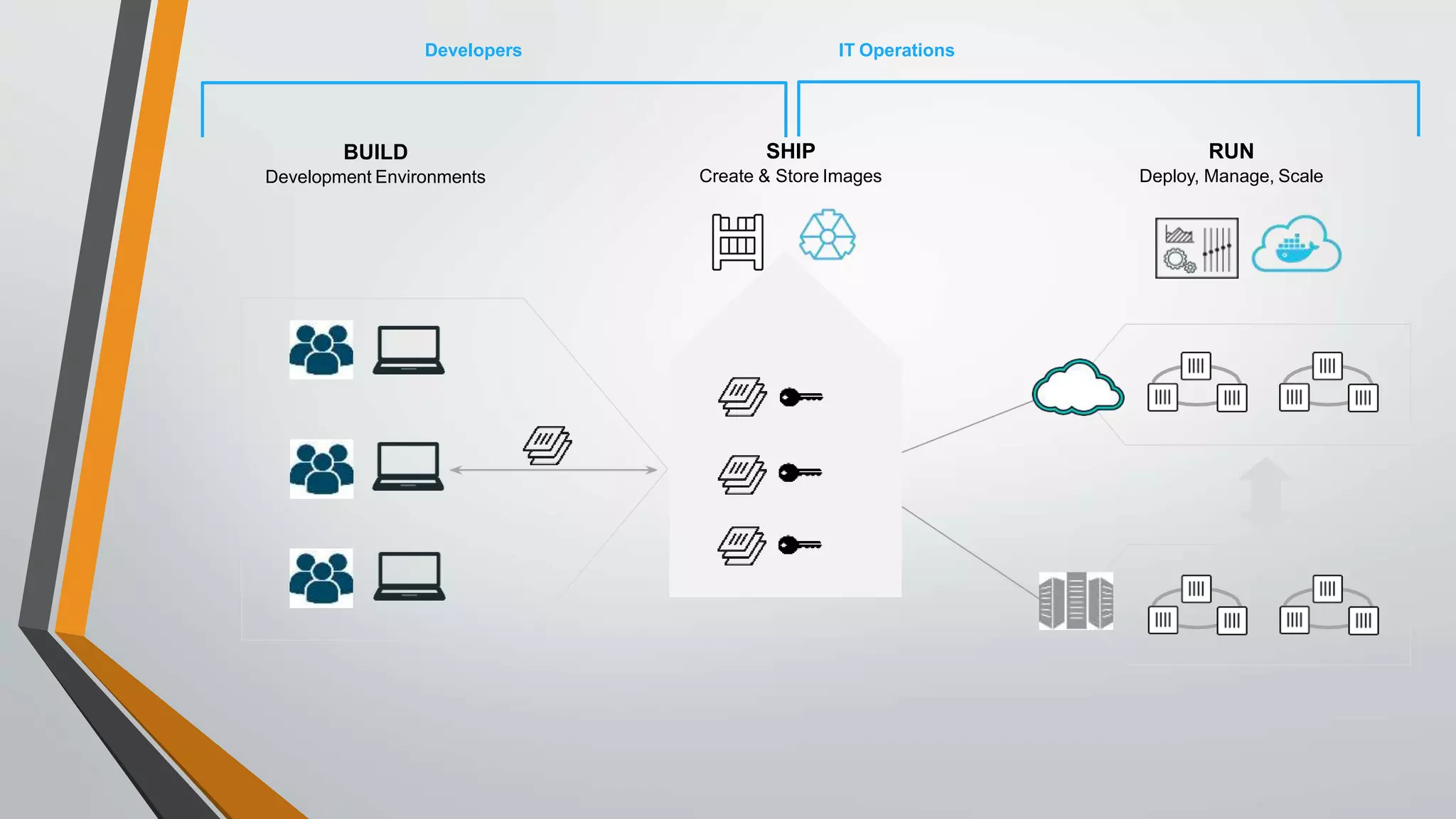

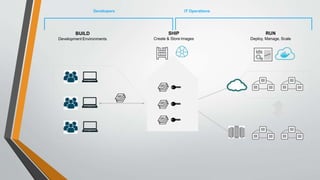

25. Developers IT Operations
BUILD
Development Environments
SHIP
Create & Store Images
RUN
Deploy, Manage, Scale

26. Deployment Patterns
• Multiple service instances per host
• Service instance per host
• Service instance perVM
• Service instance per Container
• Serverless deployment
• Service deployment platform

27. Deployment Patterns
Multiple service instances per host
• Benefits
• Efficient resource utilization
• Fast deployment
• Drawbacks
• Poor/Terrible isolation
• Difficult to limit resource utilization
• Risk of dependency version conflicts
• Poor encapsulation of implementation technology

28. Deployment Patterns
Service perVM host
• Benefits
• Great isolation
• Great manageability
• VM encapsulates implementation technology
• Drawbacks
• Less efficient resource utilization
• Slow deployment

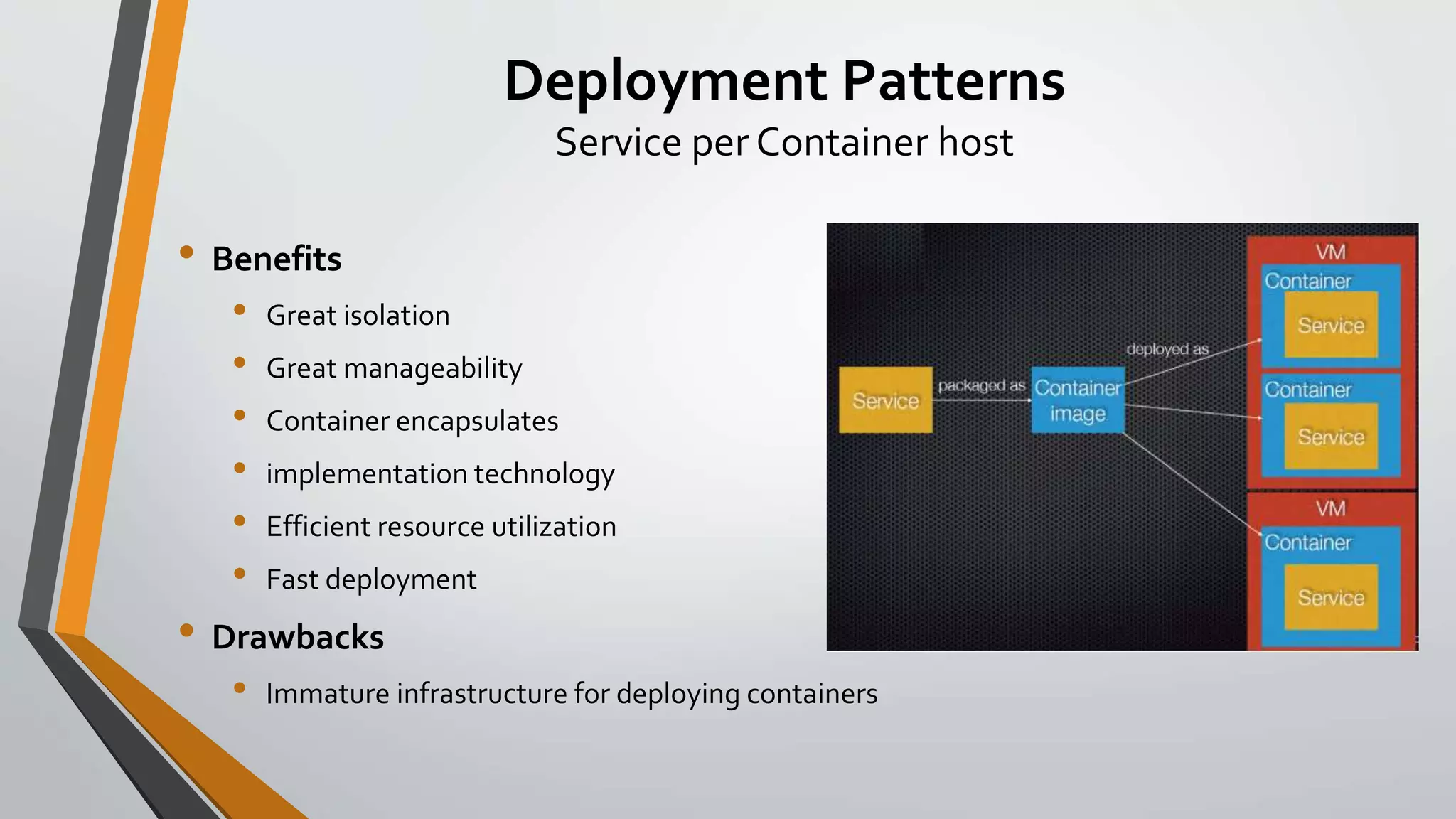

29. Deployment Patterns
Service per Container host
• Benefits
• Great isolation
• Great manageability
• Container encapsulates
• implementation technology
• Efficient resource utilization
• Fast deployment
• Drawbacks
• Immature infrastructure for deploying containers

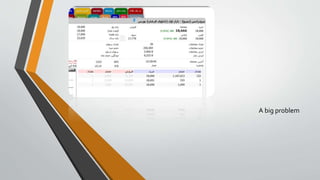

30. A big problem
