Scalable Infrastructure for Distributed Video

White Paper

Scalable Infrastructure
for Distributed Video

June 2008

June 2008 White Paper

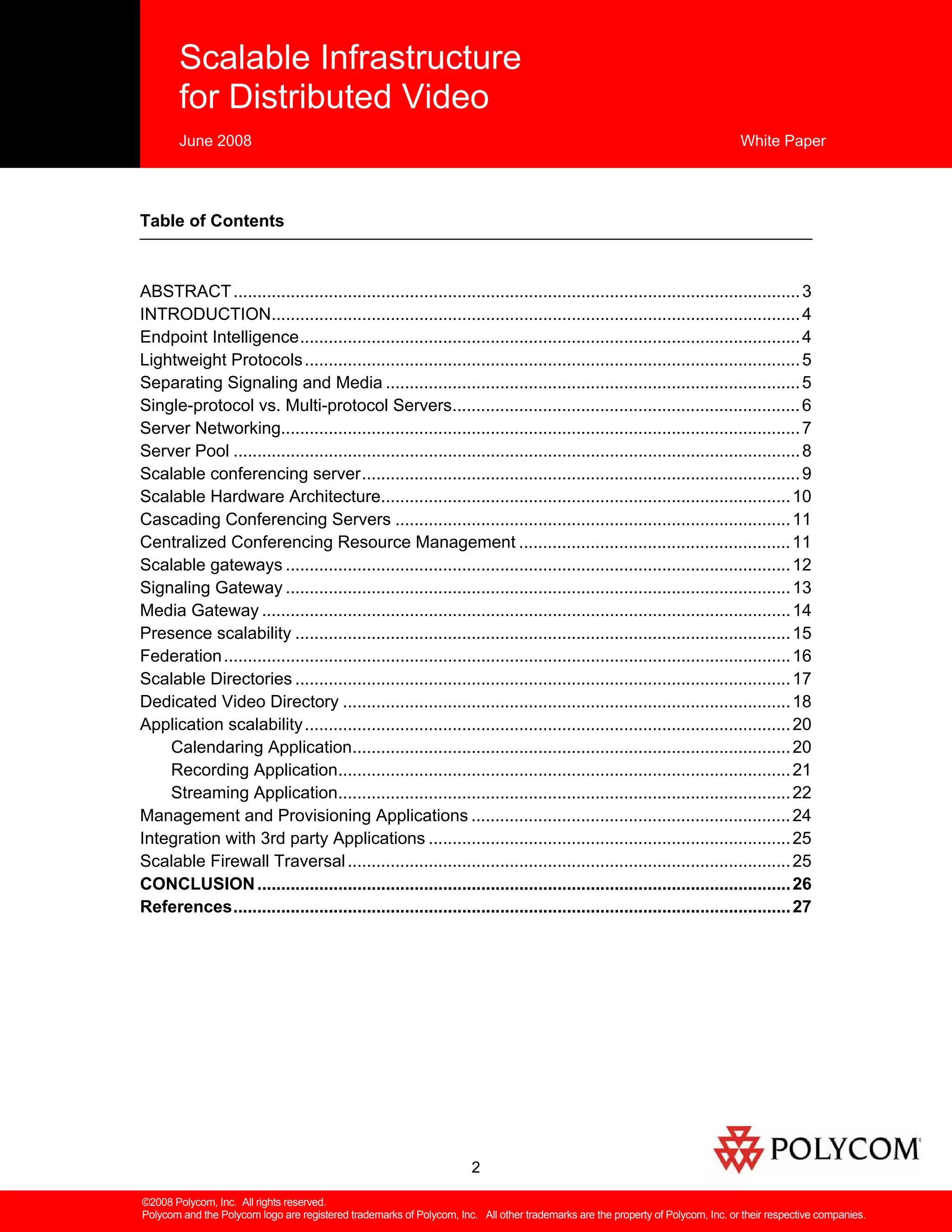

Table of Contents

ABSTRACT ....................................................................................................................... 3
INTRODUCTION............................................................................................................... 4
Endpoint Intelligence ......................................................................................................... 4
Lightweight Protocols ........................................................................................................ 5
Separating Signaling and Media ....................................................................................... 5
Single-protocol vs. Multi-protocol Servers......................................................................... 6
Server Networking............................................................................................................. 7
Server Pool ....................................................................................................................... 8
Scalable conferencing server ............................................................................................ 9
Scalable Hardware Architecture...................................................................................... 10
Cascading Conferencing Servers ................................................................................... 11
Centralized Conferencing Resource Management ......................................................... 11
Scalable gateways .......................................................................................................... 12
Signaling Gateway .......................................................................................................... 13
Media Gateway ............................................................................................................... 14
Presence scalability ........................................................................................................ 15
Federation ....................................................................................................................... 16
Scalable Directories ........................................................................................................ 17
Dedicated Video Directory .............................................................................................. 18
Application scalability ...................................................................................................... 20
Calendaring Application............................................................................................ 20
Recording Application............................................................................................... 21
Streaming Application............................................................................................... 22
Management and Provisioning Applications ................................................................... 24
Integration with 3rd party Applications ............................................................................ 25
Scalable Firewall Traversal ............................................................................................. 25
CONCLUSION ................................................................................................................ 26
References ..................................................................................................................... 27

2

©2008 Polycom, Inc. All rights reserved.
Polycom and the Polycom logo are registered trademarks of Polycom, Inc. All other trademarks are the property of Polycom, Inc. or their respective companies.


ABSTRACT

Video as a tool for enterprise communication is departing the conference room and
becoming a standard element in everyday interactions and workflows. While the benefits
to organizations are myriad – faster, more informed decision-making; improved
knowledge sharing; reduced operating costs, and more – the growth of video is having a
profound impact on the scalability requirements of communication infrastructures.

Commonly required to support perhaps dozens of room-based video conferencing
systems, enterprise communication infrastructures are now required to sustain up to
tens of thousands of users, not only in conference rooms but at their desktops,
immersive environments, remote sites, on mobile devices, and beyond. Additionally,
communication over video is occurring as both real-time point-to-point and multi-point
interactions, and as “on-demand” recording and viewing, in which content is stored,
searched for, and replay video back over the communication infrastructure.

Distributed video provides a solution to the challenge of scalability, and an architecture
combining the high quality of room-based telepresence experiences with the ease-of-use
of personal video. This paper explores several key components that enable creation of a
scalable, distributed video architecture supporting the evolving requirements of the
video-enabled enterprise, as well as service providers seeking to offer video services to
their enterprise and SMB customers.

Fundamental elements of a distributed video architecture include the call processing
server, the conferencing server (MCU) and the gateway to other networks, while a more
complete solution also includes directories and the ability to integrate with third-party
applications. Today, presence capabilities provide important functionality and are
considered a core requirement for communication systems. Therefore, this paper will
address both the scalability of the call processing server, conferencing server and
gateways and the scalability aspects of directories, presence servers and the means for
integration with third-party applications.

3



INTRODUCTION

The heart of any communication system is the communication server. Also termed a
‘call manager’, ‘communication manager’, ‘gatekeeper’, ‘SIP server’, or ‘IP-PBX’, by any
name a communication server performs the same essential task: keeping track of all
communication endpoints in the network, and providing services according to a
particular endpoint’s profile, i.e. an endpoint installed in a corporate lobby is restricted
from making external calls. Modern communication servers can also apply policies to a
given user instead of an endpoint through a logon/authentication procedure, e.g., Bill in
Customer Service can only receive calls, while Joe in Accounting can place inbound and
outbound calls.

Communication servers can also process calls among endpoints, keep track of call
states, interact with endpoints in the network to provide logical prompts and options to
users, and keep records for each call (Call Detail Records) for inter-departmental
accounting and for billing, which is particularly important if the communication system is
shared among several companies or provided through a service provider.

What makes a communication server scalable? Scalability is basically the ability to serve
more users, i.e., if one server can support maximum 1,000 users and another server can
support 10,000, the second server is 10 times more scalable than the first. Keeping
1,000 or 10,000 users in the user database of the server is usually not an issue. So what
really limits the scalability is the amount of calls per second that the server can process.
Statistically, when more users are registered with the server, more calls are placed. If
the number of calls per second exceeds the maximum supported by the server’s
architecture, it becomes slow and starts rejecting/dropping calls. The number of calls per
second that a server can process depends mainly on the complexity of the networking
protocols.

Endpoint Intelligence
Protocols between an endpoint and server can be stimulus or functional. For example,
proprietary signaling protocols used in legacy PBXs are stimulus and some standard
protocols such as MGCP are stimulus, too. Stimulus protocols are used to keep
endpoints simple and inexpensive. The endpoint’s profile (number of keys, size of
display, etc.) as well as the call state information (e.g., is the endpoint on-hook or off-
hook, is there an active call, etc.) are all kept in the server. If the user lifts the handset or
presses a key, the endpoint sends a code to the server. The server then interprets the
user’s action and sends instructions to the endpoint how to respond, e.g. what string of
symbols to show on the display. The system therefore fully controls the endpoint and
can place calls, answer calls and perform all call features on the endpoint’s behalf. Since
all information about the device is centrally stored in the communication server,
scalability of such systems is limited.

4



Standard protocols such as the Session Initiation Protocol (SIP) and H.323 on the other
hand are functional, i.e., the endpoint itself is intelligent and can place calls, initiate
transfers, etc. based on user input. The server only receives signaling messages,
executes them or passes them to other network elements that can execute them. Putting
intelligence in the endpoints allows communication servers to be simplified and made
more scalable.

Lightweight Protocols
Lightweight protocols such as SIP require a smaller number of messages to setup and
tear down a call1). The amount of call state information that the server has to store is
also less. This automatically increases the scalability of the communication server.
Another such protocol is the Lightweight Directory Access Protocol (LDAP) that is used
by endpoints and communication servers to retrieve information from directories; this is
discussed below. The directory is the list of all users with their contact information. If the
directory is embedded in the communication server, the complexity of the directory
access protocol directly impacts the server performance, i.e. using a lightweight directory
access protocol is a requirement for a scalable communication system.

For example, management applications running on Polycom Proxias™ Application
Server and Development platform can query directories via LDAP. To increase
scalability and decrease the load on the LDAP server, some of the information is cached
and updated periodically.

Separating Signaling and Media
Media includes the audio and video streams among endpoints. Audio is usually
compressed, e.g. using one of the standard G.7xx codecs while video is usually
compressed by one of the standard H.26x codecs. Processing media, and especially
video media, is very resource-intensive. Therefore, the best way to keep the
communication server scalable is to process the media separately (see Figure 1). This is
possible with most modern protocols – both SIP and H.323 clearly separate signaling
from the media1). If the communication server only processes signaling messages, but
no media, its scalability is higher by several magnitudes.

5



Figure 1: Scalability through signaling and media separation

For example, Proxias is a signaling server without any media stream processing. Similar
to the configuration in Figure 1, Proxias supports both H.323 and SIP. Both signaling
stacks allow video end points to establish RTP/RTCP stream using either one of the
protocols.

This architecture works very well within an enterprise. But, if a firewall must be
traversed, many solutions that combine signaling and media and feed them through the
so called Session Border Controller will also limit scalability. This is explained in more
detail below.

Single-protocol vs. Multi-protocol Servers
Single-protocol servers can inherently scale better than multi-protocol servers. The
reason is that multi-protocol servers must translate every call from one protocol to
another, i.e. they have to understand both message formats and keep call state
information for both call legs (see Figure 2).

6



Figure 2: Multi-protocol server architecture

An analogy would be a group of people speaking the same language and another group
of people speaking different languages using a translator. The second group will be
slower in their discussion.

Server Networking
Following the guidelines above allows creating a communication server that scales to as
many as 10,000-40,000 users. What if we need a solution for a company that has
100,000 employees worldwide? Additional scalability can be achieved through
networking of communication servers. Networking is connecting two or more
communication systems through a protocol, i.e. a common language understood by all
systems in the network. Protocols for networking of systems are a little different from the
protocols between an endpoint and a server. The difference is mainly around the fact
that in the system-to-system protocol each side is a server that is responsible for many
endpoints. It is inefficient to exchange information about each endpoint associated with a
server separately. The information is aggregated and communicated through call routing
rules.

In H.323 networks, this is done by prefixes, i.e. sever A is configured to know that if an
user dials ‘4’+ 5 digits, the destination is an user on server B. If the user dials only 5
digits, server A knows the call is local and will try to route it to the appropriate user on
server A. SIP uses the domain name concept – similar to the email system. Server A
has its own domain, e.g. serverA.enterpriseX.com, and server B has its own, e.g.
serverB.enterpriseX.com. User A on server A is identified by the address
userA@serverA.enterpriseX.com while user B on server B is identified by the address
userB@serverB.enterpriseX.com. If user A dials the address of user B, server A will

7



recognize the domain of server B and send the call to server B. Addresses in the above
format are called Universal Resource Identifiers (URIs).

The question is how will users remember these numbers and prefixes (in H.323) and
URIs (in SIP). Fortunately, they do not really need to do so because this information is
stored in the directory and can be accessed, searched, and selected (clicked on) to
place a call. Figure 3 displays server networking and the use of directories.

Figure 3: Scalability through server networking

For example, several servers running video applications on top of Proxias can register
with a gatekeeper or a SIP server to provide increased scalability (beyond a single
system).

Server Pool
In the discussion above, each of the communication servers in the network has different
users. Another way of deploying multiple servers is as a redundant pool of resources
that serve the same but larger group of users. This configuration has greater redundancy
with two servers and can have even higher redundancy with 3 or more servers. If one
server fails or is taken down for maintenance (e.g. upgrading software), incoming calls
are just routed to another operational server. Figure 4 shows the configuration with two
servers.

8



Figure 4: Server redundancy and load balancing

This is, for example, the default configuration for video applications on Proxias. Two
servers are deployed in a cluster configuration; additional servers could be added if
needed. The database engine and storage is deployed on both servers. Both databases
are kept in sync real time using data replication mechanism. This approach provides a
simple deployment scenario and removes the single point of failure.

Scalable conferencing server
The conferencing server, also called Multipoint Conferencing Unit or MCU in the H.323
architecture, is the main component for multipoint calls. It receives audio and video
streams from each endpoint participating in the conference, combines multiple images
into one (this technology is known as Continuous Presence) and sends the combined
image to the participating endpoints. The conferencing server can translate the audio
and video from one format to another, i.e., receive video in H.263 and send video in
H.264 format, receive audio in G.711 and send audio in Siren 22 format.

This function is known as transcoding and requires significant computing resources
(typically via Digital Signaling Processors = DSP’s), and unlike general purpose media
servers, are designed specifically for processing business quality video. This is
especially true for video because it involves decoding the digital video stream from one
format into uncompressed video and then encoding it in another format. Note that
scalability can be increased by using conference servers in video switched mode which
circumvents transcoding (and therefore the server needs far less computing resources)
but also limits the flexibility because all parties have to use the best common codec,
resolution, and bit rate.

9



The external interfaces of the conference server require very high input / output speeds
for the multiple audio-video streams. For example, if a server supports 80 participants @
4 megabits per second each (normal speed for High Definition video with High Definition
content sharing), the conferencing server must support 80*4 = 320 megabits per second
input (from endpoints to server) and another 320 megabits per second output (from
server to endpoints). Internally, the server works with uncompressed video which takes
many gigabits per second on the internal interfaces, and requires fast internal
communication links.

Scalable Hardware Architecture
One way to achieve scalability in the conferencing server is through deploying scalable
hardware architecture such as the AdvancedTCA that is used in Polycom RMX 2000.
AdvancedTCA is standard blade architecture, i.e., the standard ATCA blades are
plugged into a standard ATCA chassis. This architecture delivers the high speed
external interfaces, the even higher speed internal interfaces and large blades with
ample space, electrical power, and cooling capacity to accommodate an array of DSPs
necessary to process video2). Figure 5 shows multi-point configuration with a
conferencing server.

Figure 5: Conference server HW scalability

ATCA allows for building larger and even more powerful servers. The existing ATCA
blades can be used in larger chassis hosting up to 14 blades. Note that an alternative
path to scalability is through stacking of small conferencing servers. However, this
approach typically introduces additional delay since media travels from one server to
another via external interfaces. The stacking approach is also inefficient from power

10



consumption and cooling perspective because each server has separate power supply
unit and separate fans for cooling. The ‘green’ aspects of Polycom’s ATCA technology
are discussed in detail in the article ‘AdvancedTCA - Green Technology for Data
Centers’ in CompactPCI and AdvancedTCA Systems magazine3).

Cascading Conferencing Servers
When the scalability of a single conferencing server is exhausted, multiple servers can
be connected through so called ‘cascading’ to handle larger number of conferences and
participants.

Cascading is a mechanism by which one conference server creates a link to another
conference server. This is necessary, for example, when more participants want to join a
conference than resources are available on any of the single servers. The conference
server, or an application managing the server, recognizes that participants on two or
more conference servers have joined a conference with the same conference
identification and password. It then creates a link between the servers, thus connecting
all participants in a single conference. Critical is the speed of creating the cascading link
(ideally, this process should be hidden from the user) and the capability to mask the
additional delay from the additional (cascaded) call leg. Another technical issue that has
been long resolved in Polycom equipment is the picture in picture in picture effect from
multiple Continuous Presence instances.

Centralized Conferencing Resource Management
To make a pool of conference servers behave as one huge conferencing server, we
need a resource management application that tracks the incoming calls, routes them to
the appropriate resource (e.g. based on available server resources but also based on
available bandwidth to the location of this server) and automatically creates cascading
links if a conference overflows to another server. Note that if the conference is pre-
defined, the application server can select a conferencing server that has sufficient
resources to handle the number of participants at the required bandwidth. Overflow
situations are probable with ad-hoc conferencing where participants spontaneously join
without any upfront reservation of resources. Figure 6 shows an example with a Polycom
management application running on Proxias and managing the resources of three RMX
2000 conferencing servers.

11



Figure 6: Managing distributed conference resources

The management application is designed to provide uninterrupted service by routing
calls around failed or busy media servers. It also allows the ability to “busy out” media
servers for maintenance activities. From the user point of view, the service is always
available. The system can gradually grow from small deployments of 1-2 media servers
to large deployments with many geographically dispersed media servers. System
administrators can monitor daily usage and plan the expansion as necessary. This
approach also provides a centralized mechanism to deploy a front end application to
control and monitor conferencing activities across all media servers.

The management application can also act as a load balancer in this scenario, i.e. it can
distribute the load over a group of servers. The larger the resource pool, the more
efficient is the load balancing function. This is very important to large global enterprises
that have offices and conferencing servers spread across the world. The same
technology can be used by service providers who can offer conferencing services
globally by deploying video conferencing servers, and audio conferencing servers such
as ReadiVoice, in central points of the network.

The scenario works well in architectures such as SIP, where the Registrar function is
separate from the Proxy function, i.e., the endpoint is registered with a SIP Registrar in
the network but sends its calls to a pool of SIP Proxies.

Scalable gateways
Gateways are the gates to other networks. If we assume scalable SIP deployment,
gateways will be necessary to connect to the installed base of H.323 or ISDN systems.

12



For connectivity to mobile video deployments, a gateway to H.324M may be required.
Gateways are especially important when a new technology is rolled out, e.g., when new
SIP systems are installed, because most of the users you want to talk to will likely still be
using legacy systems. Most of the calls in these early stages will therefore be gateway
calls. Gateways are not important in green-field installations (without any legacy
equipment or when connection to outside legacy systems is not desired) or when the
new network has reached critical mass and most of the calls stay within the same
domain/protocol.

Signaling Gateway
If a gateway is required, the scalability of the gateway is critical in the early days of
deployment of new technology. Similar to communication servers, the best way to
achieve scalability here is through separating signaling from media and limiting the
gateway function to signaling only. In this case the gateway is no different from a multi-
protocol communication server. It receives messages in one format (e.g., SIP) and
translates them into another (e.g., H.323) and vice versa. This architecture does not
allow the gateway to scale to the levels of a single-protocol communication server but it
can handle much higher load than if media is involved.

Just as an example for the performance impact, if the single-protocol communication
server scales to 30,000 users, adding support of a second protocol (in effect, creating a
signaling gateway) may reduce the scalability to 3,000 simultaneous calls. If media
processing is added to signaling processing, scalability may go down to 300
simultaneous audio-only calls or to 30 simultaneous audio-video calls.
A signaling gateway is only a feasible solution if the media (audio and video) is in the
same format. For example, both H.323 and SIP use the Real Time Protocol (RTP) for
media and are therefore candidates for signaling-only gateway interoperation. Figure 7
includes the configuration.

13



Figure 7: Signaling gateway between SIP and H.323

There are several issues with the signaling gateway approach. Probably the most
important one is that media encryption gets broken if following the respective standards.
SIP for example refers to the Secure Real Time Protocol (SRTP) for media encryption.
This mechanism is completely different from the Advanced Encryption System (AES)
specified by H.323. Therefore, if you follow the standards on both sides and use a
signaling gateway, you have to disable encryption, i.e., send audio and video in the
clear.

Media Gateway
Using a media gateway helps overcome the security problem and gives network
administrators more flexibility during the transition from one protocol to another. It does
limit the scalability since the media gateway often needs to transcode video, i.e.,
requires DSPs and fast external and internal interfaces.

Similar to a conference server, media gateways can scale by avoiding transcoding. The
media gateway controls the communication with the endpoints, and transcoding is only
necessary if the endpoints negotiate different audio/video algorithms, resolutions and bit
rates. If the gateway enforces the same audio/video algorithm, resolution and bit rate
between the endpoints, no transcoding is necessary.

The media gateway is therefore very similar to a conferencing server, and if a call goes
through a conferencing server and through a gateway (see Figure 8) it may get
transcoded twice which typically results in decreased picture quality. Why is that? Let’s
look at the analogy with language translation. If you translate from English to German,
you lose some information but the quality is still acceptable. If you then give the German

14



version to someone else to translate it into Russian, the final version will be far away
from the original, and probably not acceptable.

Figure 8: Media gateway configuration

Therefore, the logical question is: why not use the conferencing server as a gateway? It
already must be in the network, and it does have the required functionality to support
multiple protocols, e.g., RMX 2000 supports H.323, SIP, ISDN and PSTN. Note that
media gateway (with transcoding) is a must when the connected networks have
completely different physical layer, e.g. H.323 to ISDN or SIP to H.324M. The only
disadvantage of using the conferencing server as a gateway is the relatively high price
per port.

Presence scalability
Over the last few years, presence became entrenched in business communications,
mainly through the use of Microsoft Office Communications Server and IBM SameTime.
In recent industry discussions (early 2008), presence was cited as a key component of
unified communications.

Presence is delivered through client-server architecture; XMPP and SIMPLE are the two
prevailing protocols for implementing it. The user interacts with the presence client which
communicates with the presence server. The server keeps track of the presence status
for all users on the system and can get presence information for users on other
presence systems through the so-called federation (a form of networking). Similar to
other servers, there are two ways to scale: create a scalable presence server that can

15



handle tens of thousands of users (Figure 9) or interconnect multiple presence servers in
a network.

Figure 9: Scalable presence server architectures

With ever growing number of tools for automatic changes of the presence status and the
growing number of contacts that users add to their buddy lists, presence servers are
required to handle many, frequent updates and communicate them to a large group of
users. The server has to then keep larger tables and communicate the change of
presence status to larger group of clients. When the scalability of a single server is
exhausted, networking techniques such as federation are deployed to support larger
deployments.

Note that while Instant Messaging is usually mixed with presence, it is a completely
separate functionality that does not necessarily belong to a presence server.

Federation
Federation is a trust relationship between presence servers that allows them to
exchange information about the presence status of their users. Figure 10 shows
federation relationship between two presence servers.

16



Figure 10: Scalability through federation

Note that the term ‘federation’ is sometimes used for more than just exchange of
presence information, e.g. exchange of directory information, gatekeeper neighboring
information and licensing information may be also called ‘federation’.

From the two standard protocols for presence (XMPP and SIMPLE), XMPP has found
wider adoption in the Internet which indicates that higher scalability is expected from this
protocol. XMPP server federation follows the proven and scalable model of Internet
email which meets the needs of the individual domain for flexibility and control. Each
XMPP domain can define the level of security, quality of service and manageability that
make sense for the organization. Exchange of presence information within one XMPP
domain is through the XMPP server in this domain. The server exchanges presence
information with peer XMPP servers in other organizations.

Scalable Directories
As discussed in the section on the communication server, directories solve the problem
with different dialing formats. Corporate IT organizations have been converging dozens
of directories into one directory structure that allows changes (adds, moves, and deletes)
to be automatically propagated to applications across the enterprise. The goal is to be
able to add or remove an employee in one master database and have all tools that
employee uses (email, phone, presence/IM, and web) automatically learn about the
change.

The Lightweight Directory Access Protocol (LDAP) emerged as the standard for
accessing directories, any directory. Polycom VC2 postulates that visual communication
will be closely integrated in the corporate IT environment and this includes integrating

17



the directory of visual communication users with the IT directory. The ITU-T H.350
standard describes a LDAP schema for visual communication users, i.e., H.350
describes how to store VC specific parameters into and LDAP database. Figure 11
describes the configuration.

Figure 11: Directory access mechanism

LDAP and H.350 are supported in many popular directories such as Microsoft Active
Directory and Sun OpenLDAP.

Dedicated Video Directory
Polycom’s VC2 vision clearly sees video fully integrated with the IT infrastructure in the
enterprise. This includes integrating video directories with the IT directories that keep
user information for network access, VPN access, email, web access, etc. This
integration, however, will phase in via multiple stages. In the first stage, a dedicated
video directory will communicate with the IT directory using the standard LDAP protocol.

There are two reasons for using a dedicated video directory. First, endpoints today use
pre-LDAP protocols such as the Polycom Global Address Book (GAB) protocol. Keeping
the video directory separate allows support of GAB and, therefore, of legacy endpoints.
Second, including a directory with the communication server makes a lot of sense since
enterprises may want to pilot new technology and will want to get the system up and
running quickly, i.e., without immediate integration with the corporate IT directory. Third,
enterprise IT directories may not be yet configured for the H.350 schema (although they
all have the capability to support H.350 schema). Figure 12 describes the network
configuration.

18



Figure 12: Using internal directory connected to IT directory

Once the system is approved and a decision is made to integrate it with the IT directory,
the internal directory can be connected to the corporate IT directory. If there is no need
to support legacy endpoints, the internal directory can be turned off and only the main IT
directory can be used (see Figure 13).

Figure 13: Direct integration with corporate IT directory

19



The enterprise directory is scalable as it includes all employees with their profiles.
Important is to understand the impact of the H.350 extensions to the scalability of the
directory.

Depending on the implementation, the directory may be queried more or less frequently.
LDAP is really not designed for fast lookups and the directory behind the LDAP server
component maybe an old X.500 directory running on a mainframe. It is therefore a best
practice to cache the information in the communications server or in the endpoints for a
predefined period of time, so that frequent multiple queries for the same information are
avoided.

Application scalability
It is not sufficient that only the visual communication core system is scalable.
Applications that are connected to it must scale as well. This paper focuses on the
applications of scheduling, recording, streaming, management and on the scalable
integration with third-party applications.

Calendaring Application
While there is a trend of moving from scheduled to ad-hoc video call initiation,
scheduling and calendaring applications remain very important to the regular video user.
Scheduling involves the use of a separate tool to set time, participants and resources for
a video call in the future; calendaring provides close integration with the standard
calendaring software such as Microsoft Outlook/Exchange and IBM Lotus. An example
for a calendaring application is the Polycom SE200 that integrates with both Outlook and
Lotus. Figure 14 explains the configuration for such integrations.

Figure 14: Calendaring application

20



Both Microsoft Exchange and IBM SameTime are scalable applications: they use the
networking mechanisms described in Figure 3 and 4 to support tens and even hundreds
of thousands of users in the network. Based on the discussion so far in this paper, we
can assume that the visual communication network is also scalable to the same
magnitude.

The bottleneck of performance and limiting factor for scalability is, therefore, the link
between the two systems. This, by the way, also applies to integration with any third-
party application as discussed below in this paper.

The speed of the interaction depends on the simplicity of the API or protocol used for the
integration and amount of information that the applications have to exchange.

Recording Application
Recording video communications has become very popular after the release of
recording and playback solutions such as Polycom RSS 2000. It is widely used for
recording lectures and training sessions that can later be viewed by users who were not
able to join the live session. For more convenience in the process, new Polycom HDX
endpoints have additional record, playback, and other navigation keys on their remote
controls. Any video endpoint can connect to the recording server and initiate recording of
the video and content channels. Multipoint calls can be recorded when the conferencing
server connects to the recording server. The conferencing server treats the recording
server as an endpoint and can send any format supported by the conferencing server.

For example, Continuous Presence views can be used for recording multiple sites at the
same time. Once the recording is complete, any video endpoint can connect to the
recording server, authenticate, select the recording and play it back. Figure 15 depicts
the configuration for recording from a conferencing server (Polycom RMX 2000) and
playback from a video endpoint.

21



Figure 15: Recording and playback

Recording requires processing of the video media, and the recording server is, in this
way, similar to a conferencing server. Therefore, the methods for increasing server
scalability discussed above (Figures 5 and 6) apply here as well.

RSS 2000 uses a load balancing algorithm that allows multiple servers to operate as a
pool of resources. If the recording ports on one server are busy, the incoming recording
request is sent to the next available server.

Streaming Application
Streaming is another application that extends the use of video beyond video endpoints
and beyond real-time live calling. Most people typically think of streaming only previously
recorded video content. But in fact, streaming is also a very powerful method for
distributing live events to very large audiences. For example, if the RSS 2000 is
connected to a video call, it streams both the live video and the presentation (content)
channel to hundreds of streaming clients. The streaming client receives the information
with minimum delay of about 10-15 sec. which still allows interaction through instant
messaging, e.g., in a Q&A session.

Streaming is, per definition, a great way to increase scalability. First, streaming is
unidirectional, i.e., audio and video are only transported from the streaming server to the
streaming client, so the client can be a very simple player that runs on general purpose
computers. Today, most clients run on PC’s. However, with the increase of bandwidth in
wireless networks and with the support of media players in mobile devices, streaming to
mobile devices will become more common.

22



Streaming servers have many options to increase scalability. For example, they can limit
the bit rate and thus use less resource processing a particular stream. They can also
limit the number of different bit rates to be supported, and only stream, for example, in
one or two formats at the same time. This also makes the streaming server more
scalable.

Figure 16 describes the streaming application. Unicast means ‘using point-to-point
connections’: the streaming server creates a separate connection (stream) for each of
the clients. Polycom offers streaming from the RSS 2000 and from the video content
management server, the VMC 1000.

Figure 16: Streaming application (unicast)

The ultimate way for creating a scalable streaming platform is by using IP Multicast. This
technology has been available for some time – RFC 11124) was created in 1989.
However, it took years for the switching and routing manufacturers to support the
protocol.

IP Multicast was not a requirement in the Internet, and corporate network administrators
did not push for implementing it due to concerns that multicast traffic would clog the IP
network. Only in recent years have serious considerations around distributing audio and
video streams in a scalable manner throughout the enterprise lead to enabling IP
multicast in corporate networks. Figure 17 describes the how IP multicast delivers media
streams to streaming clients.

23



Figure 17: Streaming via IP Multicast

Once IP multicast is enabled in the IP network, the streaming server (in this case VMC
1000) only needs to send the stream once to the defined multicast IP address. IP
addresses in the range from 224.0.0.0 through 239.255.255.255 are defined as multicast
addresses and are recognized as such by the IP networking equipment.

When the first video endpoint “joins” the multicast, it signals the router - through the
IGMP5) - to forward the multicast packets to its IP subnet. If a second endpoint on the
same IP subnet signals the router to join the same multicast, the router does not send a
second stream but simply continues to send the single multicast stream to the IT subnet.
Since multicast packets are essentially broadcast packets, all endpoints on the same
subnet can receive them. Once all of the endpoints have signaled to “leave” the
multicast (again with IGMP) or have timed out, the router stops forwarding the multicast
stream to this IP subnet.

Management and Provisioning Applications
Management and provisioning are usually lumped together because they are both
related to configuring and monitoring the video endpoints, conferencing servers, end
user personal video accounts, applications and all other components of the ‘video
network’.

Based on the VC2 vision, management and provisioning will seamlessly integrate with
standard IT management and provisioning tools, eliminating the need for separate,
proprietary video-only management and provisioning applications.

In the area of provisioning, it can be expected that some functions in video endpoints
and conferencing servers are so specific that it will not be possible to provision them
through general purpose IT tools. More details on management and provisioning
applications are offered in a separate white paper6).

24



Integration with 3rd party Applications
We already discussed integration with calendaring applications such as MS
Outlook/Exchange and IBM Lotus Notes. The integration with other applications - IP-
PBX, Instant Messaging, Presence soft switches, call center apps, messaging apps -
follows similar architecture.

Figure 18: Integration with third-party applications

The integration is either through standard protocol like H.323 and SIP, or through a
proprietary Application Programming Interface (API). Using a standard protocol for the
integration is the preferred method because standard protocols are very well
documented and described in specifications which either side of the integration can
access. Since the integration options within the standard protocol are limited, the
integration work can then be reused for other integrations. Integrations through protocols
tend to be more scalable since the IP network allows for networking and redundancy as
discussed above. Most current Polycom integrations with third party applications are
based on the use of the SIP protocol that delivers the best scalability.

API’s, on the other hand, are specific to vendor and product, and API integration is rarely
portable to other products and vendors. API integrations also tend to be less scalable
since the mechanism for network scalability discussed above in this paper cannot be
used.

Scalable Firewall Traversal
Firewalls constitute a major problem for IP communications, both VOIP and visual
communications. Application-aware firewalls have been discussed for long time, but in
reality, most firewalls require a traversal mechanism such as H.460.17/18/19 for the
H.323 family of protocols and ICE for SIP.

25



Both architectures require a Session Border Controller that is usually deployed in the so
called De-Militarized Zone (DMZ) of the corporate headquarter or the service provider
data center. There are two connectivity requirements for a SBC. It must have a public IP
address to connect to endpoints over the Internet. It also must connect to the internal
servers - H.323 gatekeepers, SIP servers, MCUs, recording, and streaming servers - in
the corporate headquarters or SP data center.

This example uses Polycom Video Border Proxies (VBPs). The largest VBP is the 6400
model that currently has throughput of 85Mbps and the VBP 5300 with throughput of
25Mbps. Both models can be installed in the DMZ of the corporate headquarters. The
smaller VBP 4350 model supports up to 3Mbps, and is designed for branch offices with
up to 15 video endpoints. The smallest model VBP 200 supports up to 1Mbps and is
designed for small office / home office (SOHO) installations with 1-2 video endpoints.

In many cases, media (both video and audio) needs to go through the SBC in the DMZ,
and the throughput of this box is limiting scalability. Architecturally, the best way to
approach the problem is to implement proxy functionality in the boxes in the branch and
SOHO boxes (hence the name ‘video border proxy’) and send the media directly to the
destination, thus avoiding the loop through the SBC. This mechanism is supported in all
Polycom VBPs, and allows scalable implementations with ten thousands of endpoints
behind firewalls.

CONCLUSION

Polycom’s VC2 vision stresses the importance of scalability for transforming today’s
video conferencing into tomorrow’s visual communication - which will be scalable,
reliable and deeply integrated with the core IT infrastructure.

As we saw in this paper, scalability is a very complex topic and touches on all system
components. Any of the components has the potential to create a bottleneck and limit
the system performance and the scale of the system. The technologies discussed in this
paper overcome these bottlenecks and are the solid foundation of a scalable visual
communication system.

Polycom has developed deep expertise in the core areas of networking and created an
architecture targeting the high-performance requirements of future visual communication
networks. This architecture is designed to support the large number of video users who
will embrace the new kinds of VC2 applications which will bring video into the
mainstream and make visual communication essential in both our personal and
professional lives.

26



REFERENCES

1. Karapetkov, S.H., 2008. Migrating Visual Communications from H.323 to SIP.
Polycom Whitepaper, April 2008. pp. 1.
2. Karapetkov, S.H., 2007. Polycom and ATCA. Polycom Whitepaper, June 2007. pp. 1.
3. Karapetkov, S., 2008. AdvancedTCA - Green Technology for Data Centers. Article in
CompactPCI and AdvancedTCA Systems. http://www.compactpci-
systems.com/articles/id/?3104.
4. Deering, S., 1989. RFC 1112 Host Extensions for IP Multicasting. IETF Document,
August 1989. pp. 1.
5. Fenner, W., 1997. RFC 2236 Internet Group Management Protocol. IETF Document,
November 1997. pp. 1.
6. Karapetkov, S., 2008. Management and Provisioning of Large-Scale Video Networks.
Polycom Whitepaper, June 2008. pp. 1.

27


Scalable Infrastructure for Distributed Video

Recommended

Recommended

More Related Content

What's hot

What's hot (16)

Viewers also liked

Viewers also liked (7)

Similar to Scalable Infrastructure for Distributed Video

Similar to Scalable Infrastructure for Distributed Video (20)

More from Videoguy

More from Videoguy (20)

Scalable Infrastructure for Distributed Video
